Metals 2013, 3(1), 41-48; doi:10.3390/met3010041

Large Compressive Plasticity in a La-Based Glass-Crystal Composite

1 National Metallurgical Laboratory, Jamshedpur 831007, India 2 WPI-AIMR, Tohoku University, 2-1-1 Katahira, Aoba-ku, Sendai 980-8577, Japan 3 Department of Materials Science & Metallurgy, University of Cambridge, Pembroke Street, Cambridge CB2 3QZ, UK
* Author to whom correspondence should be addressed.
Received: 28 November 2012; in revised form: 16 December 2012 / Accepted: 18 December 2012 / Published: 27 December 2012
(This article belongs to the Special Issue Amorphous Alloys)
PDF Full-text Download PDF Full-Text [1164 KB, uploaded 27 December 2012 14:16 CET]

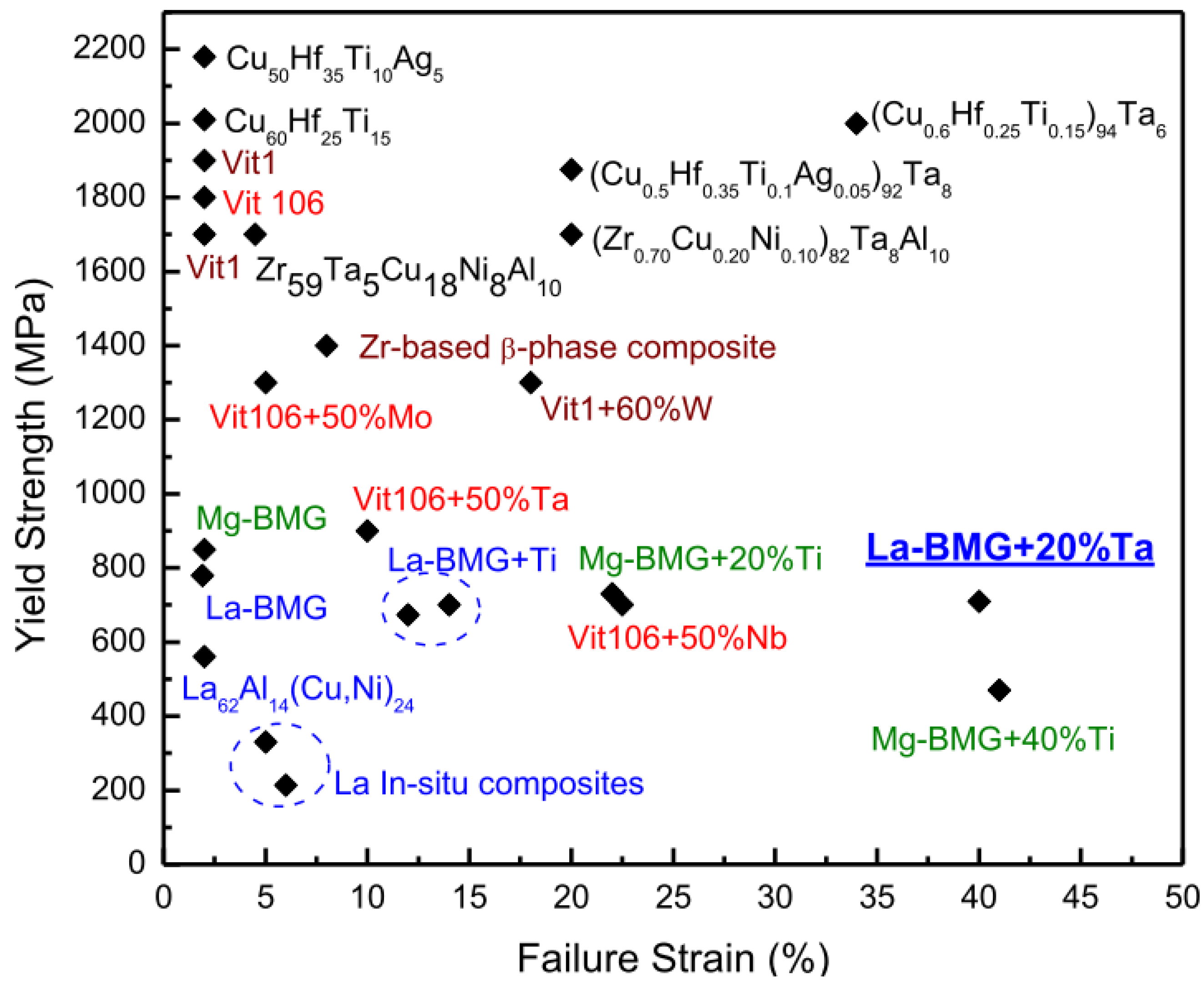

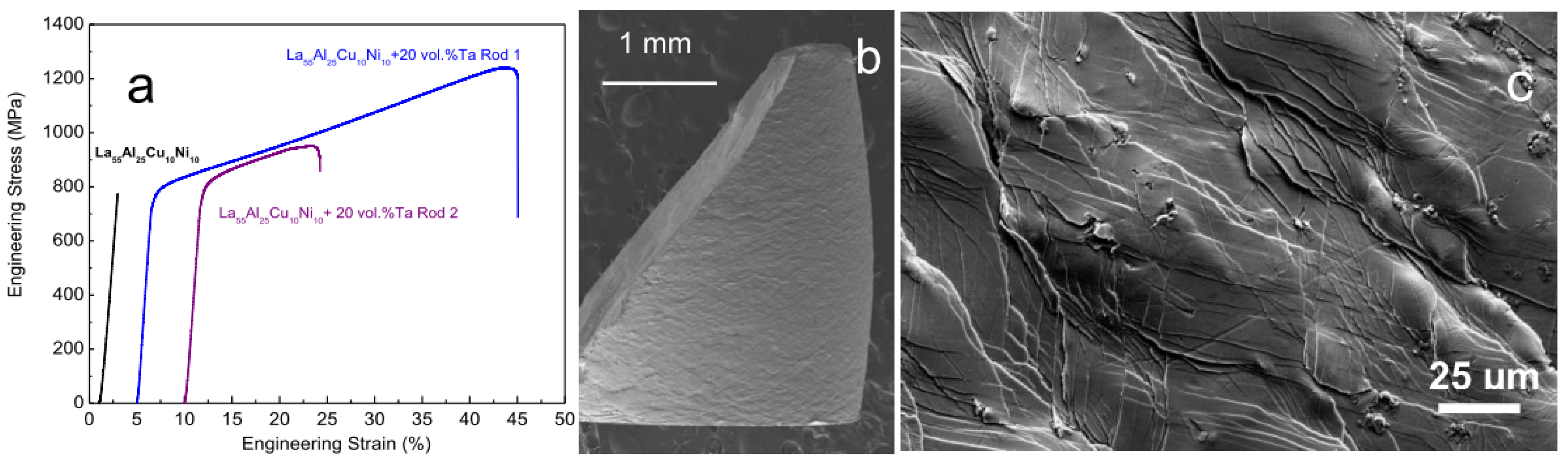

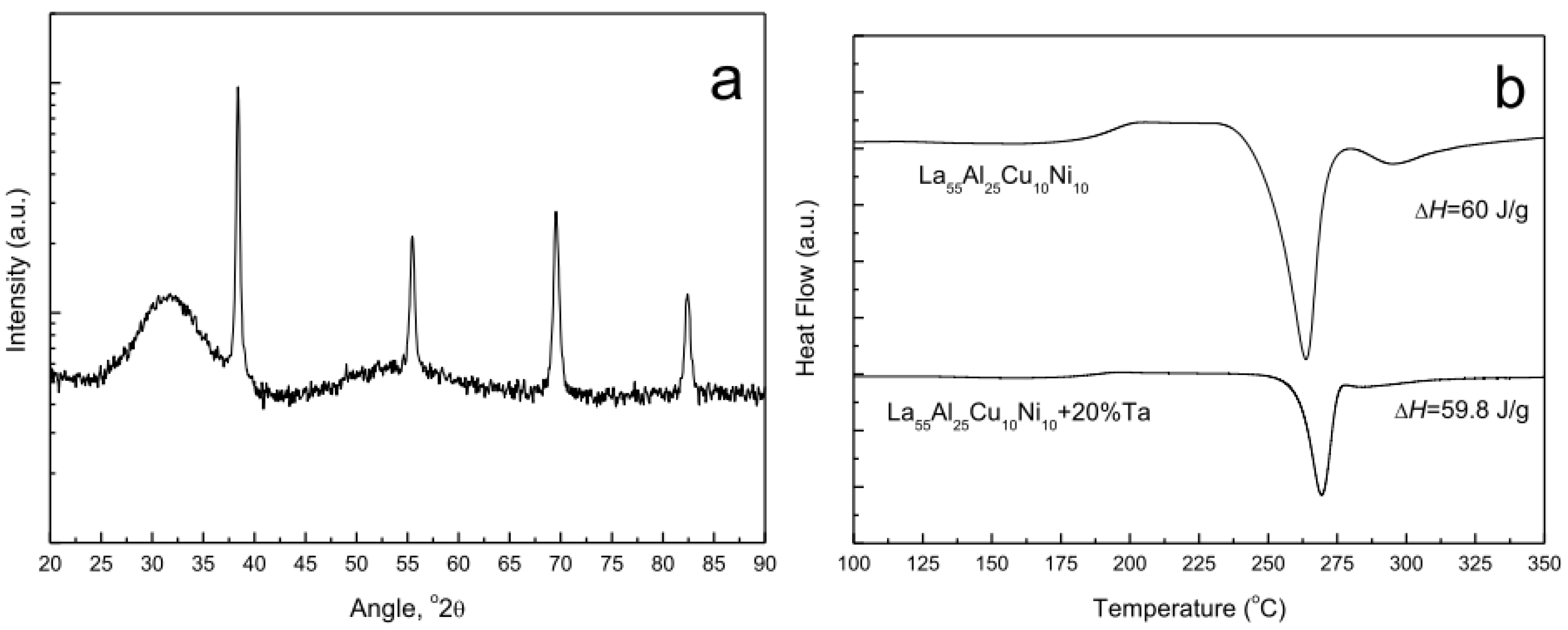

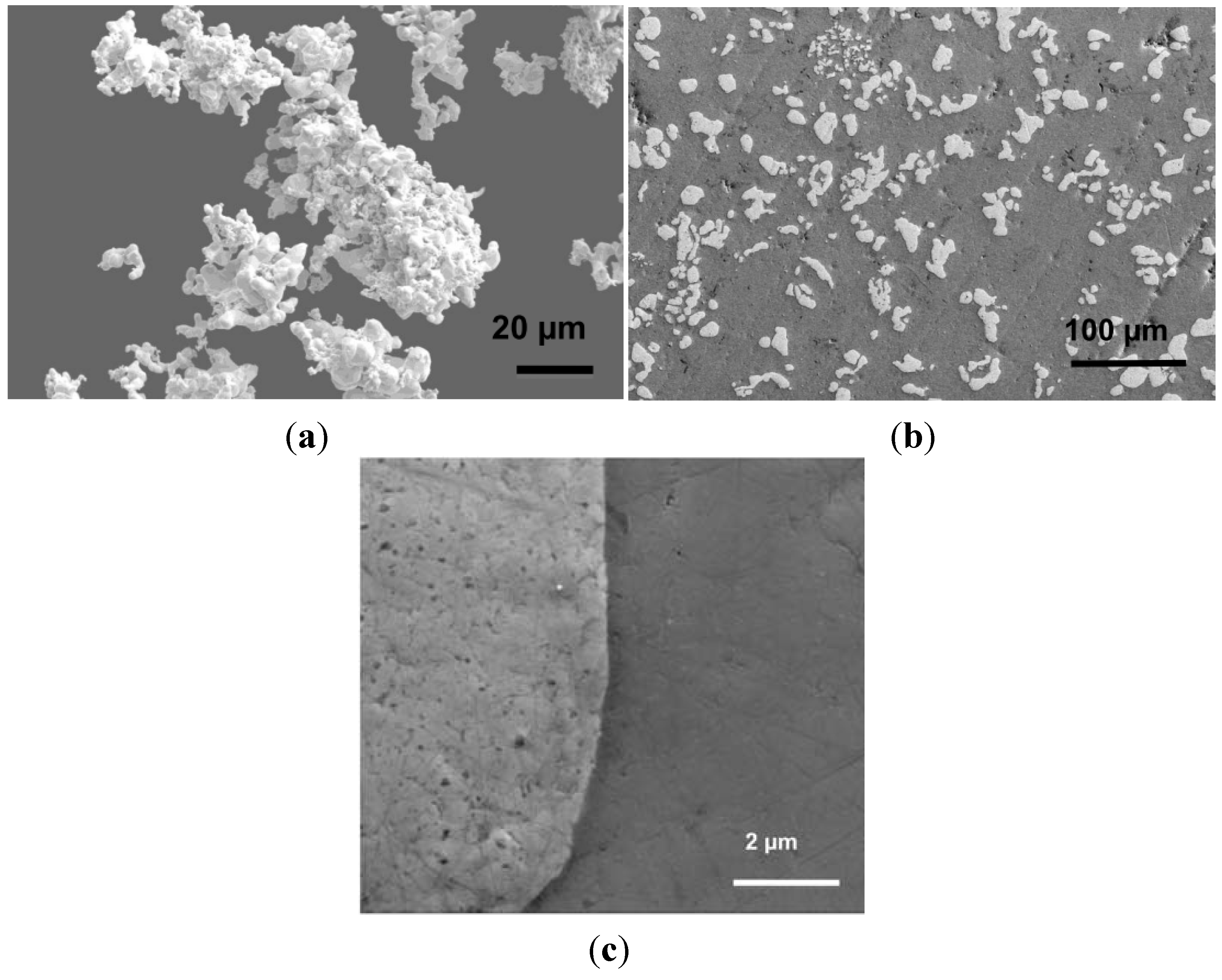

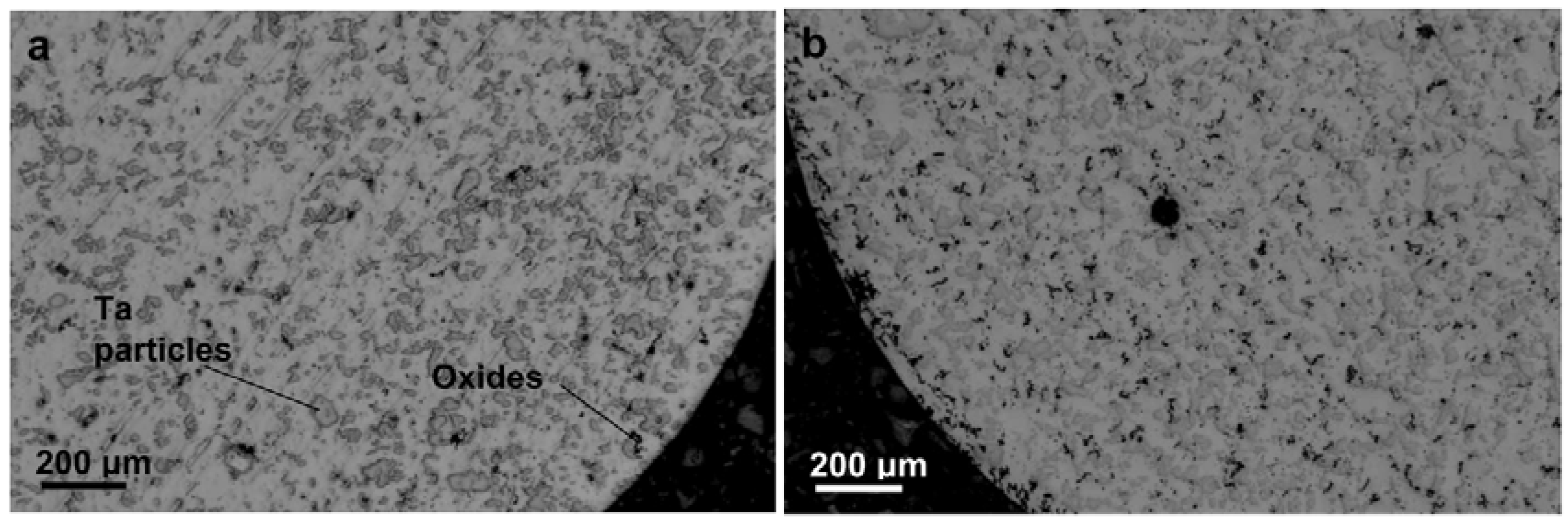

Abstract: La55Al25Cu10Ni10 metallic glass has been reinforced with 325-mesh Ta particles to obtain ex situ glass-crystal composites. The composites show a high compressive plasticity (40%) with a minor reduction (~8%) in yield strength—a combination unprecedented for La-based systems and even surpassing some Zr-based glassy composites that utilize a tougher matrix. However, it is also found that the plastic strain is apparently sensitive to defects, like oxides, in the glassy matrix.
Keywords: plasticity; bulk metallic glasses; composites; toughness

Article Statistics

Load and display the download statistics.

Citations to this Article

Cite This Article

MDPI and ACS Style

Madge, S.V.; Louzguine-Luzgin, D.V.; Inoue, A.; Greer, A.L. Large Compressive Plasticity in a La-Based Glass-Crystal Composite. Metals 2013, 3, 41-48.

AMA Style

Madge SV, Louzguine-Luzgin DV, Inoue A, Greer AL. Large Compressive Plasticity in a La-Based Glass-Crystal Composite. Metals. 2013; 3(1):41-48.

Chicago/Turabian Style

Madge, Shantanu V.; Louzguine-Luzgin, Dmitri V.; Inoue, Akihisa; Greer, Alan L. 2013. "Large Compressive Plasticity in a La-Based Glass-Crystal Composite." Metals 3, no. 1: 41-48.

Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
