Investigation on the Mechanical Properties of Mg-Al Alloys (AZ41 and AZ51) and Its Composites
Khin S. Tun 1,*, Ng J. Minh 1, Quy B. Nguyen 1, Abdel M. S. Hamouda 2 and Manoj Gupta 1
1
Department of Mechanical Engineering, National University of Singapore, 9 Engineering Drive 1, Singapore 117576, Singapore; Email: ngjm87@gmail.com (N.J.M.); mpenqb@nus.edu.sg (Q.B.N.); mpegm@nus.edu.sg (M.G.)
2
Department of Mechanical and Industrial Engineering, College of Engineering, Qatar University, Doha 2713, Qatar; Email: hamouda@qu.edu.qa
*
Author to whom correspondence should be addressed; Email: mpekst@nus.edu.sg; Tel.: +65-6516-8969; Fax: +65-6779-1459.
Received: 28 May 2012; in revised form: 10 July 2012 / Accepted: 17 August 2012 /
Published: 29 August 2012

Abstract

: In the present study, AZ41 and AZ51 alloys were fabricated using disintegrated melt deposition technique followed by hot extrusion. AZ41/Yttria and AZ51/Yttria composites were prepared using 0.6 wt% yttria nano particles in the alloys using the same fabrication technique. From the tensile test results, both strengths (yield and tensile) and ductility were improved in AZ51 when compared to AZ41. In comparison with its alloy counterparts, the yield and tensile strengths were enhanced while maintaining the same ductility in AZ41/Yttria composite, but comparable strengths with decreased ductility were observed in AZ51/Yttria composite. Under compressive loading, an improvement in strengths with similar ductility was observed in AZ51 when compared to AZ41. The best combination of strengths and ductility was observed in AZ51/Yttria composites from compression test results. The obtained mechanical properties are correlated with the microstructure observations.
Keywords:
AZ31 magnesium alloy; yttria; microstructure; tensile; compression

1. Introduction

Magnesium is the lightest structural metal with a potential to replace aluminum as its density is about 35% lower than aluminum [1]. In its pure form, magnesium is not sufficiently strong to be used in many engineering applications. To improve its strength-to-weight ratio, magnesium is alloyed with various metals. Advantages such as high strength-to-density ratio, good machining ability, and weldability of magnesium alloys make them excellent candidates in both structural and nonstructural applications where the weight is of primary importance. Typical examples of magnesium alloys applications include steering wheels, gear box housing and seat frames in automobiles [2]. Based on different processing routes, magnesium alloys are divided into two groups: cast magnesium alloys and wrought magnesium alloys [3]. Among cast magnesium alloys, particularly AZ91 alloy systems were selected to be used in various structural components because of high specific strength and good castability [3,4,5]. Wrought magnesium alloys, having the advantage of better mechanical properties, can be used in some application areas such as window frames and seat frames. This opens up research interest in the development of new wrought magnesium alloys [6]. AZ31 is the most widely used wrought magnesium alloy because of its good combination of strength, ductility and corrosion resistance [3]. Consequently, diverse research efforts were made on AZ31 alloy systems to attain further improvements in mechanical properties [7,8,9,10,11,12,13,14,15,16]. Slip and twinning mechanisms of these alloys were investigated by using the modeling technique [7] and by performing compression tests [8]. Their deformation behaviors were also studied by using different techniques such as the equal-channel-angular-extrusion (ECAE) technique [9]. Considering the importance of Mg alloys’ formability, investigations were made on mechanical anisotropy or tension-compression asymmetry [10,11]. In addition, the mechanical properties of AZ31 alloys under tension and compression were enhanced by using rare earth elements as alloying constituents [12], by adding reinforcements such as CNTs [13], nano ceramic particles [14,15] and ceramic + metal hybrid particles [16] into conventional AZ31 alloy.

In the present study, an attempt is made to investigate the properties of Al rich magnesium alloys, AZ41 and AZ51 and their composite counterparts containing nano Y2O3 particle reinforcements. The use of Y2O3 in pure Mg leads to improvement in tensile properties [17,18,19]. In the current paper, we investigate the effect of Y2O3 addition on the variation in mechanical properties of Mg alloys. The materials were synthesized using the Disintegrated Melt Deposition (DMD) technique followed by hot extrusion. Particular emphasis was placed on correlating the microstructure evolution and mechanical properties of the synthesized materials. Analyses were done on microstructure, microhardness, tensile and compressive properties.

2. Results and Discussion

2.1. Microstructure

The grain size variation in the synthesized materials can be seen in Table 1 and Figure 1. The results showed that the average grain size in AZ51 alloy is about half when compared to AZ41 alloy. In case of their composites counterparts containing Y2O3 reinforcement, grain size reduction was noticeable in AZ41 + Y2O3 composite when compared to AZ41, whereas the grains of AZ51 + Y2O3 composite were coarser when compared to AZ51. The results indicate that the addition of either Al or Y2O3 into AZ41 has the ability to reduce the grain size. In Mg-Al alloy systems, the formation of Mg17Al12 is commonly observed [20]. When compared to AZ41 (AZ31 + 1Al), the formation of a larger amount of Mg17Al12 was observed in AZ51 (AZ31 + 2Al) due to the increased addition of Al into AZ31 (Figure 1a,c). The Mg17Al12 intermetallics formed in AZ51 were seen as the fine phases (Figure 1c, Figure 2c). In AZ51 alloy, the grain size reduction can be attributed to the coupled effects of (a) the increased content of Al addition and the presence of fine Mg17Al12 intermetallics. It has been reported that the grain refinement in Mg-Al system (Al content above 1 wt pct.) is mainly due to superheating process. Ideally for Mg alloys with high Al content, the grain refinement readily occurs by superheating [21,22]. In the present study, the materials were processed at a superheated temperature of 750 °C. Accordingly the grain refinement is favored in AZ51 with increased Al content when compared to AZ41. In addition, the presence of fine intermetallics can act as the nucleation sites or restrict the grain growth during solidification which is supported by the microstructural evidences revealing the finely dispersed intermetallics and their location at grain boundaries in AZ51 (Figure 1c). For AZ41 + Y2O3 composite, the combined presence of fine intermetallic phase and the Y2O3 reinforcements may be attributed to grain refinement. In the case of AZ51, fine intermetallics could have contributed in refining the grain size. Having very fine particle size (<1 µm), there is less possibility for Y2O3 to serve as nucleation sites [23] but as obstacles for grain growth. The presence of Y2O3 together with fine intermetallics assisted in restricting the grain growth. In the case of AZ51 + Y2O3 composite, however, the addition of Y2O3 seems to have null effect on grain refinement (Table 1). As can be seen in the microstructure (Figure 1d and Figure 2g), Y2O3 particles are individually present at the grain boundary and within the grains in the composite. However there is insufficient restriction ability of fine and individual nano particles to refine the grains. This is in agreement with the previous finding which indicated that a sufficient amount of nano particles at the grain boundary is needed for effective grain refinement [24]. Moreover, the addition of Y2O3 can have a different effect on the grain refinement of Mg-Al alloys depending on the different Al content. In an earlier report [23], the alloying element (Sr) and reinforcement particle (SiC) have significant grain refinement effect in low Al containing alloy but refining efficiency decreases with the increase of Al content.

Table 1. Results of grain size and microhardness.

Click here to display table

Table 1. Results of grain size and microhardness.
MaterialsGrain size (µm)Microhardness (HV)
AZ413.8 ± 1.669 ± 2
AZ512.0 ± 0.979 ± 1
AZ41 + Y2O32.4 ± 1.182 ± 2
AZ51 + Y2O33.6 ± 1.773 ± 1
Metals 02 00313 g001 200

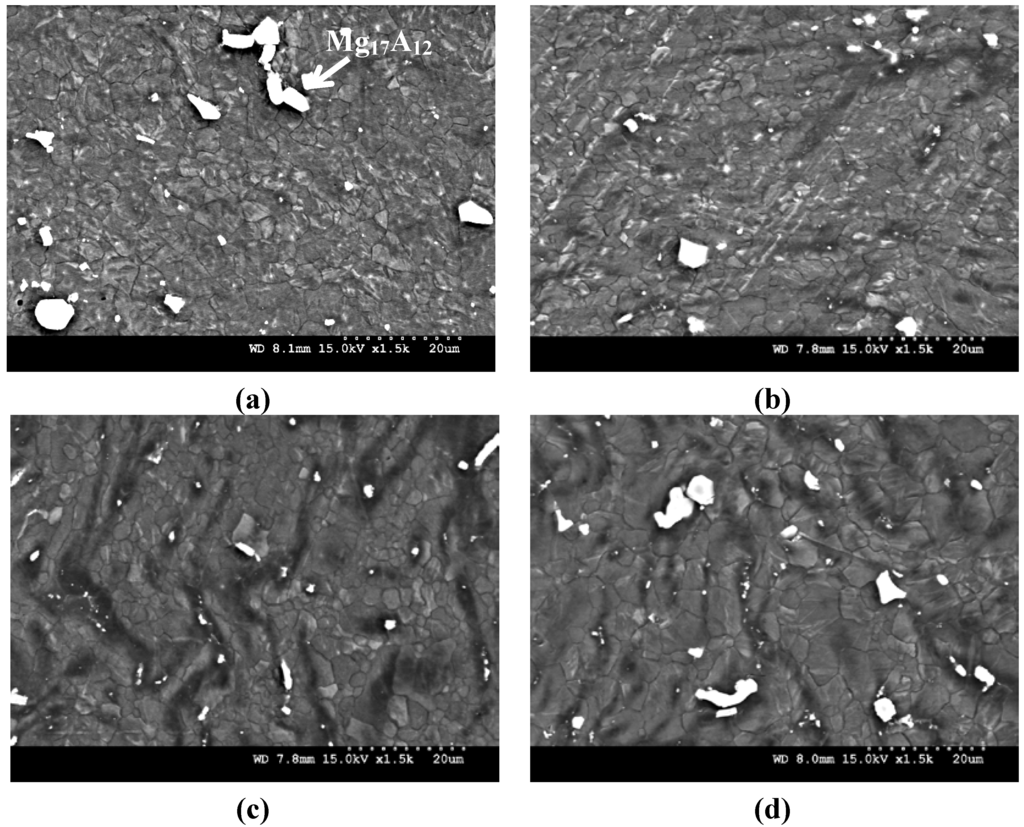

Figure 1. Field Emission Scanning Electron Microscope (FESEM) micrographs showing the grain size and second phase distribution in: (a) AZ41; (b) AZ41 + Y2O3; (c) AZ51; (d) AZ51 + Y2O3.

Click here to enlarge figure

Figure 1. Field Emission Scanning Electron Microscope (FESEM) micrographs showing the grain size and second phase distribution in: (a) AZ41; (b) AZ41 + Y2O3; (c) AZ51; (d) AZ51 + Y2O3.
Metals 02 00313 g001 1024

The second phase distribution in the synthesized materials is shown in Figure 2. Similar microstructure with the presence of coarse intermetallics in blocky-shape was observed in AZ41 and AZ51 + Y2O3 composite (Figure 2a,d). In case of AZ41 + Y2O3 composite, some of the coarse intermetallics broke up into fine intermetallics as can be seen in the microstructure (Figure 1b and Figure 2b). In the related studies [25,26], the continuous network of Mg17Al12 intermetallic phase in AZ91D alloy was modified into discontinuous form revealing finer intermetallic phase in their composites containing TiB2 and Al2O3 nano particles. Also in the previous study [14], Nguyen and Gupta reported the break-down of coarse Mg17Al12 intermetallic phase in AZ31B/Al2O3 nanocomposite. These results clearly showed that the addition of nanoparticles into Mg-Al alloys can assist in the modification of existing intermetallic morphology in their related Mg-Al alloy matrices. In the present study, the use of Y2O3 nanoparticles provides the same ability to refine the coarse intermetallic compound as observed in the resultant microstructure of AZ41 + Y2O3 composite (Figure 1b and Figure 2b). In case of AZ51, the formation of fine, needle-shape intermetallics besides coarse, blocky intermetallics were observed in the microstructure (Figure 2c,e). From the investigation on Mg-Al-RE alloy [27], it was reported that the addition of misch metal (rare earth element, RE) into AZ91 alloy causes the formation of rod like Al-RE intermetallics among eutectic Mg17Al12 intermetallic phase. The same phenomena could happen in the AZ51 alloy and the change in intermetallic morphology might be attributed to the addition of 2 wt% Al into AZ31. In contrast to AZ41/Y2O3 composite, the addition of Y2O3 nanoparticle was unable to break down the coarse intermetallics in AZ51/Y2O3 composite which revealed only coarse, blocky intermetallics in the microstructure (Figure 1d and Figure 2d). It may be attributed to the increased formation of intermetallics which is beyond the critical amount which suppress the ability of Y2O3 to support the breakdown of these intermetallics. In addition, fine, needle-shape intermetallics which were previously observed in AZ51 alloy were not found in its composite (see Figure 2d). However, the exact phenomenon causing the coarsening of the original fine intermetallics formation due to the presence of Y2O3 in this particular composite is not clear and further investigation is needed.

Metals 02 00313 g002 200

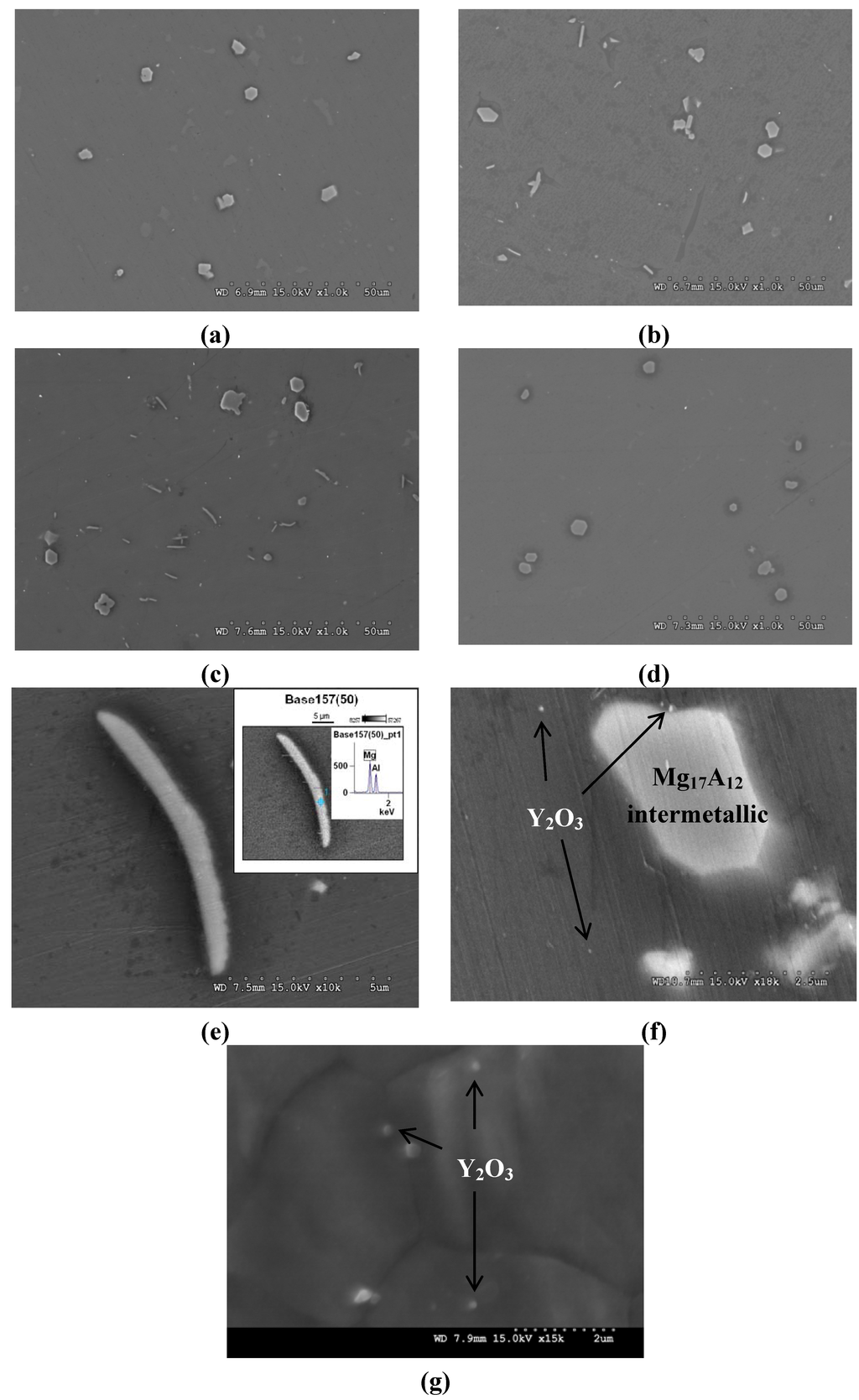

Figure 2. FESEM micrographs showing second phase morphology and distribution in: (a) AZ41; (b) AZ41 + Y2O3 composite; (c) AZ51 and (d) AZ51 + Y2O3 composite; (e) EDS (Energy-dispersive X-ray Spectroscopy) analysis on the needle-shaped intermetallic; the presence of individual Y2O3 reinforcement in (f) AZ41/Y2O3 composite; and (g) AZ51/Y2O3 composite.

Click here to enlarge figure

Figure 2. FESEM micrographs showing second phase morphology and distribution in: (a) AZ41; (b) AZ41 + Y2O3 composite; (c) AZ51 and (d) AZ51 + Y2O3 composite; (e) EDS (Energy-dispersive X-ray Spectroscopy) analysis on the needle-shaped intermetallic; the presence of individual Y2O3 reinforcement in (f) AZ41/Y2O3 composite; and (g) AZ51/Y2O3 composite.
Metals 02 00313 g002 1024

2.2. XRD Analysis

Figure 3 shows the results of X-ray diffraction analysis on the synthesized materials. As seen in the figure, the peak related to Mg17Al12 intermetallics was detected with a very low intensity in AZ41 and AZ51/Y2O3 composite whereas no such peak was detected in AZ51 and AZ41/Y2O3 composite. In the composite samples, Y2O3 phase was not detected in the XRD profile. In most of the Mg-Al alloy systems, the Mg17Al12 intermetallic phases are commonly found in the form of continuous network [20]. In the present study, from the microstructure, the Mg17Al12 intermetallic phases were seen as discontinuous phases like reinforcements in all synthesized materials which are uniformly distributed in the matrix and it was confirmed by EDS (Energy-dispersive X-ray Spectroscopy) analysis (Figure 2e). The presence of larger size intermetallics in AZ41 and AZ51/Y2O3 composite can be correlated to the observation of low intensity peak matched to Mg17Al12 phase. The absence of Y2O3 and Mg17Al12 intermetallic peaks in AZ51 and AZ41/Y2O3 composite can be attributed to the fine particulate/intermetallic size as observed in their microstructures. From the related studies [19], the peaks related to the ceramic reinforcement particles which are in nano length scale do not generally appear in the composites. This is due to either the amount of reinforcement used was quite small (less than 2 vol.%) to be detected due to the limitation of current XRD diffractrometer or the presence of fine particles/second phases which are individually or uniformly distributed with small clusters in the matrix [28,29].

XRD studies were also conducted in both transverse (perpendicular to the extrusion/loading axis) and longitudinal (parallel to the extrusion/loading axis) directions (Figure 4) to analyze the crystal orientation, particularly the basal plane orientation. Only in the case of AZ51, the peak related to the basal plane was observed in both transverse and longitudinal XRD patterns which can be mentioned as random texture (Figure 4b). This indicates that in AZ51 there is no strong basal texture in which basal peak appears only in the longitudinal scan. In AZ41/Y2O3 composite, the basal peak was almost absent in the transverse scan (Figure 3 and Figure 4a) but the strong basal peak was observed in the longitudinal scan (Figure 4a) showing stronger basal texture when compared to AZ51. The similar basal texture as in the case of AZ41/Y2O3 composite was observed in the rest of the synthesized materials.

Metals 02 00313 g003 200
Figure 3. X-ray diffractograms of the synthesized materials.

Click here to enlarge figure

Figure 3. X-ray diffractograms of the synthesized materials.
Metals 02 00313 g003 1024
Metals 02 00313 g004 200

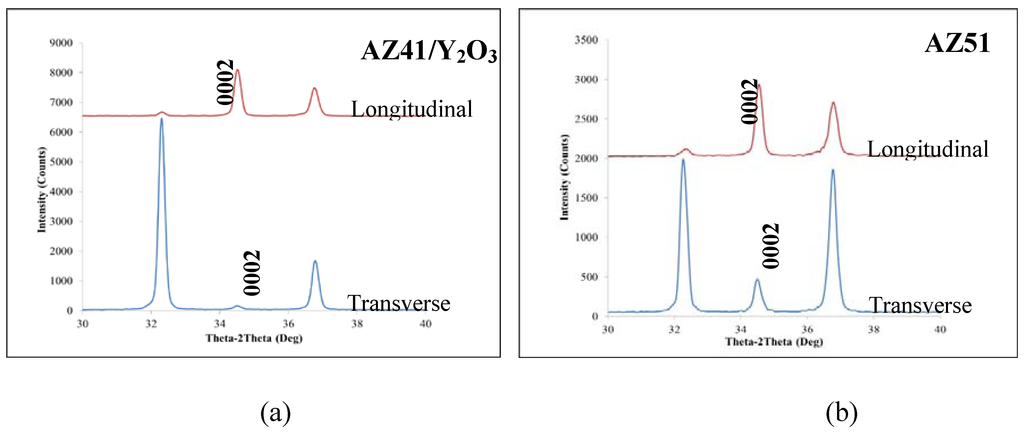

Figure 4. X-ray diffractograms showing basal (0002) plane distribution in: (a) AZ41/Y2O3; (b) AZ51.

Click here to enlarge figure

Figure 4. X-ray diffractograms showing basal (0002) plane distribution in: (a) AZ41/Y2O3; (b) AZ51.
Metals 02 00313 g004 1024

2.3. Microhardness

The results of hardness measurements are shown in Table 1. A significant improvement in microhardness was observed in AZ41/Y2O3 composite when compared to its unreinforced counterpart, AZ41. Similarly, an increment in microhardness was observed with the higher percentage of alloying element in AZ51 (AZ31 + 2Al) when compared to AZ41 (AZ31 + 1Al). The hardness improvement in AZ41/Y2O3 composite and AZ51 can be attributed to: (a) the reduction in grain size; (b) the increasing amount of uniformly distributed second phases; and (c) the presence of fine reinforcement particles and/or fine intermetallics. To improve the matrix microhardness, sufficiently large amounts of second phases as well as their uniform distribution is required. In case of AZ51/Y2O3 composite, a marginal increment in microhardness when compared to AZ41 but its hardness value was decreased when compared to AZ41/Y2O3 composite and AZ51 (see Table 1). As observed in the microstructure (Figure 2a,d), the presence of coarse intermetallic formation was found in AZ51/Y2O3 composite which is similar to that of AZ41. The intermetallic distribution in both AZ41 and AZ51/Y2O3 composite were uniform but the interparticle distance was larger between coarse intermetallics. This led to the reduced matrix hardness of AZ51/Y2O3 composite when compared to AZ41/Y2O3 composite and AZ51 where the matrix deformation was effectively constrained by the closely spaced fine intermetallics (Figure 2b,c). A marginally higher hardness in AZ51/Y2O3 composite than that in AZ41 can be attributed to the presence of Y2O3 particles in the matrix. With addition of Y2O3 into the alloys, AZ41 and AZ51, grain refinement and fine intermetallic formation led to the improved microhardness in AZ41/Y2O3 composite whereas grain and intermetallic coarsening led to the reduction of microhardness inAZ51/Y2O3 composite.

2.4. Tensile Properties

The tensile test results of the synthesized materials are shown in Table 2. From the results, a significant improvement in 0.2% yield strength and ultimate tensile strength of AZ41 alloy was observed with the use of Y2O3 as reinforcement. On the other hand, considering the standard deviation, the similar strength level was observed between AZ51 and AZ51/Y2O3 composite. When compared to AZ41, both 0.2% yield strength and ultimate tensile strength were increased in AZ51. The strengths improvement in AZ41/Y2O3 and AZ51 can commonly be attributed to: (a) grain size strengthening due to grain refinement through well-known Hall-Petch relationship and (b) effective load transfer from matrix to second phases. The presence of increased but fine and uniformly distributed second phases can act as the additional barriers for dislocation initiation and subsequently retard the dislocation movement. This can contribute to the need of higher tensile load translating to the improved yield and tensile strengths. Among all the synthesized materials, AZ41/Y2O3 composite showed the best 0.2% yield strength and ultimate tensile strength. This indicates that there was additional strengthening from Y2O3 reinforcement in AZ41/Y2O3 composite. The additional contributing factors due to the presence of Y2O3 reinforcement in composite strength increment could be: (a) Orowan strengthening due to the presence of nano particle reinforcement (Figure 2f); and (b) elastic and CTE (Coefficient of Thermal Expansion) mismatch between Mg matrix and Y2O3 reinforcement [18,19].

Table 2. Results of room temperature tensile properties.

Click here to display table

Table 2. Results of room temperature tensile properties.
Materials0.2%YS (MPa)UTS (MPa)Failure strain (%)
AZ41184 ± 4283 ± 413 ± 2
AZ51204 ± 4300 ± 518 ± 2
AZ41 + Y2O3230 ± 2311 ± 213 ± 2
AZ51 + Y2O3190 ± 4295 ± 212 ± 1

Having coarser grains and lack of fine intermetallic formation compared to AZ51, it is reasonable that the strengths were not improved in AZ51/Y2O3 composite. With these drawbacks from the microstructure aspect, the strengthening effect from Y2O3 reinforcement could not sufficiently provide higher strength in the composite. Although the strengths were not improved when compared to AZ51, both 0.2% yield strength and ultimate tensile strength in AZ51/Y2O3 composite were found to be higher than that of AZ41. In AZ41 and AZ51/Y2O3 composite, similar microstructural coarsening (grain size, intermetallic size and distribution) was seen from the microstructure observation (Figure 1a,d and Figure 2a,d). This indicates that the combined strengthening effect from increased amount of intermetallics and Y2O3 reinforcement could contribute to the strength improvement of AZ51/Y2O3 composite.

In all synthesized materials, the failure strain level was found to be the same except that for AZ51. Based on the earlier studies [9,14,17,18,19,30,31], the ductility improvement in magnesium materials can be due to the presence of fine particles, non-basal slip activation, grain refinement and texture changes. The presence of Y2O3 nano particles has shown the ability to improve ductility of pure Mg in the previous studies [17,18,19] by activating cross slip and/or non-basal slip. In the present study, the improvement in failure strain was not observed in the composites through the addition of Y2O3 into Mg alloy matrices (Table 2). Although Y2O3 was present in AZ41, the same failure strain was maintained in the composite counterpart. In case of AZ51/Y2O3 composite, the failure strain was reduced when compared to AZ51. The results clearly indicate that the effect of Y2O3 on the ductility improvement was influenced by the existence of intermetallics in the Mg alloy matrices. It is more obvious in the case of AZ51/Y2O3 composite in which the coarse intermetallics formation is mainly responsible for the reduction in failure strain. It is well known that the creation of fine Mg17Al12 phase or reducing the amount of this phase in the related alloy systems is one way to overcome the deterioration of ductility in Mg-Al alloys [20]. It has been shown that there is the generation of geometrically necessary dislocations in the materials such as composites and alloys which are plastically inhomogeneous [32,33]. According to the prismatic punching model proposed by Arsenault and Shi [33], higher theoretical dislocation density was found in the composite containing whiskers when compared to platelets and particle reinforced composites. This model is also applicable to the alloys containing second phase precipitates. Following the above model, Goh et al. [31] investigated the generation of dislocations in Mg/CNT composite using TEM study. It was reported that the generation of more dislocations of <a> and <c + a> types due to the presence of CNTs induces the activation of non-basal and cross slip in the composite which resulted in the improvement in ductility. In the present study, the formation on needle shaped intermetallics can induce the generation of geometrically necessary dislocation in AZ51 [32] as in the case of CNT reinforced composite. Consequently, the activation of more slip systems besides basal slip is expected for the failure strain improvement in AZ51. As reported in the previous studies [14,17], having grain refinement in magnesium materials is one of the reasons for ductility improvement. In the present investigation, the ductility improvement was only observed in AZ51 although grain refinement was attained in both AZ51 and AZ41/Y2O3 composite. Under the condition of having similar grain size, the texture changes can be accounted for by the variation in ductility [9,31]. From the XRD patterns shown in Figure 4, the existence of random basal texture was observed in AZ51 composite whereas a comparatively stronger basal texture was observed AZ41/Y2O3 composite. Random basal texture showing basal peak in both transverse and longitudinal direction implies the deviation of some basal plane orientation from being aligned with the extrusion axis (longitudinal direction) [9,14]. The degree of deviation with respect to the extrusion axis in terms of tilted angle has yet to be confirmed by conducting the pole figure analysis. The similar basal orientation was found out in Mg-CNT composite [31]. The observed basal orientation through texture changes in AZ51 favors the activation of non-basal slip systems [14]. This also provides the assumption of activating more slip systems due to the presence of needle shaped intermetallics in AZ51 contributing to the ductility improvement.

The tensile fracture surfaces of the synthesized materials are shown in Figure 5. All the surfaces revealed dimple like features indicating the degree of material’s plasticity which can be correlated to the observed failure strain of more than 10% (see Table 2). These features can also be related to the presence of second phases which are the sources for the dimple formation thorough particle stimulated void initiation. It has been reported that the dimple formation initiated from the inclusion or intermetallics in AZ31 and the size of dimples depends on the inclusion size [34]. In relation with the formation of fine intermetallics, the fracture surfaces of AZ51 and AZ41/Y2O3 composite revealed a relatively smaller dimple size when compared to that of AZ41 and AZ51/Y2O3 composite.

Metals 02 00313 g005 200

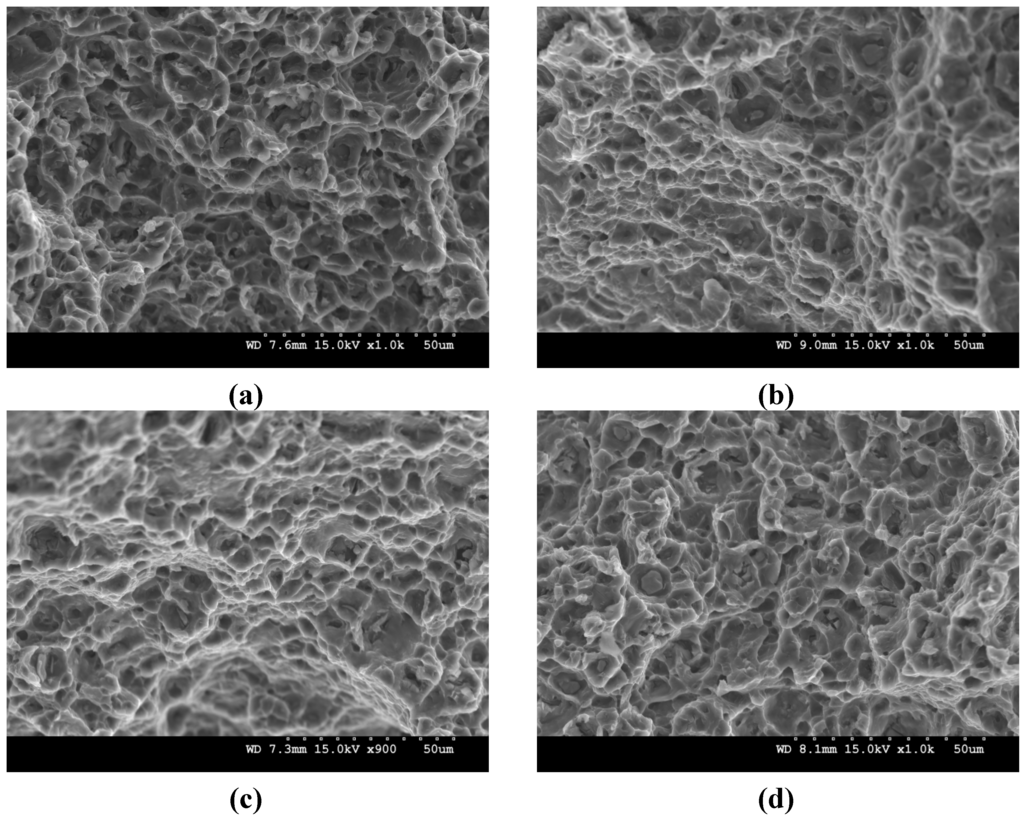

Figure 5. Representative tensile fractographs in: (a) AZ41; (b) AZ41 + Y2O3 composite; (c) AZ51 and (d) AZ51 + Y2O3 composite.

Click here to enlarge figure

Figure 5. Representative tensile fractographs in: (a) AZ41; (b) AZ41 + Y2O3 composite; (c) AZ51 and (d) AZ51 + Y2O3 composite.
Metals 02 00313 g005 1024

2.5. Compressive Properties

The results of uniaxial compressive testing are shown in Table 3. Except for AZ51, there was no significant difference in 0.2% compressive yield strength among the synthesized materials. This indicates that the variation in neither grain size nor the amount of second phases affects the yield strength variation. A similar phenomenon has been observed in a previous study on the Mg composites [15]. For magnesium which is highly sensitive to texture, the yielding behavior is commonly controlled by the crystallographic texture. As observed in the XRD pattern of AZ51, the presence of random texture was observed (Figure 4b). The compressive yield strength generally decreases in the materials which exhibit strong basal texture which favors the activation of twinning in the {10–12} <10–11> system [35,36,37]. However, with texture randomization, an increase in compressive yield strength was observed in Mg/Y2O3 composite in the related study [38]. The current compressive yield strength improvement in AZ51 is in agreement with the reported compressive yielding variation observed in the Mg/Y2O3 composite [38]. On the other hand, a significant improvement in ultimate compressive strength was observed in AZ51/Y2O3 composite when compared to the rest of the synthesized materials (see Table 3). The grain refinement and the formation of fine intermetallics and/or reinforcement did not support the compressive strength improvement in AZ51 and AZ41/Y2O3 composite. When compared to AZ51, the presence of coarse intermetallics might be the possible reason for compressive strength improvement in AZ51/Y2O3 composite. The compressive failure strain was found to be higher in AZ41 and AZ51/Y2O3 composite than that in AZ51 and AZ41/Y2O3 composite. Although the yielding in magnesium materials which commonly have strong basal texture is due to twinning, the deformation after yielding (strain hardening region) is reported to be slip dominated deformation especially in the fine grained materials [8]. Barnett et al. [8] showed that slip dominated flow was observed for magnesium alloy with fine grain size and low amount of twinning was found after compression. Similarly, in the present study, the lower compressive failure strain in AZ51 and AZ41/Y2O3 composite can be attributed to the finer grain size with slip dominated flow. For AZ41 and AZ51/Y2O3 composite, comparatively coarser grain size (about double in size) could favor more twinning to accommodate higher plastic deformation. In addition, the analysis of fracture surfaces on AZ41 and AZ51/Y2O3 composite showed relatively smooth features indicating enhanced plastic deformation (Figure 6a,d) which is in agreement with the observed improved compressive failure strain in the materials (Table 3). In case of AZ51 and AZ41/Y2O3 composite, comparatively rough surfaces with more fractured edges were observed (Figure 6b,c). This indicates that the presence of closely spaced second phases hindered the plastic continuity showing numerous fracture marks upon failure which reflect the low compressive ductility in the materials (Table 3).

Table 3. Results of room temperature compressive properties.

Click here to display table

Table 3. Results of room temperature compressive properties.
Materials0.2%CYS (MPa)UCS (MPa)Failure Strain (%)
AZ41165 ± 4501 ± 817 ± 0.3
AZ51185 ± 11508 ± 1115 ± 1
AZ41 + Y2O3160 ± 13451 ± 2011 ± 1
AZ51 + Y2O3167 ± 6564 ± 1222 ± 1
Metals 02 00313 g006 200
Figure 6. Representative compressive fractographs in: (a) AZ41; (b) AZ41 + Y2O3 composite; (c) AZ51 and (d) AZ51 + Y2O3 composite.

Click here to enlarge figure

Figure 6. Representative compressive fractographs in: (a) AZ41; (b) AZ41 + Y2O3 composite; (c) AZ51 and (d) AZ51 + Y2O3 composite.
Metals 02 00313 g006 1024

3. Materials and Experimental Procedures

In the present study, the matrix materials used was AZ31 magnesium alloy ingots (2.9% Al, 0.8% Zn, 0.6% Mn, 0.0023% Fe, 0.0011% Si, 0.0012% Cu, 0.0004% Ni and balance Mg). The aluminum lumps (small, irregular blocks) of 99.5% purity (Alfa Aesar, USA) were used for alloying purpose and yttria (Y2O3) powder of 99.95% purity with a particulate size range of 30–50 nm (Inframat Advanced Materials, USA) was used as the ceramic reinforcement phase. Y2O3, one of the potential oxide ceramics was chosen as reinforcement because of its high thermodynamic stability at elevated temperatures. Moreover, thermal stability of yttria in magnesium suggests minimal reaction between matrix and reinforcement leading to good interfacial integrity [18].

Magnesium alloys (AZ31, AZ41 and AZ51) and composites (AZ41 + Y2O3 and AZ51 + Y2O3) were synthesized using Disintegrated Melt Deposition (DMD) technique. The detailed description of the processing technique can be found in the previous paper [24]. AZ41 and AZ51 magnesium alloys were fabricated by adding 1 wt% and 2 wt% of aluminum into AZ31 alloy. For the synthesis of AZ41 and AZ51 magnesium composites, 0.6 wt% (0.22 vol.%) Y2O3 was added together with 1 wt% and 2 wt% of aluminum into AZ31 alloy. The deposited ingots of 40 mm diameter were machined down to 36 mm diameter followed by hot extrusion at 350 °C. The machined ingots were coated with colloidal graphite and soaked at 400 °C for 1 h prior to extrusion. The extruded rods of 8 mm in diameter were used for further characterization studies.

Microstructural characterization studies were conducted to determine grain size, grain morphology, presence and distribution of reinforcements and intermetallics. OLYMPUS metallographic optical microscope, Scion Image Analyzer and HITACHI S-4300 Field Emission Scanning Electron Microscope (FESEM) were used for this purpose. X-ray diffraction analysis was carried out on the polished extruded Mg and Mg nanocomposite samples using automated Shimadzu LAB-X XRD-6000 diffractometer.

The mechanical behavior of both monolithic and composite samples was quantified in terms of microhardness, tensile and compressive properties. Microhardness measurements were performed on the polished samples using Shimadzu-HMV automatic digital microhardness tester. The microhardness test was performed using a Vickers indenter under a test load of 25 gf and a dwell time of 15 s in accordance with the ASTM standard E384-99. Room temperature tensile and compressive tests were performed using an automated MTS 810 servo hydraulic testing machine. The tensile properties of the samples were determined in accordance with procedures outlined in ASTM standard E8M-01. The tensile tests were conducted on round tension test specimens (5-mm gage diameter and 25-mm gage length). Compression tests were performed according to ASTM E9-89a. Extruded rod of 8 mm diameter was cut into 8 mm length samples for compression tests to provide the aspect ratio (l/d) of unity. Samples were tested at a strain rate of 5 × 10−3 min−1 and the compression load was applied parallel to the extrusion direction.

4. Conclusions

  • (1) Microstructure observation revealed the formation of discontinuous Mg17Al12 intermetallics in both AZ41 and AZ51 alloys. The intermetallics formed are of different morphologies: coarse, blocky intermetallics in AZ41 and combined form of coarse, blocky and fine, needle shaped intermetallics in AZ51. The coarse intermetallics in AZ41 were partially broken down into fine intermetallics due to the presence of Y2O3 in AZ41/Y2O3 composite. However, the formation of coarse intermetallics and absence of needle shaped intermetallics were observed in AZ51/Y2O3 composite regardless of having added the same amount of Y2O3 into AZ51.

  • (2) The microhardness was increased in AZ41/Y2O3 composite, whereas a decrease in microhardness was observed in AZ51/Y2O3 composites when compared to that of AZ41 and AZ51. The highest microhardness was observed in AZ41 + Y2O3 composite among all synthesized materials.

  • (3) An improvement in both 0.2% yield strength and ultimate tensile strength was observed in AZ51, AZ41/Y2O3 and AZ51/Y2O3 composites through the addition of Al and/or Y2O3 into AZ41. The failure strain was increased in AZ51 which is correlated to the formation of needle shaped intermetallics and texture changes. Being the same basal texture, the failure strain remained at a similar level in the rest of the synthesized materials but it was lower than that of AZ51.

  • (4) Similar compressive yield strength was observed in the synthesized materials except AZ51. The improvement in yield strength particularly in AZ51 was associated with the observed random texture. The compressive failure strain in AZ41 and AZ51/Y2O3 composite was found to be higher than that of AZ51 and AZ41/Y2O3 composite.Variation in compressive failure strain was affected by the difference in grain sizes.
