High Speed Roll Caster for Aluminum Alloy

Abstract

Two types of high-speed twin-roll casters and a single-roll caster equipped with a scraper were proposed. One of the twin-roll casters is a vertical-type high-speed twin-roll caster, and the other twin-roll caster is an unequal-diameter twin-roll caster. The vertical-type high-speed twin-roll caster can cast strip at speeds of up to 120 m/min. The unequal-diameter twin-roll caster casts strip at speeds up to 60 m/min. The unequal-diameter twin-roll caster is superior to the vertical-type high-speed twin-roll caster at the point of conveyance of the cast strip. A single-roll caster equipped with a scraper can cast strip without center-line segregation at speeds of up to 40 m/min. The use of a copper alloy roll and the non-use of a parting material enable high-speed roll casting. Since the roll loads of these casters are smaller than 0.1 kN/mm, soft copper alloy roll can be used. The strip does not stick to the roll without the parting material because of the use of the copper alloy roll with high thermal conductivity and the small roll load. The cooling rate near the surface is higher than 2000 °C/s.

1. Introduction

The conventional twin-roll caster for aluminum alloy (CTRCA) can cast strip directly from molten metal. Therefore, the CTRCA has the advantage of process saving. The CTRCA can rapidly solidify aluminum alloy strip. Therefore, the grain size and impurity become fine. However, the CTRCA has disadvantages, too. The roll speed, which is the casting speed, is low. This means that the productivity is low. The roll speed of the CTRCA is lower than 5 m/min [1,2,3,4,5,6,7,8,9,10,11]. The roll speed of most CTRCAs is usually slower than 2 m/min. The increase in the casting speed and productivity was investigated using a large-diameter roll, a thin gage, and a long set back in the CTRCA [1,2,3,4,5,6,7,8]. On the other hand, the increase in roll speed has been investigated by other methods for more than twenty years at the Material Processing Laboratory at the Osaka Institute of Technology. For example, the thermal conductivity of the roll has been increased, non-use of a parting material, and the use of hydrostatic pressure of the molten metal have been investigated [12]. Two types of high-speed twin-roll casters and a single-roll caster equipped with these devices have been developed, and the features of the strip cast using these roll casters have been investigated. In the present paper, the characteristics of the roll casters and strips cast using these roll casters are described. The roll casters shown in this paper were designed and assembled by the students at the Osaka Institute of Technology.

2. Vertical Type High Speed Twin Roll Caster

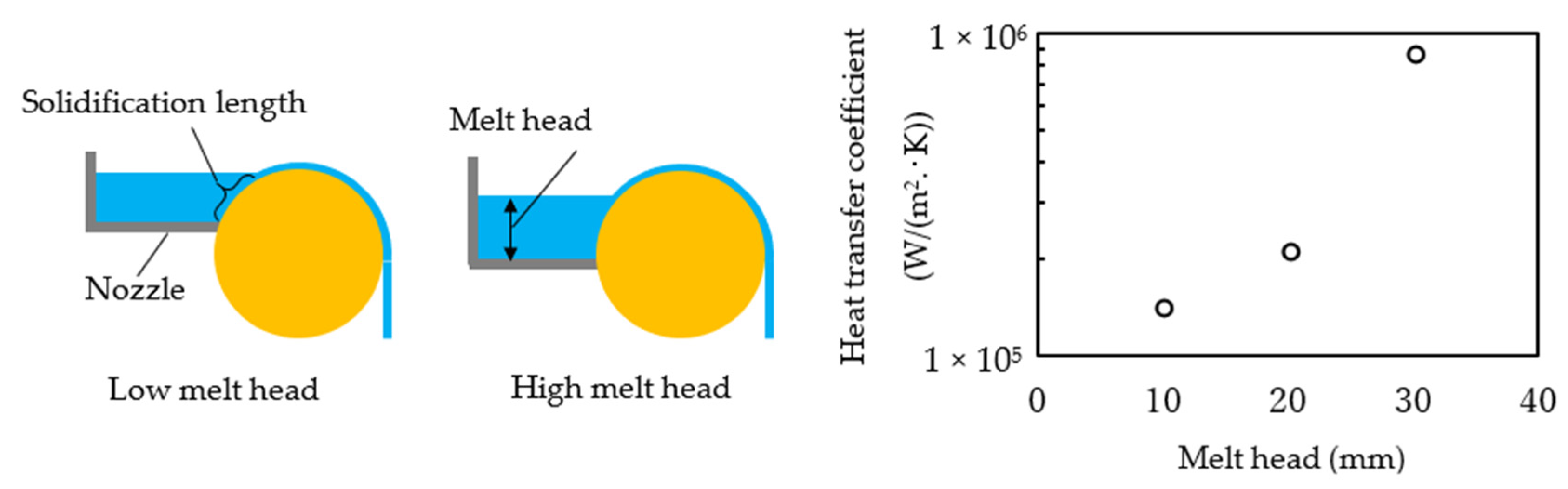

The effect of the melt head on the heat transfer coefficient between the molten metal (or solidification layer) and the roll was investigated using a melt-drag single-roll caster and Al-12 mass% Si. When the melt head was changed, the solidification length was kept constant by adjusting the position of the nozzle, as shown in Figure 1 [13]. The heat transfer coefficient was calculated from the strip thickness and solidification time using the one-dimensional finite differential method. The heat transfer coefficient increased as the molten melt head became higher as shown in Figure 1. The cooling rate increased as the heat transfer coefficient increased. The higher cooling rate is useful, for example, to make fine eutectic Si and the inter metallic compound included as impurities.

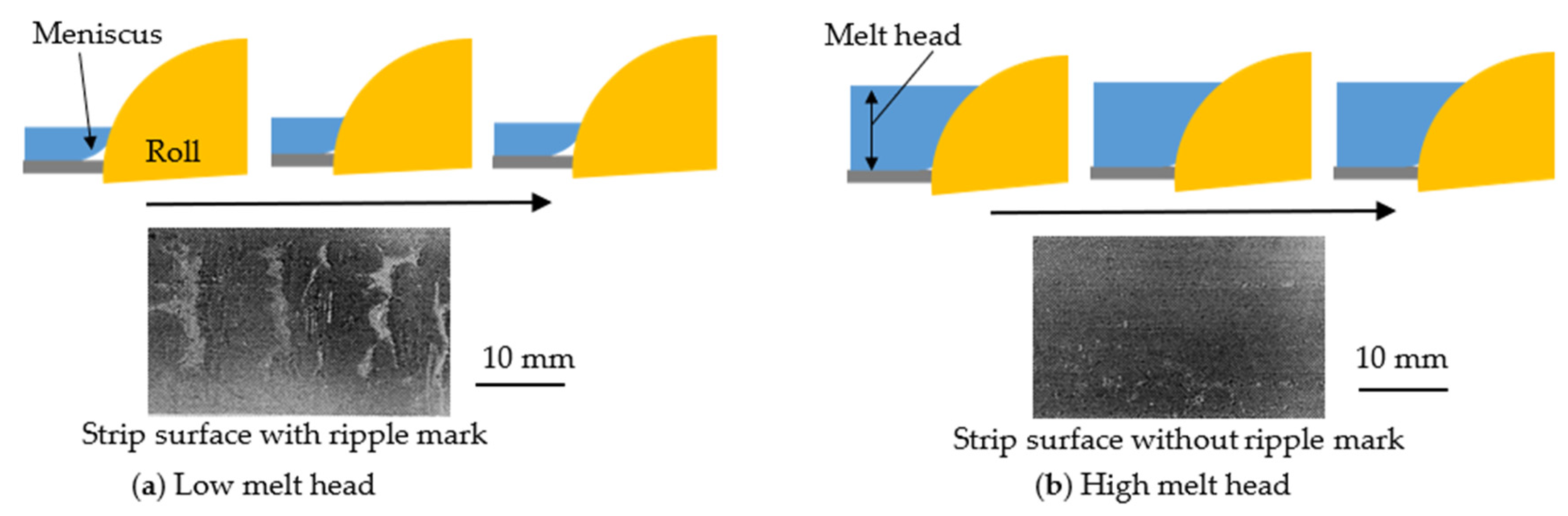

Figure 2 shows the effect of the melt head on the stability of the meniscus of molten metal and influence of the stability of the meniscus on ripple mark on the strip surface [13,14]. When the melt head is lower than the sufficient height, as shown in Figure 2a, the meniscus of the molten metal at the tip of the nozzle is unstable. The instability of the meniscus becomes worse as the roll speed becomes higher. The instability of the meniscus causes a ripple mark on the strip surface. When the melt head is sufficient height, the instability of the meniscus is suppressed by the hydrostatic pressure of the molten metal as shown in Figure 2b. As a result, the ripple mark was reduced, and the strip surface is improved greatly. A vertical type high speed twin roll caster (VHSTRC) was designed based on this these results shown in Figure 1 and Figure 2 [15].

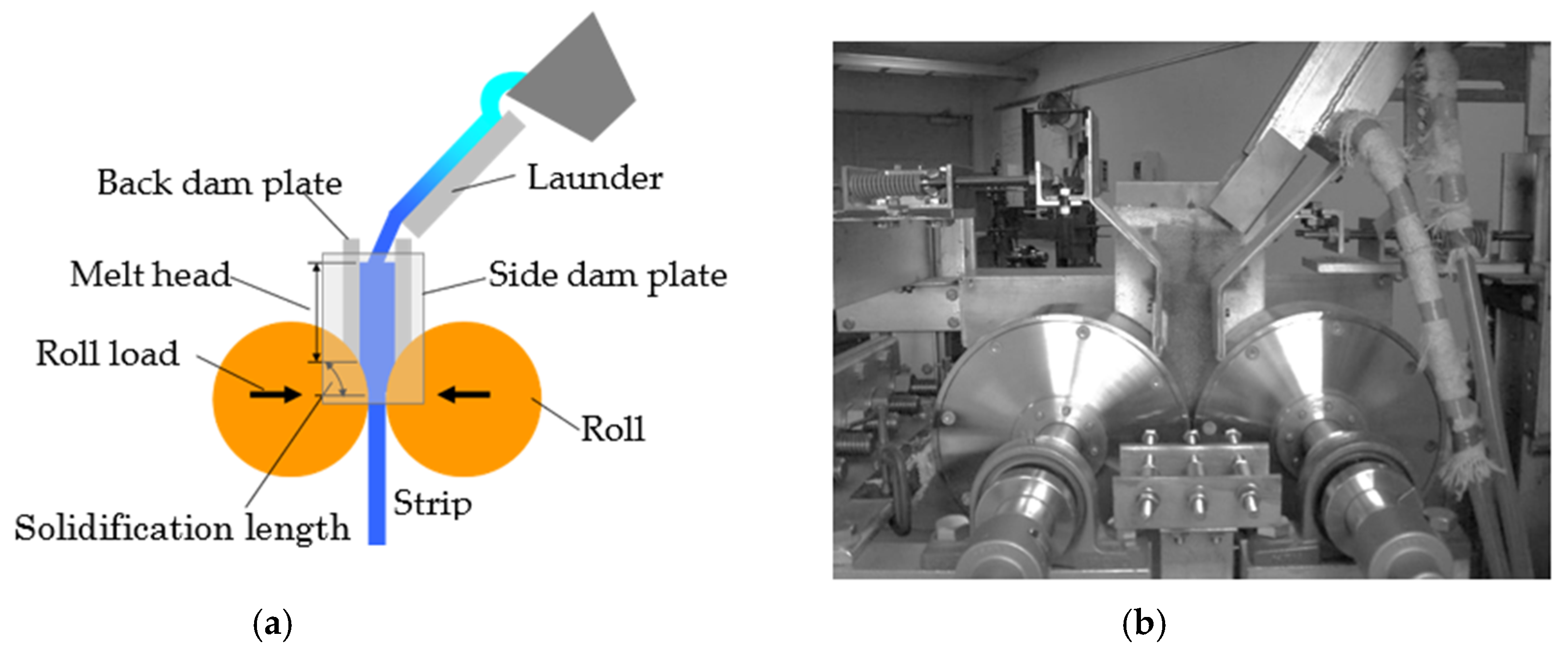

A schematic diagram of a VHSTRC and a close-up photograph near rolls are shown in Figure 3. The rolls of the CTRCA are made of steel for hot working. In the VHSTRC, rolls made of copper alloy are used. The thermal conductivity of the copper alloy is approximately seven times larger than that of the steel for hot working. Molten metal can be more rapidly solidified by the copper alloy roll as compared to the steel roll. Therefore, the roll speed can be increased. In the CTRCA, parting material is sprayed on the steel roll in order to prevent sticking of the strip to the roll. The parting material becomes heat resistance between the molten metal and the roll. The parting material decreases the heat transfer from the molten metal (or solidification layer) to the roll. As a result, the roll speed becomes low. In the VHSTRC, parting material is not used because the strip does not stick to the copper alloy roll [16]. The temperature of the surface of the copper alloy roll does not increase to the temperature at which fusion occurs as a result of the effect of the higher thermal conductivity. Non-use of the parting material is beneficial in terms of the rapid solidification of the molten metal. The strength of the copper alloy is lower than that of steel used for hot working. Therefore, the roll load of the VHSTRC is much smaller than that of the CTRCA. However, the VHSTRC can cast the strip without a higher roll load because the solidification layer is rapidly cooled using a copper alloy roll and non-use of a parting material. A small roll load is effective to prevent adhesion of the strip to the roll.

The back dam and side dam plates are essential to make melt pool and to use hydrostatic pressure in order to make the meniscus stable. The back dam plate has another important role. The back dam plate is useful to make the solidification length constant. A constant solidification length is needed to make strip thickness constant. When the back dam plate is not used, the surface position of molten metal must be controlled to be constant in order to keep the solidification length constant. It is not easy to keep the surface position constant. When the surface position changes, the solidification is kept constant if a back dam plate is used.

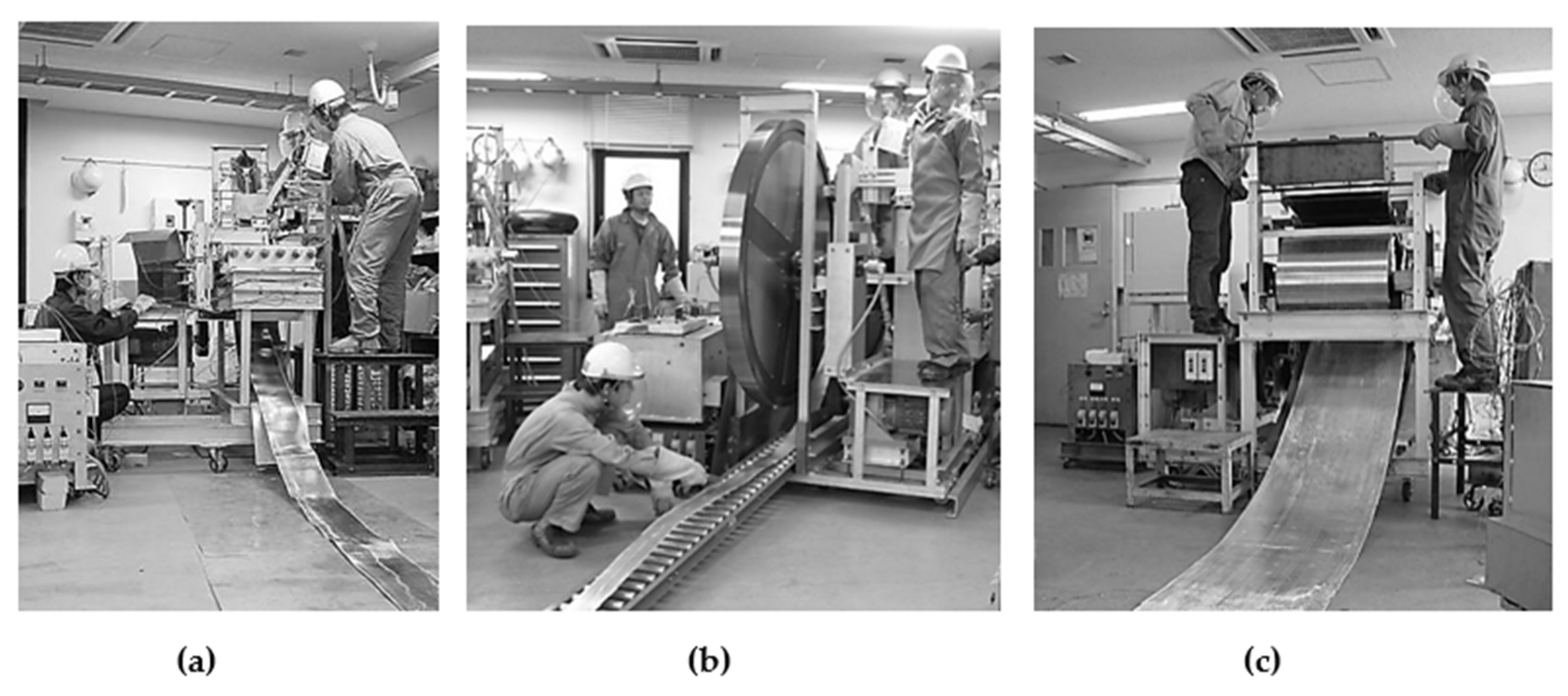

Photographs of casting being conducted using a VHSTRC of laboratory size are shown in Figure 4.

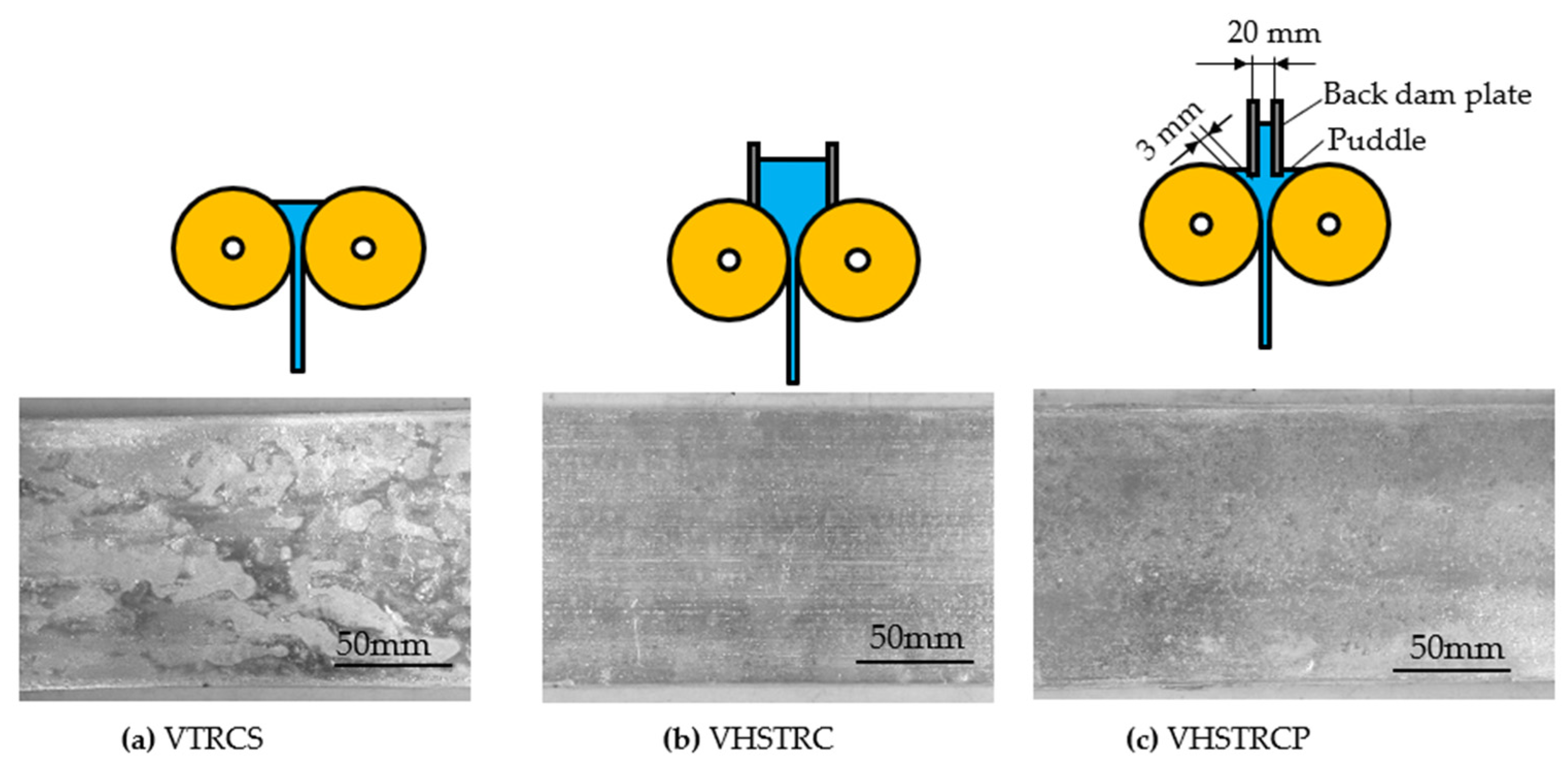

The effect of the back dam plate on the surface of the aluminum alloy strip is shown in Figure 5. In Figure 5a, the back dam plate is not used, and this is a vertical-type twin-roll caster for steel (VTRCS) [15]. Figure 5b shows the VHSTRC. A mottled pattern existed on the strip surface cast using the VTRCS. A unique pattern did not appear on the strip surface cast using the VHSTRC. The back dam plate is useful to make the strip surface sound. In Figure 5c, the back dam plate does not contact the roll surface. The clearance between the tip of the back dam plate and the roll surface is approximately 3 mm to 5 mm. A puddle of molten metal exists between the roll surface and the outside of the back dam plate. The twin-roll caster of Figure 5c is a vertical-type high-speed twin-roll caster with puddle (VHSTRCP). The surface of the strip cast using the VHSTRCP was different from the surfaces of the strips cast using the VTRCS and the VHSTRC. The surface of the strip cast using the VHSTRCP is better than that cast using the VTRCS. In the surface of the strip cast using the VHSTRCP, there was no effect of the hydrostatic pressure by the molten metal on the meniscus at the contact starting point between the molten metal and the roll. In the VHSTRCP, when the clearance between the back plate and the roll surface was wider than 6 mm, the strip surface was near the strip surface cast using the VTRCS. This means that the narrow clearance between the tip of the back dam plate and the roll surface affected the contact condition between the molten metal and the roll surface. The contact-start point of the molten metal to the roll may be below the tip of the back dam plate. Some aluminum alloys were cast using the VHSTRC to test the ability of the VHSTRC, for example 3xxx, 5xxx, 6xxx, A356, A383 and Al-25%Si [16,17,18,19,20,21,22,23]. The VHSTRC could cast the strip of a magnesium alloy [24].

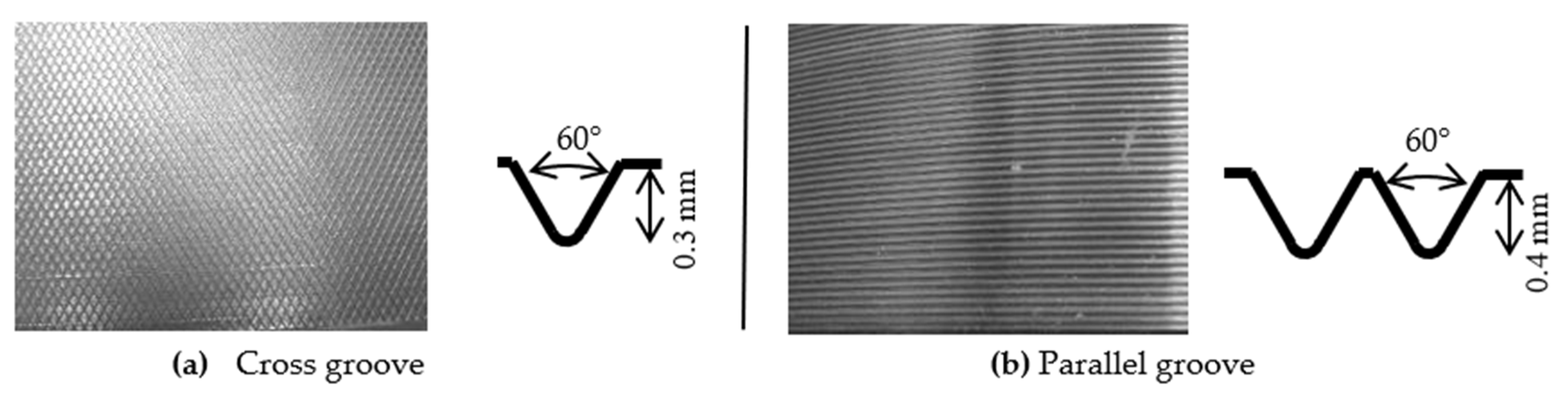

Effect of the condition of the roll surface on the crack at the strip surface was investigated [25]. The roll surface is usually flat. Casting of the strip using the rolls, which had the orientations shown in Figure 6, was investigated. The orientations were cross groove and parallel groove. The surfaces of the strips cast using the rolls of Figure 6 are shown in Figure 7. When a flat roll was used and 6061 aluminum alloy strip was cast, cracks occurred at the surface. It is estimated that the contact condition between the molten metal and the roll surface was not uniform, and cracks occurred at the solidification delay part by solidification shrinkage. When rolls with cross groove or parallel groove orientations were used for strip casting, cracking did not occur. The contact condition between the molten metal and the roll surface became uniform, and solidification delay did not occur. As a result, cracking did not occur.

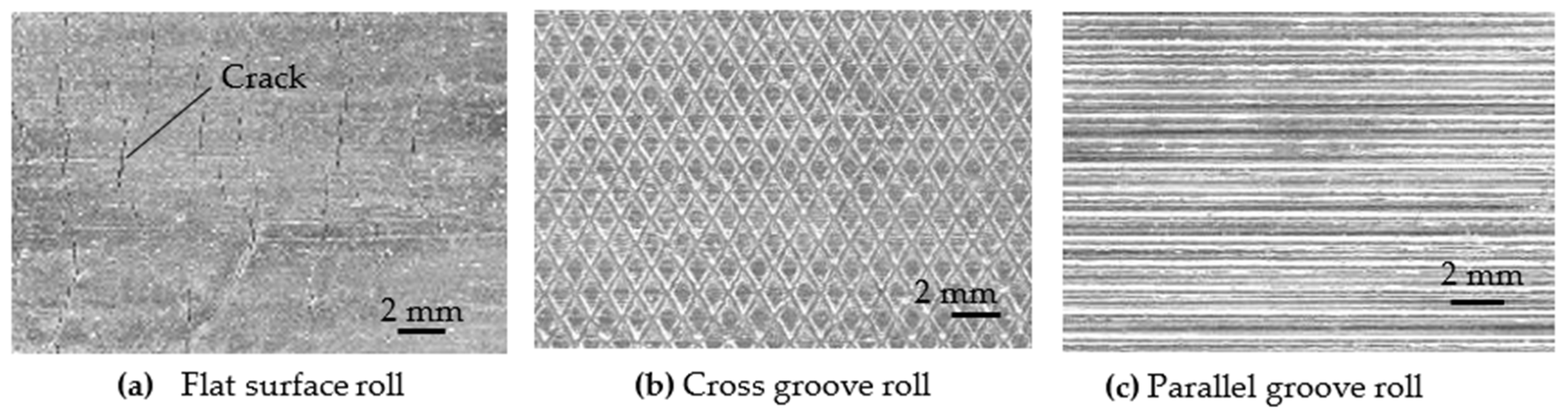

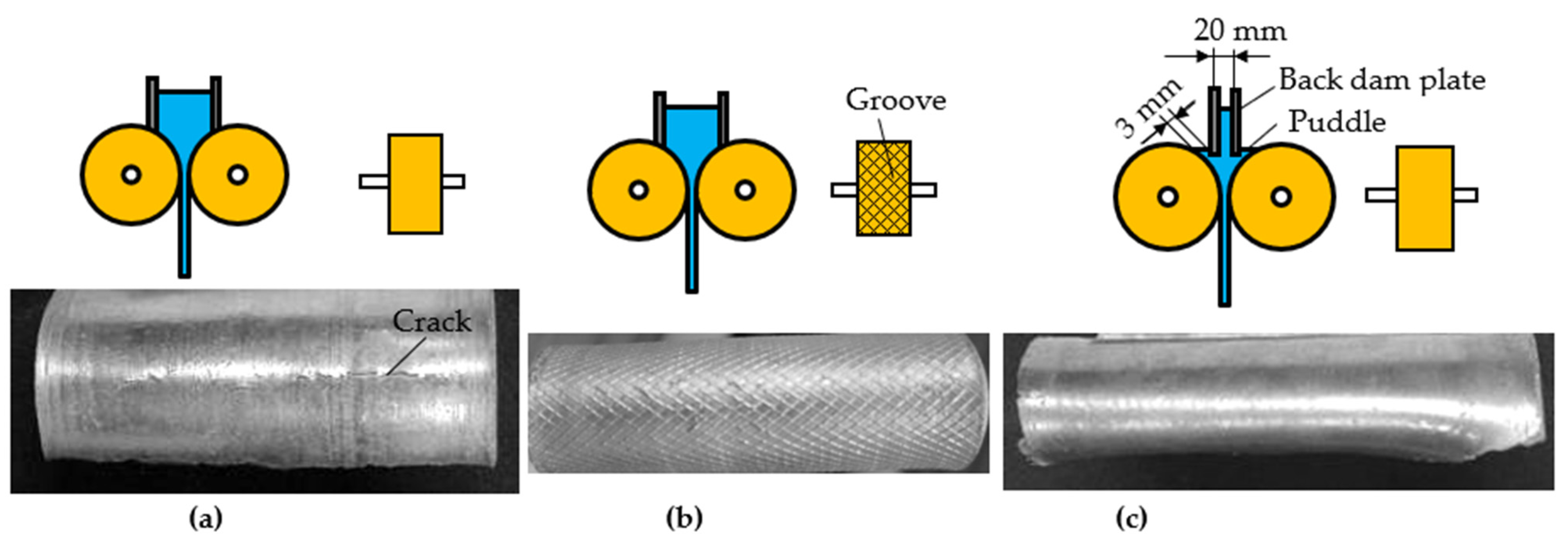

As-cast strips were bent, and the outer surfaces of the bent strip are shown in Figure 8. The crack did not occur at the surface of the 6022 strip cast using the VHSTRC, as in the 6061 strip shown in Figure 7a. However, in the 6022 strip with a radius of curvature of 10 mm, cracking occurred at the outer surface as shown in Figure 8a. On the other hand, for the 6022 strips cast using the VHSTRC with the cross groove roll and the VHSTRCP with the flat surface roll, cracking did not occur at the outer surface of the bent as-cast strip. Cracking occurred in an area of lower strength. In Figure 8b,c, the contact condition between the roll surface and the molten metal was uniform, and the microstructure near surface was constant. As a result, the strength is constant. Therefore, cracking did not occur under the conditions in Figure 8b,c. Convex strip surfaces shown in Figure 7b,c and Figure 8b were flattened by the cold rolling.

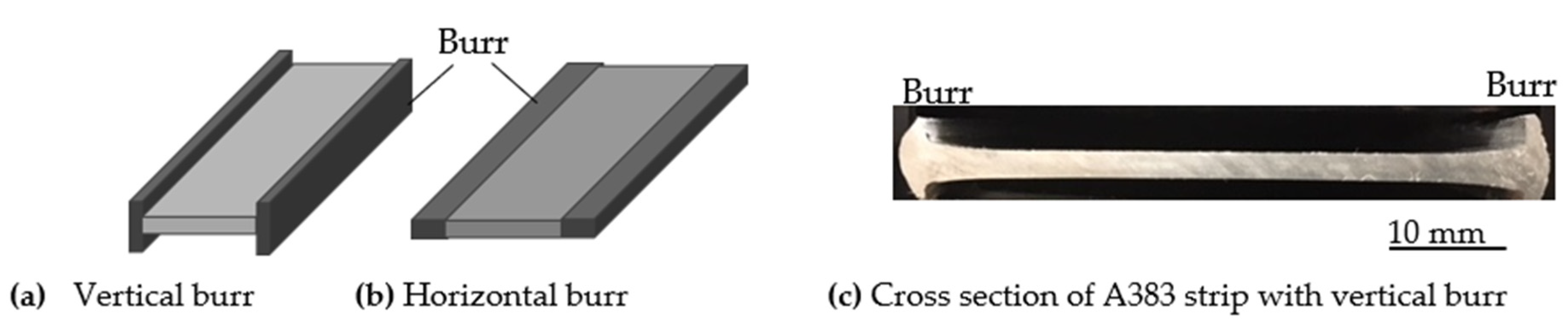

Burrs occur at the edges of strips cast using a twin-roll caster equipped with side dam plates [26,27]. Schematic illustration of a typical burr of the as-cast strip is shown in Figure 9a. The burr became smaller as the roll speed increased. The lower the flow ability in the semisolid condition of an aluminum alloy, the smaller the burr. The burr in Figure 9a is perpendicular to the strip. This type of burr is called a vertical burr. The vertical burr becomes an obstacle in coiling of the strip and becomes the origin of edge-cracking upon cold rolling. In the worst case, the burr sometimes destroys the side dam plate. The vertical burr is changed to have the same thickness as the strip, as shown in Figure 9b. This type of burr is called a horizontal burr. Figure 9c shows the cross section of a strip with a vertical burr.

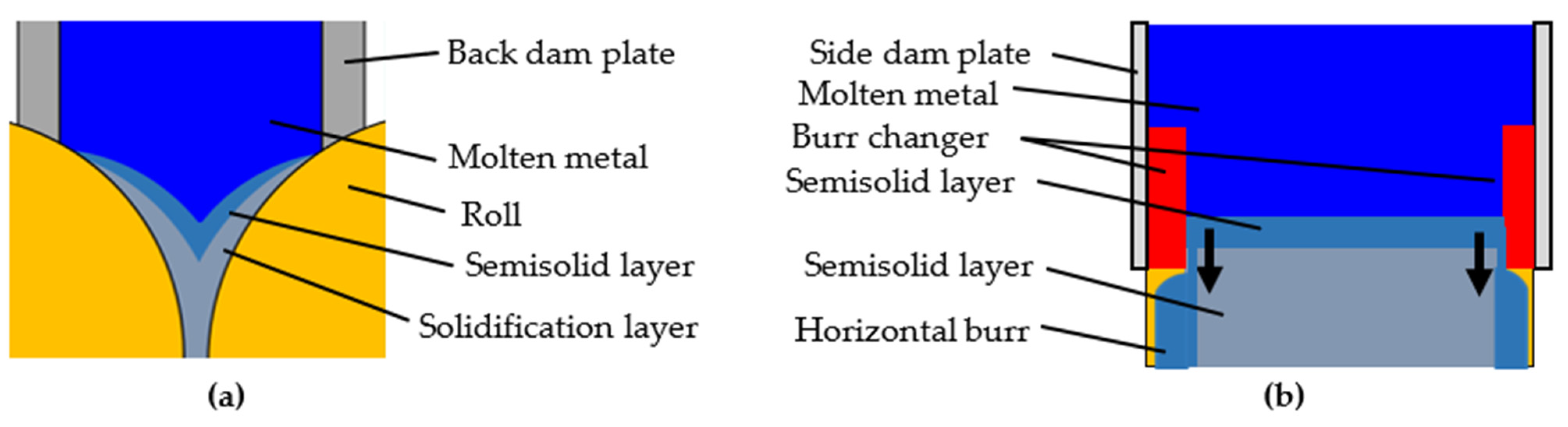

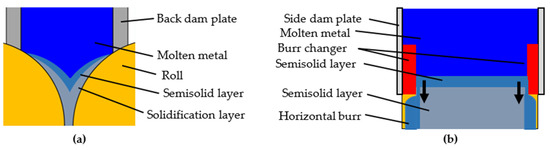

A cross section vertical to the roll shaft near the center of the roll is shown in Figure 10a. Semisolid metal exists on the solidification layer. This semisolid metal is squeezed toward to the side plate, and this semisolid metal enters between the side dam pale and the side surface of the roll. As a result, inserted semisolid metal solidifies and becomes a vertical burr. The proposed method, which changes a vertical burr to a horizontal burr, is shown in Figure 10b [28]. In Figure 10b, a plate, which is called a burr changer, is attached to the inside of the side dam plate. The lowest position of the burr changer is lower than the position at which the semisolid metal is squeezed and becomes vertically burry. The semisolid metal is squeezed between the burr changer and the strip. The squeezed semisolid metal was rolled and solidified and becomes a horizontal burr. The thickness of the horizontal burr was as same as the strip. The burr changer did not affect the strip surface.

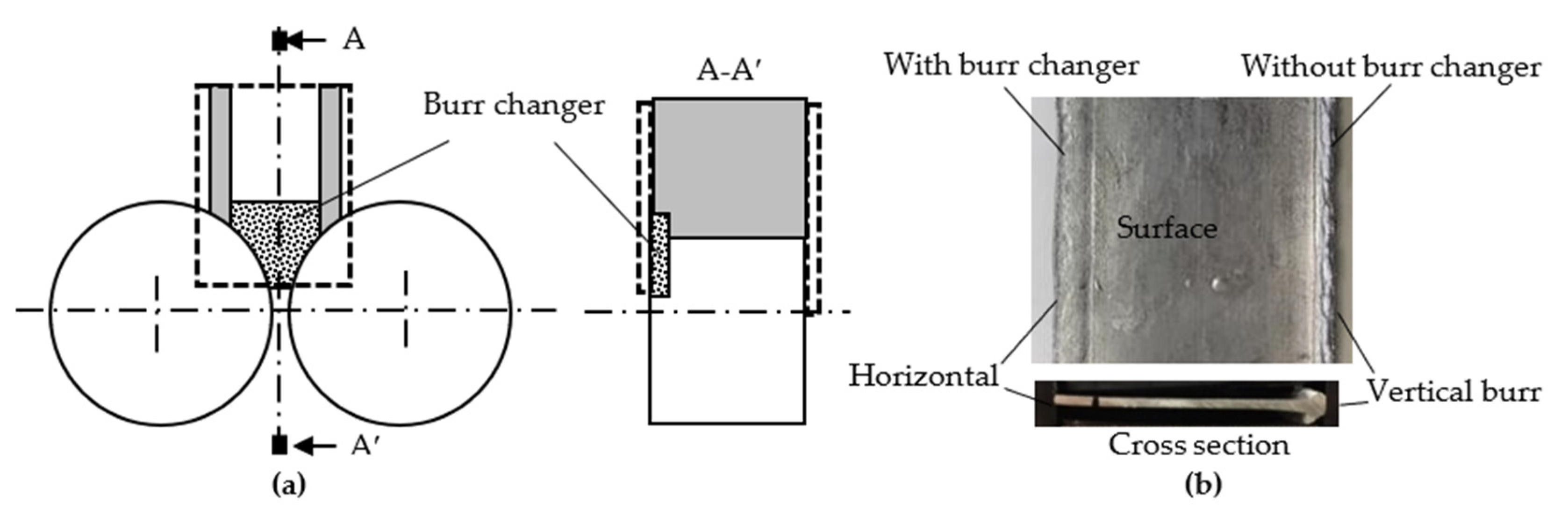

The burr changer was attached to only one side dam plate of the VHSTRC as shown in Figure 11a and the casting was conducted. The surface and cross section of the strip cast using the this VHSTRC is shown in Figure 11b. The edge of the strip corresponding to the side dam plate without burr changer had the vertical burr. On the other hand, the edge of the strip corresponding to the side dam plate with burr changer had not the vertical burr but the horizontal burr.

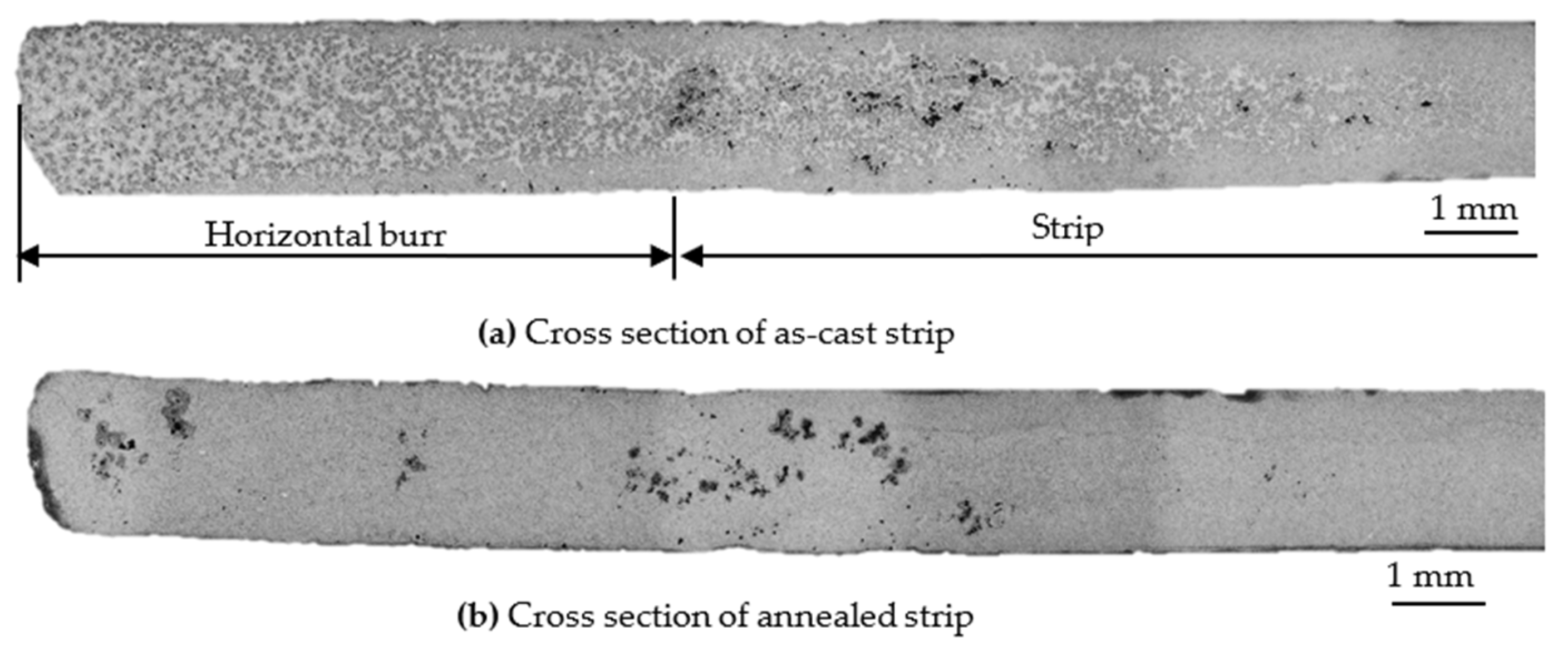

The cross section of the horizontal burr of A383 strip is shown in Figure 12. The eutectic crystal was squeezed and became a horizontal burr, as shown in Figure 12a. The microstructure of the horizontal burr was different from that of the strip in the as-cast condition. The microstructures of the horizontal burr and the strip became uniform after annealing, as show in Figure 12b. According to this result, the horizontal burr is estimated to be part of the strip.

The cooling rate of the strip cast using the VHSTRC was estimated from DAS, 4000 K/s near surface region of the strip, and 500/s at mid-thickness region [29]. It is very difficult to estimate the cooling rate from the DAS as the microstructure at mid-thickness region is not dendrite but globular structure [30]. Actually, the cooling rate of the mid-thickness region may be faster. The high cooling ability of the VHSTRC is suitable for the improvement of the decreased mechanical property of recycled aluminum alloy [31,32,33,34,35,36]. Iron was added to 6016 aluminum alloy as a model of recycled aluminum alloy [33]. 6016 aluminum alloy is usually used for body sheet of the automobile. The content of the Fe increases by recycling. The Fe content of the 6016 was 0.18%, and the Fe content was increased up to 1.0%. The 6016 and Fe-added 6016 was roll-cast using the VHSTRC at a speed of 60 m/min, and as-cast strip was cold rolled down to 1 mm and annealed. The results of full bending and a tension test are shown in Figure 13 and Figure 14, respectively. Cracking did not occur at the outer surface, even for the case in which the Fe content was 1.0, as shown in Figure 13. Based on the results of the tension test, the tensile stress, the proof stress, and the elongation were not strongly influenced by the increase of the Fe content up to 0.75%. However, when the Fe content was 1.0%, the elongation decreased. These results show that detoxification of increased Fe was attained up until 0.75% Fe. The AlFeSi intermetallic compound became fine by the effect of rapid solidification by the VHSTRC, and the AlFeSi was detoxified.

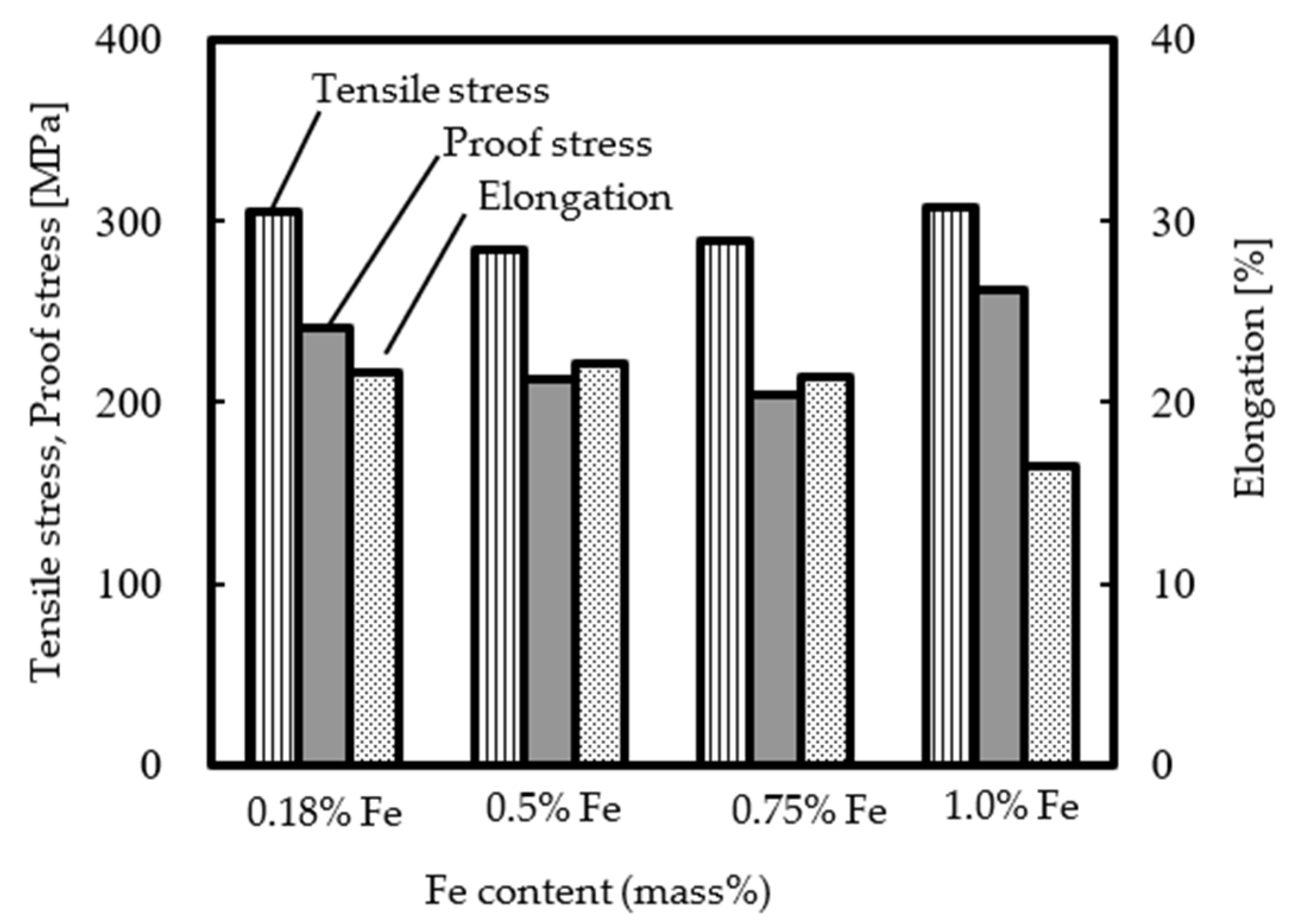

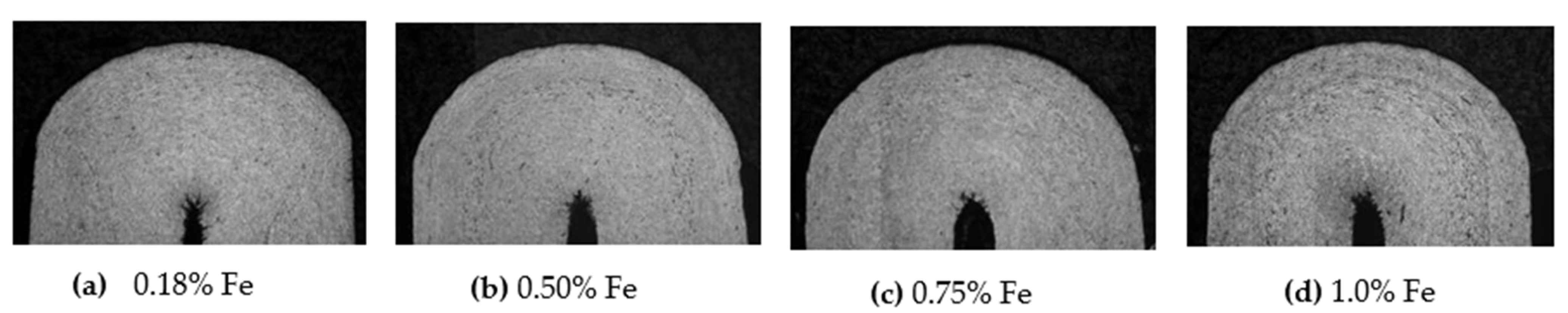

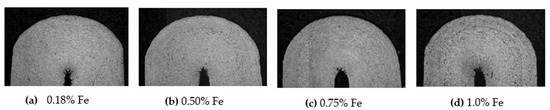

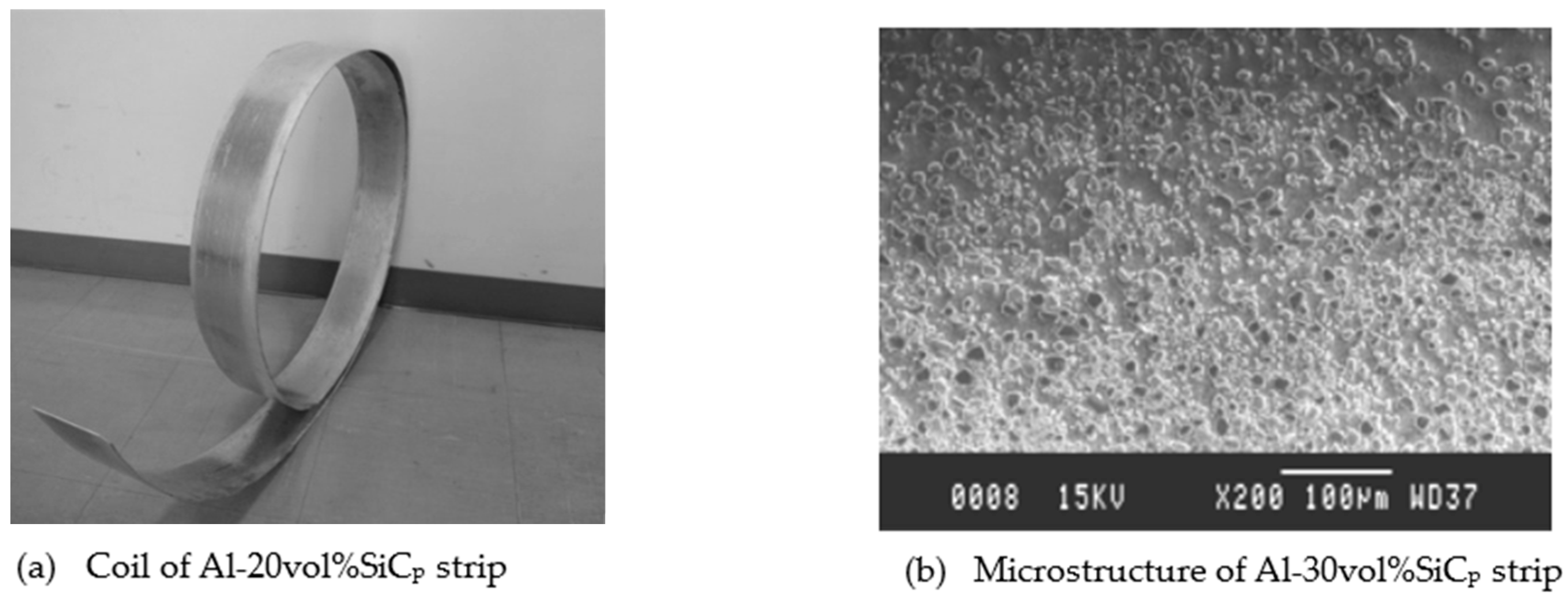

The VHSTRC can be used for strip casting of a particle-dispersed composite, such as Al-SiCp [23]. Figure 15 shows a coil of Al-20vol%SiCp strip and the microstructure of Al-30vol%SiCp strip. The matrix of these Al-SiCp strips is Al-Si alloy. The eutectic Si of Al-Si matrix became fine as a result of the effect of rapid solidification of the VHSTRC, and Al-SiCp strip had ductility. Therefore, Al-20vol%SiCp could be coiled. The SiC particle uniformly dispersed and the agglomeration of SiC particles did not occur because the crystal became fine by the effect of rapid solidification of the VHSTRC.

The crystallization position and formation mechanism of globular crystals at the center area in the thickness direction of aluminum alloy strips cast by a high-speed twin roll caster was investigated. It was demonstrated that globular crystals at the center area of the thickness direction were formed by dendrite-arm-dividing at the roll gap by the strip casting clad strip [30]. Experiments by semisolid-strip casting with the cooling slope showed that globular crystals in the molten metal existed in the solidification layers.

3. Unequal Diameter Twin Roll Caster

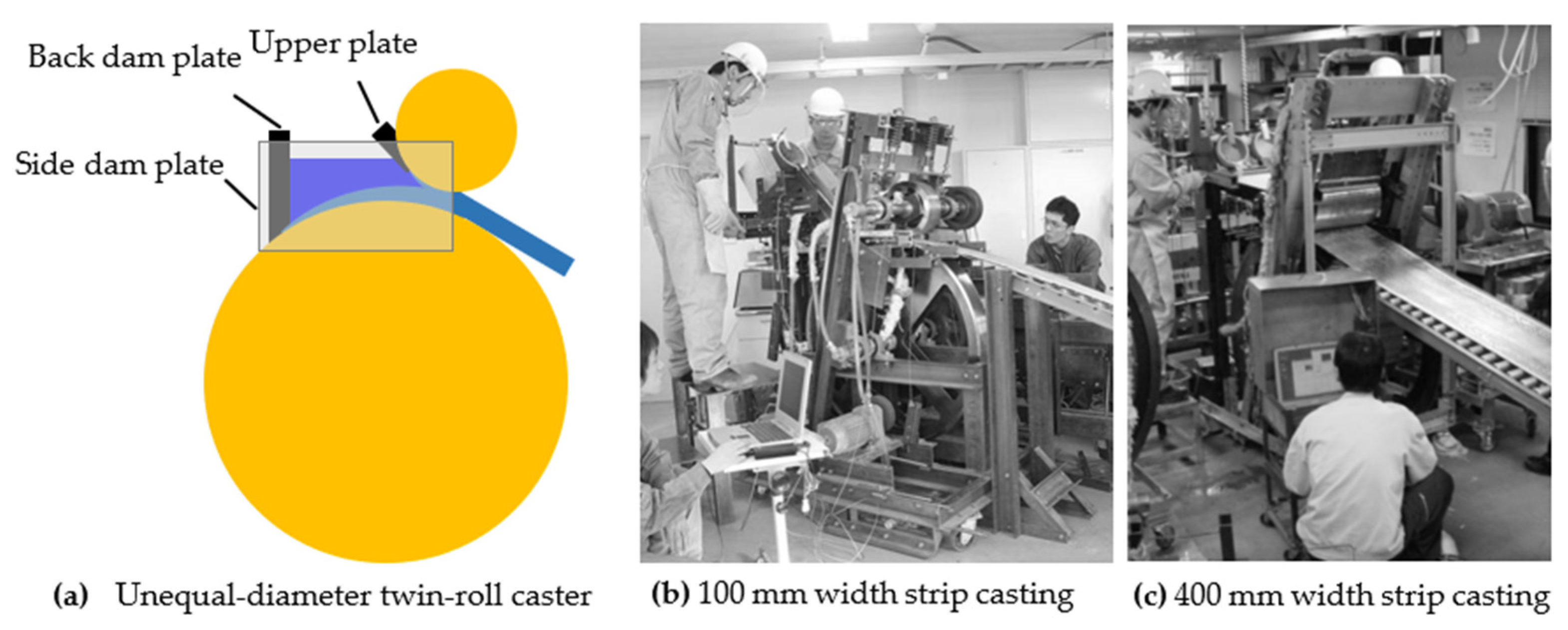

A schematic diagram of an unequal-diameter twin-roll caster (UDTRC) and a photograph of casting procedure are shown in Figure 16 [37]. The lower roll is larger than the upper roll. The molten metal is poured on the lower roll. A molten metal pool is made by side dam plates, a back dam plate, and an upper plate on the lower roll. The UDTRC equips copper alloy rolls or mild steel rolls with a thin shell thinner than 6 mm, and a parting material is not used on the roll. Therefore, the UDTRC can cast strip at a speed higher than that of the CTRCA. The casting speed of the UDTRC is up to 60 m/min when the copper alloy rolls are used. The casting speed of the UDTRC is lower than that of the VHSTRC. However, the UDTRC has some advantages. For example, conveyance of the cast strip is easier because the strip is not bent below the rolls, as is the case for the VHSTRC. The strip, which is a semisolid inside, can be conveyed without being broken. This means that the UDTRC can cast strip at a smaller roll load than the VHSTRC without the strip being broken. This is very useful for an inline hot rolling. The UDTRC can cast thicker strip at lower speeds than the VHSTRC (down to 5 m/min). The solidification layer cast by the lower roll is thicker than that cast by the upper roll. Therefore, the microstructure of the strip cast by the UDTRC is not symmetric. This becomes either an advantage or a disadvantage, depending on use. The UDTRC can cast wrought aluminum alloy strip [37,38]. The high cooling ability of the UDTRC is suitable for the improvement of the decreased mechanical property of recycled aluminum alloy [39]. Hyper-eutectic Al-Si and Al-40%Sn-1%Cu have very wide solidification temperature, and the UDTRC can cast the strips of these alloys by the high cooling ability [40,41].

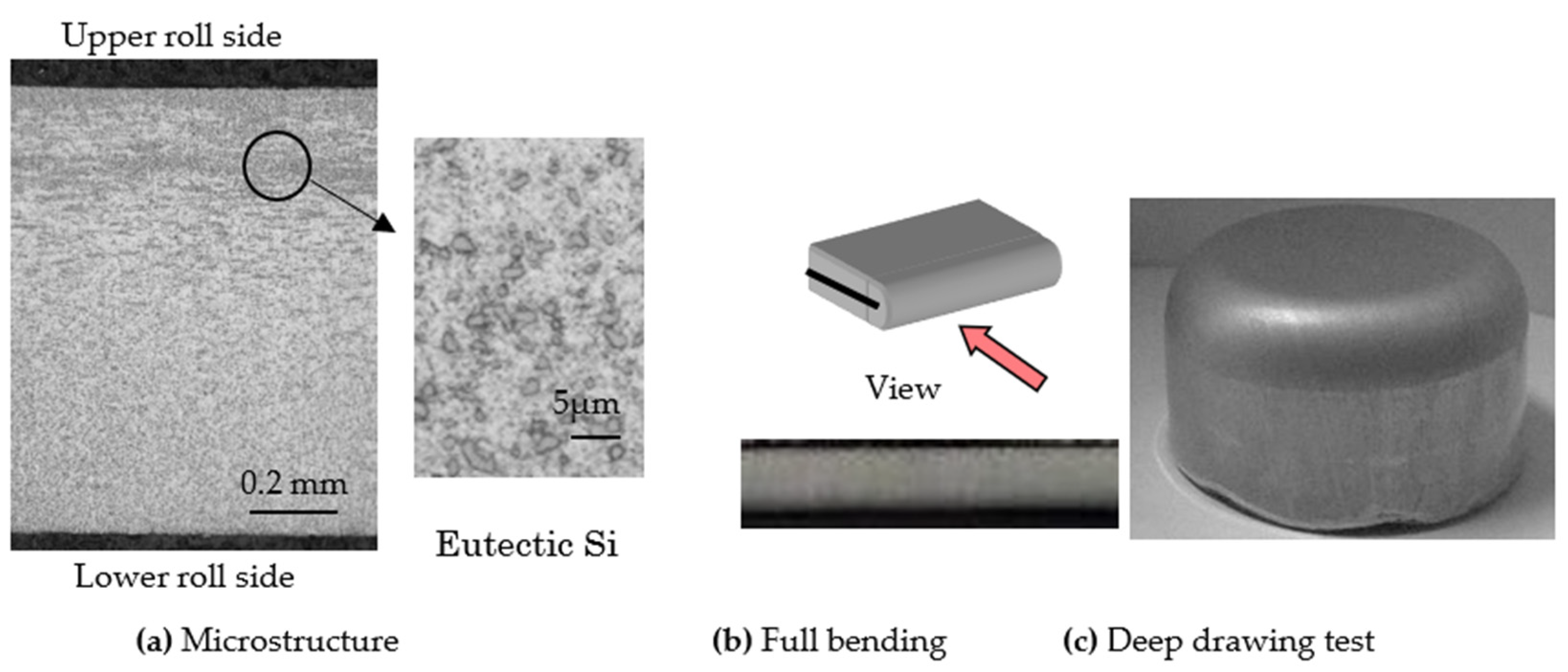

The A356 was aluminum alloy for casting. Therefore, the A356 is suitable for roll casting as well [42]. The properties of the roll cast A356 strip are shown in Figure 17. A cross section of cold-rolled 1-mm-thick A356 strip and its eutectic Si is shown in Figure 17a. The eutectic Si was fine and globular as a result of the effect of rapid solidification. The as-cast strip can be cold rolled down to 1 mm without breaking, despite having an Si content of 6.5%, and being annealed. A full bending test and a deep drawing test were conducted using a cold-rolled and annealed strip. Cracking did not occur at the outer surface of the bent strip. A 32-mm diameter punch was used for the deep drawing test. The limiting drawing ratio (LDR) was 1.8. The results of the full bending test and the deep drawing test are shown in Figure 17b,c, respectively. A356 is an aluminum alloy for casting and has an Si content that is much higher than that of wrought aluminum alloy. However, strip cast using the VHSTRC had good ductility and formability for fine globular eutectic Si obtained by rapid solidification. A356 strip cast using the VHSTRC may be used for sheet forming.

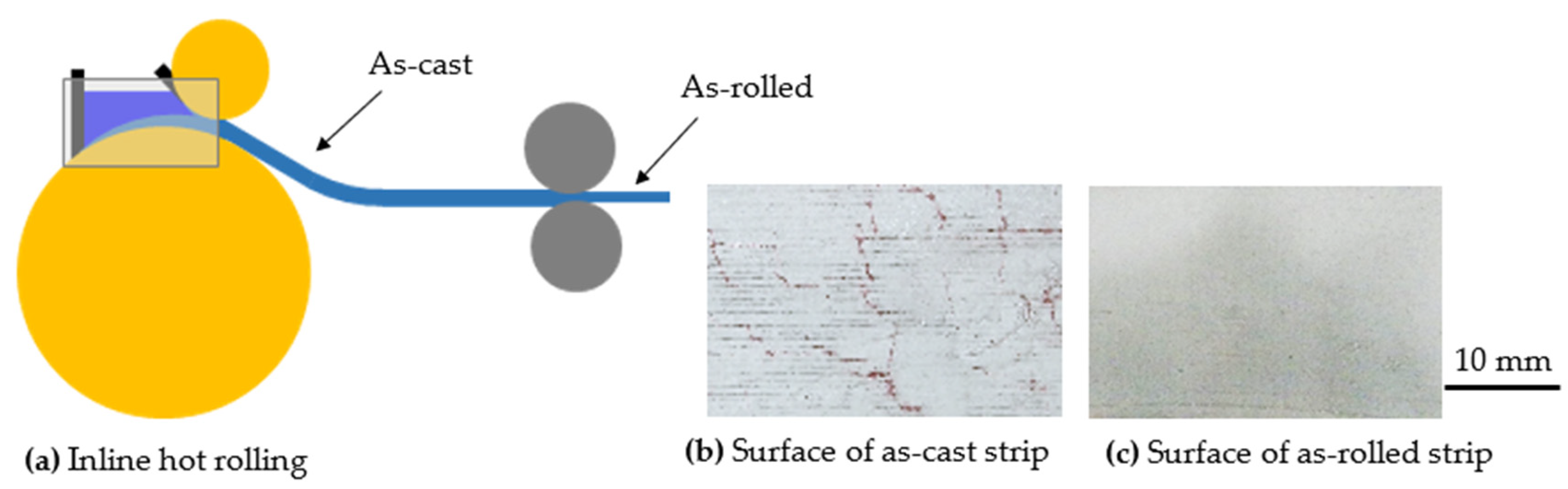

Surface cracking and center-line segregation occur in Al-Mg strip cast using the high-speed twin-roll caster. A molten-metal pouring method to reduce the surface cracking was proposed [43]. However, the reduction of the center-line segregation is difficult. The center-line segregation of the strip cast using the VHSTRC or the UDTRC is milder than that cast using the CTRCA. Inline hot rolling was proposed in order to reduce these defects. Inline hot rolling was performed using the UDTRC. Schematic diagrams of inline hot rolling and the surfaces of Al-4.8Mg strip under as-cast and as-rolled conditions are shown in Figure 18. The casting speed of Al-4.8Mg strip was 60 m/min, and the temperature of the inline hot rolling was 450 °C. The reduction in the inline hot rolling was 40%. A color check was conducted on the surfaces of the as-cast strip and the inline hot-rolled strip in order to investigate surface cracks. Cracks existed on the as-cast strip. These cracks did not exist on the inline hot-rolled strip. The center-line segregation was reduced by inline hot rolling as well.

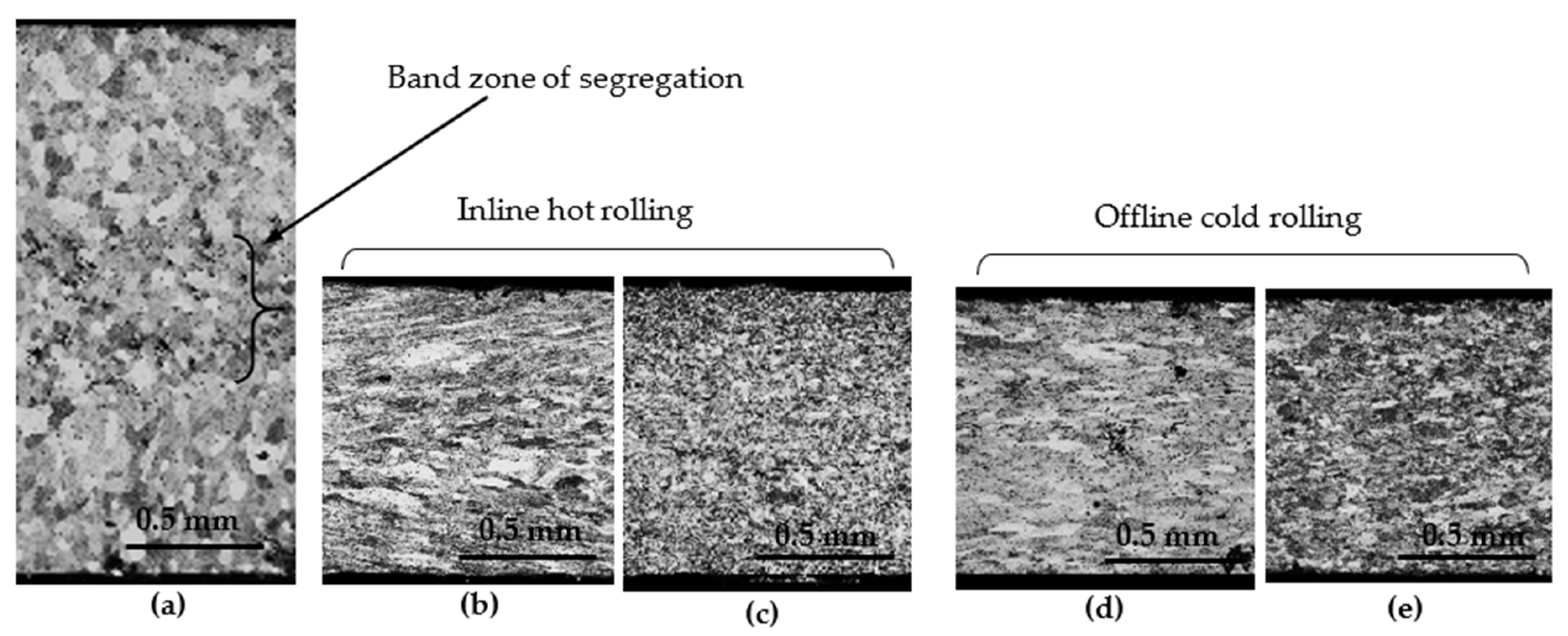

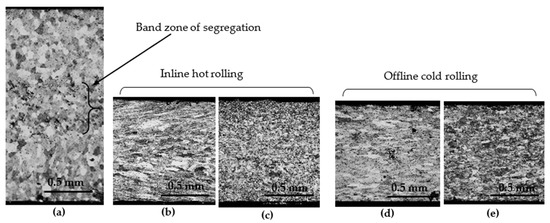

The microstructures of the as-cast strip, the inline hot-rolled strip, and the offline cold-rolled strip are shown in Figure 19. The microstructures of annealed strips of the inline hot-rolled strip and offline cold-rolled strip are also shown. A band zone of the segregation existed in the middle of the thickness direction in the as-cast strip, as shown in Figure 19a. The as-cast strip was inline hot rolled down to 1.1 mm in one pass. The structure of the cross section became a typical rolled structure after inline hot rolling, and the segregation was reduced, as shown in Figure 19b. The structure of the inline hot-rolled strip became fine and globular after annealing, as shown in Figure 19c. The structure became remarkably fine near the strip surface because the induction of strain was greater and cooling was more rapid around the surface in the case of inline hot rolling. In offline cold rolling, the as-cast strip was cold rolled down to 1.1 mm by a number of passes. Therefore, the structure of the cross section of the offline cold-rolled strip was different from that of the inline hot-rolled strip, as shown in Figure 19d. A cross section of annealed offline cold-rolled strip is shown in Figure 19e, and the grain of this strip was larger than that of the annealed inline hot-rolled strip.

4. Single Roll Caster Equipped with Scraper

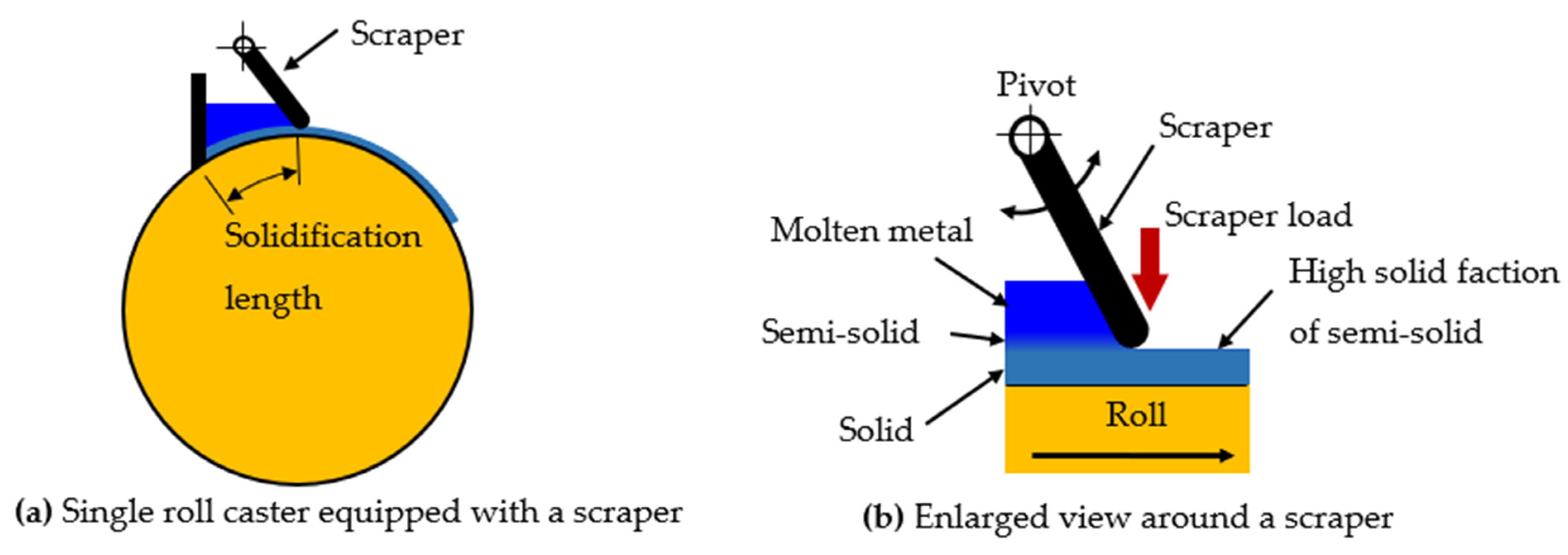

Center-line segregation and surface cracks can occur in aluminum alloy strip cast using the VHSTRC or the UDTRC. The center-line segregation and the surface crack are remarkable in Al-Mg alloy. In order to improve the center-line segregation and the surface crack, a single-roll caster equipped with a scraper (SRCs) was proposed [44]. Schematic diagrams of the SRCs and a close-up of the area around the scraper are shown in Figure 20. The molten metal is solidified only from one side. Therefore, the center-line segregation did not occur. The scraper was, for example, made of 3.2-mm mild steel plate and was covered by a 2-mm-thick insulator sheet. The scraper can move around a pivot and is pushed toward to the roll surface by a constant load. The constant load is very small (for example, 0.2 N/mm). Cracking does not occur at the surfaces as a result of the effect of the small scraper load. The scraper moves along the solidification thickness. As a result, the molten metal does not leak from under the scraper. The scraper makes semisolid layer flat, and pushing the solidification layer toward the roll by the scraper causes heat transfer between the solidification layer and the roll to increase.

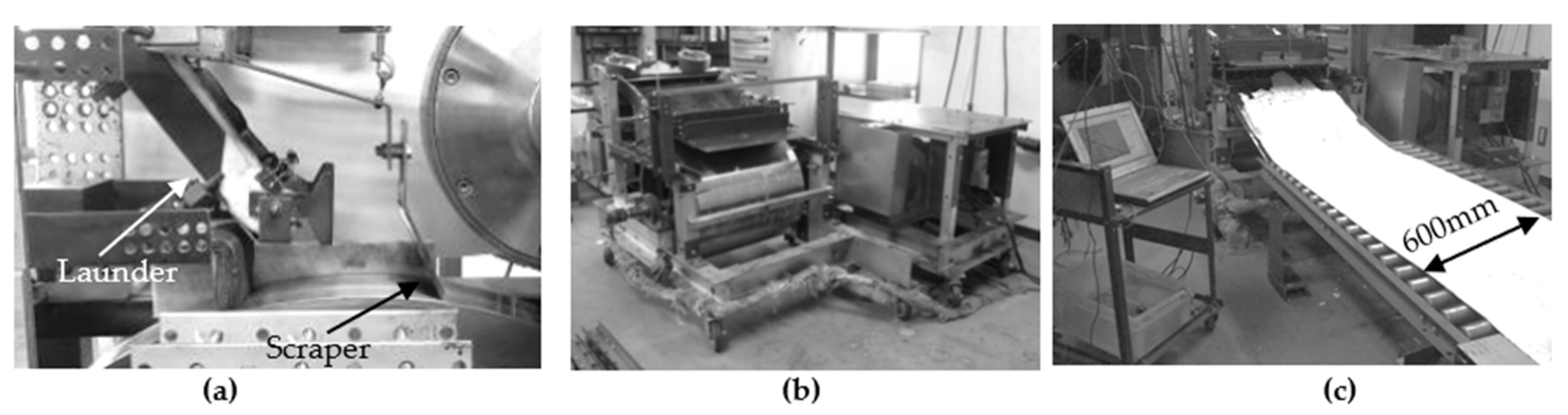

Photographs of Close-up of the area around the scraper equipped to the UDTRC is shown in Figure 21a. The scraper can be easily put to and taken from the UDTRC [45]. The UDTRC can be used as the SRCs. A SRCs equipped with a 600 mm width roll is shown in Figure 21b. It is clear that the SRCs is very compact. The SRCs immediately after casting a 600 mm width strip and as-cast strip are shown in Figure 21c [46]. 600 mm-wide 5182 aluminum alloy strips could cast at speeds of 10 to 40 m/min by the SRCs. There was no leakage of the molten metal between the scraper and the solidification layer.

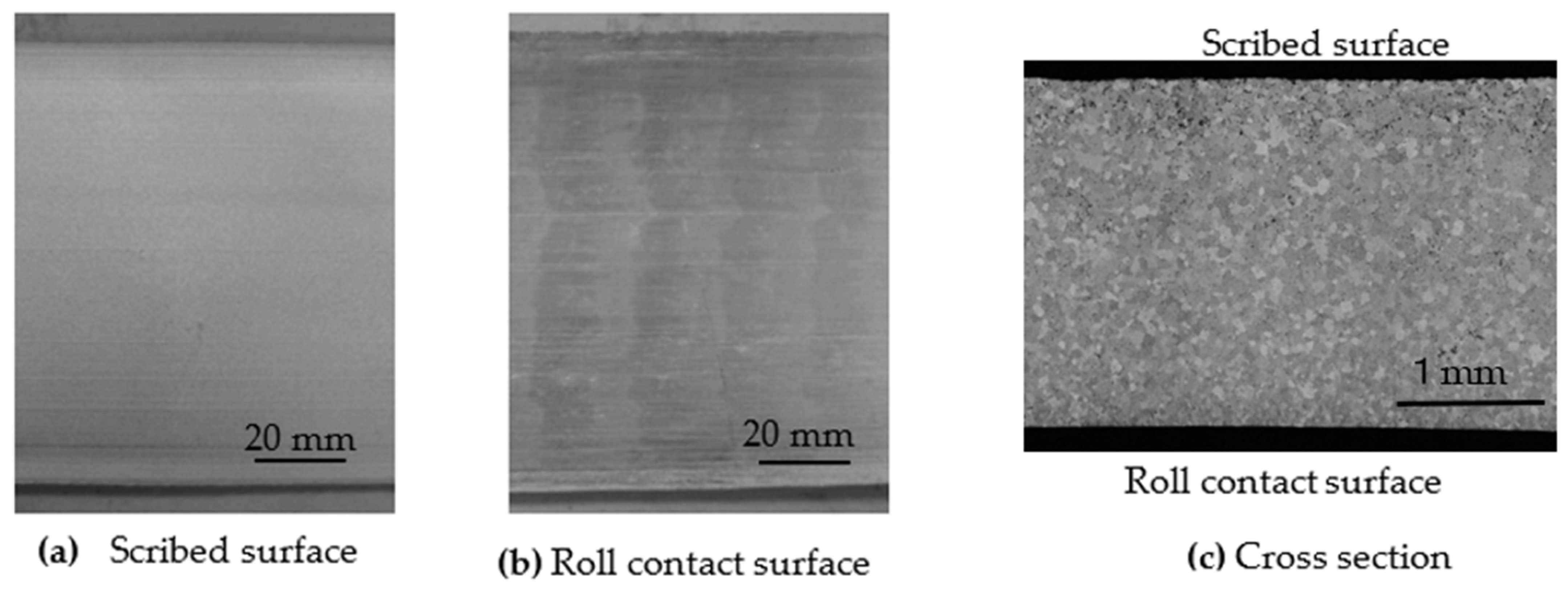

The properties of the as-cast 5182 aluminum strip cast at 40 m/min are shown in Figure 22. Scribed and roll contact surfaces are shown in Figure 22a,b, respectively. The scribed surface is dull and different from the roll contact surface. The ripple mark occurred at the roll contact surface. The crack shown in Figure 18b did not occur on both surfaces. This is the effect of a small scraper load. The difference between the scribed surface and the roll contact surface was reduced, and the surfaces became almost the same by cold rolling. The cross section of as-cast 5182 strip is shown in Figure 22c. The band area shown in Figure 19a does not exist in Figure 22c. The segregation of Mg (black dots in Figure 22c) existed near the scribed surface. Solidification starts from the roll contact surface and ends at the scribed surface. Therefore, the segregation occurred near the scribed surface. The thickness distribution was very flat. The scribed load was small but was sufficient to make the scribed surface flat.

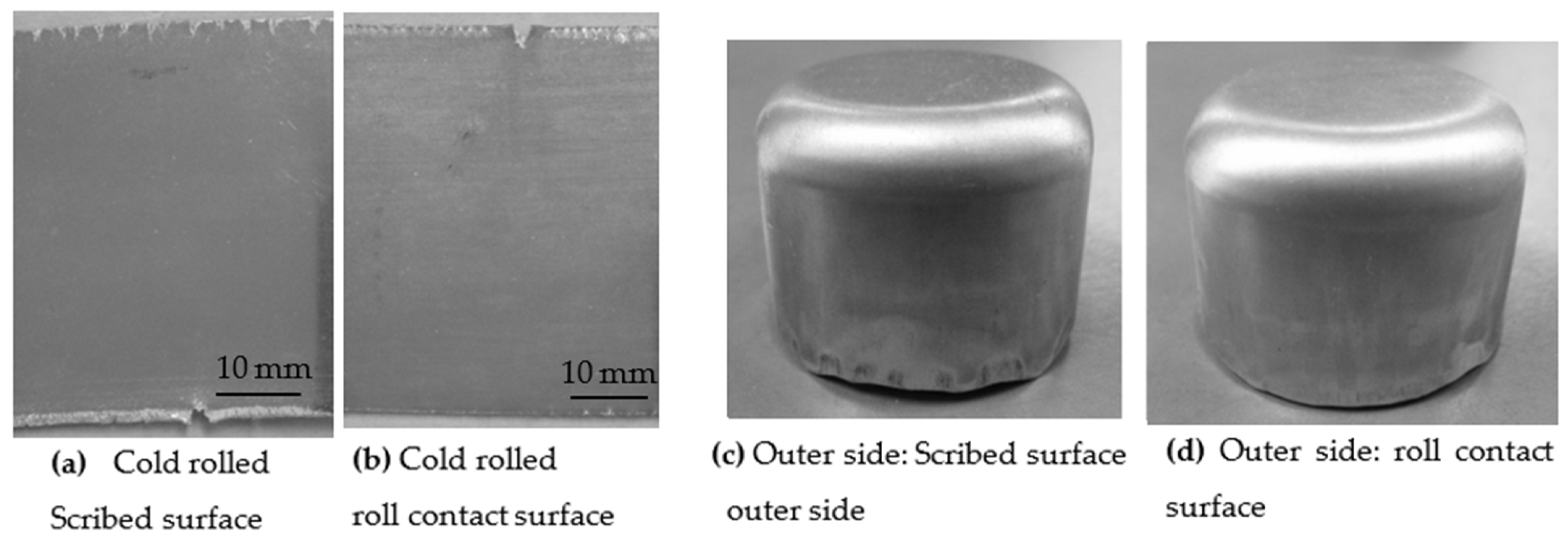

A deep drawing test was conducted on cold-rolled and annealed 5182 strip under two conditions: (1) the outer surface was a roll contact surface and (2) the outer surface was a scribed surface. The surfaces of the cold-rolled strip and the results of the deep drawing test are shown in Figure 23 [44]. The difference between the scribed surface and the roll contact surface was reduced, and the surfaces became approximately the same as a result of cold rolling, as shown in Figure 20a,b. The LDR was 2.0 for both conditions, in which the scribed surface and the roll contact surface were outer surfaces. There was no particular difference between the two deep-drawn cups. These results indicate that there was no significant difference between the scribe surface and the roll contact surface after cold rolling and annealing.

5. Summary

Three types of high-speed roll casters, i.e., a vertical-type high-speed twin-roll caster, an equal-diameter twin-roll caster, and a single-roll caster equipped with a scraper, were proposed and tested. These casters can cast strip at speeds greater than 30 m/min. The increase in the roll speed was attained by original methods, which were different from the conventional twin-roll caster for aluminum alloy. Although the proposed casters have their own features and advantages, high-speed roll casting and rapid solidification of the strip are common advantages.

More detailed investigations of the small roll load and the pouring temperature directly over the liquidus line of the molten metal are required in order to obtain an improved surface of the strip based on recent studies on the high-speed twin-roll casters. Such studies have begun. A horizontal-type twin-roll caster that incorporates the ideas of the high-speed twin-roll caster has been used for strip casting of magnesium alloy. Practical application research on the VHSTRC for aluminum alloy is planned to begin from the second half of 2021 in Japan. Problems in the actual operation of the VHSTRC will be clarified by practical application research.

Properties of three types of roll caster are compared as follows.

Types of roll caster: A vertical-type high-speed twin-roll caster, an unequal diameter twin roll caster and a single roll caster equipped with a scraper.

Casting speed: Three types of roll-caster can cast the strip at speeds much higher than the conventional twin-roll caster for aluminum alloy. The casting speed of the vertical-type high-speed twin roll caster is higher than that of the other two types of roll-caster. The casting speed of the vertical-type high-speed twin roll caster is up to 120 m/min.

Strip thickness: The unequal-diameter twin-roll is more suitable for casting of a thick strip than the other two types of roll-caster. The thickest strip that can be cast using the unequal-diameter twin-roll caster is 10 mm.

Center segregation: The strip cast using the single-roll caster equipped with a scraper is free from center segregation. This caster can cast an Al-10 Mg strip without center segregation. The center segregation of the strip cast using the other two types of roll-caster is milder than that of the conventional twin-roll caster for aluminum alloy.

Metallic structure at the cross section: In the vertical-type high-speed twin-roll caster and the unequal-diameter twin-roll caster, the cross section consists of three layers. The first and third layers are dendrite structures solidified by the rolls, and the second layer is a globular structure. In the single-roll caster equipped with a scraper, the cross section consists of a single layer of dendrite structure.

Cooling rate: The three types of high-speed roll casters can cast at higher cooling rates than the conventional twin-roll caster for aluminum alloy. The cooling rate near the surface of the strip cast using the vertical-type high-speed twin-roll caster is the highest, and that near the scribed surface of the strip cast using the single-roll caster equipped with a scraper is the lowest among the three types.
