Shearing Characteristics of Cu-Cu Joints Fabricated by Two-Step Process Using Highly <111>-Oriented Nanotwinned Cu

Abstract

Cu-Cu bonding has the potential to break through the extreme boundary of scaling down chips’ I/Os into the sub-micrometer scale. In this study, we investigated the effect of 2-step bonding on the shear strength and electrical resistance of Cu-Cu microbumps using highly <111>-oriented nanotwinned Cu (nt-Cu). Alignment and bonding were achieved at 10 s in the first step, and a post-annealing process was further conducted to enhance its bonding strength. Results show that bonding strength was enhanced by 2–3 times after a post-annealing step. We found 50% of ductile fractures among 4548 post-annealed microbumps in one chip, while the rate was less than 20% for the as-bonded counterparts. During the post-annealing, interfacial grain growth and recrystallization occurred, and the bonding interface was eliminated. Ductile fracture in the form of zig-zag grain boundary was found at the original bonding interface, thus resulting in an increase in bonding strength of the microbumps.

1. Introduction

In the era of 5G and big data, extremely high-speeds of signal transmission and multi-system functionality in technologies are growing in demand, especially as a result of the COVID-19 pandemic. Distance communication, such as telemedicine, business meetings, and online education, has greatly increased the demand for electronic and micro-electronic products. Excellent reliability, small size, high functionality, and low-cost of devices are thus required. However, it is incredibly difficult to shrink down the pitch of solder microbumps below 10 µm [1,2,3,4,5,6,7,8], due to bridging and the side wall wetting effect [9,10,11]. Cu-Cu bonding has shown potential in overcoming the limitation of scaling down into the sub-micron scale, and impede the delay problem of RC signal. Currently, die-to-wafer and die-to-die approaches have not been realized in mass production yet, due to low throughput. Several methods have been conducted to bond Cu microbumps and obtain good bonding quality, such as surface activated bonding (SAB) [5], plasma passivation [1,12], and thermal compression bonding [13,14,15]. These were conducted in a complex pre-treatment chamber. This may lead to additional costs for the treatment facility and processing. In this study, we only used citric acid followed by DI water and N₂ purging to clean the bonding surface under room temperature and ambient pressure. Thus, the manufacturing cost and process complexity were further reduced.

In a previous study, Shie et al. revealed that Cu-Cu bonding can be bonded at 300 °C in 10 s using highly <111>-oriented nanotwinned copper (nt-Cu) [15], which is the shortest bonding time reported. Such nt-Cu was demonstrated to have superior mechanical properties [16,17,18,19] and great resistance to electromigration [20]. However, the reliability of chips (bonding strength) is not satisfactory. Hence, this study is aimed at demonstrating that bonding strength can be enhanced significantly by triggering interfacial recrystallization and grain growth during a post-annealing process. However, the surface of Cu microbumps deposited on the Si wafer might be varied in height and surface roughness after chemical mechanical planarization (CMP) treatment. Additionally, the bonding pressure might not be uniform during the bonding process. Thus, Cu-Cu joints in Kelvin structure and Daisy chain were additionally measured by a 4-point probe technique to test the functionality of bonded joints. Results of electrical resistance measured before and after post-annealing show the capability of assisting the connection of opened Cu-Cu joints and further strengthening them, as shown in

Table 1. Number of opened joints detected among 35 bumps measured by a 4-point-probe technique.

Conditions	As-Bonded	Post-Annealed
300 °C/93 MPa/10 s	0/35	0/35
300 °C/47 MPa/10 s	8/35	0/35
300 °C/31 MPa/10 s	14/35	0/35

. Therefore, post-annealing is applied to increase the mechanical strength and maintain low electrical conductivity in joints.

In this study, we conducted the bonding process in two steps and investigated its reliability. We primarily focused on shortening the bonding time to save the time of alignment in the first step. The post-annealing process has the ability to be executed batch by batch at the second step, thus increasing production and yield rates in industrial manufacturing. The first step was conducted using alignment marks of the top and bottom dies. It was bonded for only 10 s under thermal compression in N₂. Higher bonding quality was achieved at the second step, denoted as post-annealing. Note that three main factors which affect the bonding quality of a Cu-Cu bond are surface diffusivity, oxidation rate, and surface roughness. To obtain greater consistency and higher bonding quality, highly <111>-oriented nt-Cu microbumps were bonded within 10 s in the first step fabrication. According to [21], Hsiao et al. reported that the <111> crystal plane is the highest packing plane in an FCC structure. It possesses the lowest number of dangling bonds and the lowest oxidation rate. Moreover, the most densely packed plane has the lowest activation energy to endure during diffusion. Thus, they concluded that the <111> Cu surface possesses the highest surface diffusivity and lowest oxidation rate among all other crystallographic planes of Cu. Therefore, it is of great importance to fabricate a high percentage of <111> surface in the nt-Cu bumps.

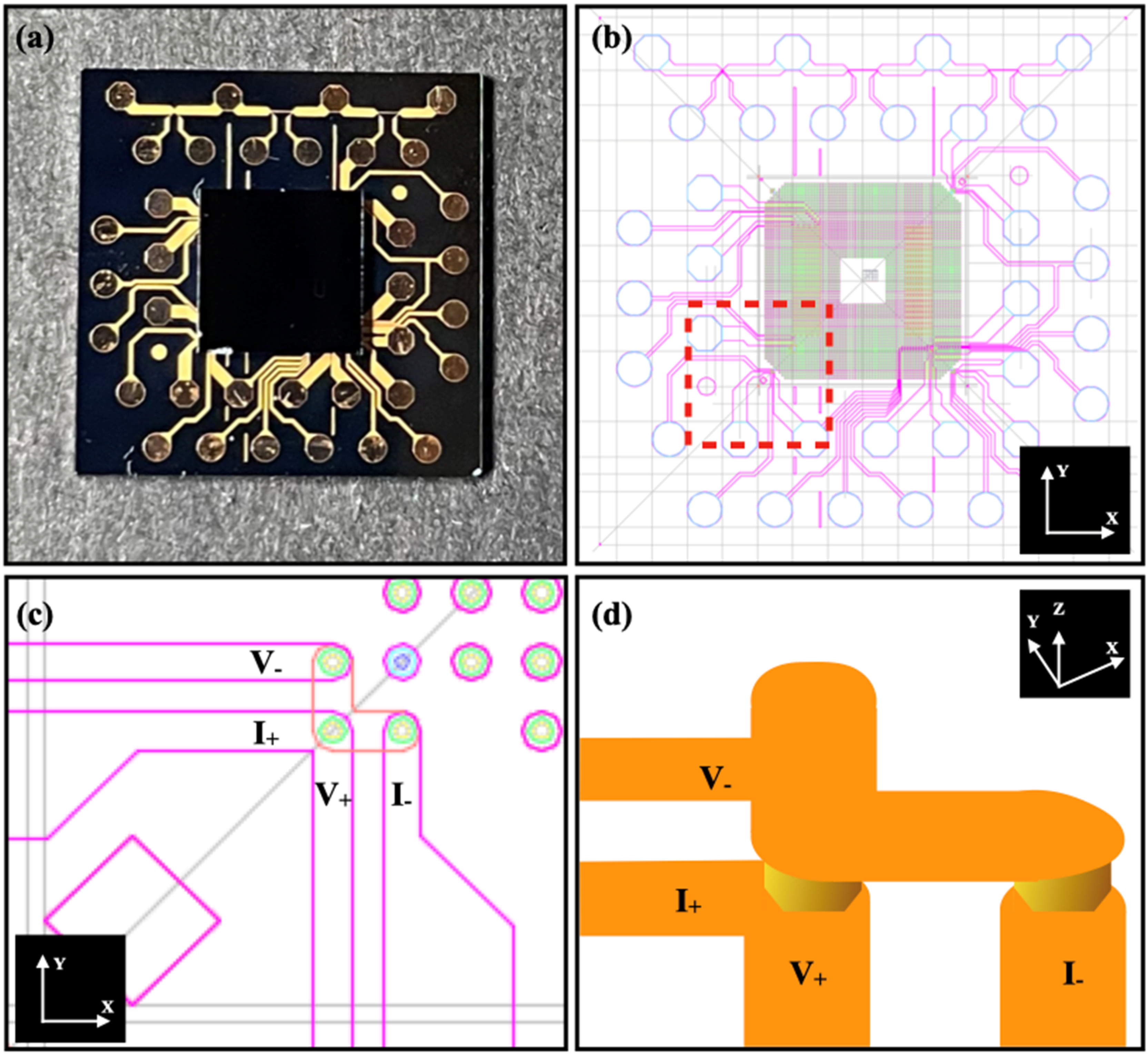

Additionally, the roughness of the bonding surface is also a key factor to obtaining high quality Cu joint bonding. Herein, we used chemical mechanical planarization (CMP) prior to the bonding to reduce its roughness. The electrical and bonding properties of the bumps with and without post-annealing were investigated. Bonding quality was then characterized using shear tests, and the electrical resistance was measured by a Kelvin structure in the tested vehicles (Figure 1) and a Daisy chain using a four-point-probe technique.

2. Materials and Methods

Highly <111>-oriented nt-Cu microbumps were electrodeposited on an 8-inch photoresist (PR) patterned wafer using direct current at room temperature. The electrolyte used in this investigation contained a high purity copper sulfate solution, 100 g/L of sulfuric acid [22], 0.1 mL/L of a hydrochloric acid, and an additive for nanotwin nucleation (Chemleader Corporation, Hsinchu, Taiwan). Figure 2 shows the workflow of the first step bonding. Wafer level CMP was conducted after the nt-Cu electrodeposition on an 8-inch patterned wafer to reduce the surface roughness of Cu microbumps. A dicing process was then carried out, and the samples were diced into the top (6 × 6 mm²) and bottom (15 × 15 mm²) dies. The bonding surfaces were cleaned with a citric acid [23,24] and DI water, and blown dry through an N₂ purge. The reason for this is that the native oxide layer on the bonding interface, acting as a barrier for atomic diffusion, may critically affect its bonding quality.

The first step bonding was then executed under N₂ ambient under an ambient pressure environment. The reason we used N₂ ambient for the 1st bonding process was to provide a medium for a better heat transfer.

Table 2. Bonding conditions of the first step bonding process.

Condition	Temperature (°C)	Pressure (MPa)	Time (s)
1	300	93	10
2	300	47	10
3	300	31	10

shows the conditions of the first step bonding process. The facility used for the bonding was die-to-die flip chip bonder (CA-2000VA, Bondtech Co., Ltd., Kyoto, Japan). The heating area of the heating head and plate was approximately 3 cm². Thus, the expected bonding temperatures could be obtained within a very short time using the heater. After the first bonding process (10 s), N₂ purging was used to cool down the bonded chip. The second step bonding was executed in vacuum to prevent further oxidation in the Cu joints. The vacuum pressure was below 4 Pa. The bonding force and bonding time are listed in

Table 3. Bonding conditions of the second step bonding process.

Condition	Temperature (°C)	Pressure (MPa)	Time (h)
1	300	47	1
2	300	47	1
3	300	47	1

. The correlation between bonding strength, electrical properties, and interfacial microstructure after the first bonding and the post annealing were subsequently analyzed. A scanning electron microscope (SEM) and focused ion beam (FIB) were employed to observe microstructures in the microbumps and bonding quality at the interface. There were 4548 microbumps on a test vehicle, and their electrical resistances were measured by a four-point probe at the Kelvin structure and Daisy chain of the tested vehicles, and the bonding strength was quantized by die shear tests.

3. Results and Discussion

The crystallographic orientation analysis at the normal direction of nt-Cu microbumps bonding surface before bonding was carried out by EBSD, and is shown in Figure 3c. The main purpose of this is for crystal orientation confirmation and optical interface modules (OIM) analysis. The OIM analysis detected the <111> ratio of the microbump surface with a 10° angle tolerence to be approximately 40%. According to our previous studies [21,25], the higher the ratio of <111>, the better the bonding quality could be, thanks to the highest surface diffusivity of <111> surface in a FCC metal. It is three to six orders higher than other crystal orientations. The ratio of <111>-oriented grains does not increase above 40%, due to the arc of passivation opening. It affects the nt-Cu columnar grain nucleation during electroplating. Figure 3a,b shows the cross-sections of the microbumps from the top and bottom dies. We found that the diameters of passivation opening of the top and bottom die are 15 and 25 µm, respectively. The reason for the different passivation opening used in this study is that we expect the microbumps from the top die to remain on the bottom die during the shear tests. Interfacial fracture can be observed when the bonding strength is high enough. In this study, the fractures which occurred at the passivation opening on the top die can be observed by SEM. Ductile fractures accounted for >50% over 4548 post-annealed microbumps in a chip, while the as-bonded counterparts were below 20% after shear tests.

Figure 4 shows the process profile using a 93-MPa pressure under 300 °C in nitrogen ambient. Figure 5a,b shows the FIB images for the as-bonded sample under a 93-MPa compression. It is obvious that the bonding interface is almost free of large voids (Figure 5a). However, some gaps are detected at the edges of microbumps. Grains did not grow across the bonding interface, but some nt-Cu columnar grains disappeared and formed new grains at the marked regions (Figure 5b). We found 20% of ductile fractures among 4548 microbumps in one chip, as listed in

Table 4. Percentage of ductile fracture in a total of 4548 microbumps.

Conditions	As-Bonded	Post-Annealed
300 °C/93 MPa/10 s	20%	-
300 °C/47 MPa/10 s	3%	50%
300 °C/31 MPa/10 s	1%	-

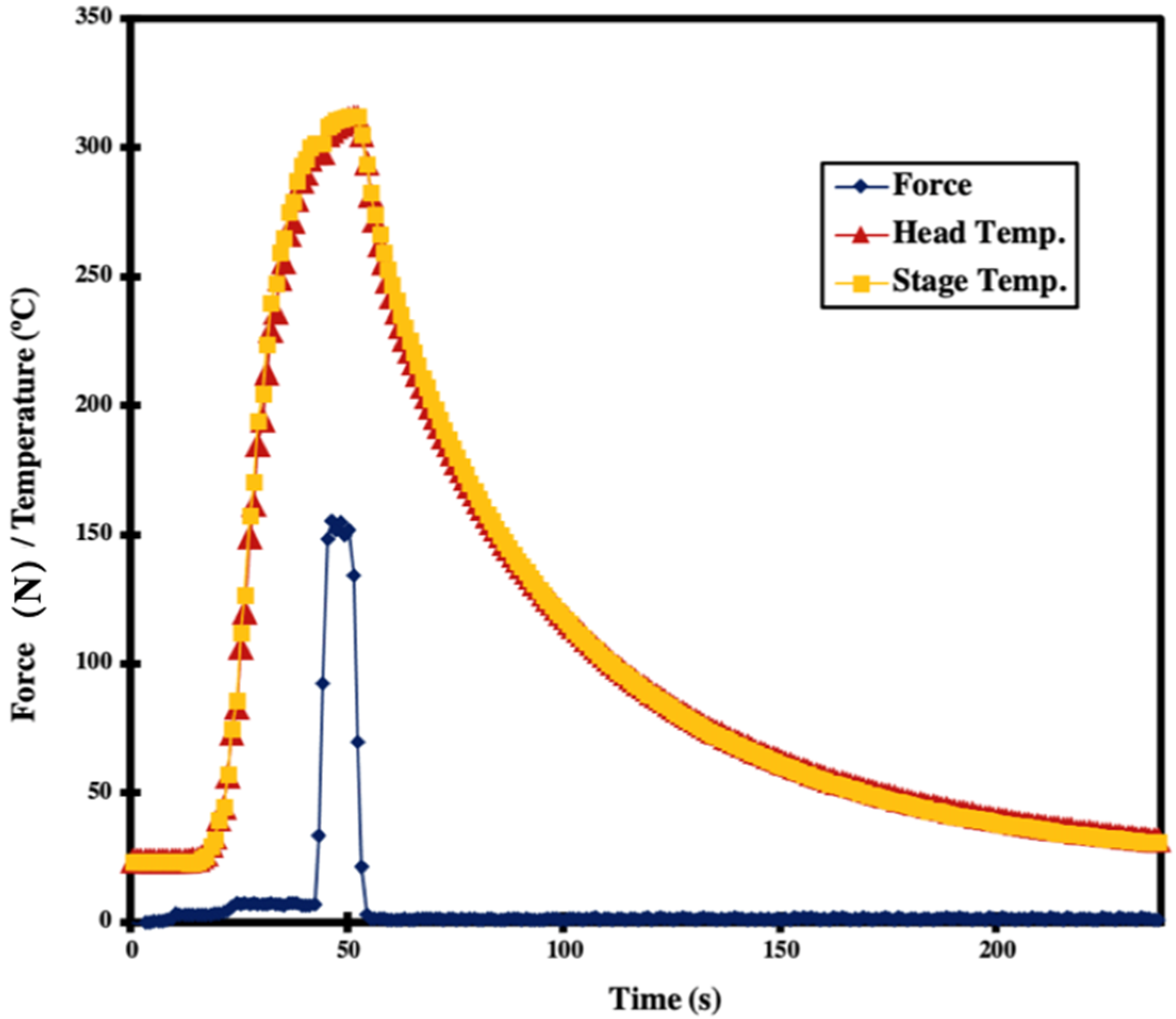

. We also reduced the bonding force to 47 MPa, and the bonding profile is shown in Figure 6. Similarly, voids were not obviously seen at the bonding interface using electron image (Figure 7a). However, some gaps were also found at the edges of the microbumps, as shown in Figure 7a. Some columnar grains disappeared. Recrystallization in the bumps was found, but no grain growth at the bonding interface was observed (Figure 7b). We counted the ductile fracture of 4548 microbumps in a chip to be only 3% (Table 4).

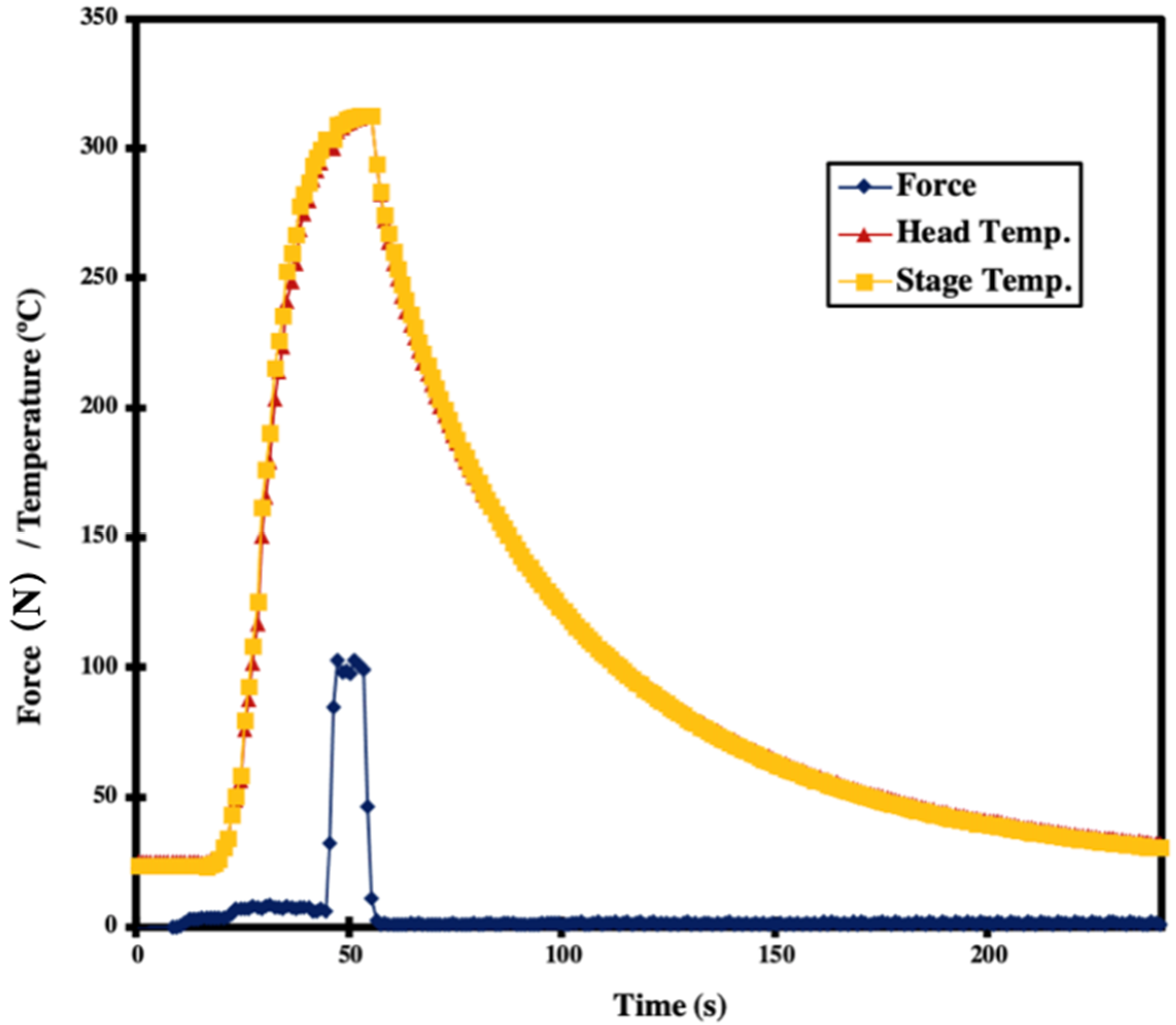

We also decreased the bonding pressure to 31 MPa and analyzed its bonding quality. A typical bonding profile is shown in Figure 8. The results show that the microbump resistance remained unchanged, but its bonding strength dropped significantly to 26 MPa, which is roughly 50% less compared to that of the 93-MPa bonding condition. As shown in Figure 9a, gaps are still seen at the edges of microbumps. Most of the <111>-oriented nt-Cu columnar grains are detected in the passivation opening (Figure 9b). Ductile fracture of 4548 microbumps in a chip equaled as 1%, as shown in Table 4. It has been reported that some nt-Cu columnar grains grew into larger grains, and shifted to other orientations under a high bonding temperature [7,8,9]. This was conducted under 40 MPa for 20 min. A few nt-Cu grains grew larger and transformed to anther orientation under a bonding temperature of 250 °C [26]. They found that brittle fractures presented in the samples without grain growth at the bonding interface. Ductile fractures occurred in the bonding with a recrystallized interface. Similar findings are obtained in this investigation (Figure 5b, Figure 7b and Figure 9b). Interestingly, obvious interfacial grain growth and recrystallization are not detected in all the as-bonded samples. Thus, its bonding strength is lower than that of the post-annealed counterparts.

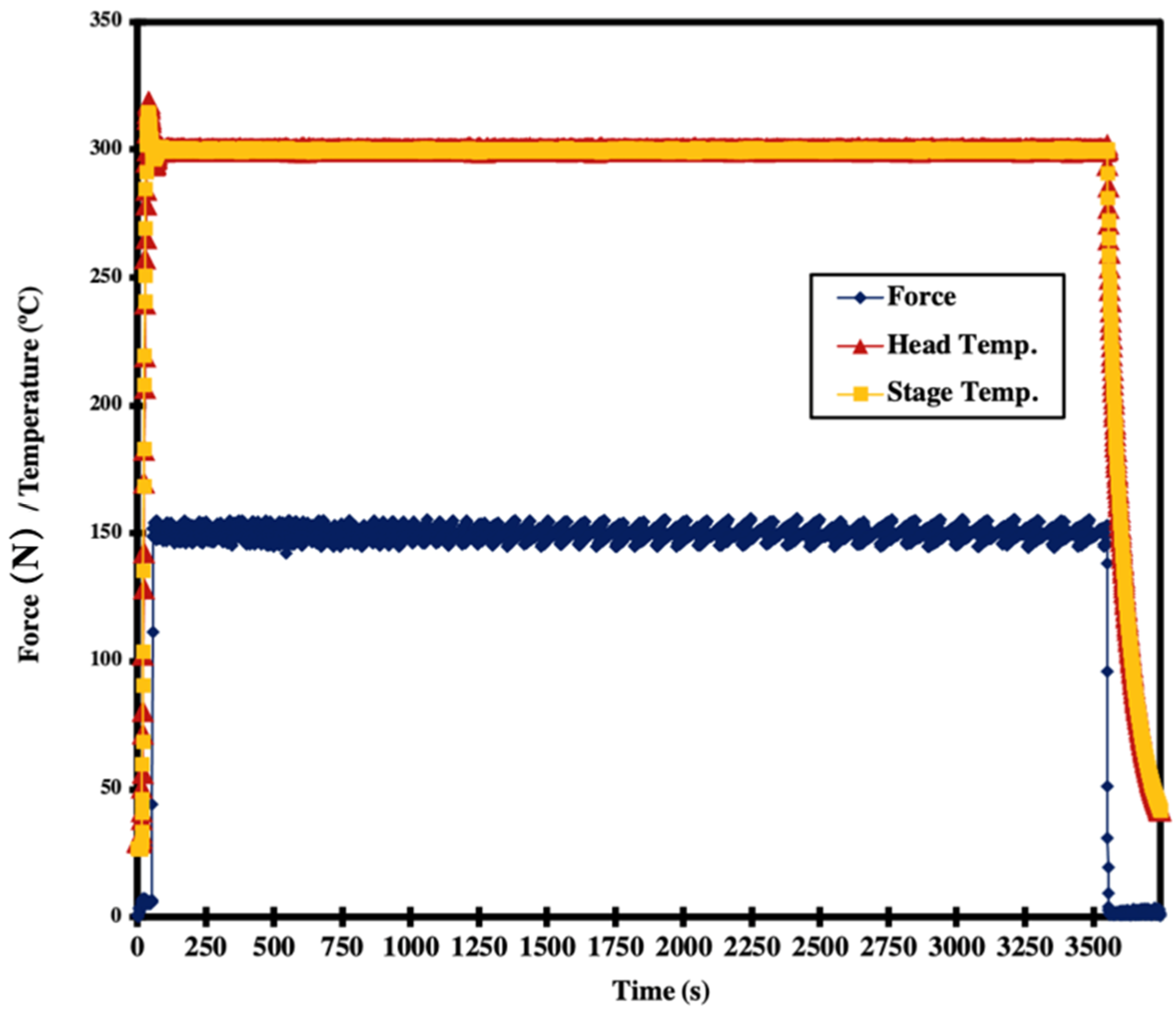

Figure 10 shows the process profile of the post-annealing. The cross-sectional FIB images of the post-annealed samples are shown in Figure 11. We found no gaps at the edges of the joints. The significance of this current method is that the nt-Cu columnar grains were completely consumed, recrystallized, and the grain regrew, as shown in Figure 11b,d,f. Under such a bonding condition, a 50% ductile fracture of 4548 microbumps in a chip was obtained. Grain growth and recrystallization occurred significantly in all samples treated for a second bonding step. We propose that, for a longer bonding time, the detwinning of the nt-Cu columnar grains is more severe [25], and the zig-zag grain boundaries will replace the original bonding interface, as shown in Figure 11b,d,f. Atomic surface and grain boundary diffusion will also continue to occur for such a long bonding time.

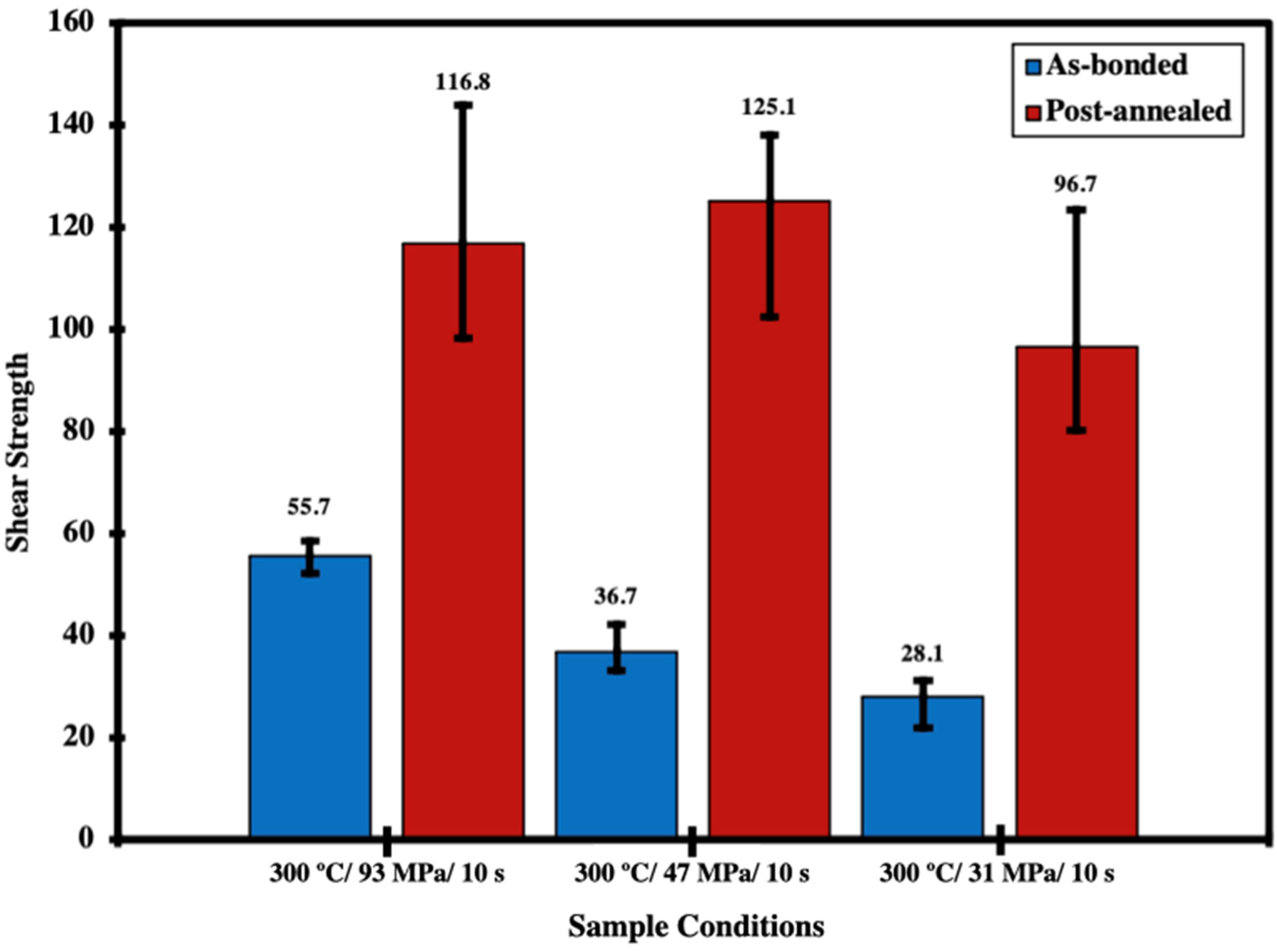

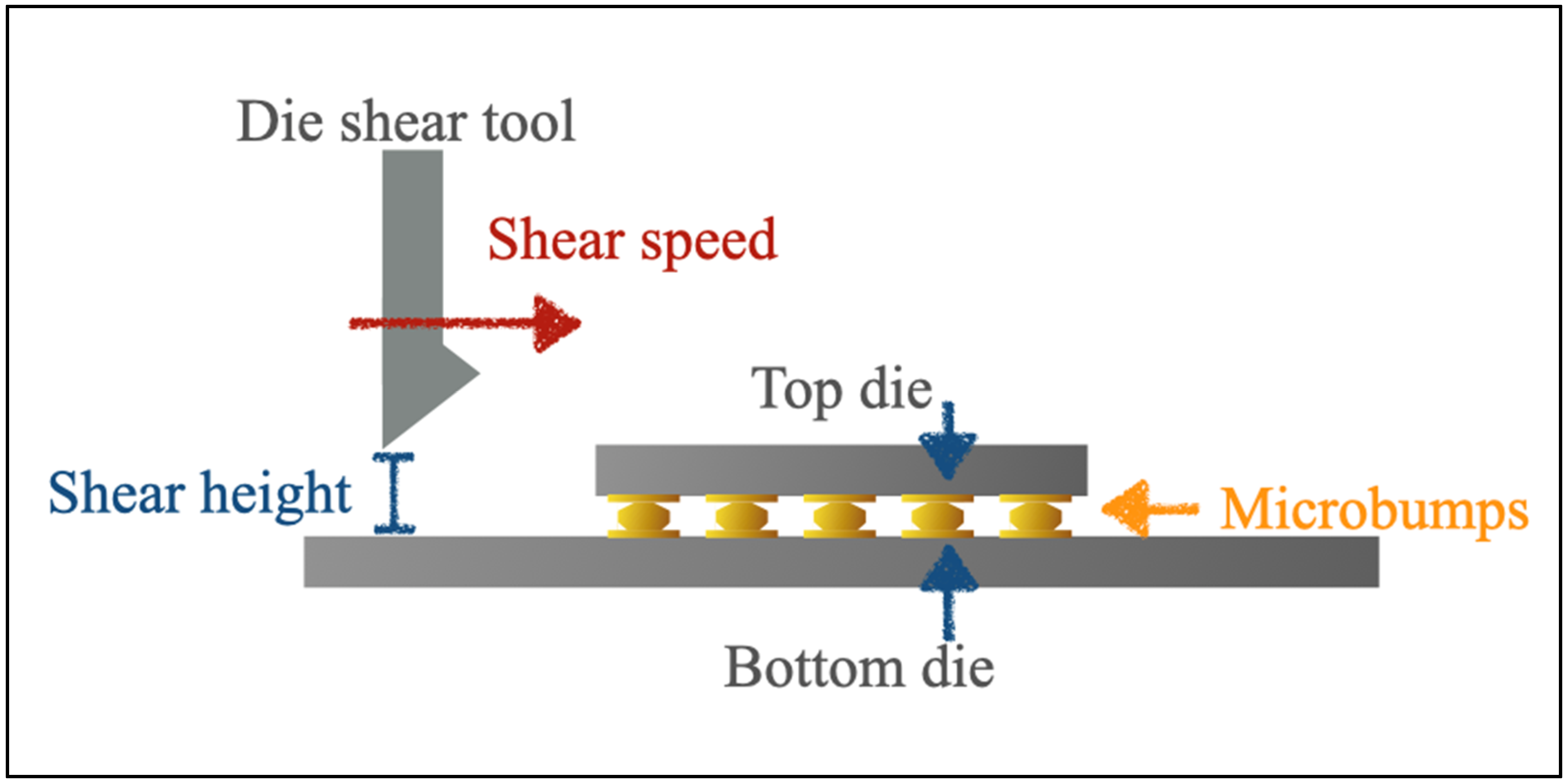

The mechanical properties of the as-bonded and post-annealed bonds were quantitatively characterized using shear testing. Figure 12 shows the schematic of shear tests. A shear height of 200 µm was set, and the shear speed was controlled as 100 µm/s. The shear strength comparison of the post-annealed and as-bonded samples is shown in Figure 13. The electron images of ductile and brittle fracture modes after characterizing by the die shear test are shown in Figure 14. It is obvious that the shear strength of the post-annealed joints is greater than that of the as-bonded counterparts. The shear strength of the as-bonded samples was measured between to be between 28.1 and 55.7 MPa, depending on the bonding pressure applied within 10 s, while the post-annealed samples were in the range of 95 to 125 MPa. Although the post-annealed sample bonded under 47 MPa within 10 s in its first process showed the highest shear strength compared to other parameters, it still showed at the same range of standard deviation. In other words, we propose that such variation in post-annealed samples is not significant, and can be neglected due to the fact that the second step (post-annealing) process is primarily attributed to the increase in shear strength. The bonding strength of the post-annealed samples significantly increased, while its resistance almost remained unchanged (

Table 5. Measured resistance of the bumps with a Kelvin structure.

Conditions/Resistance (mΩ)	As-Bonded	Post-Annealed
300 °C/93 MPa/10 s	3.1 ± 0.16	3 ± 0.26
300 °C/47 MPa/10 s	2.8 ± 0.06	2.73 ± 0.15
300 °C/31 MPa/10 s	2.9 ± 0.36	2.72 ± 0.29

). Nitta et al. [27] reported that the difference of electrical resistance via its grain size is not significant under room temperature, but at the lower temperature. The reason is mainly due to the thermal lattice vibration which is one of the major factors determining resistivity, and thus it can be neglected at 12 K. Under such a low temperature, the contributions from other scattering mechanisms, such as impurity and grain boundary scattering, are easier to be observed. In this study, the electrical resistance was measured at room temperature by a Kelvin structure and Daisy chain. We did not find any obvious changes in electrical resistance.

Moreover, the post-annealing also assists in the connection of un-bonded Cu-Cu joints, and further strengthens them. Note that the surface of Cu joint on the Si wafer might have variation in height and surface roughness after the CMP treatment. Furthermore, the bonding pressure might not be uniform, and the bonding time in the first step was too short during the bonding process. Thus, some Cu-Cu joints are opened after the first step bonding with humongous values in electrical resistance. Post-annealing assists in the connection of un-bonded Cu-Cu joints, thus the electrical resistance can be measured from opened to valued (Table 1). Chen et al. [28] reported that greater bonding strength could be achieved at a higher bonding temperature or through longer annealing. In the current study, the samples with N₂ annealed for 60 min at 350 °C presented no bonding interfaces and a higher bonding strength, while the samples without annealing had bonding interfaces, with a relatively low bonding strength.

Juang et al. [26] reported that recrystallization and grain growth also occurred at the bonding interface, and reduced the void number. A bonding temperature of 350 °C will result in a greater bonding strength due to the elimination of the bonding interface. It can be concluded that the improvement of shear strength is attributed to grain growth and recrystallization, resulting in bonding interface elimination with ductile fractures during shear testing. In this study, we successfully fabricated Cu-Cu microbumps bonded in just 10 s with low electrical resistivity and sufficient bonding strength. Moreover, we demonstrated that the recrystallization and grain growth across the bonding interface significantly enhances the bonding strength of the Cu bumps, while their electrical resistance is maintained to be low. Most importantly, such a bonding method is obviously compatible for flip chip die-to-die and die-to-wafer processing.

4. Conclusions

In this investigation, microstructural analysis showed that a small amount of grain growth and recrystallization occurred due to high bonding temperature and force applied. However, no obvious bonding interface elimination was observed after a first bonding step. Bonding interfaces were clearly seen, and mostly brittle fractures were found resulting in a low bonding strength. As the samples further annealed, interfacial recrystallization occurred and thus the original bonding interface was eliminated. Formation of a zig-zag pattern at the original bonding interface was found as a sign of ductile fracture. Thus, it led to a 2–3 times increase in bonding strength among the microbumps, compared to the as-bonded samples.

It is noteworthy that the aligning process in the die-to-die and die-to-wafer bonding process is a very time-consuming process, especially due to manual alignment. For the first bonding, we performed the alignment and instant bonding in 10 s. A post-annealing step was further conducted to enhance the bonding strength. Such a fast and simple bonding process is cost saving, and thus applicable for mass production. In this work, we demonstrated that the two-step bonding process has potential for mass production of die-to-wafer and die-to-die bonding. Fast bonding is achieved in just 10 s at 300 °C in N₂ ambient. The joint reliability can be further enhanced by a post-annealing bonding process.
