Viscosity of BOF Slag

Abstract

The viscosities of the industrial basic oxygen furnace (BOF) slag with varying compositions of MgO, Al₂O₃, TiO₂, and MnO were continuously measured at a temperature range between 1400 and 1700 °C using the rotating bob method. Three characteristic temperatures for the melting behavior of the BOF slag were investigated using a high-temperature microscope. The solid fraction of the slag was calculated by FactSage 7.2 using the FTOxid database. General observations from the experimental data show that the increase in MgO tends to increase viscosity. However, Al₂O₃, TiO₂, and MnO decrease viscosity up to a certain level, and beyond that, they also increase the viscosity. The measured values of the viscosity of BOF slags were compared and discussed with known data from the literature. Finally, the activation energy of BOF slags with different compositions of MgO, Al₂O₃, TiO₂, and MnO was calculated in the temperature range of industrial operations.

1. Introduction

The growing industrialization has paved the way for a tremendous increase in iron and steel production. This has also given the rise the large quantity of the slag. Slag—the by-product of the iron and steel industry—has several functions namely, (1) desulfurization, (2) dephosphorization, (3) separation of the non-metallic inclusions, (4) removal of the tramp elements, and (5) minimization of the heat loss. Slags from the iron and steel industry are usually classified as blast furnace (BF) slag, basic oxygen furnace (BOF) slag, electric arc furnace (EAF) slag, secondary metallurgical slag (ladle slag), tundish slag, and mold powder. The chemical composition of the metallurgical slags varied with respect to the steel grades produced, the input materials, and the purpose of treatment. All the metallurgical processes that occur between the slag and the liquid metal are dependent on their thermophysical properties such as viscosity, density, and surface tension. Thus, it becomes crucial to study these properties beforehand to control the process efficiently.

Various researchers have tried to estimate, predict, or measure the viscosity of slag through experimental or modeling routes. Several models for predicting the viscosity especially of the metallurgical slag have been developed in the past; for example, it starts with the earliest available Urbain model [1] for any slag system, followed by the quasi-chemical viscosity model for fully liquid slags in an Al₂O₃–CaO–FeO–MgO–SiO₂ system [2], quasi-chemical viscosity model for partly crystallized and fully liquid slags in an Al₂O₃–CaO–FeO–SiO₂ system [3,4], quasi-chemical viscosity model for fully liquid slag in an Al₂O₃–CaO–MgO–SiO₂ system [5,6], structurally based viscosity model for fully liquid slags in a CaO–MgO–Al₂O₃–FeO–SiO₂ system [7], a model based on the optical basicity [8], model based on a new definition of the basicity ratio close to Bell’s basicity [9], and finally the KTH (Kungliga Tekniska Hoegskolan Stockholm) model based on the Eyring equation [10]. All the above models start with relating the viscosity to the bridging and non-bridging oxygen atoms available in the respective oxide ion. Kozhukhov has calculated the BOF slag viscosity using the polymer model [11]. Liu et al. have reviewed and critically assessed the viscosity models of heterogeneous fluids [12]. Jiao et al. have used the multiphase equilibrium to investigate and report the viscosity and liquidus temperature of the blast furnace slag as a function of MgO, Al₂O₃, CaO/SiO₂, and FeO content [13].

The studies related to the viscosity of several FeO-containing oxide systems are available in the literature. Kondratiev et al. have given a perfect overview of the existing measurements for the viscosity of FeO–MgO–SiO₂, CaO–FeO–MgO–SiO₂ and Al₂O₃–CaO–FeO–MgO–SiO₂ oxide systems. [14]. Most of the viscosity measurements in the past were carried out using the rotating cylindrical method, with Fe or Mo crucibles, under Ar, N₂, or CO/CO₂ atmosphere. The viscosity of synthetic SiO₂–FeO–CaO slags was measured as a function of CaO/FeO ratio using the molybdenum crucibles [15]. The viscosity of CaO–SiO₂–Fe₂O₃–MnO–MgO–Al₂O₃ slags (CaO/SiO₂ = 0.4–1.2) was measured as functions of iron oxide content and basicity, using the rotating crucible method with Pt-20Rh crucible, under the ambient air atmosphere [16]. Lee et al. have measured the viscosity of BF slags (CaO/SiO₂ = 1.15–1.6) as a function of FeO [17]. Liu et al. have investigated the influence of V₂O₃ content on the viscosity of FeO–SiO₂–V₂O₃–TiO₂ slags [18]. Huang et al. have reported the effect of Cr₂O₃ on the viscosity of CaO–SiO₂–FeO–MgO–MnO–Cr₂O₃ slags [19]. The influence of temperature, slag basicity, and Cr₂O₃ content on the viscosity of stainless steelmaking slags has been experimentally determined by Liu et al. [20]. The viscosity of FeO-containing nickel slag was investigated as a function of FeO/Al₂O₃ ratio and of Al₂O₃/SiO₂ ratio by Zhang and co-workers [21,22]. The influence of TiO₂ content between 5 and 15 wt% on the viscosity of the BF slags was investigated by Jiao and co-workers, using the rotating viscometer. Thereby, the viscosity of investigated BF slags decreases with increasing TiO₂ content [23,24]. The viscosity of BF slag was examined as a function of TiO₂ and Al₂O₃ content in [25] and as a function of MgO and Al₂O₃ in [26,27].

BOF slags differ from all other iron or steelmaking FeO-containing slags due to their high FeO content and high CaO/SiO₂ ratio. Only five studies exist that are related to the viscosity of the BOF slags or slag with the compositions close to that of BOF slag, which are reported in the literature [28,29,30,31,32]. The viscosities of highly basic synthetic slags (CaO–SiO₂–FeO–MgO and CaO–SiO₂–FeO–Al₂O₃–MgO) were measured using a rotating viscosimeter in Pt-12 mass%Rh crucible in order to prevent the contamination of slags by crucible materials. Thereby, the influence of a solid fraction on the viscosity was examined [28]. The viscosity of highly basic CaO–MgO–SiO₂–Al₂O₃–FeO synthetic slag was measured as functions of FeO and Al₂O₃ contents using the rotating cylinder method [29]. The viscosity of heterogeneous industrial BOF slag containing 2.37–2.41 wt% of MgO, and content of P₂O₅, MnO, V₂O₅, Cr₂O₃, and TiO₂ that is typical for the BOF process level was measured using the rotational-type viscometer with a molybdenum crucible under the argon atmosphere. The new parameters of the Einstein–Roscoe equation for the relative viscosity calculation were found using the viscosity simulations in FactSage [30]. Liu et al. examined further the industrial BOF slag viscosity as functions of added SiO₂ and Al₂O₃ content, in the temperature range between 1500 and 1700 °C. It was found that Al₂O₃ and SiO₂ lead to a decrease in the fraction of solid phases, thus decreasing the viscosity. At the same time, they also increase the viscosity by the formation of a network [31]. Liu and co-workers, in their further research, observed the BOF slag crystallization behavior in situ at high temperatures using a confocal laser scanning microscope. The results have shown that the abrupt increase in the viscosity occurs only when the crystal fraction exceeds a critical volume fraction of solid. The critical solid fraction varies between 0.33 and 0.51 for the investigated slags [32].

The viscosity tests were also carried out along with structural analysis after the viscosity measurements of the cold quenched slag samples. Three crystalline phases—namely Fe₂TiO₄, Fe₂SiO₄, and FeV₂O₄—were found in FeO–SiO₂–V₂O₃–TiO₂ slag, using XRD [18]. Liu et al. used scanning electron microscope with energy-dispersive X-ray spectroscopy SEM/EDS in order to evaluate the quantity of secondary phases, e.g., spinel particles, during the viscosity measurement of the stainless steelmaking slags [20]. The structure of FeO-containing nickel slag was analyzed by Fourier transform infrared spectroscopy (FTIR) and Raman spectroscopy in [21,22]. The effect of TiO₂ and FeO [24], TiO₂ and Al₂O₃ [25], and MgO and Al₂O₃ [26,27] on the structure of BF slag was investigated using FTIR and Raman analysis. In [29], the effect of Al₂O₃ and FeO contents on the structure of highly basic CaO–MgO–SiO₂–Al₂O₃–FeO slag was also analyzed using FTIR.

The viscosity studies are reported along with the thermodynamic simulations using Factsage. The phase diagrams of SiO₂–FeO–CaO [15], SiO₂–FeO–TiO₂ [18], and SiO₂–CaO–MgO–Al₂O₃–FeO–TiO₂ [23] were calculated. The effect of Cr₂O₃ content on the amount of liquid and solid phases present in CaO–SiO₂–FeO–MgO–MnO–Cr₂O₃ slags was reported in [19]. The solid fraction of highly basic slags was calculated in [28]. The calculated volume fraction of solid or the BOF-slags was reported in [30,31].

Chemical analysis of the slag samples after the viscosity measurements was performed only in [17,28], and only Fe was analyzed in [21,22,24]. The non-linear relationship of the natural logarithm of viscosity with respect to inverse of the temperature from the data was reported in [23,33]. It is important to mention that the results of the continuous viscosity measurements were reported only in [23,32].

Recently marketed and currently developed lightweight steels, which can feature TRIP/TWIP (Transformation Induced Plasticity/Twinning Induced Plasticity) effects and possessing stainless properties, often contain more than 20% of Mn along with up to 10% of Al [34,35]. These steels are gaining a growing market share in the field of construction and automotive industries. However, considering the enrichment of MnO, Al₂O₃, and TiO₂ in the slag owing the recycling of modern steels in BOF converters or electric arc furnaces, it will lead to a considerable change in the chemical compositions of the converter slag and thus a change in their properties, which is not much explored in the presently available literature.

In present work, the flow behavior and the viscosity of the heterogeneous highly basic BOF slag are being examined considering the effect of temperature, MgO, Al₂O₃, TiO₂, and MnO content. Thereby, the industrial slag from an integrated steel plan was taken as the base of all the slag mixtures. The flow behavior of the slags was investigated using the high-temperature microscope. The viscosity of slags during 10 °C/min cooling was continuously measured using the rotating bob rheometer. Experimental investigations were accompanied with the thermodynamic simulation using FactSage 7.2. Thereby, the solid fraction of the investigated slags and liquidus temperatures was also calculated.

2. Materials and Methods

An industrial BOF slag from an integrated steel plant was used to investigate the viscosity of the BOF slag. This slag was taken as the basis slag and was designated as P1. The slag was ground up and mixed with the aim of achieving the homogenization of chemical composition (see

Table 1. Chemical analysis of investigated industrial slag [mass%].

Slag	CaO	SiO2	FeO	MgO	Al2O3	MnO	Cr2O3	P2O5	TiO2
P1	52.16	12.39	24.64	2.08	2.10	3.23	0.36	2.21	0.83

). Thereby, the chemical composition analysis was converted to FeO. The basicity of this slag is about 4.2 (CaO/SiO₂). In order to investigate the influence of MgO, MnO, Al₂O₃, and TiO₂ content on the viscosity of BOF slag, the respective pure oxides were added into the industrial slag P1 and were ground and mixed again, as shown in

Table 2. Investigated basic oxygen furnace (BOF) slag and calculated liquidus temperature [°C].

Slag	Addition	Liquidus Temperature
P1	P1	1771.3
P11	P1 + 3 mass% Al2O3	1655.4
P12	P1 + 9.3 mass% Al2O3	1274.2
P13	P1 + 0.4 mass% TiO2	1757.9
P14	P1 + 1.8 mass% TiO2	1709.8
P15	P1 + 5 mass% TiO2	1589.5
P16	P1 + 1 mass% MnO	1779.0
P17	P1 + 7 mass% MnO	1813.0
P2	P1 + 6.5 mass% MgO	1864.8
P21	P1 + 6.5 mass% MgO + 3 mass% Al2O3	1832.3
P22	P1 + 6.5 mass% MgO + 8 mass% Al2O3	1768.1
P23	P1 + 6.5 mass% MgO + 1 mass% TiO2	1853.0
P24	P1 + 6.5 mass% MgO + 5 mass % TiO2	1834.1
P25	P1 + 6.5 mass% MgO + 1.9 mass% MnO	1856.5
P26	P1 + 6.5 mass% MgO + 6.8 mass% MnO	1852.1

. The selected oxide additives do not cover all possible chemical compositions of the slag in the case of perspective scrap from TRIP/TWIP steels, which are and will be, in fact, country-and factory-specific; however, they correlate with the average scrap and lime rates typical to that of the BOF process.

In order to assure the target liquid surface level between 30 and 35 mm in the molybdenum crucible (inner diameter 20 mm, and inner height 60 mm), the mixtures were premelted under the Ar-gas atmosphere before the viscosity measurements. The chemical analysis of the slag samples was carried out before and after the viscosity measurements using a X-ray fluorescence spectrometer Bruker AXS S8 Tiger (XRF) (Bruker AXS GmbH, Karlsruhe, Germany). The basicity of the slags remained unchanged at 4.2. The liquidus temperature of investigated slag samples was calculated using FactSage7.2 (FactPS, FTOxid, all “Base-Phase”) (Thermfact/CRCT Montreal, Canada and GTT-Technologies, Aachen, Germany).

The slag was mixed uniformly and compacted into cylindrical samples of 5 mm diameter and 5 mm height for the investigation of melting behavior in the high-temperature microscope. The high-temperature microscope detailed description and experimental procedure can be found elsewhere [36]. The experiments were carried out under argon atmosphere. The softening, semi-spherical, and flow temperatures of the slags were defined according to the German standard DIN 51730 [37,38]. Some studies in the past have assumed that the flow temperature is the melting or liquidus temperature of the slags [37], by which the solid slag has been completely melted to the liquid state, which is not the case. Flow temperature is considered as the temperature at which even the heterogeneous slag begins to flow.

The experimental procedure of the viscosity measurements used in the present work is the same as that described in the previous works reported in [39,40]. The sample was heated in the induction furnace via indirect heating using the graphite susceptor to the target temperature at a rate of 18–20 °C per minute in order to prevent the boiling of the slag. Then, it was kept for at least 30 min at this temperature to achieve homogenization of the sample. The procedure of the slag surface level estimation is executed during the holding time: slow immersion of the rotating bob into the crucible with simultaneously recording the torque using the magnet head of the rheometer MCR 301 (Anton Paar GmbH, Graz, Austria). After attaining the contact with the liquid slag surface, the necessary immersion depth of the rotating bob was calculated, and it was placed at the target height. The viscosity of the sample is measured in the cooling mode at the rate of 10 K/min until the solidification of the sample has started. The bob was rotated at 30 rpm. All these procedures of heating, holding for 30 min, and subsequent cooling are repeated 3 times. The inner volume of the furnace is flushed with argon during the experiment in order to keep the oxidation of the crucible, the bob, and the sample to the minimum possible extent. Temperature is controlled using the arrangement of two B-Type thermocouples attached to the bottom and the top of the Mo crucible.

3. Results and Discussion

3.1. Liquidus Temperature and Melting Behavior

Table 3. Measured softening, semi-spherical, and flow temperatures of the BOF slags.

Slag	Softening Temperature [°C]		Hemispherical Temperature [°C]		Flow Point Temperature [°C]
	Average	Standard Deviation	Average	Standard Deviation	Average	Standard Deviation
P1	1200	0.76	1311	4.24	1338	5.66
P11	1177	8.89	1268	4.16	1311	1.53
P12	1068	13.20	1094	13.58	1145	19.70
P13	1187	3.61	1299	4.04	1324	1.00
P14	1029	3.21	1113	9.00	1149	8.54
P15	1214	5.13	1248	4.16	1282	11.14
P16	1353	14.14	1398	21.22	1408	7.07
P17	1381	4.95	1405	12.02	1418	13.43
P2	1414	6.70	1473	8.20	1489	7.6
P21	1371	16.20	1419	7.00	1438	4.40
P22	1285	2.60	1334	0.56	1390	0.60
P23	1388	6.80	1441	7.80	1459	5.20
P24	1346	6.70	1385	6.10	1409	6.10
P25	1453	2.82	1500	1.41	1515	0.71
P26	1407	4.94	1441	4.95	1453	4.94

shows the measured softening, semi-spherical, and flow temperatures of the BOF slags using a high-temperature microscope according to DIN 51730 [38]. The calculated liquidus temperature, as shown in Table 2, and the three measured temperatures increase with the addition of MgO. The additions of Al₂O₃ between 3 and 9 mass% significantly lowers the characteristic temperatures of the investigated slags. That means that the characteristic temperatures decrease approximately linearly with the amount of Al₂O₃. At the same time, the Al₂O₃ reduces the liquidus temperature and melting temperatures of the slag with 2 mass% of MgO more effectively than for the slag with 8 mass% of MgO. The additions of TiO₂ between 1 and 5 mass% decrease the characteristic temperatures of the slag with 8 mass% of MgO, implying that the influence of TiO₂ is weaker than that of Al₂O_3. The characteristic temperatures of the slag with 2 mass% of MgO decreases with additions of TiO₂ up to approximately 2 mass%, and they increase again with the further additions. A possible cause can be the formation of 3CaO*2TiO₂, which is also confirmed by the calculation of a solid fraction using FactSage 7.2. The melting behavior of MnO-containing slag with 2 mass% of MgO shows that addition of 1% more MnO led to higher characteristic temperatures of the sample, while the addition of 7% MnO did not show a significant further increase. In the case of slag with 8 mass% of MgO, the characteristic temperatures first rose at 2% additional MnO, while significantly decreased when 7% of MnO was added.

Another influence of TiO₂ and Al₂O₃ on the BF slag is known from the literature. Jiao et al. [13] reported that the liquidus temperature of BF slag decreases first with an increase of Al₂O₃ up to 12–14 wt% of Al₂O₃, reaches a minimum, and then continues to increase with the further increase in Al₂O₃ content higher than 12–14 wt%. The optimum value of Al₂O₃ content depends on the MgO, FeO, and basicity [13]. The influence of TiO₂ content between 5 and 15 wt% on the melting behavior and viscosity of the BF slags was investigated by Zhang et al. using the high-temperature microscope [23]. It was estimated that the initial melting point temperature, softening temperature, and flowing temperature of BF slag increases with any increase in the TiO₂ content.

3.2. Fraction of Solid

The calculated liquidus temperature showed that the most investigated BOF slags are heterogeneous at the examined temperature ranges. Therefore, the solid fraction was calculated using the FactSage7.2 database FactPS and FTOxid (all “Base-Phase”), as shown in Figure 1. The undissolved solid solution of CaO in the slag with 2 mass% MgO, and undissolved solid solutions of CaO and MgO in slag samples with 8 mass% MgO, were found in the investigated temperature range. The solid fractions of the slags P1 and P2 at the temperature of 1700 °C are 3 and 9 mass%, respectively. In all the slags without additional Al₂O₃, at temperatures below 1450 °C, the 2CaO*SiO₂ phase was formed. Moreover, with the addition of MnO, the amount of this 2CaO*SiO₂ phase in the slag with 8 mass% MgO increases. Calculations with FactSage showed that the addition of Al₂O₃ prevents the formation of the 2CaO*SiO₂ phase in the studied slags P11 and P12. The TiO₂ additions lead to the formation of 3CaO*2TiO₂ at temperatures below 1450 °C. The fraction of solids gradually rises as the temperature decreases.

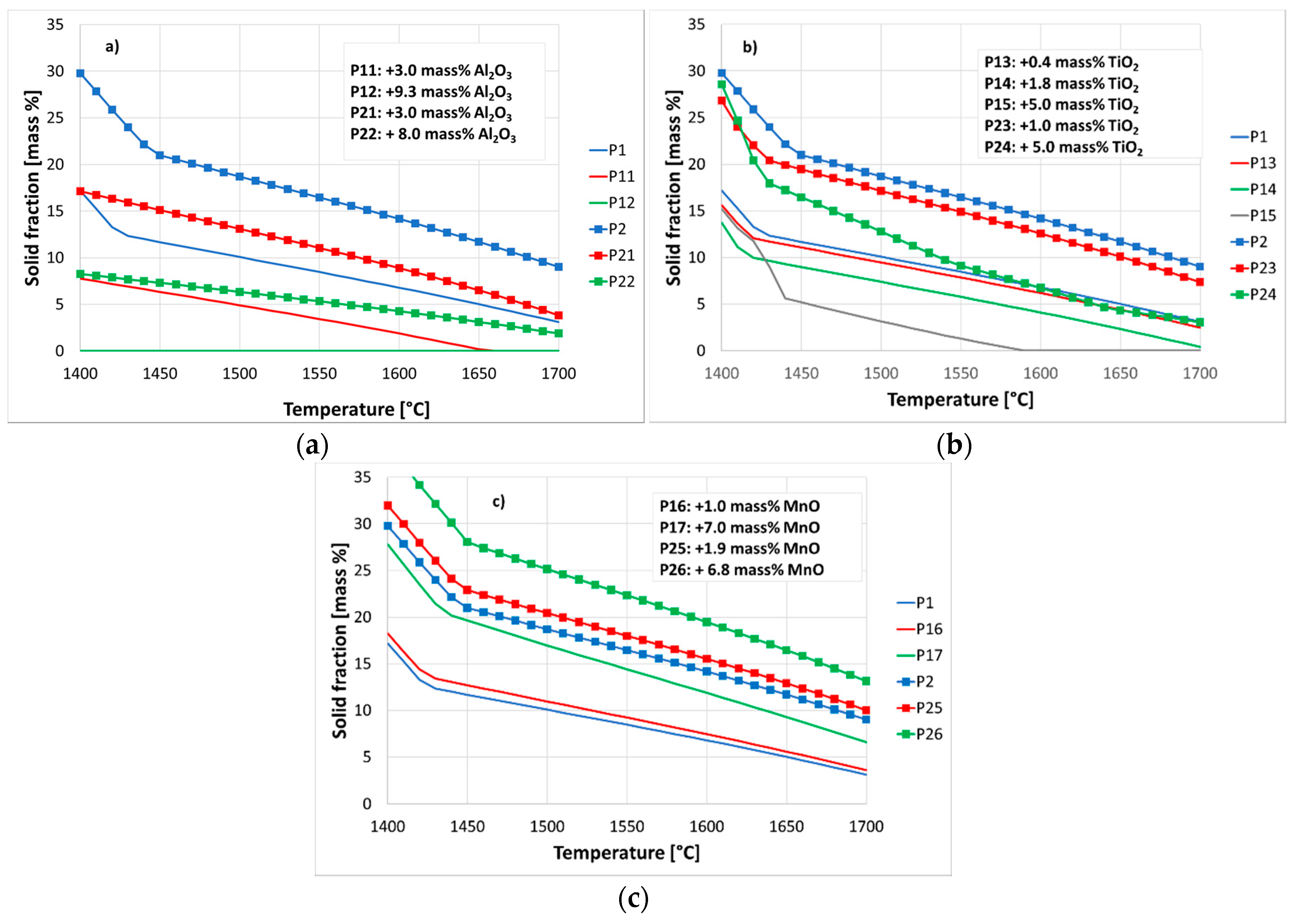

According to FactSage calculations, the addition of MnO raises the amount of solid fraction in all the investigated slags, as shown in Figure 1c. From the literature [41], it is known that MnO with its contents below 20 mass% does not affect the dissolution and saturation of CaO.

The volume fraction of solid was reported to be calculated using FactSage for the industrial BOF slag containing 2.37–2.41 wt% of MgO, and levels of P₂O₅, MnO, V₂O₃, Cr₂O₃, and TiO₂ typical for the BOF process. Even at the temperature of 1700 °C, this slag had approximately 8.5% of the volume fraction of solid [30]. The volume fraction of solid in a BOF slag as a function of added SiO₂ and Al₂O₃ is also reported as calculated using FactSage. According to the calculation, solid CaO was present in the investigated slags in the temperature range from 1550 to 1700 °C. It was found that Al₂O₃ and SiO₂ lead to a decrease in the fraction of solid phases [31]. The mass fraction of solid was reported as calculated using FactSage for synthetic highly basic CaO–SiO₂–FeO–MgO and CaO–SiO₂–FeO–Al₂O₃–MgO slags. The solid phases found in these compositions were 2CaO*SiO₂ and (Mg,Fe)O_{solid solutions} [28].

3.3. Viscosity

3.3.1. Comparison with Literature Data

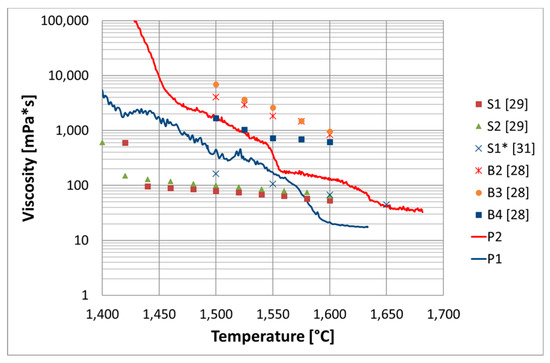

Figure 2 shows the continuously measured viscosity of BOF slags P1 and P2 as a function of temperature. The measured values were compared with previous studies [28,29,31]. The measured viscosities are in the same range as the viscosities from the literature.

The investigated slags do not have exactly the same chemical composition as examples reported in the literature (see

Table 4. Chemical composition (in mass%) of the reference slags from Figure 3.

[Ref]	CaO	SiO2	FeO	Al2O3	MgO
B2 [28]	46.4	7.8	30.0	3.5	7.8
B3 [28]	49.9	8.3	25.0	3.7	8.3
B4 [28]	53.1	8.9	20.0	4.0	8.9
S1 [29]	48.75	16.25	25	5	5
S2 [29]	48.75	16.25	20	10	5
S1* [31]	42–55	12–18	14–20 (Fet)	0.0–3.0	0.0–5.0

). The slags differ mainly in basicity, (CaO/SiO₂ ratio). If the slags B2–B4 from [28] have a basicity of approximately 6, the basicity of the slags S1 and S2 from [29] is near 3, and their MgO content is equal to 5 mass%. The S1* slag from [31] has a basicity between 3 and 3.5. Both the slags investigated in this work, P1 and P2, had a CaO/SiO₂ ratio that is equal to 4.2. The P1 and P2 samples differ in MgO content as well, which is approximately 2 and 8 mass% respectively. Increasing the MgO content in the slag leads to the growth of the solid fraction volume and as a result increases the viscosity.

The high basic slags B2–B4 [28] were investigated using a rotating viscosimeter in Pt-12 mass% Rh crucible and with three different rotating speeds (30, 60, and 100 rpm). The chemical analysis of slag samples was performed after the viscosity measurement using an X-ray fluorescence spectrometer. Thereby no significant changes in the composition were observed. The viscosity of slags S1–S2 [29] and S1* [31] were measured using the rotating cylinder method. The experiments were carried out in a molybdenum crucible under the argon atmosphere with a constant rotating speed of about 200 rpm [29,31]. The rotation speed of about 30 rpm was set, in the present work, to avoid the vortex formation in a 4 mm gap between the bob and the molybdenum crucible.

The chemical analysis of the investigated slags in the present work was carried out also after the viscosity measurements. Unfortunately, strong contamination with molybdenum (10–14 mass% Mo_met) from the crucible was also observed. As already mentioned in the Introduction section, the chemical analyses after the viscosity measurements were checked and reported only in very rare studies. Thereby, no change or no contamination or minor contamination was previously reported. It was found that the molybdenum from the crucible was dissolved in the slags during viscosity measurements of FeO-containing nickel slag (MoO₃ concentrations of 0.25–0.52 wt% and 0.25–0.46 wt% for higher and lower FeO content, respectively) [21,22]. The viscosity curves in our experiments were repeated several times. The data only from the fresh slags and new crucible were used for reporting in the present work.

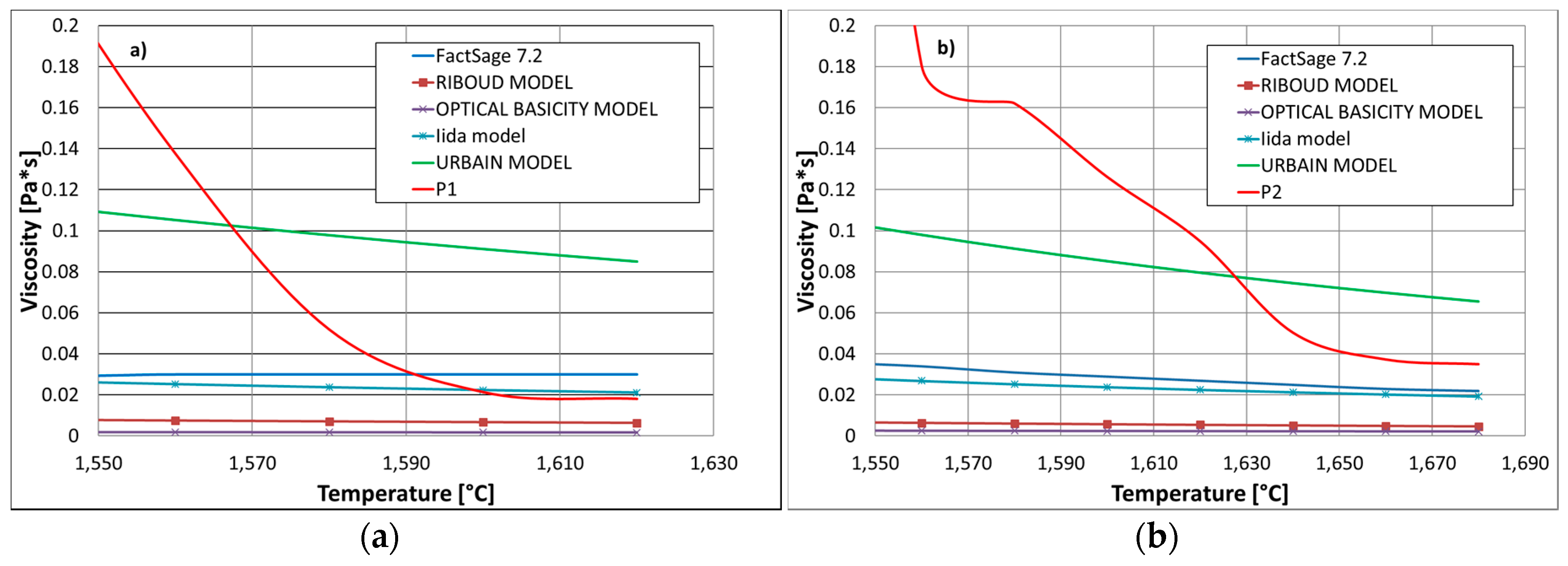

Viscosities of slags P1 and P2 were calculated using the FactSage 7.2, using models Lida [42], Urbain [43], Riboud [44], and an optical basicity model [8]. A comparison of measured and calculated viscosities is presented in Figure 3. It can be seen from the comparison that at higher temperatures, the measured viscosity of slag P1 matches the calculated viscosity with the Lida model. In the case of slag P2, the measured viscosity overrides calculations with the Lida model and FactSage 7.2. The models fail when the temperature drops and the solid phase nucleates in the slag. In general, the calculated viscosity from models is always less than the experimentally measured viscosity.

3.3.2. Influence of Al₂O₃

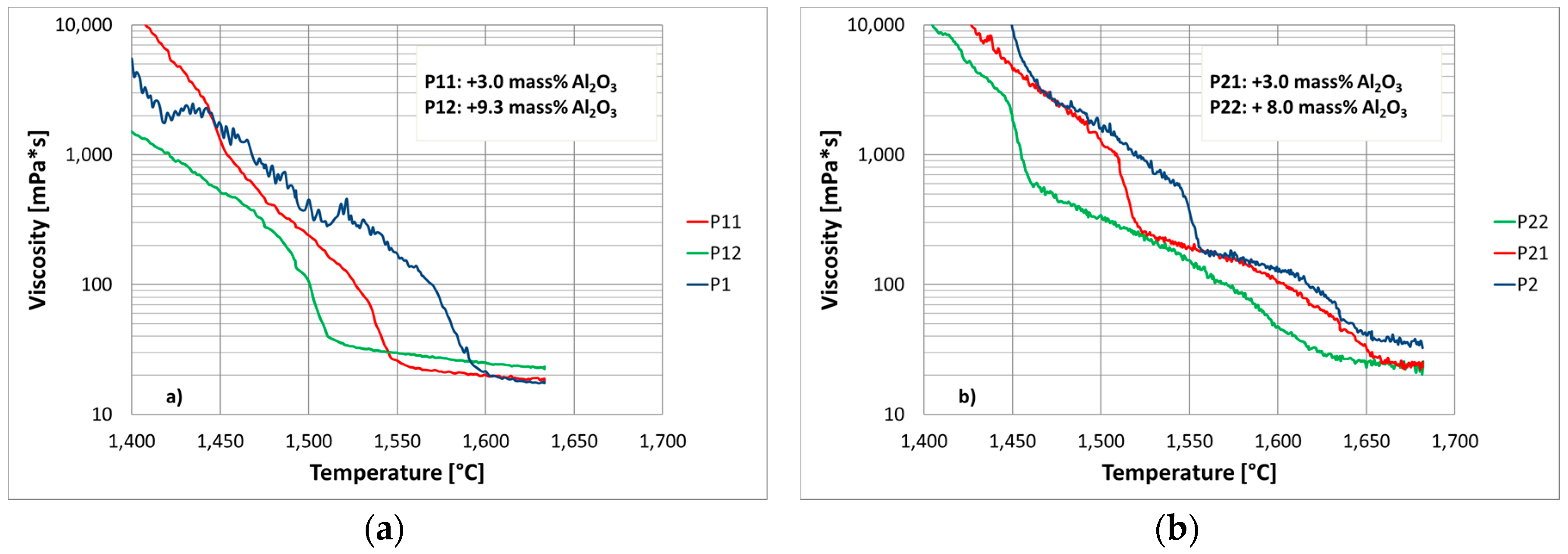

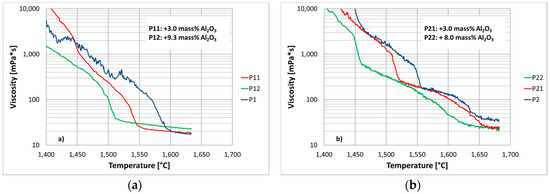

Figure 4 shows the viscosity of BOF slags at variable Al₂O₃ content. In slags with approximately 2 mass% of MgO, Al₂O₃ increases the viscosity at high temperatures, in the region of liquid-determined slag, and decreases the viscosity at low temperatures. A similar result was also reported by Liu et al. for the slag with 0–5 mass% MgO. They found that Al₂O₃ and SiO₂ reduce the viscosity of BOF slags as long as they lead to a decrease in the fraction of the solid phases, but they raise the viscosity of the liquid slag by network forming [31].

In slags with approximately 8 mass% of MgO (P2–P22), Al₂O₃ reduces the viscosity across the entire studied temperature range. In the temperatures above 1650 °C, the viscosity of the slag with the addition of 3 mass% Al₂O₃ (P21) is the same as that of the slag with the addition of 8 mass% Al₂O₃ (P22). These results are similar to the results reported by Seok et al. [28].

They also found that the Al₂O₃ content affected the viscosity of the highly basic slag with about 8–9 mass% MgO more strongly than the MgO content. Furthermore, the slag viscosity exhibits different behavior with the decreasing temperature, whereas there is no significant difference in the viscosity values for the temperatures above 1500 °C.

3.3.3. Influence of TiO₂

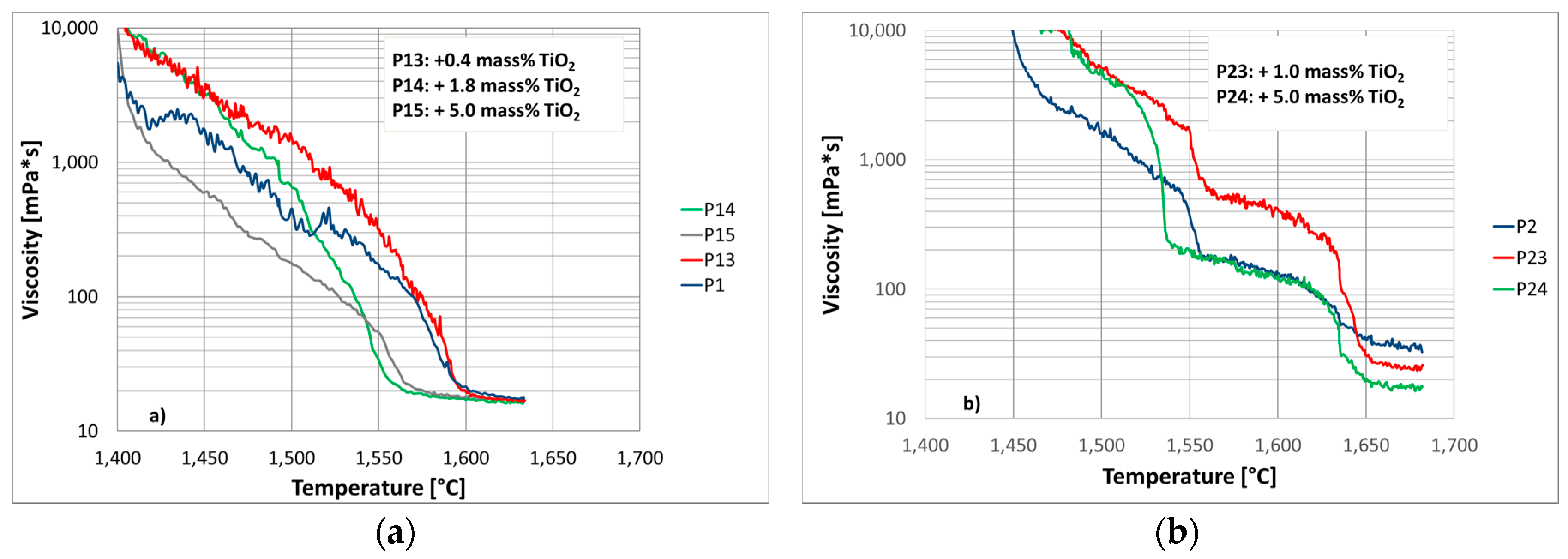

Figure 5 shows the viscosity of BOF slags as a function of TiO₂. In slags derived from P1, viscosity at higher temperatures above 1600 °C does not depend on the TiO₂ content. Furthermore, with a decrease in the temperature, the addition of TiO₂ first reduces and then increases the viscosity. At higher temperatures above 1650 °C, the addition of TiO₂ to the slags derived from P2 shows the decrease in the viscosity. Then, with the decreasing temperature, the viscosity increases with the addition of TiO₂.

There is no information about the influence of TiO₂ on the viscosity of BOF slag available in the literature. It is known from the investigation of viscosity of BF slag that the viscosity of blast furnace (BF) slags decreases with the increasing TiO₂ content between 5 and 15 wt% in the higher temperature range and concomitantly increases in the relative lower temperature range [23]. It was found that the viscosity of the BF slag decreases rapidly with the increasing of TiO₂ up to 10%; then, it decreases slowly, when the TiO₂ content increases above 10% [24]. Raman spectroscopy and FTIR spectroscopy of these BF slags in cold state implied that the degree of polymerization of BF slag decreases with increasing TiO₂. Li et al. reported that the viscosity of the BF slag containing 10 mass% TiO₂ first increases and then decreases with increasing Al₂O₃ content from 10 to 18 mass%, exhibiting the maximum viscosity at 15% Al₂O₃, while an increase in TiO₂ content from 2 to 14 mass% causes a decrease in the viscosity of the slag at 12 mass% Al₂O₃ [25].

3.3.4. Influence of MnO

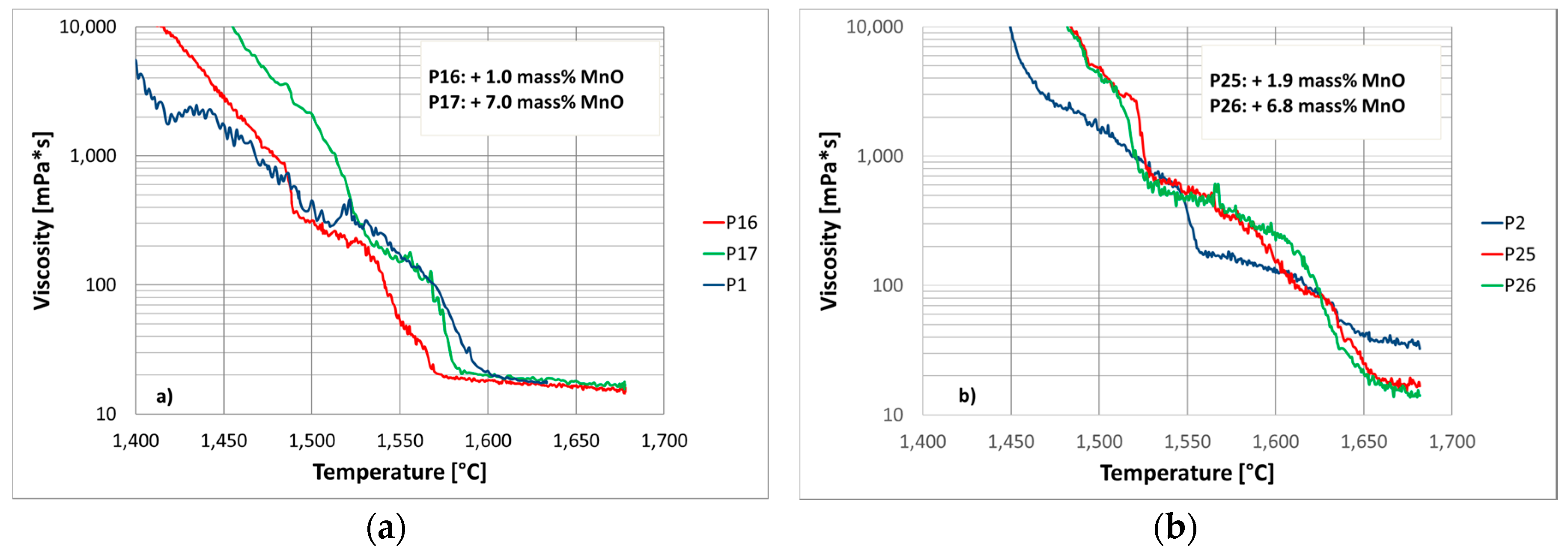

Figure 6 shows the viscosity of BOF slags as a function of MnO. At high temperatures, the viscosity of the slag with 2 mass% MgO practically does not change with the addition of MnO. Adding MnO to slag with 8 mass% MgO reduces the viscosity at high temperatures. With decreasing temperature, the viscosity of all the studied slags increases with MnO. Calculations with FactSage 7.2 showed that with the addition of MnO, the solid fraction in the slags increases. For example, at a temperature of 1700 °C, the addition of 6.8 mass% MnO to P2 increases the solid fraction from 9% to 13%, and the addition of 7 mass% of MnO to P1 increases that from 3% to 6.6%. Moreover, with the addition of MnO, the amounts of (Ca*Mn)O _{solid solution} and (Mg*Mn)O _{solid solution} increase. At the same time, the amount of CaO in the residual liquid slag decreases, which leads to a decrease in the CaO/SiO₂ ratio. For example, the ratio CaO/SiO₂ decreases in the residual liquid part of the slag from 4.2 to 3.5 with an addition of 6.8 mass% in slag P26. It is possible that this decrease in basicity with the addition of MnO leads to a decrease in the viscosity at high temperature.

The measured viscosity values are presented in the

Table 5. Viscosity of the BOF slags with 2 mass% MgO [mPa*s].

[°C]	P1	P11	P12	P13	P14	P15	P16	P17
1680	-	-	-	-	-	-	-	-
1660	-	-	-	-	-	-	15.90	17.39
1640	-	-	-	-	-	-	16.91	18.54
1620	18.11	18.86	23.43	17.29	16.77	17.48	17.29	18.79
1600	21.40	20.18	25.01	19.78	17.15	18.04	18.21	19.92
1580	51.88	21.30	26.48	72.76	18.04	19.07	18.95	25.50
1560	137.59	22.78	28.70	217.15	22.26	29.78	38.22	138.88
1540	248.92	43.54	30.87	525.41	84.55	73.07	123.18	190.50
1520	371.40	131.26	34.72	812.55	221.51	118.49	216.46	581.28
1500	446.63	240.82	105.66	1537.92	707.40	176.97	314.96	2104.37
1480	744.91	410.77	255.18	1969.80	1252.98	269.86	977.81	3702.78
1460	1421.06	812.85	453.24	2914.62	2134.83	495.85	2037.40	7856.74
1440	2051.39	2815.29	664.58	3722.91	3844.34	757.85	4204.06	24,023.87
1420	2092.54	6433.04	1035.70	6060.85	6908.99	1241.39	8663.15	63,612.35
1400	5454.04	14,354.2	1501.07	22,479.67	12,848.60	9337.19	17,406.9	-

and

Table 6. Viscosity of the BOF slags with 8 mass% MgO [mPa*s].

[°C]	P2	P21	P22	P23	P24	P25	P26
1680	34.97	24.53	22.15	24.61	17.36	16.44	14.14
1660	37.28	25.31	24.53	26.16	17.50	18.42	17.49
1640	50.38	42.81	28.87	77.19	27.97	38.08	30.64
1620	94.93	32.75	32.69	217.16	99.79	86.88	117.77
1600	126.24	103.25	47.47	410.80	119.31	150.78	229.82
1580	162.15	150.65	85.12	486.79	134.88	300.56	326.98
1560	180.72	180.91	116.24	592.84	173.64	504.71	457.11
1540	619.96	210.26	183.24	2022.99	214.18	652.45	516.18
1520	1016.03	300.65	244.51	3291.47	2798.07	2691.47	1041.17
1500	1611.11	1271.62	340.40	5061.73	4941.33	4833.83	4252.74
1480	2334.75	2312.21	427.76	8952.59	10,729.79	11,418.18	10,816.13
1460	4306.95	3396.27	622.88	16,528.3	43,442.46	29,928.67	25,263.53
1440	32,726.2	6313.13	3260.40	151,652.1	-	67,758.63	46,999.61
1420	-	13,361.71	6526.99	-	-	-	-
1400	-	-	12,648.05	-	-	-	-

.

3.4. Activation Energy

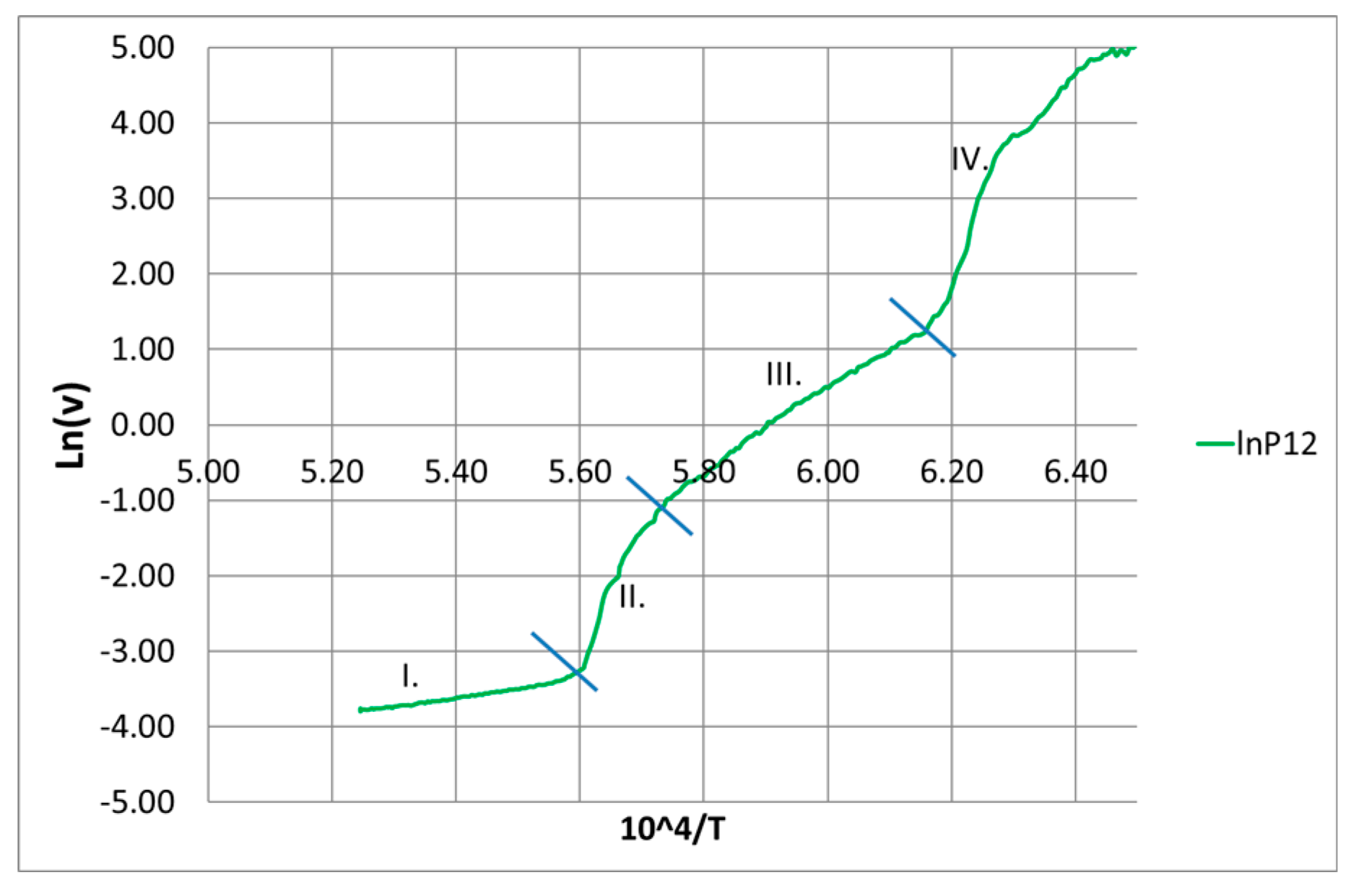

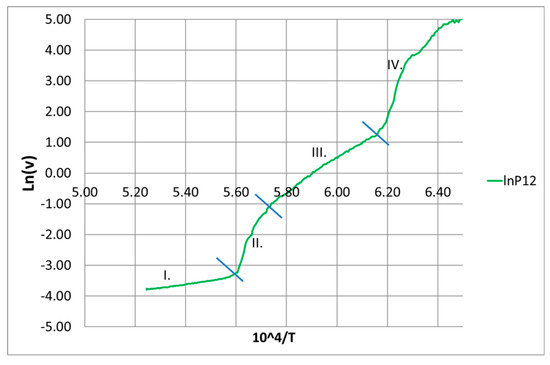

All the measured slag viscosity was presented as a natural logarithm of the viscosity with respect to the inverse of temperature in Kelvin (1/T) (Arrhenius plot) to determine the activation energy of the studied slags. Figure 7 shows an example of this kind of plot. The Arrhenius plot shows that there are four periods of different behaviors, namely: slow period (I.), rapid period (II.), slow-down period (III.) and dramatically rising period (IV.). A similar change in the natural logarithm of the viscosity with respect to the inverse of temperature was presented in the available literature [23,33]. In period I., most of the investigated slags are heterogeneous, but nevertheless, this period can be defined as liquid-dominated. Rapid increases of the viscosity values with the decreasing temperature in periods II. and IV. are believed to be directly related to the crystallization of the slag.

The activation energy for the studied slags was determined as a slope of the curve only for the liquid-dominated period I. (

Table 7. Activation energies for the BOF slags with 2% MgO [kJ/mol].

P1	P11	P12	P13	P14	P15	P16	P17
22.87	9.86	9.53	14.82	10.29	9.34	8.20	10.44

and

Table 8. Activation energies for the BOF slags with 8% MgO [kJ/mol].

P2	P21	P22	P23	P24	P25	P26
43.31	33.42	10.07	31.66	16.67	34.05	38.82

). The activation energies of investigated BOF slags were determined to be 8 to 44 kJ/mol for the composition range investigated, and they increase with the increasing MgO concentration and decrease with the increase in Al₂O₃, TiO₂, and MnO content.

The obtained activation energies of BOF slags are lower compared to the activation energies of BF slag reported in the literature (70.6 and 140.4 kJ/mol in [25] and approximately 75–140 kJ/mol in [23]). The activation energy of slag compositions close to that of BOF slag was reported to be between 4 and 29 kJ/mol [29].

3.5. Industrial Significance

The viscosity of the slag plays a crucial role during industrial steelmaking operation because it determines the fluidity of the slag and effectiveness of the mass transfer, which further controls slag–metal reactions. During the BOF steelmaking, phosphorous transfer from slag to metal is one of the reactions in the slag phase, which is controlled by mass transfer. If we can understand the effect of various constituents present in the slag phase on the viscosity, it would definitely help to control the industrial BOF steelmaking process in an effective manner.

4. Conclusions

The viscosities of the representative BOF slags with varying compositions of MgO, Al₂O₃, TiO₂, and MnO were experimentally measured at the temperature range between 1400 and 1700 °C; the effect of various additions were studied thoroughly, and the findings were reported and also compared with those available in the literature. The effects of solid fraction in the slag as calculated by FactSage 7.2 were also considered for this estimation under different conditions. The results show the following:

(1) The softening, semi-spherical, and flow temperatures of the investigated BOF slags increase with the increasing MgO content from 2 to 8 mass% and decrease with the addition of Al₂O₃. The addition of TiO₂ up to 5 mass% to BOF slag with 8 mass% of MgO reduces all three characteristic temperatures of the melting behavior. Three characteristic temperatures decrease with the addition of 1.8 mass% of TiO₂ to BOF slag with 2 mass% of MgO and increase with the addition up to 5 mass% of TiO₂.

(2) The viscosity of the BOF slag increases with the increasing of MgO content from 2 to 8 mass%.

(3) In the slags with 2 mass% MgO, the addition of Al₂O₃ increases the viscosity in the liquid-determined region, and it decreases viscosity at the low temperatures. In slags with 8 mass% MgO, Al₂O₃ reduces the viscosity in all the temperature ranges.

(4) In slags with 2 mass% MgO, viscosity at higher temperatures above 1600 °C does not depend on the TiO₂ content. With a decrease in temperature, the addition of TiO₂ first reduces and then increases the viscosity. In slags with 8 mass% MgO, the addition of TiO₂ reduces the viscosity in the liquid-determined region. Then, when the temperature drops, the viscosity increases with the addition of TiO₂.

(5) In the slags with 2 mass% MgO, the addition of MnO does not affect the viscosity at a higher temperature range, in the liquid-determined region. In the slags with 8 mass% MgO, the addition of MnO reduces the viscosity in the high-temperature region. When the temperature decreases, the viscosity of the slags with 2 and 8 mass% MgO increases with the addition of MnO.

(6) The activation energies of the investigated BOF slags lies between 8 and 44 kJ/mol in the liquid-determined region.
