Diagnostic Performance of Contrast-Enhanced Digital Mammography versus Conventional Imaging in Women with Dense Breasts

by
Giuliana Moffa
*,
Francesca Galati
,
Roberto Maroncelli
,
Veronica Rizzo
,
Federica Cicciarelli
,
Marcella Pasculli
and
Federica Pediconi
Department of Radiological, Oncological and Pathological Sciences, Sapienza University of Rome, 00161 Rome, Italy
*
Author to whom correspondence should be addressed.
Diagnostics 2023, 13(15), 2520; https://doi.org/10.3390/diagnostics13152520
Submission received: 13 June 2023 / Revised: 13 July 2023 / Accepted: 24 July 2023 / Published: 28 July 2023
(This article belongs to the Special Issue Advances in Breast Cancer Imaging and Treatment)
Browse Figures
Review Reports Versions Notes

Abstract

:
The aim of this prospective study was to compare the diagnostic performance of contrast-enhanced mammography (CEM) versus digital mammography (DM) combined with breast ultrasound (BUS) in women with dense breasts. Between March 2021 and February 2022, patients eligible for CEM with the breast composition category ACR BI-RADS c–d at DM and an abnormal finding (BI-RADS 3-4-5) at DM and/or BUS were considered. During CEM, a nonionic iodinated contrast agent (Iohexol 350 mg I/mL, 1.5 mL/kg) was power-injected intravenously. Images were evaluated independently by two breast radiologists. Findings classified as BI-RADS 1–3 were considered benign, while BI-RADS 4–5 were considered malignant. In case of discrepancies, the higher category was considered for DM+BUS. Sensitivity, specificity, positive predictive value (PPV), negative predictive value (NPV), and accuracy were calculated, using histology/≥12-month follow-up as gold standards. In total, 51 patients with 65 breast lesions were included. 59 (90.7%) abnormal findings were detected at DM+BUS, and 65 (100%) at CEM. The inter-reader agreement was excellent (Cohen’s k = 0.87 for DM+BUS and 0.97 for CEM). CEM showed a 93.5% sensitivity (vs. 90.3% for DM+BUS), a 79.4–82.4% specificity (vs. 32.4–35.5% for DM+BUS) (McNemar p = 0.006), a 80.6–82.9% PPV (vs. 54.9–56.0% for DM+BUS), a 93.1–93.3% NPV (vs. 78.6–80.0% for DM+BUS), and a 86.1–87.7% accuracy (vs. 60.0–61.5% for DM+BUS). The AUC was higher for CEM than for DM+BUS (0.865 vs. 0.613 for Reader 1, and 0.880 vs. 0.628, for Reader 2) (p < 0.001). In conclusion, CEM had a better diagnostic performance than DM and BUS alone and combined together in patients with dense breasts.

1. Introduction

Breast cancer represents a serious public health issue, being the most commonly diagnosed cancer (11.7% of total cases for both sexes) and the leading cause of cancer death in the female population [1]. Fortunately, breast cancer mortality has progressively decreased in recent decades, mainly due to improvements in treatment and early detection via massive screening campaigns [2].
Digital mammography (DM) plays a pivotal role in breast cancer imaging, both in the routine clinical practice and screening settings, enabling early detection and conservative surgery. Moreover, DM has been proven to reduce breast cancer mortality by up to over 20–30% [3]. Unfortunately, DM is burdened by limited sensitivity, especially in women with dense breasts, and relatively high false positive (FP) and false negative (FN) rates. In a recent study including approximately 112,000 examinations, Wanders at al. [4] have demonstrated a 25% reduction in sensitivity and a 13‰ increase in FP rates as the breast density increased from almost entirely fatty to extremely dense, according to the breast density categories of the 2013 American College of Radiology (ACR) Breast Imaging Reporting and Data System (BI-RADS) [5] (Figure 1).
High breast density (defined as ACR BI-RADS c–d) is associated with two main problems: it is an independent breast cancer risk factor [6] and causes a “masking effect” due to overlapping breast tissues, potentially delaying the diagnosis of non-calcified breast cancers.
Some possible solutions have been proposed through the years in order to overcome the limits of DM. Adding digital breast tomosynthesis (DBT) to DM has the proven advantage of increasing the breast cancer detection rate both in dense and fatty breasts, while reducing recall rates, thus improving both the sensitivity and specificity of DM, with a moderate increase in the radiation dose, acquisition time and reading time [7,8,9]. Nevertheless, the available evidence suggests that DBT-detected cancers tend to be smaller, of lower grade, and of favorable histology [8], raising reasonable issues about overdiagnosis.
Breast ultrasound (BUS) is commonly used as a supplemental, low-cost diagnostic tool to increase sensitivity, especially for young women with dense breasts in whom DM and DBT have a lower sensitivity. In the screening setting, adjunctive BUS has increased the sensitivity and detection rate of early cancers and has reduced interval cancers in women with dense breasts [10,11,12,13,14,15,16], but has significantly reduced specificity and substantially increased FP rates [10,11,17]. Moreover, BUS is operator-dependent and poorly repeatable.
Considering the increasing evidence about underdiagnosis of current screening strategies, the European Society of Breast Imaging (EUSOBI) now recommends supplemental screening using contrast-enhanced magnetic resonance imaging (CE-MRI) of the breast in women with extremely dense breasts aged 50–70 years [18]. Nevertheless, the availability of breast MRI remains patchy and extremely varied in terms of equipment, staff, and experience.
Contrast-enhanced digital mammography (CEM) is a new contrast-enhanced imaging technique, first introduced in 2011, that combines the anatomic and morphologic information provided by mammography projections with functional information via intravenous iodinated contrast media administration. Similarly to breast CE-MRI, CEM is able to detect the abnormal enhancement of malignant breast lesions caused by tumoral neoangiogenesis.
CEM is performed using a standard mammography system implemented with a specific filter for the acquisition of high-energy images and a software that is able to process raw information and construct the so-called recombined images.
The main disadvantages of CEM are the increase in the radiation dose compared to DM (varying between 15 and 80% [19,20,21,22]), the use of iodinated contrast media, and the higher costs. Nevertheless, CEM is currently considered safe, since the radiation dose—although higher—remains within acceptable levels and serious adverse reactions to the contrast agent are extremely rare, accounting for about 0.002% in a recent review by Zanardo et al. including more than 14,000 patients [23]. Concerning the expenses associated with CEM, most existing digital mammography units can be implemented with dedicated filters and software to perform CEM, in order to avoid the waste of resources and reduce equipment costs.
Many authors have demonstrated that CEM outperforms DM [24,25,26,27,28,29,30], but there are only a few studies, to our knowledge, that have compared the diagnostic performance of CEM versus DM+BUS combined together [29,30,31]: one is a large population-based but retrospective study [31], and the others [29,30] have actually evaluated the diagnostic performance of CEM as an adjunct to DM (that has been associated with overestimation in tumor size [32]), or to DM+BUS.
The aim of this prospective study was to compare the diagnostic performance of CEM alone versus conventional imaging techniques combined together, in women with dense breasts.

2. Materials and Methods

2.1. Study Design and Population

The present prospective study was conducted according to the Good Clinical Practice guidelines and obtained the approval of our institutional review board.
All patients eligible for CEM examination in the diagnostic phase in the Breast Imaging Department of our Institution between March 2021 and February 2022 were considered for this study. Non-eligibility criteria included the following: suspected/ongoing pregnancy or lactation, history of allergic reaction to iodinated contrast medium, and impaired renal function, according to the European Society of Urogenital Radiology (ESUR) guidelines on contrast agents [33].
All patients participated voluntarily and provided written informed consent prior to enrollment.
The inclusion criteria were as follows: (1) breast composition category c and d at DM, according to the 2013 ACR BI-RADS [5]; (2) conventional imaging (DM and BUS) performed in the Breast Imaging Department of our Institution in the six weeks prior to CEM examination; and (3) abnormal finding classified as BI-RADS 3-4-5, according to the 2013 ACR BI-RADS, at DM and/or BUS.
The exclusion criteria were as follows: (1) inability to complete CEM; (2) previous history of breast cancer/recurrent disease; (3) ongoing neoadjuvant therapy or other cancer treatment; (4) presence of breast implants, in order to avoid the known artifact effect of implants on recombined images [34]; (5) core needle biopsy (CNB) or vacuum-assisted biopsy (VAB) performed less than 14 days prior to CEM, in order to avoid possible bias due to the procedures (e.g., post-biopsy hematoma); (6) incomplete clinical/histological data; and (7) patient’s referral to other institutions.
Data were acquired anonymously and collected using Excel 2016 (Microsoft Corp., Redmont, WA, USA).

2.2. Imaging Techniques

DM and CEM were performed on a low-dose digital mammography unit (Giotto Class; IMS Giotto, Bologna, Italy) capable of performing full-field 2D DM and CEM. The technical features of the system employed are summarized in Table 1.
DM included at least standard bilateral craniocaudal (CC) and mediolateral oblique (MLO) projections for all patients.
Before CEM examination, a non-ionic iodinated contrast agent (Iohexol 350 mgI/mL; Omnipaque 350, GE Healthcare, Chicago, IL, USA) was power-injected through an antecubital venous access (18–20 gauge) at a dose of 1.5 mL/kg body weight and at a rate of 3 mL/s, and followed by a 20 mL saline flush at the same rate. About 2 min after the injection, the patient was positioned for mammographic imaging, starting the scan from the breast with the suspicious finding. Two CC and two MLO views (early and late) of the affected side and of the other side were obtained sequentially within 6 min maximum (total acquisition time = 8 min). Two acquisitions (low and high energy) were performed serially for each view. A post-processing-dedicated software was used to construct the recombined images showing areas of post-contrast enhancement.
Imaging of pre-menopausal or peri-menopausal women was performed between the 7th and the 14th day of the menstrual cycle in order to minimize the effects of background parenchymal enhancement on the examination accuracy.
BUS examination was performed by two experienced breast radiologists using a high-resolution ultrasound unit with a 12 MHz linear probe (Affiniti 70 G; Philips, Amsterdam, The Netherlands).

2.3. Imaging Evaluation and Interpretation

All imaging evaluation was performed independently by two experienced breast radiologists (Reader 1: F.G. and Reader 2: G.M., with 10 and 5 years of experience, respectively). DM and CEM evaluation was performed at a dedicated workstation equipped with an integrated software (Raffaello, IMS Giotto, Bologna, Italy) and two dedicated 5-Megapixel diagnostic LED monitors (GX570; Eizo, Hakusan, Japan). The readers were aware of the aim of the study but were blinded to the results of previous breast examinations and of clinical and histopathological information.
Conventional imaging assessment (DM followed by BUS) was performed using all images available and suspicious findings were identified and classified following the 2013 ACR BI-RADS lexicon for DM [5] and ultrasound [35]. Breast composition was evaluated at DM and classified visually as ACR BI-RADS c in case of heterogeneous breast density and as ACR BI-RADS d in case of extreme density [5].
The presence of calcifications at DM was annotated.
CEM imaging assessment was performed 1–2 weeks after conventional imaging in order to avoid possible biases, using both low-energy and recombined images. Findings were classified according to the recently introduced CEM supplement to the 2013 ACR BI-RADS Mammography [36].
A final BI-RADS assessment category was provided for each finding at all imaging techniques. In the event of discrepancies between the DM and BUS assessment category, the higher BI-RADS category was taken into consideration for further analysis.
To evaluate the diagnostic performance of DM+BUS and CEM, findings classified as BI-RADS 1–3 were considered benign, while findings classified as BI-RADS 4–5 were considered malignant. A BI-RADS category 0 was not allowed.
The histopathological results from CNB, VAB or surgery (when available) or a ≥12-month long follow-up period were considered as the reference standard.

2.4. Statistical Analysis

The statistical analyses and the graph plotting were performed using IBM SPSS Statistics 27.0 (IBM, Armonk, NY, USA).
Sensitivity, specificity, positive predictive value (PPV), negative predictive value (NPV), and accuracy were calculated for DM, BUS, DM+BUS, and CEM.
The receiver operating characteristic (ROC) curve and the corresponding area under the curve (AUC) value were used to estimate the overall diagnostic performance of all imaging techniques.
The McNemar test was used to compare sensitivities and specificities of DM+BUS vs. CEM.
Each analysis was performed separately for Reader 1 and Reader 2. Inter-reader agreement was calculated using Cohen’s k coefficient.
p-values < 0.05 were considered statistically significant.

3. Results

In total, 110 CEM examinations were performed in the Breast Imaging Department of our Institution between March 2021 and February 2022. Among these, 63 patients met the inclusion criteria. In two cases, the examination was interrupted before being completed, 7 patients had previous history of breast cancer/suspected recurrency, 1 patient had breast implants, and 2 patients had been referred to another institution. Therefore, 51 patients with 65 breast lesions were included in the study.
The patients’ age ranged from 40 to 81 years (median age = 55.5, mean age = 57.8, SD = 10.2).
The breast composition at DM was classified as ACR BI-RADS c in 92.2% and ACR BI-RADS d in 7.8% of cases, respectively. There were no differences in terms of breast composition evaluation between the two readers.
A total of 59 (90.7%) abnormal findings were detected at DM+BUS by both readers. Among these, Reader 1 identified 28 lesions (47.5%) only at DM (18 of them were suspicious calcifications) and 7 (11.8%) only at BUS, while Reader 2 identified 28 lesions (47.5%) only at DM (18 of them were calcifications) and 8 (13.6%) only at BUS.
Six additional malignant lesions were identified at CEM by both readers (n = 65, 100%) (Figure 2).
In total, 14 and 15 findings were classified as benign by Reader 1 and Reader 2 at DM+BUS, respectively, and 51 and 50 (for Reader 1 and Reader 2, respectively) were classified as malignant; meanwhile, 29 and 30 findings were classified as benign by Reader 1 and Reader 2 at CEM, respectively, and 36 and 35 were classified as malignant (Figure 3 and Figure 4).
The classification of abnormal findings detected by each reader is summarized in Table 2.
Inter-reader agreement between the two readers was excellent in all cases (Cohen’s k = 0.87 for BUS and DM+BUS, 0.90 for DM, and 0.97 for CEM).
The overall diagnostic performance of CEM was superior to that of DM+BUS and of DM and BUS alone, even if to a lesser extent. In particular, CEM showed a better sensitivity (of 93.5% vs. 90.3% of DM+BUS, for both readers) and a much better specificity (of 79.4–82.4% vs. 32.4–35.5% of DM+BUS) (p = 0.006 for both readers). Data about the overall diagnostic performance of DM+BUS and CEM are summarized in Table 3.
ROC curves are displayed in Figure 5.
The AUC value was higher for CEM than for DM and BUS alone, and higher than for DM+BUS as well, reaching 0.865 (95% CI = 0.783–0.947) vs. 0.613 (95% CI = 0.518–0.709) for Reader 1, and 0.880 (95% CI = 0.801–0.958) vs. 0.628 (95% CI = 0.531–0.725) for Reader 2, respectively. The comparison between the AUC values was statistically significant in all the cases (p < 0.001 for both readers for DM+BUS vs. CEM; p < 0.001, for both readers for DM vs. CEM; p = 0.05, for Reader 1 and p = 0.04 for Reader 2, for BUS vs. CEM).

4. Discussion

The rationale of CEM, as well as CE-MRI, is that abnormal breast tissue is characterized by post-contrast enhancing.
It is nowadays established that breast MRI has the highest sensitivity in breast cancer detection (overall sensitivity of 90% [37]), but is burdened by a suboptimal specificity.
It was demonstrated that CEM has a similar diagnostic performance to breast MRI in cancer detection [24,38,39,40], with some advantages compared to breast MRI, including lower costs, with the possibility to “upgrade” existing digital mammography units [41], higher availability, and fewer contraindications. Moreover, in a recent study by Hobbs et al. [42] including 49 patients, CEM was overall preferred to breast MRI due to the faster procedure time, the greater comfort, and the lower rates of anxiety induced by the examination.
Considering the well-known limits of conventional imaging, we proposed CEM examination to patients with dense breasts and a suspicious finding (to justify increased radiation dose) as a second-level examination.
The results of our study have indicated that all parameters considered were improved in CEM compared to conventional imaging techniques alone and combined together.
In particular, CEM reached a 93.5% sensitivity, with an increase in sensitivity of 3% compared to DM+BUS and of some 13–16% compared to DM. These results are similar to those of a similar large-population-based study [31] and are comparable to the existing literature pertaining to CEM, which has reported a pooled sensitivity of 89% [43] and an improvement in sensitivity of CEM vs. DM of more than 20% in women with dense breasts [27]. Our results suggest that CEM represents a valuable tool in terms of breast cancer detection, with a possible concrete role in the screening setting.
CEM has also demonstrated a good performance in terms of the differentiation between benign and malignant lesions: 88% of lesions included in the present study were correctly classified at CEM by both readers (vs. 65% of DM+BUS). This percentage is similar to what has been previously reported by Travieso-Aja et al. [31] in a comparable large-population-based study (about 10% of lesions misclassified by CEM). Moreover, as already seen in the abovementioned similar research [31], the number of FP findings detected in CEM was higher than FN ones (only 2/8 cases in our study). However, the FP rate of CEM was much lower than that of DM+BUS (with 17 more FP findings detected by both readers at conventional imaging), with a consequent marked increase in PPV. A possible explanation for this result is that the majority of FP findings at DM+BUS corresponded actually to suspicious calcifications at DM. This evidence suggests that CEM could be of added value in case of enhancing calcifications, even if it is not currently recommended to downgrade non-enhancing suspicious calcifications to a lower BI-RADS category [44], since some authors have demonstrated that only 81% of ductal carcinomas in situ show post-contrast enhancement at CEM [45]. The second possible reason is the intrinsic high FP rate associated with high breast density at DM.
CEM was able to detect 6 additional malignant lesions that were otherwise missed at conventional imaging, enabling the correct evaluation of the extension of breast cancer and changing the therapeutic strategy for 5 patients de facto. This result supports the role of CEM as a preoperative staging tool [46].
Our study has also demonstrated the good specificity of CEM (of 79–82%), which was markedly increased compared to that of conventional techniques, both alone and together. Our results are moderately better than those found by Cheung et al. [27] in a population of women with high breast density (up to 67% specificity); however, these results are comparable to those of a recent meta-analysis of 18 studies conducted by Zhu at al. [43], which reported a pooled specificity of 84%, even if this remains highly variable across the studies (ranging from 41 to 94%) in the diagnostic setting [47,48].
Unlike one previous similar study [31], specificity and PPV of DM+BUS were lower than DM and BUS alone in this research. This unexpected result is probably due to the decision to consider the higher BI-RADS category in case of discrepancies between DM and BUS (worst case scenario), with a consequent increase in the number of wrongly assessed cases.
According to our results, CEM allowed a marked increase in NPV values compared to DM+BUS (93.1% vs. 78.6%) and DM and BUS alone, due mainly to a reduction in FN findings.
The maximum AUC value obtained in the present study (0.88) was similar to data reported in literature (0.89) [49], confirming that CEM has a high overall diagnostic performance, with a good accuracy.
Our study has some limitations: firstly, it was a single-center study including a limited number of patients; nonetheless, as far as we know, there are only three other studies [29,30,31] that have compared the diagnostic performance of CEM vs. DM and BUS combined together, and all of them included women with breasts of all densities (ACR BI-RADS a–d) while we decided to include exclusively patients with dense breasts, with a consequent obvious reduction in the number of eligible patients. In addition, a selection bias can be configured, since our sample included exclusively patients with abnormal findings at conventional imaging. Finally, the decision to include the higher BI-RADS category for DM+BUS in the analysis in case of discrepancies caused a probable bias affecting the FP rates of both tests combined together, with a consequent reduction in specificity and PPV.
In conclusion, our results, although preliminary, have demonstrated that CEM has a better diagnostic performance compared to conventional imaging techniques (alone and combined together) in patients with dense breasts, confirming the little evidence present in literature. On this basis, we believe that CEM has the potential to become a more accessible, alternative modality to CE-MRI of the breast as a second-level examination.

Author Contributions

Conceptualization, G.M., F.G. and F.P.; methodology, G.M., F.G. and R.M.; validation, F.P.; formal analysis, G.M., F.G. and V.R.; investigation, G.M., R.M., F.C. and M.P.; data curation, V.R.; writing—original draft preparation, G.M., R.M. and V.R.; writing—review and editing, G.M. and F.G.; supervision, F.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Institutional Review Board (Ethic Committee of Sapienza Università di Roma—Policlinico Umberto I, Prot. N. 0930/2021).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Data available on request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef]
  2. Berry, D.A.; Cronin, K.A.; Plevritis, S.K.; Fryback, D.G.; Clarke, L.; Zelen, M.; Mandelblatt, J.S.; Yakovlev, A.Y.; Habbema, J.D.F.; Feuer, E.J.; et al. Effects of screening and adjuvant therapy on mortality for breast cancer. N. Engl. J. Med. 2005, 353, 1784–1792. [Google Scholar] [CrossRef] [PubMed]
  3. Dibden, A.; Offman, J.; Duffy, S.W.; Gabe, R. Worldwide Review and Meta-Analysis of Cohort Studies Measuring the Effect of Mammography Screening Programmes on Incidence-Based Breast Cancer Mortality. Cancers 2020, 12, 976. [Google Scholar] [CrossRef] [Green Version]
  4. Wanders, J.O.P.; Holland, K.; Veldhuis, W.B.; Mann, R.M.; Pijnappel, R.M.; Peeters, P.H.M.; van Gils, C.H.; Karssemeijer, N. Volumetric breast density affects performance of digital screening mammography. Breast Cancer Res. Treat. 2017, 162, 95–103. [Google Scholar] [CrossRef] [Green Version]
  5. Sickles, E.A.; D’Orsi, C.J.; Bassett, L.W.; Appleton, C.M.; Berg, W.A.; Burnside, E.S. ACR BI-RADS® Mammography. In ACR BI-RADS® Atlas, Breast Imaging Reporting and Data System; American College of Radiology: Reston, VA, USA, 2013. [Google Scholar]
  6. Hu, C.; Hart, S.N.; Bamlet, W.R.; Moore, R.M.; Nandakumar, K.; Eckloff, B.W.; Lee, Y.K.; Petersen, G.M.; McWilliams, R.R.; Couch, F.J. Breast density and parenchymal patterns as markers of breast cancer risk: A meta-analysis. Cancer Epidemiol. Biomark. Prev. 2006, 15, 1159–1169. [Google Scholar] [CrossRef]
  7. Galati, F.; Moffa, G.; Pediconi, F. Breast imaging: Beyond the detection. Eur. J. Radiol. 2022, 146, 110051. [Google Scholar] [CrossRef] [PubMed]
  8. Chong, A.; Weinstein, S.P.; McDonald, E.S.; Conant, E.F. Digital Breast Tomosynthesis: Concepts and Clinical Practice. Radiology 2019, 292, 155088744. [Google Scholar] [CrossRef]
  9. Galati, F.; Marzocca, F.; Bassetti, E.; Luciani, M.L.; Tan, S.; Catalano, C.; Pediconi, F. Added Value of Digital Breast Tomosynthesis Combined with Digital Mammography According to Reader Agreement: Changes in BI-RADS Rate and Follow-Up Management. Breast Care 2017, 12, 218–222. [Google Scholar] [CrossRef] [PubMed]
  10. Ohuchi, N.; Suzuki, A.; Sobue, T.; Kawai, M.; Yamamoto, S.; Zheng, Y.-F.; Shiono, Y.N.; Saito, H. Sensitivity and specificity of mammography and adjunctive ultrasonography to screen for breast cancer in the Japan Strategic Anti-cancer Randomized Trial (J-START): A randomised controlled trial. Lancet 2016, 387, 341–348. [Google Scholar] [CrossRef]
  11. Scheel, J.R.; Lee, J.M.; Sprague, B.L.; Lee, C.I.; Lehman, C.D. Screening ultrasound as an adjunct to mammography in women with mammographically dense breasts. Am. J. Obstet. Gynecol. 2015, 212, 9–17. [Google Scholar] [CrossRef]
  12. Chae, E.Y.; Kim, H.H.; Cha, J.H.; Shin, H.J.; Kim, H. Evaluation of screening whole-breast sonography as a supplemental tool in conjunction with mammography in women with dense breasts. J. Ultrasound Med. 2013, 32, 1573–1578. [Google Scholar] [CrossRef] [PubMed]
  13. Corsetti, V.; Houssami, N.; Ghirardi, M.; Ferrari, A.; Speziani, M.; Bellarosa, S.; Remida, G.; Gasparotti, C.; Galligioni, E.; Ciatto, S. Evidence of the effect of adjunct ultrasound screening in women with mammography negative dense breasts: Interval breast cancers at 1 year follow-up. Eur. J. Cancer 2011, 47, 1021–1026. [Google Scholar] [CrossRef] [PubMed]
  14. Nothacker, M.; Duda, V.; Hahn, M.; Warm, M.; Degenhardt, F.; Madjar, H.; Weinbrenner, S.; Albert, U.-S. Early detection of breast cancer: Benefits and risks of supplemental breast ultrasound in asymptomatic women with mammographically dense breast tissue. A systematic review. BMC Cancer 2009, 9, 335. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Berg, W.A.; Blume, J.D.; Cormack, J.B.; Mendelson, E.B.; Lehrer, D.; Böhm-Vélez, M.; Pisano, E.D.; Jong, R.A.; Evans, W.P.; Morton, M.J.; et al. Combined screening with ultrasound and mammography vs mammography alone in women at elevated risk of breast cancer. JAMA 2008, 299, 2151–2163. [Google Scholar] [CrossRef]
  16. Kolb, T.M.; Lichy, J.; Newhouse, J.H. Comparison of the performance of screening mammography, physical examination, and breast US and evaluation of factors that influence them: An analysis of 27,825 patient evaluations. Radiology 2002, 225, 165–175. [Google Scholar] [CrossRef] [Green Version]
  17. Gennaro, G.; Cozzi, A.; Schiaffino, S.; Sardanelli, F.; Caumo, F. Radiation Dose of Contrast-Enhanced Mammography: A Two-Center Prospective Comparison. Cancers 2022, 14, 1774. [Google Scholar] [CrossRef]
  18. Mann, R.M.; Athanasiou, A.; Baltzer, P.A.T.; Camps-Herrero, J.; Clauser, P.; Fallenberg, E.M.; Forrai, G.; Fuchsjäger, M.H.; Helbich, T.H.; Killburn-Toppin, F.; et al. Breast cancer screening in women with extremely dense breasts recommendations of the European Society of Breast Imaging (EUSOBI). Eur. Radiol. 2022, 32, 4036–4045. [Google Scholar] [CrossRef]
  19. Phillips, J.; Mihai, G.; Hassonjee, S.E.; Raj, S.D.; Palmer, M.R.; Brook, A.; Zhang, D. Comparative dose of contrast-enhanced spectral mammography (CESM), digital mammography, and digital breast tomosynthesis. Am. J. Roentgenol. 2018, 211, 839–846. [Google Scholar] [CrossRef]
  20. James, J.R.; Pavlicek, W.; Hanson, J.A.; Boltz, T.F.; Patel, B.K. Breast radiation dose with CESM compared with 2D FFDM and 3D tomosynthesis mammography. Am. J. Roentgenol. 2017, 208, 362–372. [Google Scholar] [CrossRef]
  21. Jeukens, C.R.; Lalji, U.C.; Meijer, E.; Bakija, B.; Theunissen, R.; Wildberger, J.E.; Lobbes, M.B. Radiation exposure of contrast-enhanced spectral mammography compared with full-field digital mammography. Investig. Radiol. 2014, 49, 659–665. [Google Scholar] [CrossRef]
  22. Badr, S.; Laurent, N.; Régis, C.; Boulanger, L.; Lemaille, S.; Poncelet, E. Dual-Energy contrast-enhanced digital mammography in routine clinical practice in 2013. Diagn. Interv. Imaging 2014, 95, 245–258. [Google Scholar] [CrossRef] [Green Version]
  23. Zanardo, M.; Cozzi, A.; Trimboli, R.M.; Labaj, O.; Monti, C.B.; Schiaffino, S.; Carbonaro, L.A.; Sardanelli, F. Technique, protocols and adverse reactions for contrast-enhanced spectral mammography (CESM): A systematic review. Insights Imaging 2019, 10, 76. [Google Scholar] [CrossRef]
  24. Fallenberg, E.M.; Schmitzberger, F.F.; Amer, H.; Ingold-Heppner, B.; Balleyguier, C.; Diekmann, F.; Engelken, F.; Mann, R.M.; Renz, D.M.; Bick, U.; et al. Contrast-enhanced spectral mammography vs. mammography and MRI—Clinical performance in a multi-reader evaluation. Eur. Radiol. 2017, 27, 2752–2764. [Google Scholar] [CrossRef] [PubMed]
  25. Patel, B.K.; Garza, S.A.; Eversman, S.; Lopez-Alvarez, Y.; Kosiorek, H.; Pockaj, B.A. Assessing tumor extent on contrast-enhanced spectral mammography versus full-field digital mammography and ultrasound. Clin. Imaging 2017, 46, 78–84. [Google Scholar] [CrossRef]
  26. Lalji, U.C.; Houben, I.P.L.; Prevos, R.; Gommers, S.; van Goethem, M.; Vanwetswinkel, S.; Pijnappel, R.; Steeman, R.; Frotscher, C.; Mok, W.; et al. Contrast-enhanced spectral mammography in recalls from the Dutch breast cancer screening program: Validation of results in a large multireader, multicase study. Eur. Radiol. 2016, 26, 4371–4379. [Google Scholar] [CrossRef] [Green Version]
  27. Cheung, Y.-C.; Lin, Y.-C.; Wan, Y.-L.; Yeow, K.-M.; Huang, P.-C.; Lo, Y.-F.; Tsai, H.-P.; Ueng, S.-H.; Chang, C.-J. Diagnostic performance of dual-energy contrast-enhanced subtracted mammography in dense breasts compared to mammography alone: Interobserver blind-reading analysis. Eur. Radiol. 2014, 24, 2394–2403. [Google Scholar] [CrossRef]
  28. Luczyńska, E.; Heinze-Paluchowska, S.; Dyczek, S.; Blecharz, P.; Rys, J.; Reinfuss, M. Contrast-enhanced spectral mammography: Comparison with conventional mammography and histopathology in 152 women. Korean J. Radiol. 2014, 15, 689–696. [Google Scholar] [CrossRef] [Green Version]
  29. Dromain, C.; Thibault, F.; Diekmann, F.; Fallenberg, E.M.; Jong, R.A.; Koomen, M.; Hendrick, R.E.; Tardivon, A.; Toledano, A. Dual-energy contrast-enhanced digital mammography: Initial clinical results of a multireader, multicase study. Breast Cancer Res. 2012, 14, R94. [Google Scholar] [CrossRef] [PubMed]
  30. Dromain, C.; Thibault, F.; Muller, S.; Rimareix, F.; Delaloge, S.; Tardivon, A.; Balleyguier, C. Dual-energy contrast-enhanced digital mammography: Initial clinical results. Eur. Radiol. 2011, 21, 565–574. [Google Scholar] [CrossRef]
  31. Travieso-Aja, M.D.M.; Maldonado-Saluzzi, D.; Naranjo-Santana, P.; Fernández-Ruiz, C.; Severino-Rondón, W.; Rodríguez, M.R.; Benítez, V.V.; Pérez-Luzardo, O. Diagnostic performance of contrast-enhanced dual-energy spectral mammography (CESM): A retrospective study involving 644 breast lesions. Radiol. Med. 2019, 124, 1006–1017. [Google Scholar] [CrossRef]
  32. Fallenberg, E.M.; Dromain, C.; Diekmann, F.; Renz, D.M.; Amer, H.; Ingold-Heppner, B.; Neumann, A.U.; Winzer, K.J.; Bick, U.; Hamm, B.; et al. Contrast-enhanced spectral mammography: Does mammography provide additional clinical benefits or can some radiation exposure be avoided? Breast Cancer Res. Treat. 2014, 146, 371–381. [Google Scholar] [CrossRef]
  33. ESUR Guidelines on Contrast Agents 10.0. Available online: https://www.esur.org/esur-guidelines-on-contrast-agents (accessed on 15 March 2023).
  34. Nori, J.; Gill, M.K.; Vignoli, C.; Bicchierai, G.; De Benedetto, D.; Di Naro, F.; Vanzi, E.; Boeri, C.; Miele, V. Artefacts in contrast enhanced digital mammography: How can they affect diagnostic image quality and confuse clinical diagnosis? Insights Imaging 2020, 11, 16. [Google Scholar] [CrossRef]
  35. Mendelson, E.B.; Böhm-Vélez, M.; Berg, W.A.; Whitman, G.J.; Feldman, M.I.; Madjar, H. ACR BI-RADS® Ultrasound. In ACR BI-RADS® Atlas, Breast Imaging Reporting and Data System; American College of Radiology: Reston, VA, USA, 2013. [Google Scholar]
  36. Lee, C.H.; Phillips, J.; Sung, J.S.; Lewin, J.M.; Newell, M.S. Contrast enhanced mammography (CEM) (A supplement to ACR BI-RADS® Mammography 2013). In ACR BI-RADS® Atlas, Breast Imaging Reporting and Data System; American College of Radiology: Reston, VA, USA, 2022. [Google Scholar]
  37. Mann, R.M.; Balleyguier, C.; Baltzer, P.A.; Bick, U.; Colin, C.; Cornford, E.; Evans, A.N.; Fallenberg, E.M.; Forrai, G.; Fuchsjäger, M.H.; et al. Breast MRI: EUSOBI recommendations for women’s information. Eur. Radiol. 2015, 25, 3669–3678. [Google Scholar] [CrossRef] [Green Version]
  38. Zamora, K.; Allen, E.; Hermecz, B. Contrast mammography in clinical practice: Current uses and potential diagnostic dilemmas. Clin. Imaging 2021, 71, 126–135. [Google Scholar] [CrossRef]
  39. Xing, D.; Lv, Y.; Sun, B.; Xie, H.; Dong, J.; Hao, C.; Chen, Q.; Chi, X. Diagnostic Value of Contrast-Enhanced Spectral Mammography in Comparison to Magnetic Resonance Imaging in Breast Lesions. J. Comput. Assist. Tomogr. 2019, 43, 245–251. [Google Scholar] [CrossRef]
  40. Li, L.; Roth, R.; Germaine, P.; Ren, S.; Lee, M.; Hunter, K.; Tinney, E.; Liao, L. Contrast-enhanced spectral mammography (CESM) versus breast magnetic resonance imaging (MRI): A retrospective comparison in 66 breast lesions. Diagn. Interv. Imaging 2017, 98, 113–123. [Google Scholar] [CrossRef]
  41. Covington, M.F.; Pizzitola, V.J.; Lorans, R.; Pockaj, B.A.; Northfelt, D.W.; Appleton, C.M.; Patel, B.K. The Future of Contrast-Enhanced Mammography. Am. J. Roentgenol. 2018, 210, 292–300. [Google Scholar] [CrossRef]
  42. Hobbs, M.M.; Taylor, D.B.; Buzynski, S.; Peake, R.E. Contrast-enhanced spectral mammography (CESM) and contrast enhanced MRI (CEMRI): Patient preferences and tolerance. J. Med. Imaging Radiat. Oncol. 2015, 59, 300–305. [Google Scholar] [CrossRef]
  43. Zhu, X.; Huang, J.-M.; Zhang, K.; Xia, L.-J.; Feng, L.; Yang, P.; Zhang, M.-Y.; Xiao, W.; Lin, H.-X.; Yu, Y.-H. Diagnostic Value of Contrast-Enhanced Spectral Mammography for Screening Breast Cancer: Systematic Review and Meta-analysis. Clin. Breast Cancer 2018, 18, e985–e995. [Google Scholar] [CrossRef] [PubMed]
  44. Neeter, L.M.F.H.; Raat, H.P.J.F.; Alcantara, R.; Robbe, Q.; Smidt, M.L.; Wildberger, J.E.; Lobbes, M.B.I. Contrast-enhanced mammography: What the radiologist needs to know. BJR Open 2021, 3, 20210034. [Google Scholar] [CrossRef] [PubMed]
  45. Houben, I.P.; Vanwetswinkel, S.; Kalia, V.; Thywissen, T.; Nelemans, P.; Heuts, E.; Smidt, M.; Meyer-Baese, A.; Wildberger, J.; Lobbes, M. Contrast-Enhanced spectral mammography in the evaluation of breast suspicious calcifications: Diagnostic accuracy and impact on surgical management. Acta Radiol. 2019, 60, 1110–1117. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Bicchierai, G.; Tonelli, P.; Piacenti, A.; De Benedetto, D.; Boeri, C.; Vanzi, E.; Bianchi, S.; Cirone, D.; Gill, M.K.; Miele, V.; et al. Evaluation of contrast-enhanced digital mammography (CEDM) in the preoperative staging of breast cancer: Large-scale single-center experience. Breast J. 2020, 26, 1276–1283. [Google Scholar] [CrossRef] [PubMed]
  47. Sogani, J.; Mango, V.L.; Keating, D.; Sung, J.S.; Jochelson, M.S. Contrast-enhanced mammography: Past, present, and future. Clin. Imaging 2021, 69, 269–279. [Google Scholar] [CrossRef]
  48. Ghaderi, K.F.; Phillips, J.; Perry, H.; Lotfi, P.; Mehta, T.S. Contrast-enhanced Mammography: Current Applications and Future Directions. Radiographics 2019, 39, 1907–1920. [Google Scholar] [CrossRef] [PubMed]
  49. Suter, M.B.; Pesapane, F.; Agazzi, G.M.; Gagliardi, T.; Nigro, O.; Bozzini, A.; Priolo, F.; Penco, S.; Cassano, E.; Chini, C.; et al. Diagnostic accuracy of contrast-enhanced spectral mammography for breast lesions: A systematic review and meta-analysis. Breast 2020, 53, 8–17. [Google Scholar] [CrossRef] [PubMed]
Diagnostics 13 02520 g001 550
Figure 1. DM examinations showing different breast compositions: (a) almost entirely fatty breast (ACR BI-RADS a); (b) breast with scattered areas of fibroglandular density (ACR BI-RADS b); (c) heterogeneously dense breast (ACR BI-RADS c); (d) extremely dense breast (ACR BI-RADS d).
Figure 1. DM examinations showing different breast compositions: (a) almost entirely fatty breast (ACR BI-RADS a); (b) breast with scattered areas of fibroglandular density (ACR BI-RADS b); (c) heterogeneously dense breast (ACR BI-RADS c); (d) extremely dense breast (ACR BI-RADS d).
Diagnostics 13 02520 g001
Diagnostics 13 02520 g002 550
Figure 2. A 50-year-old woman with extremely high-density breasts (ACR BI-RADS d): CC (a) and MLO (b) views show a large architectural distortion between the upper quadrants of the right breast, with pleomorphic calcifications associated. The finding is confirmed at BUS, (c) which shows an irregular hypoechoic 14 mm mass with spiculated margins in the same place. CEM confirms the presence of an irregular enhancing mass with spiculated margins between the upper quadrants of the right breast and reveals the presence of an additional small enhancing mass with irregular margins in the upper-outer quadrant of the same breast. Both the lesions show fast wash-in (d,e) and fast wash-out, (f,g) and are consistent with multifocal breast cancer (BIRADS 5). The suspected diagnosis was histologically confirmed.
Figure 2. A 50-year-old woman with extremely high-density breasts (ACR BI-RADS d): CC (a) and MLO (b) views show a large architectural distortion between the upper quadrants of the right breast, with pleomorphic calcifications associated. The finding is confirmed at BUS, (c) which shows an irregular hypoechoic 14 mm mass with spiculated margins in the same place. CEM confirms the presence of an irregular enhancing mass with spiculated margins between the upper quadrants of the right breast and reveals the presence of an additional small enhancing mass with irregular margins in the upper-outer quadrant of the same breast. Both the lesions show fast wash-in (d,e) and fast wash-out, (f,g) and are consistent with multifocal breast cancer (BIRADS 5). The suspected diagnosis was histologically confirmed.
Diagnostics 13 02520 g002
Diagnostics 13 02520 g003 550
Figure 3. A 48-year-old asymptomatic woman with highly dense breasts (ACR BI-RADS c): CC (a) and MLO (b) views of the right breast show a cluster of calcification of new onset in the upper-outer quadrant (arrows), classified as BIRADS 4a by both readers; the finding is not confirmed at BUS (c). CC and MLO recombined images at CEM examination (d,e) show mild breast parenchymal enhancement, without significant post-contrast enhancement at the site of the calcifications. The patient underwent VAB. The finding was benign after histological examination.
Figure 3. A 48-year-old asymptomatic woman with highly dense breasts (ACR BI-RADS c): CC (a) and MLO (b) views of the right breast show a cluster of calcification of new onset in the upper-outer quadrant (arrows), classified as BIRADS 4a by both readers; the finding is not confirmed at BUS (c). CC and MLO recombined images at CEM examination (d,e) show mild breast parenchymal enhancement, without significant post-contrast enhancement at the site of the calcifications. The patient underwent VAB. The finding was benign after histological examination.
Diagnostics 13 02520 g003
Diagnostics 13 02520 g004 550
Figure 4. CC and MLO views of the left breast at DM (a,b) show an irregular high-density mass in the retroareolar region (arrows); the finding was not confirmed at BUS. CC and MLO recombined images at CEM examination (c,d) do not show significant post-contrast enhancement at that level but reveal a small round enhancing mass with irregular margins in the upper-outer quadrant (white circles); the finding was confirmed during a subsequent focused BUS (e). The patient underwent ultrasound-guided CNB that confirmed the malignant nature of the lesion.
Figure 4. CC and MLO views of the left breast at DM (a,b) show an irregular high-density mass in the retroareolar region (arrows); the finding was not confirmed at BUS. CC and MLO recombined images at CEM examination (c,d) do not show significant post-contrast enhancement at that level but reveal a small round enhancing mass with irregular margins in the upper-outer quadrant (white circles); the finding was confirmed during a subsequent focused BUS (e). The patient underwent ultrasound-guided CNB that confirmed the malignant nature of the lesion.
Diagnostics 13 02520 g004
Diagnostics 13 02520 g005 550

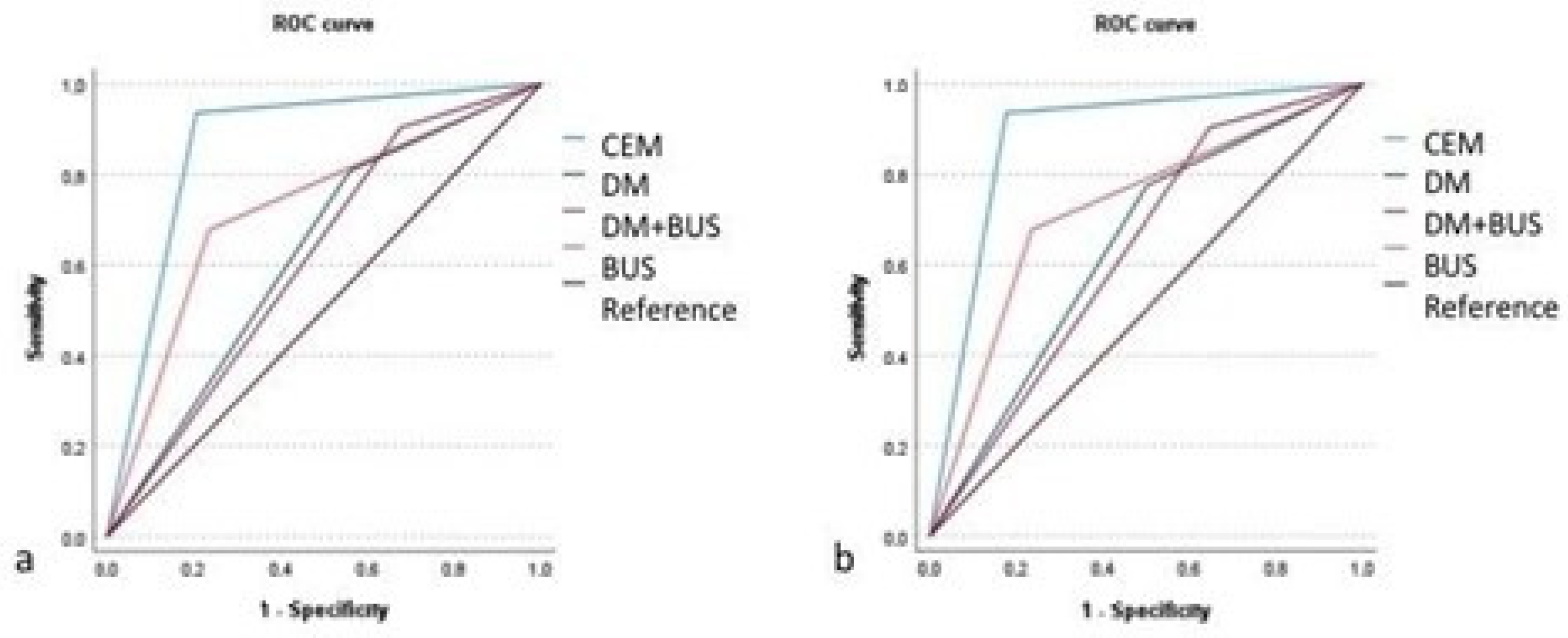

Figure 5. ROC curves for all the imaging techniques examined, for Reader 1 (a) and Reader 2 (b).
Figure 5. ROC curves for all the imaging techniques examined, for Reader 1 (a) and Reader 2 (b).
Diagnostics 13 02520 g005
Table
Table 1. CEM system technical features.
Table 1. CEM system technical features.
ModelGiotto Class with CESM
ManufacturerIMS Giotto
Detectora-Se
Low EnergyAnodeW
Filter and thicknessAl 0.7 mm
Tube voltage range22–35 kVp
High EnergyAnodeW
Filter and thicknessCu 0.3 mm
Tube voltage range40–49 kVp
Mean glandular dose (mGy)1–3.1
Total acquisition time (s)10–13
a-Se = amorphous Selenium, W = Tungsten, Al = Aluminum, Cu = Copper.
Table
Table 2. Classification of abnormal findings detected by Reader 1 and Reader 2.
Table 2. Classification of abnormal findings detected by Reader 1 and Reader 2.
Number of FindingsBI-RADS 1BI-RADS 2/3BI-RADS 4BI-RADS 5
Reader 1
DM52 (80.0%)78 2915
BUS31 (47.7%)283199
DM+BUS59 (90.7%)7 (10.7%)7 (10.7%)34 (52.3%)17 (26.2%)
CEM65 (100%)23 (35.4%)5 (7.7%)16 (24.6%)21(32.3%)
Reader 2
DM51 (78.5%)8103110
BUS31 (47.7%)283208
DM+BUS59 (90.7%)7 (10.7%)8 (12.3%)38 (58.5%)12 (18.5%)
CEM65 (100%)24 (36.9%)5 (7.7%)17 (26.2%)19 (29.2%)
Table
Table 3. Diagnostic performance of conventional imaging techniques and CEM.
Table 3. Diagnostic performance of conventional imaging techniques and CEM.
SensitivitySpecificityPPVNPVAccuracyAUC (95% CI)
Reader 1
DM80.6%44.1%56.8%71.4%61.5%0.624 (0.513–0.734)
BUS67.7%76.5%72.4%72.2%72.3%0.721 (0.610–0.832)
DM+US90.3%32.4%54.9%78.6%60.0%0.613 (0.518–0.709)
CEM93.5%79.4%80.6%93.1%86.1%0.865 (0.783–0.947)
Reader 2
DM77.4%50.0%58.5%70.8%63.1%0.637 (0.524–0.751)
BUS67.7%76.5%72.4%72.2%72.3%0.721 (0.610–0.832)
DM+BUS90.3%35.3%56.0%80.0%61.5%0.628 (0.531–0.725)
CEM93.5%82.4%82.9%93.3%87.7%0.880 (0.801–0.958)
PPV = positive predictive value, NPV = negative predictive value, AUC = area under the curve, CI = confidence interval.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Moffa, G.; Galati, F.; Maroncelli, R.; Rizzo, V.; Cicciarelli, F.; Pasculli, M.; Pediconi, F. Diagnostic Performance of Contrast-Enhanced Digital Mammography versus Conventional Imaging in Women with Dense Breasts. Diagnostics 2023, 13, 2520. https://doi.org/10.3390/diagnostics13152520

AMA Style

Moffa G, Galati F, Maroncelli R, Rizzo V, Cicciarelli F, Pasculli M, Pediconi F. Diagnostic Performance of Contrast-Enhanced Digital Mammography versus Conventional Imaging in Women with Dense Breasts. Diagnostics. 2023; 13(15):2520. https://doi.org/10.3390/diagnostics13152520

Chicago/Turabian Style

Moffa, Giuliana, Francesca Galati, Roberto Maroncelli, Veronica Rizzo, Federica Cicciarelli, Marcella Pasculli, and Federica Pediconi. 2023. "Diagnostic Performance of Contrast-Enhanced Digital Mammography versus Conventional Imaging in Women with Dense Breasts" Diagnostics 13, no. 15: 2520. https://doi.org/10.3390/diagnostics13152520

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
