Feasibility, Reproducibility and Reference Ranges of Left Atrial Strain in Preterm and Term Neonates in the First 48 h of Life
by
, , ,
Benjamim Ficial
1,*,†
,
Iuri Corsini
2,†,
Maria Clemente
1,
Alessia Cappelleri
3,
Giulia Remaschi
2,
Laura Quer
4,
Giulia Urbani
4,
Camilla Sandrini
4,
Paolo Biban
1,
Carlo Dani
2 and
Giovanni Benfari
4 1
Neonatal Intensive Care Unit, Azienda Ospedaliera Universitaria Integrata Verona, 37126 Verona, Italy
2
Division of Neonatology, Careggi University Hospital of Florence, 50134 Florence, Italy
3
Neonatal Intensive Care Unit, Fondazione IRCCS Ca’ Granda Ospedale Maggiore Policlinico, 20122 Milano, Italy
4
Section of Cardiology, Department of Medicine, University of Verona, 37126 Verona, Italy
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Diagnostics 2022, 12(2), 350; https://doi.org/10.3390/diagnostics12020350
Submission received: 1 December 2021
/
Revised: 22 January 2022
/
Accepted: 27 January 2022
/
Published: 29 January 2022
(This article belongs to the Special Issue Clinical Relevance and Usefulness of Strain Imaging)
Abstract
:Left atrial strain (LAS) is the most promising technique for assessment of diastolic dysfunction but few data are available in neonates. Our aim was to assess feasibility and reproducibility, and to provide reference ranges of LAS in healthy neonates in the first 48 h of life. We performed one echocardiography in 30 neonates to assess feasibility and develop a standard protocol for image acquisition and analysis. LAS reservoir (LASr), conduit (LAScd) and contraction (LASct) were measured. We performed echocardiography at 24 and 48 h of life in an unrelated cohort of 90 neonates. Median (range) gestational age and weight of the first cohort were 34.4 (26.4–40.2) weeks and 2075 (660–3680) g. LAS feasibility was 96.7%. Mean (SD) gestational age and weight of the second cohort were 34.2 (3.8) weeks and 2162 (833) g. Mean (SD) LASr significantly increased from 24 to 48 h: 32.9 (3.2) to 36.8 (4.6). Mean (SD) LAScd and LASct were stable: −20.6 (8.0) and −20.8 (9.9), −11.6 (4.9) and −13.5 (6.4). Intra and interobserver intraclass correlation coefficient for LASr, LAScd and LASct were 0.992, 0.993, 0.986 and 0.936, 0.938 and 0.871, respectively. We showed high feasibility and reproducibility of LAS in neonates and provided reference ranges.
1. Introduction
Echocardiographic assessment of left ventricle (LV) filling pressure is an essential step in the assessment of diastolic dysfunction [1,2]. Most widespread echocardiographic indexes used for this purpose are obtained with Doppler or Tissue Doppler techniques and may have limitations due to angle dependence [3,4].
In adult patients, two-dimensional (2D) speckle tracking echocardiography (STE) has been applied to assess left atrium (LA) function and left atrial strain (LAS) has recently been proposed as novel technique to be used in clinical practice [3]. LAS measurements can be easily obtained, are not angle dependent, strongly correlate with invasive measurement of LV filling pressure and have a prognostic role in adult diastolic heart failure, atrial fibrillation and after acute myocardial infarction [5,6].
LAS is the most promising technique for direct evaluation of LA function and non-invasive assessment of LV diastolic function in adults [7]. Different echo views for imaging acquisition and different software packages and modalities of postprocessing analysis are available. A recent consensus document has been published to standardize techniques and definitions for using 2D STE to assess LA deformation [8].
To the best of our knowledge, few data on LAS are available in neonates and no data are available in the first days of life, also known as ‘transitional period’, when the transition from intrauterine to extrauterine circulation occurs [9,10].
LA function has been conventionally divided into three phases timed to the ventricular QRS complex. During ventricular contraction, LA acts as reservoir by storing incoming pulmonary venous blood. During early ventricular relaxation, blood flows passively into the ventricle and LA acts as conduit between the pulmonary veins and LV. In the last phase, LA contracts and actively pumps blood into LV [11].
In neonates, there is evidence of an early diastolic dysfunction in the transitional period, particularly when born prematurely [12,13,14]. Moreover, important changes of LV function and LV filling pressure occur in the transitional period, likely related to changes in loading conditions, decreases in pulmonary vascular resistance and the presence of residual fetal shunts, such as patent ductus arteriosus (PDA) [15]. Therefore, there may be a role for LAS to be used in the assessment of atrial function in neonates in the transitional period.
The first aim of our study was to assess feasibility of LAS in healthy preterm and term neonates in the first 48 h of life and to develop a standard protocol for image acquisition and postprocessing analysis. The second aim was to provide reference ranges of LAS measurements in healthy preterm and term neonates in the first 48 h of life, to assess LAS reproducibility and to explore associations with other echocardiographic parameters of left systolic and diastolic function.
2. Methods
2.1. Study Design
This was a multicenter prospective observational cohort study conducted at the neonatal intensive care unit (NICU) and postnatal ward of Careggi University Hospital of Florence (Italy) and University Hospital of Verona (Italy). The study was divided into two phases.
In the first phase, we developed an LAS protocol for image acquisition and postprocessing analysis and we assessed its feasibility in a cohort of 30 healthy neonates. Every infant underwent one echocardiography in the first 48 h of life.
In the second phase, in an unrelated cohort of 90 healthy neonates, we applied this protocol to provide reference ranges of LAS at two timepoints (T1 = 24 ± 2 h and T2 = 48 ± 2 h), to assess the association of LAS measurements with other echocardiographic parameters and to assess LAS intraobserver and interobserver reproducibility. Ethics approval was obtained from research ethics committees of University Hospital of Florence (Italy) and University Hospital of Verona (49/2016 and 2132CESC respectively). Parents or guardians of babies were approached in the NICU or postnatal ward and gave their written informed consent prior to enrollment.
2.2. Study Population
In the first phase, from December 2018 to March 2019, we prospectively recruited 30 healthy neonates, divided according to gestational age (GA) as follows: 10 term neonates with GA ≥ 37 weeks; 10 preterm neonates with GA between 32 and 37; and 10 preterm neonates with GA ≤ 32 weeks.
In the second phase, from April 2019 to April 2020, we prospectively recruited 90 healthy neonates divided as follows: 30 term neonates with GA ≥ 37 weeks; 30 preterm neonates with GA between 32 and 37; and 30 preterm neonates with GA ≤ 32 weeks.
Inclusion criteria were informed parental consent and cardio-respiratory healthiness. The latter was defined as follows: no need for supplemental oxygen and/or respiratory support, except for babies with GA ≤ 32 weeks, in whom non-invasive respiratory support with a FiO2 < 0.3 was accepted, as previously reported [16,17]. Exclusion criteria were suspected intrauterine infection, suspected sepsis, major congenital abnormalities, congenital heart disease, except for PDA and patent foramen ovale (PFO), small or large for gestational age, intrauterine growth retardation, pulmonary hypertension, need for inotropes and/or vasopressors or infants of diabetic mothers.
2.3. Echocardiography
All echocardiography examinations were performed using a Philips Epiq 7 system with 12 MHz probe (Philips Ultrasound, Andover, MA, USA). Images were acquired according to the recommendations of the American Society of Echocardiography [18]. Electrocardiograms were recorded simultaneously, and three cardiac cycles were digitally stored in high frame rate (100–130 Hz). Digitally stored images of LA were reviewed, and image quality was independently assessed according to Colan et al. [19]. The system has five grade levels: excellent, good, fair, poor and unusable. Images rated poor or unusable were excluded. Included images were analyzed offline using Tomtec Arena, version TTA2 41.00, with dedicated LV and LA analysis option (Tomtec, Unterschleißheim, Germany). As recommended in adults, we selected the QRS onset, surrogate of end diastole, as the reference point for starting LAS analysis [8]. The following measurements were automatically calculated from the strain curve (Figure 1):
- -
- LASr = strain during reservoir phase, calculated as the difference of the strain value at mitral valve opening minus ventricular end-diastole (positive value);
- -
- LAScd = strain during conduit phase, calculated as the difference of the strain value at the onset of atrial contraction minus mitral valve opening (negative value);
- -
2.4. First Phase
Clinical characteristics of the enrolled neonates were collected at the time of scanning. We evaluated possible options in image acquisitions and postprocessing. Adult recommendations suggest assessing monoplane LAS from a single apical 4-chamber view but computation of biplane LAS, from both apical 4- and 2-chamber views, may be an option. We assessed feasibility of the monoplane LAS and biplane LAS as well as their agreement. A standard protocol for LAS was developed.
2.5. Second Phase
Clinical characteristics of the enrolled neonates were collected at the time of scanning at the two timepoints (T1 and T2). LAS measurements were carried out according to the protocol developed in the first phase. LV global longitudinal strain (GLS) and strain rate (SR) were calculated as previously reported [21]. The following echocardiographic measurements were carried out as previously described: shortening fraction (SF), ejection fraction (EF) [18,22], mitral valve Doppler E wave, A wave and E/A ratio, Tissue Doppler Imaging e’, a’, s’; E/e’ ratio [23], left ventricular output [24], PDA diameter, PDA maximum velocity, left pulmonary artery (LPA) diastolic velocity and reverse diastolic flow in descending aorta [25]. A PDA was defined as hemodynamically significant (hsPDA) if the following conditions were fulfilled at 48 h: (1) PDA diameter was > 1.5 mm; (2) maximum velocity of flow across PDA was < 2 m/s; (3) LPA diastolic velocity was > 0.2 m/s; (4) LVO was > 200 mL/kg/min and (5) there was evidence of reverse diastolic flow in descending aorta [25,26].
2.6. Statistical Analysis
Data are expressed as mean and standard deviation (SD) for parametric variables, median (range) for non-parametric variables and percentage for categorical variables. Reference ranges of LAS measurements were reported as mean ± 2 SD. Normality was assessed using the Kolmogorov–Smirnov test. A paired-samples t-test was used to assess differences between echocardiographic parameters at the two timepoints. To assess associations between LAS measurements and other echocardiographic parameters of LV systolic and diastolic function, Pearson’s correlation coefficients were calculated. The sample size for reproducibility assessment was calculated considering a minimum acceptable reliability of 0.7, number of raters per subject of 2 and assuming an expected reliability of 0.9. To reach an 80% power at 0.05 level, the sample size was 23 scans [29]. Agreement, intra and interobserver reproducibility were assessed using Bland–Altman analysis (mean bias and limits of agreement, LOA) and intraclass correlation coefficient (ICC) with 95% confidence intervals (CI); p values < 0.05 were considered significant. Data were analyzed with SPSS 20 (SPSS, Chicago, IL, USA).
3. Results
3.1. First Phase
Median (range) gestational age and weight of the 30 neonates recruited in the first phase of the study were 34.4 (26.4–40.2) weeks and 2075 (660–3680) g respectively. Clinical characteristics of the three sub-cohorts of neonates divided according to GA are detailed in Table 1.
Monoplane LAS from a single apical 4-chamber view and biplane LAS from both a 4- and 2-chamber view were calculated. Quality of 29 out of 30 apical 4-chamber view images was rated as excellent or good, with a resulting feasibility of 96.7%, whereas only 26 out of 30 apical 2-chamber view images were rated excellent or good with a resulting feasibility of 86.7% (Figure S1A).
There was excellent agreement and correlation between monoplane and biplane LAS measurements (Table 2). We developed a protocol for LAS imaging and postprocessing data analysis (see Appendix A).
3.2. Second Phase
Mean (SD) gestational age and weight of the 90 neonates recruited in the second phase of the study were 34.2 (3.8) weeks and 2162 (833) g respectively. Clinical characteristics of the three sub-cohorts of neonates divided according to GA are shown in Table 3. We did not find statistically significant differences in heart rate between T1 and T2 in the three groups of neonates (p > 0.05).
Quality of 171 out of 180 apical 4-chamber view images was rated excellent or good with a resulting feasibility of 95% (Figure S1B).
We observed excellent intraobserver reproducibility and slightly inferior interobserver reproducibility (Table 4).
In all 90 neonates, mean (SD) LASr significantly increased from T1 and T2: 32.9 (3.2) to 36.8 (4.6). However, mean (SD) LAScd and LASct did not show statistically significant differences between the two timepoints: −20.6 (8.0) and−20.8 (9.9) and −11.6 (4.9) and−13.5 (6.4) respectively.
Reference ranges (mean ± 2SD) of LASr, LAScd and LASct in the three groups of neonates divided according to GA are shown in Table 5.
In each of the three groups of neonates LASr significantly increased from T1 to T2. LAScd did not show statistically significant differences between T1 and T2 in all groups, whereas we found a statistically significant difference between LASct at T1 and T2 only in neonates with GA between 32 and 37 weeks.
Echocardiographic parameters of left systolic function, left diastolic function and LVO at T1 and T2 are presented in Table 6.
There was a weak negative linear correlation between LASr and both GLS and E/e’ at T1 and T2 and between LAScd and E/e’ at T1. (Table 7).
Finally, we compared LAS measurements in preterm neonates (GA ≤ 32 weeks) with and without hsPDA, defined as mentioned above (see Methods section). Nine neonates (30%) had hsPDA. LASr and LASct were significantly different in neonates with and without hsPDA, whereas LAScd did not show any statistical significance. Other variables of systolic (GLS) and diastolic function (E, A, E/A and E/e’) did not show statistically significant differences (Table 8).
4. Discussion
To the best of our knowledge, this is the first study that longitudinally assessed LAS measured by 2D STE in term and preterm neonates in the first 48 h of life, during the transition from intrauterine to extrauterine circulation. We standardized image acquisition and postprocessing analysis and demonstrated high feasibility and reproducibility of LAS measurements. Finally, we provided reference ranges in healthy preterm and term neonates during the transitional period, that can be used as reference data for future research on diastolic dysfunction in neonates with heart failure and/or volume overload.
A major challenge to widespread clinical application of LAS is the lack of standardization of image acquisition and postprocessing analysis, different software packages and parameters to be measured. A recent consensus document tried to standardize definitions and techniques for using LAS in adults. The same would be needed in neonates, given the fact that the current available data were obtained with different types of software and different modalities of both image acquisition and postprocessing analysis [8,9,10,30].
Firstly, it is essential to use software with a dedicated LA option. Cantinotti et al. presented data on LAS measurement in children using software with a left ventricular option, but they excluded the neonatal subgroup because the feasibility was very low in neonates [30].
On the contrary, we showed that LAS had an optimal feasibility, as previously reported in neonates outside the transitional period and in children, when software with a dedicated LA option was used [9,10].
In the first phase of the study, we developed an LAS protocol for image acquisition and postprocessing analysis. The recent consensus statement recommended that LAS should be computed using a monoplane algorithm from an apical, non-foreshortened, 4-chamber view or, if available, from a biplane algorithm, which includes the apical 4-chamber and 2-chamber views, whereas assessment of LAS from an apical 3-chamber view should be avoided because the ascending aorta is difficult to separate from the atrial wall [8]. De Waal et al. computed LAS using a triplane algorithm, that included LAS from an apical 3-chamber view, although they acknowledged that image acquisition needed further standardization, given the complexity of having good quality images. Finally, they concluded that LA monoplane analysis might improve reliability and standardization [10].
In our cohort of neonates, we found excellent agreement between biplane and monoplane LAS, and from a practical perspective, they seem to be interchangeable. Due to the fact that feasibility of the apical 4-chamber view was superior compared to the apical 2-chamber view, we chose to include only a calculation of monoplane LAS from an apical 4-chamber view in our protocol.
In conclusion, in our opinion, computing LAS only from an apical 4-chamber view is preferrable due to its superior feasibility, accuracy and time-efficiency.
We demonstrated excellent intraobserver reproducibility for LASr, LAScd and LASct and slightly inferior interobserver reproducibility. We feel that this was achieved by developing a standard protocol for image acquisition and postprocessing analysis. Our data on reproducibility are similar to that reported by De Waal et al. and Kutty at al. and confirm that within and between observer differences in LAS measurements may not be clinically relevant [9,10].
Although LAS is currently the best available non-invasive technique to directly assess LA function and indirectly assess LV diastolic function in adults, few data on LAS are available in neonates, particularly if born prematurely. Two pediatric studies presented normal values of LAS in term neonates and older children. Kutty et al. and Ghelani et al. reported reference values of LAS in subjects with an age ranging from 3 days to 20 years and from 4 days to 20.9 years, respectively [9,31]. However, there is only one study by De Waal et al. that reported data on LAS in preterm neonates with GA < 30 weeks at 3 days and four weeks of postnatal age [10]. These are the first data on LAS in both term and preterm neonates at 24 and 48 h of life.
We reported reference values for the components of LAS in the first 48 h of life in a cohort of preterm and term neonates. We showed a significant increase in LASr in the first 48 h of life. During the transitional period, lung aeration and distension lead to a dramatic reduction in pulmonary vascular resistance and a subsequent increase in pulmonary blood flow and LV preload [15,32]. We hypothesized that the increase in atrial reservoir function reflects the above-mentioned increase in pulmonary blood flow. To support our findings, Kutty et al. showed an overall increase in LA reservoir function during the first two years of life, likely related to maturational changes of LA [9].
In our cohort of neonates, we confirmed that atrial and ventricular function are closely interdependent. Although the association is weak, GLS was the major determinant of LASr. In fact, longitudinal shortening of LV contributes to atrial stretching during systole and subsequent atrial longitudinal strain (LASr) [33]. Enlargement of LA, that may be caused by reduced LV function, leads to decreased atrial reservoir longitudinal strain for a given reservoir volume [34]. The latter is confirmed by data from children with functionally single ventricle heart disease. In this category of patients, the single atrium is dilated and has reduced reservoir function, with increased reliance on atrial contraction for ventricular filling. LAS in single ventricle patients deviates significantly from normal controls and appears similar to patients with early LV diastolic dysfunction [35].
Moreover, LV diastolic function or compliance may influence LV filling pressure and therefore both atrial reservoir and conduit functions. This is confirmed by the associations we found between E/e’, LASr and LAScd [34]. We could not evaluate how LAS measurement changes in diastolic and systolic dysfunction, because none of the neonates had overt heart failure. Nevertheless, the latter was beyond the aims of our study, where we provided reference ranges of LAS measurements in a cohort of healthy neonates. Further studies are needed to explore the clinical role of LAS measurements in this population.
Finally, our data on preterm neonates with hsPDA confirmed the findings by De Waal et al. [10]. In neonates with hsPDA, the volume overload caused by the left to right shunt through the PDA leaded to reduced atrial function compared to controls. However, echocardiographic parameters of systolic and diastolic ventricular function did not differ between cases and controls. Therefore, LAS may be a promising tool for early identification of neonates with volume overload due to hsPDA. Further studies are needed to investigate the role of LAS in the assessment of the hemodynamically significance of PDA in preterm neonates.
Limitations
Our study has several limitations. First, the number of subjects in the three group of neonates is relatively small to establish normal ranges. Further studies are needed to confirm our findings.
Secondly, the main limitation of 2D STE can be partial displacement of the speckles outside the imaging plane. Data on LAS measured by 3D echocardiography were recently reported in children, but no preterm neonates were included [31].
Thirdly, we did not explore differences in LAS measurements related to the two different reference points for strain curve: QRS and P wave. According to data in adults, using QRS as reference point leads to slightly superior feasibility and is less time consuming [20]. Moreover, it allows for an easier assessment of LA reservoir function, the LAS parameter that is more clinically useful in adults and children [20]. Nevertheless, data comparing the two methods in neonates are lacking.
Fourthly, we did not assess scan–rescan echo repeatability. However, a number of other studies on neonatal echocardiography presented reproducibility data only from off-line analyses [20,28,36].
Lastly, we did not investigate any association between LAS measurements and clinically relevant outcomes, because the latter is outside the scope of the current study. Further studies are required to explore the role of LAS in neonates with heart failure and volume overload.
5. Conclusions
This study demonstrates the high feasibility of LAS measurements by 2D STE in preterm and term neonates in the first 48 h of life and provides a protocol for image acquisition and postprocessing analysis that reduces measurement variability to a clinically insignificant level. In addition, reference ranges of LAS measurements have been presented. Further studies are required to confirm our findings and to explore the clinical utility of LAS in this population prior to implementation of LAS in clinical practice.
Supplementary Materials
The following are available online at https://www.mdpi.com/article/10.3390/diagnostics12020350/s1, Figure S1: Feasibility flow chart for (A) the first phase and (B) the second phase of the study.
Author Contributions
Conceptualization, B.F., I.C., C.D. and G.B.; data curation, B.F., I.C., M.C., A.C., G.R., L.Q., G.U., C.S. and G.B.; formal analysis, B.F., I.C., A.C. and G.U.; funding acquisition, I.C. and P.B.; investigation, B.F., I.C., M.C., A.C., G.R., G.U., C.S. and G.B.; methodology, B.F., I.C., M.C., A.C., G.R., P.B. and G.B.; project administration, P.B. and C.D.; resources, C.D. and G.B.; software, G.B.; supervision, I.C., M.C., P.B., C.D. and G.B.; writing—original draft, B.F., I.C., L.Q. and G.U.; writing—review and editing, B.F., I.C., M.C., A.C., G.R., L.Q., G.U., C.S., P.B., C.D. and G.B. All authors have read and agreed to the published version of the manuscript.
Funding
No specific funding was received for this study.
Institutional Review Board Statement
The study was approved by the local ethics committees of the University Hospital of Florence (Comitato Etico Regionale per la Sperimentazione Clinica della Regione Toscana: CEP) and of the University Hospital of Verona (Comitato Etico per la Sperimentazione Clinica). Dates of approval and identification codes were 6 February 2018 and 17/2018, and 3 April 2018 and 2132CESC, respectively. The parents or guardians of babies enrolled gave their written informed consent. All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional research committee and with the 1964 Helsinki declaration and its later amendments or comparable ethical standards.
Informed Consent Statement
The parents or guardians of babies enrolled gave their written informed consent.
Data Availability Statement
Data are available upon reasonable request.
Conflicts of Interest
The authors declare no conflict of interest.
Appendix A. Protocol for Atrial Strain Imaging and Postprocessing Data Analysis
Appendix A.1. Image Acquisition
Image acquisition included the following:
- Ultrasound scanner: Philips Epiq 7 system with 12 MHz phased-array probe;
- Optimized (non-foreshortened) apical 4-chamber view;
- Frame rate: between 100 to 130 frames/s by adjusting the sector width/depth;
- Electrocardiographic tracing on screen;
- Record three consecutive cardiac cycles.
Appendix A.2. Postprocessing Analysis
Postprocessing analysis steps included the following:
- Use of software: Tomtec Arena (vTTA2 41.00) with LA analysis option;
- Choose the most suitable cardiac cycle for analysis;
- A reference time point is automatically placed at the QRS complex, a surrogate for end-diastole;
- Consult the M-mode display of the motion of the anterior leaflet of the mitral valve to define end-diastole at the mitral valve closure (Figure A1A);
- Use of a three-point- and-click approach: points 1 and 2 at the septal and lateral hinge points of the mitral valve and point 3 at the atrial roof, and the software automatically generates a LA delineation (Figure A1B);
- Perform manual adjustment to optimize tracking and extrapolate the LA contour across the pulmonary veins, foramen ovale and left appendage orifice;
- Select the end-diastolic (ED) frame as the LA reference frame;
- Confirm the credibility of the atrial strain curve: the atrial reservoir phase starts from a zero strain reference point;
- Record the following measurements: LASr-ED, LAScd-ED and LASct-ED.
Figure A1.
(A) M-mode display of the motion of the anterior leaflet of the mitral valve. End-diastole is defined at the mitral valve closure. (B) Three-points for left atrial delineation: points 1 and 2 at the septal and lateral hinge points of the mitral valve and point 3 at the atrial roof.
Figure A1.
(A) M-mode display of the motion of the anterior leaflet of the mitral valve. End-diastole is defined at the mitral valve closure. (B) Three-points for left atrial delineation: points 1 and 2 at the septal and lateral hinge points of the mitral valve and point 3 at the atrial roof.
References
- Cameli, M.; Mandoli, G.E.; Loiacono, F.; Dini, F.L.; Henein, M.; Mondillo, S. Left atrial strain: A new parameter for assessment of left ventricular filling pressure. Heart Fail. Rev. 2016, 21, 65–76. [Google Scholar] [CrossRef] [PubMed]
- Cameli, M.; Lisi, M.; Mondillo, S.; Padeletti, M.; Ballo, P.; Tsioulpas, C.; Bernazzali, S.; Maccherini, M. Left atrial longitudinal strain by speckle tracking echocardiography correlates well with left ventricular filling pressures in patients with heart failure. Cardiovasc. Ultrasound 2010, 8, 14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Mandoli, G.E.; Sisti, N.; Mondillo, S.; Cameli, M. Left atrial strain in left ventricular diastolic dysfunction: Have we finally found the missing piece of the puzzle? Heart Fail. Rev. 2020, 25, 409–417. [Google Scholar] [CrossRef] [PubMed]
- Leischik, R.; Littwitz, H.; Dworrak, B.; Garg, P.; Zhu, M.; Sahn, D.J.; Horlitz, M. Echocardiographic Evaluation of Left Atrial Mechanics: Function, History, Novel Techniques, Advantages, and Pitfalls. Biomed. Res. Int. 2015, 2015, 765921. [Google Scholar] [CrossRef] [PubMed]
- Saha, S.K.; Anderson, P.L.; Caracciolo, G.; Kiotsekoglou, A.; Wilansky, S.; Govind, S.; Mori, N.; Sengupta, P.P. Global left atrial strain correlates with CHADS2 risk score in patients with atrial fibrillation. J. Am. Soc. Echocardiogr. 2011, 24, 506–512. [Google Scholar] [CrossRef]
- Antoni, M.L.; ten Brinke, E.A.; Atary, J.Z.; Marsan, N.A.; Holman, E.R.; Schalij, M.J.; Bax, J.J.; Delgado, V. Left atrial strain is related to adverse events in patients after acute myocardial infarction treated with primary percutaneous coronary intervention. Heart 2011, 97, 1332–1337. [Google Scholar] [CrossRef]
- Yuda, S. Current clinical applications of speckle tracking echocardiography for assessment of left atrial function. J. Echocardiogr. 2021, 19, 129–140. [Google Scholar] [CrossRef]
- Badano, L.P.; Kolias, T.J.; Muraru, D.; Abraham, T.P.; Aurigemma, G.; Edvardsen, T.; D’Hooge, J.; Donal, E.; Fraser, A.G.; Marwick, T.; et al. Standardization of left atrial, right ventricular, and right atrial deformation imaging using two-dimensional speckle tracking echocardiography: A consensus document of the EACVI/ASE/Industry Task Force to standardize deformation imaging. Eur. Heart J. Cardiovasc. Imaging 2018, 19, 591–600. [Google Scholar] [CrossRef]
- Kutty, S.; Padiyath, A.; Li, L.; Peng, Q.; Rangamani, S.; Schuster, A.; Danford, D.A. Functional maturation of left and right atrial systolic and diastolic performance in infants, children, and adolescents. J. Am. Soc. Echocardiogr. 2013, 26, 398–409.e392. [Google Scholar] [CrossRef]
- de Waal, K.; Phad, N.; Boyle, A. Left atrium function and deformation in very preterm infants with and without volume load. Echocardiography 2018, 35, 1818–1826. [Google Scholar] [CrossRef]
- Kupczyńska, K.; Mandoli, G.E.; Cameli, M.; Kasprzak, J.D. Left atrial strain - a current clinical perspective. Kardiol. Pol. 2021, 79, 955–964. [Google Scholar] [CrossRef] [PubMed]
- de Waal, K.; Costley, N.; Phad, N.; Crendal, E. Left Ventricular Diastolic Dysfunction and Diastolic Heart Failure in Preterm Infants. Pediatr. Cardiol. 2019, 40, 1709–1715. [Google Scholar] [CrossRef] [PubMed]
- James, A.T.; Corcoran, J.D.; Jain, A.; McNamara, P.J.; Mertens, L.; Franklin, O.; El-Khuffash, A.F. Assessment of myocardial performance in preterm infants less than 29 weeks gestation during the transitional period. Early Hum. Dev. 2014, 90, 829–835. [Google Scholar] [CrossRef] [PubMed]
- Sirc, J.; Dempsey, E.M.; Miletin, J. Diastolic ventricular function improves during the first 48-hours-of-life in infants weighting <1250 g. Acta Paediatr. 2015, 104, e1–e6. [Google Scholar] [CrossRef] [PubMed]
- Hooper, S.B.; Te Pas, A.B.; Lang, J.; van Vonderen, J.J.; Roehr, C.C.; Kluckow, M.; Gill, A.W.; Wallace, E.M.; Polglase, G.R. Cardiovascular transition at birth: A physiological sequence. Pediatr. Res. 2015, 77, 608–614. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Koestenberger, M.; Nagel, B.; Ravekes, W.; Gamillscheg, A.; Pichler, G.; Avian, A.; Heinzl, B.; Binder, C.; Cvirn, G.; Urlesberger, B. Right ventricular performance in preterm and term neonates: Reference values of the tricuspid annular peak systolic velocity measured by tissue Doppler imaging. Neonatology 2013, 103, 281–286. [Google Scholar] [CrossRef] [PubMed]
- Koestenberger, M.; Nagel, B.; Ravekes, W.; Urlesberger, B.; Raith, W.; Avian, A.; Halb, V.; Cvirn, G.; Fritsch, P.; Gamillscheg, A. Systolic right ventricular function in preterm and term neonates: Reference values of the tricuspid annular plane systolic excursion (TAPSE) in 258 patients and calculation of Z-score values. Neonatology 2011, 100, 85–92. [Google Scholar] [CrossRef] [PubMed]
- Lai, W.W.; Geva, T.; Shirali, G.S.; Frommelt, P.C.; Humes, R.A.; Brook, M.M.; Pignatelli, R.H.; Rychik, J.; Echocardiography, T.F.o.t.P.C.o.t.A.S.o.; Echocardiography, P.C.o.t.A.S.o. Guidelines and standards for performance of a pediatric echocardiogram: A report from the Task Force of the Pediatric Council of the American Society of Echocardiography. J. Am. Soc. Echocardiogr. 2006, 19, 1413–1430. [Google Scholar] [CrossRef] [Green Version]
- Colan, S.D.; Shirali, G.; Margossian, R.; Gallagher, D.; Altmann, K.; Canter, C.; Chen, S.; Golding, F.; Radojewski, E.; Camitta, M.; et al. The ventricular volume variability study of the Pediatric Heart Network: Study design and impact of beat averaging and variable type on the reproducibility of echocardiographic measurements in children with chronic dilated cardiomyopathy. J. Am. Soc. Echocardiogr. 2012, 25, 842–854. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Cameli, M.; Miglioranza, M.H.; Magne, J.; Mandoli, G.E.; Benfari, G.; Ancona, R.; Sibilio, G.; Reskovic Luksic, V.; Dejan, D.; Griseli, L.; et al. Multicentric Atrial Strain COmparison between Two Different Modalities: MASCOT HIT Study. Diagnostics 2020, 10, 946. [Google Scholar] [CrossRef]
- James, A.T.; Corcoran, J.D.; Breatnach, C.R.; Franklin, O.; Mertens, L.; El-Khuffash, A. Longitudinal Assessment of Left and Right Myocardial Function in Preterm Infants Using Strain and Strain Rate Imaging. Neonatology 2016, 109, 69–75. [Google Scholar] [CrossRef] [PubMed]
- Mertens, L.; Seri, I.; Marek, J.; Arlettaz, R.; Barker, P.; McNamara, P.; Moon-Grady, A.J.; Coon, P.D.; Noori, S.; Simpson, J.; et al. Targeted Neonatal Echocardiography in the Neonatal Intensive Care Unit: Practice guidelines and recommendations for training. Writing Group of the American Society of Echocardiography (ASE) in collaboration with the European Association of Echocardiography (EAE) and the Association for European Pediatric Cardiologists (AEPC). J. Am. Soc. Echocardiogr. 2011, 24, 1057–1078. [Google Scholar] [CrossRef] [PubMed]
- Nagueh, S.F.; Appleton, C.P.; Gillebert, T.C.; Marino, P.N.; Oh, J.K.; Smiseth, O.A.; Waggoner, A.D.; Flachskampf, F.A.; Pellikka, P.A.; Evangelisa, A. Recommendations for the evaluation of left ventricular diastolic function by echocardiography. Eur. J. Echocardiogr. 2009, 10, 165–193. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ficial, B.; Finnemore, A.E.; Cox, D.J.; Broadhouse, K.M.; Price, A.N.; Durighel, G.; Ekitzidou, G.; Hajnal, J.V.; Edwards, A.D.; Groves, A.M. Validation study of the accuracy of echocardiographic measurements of systemic blood flow volume in newborn infants. J. Am. Soc. Echocardiogr. 2013, 26, 1365–1371. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- de Boode, W.P.; Kluckow, M.; McNamara, P.J.; Gupta, S. Role of neonatologist-performed echocardiography in the assessment and management of patent ductus arteriosus physiology in the newborn. Semin. Fetal. Neonatal. Med. 2018, 23, 292–297. [Google Scholar] [CrossRef] [PubMed]
- Ficial, B.; Corsini, I.; Fiocchi, S.; Schena, F.; Capolupo, I.; Cerbo, R.M.; Condò, M.; Doni, D.; La Placa, S.; Porzio, S.; et al. Survey of PDA management in very low birth weight infants across Italy. Ital. J. Pediatr. 2020, 46, 22. [Google Scholar] [CrossRef] [Green Version]
- Ficial, B.; Bonafiglia, E.; Gangemi, A.; Clemente, M.; Cappelleri, A.; Corsini, I.; Biban, P. Impact of Aortic Diameter Measurements at Three Anatomical Landmarks on Left Ventricular Output Calculation in Neonates. J. Ultrasound. Med. 2021. [Google Scholar] [CrossRef]
- Ficial, B.; Bonafiglia, E.; Padovani, E.M.; Prioli, M.A.; Finnemore, A.E.; Cox, D.J.; Broadhouse, K.M.; Price, A.N.; Durighel, G.; Groves, A.M. A modified echocardiographic approach improves reliability of superior vena caval flow quantification. Arch. Dis. Child Fetal. Neonatal. Ed. 2017, 102, F7–F11. [Google Scholar] [CrossRef]
- Walter, S.D.; Eliasziw, M.; Donner, A. Sample size and optimal designs for reliability studies. Stat. Med. 1998, 17, 101–110. [Google Scholar] [CrossRef]
- Cantinotti, M.; Scalese, M.; Giordano, R.; Franchi, E.; Assanta, N.; Molinaro, S.; Iervasi, G.; Santoro, G.; Koestenberger, M.; Kutty, S. Left and Right Atrial Strain in Healthy Caucasian Children by Two-Dimensional Speckle-Tracking Echocardiography. J. Am. Soc. Echocardiogr. 2019, 32, 165–168.e181. [Google Scholar] [CrossRef] [Green Version]
- Ghelani, S.J.; Brown, D.W.; Kuebler, J.D.; Perrin, D.; Shakti, D.; Williams, D.N.; Marx, G.R.; Colan, S.D.; Geva, T.; Harrild, D.M. Left Atrial Volumes and Strain in Healthy Children Measured by Three-Dimensional Echocardiography: Normal Values and Maturational Changes. J. Am. Soc. Echocardiogr. 2018, 31, 187–193. [Google Scholar] [CrossRef] [PubMed]
- Finnemore, A.; Groves, A. Physiology of the fetal and transitional circulation. Semin. Fetal. Neonatal. Med. 2015, 20, 210–216. [Google Scholar] [CrossRef] [PubMed]
- Smiseth, O.A.; Inoue, K. The left atrium: A mirror of ventricular systolic and diastolic function. Eur. Heart J. Cardiovasc. Imaging 2020, 21, 270–272. [Google Scholar] [CrossRef] [PubMed]
- Inoue, K.; Khan, F.H.; Remme, E.W.; Ohte, N.; García-Izquierdo, E.; Chetrit, M.; Moñivas-Palomero, V.; Mingo-Santos, S.; Andersen, Ø.; Gude, E.; et al. Determinants of left atrial reservoir and pump strain and use of atrial strain for evaluation of left ventricular filling pressure. Eur. Heart J. Cardiovasc. Imaging 2021. [Google Scholar] [CrossRef]
- Khoo, N.S.; Smallhorn, J.F.; Kaneko, S.; Kutty, S.; Altamirano, L.; Tham, E.B. The assessment of atrial function in single ventricle hearts from birth to Fontan: A speckle-tracking study by using strain and strain rate. J. Am. Soc. Echocardiogr. 2013, 26, 756–764. [Google Scholar] [CrossRef]
- Levy, P.T.; Holland, M.R.; Sekarski, T.J.; Hamvas, A.; Singh, G.K. Feasibility and reproducibility of systolic right ventricular strain measurement by speckle-tracking echocardiography in premature infants. J. Am. Soc. Echocardiogr. 2013, 26, 1201–1213. [Google Scholar] [CrossRef] [Green Version]

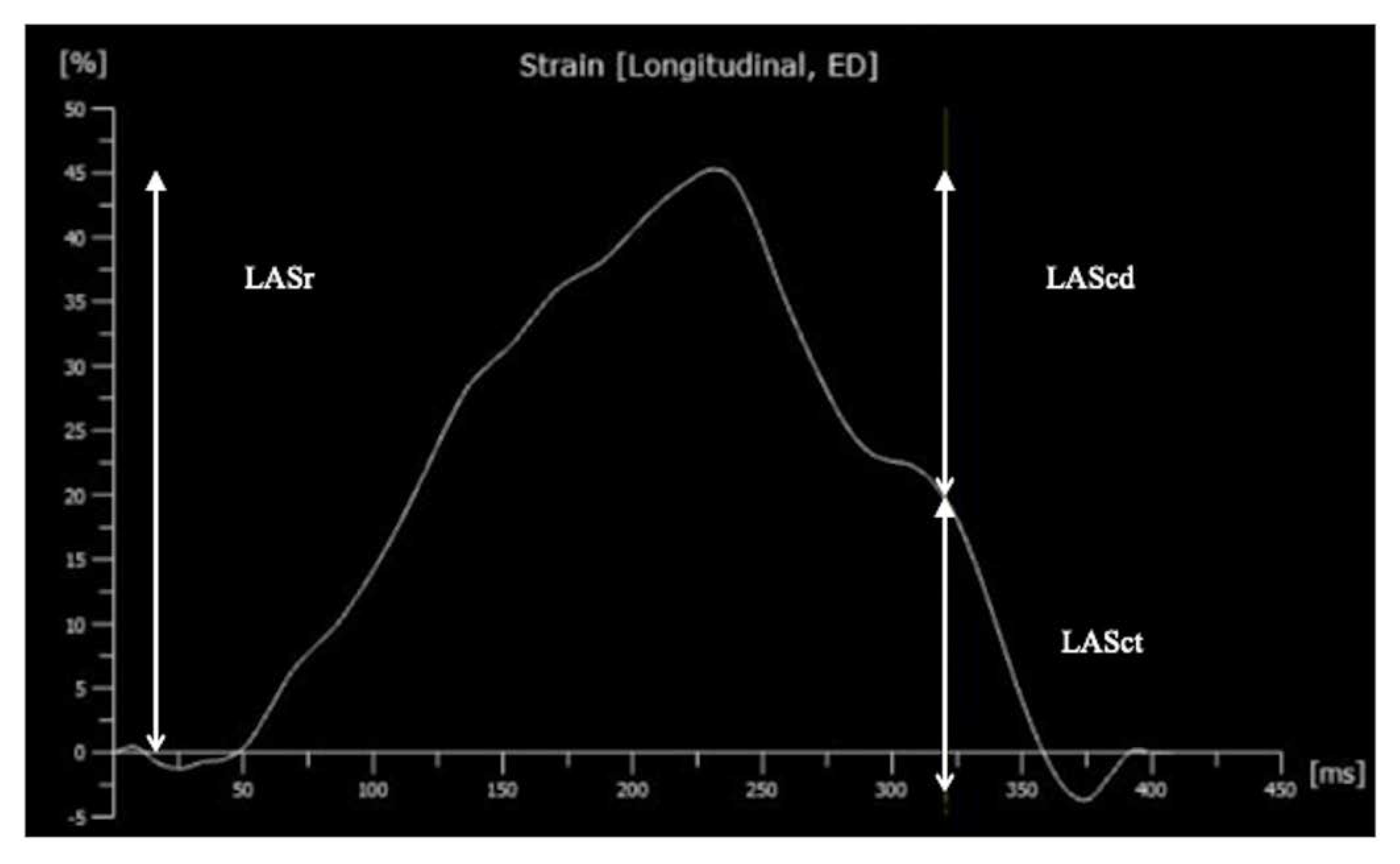

Figure 1.
Longitudinal atrial deformation curve during the three phases of the left atrial with the zero strain reference at end-diastole. The respective strains are: LASr, strain during reservoir phase; LAScd, strain during conduit phase; and LASct, strain during contraction phase.
Figure 1.
Longitudinal atrial deformation curve during the three phases of the left atrial with the zero strain reference at end-diastole. The respective strains are: LASr, strain during reservoir phase; LAScd, strain during conduit phase; and LASct, strain during contraction phase.
Table 1.
Clinical characteristics of the first cohort of neonates.
| N = 30 | GA ≤ 32 Weeks (10 Neonates) | 32 < GA < 37 Weeks (10 Neonates) | GA ≥ 37 Weeks (10 Neonates) |
|---|---|---|---|
| Gestation (weeks) | 30.9 (26.4–32.0) | 34.4 (33.8–36.1) | 39.1 (38.1–40.2) |
| Birth weight (g) | 1270 (660–1450) | 2075 (1840–2850) | 3230 (2800–3680) |
| Female | 6 (60%) | 4 (40%) | 4 (40%) |
| Cesarean delivery | 8 (80%) | 7 (70%) | 3 (30%) |
| 5-Min Apgar score | 8 (7–9) | 9 (8–10) | 10 (9–10) |
| Postnatal age at scan (h) | 27 (24–48) | 33 (24–48) | 29 (24–48) |
| Non-invasive respiratory support with FiO2 < 0.3 | 3 (30%) | 0 (0%) | 0 (0%) |
| No respiratory support | 7 (70%) | 10 (100%) | 10 (100%) |
Values are presented as median (range), and count (%). GA = Gestational age.
Table 2.
Comparison between monoplane LAS measurements from a single apical 4-chamber view and biplane LAS measurements form an apical 4- and 2-chamber view.
Table 2.
Comparison between monoplane LAS measurements from a single apical 4-chamber view and biplane LAS measurements form an apical 4- and 2-chamber view.
| Comparison between Monoplane and Biplane LAS Measurements: | Bias (95% LOA) | ICC (95% CI) |
|---|---|---|
| LASr | −0.3 (−3.6 to 3) | 0.967 (0.929 to 0.985) |
| LAScd | −0.4 (−3.4 to 2.6) | 0.959 (0.911 to 0.982) |
| LASct | −0.5 (−3.5 to 3) | 0.937 (0.866 to 0.971) |
All ICC p values < 0.01. Abbreviations: LAS = left atrial strain; LASr = left atrial strain reservoir; LAScd = left atrial strain conduit; LASct = left atrial strain contraction; CI = confidence intervals; ICC = intraclass correlation coefficient; LOA = limits of agreement.
Table 3.
Clinical characteristics of the second cohort of neonates.
| N = 90 | GA ≤ 32 Weeks (30 Neonates) | 32 < GA < 37 Weeks (30 Neonates) | GA ≥ 37 Weeks (30 Neonates) |
|---|---|---|---|
| Gestational age (week) | 30.4 (1.6) | 34.4 (1.2) | 39.6 (1.0) |
| Birth weight (g) | 1385 (301) | 2148 (304) | 3348 (414) |
| Female | 15 (50%) | 13 (43.3%) | 17 (56.6%) |
| Cesarean delivery | 28 (93.3%) | 27 (90%) | 10 (33.3%) |
| 5-min Apgar score | 9 (7–10) | 9 (8–10) | 10 (8–10) |
| First Echo at 24 h of Life | |||
| Postnatal age (h) | 24.0 (0.3) | 24.1 (0.3) | 24.0 (0.4) |
| Weight (g) | 1334 (286) | 2068 (301) | 3224 (412) |
| Parenteral hydration (mL/kg/day) | 79 (18) | 56 (20) | NA |
| Heart rate (bpm) | 145 (24) | 132 (14) | 125 (17) |
| Systolic blood pressure (mmHg) | 64 (10) | 68 (6) | 74 (5) |
| Mean blood pressure (mmHg) | 44 (8) | 45 (5) | 47 (4) |
| Diastolic blood pressure (mmHg) | 36 (9) | 36 (8) | 34 (3) |
| Non-invasive respiratory support | 23 (76.7%) | 0 (0%) | 0 (0%) |
| No respiratory support | 7 (23.3%) | 30 (100%) | 30 (100%) |
| Second Echo at 48 h of Life | |||
| Postnatal age (h) | 48.1 (0.4) | 48.2 (0.5) | 48.4 (0.5) |
| Weight (g) | 1283 (273) | 2049 (317) | 3172 (394) |
| Parenteral hydration (mL/kg/day) | 96 (19) | 81 (18) | NA |
| Heart rate (bpm) | 138 (19) | 130 (14) | 130 (15) |
| Systolic blood pressure (mmHg) | 69 (12) | 70 (8) | 79 (5) |
| Mean blood pressure (mmHg) | 48 (9) | 50 (4) | 49 (7) |
| Diastolic blood pressure (mmHg) | 38 (9) | 39 (4) | 39 (4) |
| Non-invasive respiratory support | 19 (63.3%) | 0 (0%) | 0 (0%) |
| No respiratory support | 11 (36.7%) | 30 (100%) | 30 (100%) |
Values are presented as mean (SD), median (range) and count (%). Abbreviations: GA = gestational age, NA = not applicable.
Table 4.
Intraobserver and interobserver reproducibility of LAS measurements.
| Intraobserver Reproducibility | Interobserver Reproducibility | |||
|---|---|---|---|---|
| Bias (95% LOA) | ICC (95% CI) | Bias (95% LOA) | ICC (95% CI) | |
| LASr | −0.4 (−1.5 to 2.4) | 0.99 (0.967 to 0.998) | 0.6 (−3.3 to 4.5) | 0.936 (0.743 to 0.985) |
| LAScd | 0.0 (−1.4 to 1.3) | 0.993 (0.974 to 0.998) | −0.3 (−3.3 to 3.9) | 0.938 (0.752 to 0.936) |
| LASct | −0.7 (−2.9 to1.4) | 0.986 (0.944 to 0.996) | −0.6 (−6.1 to 4.8) | 0.871 (0.532 to 0.969) |
All ICC p values < 0.01. Abbreviations: LAS = left atrial strain; LASr = left atrial strain reservoir; LAScd = left atrial strain conduit; LASct = left atrial strain contraction; CI = confidence intervals; ICC = intraclass correlation coefficient; LOA = limits of agreement.
Table 5.
LAS reference ranges at 24 and 48 h in the second cohort of neonates.
| Timepoint 1 (24 ± 2 h) | Timepoint 2 (48 ± 2 h) | p | |
|---|---|---|---|
| Neonates with GA ≤ 32 Weeks | |||
| LASr (%) | 32.3 ± 5 | 36.8 ± 5.6 | * |
| LAScd (%) | −18.6 ± 21.4 | −20.0 ± 18.8 | |
| LASct (%) | −11.4 ± 9.8 | −13.7 ± 17.4 | |
| Neonates with GA between 32 and 37 Weeks | |||
| LASr (%) | 33.3 ± 8.4 | 36.9 ± 13.4 | * |
| LAScd (%) | −22.5 ± 11.4 | −21.2 ± 24.6 | |
| LASct (%) | −10.7 ± 10 | −13.3 ± 8.4 | * |
| Neonates with GA ≥ 37 Weeks | |||
| LASr (%) | 33.3 ± 4.4 | 36.7 ± 4.8 | * |
| LAScd (%) | −20.6 ± 11.4 | −21.6 ± 12.2 | |
| LASct (%) | −13.4 ± 9.4 | −13.4 ± 10.4 | |
Values are presented as mean ± 2SD. Abbreviations: GA = gestational age, LASr = left atrial strain reservoir; LAScd = left atrial strain conduit; LASct = left atrial strain contraction. * p < 0.05.
Table 6.
Echocardiographic parameters at 24 and 48 h in the second cohort of neonates.
| Timepoint 1 (24 ± 2 h) | Timepoint 2 (48 ± 2 h) | p | |
|---|---|---|---|
| Neonates with GA ≤ 32 Weeks | |||
| SF (%) | 31.1 (6.0) | 32.8 (9.9) | |
| EF (%) | 54.9 (7.8) | 57.0 (7.2) | |
| E (cm/s) | 43.4 (10.7) | 40.8 (10.5) | |
| A (cm/s) | 53.4 (14.0) | 47.7 (7.6) | * |
| E/A | 0.9 (0.2) | 0.9 (0.2) | |
| e’ (cm/s) | 5.6 (1.6) | 6.0 (1.1) | |
| a’ (cm/s) | 6.6 (2.7) | 6.1 (2.0) | |
| E/e’ | 9.6 (3.4) | 7.5 (2.1) | * |
| LVO (mL/kg/min) | 178 (64) | 195 (86) | |
| GLS (%) | −19.8 (3.9) | −19.7 (4.0) | |
| SR E (1/s) | 1.7 (0.4) | 1.9 (0.5) | |
| SR A (1/s) | 2.1 (0.6) | 2.0 (0.3) | |
| SR S (1/s) | −1.7 (0.2) | −1.7 (0.2) | |
| Neonates with GA between 32 and 37 Weeks | |||
| SF (%) | 32.4 (6.8) | 30.2 (10.0) | |
| EF (%) | 57.9 (11.7) | 56.4 (8.9) | |
| E (cm/s) | 48.8 (8.4) | 46.5 (9.0) | |
| A (cm/s) | 51.2 (10.7) | 46.8 (8.4) | |
| E/A | 0.96 (0.2) | 0.96 (0.2) | |
| e’ (cm/s) | 6.1 (2.0) | 7.4 (4.9) | |
| a’ (cm/s) | 6.4 (2.4) | 6.5 (2.2) | |
| E/e’ | 8.5 (3.2) | 7.4 (3.1) | |
| LVO (mL/kg/min) | 151 (44) | 152 (66) | |
| GLS (%) | −19.5 (4.1) | −18.6 (8.6) | |
| SR E (1/s) | 2.0 (0.5) | 2.2 (0.4) | |
| SR A (1/s) | 1.8 (0.4) | 1.9 (0.4) | |
| SR S (1/s) | −1.6 (0.3) | −1.6 (0.3) | |
| Neonates with GA ≥ 37 Weeks | |||
| SF (%) | 32.3 (4.9) | 33.6 (6.9) | |
| EF (%) | 57.9 (4.6) | 56.5 (3.4) | |
| E (cm/s) | 50.1 (11.9) | 49.9 (8.1) | |
| A (cm/s) | 52.3 (11.3) | 50.9 (10.9) | |
| E/A | 1.0 (0.2) | 1.0 (0.2) | |
| e’ (cm/s) | 6.5 (1.1) | 6.0 (1.2) | |
| a’ (cm/s) | 6.0 (1.7) | 6.2 (2.0) | |
| E/e’ | 8.2 (2.0) | 8.7 (1.4) | |
| LVO (mL/kg/min) | 150 (27) | 168 (29) | |
| GLS (%) | −21.0 (2.7) | −22 (3.2) | |
| SR E (1/s) | 1.9 (0.4) | 1.9 (0.4) | |
| SR A (1/s) | 1.8 (0.4) | 1.7 (0.4) | |
| SR S (1/s) | −1.6 (0.3) | −1.6 (0.3) | |
Values are presented as mean (SD). Abbreviations: GA = gestational age, GLS = global longitudinal strain; SR = strain rate; SF = shortening fraction; EF = ejection fraction; LVO = left ventricular output. * p < 0.05.
Table 7.
Correlations between LASr, LAScd, LASct and other echocardiographic parameters at 24 and 48 h in the second cohort of neonates.
Table 7.
Correlations between LASr, LAScd, LASct and other echocardiographic parameters at 24 and 48 h in the second cohort of neonates.
| GLS | E/e’ | |
|---|---|---|
| Timepoint 1 (24 ± 2 h) | ||
| LASr | −0.270 * | −0.270 * |
| LAScd | −0.162 | +0.290 * |
| LASct | +0.05 | +0.117 |
| Timepoint 2 (48 ± 2 h) | ||
| LASr | −0.347 * | −0.351 * |
| LAScd | +0.311 | −0.118 |
| LASct | +0.230 | −0.027 |
LASr = left atrial strain reservoir; LAScd = left atrial strain conduit; LASct = left atrial strain contraction GLS = global longitudinal strain; SR = strain rate; SF = shortening fraction; EF = ejection fraction; LVO = left ventricular output. Pearson’s correlation coefficients are presented, with * at <0.05 significance level.
Table 8.
Comparison of echocardiographic parameters in preterm neonates with and without hsPDA.
| Neonates with hsPDA | Neonates without hsPDA | p | |
|---|---|---|---|
| E (cm/s) | 48 (9.1) | 41 (11.5) | |
| A (cm/s) | 58.3 (10.2) | 49.8 (15.5) | |
| E/A | 0.87 (0.2) | 0.93 (0.2) | |
| E/e’ | 8.9 (1.8) | 9.7 (4.2) | |
| GLS (%) | −19 (1.7) | −18.7 (4.3) | |
| LASr (%) | 30.4 (2.2) | 33.3 (2.2) | * |
| LAScd (%) | −15.6 (4.1) | −16.2 (4.4) | |
| LASct (%) | −8.2 (3.8) | −13.1 (4.6) | * |
Values are presented as mean (SD). Abbreviations: hsPDA = hemodynamically significant patent ductus arteriosus; GLS = global longitudinal strain; LASr = left atrial strain reservoir; LAScd = left atrial strain conduit; LASct = left atrial strain contraction. * p < 0.05.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Ficial, B.; Corsini, I.; Clemente, M.; Cappelleri, A.; Remaschi, G.; Quer, L.; Urbani, G.; Sandrini, C.; Biban, P.; Dani, C.; et al. Feasibility, Reproducibility and Reference Ranges of Left Atrial Strain in Preterm and Term Neonates in the First 48 h of Life. Diagnostics 2022, 12, 350. https://doi.org/10.3390/diagnostics12020350
AMA Style
Ficial B, Corsini I, Clemente M, Cappelleri A, Remaschi G, Quer L, Urbani G, Sandrini C, Biban P, Dani C, et al. Feasibility, Reproducibility and Reference Ranges of Left Atrial Strain in Preterm and Term Neonates in the First 48 h of Life. Diagnostics. 2022; 12(2):350. https://doi.org/10.3390/diagnostics12020350
Chicago/Turabian StyleFicial, Benjamim, Iuri Corsini, Maria Clemente, Alessia Cappelleri, Giulia Remaschi, Laura Quer, Giulia Urbani, Camilla Sandrini, Paolo Biban, Carlo Dani, and et al. 2022. "Feasibility, Reproducibility and Reference Ranges of Left Atrial Strain in Preterm and Term Neonates in the First 48 h of Life" Diagnostics 12, no. 2: 350. https://doi.org/10.3390/diagnostics12020350
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
