Machines 2017, 5(4), 29; doi:10.3390/machines5040029

Mechatronic Design for an Extrusion-Based Additive Manufacturing Machine

1
Dipartimento di Ingegneria Industriale e dell’Informazione, Università degl Studi di Pavia, Via A. Ferrata 5, 27100 Pavia, Italy
2
Industrial Engineering Department, Università degli Studi di Parma, Via delle Scienze 181/A, 43124 Parma, Italy
3
Department of Innovative Tecnologies, University of Applied Sciences of Southern Switzerland (SUPSI), Galleria 2, 6928 Manno, Switzerland
*
Author to whom correspondence should be addressed.
Received: 15 October 2017 / Revised: 12 November 2017 / Accepted: 24 November 2017 / Published: 29 November 2017
(This article belongs to the Special Issue Process Innovation in Digital Manufacturing)
View Full-Text   |   Download PDF [10503 KB, uploaded 29 November 2017]   |

Abstract

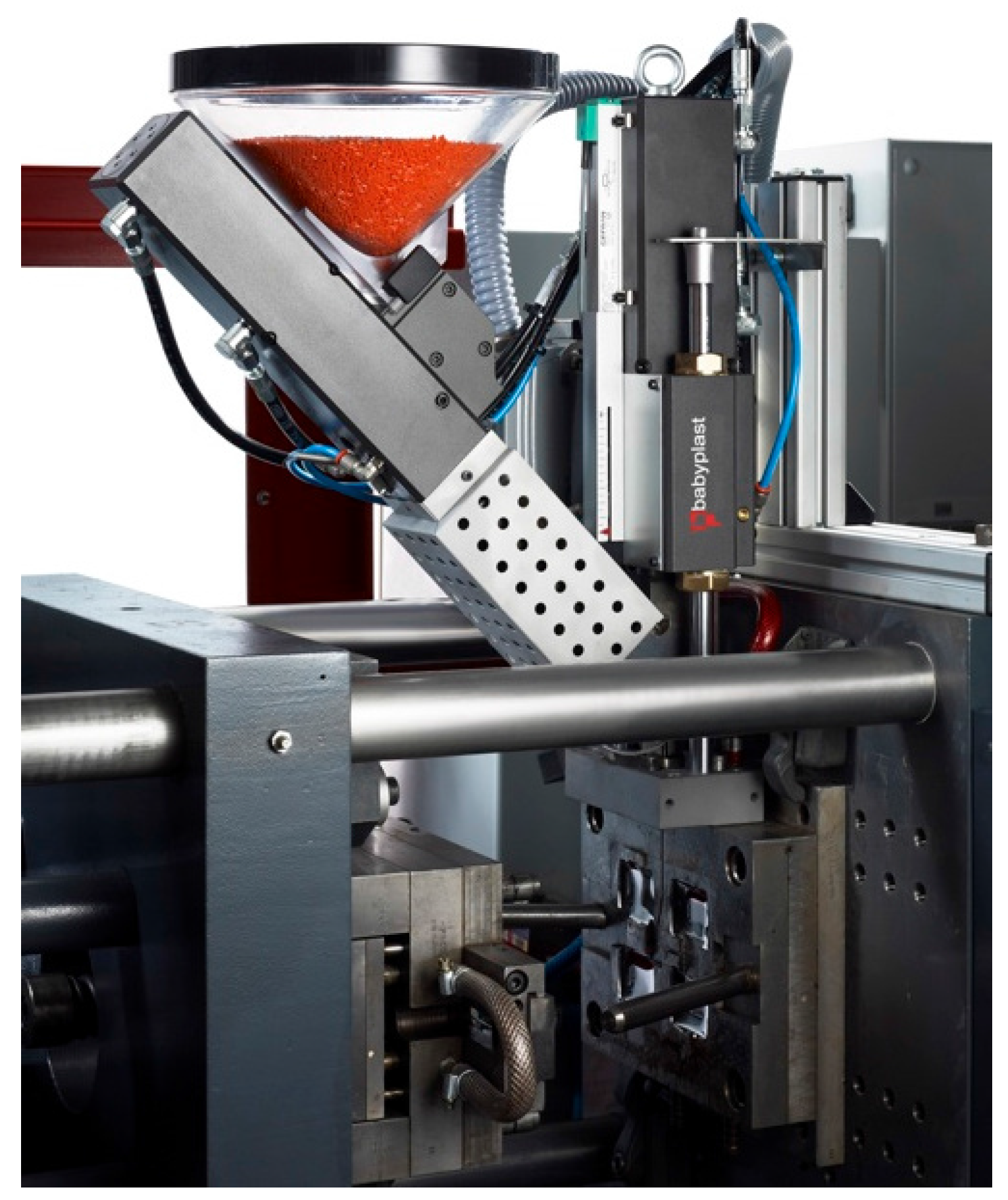

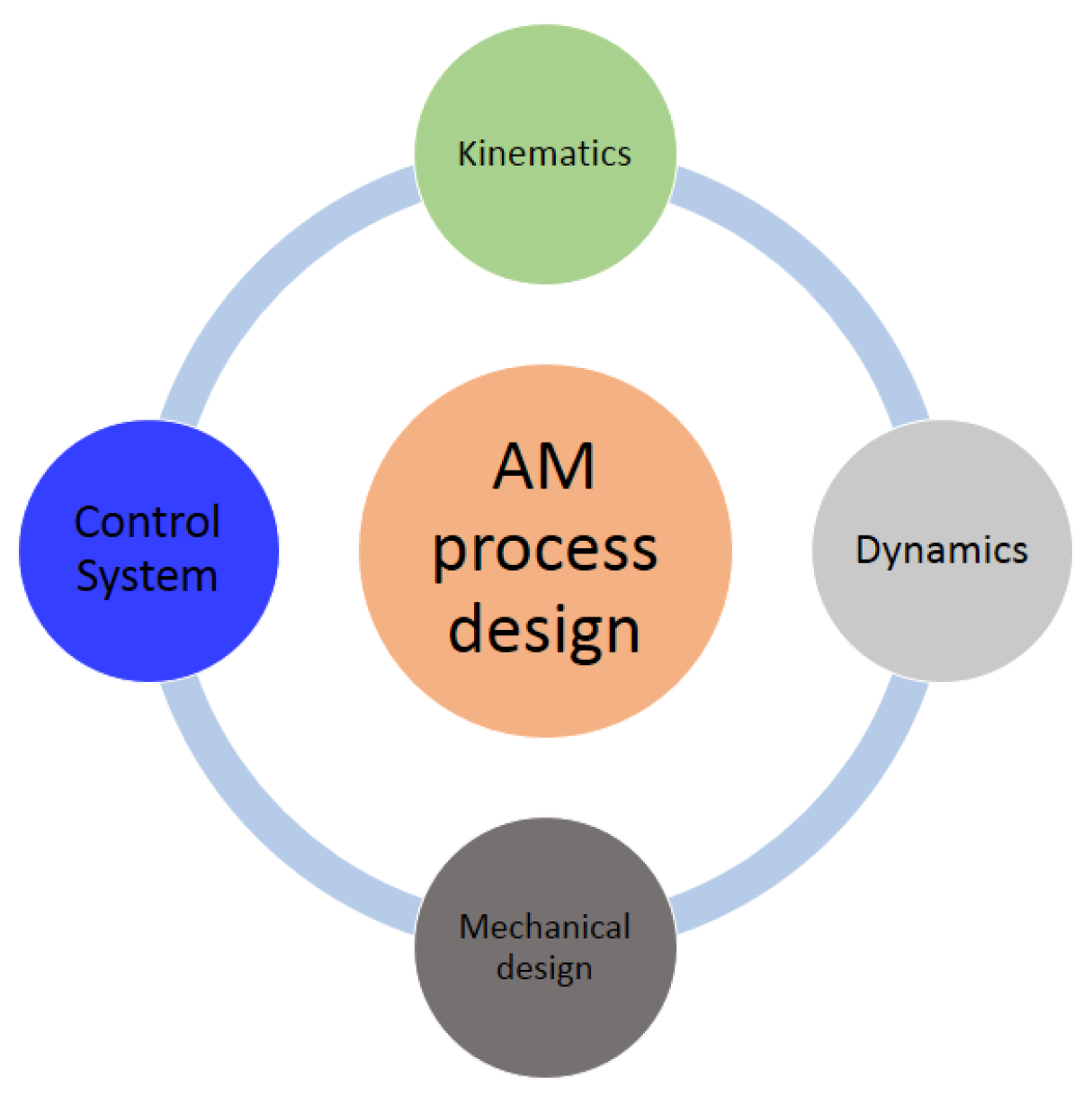

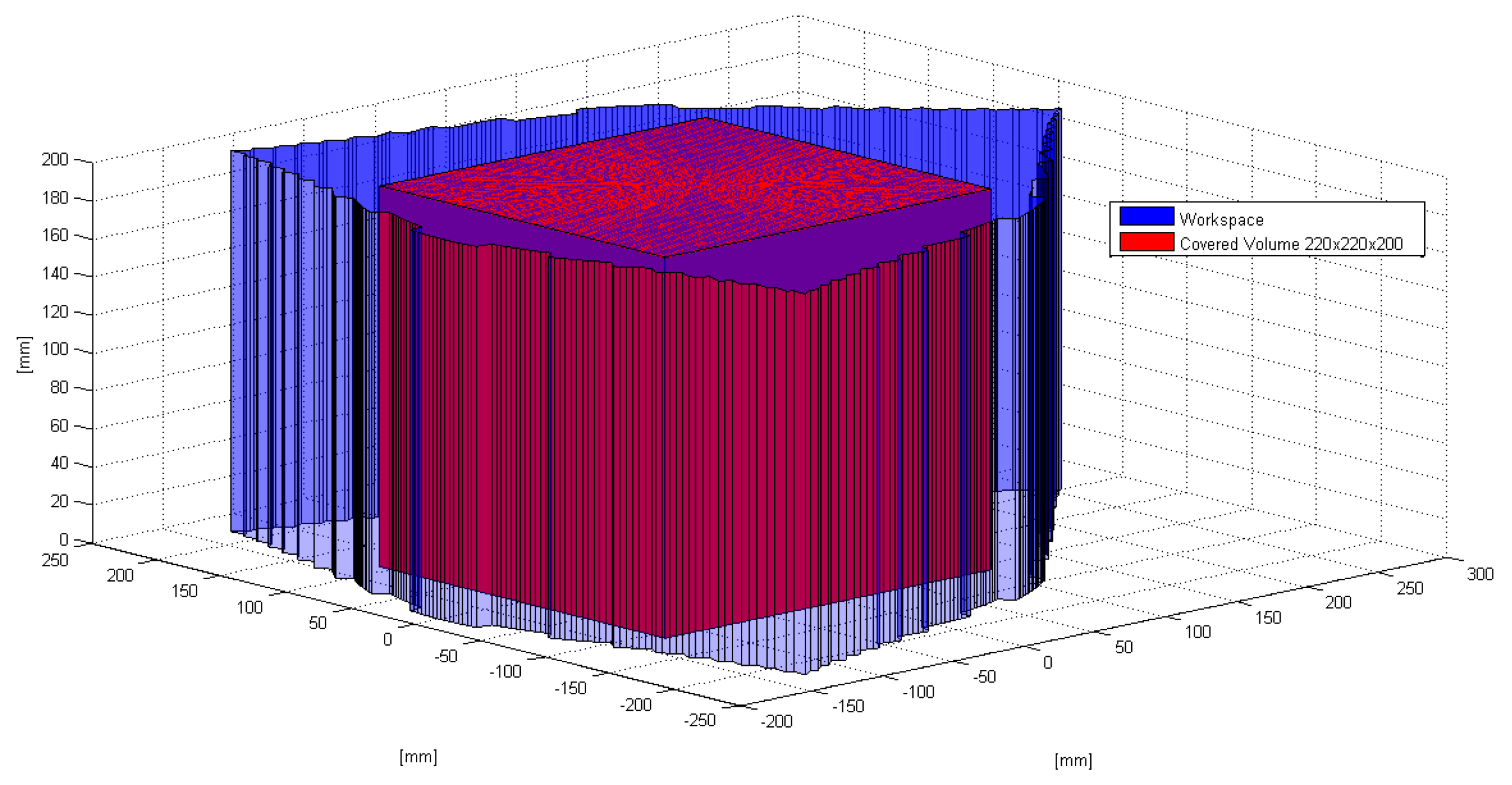

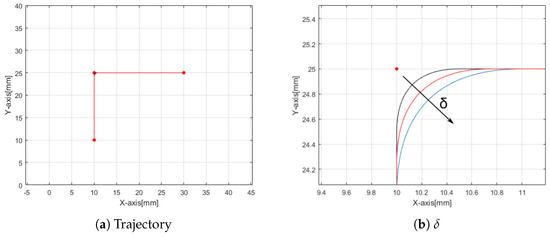

3D printers, especially in the implementation of innovative extrusion processes which do not have a long history of development, are often built by adapting mechanical designs, drives and controls previously developed for generic machine tools. This is done through a process of choice and integration which is based principally on empirical criteria and taking into account separately the different aspects and parameters. Hereafter, we present an integrated mechatronic approach which has been adopted to design from the scratch a machine to implement the innovative metal injection moulding (MIM) technology. Its extrusion rate involves the adaptation of the generated trajectories and consequently requires “ad hoc” designs, drives and numerical controls (NC) to enable non standard acceleration (and hence torque) setpoint curves. Overall, the project resulted in an acceptable workspace volume (depending on the number of degrees of freedom of the platform) and allows one to combine the extruder flow rate, the given accuracy and the required working speed (1 m/s). The system is currently used as a test bench for exploring and optimizing the parameter space of a new MIM process. View Full-Text
Keywords: mechatronic design; MIM; linear delta; control system; additive manufacturing mechatronic design; MIM; linear delta; control system; additive manufacturing
