Open AccessReview
Minerals 2018, 8(2), 47; https://doi.org/10.3390/min8020047

Acid-Gangue Interactions in Heap Leach Operations: A Review of the Role of Mineralogy for Predicting Ore Behaviour

Mineralogy Division, Mintek, Private Bag X3015, Randburg 2125, South Africa
Received: 14 November 2017 / Revised: 14 January 2018 / Accepted: 25 January 2018 / Published: 29 January 2018
(This article belongs to the Special Issue Heap Leaching: The State-of-the-Art)
View Full-Text   |   Download PDF [588 KB, uploaded 30 January 2018]   |

Abstract

Heap leaching accounts for a fifth of global copper production, sourced primarily from porphyry ores, yet metal recoveries are often not optimal. Gangue, and its interaction with acid, plays an important role in such processes. Thus, a proper understanding of gangue minerals present in the ore, their textural relationships relative to particle size distribution, reactivity with acid under different conditions, and relationship to lithotypes and geological alteration in the orebody, is necessary to predict ore behaviour in the comminution, agglomeration, curing and heap leach unit operations. Mineralogical tools available for characterisation are routine X-ray diffraction, optical microscopy, automated scanning electron microscopy, and electron probe microanalysis, accompanied by more recent advancements in hyperspectral infrared imaging and X-ray computed tomography. Integrated use of these techniques allows mineral abundance, textural relationships and mineral chemistry to be addressed over the range of particle and agglomerate sizes. Additionally, diagnostic leach results can be better interpreted when calibrated against robust mineralogical data. The linkage of ore attributes, metallurgical behaviour and their distribution in the orebody forms an integral part of a geometallurgical approach to predicting, and addressing, changes during the heap leaching process. Further investigation should address the fundamentals of gangue reaction with strong acid, and concomitant structural breakdown during curing and agglomeration processes, and how this differs from gangue-acid reactivity under weaker acid conditions, combined with temperature and fluid flow effects of heap leaching. Pre- and post- characterisation is necessary to understand and quantify the effects of variables for gangue-acid reactivity in these various operations. The characterisation outcomes should lead to a refinement of the hierarchy of gangue mineral reactivity under different conditions of comminution and leaching, and how these in turn relate to identified ore types that are mined. View Full-Text
Keywords: gangue acid reactivity; mineralogy; heap leaching; curing; agglomeration; texture gangue acid reactivity; mineralogy; heap leaching; curing; agglomeration; texture
Figures

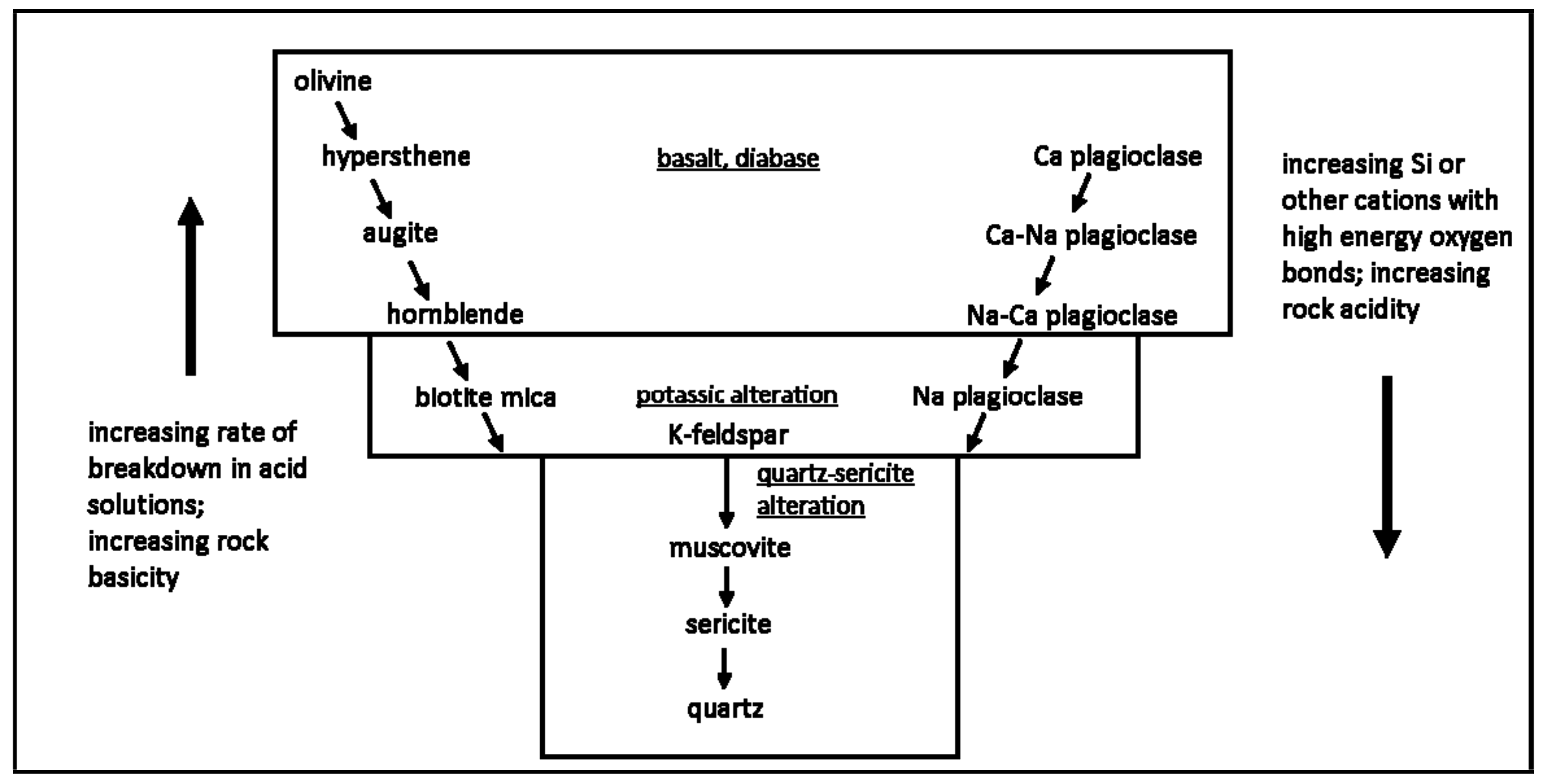

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
