Open AccessArticle
Minerals 2017, 7(12), 238; doi:10.3390/min7120238

Geostatistical Methodology to Characterize Volcanogenic Massive and Stockwork Ore Deposits

NOVA University of Lisbon, Faculty of Sciences and Technology, Earth Sciences Department and GeoBioTec, Quinta da Torre, 2829-516 Caparica, Portugal
*
Author to whom correspondence should be addressed.
Received: 27 October 2017 / Revised: 20 November 2017 / Accepted: 27 November 2017 / Published: 30 November 2017
(This article belongs to the Special Issue Geological Modelling)
View Full-Text   |   Download PDF [8087 KB, uploaded 30 November 2017]   |

Abstract

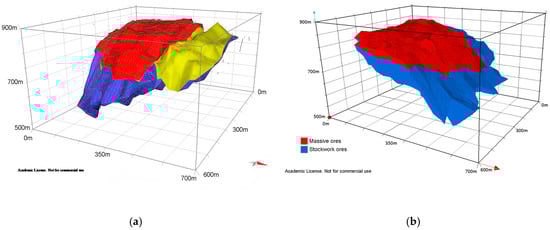

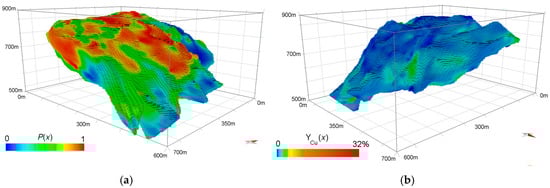

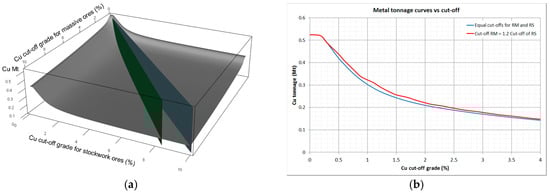

The Zambujal ore deposit, Neves-Corvo mine, is a zoned volcanogenic sulfide deposit of copper and zinc, with massive ores at the top and stockwork ores at the bottom. Metal grades are strongly zoned by ore types. The main methodology hereby proposed combines geostatistical techniques so that an improved stochastic geological model of the Zambujal deposit encompassing morphology and grades is presented. The model of the morphology was made in two main steps. First, a 3D solid of the boundaries was created and then a 3D grid model of the local sulfide proportion was simulated. This latter variable was modeled by using rock specific gravity as a proxy. After that, a conditional grid model of relative copper grades, i.e., recalculated metal grades assuming only the sulfide content, is also simulated in accordance with the morphology. At the end, the new tool, metal tonnage cut-off surface, is proposed, which combines copper grades within massive ores and stockwork ores. To validate the results found, the global tonnages of copper obtained by Ordinary Kriging and the proposed methodology are compared. View Full-Text
Keywords: Neves-Corvo mine; Zambujal; sulfide ore deposit; proportion of sulfide; specific gravity as a proxy; stochastic simulation; morphological model; metal grade model Neves-Corvo mine; Zambujal; sulfide ore deposit; proportion of sulfide; specific gravity as a proxy; stochastic simulation; morphological model; metal grade model
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
