Next Article in Journal
Effect of Heating Rate on Pyrolysis Behavior and Kinetic Characteristics of Siderite
Previous Article in Journal
Mechanism and Kinetics of the Reduction of Hematite to Magnetite with CO–CO2 in a Micro-Fluidized Bed
Article Menu
Issue 11 (November) cover image

Export Article

Open AccessArticle
Minerals 2017, 7(11), 210; doi:10.3390/min7110210

Effects of Dolomite on Mineral Compositions and Metallurgical Properties of Chromium-Bearing Vanadium–Titanium Magnetite Sinter

1
School of Metallurgy, Northeastern University, Shenyang 110819, China
2
School of Materials and Metallurgy, University of Science and Technology Liaoning, Anshan 114051, China
3
Key Laboratory of Liaoning Province for Recycling Science of Metallurgical Resources, Shenyang 110819, China
*
Authors to whom correspondence should be addressed.
Received: 22 July 2017 / Revised: 28 October 2017 / Accepted: 30 October 2017 / Published: 2 November 2017
View Full-Text   |   Download PDF [21178 KB, uploaded 6 November 2017]   |

Abstract

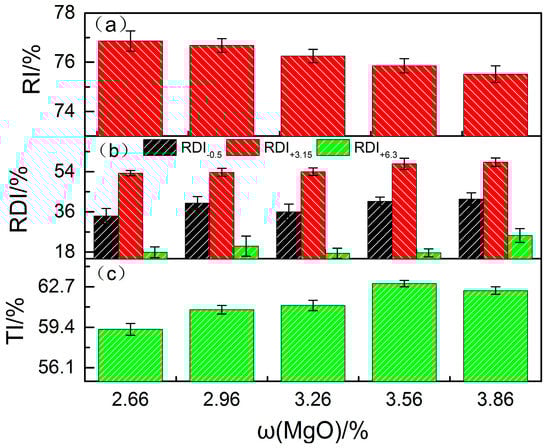

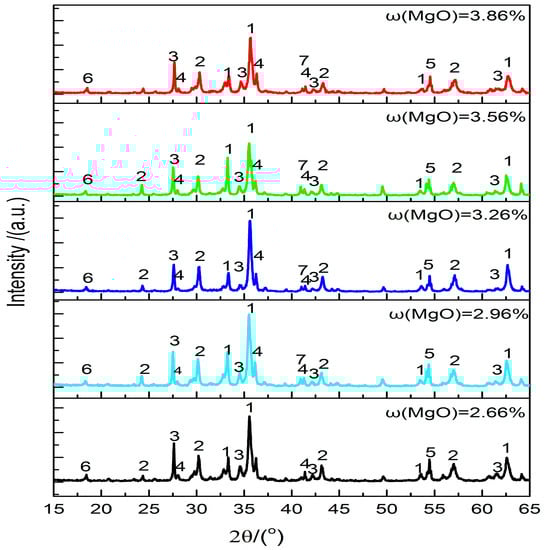

Chengde chromium-bearing vanadium–titanium magnetite (CCVTM) has been used as an important mineral resource in sinter making. The MgO content of this sinter can be enhanced by adding dolomite, which improved operation of the blast furnace. The effects of MgO in the form of dolomite on metallurgical properties, microstructure and mineral compositions of CCVTM sinter were studied by a sinter pot test, X-Ray Diffraction (XRD), Scanning Electron Microscope (SEM), and mineral phase microanalysis. The results were as follows: The flame front speed and sinter coefficient decreased with an increase in MgO content from 2.66 to 3.86% by adding dolomite. With an increase in MgO content from 2.66 to 3.86%, the flame front speed, sintering utilization factor, and the value of RI decreased, while RDI and the softening–melting properties improved. In addition, the value of sinter strength (TI) reached a maximum value at MgO = 3.56%. In addition, an increase in the abundance of magnetite, magnesium ferrite, and silicate phase, as well as a decrease in hematite, was found with an increase in MgO content. We concluded that the most appropriate MgO content in the sinter is 3.56%. View Full-Text
Keywords: vanadium–titanium magnetite; sinter; mineralogical phases; metallurgical properties; MgO vanadium–titanium magnetite; sinter; mineralogical phases; metallurgical properties; MgO
Figures

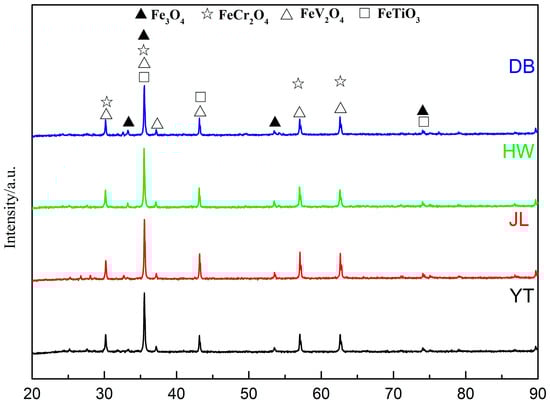

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Yang, S.; Tang, W.; Zhou, M.; Jiang, T.; Xue, X.; Zhang, W. Effects of Dolomite on Mineral Compositions and Metallurgical Properties of Chromium-Bearing Vanadium–Titanium Magnetite Sinter. Minerals 2017, 7, 210.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Minerals EISSN 2075-163X Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
