Minerals 2017, 7(10), 198; https://doi.org/10.3390/min7100198

UMineAR: Mobile-Tablet-Based Abandoned Mine Hazard Site Investigation Support System Using Augmented Reality

1
Energy Resources Institute, Pukyong National University, Busan 48513, Korea
2
Korea Institute of Geoscience and Mineral Resources, Daejeon 34132, Korea
3
Department of Energy Resources Engineering, Pukyong National University, Busan 48513, Korea
*
Author to whom correspondence should be addressed.
Received: 7 September 2017 / Revised: 11 October 2017 / Accepted: 16 October 2017 / Published: 18 October 2017
(This article belongs to the Special Issue Geological Modelling)
View Full-Text   |   Download PDF [8185 KB, uploaded 25 October 2017]   |

Abstract

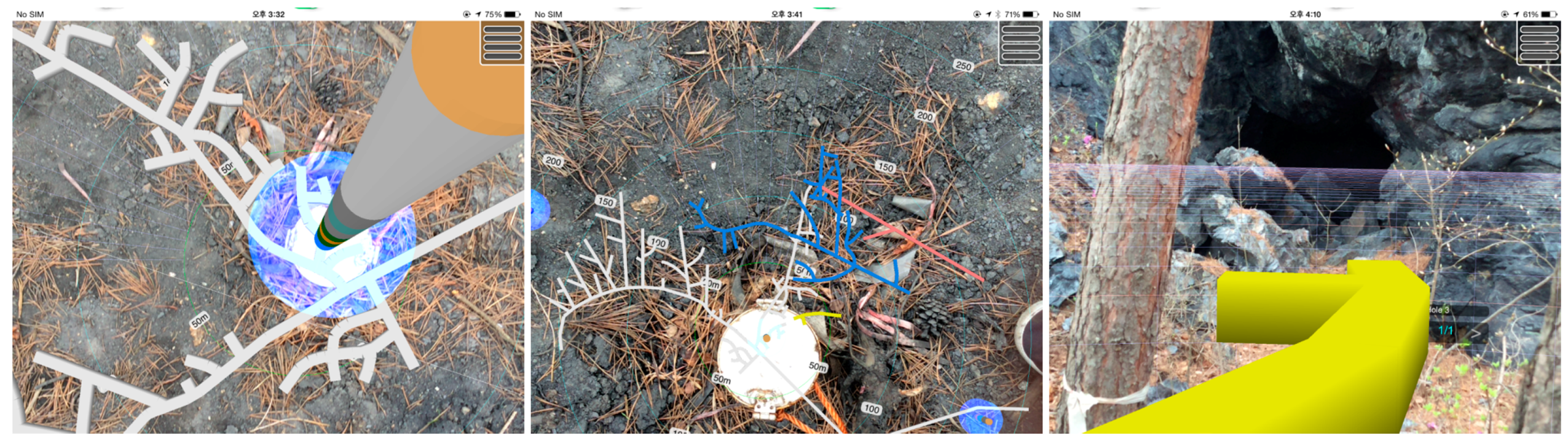

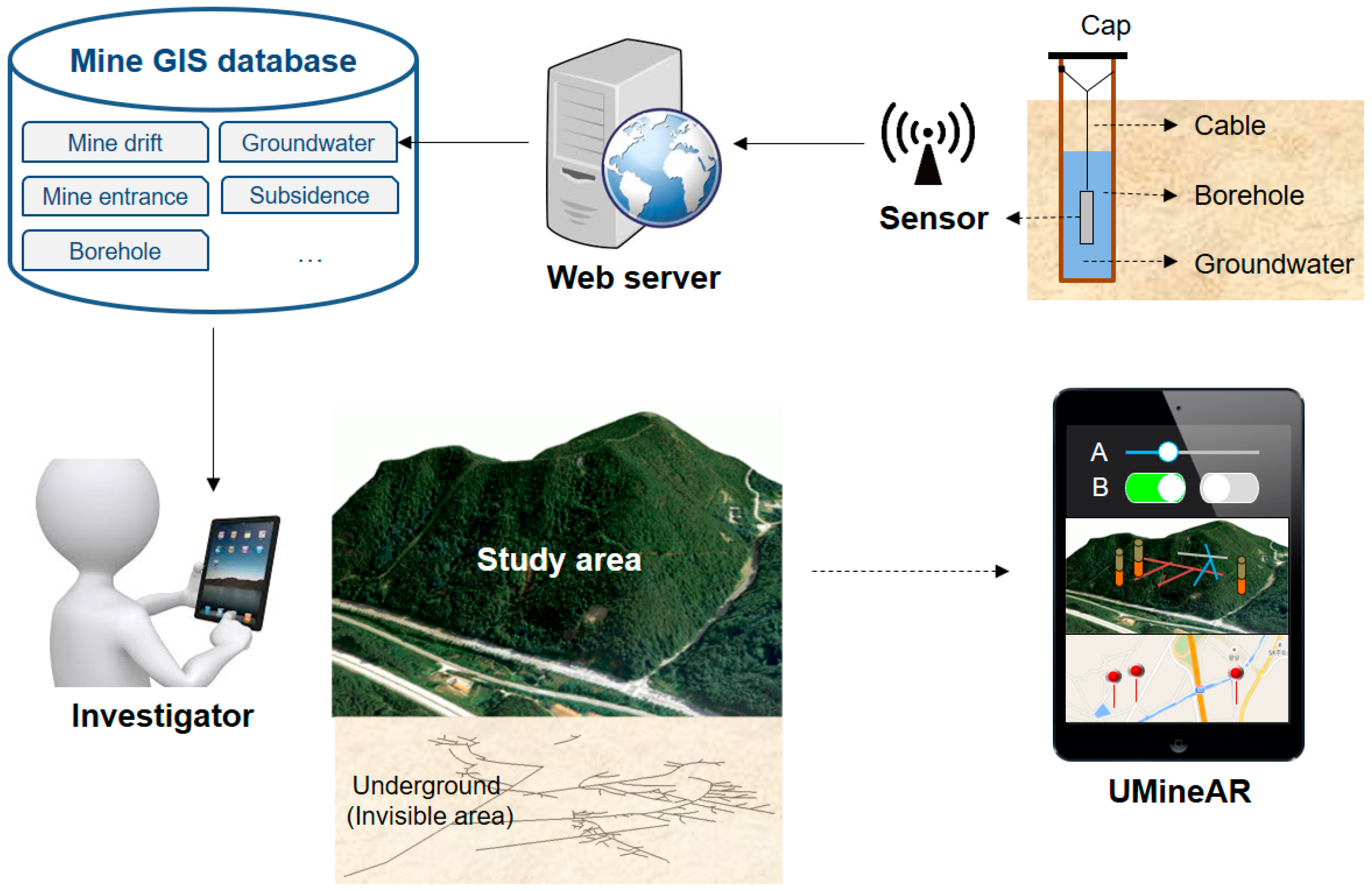

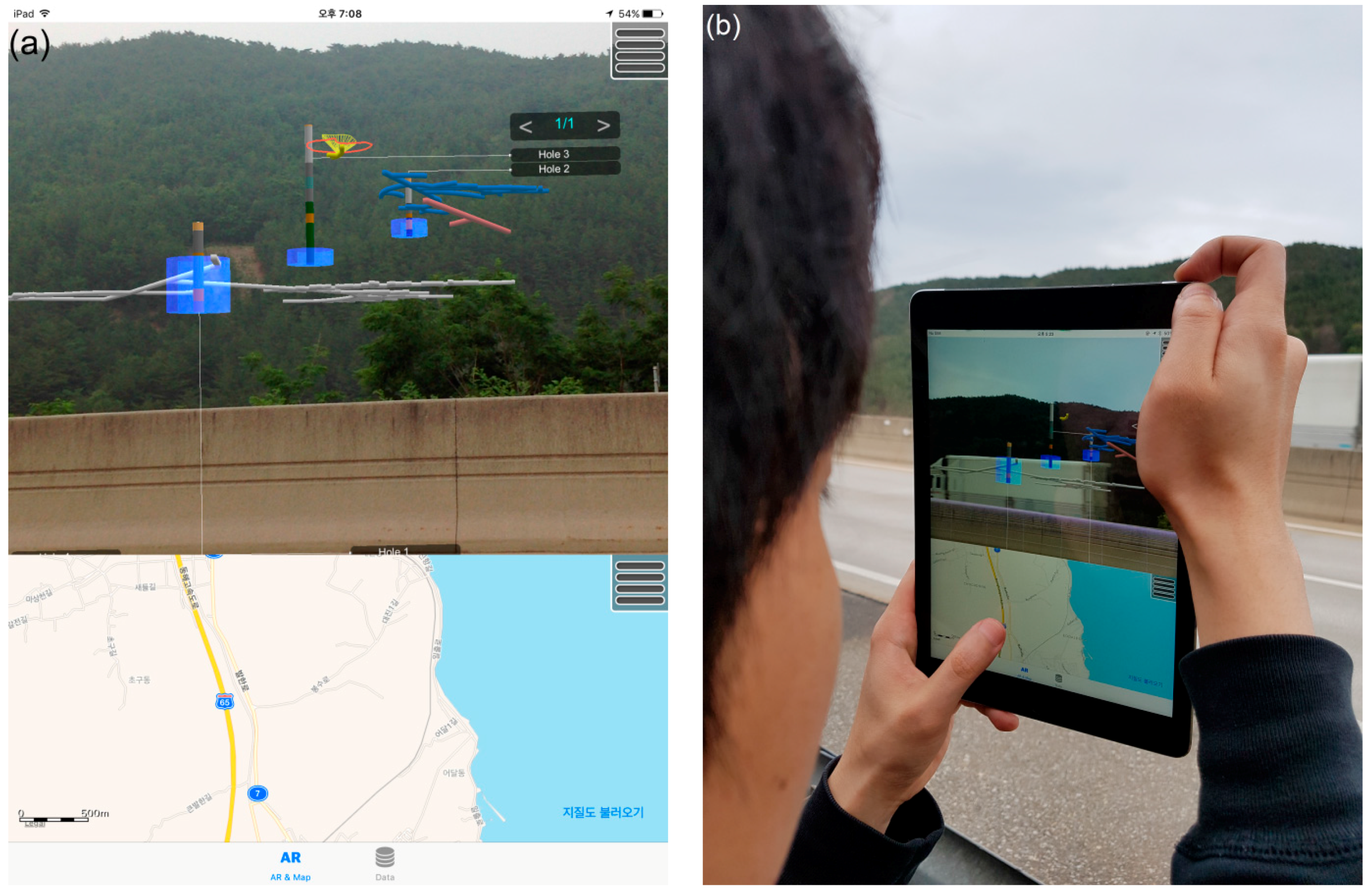

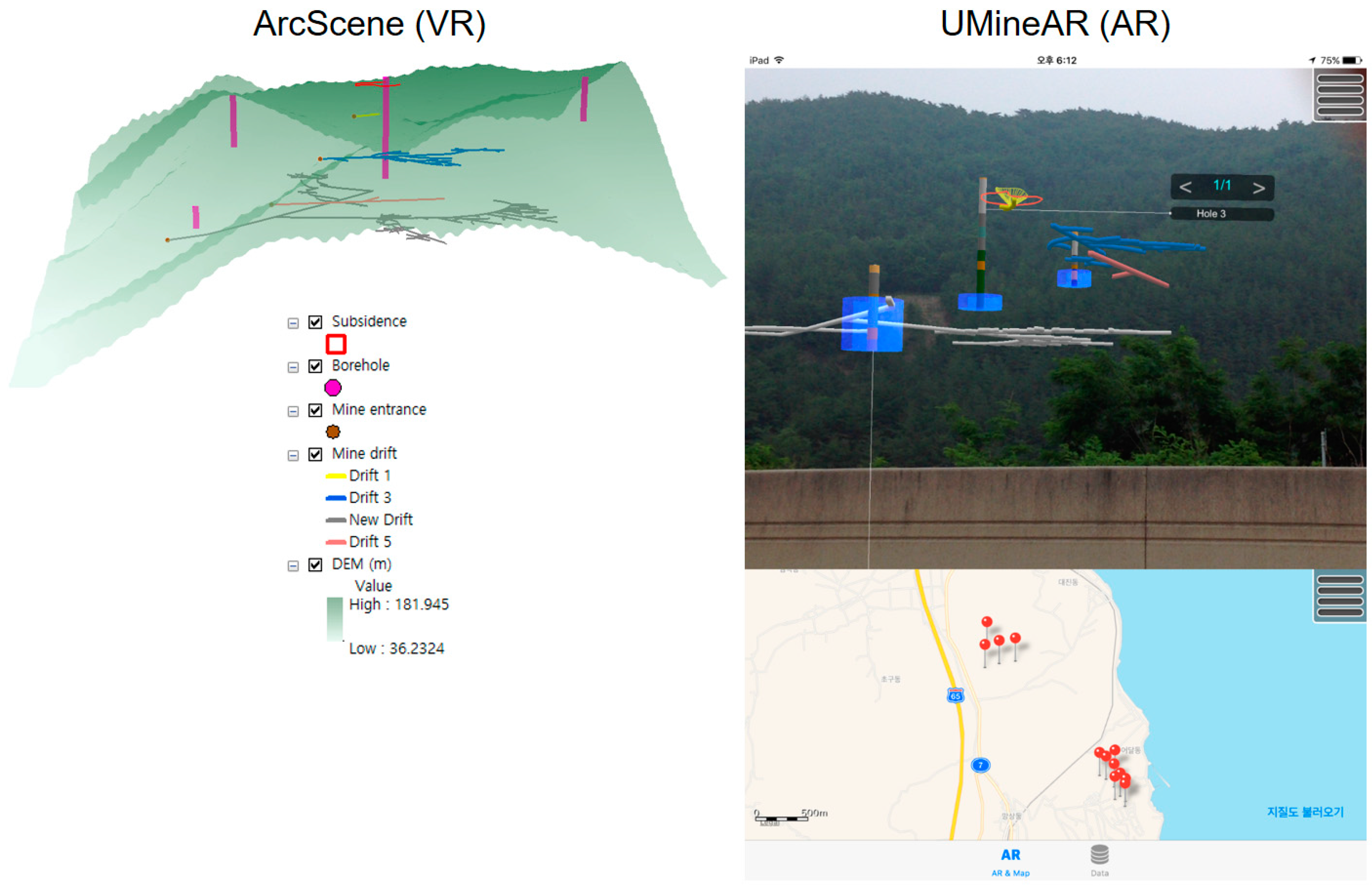

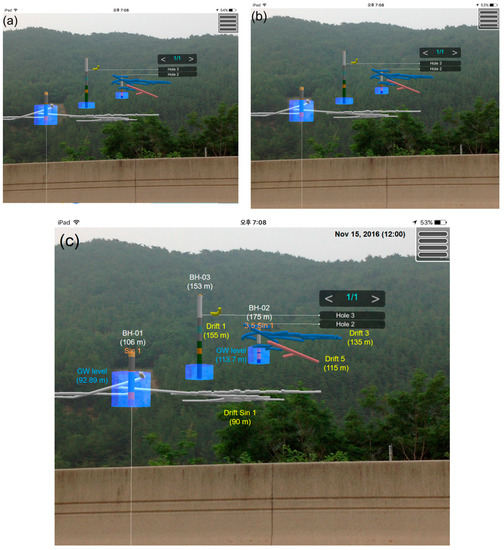

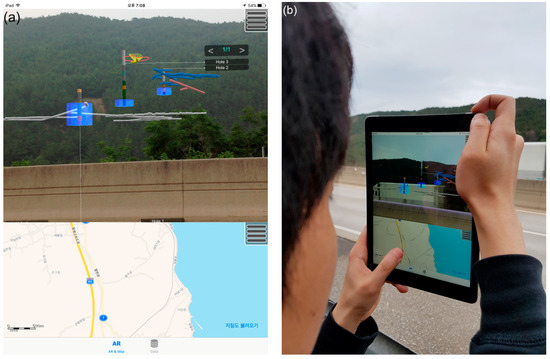

Conventional mine site investigation has difficulties in fostering location awareness and understanding the subsurface environment; moreover, it produces a large amount of hardcopy data. To overcome these limitations, the UMineAR mobile tablet application was developed. It enables users to rapidly identify underground mine objects (drifts, entrances, boreholes, hazards) and intuitively visualize them in 3D using a mobile augmented reality (AR) technique. To design UMineAR, South Korean georeferenced standard-mine geographic information system (GIS) databases were employed. A web database system was designed to access via a tablet groundwater-level data measured every hour by sensors installed in boreholes. UMineAR consists of search, AR, map, and database modules. The search module provides data retrieval and visualization options/functions. The AR module provides 3D interactive visualization of mine GIS data and camera imagery on the tablet screen. The map module shows the locations of corresponding borehole data on a 2D map. The database module provides mine GIS database management functions. A case study showed that the proposed application is suitable for onsite visualization of high-volume mine GIS data based on geolocations; no specialized equipment or skills are required to understand the underground mine environment. UMineAR can be used to support abandoned-mine hazard site investigations. View Full-Text
Keywords: mobile augmented reality; mine drift; mining hazards; abandoned mine; site investigation; geographic information system (GIS) mobile augmented reality; mine drift; mining hazards; abandoned mine; site investigation; geographic information system (GIS)
Figures

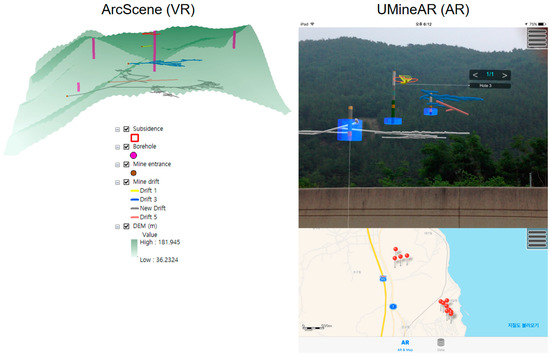

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Suh, J.; Lee, S.; Choi, Y. UMineAR: Mobile-Tablet-Based Abandoned Mine Hazard Site Investigation Support System Using Augmented Reality. Minerals 2017, 7, 198.
