Atomistic Computer Simulations of Uranyl Adsorption on Hydrated Illite and Smectite Surfaces

Abstract

A quantitative understanding of the molecular-scale mechanisms of radionuclide sorption on different clay minerals is crucial for the development and safe implementation of geological nuclear waste disposal technologies. We apply classical molecular dynamics (MD) computer simulations to study the adsorption of uranyl on the external basal surfaces of two typical clay models. In the illite model, negative charge is primarily localized in the tetrahedral sheets, while in the lower-charge smectite model, the isomorphic substitutions are introduced in the octahedral sheet. The comparison of atomic density distributions at the clay surfaces and adsorption-free energies profiles as a function of distance from these surfaces demonstrates that overall U behavior at the basal clay surface is quite similar for illite and smectite. Uranyl is sorbed as a mixture of outer-sphere aqua complexes [UO₂(H₂O)₅]²⁺ and hydrolyzed aqua complexes [UO₂(H₂O)_4–5OH]⁺ on both surfaces. The structural and compositional differences between the models do not greatly affect the uranyl’s nearest coordination environment and are mainly reflected in the specific localization and orientation of the uranyl ions at both surfaces and in the magnitude of the adsorption-free energies. The observed quantitative characteristics of uranyl interactions with illite and smectite surfaces will help to better understand U behavior during the sorption process on clay minerals for the entire range of mixed-layer illite–smectite structures. A comparison of two versions of the ClayFF force field in the simulations made it possible to more accurately and quantitatively evaluate some subtle features of the uranyl–clay interactions and to obtain a more precise composition of uranyl complex with the modified ClayFF force field (ClayFF-MOH).

1. Introduction

Due to their low hydraulic permeability, high sorption capacity to various radionuclides, and long-term stability, clay host rocks are now universally considered one of the most important components of the complex natural and engineered barrier systems for radioactive waste disposal and storage in deep geological formations [1,2,3,4]. Moreover, clays are an ubiquitous constituent of many geological formations [5,6]. Therefore, it is highly important to quantitatively understand and predict the behavior of radionuclides in their interaction with clay minerals under the conditions of the geological disposal of spent nuclear fuel and radioactive waste [7,8,9,10,11]. Among radionuclides, uranium deserves special attention, since its amount and role in the nuclear industry is the highest [7].

Various aspects of uranium sorption, in the form of uranyl cation, UO₂²⁺, on clay minerals have already been extensively studied [12,13,14,15,16,17,18,19,20,21,22,23,24,25]. It was shown that clay minerals demonstrate a high sorption capacity towards uranyl in the wide range of pH ~4–8. In this acidity range, uranyl is partially hydrolyzed and forms mixed hydroxo–carbonate complexes and adsorbs via the formation of inner-sphere complexes at clay mineral edge sites. At a higher pH, sorption decreases as uranyl forms highly soluble [UO₂(CO₃)₃]⁴⁻ anionic carbonate complexes in solution. A significant effect of CO₂(g) and competing cations, especially Ca²⁺, has been demonstrated in numerous investigations [12,13,14,15,16]. Several studies were aimed at revealing the local nanoscale structure of adsorbed uranyl ions. For this, X-ray absorption spectroscopy (XAS) and, in particular, its part beyond the absorption edge, extended X-ray absorption fine structure spectroscopy (EXAFS), is widely used. When the uranyl ion is adsorbed at the SiOH/AlOH edge sites of a clay mineral, the EXAFS results typically demonstrate a split of the equatorial coordination sphere of O atoms at distances of ~2.3 and 2.5 Å with coordination numbers (CNs) of two and three, respectively, and Si/Al atoms at distances of ~3.1, 3.3, and 3.6 Å. At a pH < 4 and an ionic strength in the range of ~0.01–1.0 M, uranyl cation in solution is present as a non-hydrolyzed aqueous ion [UO₂(H₂O)₅]²⁺ and undergoes adsorption on clay minerals by an ion-exchange mechanism, forming outer-sphere complexes at external basal surfaces and in the interlayer space. When uranyl forms outer-sphere complexes with only H₂O molecules in its local coordination, the EXAFS spectra reveal a single coordination sphere of equatorial O atoms at ~2.40 Å with CN of five to six and the absence of contributions from Si/Al coordination spheres [17,18,19,20,21,22,23,24,25].

In addition to numerous experimental studies, atomistic computer simulations are also now widely used to obtain detailed quantitative information on the adsorption of aqueous uranyl species on various clay surfaces at a fundamental molecular scale [26,27,28,29,30,31,32,33,34,35]. Classical atomistic simulations can mostly be used to characterize the adsorption at the external basal surfaces and interlayer spaces of clay minerals. To analyze inner-sphere complexes at the edge sites, the chemical bond formation should be accurately taken into account, which requires a quantum chemical approach (e.g., density functional theory, DFT) [36,37,38,39,40,41]. However, although the interactions of UO₂²⁺ can only be partially evaluated in classical atomistic simulations, they are still highly beneficial because they allow us to study much larger model systems for much longer time intervals than it is currently possible with quantum approaches [42,43,44].

ClayFF [42] is a classical molecular modeling force field that is currently one of the most widely used and thoroughly tested force fields for atomistic computer simulations of clay minerals, their fluid interfaces, and other related materials under a very wide range of conditions [43,44]. Its original version [42] has been recently upgraded by adding several new terms that allow for a more accurate description of the Metal-O-H (MOH) angular bending motion in hydroxide crystals and on their edges [44]. Recent molecular simulations of brucite, Mg(OH)₂ [45], and 10-Å phase—an important member of the family of dense hydrous magnesium silicates (DHMS)—which play a key role in transporting and storing water in the Earth’s mantle at subduction zones, Mg₃Si₄O₁₀(OH)₂∙nH₂O [46], have already clearly demonstrated the importance of the MOH terms for a more accurate description of mineral systems containing structural hydroxyl groups. In addition to a more accurate reproduction of the crystal properties of hydroxide minerals themselves, the introduction of the MOH terms also affects the structural and dynamic properties of interfacial aqueous solutions compared to the original, less accurate version of ClayFF [42,47]. Moreover, the introduction of the M-O-H angle bending terms in the ClayFF parametrization made it possible to simulate crystal structures at higher temperatures and pressures than with the original ClayFF version [45].

Illite and smectite crystal structures are formed by so-called 2:1 TOT layers, where one sheet of octahedrally (O) coordinated AlO₆ units is sandwiched from both sides by two sheets of tetrahedrally (T) coordinated SiO₄ units. The T and O sheets are bound together via bridging oxygen atoms of the AlO₆ and SiO₄ polyhedra. Such 2:1 TOT-layered structures can easily accommodate various isomorphic substitutions (Al³⁺ for Si⁴⁺ in the T-sheets, Mg²⁺ or Fe²⁺ for Al³⁺ in the O-sheets, etc.), leading to a negative structural charge of the TOT layers. This charge is compensated by the presence of cations in the interlayer space of clay structures.

In smectite, the substitutions are mainly localized in the octahedral sheet, with a common crystallographic unit cell formula of M_x[Al_4−x(Fe,Mg)_x] Si₈O₂₀(OH)₄∙nH₂O, where M is, typically, Ca²⁺, Na⁺, and K⁺, and the extent of substitution (x) varies from ~0.2 to ~0.6. The relatively low structural charge and high hydration energy of the interlayer cations promote the hydration, expansion, and swelling of these layered structures in the presence of water. On the contrary, illite has a non-expandable clay structure, mainly with tetrahedral substitutions, such as K_x+y(Al_4−xMg_x)[Si_8−yAl_y]O₂₀(OH)₄; x + y is typically in the range from ~0.6 to ~1, i.e., significantly higher than in smectites [48]. K⁺ ions, typically representing the charge-compensating interlayer cations in illite, remain nonhydrated.

In geochemical systems, the process of illitization takes place over time, and clay minerals are often present as mixed-layer illite–smectite materials [49,50,51]. Their more disordered crystal structures are often not very well resolved and their description is based on certain assumptions, such as the Markovian model [52], or the fundamental particle model [53,54]. The former model is based on a statistical approach and the clay mineral structure is represented as a sequence of illitic and smectitic layers, where the nature of each layer is dependent on several previous layers. According to the latter model, the mixed-layer clay structure consists of multi-layer particles of illitic composition, and the smectitic behavior is the consequence of water adsorption at the external surfaces of these particles.

Here we use classical molecular dynamics (MD) computer simulations to characterize in detail the interaction of hydrated uranyl ions with the clay surfaces of the two end-members of the mixed-layer clay materials. The main purpose of this work is to quantify the effects of the specific structural and compositional features of the external basal surfaces of mixed-layer illite–smectite clays on the structure and adsorption capacity of hydrated uranyl species at the nanoscale. Additionally, we evaluate how recent improvements in the ClayFF force field affect the results of these simulations.

2. Models and Methods

2.1. Structural Models

Our model of “illite” was constructed from the ideal pyrophyllite crystal structure (a = 5.2021 Å, b = 8.9797 Å, c = 10.226 Å, α = γ = 90°, β = 101.57°) [55], while the “smectite” model was prepared from the crystal structure of montmorillonite (a = 5.18 Å, b = 8.98 Å, c = 15.00 Å, α = β = γ = 90°) [56]. In both cases, Mg²⁺ and Al³⁺ substitutions were randomly introduced into the octahedral or tetrahedral sheets of the TOT layers, respectively. The Loewenstein rule was obeyed to avoid two adjacent substitutions [57]. The resulting substituted crystallographic unit cells were then multiplied along the z-axis to build crystals consisting of 7 TOT layers. In the interlayer space of the illite model, dehydrated K⁺ ions were introduced in the amount equal to the net negative charge of the substituted TOT layer. Similarly, the interlayer space of the smectite model was filled with [Ca(H₂O)₆]²⁺ to compensate for the negative charge of the surface. The illite model was specifically constructed with the structural negative charge close to the ISCz-1 mixed-layer clay mineral (Z_T = 0.81 per formula unit (p.f.u.), Z_O = 0.48 p.f.u.) [58], which is currently under our experimental investigation. From the known amount of fixed (K⁺, Na⁺) and exchangeable (Ca²⁺, Mg²⁺) cations and illite and smectite fractions in the mixed-layer mineral (0.3 and 0.7, respectively), the charges of illitic and smectitic layers were calculated to be 1.48 p.f.u. and 0.86 p.f.u., respectively. To estimate tetrahedral and octahedral charge in illitic and smectitic layers separately, a correlation plot from [54] was used and the following charges were specified: in illitic layers, Z_O = 0.3 p.f.u. and Z_T = 1.18 p.f.u; in smectitic layers, Z_O = 0.76 p.f.u. and Z_T = 0.1 p.f.u. These charges were approximated to simplify the model construction. Therefore, the illite model contained 5 octahedral substitutions and 8 tetrahedral substitutions in a single TOT sheet composed of 10 unit cells (2 × 5 in x and y directions, respectively), while the smectite model was constructed with only octahedral charge localization and the TOT sheets contained 8 octahedral substitutions.

The resulting structural formulas of modeled clay minerals are K_1.3(Al_3.5Mg_0.5)[Si_7.2Al_0.8]O₂₀(OH)₄ and [Ca(H₂O)₆]_0.4(Al_3.2Mg_0.8)[Si₈]O₂₀(OH)₄ for the illite and smectite models, respectively. In the illite model, the charge distribution was calculated to be equal to that of the external surface of mixed-layer illite–smectite ISCz-1 in terms of the fundamental particle theory [53], while in the smectite model only the total octahedral charge of the ISCz-1 composition was considered, as it should be in smectitic layers according to the statistical Markovian model [50], and therefore appeared to be slightly higher than it is common for smectite minerals.

To simulate the interface of illite/smectite with a UO₂(OH)⁺ aqueous solution, a system consisting of 4 × 10 × 7 illite/smectite unit cells was cleaved parallel to the (001) crystallographic plane in the middle of the interlayer space. After cleavage, half of the interlayer K⁺/Ca²⁺ ions located at the external surfaces were randomly retained by each of the two created basal surfaces. These surfaces were brought into contact with a layer of UO₂(OH)⁺ aqueous solution approximately 80 Å thick. After the insertion of the aqueous layer, the dimensions of the simulation supercells were approximately 36 × 52 × 144 ų and 36 × 52 × 156 ų for the illite and smectite models, respectively. In both cases, the number of H₂O molecules (4856) introduced into the nanopore corresponded to the density bulk liquid water under ambient conditions, 1 g/cm³. Eight [UO₂OH]⁺ complexes were initially uniformly distributed in the aqueous nanopores, resulting in a [UO₂²⁺] concentration of ~0.1 M. The solution ionic strength was not adjusted specifically and could be assumed to be equal to 0 M. A few OH⁻ anions were added to the aqueous phase to ensure the electrostatic neutrality of the simulated systems in both cases. In this work, partly hydrolyzed [UO₂OH]⁺ and aqua non-hydrolyzed complexes are understood as uranyl cation with the first coordination sphere (as defined by the first peak of the radial distribution function; see below) of H₂O/OH⁻, although water molecules in this coordination shell are dynamic (rapidly exchanging with other molecules in solution).

2.2. Force Field Parameters

All MD simulations were performed with the new modified version of the ClayFF force field (ClayFF-MOH, [44]) and with the original parametrization (ClayFF-orig, [42]) for comparison. ClayFF assigns partial charges to different structural oxygen atoms by taking into account, when necessary, their local coordination to the tetrahedral and/or octahedral substitutions in the crystal structure of minerals. The values of the additional parameters for the Metal-O-H (M-O-H) angle bending terms of the more recent ClayFF-MOH version were determined for the Mg-O-H and Al-O-H angles by fitting the results of classical MD simulations to the structural and dynamic results of DFT calculations for brucite, Mg(OH)₂, and gibbsite, Al(OH)₃, respectively, using a simple harmonic functional form [44]:

$$E_{\mathrm{M}\mathrm{O}\mathrm{H}}=k{\left(\mathit{\theta }-{\mathit{\theta }}_0\right)}^2$$

(1)

where θ_0,MgOH = 120°, k_MgOH = 25.104 kJ·mol⁻¹·rad⁻², θ_0,AlOH = 116°, and k_AlOH = 62.76 kJ mol⁻¹·rad⁻². These terms are used to properly constrain the librational motions of the structural hydroxyl groups in our clay models. In addition, for a more accurate modeling of the stretching vibrations of the hydroxyl ions, the Morse potential was used, instead of the original harmonic potential [59]:

$$E_{\mathrm{O}\mathrm{H}}={D_0\left[1-{\mathrm{e}}^{-\alpha \left(r-r_0\right)}\right]}^2$$

(2)

where D₀ = 552.288 kJ·mol⁻¹, α = 2.1815 Å⁻¹, and r₀ = 0.945 Å.

The atomic partial charges and Lennard-Jones parameters for the uranyl cation, UO₂²⁺, were taken as for a non-polarized species. Although the polarizability of uranyl is important for complexation onto clay mineral surfaces, models with non-polarized UO₂²⁺ have proven to be reliable for obtaining close to the experimental data results [27,28,32,34,60]. H₂O molecules were modeled using the flexible extended simple point charge (SPC/E) potential [61], and the intermolecular interaction parameters for aqueous OH⁻ consistent with this water model were taken from Greathouse et al. [26].

2.3. Simulation Details

MD simulations were performed using the LAMMPS software package [62,63]. Periodic boundary conditions [64,65] in three dimensions were applied in all simulations. A cutoff radius of 12.5 Å was used for the short-range intermolecular forces, and the particle–particle particle–mesh method (PPPM) was used to account for the long-range electrostatic interactions [65,66,67]. Standard Lorentz–Berthelot mixing rules (${\epsilon }_{ij}=\sqrt{{\epsilon }_{ii}{\epsilon }_{jj}}; {\sigma }_{ij}=({\sigma }_{ii}+{\sigma }_{jj})/2$) were applied to calculate the Lennard-Jones parameters of interaction between unlike atoms. The Newtonian equations of motion were numerically integrated with a time step of 1.0 fs via velocity Verlet algorithm [64,65,68]. The constructed models were initially equilibrated for 5.0 ns at a temperature of 298 K and pressure of 1 bar using the Nosé–Hoover thermo-barostat [69,70]. After the NPT equilibration, the equilibrium NVT-simulation was performed for 20.0 ns using the Nosé–Hoover thermostat [69,70] to collect the dynamic trajectories of all atoms of the simulated system for further statistical analysis. The quantitative analysis of the structure of clay–solution interfaces was performed following the well-developed approaches that are commonly used for such kinds of interfacial simulations [47].

In addition, a series of constrained MD simulations were performed to obtain more information on the uranyl coordination at the basal surfaces of illite and smectite models and to quantitatively assess its adsorption-free energy as a function of the distance from the surface. The metadynamics technique implemented in the PLUMED code [71] was used for this part of the simulation project. In these simulations, the distance z between the center of mass of the uranyl ion and the center of mass of the nearest ditrigonal cavity without tetrahedral substitutions on the clay basal surfaces was constrained by a collective variable (CV). The CV was limited to a distance of 12 Å from the clay surface. To limit the movements of uranyl in the lateral x and y directions, we used an additional vertical boundary with a weak repulsive potential [72]. In these simulations, only the position of the uranyl ion was constrained without controlling its immediate environment in the first coordination sphere. Well-tempered metadynamics simulations were performed using the “gaussian hills” approach [71]. Their initial height and width were 0.4 kJ∙mol⁻¹ and 0.5 Å, respectively, and they were introduced every 250th time step with a bias factor of 15. All constrained MD simulations were performed for 40.0 ns with the same time step of 1.0 fs.

3. Results and Discussion

3.1. Atomic Density Profiles

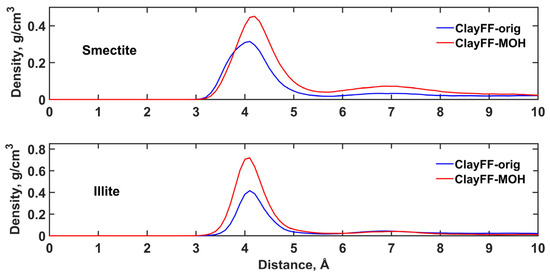

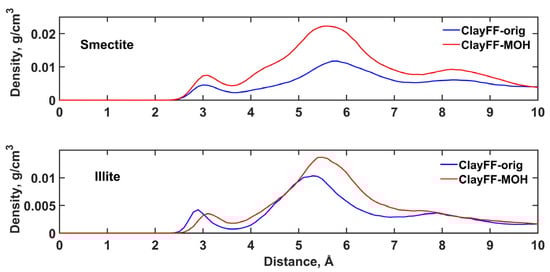

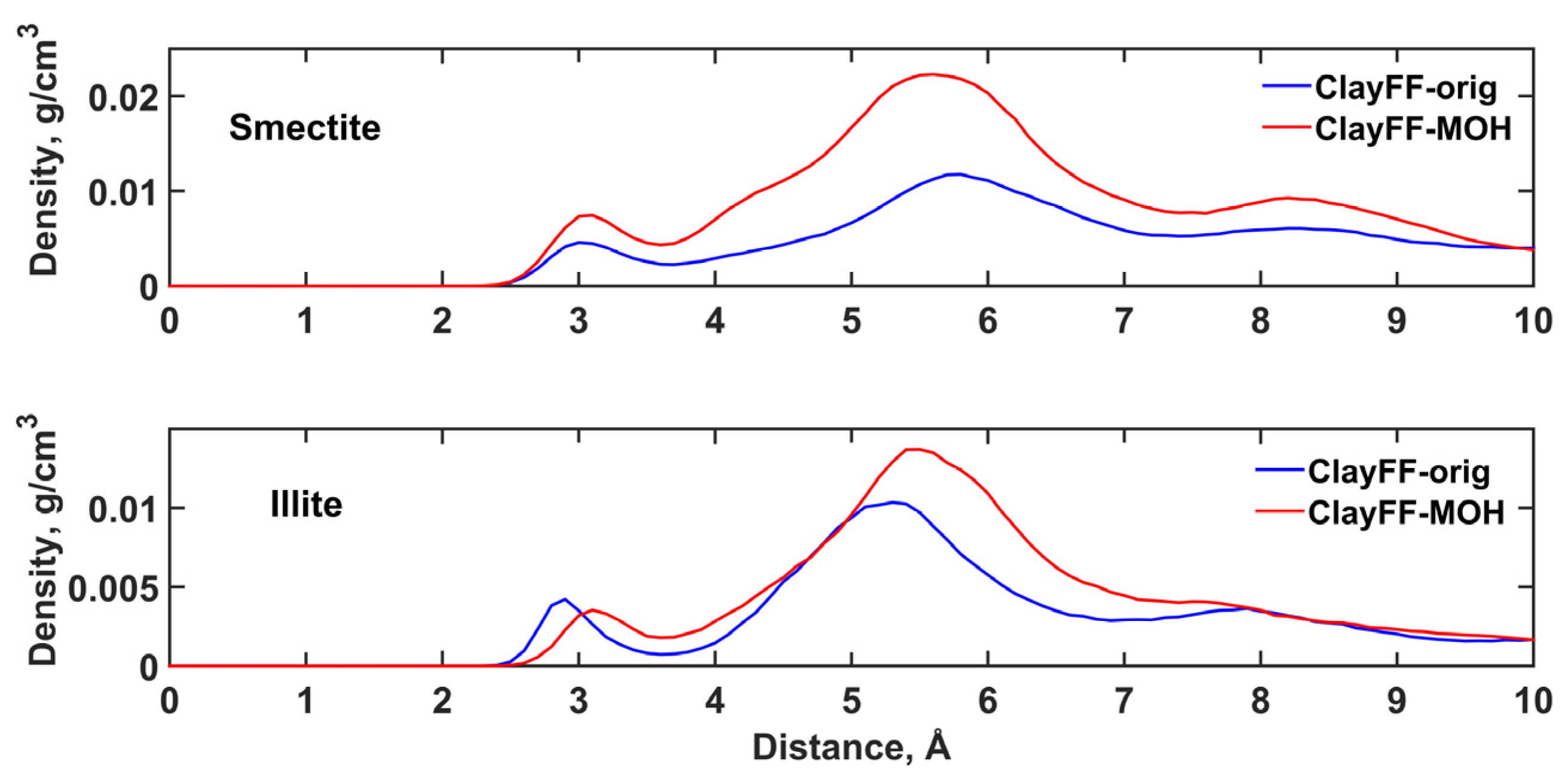

To assess the effects of the magnitude and localization of the structural negative charge in the clay layers on the local structure of the uranyl surface complexes, we first compared the one-dimensional atomic density profiles of solution species at the clay interface. The closest to the surface peaks of U density are located at 4.10 Å from the illite surface for both versions of the ClayFF force field (Figure 1). For the smectite surface, the peak position is slightly different between the ClayFF-orig and ClayFF-MOH models. For ClayFF-MOH, it is located a little farther from the surface by ~0.1 Å. However, such a difference is probably due to minor differences in the local U speciation and can be neglected. The peak at ~4.1 Å corresponds to the nearest outer-sphere uranyl complex at the basal clay surface, which is characterized by hydrogen bonding between the uranyl-coordinating H₂O molecule/-OH group and the surface. The halfwidth of the peak (at ~4.1 Å) is larger for the smectite model with both versions of ClayFF, pointing to a higher mobility of uranyl complexes on the smectite surface. The higher integral peak intensity indicates higher adsorption of uranyl on the illite surface, due to the stronger electrostatic interaction with the higher-charge tetrahedrally substituted surface. Although it is known from experimental studies that uranyl adsorption is higher on smectites, note that in the current work, we investigated only uranyl adsorption at the external basal surfaces via ion-exchange mechanism, which is predominant at a pH < 4. Overall, higher adsorption of uranyl with ClayFF-MOH for both illite and smectite surfaces is predicted according to the U atomic density profiles. However, the average distance of adsorbed uranyl ions from the surface is similar for both versions of ClayFF.

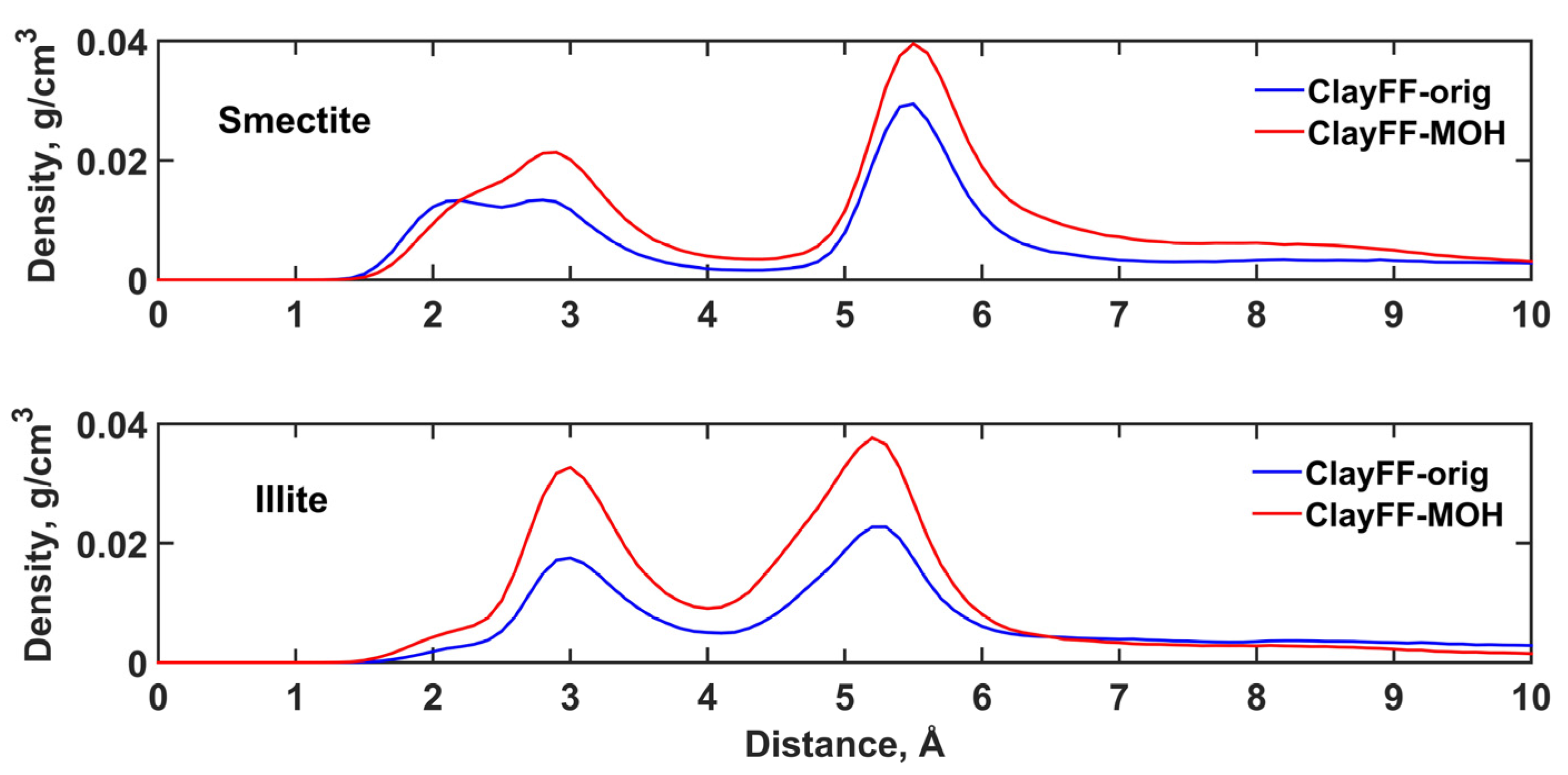

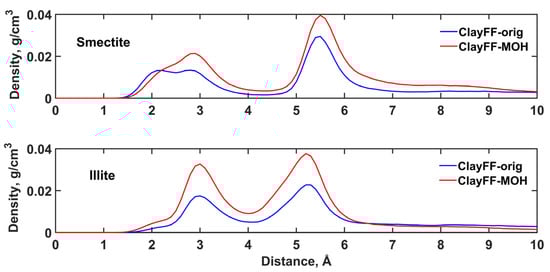

There is also a distinct maximum of U density located at ~7 Å, indicating the formation of the second uranyl outer-sphere complex, farther from the surface. The calculated two-dimensional surface atomic density distributions within the 8 Å layer of the interfacial solution show that uranyl complexes are preferably adsorbed at the center of the ditrigonal cavities of the tetrahedral sheet for illite and smectite surfaces (Supplementary Materials Figures S1 and S2). For illite, uranyl is preferably adsorbed at the center of the ditrigonal cavities near substitutions (Figure S2). Such adsorption sites on the basal surface of clay minerals are known to be the most favorable for cations [73,74,75].

Under the conditions studied (i.e., considering only adsorption via ion-exchange mechanism on the basal surfaces at pH < 4), the adsorption of uranyl on the illite surface is stronger than on the smectite surface, which is seen from the atomic density profiles of the uranyl oxygen (O_u) atoms (Figure 2). The O_u profile on the illite surface has only two peaks located at 2.9 Å and at 5.2 Å. The distance between these peaks at 2.9 Å and at 5.2 Å is 2.3 Å, which is less than the full equilibrium length of a uranyl cation (~1.8 × 2 = 3.6 Å) [76]. Thus, uranyl is mainly adsorbed with an inclination of its O-U-O axis at about 40° to the illite surface, as predicted with both versions of ClayFF. A similar value of 36° was obtained earlier in the simulation of uranyl adsorption on a muscovite surface with ClayFF-orig [32]. The tilting of the uranyl ion on the illite surface could be explained by a stronger interaction of U with O atoms from the tetrahedral substitutions (basal O). Recent ab initio simulations showed the presence of weak chemical bonds between U and basal O atoms due to the overlap of uranium f- and oxygen p- electronic states [36].

According to a previous MD simulation of UO₂²⁺ sorption on the muscovite surface [32], the atomic density profile of U shows two distinct peaks at 2.0 Å and 3.25 Å, while in the presence of competing K⁺ ions, only a 3.25 Å peak was observed. Our results show only one outer-sphere uranyl complex with a U peak at 4.1 Å (Figure 1). The peak at 2 Å is absent in our results due to the presence of competing K⁺ and Ca²⁺ cations, in line with the previous study [32]. The difference of ~1 Å between 4.1 Å in our results and 3.25 Å in previously reported results for similar systems points to a strong effect of solution composition (ionic strength, nature, and concentration of the counterions and UO₂²⁺ concentration), which is not exactly the same in our studies. It is also interesting to note that while the distance from U to the surface differs significantly, the inclination angle of 40˚ is preserved. Therefore, our results are similar to those reported previously for uranyl adsorption on muscovite, although the distances are somewhat different due to differences in clay mineral structure, solution composition, etc. Specifically, we should point out that the amount of tetrahedral substitutions in the muscovite model studied earlier [32] is more than two times higher than in our current illite model, which obviously influences the results and makes any direct quantitative comparison difficult and inconclusive. The shape of the curves is similar for both versions of ClayFF, indicating only minor changes in the interfacial complex orientation. From this observation, we can conclude that the modification of the force field does not significantly affect the position of the complex at the illite surface, which is not the case for smectite.

At the smectite surface, the orientational effect is less pronounced, but the curve shape is somewhat different between the ClayFF-orig and ClayFF-MOH models. With ClayFF-orig, two smooth peaks of the surface-nearest O_u atoms at 2–3 Å are observed, which indicates the absence of a preferential uranyl orientation at the smectite basal surface. With ClayFF-MOH, the distribution of O_u is also smooth, but a more intense maximum at 2.9 Å is observed, pointing to the increased preference for inclined uranyl ions orientation. The increased fraction of inclined uranyl ions may be a consequence of the increased near-surface OH⁻ concentration in the smectite ClayFF-MOH model (Figure 3). This enables the formation of more hydrolyzed [UO₂OH]⁺ complexes in the smectite ClayFF-MOH model.

Significant differences between the illite and smectite hydrated interfaces are observed in the shape of the O_w density profile of the water molecules (Figure S3). At the illite surface, a small feature appeared before the main maximum, indicating the presence of a layer of stronger adsorbed H₂O molecules. The center of the distribution coincides for both clay surfaces; minor peaks after the main one are closer to the surface of illite. A more structured profile of O_w at the illite surface is clearly the result of higher layer charge and its localization on the tetrahedral sites of the TOT layer closer to the interface. No differences in the interfacial water structure are observed between the two ClayFF versions neither for the illite nor for the smectite surfaces (Figure S3).

3.2. Radial Distribution Functions

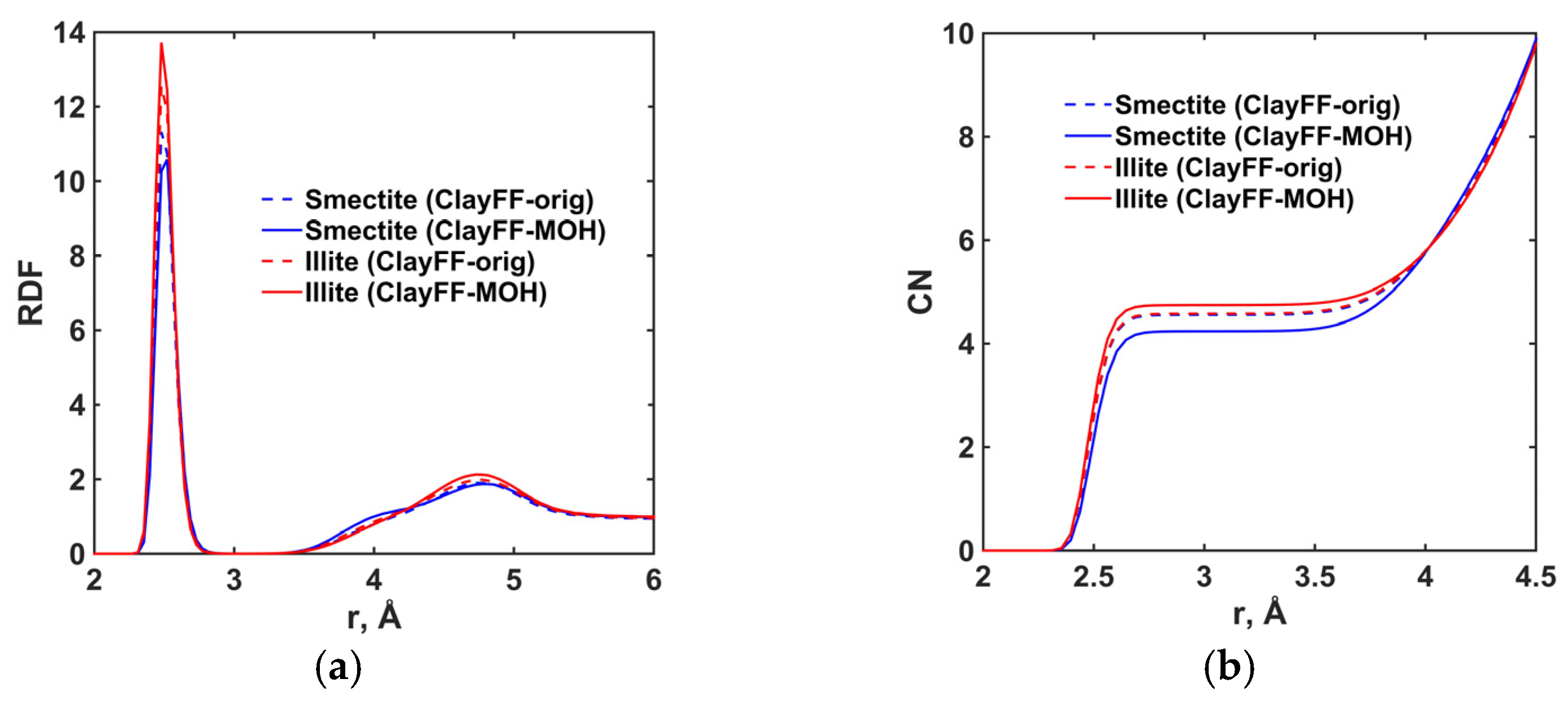

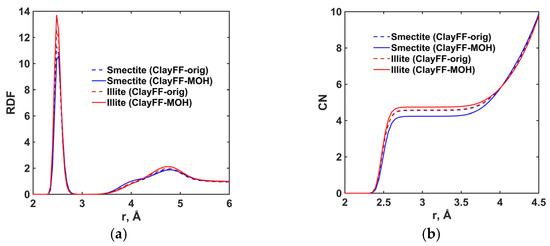

The local environment of the adsorbed uranyl ions was also quantitatively characterized through the analysis of the calculated radial distribution functions (RDFs) and running coordination numbers (CNs) of H₂O and OH⁻ species around the U atom. RDFs and CNs of U-O_w (O_w is O atom of H₂O) and U-O_hw (O_hw is O atom of OH⁻ in solution) pairs for both the smectite and illite simulations are shown in Figure 4 and Figure 5. Additional RDF and CN functions of U, Ca, and K could be found in Supplementary Materials (Figures S5–S11). The calculated RDFs for water virtually coincide with previously calculated RDFs for UO₂²⁺ at the hydrated quartz interface [26]. Uranyl cation at the surface of clay minerals has a uniform coordination of ~4.5 water molecules at a distance of 2.50 Å. This value is very close to the parameters for outer-sphere uranyl complexes on smectites at low pHs obtained with EXAFS (2.38–2.50 Å) [17,18,19,20,21,22,23,24,25].

To the best of our knowledge, there are no experimental EXAFS studies of uranyl sorbed on illite clays due to (i) difficulties in obtaining illite samples without smectite impurities and (ii) the relatively low sorption capacity of illite towards UO₂²⁺, which complicates obtaining a good enough EXAFS spectrum. From this point of view, our theoretical study sheds new light on the process of uranyl adsorption on the illite surface. It is interesting that no major differences in U-H₂O local coordination were observed between the illite and smectite interfaces, as well as between the two versions of the force field. The coordination of water molecules to uranyl cation is similar with the ClayFF-orig and ClayFF-MOH force fields, in accordance with the observed close similarity of the water density profiles for both force field versions (Figure S3). Comparing the O_w profiles for the illite and smectite surfaces, we clearly observed the more structured distribution of water on illite. However, the interfacial water structuring does not affect the coordination of water molecules near the uranyl ions adsorbed as outer-sphere complexes.

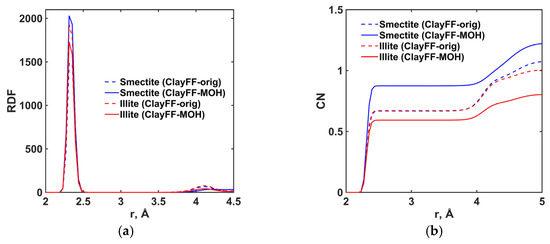

Changes in the local U coordination are notable in the analysis of U–O_hw RDF and CN (Figure 5). The distance between the U and O atoms of the hydroxyl ion is 2.33 Å and it is the same for both versions of the force field and for both surfaces. When comparing the CNs (Figure 5b), it is clear that the modification of the force field affects the local U coordination. With ClayFF-orig, the local environment of the UO₂²⁺ complexes is similar on the illite and smectite surfaces, and the CN for the OH⁻ group equals ~0.6. According to these data, the time-averaged complex speciation could be represented as [UO₂(H₂O)_4.3(OH)_0.7]^1.3+ for both surfaces. The non-integer CN means that there are two fractions of uranyl complexes: hydrolyzed and non-hydrolyzed, and the increase in CN for the hydroxyl group means that the fraction of hydrolyzed complexes increases. In simulations with the ClayFF-MOH model, it became possible to differentiate the composition of the complexes between the illite and smectite surfaces. On the smectite surface, ~0.9 OH⁻ anion is coordinated to each uranyl cation, meaning that hydrolyzed complexes dominate and uranyl is almost completely present as [UO₂OH(H₂O)_x]⁺ (x = 4–5). The time-averaged speciation is [UO₂(H₂O)_4.1(OH)_0.9]^1.1+, which means that around 90% of species are present as hydrolyzed complexes. In the illite simulations with the ClayFF-MOH model, the fraction of hydrolyzed complexes noticeably decreases although the CN still remains around 0.6. The rest of the uranyl cations are present as non-hydrolyzed aqua complexes [UO₂(H₂O)₅]²⁺. The time-averaged speciation in this case results in [UO₂(H₂O)_4.4(OH)_0.6]^1.4+ composition. It should be noted that in each case, the sum of the CNs of the ligands gives precisely five, the most common CN around the U equatorial sphere in solution.

The speciation of U sorbed at the clay basal surfaces was thought to be particularly independent of the clay mineral structure, namely the magnitude and localization of the negative charge in the TOT layer. Similar local environments at the interfaces with two end-members of illite–smectite clay were observed with the ClayFF-orig version of the force field. However, a more accurate parametrization of the structural hydroxyls in the ClayFF-MOH model highlights the different nature of the adsorbed uranyl complexes on the illite and smectite surfaces. We might also notice that despite the observed differences, hydrolyzed uranyl complexes are still predominant on both surfaces. Therefore, the uranyl behavior in models with two end-members suggests that in the intermediate cases of mixed-layer illite–smectite clay minerals, the U speciation would also be similar.

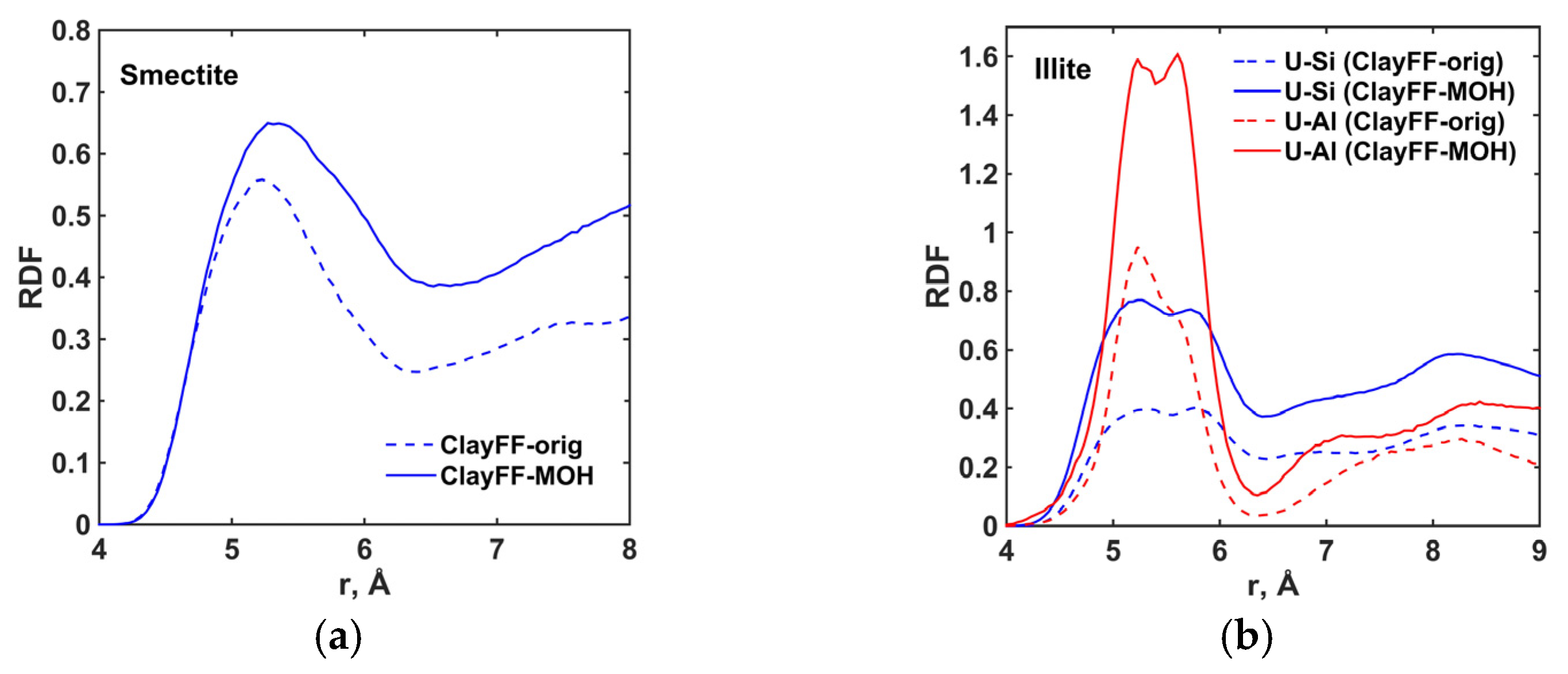

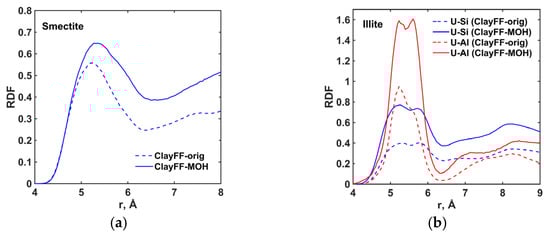

The RDF of U–Si pairs at the illite and smectite surfaces reveals that the main maximum is located at distances higher than 4 Å from the surface (Figure 6), indicating only a weak interaction of uranyl complexes with the surface in both cases. However, some differences in the fine structure of the main peak are observed. For the illite interface, the RDF has a maximum for U–Si and U–Al pairs due to the ambiguity in the location of the uranyl complexes above the substituted and non-substituted ditrigonal cavities with both versions of the ClayFF force field. For the ClayFF-MOH model, the peaks are more resolved, again highlighting the effect of a more accurate parametrization. For the smectite interface, where only octahedral substitutions are present deeper in the clay structure, the U–Si RDF shows a single broader peak for both versions of ClayFF, meaning that the effects of uranyl complex location above a specific surface site are less important.

Experimental EXAFS studies of uranyl sorbed on smectites as an inner-sphere edge complex do indicate the presence of Si/Al coordination shells at 3.1, 3.3, or 3.6 Å [19,21,23,24,25], which is also supported with DFT calculations of the clay edge complexes [37,38,39,40,41]. In our models, only adsorption at the external basal surfaces of clays is considered and therefore the comparison with those experimental results would be inconsistent. The implementation of the newer ClayFF-MOH force field version [44] virtually did not change the positions of the RDF peaks in comparison to the original ClayFF parametrization [42]. However, the intensities of the RDF peaks changed quite a lot, leading to a higher uranyl adsorption predicted with the ClayFF-MOH model. At the illite surface, for U–Al pairs with ClayFF-MOH, the peak intensity is significantly higher, indicating that uranyl cations would be more preferably adsorbed at the substituted ditrigonal cavities. The double maximum of this distribution indicates the existence of two distinct surface configurations slightly off the center of the ditrigonal cavities. With the ClayFF-orig model, a lower intensity of the second RDF peak for U–Al pairs is observed. Generally, the RDF intensity of U–Al pairs is higher than the RDF intensity for the U–Si pairs, which again points to a higher uranyl adsorption at the substituted ditrigonal cavities as modeled with ClayFF-MOH.

3.3. Free Energy of Uranyl Adsorption at Clay Surfaces

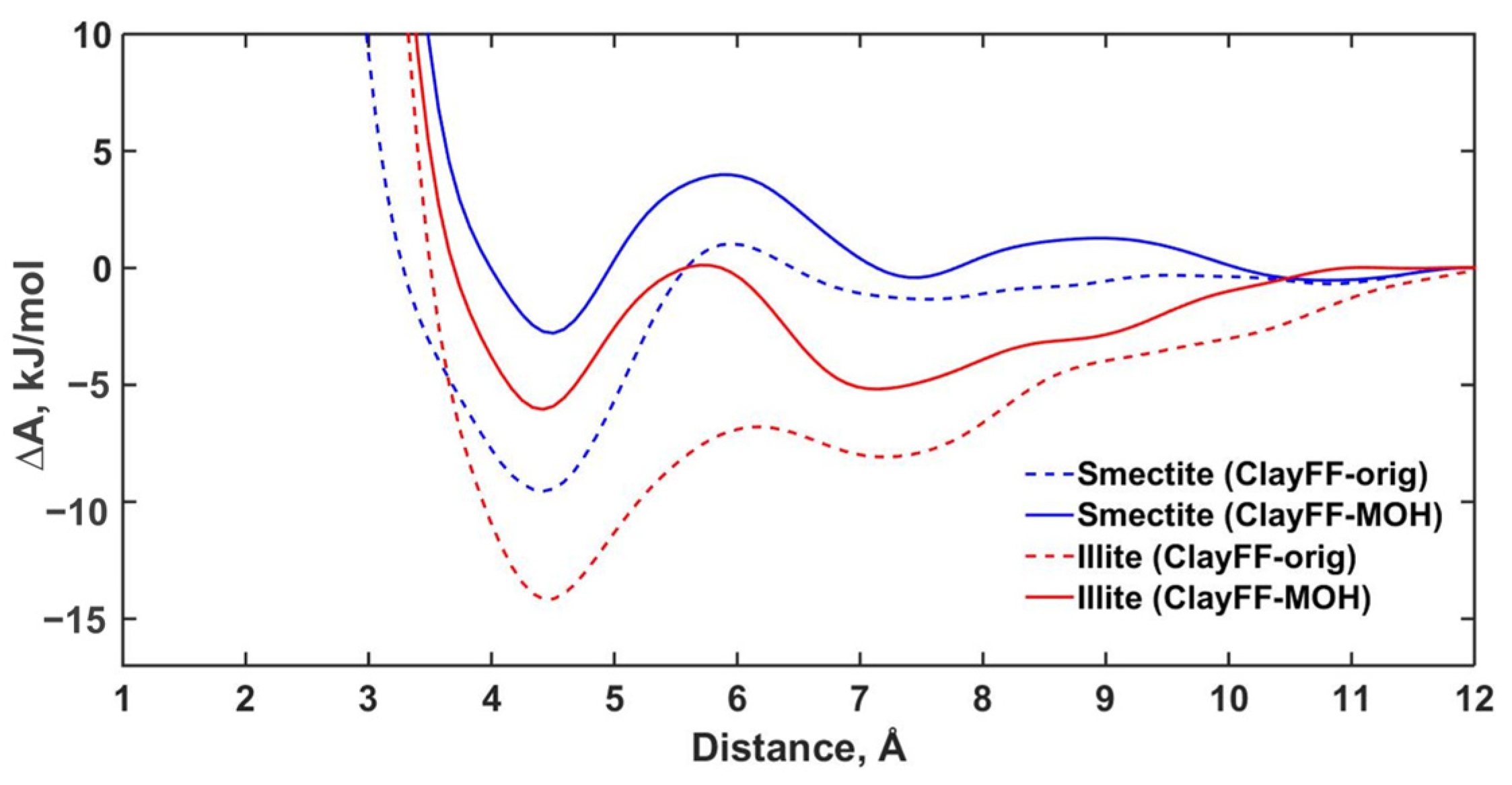

The free energy of adsorption, ∆A, was calculated from the equilibrium NVT-ensemble MD trajectories using the metadynamics approach, as described in Section 2.3. It is important to note, however, that under ambient conditions, one can assume that ∆A ≈ ∆G, i.e., Gibbs free energy of adsorption is equal to the free energy from our metaD calculations [72]. The adsorption-free energy profiles for uranyl ions at the illite and smectite surfaces calculated using the ClayFF-orig and ClayFF-MOH models are shown in Figure 7. To be able to compare the results for different force fields and surfaces, in these constrained MD simulations, only the interaction of the uranyl ions themselves with the clay surfaces was controlled and analyzed, while the nearest presence of coordinating water molecules and, occasionally, of hydroxyl ions, was not controlled and not taken into account in the analysis. Therefore, the results presented below relate to UO₂²⁺ species without consideration of its instantaneous local coordination. At both clay surfaces, the first minimum is located at 4.4–4.5 Å from the surface. Small differences from the atomic density peak positions can be explained by the choice of the center of mass of the ditrigonal cavity as the main adsorption site and the absence of Si/Al substitutions in constrained MD simulations. Thus, the adsorption of uranyl in the unconstrained MD simulations occurs somewhat farther from the center of mass of the ditrigonal cavity, which is also noticeable on time-averaged atomic density distribution maps (Figures S1 and S2). The first minimum verifies that the outer-sphere basal surface complexes of uranyl are strongly preferable. The free energy minimum at the illite surface is at −14.15 kJ/mol with ClayFF-orig, which is a relatively high absolute value, suggesting more stable adsorption of uranyl on the illite basal surface. However, the newer ClayFF-MOH model predicts a much shallower free energy minimum at only −6.05 kJ/mol, thus indicating much weaker uranyl adsorption at the illite basal surface. This result seems to contradict our conclusions derived from the analysis of atomic density profiles (Figure 1 and Figure 2) and radial distribution functions (Figure 6), which consistently indicated that ClayFF-MOH predicts higher adsorption of uranyl. The explanation of this contradiction may be in the fact that the constrained simulations of the adsorption-free energy profiles were only performed for uranyl cation without controlling its nearest environment, while the RDF and CN calculations (Figure 4) indicate that both hydrated UO₂²⁺ and hydrolyzed [UO₂OH]⁺ surface species can be important. Another possible explanation of the discrepancies between the constrained and unconstrained simulations might be that in the constrained simulations, only adsorption above the unsubstituted ditrigonal cavities was considered. Further calculations will clarify the effects of the tetrahedral substitutions on the adsorption-free energy, as it was suggested earlier [72].

For the smectite surface, the first free energy minimum is −9.55 kJ/mol with the ClayFF-orig model, but only −2.79 kJ/mol with the more recent ClayFF-MOH model. Again, the inconsistency of the atomic density and energy profiles is due to the presence of a significant fraction of hydrolyzed uranyl ions. As expected from simple electrostatic considerations, both models predict lower adsorption at the lower-charge smectite surface than at the higher-charge illite surface. This is consistent with the observed differences in the atomic density profiles (Figure 1).

The second free energy minima in Figure 7 corresponds to the second outer-sphere uranyl complexes farther away from the basal clay surfaces. For smectite, the second minimum is predicted at ~7.4 Å from the surface with both versions of ClayFF. The values of the minima are close, −1.31 kJ/mol and −0.41 kJ/mol with ClayFF-orig and ClayFF-MOH, respectively. This result is also consistent with the close values of the intensities for the uranium density profiles (Figure 1). The position of the second free energy minimum from the illite simulations is ~0.2 Å closer to the basal clay surface, located at 7.2 Å and 7.1 Å with the ClayFF-orig and ClayFF-MOH models, respectively. It is interesting to note that the energy value of −5.18 kJ/mol with ClayFF-MOH is close to the value of the first free energy minimum for this system. The earlier ClayFF-orig model predicts the second free energy minimum at −8.08 kJ/mol, which is significantly smaller by absolute value than the global minimum for this simulation (−14.15 kJ/mol). However, no differences in the intensities of the atomic density profiles around ~7 Å are observed, again pointing to a high importance of [UO₂OH]⁺ contribution.

It is worth emphasizing that for both the smectite and illite clay surfaces, ClayFF-MOH predicts the adsorption-free energy minima much less pronounced compared to the ClayFF-orig model. This can be explained by (i) the impact of the hydrolyzed complexes contributing to the calculated atomic density profiles but not taken into account in free energy calculations and (ii) the effect of stronger orientational constraints on the libration of structural hydroxyl ions within the ditrigonal cavities of the TOT clay structure with the ClayFF-MOH force field, which affects the general electrostatic strength of uranyl attraction to the surface.

4. Conclusions

The research on the quantitative macroscopic characterization of cation adsorption and retention in clay materials is quite substantial, but studies focused on the molecular mechanisms of these processes remain rather limited, despite growing interest from both fundamental geochemistry and from numerous engineering and environmental applications, including the technology of geological disposal and storage of radioactive waste [76].

In this work, we aimed to study, on the fundamental molecular scale, the effects of the magnitude and localization of the negative structural charge of clay TOT layers on the adsorption capacity for uranyl ions at hydrated basal clay surfaces and on the local structural environment of adsorbed uranyl ions. For this purpose, two new models of end-member clay structures in the illite–smectite mixed-layer series were constructed and investigated using the classical molecular dynamics computer simulation technique. The effect of the layer charge turned out to be not as significant as it was initially expected. Near both clay surfaces, uranyl ions are weakly adsorbed at similar distances in the form of outer-sphere non-hydrolyzed aqua complexes [UO₂(H₂O)₅]²⁺ and partly hydrolyzed [UO₂(H₂O)_4–5OH]⁺ with U-O_w and U-O_hw distances around 2.50 and 2.33 Å, respectively. Local uranyl coordinations evaluated from the calculated radial distribution functions revealed that the fraction of hydrolyzed species is predominant for both surfaces. This result suggests that in mixed-layer clay minerals, such as ISCz-1, local uranium coordination would also remain similar. The observed U-O_w distances are very close to the results of EXAFS studies of outer-sphere uranyl complexes.

The other side of our work concerned the comparison of predicted uranyl adsorption made from the simulations using the original [42] and the more recently modified [44] ClayFF classical force field models. It is shown that the modified version, ClayFF-MOH [44], provides a more detailed description of the structure of uranyl surface complexes, while keeping many earlier results principally unchanged. The use of the modified force field allowed us to observe more clearly the changes in the adsorbed uranyl complex composition, which seemed impossible with ClayFF-orig. With ClayFF-MOH, we can also observe a decrease in the adsorption-free energy for UO₂²⁺ cation over ditrigonal cavities without substitutions. As a result, the modified ClayFF-MOH model predicts a higher UO₂²⁺ surface mobility. However, a detailed quantitative analysis of the adsorption-free energy of various uranyl complexes over various substituted sites at basal clay surfaces and, consequently, the particular contributions of all these factors to the overall UO₂²⁺ retention and surface mobility, requires further systematic simulation studies, and will be reported separately.
