Reaction Characteristics of Two Types of Shale with Supercritical CO₂ and Its Potential Impact on Flow-Back Strategies

Abstract

Supercritical carbon dioxide (SC-CO₂) fracturing has been used in developing low permeability and water-sensitive reservoirs in recent years, which is expected to become a new generation of unconventional reservoir fracturing fluid. However, the water-rock interaction characteristics of various lithology shales under SC-CO₂ circumstance and its influence on fracturing effect still need to be investigated. Two kinds of shale samples from C7 and S1 formations of the Ordos Basin were treated by SC-CO₂ with formation water. The aims of the research are to determine the processes taking place in shale reservoir when considering minerals components transformation, porosity/permeability variation, and micro pore-structure change during the SC-CO₂ fracturing. Static and dynamic SC-CO₂ immersed experiments were conducted and the scanning of electron microscopy (SEM) and X-ray diffraction (XRD) was employed to analyze the surface morphology and newly formed minerals. Helium porosimeter, the ultralow permeability meter, and the CT scanner are employed to record the alternation of physical parameters during SC-CO₂ dynamic injection. The experimental results show that the C7 samples are rich of chlorite and easily reacting with SC-CO₂ saturated formation water to form new minerals, but the S1 samples are insensitive to aqueous SC-CO₂. The minimum value of permeability and porosity of the C7 cores appear at 24h in the long-interval experiment, but in the short-interval dynamic experiment, the minimum values move ahead to 12h. The optimal flowback time for the C7 reservoir is before 12 h or after 24 h. The high-pressure SC-CO₂ flooding pushes the new forming minerals particles to migrate to the outlet side and block the pore throat. For the S1 core results, the porosity and permeability change little in both short and long interval experiments. There is no strict flow-back time requirement for S1 reservoir during SC-CO₂ fracturing. This study is significance for the efficient application of SC-CO₂ in the exploitation of shale oil reservoirs.

1. Introduction

As conventional resources tend to fall into depletion, a large amount of attention has been paid to unconventional resources. Currently, large-scale hydraulic fracturing is considered the most common method of developing unconventional oil and gas fields [1,2,3]. However, it will have a series of consequences when a large amount of water-based fracturing fluid is used in the oil and gas development process. For example, it will cause a shortage of water resources, notably in areas where there are droughts and water shortages, and it will cause swelling of clay minerals and cause formation damage for the formation with high clay mineral content. Furthermore, hydraulic fracturing will also lead to groundwater pollution [4,5,6]. To eliminate above mentioned problems, supercritical carbon dioxide (SC-CO₂) has been proposed as an anhydrous fracturing fluid in the development of unconventional oil and gas fields, because it can solve problems such as water shortage, clay swelling, and fluid backflow problems caused by traditional water-based fracturing fluid [7,8,9,10].

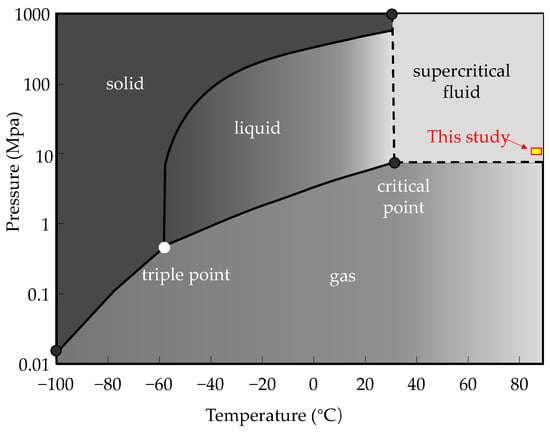

Due to its low viscosity and high diffusion ability, SC-CO₂ can easily penetrate deeply into the inner micro-pores of the reservoir during CO₂ waterless fracturing. The experiments conducted in different laboratories have clearly indicated the fact that using SC-CO₂ fracturing phase can reduce the fracture pressure and create multi-branch fracture networks [11,12,13].

However, when the SC-CO₂ is pumped into the shale reservoir, there also exists a complex chemical interaction process considering the formation water acidizing. The SC-CO₂-water-rock interaction causes mineral dissolution and new mineral precipitation, and then leading to changes in the pore structure [14,15,16,17,18,19,20,21,22]. The reaction equation of CO₂-water and different minerals is as follows:

CO₂ Dissolution in formation water:

$${\mathrm{CO}}_2+{\mathrm{H}}_2\mathrm{O}\iff {\mathrm{H}}^{+}+{\mathrm{HCO}}_3{}^{-}\iff 2{\mathrm{H}}^{+}+{\mathrm{CO}}_3{}^{2-}$$

(1)

The reaction of CO₂ and chlorite:

$$\begin{gathered} {[\mathrm{Fe}/\mathrm{Mg}]}_5{\mathrm{Al}}_2{\mathrm{Si}}_3{\mathrm{O}}_{10}{\left(\mathrm{OH}\right)}_8+5{\mathrm{CaCO}}_3+5{\mathrm{CO}}_2= \\ 5\mathrm{Ca}\left[\mathrm{Fe}/\mathrm{Mg}\right]{\left({\mathrm{CO}}_3\right)}_2+{\mathrm{Al}}_2{\mathrm{Si}}_2{\mathrm{O}}_5{\left(\mathrm{OH}\right)}_4+{\mathrm{SiO}}_2+{\mathrm{H}}_2\mathrm{O} \end{gathered}$$

(2)

The reaction of potassium feldspar and H₂O:

$$2{\mathrm{KAlSi}}_3{\mathrm{O}}_8+2{\mathrm{H}}^{+}+9{\mathrm{H}}_2\mathrm{O}={\mathrm{Al}}_2{\mathrm{Si}}_2{\mathrm{O}}_5{\left(\mathrm{OH}\right)}_4+2{\mathrm{K}}^{+}+4{\mathrm{H}}_4{\mathrm{SiO}}_4$$

(3)

The reaction of CO₂ and calcite:

$${\mathrm{CO}}_2+{\mathrm{H}}_2\mathrm{O}+{\mathrm{CaCO}}_3=\mathrm{Ca}{\left({\mathrm{HCO}}_3\right)}_2$$

(4)

The reaction of CO₂ and dolomite:

$$\mathrm{CaMg}{({\mathrm{CO}}_3)}_2\left(\mathrm{s}\right)+2{\mathrm{H}}_2{\mathrm{CO}}_3={\mathrm{Ca}}^{2+}+{\mathrm{Mg}}^{2+}+4{\mathrm{HCO}}_3^{-}$$

(5)

Research results show that some minerals, such as calcite and dolomite, dissolve directly into the carbonic acid solution, resulting in the pore throat expansion. In contrast, some minerals, such as chlorite and potassium feldspar, also form new minerals when dissolved in a carbonic acid solution, such as kaolinite and iron/magnesium dolomite Ca[Fe/Mg](CO₃)₂, which exert uncertain influences on pores [13,17,18,22,23,24,25,26].

In the process of shale reservoir SC-CO₂ fracturing, the mineral composition of the shale is the important factor considering CO₂-water-rock interaction. Previous studies conducted experimental research mainly under static, fixed period, and gas CO₂ conditions. The SC-CO₂ fracture and flow-back processes are typically supercritical and dynamic conditions. This paper presents a series of novel static and dynamic experiments to investigate the mechanisms and characteristics of different shales under SC-CO₂ condition and explore its potential impact on fracturing flowback timing.

2. Materials and Methods

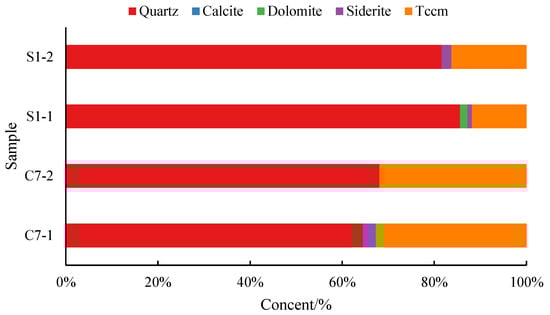

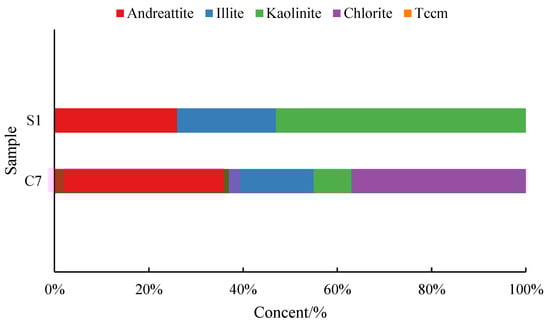

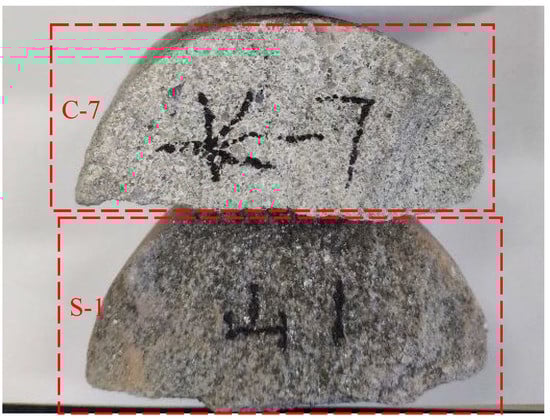

The downhole samples were collected from the C7 and S1 formations in Ordos Basin, China. The rocks’ colors were light green and black-gray for C7 and S1, respectively, as shown in Figure 1. Mineral and clay compositions were analyzed by using a Rigaku Miniflex II X-ray diffractometer. Results show that the mineral components are mainly quartz and clay, with some containing a small amount of calcite, dolomite, and siderite (Figure 2). While clay mineral analysis indicates that 30% chlorite is present in the C7 formation, in contrast no chlorite was found in the S1 formation (Figure 3).

2.1. Formation Water and Experiment Conditions

The formation water ion composition is shown in

Table 1. The formation water ion concentration.

Ions	Na+	K+	Ca2+	Mg2+	Cl−	SO42−	HCO3−
concertation mg/L	13,302	525	1248	176	23,419	210	221

. The pH of the formation water is 6.0. According to well logging data [27], the burial depth of C7 and S1 formations is 2800–3500 m, and the reservoir temperature is 90–110 °C. The CO₂ injection pressure is set to 14 MPa according to the field and laboratory conditions. These parameters correspond to the SC-CO₂, defined by the phase diagram of CO₂ (Figure 4).

2.2. Static SC-CO₂-Water-Rocks Interaction

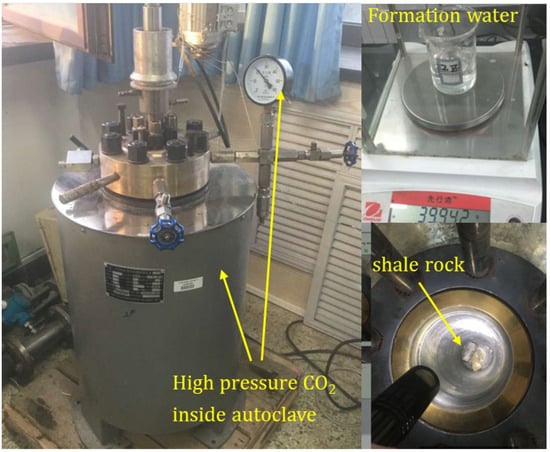

The purity of the CO₂ gas used for the experiment was about 99.99%. The CO₂-water-rock static experiment reaction vessel is a high-temperature and high-pressure autoclave, with a volume of 1 L, maximum pressure of 25 MPa, and a temperature range of 0–200 °C. Since the maximum pressure of the CO₂ cylinder is about 7 MPa, it is necessary to use a pressurization pump to compress the CO₂ and increase the pressure to 14 MPa. The autoclave heating system controls the reaction temperature. The temperature and pressure inside the autoclave are measured in real-time by a thermocouple and a pressure gauge, respectively. The static testing samples are approximately 2 cm³ small cubic blocks, these small blocks are machined from the waste of the downhole shale sample after coring (the samples in static SC-CO₂ immersed experiments and the standard cores in dynamic experiments are from the same downhole bigger cores). The small block samples are placed in a high-temperature autoclave under SC-CO₂ conditions to react with formation water for 48 h. Figure 5 shows the experimental pictures of the autoclave, formation water, and rock samples.

2.3. Dynamic SC-CO₂ Injection Experiment

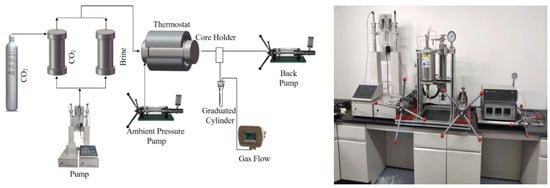

The dynamic displacement experimental device is mainly composed of two 1 L high temperature and high-pressure cylindrical storage tanks, metal core holders, SC-CO₂ resistant rubber sleeves, double cylinder high-pressure and constant pressure/flow metering pumps, a temperature control system, a confining pressure pump, inlet and outlet pressure sensors, a back pressure pump, and a back pressure valve. The schematic and the physical diagram of the dynamic displacement experimental set-up is shown in Figure 6.

The reaction temperature of the dynamic experiment is 100 °C, and the injection pressure remains constant at14 MPa, which is consistent with the static experiment. The confining pressure is 17 MPa.

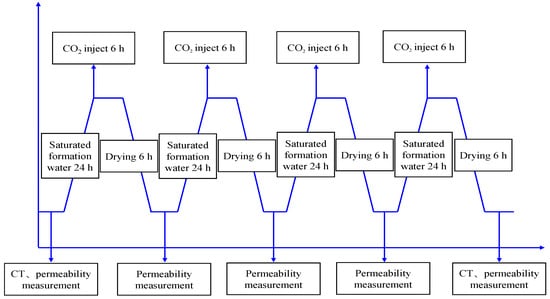

The standard core is placed in the core holder, then SC-CO₂ and formation water are injected into the core to determine the optimal flowback time after CO₂ fracturing. The experimental procedure is shown in Figure 7, the experiments are classified into long-interval displacement and short-interval displacement. Two standard samples (25 mm in diameter and 50 mm in length) coring from the downhole bigger core were prepared for each shale. The cores were taken every 24 h in the long-interval experiment to measure the core porosity and permeability, and the total experiment duration was 48 h. In the short-interval experiment, porosity and permeability were measured every 6 h, and the total experiment duration was 24 h.

2.4. Measurements of Porosity and Permeability

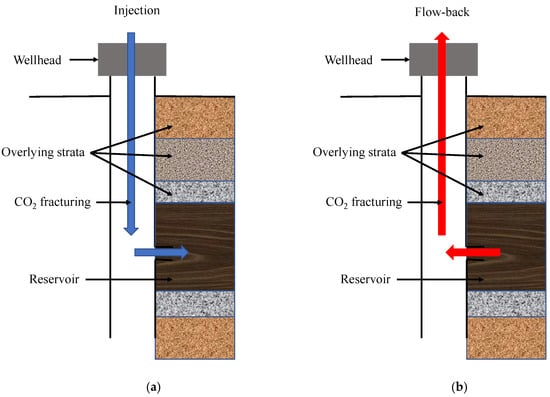

The permeability of shale rock is tested using an ultra-low permeameter. In actual field operations, the injection direction of CO₂ fracturing is opposite to the production direction of the oil well (Figure 8). Therefore, the dynamic experiment adopts a method that injects CO₂ into one side of the rock core. It measures the porosity and permeability of core from the opposite direction while ensuring that the measurements of the confining and displacement pressures are the same.

The helium porosimeter is a commonly used instrument for measuring pore volume. Its design principle is based on Boyle’s law, where the temperature and volume of the core chamber are fixed. The measured sample volume, the core chamber, and the pores of the rock sample increase the equilibrium pressure. According to the volume of the calibration block and the standard equilibrium pressure curve, the equilibrium pressure of the inserted core sample is measured, and the reverse calculation volume of the rock skeleton and the porosity is obtained.

On the other hand, permeability refers to the rock body allowing fluid to pass through the ends of the rock. The principle of the equipment used in this experiment is the transient pressure pulse method. A sealed container is placed at both ends of the rock sample, and the pressures at the ends of the rock sample and the core chamber are balanced. A pressure pulse is given to one end of the container and gradually transferred across the core to the other. The computer monitors the pressure changes at both ends in real-time until the pressure is balanced again and calculated according to the upstream and downstream pressure drop curves.

When measuring permeability, note that the measurement should be consistent each time before and after the reaction. Measurement results at different confining and displacement pressures have no comparative value.

2.5. Scanning Electron Microscopy (SEM) and X-ray Diffraction (XRD) Analysis

The surface texture and morphology of the rock were observed using a TM3030 SEM. The SEM is equipped with an energy dispersive spectroscopy system (EDS). The mineralogy of the rock samples is determined using X-ray diffraction analysis (Rigaku Miniflex II X-Ray Diffractometer). Measurement was performed within the angular range of 3–45° at a scanning speed of 2θ = 1 °/min. The diffraction data were processed using the MDI software (known as the JADE). The detailed procedures follow the “Analysis Method for Clay Minerals and Ordinary Non-Clay Minerals in Sedimentary Rocks by X-Ray Diffraction (SY/T5163-2010)”.

2.6. CT Scanning

The core is scanned using a CT scanner (GE Brivo CT385 double-slice spiral CT scanner) and median filter processing for the CT image of the core then identified the pores in the image. The change in axial and radial porosity of core samples is calculated. Moreover, the change in pore structure before and after the reaction is compared.

The 2D CT slice images can be used to reconstruct the 3D core according to the gray value between the rock pore and skeleton. In this study, about 160 slice images are scanned continuously for each sample along the core’s length. Six slices before and after reconstructions are removed to avoid possible boundary effects that could occur at both ends of the rock CT scanning process. System noise is generated in the process of CT scanning due to the sample thickness and the number of large and small X-ray photons. It affects the quality of the gray image, segmentation processing of the core pore skeleton, and quantitative analysis of porosity. After the noise reduction process, the pore and the core skeleton grayscales are determined.

3. Results and Analysis

3.1. Static SC-CO₂-Water-Rock Interaction

3.1.1. Changes in Morphology

SC-CO₂-water-rock static reactions are evaluated by electron microscopy of cores to observe the changes in microstructure at the exact location before and after the reaction (the block samples were marked with a marker on the surface in order to navigate and observe the same micro area before and after the reaction). Some of the minerals on the surface of the C7 core are dissolved and appear in dissolution holes (Figure 9b). Based on the clay mineral analysis result (Figure 3) and chemical reaction Equation (2), the C7 sample is rich in chlorite. It easily reacts with carbonate formation water to form new minerals. However, there is no significant difference in the core sample of the S1 before and after the reaction. No large amounts of mineral dissolution are found on the surface of the core sample (Figure 9c,d).

3.1.2. Changes in Mineral Compositions

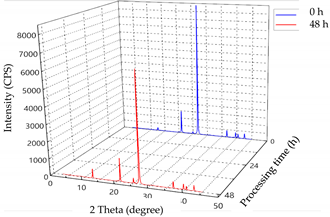

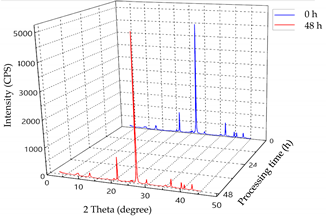

XRD analysis of core samples before and after the reaction shows that the clay mineral content of the C7 sample decreases obviously. At the same time, there is almost no change in the S1 core sample (

Table 2. Mineral types and contents analyzed by XRD.

Samples	XRD Analysis	Time	Mineral Type and Content, wt%
			Quartz	Calcite	Dolomite	Siderite	TCCM
C7		0 h	64.5	2.8	/	/	32.7
		48 h	71.6	3.7	/	/	24.7
S1		0 h	85.6	/	1.6	1.0	11.8
		48 h	87.3	/	2.9	0	9.8

). Combined with the results of SEM, it can be found that clay minerals dissolution reactions cause clay minerals to decrease from 32.7% to 24.7%. Although quartz does not react with carbonated formation water, the decrease in clay minerals increases the proportion of quartz content (from 64.5% to 71.6%).

3.2. Dynamic SC-CO₂ Injection Experimental Results

3.2.1. Change in Porosity and Permeability of the Long-Interval Testing

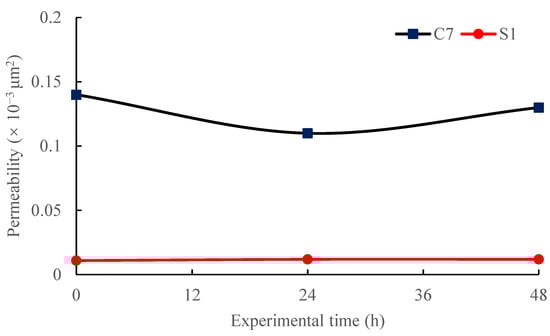

The change in permeability for long-interval (24 h) experiments is shown in Figure 10. The permeability of the C7 core decreases during the first 24 h, from the initial value of 0.14 × 10⁻³ μm² to the minimum value of 0.11 × 10⁻³ μm², and then increases to the final value of 0.13 × 10⁻³ μm² by the end of 48 h. The maximum permeability change is around 21.4% compared to the initial permeability. The change in permeability is mainly caused by the new mineral sediment, which blocks the pore throat and decreases permeability. With the continuous injection of SC-CO₂, some sediments are drained, and the permeability increases. However, the S1 core almost keeps stable during the experiment. From the initial value of 0.011 × 10⁻³ μm² to the middle of 0.012 × 10⁻³ μm², and then end with 0.012 × 10⁻³ μm². The permeability change is less than 9%. The CO₂-water-rock interaction has little influence on the S1 rock permeability.

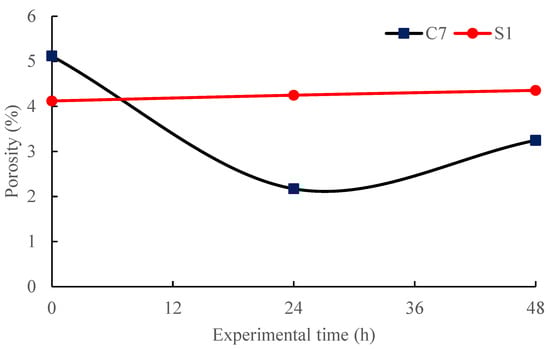

The change in porosity for long-interval (24 h) experiments is shown in Figure 11. The porosity of the C7 core decreases at the beginning stage and reaches a minimum value of 2.17% at 24 h and then increases to 3.25% by the end of 48 h. Compared with the initial porosity, the final porosity of the C7 core decreased by 36.5%. After the dissolution, the weakly cemented mineral particles that are released migrate into the core. However, the deposition is greater than the dissolution. Compared with the C7 core, the S1 core has almost no minerals dissolved. The cementation condition is good, and there is almost no migration of weakly cemented minerals. Combined with the static experiment results (Figure 9c,d), it can be considered that the CO₂-water-rock interaction hardly occurs in the S1 core.

3.2.2. Change in Porosity and Permeability of the Short-Interval Testing

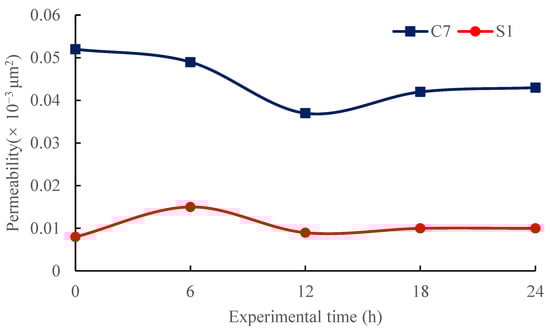

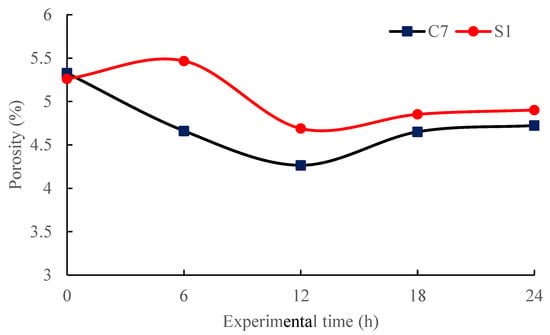

For the short-interval (6 h) dynamic experiments, the permeability and porosity changes are shown in Figure 12 and Figure 13, respectively. The C7 core permeability gradually decreases to the minimum value of 0.037 × 10⁻³ μm² at 12 h. Finally, it increases to 0.043 × 10⁻³ μm², but it is still smaller than the initial value of 0.052 × 10⁻³ μm². S1 core increases to the maximum value of 0.015 at 6 h and then decreases to a stable value of 0.01 × 10⁻³ μm². The variation regulars of porosity are similar to the permeability. The porosity of the C7 core decreases from the initial value of 5.328% to the minimum of 4.265% and then gradually increases to 4.724%. Similar to the permeability, the S1 core porosity reaches a peak of 5.468% at 6 h, and then dramatically decreases to the bottom at 4.69%.

Combining the long-interval and short-interval experiment results, it can be shown that the minimum value of permeability and porosity of the C7 cores appears at 24 h in the long-interval experiment, but in the short-interval experiment, the minimum values move ahead to 12 h. The difference in the initial permeability is related to the core structure, such as micro-cracks. However, the similar change trend reflects the effect of the CO₂-water-rock reaction process. The most serious reservoir seepage damage time is between 12 and 24 h during the SC-CO₂ injection. Fracturing SC-CO₂ flowback time recommended before 12 h or after 24 h. Between 12 h and 24 h, flowback operation could cause SC-CO₂ retention.

For the S1 core results, the porosity and permeability change little in the long interval experiment. However, in the short interval experiment, the physical properties of S1 change more obviously, and both permeability and porosity appear a peak value at 6 h. Generally, there is no strict flow-back time requirement for the S1 reservoir during SC-CO₂ fracturing, but it may get a better flow-back result around 6 h.

3.2.3. CT Scanning 3D Digital Reconstruction and Micro Blocking Analysis

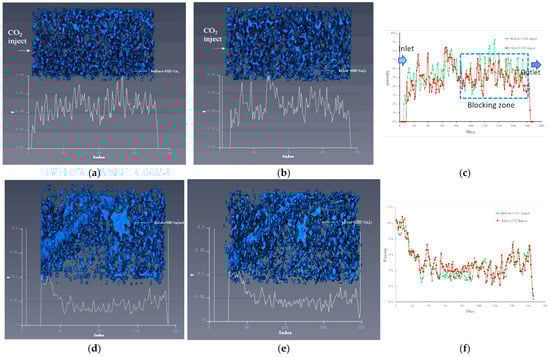

The core slice data is obtained by CT scanning of the core before and after the CO₂-water-rock reaction. The porosity distribution of C7 and S1 cores after 3D digital reconstruction is shown in Figure 14. The helium porosimeter measured porosity of the C7 core is 5.35%. The reconstructed pore volume is 900,008 μm³ and the porosity is 5.38%. The CT reconstruction porosity is basically consistent with that of the helium porosimeter. In Figure 14a, the C7 core has uniform pore distribution and good cementation. After the CO₂-water-rock interaction, the helium porosimeter measured porosity is 4.71%. The CT reconstructed pore volume is 875,941 μm³ and the porosity is 4.90%. The porosity decreased by 0.64% compared to the initial. By comparing the CT digital slice porosities as shown in Figure 14c, the porosity is slightly reduced by the CO₂-water-rock interaction along the core length. Nevertheless, on the outlet side (dash square in Figure 14c), high-pressure CO₂ flooding pushes the newly forming minerals particles to migrate to the outlet side and block the pore throat.

The helium porosimeter measured porosity of the S1 core is 5.28%. The reconstructed pore volume is 993,307 μm³, and the porosity reconstructed by CT scan is 5.37%. In Figure 14d, the pore distribution of the S1 core is uneven. After the CO₂-water-rock reaction, the helium porosimeter measured porosity is 4.97%. The reconstructed pore volume is 955,682 μm³ and the porosity is 5.08%. In Figure 14f, the porosity change of the S1 core is not obvious before and after the CO₂ injection, which indicates that the pore throat of the core is almost not affected by the CO₂-water-rock interaction. CT scanning analysis can clearly explain the permeability and porosity testing results.

4. Conclusions

In this study, two kinds of shale rock reacting with SC-CO₂ under static and dynamic experimental conditions were investigated. The surface morphologies, newly formed minerals, porosity, and permeability of the reservoir rocks before and after the interaction were studied. The main conclusions are as follows:

(1)

From the static experiment, dissolution and precipitation can be observed, which shows that SC-CO₂ and water will certainly change the physical properties of the shale rocks in the C7 and S1 formations. Dissolution happens to minerals such as dolomite and chlorite in the rock; the precipitation is caused by the iron dolomite formed by the reaction of chlorite with calcium carbonate and carbon dioxide.

(2)

The reconstruction of pores before and after the dynamic experiment was analyzed by CT scanning. The CO₂-water-rock interaction may lead to the blocking of small pores. Compared with the S1 core, SC-CO₂ flooding pushes the newly formed mineral particles to migrate to the outlet side and block the pore throat in the C7 core.

(3)

The research results show that the S1 reservoir is basically not affected by the CO₂-water-rock interaction, and the flow back is the best within 6 h after SC-CO₂ injection.

(4)

The C7 reservoir is most severely affected by the CO₂-water-rock interaction in 12–24 h. It is recommended to perform the flow back within 12 h or after 24 h, improper flowback strategies could cause SC-CO₂ retention and reservoir damage.
