A Series of Data-Driven Hypotheses for Inferring Biogeochemical Conditions in Alkaline Lakes and Their Deposits Based on the Behavior of Mg and SiO₂

Abstract

Alkaline (pH > 8.5) lakes have been common features of Earth’s surface environments throughout its history and are currently among the most biologically productive environments on the planet. The chemistry of alkaline lakes favors the deposition of aluminum-poor magnesian clays (e.g., sepiolite, stevensite, and kerolite) whose chemistry and mineralogy may provide a useful record of the biogeochemistry of the lake waters from which they were precipitated. In this forward-looking review, we present six data-driven, testable hypotheses devoted to furthering our understanding of the biogeochemical conditions in paleolake waters based on the geochemical behavior of Mg and SiO₂. In the development of these hypotheses, we bring together a compilation of modern lake water chemistry, recently published and new experimental data, and empirical, thermodynamic, and kinetic relationships developed from these data. We subdivide the hypotheses and supporting evidence into three categories: (1) interpreting paleolake chemistry from mineralogy; (2) interpreting the impact of diatoms on alkaline lake sedimentation; and (3) interpreting depositional mineralogy based on water chemistry. We demonstrate the need for further investigation by discussing evidence both for and against each hypothesis, which, in turn, highlights the gaps in our knowledge and the importance of furthering our understanding of the relevant geological and biological systems. The focused testing of these hypotheses against modern occurrences and the geologic record of alkaline lakes can have profound implications for the interpretation of the paleo-biogeochemistry and paleohabitability of these systems on Earth and beyond.

1. Introduction

1.1. Motivation and Direction of the Review

Alkaline lakes and their mineral deposits are present through much of Earth’s geological record [1,2,3] and may have also occurred in the sedimentary record of other terrestrial planets [4,5,6]. They are among the most biologically productive environments on the planet [7,8,9] and have likely contributed to carbon cycling on a planetary scale over Earth’s history [10,11,12]. Geochemical modeling even suggests that carbonate-rich lakes formed early in Earth’s history could have given rise to its first organisms [6]. Recent work has also implied that synthetic versions of these lakes can help combat global climate change by assisting in the production of algal biofuels [13]. Meanwhile, the discovery of vast hydrocarbon reservoirs in ancient alkaline lake deposits on the south Atlantic coastal margins has prompted renewed interest in these systems from energy producers [14,15,16,17,18,19,20,21,22]. Altogether, the diversity of researchers studying alkaline lakes and their deposits demonstrates that these systems are dynamic, biogeochemical hotspots worthy of continued study.

The mineral assemblages produced by alkaline lake systems often feature some combination of silicate clays, carbonates, and various evaporite minerals [1,23]. Over 40 years ago, Eugster and colleagues [1,24,25] established a flow diagram, based on the concept of chemical divides, to map the evolution of lacustrine brine geochemistry as source waters are evaporatively concentrated. Divides occur when specific chemical constituents (e.g., Ca and/or Mg) are diminished by mineral precipitation as waters evaporate, such that further evaporation will lead to a different mineral assemblage than if that constituent were not diminished. Using the chemical divides concept [1,24,25] the presence of these mineral groups can provide important insight into the biogeochemistry of the lake that deposited them. For example, the presence or absence of gypsum (CaSO₄∙2H₂O) can provide insight into the lacustrine sulfur cycle [1]. Moreover, diagnostic morphologies of carbonate minerals precipitated from alkaline lake waters can yield useful inferences about lacustrine pH and SiO₂(aq) concentrations [26]. In turn, these observations can be complemented with studies of clay mineral geochemistry to yield more specific insight into the lake water chemistry [23].

As pointed out by Eugster and Hardie [24], Mg-silicate clay precipitation is possible for most paths through the chemical divide flow diagram. In this forward-looking review, we present a series of testable hypotheses for using the mineralogy of alkaline lake deposits, particularly the presence of various Al-poor Mg-silicate minerals, to make more granular inferences about the paleochemistry of the water from which they were deposited than would be permitted by the chemical divides concept alone. Although some hypotheses are more controversial than others, we make every attempt to collect and present supporting and opposing evidence for each hypothesis. In turn, we hope that these hypotheses will help to direct the future of research into magnesian clays and alkaline lake deposits, and their potential for interpreting the biogeochemical evolution of our planet and other bodies in our solar system.

1.2. Geochemistry of Alkaline Lakes

Alkaline lakes are defined here as lacustrine systems with a pH of 8.5 or greater. These environments develop through evaporative concentration of underfilled lakes with source waters containing ratios of the concentration of Ca²⁺ to alkalinity under 2 mol/mol, which yields elevated pH following the nearly quantitative removal of Ca²⁺ as solid CaCO₃ during the early stages of evaporation [27]. This evaporation process yields elevated concentrations of conservative tracers such as Cl⁻ and Na⁺ commensurate with the degree of evaporation [24]. Concentrations of Mg²⁺, on the other hand, typically only yield similar increases until the solubility of a Mg-bearing phase (e.g., Mg-bearing clays or carbonates) is exceeded [28,29,30]. SiO₂(aq) concentrations, in turn, often follow the trends exhibited by Mg²⁺ concentrations, but can also be controlled by other biogeochemical processes (Figure 1). Al³⁺ concentrations in lake waters typically decrease as a result of increasing evaporative concentration (Al³⁺ solubility is sensitive to elevated fluid pH and typically conserved in a solid phase) [24]. In the advanced stages of evaporation, alkaline lake chemistry is dominated by varying proportions of SiO₂(aq), Ca²⁺, Mg²⁺, Na⁺, K⁺, Cl⁻, HCO₃⁻, CO₃²⁻ and SO₄²⁻, which can be predicted and evaluated using the “chemical divides” flow diagram of brine evolution [1,24,25]. Importantly, one of the uniting characteristics of alkaline lakes is that they contain significantly more inorganic carbon than natural waters with circumneutral pH (e.g., seawater [31]), which gives rise to these uniquely productive, apparently non-carbon limited ecosystems [7,8,9].

Clay minerals deposited in lacustrine sediments can be dominantly aluminous (e.g., kaolinite), magnesian (e.g., talc), or both (e.g., saponite) [23]. In keeping with the goals of the present study, we focus our introduction on Al-poor Mg-silicates, because aluminous clays are unlikely to provide a directly interpretable record of the chemical conditions of lake waters, given the minimal aqueous Al concentrations in alkaline lakes, which limits their precipitation. Rather, aluminous clays in alkaline lake deposits likely reflect the process of detrital clay input (i.e., freshening events [32]) and diagenetic transformations [33]. Since the properties and origin of Al-poor Mg-silicate minerals have been thoroughly and extensively reviewed elsewhere [21,22], we only provide a brief summary here.

Talc (Mg₃Si₄O₁₀(OH)₂) and/or its hydrated equivalent, kerolite (Mg₃Si₄O₁₀(OH)₂∙H₂O), sepiolite (Mg₂Si₃O_7.5(OH)∙6H₂O), and stevensite (a poorly defined trioctahedral smectite with the idealized formula (M⁺_2y∙nH₂O) (Mg_3-y□_y) Si₄O₁₀(OH)₂, where M⁺ is an exchangeable interlayer cation (monovalent in this case), □ represents y vacancies and n is variable) are common in alkaline lake deposits [21,23]. The structural distinctions between these Mg-silicate minerals yield variable ratios of Mg to Si. Each mineral has an ideal stoichiometric Mg/Si ratio: 0.75 for talc/kerolite, 0.67 for sepiolite, and ~0.67–0.75 for stevensite [34], although it has become clear that even apparently mineralogically pure phases can have chemistry that deviates from this ideal ratio [22,35,36], and lake deposits often contain mixtures or interlayers of multiple separate minerals [34,37,38,39]. Importantly, stevensite, as a trioctahedral smectite, has a positive charge deficit and thus often contains additional cations such as Na⁺. Moreover, loughlinite (Na₂Mg₃Si₆O₁₆∙8(H₂O)), the sodium analog of sepiolite, has been observed in some locales [40].

While it has long been established that there is a relationship between Mg-rich silicate clays and fluid pH [28,41,42,43], experimental studies of the past decade have begun to uncover a correlation between other aspects of fluid chemistry (e.g., the Mg/Si ratio) and the Mg-silicate mineral chemistry [35,44,45].

2. Data-Driven Hypotheses for Interpreting Paleolake Chemistry

In this section, we begin with a set of hypotheses specifically discussing the potential for using Mg-silicate minerals in alkaline lake deposits to constrain chemical conditions of the ancient lake systems that deposited them.

2.1. Hypothesis 1

Mg-silicates authigenically precipitated from alkaline lakes are thought to pass through an initial, amorphous or gel-like stage before ultimately maturing to their crystalline counterparts [14,15,23,30,42,43,44,45,46,47]. The rate of this conversion depends on the temperature and chemical conditions accompanying the reaction [35,43,48], but often appears to go to completion, since the presence of amorphous components has not been demonstrated in mineralogical analyses of ancient lacustrine sediments [21,22,32]. That observation notwithstanding, it is interesting to note that environmental conditions on Mars have conspired to preserve amorphous materials over billions of years [49,50]. Together, these observations suggest that there is a role for the gel precursor in the potential pathways to Mg-silicate crystallization. Yet, the most important question to answer for our current effort is: Do the chemistry and mineralogy of the geologically preserved Mg-silicate phase(s) reflect the chemistry of the lake from which the gel precipitated?

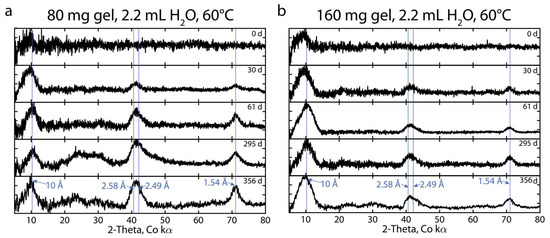

Due to the high reactivity of Mg-silicates in pore waters [35], it seems likely that the gel-to-crystalline transformation often occurs during the earliest stages of diagenesis, i.e., during shallow sediment burial. Indeed, experiments mimicking this process in low water-to-rock ratio environments (i.e., pore waters occluded from overlying lake waters) demonstrate significant progress toward the conversion of an almost completely x-ray amorphous gel to a moderately crystallized phase after heating at 60 °C for just 356 days (Figure 2). Importantly, in these experiments, which are described in Appendix B, the crystallographic reflections characteristic of talc/kerolite, which are weakly visible or absent in the initial analysis, dramatically increase in strength after heating. Similarly, Tosca et al. [43] heated an amorphous gel with chemical and spectroscopic properties representative of kerolite for 4 weeks at 180 °C and 4 days at 400 °C. In both cases, the resultant mineral showed clear increases in crystallinity, with the sample heated to higher temperature demonstrating more significant increases in crystallinity compared with the one heated to lower temperature. The observation that the peaks do not shift (e.g., to indicate crystallization of sepiolite from the initial kerolite-like gel) gives evidence in support of Hypothesis 1. Additional experimental examples of this transformation from amorphous to crystalline clay minerals abound in the literature [21,39,51,52,53,54,55,56], although the context of each individual study and its applicability to testing Hypothesis 1 vary. One salient feature gleaned from many of these is the utility of vibrational spectroscopy (most typically Fourier-transform infrared spectroscopy, FTIR) for characterizing the chemical bonding environments of the initial, amorphous phases [42,43,44,45].

Hypothesis 1.

Mineralogy and Chemistry of Al-Poor Mg-Silicate Clays in the Sedimentary Record of Alkaline Lakes Directly Reflect the Mineralogy and Chemistry of the Initially Precipitated Material, Even If That Material Was Amorphous at the Time of Deposition.

Evidence in opposition to this hypothesis stems from the sheer complexity of factors contributing to potential mineral transformations during diagenesis [57]. Natural diagenetic processes can be difficult to constrain and predict, and alkaline lake systems, which are commonly located in tectonically active rift environments [58], can demonstrate an uncommonly complex array of diagenetic reactions [15,17,59,60]. A particularly poignant example comes from the observation of loughlinite in the Green River Formation of Wyoming. Fahey et al. [40] described this mineral as replacing the initial mineralogy of the shale in which it is found, and also showed that it rapidly and completely transforms to sepiolite when soaked in a Mg-rich solution. A second example is the apparently complete, stoichiometric removal of Mg-silicate matrix material from shrub facies in the Barra Velha Formation, which has been taken as evidence to suggest significant changes in fluid chemistry (e.g., pH decreases) during diagenesis [15,16,60]. These observations demonstrate quite clearly that silicate-bearing sediments can, given the right conditions (e.g., dramatic contrasts between depositional and diagenetic fluids), transform dramatically or even disappear during diagenesis. In these cases, the observed phase or mineral assemblage may be chemically distinct from that which was initially deposited and thus have very little relation to the chemical composition of the paleolake waters. At the same time, these examples demonstrate that proper petrographic screening (e.g., the identification of overprinting features in hand samples or thin sections) can allow for these issues to be identified and avoided. Nevertheless, it is likely the textural complexity of multi-mineralic rocks derived from alkaline lakes would tend to compound the difficulty in interpretation.

Based on the body of literature reviewed in this section, it seems that Hypothesis 1 is potentially correct in some environments and incorrect in others. Regardless, these collected results would caution against using “big data” evaluations of stratigraphic records (e.g., obtained through drilling or systematic sampling of outcrops) without the establishment of strict petrographic screening criteria that would eliminate or at least minimize the chances of significant diagenetic overprinting.

2.2. Hypothesis 2

Pozo and Galán [21] recently evaluated the role of pH (and partial pressure of CO₂, P_CO2); Mg, Si and Al concentrations; and salinity on Mg-silicate formation. We briefly summarize their results here, with supplements based on works published in the intervening time. Firstly, the pH of waters must rise above a certain pH (~8.3 [42] or ~8.6 [43]) to homogeneously nucleate Mg-silicate gel. Tosca et al. [43] identified that even elevated Mg and Si concentrations in solution at pH less than the threshold are insufficient to cause Mg-silicate precipitation, as pH above ~8.5 causes the dissociation of silicic acid, leading to increased concentrations of a dissolved Mg-SiO₂ complex (MgH₃SiO₄⁺), which could precede the gel precipitate. Because lake water pH is linked to p_CO2, increases and decreases in p_CO2 can yield decreases and increases, respectively, in pH [61,62], even potentially leading to Mg-silicate dissolution if pH drops low enough [15]. Secondly, the relative concentrations of Mg, Si, and Al have been shown to exert a control on the chemistry of the precipitated phase [35,41,44,45,63,64]. As the Mg/Si ratio of the fluid increases from low (<1) to high (>1) values, the stoichiometry of the precipitated phase increases accordingly, such that kerolite-like and stevensite-like precipitates are increasingly favored over sepiolite-like precipitates. Across this range, Na⁺ concentrations can also play a role, since the size of Na⁺ ions is apparently compatible in the Mg²⁺ site in Mg-clays, unlike other common monovalent cations (e.g., K⁺), leading to the precipitation of loughlinite, or loughlinite–sepiolite solid–solution [40,45]. Finally, studies of natural deposits supplemented by stable isotope stratigraphy [65,66], modern lake systems [28,67], high-salinity experiments [44,45], and thermodynamic calculations [41] all suggest that elevated salinity should favor precipitation of stevensite, rather than sepiolite or kerolite.

Considering these various controls on the potential mineralogy of alkaline lake deposits in the context of the present review leads to the question: What useful information about the paleochemistry of an alkaline lake can be gleaned from the mineralogy observed in an alkaline lake deposit? The experimental and field studies discussed in this section permit the assertion that the presence of authigenic Mg-silicate clays in lacustrine deposits implies precipitation from alkaline, potentially saline, lake waters. Given the preponderance of recent experimental studies examining the role of dissolved Mg and Si in the character of Mg-silicate precipitates, it may be possible to build this qualitative framework into a more quantitative, predictive model. To this end, we collected relevant experimental data (described in Appendix C) to attempt to discern the relationship between Mg/Si of experimental fluids and Mg/Si of experimentally precipitated solids at ambient temperatures (Figure 3). Fitting the collected data to an equation of the form:

$${\eta }_s =\frac{a}{{\left({\eta }_f\right)}^b}+c$$

(1)

where ${\eta }_s$is the Mg/Si molar ratio in the precipitated solid, ${\eta }_f$ is the Mg/Si molar ratio in the fluid from which it was precipitated, and a, b, and c are fitting parameters, permits incorporation of the knowledge that crystallographic constraints suggest the ${\eta }_s$ should approach some finite maximum value with increasing ${\eta }_f$(i.e., ${\eta }_s$ should not exponentially or even linearly increase above some value of ${\eta }_f$). Unweighted fitting of Equation (1) to the collected data yields:

$${\eta }_s =\frac{-0.16}{{\left({\eta }_f\right)}^{0.49}}+0.90$$

(2)

with r² = 0.75 (when considering uncertainties on individual values of ${\eta }_f$). This line asymptotically approaches ${\eta }_s$ ≈ 0.8 as ${\eta }_f$ approaches and exceeds 5, which is consistent with talc (${\eta }_s$ = 0.75) precipitation from ancient seawater with elevated Mg/Si [43].

As discussed by references [35] and [45], the precipitates represented by non-stoichiometric values of ${\eta }_s$ are likely either non-ideal or mixtures of mineral-like (e.g., loughlinite, kerolite, stevensite, and sepiolite) precipitates. In this context, it is important to consider the nature of salinity and Na⁺ concentrations in alkaline lakes. Because the primary mechanism by which these lakes become alkaline is through evaporative concentration, even in lakes with minimal initial Na⁺ concentrations in their source waters, Na⁺ will drastically increase with increasing pH, such that any alkaline lake with a pH > 9 is likely to have significant total dissolved solids (Figure 1). Thus, although salinity in alkaline lakes can be relatively high or low (e.g., Lake Yoa has relatively high salinity with total dissolved solids (TDS) at 12,900 g/L compared to lakes of the Pastos Grandes with TDS 13–27 g/L [28,68]), even a low salinity alkaline lake will contain significant salinity compared to other, fresher natural waters. Accordingly, although elevated ${\eta }_f$ can yield solids with ${\eta }_s$ representative of kerolite or stevensite, the threshold for favoring one or the other cannot be directly discerned from the experimental studies we collected. Likewise, the potential for precipitating solids with ${\eta }_s$ representative of loughlinite–sepiolite mixtures at low values of ${\eta }_f$ also suggests a role for Na⁺ and salinity, which would challenge the oft-cited assertion that stevensite represents high salinity deposits.

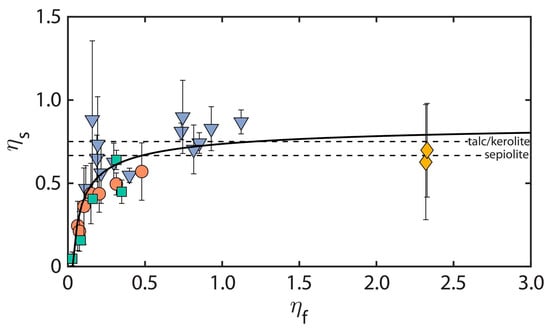

Much of the literature reviewed in this section provides either qualitative or quantitative support of Hypothesis 2, which is based on Figure 3 and the predictive capacity of Equation (2). Nevertheless, the subset of these sources that provide quantitative support for this hypothesis were used in the creation of Figure 3, and the argument in support of Hypothesis 2 is thus somewhat circular. For this reason, it will be important to produce quantitative observations of modern lake systems and/or renewed efforts into the types of diagenetic experiments described in Section 2.2 to allow for a more rigorous test of this hypothesis.

Hypothesis 2.

Ratios of the Concentrations of Mg and Si in Paleolake Waters Can Be Estimated from Observed Mg-Silicate Clay Mineralogy and Chemistry.

3. Data-Driven Hypotheses for Interpreting the Impact of Diatoms on Alkaline Lake Sedimentation

In this section, we build upon the preceding chemical discussion to generate a set of hypotheses specifically discussing the impact of diatoms on the mineralogical record of alkaline lake deposits.

3.1. Hypothesis 3

Silica-secreting diatoms play a governing role in setting the concentrations of SiO₂(aq) in Earth’s oceans [69,70,71,72,73] and many of its lakes [24,74,75]. The distribution of diatom species in lake sediments is frequently used as a tool to place constraints on salinity of ancient lake waters [76], and there is some evidence that the presence, absence, and/or diversity of diatom species can be indicative of variations in pH [77,78]. Nevertheless, much of the evidence correlating lake pH with diatom assemblages focuses on circumneutral and acidic pH environments, and there are far fewer studies of diatoms inhabiting alkaline lakes. Importantly, as the pH of alkaline lakes increases toward and above the dissociation pH for silicic acid (pH ≈ 9.9 [79]), silica solubility increases exponentially, thus presenting specific challenges for the livelihood of silica-secreting diatoms.

Common marine phytoplankton species demonstrate highest growth rates at pH 7.5–8.0, with growth either drastically slowing (by up to 90%) or terminating completely between pH 8.8 and 9.6 [80,81,82,83]. While samples of alkaline lakes have demonstrated diatom existence in lakes with pH as high as 10.5 [68,74,84], it is not clear how productive the organisms are at the highest pH. In general, it seems that the upper pH limit of diatom growth is 9.5 or 10 [82]. Breakdown of the microbial and algal communities in Canadian alkaline lakes indicates the presence of diatoms, but only as a minor proportion of the community [8]. Competition for vital resources rather than physiological factors may ultimately be limiting for these organisms. Notably, the dissociation pH for ammonia is 9.2, and pH > 9.2 promotes ammonia volatility and nitrogen limitation [5], which would tend to compound the struggles for diatoms in their competition with other alkaline lake-dwelling organisms such as cyanobacteria.

Based on these combined observations, it seems likely that, as the pH of alkaline lake waters approaches and exceeds ~9.5, diatoms are increasingly unlikely to be dominant primary producers or dominant sinks for silica in alkaline lake systems. This conclusion would tend to support Hypothesis 3. However, there are few published studies that allow this hypothesis to be tested in an unambiguous manner, and it may very well be that the existing studies are limited in their applicability to high-pH alkaline lake systems. In any case, the effective testing of this hypothesis in the context of the fluid Mg/Si ratio (${\eta }_f$) control on Mg-silicate mineralogy (Hypothesis 2) could facilitate inferences of alkaline lake paleohabitability based on the mineralogy of the associated deposits.

Hypothesis 3.

At pH ≳ 9.5, Diatoms Are Rarely the Dominant Primary Producer in Alkaline Lakes, and Are Consequently Not Responsible for Significant Undersaturation with Respect to Amorphous Silica.

3.2. Hypothesis 4

The utility of uniformitarianism as a guide for interpreting Earth’s history is often disrupted by biogeochemical innovations that suddenly and drastically change the processes contributing to the construction of the rock record. In the case of alkaline lakes, a sudden and extreme shift in the silica cycle may have dramatically changed the mineralogical record of these environments. Although diatoms are common in many modern lacustrine systems, they are fairly recent evolutionary additions. Geologic and molecular lines of evidence suggest that lacustrine diatoms emerged in the early Miocene [85], 23 Ma or more recently, descended from marine species that radiated throughout the marine environments earlier in the Cenozoic [72,86].

Although land plants have been biomineralizing silica throughout Phanerozoic time [87], it is unlikely that these organisms ever appreciably affected the silica concentrations of alkaline lakes, which are often hostile to their growth (as evidenced by the lack of vegetation near the shores of many alkaline lakes). As these organisms are not present in alkaline lakes, Mg-silicates and amorphous silica precipitation remain as the probable silica sinks prior to the Miocene. With limited silica removal from evaporative lakes, SiO₂ concentrations would rise (Figure 1), and the resulting lower Mg/Si ratios (${\eta }_f$) should have favored the precipitation of sepiolite over kerolite and stevensite (Figure 3). Available mineral evolution data aligns with this hypothesis—the mineral evolution database [88] suggests lacustrine sepiolite appeared earlier in the geologic record (in a deposit as old as 105 Ma [89]) than stevensite (in deposits with a maximum age of 56 Ma [90,91]). The mineral evolution database could easily be missing earlier occurrences of both, and follow-up work can help to clarify the history of occurrence of these minerals in alkaline lake deposits. Importantly, the circa 2.7 Ga Rietgat Formation (South Africa), hypothesized to have been deposited from an alkaline lake, contains bedded chert, which would be consistent with deposition as amorphous silica during evaporative concentration of the ancient lake waters (Figure 1). Nevertheless, testing Hypothesis 4 in the context of the geologic record of alkaline lake deposits could ultimately assist in interpreting paleohabitability and paleochemistry of alkaline lakes on Earth before silica-secreting diatoms began to inhabit alkaline lake systems, as well as other planets where such complex organisms are unlikely to have evolved.

Hypothesis 4.

Prior to the Expansion of Diatoms into Continental Settings, SiO₂ Concentrations in Alkaline Lakes Could Only Have Been Limited by Amorphous Silica or Mg-Silicate Precipitation, such that Mg/Si Ratios Were Low, and the Dominant Mg-Silicate Mineralogy Should Have Been Sepiolite.

4. Data-Driven Hypotheses for Interpreting Depositional Mineralogy Based on Water Chemistry (and Vice Versa)

Data from natural systems can help to contextualize the largely empirical discussion above with active Earth surface processes. The wealth of alkaline lakes on Earth today has made it possible to create a comprehensive database of lake water chemical analyses. This data set (described in more detail in Appendix D) contains unpublished analyses from Canadian lakes and published analyses from various authors over the past 100 years [8,28,29,62,67,68,75,76,92,93,94,95,96,97,98,99,100,101] detailing locations including Last Chance and Goodenough Lakes (Canada), Lake Yoa waters and brines (Chad), Bolivian Salars (Bolivia), Lake Eyasi Basin (Tanzania), Lerai (Tanzania), Pastos Grandes (Bolivia), Lake Van (Turkey), and Lake Neusiedl (Austria). Collected fluid samples include not only lake waters but also fluid chemistry data for associated springs, groundwaters, porewaters, and inflowing rivers and streams (which presumably represent source fluids). Samples were screened to remove those with charge balance errors > ±10%. Where multiple samples exist from a single location, all values were included, since the nature of alkaline lakes can yield chemical and mineralogical variation over modest spatial and temporal scales (e.g., [28]).

The compiled data set permits calculation of the activities of Mg²⁺ and SiO₂(aq) and saturation indices of relevant phases for all compiled samples except those missing a vital analysis (e.g., pH, Mg, or SiO₂(aq) concentration). These calculations demonstrate that all but a fraction of the samples are undersaturated or near equilibrium with respect to amorphous silica (SiO₂(am)) (Figure 4a) and fall below the critical supersaturation for Mg-silicate nucleation (Figure 4b). There is no clear trend in the SiO₂(am) saturation state as pH increases from source pH (≈7) toward alkaline lake (>8.5) pH, but, over this same progression, it approaches the Mg-silicate nucleation threshold (y-axis = 0 in Figure 4b) and levels off (although it is worth noting the dramatic difference in the y-axis scales of Figure 4a,b).

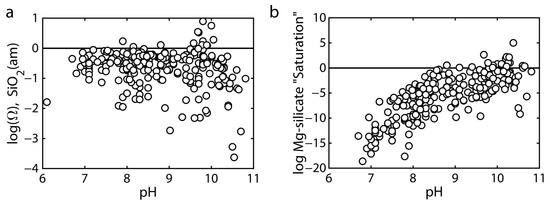

The lack of a correlation between pH and saturation state with respect to amorphous silica (Figure 4a) suggests that a sink for SiO₂(aq) other than amorphous silica leads to significant amorphous silica undersaturation in the compiled samples. This, together with the correlation between pH and the approach to Mg-silicate nucleation threshold, suggests a role for silica-secreting organisms (i.e., diatoms) and/or Mg-silicate nucleation and growth in controlling alkaline lake water chemistry.

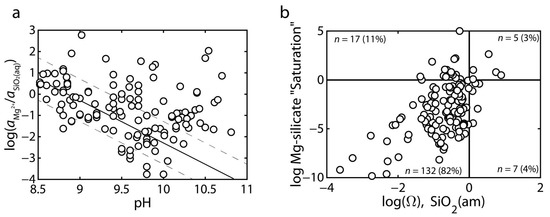

Values of the ratio of the activities of Mg²⁺ ($a_{M{g}^{2+}})$ to SiO₂(aq) ($a_{{\mathrm{SiO}}_2\left(\mathrm{aq}\right)})$ calculated from the collected alkaline (pH > 8.5) lake data generally follow the trend represented by the theoretical ratio corresponding to amorphous silica saturation and the critical supersaturation for Mg-silicate nucleation (Figure 5a). This ratio is roughly consistent with ${\eta }_f$ defined above, and thus could help to guide interpretations of ancient lake water chemistry on the basis of observed mineralogy. However, it differs in one important way: It accounts for variations in fluid chemistry (e.g., ionic strength) from sample to sample through the calculation of speciation and activity coefficients. Notably, at the elevated ionic strengths of some of the collected samples, the activity coefficient of Mg²⁺ drops far below unity and, thus, plotting activities rather than concentrations permits a more proper comparison. Values of this ratio for the alkaline lake samples plot both above and below the theoretical line (Figure 5a), although fewer plot below, and even those are mostly within an order of magnitude of the theoretical line. The vast majority (149/161, or 93%) of collected samples are undersaturated with respect to amorphous silica, and quite a significant proportion of these (132/149, or 82% of all samples) are both undersaturated with respect to amorphous silica and fall below the critical threshold for Mg-silicate nucleation (Figure 5b). These observations point toward potential mechanisms that are promoting and/or inhibiting the growth of Mg-bearing minerals in modern alkaline lakes, and these may be explored via the following two hypotheses.

4.1. Hypothesis 5

When the collected alkaline lake samples plot above the theoretical baseline defined by amorphous silica saturation and the critical supersaturation for Mg-silicate nucleation, their elevated Mg/Si ratio generally corresponds to undersaturation with respect to amorphous silica and a failure to exceed the threshold for Mg-silicate nucleation at that pH (Figure 5b). As discussed in Section 1.2, even if un-evaporated alkaline lake source waters contain modest concentrations of SiO₂(aq), these concentrations will tend to approach and exceed saturation with respect to amorphous silica after fairly insignificant degrees of evaporation (Figure 1). The observation that many of the samples in Figure 4 are undersaturated with respect to amorphous silica thus suggests that they must have deposited SiO₂ in another form (e.g., as diatom frustules or as (Mg-silicate clays). If diatoms are the dominant silica sink, the sedimentary record would also reflect deposition of diatom-rich sediments (i.e., diatomite e.g., [102]). Although diatom consumption of SiO₂(aq) necessarily reduces the thermodynamic drive for precipitation of authigenic Mg-silicate clays, there is evidence that diatom frustules can lower the barrier for nucleation of Mg-silicates [67,103]. By decreasing SiO₂(aq) concentrations in lake waters, diatoms can effectively increase the Mg/Si ratio in that water, which would potentially tend to favor talc/kerolite and/or stevensite over sepiolite precipitation from lake water in authigenic minerals (Section 2). In the absence of diatoms, potentially as a result of high pH (Section 3.1), or prior to the radiation of lacustrine species (Section 3.2), SiO₂(aq) concentrations below amorphous silica saturation would most likely be explainable by the precipitation of (Mg-)silicate clays. In this case, the mineralogy and lake water chemistry could potentially co-vary, depending on the initial Mg/Si ratio, the Mg/Si ratio of the precipitated phase, and the initial volume of water in the lake, and thereby present variations in mineralogy along an evaporative sequence. In the case of either diatoms or Mg-silicate clays limiting the concentrations of silica in alkaline lake waters, the Mg- and Si-bearing phases in alkaline lake sediments could provide clues as to the Mg/Si ratio of the lake waters. Calculations of the type presented in Figure 5 could help to guide these interpretations and the focused testing of Hypothesis 5.

Hypothesis 5.

Fluid Mg/Si Ratios Rising above a Theoretical Line Defined by Amorphous Silica Saturation and the Critical Supersaturation for Mg-Silicate Nucleation Are Most Likely Caused by Diatoms, or, in Their Absence, the Precipitation of Silicate Clays.

4.2. Hypothesis 6

When the compiled lake samples plot below the theoretical baseline defined by amorphous silica saturation and the critical supersaturation for Mg-silicate nucleation, their Mg/Si ratio is potentially lower as a result of Mg precipitation in Si-free phases (i.e., a (Ca-)Mg-carbonate). Magnesian carbonates have been identified in association with alkaline lake deposits (e.g., [45]), although the presence of magnesite and dolomite (which are not known to precipitate at low temperatures) in ancient systems is most likely due to original deposition of hydromagnesite (Mg₅(CO₃)₄(OH)₂∙4H₂O), high-Mg calcite, or other metastable hydrated Mg carbonate phases (e.g., nesquehonite) that have been found to precipitate in these natural systems and under experimental conditions [24,29,42,75,95,104,105]. Of particular note may be the modern day alkaline and ephemeral lakes associated with the Coorong Lagoon that precipitate Mg carbonate phases, including dolomite, alongside chert, and where seasonal fluctuations in pH, drying and wetting of shallow lake basins, and biological processes may all play a role in the deposition of these phases [106].

The observation that somewhat fewer (50/137, or 37%) of the values of the Mg/Si ratios for the lake samples plot below the theoretical line (Figure 4), and even those that do are generally within an order of magnitude of the line and tend to follow the line’s trend with increasing pH, suggests that this theoretically calculated line, or a modified version thereof, could be an approximate lower threshold for ${\eta }_f$ in alkaline lakes. If this were the case, it would be generally consistent with the scarcity of precipitated clays with exceptionally low ${\eta }_s$ (Figure 3) in the rock record. Nonetheless, should Hypothesis 6 be proven correct by study of lakes where magnesian carbonates are actively precipitating, lacustrine Mg-carbonates in the rock record would indicate removal of Mg from solution without a corresponding decrease in Si, with direct implications for the biogeochemical processes that occurred in those ancient lake systems.

Hypothesis 6.

Fluid Mg/Si Ratios Falling below a Theoretical Baseline Defined by Amorphous Silica Saturation and the Critical Supersaturation for Mg-Silicate Nucleation Are Most Likely Caused by the Precipitation of Mg-Carbonates.

5. Outlook

Alkaline lake environments occur at the intersection of biology and geology, requiring an inherently multidisciplinary approach. The experimental, field, and theoretical data and calculations we collected here, along with the six hypotheses we posed, are aimed to inspire discussion and future studies across these disciplines and their relevant sub-disciplines. Through the synthesis and presentation of these hypotheses we highlight the controlled laboratory investigations and extensive field studies into Mg-silicates that are paving the way for application of biogeochemical proxies to the interpretation of ancient alkaline lakes. In each case, we used the collected evidence to generate the relevant hypotheses, and this data may also be useful in testing the accuracy of the individual hypotheses. The ambiguous, conflicting, and/or incomplete nature of the collected references (e.g., there are few studies with extensive reporting of both lake water chemistry and sediment mineralogy) will manifest unique challenges for future researchers and perhaps serve as a guide for designing future studies. There remain many promising avenues for research designed to refine our understanding of these complex, dynamic biogeochemical systems, and we hope that this work will help to guide that research.
