Symmetry 2018, 10(8), 351; https://doi.org/10.3390/sym10080351

Agustín de Betancourt’s Double-Acting Steam Engine: Geometric Modeling and Virtual Reconstruction

1
Department of Engineering Graphics, Design and Projects, University of Jaén, Campus de las Lagunillas, s/n, 23071 Jaén, Spain
2
University of Jaén, Campus de las Lagunillas, s/n, 23071 Jaén, Spain
3
Research Group ‘Engineering Graphics and Industrial Archaeology’, University of Jaén, Campus de las Lagunillas, s/n, 23071 Jaén, Spain
*
Author to whom correspondence should be addressed.
Received: 16 July 2018 / Revised: 13 August 2018 / Accepted: 17 August 2018 / Published: 20 August 2018
(This article belongs to the Special Issue Symmetry and Engineering Design)
Full-Text   |   PDF [7069 KB, uploaded 22 August 2018]   |

Abstract

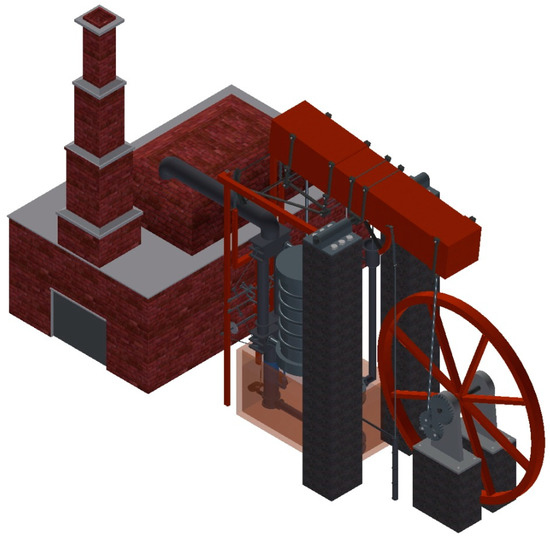

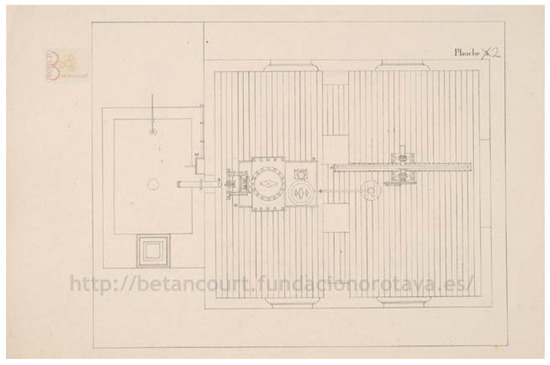

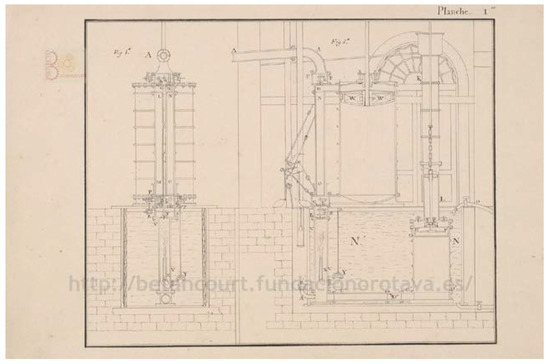

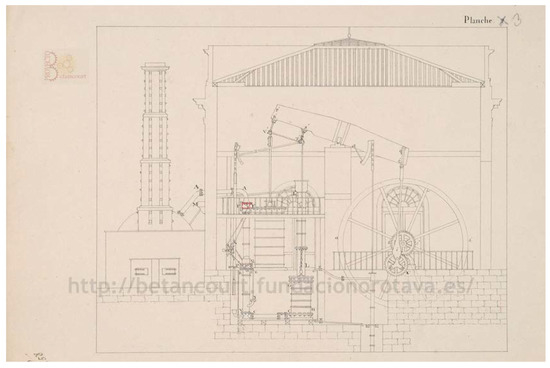

In this paper, the geometric modeling and virtual reconstruction of the double-acting steam engine designed by Agustín de Betancourt in 1789 are shown. For this, the software Autodesk Inventor Professional is used, which has allowed us to obtain its geometric documentation. The material for the research is available on the website of the Betancourt Project of the Canary Orotava Foundation for the History of Science. Almost all parts of the steam engine are drawn on the sheets, but due to the absence of scale and space, it is insufficient to obtain an accurate and reliable 3D CAD (Computer-Aided Design) model. For this reason a graphic scale has been adopted so that the dimensions of the elements are coherent. Also, it has been necessary to make some dimensional and geometric hypotheses, as well as restrictions of movement (degrees of freedom). Geometric modeling has made it possible to know that the system is balanced with the geometric center of the rocker arm shaft, and presents an energetic symmetry whose axis is the support of the parallelogram where the shaft rests: calorific energy to the left and mechanical energy to the right, with the rocker arm acting as a transforming element from one to the other. View Full-Text
Keywords: Agustín de Betancourt; double-acting steam engine; geometric modeling; virtual reconstruction; energetic symmetry Agustín de Betancourt; double-acting steam engine; geometric modeling; virtual reconstruction; energetic symmetry
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Rojas-Sola, J.I.; Galán-Moral, B.; De la Morena-De la Fuente, E. Agustín de Betancourt’s Double-Acting Steam Engine: Geometric Modeling and Virtual Reconstruction. Symmetry 2018, 10, 351.
