Performance of the Remotely-Derived Products in Monitoring Gross Primary Production across Arid and Semi-Arid Ecosystems in Northwest China

Abstract

As an important component to quantify the carbon budget, accurate evaluation of terrestrial gross primary production (GPP) is crucial for large-scale applications, especially in dryland ecosystems. Based on the in situ data from six flux sites in northwestern China from 2014 to 2016, this study compares seasonal and interannual dynamics of carbon fluxes between these arid and semi-arid ecosystems and the atmosphere. Meanwhile, the reliability of multiple remotely-derived GPP products in representative drylands was examined, including the Breathing Earth System Simulator (BESS), the Moderate Resolution Imaging Spectroradiometer (MODIS) and data derived from the OCO-2 solar-induced chlorophyll fluorescence (GOSIF). The results indicated that the carbon fluxes had clear seasonal patterns, with all ecosystems functioning as carbon sinks. The maize cropland had the highest GPP with 1183 g C m⁻² y⁻¹. Although the net ecosystem carbon exchange (NEE) in the Tamarix spp. ecosystem was the smallest among these flux sites, it reached 208 g C m⁻² y⁻¹. Furthermore, distinct advantages of GOSIF GPP (with R² = 0.85–0.98, and RMSE = 0.87–2.66 g C m⁻² d⁻¹) were found with good performance. However, large underestimations in three GPP products existed during the growing seasons, except in grassland ecosystems. The main reasons can be ascribed to the uncertainties in the key model parameters, including the underestimated light use efficiency of the MODIS GPP, the same coarse land cover product for the BESS and MODIS GPP, the coarse gridded meteorological data, and distribution of C₃ and C₄ plants. Therefore, it still requires more work to accurately quantify the GPP across these dryland ecosystems.

1. Introduction

Climate change and climate extremes always exert a substantial impact on the biosphere, but the response, as well as the underlying mechanism, vary among different vegetation types [1]. Especially under the context of global warming, the arid and semi-arid (ASA) regions are projected to expand further in the coming decades [2,3]. Koutroulis [4] found that the dryland had enlarged by 4–8% over the past century, and covered almost 47% of the Earth’s surface, among which the ASA ecosystems accounted for a large part (about 64%) and were indispensable parts of the global carbon balance. Furthermore, drylands are vulnerable to environmental changes, resulting in land degradation called desertification [5]. Zika and Erb [6] found that around 2% of the global gross primary productivity (GPP) was lost each year due to climate and human-induced dryland degradation. Research has found that more than half of the exceptionally large land carbon sink was caused by semi-arid vegetation in Australia [7]. Biederman [8] also found that the carbon budgets at diverse vegetation types differed widely. Although many methods have been developed, for example, remote sensing inversion [9] and process-based simulation [8,10], it remains difficult to accurately quantify the carbon fluxes across ASA ecosystems.

Recently, the eddy covariance (EC) technique has been of increasing importance to get the net ecosystem carbon exchange (NEE) between the ecosystem and the atmosphere because of its directness and continuity [11,12]. As a result, evaluations of the differences in carbon sequestration among diverse ecosystems on the Earth as well as the underlying mechanisms are emerging [13,14]. Meanwhile, the value of GPP can be indirectly calculated based on the continuous observation recorded [15]. However, it is difficult to directly upscale the site-level observations to a large region.

Semi-empirical approaches [16] and process-based models [17] play significant roles in generating space-time continuous GPP datasets. The Moderate Resolution Imaging Spectroradiometer (MODIS) GPP used the light use efficiency (LUE) models, based on Monteith’s production efficiency concept [18]. As the earliest and most commonly used GPP product, the MODIS GPP has been updated to version 6 with a finer spatial resolution of 500 m. The Breathing Earth System Simulator (BESS) is a succinct process-based model for continuously monitoring carbon and water fluxes [17]. BESS-derived GPP coupled photosynthesis and transpiration [19], atmospheric and land processes [20]. Furthermore, it used a two-leaf model [21] and considered foliar clumping effects [22]. Global BESS GPP datasets were generated by integrating remote sensing data with process-based models. In recent years, two global GPP products from the MODIS and BESS have become widely used. Compared with the MODIS GPP, the BESS GPP allows a thorough understanding of the potential interaction mechanisms and synergetic responses to environmental change [23]. In addition, satellite-based measurements of solar-induced chlorophyll fluorescence (SIF) have provided a new opportunity for studying the GPP at regional to global scales. Based on the global SIF product measured by the Orbiting Carbon Observatory-2 (OCO-2), Li and Xiao [24] mapped the GOSIF GPP globally at a 0.05° spatial resolution and eight-day time step for the period from 2000 to 2018.

The accuracy and reliability of these products are the keys to large-scale applications. To meet the actual requirements, the performance of these products needs to be evaluated in advance across diverse ecosystems [25,26]. Based on MODIS GPP datasets, Zhang [27] analyzed the space-time distribution of carbon sinks at the three-river headwaters region, but only focused on a single vegetation ecosystem. Although Wang [28] improved the estimation of the MODIS GPP by a model-data fusion approach in ASA ecosystems, the model’s performance in the desert steppe and forest ecosystem and the difference from other GPP products is unclear. Jiang and Ryu [29] evaluated the performance of the BESS products on a global scale and found that the BESS GPP generally performed better than the MODIS GPP. Li and Xiao [24] also showed that the GOSIF GPP performance highly correlated with the flux tower-based GPP from global 91 open-access sites. However, it is not confirmed whether the performance of the BESS GPP and GOSIF GPP is still confident in the ecologically-fragile ASA regions, and few people have systematically focused on the performance of the BESS, MODIS, and GOSIF GPP in arid and semi-arid regions.

In this study, six typical flux sites were used including cropland, grassland, wetland, and woodland across northwestern China, and aimed to: (i) analyze the distribution of carbon fluxes on seasonal and interannual time scales; (ii) investigate the reliability of the BESS, MODIS, and GOSIF GPP products; and (iii) analyze the uncertainty of these remotely-derived products over different ecosystems in ASA regions. All analyses will provide scientific supports for regional carbon management and decision-making for climate change mitigation and adaptation.

2. Materials and Methods

2.1. Study Area and Flux Sites

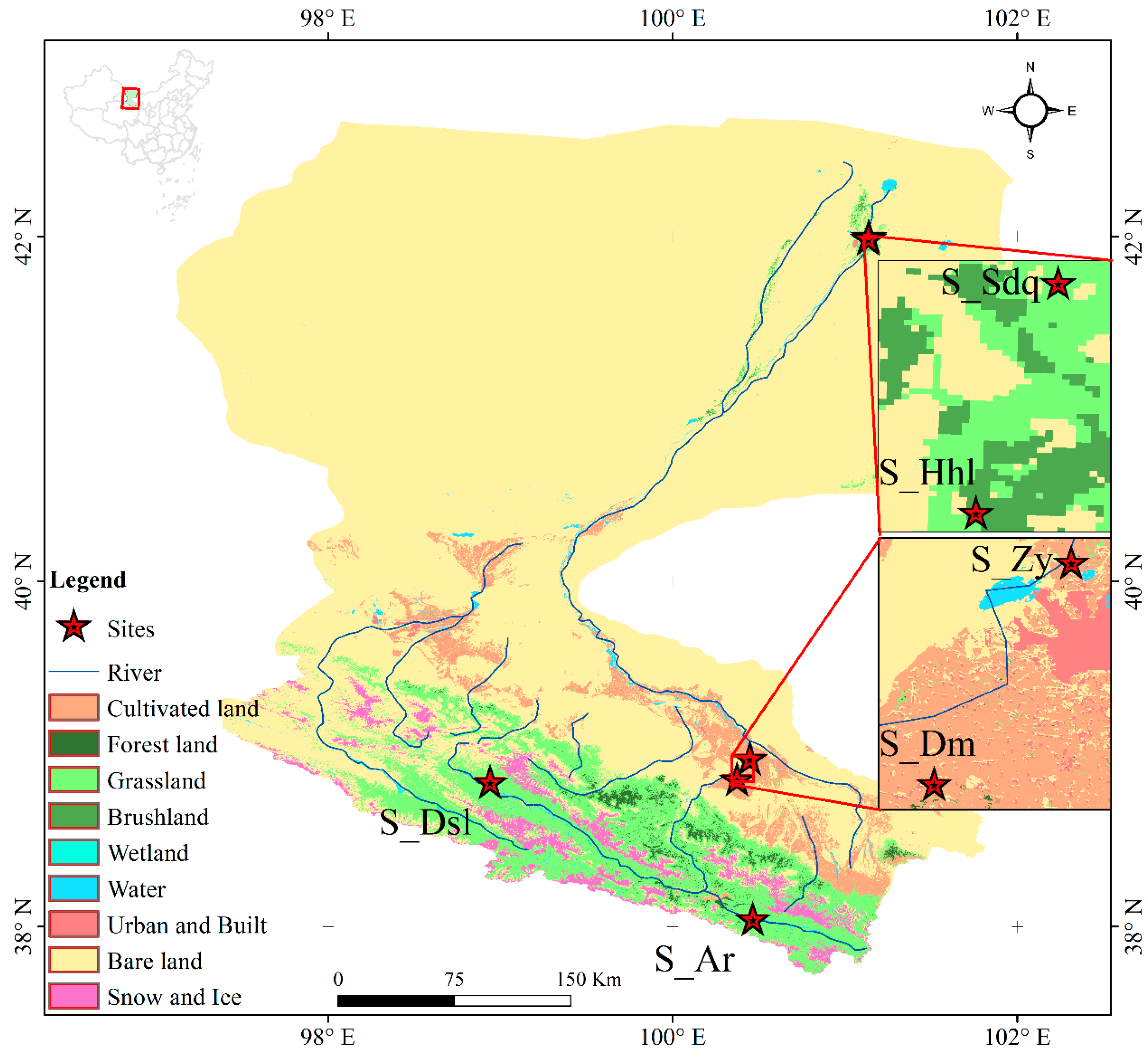

In this research, a typical ASA area of northwest China with of about 143,000 km², the inland Heihe river basin, is selected as the main research region (Figure 1). Distinctive cold and arid landscapes are widely spread around the whole Heihe river basin [30,31]. In May 2012, the Heihe Watershed Allied Telemetry Experimental Research (HiWATER) was carried out in northwest China [32]. In August of the next year, a hydrometeorological observation network was fully built and put into operation as part of ChinaFlux. A string of flux towers on various vegetation types was installed to monitor the ecosystem scale CO₂ and H₂O exchanges and these provide basic data for the study. A total of six flux sites were used in this research, namely [33], the Daman superstation (S_Dm), the A’rou superstation (S_Ar), the Zhangye wetland station (S_Zy), the Dashalong station (S_Dsl), the Sidaoqiao superstation (S_Sdq), and the Hunhelin station (S_Hhl). These flux sites cover the main types of ASA ecosystems, including two grasslands, one wetland, two woodlands, and one cultivated land.

The S_Dm site and the S_Zy site are located in the Daman and Yingke irrigated areas near Zhangye city Gansu province, respectively. They are also in the midstream of the Heihe river (artificial oasis experimental area) having a continental arid climate [32]. The S_Zy site is situated on a wetland with a reed surface in the Zhangye National Wetland Park. The S_Ar and the S_Dsl sites are part of the upstream cold region experimental area. The former is in a valley with an east-west direction and a maximum width of 3 km [15]. The latter is covered with snow most of the time [34]. The S_Sdq and the S_Hhl sites are located on the natural oasis experimental area in the downstream. More information can be found in

Table 1. Descriptions of the flux sites used in this study.

Site Name	Location	Altitude (m)	Observation Height (m)	Vegetation Type	Mean Temperature(°C)	Precipitation (mm)	Available Years
A’rou (S_Ar)	100.4643° E 38.0473° N	3033	3.5	Alpine meadow	0.03 ± 0.62	460 ± 63	2014.01–2016.12
Daman (S_Dm)	100.3722° E 38.8555° N	1556	4.5	Maize cropland	6.92 ± 0.16	129 ± 26	2014.01–2016.12
Dashalong (S_Dsl)	98.9406° E 38.8399° N	3739	4.5	Swamp meadow	−3.96 ± 0.47	341 ± 41	2014.01–2016.12
Hunhelin (S_Hhl)	101.1335° E 41.9903° N	874	22	Populus euphratica and Tamarix	10.38 ± 0.14	34 ± 17	2014.01–2016.12
Sidaoqiao (S_Sdq)	101.1374° E 42.0012° N	873	8	Tamarix	9.36 ± 0.11	33 ± 9	2014.01–2016.12
Zhangye (S_Zy)	100.4464° E 38.9751° N	1460	5.2	Wetland	9.45 ± 0.34	95 ± 24	2014.01–2016.12

The mean temperature represents the average daily temperature from 2014 to 2016 and precipitation represents cumulative average annual precipitation from 2014 to 2016 for each flux site. The standard deviations of mean temperature and precipitation are also attached.

and Figure 1.

2.2. Flux Data Acquisition and Processing

Each flux tower site has two systems including an EC and an automatic weather station (AWS) system, to obtain the energy fluxes and meteorological data. A three-dimensional sonic anemometer (CSAT3, Campbell Scientific, Logan, UT, USA) and a Li7500A open path CO₂/H₂O gas analyzer (LI-COR Inc., NE, USA) form an EC system to measure ecosystem scale CO₂ and H₂O fluxes. The sampling rate was set to 10 Hz. Before releasing data to the public, the 10 Hz data was processed into a half-hour flux dataset by the Edire post-processing software (University of Edinburgh, Edinburgh, UK). The spike detection, lag correction of H₂O/CO₂, sonic virtual temperature correction, coordinate rotation, Webb–Pearman–Leuning correction (WPL) [35], and frequency response correction were included in the procedures. In addition, sensor-faults, rain, and other bad weather can easily cause data loss or low quality. Therefore, data with poor quality was checked and excluded from the half-hour data [36]. The AWS system measures the relevant weather conditions including air temperature (Ta) (°C), precipitation (mm), etc. [37]. The data of the AWS system were recorded every ten minutes.

In this study, three-year flux data and meteorological data of these typical sites were obtained from the Environmental and Ecological Science Data Center of West China (http://westdc.westgis.ac.cn). Then, preprocessing such as outlier elimination was carried out. Gap-filling by a standardized algorithm and flux partitioning by the nighttime-based method were carried out with the R package by the Max Planck Institute for Biogeochemistry (https://www.bgc-jena.mpg.de/bgi/index.php/Services/REddyProcWeb). Flux partition was used to partition NEE into the GPP and ecosystem respiration (R_e). In particular, the latent heat flux and carbon dioxide flux data were missing from 1st May 2016 to 23rd August 2016 because of a malfunction of the Li7500 at the S_Sdq site and we gap-filled this part with multi-year mean imputation. Finally, we integrated these half-hour data into the daily time scale and then got the average of each eight-day period to compare with the BESS, MODIS, and GOSIF products.

2.3. Remote Sensing Products and Processing

The BESS is designed to continuously measure global carbon and water fluxes [29] and provides the global 1 km resolution GPP product with an interval of eight days during the period from 2000 to 2015. In the BESS-derived GPP, radiation, photosynthetic active radiation, and near-infrared radiation at the top of the canopy were calculated by an atmospheric radiative transfer model, and then these parameters, absorbed by the sunlit and shade leaves, were gained by a two-leaf canopy radiative transfer model. Furthermore, it used the biochemical photosynthesis models for C₃ and C₄ plants, and parameterized maximum carboxylation rate based on plant functional type, climatic zones, and the season. The BESS products used seven MODIS atmospheric and land products, four other satellites, four reanalyses, and three auxiliary datasets.

We used the MODIS GPP version 6 (MOD17A2H) obtained from the Terra platform, with 500 m spatial resolution [36], which is produced using the LUE model as follows:

$${\mathrm{GPP}=\mathrm{LUE}}_{\max }\times \mathrm{f}\left({\mathrm{T}}_{\mathrm{MIN}}\right)\times \mathrm{f}\left(\mathrm{VPD}\right)\times \mathrm{SWRad}\times 0.45\times \mathrm{FPAR}$$

(1)

where LUE_max is the maximum value of light use efficiency, while SWRad denotes incident shortwave radiation. T_min is the daily minimum temperature, VPD is the daylight average vapor pressure deficit, and FPAR is the fractional photo-synthetically active radiation absorbed by the canopy. The algorithm logic and model parameters can also be found in the MOD17 user guide [38]. The model assumed that the GPP is proportional to plant absorption and effective radiation under ideal conditions [39]. A set of biome-specific radiation-use efficiency parameters was acquired from the updated Biome Property Look Up Tables. The product also used a new version of the daily Global Modeling and Assimilation Office (GMAO) meteorological data [39]. The product used in this study was downloaded from NASA’s Earth Observing System Data and Information System (https://search.earthdata.nasa.gov). We re-sampled it to 1 km pixel size before being extracted based on site locations.

The GOSIF GPP product was developed by Li and Xiao [24], with a 0.05° spatial resolution and an eight-day time step for the period from 2000 to 2018. The GOSIF GPP product benefited from the breakthrough of two key matters, the relationship between SIF and GPP, and SIF data with high spatial and temporal resolutions. For the relationship between SIF and GPP, Li and Xiao [40] found a nearly universal SIF–GPP relationship. The SIF data used the global OCO-2 SIF data set (GOSIF) with a 0.05° spatial resolution and an eight-day time step. The GOSIF product was developed by Li and Xiao [41], based on discrete OCO-2 SIF soundings, MODIS data, and MERRA-2 meteorological data. In this study, the BESS, MODIS, and GOSIF GPP data from 2014–2015 were selected uniformly, and we extracted the value based on the geographical location of each flux site for completing the performance.

2.4. Statistical Analyses

To quantify the relationships between two GPP products and EC-based data in major ecosystems, we used two statistical criteria: the root-mean-square error (RMSE) and R². The equations of RMSE and R² were as follows:

$${\mathrm{R}}^2=1-\frac{{{\displaystyle \sum }}^{\text{}}{(\hat{\mathrm{y}}-\mathrm{y})}^2}{{{\displaystyle \sum }}^{\text{}}{\mathrm{y}}^2}$$

(2)

$$RMSE=\sqrt{\frac{{{\displaystyle \sum }}^{\text{}}{(\widehat{y}-y)}^2}{n}}$$

(3)

where y and $\widehat{y}$ represent the observed and remotely-derived GPP, respectively; n is the number of observations (eight-day periods). The best products generally had the highest R² and the lowest RMSE. All statistical analyses were carried out using the OriginPro software (OriginLab, OriginPro 8.5, Northampton, MA, USA).

3. Results

3.1. Dynamics of GPP, R_e, and NEE in Dryland Ecosystems

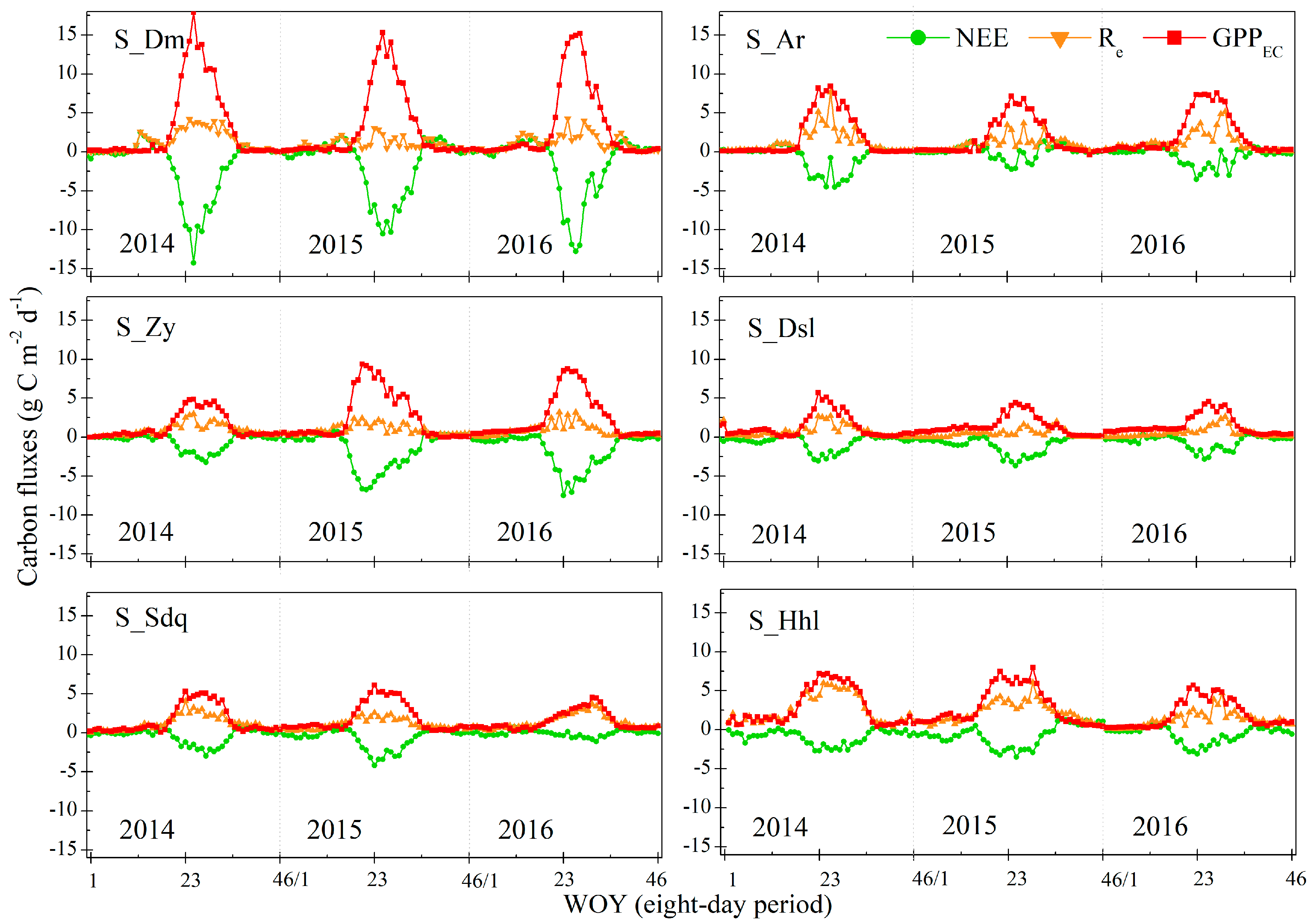

Firstly, the seasonal dynamics of carbon fluxes (GPP, R_e, and NEE) are shown in Figure 2. As illustrated in Figure 2, the GPP, R_e, and NEE of all flux sites showed clear seasonal patterns from 2014 to 2016. Particularly, the GPP and R_e exhibited consistent trends. During the dormant seasons, the vegetation GPP was nearly zero because photosynthesis stopped. With the increase of temperature during springtime, the GPP and R_e increased gradually and reached a peak in July or August. Inversely, the NEE had deep valleys in the growing seasons. It decreased gradually after approximately 18th week of year (WOY 18), to the valley around in July or August, and then gradually increased. In addition, the S_Dm site had the highest GPP at the peak period among all sites. Although consistent seasonal dynamics exist, different ecosystems still had their own characteristics, especially in forest ecosystems (the S_Sdq and S_Hhl sites). The time when GPP began to grow rapidly was earlier at S_Hhl than the rest of the other sites, and the period of carbon sequestration was the longest in every year among all ecosystems. In the S_Sdq site, we found that the peak periods came later year after year from 2014 to 2016.

To analyze the differences in carbon fluxes between different ecosystems, we conducted a statistical analysis of carbon fluxes (GPP, R_e, and NEE) from 2014 to 2016. The annual mean carbon fluxes of different ecosystems were statistically calculated, presented in

Table 2. Annual mean GPP, R_e, NEE, and the corresponding standard deviations of different ecosystems based on the six flux sites between 2014 and 2016.

Sites	Vegetation Type	GPP	Re	NEE
		g C m−2 y−1
S_Dm	Maize cropland	1183 ± 39	454 ± 79	−728 ± 41
S_Ar	Alpine meadow	742 ± 74	421 ± 60	−321 ± 56
S_Zy	Wetland	793 ± 228	324 ± 16	−469 ± 234
S_Dsl	Swamp meadow	528 ± 27.33	208 ± 49	−320 ± 74
S_Sdq	Tamarix	665 ± 59	456 ± 55	−208 ± 56
S_Hhl	Populus euphratica and Tamarix	954 ± 205	728 ± 239	−227 ± 95

. Overall, the average annual GPP in all flux sites was greater than the values of R_e, and according to the NEE annual mean value, it implied that all ecosystems also behaved as carbon sinks. In particular, the S_Dm site had the largest annual mean GPP and NEE, which was near double the GPP and NEE values of other ecosystems. Furthermore, the lowest annual mean GPP value appeared in the S_Dsl site, in which the annual mean R_e value was also the lowest, reaching up to 208 ± 49 g C m⁻² y⁻¹. However, although both the annual GPP and R_e in the S_Dsl site were far lower than those in the S_Ar site, and there was no obvious difference in the annual mean NEE between the two sites. The largest annual mean NEE was found at the S_Sdq site, and it implied that the lowest carbon sequestration was there, about 208 ± 56 g C m⁻² y⁻¹.

3.2. Performance of Satellite-Based Seasonal GPP

In this study, three fundamental methods contributing to the analysis of the differences in the seasonal performances of the BESS, MODIS, and GOSIF GPP products were carried out. It is worth noting that the BESS and MODIS GPP extracted based on the S_Sd site locations were both invalid data. Firstly, based on the EC-based observations GPP (GPP_EC), we assessed the performance across seasonal courses (Figure 3) and the regression relations of the BESS, MODIS, and GOSIF GPP (GPP_BESS, GPP_MOD, and GPP_SIF) (Figure 4) at all ecosystems during 2014 and 2015. From Figure 3, we can find that the performances of the three GPP products varied dramatically with different ecosystems. On the whole, the seasonal variation of the three GPP products was the most consistent with the flux site GPP_EC of grassland ecosystems (S_Ar and S_Dsl) but remained largely underestimated for the growing seasons at the other EC sites. Furthermore, the three GPP products had well peaks matching at the S_Dm site and a degree of peak delay in both grassland ecosystems (the S_Ar and S_Dsl sites). Moreover, the GPP_SIF performed better than the other GPP products generally, but it was obviously overestimated during the growing season of the S_Ar site.

Linear regression analysis was performed to examine the performance of the BESS, MODIS, and GOSIF GPP products on an eight-day period at the five flux sites between 2014 and 2015. As the values of both GPP_BESS and GPP_MOD were null at the S_Zy site, the performance of these two products could not be further analyzed. As shown in Figure 4, different GPP products varied with different ecosystems. Overall, the three GPP products’ performance was underestimated or overestimated in all EC sites and the GPP_SIF performed better than the other GPP products. Especially, the GPP_SIF had the highest consistency with GPP_EC at the S_Dm, the S_Sdq, and the S_Hhl sites, with R² values ranging from 0.92 to 0.98 and RMSE from 1.5 to 2.66 g C m⁻² d⁻¹. However, the GPP_SIF (R² = 0.95, RMSE = 1.47 g C m⁻² d⁻¹) was obviously overestimated at the S_Ar site, having no superiority over the GPP_BESS and GPP_MOD. At the S_Ar and S_Dsl, The GPP_BESS and GPP_MOD were distributed closer to the 1:1 line like the GPP_SIF, which is consistent with the results of Figure 3.

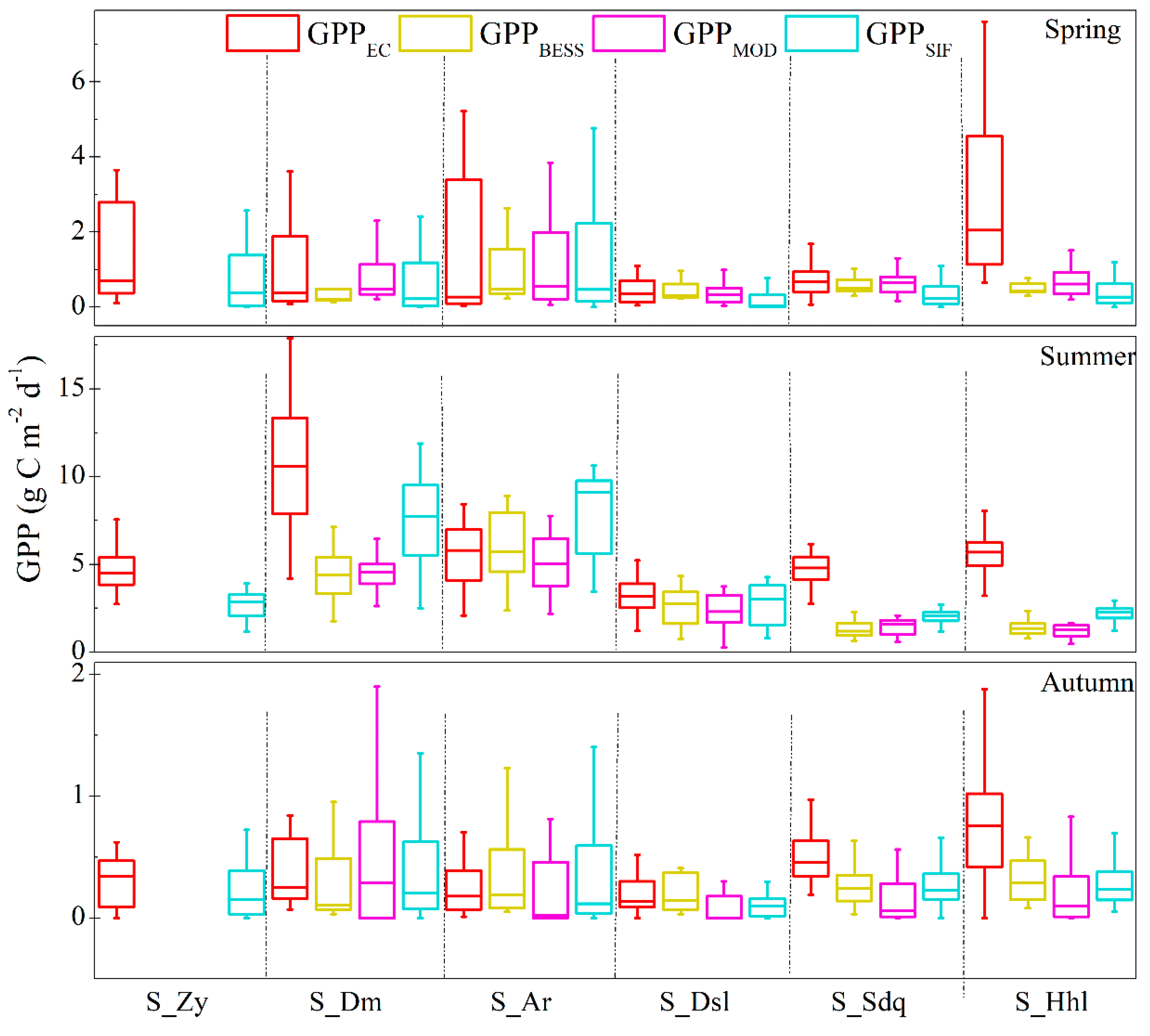

In order to examine the different performances of the GPP_BESS, GPP_MOD, and GPP_SIF in spring, summer, and autumn, we carried out a boxplot analysis, as shown in Figure 5. In terms of grassland ecosystems (S_Ar and S_Dsl), the GPP_MOD had better distribution characteristics than the GPP_BESS and GPP_SIF in summer, while the GPP_BESS was closer to distribution characteristics of the GPP_EC in spring and autumn. In addition, the GPP_SIF performed better only in spring for the S_Ar site. The GPP_SIF also had better distribution characteristics than the GPP_BESS and GPP_MOD at the S_Dm site in spring, summer, and autumn. Furthermore, the GPP_BESS, GPP_MOD, and GPP_SIF did not perform well at the S_Sdq and S_Hhl sites.

3.3. Annual Mean Patterns of Satellite-Based GPP

The annual mean GPP from flux measurements (GPP_EC), BESS (GPP_BESS), the MODIS (GPP_MOD), and GOSIF (GPP_SIF) at the six flux sites from 2014 to 2015 are shown in Figure 6. Firstly, at the S_Ar site, although both the GPP_BESS and GPP_SIF were overestimated, the GPP_BESS had the best performance. Furthermore, the three GPP products were underestimated in varying degrees at other EC sites. For instance, at the S_Sdq and S_Hhl sites, the three GPPs were severely underestimated by more than half. Similarly, the GPP_BESS and GPP_MOD were only approximately half of the GPP_EC at the S_Dm site. Finally, the GPP_SIF had an obvious advantage at the S_Dm site among the three GPP products.

4. Discussion

4.1. Uncertainty in EC-Based GPP

Compromised due to instrument malfunctions, inadequate power supply, and bad weather, certain carbon fluxes and meteorological data can have poor quality and are even lost, which is inevitable. In the above cases, the data with an occasional segment missing or quality problems have been dealt with by the methods of gap-filling using the R package. However, for data gaps or quality problems of more than one month, we gap-filled with multi-year mean imputation, which was mainly used at the S_Sdq site in 2016. To some extent, it covered up the difference left by the specific environment, which showed some uncertainties. Besides, previous work has reported the overestimation of plant photosynthetic uptake when using the integrated open-path eddy covariance system [42]. Despite uncertainties, the six flux sites selected in this study represent the most typical ASA ecosystems in western China. The results obtained in this study also clearly reveal the quadratic functional characteristics of carbon fluxes (GPP, R_e, and NEE) concerning the seasonal dynamics in these ecosystems. Further, the results suggest that the cropland ecosystems achieved the highest annual GPP values of 1182.68 ± 38.62 g C m⁻² y⁻¹ among all ASA ecosystems, which was consistent with the result of Gu [15]. On the annual scale, the values of GPP_EC at the S_Ar and S_Dsl sites were about 741 g C m⁻² y⁻¹ and 528 g C m⁻² y⁻¹. The heavy precipitation events (over 10 mm day⁻¹) as well as precipitation intervals have been reported to impact GPP in the temperate steppe or the alpine meadow ecosystems [43]. Compared with the S_Dsl site, we found that the S_Ar had more frequent precipitation events (an average of 13 days during the growing season of 2014–2015), and annual average precipitation was about 460 ± 63 mm, which was likely to favor the higher GPP value of the S-Ar site. For semi-arid grasslands in the western United States, Álvarez-Taboada [44] examined three grassland ecosystems under water-limited conditions and found that the EC-based GPPs were about 500 g C m⁻² y⁻¹. Especially at the Vaira Ranch-Ione site with annual cumulative precipitation of approximately 630 mm, the mean GPP from 2004 to 2006 was approximately 822 g C m⁻² y⁻¹. Therefore, the carbon fixation in the arid and semi-arid ecosystems was strongly constrained by water availability and fluctuated annually.

4.2. Error Sources of Remotely-Derived Products

This study found that both the MODIS and BESS GPP performed with good accuracy for grasslands, which was consistent with previous studies [29,45], but larger uncertainties existed in other ecosystems. Regardless of the algorithm error, the precision of the model parameters used for the estimation plays an indispensable role in the accuracy of GPP estimation. For the input parameters of the MODIS GPP algorithm, we can take knowledge from the MOD17 user guide [38], while for the model parameters of the BESS GPP, the description is very clear in the research of Jiang and Ryu [29]. The BESS model contains the six key modules algorithm [17], and most of its input parameters come from the MODIS products whose resolution difference is large enough to make uncertainty inevitable in the process of the resolution consistency. For the GOSIF GPP, the GOSIF data set, the key part of the input data was affected by MERRA-2 with coarse spatial resolution [41]. Therefore, these products had their own errors.

In this study, we found that these BESS, MODIS, and GOSIF GPP products largely underestimated the GPP during the growing period, except the S_Ar site. This can be partly explained by the open-path EC-based flux measurements. Such systems would inevitably lead to the overestimation of the GPP of terrestrial ecosystems because of the limitation of technical means. However, the GOSIF GPP had obvious advantages in seasonal and interannual dynamics, which can be ascribed to the universal GOSIF-GPP relationship and negligible impact of land covers [41]. Through a thorough analysis of the performances of the MODIS and BESS GPP, we found that both the BESS and MODIS GPP underestimated the GPP data by more than half at S_Hhl (Figure 3 and Figure 6). The reason can be largely explained by the fact that both the BESS and MODIS GPP products used the same land cover product (MCD12Q1) [29,46], which had significant classification uncertainty. Different judgments of land cover resulted in inaccurate LUEmax and affected the estimation results. Figure 7 showed that the S_Hhl and S_Sdq sites were located on grasslands surface, but not on Populus euphratica and Tamarix spp. For the MODIS GPP product, LUEmax, Tmin, and VPD of grasslands are much lower than those of forest land, which is another important reason for underestimation. Zhao [47] found that the Tmin and VPD from the GMAO were generally underestimated. Furthermore, the LUEmax value in MODIS GPP depends on the simple look-up table approach. Among the same vegetation types, the LUEmax value was also generally underestimated [48]. After Wang [28] optimized the LUEmax using the site-observed GPP, the performance of the MODIS GPP had obvious improvement. The footprints of these flux sites can reach several hundred meters around the tower. However, owing to the spatial heterogeneity, its effect on the remote sensing-based GPP products cannot be neglected, which would lead to inconsistency between the site-level measurement and satellite-based product. In addition, soil moisture has been indicated as a major factor limiting the GPP in the water-constrained ecosystems [15,49]. However, the BESS GPP assumed that the water stress is embedded in the variability of leaf area index, which lacked an accurate proxy for soil moisture dynamics [50].

The BESS and MODIS GPP applied different types of models, which made it hard to compare from the model structure. However, the most important difference is that the BESS model distinguished the difference between C₃ and C₄ plants while MODIS GPP did not. The cropland ecosystems mainly represent rice at MCD12Q1 land cover products. Wang [51] also found that the GPP of maize was obviously higher than the other C₃ crops. Rice at the S_Dm is a C₃ plant different from C₄ plants (maize), which is the main reason for the underestimation of MODIS GPP. Although considering the differences in ecophysiological characteristics of C₃ and C₄ species, the BESS GPP underestimated by about 50% of actual measurement (Figure 3 and Figure 6). This is because the BESS GPP depended on the relative proportion of two species on a pixel, and C₄ plants account for only less than 0.205 at the S_Dm [52].

Although the GOSIF GPP had also underestimated at the S_Dm, S_Hhl, and S_Sdq sites, it had the best performed among the three GPP products (Figure 3 and Figure 4). Reasons abound, for instance, Li and Xiao [41] found that the impact of land cover on product accuracy is much smaller than that of training samples. Therefore, the land cover maps were not taken into account when the GOSIF products are produced. Similarly, Li and Xiao [24] used a nearly universal rather than biome-specific SIF–GPP relationship to get the GOSIF GPP product. In a nutshell, the GOSIF GPP reduced the impact of land cover classification uncertainty to some extent.

4.3. Effect on Global Climate Change

With changing climate, the influence of carbon sequestration in semi-arid biomes may be of more importance for global carbon sink than in tropical rainforests inter-annually (<10 years) in the future [53]. In this study, we found that carbon fluxes varied in different years and different dryland ecosystems. On one hand, it suggested that with restrictions on water resources, ASA ecosystems remained a large carbon sink. On the other hand, there was much uncertainty for carbon sequestration across ASA regions. Meanwhile, large areas of grassland and woodland in Australia has been invaded by shrubs, which lead to a serious decline in pastoral productivity [54]. In this study, we found that the grassland ecosystem is the highest carbon-sequestered vegetation other than farmland. Gu [15] found that soil moisture showed a large positive correlation with the GPP in ASA regions in China. Soil moisture content can reflect soil texture to some extent, which means that grassland has excellent water conservation function and can alleviate the continuous expansion of drought. Therefore, accurately estimating the GPP provided an important scientific method and data support for quantifying carbon sink and source in ASA ecosystems to contribute to the development of regional carbon management planning and decision-making.

5. Conclusions

Based on six flux sites in northwest China, this study examined the differences in seasonal and interannual carbon fluxes across the typical ASA ecosystems in northwest China. The results indicate that the carbon fluxes of these dryland ecosystems have clear seasonal dynamics and vary inter-annually, and all ecosystems function as carbon sinks on the annual time scale. Moreover, we also assessed the performance of these remotely-derived BESS, MODIS, and GOSIF GPP products, and got some evidence. Except for at the S_Ar and S_Dsl sites, some distinct advantages of the GOSIF GPP were picked up, not only in the seasonal dynamic but also in annual mean difference. The universal GOSIF–GPP relationship and less impact of land cover helped the GOSIF GPP algorithm. Furthermore, both the MODIS and BESS products largely underestimated the GPP during the growing period. Compared with the MODIS GPP, the BESS GPP was more reliable for swamp meadow and alpine grassland ecosystems. However, large uncertainties in the BEES, MODIS, and GOSIF GPP products remain. Therefore, precise input parameters should be used to improve the products, such as accurate land cover types and LUEmax at high spatial resolution. Meanwhile, the MODIS GPP will be greatly improved by considering the differences in sun and shade leaves, and C₃/C₄ plants. The accuracy of the BESS GPP can be also improved by adding the soil moisture effect in water-limited areas, and the accuracy of the GOSIF GPP could be further improved with high-quality meteorological data. All these analyses would be helpful for providing reliable GPP products in the ecologically-fragile dryland ecosystems and supporting policies for sustainable development.
