Cultural Ecosystem Services of Geodiversity: A Case Study from Stránská skála (Brno, Czech Republic)

by
Lucie Kubalíková
Department of Geology and Pedology, Faculty of Forestry and Wood Technology, Mendel University in Brno, Zemědělská 3, 613 00 Brno, Czech Republic
Land 2020, 9(4), 105; https://doi.org/10.3390/land9040105
Submission received: 12 March 2020 / Revised: 26 March 2020 / Accepted: 28 March 2020 / Published: 31 March 2020
(This article belongs to the Section Landscape Ecology)
Browse Figures
Versions Notes

Abstract

:
The concept of ecosystem services developed in the second half of the 20th century, and the Millennium Ecosystem Assessment was crucial for its acceptance. This assessment identified the services that ecosystems provide to society, but geodiversity (as an indispensable component of ecosystems) was somewhat underestimated. At present, geodiversity is intensively used by human society and it provides numerous services including cultural as a resource for tourism, recreation, as a part of natural heritage, and to satisfy matters of spiritual importance. The main purpose of this paper is to present the geocultural issues of Stránská skála (a limestone cliff with caves and an anthropogenic underground) in Brno (Czech Republic) and to evaluate the cultural ecosystem services of geodiversity by using the abiotic ecosystem services approach. This assessment of cultural ecosystem services of the Stránská skála enables the identification and description of the functions and services which are provided by geodiversity and confirms the high cultural and geoheritage value of the site.

1. Introduction

Geodiversity (of an abiotic or inanimate nature) is defined as the natural range (diversity) of geological (rocks, minerals, fossils), geomorphological (landforms, topography, physical processes), soil, and hydrological features including their assemblages, structures, systems, and contribution to landscapes [1,2]. Within this broad concept, geodiversity is a non-evaluative entity that encompasses all the diversity of abiotic nature, regardless of the partial diversity of its individual components [3].
Geodiversity offers multiple functions and services both for nature and for human society [2,3,4,5,6]. It is an essential part of natural ecosystems and it directly or indirectly determines and influences biodiversity [7,8,9,10,11,12,13,14,15].
The importance of geodiversity for human society is also indisputable: geodiversity is a resource for construction materials or fuels, it provides a platform for numerous human activities, or it contributes to regulating processes as flood control or biochemical control [2,4]. Moreover, geodiversity provides resources or background settings for tourism, sporting activities, and recreation [16,17,18], and also has numerous cultural functions [19,20,21].
Despite its undeniable importance, the role of geodiversity is still a bit neglected and is not given as much attention as biodiversity, especially within nature conservation and landscape planning. A complex view of this issue can significantly contribute to the “emancipation” of geodiversity, acceptance of its protection, and its rational use: geodiversity is by no means a competitor of biodiversity, but rather a “basis” for biodiversity [2,8,22,23,24].
Ecosystem services are the benefits (goods and services) that society obtains from nature [25]. The concept of ecosystem services gradually developed in the second half of the 20th century [26,27,28], for an overview of the development of the concept, see e.g., [29,30,31], but the Millennium Ecosystem Assessment [25] is considered to be a basic document where the definitions and approaches were presented together with justifications on why the further developing of the concept of ecosystem services was necessary. Today, this concept is fully accepted as an important base for nature conservation, landscape planning, as well as responsible and sustainable use of resources within different types of ecosystems, as proven by numerous papers and monographs [31,32,33]. The assessment of ecosystem services is considered as a basis for their quantification and environmental accounting [34,35] and references therein, and as an important issue in land-use policy [36,37].
The acceptance of geodiversity within the concept of ecosystem services by a wider community is still ambiguous [38,39]. According to [2,6,40], geodiversity (as an indispensable component of ecosystems) was somewhat underestimated within the Millennium Ecosystem Assessment [25]. These authors point out, for example, the underestimation of non-renewable natural resources, and insufficient consideration of geomorphological processes or insufficient analysis of geodiversity-biodiversity relations.
Based on this, Gray [2,4] Gordon, Barron [6], and Gray et al. [5] define the so-called “abiotic ecosystem services” or “geosystem services” which include regulatory, support, supply, and cultural services. Van Ree and van Beukering [41] as well as Van Ree et al. [42] also emphasize the importance of subsurface and its role in ecosystems. Lele et al. [43] state that it is necessary to include minerals and other abiotic processes in the framework of ecosystem services. Van Der Meulen et al. [44] also propose for abiotic components to be included in the concept of ecosystem services. Ruban et al. [45] discuss the provisioning and cultural ecosystem services of mineral and geoheritage resources and propose to include them into the ecosystem services concept as well. The ecosystem services of water environments (according to [2], water is considered to be a part of geodiversity) were also identified and recognized [46,47,48]. The ecosystem services of coastal areas, which can be considered as an environment where biotic and abiotic components meet, were also recognized and evaluated [49,50].
The detailed description of ecosystem services provided by geodiversity is elaborated e.g., by Gray [2,4] or Gordon and Barron [6] and they correspond to the classical scheme of ecosystem services [25,51]. To these services, the category of so-called “knowledge services” has also been added [2,38]. Since 2018, abiotic ecosystem services have been included in the Common International Classification of Ecosystem Services (CICES) [51]. Nevertheless, there are still numerous methodological questions regarding the mutual relations between CICES, the concept of natural capital, and geodiversity services as defined by Gray [2,4,38]. Practical applications combining geodiversity research and the concept of abiotic ecosystem services are rather scarce with the exception of water ecosystem services or coastal ecosystem services, as noted previously. To mention some examples: García [52] focuses on the ecosystem services of geodiversity at a coastal area of Brazil and she uses a qualitative approach (identification and description of the ecosystem services of different ecosystems mapped in the study area), Pilogallo et al. [53] apply a GIS-based approach and perform a multiple linear regression analysis for identification of cultural ecosystem services of geosites in southern Italy.
In this paper, an emphasis is placed on the cultural ecosystem services of geodiversity because they are closely related to the issues of geoheritage, geoconservation, and geotourism [2,4,17,19,21]. As a study area, Stránská skála in Brno (Czech Republic) was selected. It is a site with specific geocultural issues which is protected and widely used for (geo)tourism, recreation, and environmental education. The cultural and knowledge ecosystem services as defined by Gray [2] were identified there for the purposes of landscape planning and updating the Care plan for this National Natural Monument. It is supposed that this site, where abiotic components play a crucial role, offers numerous cultural services and benefits for society and thus should be considered when developing geotourist activities and managing geoheritage.

2. Methods and Theoretical Background

People have benefited in many ways from cultural ecosystem services, including aesthetic enjoyment, recreation, artistic and spiritual fulfillment, and intellectual development, thus cultural values of ecosystems are as important as other services [25,54].
Generally, cultural ecosystem services can be defined as the nonmaterial benefits people obtain from ecosystems through spiritual enrichment, cognitive development, reflection, recreation, and aesthetic experiences [25]. The conceptual and methodological aspects of cultural ecosystem services were discussed in numerous papers [54,55,56,57,58,59,60]. Within cultural ecosystem services, different subcategories can be described (Table 1).
Cultural ecosystem services have been discussed within various frames, but very limited attention has been paid to geodiversity. There are only a few exceptions where geodiversity is considered within these frameworks, e.g., Bryce et al. [61] who mention geodiversity as being one of the attributes of environmental spaces that are considered as a basis for cultural ecosystem benefits, or de Groot et al. [36] who indicate that a “landscape feature” can be considered as an example of the particular values of cultural ecosystem services (if we consider “landscape features” to be both biotic and abiotic).
However, the importance of cultural and knowledge functions and services of geodiversity was already analyzed by [2,6,19,20] and later supported by numerous examples:
1.
geodiversity (mainly landforms) underlines the aesthetic value of landscapes and provides resources for tourism, sports activities, and outdoor recreation [6,16,17,18], and thus it contributes to sustainable economic development and benefits public health
2.
geodiversity elements represent a part of local identity, landforms can be a part of a typical landscape panorama [20,62,63,64]
3.
geodiversity is closely related to religion or spirituality [19,20,21,65,66]
4.
geodiversity’s valuable part (geoheritage) represents a part of natural heritage [67,68]
5.
geodiversity possesses numerous knowledge functions and services—from the possibility for the reconstruction of paleogeographical environments and enriching the knowledge of the history of the Earth to the use of geodiversity knowledge in forensic geology [2].
The first step (before the proper description of ecosystem services) involves the identification of ecosystems with important abiotic components. This is based especially on the literature review, fieldwork and it takes into account the biotope classification (Care plan) and methodologies for ecosystem services for Czech ambience [69].
For the proper identification of cultural ecosystem services of geodiversity of the study area (Stránská skála in Brno), a slightly modified approach elaborated and presented by Gray [2,4] and Gordon [20] was used (Table 2). Gray [2,4] presented a very complex scheme for geodiversity services following the classical division of ecosystem services to into regulating, supporting, provisioning, and cultural services. A special category of “knowledge” services was added; these services are included in the cultural services in general. Gordon [19,20] also elaborated a scheme for the cultural ecosystem services arising from geodiversity and geoheritage.
Abiotic ecosystem services were also included in the CICES as an “extension”, however, there is still no consensus on this decision, as it has a lot of pros and cons [25]. There are five abiotic cultural services (or subcategories) defined which try to cover all the variability of services which can be provided by geodiversity (Table 3); nevertheless, some aspects of this classification system are rather problematic and the explication remains rather ambiguous. Moreover, CICES introduced the abiotic ecosystem services as a “supplement” or “extension”, so there is a question of whether abiotic ecosystem services are counted as a “full-value” component of the ecosystem services concept within this approach [38].
In addition, cultural abiotic services in CICES does not match very well with the already recognized functions, services, and benefits of geodiversity proposed by Gray [2,4,38] or Brilha et al. [39]. The definitions and ambiguous examples are another problem with this approach. That is why the concept proposed by Gray [2,4] was used for the identification of cultural ecosystem services of the presented study area. Until now, any coherent method for quantifying ecosystem services of geodiversity has not been developed and used, while only the qualitative description or assessments are represented by several examples and case studies [5,6,52]. That is why the descriptive approach according to [2,19,20] was selected for our case study.

3. Study Area

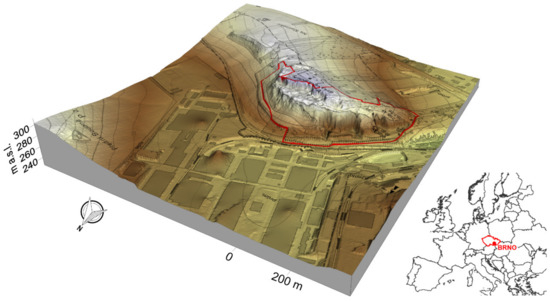

The elevation of Stránská skála (Figure 1) is situated in Brno city, in the southeastern part of the Czech Republic (South Moravian Region). It covers an area of approximately 16 ha with its highest point at 310 m a.s.l. Since 1978, the site has been protected (today, according to Act 114/1992 Coll. [70], as a National Natural Monument).

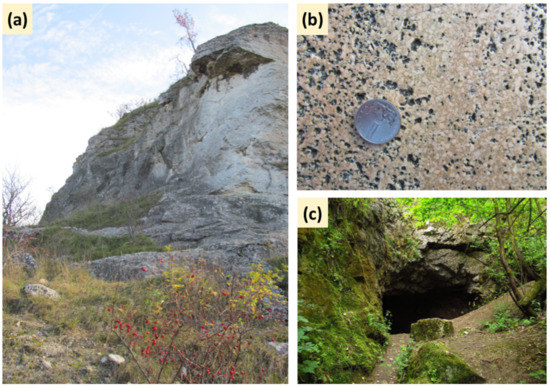

The site represents a denudation relic of the Upper Jurassic limestones (Figure 2a) which are paleontologically rich (Figure 2b). According to Gregorová [71], the first paleontological findings were discovered during the 19th Century. In practice, all significant groups of Jurassic marine fauna are included, e.g., crinoids, cephalopods or decapods [71,72,73,74]. The talus cone profile (Quaternary sediments) offers fossils from the Pleistocene [75,76]). A sequence of Jurassic rocks (over 50 m high) was uncovered through quarrying and was traditionally divided into lower chert limestones, crinoid limestones, and upper chert limestones. The limestones are strongly affected by karstification—the relics of three caves have been preserved (Figure 2c). As the site was affected by quarrying since the Middle Ages (see below), it is sometimes difficult to decide which outcrops and depressions are of a natural and anthropogenic origin. It is assumed that depressions were originally natural karst sinkholes that have been modified by surface quarrying.
Two levels of fluvial sediments have been preserved in the abandoned valley of Svitava between Bílá hora and Stránská skála (younger and older gravel cover), which represent complex fluvial strata that are important from a paleogeographical point of view [72,77,78]. In close proximity, the Neogene sediments (sands and clays) with rich paleontological findings occur [71].
Concerning anthropogenic transformations, the northwestern slope was considerably changed by quarrying. During WWII, several hundred meters of tunnels for the underground factory Flugmotorenwerke Ostmark and air protection objects were developed [79,80]. The site is botanically valuable with the occurrence of xerothermic communities which represent the relics of thermophilic species that have spread from the Mediterranean during the warm Holocene periods. Numerous protected species (e.g., Pulsatilla grandis) can be found here.
Stránská skála was repeatedly inhabited during the Paleolithic period, the oldest settlements at about 600,000 BC [81,82,83,84]. It is a site where the evidence of fire use by Homo Erectus was confirmed, so the site can be considered as one of the oldest sites of fire use in Europe [85].
About 45,000 years ago, the site was inhabited again, which has been confirmed by findings of the mature chipped stone industry (“bohunicien”) that used local material (Figure 3a). The exploitation and use of local material (especially cherts) were confirmed by other findings from the Eneolithic period as well [84,86]. During the Last Glacial Maximum (Epigravettian) (circa 20,000 BP), the site was a settlement of horse hunters [87].
The importance of Stránská skála for Pleistocene studies was already noted in 1968 [88] and its significance was again confirmed by Musil ed. ([81] and the chapters there), where the research is summarized. Even now, the site is considered to be an exceptional locality for Quaternary geology research [84,87,89,90].
The extraction of building stone probably started at the beginning of the 13th century [91,92,93]. The material was used for the first time in the Church of St. Jiljí in Brno-Komárov and St. Kunhuta in Brno-Zábrdovice, which was consecrated in the spring of 1211. Thus, the quarry was opened before then. Later, the material was extensively used in numerous monuments and sacral buildings in Brno, e.g., the crypt in Petrov cathedral, the cloisters of the Dominican and Minorite monasteries, Špilberk and Veveří castles, the Old Brno basilica, the Church of St. Thomas and St. James, and the portal of Old Town Hall (Figure 3b). The material was also used in sculptures (Stone Virgin on Orlí Street n. 16, Zderad’s Column, statues in Petrov Cathedral, Parnas fountain in Zelný Trh––Figure 3c), and as a tombstone [91]. The limestone was quarried until 1925 and temporarily renewed during 1940–1944 [79]. Nowadays, the deposit of crinoid limestone is not mined anymore and the site is protected as a National Natural Monument [80].
Concerning its artistic aspects, Stránská skála has appeared in several drawings and old photographs (Figure 3d). Currently, it is a favorite place for hiking, walking, or climbing and it serves as one of the recreational areas within Brno [80]. Thanks to its visual attractiveness and environmental qualities (a mosaic of rock outcrops, grasslands, bush vegetation and numerous viewpoints), the site can be considered to be aesthetically valuable (Figure 3e).
Stránská skála has inspired several poems e.g., [94] and urban legends that are based on real stories [95]. The underground spaces are considered by a certain group of people as a place where paranormal phenomena occur [96].

4. Results

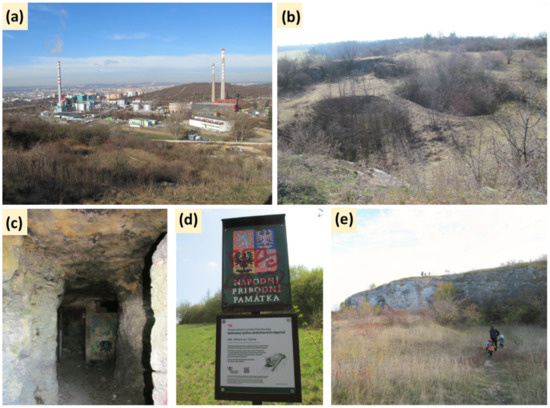

Based on the fieldwork observations, considering the method for ES assessment for Czech conditions [69], the method of García [52] and biotope classification in the Care plan, the main types of ecosystems where the abiotic components play a crucial role were identified: (1) limestone outcrops and quarries (defined within one category; thanks to the long history of quarrying, it is not possible to decide clearly which outcrop is natural and which was modified by quarrying or other human activities); (2) underground spaces (be they natural or modified by human activities—caves, adits, remains of industrial spaces); (3) sedimentary areas, especially alluvial fans and talus cones. More details about the geodiversity elements of each ecosystem are presented in Table 4. Abiotic cultural ecosystem services were identified and described based on Gray’s scheme [2] for every ecosystem. The results are in Table 5, while specific examples of cultural ecosystem services provided by geodiversity are in Figure 4.
The identification of ecosystem services can then serve as a basis for a SWOT (Strengths, Weaknesses, Opportunities, Threats) analysis of the locality and its geocultural aspects and above all, it may be considered as a source for the Care plan update for this National Natural Monument. Moreover, it can be used as a basis for valuing and quantifying the ecosystem services as well.

5. Discussion and Conclusions

The application of a cultural ecosystem services concept on ecosystems where the abiotic component plays a crucial role (e.g., caves, rock outcrops) helps us to identify the importance of the geocultural aspects of the geological and geomorphological localities. Based on the literature review, it was decided to use the abiotic ecosystem services approach as elaborated and presented by Gray [2,4], Gordon [19,20], and Gordon, Barron [6]. For the pilot study, these approaches seemed to be more comprehensive and suitable than the use of the CICES designed by EEA [51], as that offers only several criteria which are not clearly defined. The identification of the cultural ecosystem services of geodiversity by using CICES could be problematic because this classification stems from the assessment of biotic ecosystem services. Some of the categories defined by Gray [2,4], cannot be assigned to the categories of CICES unambiguously, although the categories defined by Gray [2,4], correspond (and most probably are based on) with the classification of ecosystem services presented in MEA 2005 [25] or de Groot et al. [36]. However, in the future, the concept of CICES should be employed as well, as it is officially recognized and can serve a basis for environmental accounting and calculation of ecosystem services values [97].
In general, the inclusion of geodiversity in the identification and assessment of ecosystem services is also vital in terms of understanding and emphasizing its importance. The concept of abiotic ecosystem services needs to be further developed and researchers are encouraged to use it [38,98], as it can help foster a more favorable acceptance of geodiversity in both landscape planning and nature conservation, and because it can contribute to the definition of geodiversity variables [98]. However, it has to be stated that development and the use of clear and unambiguous methods and frames for quantifying abiotic ecosystem services are at the beginning of being outlined [52,98], and their development and use is outside the frame of this paper. The development and application of the assessment and quantification of ecosystem services of geodiversity is one of the possible further directions of this research.
The identification of cultural ecosystem services of the Stránská skála site enabled us to describe the functions and services which are provided by geodiversity, and confirmed a high cultural and geoheritage value of the site. This should be taken into account when updating the Care plan and other strategic documents that deal with nature conservation or sustainable tourism development. The results of this pilot study can be seen as a basis for planning and managing natural resources as well. To a limited extent, these findings can be used as an argument when discussing proposals for educational, tourist, or recreational use of this site. However, to assess the suitability of the site for these purposes, it would be preferable to apply classical methods of geosite and geomorphosite assessment e.g., [99,100,101,102,103,104]. The proper assessment would be elaborated by experts, but local stakeholders, authorities, or managing organizations would use the results of the assessment for identifying the sites with a geotourist potential [102,105] or designing various geotourist activities such as geopaths or geotourist itineraries [106,107].
The cultural functions of geodiversity are particularly important for their overlaps and mutual relationships with natural and cultural heritage, as evidenced by the example of Stránská skála: on the one hand, the site represents a significant aspect of natural heritage especially thanks to paleontological findings and paleogeographical studies; on the other hand, the site provides a background and settings for recreation, sport, and tourism, it has strong links to various archaeological issues and the built heritage of Brno City, and it is an important site in terms of scientific knowledge and an understanding of environmental history. A comprehensive description of cultural abiotic ecosystem services enables these linkages to be explored and their significance to be highlighted.
The identification of the cultural ecosystem services of Stránská skála thus confirmed that the cultural ecosystem services of geodiversity can be numerous and should not be neglected when assessing ecosystem services in general. The evaluation of particular geosites and geomorphosites by using the concept of ecosystem services can provide additional arguments to support the sustainable use of geodiversity and finance the management of particular localities.

Funding

The research was supported by Internal Grant Agency MENDELU, project number VP_2019010.

Conflicts of Interest

The author declares no conflict of interest.
