Open AccessArticle
Atmosphere 2018, 9(5), 193; https://doi.org/10.3390/atmos9050193

Effects of Propagation of Narrow Bipolar Pulses, Generated by Compact Cloud Discharges, over Finitely Conducting Ground

1
Department of Engineering Sciences, Uppsala University, 752 37 Uppsala, Sweden
2
Department of Physics, University of Colombo, Colombo 03, Sri Lanka
This paper is an extended version of a paper presented at the International Conference on Lightning Protection, Shanghai, China, 11–18 October 2014.
*
Author to whom correspondence should be addressed.
Received: 19 April 2018 / Revised: 11 May 2018 / Accepted: 14 May 2018 / Published: 17 May 2018
View Full-Text   |   Download PDF [1880 KB, uploaded 17 May 2018]   |

Abstract

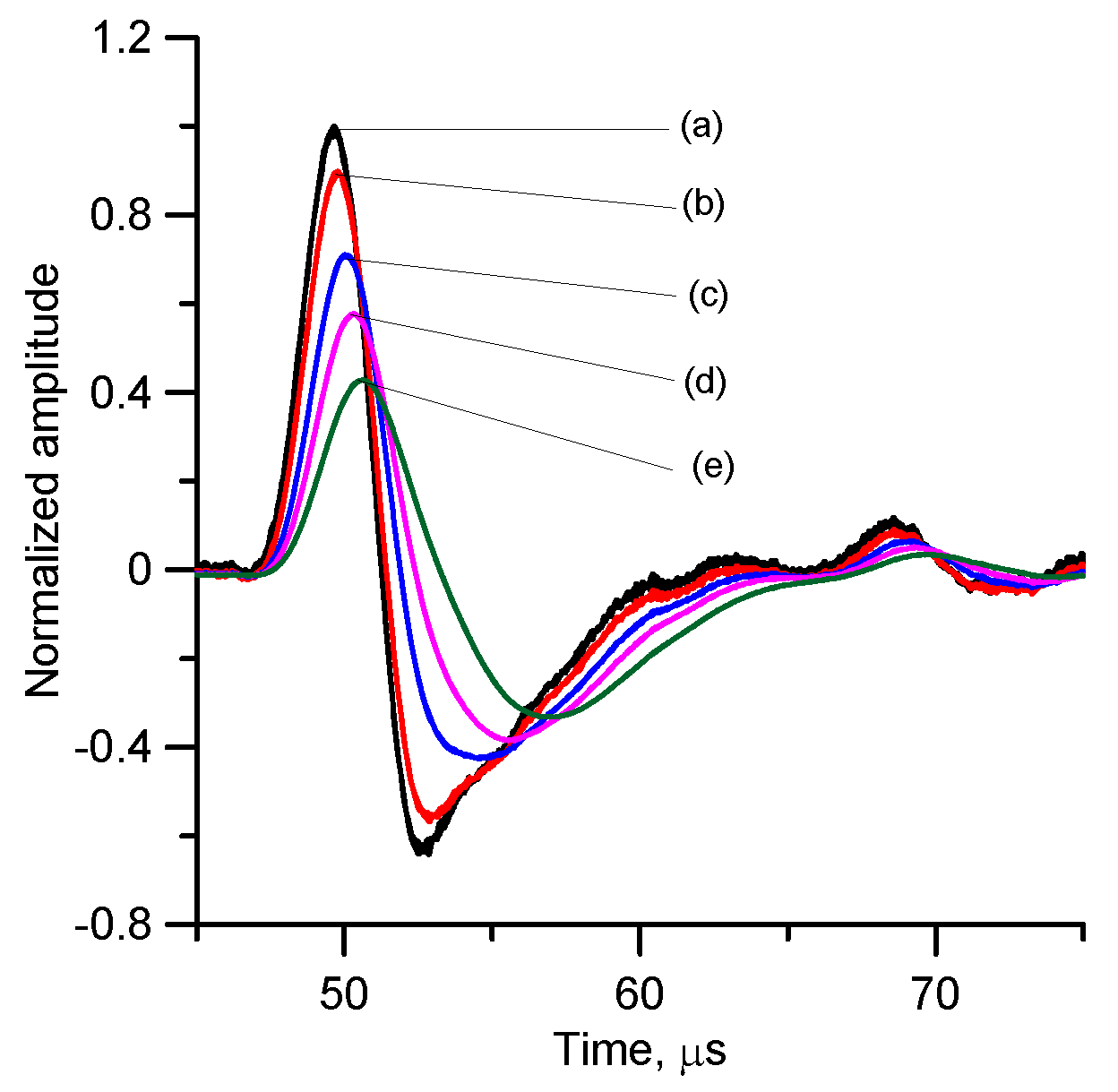

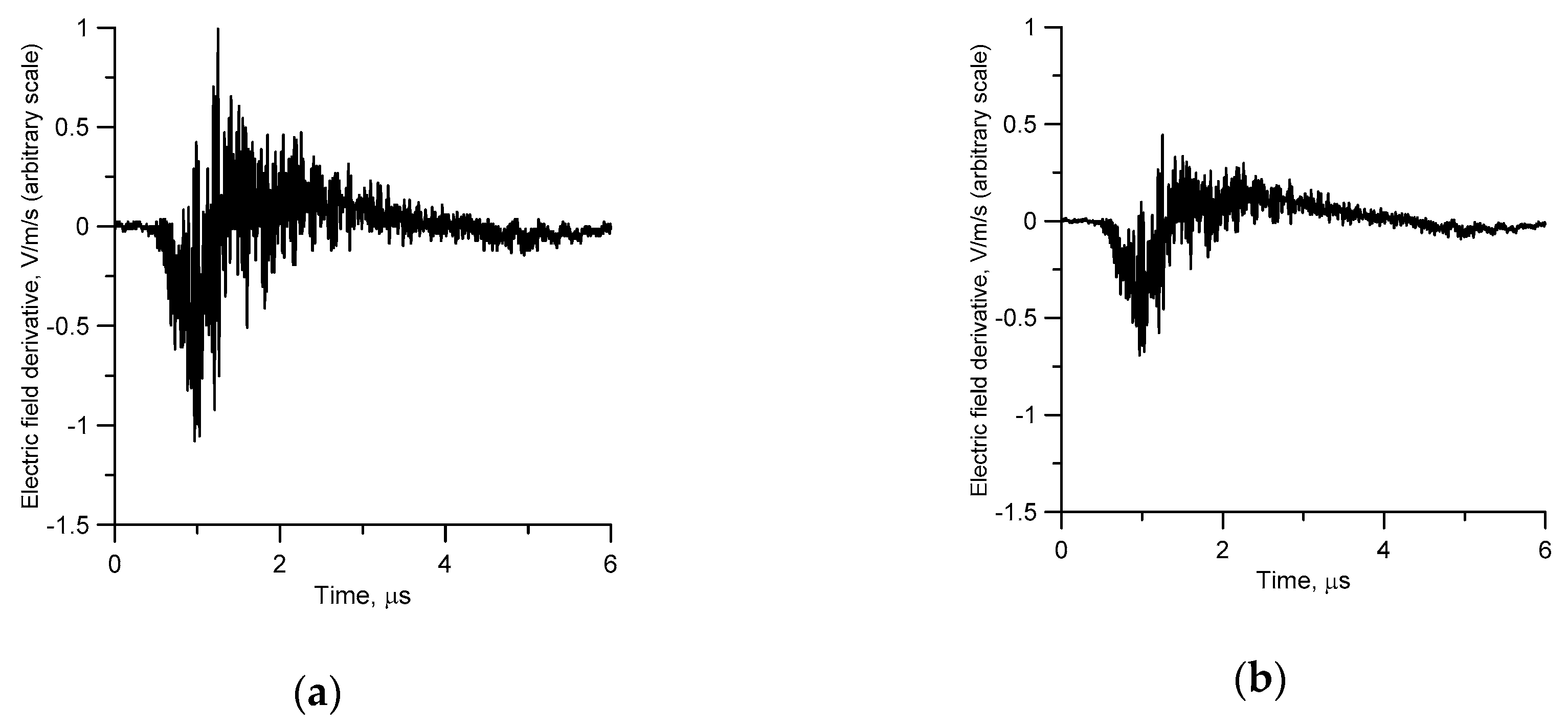

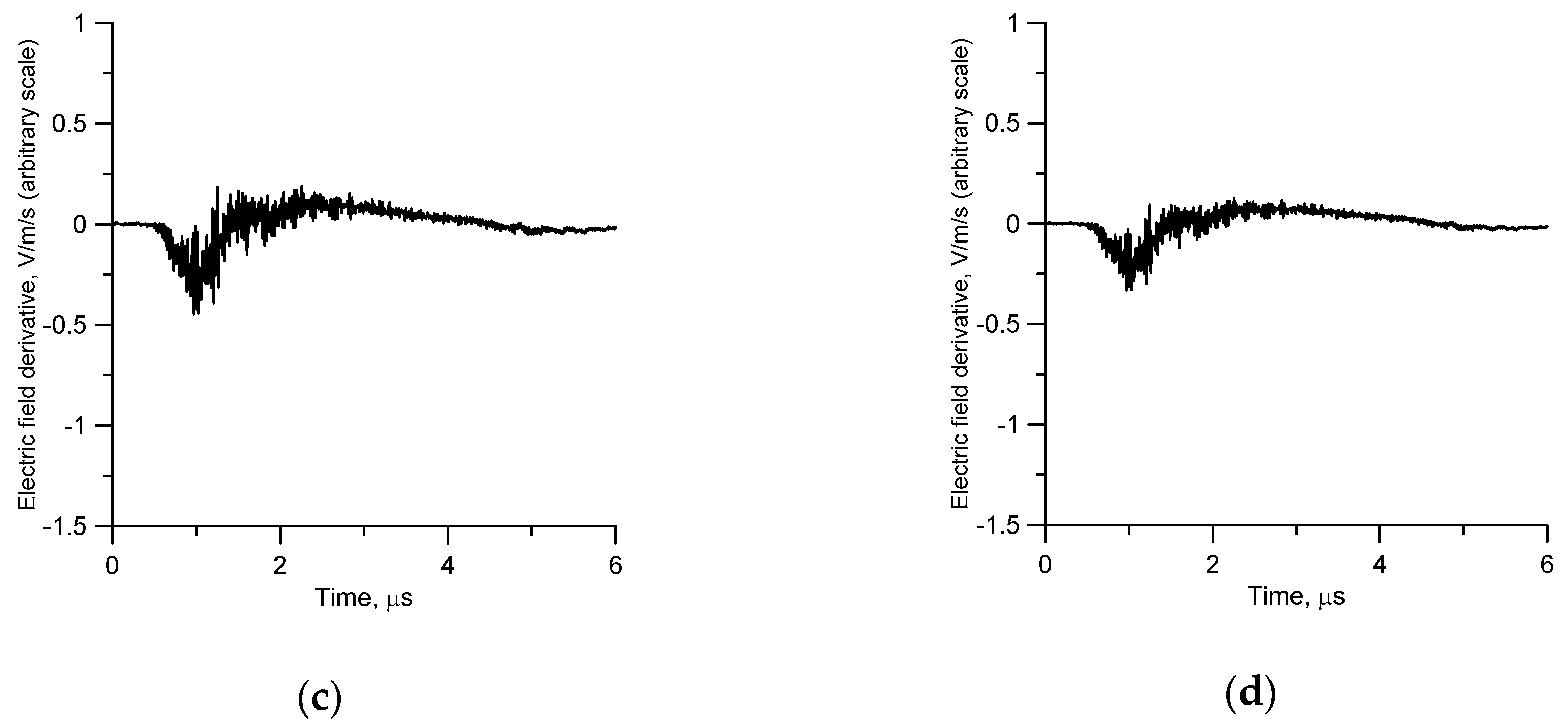

Propagation effects on the narrow bipolar pulses (NBPs) or the radiation fields generated by compact cloud discharges as they propagate over finitely conducting ground are presented. The results were obtained using a sample of NBPs recorded with high time resolution from close thunderstorms in Sri Lanka. The results show that the peak amplitude and the temporal features such as the full width at half maximum (FWHM), zero-crossing time, and the time derivative of NBPs can be significantly distorted by propagation effects. For this reason, the study of peak amplitudes and temporal features of NBPs and the remote sensing of current parameters of compact cloud discharges should be conducted using NBPs recorded under conditions where the propagation effects are minimal. View Full-Text
Keywords: compact cloud discharges; narrow bipolar pulses; propagation effects; finitely conducting ground compact cloud discharges; narrow bipolar pulses; propagation effects; finitely conducting ground
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
