The Vertical Distributions of Aerosol Optical Characteristics Based on Lidar in Nanyang City from 2021 to 2022

Abstract

To investigate the vertical distribution of aerosol optical characteristics in Nanyang City, a ground-based dual-wavelength (532 nm and 355 nm) lidar system was developed for aerosol observation at the Nanyang Normal University Station (NYNU) from November 2021 to December 2022. Spatio-temporal dynamics information on vertical distributions of aerosol optical properties during polluted and non-polluted days was obtained. Aerosols were characterized by low altitudes (up to 2 km), thinner layers, and high-altitude (up to 4 km) thick layers during non-polluted and polluted days, with extinction coefficient values of ~0.03 km⁻¹ and ~0.2 km⁻¹, respectively. The mean values of the extinction coefficient at different altitudes (0~5 km) were all about ten-times higher on polluted days (0.04~0.19 km⁻¹) than on non-polluted days (0.004~0.02 km⁻¹). These results indicate that aerosol loadings and variations at different altitudes (0~5 km) were much higher and more prominent on polluted days than non-polluted days. The results show ten-times larger aerosol optical depth (AOD) values (0.4~0.6) on polluted days than on non-polluted days (0.05~0.08). At the same time, AOD values on both polluted and non-polluted days slightly decreased from 19:00 to 05:00, possibly due to dry depositions at nighttime. For the first time, this study established a ground-based lidar remote sensing system to investigate the vertical distribution of atmospheric aerosol optical characteristics in Henan Province. The experimental results can provide scientific dataset support for the local government to prevent and control air pollution.

1. Introduction

Aerosols are solid or liquid particles suspended in the atmosphere, ranging from submicron to 100s of microns [1,2]. Aerosols can absorb or scatter solar radiation, thus affecting the earth’s radiation balance, or act as condensation nuclei of clouds, altering their life cycles and affecting the climate system [3,4,5,6,7,8,9]. With the increasing mass concentration of suspended particulate matter in the atmosphere, haze pollution events could occur [10,11], deteriorating visibility and air quality [12,13,14,15,16]. Therefore, an observational study of the aerosol is a prerequisite for haze management and is of great scientific importance [17,18,19,20,21].

The vertical aerosol distribution is essential information for studying aerosol characteristics, which can influence weather and climate change. The vertical distribution of aerosols changes rapidly, bringing some uncertainty to aerosol monitoring [22,23,24]. Traditional aerosol observation techniques, such as station sampling observation, can only obtain information about the aerosol near the surface but not the vertical distribution of the aerosols. Accurate acquisition of spatial three-dimensional vertical dynamic details of the aerosol layer is necessary and will improve the accuracy of aerosol monitoring and traceability. Lidar remote sensing technology has a high temporal resolution, which has been gradually applied to obtain aerosol vertical distributions [25,26,27,28,29,30]. By actively emitting laser signals and receiving the scattering signals of atmospheric aerosol and molecules, Lidar can accurately obtain the vertical distribution of aerosol optical characteristics and provide the necessary means for atmosphere research [31,32,33,34].

Many researchers worldwide have studied aerosols’ vertical distribution using Lidar remote sensing technology and have achieved remarkable results [19,26,35,36,37,38]. Sicard et al., developed and tested a dual-wavelength lidar system based on 1064 and 532 nm to observe aerosols vertically [39]. Gasmi et al., used a home-built ground-based Lidar system to achieve aerosol/cloud profiles in the lower atmosphere [40]. Liu et al., developed a dual-field Lidar system, which enabled the simultaneous acquisition of near- and far-field aerosol data, effectively improving the detection altitude range of the Lidar system [41]. Li et al., developed an integrated fluorescence-Mie Lidar to achieve fluorescence aerosol profile information in meteorological monitoring [42]. Shukla et al., studied the vertical distribution of the aerosol layer over the Himalayas using the range correction signal of micro-pulse Lidar [43]. Zhu et al., compared the difference in vertical aerosol distribution between urban and suburban areas and studied the influence of regional transport on local pollution sources [44]. Sugimoto et al., studied the vertical distribution of the extinction coefficient and depolarization ratio of aerosols utilizing the Mie–Raman polarization Lidar in Phimai, Thailand [45]. Rosati et al., also studied the vertical distribution of extinction coefficients of aerosols in the atmospheric boundary layer at the San Pietro Capofiume (SPC) station in Italy using an elastic scattering Lidar [46]. Based on Lidar’s advantages in atmospheric observation, the Lidar aerosol European observation network (EARLINET) was established worldwide, which played an essential role in global aerosol profile acquisition and application [47,48]. In summary, Lidar technology, with a wide range of detection altitudes and strong data signal-to-noise ratio, is essential for aerosol observation.

In this study, we developed a ground-based dual-wavelength (532 nm and 355 nm) Lidar system for aerosol observation. The experimental site was chosen in the Nanyang Normal University (NYNU) station in Nanyang City, Henan Province, China. The study period was from November 2021 to December 2022. Information on vertical aerosol distribution in hazy and clear weather was obtained, which can provide scientific data support and theoretical support for haze prevention and control in Nanyang City. According to previous reports, no relevant team in Henan Province has been found to develop ground-based Lidar in haze experimental observation. Additionally, this experiment is the first to establish a ground-based Lidar system and utilize it to observe the vertical distribution of atmospheric aerosol optical characteristics in Henan Province. The experimental site, equipment, and research methods are explained in Section 2, the results and discussion are presented in Section 3, and the conclusion is in Section 4.

2. Materials and Methods

2.1. Experimental Site

The NYNU site (32°58′ N, 112°29′ E) is located in Nanyang City, Henan Province, China (Figure 1). Nanyang City borders Hubei Province and Shanxi Province, which is the core city of the central Plains economic zone and the sub-center city of Henan Province. Nanyang belongs to China’s typical subtropical continental monsoonal climate and the Yangtze River basin. Nanyang has four distinct seasons and moderate annual precipitation (1295.8 mm), and a yearly temperature of 16.7 °C [49]. It is located north of the Funiu Mountains and the Han River. It is the largest prefecture-level city in Henan Province, with an area of 26,600 square kilometers and a population of 9,629,000. Nanyang has a privileged geographical position, convenient transportation, and well-developed transportation. In recent years, Nanyang has become an emerging regional economic center and a national comprehensive transportation hub. This rapid economic development has been accompanied through frequently increasing serious haze pollution events, making it imperative to monitor and study the haze in Nanyang.

2.2. Lidar Equipment

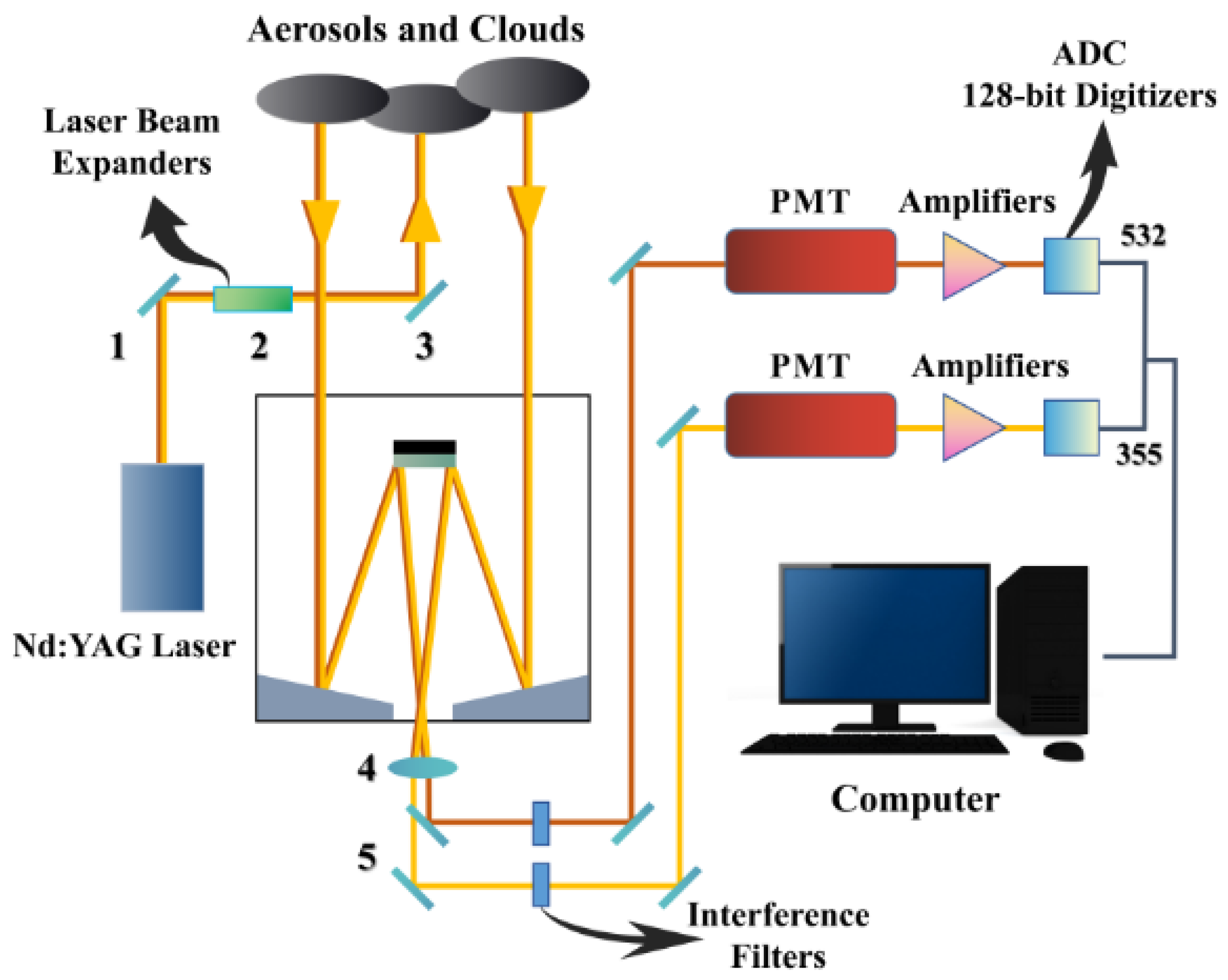

The 2-wavelength Lidar system consists of a laser transmitting system, an optical telescope receiving system, and a signal acquisition processing system. Figure 2 shows a schematic diagram of the Lidar, and

Table 1. Equipment parameters of the 2-wavelength Lidar system.

Laser emission systems
Lasers	Quantel CFR BIG SKY Q-switched Nd: YAG
Wavelength	532 nm, 355 nm
Pulse energy	130 mJ@532 nm, 60 mJ@355 nm
Maximum heavy frequency	20 Hz
Pulse width	10 ns@532 nm, 9 ns@355 nm
angle of divergence	0.25 mrad
Optical reception systems
Model	MEADE Schmidt-Cassegrain (MEADE LX200/MEADE LX850)
Focal length	2000 mm/4064 mm
Calibre	203 mm (8 in)/355 mm (14 in)
Field of view	1.5 mrad (Adjustable)
Filter bandwidth	3 nm
Signal acquisition systems
High resolution	7.68 m
Time resolution	Adjustable (common 60 s)
Data processing	Automated, Manual
Sampling rate	50 ns

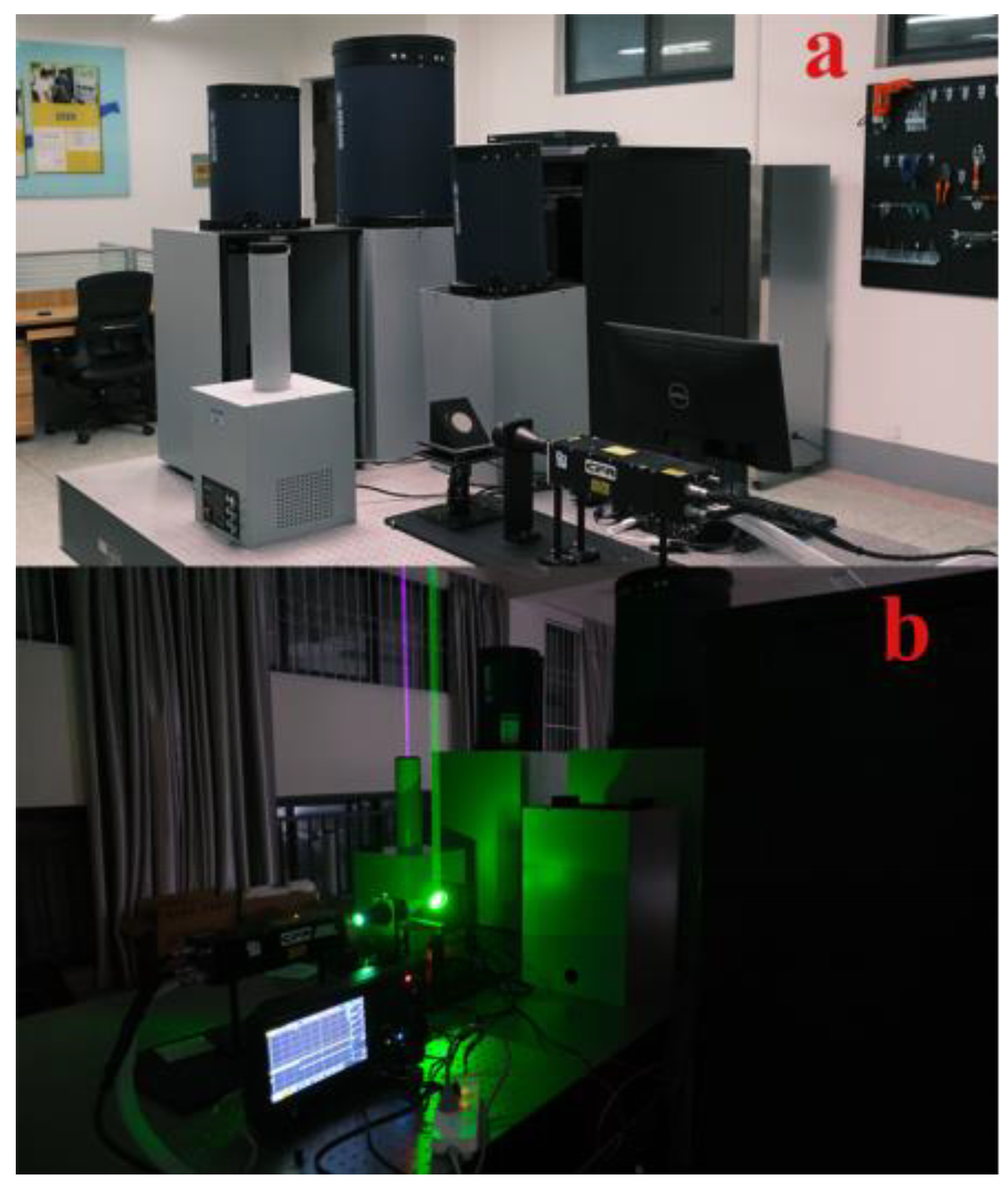

gives the technical parameters of the system. The laser transmitting and the optical telescope receiving systems (high-power pulsed laser, transmission unit, laser power meter, laser echo spectroscopy detector, telescope, photomultiplier tube) are placed on an optical platform for long time series of stable observations. The signal acquisition system (IPC, mobile data acquisition controller, echo signal monitor) is housed in the PDU acquisition cabinet. As shown in Figure 2, the transmission unit consists of three parts (total reflector 1, collimated beam expander 2, and total reflector 3). The laser beam from the high-power pulsed laser is passed through the total reflector 1 and then directed through the collimating beam expander 2, where the beam diameter changes from 1 cm to 3 cm, and then to the total reflector 3. By adjusting the angle of the total reflector 3, the final output laser beam is parallel to the receiving telescope’s optical axis. It is directed vertically into the sky through the skylight at the top of the laboratory (Figure 3).

After the two telescopes had picked up all the received light, the visible 532 nm signal was filtered out by green filter 4 and picked up by the telescope (MEADE LX200), and the 355 nm signal was filtered out by UV filter 5 and picked up by the telescope (MEADE LX850). Then, signals of the two channels were concentrated in their respective photomultiplier tubes. The signal of each channel is amplified by a signal amplifier behind the photomultiplier, which is then used for analog-to-digital conversion and acquisition via the digital acquisition card.

2.3. Experimental Methodology

The Lidar emits laser pulses vertically into the sky. The scattering occurs when the laser pulses hit the atmospheric particles and molecules, where the backscattered signal returns vertically to the receiving telescope. The profiles of aerosol optical properties (extinction coefficient, backscattering coefficient) can be obtained by inversion of the backscattering signals. After the Lidar receives the echo signal of atmospheric aerosol particles and molecules, it is necessary to retrieve it to obtain accurate aerosol optical properties quantitatively. Several researchers have contributed to this area by proposing many Lidar aerosol retrieval algorithms. For example, Collis et al., proposed the slope method based on homogeneous aerosols [50], Klett et al., proposed the aerosol composition method [51], and Fernald et al., proposed the inversion method considering molecules and aerosols [52]. The slope method is premised on the assumption that the aerosols in the atmospheric environment are uniformly distributed and that the backscattering and extinction coefficients in the inversion equations are constants; the Klett–Fernald inversion method is currently the classical method for retrieving aerosol extinction coefficient profiles from Lidar signals. In this method, if the extinction coefficients of aerosol particles and atmospheric molecules at a certain altitude z_i are known in advance, the backscattering and extinction coefficients of aerosol particles at altitudes above the reference altitude z_i can be obtained by using the Fernald forward integration method. Similarly, the backscattering and extinction coefficients of aerosol particles at each height below the reference height z_i can also be found using the Fernald backward integration method. The relevant formula is shown as follows:

Backward integration:

$${\mathsf{\beta }}_{\mathrm{a}}(\mathrm{i}-1)=\frac{\mathrm{X}(\mathrm{i}-1)\exp [\mathrm{A}(\mathrm{i}-1)]}{\frac{\mathrm{X}(\mathrm{i})}{{\mathsf{\beta }}_{\mathrm{a}}(\mathrm{i})}+{\mathrm{S}}_{\mathrm{a}}\left\{\mathrm{X}(\mathrm{i})+\mathrm{X}(\mathrm{i}-1)exp[\mathrm{A}(\mathrm{i}-1)]\right\}\Delta \mathrm{z}}-{\mathsf{\beta }}_{\mathrm{m}}(\mathrm{i}-1)$$

(1)

Forward integration:

$${\mathsf{\beta }}_{\mathrm{a}}(\mathrm{i}+1)=\frac{\mathrm{X}(\mathrm{i}+1)\exp [-\mathrm{A}(\mathrm{i})]}{\frac{\mathrm{X}(\mathrm{i})}{{\mathsf{\beta }}_{\mathrm{a}}(\mathrm{i})}-{\mathrm{S}}_{\mathrm{a}}\left\{\mathrm{X}(\mathrm{i})+\mathrm{X}(\mathrm{i}+1)exp[-\mathrm{A}(\mathrm{i})]\right\}\Delta \mathrm{z}}-{\mathsf{\beta }}_{\mathrm{m}}(\mathrm{i}+1)$$

(2)

where β_a is the backscattering coefficient of aerosol particles, X(z) = P(z)z², and the subscripts a and m denote aerosol particles and atmospheric molecules, respectively. Sa and S_m are the Lidar ratios of aerosol and atmospheric molecules. In this method, three parameters must be assumed [52]: (1) The Lidar ratio S_a is chosen roughly depending on the prevailing aerosol type/size. A value of 50 sr is often preferred for unknown or mixed aerosols. This study assumes Sa as a fixed constant value of 50 Sr in the 532 nm band. S_m is supposed to be 8π/3 Sr [53,54,55,56]. (2) The backscattering coefficient of atmospheric molecules β_m is derived using the U.S. Standard Atmosphere Model and Rayleigh scattering theory [51,52]. (3) The boundary value X(i) is solved via the matching method assuming the existence of a clean atmosphere at the top of the troposphere (at a determined height z_i), where the aerosol backscattering ratio is usually considered to be β_a (z_i)/β_m (z_i) = 0.02 [51,52].

In this experiment, we only use 532 nm data for analysis; the variables include 532 nm extinction coefficient profile data and 532 nm AOD data. Because of the intense sunlight and the poor signal-to-noise ratio during the daytime, all the experimental observations were carried out at night. This study divided the data into polluted and pollution−free weather and compared the vertical distribution of aerosol extinction coefficients. According to the standard of PM_2.5 data of Nanyang Meteorological Bureau, the weather with a daily average of PM_2.5 mass concentration greater than 75 µg/m³ was regarded as pollution weather, and the weather in which a daily average of PM_2.5 mass concentration less than 75 µg/m³ was considered as pollution−free weather. This rule was consistent with the Chinese ambient air quality standards (secondary quality standard, 75 µg/m³ 24 h average of PM_2.5) [57]. The time used in this study was the local time (L.T.).

3. Results and Discussion

3.1. Lidar-Based Vertical Distribution of Pollution−Free Weather Aerosols in Nanyang

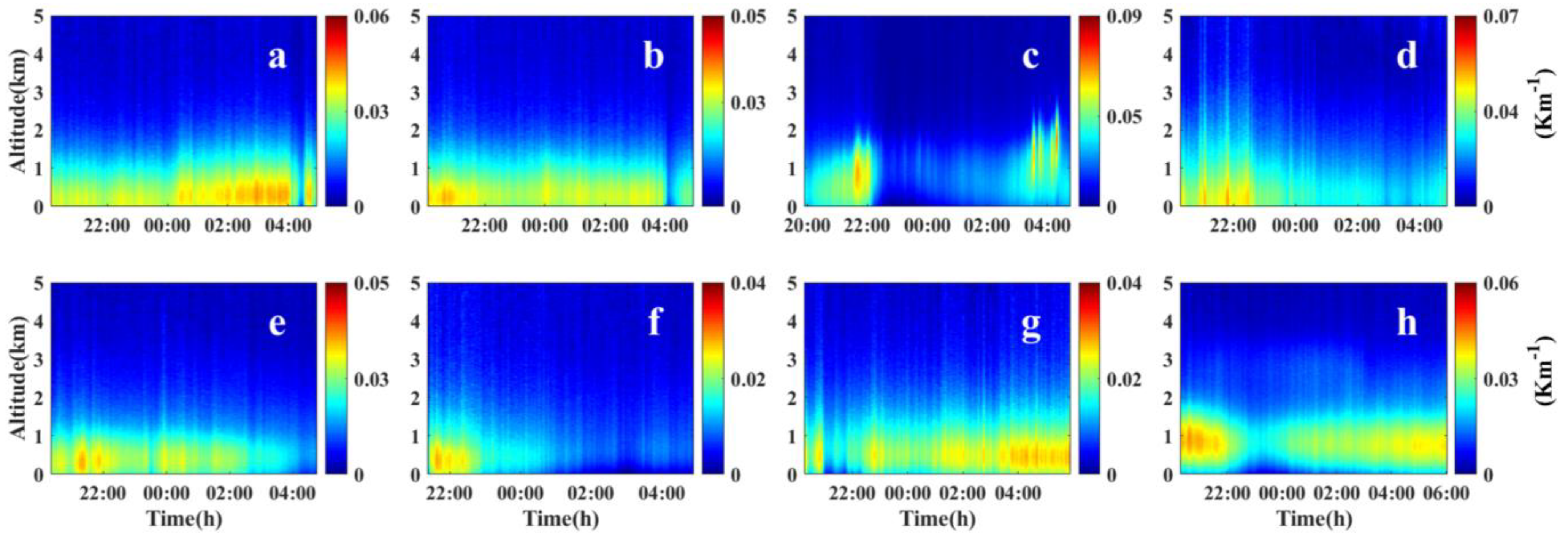

Figure 4 displays the altitude–time color map of 2-wavelength Lidar for pollution−free weather at the NYNU site. Meanwhile,

Table 2. Extinction coefficients at various heights during the pollution−free period.

R (km)	Mean (km−1)	S.D.	P (km−1)
			10%	25%	50%	75%	90%
0	0.0001	0.0001	0.0000	0.0001	0.0001	0.0001	0.0001
1	0.0221	0.0068	0.0138	0.0177	0.0222	0.0264	0.0307
2	0.0234	0.0052	0.0175	0.0198	0.0225	0.0268	0.0302
3	0.0114	0.0033	0.0083	0.0093	0.0107	0.0126	0.0147
4	0.0064	0.0021	0.0045	0.0051	0.0060	0.0072	0.0085
5	0.0043	0.0018	0.0028	0.0033	0.0040	0.0049	0.0058

displays the statistical information of mean values, standard deviations, and percentiles of extinction coefficients at various heights during the pollution−free period. It can be seen that average values of the extinction coefficients at 1 km, 2 km, and 3 km altitudes were 0.0221 km⁻¹, 0.0234 km⁻¹, and 0.0114 km⁻¹ during pollution−free weather, respectively, while the values of the extinction coefficients above 4 km were all less than 0.01 km⁻¹, indicating that aerosols were mainly concentrated below 3 km. The standard deviation values of the extinction coefficients at 1 km, 2 km, and 3 km heights were 0.0068, 0.0052, and 0.0033 during pollution−free weather, respectively, while the values of standard deviation above 4 km were all less than 0.003, indicating that aerosol extinction coefficients changed relatively more significantly below 3 km than above 3 km.

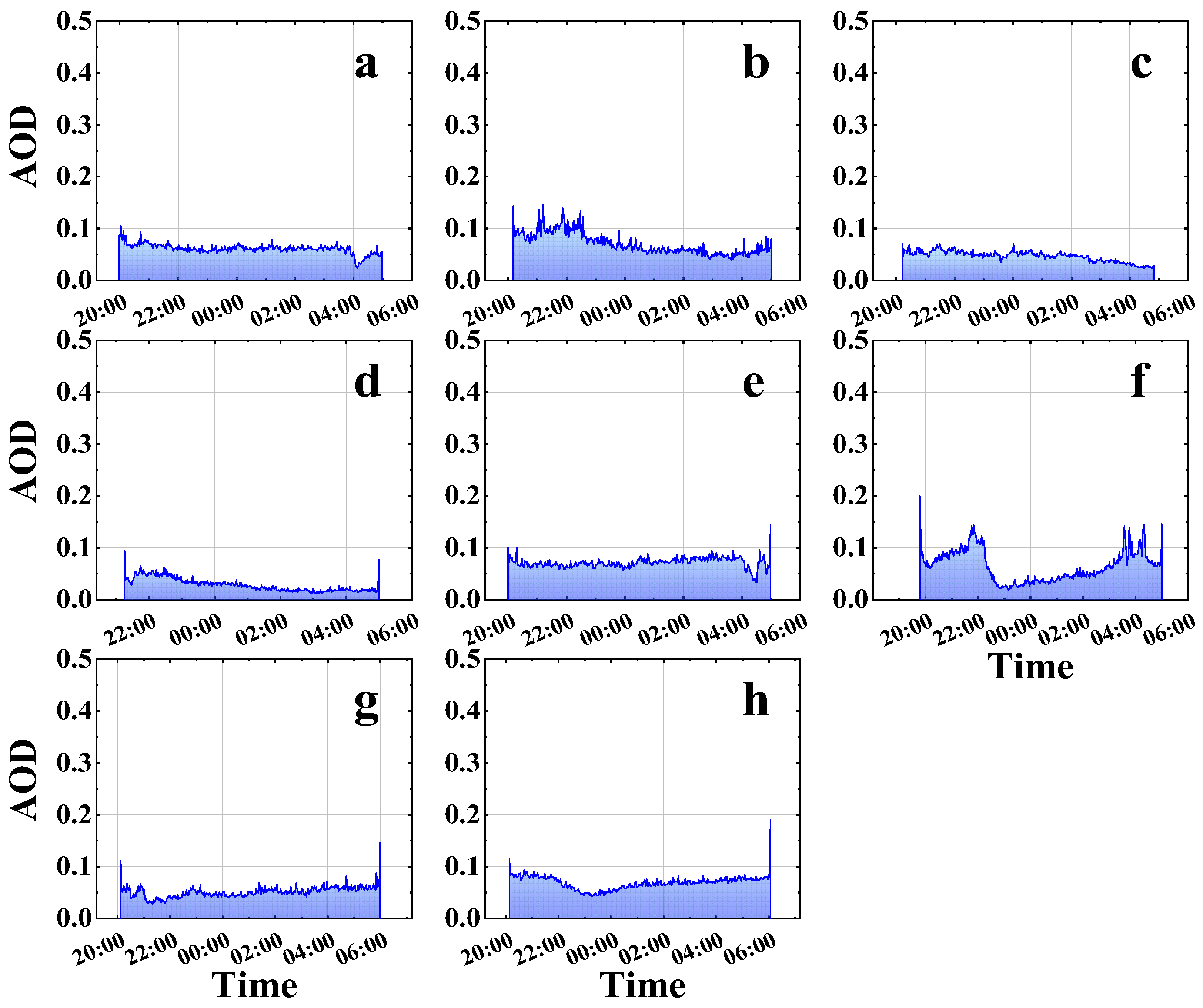

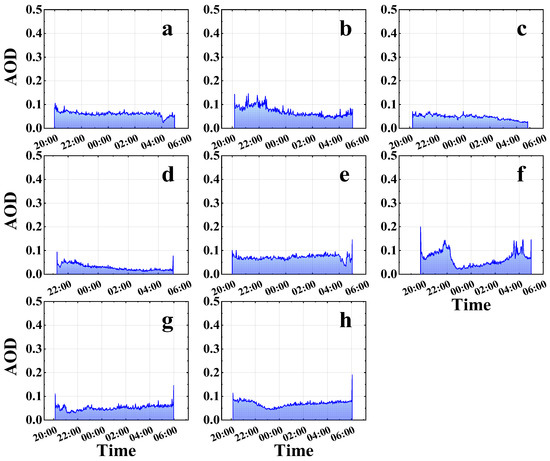

Figure 5 showed the 532 nm aerosol optical depth (AOD) of the Lidar at the NYNU site in pollution−free weather. Meanwhile,

Table 3. AOD statistics at various times during the study in pollution−free weather.

Time	Mean	SD	P
			10%	25%	50%	75%	90%
19:00	0.076	0.023	0.063	0.063	0.064	0.084	0.095
20:00	0.072	0.013	0.056	0.063	0.074	0.081	0.086
21:00	0.071	0.025	0.044	0.055	0.067	0.086	0.105
22:00	0.061	0.015	0.048	0.051	0.059	0.062	0.075
23:00	0.051	0.015	0.032	0.044	0.049	0.062	0.069
00:00	0.052	0.015	0.034	0.043	0.056	0.062	0.065
01:00	0.054	0.016	0.039	0.047	0.056	0.064	0.069
02:00	0.054	0.019	0.035	0.050	0.054	0.064	0.073
03:00	0.057	0.023	0.030	0.046	0.059	0.073	0.082
04:00	0.055	0.023	0.025	0.040	0.059	0.067	0.079
05:00	0.062	0.015	0.050	0.055	0.063	0.070	0.074

displayed AOD statistics information (mean values, standard deviations, percentiles) at various times during the study in pollution−free weather. It can be revealed that mean AOD values of pollution−free weather at the NYNU site were low (0.05~0.08) and showed a decreasing trend from 19:00 to 5:00 L.T., which could be due to the dry deposition phenomenon of aerosols at night, resulting in a decrease in aerosol concentration after midnight.

3.2. LIDAR-Based Vertical Distribution of Polluted Weather Aerosols

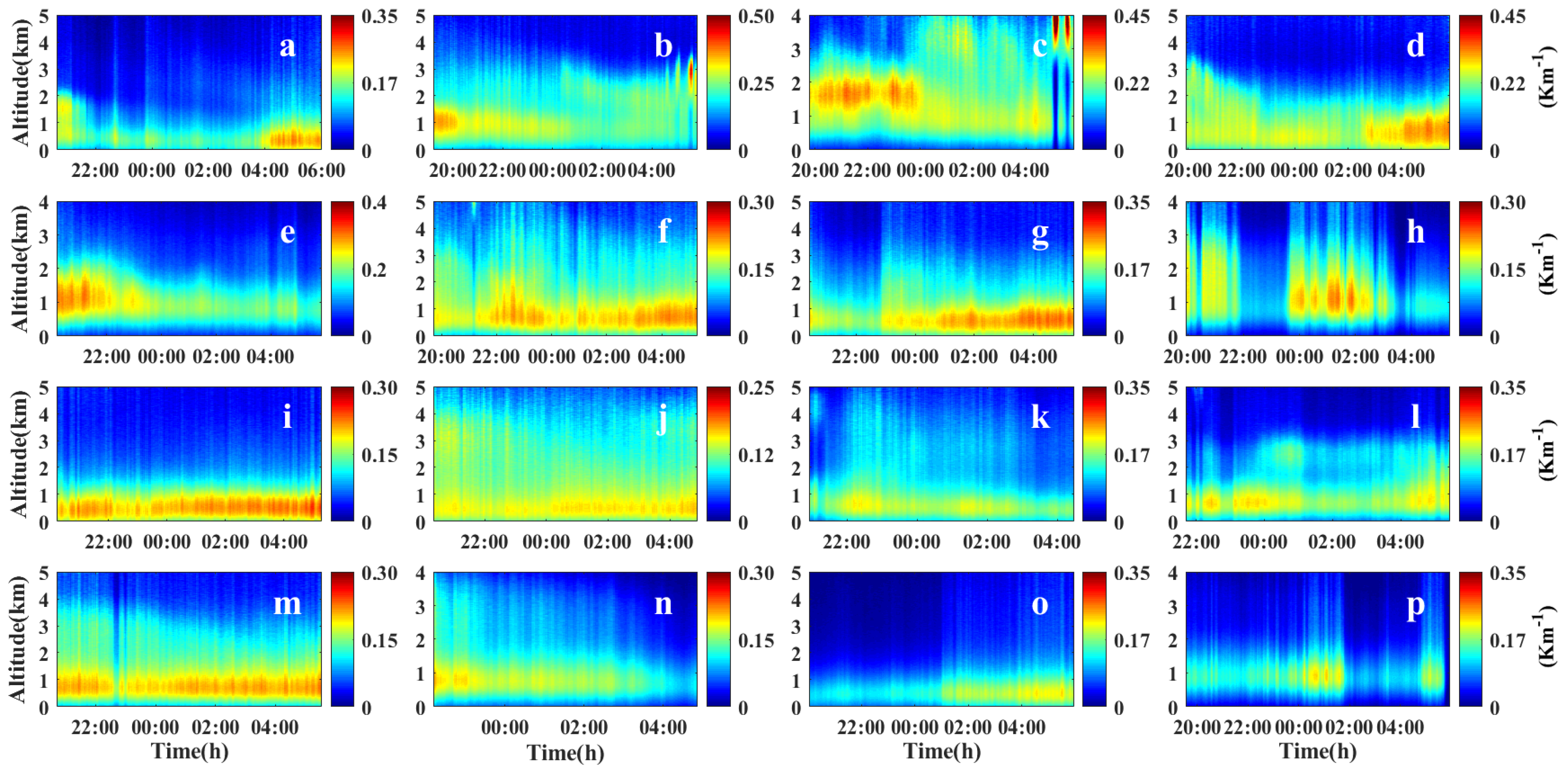

Figure 6 displays the altitude–time color map of 2-wavelength Lidar for polluted weather at the NYNU site. Meanwhile,

Table 4. Extinction coefficients at various heights during polluted weather.

R (km)	Mean	SD	P
			10%	25%	50%	75%	90%
0	0.0330	0.0208	0.0215	0.0257	0.0325	0.0381	0.0438
1	0.1911	0.0422	0.1607	0.1755	0.1923	0.2122	0.2281
2	0.1349	0.0413	0.1040	0.1177	0.1335	0.1551	0.1723
3	0.0955	0.0352	0.0663	0.0784	0.0941	0.1114	0.1317
4	0.0622	0.0285	0.0374	0.0451	0.0592	0.0755	0.0908
5	0.0427	0.0202	0.0244	0.0302	0.0401	0.0529	0.0643

displays the statistical information of mean values, standard deviations, and percentiles of extinction coefficients at various heights during the polluted period. As shown, during the polluted weather, the mean values of extinction coefficients at 1 km, 2 km, and 3 km heights were 0.1911 km⁻¹, 0.1349 km⁻¹, and 0.0955 km⁻¹, respectively. The mean values of extinction coefficients above 3 km were less than 0.09 km⁻¹, indicating that aerosols were mainly concentrated below 3 km.

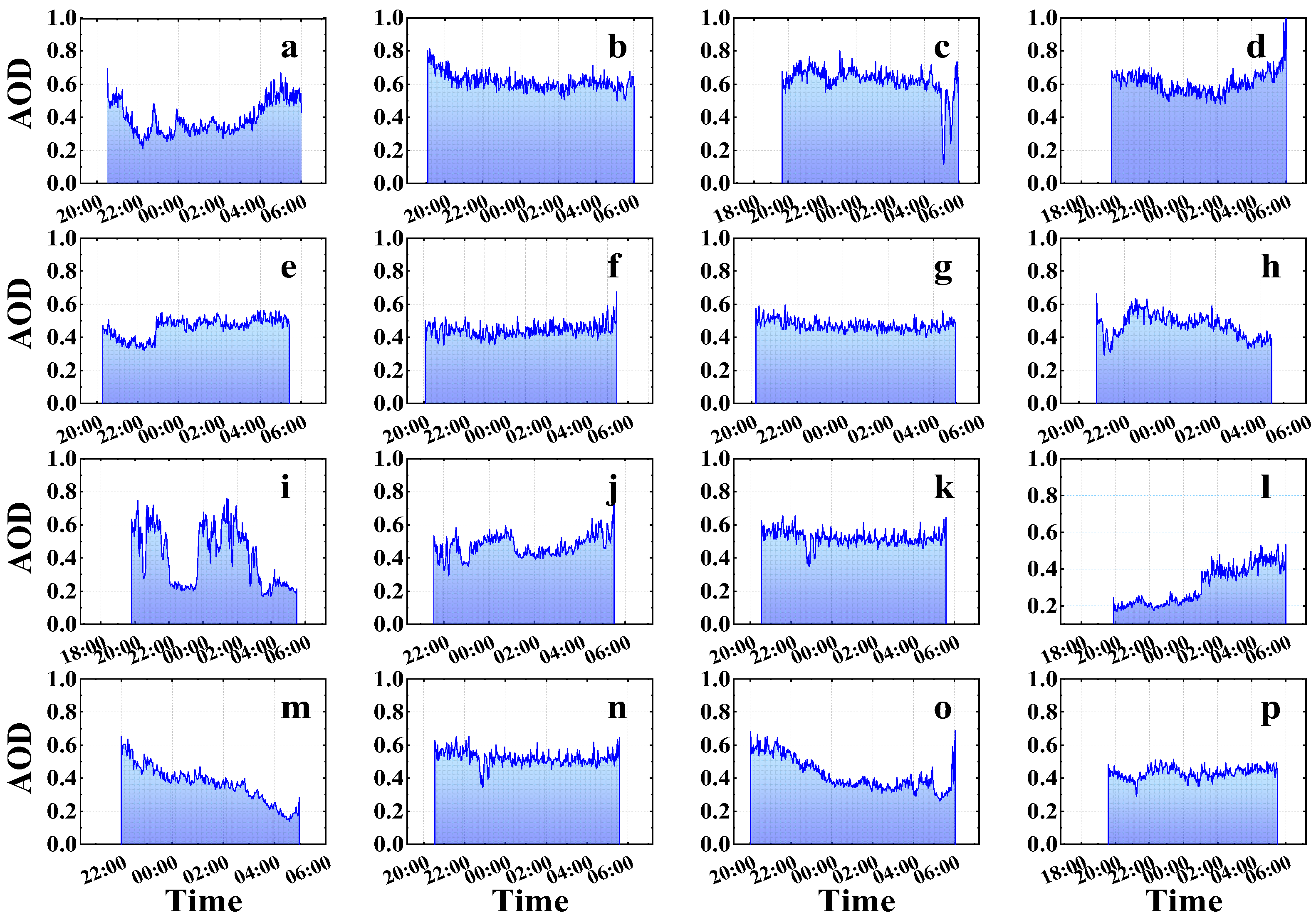

Figure 7 shows the 532 nm aerosol optical depth (AOD) of Lidar at the NYNU site in polluted weather. Meanwhile,

Table 5. AOD statistics at various times during the study in pollution weather.

Time	Mean	SD	P
			10%	25%	50%	75%	90%
19:00	0.503	0.188	0.275	0.382	0.581	0.628	0.679
20:00	0.499	0.132	0.337	0.437	0.518	0.580	0.640
21:00	0.471	0.134	0.306	0.401	0.449	0.566	0.637
22:00	0.446	0.133	0.266	0.356	0.470	0.530	0.609
23:00	0.452	0.117	0.312	0.401	0.457	0.520	0.580
00:00	0.463	0.102	0.353	0.402	0.472	0.532	0.578
01:00	0.471	0.089	0.369	0.398	0.454	0.523	0.591
02:00	0.439	0.109	0.335	0.378	0.453	0.482	0.573
03:00	0.431	0.125	0.260	0.379	0.450	0.500	0.606
04:00	0.449	0.134	0.246	0.380	0.467	0.520	0.599
05:00	0.458	0.142	0.262	0.351	0.501	0.544	0.580

displays AOD statistics information (mean values, standard deviations, percentiles) at various times during the study in pollution−free weather. As shown, the mean values were larger (0.40~0.50) than during the non-polluted period (Table 3). The decreasing trend could be due to the dry deposition of aerosols at night, which led to a decrease in aerosol concentrations after midnight. In summary, AOD values were higher during the polluted winter and spring seasons in Nanyang.

3.3. Synthesis of the Measurements

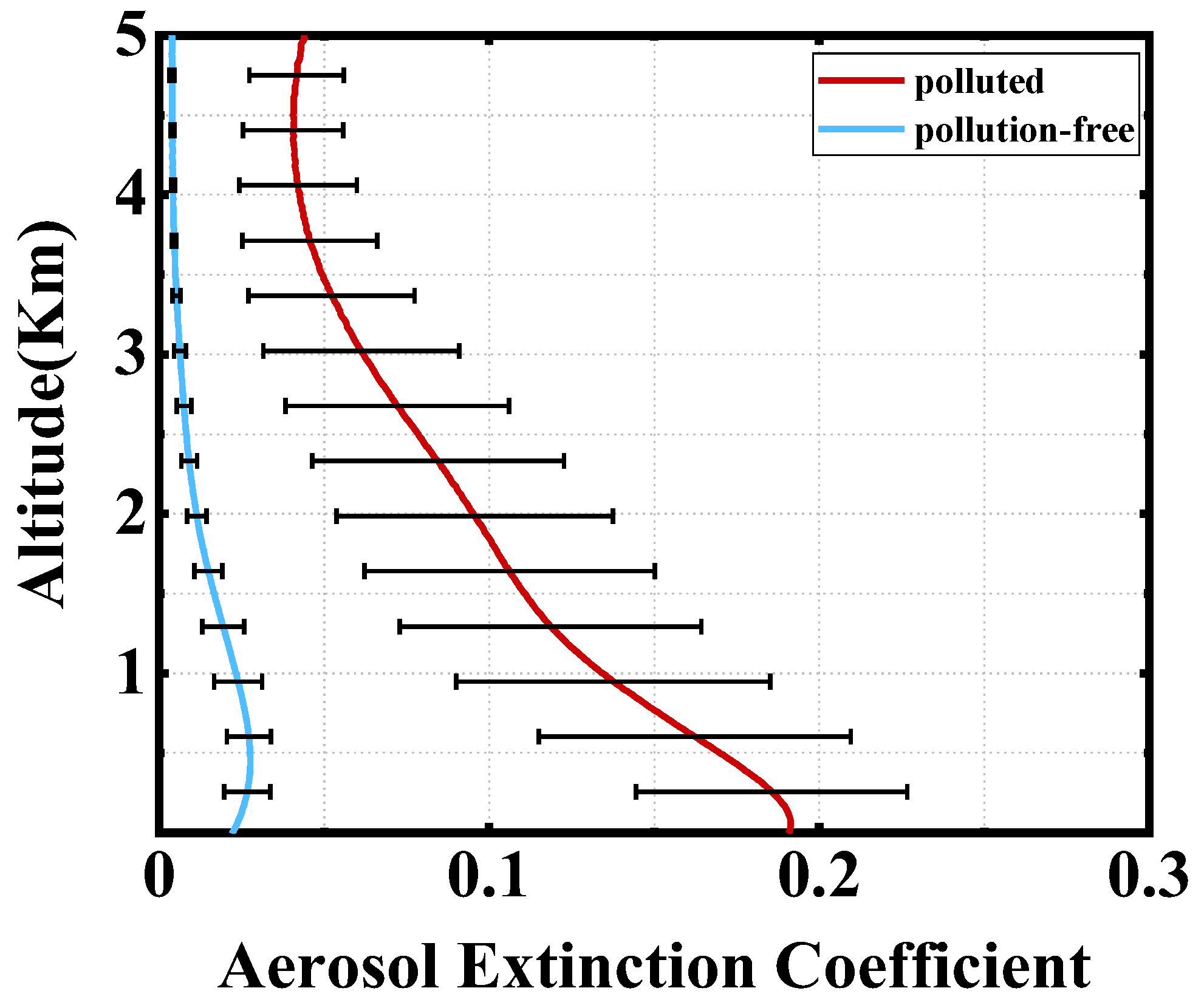

We calculated the mean and standard deviation of extinction coefficient profiles for polluted and non-polluted weather. As shown in Figure 8, it could be seen that the mean value of aerosol extinction coefficient mean values in polluted weather varies from 0.045 to 0.19 with an altitude from 5 km to 0 km. The mean values of aerosol extinction coefficients decreased exponentially with the increase in altitude, and the variation range of standard deviation decreased gradually. Under non-polluted weather conditions, the mean values of extinction coefficients changed from 0 to 0.025. With the height rising, the extinction coefficient decreased, and the variation range of standard deviation gradually reduced. The average extinction coefficient of polluted weather is about 10-times that of non-polluted weather.

Meanwhile, standard deviations of both polluted and non-polluted weather decreased gradually with the increase in altitude (0~5 km), indicating that changes in aerosol concentrations at low altitudes were more significant than that at high altitudes, both in polluted and non-polluted weather. At the same time, the standard deviations in the extinction coefficients for polluted weather, at any altitude, were much larger than those for non-polluted weather. These results indicated that aerosol mass concentrations for polluted weather were higher than that for non-polluted weather at any altitude at the NYNU site. At the same time, the change degree of aerosols in polluted weather was more severe than in non-polluted weather at any altitude.

4. Conclusions

To investigate the vertical distribution of aerosol optical characteristics in Nanyang City, our team developed a ground-based dual-wavelength (532 nm and 355 nm) Lidar system for aerosol studies. The NYNU station in Nanyang City, Henan Province, China, was chosen as the experimental site. The experimental period was from November 2021 to April 2022. The dynamic spatial information and vertical distribution of aerosol optical properties in pollution−free and polluted weathers can be obtained, providing data support and theoretical support for haze prevention and early warning in Nanyang City. The relevant conclusions are as follows:

(1) During the whole experiment period, the vertical distribution of aerosols in non-polluted weather was characterized by a lower altitude (0–2 km), thinner cleaner aerosol layers, and low extinction coefficient values (~0.03 km⁻¹). The vertical distribution of aerosols in polluted weather was characterized by a thicker aerosol layer (0–4 km) and higher extinction coefficients (~0.2 km⁻¹).

(2) During the whole experiment period, aerosol extinction coefficient mean values (0.04~0.19 km⁻¹) at different altitudes (0~5 km) in polluted weather were about 10-times higher that in non-polluted weather (0.004~0.02 km⁻¹). At the same time, aerosol extinction coefficient standard deviations (0.02~0.04) at different altitudes (0~5 km) in polluted weather were also about 10-times those in non-polluted weather (0.002~0.006). These results indicated that aerosol concentrations at different altitudes (0~5 km) were much higher than that during non-pollution days, and aerosol concentration variations were much larger during pollution days than during non-pollution days.

(3) During the whole experiment period, aerosol AOD values of pollution weather (0.4~0.6) were about 10-times those of non-pollution weather (0.05~0.08), which also revealed that aerosol concentrations in polluted weather were much higher than those in non-polluted weather. At the same time, AOD values decreased slightly from 19:00 to 05:00 in polluted and non-polluted weather, indicating that aerosol loadings would decrease slightly at night due to dry depositions.
