Regeneration of Pinus sibirica Du Tour in the Mountain Tundra of the Northern Urals against the Background of Climate Warming

by
Natalya Ivanova
1,*,
Nikolai Tantsyrev
1 and
Guoqing Li
2
1
Forest Science Department, Institute Botanic Garden Ural Branch of RAS, 8 Marta Street, 202a, 620144 Yekaterinburg, Russia
2
Institute of Soil and Water Conservation, Northwest A&F University, Xianyang 712100, China
*
Author to whom correspondence should be addressed.
Atmosphere 2022, 13(8), 1196; https://doi.org/10.3390/atmos13081196
Submission received: 23 June 2022 / Revised: 25 July 2022 / Accepted: 27 July 2022 / Published: 29 July 2022
(This article belongs to the Special Issue Vegetation and Climate Relationships)
Browse Figures
Versions Notes

Abstract

:
Climate is one of the key drivers of the plant community’s structure and trends. However, the regional vegetation-climate features in the ecotone have not yet been sufficiently studied. The aim of the research is to study features of Pinus sibirica Du Tour germination, survival, and growth in the mountain tundra of the Northern Urals against the background of a changing climate. The following research objectives were set: To determine the abundance and age structure of P. sibirica undergrowth on the mountain tundra plateau, identify the features of P. sibirica growth in the mountain tundra, and examine the correlation between the multi-year air temperature pattern, precipitation, and P. sibirica seedling emergence. A detailed study of the Pinus sibirica natural regeneration in the mountain stony shrub-moss-lichen tundra area at an altitude of 1010–1040 m above sea level on the Tri Bugra mountain massif plateau (59°30′ N, 59°15′ E) in the Northern Urals (Russia) has been conducted. The research involved the period between 1965 and 2017. Woody plant undergrowth was considered in 30 plots, 5 × 5 m in size. The first generations were recorded from 1967–1969. The regeneration has become regular since 1978 and its intensity has been increasing since then. Climate warming is driving these processes. Correlation analysis revealed significant relationships between the number of Pinus sibirica seedlings and the minimum temperature in August and September of the current year, the minimum temperatures in May, June, and November of the previous year, the maximum temperatures in May and August of the current year, and precipitation in March of both the current and previous years. However, the young tree growth rate remains low to date (the height at an age of 45–50 years is approximately 114 ± 8.8 cm). At the same time, its open crowns are rare single lateral shoots. The length of the side shoots exceeds its height by 4–5 times, and the length of the lateral roots exceeds its height by 1.2–1.5 times. This is an indicator of the extreme conditions for this tree species. With the current rates of climate warming and the Pinus sibirica tree growth trends, the revealed relationships allow for the prediction that in 20–25 years, the mountain tundra in the studied Northern Urals plateau could develop underground-closed forest communities with a certain forest relationship. The research results are of theoretical importance for clarifying the forest-tundra ecotone concept. From a practical point of view, the revealed relationship can be used to predict the trend in forest ecosystem formation in the mountain forest-tundra ecotone.

1. Introduction

The climate change problem is one of the most frequently discussed topics in the modern scientific literature, since ecosystem biodiversity, stability, and ecological functions are predicted to face major changes as a result of global climate changes across all continents [1,2], increasing risks for the regional and global environmental crises and a loss of favorable habitat for humans [3]. Climate change can also exacerbate the effect of other factors on vegetation, as is the case with man-made pollution [4,5]. In this regard, the climate-vegetation problem is recognized as one of the most urgent in ecology and biogeography [1,2,6,7,8,9,10,11].
Forest vegetation climatogenic pattern is most clearly observed in ecotones, extreme climatic environment for plants: Southern [1,2,12], northern [6,13,14], and mountainous areas [15,16]. It is established that treelines pass through the isotherm with a mean growing season temperature of 6–8 °C [15,17], which is why the temperature factor is crucial for woody plant survival. In this respect, numerous studies are devoted to studying the impact of air temperature on woody plant growth in extreme ecotone environments [15,18,19]. The impact on treeline sensitivity produced by topographic structures [19,20], winter snow pack [19,21], soil moisture [20], the wind regime [16], the chemical composition of rocks [16], seed production and dissemination [16], damages reindeer and mouse-like rodents inflict on trees [16], and anthropogenic factors [19,20,22] has also been studied. However, despite numerous studies, some fundamental theoretical and terminological issues have not yet been resolved.
The treeline (a row of trees of a certain size prevailing in the area) lies across a rather large ecotone between forest and low-stature alpine vegetation [23]. At the same time, the ecotone shows significant changes in the woody plant morphology and structure and plant community density. These features are still understudied [14,24].
Despite the importance of seedlings for understanding the treeline shift, the main focus of the research is on adult trees. This is due to the limitations of GIS technologies in the recognition of seedlings of woody plants [14,15,16]. Therefore, young generations of woody plants are still the least studied. However, indicators of seedlings and undergrowth (young trees) (number, growth, vitality, age structure, confinement to the substrate, and cover of crowns and root systems) are the most informative for identifying the expansion of the range and forest ecosystem formation in the mountain forest–tundra ecotone.
Our research is aimed at investigating the features of seed germination, seedling survival, and Pinus sibirica Du Tour young tree growth in the mountain tundra of the Northern Urals. It was important for us to test the hypothesis that climatic factors influence Pinus sibirica regeneration.
To achieve this aim, a number of research objectives were to be solved: Determine the abundance and age structure of P. sibirica undergrowth on the mountain tundra plateau, identify the features of P. sibirica growth in the mountain tundra, and examine the correlation between the multi-year air temperature pattern, precipitation, and P. sibirica seedling emergence.
Our research is based on long-term observations of the Pinus sibirica regeneration at the upper limit of its distribution in the extremely little-studied mountain tundra of the Northern Urals (Russia). We paid special attention to obtaining representative data on the number, height, and age of young Siberian pine trees, as well as the relationship between the characteristics of the crowns and roots. The conclusions were obtained on the basis of correlation and regression analyses.

2. Materials and Methods

2.1. Study Area

The Ural Mountains are located between the East European and West Siberian plains. The mountains are an obstacle for humid air blowing from the west, and this is a barrier that directly affects the climate. The Urals are a watershed of two large water basins: The Volga-Kama and the Ob. The Ural Mountains stretch across 2500 km from north to south, 40–150 km from east to west, and are divided into Southern, Middle, Northern, Nether-Polar, and Polar Ural.
Soil and water resource protection is an important ecosystem service provided by coniferous forests in the Ural Mountains. Of particular importance are the ecosystem services that preserve moisture in the case of insufficient soil moisture on steep mountain slopes. Moisture is preserved by reducing snowmelt and water runoff rates. Under the same conditions, the protection of the soil from erosion is of great importance [25].
The research was conducted in the highlands of the Northern Urals. Global glaciation, the period of which ended 10 Kya, influenced the current appearance of these mountains [26]. The average mountain height is 500–700 m above sea level, with some peaks reaching 960–1300 m above sea level (the highest peak reaches up to 1560 m above sea level). Annual precipitation ranges from 600 to 1000 mm. The average annual humidity is 74%. In summer, the mountains’ relative humidity is 5–7% higher than in the adjacent plains. Snow cover ranges from 70 to 130 cm in the mountains, and ranges between 30 and 50 cm in the foothills. The trend this follows is the depth of the snow cover increases by 17–18 cm with each 100 m rise in elevation. Currently, there is no glaciation, although snow persists in some places throughout the year.
The studies were carried out in the mountain stony shrub-moss-lichen tundra belt [27] at an altitude of 1010–1040 m above sea level on the Tri Bugra mountain massif plateau (an altitude of 1060 m above sea level 59°30′ N, 59°15′ E) in the southern part of the main watershed of the Northern Urals (Sverdlovsk region) (Figure 1).
The plateau soil horizon is 5–15 cm thick (up to 20 cm in some places), with the underlying large stony monolith-shaped rock formation. Rock formations occupy 17.1% of the total sample area surface. The average growing season is 80–100 days. The average daily temperature above 0 °C does not exceed 140–180 days. The snowless period lasts for 130–150 days. Autumn frosts are observed from September 7, while spring frosts continue until June 6. At the same time, freezing temperatures may be reached in June and even July [27]. These trends are representative of the entire research period (1967–2017).
More detailed monthly climatic characteristics are given in Table 1. Data are obtained from WorldClim version 2.1. The estimated period was 1970–2000 [29].
The climatic needs for plant species reflect the bioclimatic variables derived from the monthly temperature and rainfall values and represent annual trends. These are often used in species distribution modeling and related ecological modeling approaches [29,30,31,32]. Nineteen bioclimatic variables are presented in Table 2.

2.2. Research Subjects

The research subject is Pinus sibirica undergrowth (young trees). Pinus sibirica (Siberian cedar, Siberian stone pine) (Pinaceae Family) is a tree up to 35–40 m tall with a 1.8 m trunk diameter. The crown of the trees is wide and thick and oval in shape. The leaves are 6–13 cm long and 0.8–1.2 mm wide, are joined five in a fascicle, and may not fall from branches for up to 4 years. Needles are used as a vitamin and anti-scurvy agent. Buds are ovoid-conical without resin [33]. Seed cones are isolated or grouped in whorls of 2–3, resinous, 7–12 cm long, and 6–8 cm wide. The seed cones turn dark brown when ripe. The seeds are large and have a length of 10–14 mm and a width of 5–7 mm [34]. Seeds consist of up to 50% oil [33]. Under optimal conditions, seed bearing in Pinus sibirica is noted to start from the age of 20. The maximum seed productivity was revealed at the age of 160 years, which can last up to 400 years [35]. Dense and light wood is an excellent ornamental material.
Pinus sibirica extends from west to east from the lower reaches of the Vychegda River to the upper reaches of the Aldan River, which is approximately 4500 km in a straight line. From north to south, the length of the range is approximately 2700 km, from the Igarka River (in the lower reaches of the Yenisei River) to the upper reaches of the Orkhon River in Mongolia. Pinus sibirica is characterized by high winter hardiness and can withstand very low winter temperatures (up to −65 °C in Eastern Siberia). The vast abundance of Pinus sibirica is explained by its high ecological plasticity. The ecological optimum of this tree species is confined to the low-mountain regions of Western Sayan and Northeastern Altai [36].
Pinus sibirica distribution and regeneration depend on fauna diversity. Seeds are food for chipmunks, squirrels, sables, and bears. A special role in Pinus sibirica dispersion belongs to the nutcracker (Nucifraga caryocatactes macrorhynchos Brehm C. L). This bird lays a store of food for the winter and can carry Pinus sibirica seeds at a distance of up to 15 km [37]. In this way, Pinus sibirica’s regeneration is unique. Nutcrackers arrange seed caches only in certain conditions, which is generally moss cover appropriate for seed germination and seedling survival [38]. Nutcrackers use seed stocks for food and to feed baby birds throughout the winter–autumn–spring period. At the same time, nutcrackers can extract their food stores from under snow up to 60 cm deep. However, some seed caches remain unused, and these seeds germinate in the spring. This feature fundamentally differs Pinus sibirica from anemochorous tree species and even from many zoochorous plants. Few seeds of these plants are accidentally dispersed into conditions favorable for germination.
Dark coniferous forests are of great biospheric and ecological importance. Mountain Pinus sibirica forests are of particular value due to their important functions to protect soil and water [39]. For us, this tree species is interesting for its ability to spread into the mountain tundra and form the upper tree line.

2.3. Sampling Procedures and Data Analysis

2.3.1. Pinus sibirica Natural Regeneration Study

The studies were carried out on the basis of proven methods [40]. Environmental conditions, abundance, vitality, age and undergrowth parameters of woody plants, species composition, and projective cover of other vegetation were considered using an example of 30 sample plots 5 × 5 m in size, relatively homogeneously distributed across the mountain stony shrub-moss-lichen tundra. Twenty sample plots were examined in 2014. After that, a follow-up study was carried out in 2018, and 10 more sample plots were added. We placed the sample plots in three parallel rows. The distance between the rows was 300 m. The sample plots in the rows were located 100 m away from each other. All woody plants from seedlings to the largest trees were taken into account in each sample plot. We determined the species, measured the height, diameter of the crown with an accuracy of 1 cm, and diameter of the trunk with an accuracy of 0.2 mm, and determined the age with an accuracy of 1 year.
The undergrowth age was determined by the annual height increment indicators, if applicable (annual height increments are clearly visible and tree tops were not dry). When the accuracy of determining the age using this method was at risk, the young tree was cut down at the soil level. The undergrowth age was determined by the number of annual rings on the cross-section of the stem base, measured using the LinTab-6 instrument (Pinus sibirica annual rings are clearly visible and show the age of the tree with accuracy to one year [40]). We could accurately determine the age by using the first method when studying most young trees under the age of 20. Fifty-four P. sibirica undergrowth specimens of various heights (up to 130 cm) and ages (up to 56 years old) were selected as models. The undergrowth was sampled randomly from all over the mountain tundra area under study. The samples included specimens that ranged from seedlings to large trees, with various height–age dependencies. Since there were very few large trees in the studied mountain tundra area, the number of samples in this category was lower than for small undergrowth. In addition to determining the aboveground parameters and age, all roots were dug out for each specimen. Each 5 cm of root length was measured to determine the diameter. The average root system length was identified.

2.3.2. Investigation Relationships between the Natural Regeneration of Pinus sibirica and the Air Temperature and Precipitation

Historical monthly weather data for 1960–2018 given in WordClim version 2.1 [29] were used to study the relationship between the Pinus sibirica natural regeneration and the air temperatures. Climate data and bioclimatic variables were also obtained from WordClim version 2.1 in 2.5 min spatial resolutions [29]. Currently, there is a huge amount of research on the relationship between vegetation and climate based on the use of WordClim data [41,42,43,44]. For this reason, this resource was chosen as a source of information.
Bioclimatic variables are used to reveal general characteristics of the climate in the studied area. The relationship between the monthly precipitation minimum and maximum temperature patterns and the number of Pinus sibirica seedlings over the period of 1965 to 2017 were analyzed. The relationship was studied using correlation and regression analyses. The number of annual Pinus sibirica seedlings was remodeled by building the undergrowth survival curves (Figure 2) [45].

3. Results

3.1. Investigation of the Pinus sibirica Natural Regeneration

On the one hand, Figure 1 shows a fairly homogeneous young tree distribution over the area, as well as their small-sized, sparse, and sprawling crown. The Pinus sibirica undergrowth and seedlings are concentrated on a lichen-moss substrate, represented mainly by Pleurozium Schreberi (Brid.) Mitt. (10% cover), and on a moss-lichen substrate with a predominance of Cladonia sp. (46.6% cover), as well as on the substrate formed by a dense cover of Arctostaphylos uva-ursi (L.) Spreng. (21.4% cover). At the same time, rare Betula nana L., Rosa cinnamomea L., Salix sp. no more than 30 cm in height (12.6% projective cover) and undersized creeping Vaccinium uliginosum L., V. vitis idaea L., Empetrum nigrum L., Dryas octopetala L. (45% cover) are not stored by nutcrackers. Undergrowth quantitative research conducted in the studied mountain tundra revealed that Pinus sibirica is the dominant species of tree at an age of up to 56 (6.0 ± 0.4 thousand specimens per ha). There are few Picea obovata Ledeb. and Pinus sylvestris L. specimens not older than 10–15 years.
The analysis of the Pinus sibirica undergrowth age structure showed that the seedlings firstly appeared in 1967. Seedlings did not appear every year, and their number was small. Regeneration has become regular since 1978 (Figure 3). An increase in the number of seedlings has also been revealed, starting from 1978 and spanning to the present day.
Figure 1 shows, on the one hand, a fairly uniform distribution over the area of young trees, as well as their small-sized, sparse, and sprawling crown. In the mountain tundra, P. sibirica undergrowth aged 7 years old gives single lateral shoots that stand out above their height and the overall shrub tier. Most of the undergrowth has two or more tops (Figure 4). In addition, approximately 20% of the undergrowth is over 20 years old and has dry tops.
P. sibirica model specimens were combined into four age groups with the corresponding average parameter values obtained as a result of age determination (Table 3). The table clearly shows that P. sibirica grows very slowly in the mountain tundra and reaches only 114 cm in height by the age of fifty, on average. The relationship between age and height for the studied young trees is shown in Figure 5. The maximum height values account for 13 cm at 5 years, 24 cm at 10 years, 60 cm at 20 years, 93 cm at 30 years, and 188 at the age of 37–50.
The following maximum values of the root length were determined in model specimens in the corresponding age groups: 40 cm at the age of 9 years and a height of 18 cm; 130 cm at the age of 18 and 80 cm high; 140 cm at the age of 35 and 80 cm high; and 180 cm at the age of 56 years 125 cm high. From an early age, the undergrowth root system goes beyond the crown projection, while under the canopy and on the felling, this occurs by the age of 40 [46].
At the same time, its crowns consist of rare single lateral shoots. Thus, in the mountain tundra environment, the root system of the Pinus sibirica undergrowth grows more intensively than its aboveground parts. This pattern is clearly demonstrated in Figure 6. The length of the lateral roots exceeds its height by 1.2–1.5 times, and the length of the side shoots—by 4–5 times. At the same time, undergrowth of a similar height can belong to different age groups.
Special studies were conducted to identify the relationship between the root length of the Pinus sibirica undergrowth and its height and age. Regression analysis revealed a close (R2 = 0.78) positive and almost linear relationship between the average root system length of the undergrowth and its age (Figure 7a), and an even closer (R2 = 0.92) relationship with its height (Figure 7b).

3.2. Relationship between Pinus sibirica Natural Regeneration and Air Temperature and Precipitation

The results of the correlation analysis are shown in Table 4. Historical monthly weather data for 1965–2017, given in WordClim version 2.1., were used, and data obtained in the course of research on the number of Pinus sibirica seedlings for the same time period were applied.
These trends do not appear to show a strong correlation. We assume that this is due to many factors and the synergistic effect they produce, which distorts the relationship ratio. The relationship between climate and Pinus sibirica regeneration is complicated by the influence of Nucifraga caryocatactes macrorhynchos, the abundance of which also depends on many factors. Therefore, we accept correlation coefficients that are significant at the level of 0.05 as sufficient to consider the factors significant for Pinus sibirica regeneration.
Significant correlation between the number of the Pinus sibirica seedlings and the minimum temperature in August and September of the current year, the minimum temperatures in May, June, and November of the previous year, the maximum temperatures in May and August of the current year, and precipitation in March of both the current and previous years was revealed. The multi-year trend in temperature and precipitation pattern for these months is shown in Figure 8. This figure clearly shows a warming trend. However, the warming intensity varies for different months. For example, the maximum temperatures in September and November practically did not change during the studied period. At the same time, minimum temperatures for the same months varied, and September and November became warmer in general. The long-term trend in the March precipitation increase is also clearly visible.

4. Discussion

The primary reason for the absolute dominance of Pinus sibirica in the woody plant undergrowth on the mountain tundra plateau is that thin-billed nutcrackers create forage food stores by carrying their seeds over considerable distances from their source trees. In turn, most seeds of the anemochory tree species growing at a distance of up to 1 km are not likely to reach the mountain tundra. Certainly, nutcrackers have always brought Pinus sibirica seeds into the mountain tundra, which is known for the open types of substrate the birds prefer to create food stores [47]. However, the emerging seedlings are likely to not have survived in the previously harsh conditions of the mountain tundra.
The results of our research have shown that the survival and, consequently, further growth and development of Pinus sibirica, are due to climate warming. This conclusion is in good agreement with the results of research (including other tree species) on the Polar Urals [16,48], the Khibiny Massif (Kola Peninsula) [49], the western Putorana Plateau [48,49] in the Southern Rockies (region of northern New Mexico and southern Colorado) [50], in the Himalayas [51], and in the southern European range (the Pyrenees) [52]. The obtained results complement the meta-analysis of annual tree line shift rates at 143 sites from 38 published studies [53] and clarify the impact temperature and precipitation have on Pinus sibirica regeneration. This is a certain combination of thermal and hydrological factors that drives treeline shift rates across the Northern Hemisphere [53]. The combination may include temperatures in early summer and precipitation in early winter [48,49], temperature–moisture correlations throughout the year [50], winter precipitation only (high snow depth) [14], and winter temperatures [54]. Our research shows the greatest correlation between Pinus sibirica regeneration and the maximum temperatures in May and June of the previous year. Regarding the precipitation factor, only precipitation in March (both current and previous years) seems to be significant.
Generally, despite the fact that global warming is one of the main modern threats to biosphere stability, climate warming has a positive effect on the woody vegetation germination in the mountain tundra. We also fully agree with the results of Hoffrén′s research with co-authors [52], the essence of which was to identify the positive impact of any tree canopy not only on the spatial diversity of microclimatic metrics but also on their refugial capacity. Undoubtedly, the revealed tree canopy formation will have a positive effect on the microclimate and protection of soil from erosion, strengthening water protection functions and spreading other plant species into the mountain tundra.
Currently, GIS technologies and methods for recognizing woody plants are actively developing, and new approaches and methods are being used for research; at the same time, labor-intensive and difficult-to-access plot-based data acquire special value for predictive estimates, since there is still little data on regional and landscape features [55,56,57]. In this regard, the results obtained in the course of the study will be highly relevant.

5. Conclusions

Thus, a detailed study of the Pinus sibirica natural regeneration in the area of the mountain stony shrub-moss-lichen tundra at an altitude of 1010–1040 m above sea level on the Tri Bugra mountain massif plateau of the Northern Urals showed the regular regeneration of this tree species. The first small-scale tree generations were recorded in 1967–1969. Regeneration has become regular since 1978; since then, its intensity has only been increasing. Climate warming is driving these processes. The correlation analysis revealed a significant relationship between the number of Pinus sibirica seedlings and the minimum temperature in August and September of the current year, the minimum temperatures in May, June, and November of the previous year, the maximum temperatures in May and August of the current year, and the precipitation in March of both the current and previous years. However, the young tree growth rate remains low to date (the height at an age of 45–50 is approximately 114 ± 8.8 cm). At the same time, its open crowns consist of rare single lateral shoots. The length of the side shoots exceeds its height by 4–5 times, and the length of the lateral roots exceeds its height by 1.2–1.5 times. This is an indicator of the extreme conditions for this tree species. Regarding the current climate warming and Pinus sibirica tree growth trends, the revealed relationship allows for the prediction that, over 20–25 years, the mountain tundra in the studied Northern Urals plateau could develop a mosaic formation of primary underground-closed forest communities with characteristic forest relationships, and communities with multiple root system interweaving over 40–50 years. The research results are of theoretical importance for clarifying the forest–tundra ecotone concept. From a practical point of view, the revealed relationship can be used to predict the trends in forest ecosystem formation in the mountain forest–tundra ecotone. The research will also be useful for conducting global research on the tree line shift in the Northern Hemisphere.

Author Contributions

Conceptualization, N.I. and N.T.; methodology, N.I. and N.T.; validation, N.I.; formal analysis, N.I., G.L. and N.T.; investigation, N.I. and N.T.; writing—original draft preparation, N.I. and N.T.; writing—review and editing, N.I. and G.L.; visualization, N.I. and G.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the state assignment of the Institute Botanic Garden Ural Branch of Russian Academy of Sciences and the National Natural Science Foundation of China, grant number 31971488.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Frelich, L.; Montgomery, R.; Reich, P. Seven Ways a Warming Climate Can Kill the Southern Boreal Forest. Forests 2021, 12, 560. [Google Scholar] [CrossRef]
  2. Du, E.; Tang, Y. Distinct Climate Effects on Dahurian Larch Growth at an Asian Temperate-Boreal Forest Ecotone and Nearby Boreal Sites. Forests 2022, 13, 27. [Google Scholar] [CrossRef]
  3. Maiti, R.; Rodriguez, H.G.; Ivanova, N.S. Autoecology and Ecophysiology of Woody Shrubs and Trees: Concepts and Applications; John Wiley & Sons: Oxford, UK, 2016; p. 352. [Google Scholar] [CrossRef]
  4. Zavyalov, K.; Ivanova, N.; Potapenko, A.; Ayan, S. Influence of soil fertility on the ability of Scots pine (Pinus sylvestris L.) to adapt to technogenic pollution. CERNE 2019, 25, 326–331. [Google Scholar] [CrossRef]
  5. Juran, S.; Grace, J.; Urban, O. Temporal Changes in Ozone Concentration and Their Impact on Vegetation. Atmosphere 2021, 12, 82. [Google Scholar] [CrossRef]
  6. Fomin, V.; Ivanova, N.; Mikhailovich, A.; Zolotova, E. Problem of climate-driven dynamics in the genetic forest typology. In Proceedings of the Modern Synthetic Methodologies for Creating Drugs and Functional Materials (mosm2020): AIP Conference Proceedings, Yekaterinburg, Russia, 16–20 November 2020; Volume 2388, p. 030007. [Google Scholar] [CrossRef]
  7. Afuye, G.A.; Kalumba, A.M.; Ishola, K.A.; Orimoloye, I.R. Long-Term Dynamics and Response to Climate Change of Different Vegetation Types Using GIMMS NDVI3g Data over Amathole District in South Africa. Atmosphere 2022, 13, 620. [Google Scholar] [CrossRef]
  8. Gao, Y.; Skutsch, M.; Paneque-Gálvez, J.; Ghilardi, A. Remote sensing of forest degradation: A review. Environ. Res. Lett. 2020, 15, 103001. [Google Scholar] [CrossRef]
  9. Rogers, P.C.; Pinno, B.D.; Landhäusser, S.M.; Šebestaб, J.; Kusbach, A.; Albrectsen, B.R.; Li, G.; Ivanova, N.; Kuuluvainen, T.; Liu, H.; et al. A global view of aspen: Conservation science for widespread keystone systems. Glob. Ecol. Conserv. 2020, 21, e00828. [Google Scholar] [CrossRef]
  10. Skole, D.L.; Samek, J.H.; Mbow, C.; Chirwa, M.; Ndalowa, D.; Tumeo, T.; Kachamba, D.; Kamoto, J.; Chioza, A.; Kamangadazi, F. Direct Measurement of Forest Degradation Rates in Malawi: Toward a National Forest Monitoring System to Support REDD+. Forests 2021, 12, 426. [Google Scholar] [CrossRef]
  11. Ivanova, N.; Fomin, V.; Kusbach, A. Experience of Forest Ecological Classification in Assessment of Vegetation Dynamics. Sustainability 2022, 14, 3384. [Google Scholar] [CrossRef]
  12. Evans, P.; Brown, C. The boreal–temperate forest ecotone response to climate change. Environ. Rev. 2017, 25, 423–431. [Google Scholar] [CrossRef] [Green Version]
  13. Grigor’ev, A.A.; Devi, N.M.; Kukarskikh, V.V.; V’yukhin, S.O.; Galimova, A.A.; Moiseev, P.A.; Fomin, V.V. Structure and dynamics of tree stands at the upper timberline in the western part of the Putorana Plateau. Russ. J. Ecol. 2019, 50, 311–322. [Google Scholar] [CrossRef]
  14. Zhou, W.; Mazepa, V.; Shiyatov, S.; Shalaumova, Y.; Zhang, T.; Liu, D.; Sheshukov, A.; Wang, J.; Sharif, H.E.; Ivanov, V. Spatiotemporal dynamics of encroaching tall vegetation in timberline ecotone of the Polar Urals Region, Russia. Environ. Res. Lett. 2022, 17, 014017. [Google Scholar] [CrossRef]
  15. Hagedorn, F.; Dawes, M.A.; Bubnov, M.O.; Devi, N.M.; Grigoriev, A.A.; Mazepa, V.S.; Shiyatov, S.G.; Moiseev, P.A.; Nagimov, Z.Y. Latitudinal decline in stand biomass and productivity at the elevational treeline in the Ural Mountains despite a common thermal growth limit. J. Biogeogr. 2020, 47, 1827–1842. [Google Scholar] [CrossRef]
  16. Fomin, V.; Mikhailovich, A.; Golikov, D.; Agapitov, E. Reconstruction of the Expansion of Siberian Larch into the Mountain Tundra in the Polar Urals in the 20th—Early 21st Centuries. Forests 2022, 13, 419. [Google Scholar] [CrossRef]
  17. Körner, C.; Poulsen, J. A worldwide study of high altitude treeline temperatures. J. Biogeogr. 2004, 31, 713–732. [Google Scholar] [CrossRef]
  18. Du, H.; Li, M.-H.; Rixen, C.; Zhang, S.; Stambaugh, M.; Huang, L.; He, H.S.; Wu, Z. Sensitivity of recruitment and growth of alpine treeline birch to elevated temperature. Agric. For. Meteorol. 2021, 304–305, 108403. [Google Scholar] [CrossRef]
  19. Mihăilă, D.; Bistricean, P.-I.; Horodnic, V.-D. Drivers of Timberline Dynamics in Rodna Montains, Northern Carpathians, Romania, over the Last 131 Years. Sustainability 2021, 13, 2089. [Google Scholar] [CrossRef]
  20. Holtmeier, F.-K.; Broll, G. Sensitivity and response of northern hemisphere altitudinal and polar treelines to environmental change at landscape and local scales. Glob. Ecol. Biogeogr. 2005, 14, 395–410. [Google Scholar] [CrossRef]
  21. Hankin, L.E.; Bisbing, S.M. Let it snow? Spring snowpack and microsite characterize the regeneration niche of high-elevation pines. J. Biogeogr. 2021, 48, 2068–2084. [Google Scholar] [CrossRef]
  22. Maliniemi, T.; Virtanen, R. Anthropogenic disturbance modifies long-term changes of boreal mountain vegetation under contemporary climate warming. Appl. Veg. Sci. 2021, 24, 12587. [Google Scholar] [CrossRef]
  23. Bader, M.Y.; Llambí, L.D.; Case, B.S.; Buckley, H.L.; Toivonen, J.M.; Camarero, J.; Cairns, D.M.; Brown, C.D.; Wiegand, T.; Resler, L.M. A global framework for linking alpine-treeline ecotone patterns to underlying processes. Ecography 2020, 44, 265–292. [Google Scholar] [CrossRef]
  24. Shiyatov, S.G.; Mazepa, V.S. Contemporary expansion of siberian larch into the mountain tundra of the Polar Urals. Russ. J. Ecol. 2015, 46, 495–502. [Google Scholar] [CrossRef]
  25. Lebedev, Y.V. Assessment of Forest Ecosystems in the Economy of Nature Management; Ural branch of the Russian Academy of Sciences: Yekaterinburg, Russia, 2011; p. 574. (In Russian) [Google Scholar]
  26. Svendsen, J.I.; Krüger, L.C.; Mangerud, J.; Astakhov, V.I.; Paus, A.; Nazarov, D.; Murray, A. Glacial and vegetation history of the Polar Ural Mountains in northern Russia during the Last Ice Age, Marine Isotope Stages 5–2. Quat. Sci. Rev. 2014, 92, 409–428. [Google Scholar] [CrossRef]
  27. Gorchakovsky, P.L. The Flora of the High-Mountain Urals; Nauka: Moscow, Russia, 1975; p. 281. (In Russian) [Google Scholar]
  28. Ural Map. Available online: www.welcom-ural.ru/urals/77 (accessed on 10 May 2022).
  29. Fick, S.E.; Hijmans, R.J. WorldClim 2: New 1-km spatial resolution climate surfaces for global land areas. Int. J. Climatol. 2017, 37, 4302–4315. [Google Scholar] [CrossRef]
  30. Li, G.; Huang, J.; Guo, H.; Du, S. Projecting species loss and turnover under climate change for 111 Chinese tree species. For. Ecol. Manag. 2020, 477, 118488. [Google Scholar] [CrossRef]
  31. Zhang, Y.; Liu, G.; Lu, Q.; Xiong, D.; Li, G.; Du, S. Understanding the Limiting Climatic Factors on the Suitable Habitat of Chinese Alfalfa. Forests 2022, 13, 482. [Google Scholar] [CrossRef]
  32. Zevallos, J.; Lavado-Casimiro, W. Climate Change Impact on Peruvian Biomes. Forests 2022, 13, 238. [Google Scholar] [CrossRef]
  33. Komarov, V.L. Pine—Pinus (Tourn.) L. In Flora of the USSR; Publishing House of the USSR Academy of Sciences: Moscow-Leningrad, Russia, 1934; pp. 163–164. (In Russian) [Google Scholar]
  34. Farjon, A. A Handbook of the World’s Conifers; Brill Academic Publishers: Leiden, The Netherlands, 2010. [Google Scholar]
  35. Kirsanov, V.A. Biological and ecological characteristics of Siberian cedar as the main forester of cedar forests. In Reproduction of cedar forests in the Urals and Western Siberia; Ural Scientific Center of the USSR Academy of Sciences: Sverdlovsk, Russia, 1981; pp. 3–12. (In Russian) [Google Scholar]
  36. Talantsev, N.K. Siberian Cedar; Forest industry: Moscow, Russia, 1981; p. 93. (In Russian) [Google Scholar]
  37. Bekh, I.A.; Vorob’yev, V.N. Potential Siberian Stone Pine Forests. Siberian Stone Pine Problems; SB RAS, [Institute of Ecology of Natural Complexes—Branch of the Institute of Forest]: Tomsk, Russia, 1998; p. 123. (In Russian) [Google Scholar]
  38. Vorob’yov, V.N. Nutcracker and Its Interrelations with Siberian Stone Pine (Experience of Quantitative Analysis); Nauka Publ.: Novosibirsk, Russia, 1982; p. 113. (In Russian) [Google Scholar]
  39. Ignatenko, M.M. Siberian Cedar; Nauka: Moscow, Russia, 1988; p. 162. (In Russian) [Google Scholar]
  40. Ivanova, N. Research Methods of Timber-Yielding Plants (in the Example of Boreal Forests). In Biology, Productivity and Bioenergy of Timber-Yielding Plants; Springer: Cham, Switzerland, 2017; pp. 121–137. [Google Scholar] [CrossRef]
  41. Zhang, X.; Li, G.; Du, S. Simulating the potential distribution of Elaeagnus angustifolia L. based on climatic constraints in China. Ecol. Eng. 2018, 13, 27–34. [Google Scholar] [CrossRef]
  42. Sun, J.; Feng, L.; Wang, T.; Tian, X.; He, X.; Xia, H.; Wang, W. Predicting the Potential Habitat of Three Endangered Species of Carpinus Genus under Climate Change and Human Activity. Forests 2021, 12, 1216. [Google Scholar] [CrossRef]
  43. Miranda, J.R.; Silva, R.G.; Juvanhol, R.S. Forest fire action on vegetation from the perspective of trend analysis in future climate change scenarios for a Brazilian savanna region. Ecol. Eng. 2022, 175, 106488. [Google Scholar] [CrossRef]
  44. Decuyper, M.; Chávez, R.O.; Lohbeck, M.; Lastra, J.A.; Tsendbazar, N.; Hackländer, J.; Herold, M.; Vågen, T.-G. Continuous monitoring of forest change dynamics with satellite time series. Remote Sens. Environ. 2022, 269, 112829. [Google Scholar] [CrossRef]
  45. Sannikov, S.N.; Tantsyrev, N.V. Survival curves of Siberian stone pine regrowth as the basis for reconstruction dynamics of its number. Russ. J. For. Sci. 2015, 4, 275–281. (In Russian) [Google Scholar]
  46. Sudachkova, N.E.; Rastorgueva, E.Y.; Kolovskiy, R.A. Physiology of Siberian Stone Pine Undergrowth; Nauka: Moscow, Russia, 1967; p. 123. (In Russian) [Google Scholar]
  47. Sannikov, S.N.; Tantsyrev, N.V.; Petrova, I.V. Invasion of Siberian Pine Populations in Mountain Tundra in the Northern Urals. Contemp. Probl. Ecol. 2018, 11, 396–405. [Google Scholar] [CrossRef]
  48. Moiseev, P.A.; Hagedorn, F.; Balakin, D.S.; Bubnov, M.O.; Devi, N.M.; Kukarskih, V.V.; Mazepa, V.S.; Viyukhin, S.O.; Viyukhina, A.A.; Grigoriev, A.A. Stand Biomass at Treeline Ecotone in Russian Subarctic Mountains Is Primarily Related to Species Composition but Its Dynamics Driven by Improvement of Climatic Conditions. Forests 2022, 13, 254. [Google Scholar] [CrossRef]
  49. Grigoriev, A.A.; Shalaumova, Y.V.; Vyukhin, S.O.; Balakin, D.S.; Kukarskikh, V.V.; Vyukhina, A.A.; Camarero, J.J.; Moiseev, P.A. Upward Treeline Shifts in Two Regions of Subarctic Russia Are Governed by Summer Thermal and Winter Snow Conditions. Forests 2022, 13, 174. [Google Scholar] [CrossRef]
  50. Bailey, S.N.; Elliott, G.P.; Schliep, E.M. Seasonal temperature–moisture interactions limit seedling establishment at upper treeline in the Southern Rockies. Ecosphere 2020, 12, e03568. [Google Scholar] [CrossRef]
  51. Schwab, N.; Bürzle, B.; Bobrowski, M.; Böhner, J.; Chaudhary, R.P.; Scholten, T.; Weidinger, J.; Schickhoff, U. Predictors of the Success of Natural Regeneration in a Himalayan Treeline Ecotone. Forests 2022, 13, 454. [Google Scholar] [CrossRef]
  52. Hoffrén, R.; Miranda, H.; Pizarro, M.; Tejero, P.; García, M.B. Identifying the Factors behind Climate Diversification and Refugial Capacity in Mountain Landscapes: The Key Role of Forests. Remote Sens. 2022, 14, 1708. [Google Scholar] [CrossRef]
  53. Lu, X.; Liang, E.; Wang, Y.; Babst, F.; Camarero, J.J. Mountain treelines climb slowly despite rapid climate warming. Glob. Ecol. Biogeogr. 2021, 30, 305–315. [Google Scholar] [CrossRef]
  54. Kharuk, V.I.; Ranson, K.J.; Dvinskaya, S.T.; Dvinskaya, M.L. Response of Pinus sibirica and Larix sibirica to climate change in southern Siberian alpine forest–tundra ecotone. Scand. J. For. Res. 2009, 24, 130–139. [Google Scholar] [CrossRef]
  55. Bayer, U.; Puschmann, O. Automatic detection of woody vegetation in repeat landscape photographs using a convolutional neural network. Ecol. Inform. 2019, 50, 220–223. [Google Scholar] [CrossRef]
  56. Dourado-Filho, L.A.; Columby, R.T. An experimental assessment of deep convolutional features for plant species recognition. Ecol. Inform. 2021, 65, 101411. [Google Scholar] [CrossRef]
  57. Zhou, C.-L.; Ge, L.-M.; Guo, Y.; Zhou, D.-M.; Chun, Y. A comprehensive comparison on current deep learning approaches for plant image classification. J. Phys. Conf. Ser. 2021, 1873, 012002. [Google Scholar] [CrossRef]
Atmosphere 13 01196 g001 550

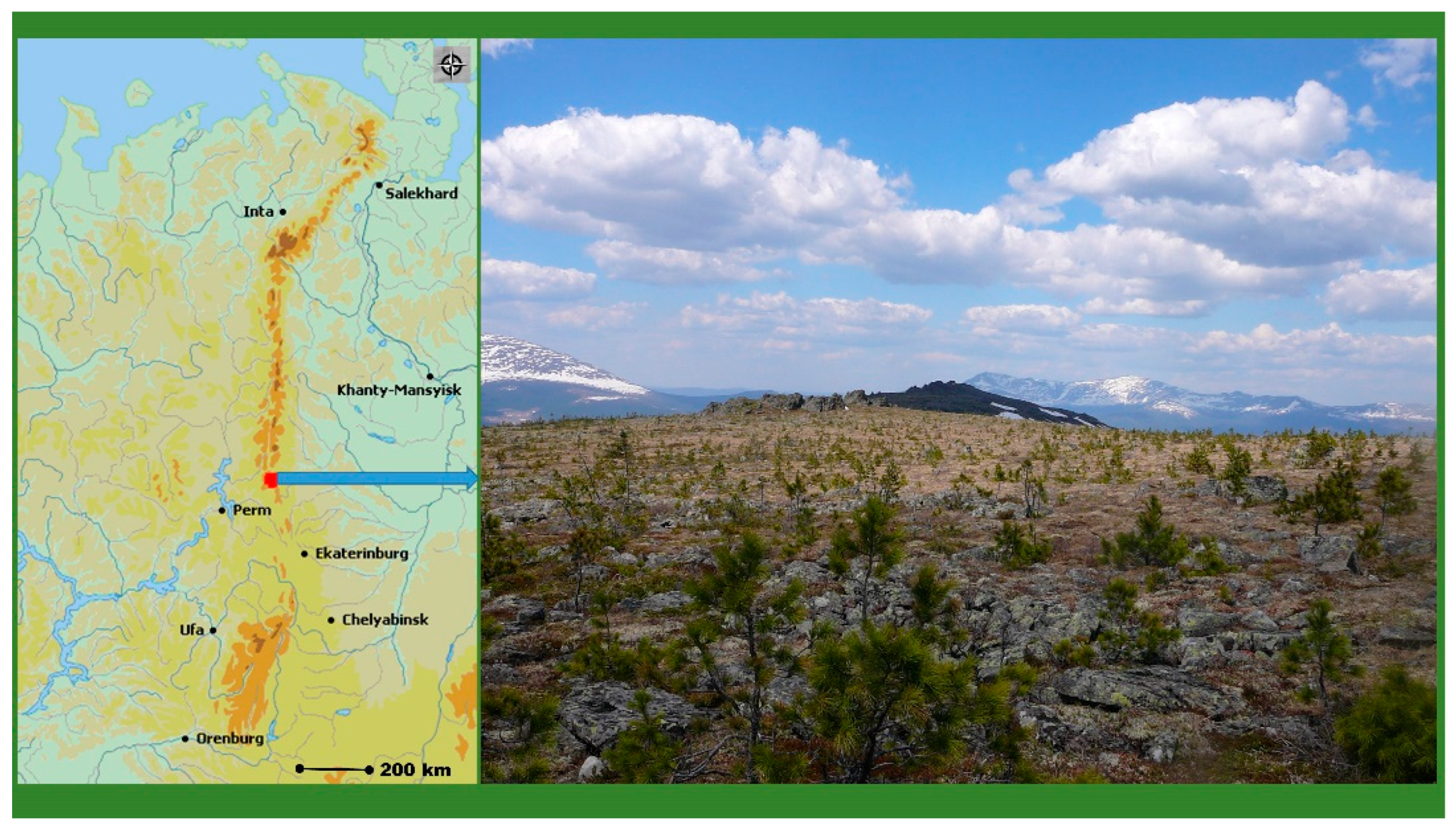

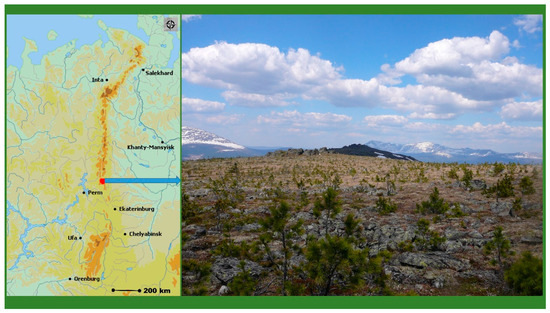

Figure 1. Study area. Source: Ural map [28], photo taken by the authors.
Figure 1. Study area. Source: Ural map [28], photo taken by the authors.
Atmosphere 13 01196 g001
Atmosphere 13 01196 g002 550

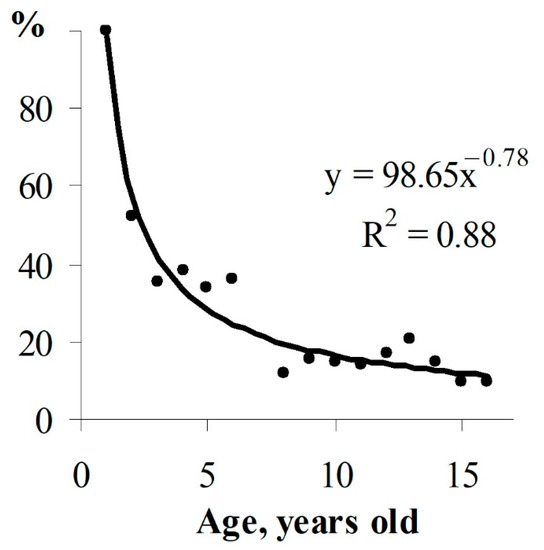

Figure 2. Empirical survival curve of the Pinus sibirica undergrowth from the initial number of seedlings (%) in the mountain tundra.
Figure 2. Empirical survival curve of the Pinus sibirica undergrowth from the initial number of seedlings (%) in the mountain tundra.
Atmosphere 13 01196 g002
Atmosphere 13 01196 g003 550

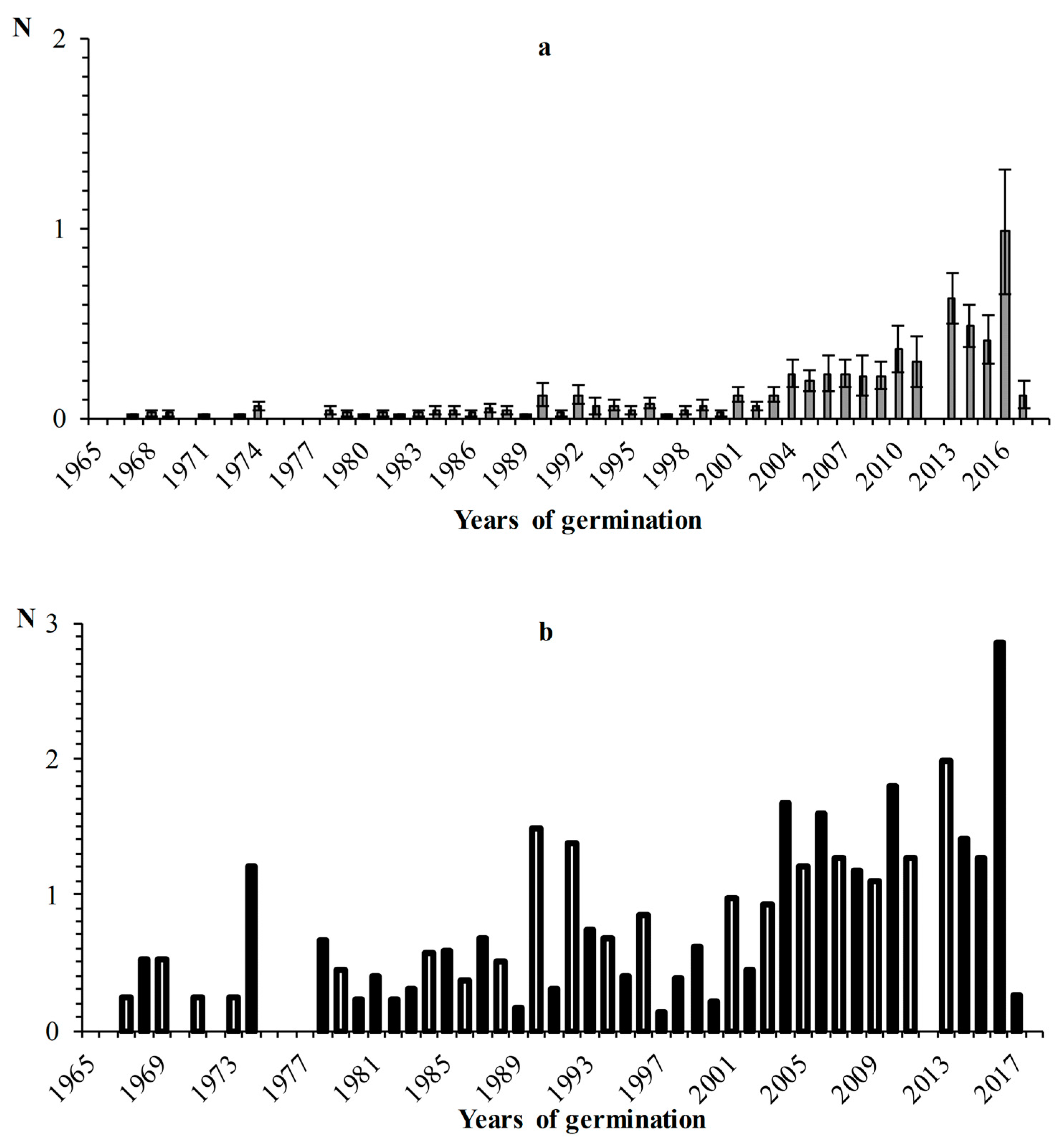

Figure 3. Trend in the Pinus sibirica regeneration on the mountain tundra plateau: (a) Number of undergrowth (N) (thousand specimens per ha) with an average error (± m); (b) remodeled number of seedlings that appeared initially (N), thousand per ha.
Figure 3. Trend in the Pinus sibirica regeneration on the mountain tundra plateau: (a) Number of undergrowth (N) (thousand specimens per ha) with an average error (± m); (b) remodeled number of seedlings that appeared initially (N), thousand per ha.
Atmosphere 13 01196 g003
Atmosphere 13 01196 g004 550
Figure 4. P. sibirica growth characteristics common to the mountain tundra. The tree in the picture is 18 years old and 30 cm in height. The tree crown diameter is 20 cm. The photo was taken by the authors in 2014; photo taken by the authors.
Figure 4. P. sibirica growth characteristics common to the mountain tundra. The tree in the picture is 18 years old and 30 cm in height. The tree crown diameter is 20 cm. The photo was taken by the authors in 2014; photo taken by the authors.
Atmosphere 13 01196 g004
Atmosphere 13 01196 g005 550

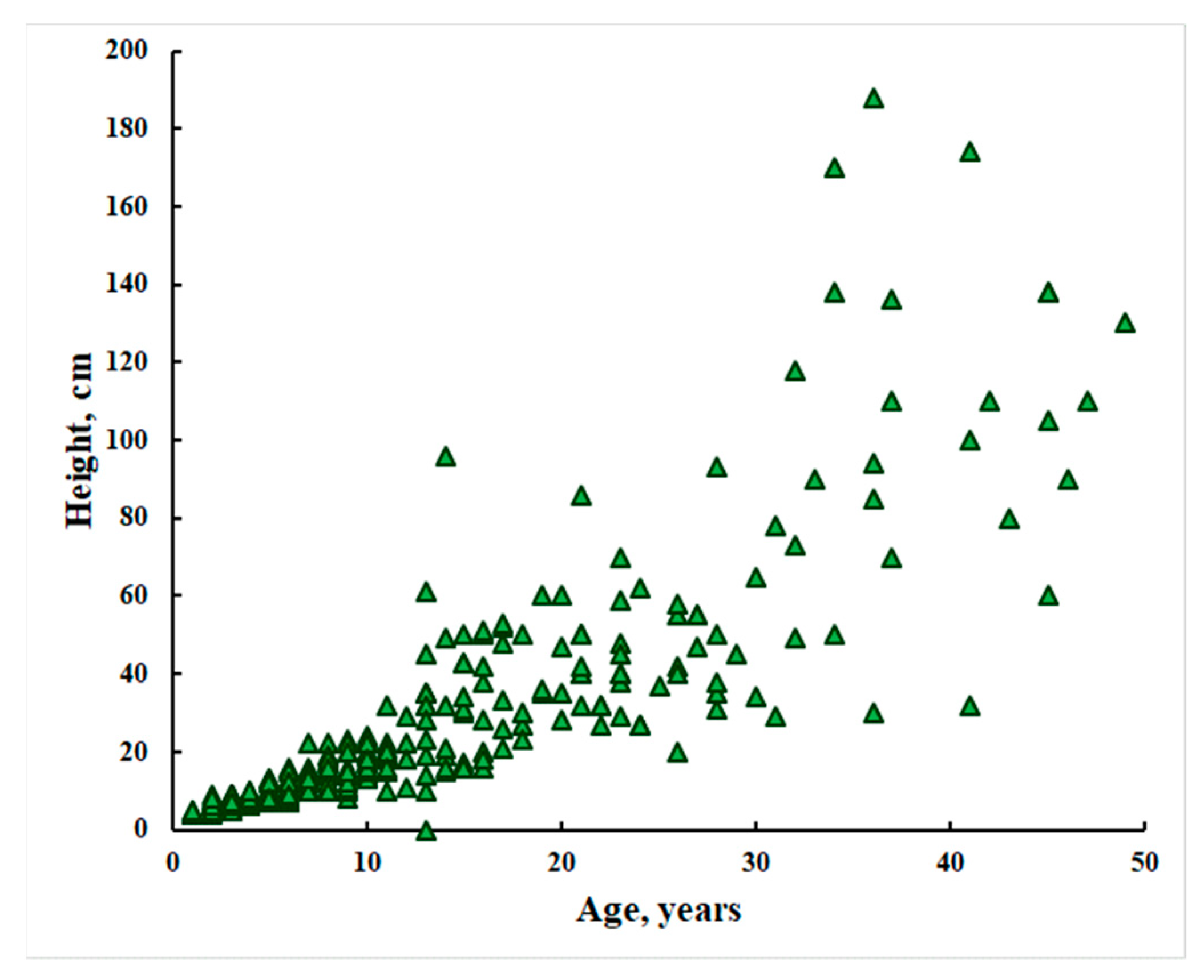

Figure 5. The relationship between age and height for the studied undergrowth of Pinus sibirica (the N value is 579).
Figure 5. The relationship between age and height for the studied undergrowth of Pinus sibirica (the N value is 579).
Atmosphere 13 01196 g005
Atmosphere 13 01196 g006 550
Figure 6. Samples of Pinus sibirica undergrowth: (a) Aged 10, 17 cm in height, average root length is 38 cm; (b) aged 12, 17 cm in height, average root length is 35 cm; photo taken by the authors.
Figure 6. Samples of Pinus sibirica undergrowth: (a) Aged 10, 17 cm in height, average root length is 38 cm; (b) aged 12, 17 cm in height, average root length is 35 cm; photo taken by the authors.
Atmosphere 13 01196 g006
Atmosphere 13 01196 g007 550

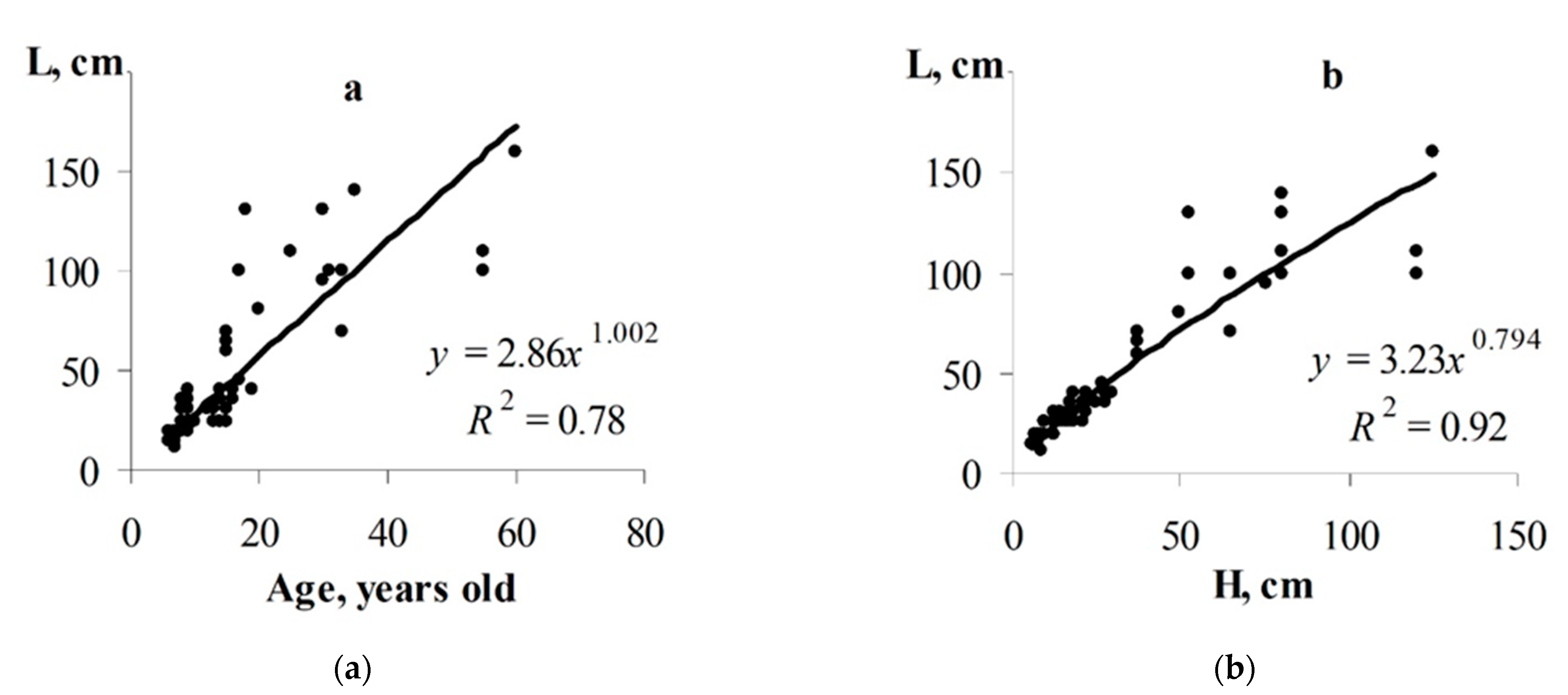

Figure 7. Relationship between the root length of the Pinus sibirica undergrowth and its age (a) and height (b).
Figure 7. Relationship between the root length of the Pinus sibirica undergrowth and its age (a) and height (b).
Atmosphere 13 01196 g007
Atmosphere 13 01196 g008 550

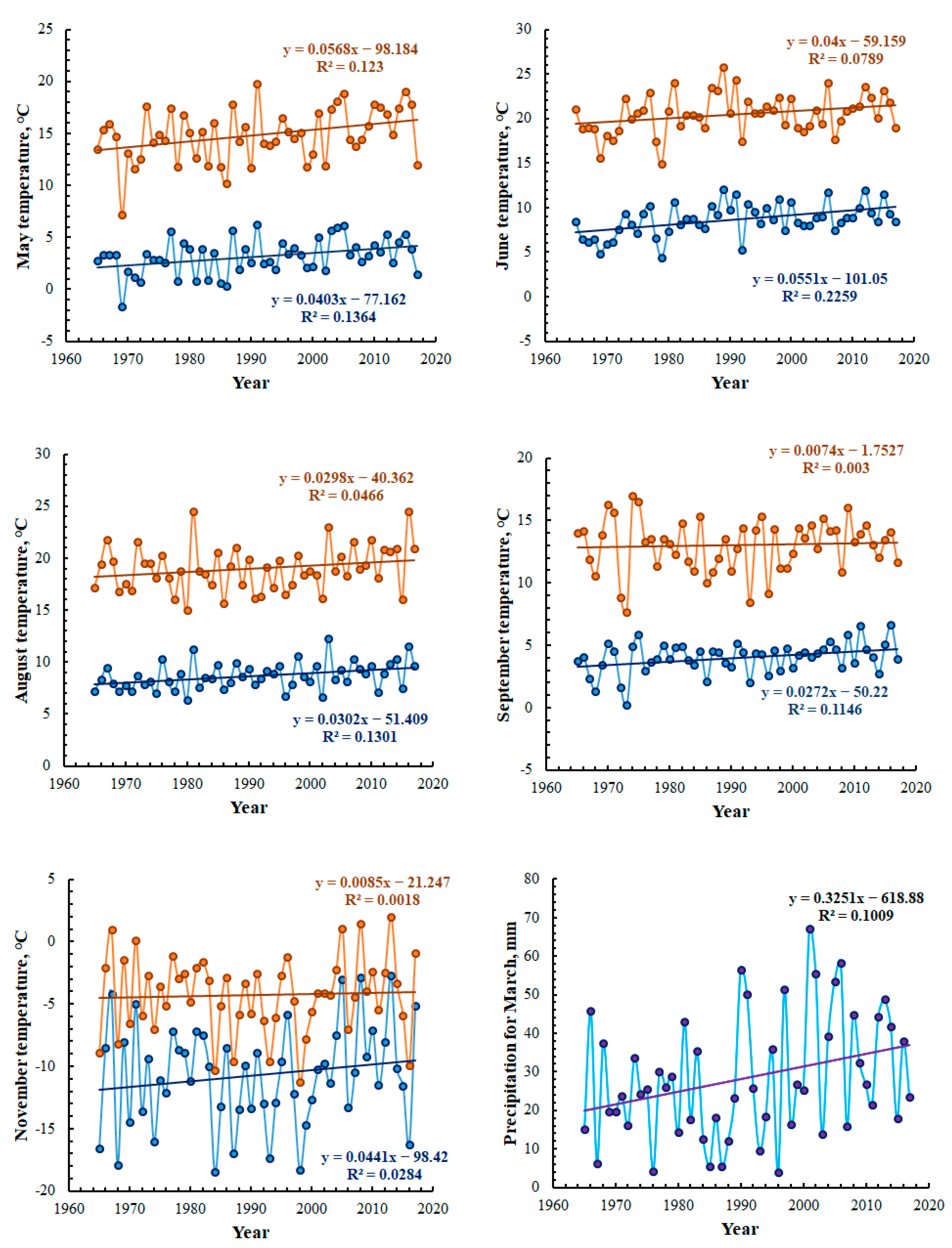

Figure 8. Multi-year monthly trend in temperature and precipitation pattern for which statistically significant relationship was found: The upper and lower lines show the corresponding maximum and minimum patterns.
Figure 8. Multi-year monthly trend in temperature and precipitation pattern for which statistically significant relationship was found: The upper and lower lines show the corresponding maximum and minimum patterns.
Atmosphere 13 01196 g008
Table
Table 1. Climatic data for the studied mountain stony shrub-moss-lichen tundra of the Northern Urals (WorldClim version 2.1 climate data for 1970–2000 [29].
Table 1. Climatic data for the studied mountain stony shrub-moss-lichen tundra of the Northern Urals (WorldClim version 2.1 climate data for 1970–2000 [29].
VariableJan.Feb.Mar.Apr.May.Jun.Jul.Aug.Sep.Oct.Nov.Dec.
Average temperature (°C)−16.3−13.7−5.21.98.614.717.113.58.20.6−8.1−13.3
Minimum temperature (°C)−20.3−18.3−10.2−3.22.88.711.48.53.8−2.6−11.5−17.0
Maximum temperature (°C)−12.3−9.2−0.17.014.420.322.718.612.63.8−4.8−9.5
Precipitation (mm)332324385167968364484135
Solar radiation (kJ m−2 day−1)18704489952514,50719,14021,62519,32613,9128343416020,5811240
Table
Table 2. Bioclimatic variables for the studied mountain stony shrub-moss-lichen tundra of the Northern Urals (WorldClim version 2.1 climate data for 1970–2000 [29].
Table 2. Bioclimatic variables for the studied mountain stony shrub-moss-lichen tundra of the Northern Urals (WorldClim version 2.1 climate data for 1970–2000 [29].
Bioclimatic VariablesDescriptionValue
BIO1Annual Mean Temperature0.67
BIO2Mean Diurnal Range (Mean of monthly (max temp–min temp))9.31
BIO3Isothermality (BIO2/BIO7) (×100)21.66
BIO4Temperature Seasonality (standard deviation × 100)1189.55
BIO5Max Temperature of Warmest Month22.71
BIO6Min Temperature of Coldest Month−20.28
BIO7Temperature Annual Range (BIO5-BIO6)42.99
BIO8Mean Temperature of Wettest Quarter15.12
BIO9Mean Temperature of Driest Quarter−11.73
BIO10Mean Temperature of Warmest Quarter15.12
BIO11Mean Temperature of Coldest Quarter−14.43
BIO12Annual Precipitation603
BIO13Precipitation of Wettest Month96
BIO14Precipitation of Driest Month23
BIO15Precipitation Seasonality (Coefficient of Variation)44.95
BIO16Precipitation of Wettest Quarter246
BIO17Precipitation of Driest Quarter80
BIO18Precipitation of Warmest Quarter246
BIO19Precipitation of Coldest Quarter91
Table
Table 3. Model specimen average parameters for Pinus sibirica undergrowth by age group (the N value is 54).
Table 3. Model specimen average parameters for Pinus sibirica undergrowth by age group (the N value is 54).
Undergrowth Age, Years Old7–1012–2025–3545–56
Undergrowth height, cm15 ± 0.532 ± 1.956 ± 5.1114 ± 8.8
Crown diameter, cm12243865
Roots length, cm25 ± 250 ± 595 ± 9125 ± 15
Soil nutrition area, m20.20.782.834.91
Table
Table 4. Correlation coefficients between the number of the Pinus sibirica seedlings in the mountain tundra and air temperature and precipitation.
Table 4. Correlation coefficients between the number of the Pinus sibirica seedlings in the mountain tundra and air temperature and precipitation.
 Jan.Feb.Mar.Apr.May.Jun.Jul.Aug.Sep.Oct.Nov.Dec.
Current year
Minimum temperature0.0670.2490.0970.0220.2240.1360.1160.353 *0.295 *0.1990.0140.091
Maximum temperature0.0010.2270.019−0.0890.281 *0.0570.1180.287 *0.0700.083−0.0690.046
Precipitation0.1080.0240.282 *0.1860.000.042−0.09−0.1420.1060.0600.0820.049
Previous year
Minimum temperature0.1640.2480.2310.1360.508 *0.462 *−0.050.1830.0200.2490.276 *0.006
Maximum temperature0.1560.0480.1170.0620.1280.0220.0260.217−0.0280.1370.1890.124
Precipitation−0.054−0.1380.281 *0.031−0.0660.0700.0490.208−0.0400.180−0.0390.226
* The given correlations are significant at the level of p < 0.05.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ivanova, N.; Tantsyrev, N.; Li, G. Regeneration of Pinus sibirica Du Tour in the Mountain Tundra of the Northern Urals against the Background of Climate Warming. Atmosphere 2022, 13, 1196. https://doi.org/10.3390/atmos13081196

AMA Style

Ivanova N, Tantsyrev N, Li G. Regeneration of Pinus sibirica Du Tour in the Mountain Tundra of the Northern Urals against the Background of Climate Warming. Atmosphere. 2022; 13(8):1196. https://doi.org/10.3390/atmos13081196

Chicago/Turabian Style

Ivanova, Natalya, Nikolai Tantsyrev, and Guoqing Li. 2022. "Regeneration of Pinus sibirica Du Tour in the Mountain Tundra of the Northern Urals against the Background of Climate Warming" Atmosphere 13, no. 8: 1196. https://doi.org/10.3390/atmos13081196

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
