Comparison between Multi-Physics and Stochastic Approaches for the 20 July 2021 Henan Heavy Rainfall Case

Abstract

In this study, three model perturbation schemes, the stochastically perturbed parameter scheme (SPP), stochastically perturbed physics tendency (SPPT), and multi-physics process parameterization (MP), were used to represent the model errors in the regional ensemble prediction systems (REPS). To study the effects of different model perturbation schemes on heavy rainfall forecasting, three sensitive experiments using three different combinations (EXP1: MP, EXP2: SPPT + SPP, and EXP3: MP + SPPT + SPP) of the model perturbation schemes were set up based on the Weather Research and Forecasting (WRF)-V4.2 model for a heavy rainfall case that occurred in Henan, China during 20–22 July 2021. The results show that the model perturbation schemes can provide forecast uncertainties for this heavy rainfall case. The stochastic physical perturbation method could improve the heavy rainfall forecast skill by approximately 5%, and EXP3 had better performance than EXP1 or EXP2. The spread-to-root mean square error ratios (spread/RMSE) of EXP3 were closer to 1 compared with those of the EXP1 and EXP2; particularly for the meridional wind above 10 m, the spread/RMSE was 0.94 for EXP3 and approximately 0.85 for EXP1 and EXP2. EXP3 exhibited better performance in Brier score verification. EXP3 had a 5% lower Brier score than EXP1 and EXP2, when the rainfall threshold was 25 mm. The growth of the initial ensemble variances of different model perturbation schemes were explored, and the results show that the perturbation energy of EXP3 developed faster, with a magnitude of 27.22 J/kg, whereas those of EXP1 and EXP2 were only 19.18 J/kg and 20.81 J/kg, respectively. The weak initial perturbation associated with the wind shear north of the heavy rainfall location can be easily developed by EXP3.

1. Introduction

Forecast skill has recently improved with the development of mesoscale models; however, the initial errors, model errors, and the chaotic characteristics of the atmosphere limit the forecasts of high-impact weather, particularly for heavy rainfall cases. The growth rate of small initial errors was studied, and the idea of ensemble forecasting was put forward by Edward [1]. Ensemble forecasting is an important method for solving the uncertainties in numerical weather forecasting and is an important field in numerical forecasting [2]. It estimates the range of error distribution of the initial values using mathematical methods by obtaining a collection of initial values, each of which representing the real state of the atmosphere, then finally makes a reasonable numerical weather forecast based on the initial values.

The sources of forecast uncertainties in ensemble forecast systems include initial, boundary condition, and model errors [3]. When numerical weather prediction (NWP) ensemble systems are underdispersive, unreliable, and overconfident, ensemble forecasts are generated. Many studies have revealed that initial perturbations cannot comprehensively explain prediction uncertainties [4]. Model uncertainty plays an important role in ensemble prediction systems (EPS). There are several perturbation strategies for mesoscale EPS: the multi-model perturbation schemes [5,6,7,8] that use a combination of several different models to describe the uncertainties of the model’s dynamical and physical processes; and multi-physics parameterization ensemble schemes [9,10,11,12] that use multi-physics parameterization ensemble schemes to describe the varied physical processes. However, developing and maintaining different parameterization schemes are resource intensive, and each ensemble member has a different climatological mean error. Random perturbations are added while integrating to increase the ensemble spread. Three representative model stochastic physical perturbation methods [13] are the stochastic kinetic-energy backscatter (SKEB), stochastically perturbed physics tendency (SPPT), and stochastically perturbed parameter schemes (SPP).

The SPPT scheme is used to perturb the cumulative physical trends of the potential temperature, wind, and humidity. It was first introduced into the European Centre for Medium-Range Weather Forecasts Integrated Forecasting System (ECMWF IFS) by Buizza [14]. This scheme assumes that model random errors associated with physical parameterizations are simulated by multiplying the total parameterized tendencies by a random number sampled from a uniform distribution between 0.5 and 1.5. The results show that the scheme increases the spread of the forecasting system and improves the probabilistic forecasting skill of elements such as rainfall. Currently, numerous operational forecasting systems apply the SPPT scheme [15,16]. For example, the Canadian Center for Environmental Prediction and Japan Meteorological Agency use the SPPT scheme in their global ensemble forecasts and the French Meteorological Agency uses the SPPT scheme in its constructed regional ensemble forecast system. Romine [17] used the SPPT scheme to represent model errors to improve the reliability of ensemble forecasts and performed ensemble forecast experiments, revealing that the SPPT scheme improved probabilistic forecast skill.

The spatial scales of most physical processes, such as convection and boundary layer exchange processes, are very small, therefore they cannot be directly solved, and must be parameterized. This involves numerous empirical, tunable parameters, which are typically subjective; however, the SPP scheme can describe these uncertainties [13]. The SPP scheme is used to perturb parameters in selected physical packages such as the Grell–Freitas (GF) convection scheme, Mellor–Yamada Nakanishi Niino (MYNN) boundary layer schemes, and RUC land surface model (LSM). The random disturbance parameter scheme can directly characterize the model uncertainty caused by the physical process parametrization scheme. A random parameter (RP) scheme with stochastic perturbation parameters was first developed by the UK Met Office in a global ensemble forecasting system and subsequently applied to convective-scale ensemble forecasting systems [10]. The European Centre for Medium-Range Weather Forecasts (ECMWF) also conducts research on stochastic parametric perturbation schemes in the framework of SPP scheme [18]. Xu et al. [19] conducted a random perturbation ensemble forecast experiment based on the SPP scheme and demonstrated that the random parameter perturbation (SPP) scheme can effectively improve not only the ensemble probability forecast effect but also the ensemble rainfall probability forecast skill.

The performance of different stochastic physical perturbation schemes has recently been studied. Four model–error schemes for probabilistic forecasts with the WRF-ARW mesoscale ensemble system were evaluated in terms of performance [20]. Notably, including a model–error representation substantially increased the forecast skill near the surface. Combining multiple model–error schemes produced the best-performing ensemble systems. Cai et al. [21] constructed a storm-scale ensemble forecast system based on the SPPT and SKEB schemes and then combined them to construct a mixed-mode disturbance scheme, clarifying the effect of the combination schemes on rainfall. Qiao et al. [22] implemented two stochastic methods: the stochastically perturbed temperature tendency from the micro-physics method and stochastically perturbed intercept parameters of the micro-physics method in the Lin scheme based on the ARPS model; they investigated the idealized super-monolithic case. Zhang et al. [23] developed a mixed-mode perturbation method, combining a multi-physics process combination and SKEB, and the results showed that the mixed-mode perturbation method had the best performance in perturbation-growth capability. A novel hybrid stochastically perturbed parameterization (HSPP) scheme is proposed and implemented in the Convection Permitting Limited Area Ensemble Forecasting, indicating that HSPP significantly increases the ensemble spread of temperature, humidity, wind speed, and pressure, especially in the lower levels of the atmosphere [24]. Zhang [25] developed three new implementing strategies for surface and model physics perturbations, evaluating 19 tropical cyclones (TCs) making landfall in China during 2014–16, and demonstrated that these methods improved forecasts more significantly for non-intensifying than intensifying TCs.

Despite the increasing prevalence of SPP and SPPT in ensembles, less attention has been given to the benefits of SPP and SPPT in extreme heavy rainfall forecasting. In this study, we have conducted a convective-scale regional ensemble forecast study based on the WRF model for an extreme heavy rainfall process that occurred in the Henan region on 20–22 July 2021, using the SPP and SPPT schemes. We attempted to explore whether the ensemble forecasts constructed by SPP and SPPT with a single physical parameterization scheme and multiphysical parameterization combination scheme, respectively, are as good or better than the ensemble forecasts using the multiphysical parameterization combination scheme. We expect to apply this ensemble forecast scheme for the 20 July case and evaluate the performance of the combined perturbation scheme for this extreme case. The remainder of the paper is organized as follows: Section 2 introduces the sources used in this study, Section 3 presents the model setup and experimental scheme, Section 4 presents the analysis of the ensemble forecast experiment results, and Section 5 presents the conclusions.

2. Data and Methods

2.1. Data

The Global Ensemble Forecast System (GEFS) of the National Centers for Environmental Prediction (NCEP) was used as the initial value and boundary for the regional ensemble forecasting experiments in this study. The number of ensemble members was 20 for the GEFS. The resolution was 1° × 1°, and the initial time of the model was 00:00 (UTC) on 20 July 2021. The forecast lead time was 48 h.

The verification data for the rainfall were obtained from the meteorological station data of the China Meteorological Administration (CMA) with a time resolution of 1 h, including 1-h, 3-h, 6-h, 12-h, and 24-h accumulated rainfall. ERA5 (the 5th generation of ECMWF global climate reanalysis) combines vast amounts of historical observations into global estimates using advanced modeling and data assimilation systems and is one of the world’s best reanalysis data sources. The ground and upper air variables were verified using ERA5 with a time resolution of 1 h and a horizontal resolution of 0.25° × 0.25°. The ERA5 data used for this verification include meteorological variables at the pressure level and single level, such as temperature, U WIND, and V WIND.

2.2. Methods

2.2.1. Spread and Root Mean Square Error (RMSE)

The spread is the standard deviation of the ensemble members from the ensemble mean, and the larger the dispersion in a certain range, the more its potential to include various possibilities of the real atmosphere. When the degree of spread is extremely small, systematic spread will occur; when the degree of spread is extremely large, the forecast error will be large, and the forecast reliability will be low. RMSE verifies the difference between the forecast field and analysis field; the larger the value, the larger the forecast error. For an ideal ensemble forecast system, RMSE and dispersion should have the same magnitude and rate of change. Briefly, the reliability of an ensemble forecast system can be measured by whether the ensemble dispersion is equal to or similar to the ensemble mean forecast error over the entire forecast period [26].

Spread formula can be represented as follows:

$$S_{i,t}=\sqrt{\frac{1}{N}{\displaystyle \sum }_{n=1}^N{\left(f_{i,t}^n-{\overline{f}}_{i,y}\right)}^2}$$

(1)

where $f_{i,t}^n$ is the forecast at i-th station, t-th time point, and n-th ensemble member; ${\overline{f}}_{i,y}$ is the ensemble average forecast; and N is the number of ensemble members.

RMSE formula can be expressed as follows:

$$E_{i,t}=\sqrt{\frac{1}{M}{\displaystyle \sum }_{i=1}^M{\left({\overline{f}}_{i,t}-ob{s}_{i,t}\right)}^2}$$

(2)

where $ob{s}_{i,t}$ is the observation at i-th station and t-th time, and M is the number of stations.

2.2.2. Percent Bias

Percent bias (PBIAS) measures the average tendency of the simulated values to be larger or smaller than their observed ones. The optimal value of PBIAS is 0.0, with low-magnitude values indicating accurate model simulation. Positive values indicate overestimation bias, whereas negative values indicate model underestimation bias. The calculation formula can be expressed as follows:

$$\mathrm{PBIAS}=\frac{{{\displaystyle \sum }}_{i=1}^n\left(P_i-O_i\right)}{{{\displaystyle \sum }}_{i=1}^n{O}_i}\times 100$$

(3)

where n is the number of stations, $P_i$ is the ensemble forecast probability of variables, $O_i$ is the observation at the n-th station. The result is given in percentage (%) [27].

2.2.3. Perturbation Energy

In this study, dry turbulent energy (DTE) was used to characterize the perturbations of the three ensemble forecast experiments. The total perturbation energy of a grid point can be defined as follows:

$$\mathrm{DTE}=\frac{1}{2}\left[{u\prime }^2\left(i,j,k\right)+{v\prime }^2\left(i,j,k\right)\right]+\frac{C_p}{T_r}{T\prime }^2\left(i,j,k\right)$$

(4)

where $u^{\prime }$, $v^{\prime }$ and $T^{\prime }$ and represent the perturbations of the horizontal wind and temperature, respectively, and the perturbation value can be defined as the difference between the ensemble member forecast and ensemble average. $T_r$ is the reference temperature (270 K); $C_p$ is the specific heat of dry air at constant pressure (1005.7 K/kg); i and j represent the number of horizontal east–west and north–south grid points, respectively; and k is the number of vertical layers [28,29].

2.2.4. Brier Score

The Brier score, a common method in ensemble forecasting, is a mean square probability error defined by Brier [30], describing the degree of deviation of the ensemble probability from the observed probability. The Brier score is always between 0.0 and 1.0, where a score of 1.0 indicates the worst accuracy of the ensemble forecast system, and a Brier score of 0.0 indicates a perfect forecasting skill. The calculation formula can be expressed as follows:

$$\mathrm{BS}=\frac{1}{N}{\displaystyle \sum }_{n=1}^N{\left(P_n-O_n\right)}^2$$

(5)

where N is the number of stations, $P_n$ is the ensemble forecast probability of cumulative rainfall at the n-th station, and $O_n$ is the observation frequency at the n-th station. The value of $O_n$ is 1, when the observation is higher than the set threshold, and 0 otherwise.

2.2.5. Bias Score

The bias score is a verification method that reflects the overall rainfall forecast effectiveness. The bias score represents the frequency of forecast events without considering the accuracy of the forecast and is used to measure the forecast deviation of the model for a certain rainfall magnitude. The score is numerically equal to the ratio of the total number of grid points that meet a certain precipitation threshold in the forecast area to the total number of the corresponding live precipitation grid points.

To calculate the bias score, the number of stations for hits, misses, and false alarms was calculated (

Table 1. List of forecast and observations.

	Forecast Occurrence	Forecast Does Not Occur	Observation Summation
Observations appear	Hits	Misses	Hits + Misses
Observations do not appear	Falsealarms	Correctnegatives	Falsealarms + Correctnegatives

). When the number of false alarms is more than the number of misses (bias > 1), the forecast would be corrected many times, and the forecast result would be wetter than the actual condition; when the number of misses is more than the number of false alarms (bias < 1), the forecast would not be sufficient, and the forecast result would be dryer than the observation. When bias = 1, the forecast would be correct, and the forecast deviation would be 0, which is the highest forecast skill. The calculation formula can be expressed as follows:

$$Falsealarms=Prediction-Hits$$

(6)

$$Misses=Obsrvation-Hits$$

(7)

$$BIAS=\frac{\left(hits+falsealarms\right)}{\left.(hits+misses\right)}$$

(8)

2.2.6. Area Under the Curve

Area Under the Curve (AUC) is the model selection metric for bi–multi class classification problems. ROC is a probability curve for different classes. ROC tells us how good the model is for distinguishing the given classes, in terms of the predicted probability. A typical ROC curve has False Positive Rate (FPR) on the X-axis and True Positive Rate (TPR) on the Y-axis. The area covered by the curve is the area between the orange line (ROC) and the axis. This area covered is AUC. The bigger the area covered, the better the models is at distinguishing the given classes. The ideal value for AUC is 1. The calculation formula can be expressed as follows:

$$FPR=\frac{Falsealarms}{Falsealarms+Correctnegatives}$$

(9)

$$TPR=\frac{Hits}{Hits+Misses}$$

(10)

2.2.7. TALAGRANG Histogram

The TALAGRANG histogram provides information on the reliability of the ensemble forecast system as well as information on the system spread. Ideally, the distribution of the TALAGRANG histogram tends to be flat, indicating that the reliability of the ensemble forecast system is excellent and that the ensemble spread accurately reflects the forecast uncertainty. If the TALAGRANG histogram exhibits a “U”-shaped distribution, this indicates that the spread of the ensemble system is small (under dispersion); if the TALAGRANG histogram exhibits an “A”-shaped distribution, this indicates that the spread of the ensemble system is extremely high (over dispersion); if the TALAGRANG histogram exhibits an “L”-shaped distribution, this indicates that the ensemble system has the bias characteristic of over-forecasting; and if the TALAGRANG histogram exhibits a “J”-shaped distribution, this indicates that the ensemble system has the bias characteristic of under-forecasting.

In an ensemble forecast, the ensemble forecast system has N members and K lattice points in the tested region. At each grid point j, the forecast value of a meteorological variable for the i-th member can be expressed as $x_{i,j}^f$, and the corresponding observation as $x_{i,j}^o$, where f represents the forecast, o represents the observation, and i = 1, 2, 3, ..., N represents the ensemble member. When the number of samples increases, the frequency S of the observations falling in the (N + 1) interval Z can be calculated. If the total number of valid samples is M, the probability distribution P and probability mean squared error Q of observations falling in interval Z can be calculated.$\overline{P}$ is the average frequency of each member, and the Talagrand distribution or histogram can be plotted from the probability distribution $P_i$ [2].

$$P_i=\frac{S_i}{M}$$

(11)

$$Q=\sqrt{\left[\frac{1}{N+1}{\displaystyle \sum }_{i=1}^{N+1}{\left(\overline{P}-P_i\right)}^2\right]}$$

(12)

3. Model and Experiment

3.1. Mode Settings

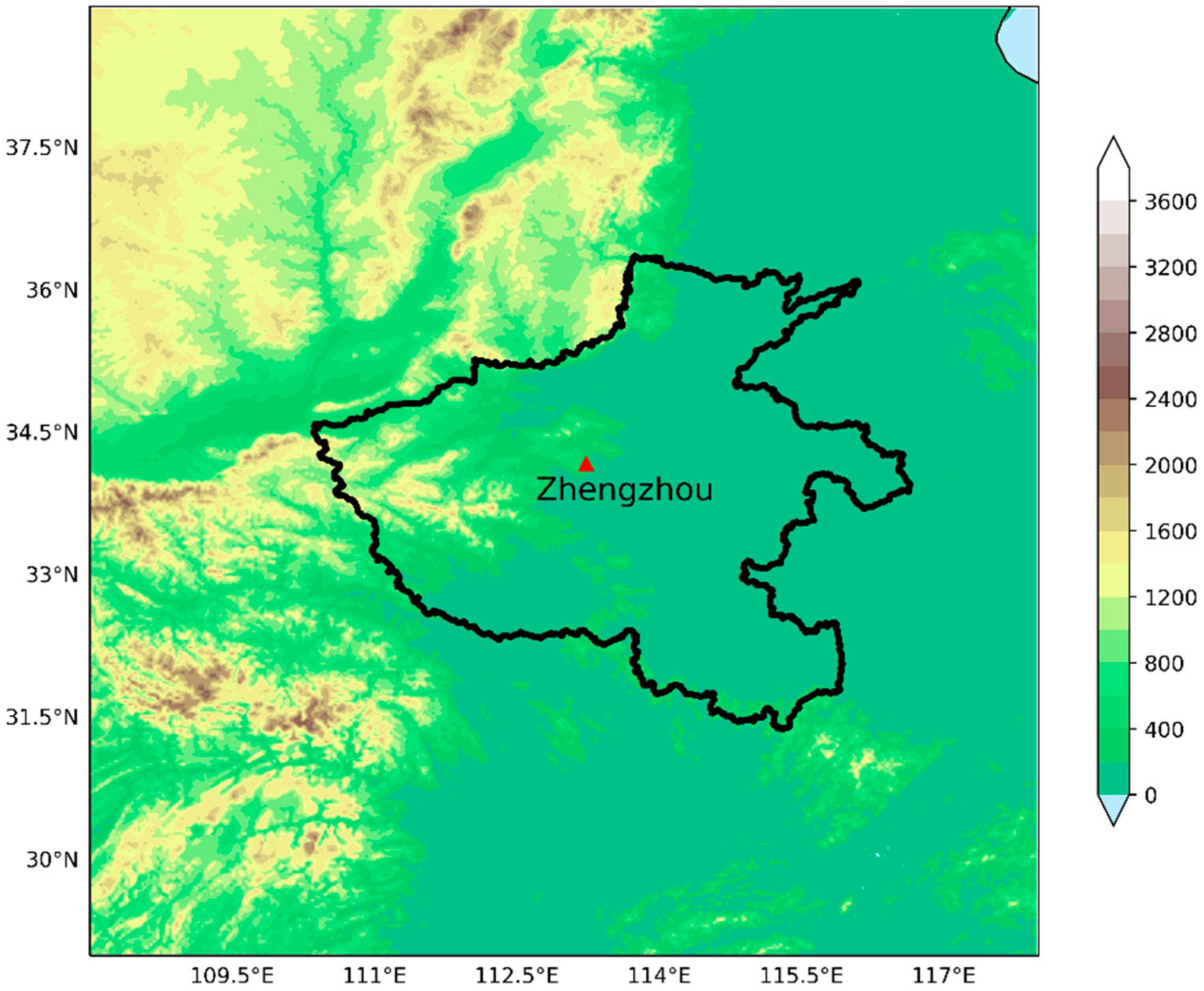

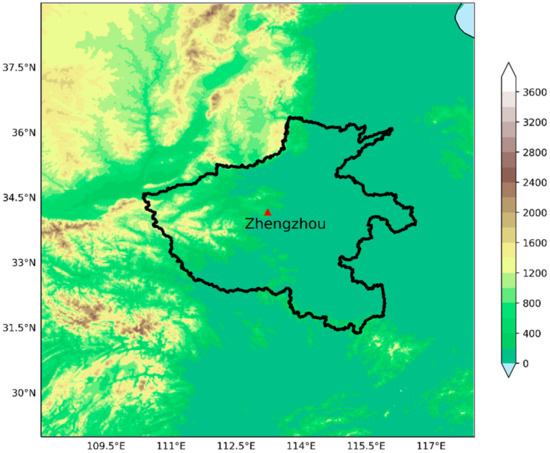

In this study, the regional ensemble forecast experiment used the WRF model V4.2, with a regional setting of 3 km × 3 km resolution, 50 vertical layers, and 50 hPa model layer top. The model simulates an area of $29°{089}^{\prime }–38°{986}^{\prime }\mathrm{N}$, $108°{395}^{\prime }-117°{719}^{\prime }\mathrm{E}$ (Figure 1), covering Henan and the surrounding provincial sub-regions, with a total of 287 × 369 grid points. There were 20 ensemble forecasts used in this study, and the boundary data used were the NCEP GEFS with a resolution of 1° × 1°. The boundary data required by the model were obtained through GEFS, and the regional ensemble forecast field in this study was obtained by applying the dynamic downscaling method. The experimental period in this study was two consecutive days from July 20 to July 22 2021, starting at 00 UTC on 20 July, with a model forecast time limit of 48 h.

3.2. Experimental Scheme

Three sensitive experiments using different model perturbation schemes were used in this study. The details are presented in

Table 2. Summary of experiments.

EXP	Model–Error Representation	Reference
EXP1	MP	Hacker et al. [31]
EXP2	SPP + SPPT	Jankov et al. [13]
EXP3	MP + SPP + SPPT	Zhang et al. [25]

.

Multiphysical parameterization scheme (EXP1: MP only). A combination of different physical parametrization schemes was used for each ensemble member. There were five micro-physics schemes used in this study: the Morrison double-moment, Thompson, WRF single-moment 6-class, Eta, and P3 schemes [32,33,34,35,36]. The revised MM5 and Eta similarity schemes were used for the surface layer schemes [37,38]. Three planetary boundary layer physics schemes, the Yonsei University, Mellor–Yamada–Janjic, and Mellor–Yamada Nakanishi Niino (MYNN) level 2.5 schemes [39,40,41], were combined with the micro-physics and surface layer schemes for each ensemble member. The combination details are presented in

Table 3. Parameterization scheme configuration of the 20-member multiphysical process combination.

Members	Micro Physics	Surface Layer	Planetary Boundary Layer
01	WSM6	RMM5	YSU
02	Thompson	Eta	MYJ
03	Morrison	RMM5	YSU
04	Eta	RMM5	YSU
05	P3	Eta	MYNN
06	WSM6	Eta	MYJ
07	Thompson	RMM5	YSU
08	Morrison	RMM5	YSU
09	Eta	Eta	MYJ
10	P3	Eta	MYNN
11	WSM6	RMM5	YSU
12	Thompson	RMM5	YSU
13	Morrison	Eta	MYJ
14	Eta	RMM5	YSU
15	P3	RMM5	YSU
16	WSM6	Eta	MYNN
17	Thompson	Eta	MYNN
18	Morrison	RMM5	MYJ
19	Eta	Eta	YSU
20	P3	RMM5	MYJ

.

Combination of SPP and SPPT schemes (EXP2: SPP + SPPT). The SPPT scheme is a random pattern that is used to perturb the accumulated physics tendencies (except those from micro-physics) of potential temperature, wind, and humidity. The SPP scheme is a random pattern that is used to perturb parameters in selected physics packages, namely the GF convection, MYNN boundary layer, and RUC LSM schemes. EXP2 is a single physical parameterization scheme combined with the SPP scheme, and the SPPT scheme was used in this experiment. There are also some physics schemes used in this study: the Morrison double-moment scheme was used in mp_physics, Revised MM5 scheme was used in sf_sfclay_physics, and MYNN level 2.5 scheme was used in bl_pbl_physics.

Combination of SPP and SPPT with multiple physical parameterization schemes (EXP3: SPP + SPPT + MP). The combination of different physical parameterization schemes was used to obtain physical parameterization schemes for different ensemble members (configurations of ensemble member parameterization schemes numbered 01–20 in Table 3), combined with the SPP and SPPT schemes, for the ensemble forecasting experiments.

4. Results

Ensemble forecasts provide probabilistic forecasts, making the ensemble system forecast experiments complex, and their forecast results require a range of probabilistic forecast verification methods for evaluation. The accuracy of the ensemble forecast results can be expressed in two different aspects: the forecast skill, indicating whether the ensemble forecast results are close to the observed values, and dispersion, indicating whether the ensemble forecast can accurately reflect the uncertainty of the numerical forecast model. To compare the forecast results of EXP1, EXP2, and EXP3 for an extremely heavy rainfall process occurring in the Henan region on 20 July, 2021, this study evaluated the three experiments through a series of verified methods and compared the forecast effects of the three schemes.

4.1. Near-Ground Variable Forecast Verification

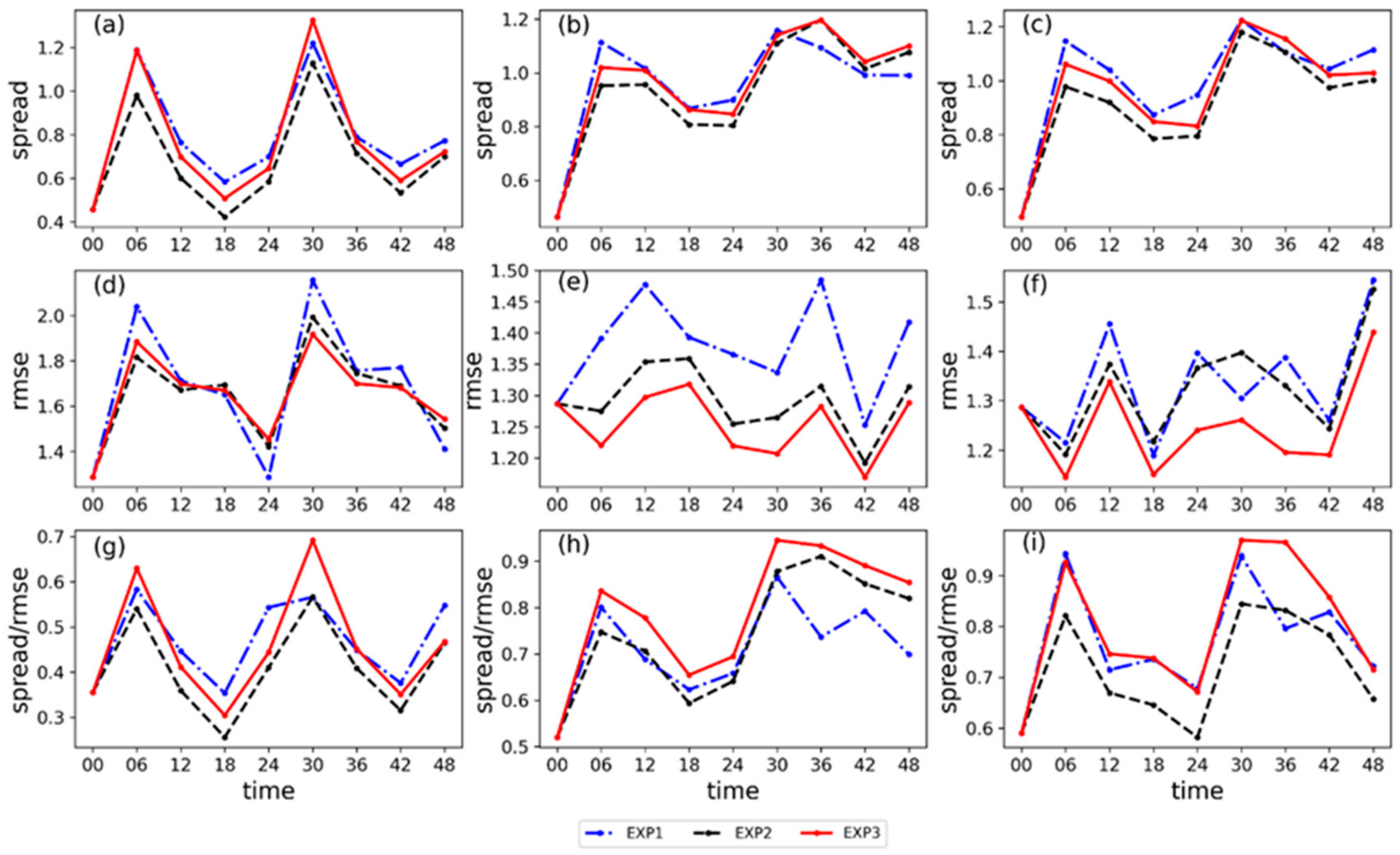

Figure 2 shows the three sets of ensemble forecast experiments near the ground from 00:00 on 20 July, 2021, to 00:00 on 22 July 2021. The spread of 2 m temperature and 10 m U and V winds was increased in EXP1 and EXP3 compared to EXP2. The RMSE of 2 m temperature and 10 m U and V winds for EXP2 and EXP3 was lower than that of EXP1 (Figure 2d–f). This indicates that the model stochastic physical perturbation method combined with the multi-physics parameterization combination scheme (EXP3) not only increased the spread, but also had low forecast error. For the ground variable 2 m temperature (Figure 2g), the spread-to-root mean square error ratio (spread/rmse) was greater for EXP1 and EXP3 than for EXP2. For a U wind of 10 m (Figure 2h), the spread/rmse of EXP3 was significantly greater than that of EXP1 and EXP2. In the first 30 h, the spread/rmse values of EXP1 and EXP2 were comparable; after 30 h, the spread/rmse of EXP2 was higher than that of EXP1. For a V wind of 10 m (Figure 2i), the spread/rmse of EXP1 and EXP3 was significantly larger than that of EXP2.

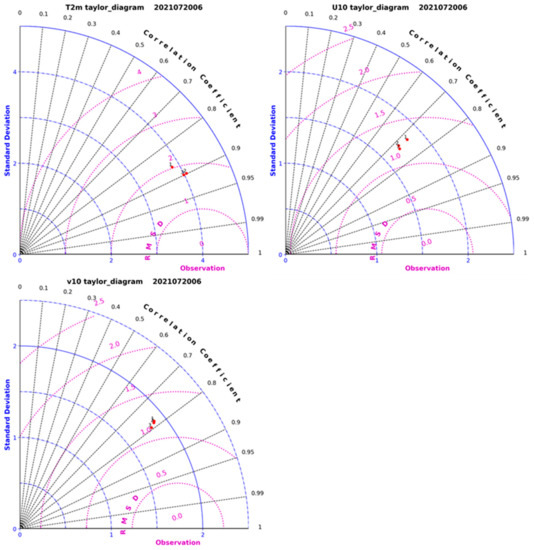

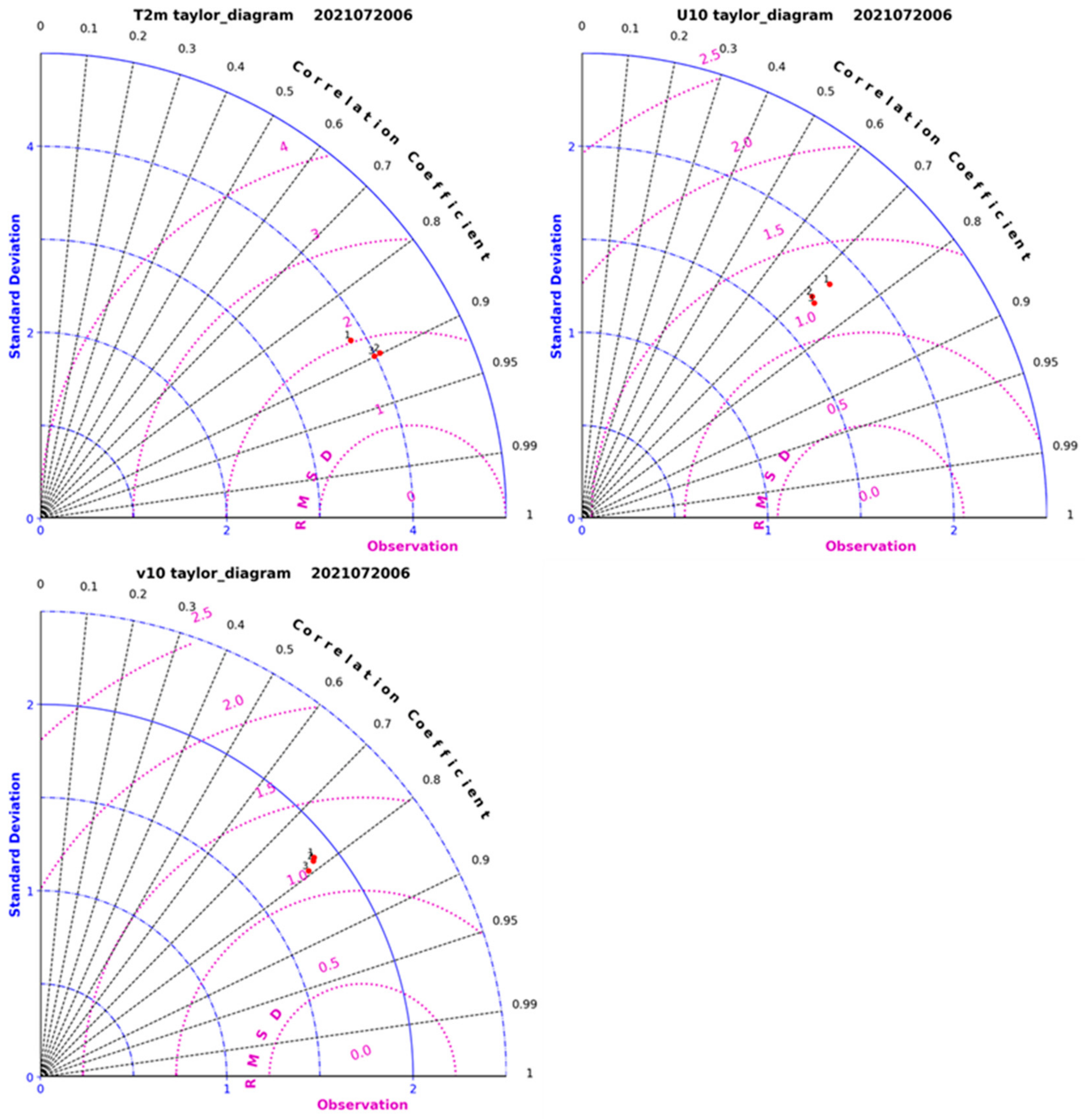

Figure 3 shows three sets of ensemble forecast experiments at 06:00 on 20 July 2021 (UTC): 2 m temperature, 10 mU wind, and 10 mV Taylor diagram. The RMSE of 2 m temperature and 10 m U and V winds for EXP2 and EXP3 were lower than that of EXP1. For 2 m temperature, the RMSE of EXP2 and EXP3 were 1.795 and 1.814, while EXP1’s was only 2.028. For a U wind of 10 m, the RMSE of EXP2 and EXP3 were 1.278 and 1.233 while EXP1’s is only 0.096. For a V wind of 10 m, the RMSE of EXP2 and EXP3 were 1.206 and 1.189 while EXP1’s was only 1.144. The correlation and standard deviation of 2 m temperature and 10 m U and V winds were increased in EXP1 and EXP3 compared to EXP2.

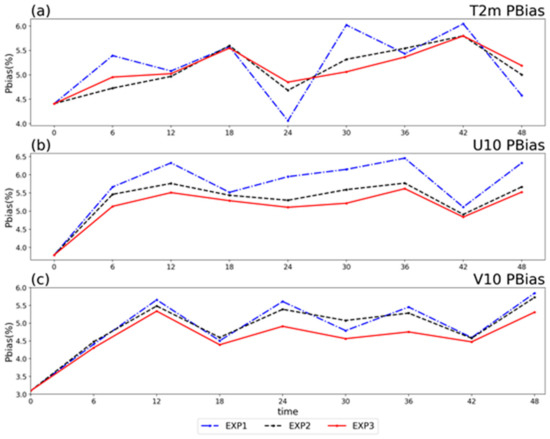

Figure 4 shows three sets of ensemble forecast experiments from 00:00 on 20 July, 2021 to 00:00 on 22 July 2021: (a) 2 m temperature, (b) 10 m U wind, and (c) 10 m V wind PBIAS. For the ground variable 2 m temperature, the Pbias of EXP3 was significantly lower than that of EXP1 and EXP2 in the first 18 h; after 30 h, the Pbias of three sets of ensemble forecast experiments were comparable. For a U wind and V wind of 10 m, the Pbias of EXP3 was significantly less than that of EXP1 and EXP2, indicating that the EXP3 perform better simulations of U wind and V wind.

In summary, the model stochastic physical perturbation method and multi-physics parametric combination scheme forecasts were comparable for ground variables, and the model stochastic physical perturbation method was superior to the multi-physics parametric combination scheme forecasts for some variables, such as 10 m U winds. The overall forecasting effectiveness of EXP3 was relatively good compared with EXP1 and EXP2, which also indicates that the model errors in the current ensemble forecast system are extremely complex to be represented by a single scheme alone.

4.2. High Altitude Variable Forecast Verification

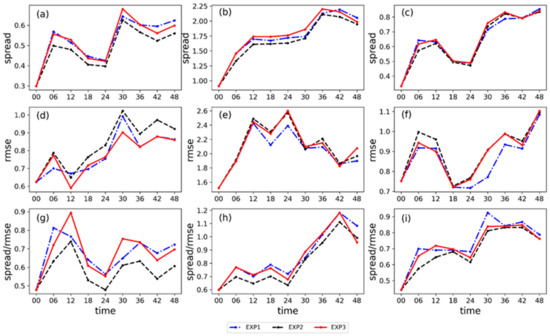

Figure 5 shows three sets of ensemble forecast experiments at 850 hPa from 00:00 on 20 July 2021, to 00:00 on 22 July 2021 (UTC). The spread of the 850 hPa temperature, U wind, and relative humidity was higher in EXP1 and EXP3 than in EXP2. The RMSE of the 850 hPa temperature for EXP1 and EXP3 was lower than that of EXP2 (Figure 5d), and the RMSE of the U wind and relative humidity for EXP1 was smaller than that of EXP2 and EXP3 (Figure 5e,f). For the 850 hPa temperature (Figure 5g), spread/rmse ratio was higher for EXP1 and EXP3 than for EXP2, and the spread/rmse ratio was approximately 1 for EXP1 and EXP3. For the U wind at 850 hPa (Figure 5h), the spread/rmse of EXP1 and EXP3 was significantly larger than that of EXP2. For the 850 hPa relative humidity (Figure 5i), the spread/rmse of EXP1 and EXP3 was higher than that of EXP2, and after 18 h, the spread/rmse of EXP1 was higher than that of EXP2 and EXP3.

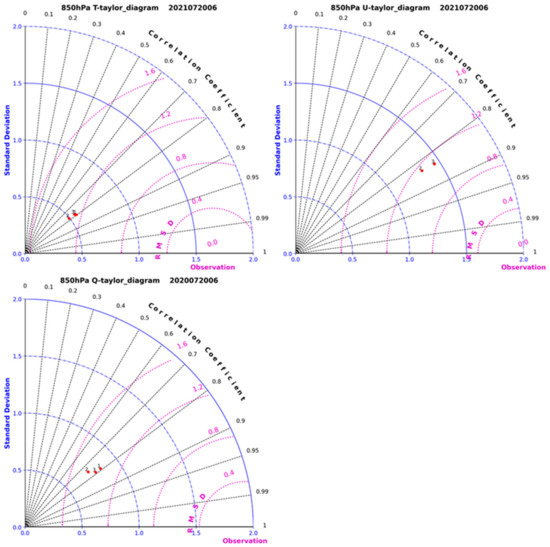

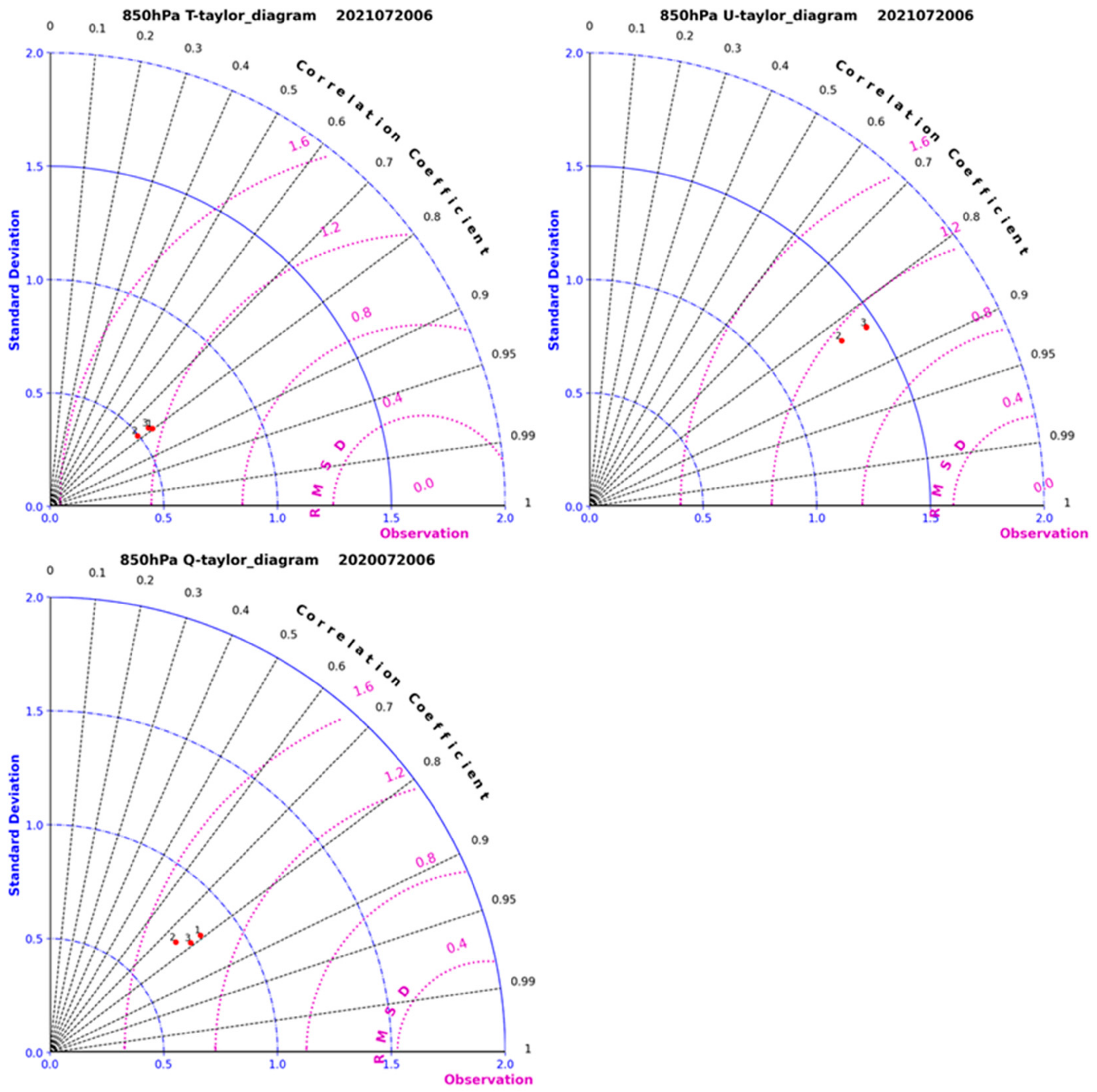

Figure 6 shows three sets of ensemble forecast experiments at 06:00 on 20 July 2021 (UTC): 850 hPa temperature, U wind, and relative humidity Taylor diagram. At 850 hPa, The RMSE was lower for EXP1 and EXP3 than for EXP2, and The RMSE was 0.699 and 0.772 for EXP1 and EXP3, while EXP2’s was 0.786. For the U wind at 850 hPa, the RMSE of EXP2 and EXP3 was lower than that of EXP1. For the 850 hPa relative humidity, three sets of ensemble forecast experiments were similar; the RMSE of EXP2 and EXP3 was lower than that of EXP1, but EXP3 perform best. The correlation of the 850 hPa temperature, U wind, and relative humidity was higher in EXP1 and EXP3 than in EXP2.

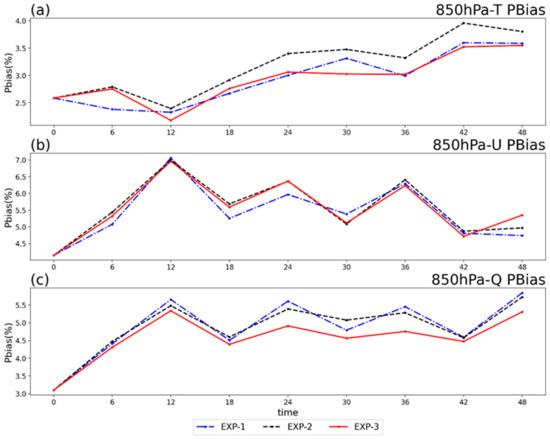

Figure 7 Three sets of ensemble forecast experiments at 06:00 on 20 July 2021 (UTC): (a) 850 hPa temperature, (b) U wind, and (c)relative humidity PBIAS; For the 850 hPa temperature, the Pbias was lower for EXP1 and EXP3 than for EXP2, and the EXP3 was the lowest. For the U wind at 850 hPa, three sets of ensemble forecast experiments were comparable. For the 850 hPa relative humidity, the Pbias of EXP3 was significantly lower than that of EXP1 and EXP2 in the first 18 h, exhibiting that the EXP3 perform better simulations.

In conclusion, the model stochastic physical perturbation method and combined multi-physics parameterization scheme are comparable for forecasting ground variables, whereas the model stochastic physical perturbation method is not superior to the combined multi-physics parameterization scheme for forecasting variables at 850 hPa. The SPP scheme in the model stochastic physical perturbation method is used to perturb parameters in specific physical packages (GF convection scheme, MYNN boundary layer scheme, and RUC LSM surface layer); therefore, the land surface process perturbation is more intensely perturbed relative to the 850 hPa high altitude, thereby effectively improving the forecast for the surface than for the high altitude.

4.3. Disturbance Energy

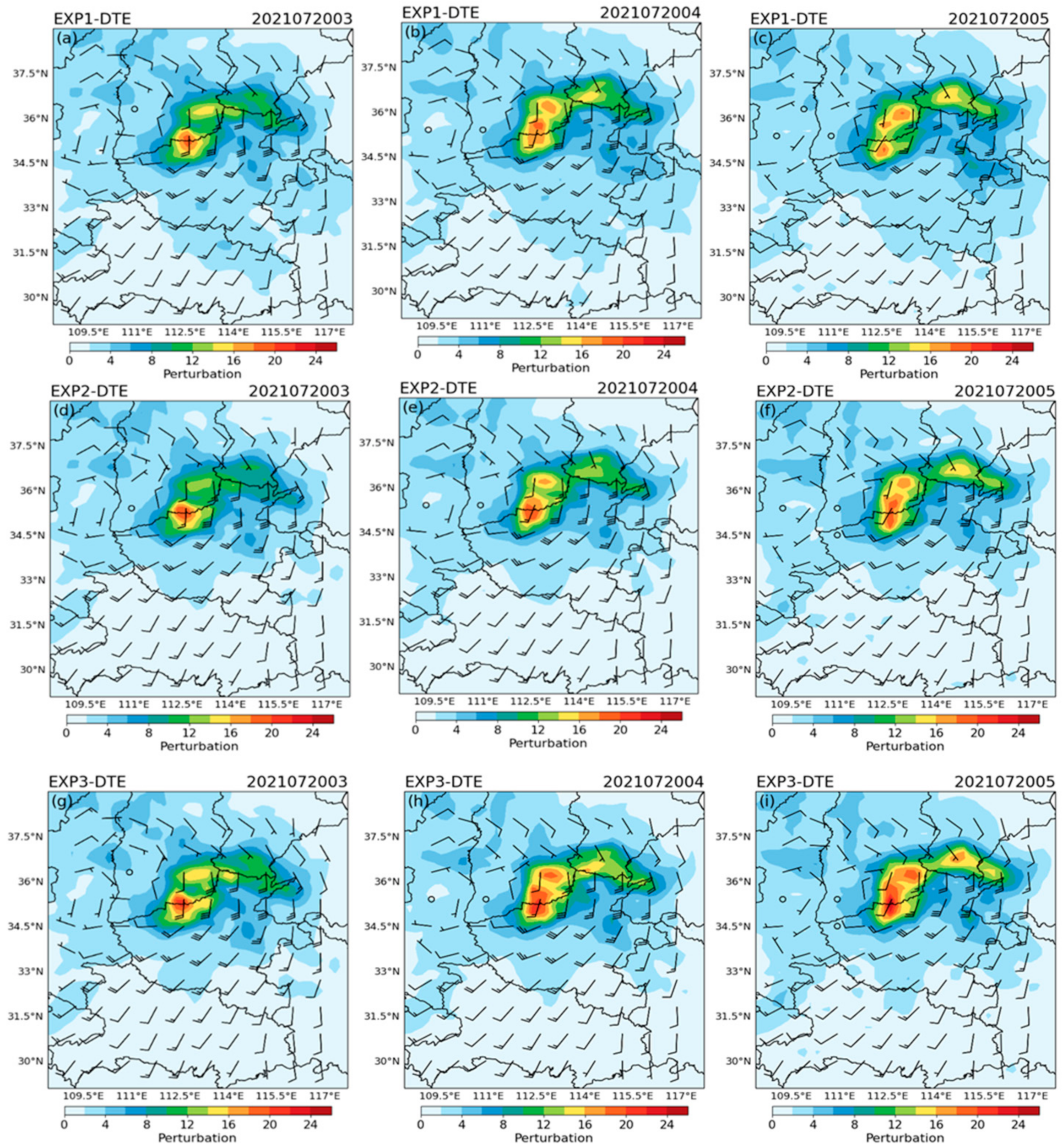

Figure 8 shows the variations in the perturbation kinetic energy of the U wind at a temperature of 500 hPa from 03:00 on 20 July 2021, to 05:00 on 20 July 2021 (UTC). The perturbation energy of the three sets of ensemble forecast experiments exhibited a gradually increasing trend from 03:00 to 05:00 on 20 July 2021, and the perturbation energy developed in northern Henan and southern Shanxi, which are associated with large wind speed values. After 3 h of forecasting, the perturbation energy development of the three sets of ensemble forecasting experiments did not significantly differ, with perturbation energy values of 19.90 J/kg, 20.79 J/kg, and 21.85 J/kg for EXP1, EXP2, and EXP3, respectively. After 5 h of forecasting, the perturbation energy of EXP3 developed faster with a magnitude of 27.22 J/kg; however, the perturbation energy levels of EXP1 and EXP2 were only 19.18 J/kg and 20.81 J/kg, and the perturbation energy values of both experiments were smaller than that of EXP3. Moreover, the perturbation energy excited by the model stochastic physical perturbation method or the multi-physics parameterization combination scheme alone is extremely weak to accurately describe the energy development of the intense rainfall weather process; however, the model stochastic physical perturbation method combined with the multi-physics parameterization combination scheme (EXP3) can effectively solve this problem.

4.4. Heavy Rainfall Forecast Verification

4.4.1. Analysis of 6-h Cumulative Rainfall Results

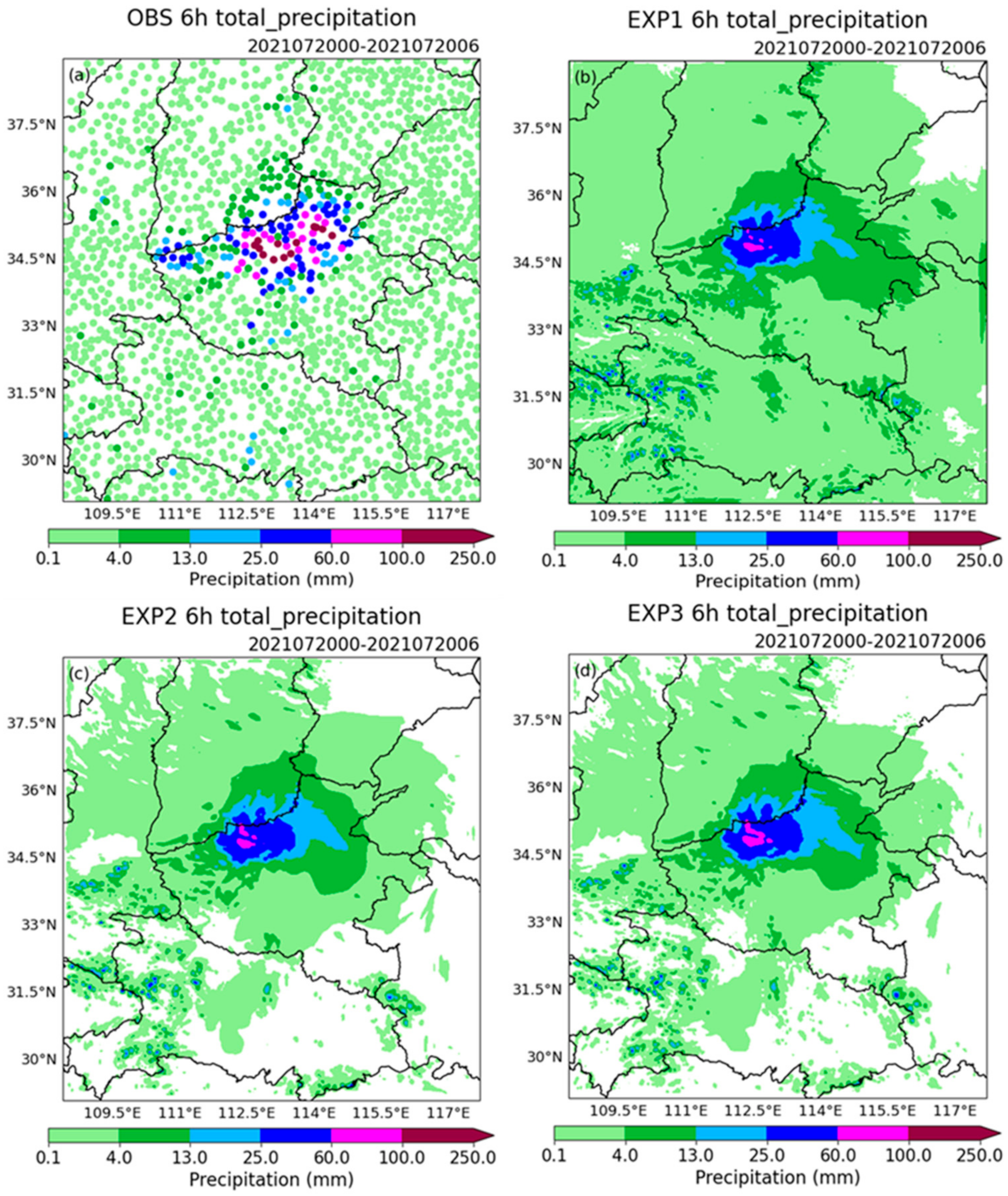

Figure 9 shows the three sets of ensemble forecasts from 20 July 2021 (UTC) on the forecast and the observation of 0–6 h. For the observation of rainfall (a), the area of heavy rainfall from 00:00 to 06:00 (UTC) on July 20 was primarily located in the northern part of Henan Province, and the center of heavy rainfall was located in Zhengzhou City and its surrounding areas, with a maximum accumulated heavy rainfall of approximately 185 mm. Compared with the observation of rainfall, the heavy rainfall area of the ensemble mean (b) simulated by the 6-h ensemble forecast of EXP1 is consistent with the observation. However, the effect of the simulation on the magnitude of rainfall is not ideal, and heavy rainfall in the eastern part of Zhengzhou was not predicted. The 6-h total rainfall average of EXP2 and EXP3 did not significantly differ from the observed rainfall areas; however, the rainfall centers were located to the east compared to the observations, and EXP2 and EXP3 did not forecast the magnitude of rainfall. This also indicates that although the ensemble-averaged forecast can balance the forecast bias among members, it can filter out useless forecast information and improve the accuracy of forecasts. However, it also filters out information that is beneficial to the forecast results and obscures some useful forecast information.

4.4.2. Brier Score

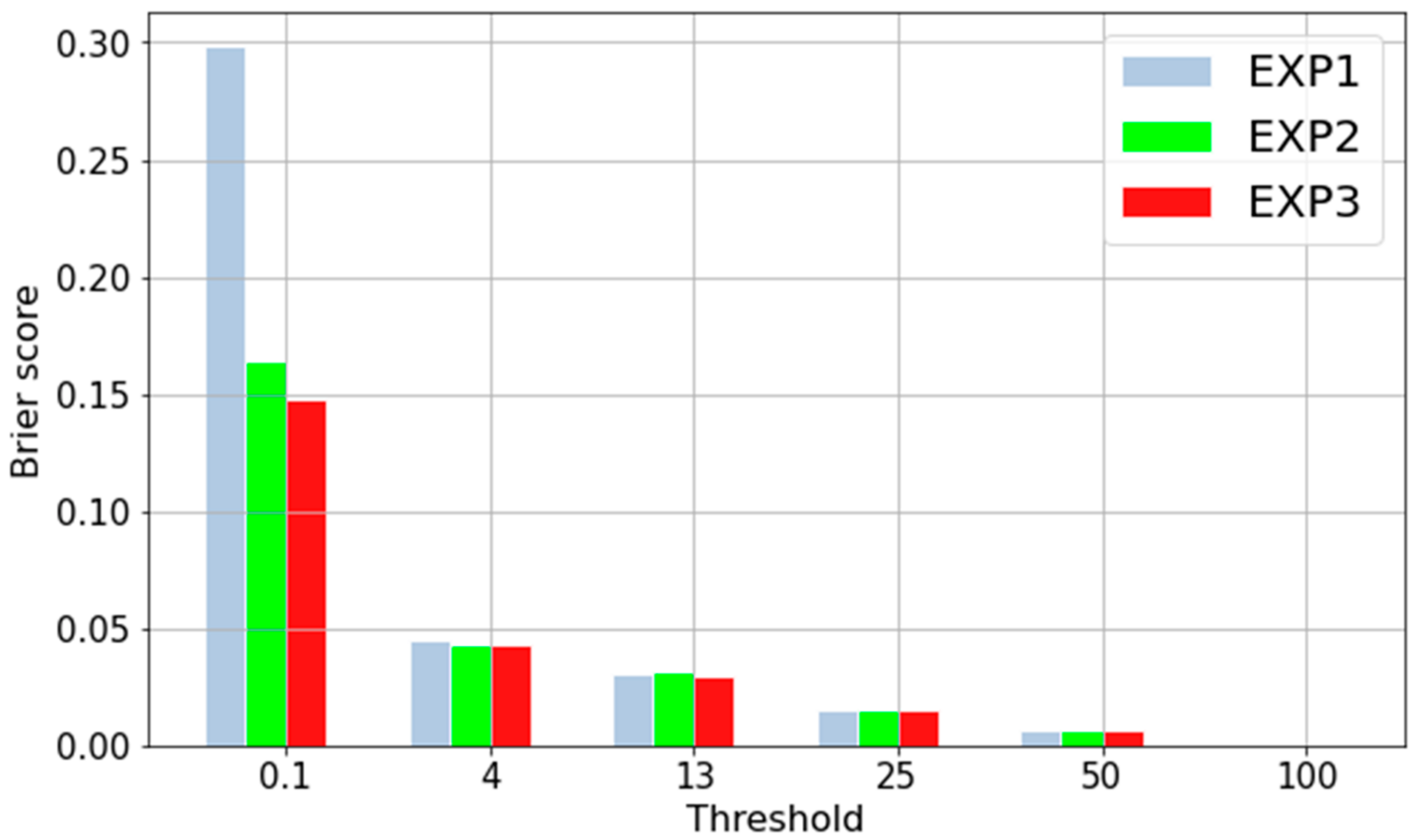

Figure 10 shows the 6-h cumulative rainfall Brier score from 00:00 to 06:00 on 20 July 2021. For rainfall magnitudes below 4 mm, the 6-h rainfall Brier scores for EXP2 and EXP3 were 0.164 and 0.148, respectively, which were significantly lower than the 0.298 for EXP1, EXP2, and EXP3, exhibiting better simulations for small magnitudes of rainfall. The 6-h rainfall Brier scores were lower in EXP2 and EXP3 than in EXP1 for the rainfall levels of 4–13 mm, and EXP3 had the lowest Brier score (0.043). The Brier score of the 6-h rainfall simulated in EXP3 was lower than that of EXP1 and EXP2 for rainfall levels higher than 50 mm; however, the Brier scores were not significantly different.

4.4.3. Bias Score

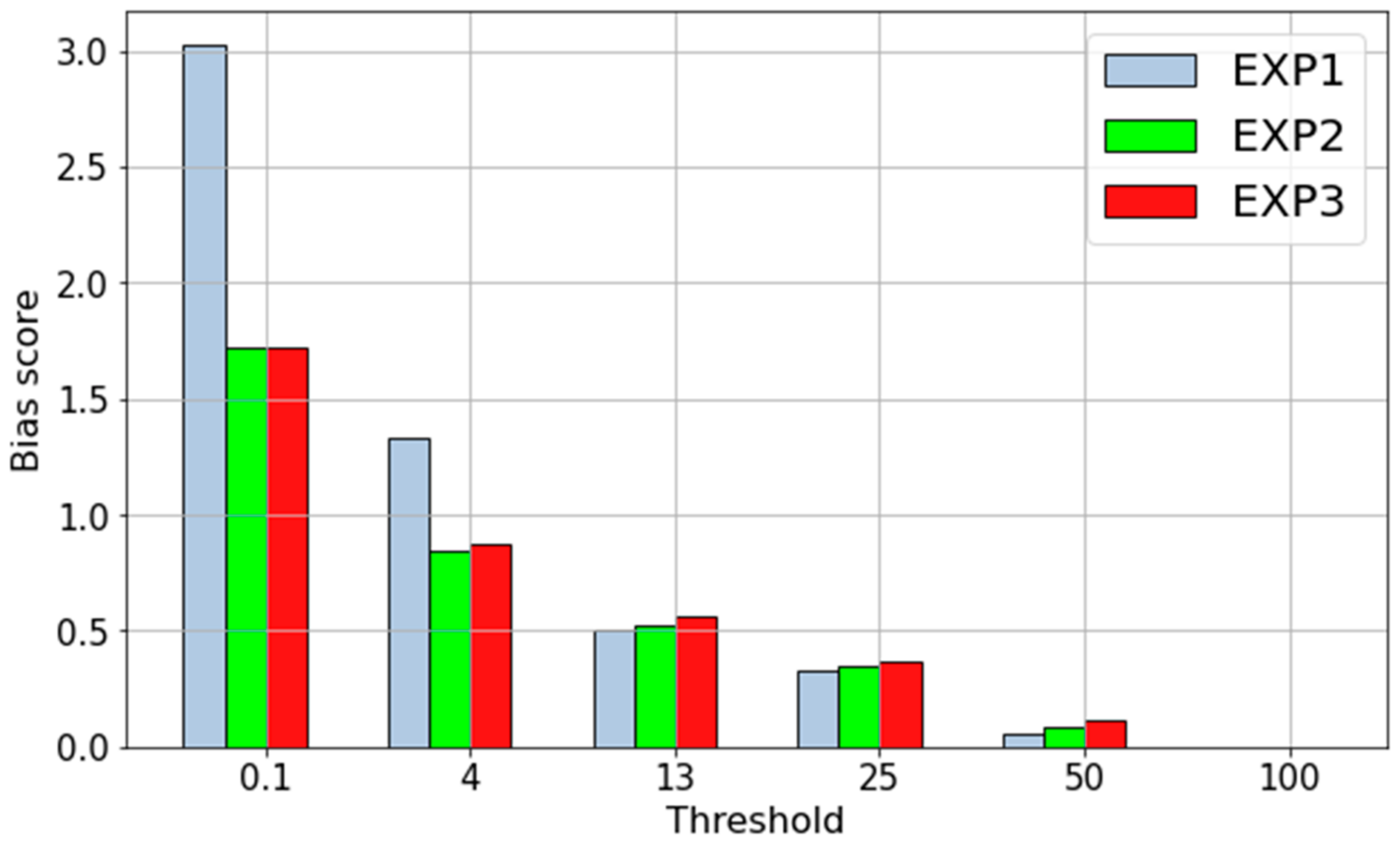

Figure 11 shows the bias score chart of the accumulated rainfall over 6 h from 00:00 to 06:00 on 20 July, 2021. As shown in the figure, for a small rainfall magnitude of 0–4 mm, the bias score of the 6-h rainfall ensemble for the three ensemble forecast experiments was greater than 1. The bias score values for EXP1, EXP2, and EXP3 (SPP) were 3.02, 1.725, and 1.717, respectively; the experiment forecasts were wet compared to observations. The bias scores for the simulated results of EXP2 and EXP3 (SPP) were approximately 1, with values of 0.842 and 0.876 for rainfall levels of 4–13 mm; however, the bias score for EXP1 was 1.366, and the forecast was wet. For rainfall magnitude of 13–100 mm, the 6-h simulated rainfall bias scores of the three ensemble forecasting experiments were all less than 1, and the experimental forecasts were dryer than the observations. For a rainfall magnitude higher than 100 mm, the 6-h rainfall bias scores of the three ensemble forecasting experiments were not ideal.

4.4.4. Area Under the Curve (AUC)

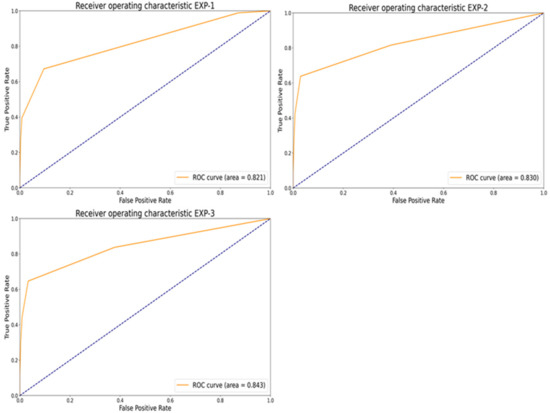

Figure 12 shows the AUC–ROC curve of accumulated rainfall in 6 h from 00:00 to 06:00 on 20 July 2021 (>0.1 mm). Three sets of ensemble forecast experiments were all greater than 0.5, indicating that the ensemble forecasting skills were great. The AUC of three sets of ensemble forecast experiments were similar. The AUC was greater for EXP3 than for EXP1 and EXP2, and The AUC was 0.843 for EXP3, while EXP1 and EXP2 were 0.821 and 0.830. The simulation of heavy rainfall by the model stochastic physical perturbation method or the multi-physics parameterization combination scheme alone is too weak to accurately describe the intense rainfall weather; the model stochastic physical perturbation method combined with the multi-physics parameterization combination scheme (EXP3) perform better simulations of heavy rainfall.

4.4.5. Talagrand Histogram

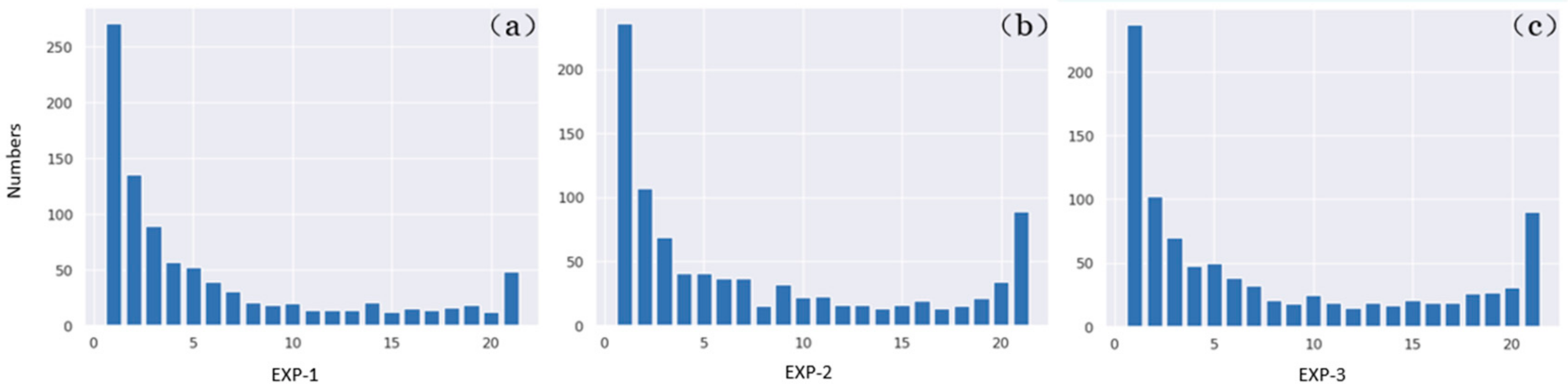

Figure 13 shows the histogram distribution of talagrand cumulative rainfall in 6 h from 00:00 to 06:00 on 20 July 2021. The ensemble spread produced by the multi-physics parameterization combination scheme used solely in EXP1 was insufficient. The spread increased in EXP2 by applying the model stochastic physical perturbation method alone. Moreover, the EXP3 ensemble forecasting system increased the ensemble spread and improved the forecasting skill after the application of the model stochastic physical perturbation method and multi-physics parameterization combination scheme.

5. Conclusions and Discussions

In this study, a regional ensemble forecast was conducted based on WRF v4.2 for an extremely heavy rainfall process that occurred in the Henan region on 20–22 July 2021. Three sets of ensemble forecast experiments were performed by applying the multi-physics parameterization (MP) combination method, SSP, and SPPT schemes. The following conclusions were obtained:

(1)

For the results of heavy rainfall by the three sets of ensemble forecast experiments, the 6-h rainfall areas of the three sets of ensemble forecast experiments were consistent with the observed. The model stochastic physical perturbation method combined with the multi-physics parameterization combination scheme (EXP3) performed the best with at least 5% improvement over the multi-physics parameterization combination scheme (EXP1) and the model stochastic physical perturbation method (EXP2).

(2)

For the near-surface variables, the overall forecasting effectiveness of EXP3 was greater than that of EXP1 and EXP2, and was therefore better able to effectively simulate the true state of the atmosphere. This indicates that the model errors in the current ensemble forecast system are extremely complex, and are unlikely to be effectively represented by a single scheme alone.

(3)

For the high altitude variable, the model stochastic physical perturbation method was not superior to the forecasting effect of the combined multi-physics parameterization scheme. This implies that the land surface process perturbation is intensely perturbed relative to the high altitude process, thereby effectively improving the forecast for the ground level compared with the forecast for high altitude.

(4)

For the perturbation energy, the perturbation energy excited by EXP1 or EXP2 alone was extremely weak, therefore it was unable to accurately describe the energy development of extreme heavy rainfall weather processes. However, the EXP3 effectively resolved this problem.

Ensemble forecasting estimates the range of error distribution of the initial value via mathematical methods, obtaining a collection of initial values, each of which may represent the real state of the atmosphere. Therefore, ensemble forecasts can provide more information than single deterministic forecasts, and the forecast results of some ensemble members are closer to the observation. Thus, the forecast information of individual members cannot be ignored. This also indicates that, although ensemble-averaged forecasts enable the forecast biases among individual members to offset, the ensemble-averaged forecast can balance the forecast bias among members, filter out useless forecast information, and improve the accuracy of forecasts. However, it can also filter out information that is beneficial to the forecast results and obscure some useful forecast information.

This paper only discusses the impact of the ensemble forecast using the model perturbation schemes and the multi-physics process parameterization, and does not set a control experiment with single physical parameterization scheme. The conclusivity of the test results still needs improvement. There are also some shortcomings in the selection of the case. This paper only selects a heavy rainfall process in the Henan region on 20–22 July 2021. The selected cases are too few, the time of heavy rainfall is too short, and the representativeness of the case is insufficient. Due to the limitation of computing resources, the horizontal resolution of the model is 3 km, and the ability to stimulate to strong convective weather processes is not satisfactory. The resolution of the simulation can be appropriately improved by follow-up research; the ensemble members of the ensemble forecast are only 20, and the ensemble members can be appropriately increased in future ensemble forecast experiments. Moreover, this paper only discusses the advantages and disadvantages of the mode perturbation scheme and the multi-physics parameterization scheme, but does not explore which is better and which is worse. This problem must be solved by follow-up work.
