1. Introduction
Precipitable water vapor content (PW), also called integrated water vapor or integrated precipitable water vapor, is an important parameter in the study of atmospheric processes. According to the definition of the Glossary of Meteorology AMS [
1], precipitable water is the total atmospheric water vapor contained in a vertical column of air, expressed in terms of the height to which that water substance would stand if completely condensed. PW is commonly expressed in mm or kg∙m
−2. Bordi et al. [
2] state that PW represents the maximum potential precipitation and the supply of latent heat available to develop and maintain storm processes. They underline, similarly as Tuller did earlier [
3], that the quantity of precipitation noted at meteorological stations is correlated with PW values, but also with the initial degree of saturation of water vapor and the dynamic mechanisms that provide the cooling necessary to produce saturation and trigger the droplets’ growth. For this reason, the correlation between precipitation amounts and precipitable water vapor of air masses is not clear [
2,
4] and changes over seasons [
5] or with land cover [
6].
Precipitable water in the atmosphere influences not only the water balance by participating in cloud formation and precipitation, but it also plays an important role in shaping the heat balance in the atmosphere, modulating radiation by processes of absorption, scattering and reflection [
7,
8,
9,
10,
11]. The newest results of analysis of atmospheric water vapor radiative effects on shortwave solar radiation under clear skies [
10] show that the reduction of solar radiation reaches globally −80.2 W m
−2 with a remarkable seasonal and spatial pattern. From this point of view, the PW is an important element in solar forecasting and historical solar database production. On the other hand, water vapor is an important greenhouse gas that strongly absorbs the infrared and longwave range radiation [
12,
13,
14,
15]. Finally, the water in the atmosphere is the energy carrier, releasing or accumulating its resources during phase transitions, so it is a significant link in the energy exchange between atmosphere and ocean. Therefore, the water content in the atmosphere is taken into account in global and regional meteorological models [
16,
17,
18]. In practice, PW is used to increase the accuracy of weather forecasts [
19,
20,
21,
22,
23,
24,
25,
26] and explains the course and occurrence of extreme weather events, such as heavy precipitation, violent storms, super-cell thunderstorms and others [
27,
28,
29,
30,
31,
32,
33]. Analyzing PW trends is also crucial because of the observed climate change [
16,
18,
32,
34].
At a global scale, the main process controlling moisture content in the atmosphere is evaporation over the oceans in tropical zones and atmospheric circulation [
35]. Precipitable water is used to identify atmospheric rivers—that is, long, narrow and transient corridors of strong horizontal water vapor being transported to a higher latitude, which are typically associated with a low-level jet stream ahead of the cold front of an extratropical cyclone [
36,
37,
38]. Atmospheric rivers can lead to heavy precipitation whenever these systems are forced upward, either by mountains or by ascent in the warm conveyor belt. The other is the integrated water vapor transport (IVT), which is dependent on both the amount of moisture and the strength of the flow, and calculating it requires profiles of both moisture and wind. The importance of IVT in extreme precipitation events and floods has been analyzed in detail for the west coast of the USA [
36,
39,
40]. Similar conclusions have also been reached for Europe [
41,
42,
43,
44].
The number of methods for observation of PW has increased considerably during the last decades and now includes optical ground-based and satellite soundings. These modern techniques enable us to follow the quick changes in column water vapor content. The use of a sounding balloon is the traditional method that allows for an accurate determination of precipitable water data [
45,
46,
47]. Satellite methods using Atmospheric Infrared Sounders [
5,
48,
49] or methods based on slant observations of tropospheric delay of Global Navigation Satellite System (GNSS) [
50,
51,
52,
53] are also commonly used. However, the limitations of radiosonde data, as well as other observation techniques, for climate research is that the derived PW is not homogeneous over long time periods due to calibration uncertainties and sensor changes [
54]. Due to its high cost [
55], the density of the radiosonde measuring stations and the frequency of measurements vary in space and are usually low (e.g., three stations in Poland, each with two soundings per day). Data of PW derived from GNSS observations may be affected by changes in the electromagnetic environment around the antenna [
54]. Advanced GNSS processing techniques also require external precise satellite clock corrections consistent with orbits as well as precise models for undifferenced observations required for precise point positioning [
56]. For this reason, in recent years the data from mesoscale atmospheric models have become a complementary alternative to the measurements. With the development of global and mesoscale meteorological models (e.g., GFS, GEM, KNMI-HIRLAM, ARPÈGE, ICON, HRES and ENS) and dynamical downscaling techniques, the gridded data from these models have provided characteristics of the spatial and temporal distribution of PW over large areas. This information is often available at high spatial and temporal resolution [
2,
35,
57]. Numerical weather prediction models such as WRF have been tested in various regions, and they have turned out to be very effective in the simulation of PW profiles [
31,
58].
Multi-year values of precipitable water content were used by Wypych et al. [
35] to identify and characterize humidity regions in Europe. According to this classification, the area of Poland belongs to the mid-continental region, characterized by the largest moisture content in the summer and moisture deficit in the winter, which complies with an earlier characteristic of PW in Poland by Kożuchowski [
59]. Wypych et al. [
35] underline that the moisture content at lower levels (850 and 950 hPa) largely depends on the properties of the boundary layer (evaporation, temperature and its vertical structure), whereas in the upper troposphere (500 hPa), it reflects the influence of atmospheric circulation on the continental scale. Degirmendžić and Kożuchowski [
60] showed that the extreme values of PW in Poland in the years 1958–2008 ranged from 1.9 mm to 41.0 mm, with an average of 15.9 mm. Maximum rainfall volume events in Poland occur under relatively high PW, but the height of these maxima are poorly correlated with PW. Thus, the amount of maximum precipitation is primarily determined by the efficiency of precipitation processes [
2]. The maximum daily rainfall occurred at PW exceeding 30 mm [
59].
Aside from the aforementioned very few reports, the studies of PW variability and its trend over Central Europe and Poland are rare. This is due to the limited number of in situ stations with traditionally long periods of data records for meaningful exploration of PW, unlike other regions in the mid-latitude of the Northern Hemisphere. Preliminary results of the spatial variability of PW over Poland on the basis of GNSS data were presented in 2021 [
61], supported with a geostatistical modeling approach for spatial interpolation. In our work, we have used high temporal and spatial resolution meteorological data, provided by the WRF model, to present the long-term gridded climatology of PW over Poland. First, we compare the modeled PW with measurements. Second, we analyze the trends in PW and their seasonal changes. The analysis is conducted not only in relation to the whole analyzed column of the troposphere (up to 5000 Pa), but also for individual levels at which the characteristic atmospheric processes take place. According to the authors’ knowledge, this approach to PW data verification has not been previously presented in the literature.
2. Materials and Methods
The PW for this study was calculated for the period 1983–2010 with the use of the meteorological data from the Weather Research and Forecasting model (WRF) version 3.4.1 [
62]. The model was run in reanalysis mode using three one-way nested domains covering Europe (45 km × 45 km grid), Central Europe (15 km × 15 km) and Poland (5 km × 5 km). All domains have 51 vertical layers. The temporal resolution was 3 h. ERA-Interim reanalysis was used as boundary and initial conditions [
63]. The model configuration was selected after the running and evaluation of the model for the chosen test periods [
64,
65,
66]. All domains use the same options of physics as summarized in
Table 1, but for the innermost domain, convection is explicitly resolved [
65]. The climatological analysis of PW concerns all grid cells covering the area of Poland, with the spatial resolution of 5 km × 5 km. The measurements for model evaluation are available from six stations of atmospheric soundings: Łeba, Legionowo, Lindenberg, Praha, Prostějov and Wrocław (
Table 2). The soundings are performed at 00 UTC and 12 UTC.
Due to the limited quality of data from all radiosonde stations, the evaluation period was performed for the years 2001–2010. For this period, all measuring stations used radiosonde instruments produced by the Finnish company Vaisala—RS-92. The RS-92 sensors were calibrated in the CAL-4 calibration machine, which is the world’s most advanced calibration machine for the mass production of sounding sensors [
72]. The uncertainties for radiosonde are ±0.5 °C, ±5% and ±1 hPa for temperature, relative humidity and atmospheric pressure, respectively [
23,
73]. All of the sounding stations have calibration certificates, which are regularly renewed (every 2 years). The use of the same sounding sensors at all stations throughout the entire analysis period (2001–2010) and the same calibration techniques allowed for homogeneity of the entire measurement series.
The calculation of PW based on meteorological data from the WRF model was performed at postprocessing stage, with the use of two tools implemented in NCAR Command Languages [
74]. The first function,
wrf_user_getvar—with indicated variable
pw—extracts essential data from WRF outputs to calculate PW from the whole analyzed column of the troposphere. The second function,
prcwater_dp, additionally allows for limiting the levels from which the specific values of humidity (kg/kg) and pressure layer thickness (Pa) are taken to PW calculations. For this reason, the function was used to sum up the precipitable water content (kg·m

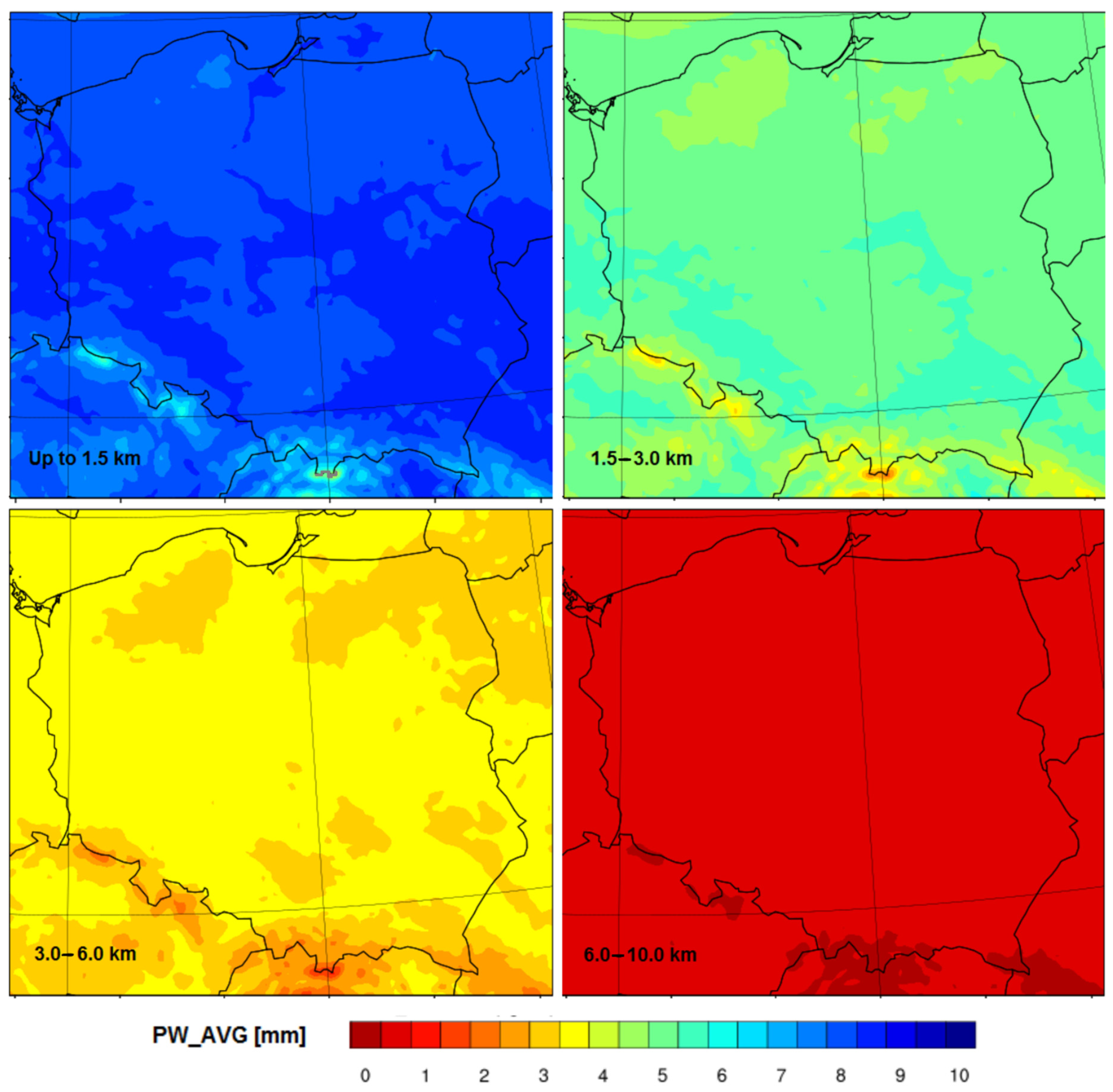

−2) for individual levels above the ground: up to 1.5 km, 1.5–3.0 km, 3.0–6.0 km, 6.0–10.0 km and over 10.0 km. In mountainous areas, some peaks exceed the height of the lowest layer (up to 1.5 km), and these grid cells were excluded from the analysis.
The data for model evaluation were prepared using atmospheric sounding profiles provided by the national weather services and available through the repository of the University of Wyoming (
http://weather.uwyo.edu/upperair/sounding.html, accessed on 1 January 2021). Radiosondes typically measure temperature t (°C), relative humidity RH (%), and, in many cases, air pressure
p (hPa). For the purposes of PW calculations, comparable to those of the model, the formula by Pérez-Jordán et al. [
23] was applied, with the assumption of hydrostatic balance:
where
g is the Earth’s gravity (m·s
2),
ps and
pt are the pressure levels at the surface and top of the atmospheric column in hPa, r is the mixing ratio and d
p is the difference in pressure between the assumed levels. To calculate the PW for individual heights, the
ps and
pt values were taken from the measurement heights closest to the assumed levels. The ideal gas law and Dalton’s law of partial pressures was applied to the formula of the mixing ratio, resulting in
where the coefficient 0.622 is the ratio of molar masses of water vapor and dry air, and
e is the partial vapor pressure that was obtained from the definition of relative humidity as
where
esat (hPa) is the saturation vapor pressure.
The procedure described above was used to calculate the PW for an air column covering the entire measured troposphere, but also for individual levels above the ground: up to 1.5 km, 1.5–3.0 km, 3.0–6.0 km, 6.0–10.0 km and over 10.0 km.

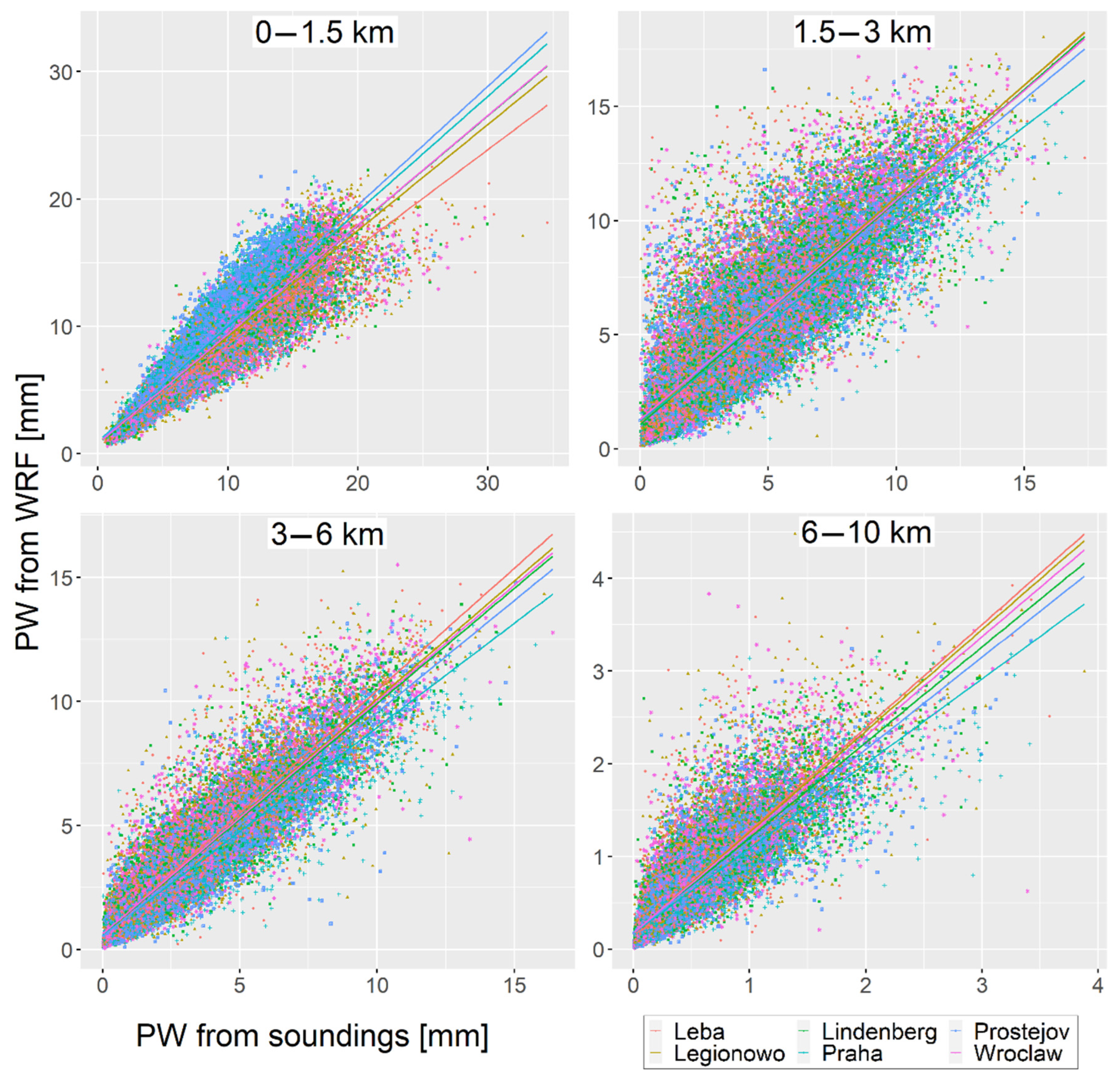

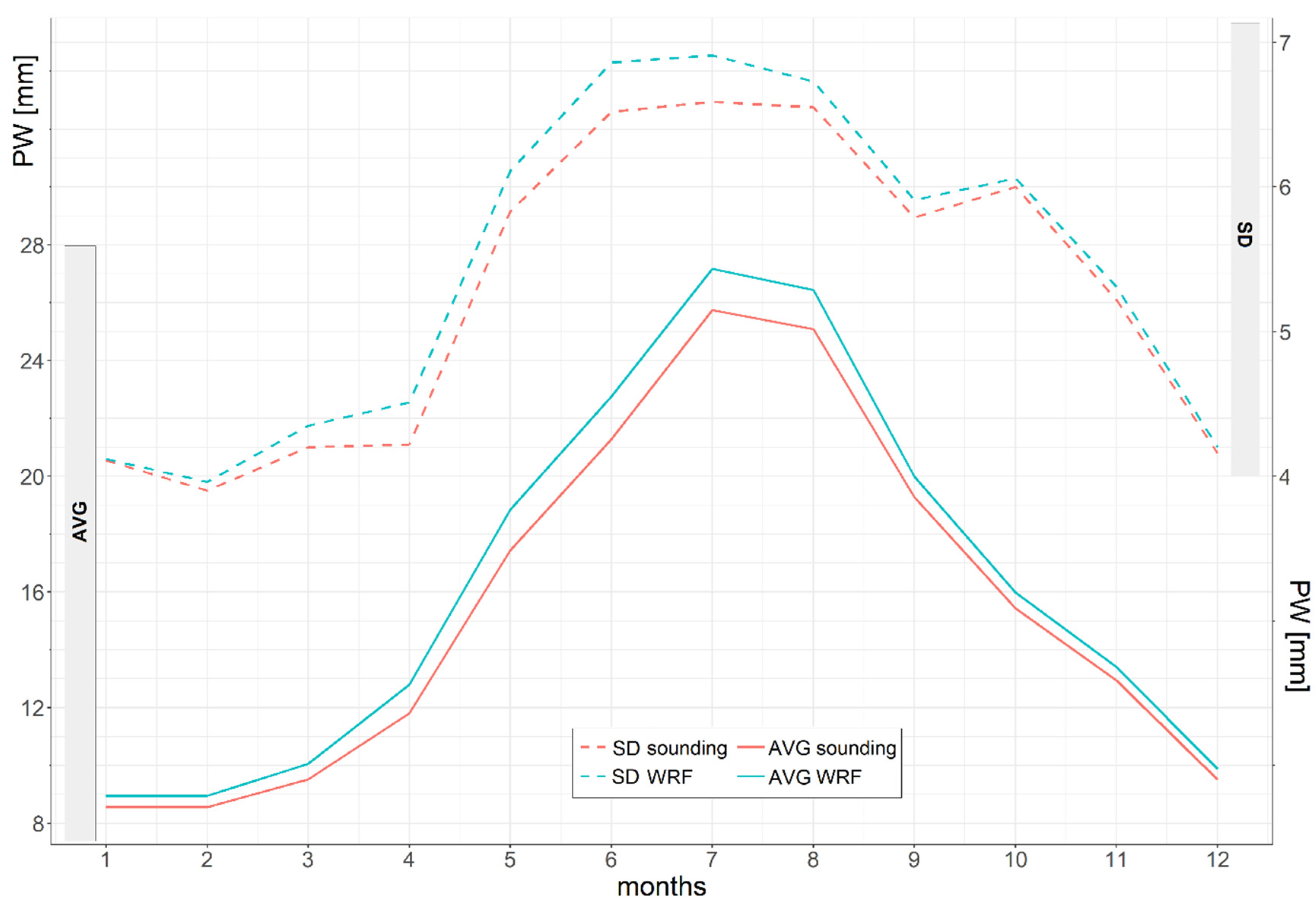

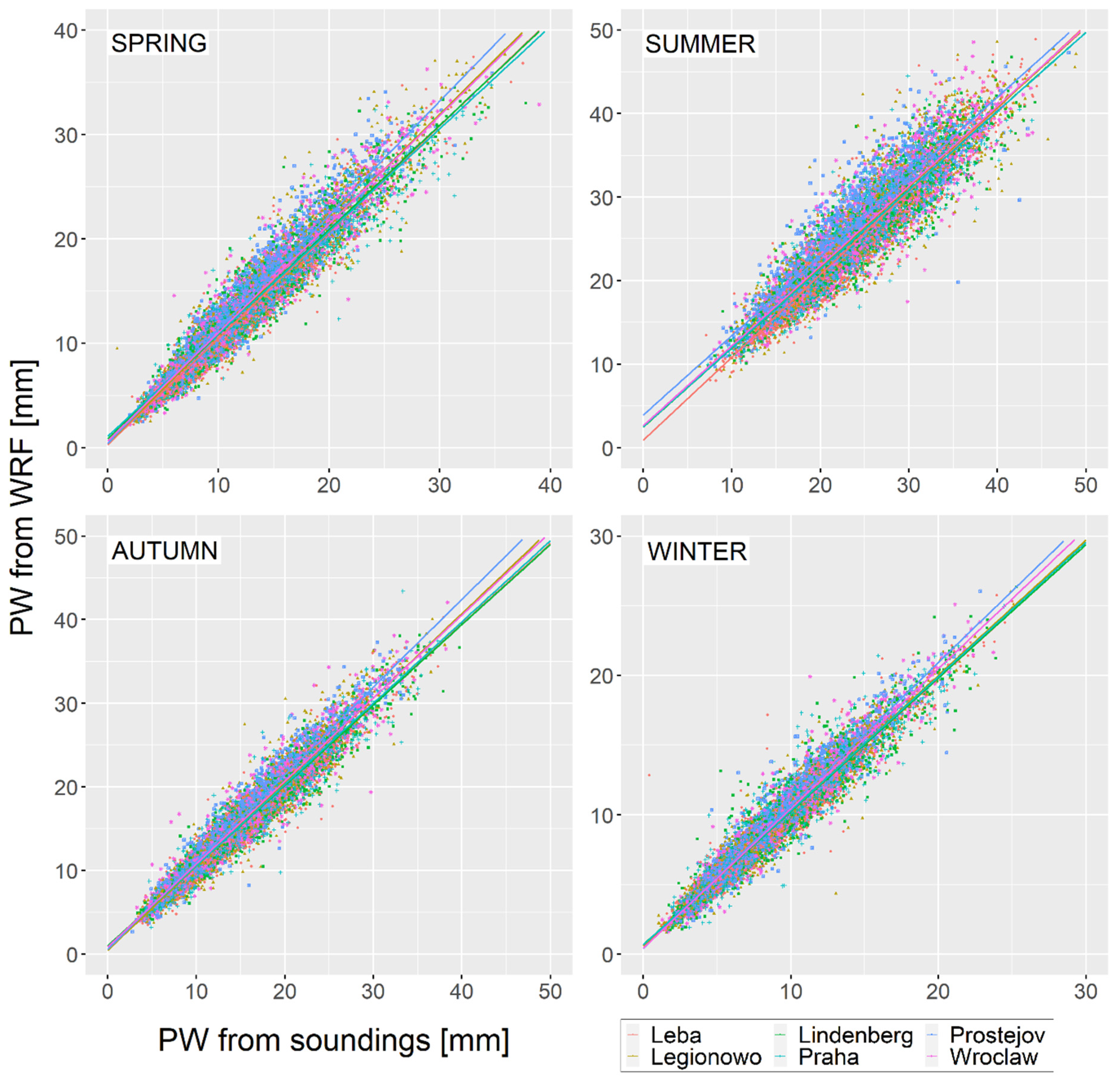

The WRF modeled PW was compared with PW calculated using radiosonde data. The model–measurement agreement was summarized using the Pearson correlation coefficient (with confidence level = 0.95) and root mean square error (RMSE). The statistics were calculated separately for individual levels, months and seasons. Because of the need to normalize the values, the RMSE was analyzed in comparison to the monthly and seasonal averages and standard deviations of PW values. RMSE
avg was calculated as the percentage share of the RMSE value in the average PW value. For spring, the data from March to May were analyzed, for summer—from June to August, for autumn—from September to November and for winter—from December to February. All calculations were performed using R statistical software [
75].

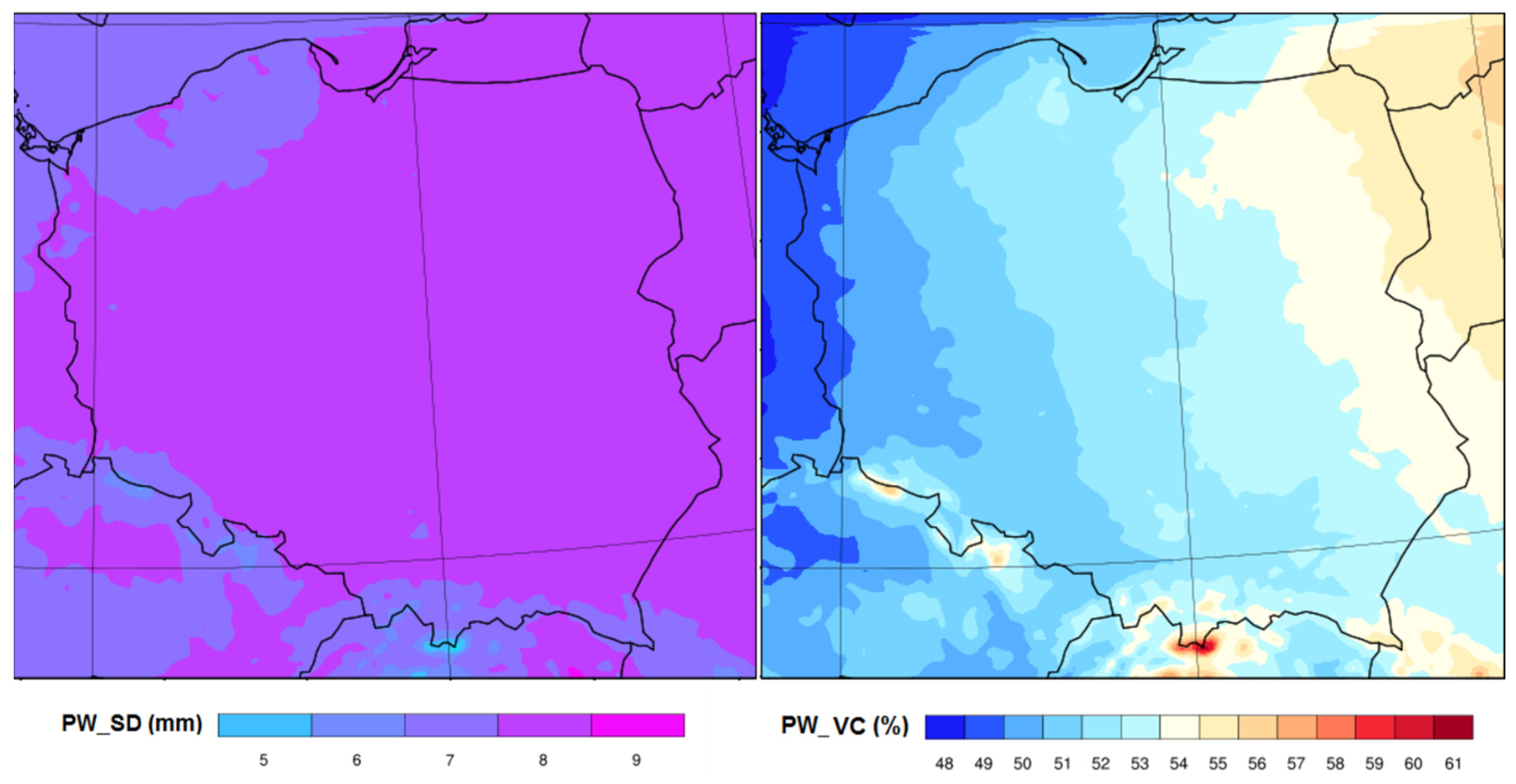

All maps of PW and the calculations of seasonal and monthly means (AVG), standard deviation (SD) or variability coefficients (VC—percentage value of standard deviation ratio to the average value) of PW values calculated from the WRF data for selected grids and for the area of Poland were prepared with the use of a standard postprocessing function in NCAR Command Language. Using the statistical function trend_manken, the Mann–Kendall test for monotonic trends of PW times series were carried out and Sen’s slope estimators were calculated. The trend analysis was performed based on the annual and seasonal PW means and annual maximum values.
4. Discussion
In previous climatological studies on the column-integrated atmospheric water vapor (PW), covering the global or European scale, the main reanalysis data sources were ERA-40 [
76], NCEP/NCAR [
57,
77,
78,
79], MERRA or MERRA2 [
78,
80], CFSR [
80], ERA-Interim [
35,
77,
80] and ERA-5 [
81,
82,
83]. All of the mentioned studies emphasized the applicability of these kinds of data in spatial and temporal studies. In our study, the high-resolution reanalysis developed with the Weather Research and Forecasting model was applied for spatial–climatological analysis of precipitable water content over Poland. Evaluation of the modeled PW data showed good agreement with the PW from atmospheric soundings, especially if the whole column of the troposphere and the winter season are considered. In the analyzed period of 2001–2010, Pearson correlation coefficients reached 0.97 for the whole year and did not fall below 0.92 if seasonal PW was considered. These results are in agreement with those obtained by, e.g., González et al. [
84], Fedele et al. [
85], Pérez-Jordán et al. [
23], Varga and Breuer [
82] and Diaz et al. [
86], where the authors reported close agreement of the whole column of PW values. In our work, a similar model configuration was used [
23], which was tested in the earlier work of González et al. [
84]. The configuration was also tested for the area of Poland for rainfall forecasting [
64,
65].
In this study, PW data derived with the mesoscale model WRF were evaluated not only in relation to the entire profile of the troposphere, but also for four individual layers in a vertical profile: below 1.5 km, from 1.5 to 3.0 km, from 3.0 to 6.0 km and from 6.0 to 10.0 km. The results show some differences in model–measurement agreement depending on the analyzed tropospheric level. The highest Pearson correlation coefficients and the smallest RMSE were observed for the level up to 1.5 km and from 3.0 to 6.0 km. Similar to other studies [
23,
87], the WRF model overestimated observed values of PW over the entire year. The highest overestimation and the highest RMSE, reaching 3.14 mm, were calculated for summer seasons. Moreover, the Pearson correlation coefficient in the summer months was the lowest for all analyzed tropospheric levels, but especially for the 1.5–3.0 km layer. This could be associated with a higher vertical temperature gradient, more intense air vertical mixing, and a higher condensation level with cloud base, which is typical for the period from May to August. Because of that, in the summer months in the 1.5–3.0 km layer, dynamical processes within clouds are typical, and drop size distribution is highly variable in time and space, causing PW to vary as well [
88].
It should also be noted that the differences between PW obtained from the WRF model and soundings may also result from the limitations associated with the soundings (the radiosonde ascent may take around 30–40 min to complete [
89]). If PW from the WRF model is calculated in a vertical column representing the location of the sounding station, the PW from soundings takes into account the real (inclined) path along which the balloon rises. It matters especially for the highest part of troposphere, above 6 km. Additionally, radiosonde has a decreasing response to relative humidity at low temperatures. It also tends to underestimate water vapor near saturation [
90]. However, when the troposphere is dry above low clouds, the effect is opposite.
The results of climatological analysis of PW are in line with previously presented areal mean values for Poland, which were obtained from NCEP/NCAR reanalysis [
59] and from ERA-Interim reanalysis for Europe and North Atlantic [
35]. However, our work presents high-resolution spatial variability of PW annual and seasonal values over Poland. It was shown here that in the lowest layer (up to 1.5 km), the spatial variability of PW is influenced by the altitude reducing the height of the analyzed air column. The impact of elevation on PW is especially strong for the layers above 1.5 km. The convex landforms generate additional cloudiness, either by forced pumping of inflowing air (throughout the year with autumn and winter maximum), or by creating convective cloudiness (summer-spring) over higher mountain ranges. These processes lead to the transition of vapor into water or ice and thus reduce PW. This effect could be particularly intense during the formation of orographic precipitation and to a lesser extent fog precipitation. In the analyzed area, the reduction in PW over mountains ranges is clear especially in the layer 1.5 to 3 km, not only over the area of cloud formation but also on the leeward side. A large decrease in PW with increasing altitude is more distinct in spring and summer compared to the winter season. It is associated with a higher vertical temperature gradient and a higher condensation level with a cloud base in the warmer half of the year as well as higher intensity and frequency of cloud formation and precipitation via the transformation rate from water vapor over mountainous regions [
91].

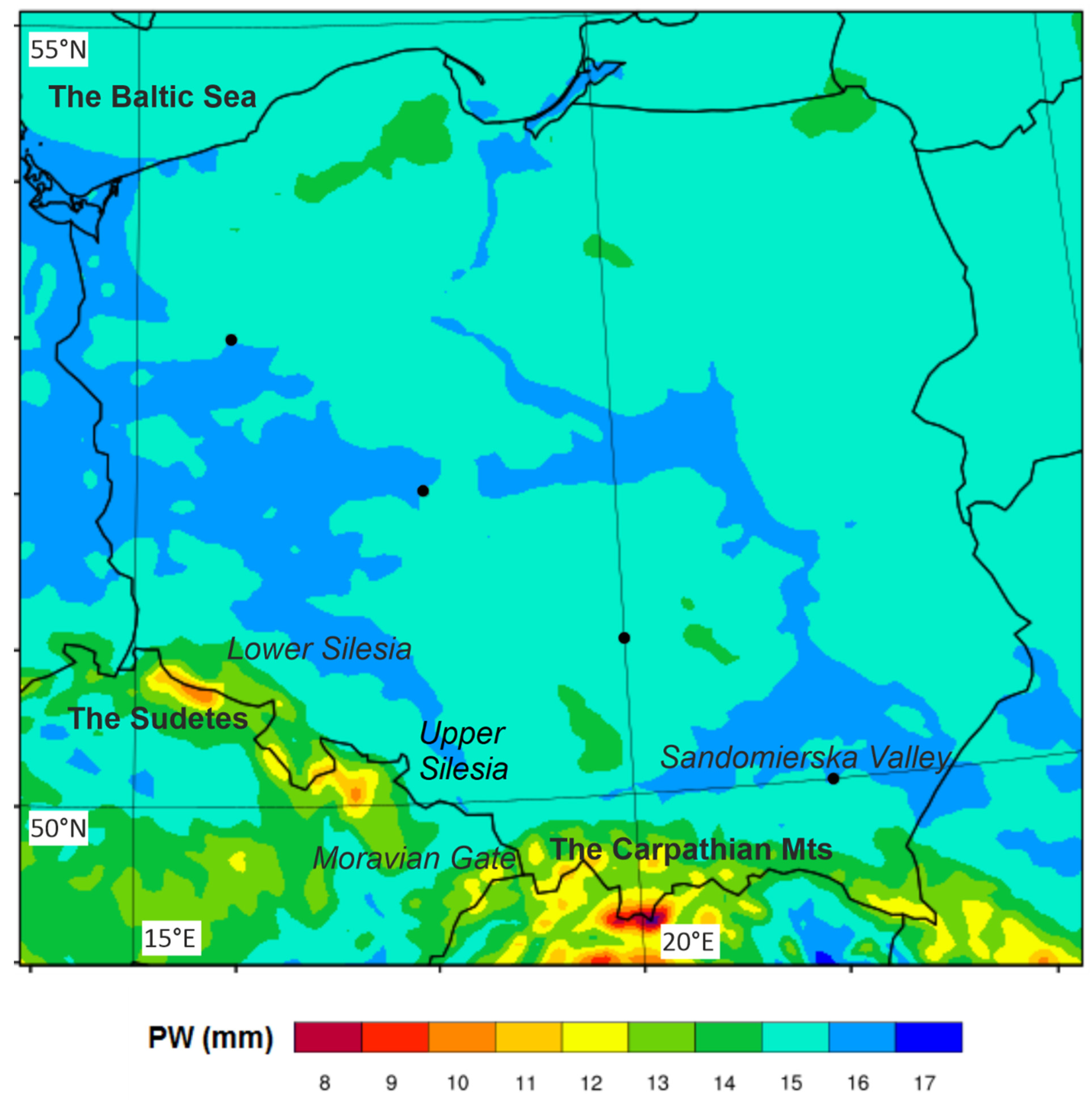

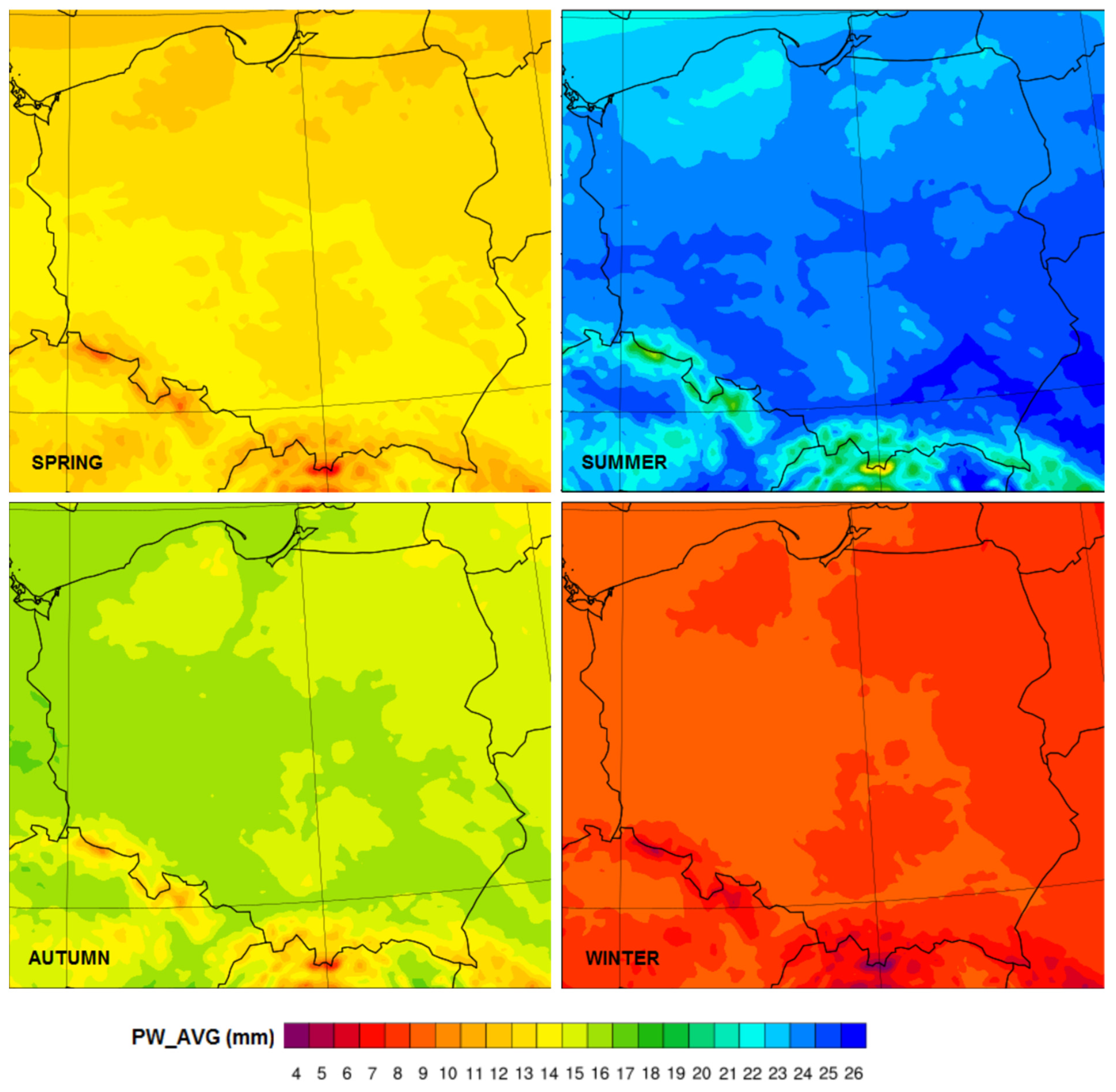

We showed in our work that outside the mountainous area, the annual and seasonal averages of PW vary within a narrow range. However, some significant differences between seasonal spatial distributions were larger especially in 1.5 to 3 km level. For winter and autumn, the PW values were increasing from east to west. This confirms the role of the western circulation in water vapor distribution in Europe, as described by Zveryaev et al. [
79] and Wypych et al. [
35]. In spring and summer during the more frequent southern atmospheric advection, the highest PW values are noted in the south-eastern part of Poland. This is due to the fact that the transport of moist air is affected by the Carpathians and the Sudety Mountains. It also suggests the importance of the airflow in existing openings: in orographic dip channels (e.g., the Moravian Gate, the Sandomierska Valley) or around the entire block of the Carpathians and the Sudetes. In a similar way, the moist tropical air moves from the south through the gap between the Massif Central and the Alps, then along Saonne and Rhein valleys [
28]. The higher variability of PW at the lower tropospheric level in summer months confirms also the significant impact of temperature and convection, which is in line with work of Wypych et al. [
35]. Local production of significant quantities of water vapor occurs due to more intense evaporation from vegetation, moist soil and water bodies [
92].

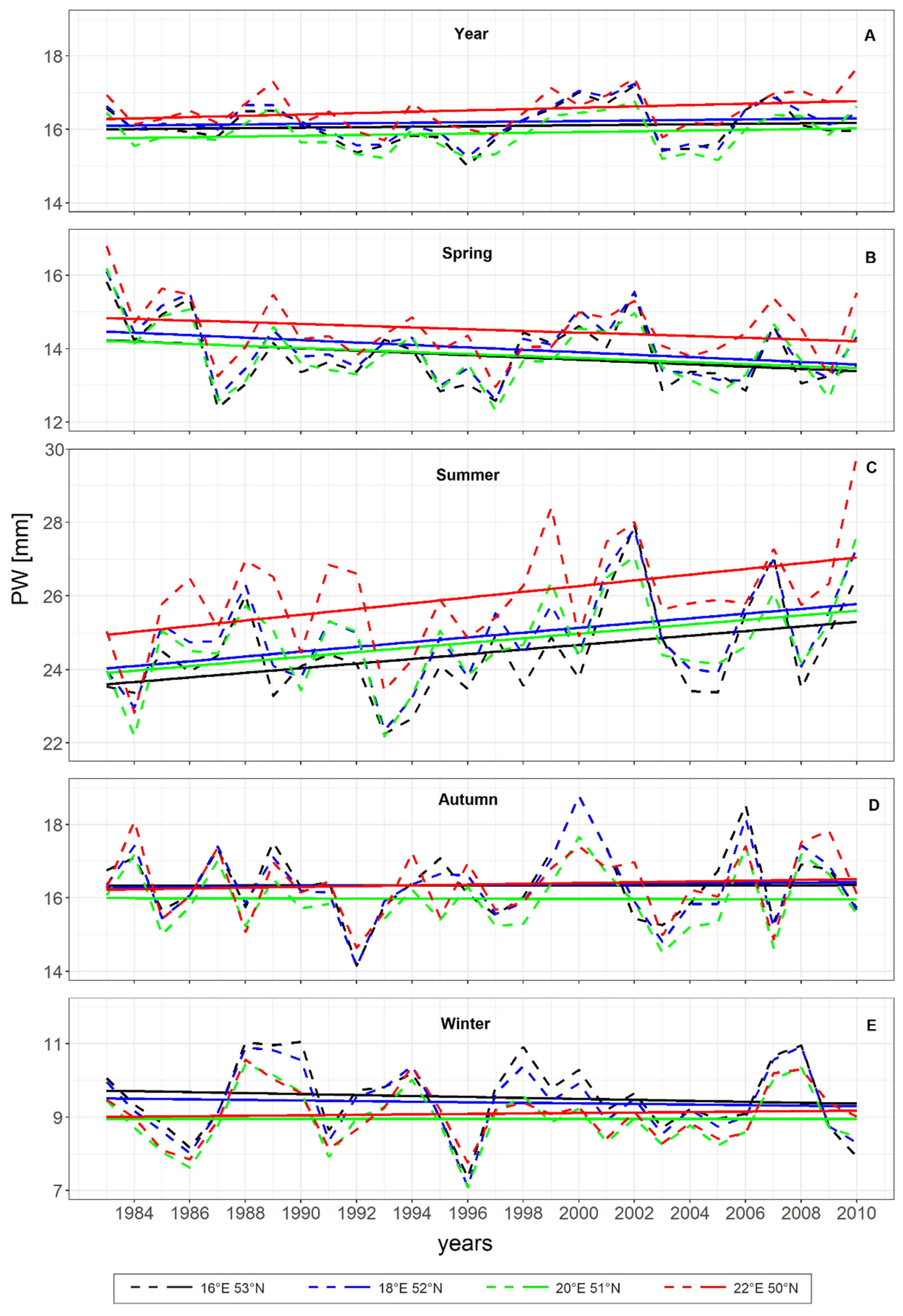

Our study shows an increasing trend of PW annual values between 1983 and 2010, but the trend is statistically insignificant. In addition, a locally significant increasing tendency of annual maximum values of PW is proved. Comparison with other results from the literature is difficult due to different study periods. However, some conclusions from previous articles are in line with our results. Wibig and Siedlecki [
57], based on NCEP/NCAR reanalysis for the years of 1958 to 2005, underline that negative trends of PW annual means are recorded over the western parts of Europe, whereas positive ones are recorded over its eastern parts. Although their analysis concerned a longer period, they identified a low tendency of PW changes over the area of Poland (the linear trend of PW annual values is close to 0) and also the fact that statistically significant changes are observed only locally. Earlier results from Trenberth et al. [
76] for years 1988–2001 (based on NCEP and ERA-40 reanalysis) show that trend of PW annual means over Europe has no evident direction and does not exceed 0.5 mm per decade. This is also in agreement with observations from Europe by Ross and Elliott [
93]. Recent studies on PW trends for stations in Finland showed no significant trend until 2010. For the next decade, there was a sharp and significant increasing trend [
94].

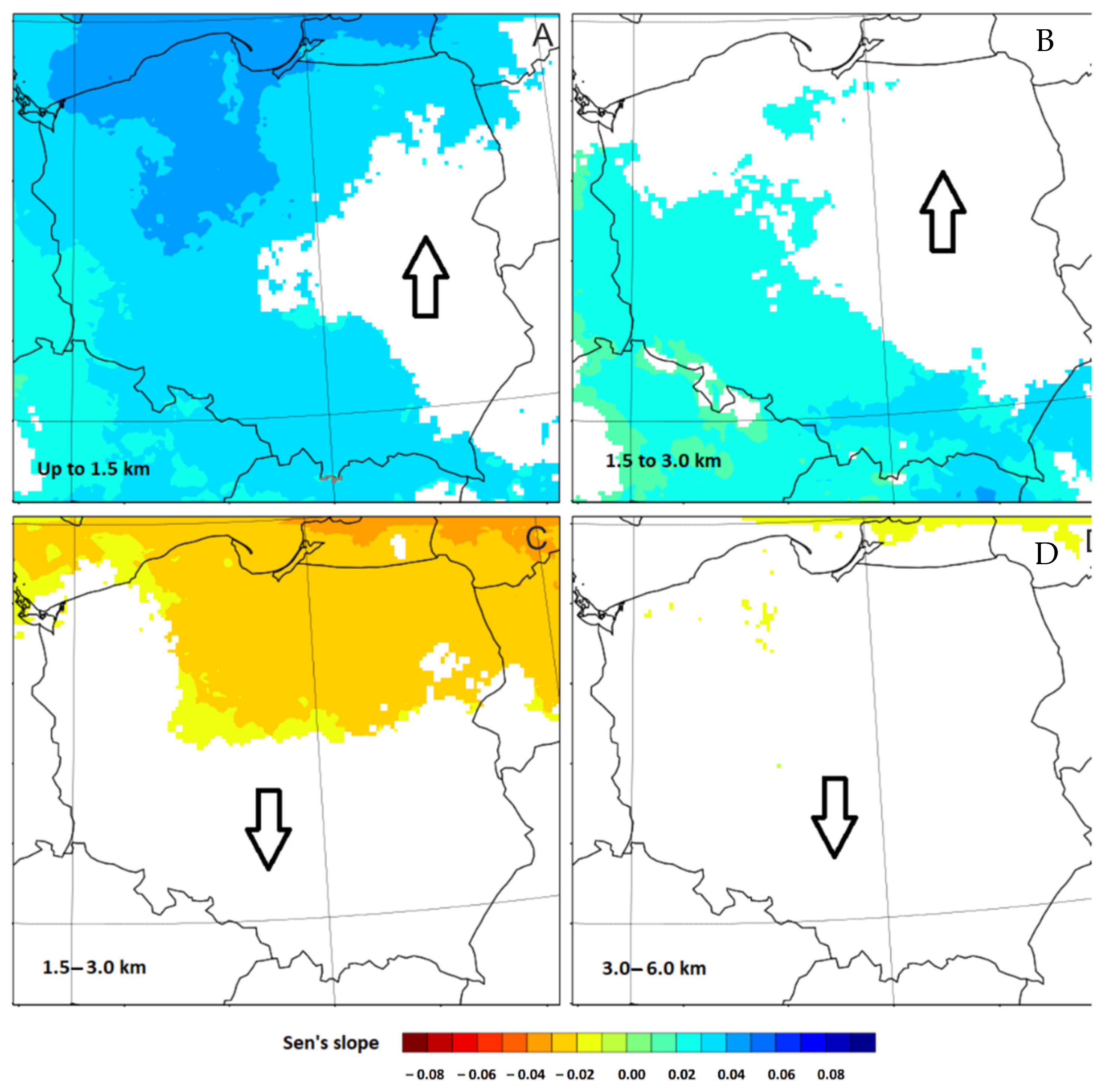

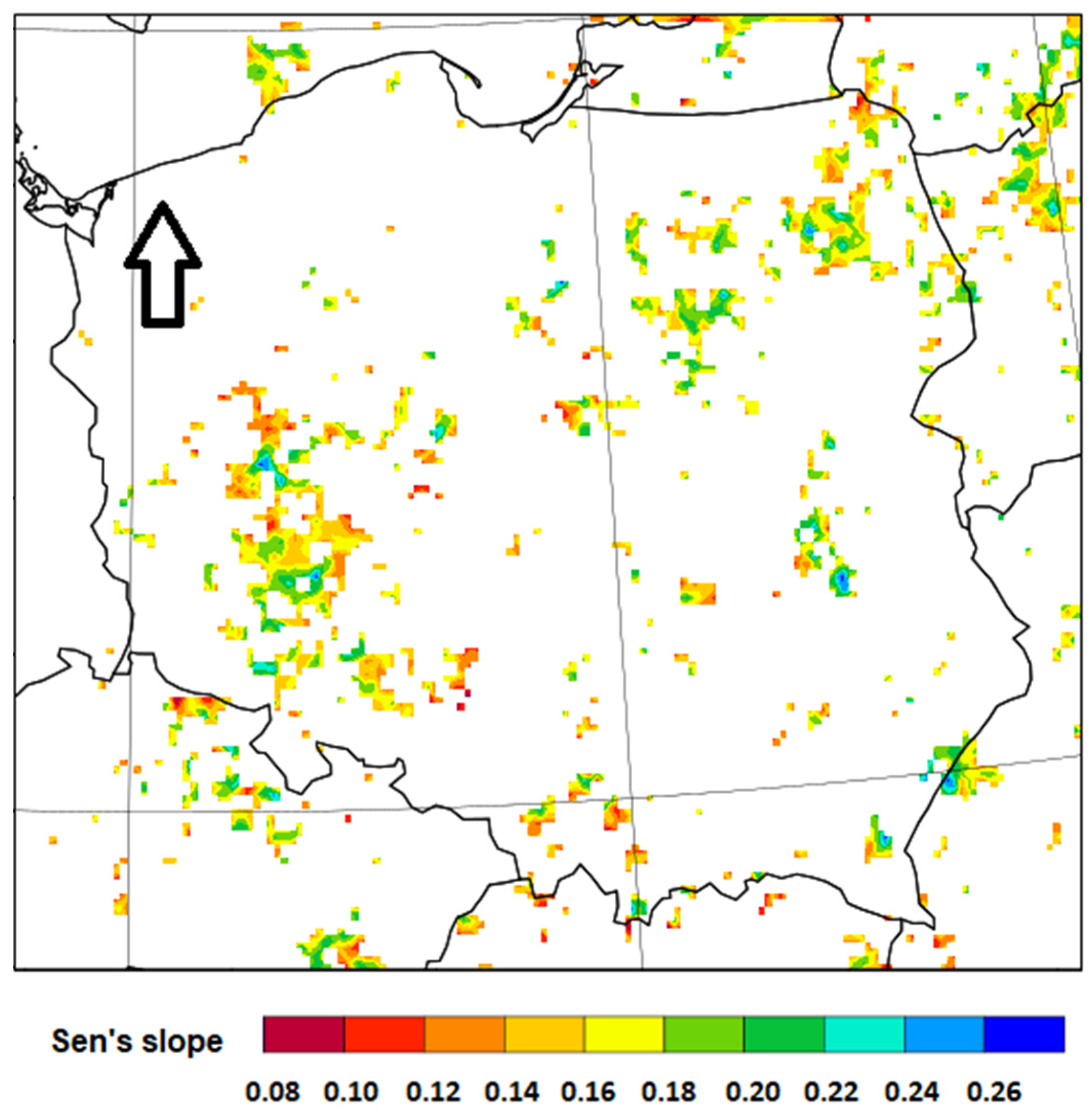

Our study showed a significant positive trend with a high Sen’s slope for the summer season up to 3 km in the troposphere. A significant but negative tendency was noted also for spring in the northern part of Poland, whereas for autumn and winter the trends were insignificant. For winter, the direction of changes varied spatially from negative in the north-west to positive in the south-east. Wibig and Siedlecki [
57] also found seasonal changes in PW variability over the area of Poland and Central Europe. Contrary to our results, Degirmendžić and Kożuchowski [
60] using NCEP/NCAR reanalysis in the years of 1958 to 2008 found only negative trends of PW values in seasons, but the observed tendencies were significant only for spring and autumn. However, their results summarized longer period and related to the mean PW values from six grid points (2.5°φ × 2.5°λ), whereas in our study, trends were calculated separately for each 5 km × 5 km grid cell in Poland. It may be assumed that multi-year and multi-seasonal changes of PW are related to changes in the atmospheric circulation, but this requires further analysis.
