Open AccessArticle
Polymers 2017, 9(6), 199; doi:10.3390/polym9060199

Nano-Contact Transfer with Gold Nanoparticles on PEG Hydrogels and Using Wrinkled PDMS-Stamps

Technische Universität Berlin, Nanopatterned Biomaterials, Sekr. TC 1, Strasse des 17. Juni 124, 10623 Berlin, Germany
*
Author to whom correspondence should be addressed.
Academic Editor: Helmut Schlaad
Received: 1 April 2017 / Revised: 13 May 2017 / Accepted: 17 May 2017 / Published: 31 May 2017
(This article belongs to the Special Issue Bio-inspired and Bio-based Polymers)
View Full-Text   |   Download PDF [7746 KB, uploaded 31 May 2017]   |

Abstract

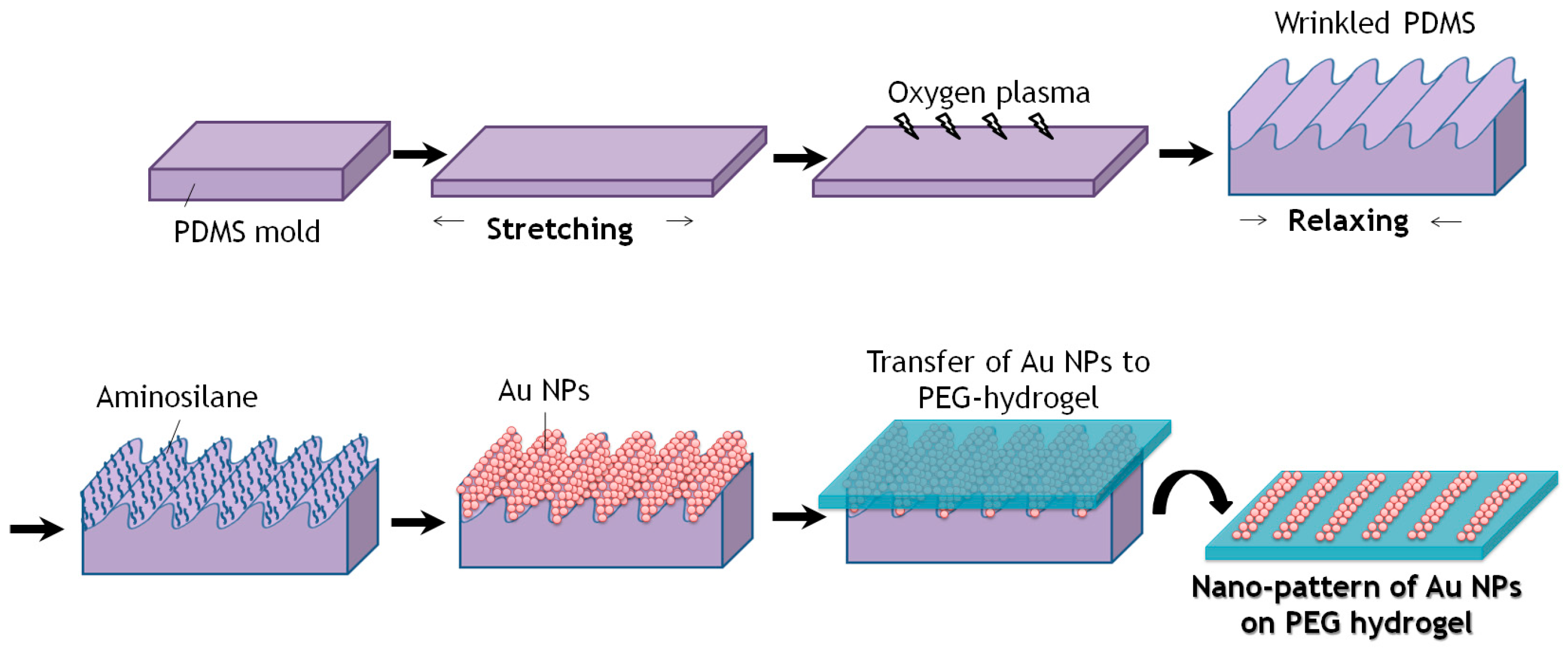

In the present work, a soft lithographic process is used to create nanometer-sized line patterns of gold nanoparticles (Au NPs) on PEG-based hydrogels. Hereby nanometer-sized wrinkles on polydimethylsiloxane (PDMS) are first fabricated, then functionalized with amino-silane and subsequently coated with Au NPs. The Au NPs are electrostatically bound to the surface of the wrinkled PDMS. In the next step, these relatively loosely bound Au NPs are transferred to PEG based hydrogels by simple contacting, which we denote “nano-contact transfer”. Nano-patterned Au NPs lines on PEG hydrogels are thus achieved, which are of interesting potential in nano-photonics, biosensor applications (using SERS) and to control nanoscopic cell adhesion events. View Full-Text
Keywords: gold nanoparticles; PEG hydrogels; nano-patterning; wrinkled PDMS; nano-contact transfer gold nanoparticles; PEG hydrogels; nano-patterning; wrinkled PDMS; nano-contact transfer
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Yesildag, C.; Tyushina, A.; Lensen, M. Nano-Contact Transfer with Gold Nanoparticles on PEG Hydrogels and Using Wrinkled PDMS-Stamps. Polymers 2017, 9, 199.
