Next Article in Journal
Modeling the Temperature Dependence of Dynamic Mechanical Properties and Visco-Elastic Behavior of Thermoplastic Polyurethane Using Artificial Neural Network
Next Article in Special Issue
Co-Deposition of a Hydrogel/Calcium Phosphate Hybrid Layer on 3D Printed Poly(Lactic Acid) Scaffolds via Dip Coating: Towards Automated Biomaterials Fabrication
Previous Article in Journal
Perpendicular Structure Formation of Block Copolymer Thin Films during Thermal Solvent Vapor Annealing: Solvent and Thickness Effects
Previous Article in Special Issue
Vesicles from Amphiphilic Dumbbells and Janus Dendrimers: Bioinspired Self-Assembled Structures for Biomedical Applications
Article Menu
Issue 10 (October) cover image

Export Article

Open AccessArticle
Polymers 2017, 9(10), 522; https://doi.org/10.3390/polym9100522

Evaluation of Thermal and Thermomechanical Behaviour of Bio-Based Polyamide 11 Based Composites Reinforced with Lignocellulosic Fibres

1
Group LEPAMAP, Department of Chemical Engineering, University of Girona, C/M.Aurèlia Capmany, 61, 17003 Girona, Spain
2
Design, Development and Product Innovation, Dpt. Organization, Business Management and Product Design, University of Girona, C/M.Aurèlia Capmany, 61, 17003 Girona, Spain
3
Departament de Ciència dels Materials i Enginyeria Metal.lúrgica, Secció Enginyeria Tèxtil, Universitat Politècnica de Catalunya, C/Colom, 11, 08222 Terrassa, Barcelona, Spain
*
Author to whom correspondence should be addressed.
Received: 14 September 2017 / Revised: 13 October 2017 / Accepted: 16 October 2017 / Published: 18 October 2017
(This article belongs to the Special Issue Bio-inspired and Bio-based Polymers)
View Full-Text   |   Download PDF [6969 KB, uploaded 18 October 2017]   |

Abstract

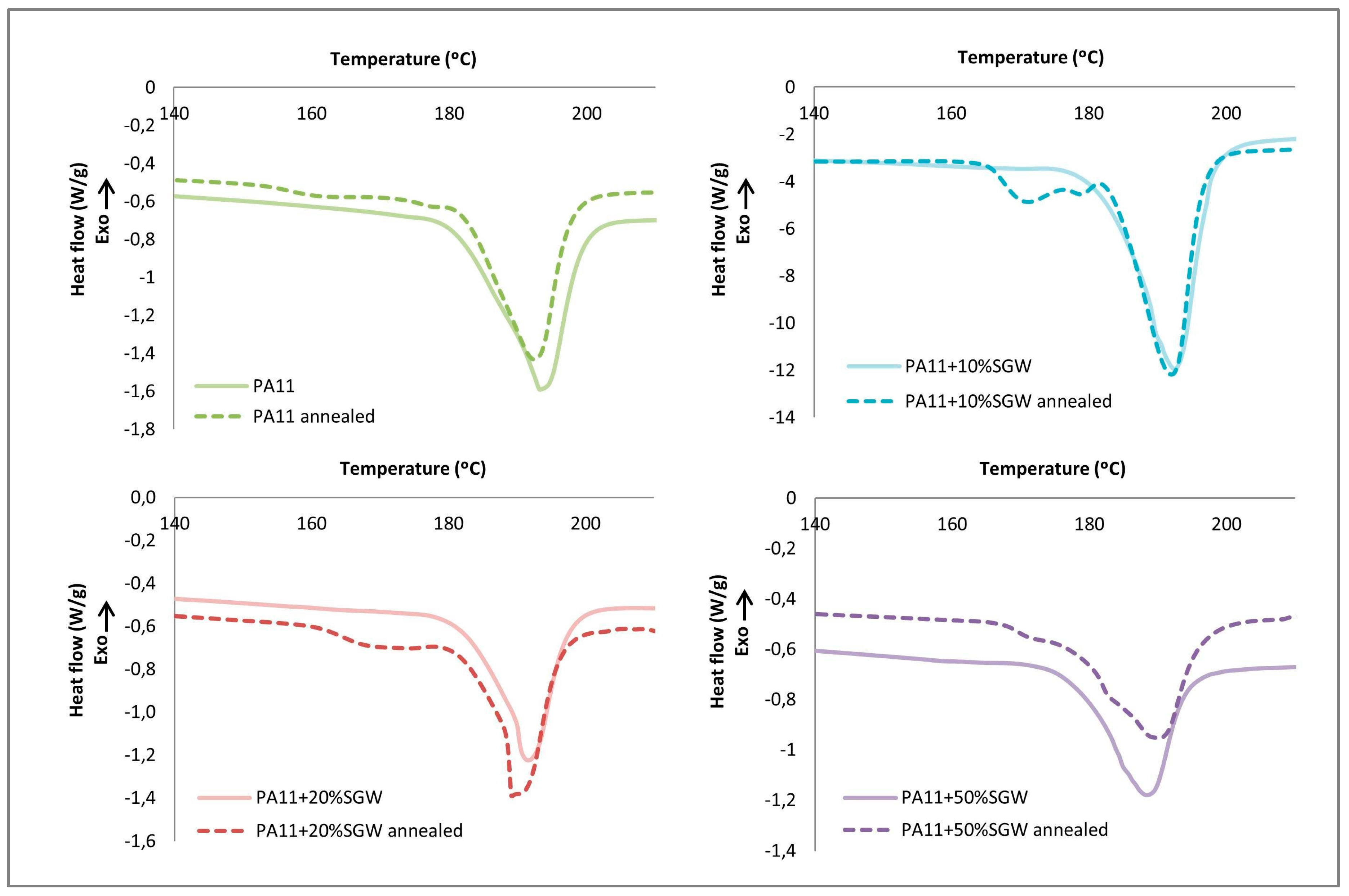

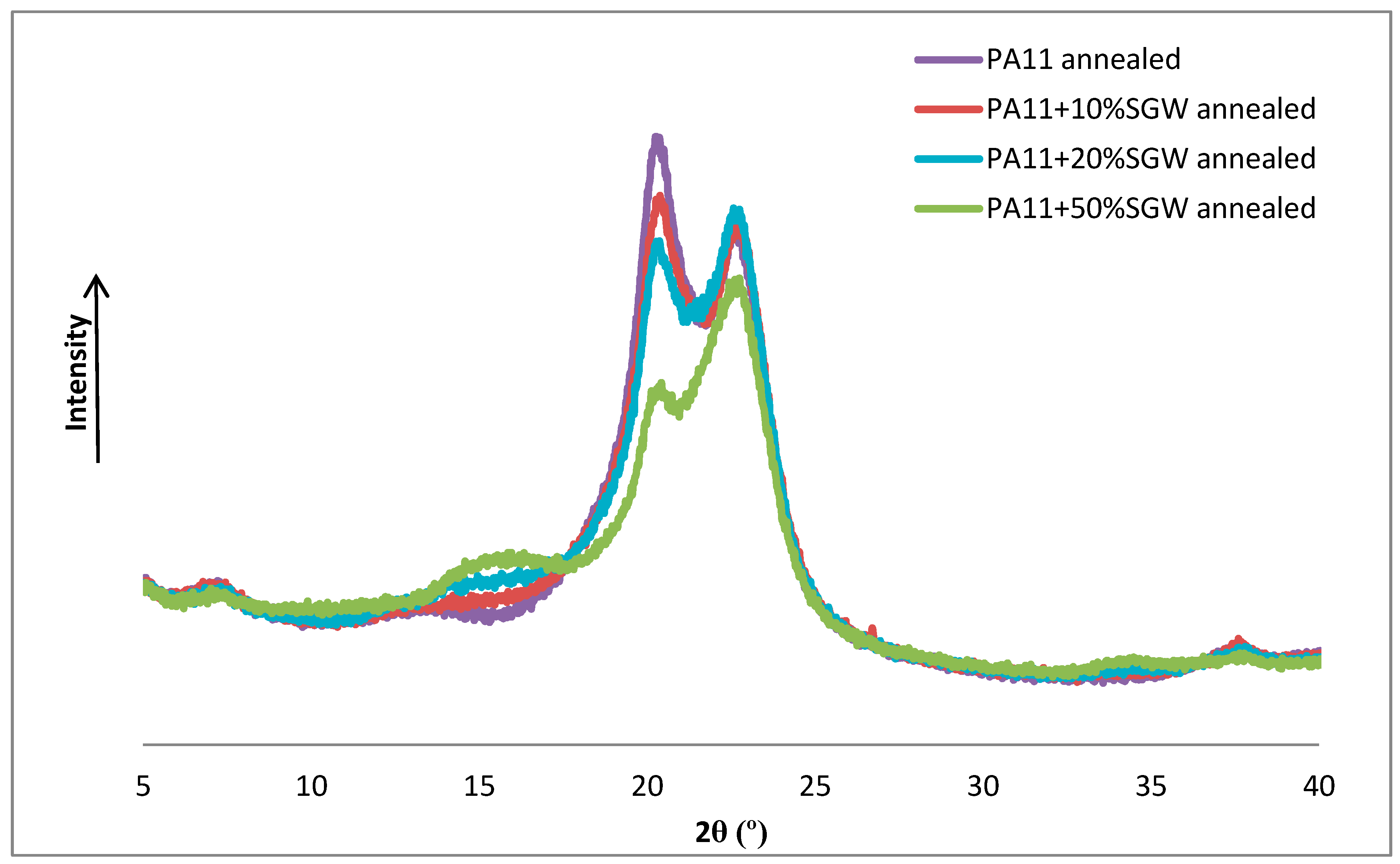

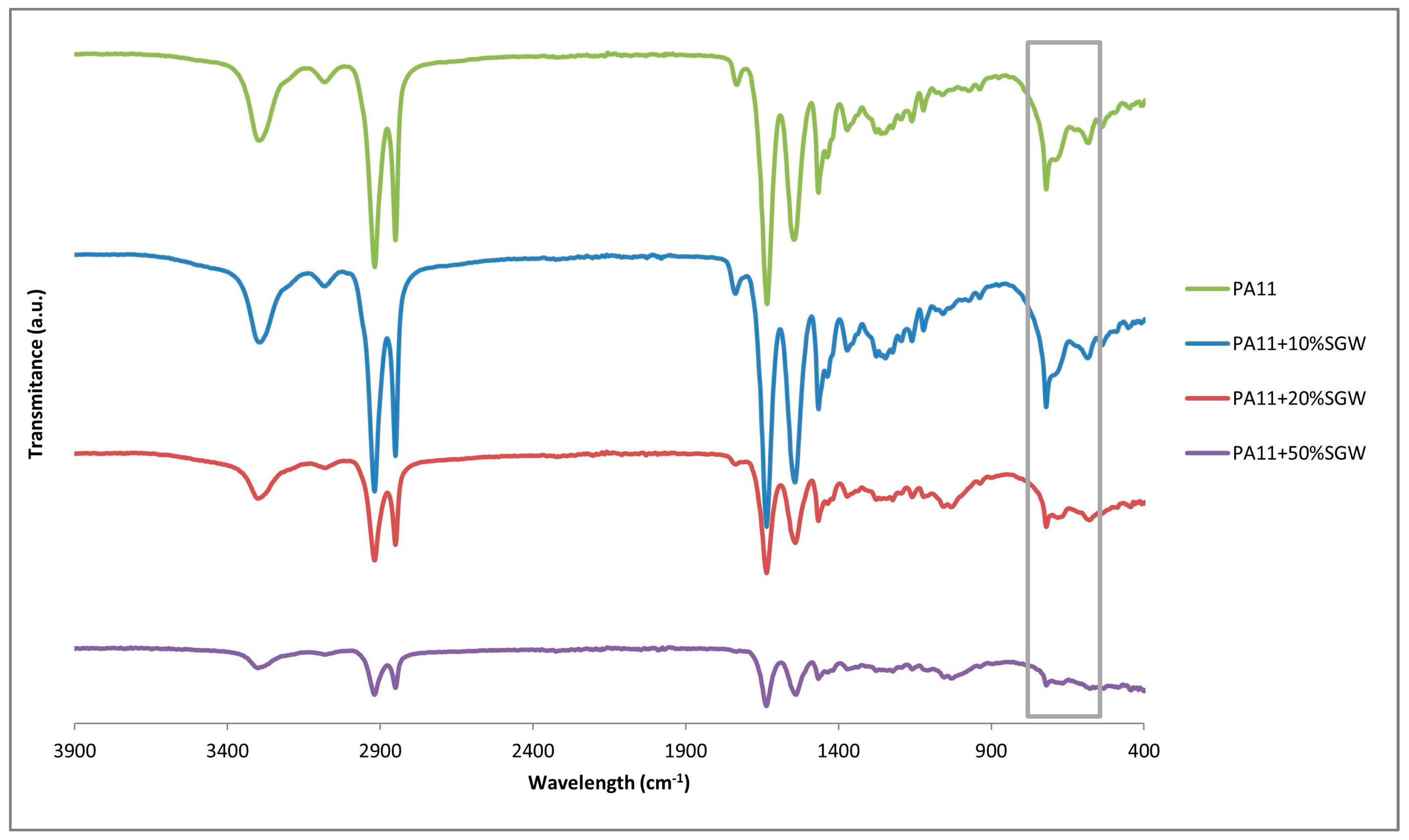

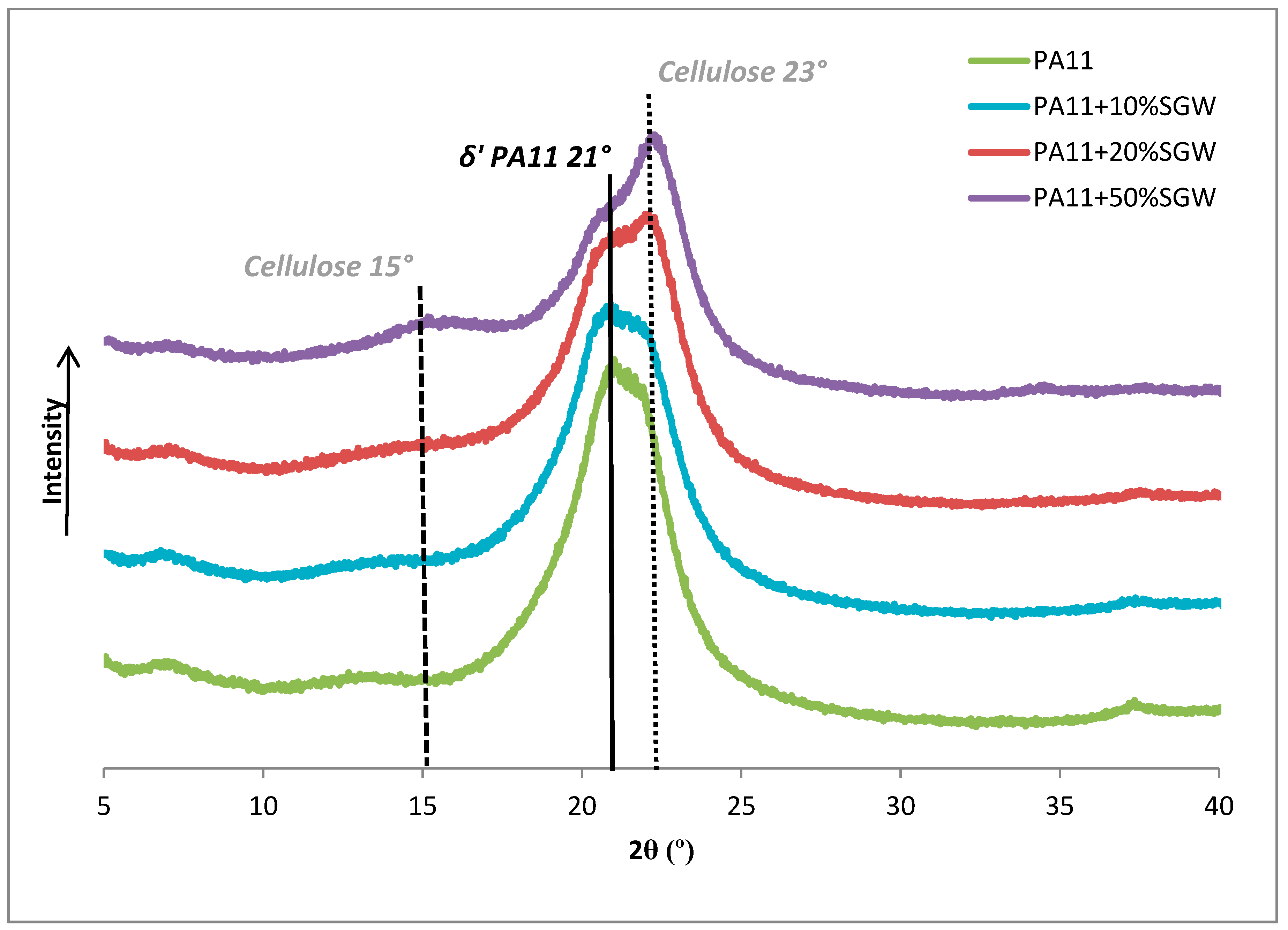

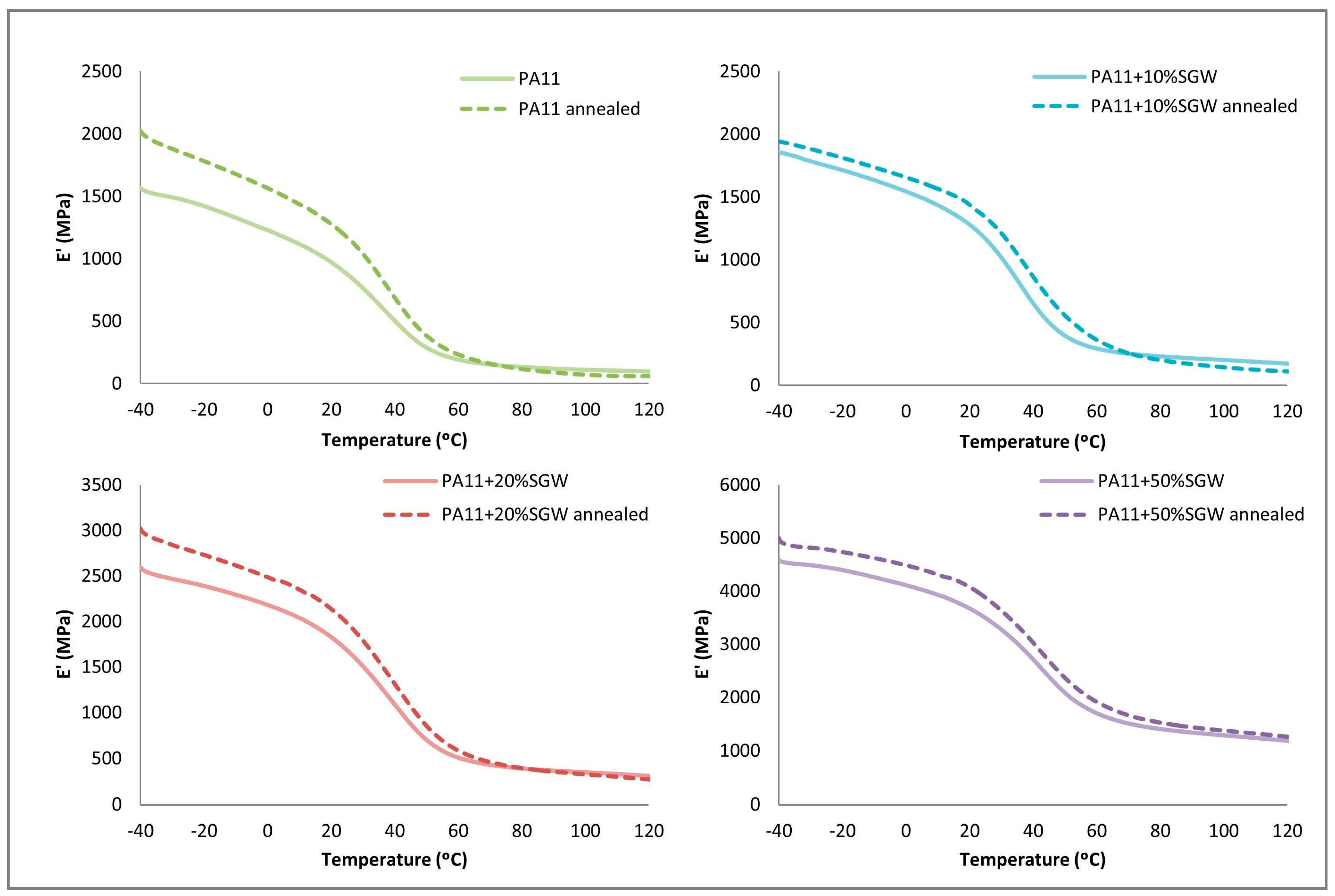

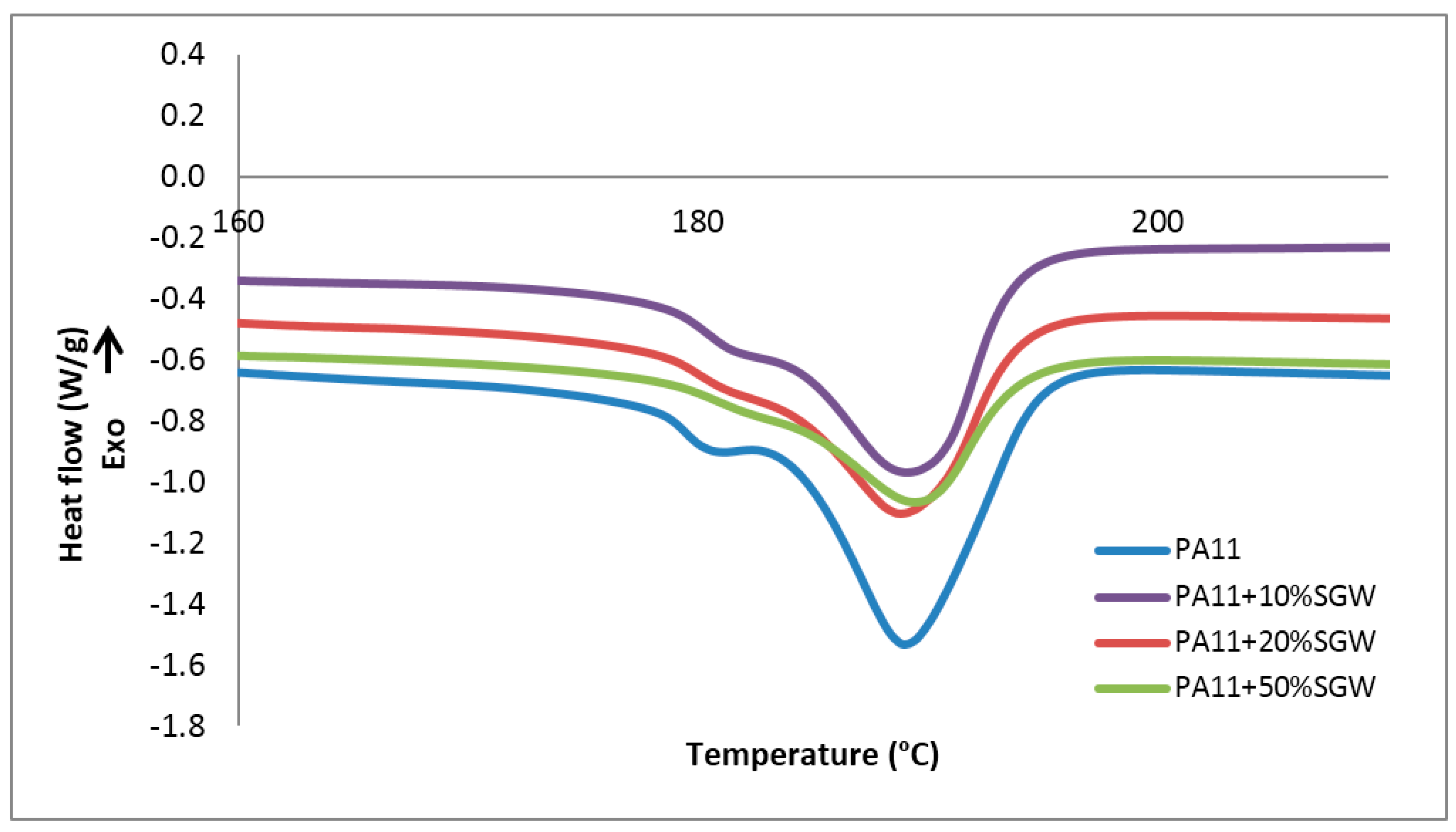

In this work, polyamide 11 (PA11) and stone ground wood fibres (SGW) were used, as an alternative to non-bio-based polymer matrices and reinforcements, to obtain short fibre reinforced composites. The impact of the reinforcement on the thermal degradation, thermal transitions and microstructure of PA11-based composites were studied. Natural fibres have lower degradation temperatures than PA11, thus, composites showed lower onset degradation temperatures than PA11, as well. The thermal transition and the semi-crystalline structure of the composites were similar to PA11. On the other hand, when SGW was submitted to an annealing treatment, the composites prepared with these fibres increased its crystallinity, with increasing fibre contents, compared to PA11. The differences between the glass transition temperatures of annealed and untreated composites decreased with the fibre contents. Thus, the fibres had a higher impact in the composites mechanical behaviour than on the mobility of the amorphous phase. The crystalline structure of PA11 and PA11-SGW composites, after annealing, was transformed to α’ more stable phase, without any negative impact on the properties of the fibres. View Full-Text
Keywords: polyamide 11; lignocellulosic fibres; thermomechanical behaviour; annealing; microstructure polyamide 11; lignocellulosic fibres; thermomechanical behaviour; annealing; microstructure
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Oliver-Ortega, H.; Méndez, J.A.; Mutjé, P.; Tarrés, Q.; Espinach, F.X.; Ardanuy, M. Evaluation of Thermal and Thermomechanical Behaviour of Bio-Based Polyamide 11 Based Composites Reinforced with Lignocellulosic Fibres. Polymers 2017, 9, 522.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
