Polymers 2016, 8(9), 344; doi:10.3390/polym8090344

Nanoindentation Investigation of Temperature Effects on the Mechanical Properties of Nafion® 117

1
School of Power and Mechanical Engineering, Wuhan University, Wuhan 430072, China
2
Department of Engineering mechanics, School of Civil Engineering, Wuhan University, Wuhan 430072, China
*
Author to whom correspondence should be addressed.
Academic Editor: Mohamed Khayet
Received: 12 June 2016 / Revised: 25 July 2016 / Accepted: 14 September 2016 / Published: 20 September 2016
View Full-Text   |   Download PDF [1594 KB, uploaded 20 September 2016]   |

Abstract

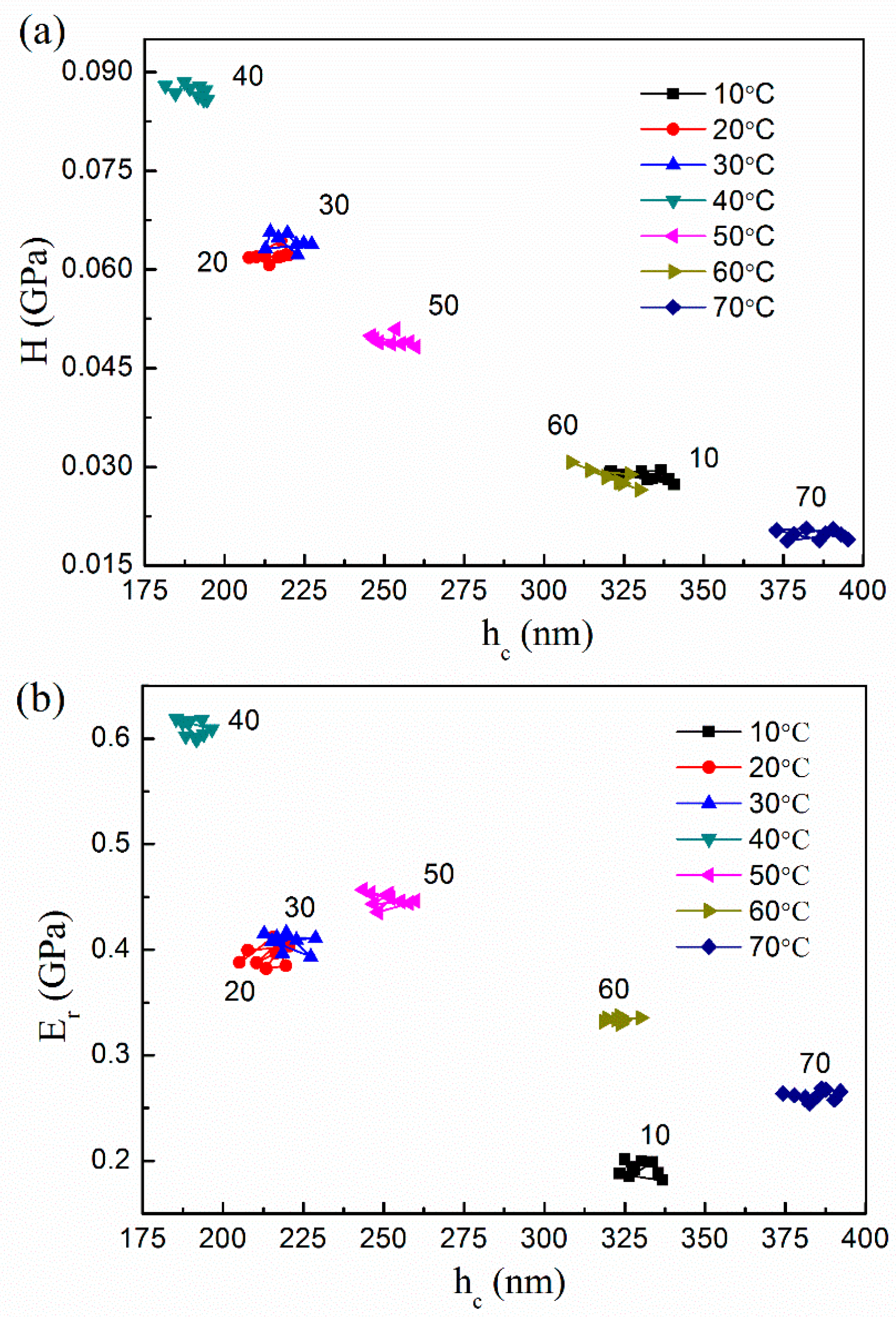

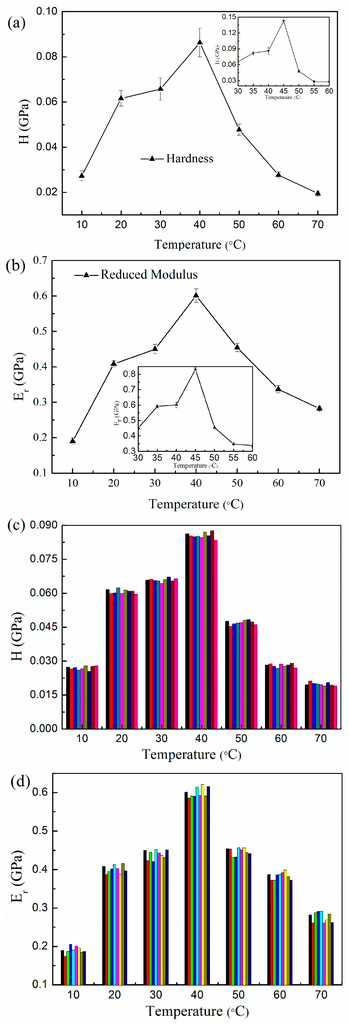

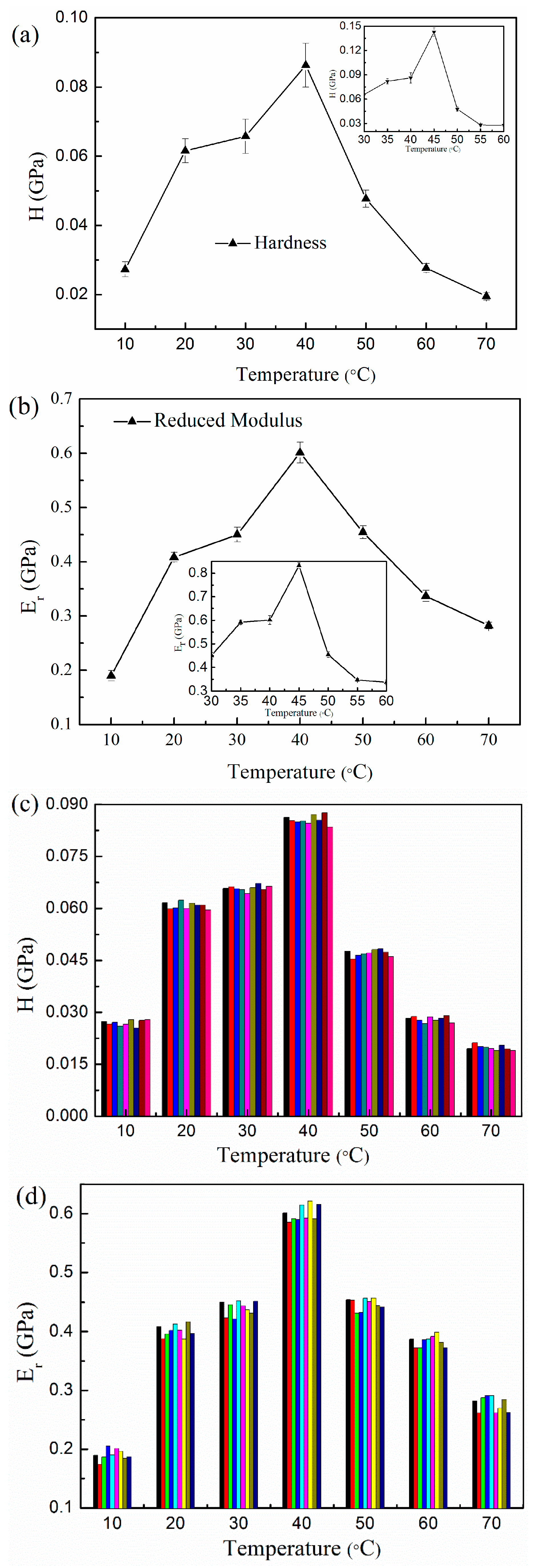

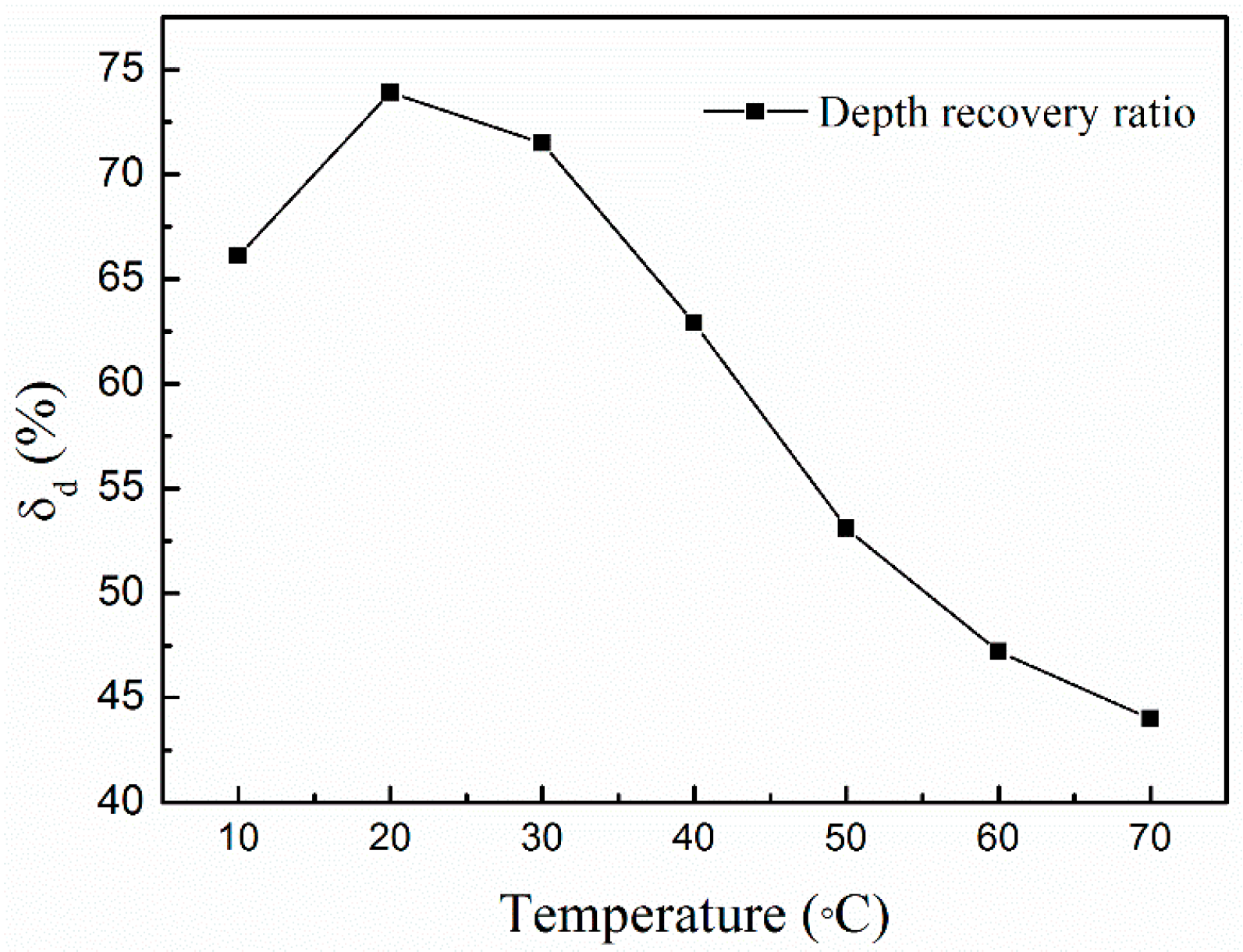

Operating temperature can be a limiting factor in reliable applications of Proton Exchange Membrane (PEM) fuel cells. Nanoindentation tests were performed on perfluorosulfonic acid (PFSA) membranes (Nafion® 117) in order to study the influence of the temperature condition on their mechanical properties. The hardness and reduced modulus of Nafion® 117 were measured within a certain temperature range, from 10 to 70 °C. The results indicate that both hardness and elastic modulus show non-monotonic transition with the increase of the test temperature, with reaching peak values of 0.143 and 0.833 GPa at 45 °C. It also found that the membranes have a shape memory effect and a temperature dependent shape recovery ratio. View Full-Text
Keywords: perfluorosulfonic acid (PFSA) membranes; Nafion® 117; temperature effects; mechanical properties; nanoindentation perfluorosulfonic acid (PFSA) membranes; Nafion® 117; temperature effects; mechanical properties; nanoindentation
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
