Enhancing the Adhesive Strength of a Plywood Adhesive Developed from Hydrolyzed Specified Risk Materials
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials and Chemicals
2.2. Methods
2.2.1. SRM Hydrolysis and Recovery of Peptides
2.2.2. Characterization of Peptides
Estimation of Carboxyl Groups
Estimation of Amine Groups
2.3. Adhesive Formulation
2.3.1. General Method
2.3.2. Varying the Effect of Crosslinking Ratio
2.4. Preparation of Plywood Specimens
2.5. Testing of Plywood Specimens
3. Results and Discussion
3.1. Characterization of Peptides
3.2. Effect of Various Factors on Lap Shear Strength of Plywood Specimens
3.2.1. Effect of Crosslinking Time
3.2.2. Effect of Crosslinking Ratio

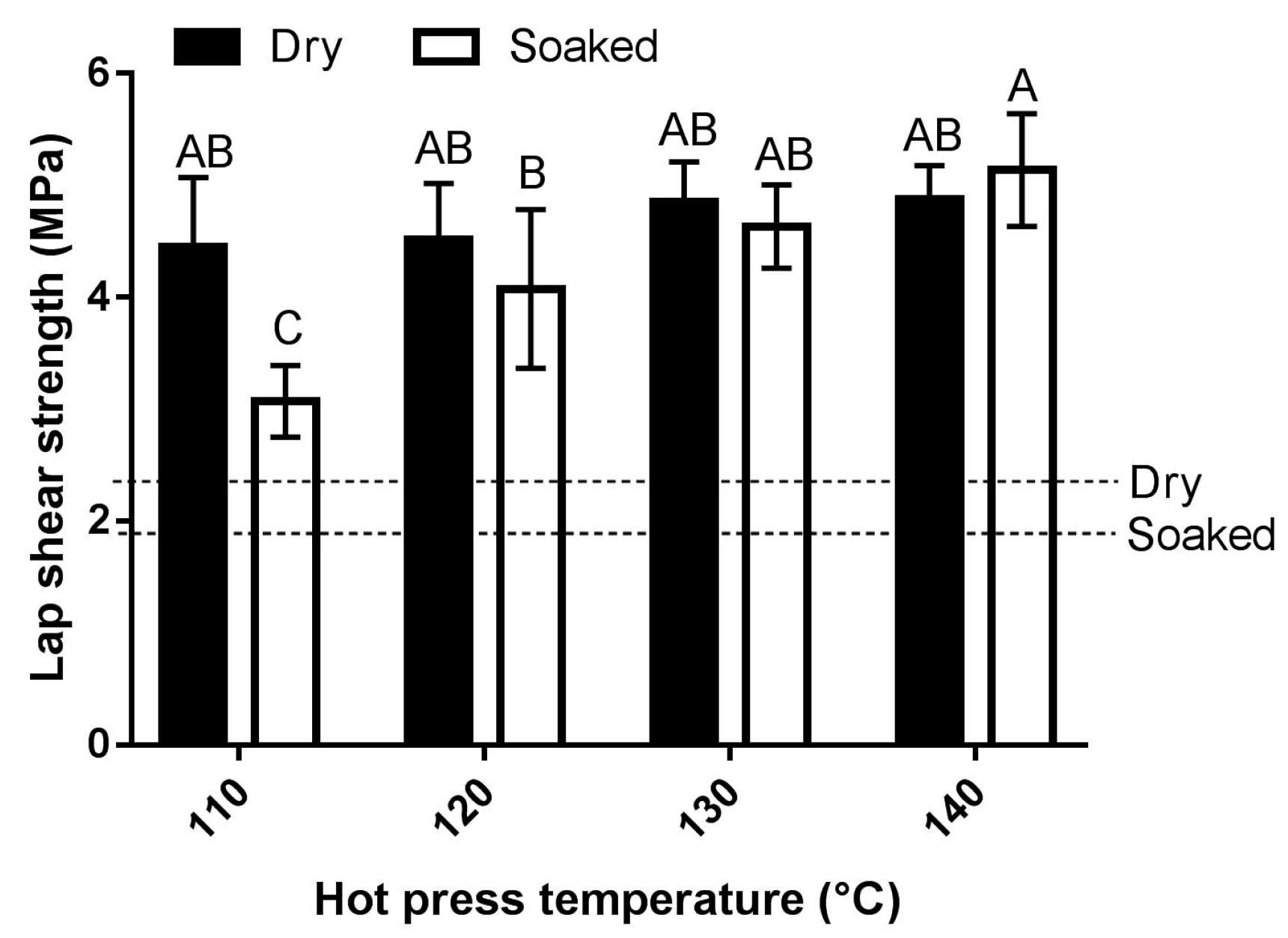

3.2.3. Effect of Hot Pressing Temperature

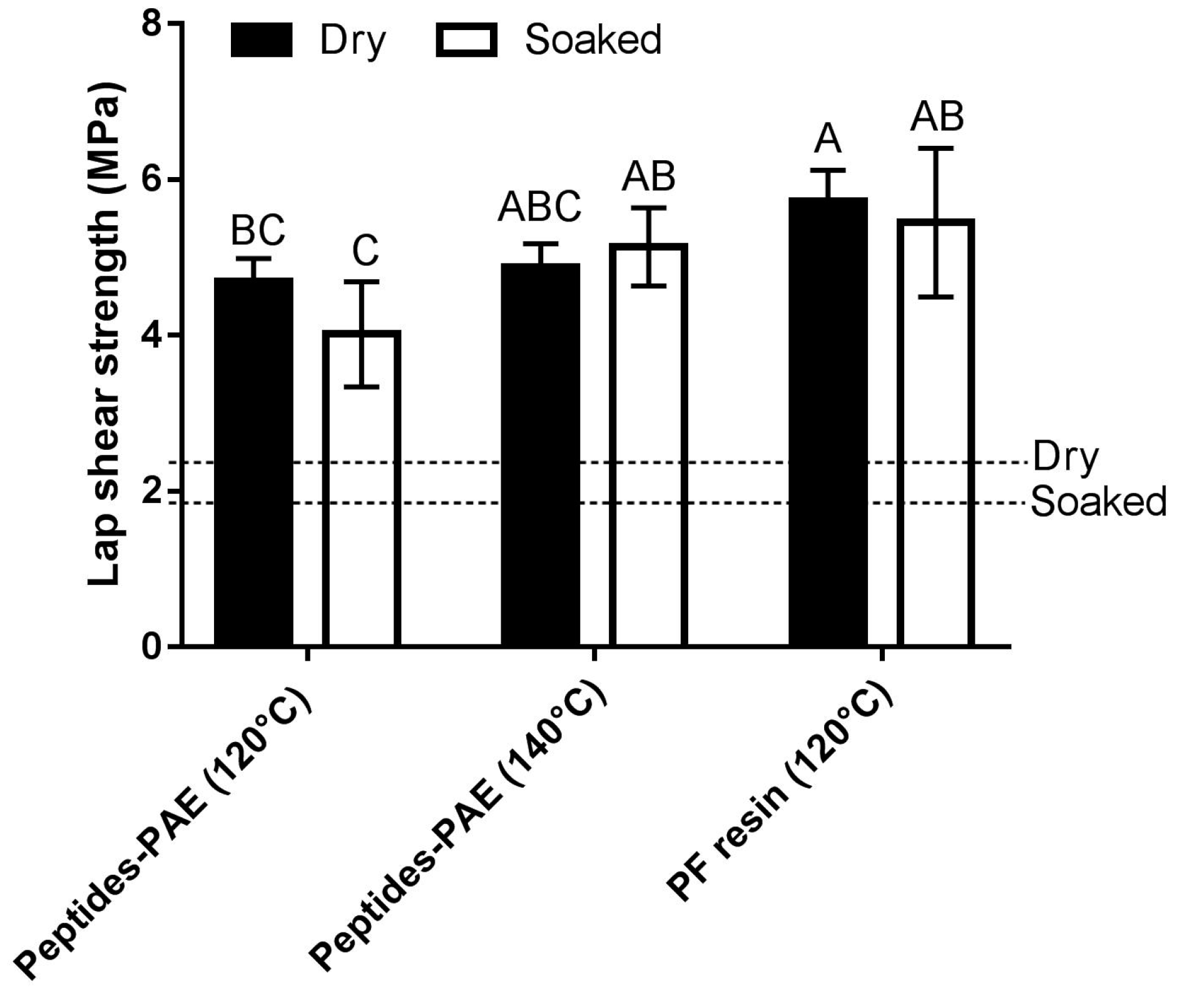

3.3. Comparison of Adhesive Strength with Commercial PF Resin
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Food and Agriculture Organization of the United Nations. 2014 Global Forest Products Facts and Figures. Available online: http://www.fao.org/forestry/44134-01f63334f207ac6e086bfe48fe7c7e986.pdf (accessed on 2 June 2016).
- Transparency Market Research. Wood Adhesives and Binders Market is Anticipated to Reach USD 17.77 Billion by 2020. Available online: http://www.transparencymarketresearch.com/pressrelease/wood-adhesives-binders-market.htm (accessed on 2 June 2016).
- IARC Working Group on the Evaluation of Risks to Humans. Formaldehyde, 2-Butoxyethanol and 1-Tert-Butoxypropan-2-Ol. Inter. Agency Res. Cancer 2006, 88, 1–497. [Google Scholar]
- Opio, C.; Gerber, P.; Mottet, A.; Falcucci, A.; Tempio, G.; MacLeod, M.; Vellinga, T.; Henderson, B.; Steinfeld, H. Greenhouse Gas Emissions from Ruminant Supply Chains — A Global Life Cycle Assessment; A report from Food and Agriculture Organization of the United Nations (FAO): Rome, Italy, 2013. [Google Scholar]
- Canadian Food Inspection Agency. Meat and Poultry Products. Manual of Procedures. Available online: http://www.inspection.gc.ca/food/meat-and-poultry-products/manual-of-procedures/chapter-5/eng/1395150894222/1395150895519?chap=4#s30c4 (accessed on 10 June 2016).
- The Ground Up Resource Consultants Inc. Slaughterhouse Waste and Specified Risk Material (SRM) Management Study. Available online: http://www2.gov.bc.ca/assets/gov/farming-natural-resources-and-industry/agriculture-and-seafood/agricultural-land-and-environment/waste-management/specified-risk-material/slaughterhouse_waste_and_srm_mgmt_study_vancouver_island.pdf (accessed on 10 June 2016).
- Canadian Food Inspection Agency. Enhanced Animal Health Protection from BSE — Specified Risk Material (SRM). Available online: http://www.inspection.gc.ca/animals/terrestrial-animals/diseases/reportable/bse/srm/eng/1299870250278/1334278201780 (accessed on 10 June 2016).
- Mekonnen, T.H.; Mussone, P.G.; Stashko, N.; Choi, P.Y.; Bressler, D.C. Recovery and Characterization of Proteinacious Material Recovered from Thermal and Alkaline Hydrolyzed Specified Risk Materials. Process Biochem. 2013, 48, 885–892. [Google Scholar] [CrossRef]
- Vonderwell, R.; Fritz, E.; Metz, N. Alkaline Hydrolysis of Organic Waste Including Specified Risk Materials and Effluent Disposal by Mixing with Manure Slurry. U.S. Patent 14,058,684, 21 October 2013. [Google Scholar]
- Gao, Z.; Wang, W.; Zhao, Z.; Guo, M. Novel Whey Protein-Based Aqueous Polymer-Isocyanate Adhesive for Glulam. J. App. Polym. Sci. 2011, 120, 220–225. [Google Scholar] [CrossRef]
- Lei, H.; Du, G.; Wu, Z.; Xi, X.; Dong, Z. Cross-Linked Soy-Based Wood Adhesives for Plywood. Int. J. Adhes. Adhes. 2014, 50, 199–203. [Google Scholar] [CrossRef]
- Li, K.; Peshkova, S.; Geng, X. Investigation of Soy Protein-Kymene® Adhesive Systems for Wood Composites. J. Am. Oil Chem. Soc. 2004, 81, 487–491. [Google Scholar] [CrossRef]
- Liu, Y.; Li, K. Development and Characterization of Adhesives from Soy Protein for Bonding Wood. Int. J. Adhes. Adhes. 2007, 27, 59–67. [Google Scholar] [CrossRef]
- Wang, Y.; Mo, X.; Sun, X.S.; Wang, D. Soy Protein Adhesion Enhanced by Glutaraldehyde Crosslink. J. App. Polym. Sci. 2007, 104, 130–136. [Google Scholar] [CrossRef]
- Canadian Food Inspection Agency. Annex D: Specified Risk Materials. Available online: http://www.inspection.gc.ca/food/meat-and-poultry-products/manual-of-procedures/chapter-17/annex-d/eng/1369768468665/1369768518427 (accessed on 10 June 2016).
- Mekonnen, T.; Mussone, P.; El-Thaher, N.; Choi, P.Y.K.; Bressler, D.C. Thermosetting Proteinaceous Plastics from Hydrolyzed Specified Risk Material. Macromol. Mater. Eng. 2013, 298, 1294–1303. [Google Scholar] [CrossRef]
- Mekonnen, T.; Mussone, P.; Alemaskin, K.; Sopkow, L.; Wolodko, J.; Choi, P.; Bressler, D. Biocomposites from Hydrolyzed Waste Proteinaceous Biomass: Mechanical, Thermal and Moisture Absorption Performances. J. Mater. Chem. A 2013, 1, 13186–13196. [Google Scholar] [CrossRef]
- Mekonnen, T.H.; Mussone, P.G.; Choi, P.; Bressler, D.C. Development of Proteinaceous Plywood Adhesive and Optimization of its Lap Shear Strength. Macromol. Mater. Eng. 2015, 300, 198–209. [Google Scholar] [CrossRef]
- Mekonnen, T.H.; Mussone, P.G.; Choi, P.; Bressler, D.C. Adhesives from Waste Protein Biomass for Oriented Strand Board Composites: Development and Performance. Macromol. Mater. Eng. 2014, 299, 1003–1012. [Google Scholar] [CrossRef]
- Zhong, Z.; Sun, X.S.; Wang, D. Isoelectric pH of Polyamide–Epichlorohydrin Modified Soy Protein Improved Water Resistance and Adhesion Properties. J. App. Polym. Sci. 2007, 103, 2261–2270. [Google Scholar] [CrossRef]
- Obokata, T.; Yanagisawa, M.; Isogai, A. Characterization of Polyamideamine-Epichlorohydrin (PAE) Resin: Roles of Azetidinium Groups and Molecular Mass of PAE in Wet Strength Development of Paper Prepared with PAE. J. Appl. Polym. Sci. 2005, 97, 2249–2255. [Google Scholar] [CrossRef]
- Epsy, H.H. The Mechanism of Wet Strength Development in Paper: A Review. Tappi J. 1995, 78, 90–99. [Google Scholar]
- Wågberg, L.; Björklund, M. On the Mechanism Behind Wet Strength Development in Papers Containing Wet Strength Resins. Nordic Pulp Paper Res. J. 1993, 8, 53–58. [Google Scholar] [CrossRef]
- United Soybean Board. Soy Products Guide 2016. Available online: file:///C:/Users/Administrator/Downloads/54397-soyproductsguide-2016.pdf (accessed on 28 July 2016).
- Tropini, V.; Lens, J.P.; Mulder, W.J.; Silvestre, F. Cross-Linking of Wheat Gluten using a Water-Soluble Carbodiimide. Cereal Chem. 2000, 77, 333–338. [Google Scholar] [CrossRef]
- Vaz, C.M.; de Graaf, L.A.; Reis, R.L.; Cunha, A.M. In Vitro Degradation Behaviour of Biodegradable Soy Plastics: Effects of Crosslinking with Glyoxal and Thermal Treatment. Polym. Degrad. Stabil. 2003, 81, 65–74. [Google Scholar] [CrossRef]
- Bertrand-Harb, C.; Nicolas, M.-G.; Dalgalarrondo, M.; Chobert, J.M. Determination of Alkylation Degree by Three Colorimetric Methods and Amino Acid Analysis. A Comparative Study. Sci. Alim. 1993, 13, 577–584. [Google Scholar]
- ASTM. Standard Test Method for Strength Properties of Adhesives in Two-Ply Wood Construction in Shear by Tension Loading. ASTM Designation D2339 – 98 (Reapproved 2011). Available online: http://compass.astm.org/download/D2339.40946.pdf (accessed on 15 May 2015).
- ASTM. Standard Practices for Resistance of Adhesives to Cyclic Laboratory Aging Conditions. ASTM Designation D1183 – 03 (Reapproved 2011). Available online: http://compassstaging.astm.org/download/D1183.35507.pdf (accessed on 10 May 2015).
- Rogalinski, T.; Herrmann, S.; Brunner, G. Production of Amino Acids from Bovine Serum Albumin by Continuous Sub-Critical Water Hydrolysis. J. Supercrit. Fluids 2005, 36, 49–58. [Google Scholar] [CrossRef]
- Wilson, C.A.; Novak, J.T. Hydrolysis of Macromolecular Components of Primary and Secondary Wastewater Sludge by Thermal Hydrolytic Pretreatment. Water Res. 2009, 43, 4489–4498. [Google Scholar] [CrossRef] [PubMed]
- Abdelmoez, W.; Yoshida, H. Production of Amino and Organic Acids from Protein using Sub-Critical Water Technology. Int. J. Chem. React. Eng. 2013, 11, 1–16. [Google Scholar] [CrossRef]
- He, C.; Wang, K.; Yang, Y.; Amaniampong, P.N.; Wang, J.-Y. Effective Nitrogen Removal and Recovery from Dewatered Sewage Sludge using a Novel Integrated System of Accelerated Hydrothermal Deamination and Air Stripping. Environ. Sci. Technol. 2015, 49, 6872–6880. [Google Scholar] [CrossRef] [PubMed]
- ASTM. Standard Specifications for Urea Formaldehyde Resin Adhesive. Designation D4690 – 12. Available online: http://compass.astm.org/download/D4690.3805.pdf (accessed on 20 May 2015).
- Frihart, C.R. Wood Adhesion and Adhesives. In Handbook of Wood Chemistry and Wood Composites; Rowell, R.M., Ed.; CRC Press: Cleveland, OH, USA, 2005; pp. 215–278. [Google Scholar]
- Tomita, B.; Hse, C. Phenol-Urea-Formaldehyde (PUF) Co-Condensed Wood Adhesives. Int. J. Adhes. Adhes. 1998, 18, 69–79. [Google Scholar] [CrossRef]
- Zhong, Z.; Sun, X.S.; Fang, X.; Ratto, J.A. Adhesive Strength of Guanidine Hydrochloride—modified Soy Protein for Fiberboard Application. Int. J. Adhes. Adhes. 2002, 22, 267–272. [Google Scholar] [CrossRef]
- Zhong, Z.; Sun, X.S.; Fang, X.; Ratto, J.A. Adhesion Properties of Soy Protein with Fiber Cardboard. J. Am. Oil Chem. Soc. 2001, 78, 37–41. [Google Scholar] [CrossRef]
- EPA. Plywood Manufacturing. In Compilation of Air Pollutant Emission Factors AP-42, 5th ed.United States Environmental Protection Agency: Durham, NC, USA, 1995; 1, p. 10.5–3. [Google Scholar]
- Gao, Q.; Shi, S.; Zhang, S.; Li, J.; Liang, K. Improved Plywood Strength and Lowered Emissions from Soybean Meal/Melamine Urea-Formaldehyde Adhesives. Forest Prod. J. 2011, 61, 688–693. [Google Scholar] [CrossRef]
PAE resin (g) | Peptides (g) | Water (g) | Total weight (g) | Solid from PAE resin, dry basis (g) 1 | Total solid (g) | Solid content (%) | Wt % of PAE resin (dry basis) | |
---|---|---|---|---|---|---|---|---|
1 | 0.0 | 4.4 | 17.5 | 21.9 | 0.00 | 4.4 | 20.0 | 0.0 |
2 | 4.0 | 3.9 | 14.0 | 21.9 | 0.50 | 4.4 | 20.0 | 11.4 |
3 | 8.0 | 3.4 | 10.5 | 21.9 | 1.00 | 4.4 | 20.0 | 22.8 |
4 | 12.0 | 2.9 | 7.0 | 21.9 | 1.50 | 4.4 | 20.0 | 34.3 |
5 | 16.0 | 2.4 | 3.5 | 21.9 | 2.00 | 4.4 | 20.0 | 45.7 |
6 | 20.0 | 1.9 | 0.0 | 21.9 | 2.50 | 4.4 | 20.0 | 57.1 |
Press temp (°C) | Dry samples | Soaked samples |
---|---|---|
110 | adhesive failure 1 in 86% of samples, fibre pulled out 2 in 14% of samples | 100% samples underwent adhesive failure |
120 | cohesive wood failure 3 in 43% of samples, fibre pulled out in 57% of samples | adhesive failure in 57% of samples, fibre pulled out in 43% of samples |
130 | cohesive wood failure in 86% of samples, fibre pulled out in 14% of samples | cohesive wood failure in 86% of samples, fibre pulled out in 14% of samples |
140 | cohesive wood failure in 86% of samples, fibre pulled out in 14% of samples | 100% samples underwent cohesive wood failure |
© 2016 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC-BY) license ( http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Adhikari, B.B.; Appadu, P.; Kislitsin, V.; Chae, M.; Choi, P.; Bressler, D.C. Enhancing the Adhesive Strength of a Plywood Adhesive Developed from Hydrolyzed Specified Risk Materials. Polymers 2016, 8, 285. https://doi.org/10.3390/polym8080285
Adhikari BB, Appadu P, Kislitsin V, Chae M, Choi P, Bressler DC. Enhancing the Adhesive Strength of a Plywood Adhesive Developed from Hydrolyzed Specified Risk Materials. Polymers. 2016; 8(8):285. https://doi.org/10.3390/polym8080285
Chicago/Turabian StyleAdhikari, Birendra B., Pooran Appadu, Vadim Kislitsin, Michael Chae, Phillip Choi, and David C. Bressler. 2016. "Enhancing the Adhesive Strength of a Plywood Adhesive Developed from Hydrolyzed Specified Risk Materials" Polymers 8, no. 8: 285. https://doi.org/10.3390/polym8080285
