Next Article in Journal
Predicting the Flory-Huggins χ Parameter for Polymers with Stiffness Mismatch from Molecular Dynamics Simulations
Previous Article in Journal
Molecularly Imprinted Nanofiber Film for Sensitive Sensing 2,4,6-Tribromophenol
Article Menu
Issue 6 (June) cover image

Export Article

Open AccessArticle
Polymers 2016, 8(6), 242; doi:10.3390/polym8060242

Quick Preparation of Moisture-Saturated Carbon Fiber-Reinforced Plastics and Their Accelerated Ageing Tests Using Heat and Moisture

1
Research Institute for Sustainable Chemistry, National Institute of Advanced Industrial Science and Technology (AIST), Higashi 1-1-1, Tsukuba, Ibaraki 305-8565, Japan
2
Composite Laboratory, Manufacturing Technology Research Department, Mitsubishi Heavy Industries, Ltd., Takamichi 1, Iwatuka-chou, Nakamura-ku, Nagoya, Aichi 453-8515, Japan
*
Author to whom correspondence should be addressed.
Academic Editor: Naozumi Teramoto
Received: 27 April 2016 / Revised: 8 June 2016 / Accepted: 15 June 2016 / Published: 22 June 2016
View Full-Text   |   Download PDF [13154 KB, uploaded 23 June 2016]   |

Abstract

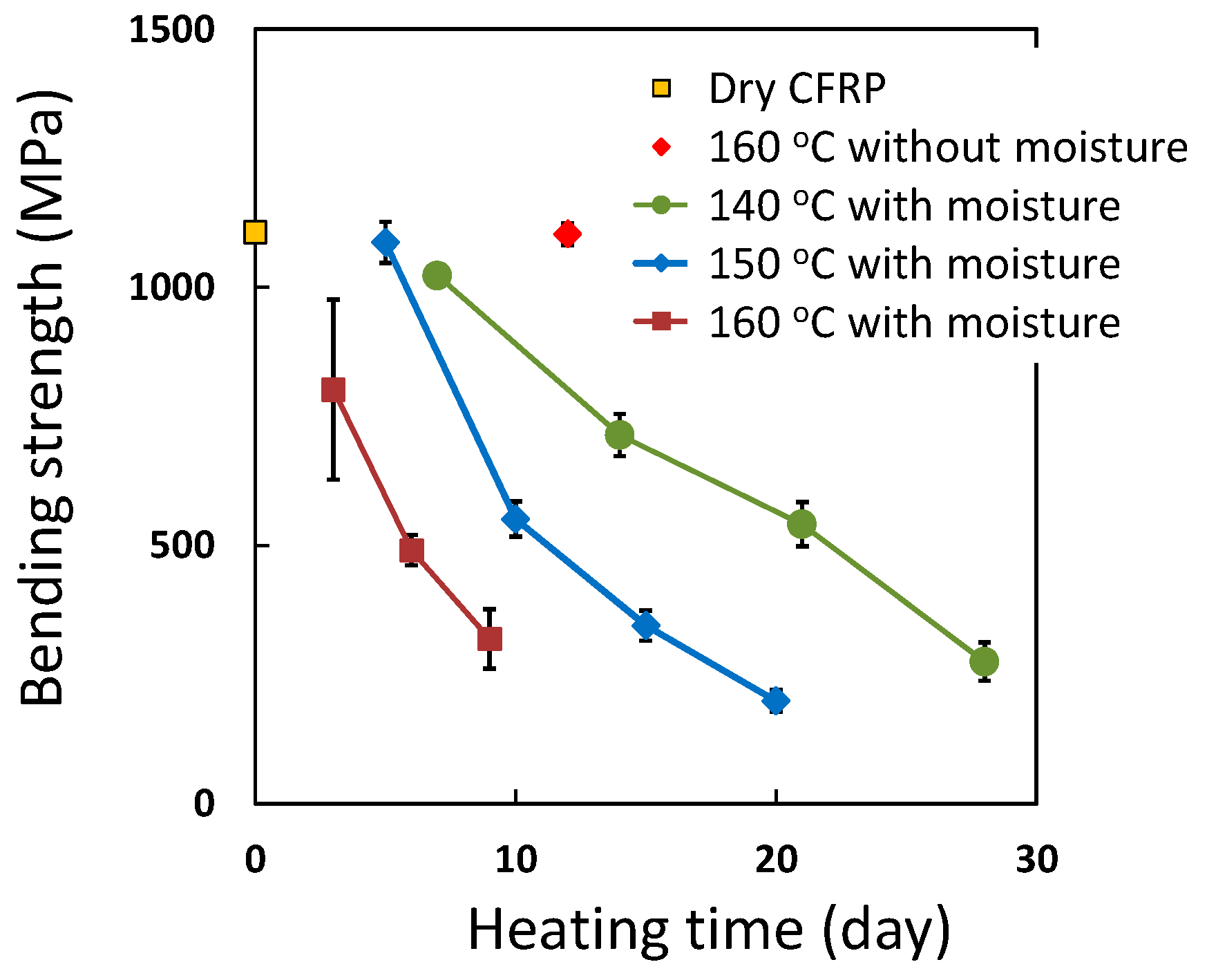

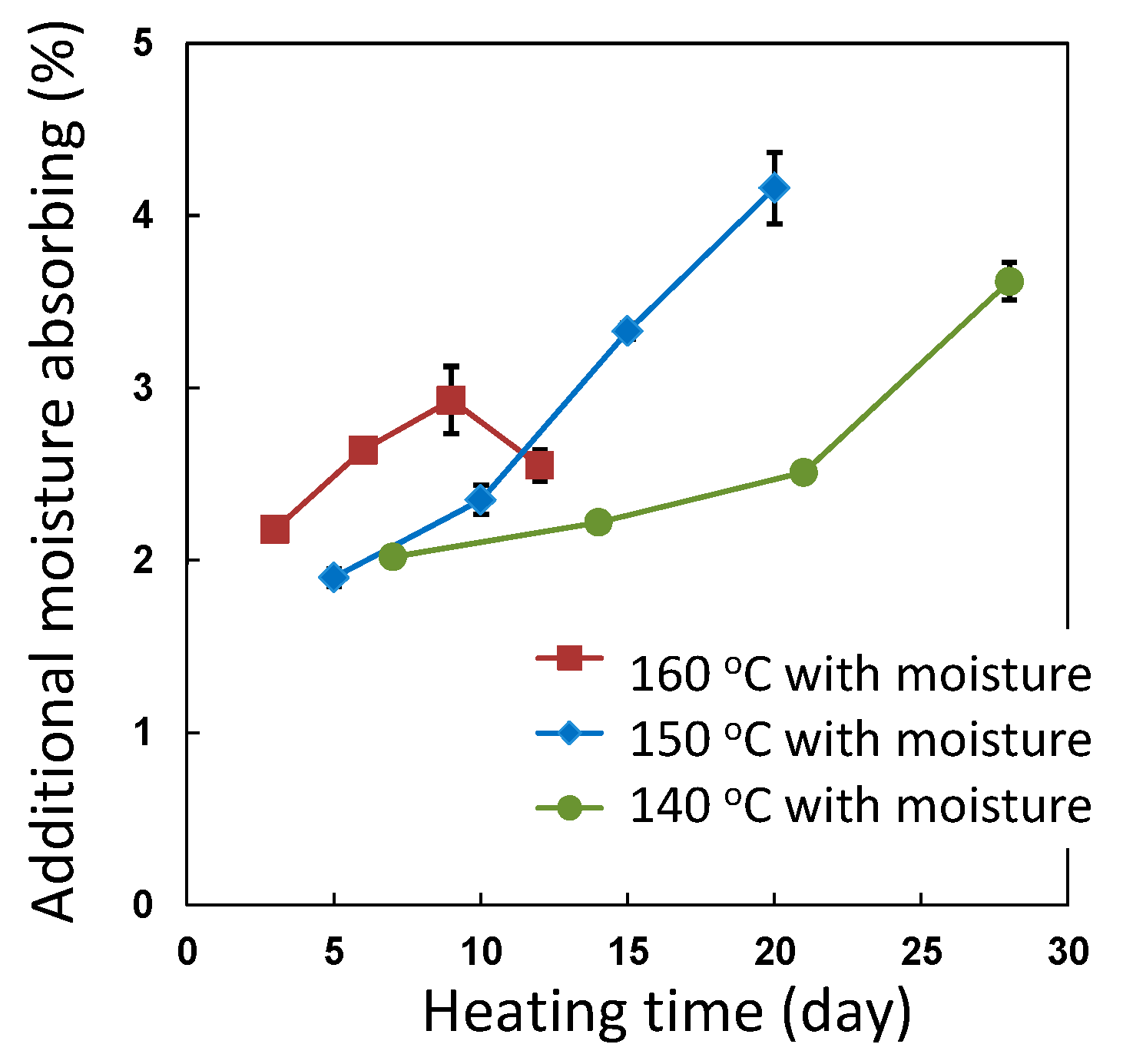

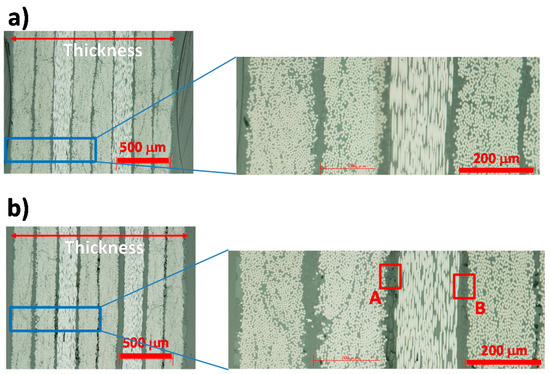

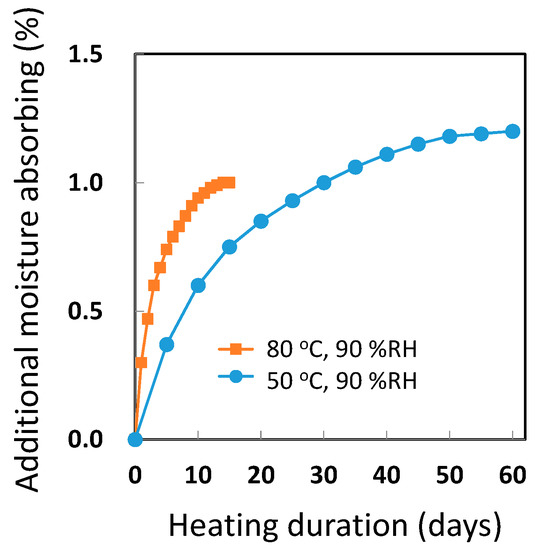

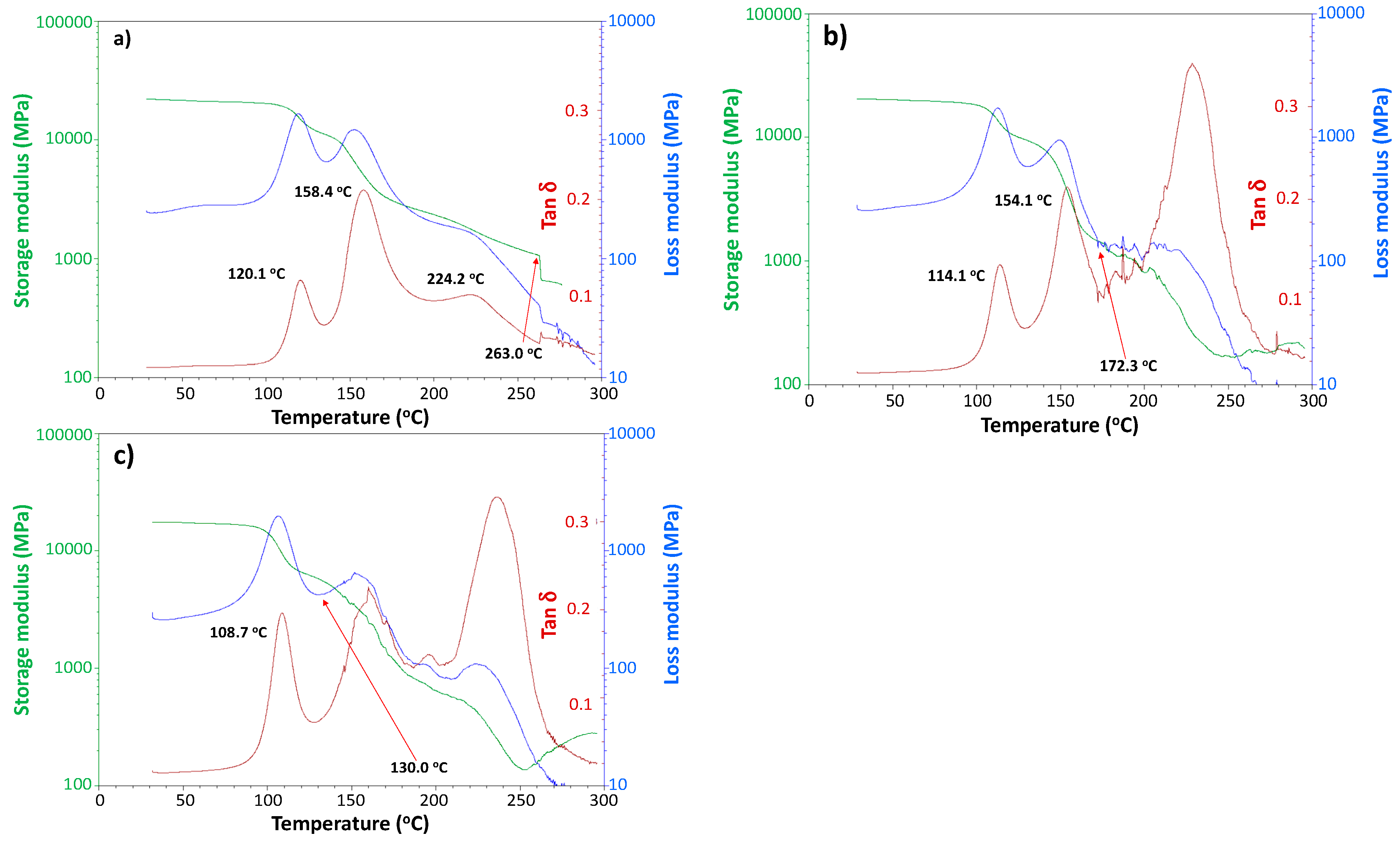

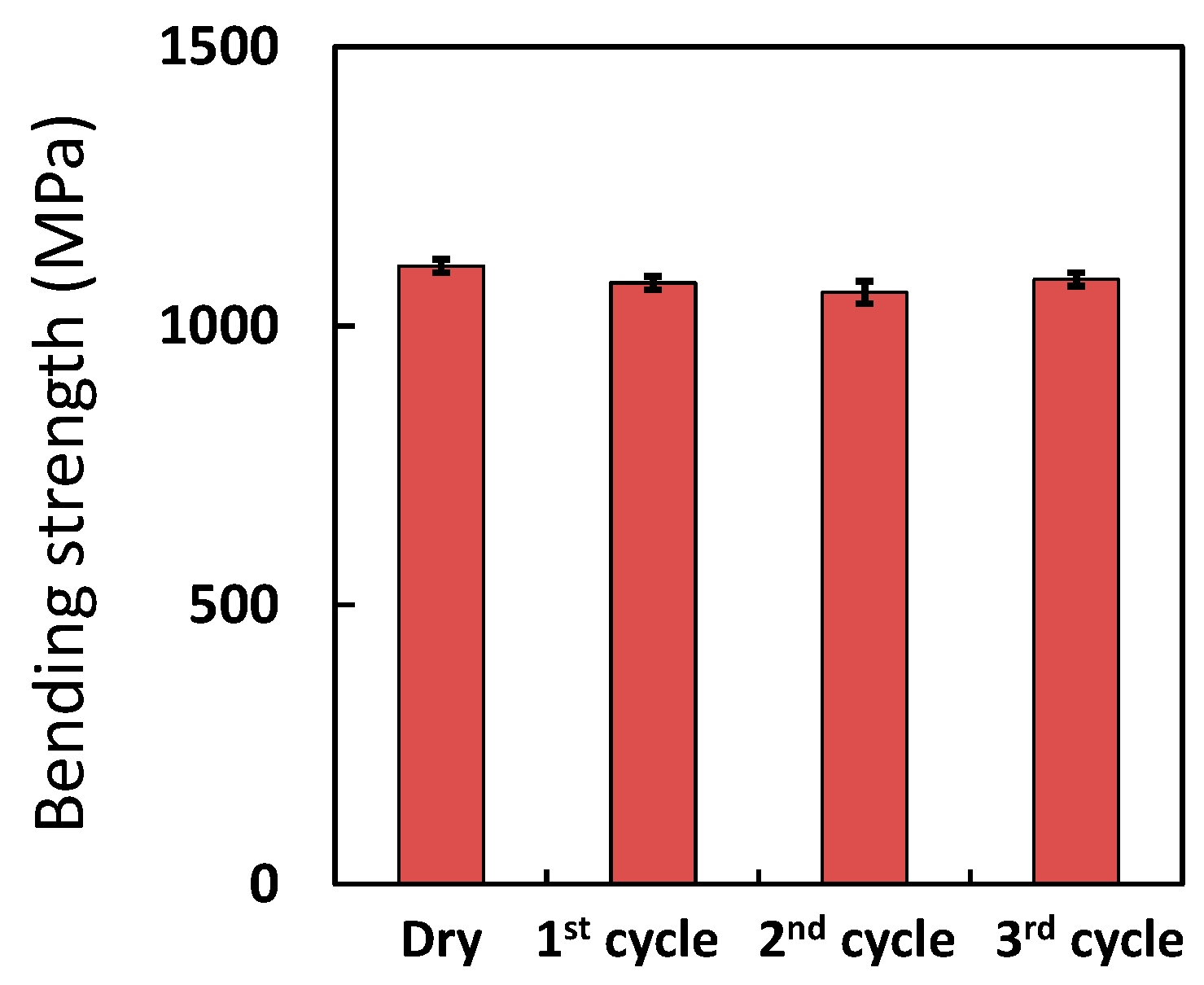

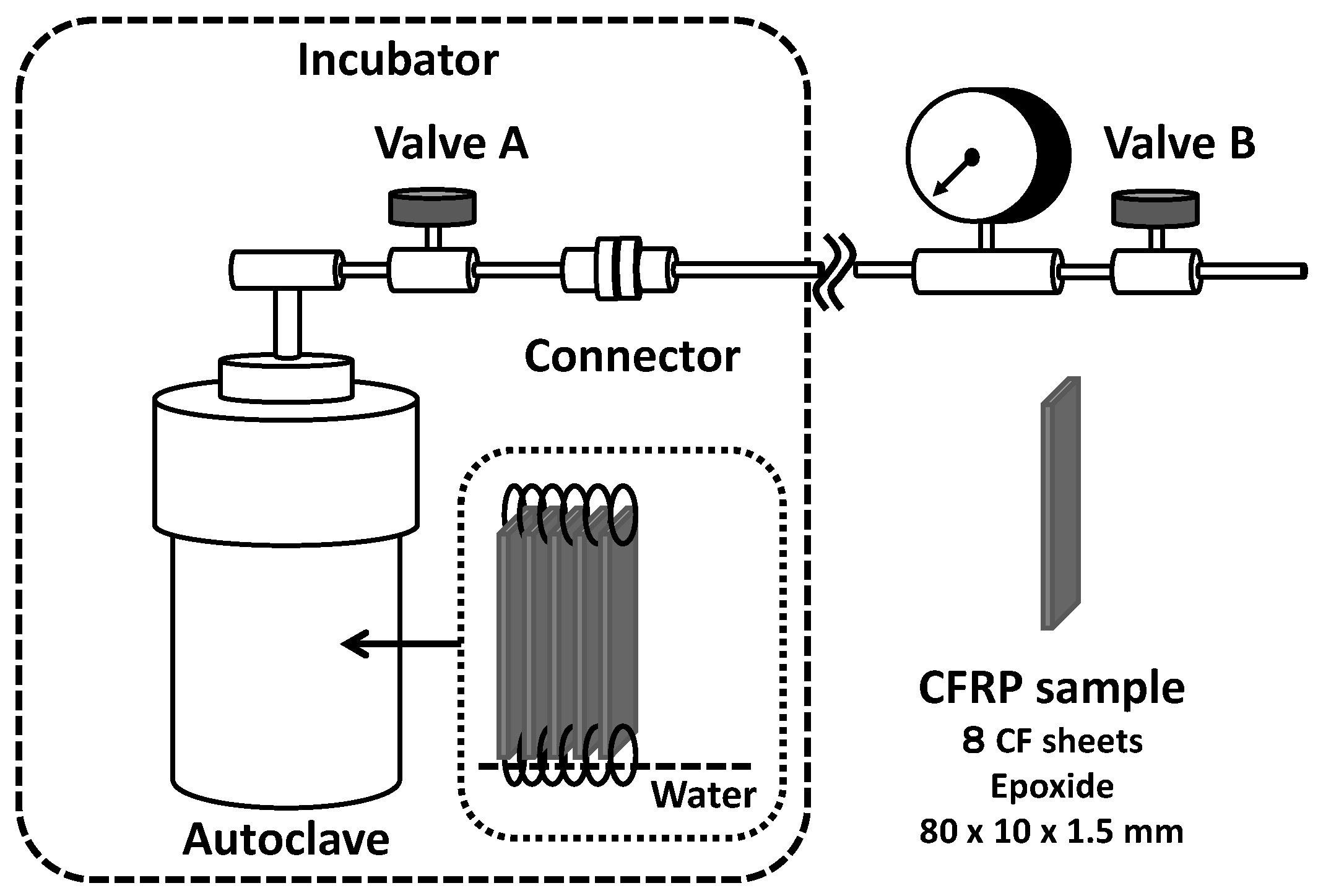

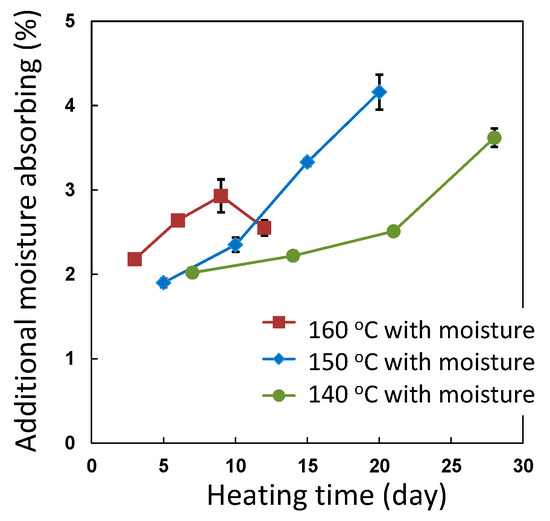

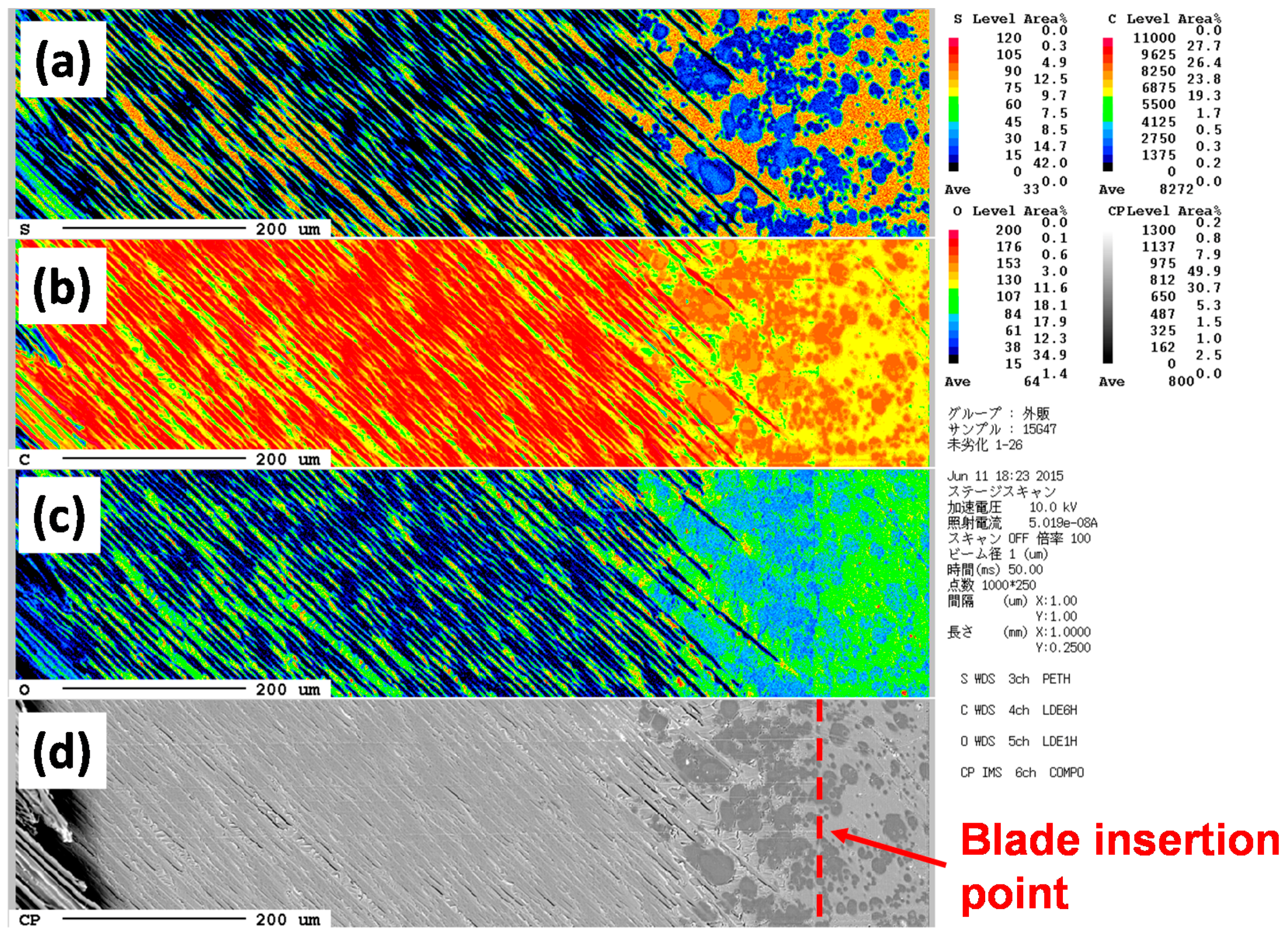

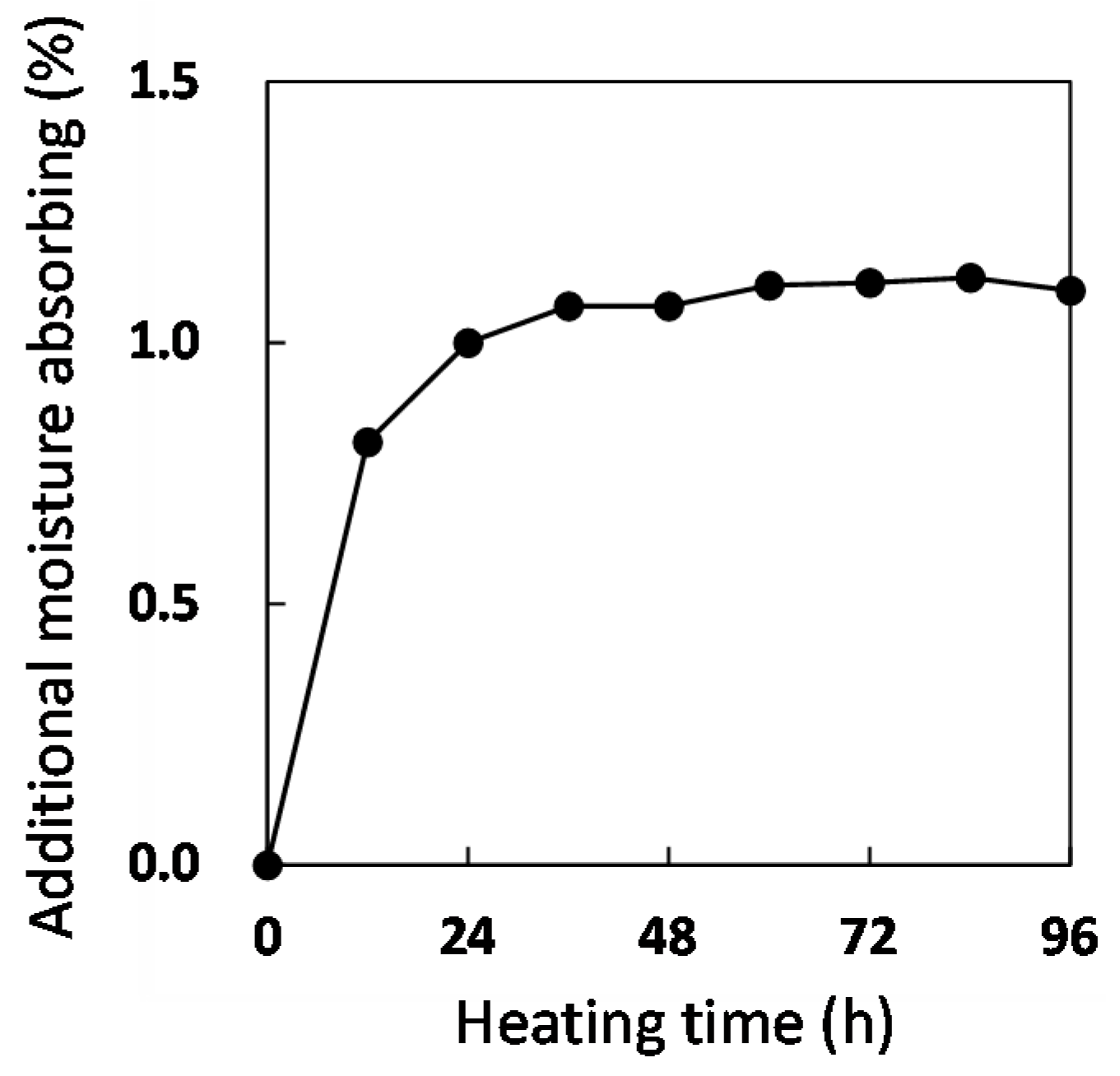

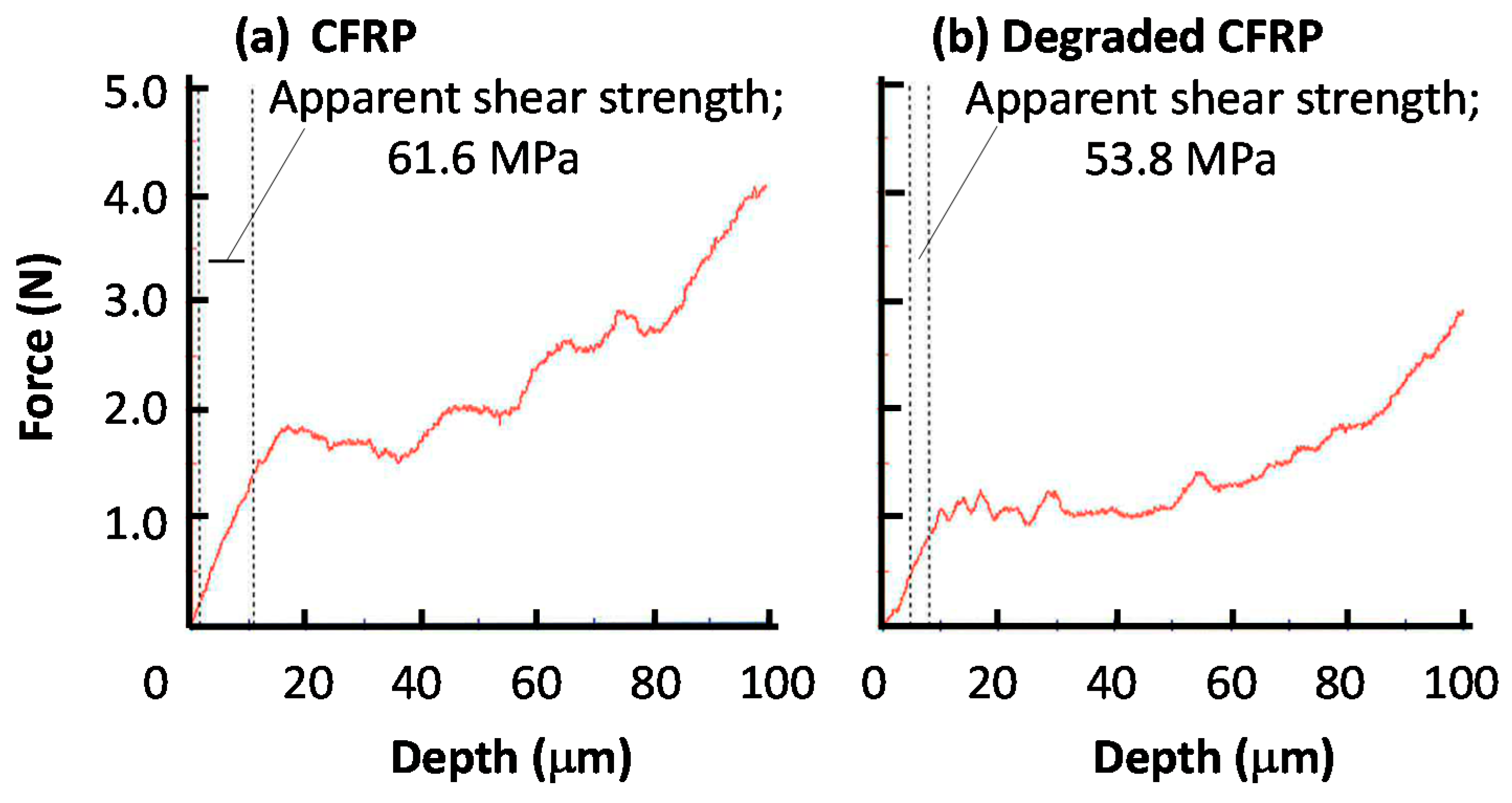

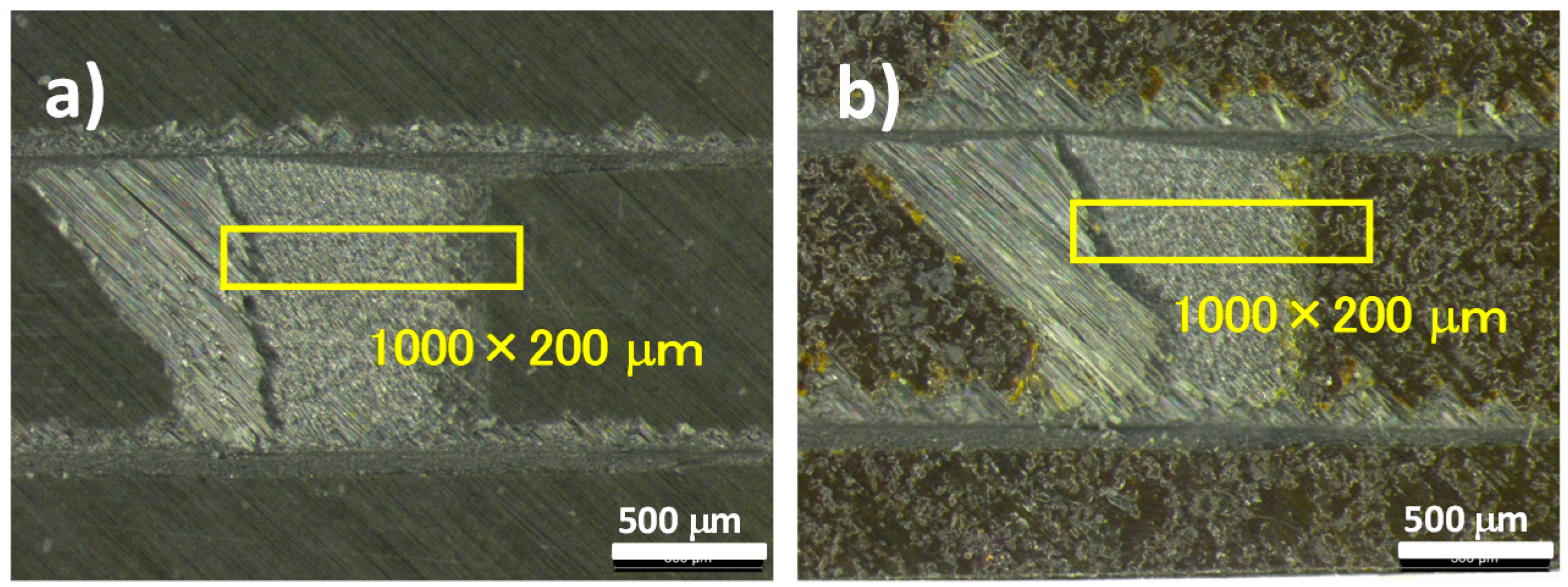

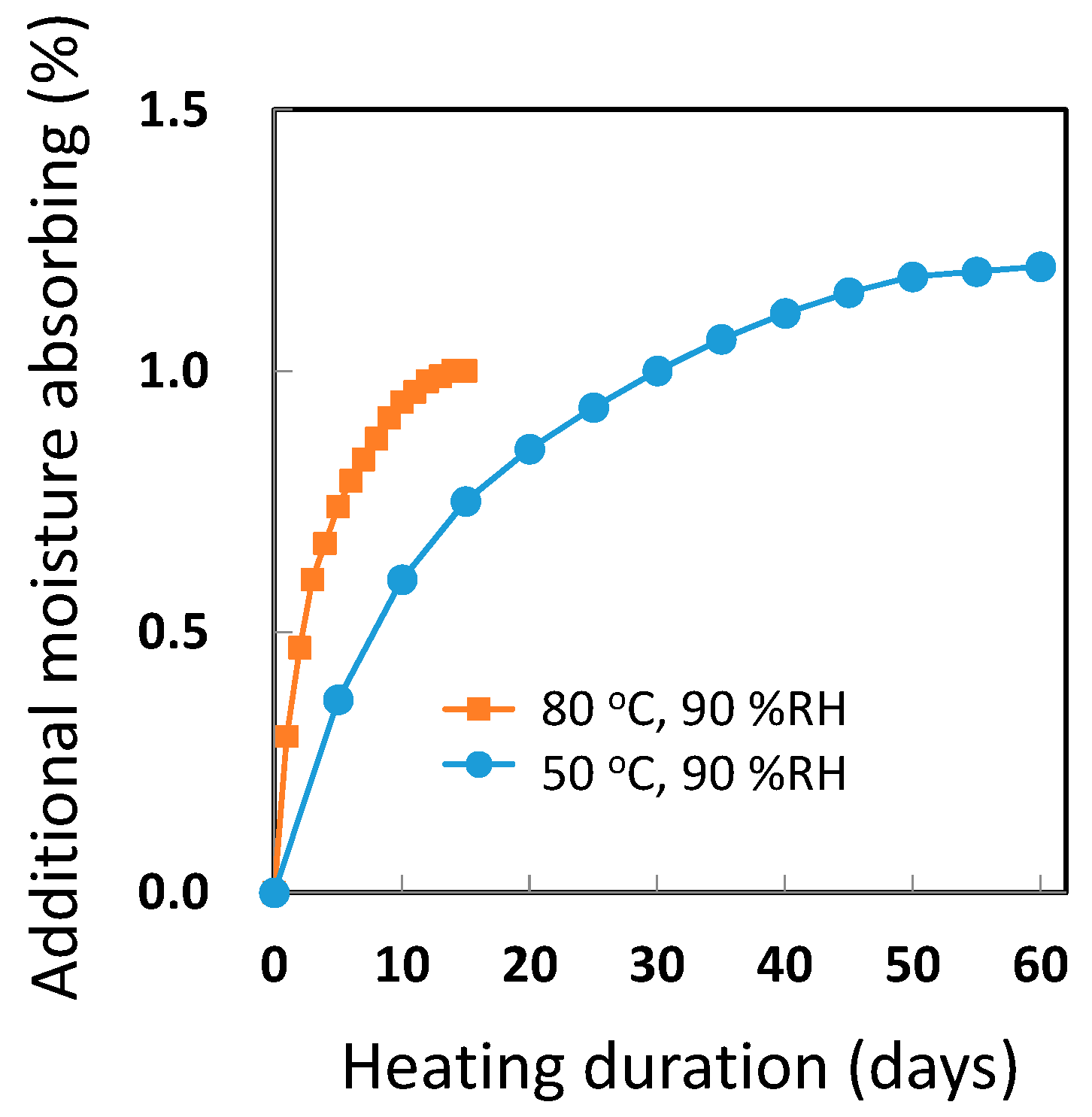

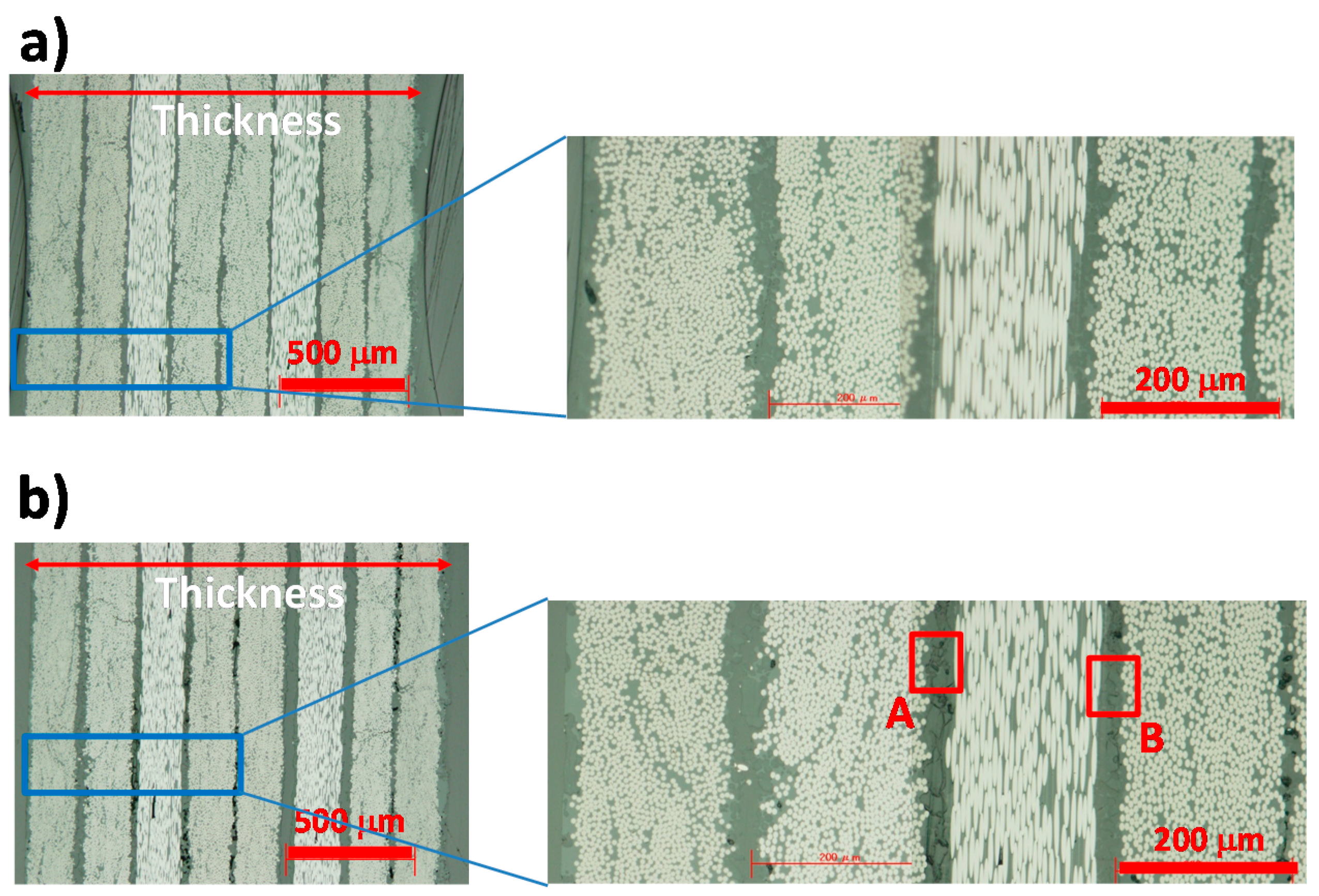

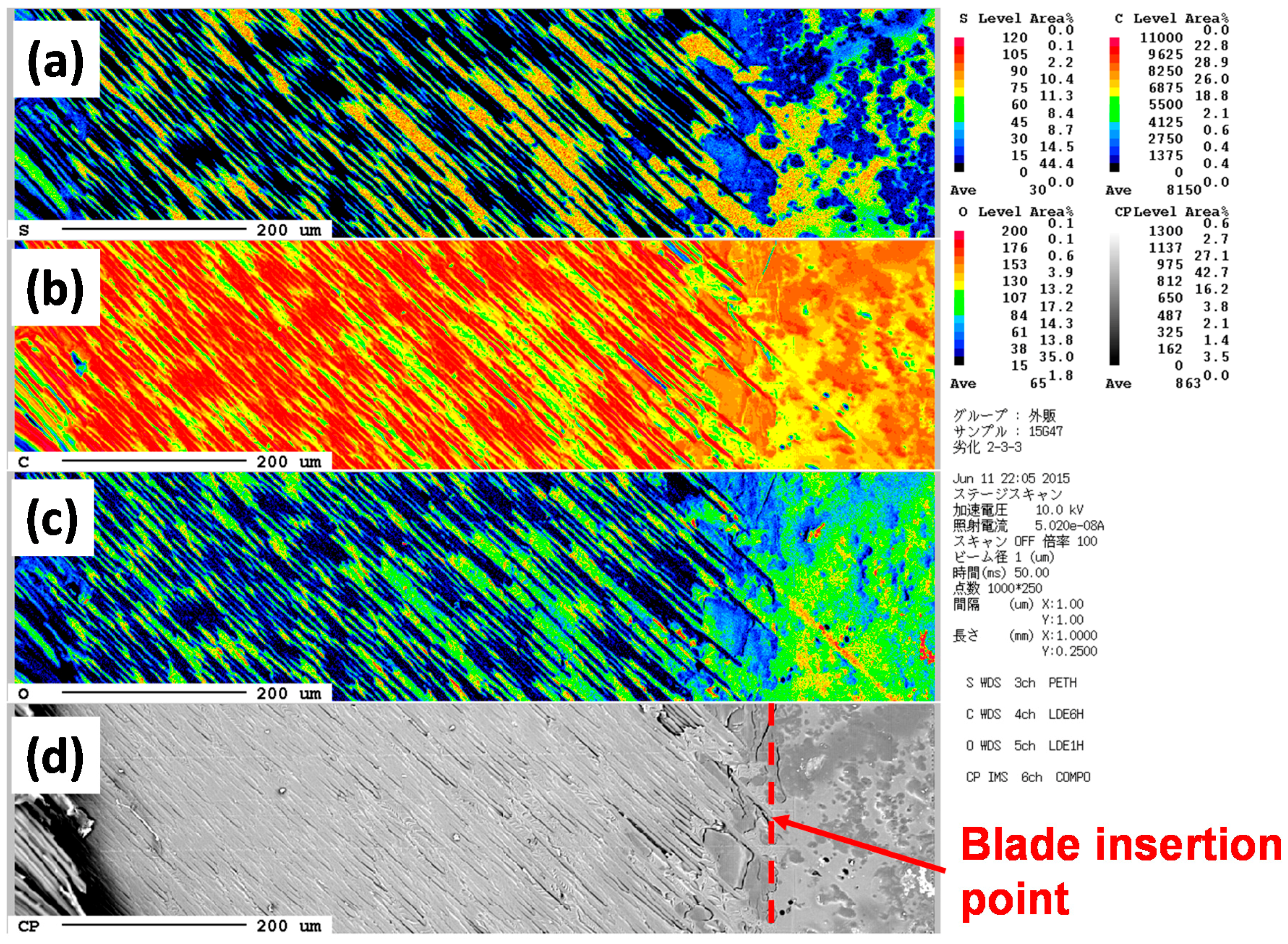

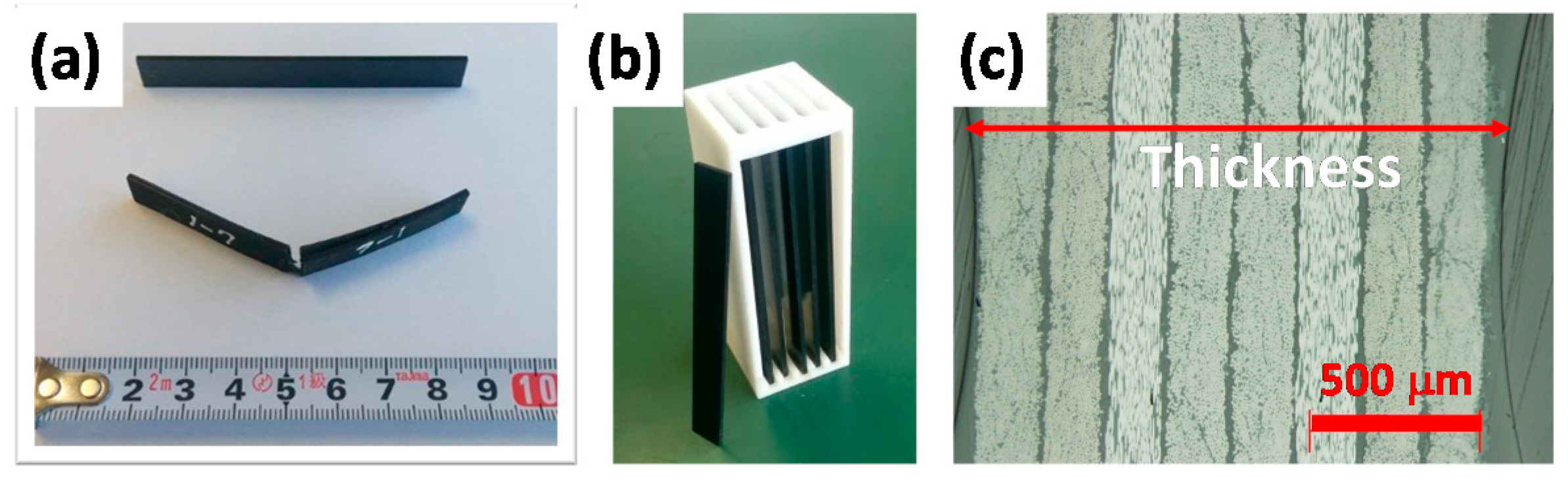

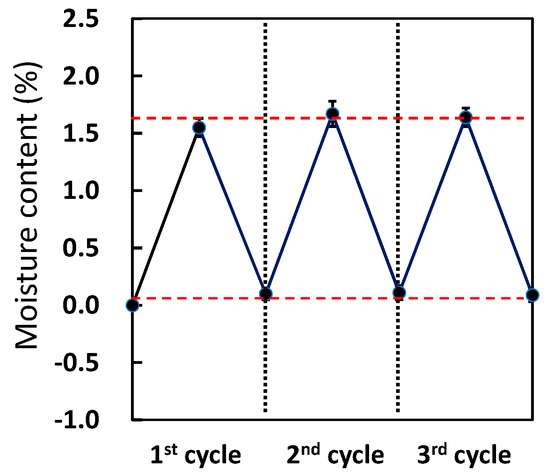

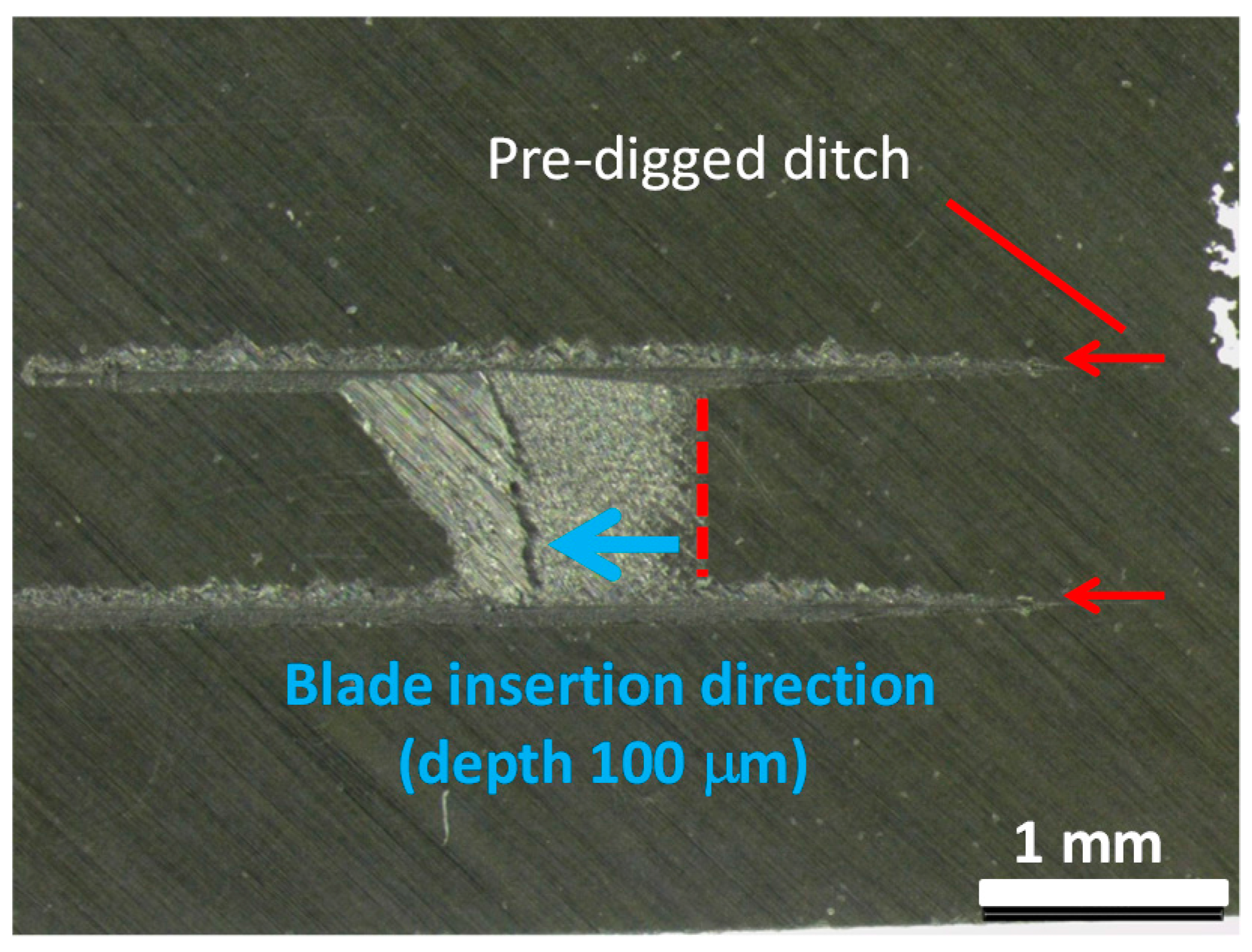

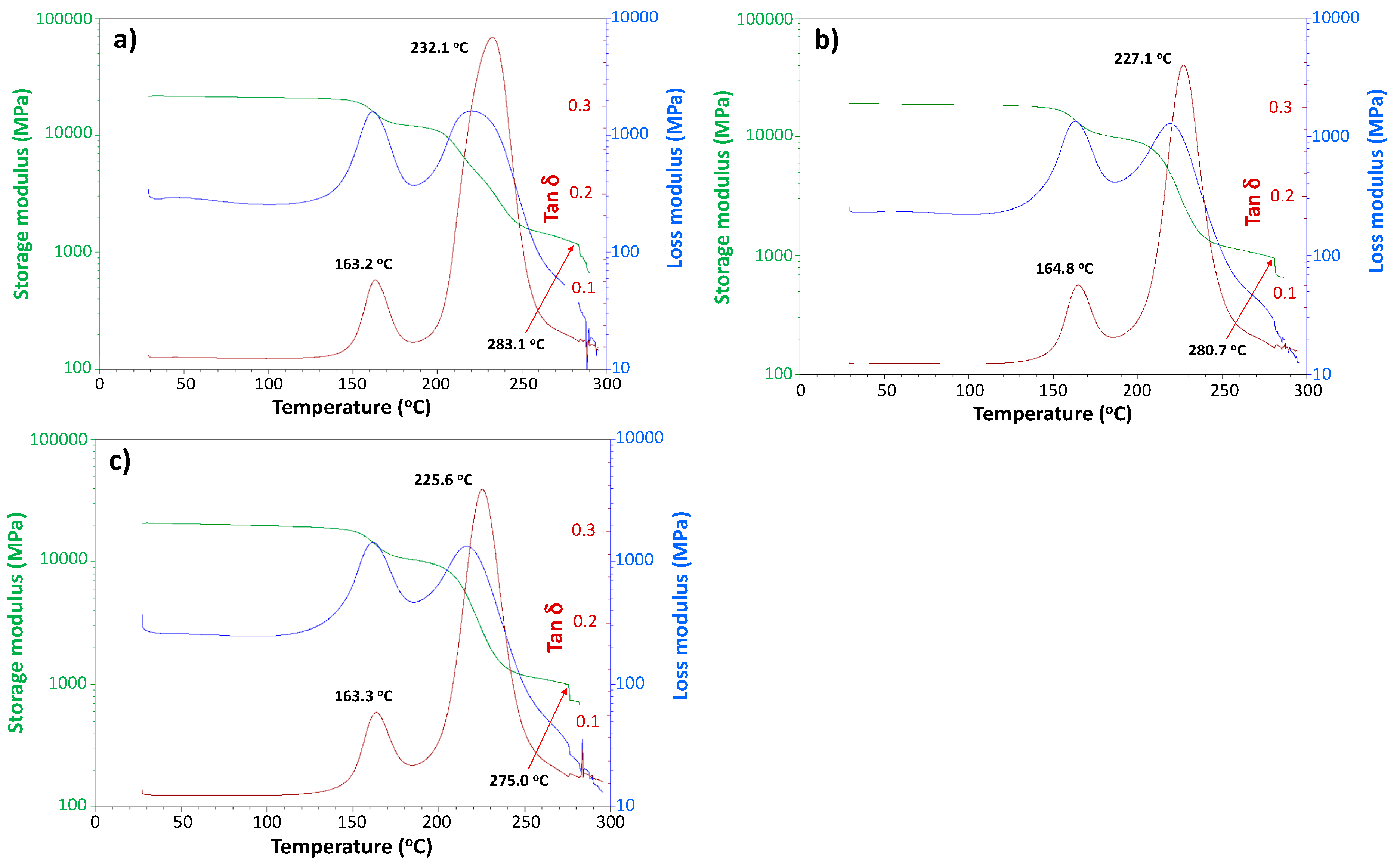

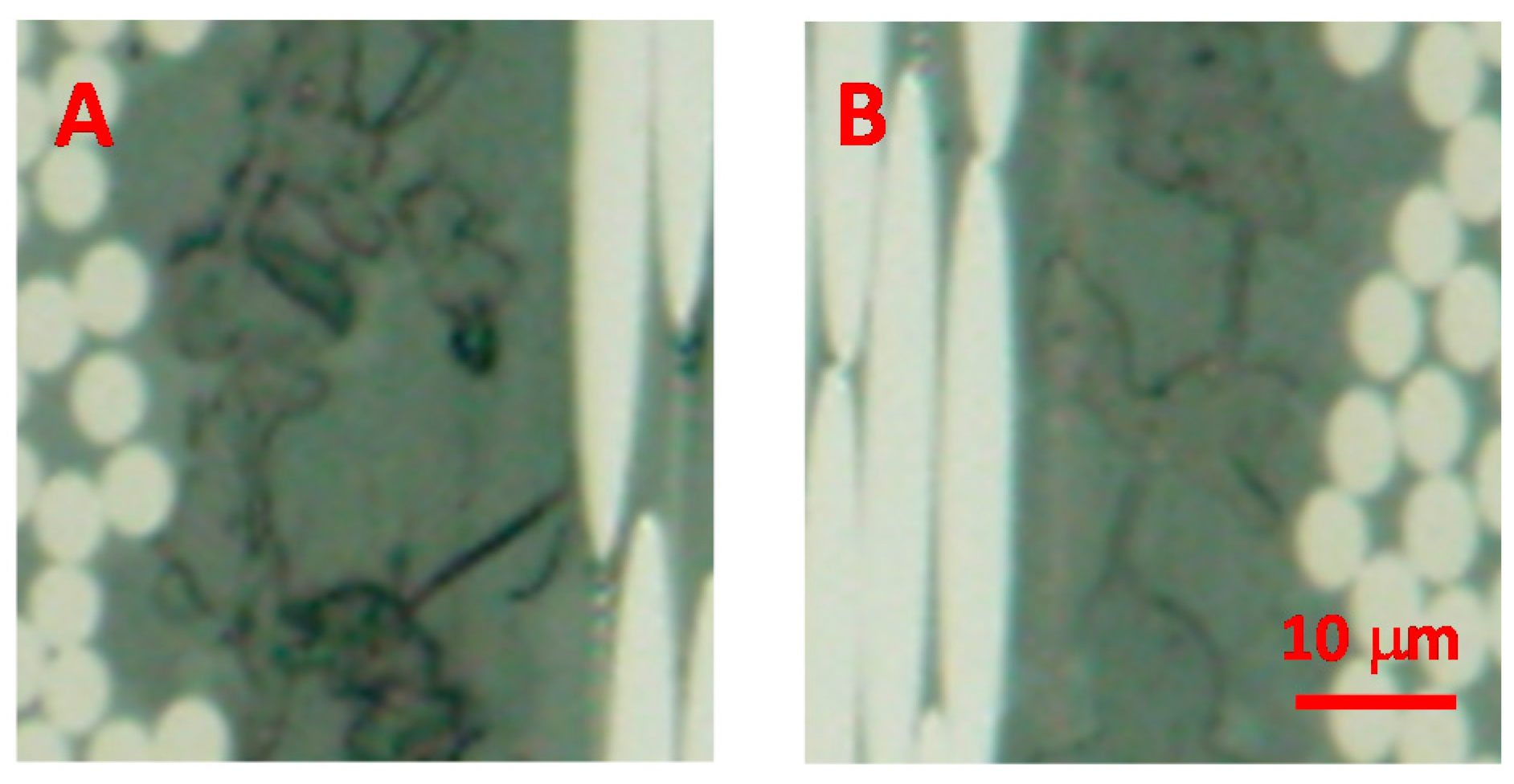

A quick method involving the control of heat and water vapor pressure for preparing moisture-saturated carbon fiber-reinforced plastics (CFRP, 8 unidirectional prepreg layers, 1.5 mm thickness, epoxy resin) has been developed. The moisture-saturated CFRP sample was obtained at 120 °C and 0.2 MPa water vapor in 72 h by this method using a sterilizer (autoclave). The bending strength and viscoelastic properties measured by a dynamic mechanical analysis (DMA) remained unchanged during repetitive saturation and drying steps. No degradation and molecular structural change occurred. Furthermore an accelerated ageing test with two ageing factors, i.e., heat and moisture was developed and performed at 140–160 °C and 0.36–0.62 MPa water vapor pressure by using a sealed pressure-proof stainless steel vessel (autoclave). The bending strength of the sample decreased from 1107 to 319 MPa at 160 °C and 0.63 MPa water vapor pressure in 9 days. Degraded samples were analyzed by DMA. The degree of degradation for samples was analyzed by DMA. CFRP and degraded CFRP samples were analyzed by using a surface and interfacial cutting analysis system (SAICAS) and an electron probe micro-analyzer (EPMA) equipped in a scanning electron microscope. View Full-Text
Keywords: carbon fiber reinforced plastics (CFRP); accelerated ageing test; dynamic mechanical analysis (DMA); electron probe micro-analysis (EPMA); surface and interfacial cutting analysis system (SAICAS) carbon fiber reinforced plastics (CFRP); accelerated ageing test; dynamic mechanical analysis (DMA); electron probe micro-analysis (EPMA); surface and interfacial cutting analysis system (SAICAS)
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Kunioka, M.; Shimada, T.; Hagihara, H.; Funabashi, M.; Suda, H.; Horizono, H. Quick Preparation of Moisture-Saturated Carbon Fiber-Reinforced Plastics and Their Accelerated Ageing Tests Using Heat and Moisture. Polymers 2016, 8, 242.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
