Polymers 2011, 3(1), 388-404; doi:10.3390/polym3010388
Article

The Effect of Polyterpenol Thin Film Surfaces on Bacterial Viability and Adhesion

1 Electronic Materials Research Lab, School of Engineering and Physical Sciences, James Cook University, Townsville QLD 4811, Australia 2 Faculty of Life and Social Sciences, Swinburne University of Technology, P.O. Box 218, Hawthorn, Victoria 3122, Australia
* Author to whom correspondence should be addressed.
Received: 20 November 2010; in revised form: 23 December 2010 / Accepted: 25 January 2011 / Published: 28 January 2011
PDF Full-text Download PDF Full-Text [646 KB, uploaded 28 January 2011 10:36 CET]

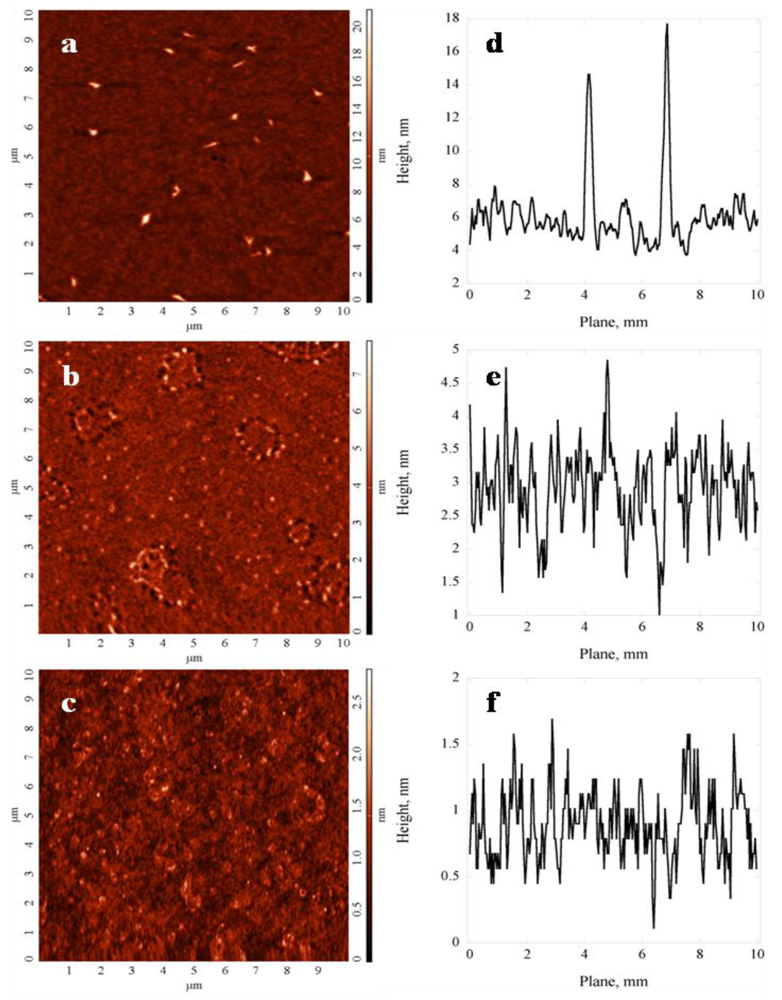

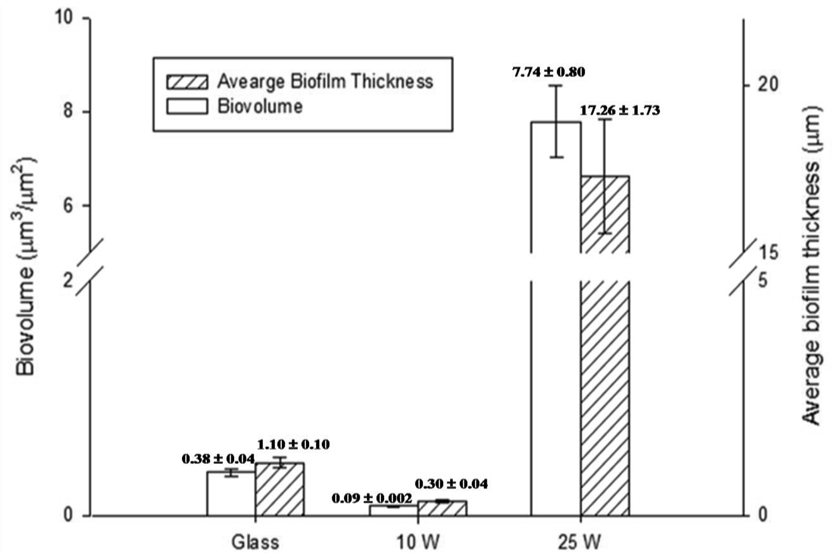

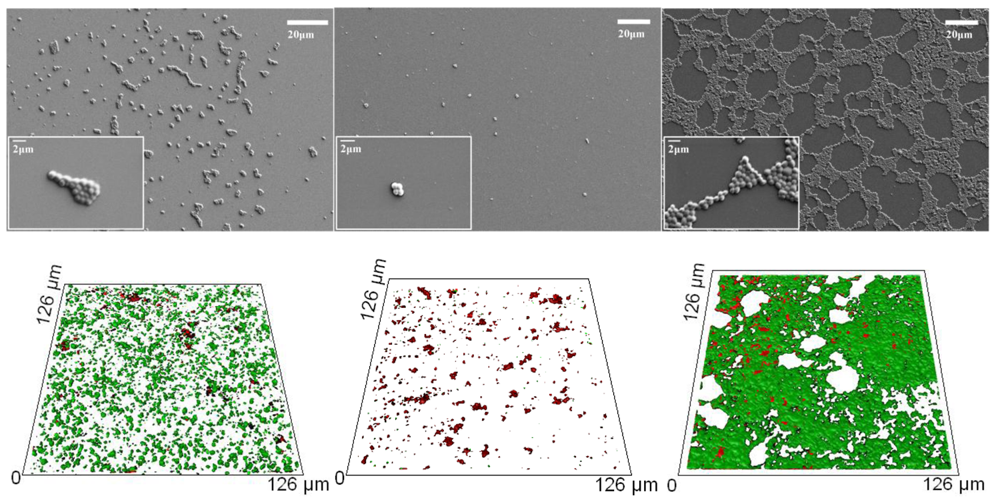

Abstract: The nanometer scale surface topography of a solid substrate is known to influence the extent of bacterial attachment and their subsequent proliferation to form biofilms. As an extension of our previous work on the development of a novel organic polymer coating for the prevention of growth of medically significant bacteria on three-dimensional solid surfaces, this study examines the effect of surface coating on the adhesion and proliferation tendencies of Staphylococcus aureus and compares to those previously investigated tendencies of Pseudomonas aeruginosa on similar coatings. Radio frequency plasma enhanced chemical vapor deposition was used to coat the surface of the substrate with thin film of terpinen-4-ol, a constituent of tea-tree oil known to inhibit the growth of a broad range of bacteria. The presence of the coating decreased the substrate surface roughness from approximately 2.1 nm to 0.4 nm. Similar to P. aeruginosa, S. aureus presented notably different patterns of attachment in response to the presence of the surface film, where the amount of attachment, extracellular polymeric substance production, and cell proliferation on the coated surface was found to be greatly reduced compared to that obtained on the unmodified surface. This work suggests that the antimicrobial and antifouling coating used in this study could be effectively integrated into medical and other clinically relevant devices to prevent bacterial growth and to minimize bacteria-associated adverse host responses.
Keywords: nanoarchitecture; plasma polymerization; terpinen-4-ol

Article Statistics

Load and display the download statistics.

Citations to this Article

Cite This Article

MDPI and ACS Style

Bazaka, K.; Jacob, M.V.; Truong, V.K.; Crawford, R.J.; Ivanova, E.P. The Effect of Polyterpenol Thin Film Surfaces on Bacterial Viability and Adhesion. Polymers 2011, 3, 388-404.

AMA Style

Bazaka K, Jacob MV, Truong VK, Crawford RJ, Ivanova EP. The Effect of Polyterpenol Thin Film Surfaces on Bacterial Viability and Adhesion. Polymers. 2011; 3(1):388-404.

Chicago/Turabian Style

Bazaka, Kateryna; Jacob, Mohan V.; Truong, Vi Khanh; Crawford, Russell J.; Ivanova, Elena P. 2011. "The Effect of Polyterpenol Thin Film Surfaces on Bacterial Viability and Adhesion." Polymers 3, no. 1: 388-404.

Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
