Effect of the Surface Functionalization of Graphene and MWCNT on the Thermodynamic, Mechanical and Electrical Properties of the Graphene/MWCNT-PVDF Nanocomposites

by
Mamdouh A. Al-Harthi
1,* and
Manwar Hussain
2,*
1
Department of Chemical Engineering, King Fahd University of Petroleum and Minerals, Dhahran 31261, Saudi Arabia
2
Department of Materials and Chemical Engineering, Erica Campus, Hanyang University, Ansan 15588, Korea
*
Authors to whom correspondence should be addressed.
Polymers 2022, 14(15), 2976; https://doi.org/10.3390/polym14152976
Submission received: 14 April 2022 / Revised: 3 May 2022 / Accepted: 20 July 2022 / Published: 22 July 2022
(This article belongs to the Special Issue Polymer Composite Analysis and Characterization)
Browse Figures
Review Reports Versions Notes

Abstract

:
The nanocomposites of poly(vinylidene fluoride) (PVDF) with pristine graphene nanoflakes (GNF) and a multi-wall carbon nanotube (MWCNT) were prepared by the solution casting method. Additionally, the GNF and MWCNT were functionalized by acid treatment, and nanocomposites of the acid-treated MWCNT/GNF and PVDF were prepared in the same method. The effect of the acid treatment of MWCNT and GNF on the mechanical, thermal and thermo-oxidative stability and the thermal conductivity of the MWCNT/GNF-PVDF nanocomposites was evaluated, and the results were compared with the untreated MWCNT/GNF-PVDF nanocomposites. In both cases, the amount of GNF and MWCNT was varied to observe and compare their thermal and mechanical properties. The functionalization of the GNF or MWCNT resulted in the change in the crystallization and melting behavior of the nanocomposites, as confirmed by the differential scanning calorimetry analysis. The addition of the functionalized GNF/MWCNT led to the improved thermal stability of the PVDF nanocomposites compared to that of the non-functionalized GNF/MWCNT-PVDF nanocomposites. The thermal and electrical conductivity of the functionalized and non-functionalized GNF/MWCNT-PVDF composites were also measured and compared. The functional groups, crystal structure, microstructure and morphology of the nanocomposites were characterized by Fourier transformed infrared spectroscopy (FTIR), X-ray diffraction (XRD) and scanning electron microscopy (SEM), respectively.

1. Introduction

The addition of various non-functionalized and functionalized fillers to fabricate polymer nanocomposites is a relatively new concept to improve the physical, mechanical and thermal properties of the polymer. The fabrication of polymer nanocomposites using rigid fillers such as SiO2, TiO2, carbon black and carbon nanotubes (CNTs) has drawn much attention in recent years because the composites show significantly improved mechanical, thermal, structural and electrical properties compared to those of the pristine material due to the dispersion of inorganic nanoparticles into a polymeric matrix giving rise to a hybrid inorganic–organic system where a number of different interactions are established, which strongly affect the physicochemical properties of the host matrix [1,2,3,4,5,6,7]. Recently, graphene has attracted much interest owing to its excellent thermal and electrical properties and vast application prospects.
Poly(vinyl difluoride) (PVDF) has been extensively utilized in different research and application areas because of its excellent stability, high-temperature tolerance and oxidation resistance/stability [8,9]. Moreover, PVDF shows excellent melt-mixing processibility to prepare various composites and thin membranes. Moreover, PVDF is soluble in many solvents such as dimethyl formamide (DMF) and N-methyl-2-pyrrolidone (NMP), which facilitates the preparation of filler-dispersed nanocomposites by the solution casting method.
To achieve the improved properties of polymeric materials by dispersing CNT or graphene, a significant surface/interface interaction between the fillers and the matrix is essential. However, such strong interfacial bonding between the dispersed nanomaterials is extremely difficult to achieve in the absence of functional groups on their surfaces. Furthermore, owing to the large surface-to-volume ratio and strong Van der Waals interactions, the nanoparticles agglomerate in the polymer matrix. Therefore, the interfacial adhesion between the nanoparticles and the polymeric matrix needs to be optimized. To increase the interfacial adhesion between the polymer and nanofillers, the surface modification of the nanofillers (CNTs or graphene) has been explored. The noncovalent functionalization, which primarily involves Van der Waals force, does not affect the structure of the nanotubes [10]. In contrast, the covalent interaction greatly enhances the nanofiller dispersibility in the polymer matrix owing to the defects on the nanotubes’ surface. The most common approach for the covalent functionalization is the treatment with various inorganic acids using high-power sonication [11]. These oxidative treatments usually result in the formation of various surface functional reactive groups, such as hydroxyl, carbonyl and carboxylic acid [12]. Presently, many researchers explore chemical oxidation by acid treatment to improve the interfacial bonding between CNT and Graphene [13,14,15,16]. The functionalization of CNT or graphene with carboxyl (–COOH), hydroxyl (–OH) and carbonyl groups (–C=0) is generally performed using sulfuric and nitric acid [17,18]. Shanmugharaj et al. reported the presence of –COOH, –OH and –C=O functional groups by using potassium dichromate with H2SO4 [19].
In our previous work, we studied the thermo-mechanical dynamic properties of unmodified CNT and graphene-dispersed PVDF and evaluated and compared their properties. In the present work, we modified the multiwall carbon nanotube (MWCNT) and graphene nanoflakes (GNF), introducing surface functional carboxylic groups by acid treatment and then dispersing them in the PVDF polymer matrix. We studied the dynamic, mechanical, and thermal properties primarily to evaluate the thermo-oxidative stability of the PVDF composites. Further, we compared the results obtained with functionalized and non-functionalized MWCNT/GNF-PVDF nanocomposites.

2. Materials

PVDF (MW~530,000 g/mol) and N, N-Dimethylformamide (DMF) were purchased from Sigma Aldrich and used without any further purification. GNF and MWCNT were purchased from Grafen Chemical Industries, Turkey and Nanocyl, Belgium, respectively, and used without any further treatment and after acid treatment in different reactions. Figure 1 shows the TEM images of MWCNT and graphene before acid treatment.

3. Experimental

3.1. Acid Treatment of MWCNT and GNF

The acid treatments of MWCNT and GNF were performed separately. Pristine MWCNT/GNF (2 g) was added to a mixture of sulfuric and nitric acid (3:2 v/v ratio). The beaker containing the resulting mixture was then sealed and stirred for 24 h at 60 °C. After 24 h, the mixture containing MWCNT/GNF was filtered using filter papers and washed thoroughly with deionized water until the pH of the mixture was 7. The filtered MWCNT/GNF was then washed with acetone to remove the impurities of nanotube sidewalls. Finally, the acid-treated MWCNT/GNF was dried at 60 °C in a vacuum oven for 24 h. A schematic of the functionalization reaction of MWCNT/GNF is shown in Figure 2.

3.2. Fabrication of GNF/MWCNT-PVDF Nanocomposites

GNF/MWCNT-PVDF nanocomposites were prepared using the solution casting method. During the preparation of the composites, a 5 wt.% of MWCNT/GNF with respect to PVDF was taken. First, the required amount of PVDF was dissolved in 50 mL of DMF (N, N-Dimethyl formamide) at 90 °C under constant stirring for 4 h. Then, the PVDF solution was mixed with a previously prepared stable dispersion of MWCNT/GNF in 40 mL DMF by ultra-sonication with an amplitude of 500 W for 10 min. The solution mixture was stirred for another 1 h using a magnetic stirrer at a rate of 400 rpm. Then, the mixture was degassed for 10 min in a vacuum oven and poured into a stainless sheet petri dish placed on a leveled flat surface. The sample was then allowed to dry at 50 °C for 3–4 days. Finally, the dried films were peeled off carefully. Figure 3 shows a schematic representation of the preparation of the nanocomposites. The nomenclatures of the prepared nanocomposites are shown in Table 1.

4. Characterization Techniques

4.1. Thermogravimetric Analysis (TGA)

TGA analysis was performed using a Thermogravimetric analyzer (SDT Q600, TA Instruments). A portion of 6 mg of the samples was heated in the temperature range of 30–850 °C at a heating rate of 10 °C/min under a nitrogen atmosphere with a purge flow of 100 mL/min.

4.2. Differential Scanning Calorimetry (DSC)

DSC analysis of the samples was performed at a heating and cooling rate of 10 °C/min in the temperature range of −80 to 250 °C under a nitrogen atmosphere using a TA instrument DSC Q1000 differential scanning calorimeter. A portion of 6 mg of the samples was used for DSC analysis. The melting and crystallization behaviors of the samples were calculated by DSC.

4.3. Dynamic Mechanical Analysis (DMA)

Discovery DMA 850, manufactured by TA Instruments, was utilized for the DMA analysis. The DMA and properties of the samples were determined in a temperature range of −80 to 130 °C using the oscillation temperature ramp with a constant frequency of 1 Hz. Rectangular samples were taken from the composite sheet with an average dimension of 17.5 mm × 13 mm × 0.6 mm for the measurements.

4.4. Thermal Conductivity Measurements

The thermal conductivity of the composites was measured using a TA Instruments Fox 50 Heat Flow Meter. Circular samples with a diameter of 2 inches were taken from the sheet for the thermal conductivity measurements.

4.5. Electrical Transport Measurements

The electrical conductivity was measured using an Ossila Four-Probe system at ambient temperature. The dimension of the samples for the electrical transport measurements was 18 mm × 13 mm × 0.5 mm (length × width × thickness). The samples were cleaned using ethanol before measurements to avoid the influence of dust on the electrical resistivity of the sample.

4.6. Fourier Transformed Infrared Spectroscopy (FT-IR)

FTIR spectra of the treated MWCNT and GNF were analyzed using a Perkin Elmer Spectrum 1000 FTIR spectrometer.

4.7. Scanning Electron Microscopy (SEM)

The surface morphology of the MWCNT/GNF-PVDF composites was analyzed by a scanning electron microscope (SEM, FEI Quanta FEG 250). The PVDF sheet samples were gold coated (10 nm) using a Quorum Q150R-S sputter coater unit for the SEM analysis.

5. Results and Discussion

Effect of Acid Treatment of MWCNT and GNF
The FTIR spectra of pristine and acid-treated MWCNT and GNF are shown in Figure 4a and Figure 4b, respectively. The carbon molecules absorb the incidental IR radiation and generate signals at the stretching and vibration frequencies of the atoms [20]. Figure 4a shows the comparative FTIR spectra of pristine MWCNT and acid-functionalized MWCNT. Peaks around 2800–3900 cm−1 are attributed to the characteristic stretching frequencies of C–H and –OH bonds, which indicate the presence of hydroxyl and carboxylic groups, respectively. The appearance of wide peaks at 3888 and 3629 cm−1 in acid-treated MWCNT indicates the presence of –OH and –COOH functional groups, respectively. Another peak at 1556 cm−1 corresponding to the C=O stretching appears after acid treatment, which indicates the presence of carboxylic groups due to the surface oxidation [21]. Similar peaks are observed in the acid-treated GNF in Figure 4b. The presence of wide peaks at 3895 and 3609 cm−1 in the acid-treated GNF is indicative of –OH and –COOH functional groups, respectively. Peaks at 650 cm−1 indicate the bending vibration of C–H bonding [22]. The narrow peak at 1665 cm−1 is attributed to the C=O stretching, which indicates the presence of carboxylic groups due to the surface oxidation.
Figure 5 shows the overlay of the FTIR spectra of all MWCNT/GNF-PVDF nanocomposites. The characteristic peak of carbonyl groups at 1736 cm−1 is observed (Figure 5) in the FTIR spectra of the nanocomposites. This peak is attributed to the C=O stretching mode of carboxylic acids [23]. The presence of the peaks in the wavenumber ranges of 2884–2978 cm−1 and 3600–3888 cm−1 in Figure 5 is due to the formation of –COOH (carboxylic acids) on the surfaces of MWCNT and GNF. Due to the oxidative treatment with strong acids, defects and smaller fragments were observed in nanotubes. Similar behavior was observed by many researchers previously [24,25,26]
The crystallinity and thermodynamic behavior of the acid-treated MWCNT/GNF-PVDF composites prepared by the solution casting method were analyzed by DSC (Figure 6). The thermodynamic properties, including the crystalline temperature (Tc), melting temperature ™, crystallinity (%) and heat of fusion (Hf), are summarized in Table 2. It is well known that the mechanical properties of semi-crystalline polymers depend on their crystallinity and internal microstructure [27].
It is evident from the DSC curves (Figure 6a,b) that the acid treatment of graphene or MWCNT affects the crystallization temperature, melting temperature and crystallinity of the nanocomposites. The crystallization onset (To) and crystallization peak of the unmodified and acid-modified MWCNT-PVDF composites were found at 140.04 °C and 141.64 °C, respectively. The melting peak shifted to 160.37 °C from 159.9 °C after the acid treatment. The crystallization peak of the acid-treated MWCNT-PVDF samples shows a crystallinity of 41.22%, which is 3–4% higher than that of the untreated MWCNT (37.18%). The introduction of MWCNT into polymeric materials leads to an increase in Tc because MWCNT acts as a nucleating agent, which promotes the faster growth of PVDF crystals [28,29]. The further increase in crystallinity for the treated MWCNT promotes nucleation efficiency by reducing the polymer mobility and converting PVDF from the thermal type to the athermal type in the nanocomposites [28]. Similarly, the To and crystallization peaks of the unmodified and acid-modified GNF-PVDF composites were found at 133.04 °C and 134.97 °C, respectively. The melting peak shifted slightly from 159.63 °C to 159.43 °C after acid treatment, indicating the reduction in polymer mobility and chain flexibility [29]. The peak crystallization temperature of the untreated GNF-PVDF sample was found to be 133.04 °C; however, it was decreased to 134.97 °C after acid treatment, which can be attributed to the decrease in entropy change during the melting process in the presence of nanofillers [30,31]. The degree of crystallinity (Xc) of the untreated GNF-PVDF film was found to be approximately 49.19%, which slightly increased to 49.79% for the acid-treated GNF-PVDF nanocomposites.
The addition of rigid fillers increases the thermal stability of a polymeric material. The improvement in the thermal stability of graphene and CNT-based nanocomposites has been reported in the literature. It has been reported that the addition of graphene/CNT increases the thermal stability of various polymers such as PMMA, PS and PVDF [32,33,34,35,36]. Figure 7a,b show the TGA and DTA analysis, respectively, of the unmodified and acid-modified GNF-PVDF composites. Figure 8a,b show the TGA and DTA graphs, respectively, of the unmodified and acid-treated MWCNT-PVDF.
The TGA curves of both the unmodified and acid-modified GNF-PVDF nanocomposites showed good thermal stability with no significant mass change up to 400 °C. The initial onset degradation (Tdegrad onset) started at approximately 458 °C and 425 °C for the unmodified GNF composites and virgin PVDF, respectively. For the modified GNF-PVDF, Tdegrad onset and the degradation peak (Tdegrad Peak) appeared at 461 °C and 476 °C, respectively. The values of the Tdegrad onset and Tdegrad Peak for the different composite samples are shown in Table 3. Figure 8a shows that the unmodified MWCNT nanocomposites exhibit the highest Tdegrad Peak at 448 °C, followed by the acid-modified MWCNT-PVDF composites at 471 °C. This might be due to the presence of inhomogeneous MWCNT in the PVDF matrix in the test sample. The amount of the nanocomposite residue after the TGA analysis increased with the addition of GNF/MWCNT and increased further for the acid-modified GNF/MWCNT-PVDF nanocomposites. Therefore, we observed an improvement in the thermal stability for both of the cases, which also results in the formation of protective layers (char formation) in the PVDF matrix during the melting process [37]. The thermal stability of the GNF-PVDF nanocomposites showed less of an improvement than that of the MWCNT-PVDF nanocomposites, which might be associated with the two-dimensional planer structure of the GNF. This might occur owing to the nano-confinement, as explained by Chen et al. [38,39].
To understand the dispersibility of MWCNT/GNF in the PVDF matrix, the thermal conductivity of the composite samples was investigated at different temperatures, and the results are displayed in Table 4. The addition of GNF or MWCNT significantly increased the thermal conductivity of the polymer matrix at room temperature. This trend is similar to the previously reported observations [40,41]. Researchers observed a significant enhancement in the thermal conductivity at a low graphene loading. The thermal conductivity of the untreated GNF composites was found to be approximately in the range of 0.17–0.19 W/mK. In contrast, the modified GNF-PVDF nanocomposites showed a thermal conductivity of 0.265 W/mK, which is approximately 45% higher than that of the unmodified GNF-PVDF nanocomposites. Similarly, the unmodified MWCNT composites showed a thermal conductivity range of 0.166–0.17 W/mK. The modified MWCNT-PVDF composites showed a thermal conductivity of 0.28 W/mK, which is 55% higher than that of the unmodified MWCNT composites. A few research groups explained the increase in the thermal conductivity of the PVDF composites after the addition of nanofillers; the nanofillers make a bridge between the PVDF spherulites and result in an enhanced heat transfer between the spherulites. As PVDF is a semi-crystalline polymer, the boundary between the amorphous regions and semi-crystalline regions shows a thermal interface resistance.
Table 5 shows the electrical conductivity of all the prepared nanocomposites. The PVDV matrix exhibited insulating behavior and did not show any electrical conductivity. However, by the addition of 5% GNF, it showed an electrical conductivity of 18.29 S/m, which was further dramatically enhanced (100%) to 35.65 S/m by the addition of modified GNF. The increase in the electrical conductivity of insulating polymers by the addition of electro-conductive GNF has been previously reported. However, a 100% improvement in the electrical conductivity by the acid modification of GNF has not been reported earlier. We believe this large enhancement occurred owing to a better dispersion of the acid-modified GNF in the PVDF matrix; the planer nature of GNF and the presence of functional groups on the GNF surfaces facilitate the jumping of ions, which can be explained by the tunneling effect. The MWCNT-PVDF composites showed an electrical conductivity of 26.82 S/m, which is significantly higher than that of pristine PVDF polymer. However, the acid-modified MWCNT-PVDF composite sample did not exhibit further enhanced electrical conductivity. This might be due to the low dispersibility of MWCNT in the PVDF matrix, defects on the MWCNT surface and the decrease in the nanotube length by the acid treatment [42].
Figure 9 shows the loss modulus of the treated and untreated MWCNT/CNF-PVDF nanocomposites prepared by the solution casting method as a function of temperature (−80 °C to +80 °C). The loss modulus of both the GNF and MWCNT-PVDF composites increased when the GNF and MWCNT were functionalized by acid treatment. The glass transition temperatures (Tg) of both the composites were clearly observed. The Tg peak was observed at approximately −40 °C and −42 °C for the untreated and treated MWCNT-PVDF composites, respectively. The GNF-PVDF composites showed higher loss modulus values compared to the MWCNT-PVDF composites. This is due to the planer shape of graphene, which can absorb the higher load during the loss modulus measurement. The Tg peak was observed at approximately −35 °C and −38 °C for the untreated and treated GNF-PVDF composites, respectively. The loss modulus peak indicates interactions between the filler and matrix. It is also associated with the changes in the internal frictions between the filler and the matrix, the molecular motions, the morphology and the dispersion of the filler in the matrix. A single and strong peak confirms good interfacial interactions and no phase separation. The decrease in the loss modulus after the peak value is attributed to the free movement of the polymer chain present in the system [43]. The beta and gamma relaxation of the untreated MWCNT-PVDF polymer composites were observed at 20 °C and 60 °C, respectively, which indicated polymer mobility even after the addition of MWCNT nanofillers. In contrast, the treated MWCNT-PVDF nanocomposites showed slightly lower beta and gamma relaxation peak values, indicating the stiffness of the composites caused by the acid treatment, which reduced the mobility of the polymer chains. The untreated and treated CNF-PVDF composites showed a significantly better result than the MWCNT-PVDF nanocomposites. The beta relaxation peak was wider and appeared at a slightly lower temperature, suggesting more flexible and toughened nanocomposites.
Dynamic mechanical analysis was carried out to determine the various dynamic mechanical properties such as the storage modulus (E’), loss modulus (E″) and damping coefficient (tan δ) of the prepared samples as a function of temperature 80 °C to +80 °C). Dynamic mechanical properties were measured to confirm the dispersibility of MWCNT/GNF and the relative interactions between the PVDF polymer and the fillers. Figure 10 shows the storage modulus of the treated and untreated MWCNT/CNF-PVDF nanocomposites.
From the figure, two phenomena were observed. Firstly, the storage moduli values of the treated MWCNT-PVDF composites were significantly higher than those of the untreated MWCNT-PVDF composites, which suggested that the functionalization of MWCNT improved the dispersity of the fillers and the polymer–filler interaction. Secondly, the storage moduli of the values of the treated and untreated GNF-PVDF composites were not significantly different. Nanocomposites prepared by the solution mixing technique generally result in the better dispersion of the nanofillers in the matrix and good interfacial bonding between the polymer and nanofillers. The storage moduli of the GNF-PVDF nanocomposites increased with the increasing GNF content because of the polymer–GNF interactions; a decrease in the polymer mobility due to the presence of GNF resulted in the increased viscoelasticity and stiffness of the composites. GNFs separate the polymer chains and hinder the polymer mobility, thus increasing the reinforcement during the load transfer, which enhances the storage modulus. The similar storage modulus of the treated and untreated GNF-PVDF nanocomposites can be explained as due to GNF’s high aspect ratio, very high specific surface area and high surface energy, which restrict the polymer mobility and better dispersion. [44]. The decrease in the storage modulus with increasing temperatures is attributed to the energy dissipation due to the cooperative motion of the polymer chains [45].
Figure 11 shows the delta T of the treated and untreated MWCNT/CNF-PVDF nanocomposites as a function of temperature. The delta T indicates the Tg of the composites. The Tg of a polymer can be changed by the addition of rigid filler particles. In the present study, the Tg of the GNF-PVDF composites changed owing to (i) the decrease in the mobility of polymer chains by the addition of GNF and (ii) the restriction of segmental motion by graphene layers [46].
The Tg of the nanocomposites primarily depends on the dispersion of the filler particles. The sharp Tg of the melt-mixing nanocomposites indicates better nanofiller dispersion and nanofiller–polymer interaction in the PVDF matrix. A sharp Tg peak was observed at a lower temperature of −38 °C, and a wider and separate gamma relation behavior was observed at a higher temperature for both the treated and untreated GNF-PVDF nanocomposites. A wide and initially low Tg was observed for the MWCNT-PVDF nanocomposites. The Tg became gradually wider with the increasing measuring temperature. At higher graphene contents, the aggregation and poor dispersion of graphene, resulting in a lower and wider Tg peak, were reported previously; however, this was not the case in our present study [47,48]. The inhomogeneous graphene distribution in the polymer matrix was also found to affect the relaxation behavior [49].
Figure 12 shows the XRD patterns of the unmodified and modified MWCNT/GNF-PVDF nanocomposites. The intensities of the XRD peaks at 2θ values of 21° and 27.5° were found to be higher for the modified GNF-PVDF nanocomposites compared to those for the unmodified nanocomposites. Further, a broadening of the peak at 2θ = 40° was observed for the MWCNT/GNF-PVDF nanocomposites. A new peak at 2θ = 56° appeared for the modified MWCNT/GNF-PVDF nanocomposites. The broadening of the graphite peak suggests a decrease in the crystallite size of graphite after the oxidation, whereas an increase in the intensity of the graphite peak for the oxidized samples confirms an increase in the graphite component in the samples due to the dissolution of amorphous carbon in acids [50].
The XRD peaks at 2θ = 21 and 27.5° and the broadening of the peak at 2θ = 40° can be observed in both the unmodified and modified MWCNT-PVDF composites (Figure 13). A new peak at 12° was observed. The treatment of CNT with acids leads to the dissolution of weakly condensed carbon and the partial removal of the CNT growth catalyst from the cavities of nanotubes. Tsang et al. reported that the acid treatment resulted in the opening of the CNT edges [51].
Microstructural analysis of the nanocomposites was carried out using SEM. In the SEM images (Figure 14), MWCNT and GNF were not visible. However, the microstructure of the PVDF molecules was observed in the SEM images. In the SEM image of the MWCNT-PVDF nanocomposites (Figure 14b), PVDF molecules were found to be homogeneously dispersed. Further, a tougher bonding with a lesser number of voids indicates a toughened polymer. The SEM image of the GNF-PVDF nanocomposites (Figure 14b) shows that the PVDF molecules are tightly bonded; however, a large number of voids are observed, which result in a wide Tg, delta T and other thermodynamic mechanical properties as compared to those of the MWCNT-PVDF nanocomposites.
The pristine PVDF shrinks after drying. However, in the case of the filler-added PVDF, the shrinkage is reduced. Because of the shrinkage, the pure PVDF sample does not exhibit good mechanical properties.

6. Conclusions

GNF- or MWCNT-dispersed PVDF nanocomposites were successfully fabricated by the solution casting method. GNF and MWCNT were treated with strong acids for surface functionalization. The thermo-mechanical properties, thermal properties and thermal conductivities of the nanocomposites were investigated, and it was found that the acid-treated GNF/MWCNT composites show better performance compared to the untreated GNF/MWCNT composites. The results were supported by DSC, TGA, DTG and XRD investigations. The thermal properties obtained from the TGA and DMA analysis confirmed the above findings and indicated that the acid treatment of GNF and MWCNT significantly improved the thermo-mechanical and thermal properties of the composites.

Author Contributions

Conceptualization: M.A.A.-H. and M.H., Methodology and analysis: M.A.A.-H., draft preparation and writing: M.H., review and editing: M.H., Supervision: M.A.A.-H., Funding: M.A.A.-H. All authors have read and agreed to the published version of the manuscript.

Funding

DROC at KFUPM Project number # DF 181002.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors express their sincere gratitude and thankful for the research support from DROC at KFUPM for supporting this research work through project number # DF 181002.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. George, S.; Varughese, K.T.; Thomas, S. Thermal and crystallisation behaviour of isotactic polypropylene/nitrile rubber blends. Polymer 2000, 41, 5485–5503. [Google Scholar] [CrossRef]
  2. Moniruzzaman, M.; Winey, K.I. Polymer Nanocomposites Containing Carbon Nanotubes. Macromolecules 2006, 39, 5194–5205. [Google Scholar] [CrossRef]
  3. Usuki, A.; Hasegawa, N.; Kato, M. Polymer-Clay Nanocomposites. Adv. Polym. Sci. 2005, 179, 135–195. [Google Scholar]
  4. Bikiaris, D.N.; Vassiliou, A.; Pavlidou, E.; Karayannidis, G.P. Compatibilisation effect of PP-g-MA copolymer on iPP/SiO2 nanocomposites prepared by melt mixing. Eur. Polym. J. 2005, 41, 1965–1978. [Google Scholar] [CrossRef]
  5. Vassiliou, A.; Papageorgiou, G.Z.; Achilias, D.S.; Bikiaris, D.N. Non-Isothermal Crystallisation Kinetics of In Situ Prepared Poly(ε-caprolactone)/Surface-Treated SiO2 Nanocomposites. Macromol. Chem. Phys. 2007, 21, 364–376. [Google Scholar] [CrossRef]
  6. Bikiaris, D.; Karavelidis, V.; Karayannidis, G.P. A New Approach to Prepare Poly(ethylene terephthalate)/Silica Nanocomposites with Increased Molecular Weight and Fully Adjustable Branching or Crosslinking by SSP. Macromol. Rapid Commun. 2006, 27, 1199–1205. [Google Scholar] [CrossRef]
  7. Bikiaris, D.N.; Papageorgiou, G.Z.; Pavlidou, E.; Vouroutzis, N.; Palatzoglou, P.; Karayannidis, G.P. Preparation by melt mixing and characterization of isotactic polypropylene/SiO2 nanocomposites containing untreated and surface-treated nanoparticles. J. Appl. Polym. Sci. 2006, 100, 2684–2696. [Google Scholar] [CrossRef]
  8. Roopaa, T.S.; Murthy, H.N.N.; Praveen Kumar, V.V.; Krishna, M. Development and Characterization of PVDF Thin Films for pressure sensors. Mater. Today Proc. 2018, 5, 21082–21090. [Google Scholar] [CrossRef]
  9. Jung, K.C.; Chang, S.H. Performance evaluation of smart grid fabrics comprising carbon dry fabrics and PVDF ribbon sensors for structural health monitoring. Compos. Part B Eng. 2019, 163, 690–701. [Google Scholar] [CrossRef]
  10. O’Connell, M.J.; Boul, P.; Ericson, L.M.; Huffman, C.; Wang, Y.; Haroz, E.; Kuper, C.; Tour, J.; Ausman, K.D.; Smalley, R.E. Reversible water-solubilization of single-walled carbon nanotubes by polymer wrapping. Chem. Phys. Lett. 2001, 342, 265–271. [Google Scholar] [CrossRef]
  11. Viswanathan, G.; Chakrapani, N.; Yang, H.; Wei, B.; Chung, H.; Cho, K.; Ryu, C.Y.; Ajayan, P.M. Single-Step in Situ Synthesis of Polymer-Grafted Single-Wall Nanotube Composites. J. Am. Chem. Soc. 2003, 125, 9258–9259. [Google Scholar] [CrossRef] [Green Version]
  12. Saito, T.; Matsushige, K.; Tanaka, K. Chemical treatment and modification of multi-walled carbon nanotubes. Phys. B 2002, 323, 280–283. [Google Scholar] [CrossRef]
  13. Wang, J.J.; Yin, G.P.; Zhang, J.; Wang, Z.B.; Gao, Y.Z. High utilization platinum deposition on single-walled carbon nanotubes as catalysts for direct methanol fuel cell. Elect. Acta 2007, 52, 7042–7050. [Google Scholar] [CrossRef]
  14. Xia, W.; Wang, Y.; Bergstranger, R.; Kundu, S.; Muhler, M. Surface characterization of oxygen-functionalized multi-walled carbon nanotubes by high-resolution X-ray photoelectron spectroscopy and temperature-programmed desorption. Appl. Surf. Sci. 2007, 254, 247–250. [Google Scholar] [CrossRef]
  15. Xie, X.I.; Mai, Y.W.; Zhou, X.P. Dispersion and alignment of carbon nanotubes in polymer matrix: A review. Mat. Sci. Eng. 2005, 49, 89–112. [Google Scholar] [CrossRef]
  16. Choi, J.Y.; Han, S.W.; Huh, W.S.; Tan, L.S.; Baek, J.B. In Situ grafting of carboxylic acid-terminated hyperbranched poly(ether-ketone) to the surface of carbon nanotubes. Polymer 2007, 48, 4034–4040. [Google Scholar] [CrossRef]
  17. Shen, J.; Huang, W.; Wu, I.; Hu, Y.; Ye, M. Study on amino-functionalized multiwalled carbon nanotubes. Mater. Sci. Eng. 2007, 464, 151–156. [Google Scholar] [CrossRef]
  18. Kitano, H.; Tachimoto, K.; Anraku, Y.J. Functionalization of Single-walled Carbon Nanotube by the Covalent Modification with Polymer Chains. J. Colloid Interface Sci. 2007, 306, 28–33. [Google Scholar] [CrossRef] [PubMed]
  19. Shanmugharaj, A.M.; Bae, J.H.; Lee, K.Y.; Noh, W.H.; Lee, S.H.; Ryu, S.H. Physical and chemical characteristics of multiwalled carbon nanotubes functionalized with aminosilane and its influence on the properties of natural rubber composites. Compos. Sci. Technol. 2007, 67, 1813–1822. [Google Scholar] [CrossRef]
  20. Loiseau, A. Lecture Note in Physics; Springer: Berlin/Heidelberg, Germany, 2006; Volume 677. [Google Scholar] [CrossRef]
  21. Socrates, G. Infrared Characteristic Group Frequencies: Table and Charts, 2nd ed.; John Wiley & Sons: Chichester, UK, 1994. [Google Scholar]
  22. Osorio, A.G.; Silveria, I.C.L.; Bueno, V.L.; Bergmann, C.P. H2SO4/HNO3/HCl—Functionalization and its effect on dispersion of carbon nanotubes in aqueous media. Appl. Surface Sci. 2008, 255, 2485–2489. [Google Scholar] [CrossRef]
  23. Chen, J.; Hamon, M.A.; Hu, H.; Chen, Y.; Rao, A.M.; Eklund, P.C.; Haddon, R.C. Solution Properties of Single-Walled Carbon Nanotubes. Science 1998, 282, 95–98. [Google Scholar] [CrossRef] [PubMed]
  24. Goyanes, S.; Rubiolo, G.R.; Salazar, A.; Jimeno, A.; Corcuera, M.A.; Mondragon, I. Carboxylation treatment of multiwalled carbon nanotubes monitored by infrared and ultraviolet spectroscopies and scanning probe microscopy. Diam. Relat. Mater. 2007, 16, 412–417. [Google Scholar] [CrossRef]
  25. Zeiglar, K.J.; Gu, Z.; Peng, H.; Flor, E.L.; Hauge, R.H.; Smalley, R.E. Controlled Oxidative Cutting of Single-Walled Carbon Nanotubes. J. Am. Chem. Soc. 2005, 127, 1541–1547. [Google Scholar]
  26. Zhang, J.; Zou, H.; Quing, Q.; Yang, Y.; Li, Q.; Liu, Z. Effect of Chemical Oxidation on the Structure of Single-Walled Carbon Nanotubes. J. Phys. Chem. B 2003, 107, 3712–3718. [Google Scholar] [CrossRef]
  27. Coleman, J.N.; Cadek, M.; Blake, R.; Nicolosi, V.; Rayan, K.P.; Belton, C.; Fonceca, A.; Nagy, J.B.; Gun’ko, Y.K.; Balu, W.J. High Performance Nanotube-Reinforced Plastics: Understanding the Mechanism of Strength Increase. Adv. Func. Mater. 2004, 14, 791–798. [Google Scholar] [CrossRef]
  28. Wunderlich, B. Macromolecular Physics, Crystal Nucleation Growth Annealing; Academic Press: New York, NY, USA, 1976; Volume 2. [Google Scholar]
  29. Chiu, F.C.; Peng, C.G. The atactic polystyrene molecular weight effect on the thermal properties and crystal structure of syndiotactic PS/atactic PS blends. Polymer 2002, 43, 4879–4886. [Google Scholar] [CrossRef]
  30. Chiu, F.C.; Huang, L.N. Phase morphology and enhanced thermal/mechanical properties of polyamide 46/graphene oxide nanocomposites. Polym. Test. 2021, 31, 953–962. [Google Scholar] [CrossRef]
  31. Chiu, F.C.; Lee, C.E.; Lo, C.T. Fabrication and comparison of PP (blend)-based (nano)composites—Effect of PP matrix flow property. Mater. Chem. Phys. 2013, 139, 580–589. [Google Scholar] [CrossRef]
  32. Papageorgiou, G.Z.; Achilias, D.S.; Bikiaris, D.N.; Karayannidis, G.P. Crystallization kinetics and nucleation activity of filler in polypropylene/surface-treated SiO2 nanocomposites. Thermochim. Acta 2005, 427, 117–128. [Google Scholar] [CrossRef]
  33. Vassiliou, A.; Bikiaris, D.; Chrissafis, K.; Paraskevopoulos, K.M.; Stavrev, S.Y.; Docoslis, A. Nanocomposites of isotactic polypropylene with carbon nanoparticles exhibiting enhanced stiffness, thermal stability and gas barrier properties. Compos. Sci. Technol. 2008, 68, 933–943. [Google Scholar] [CrossRef] [Green Version]
  34. Layek, R.K.; Saamta, S.; Chatterjee, D.P.; Nandi, A.K. Physical and mechanical properties of poly(methyl methacrylate)-functionalized graphene/poly(vinylidine fluoride) nanocomposites: Piezoelectric β polymorph formation. Polymer 2010, 51, 5846–5856. [Google Scholar] [CrossRef]
  35. Chen, K.; Susner, M.A.; Vyazovkin, S. Effect of the brush structure on the degradation mechanism of polystyrene–clay nanocomposites. Macromol. Rapid Commun. 2005, 26, 690–695. [Google Scholar] [CrossRef]
  36. Chen, K.; Wilkie, C.A.; Vyazovkin, S. Nano confinement revealed in degradation and relaxation studies of two structurally different polystyrenes–clay systems. J. Phys. Chem. B 2007, 111, 12685–12692. [Google Scholar] [CrossRef] [PubMed]
  37. Chiu, F.C. Comparisons of phase morphology and physical properties of PVDF nanocomposites filled with organoclay and/or multi-walled carbon nanotubes. Mater. Chem. Phys. 2014, 143, 681–692. [Google Scholar] [CrossRef]
  38. Patole, A.S.; Patole, S.P.; Kang, H.; Yoo, J.B.; Kim, T.H.; Ahn, J.H.J. A facile approach to the fabrication of graphene/polystyrene nanocomposite by In Situ microemulsion polymerization. J. Colloid Interface Sci. 2010, 350, 530–537. [Google Scholar] [CrossRef]
  39. Ramanathan, T.; Abdala, A.A.; Satankovich, S.; Dikin, D.A.; Herreea-Alonso, M.; Piner, R.D.; Adamson, D.H. Functionalized graphene sheets for polymer nanocomposites. Nat. Nanotechnol. 2008, 3, 327–331. [Google Scholar] [CrossRef]
  40. Zhang, F.; Li, Q.; Liu, Y.; Zhang, S.; Wu, C.; Guo, W. Improved thermal conductivity of polycarbonate composites filled with hybrid exfoliated graphite/multi-walled carbon nanotube fillers. J. Therm. Anal. Calorim. 2016, 123, 431–437. [Google Scholar] [CrossRef]
  41. Yu, J.; Huang, X.; Wu, C.; Jiang, P. Permittivity, Thermal Conductivity and Thermal Stability of Poly(vinylidene fluoride)/Graphene Nanocomposites. IEEE Trans. Dielectr. Electr. Insul. 2011, 18, 478–484. [Google Scholar]
  42. Kim, S.; Lee, Y.-I.; Kim, D.-H.; Lee, K.-J.; Kim, B.-S.; Hussain, M.; Choa, Y.-H. Estimation of dispersion stability of UV/ozone treated multi-walled carbon nanotubes and their electrical properties. Carbon 2013, 51, 346–354. [Google Scholar] [CrossRef]
  43. Jyoti, J.; Babal, A.S.; Sharma, S.; Dhakate, S.R.; Singh, B.P. Significant improvement in static and dynamic mechanical properties of graphene oxide–carbon nanotube acrylonitrile butadiene styrene hybrid composites. J. Mater. Sci. 2018, 53, 2520–2536. [Google Scholar] [CrossRef]
  44. Achaby, M.E.; Arrakhiz, F.Z.; Vaudreuil, S.; Easassi, E.M.; Qaiss, A.; Bousmina, M. Preperation and chracteriztion of melt-blending graphene nanosheets-PVDF nanocomposites with enhanced properties. J. Appl. Polm. Sci. 2013, 6, 4697–4707. [Google Scholar] [CrossRef]
  45. Her, S.C.; Lin, K.U. Dynamic mechanical analysis of carbon nanotube reinforced nanocomposites. J. Appl. Biomater. Funct. Mater. 2017, 15, S13–S18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Tang, L.C.; Wan, Y.J.; Yan, D.; Pei, Y.B.; Zhao, L.; Li, B.Y.; Wu, L.B.; Jiang, J.X.; Lai, G.Q. The effect of graphene dispersion on the mechanical properties of graphene/epoxy composites. Carbon 2013, 60, 16–27. [Google Scholar] [CrossRef]
  47. Monti, M.; Rallini, M.; Puglia, D. Morphology and electrical properties of graphene–epoxy nanocomposites obtained by different solvent assisted processing methods. Compos. Part A 2013, 46, 166–172. [Google Scholar] [CrossRef]
  48. Wang, J.; Jin, Y.; Wang, C.; Wang, Y.; Han, Z. Electrical conductivity, dielectric permittivity and dynamic mechanical properties of graphene/epoxy nanocomposites. Dig. J. Nanomater. Biostruct. 2018, 13, 959–967. [Google Scholar]
  49. Elimat, Z.M. AC-impedance and dielectric properties of hybrid polymer composites. J. Compos. Mater. 2015, 49, 3–15. [Google Scholar] [CrossRef]
  50. Ismagilov, Z.R.; Yashnik, S.A.; Shikina, N.V.; Matus, E.V.; Efimova, O.S.; Popova, A.N.; Nikitin, A.P. Effect of Acid Treatment on the Functionalization of Surface, Structural and Textural Properties of Carbon Nanotubes Taunit. Eurasian Chem.-Technol. J. 2019, 21, 291–302. [Google Scholar] [CrossRef] [Green Version]
  51. Tsang, S.C.; Chen, Y.K.; Harris, P.J.F.; Green, M.L.H. A simple chemical method of opening and filling carbon nanotubes. Nature 1994, 372, 159–162. [Google Scholar] [CrossRef]
Polymers 14 02976 g001 550
Figure 1. TEM images of (a) MWCNT and (b) GNF without treatment.
Figure 1. TEM images of (a) MWCNT and (b) GNF without treatment.
Polymers 14 02976 g001
Polymers 14 02976 g002 550

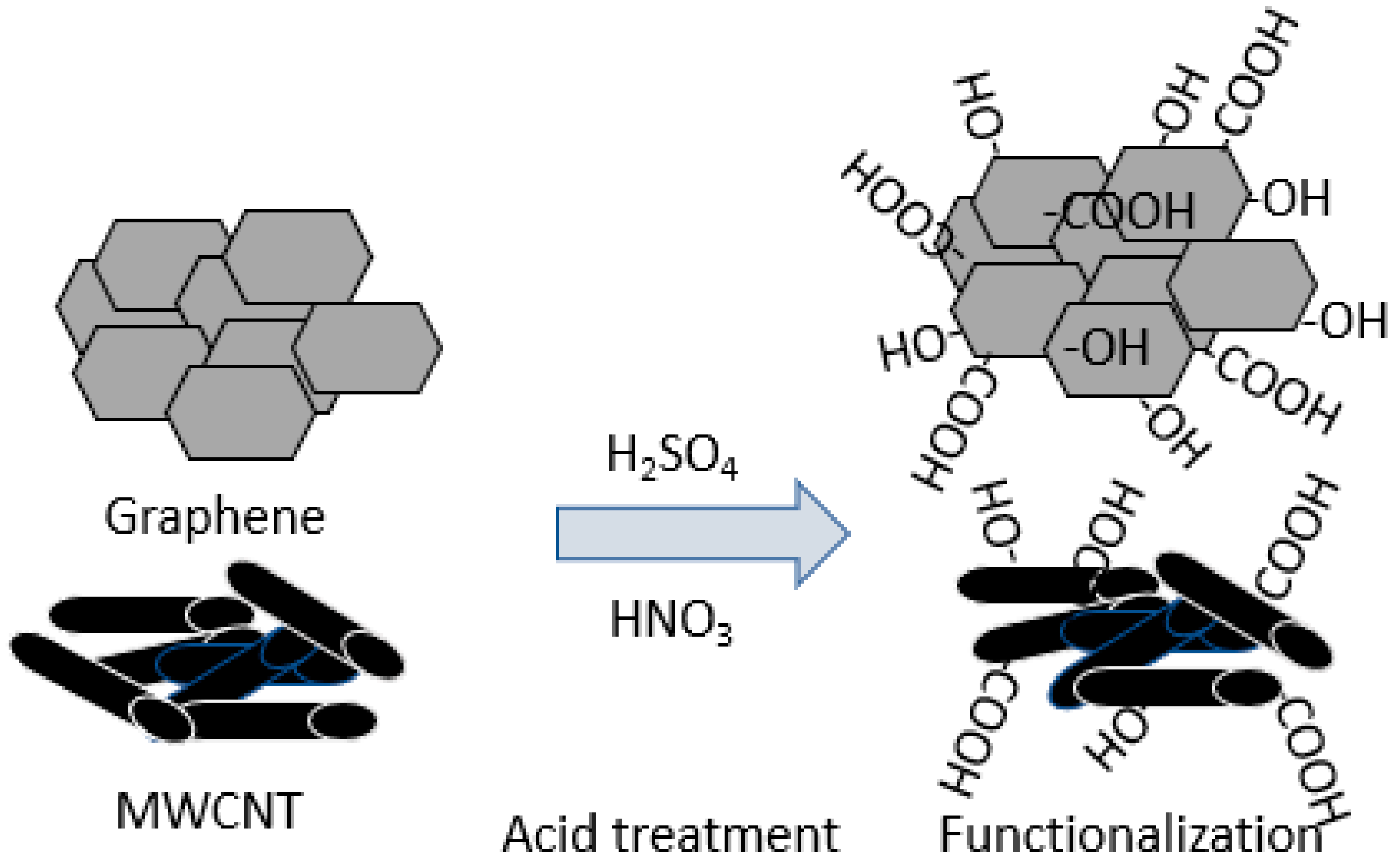

Figure 2. Schematic representation of the functionalization reaction of GNF and MWCNT.
Figure 2. Schematic representation of the functionalization reaction of GNF and MWCNT.
Polymers 14 02976 g002
Polymers 14 02976 g003 550

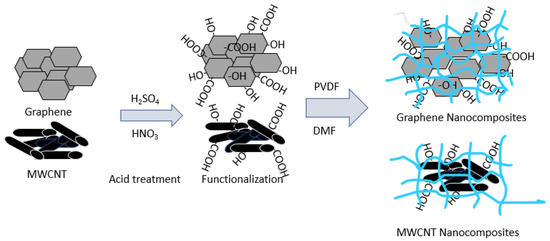

Figure 3. Schematic representation of the preparation of MWCNT/GNF-PVDF nanocomposites.
Figure 3. Schematic representation of the preparation of MWCNT/GNF-PVDF nanocomposites.
Polymers 14 02976 g003
Polymers 14 02976 g004 550
Figure 4. FTIR spectra of pristine and acid−treated (a) MWCNT and (b) GNF.
Figure 4. FTIR spectra of pristine and acid−treated (a) MWCNT and (b) GNF.
Polymers 14 02976 g004
Polymers 14 02976 g005 550

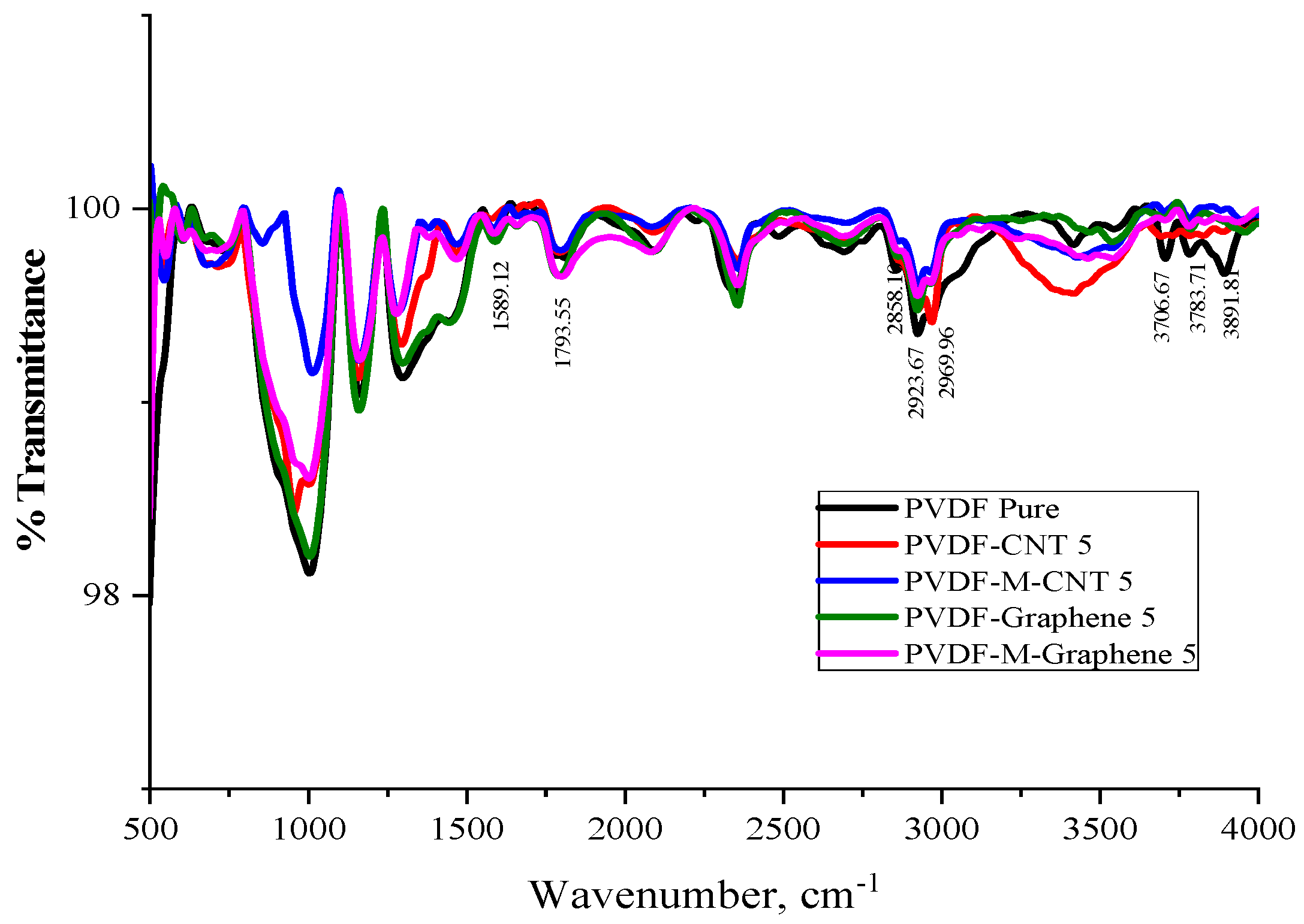

Figure 5. Overlay FTIR spectra of the acid-treated MWCNT/GNF-PVDF nanocomposites.
Figure 5. Overlay FTIR spectra of the acid-treated MWCNT/GNF-PVDF nanocomposites.
Polymers 14 02976 g005
Polymers 14 02976 g006 550

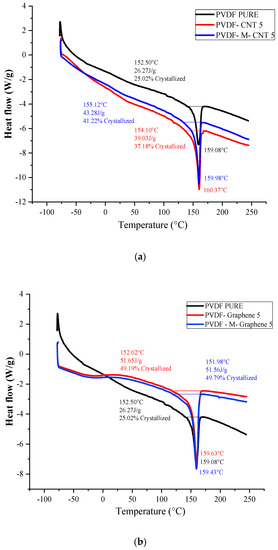

Figure 6. (a) DSC graphs of the MWCNT-PVDF and (b) GNF-PVDF nanocomposites.
Figure 6. (a) DSC graphs of the MWCNT-PVDF and (b) GNF-PVDF nanocomposites.
Polymers 14 02976 g006
Polymers 14 02976 g007 550

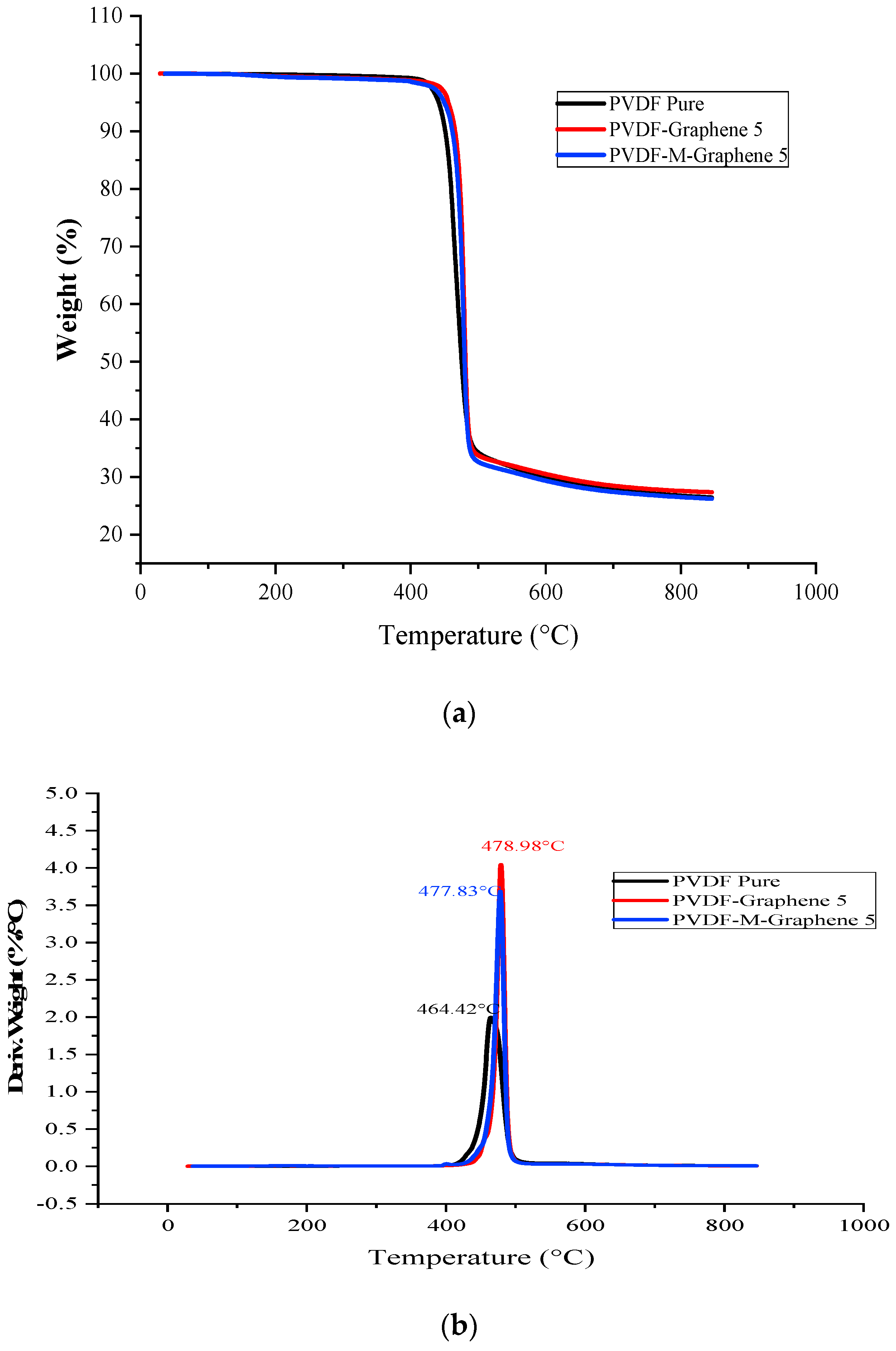

Figure 7. (a) TGA graphs and (b) DTG graphs of the GNF−PVDF nanocomposites.
Figure 7. (a) TGA graphs and (b) DTG graphs of the GNF−PVDF nanocomposites.
Polymers 14 02976 g007
Polymers 14 02976 g008 550

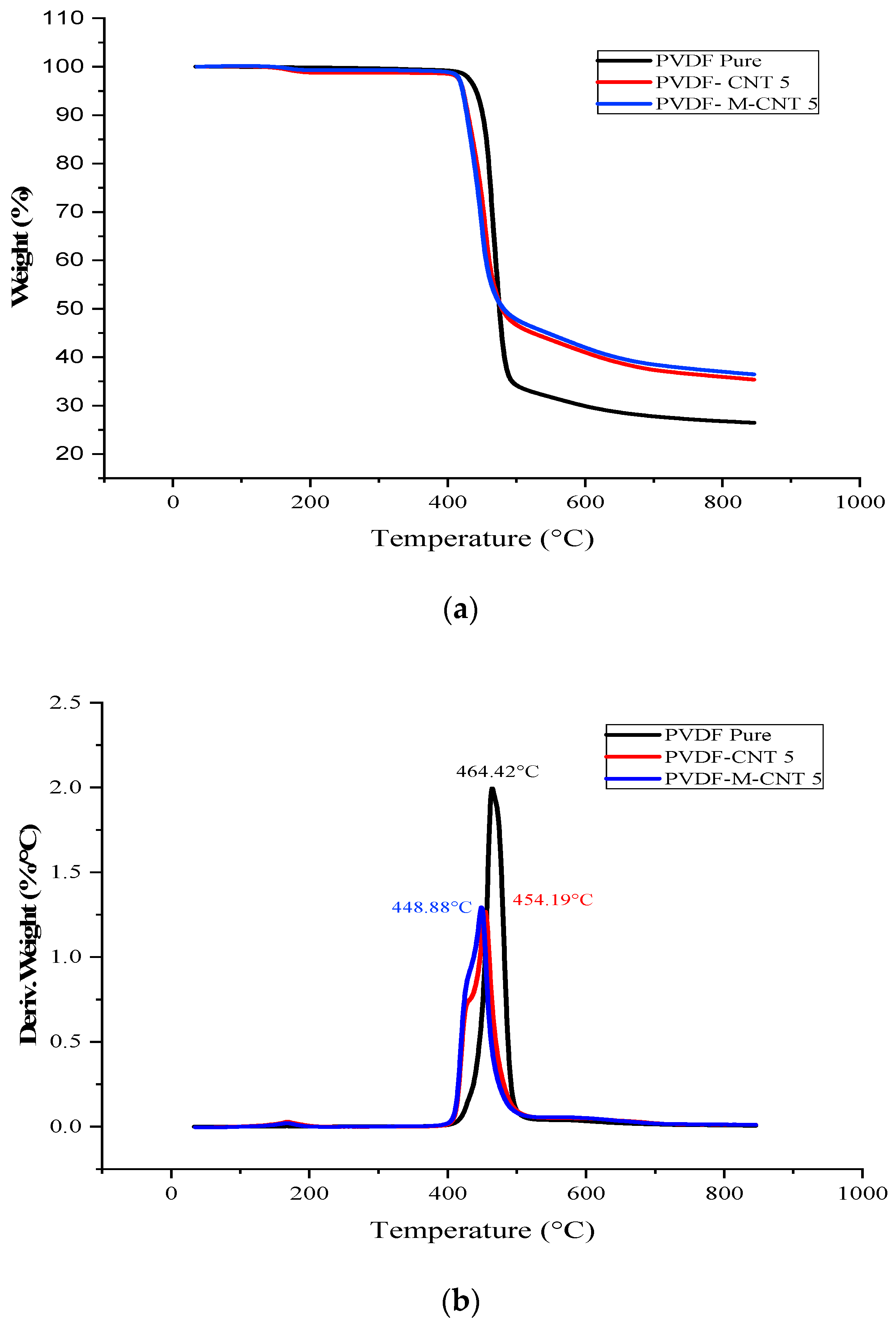

Figure 8. (a) TGA graphs and (b) DTG graphs of the MWCNT-PVDF nanocomposites.
Figure 8. (a) TGA graphs and (b) DTG graphs of the MWCNT-PVDF nanocomposites.
Polymers 14 02976 g008
Polymers 14 02976 g009 550

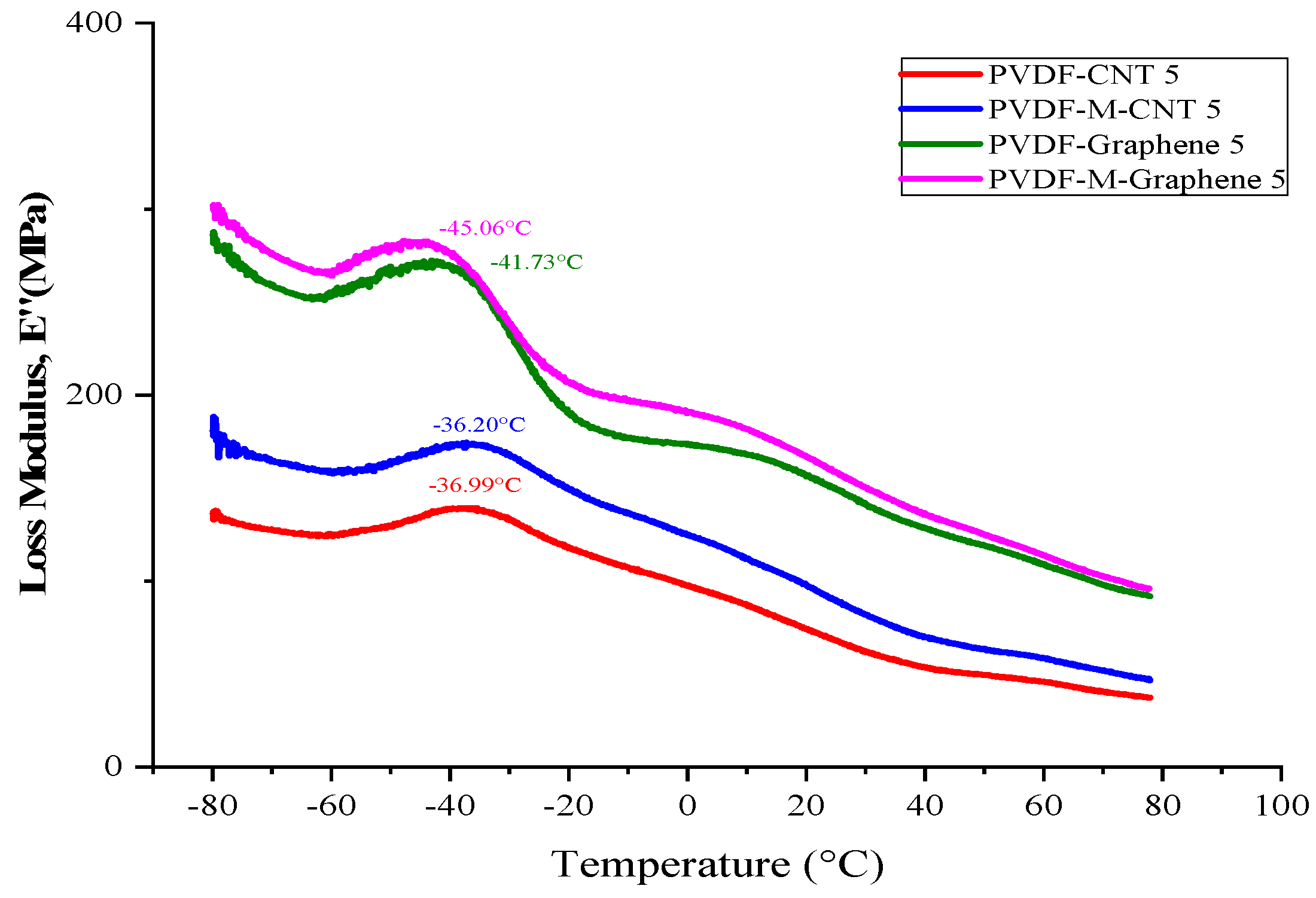

Figure 9. Loss modulus of the acid-treated and untreated MWCNT/GNF−PVDF nanocomposites.
Figure 9. Loss modulus of the acid-treated and untreated MWCNT/GNF−PVDF nanocomposites.
Polymers 14 02976 g009
Polymers 14 02976 g010 550

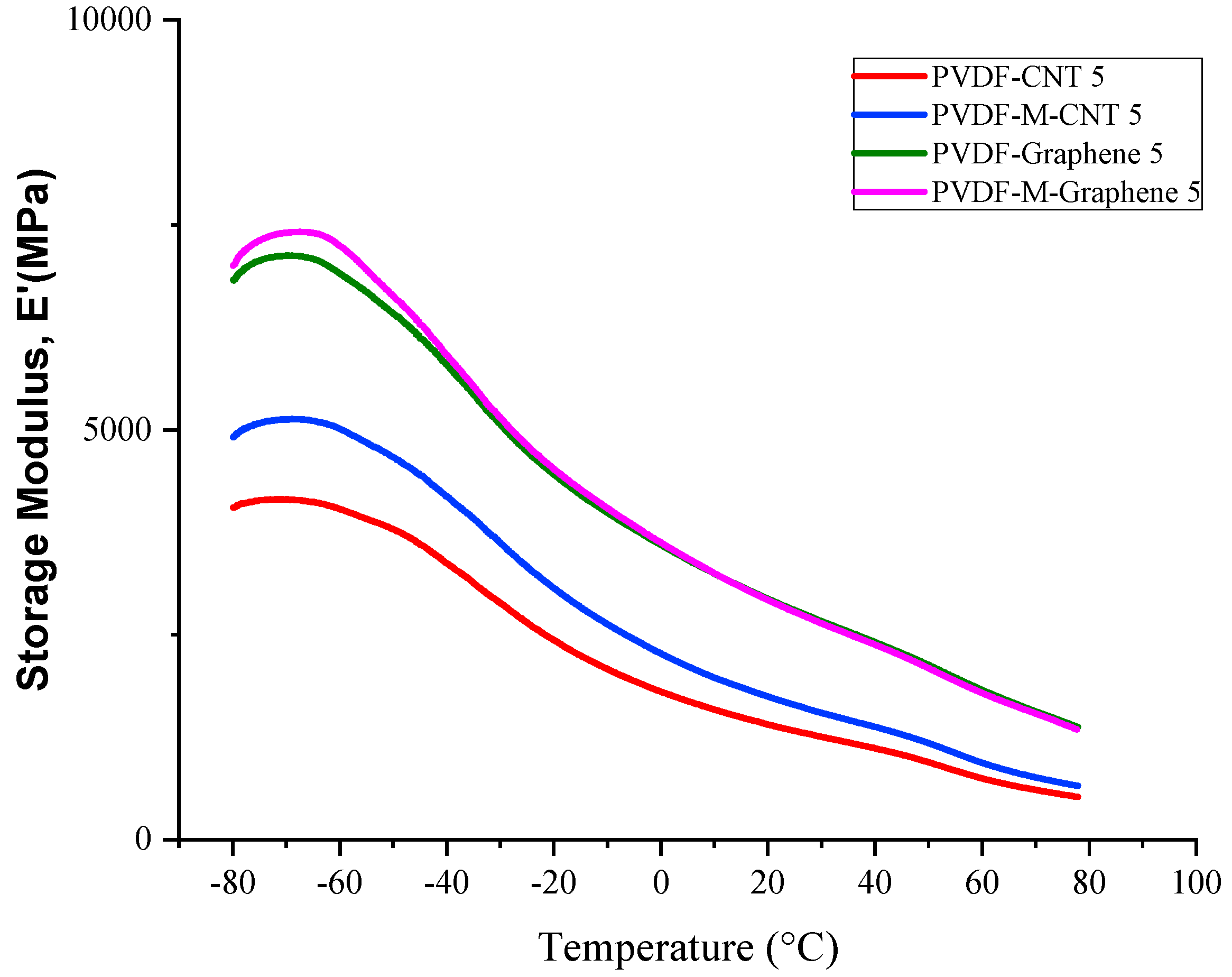

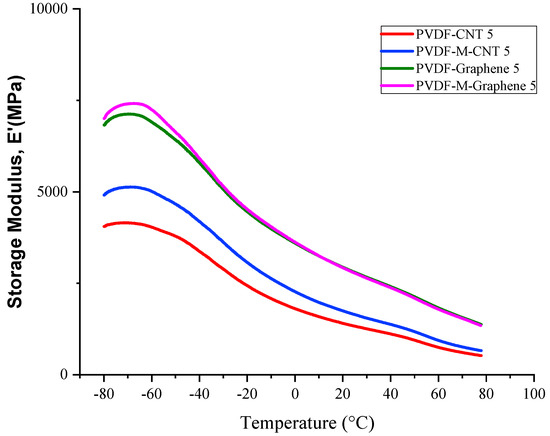

Figure 10. Storage modulus of the treated and untreated MWCNT/CNF-PVDF nanocomposites.
Figure 10. Storage modulus of the treated and untreated MWCNT/CNF-PVDF nanocomposites.
Polymers 14 02976 g010
Polymers 14 02976 g011 550

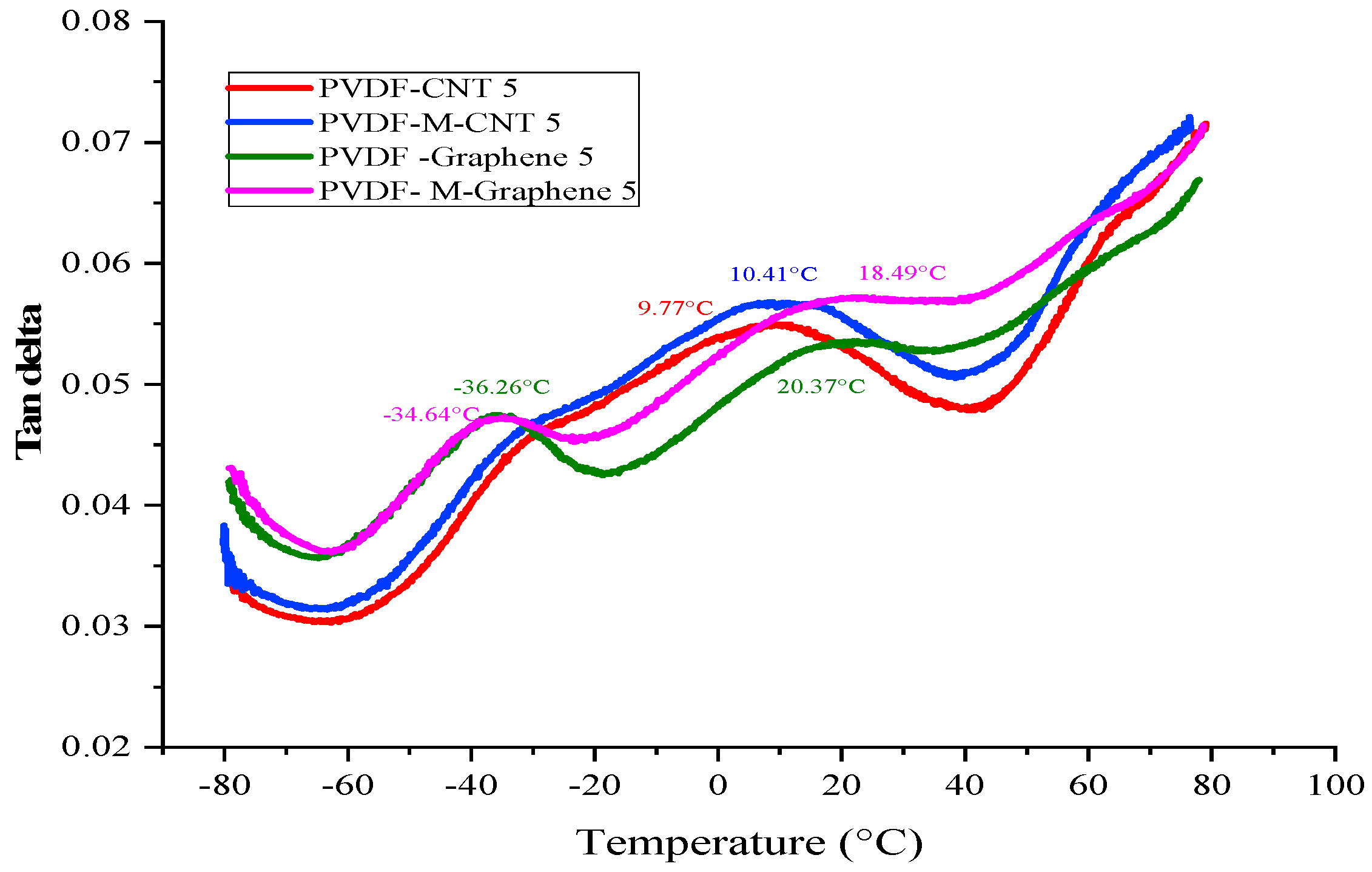

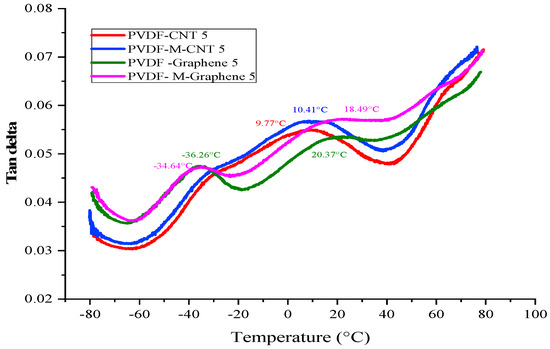

Figure 11. Delta T of the treated and untreated MWCNT/CNF-PVDF nanocomposites.
Figure 11. Delta T of the treated and untreated MWCNT/CNF-PVDF nanocomposites.
Polymers 14 02976 g011
Polymers 14 02976 g012 550

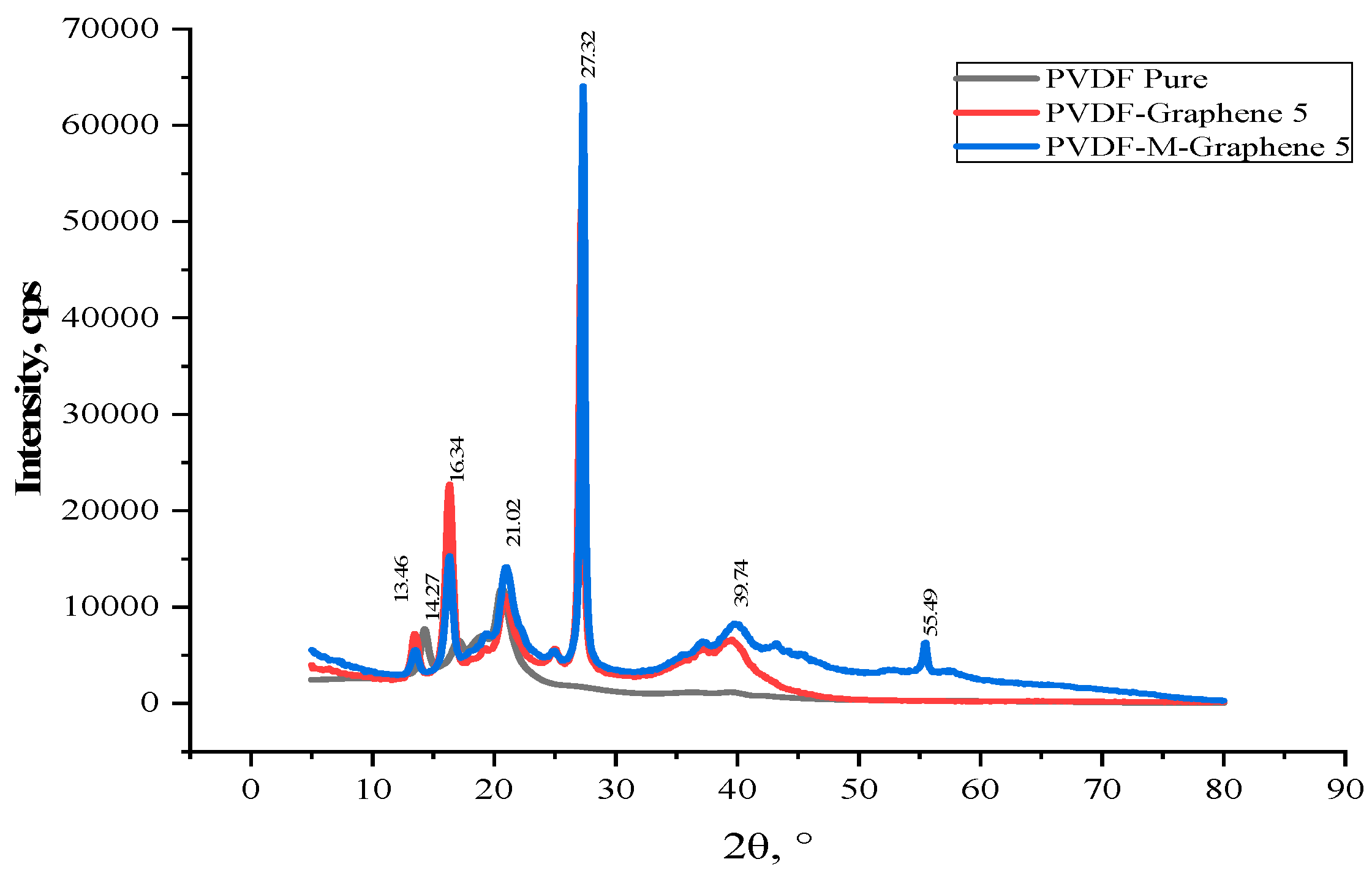

Figure 12. XRD patterns of PVDF and the unmodified and modified GNF-PVDF nanocomposites.
Figure 12. XRD patterns of PVDF and the unmodified and modified GNF-PVDF nanocomposites.
Polymers 14 02976 g012
Polymers 14 02976 g013 550
Figure 13. XRD patterns of PVDF and the unmodified and modified GNF-PVDF nanocomposites.
Figure 13. XRD patterns of PVDF and the unmodified and modified GNF-PVDF nanocomposites.
Polymers 14 02976 g013
Polymers 14 02976 g014 550
Figure 14. SEM images of (a) PVDF, (b) MWCNT-PVDF and (c) CNF-PVDF nanocomposites.
Figure 14. SEM images of (a) PVDF, (b) MWCNT-PVDF and (c) CNF-PVDF nanocomposites.
Polymers 14 02976 g014
Table
Table 1. Nomenclature of the prepared samples.
Table 1. Nomenclature of the prepared samples.
Sl. NoSample NameComposition
1DF-1Virgin PVDF
2DFG-5-03PVDF + 5% GNF
3DFMG-5-02PVDF + 5% acid-modified GNF
4DFCN-5-01PVDF + 5% MWCNT
5DFMCN-5-01PVDF + 5% acid-modified MWCNT
Table
Table 2. Crystallinity of the nanocomposites obtained from DSC analysis.
Table 2. Crystallinity of the nanocomposites obtained from DSC analysis.
Sl. No.Sample IDTc (°C)Tm (°C)% CrystallinityΔHf (J/g)
1.DFCN-5-01140.04159.937.1839.09
2.DFMCN-5-01141.65160.3741.2243.28
3DFG-5-03133.04159.6349.1951.65
4DFMG-5-02134.97159.4349.7952.28
Table
Table 3. Thermal degradation results of the MWCNT/GNF-PVDF nanocomposites.
Table 3. Thermal degradation results of the MWCNT/GNF-PVDF nanocomposites.
Sl. NoSample NameTdegrad onset Temp °CTdegrad Peak Temp °CResidue wt.%
1PVDF425.00484.7920
2DFG-5-03458.31471.3122
3DFMG-5-02461.00476.532
4DFCN-5-01428.0044824
5DFMCN-5-01451.0471.3129
Table
Table 4. Thermal conductivity of the prepared MWCNT/GNF-PVDF nanocomposite samples.
Table 4. Thermal conductivity of the prepared MWCNT/GNF-PVDF nanocomposite samples.
Sample IDAverage Temperature (°C)Average Conductivity (W/mK)
DFG-5-0322.50.17970.1853
32.50.18420.1894
42.50.18850.1930
DFMG-5-0222.70.25850.2561
32.50.26090.2612
42.50.26400.2654
DFCN-5-0122.50.16690.1515
32.50.17850.1595
42.50.19230.1703
DFMCN-5-0122.50.25950.2647
32.50.26940.2717
42.50.28210.2810
Table
Table 5. Electrical conductivity of the prepared MWCNT/GNF-PVDF nanocomposite samples.
Table 5. Electrical conductivity of the prepared MWCNT/GNF-PVDF nanocomposite samples.
Sl. No.Sample IDConductivity (S/m)
1.DFG-00.0
2.DFG-5-3 18.29
3.DFMG-5-235.65
4.DFCN-5-1 26.82
5.DFMCN-5-1 26.65
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Al-Harthi, M.A.; Hussain, M. Effect of the Surface Functionalization of Graphene and MWCNT on the Thermodynamic, Mechanical and Electrical Properties of the Graphene/MWCNT-PVDF Nanocomposites. Polymers 2022, 14, 2976. https://doi.org/10.3390/polym14152976

AMA Style

Al-Harthi MA, Hussain M. Effect of the Surface Functionalization of Graphene and MWCNT on the Thermodynamic, Mechanical and Electrical Properties of the Graphene/MWCNT-PVDF Nanocomposites. Polymers. 2022; 14(15):2976. https://doi.org/10.3390/polym14152976

Chicago/Turabian Style

Al-Harthi, Mamdouh A., and Manwar Hussain. 2022. "Effect of the Surface Functionalization of Graphene and MWCNT on the Thermodynamic, Mechanical and Electrical Properties of the Graphene/MWCNT-PVDF Nanocomposites" Polymers 14, no. 15: 2976. https://doi.org/10.3390/polym14152976

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
