Mesoporous Properties of Bioactive Glass Synthesized by Spray Pyrolysis with Various Polyethylene Glycol and Acid Additions

by
Tzu-Yu Peng
1,2,3,
Pei-Yun Tsai
1,2,
May-Show Chen
2,4,5,
Yuichi Mine
6,
Shan-Hua Wu
7,
Chin-Yi Chen
2,7,
Dan-Jae Lin
1 and
Chung-Kwei Lin
2,8,9,*
1
School of Dentistry, College of Dentistry, China Medical University, Taichung 404, Taiwan
2
Research Center of Digital Oral Science and Technology, College of Oral Medicine, Taipei Medical University, Taipei 110, Taiwan
3
Department of Anatomy and Functional Restorations, Graduate School of Biomedical and Health Sciences, Hiroshima University, Hiroshima 734-8553, Japan
4
School of Dentistry, College of Oral Medicine, Taipei Medical University, Taipei 110, Taiwan
5
Division of Prosthodontics, Department of Dentistry, Taipei Medical University Hospital, Taipei 110, Taiwan
6
Department of Medical System Engineering, Graduate School of Biomedical and Health Sciences, Hiroshima University, Hiroshima 734-8553, Japan
7
Department of Materials Science and Engineering, Feng Chia University, Taichung 407, Taiwan
8
School of Dental Technology, College of Oral Medicine, Taipei Medical University, Taipei 110, Taiwan
9
Additive Manufacturing Center for Mass Customization Production, National Taipei University of Technology, Taipei 106, Taiwan
*
Author to whom correspondence should be addressed.
Polymers 2021, 13(4), 618; https://doi.org/10.3390/polym13040618
Submission received: 18 January 2021 / Revised: 12 February 2021 / Accepted: 17 February 2021 / Published: 18 February 2021
(This article belongs to the Special Issue Functional Polymers: Interaction, Surface, Processing and Applications)
Browse Figures
Versions Notes

Abstract

:
Mesoporous bioactive glass (MBG) has a high specific surface area, promoting the reaction area, thereby improving the bioactivity; thus, MBG is currently gaining popularity in the biomaterial field. Spray pyrolysis (SP) is a one-pot process that has the advantages of shorter process time and better particle bioactivity, therefore, MBG was prepared by SP process with various polyethylene glycol (PEG, molecular weight ranged from 2000–12,000) and acid (HCl and CH3COOH) additions. In vitro bioactivity and mesoporous properties of the so-obtained MBG were investigated. The experimental results showed that all the MBG exhibited amorphous and mesoporous structure. Increasing the molecular weight of PEG can improve the mesoporous structure and bioactivity of MBG. Whereas optimized MBG was prepared with suitable concentration of PEG and CH3COOH. In the present work, MBG synthesized via spray pyrolysis by adding 5 g of PEG with a molecular weight of 12,000 and 50 mL of CH3COOH exhibited the best in vitro bioactivity and mesoporous structure.

Graphical Abstract

1. Introduction

Bioactive glass (BG) is commonly composed of SiO2, CaO, and P2O5 [1,2]. BG is a surface-active bioceramics, with non-toxicity, non-inflammatory, and osteogenic potential that can firmly bond with bone and induce hard and soft tissue regeneration [3,4,5]. BG is also safe and stable in the human body [6,7]; thereby, BG is widely used in clinical application in dentistry, orthopedics, and biomedical engineering, such as bone replacement, tooth repair, and drug-carrying materials [8,9,10,11].
The fabrication process of BG includes glass melting, sol-gel, and spray pyrolysis processes [12]. Glass melting process is the conventional process that requires high temperatures (1250–1400 °C) and the product may contain impurities and further result in low bioactivity of synthetic glass [13,14]. Sol-gel process is introduced to BG synthesis in 1991 [15] and became a popular alternative method because of the relatively lower heat treatment temperature (600–800 °C) compared to the glass melting processes, and ease of control of textural properties [16,17]. Nevertheless, as with conventional glass melting processes, sol-gel process is also a discontinuous process, so the product quality is relatively unstable, and the long processing time (3–7 days) makes it inappropriate for mass production [13]. Spray pyrolysis (SP) process is an emerging process used in BG synthesis. This process is a continuous one-pot processing [12] where the instability among each batch can be minimized. Using SP process, low-cost high purity BG can be prepared at lower processing temperatures (500–600 °C) in a few hours [13,18]. Thus, SP process is considered as a potential and developmental method of BG synthesis.
In order to expand the clinical application of BG, it will be beneficial to increase the reaction areas by creating porous structures so that osteoconduction and osteoinduction can be promoted for bone regeneration. Scholars introduced the idea of adding polymer surfactant, such as P-123 (EO20PO70EO20) or F-127(EO106PO70EO106), as a structural template to fabricate mesoporous bioactive glass (MBG) to increase the specific surface area of BG effectively [18,19,20]. MBG possessing hollow, porous structure, and high specific surface area not only exhibits excellent bioactivities but also serves as drugs or bioactive molecular carriers [11,21,22]. Nevertheless, both P-123 and F-127 have non-single composition and are copolymers of PPO-PEO [PEO, poly(ethylene oxide); PPO, poly(propylene oxide)] contains lipophilic and hydrophilic polymers, thus, it is difficult conducting a subtle examination of the surfactants’ physical properties [19,20]. Reports indicate that polyethylene glycol (PEG), a linear hydrophilic polymer, has been successfully applied as a surfactant for synthesizing MBG [23,24]. PEG is an amphiphile with the ability to reduce surface activity, and has properties such as non-toxicity, excellent biocompatibility, anti-protein adsorption properties, and high stability; hence, PEG has been approved for in vivo injection and has application in cosmetics, biotechnology, and medicine [25]. Moreover, PEG can urge the particle distribution to become uniform, so it is expected to improve the shortcomings of the uneven distribution of MBG particles produced by the SP process [26]. In the present study, MBG was synthesized by the SP process where PEG was added as a surfactant under different precursor solution conditions (molecular weights of PEG, and PEG or acid concentrations). The mesoporous properties of the so-obtained MBG particles were investigated.

2. Materials and Methods

2.1. MBG Particles Synthesis

The MBG particles were synthesized through spray pyrolysis (SP) process in the present study. Figure 1 shows the schematic illustration of the SP process where the precursor solution was poured into an ultrasonic humidifier (KT-100, King Ultrasonics Co., New Taipei City, Taiwan) with a frequency of 1.65 MHz. Subsequently, the atomized droplets were brought into the furnace that was set at three different temperature zones of 200, 700, and 350 °C. After undergoing solvent evaporation, solute precipitation, and precursor decomposition, the spray pyrolyzed MBG particles were collected by an electrostatic collector with a high voltage of 16 kV. The MBG particles were obtained after 12 h quiescence and desiccation.

2.2. Precursor Solution Preparation Conditions

The Si-Ca-P ternary system is the most commonly used BG component in biomedical-related fields [1,2]. Silicon (Si) is essential for metabolic processes, formation, and calcification of bone tissue [27], calcium (Ca) is favored in osteoblast proliferation [28], and phosphorus (P) is a key regulator in bone formation [29]. The measured precursor materials of SiO2–CaO–P2O5 (the molar ratio of Si: Ca: P = 80:15:5) were prepared by dissolving 7.2 mL tetraethyl orthosilicate (TEOS), 1.4 g calcium nitrate tetrahydrate (CN), and 0.68 mL triethyl phosphate (TEP) [8,30]. The precursors were dissolved in 60 g ethanol and acid (HCl or CH3COOH), and then polyethylene glycol (PEG) was added as a surfactant. Deionized water was finally added and stirred to prepare a 1000 mL precursor solution. All the medicaments used in the present study are shown in Table 1. The PEG and acid addition conditions were divided into three parts in order to evaluate the in vitro bioactivity and mesoporous properties of the synthesized MBG particles. The synthesis conditions are listed in Table 2. Note that all the precursor solutions were 1000 mL and then the SP process was conducted, regardless of the synthesis conditions.
First, different molecular weights of PEG were added into the precursor solution and HCl (0.5 M) was used as the hydrolysis catalyst. The PEG addition conditions were: no addition (MEG-P0), added PEG with varying molecular weights of 2000 (MEG-P2), 4000 (MEG-P4), 8000 (MEG-P8), and 12,000 (MEG-P12).
Second, MBG particles with the best in vitro bioactivity were used from the previous part’s results (MBG-P12), and CH3COOH was used to replace HCl as the hydrolysis catalyst. The aim is to evaluate the influence of CH3COOH concentrations on mesoporous properties of MBG particles. The amounts of added CH3COOH were set as 25 mL (7MBG2A-P12), 50 mL (7MBG5A-P12), and 75 mL (7MBG7A-P12).
Third, CH3COOH concentration with the best in vitro bioactivity (7MBG5A-P12) was used from the results of the previous part, and different concentrations of PEG were added to prepare the precursor solutions. In order to evaluate the influence of PEG concentrations on mesoporous properties of MBG particles, various amounts of PEG, 3 g (3MBG5A-P12), 5 g (5MBG5A-P12), and 7 g (7MBG5A-P12) were added.

2.3. Characterizations of MBG Particles

The powder morphology of the MBG particles was observed by field emission scanning electron microscopy (FE-SEM; JSM-7800F, JEOL Ltd., Tokyo, Japan). The FE-SEM images were analyzed using Image J (Java 1.8.0, NIH, Bethesda, MD, USA.) to obtain the particle size distribution of the MBG particles. The MBG particles synthesized with various parameters were examined by using a multipurpose X-ray thin-film micro area diffractometer (SRAM18XHF, MacScience Co., Ltd., Tokyo, Japan) with monochromatic Cu Kα radiation (λ = 1.54 Å) operated at 40 kV, 100 mA, and scanning angles ranging from 20 to 80 degree with a scanning rate of 2 degrees 2θ/min. To prepare the particles for the morphology observation, the particles were first dispersed in ethanol in an ultrasonic bath for 20 min, and then a drop of suspension was placed onto a carbon film grid. Then the solvent on the carbon grid was evaporated under 40 W fluorescent lamp. Field emission transmission electron microscopy (FE-TEM; JEM-2010, JEOL Ltd., Tokyo, Japan) operated at 200 kV was used to characterize the internal structures and micrographs of MBG particle. The specific surface area of the MBG particles were determined by the Brunauer–Emmett–Teller (BET) method where the nitrogen adsorption and desorption isotherm data were obtained at −196 °C on a constant-volume adsorption apparatus (NovaTouch, Quantachrome Instruments, Boynton Beach, FL, USA). All the testing samples were degassed at 200 °C for 4 h prior to the tests.

2.4. In Vitro Bioactivity Analysis

For in vitro bioactivity analysis, the MBG particles were first subjected to acid cleaning. The procedures were as followed, first, 1 M nitric acid (HNO3) was added to MBG particles (MBG:HNO3 = 1:2) and stirred for 5 min. Then, deionized water was used for centrifugal cleaning and placed in a drying oven at 80 °C. After acid cleaning, MBG particles were immersed in the simulated body fluid (SBF) with a ratio of MBG:SBF = 1 g:50 mL. The ion concentrations of SBF were Na+ 142.0, K+ 5.0, Mg2+ 1.5, Ca2+ 2.5, Cl− 147.8, HCO3− 4.2, HPO42− 1.0, and SO42− 0.5 mmol/L. Further, the samples were placed in thermostatic bath at 37 °C and immersed for various times, and then centrifuged and placed it in a drying oven to dry at 80 °C. Finally, the MBG particles after SBF immersion were analyzed by XRD and FE-SEM.

3. Results

3.1. Different Molecular Weights of PEG

Figure 2a shows the SEM images of MBG prepared by adding different molecular weight of PFG. The surface of MBG-P0 presented to be smooth and was slightly agglomerated, but the particles of MBG-P2, MBG-P4, MBG-P8, and MBG-P12 were sphere-shaped with heterogenetic size, dispersed, and showed mesoporous structure, respectively. As shown in the Figure 2b, the average particle sizes of MBG particles were MBG-P0, 420 nm; MBG-P2, 620 nm; MBG-P4, 617 nm; MBG-P8, 677 nm; MBG-P12, 715 nm. Among them, the average particle size of MBG-P0 was the smallest, and the molecular weights of PEG added had a positive relationship with the average particle size of MBG particles. Figure 3 illustrates the TEM images, MBG-P0 (without surfactant PEG addition) was non-porous and without any pores; nevertheless, obvious and evenly distributed mesoporous structure can be observed in MBG-P2, MBG-P4, MBG-P8, and MBG-P12. The mesoporous properties were evaluated further by the BET method. The pore size increased from MBG-P2 to MBG-P12 from 3.136 nm to 3.149 nm; yet, it was only a slight change (Table 3). After adding PEG into the MBG particles, the specific surface area at least increased by 80%; in addition, the higher the molecular weight, the greater the specific surface area value. Note that, the specific surface area of MBG-P12 (121.53 m2/g) was 2.15 times that of MBG-P0 (56.48 m2/g) (Table 3).
The result of XRD indicated that no prominent diffraction peak could be detected, and all MBG particles were amorphous (Figure 4a). The in vitro bioactivity analysis results are shown in Figure 4b. There were peaks at 31.8° and 45.3°, except for MBG-P0, which were consistent with the diffraction angle of hydroxyapatite (HA) in the JCPDS card number (No.09-0432). In addition, the peaks’ intensities increased slightly with the molecular weight of PEG. This shows a similar trend with the BET results (Table 3). According to the above BET and XRD results, it could be inferred that MBG-P12 exhibited the best in vitro bioactivity; thus, MBG-P12 will be investigated further in the following experiments.

3.2. Different Concentrations of Acetic Acid (CH3COOH)

Figure 5a shows the SEM images. Similar to the previous part results, all MBG particles were spherical particles with different sizes. According to the particle analysis results (Figure 5b), the average particle sizes of 7MBG2A-P12, 7MBG5A-P12, and 7MBG7A-P12 were 613 nm, 684 nm, and 653 nm, respectively; yet, all of the obtained data were smaller than the 715 nm of MBG-P12. The TEM images of Figure 6 showed pronounced and evenly distributed mesoporous structure in 7MBG2A-P12, 7MBG5A-P12, and 7MBG7A-P12. The BET analysis results (Table 3) showed that the specific surface area and pore size exhibited no significant differences within 7MBG2A-P12, 7MBG5A-P12, and 7MBG7A-P12.
Figure 7a showed the corresponding XRD patterns where all the MBG particles were amorphous, regardless the concentrations of CH3COOH. The in vitro bioactivity analysis results are summarized in Figure 7b. 7MBG2A-P12, 7MBG5A-P12, 7MBG7A-P12 after immersion in SBF for 24 h had peaks at 31.8° and 45.3°, which were consistent with the diffraction angle of HA (JCPDS No.09-0432). Although there was no significant difference between MBG particles by changing the concentration of CH3COOH, 7MBG5A-P12 exhibited a slightly higher specific surface area and in vitro bioactivity (slightly larger peak intensity after SBF immersion); thus, 7MBG5A-P12 was investigated further by varying the concentration of PEG.

3.3. Different Concentrations of PEG

Figure 8a showed the SEM images, all MBG particles were spherical and mesoporous. According to the particle analysis results (Figure 8b), the average particle sizes of 3MBG5A-P12, 5MBG5A-P12, and 7MBG5A-P12 were 484 nm, 570 nm, and 684 nm, respectively. The average particle sizes increased with increasing PEG concentrations. The TEM images are shown in Figure 9; it is interesting to note that 3MBG5A-P12 exhibited an obscure mesoporous structure, while 5MBG5A-P12 and 7MBG5A-P12 exhibited apparent mesoporous structure. It is suggested that the ambiguous mesoporous structure of 3MBG5A-P12 may be attributed to the relatively smaller pore size (1.924 nm) compared to those of 5MBG5A-P12 (3.481 nm) and 7MBG5A-P12 (3.152 nm). It should be pointed out that 3MBG5A-P12 exhibited the largest specific surface area (176.21 m2/g) investigated in the present study. The 5MBG5A-P12, however, possessed the largest pore size (3.481 nm) and the second highest specific surface area (173.93 m2/g, just slightly less than 176.21 m2/g). The BET analysis results are summarized in Table 3.
Figure 10a indicates that MBG5A-P12 synthesized via adding different PEG concentrations were all amorphous. The in vitro bioactivity analysis results are shown in Figure 10b. 3MBG5A-P12, the one with the largest specific surface area, did not form HA. Whereas, 5MBG5A-P12 and 7MBG5A-P12 had peaks at 31.8° and 45.3°, which were probably identified as HA in the JCPDS card number (No.09-0432). In addition, 5MBG5A-P12 after immersion in SBF for 24 h exhibited the highest diffraction peaks compared to others. Figure 11 illustrated the SEM images of MBG-P0, MBG-P12, and 5MBG5A-P12 soaked in SBF for 72 h. In MBG-P0, very limited HA formation can be noted, while MBG-P12 and 5MBG5A-P12 had obvious formation of HA as thin lamellar structure. For MBG-P12, the mesoporous structure can still be observed, whereas for 5MBG5A-P12 it was covered uniformly by HA.

4. Discussion

Bioactive glass (BG) is an artificial biomaterial with high biocompatibility. Nowadays, Si–Ca–P ternary system, the most common BG component, has been widely used in biomedical-related fields [1,2]. Within the present study, in the synthesized mesoporous bioactive glass (MBG), Si was derived from the tetraethyl silicate (TEOS) in the precursor solution, Ca was from the calcium nitrate tetrahydrate (CN), and P was from triethyl phosphate (TEP) [8,30]. Shen et al. [30] added a polymer surfactant, F-127, to the precursor solution when synthesizing BG. The results indicated that BG synthesized without adding F-127 was spherical bioactive glass (SBG), but after adding F-127 was MBG. MBG had a relatively higher specific surface area and showed better bioactivity compared with SBG [30]. However, P123 and F127 were amphiphilic copolymers, not single components, so there would have been difficulties to study the detail for their physical properties [19,20]. Hence, the present study tried to add another polymer surfactant, polyethylene glycol (PEG), with good biocompatibility, to synthesize MBG. This experiment focuses on discussing the effect of PEG addition and evaluating whether there are differences in the mesoporous properties and in vitro bioactivity and mesoporous properties of MBG particles when different molecular weights and concentrations of PEG were added in MBG synthesis. Note that according to the preliminary experiments, the molecular weight of PEG with 16,000 or 20,000 exhibits excessive viscosity; thus, the molecular weight varying from 2000 to 12,000 was only considered in the present study. Additionally, literature pointed out that CH3COOH had better bioactivity than HCl when under the same pH [31]; moreover, CH3COOH can avoid cavitation of SP apparatus. Therefore, the present experiment changed the HCl as the hydrolysis catalyst to CH3COOH and evaluated the influence of different CH3COOH concentrations on the mesoporous structure of MBG particles.
The MBG particles synthesized under all PEG molecular weight conditions showed uneven spherical structures (Figure 2a), which was due to droplets collision during the atomization of the precursor solution [32]. There were noticeable and evenly distributed pores in MBG particles after adding PEG (Figure 3), but MBG-P0 (without added PEG) was a non-porous particle. The reasons were because SiO2 interacted with PEG, making PEG stay on the SiO2 surface and leading to in situ hydrolysis, forming pore-structures after pyrolysis [33]. The PEG can reduce surface tension; therefore, the surface tension of the precursor solution without added PEG was relatively large, so MBG-P0 formed by SP process was easily agglomerated. When PEG was added, the atomized droplets separated and formed spherical droplets, so the MBG particles (MBG-P2, MBG-P4, MBG-P8, MBG-P12) formed by pyrolysis exhibited good dispersibility and surface with pores. The addition of PEG alters the viscosity; therefore, the precursor solution’s viscosity increases when a specific PEG concentration was added, and the synthesized MBG also had larger particles [34,35] (Figure 2b). Additionally, the more comprehensive particle distribution range was due to the higher viscosity of the precursor solution, which led to a reduction in sheer force of the solution, so the particle size distribution finally became nonuniform [36]. PEG’s molecular weight affects the specific surface area of MBG particles because the pore structure formed by PEG was lost after in situ hydrolysis, so the specific surface area was altered only by the size of the external pores [33]. Therefore, MBG-P12 with the largest molecular weight exhibited the largest pore size, resulting in the largest specific surface area (Table 3).
When CH3COOH was substituted for HCl as the hydrolysis catalyst, the average particle size of MBG particles decreased (Figure 5b). This was because the surface tension of the solution with HCl was lower than that of CH3COOH [37]; therefore, the precursor solution’s viscosity was lower. However, increasing the concentration of CH3COOH reduced the surface tension of the solution [38], so the droplets were more extensive. As a result, the average particle size of 7MBG5A-P12 was larger than that of 7MBG2A-P12. Although CH3COOH helps increase the viscosity, when the viscosity exceeded the threshold, the viscosity instead decreased [39]. Owing to this report, the average particle size of 7MBG7A-P12 was smaller than 7MBG5A-P12. Nevertheless, the present study indicated that different CH3COOH concentrations had no significant difference in specific surface area and pore size, which means that the CH3COOH concentration did not affect the mesoporous-structure-generating performance of PEG (Table 3). Regarding the difference between HCl and CH3COOH on MBG synthesis, the average particle size of MBG-P12 (715 nm) was similar to 7MBG5A-P12 (684 nm). However, TEM images (Figure 6 and Figure 9) indicated that 7MBG5A-P12 had some particles with larger pore size and smaller average particle size (Table 3); precisely, because of this, the reaction area of 7MBG5A-P12 was relatively large, so the in vitro bioactivity also improved. Besides, the in vitro bioactivity analysis showed that 7MBG5A-P12 had a conspicuous peak (Figure 7b and Figure 10b), which proved that MBG synthesized using CH3COOH showed better in vitro bioactivity. In addition, 5MBG5A-P12 after immersion in SBF for 24 h exhibited the highest diffraction peaks compared to 3MBG5A-P12 and 7MBG5A-P12 (Figure 10b). Thus, it can be inferred that 5MBG5A-P12 was the MBG particles with the best mesoporous structure. The mesoporous structure of 5MBG5A-P12 cannot be revealed after immersion in SBF for 72 h. Individual MBG particles were interconnected by the formation of lamellar HA. Similar to the cold sintering process [40], densification of 5MBG5A-P12 can be noticed and is beneficial to the mechanical properties.
As shown by the FE-TEM images in Figure 3 and Figure 6, the spray-pyrolyzed particles with PEG additions were agglomerated with numerous bioactive glass nanocrystals that can serve as the nucleation sites for the formation of apatite. Though only two diffraction peaks were observed in the X-ray diffraction patterns, it was best identified as hydroxyapatite (JCPDS No.09-0432). The disappearance of other diffraction peaks was probably due to the amorphous background arising from the mesoporous bioactive glass. Similar behavior has been reported by Vlădescu et al. [41] who investigated the hydroxyapatite formation in SBF with the addition of silicon carbide (SiC). By XRD, only one characteristic peak corresponding to HA and SiC respectively can be observed due to the reduction of crystallinity. It should be also pointed out that the amorphous halo did not shift obviously to lower diffraction angle as the glass degraded and released ions in the immersion solution. As revealed by FE-SEM images in Figure 11, the dissolution of bioactive glass and precipitation of apatite only occurred on the surface of the MBG particles. The relatively small pore size (~2–3 nm shown in Table 3) constrained the fluid infiltration. Thus, the dissolution and degradation of MBG was limited and the microstructural integrity of MBG persisted.
Discussing the MBG particles synthesized through precursor solutions with different PEG concentrations (Figure 8a), the particle surfaces were smoother in low concentration and conversely were rougher in high concentration, presumably because PEG concentration led to the difference of pores formed after PEG pyrolysis. High PEG concentrations mean more PEG contained in the unit volume of the precursor solution so that the surface of the droplets created by the precursor solution contained more PEG. After pyrolysis, the PEG was removed and remained only apparent mesoporous, so the surface becomes rough. Besides, the higher the PEG concentrations, the larger the average particle size of the particles formed (Figure 8b), which was caused by the viscosity. When the PEG concentration is higher, the precursor solution viscosity increases [42], so the synthesized MBG particles become larger.
The SP processes can synthesize MBG in one step, and the MBG synthesized by adding PEG to the precursor was amorphous, spherical mesoporous material, and the pores were evenly distributed in the MBG. When the PEG molecular weights added in precursor solution were increased to 1200, the specific surface area of MBG improved resulting in MBG particles with better in vitro bioactivity. Replacing the hydrolysis catalyst of the precursor solution with CH3COOH also helped improve the biological activity; yet, PEG concentrations did not affect the in vitro bioactivity of MBG. Nonetheless, SiO2: CaO: P2O5 set in the present experiment was 80:15:5 mol% and the ratio of SiO2 is much higher than 60% of the commercialized bioactive glass “45S5”; therefore, the ratio of SiO2 needs to be adjusted in future works to obtain MBG with better in vitro bioactivity. Moreover, additive manufacturing (3D printing) or electrospinning can also be used to synthesize MBG scaffolds, allowing the cells to migrate, and showing tissue ingrowth, vascularization, and nutrient delivery in the future. Further investigations concerning the effect of pore size and longer immersion time may be required. In the present study, however, we have demonstrated that mesoporous bioactive glass particles with superior in vitro bioactivity can be synthesized successfully.

5. Conclusions

The spray pyrolysis (SP) process is an emerging process used in bioactive glass (BGs) synthesis. The SP process is a continuous one-pot processing, which can prepare low-cost and high purity mesoporous bioactive glass (MBG) at lower processing temperatures in a few hours. Besides, the synthesized MBG exhibits uniform composition and good mesoporous properties. Adding polyethylene glycol (PEG) to the precursor solution can successfully synthesize mesoporous bioactive glass (MBG). The MBG particles were spherical and mesoporous; besides, CH3COOH was a suitable hydrolysis catalyst for MBG synthesis. This study demonstrated that adding PEG can greatly increase the specific surface area of MBG, and the larger molecular weight of PEG was related to the higher specific surface area of MBG. A comprehensive consideration of the present study results prompt MBG synthesized under precursor solutions (1000 mL) by adding 5 g of PEG with 12,000 molecular weights, and 50 mL of CH3COOH (i.e., 5MBG5A-P12) exhibited the best in vitro bioactivity and mesoporous properties.

Author Contributions

Conceptualization, T.-Y.P. and C.-K.L.; data curation, P.-Y.T. and S.-H.W.; formal analysis, T.-Y.P., M.-S.C., and S.-H.W.; funding acquisition, M.-S.C.; investigation, P.-Y.T.; methodology, P.-Y.T.; project administration, C.-Y.C. and C.-K.L.; resources, C.-Y.C., D.-J.L., and C.-K.L.; supervision, Y.M., C.-Y.C., and D.-J.L.; visualization, T.-Y.P. and C.-K.L.; writing—original draft, T.-Y.P.; writing—review and editing, C.-K.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hench, L.L.; Splinter, R.J.; Allen, W.C.; Greenlee, T.K. Bonding mechanisms at the interface of ceramic prosthetic materials. J. Biomed. Mater. Res. 1971, 5, 117–141. [Google Scholar] [CrossRef]
  2. Lombardi, M.; Gremillard, L.; Chevalier, J.; Lefebvre, L.; Cacciotti, I.; Bianco, A.; Montanaro, L. A comparative study be-tween melt-derived and sol-gel synthesized 45s5 bioactive glasses. Key Eng. Mater. 2013, 541, 15–30. [Google Scholar] [CrossRef]
  3. Daguano, J.K.M.F.; Rogero, S.O.; Crovace, M.C.; Peitl, O.; Strecker, K.; dos Santos, C. Bioactivity and cytotoxicity of glass and glass–ceramics based on the 3CaO·P2O5–SiO2–MgO system. J. Mater. Sci. Mater. Med. 2013, 24, 2171–2180. [Google Scholar] [CrossRef]
  4. Magri, A.M.P.; Fernandes, K.R.; Ueno, F.R.; Kido, H.W.; Da Silva, A.C.; Braga, F.J.C.; Granito, R.N.; Gabbai-Armelin, P.R.; Rennó, A.C.M. Osteoconductive properties of two different bioactive glass forms (powder and fiber) combined with collagen. Appl. Surf. Sci. 2017, 423, 557–565. [Google Scholar] [CrossRef]
  5. Zheng, K.; Torre, E.; Bari, A.; Taccardi, N.; Cassinelli, C.; Morra, M.; Fiorilli, S.; Vitale-Brovarone, C.; Iviglia, G.; Boccaccini, A.R. Antioxidant mesoporous Ce-doped bioactive glass nanoparticles with anti-inflammatory and pro-osteogenic activities. Mater. Today Biol. 2020, 5, 100041. [Google Scholar] [CrossRef]
  6. Rahaman, M.N.; Day, D.E.; Bal, B.S.; Fu, Q.; Jung, S.B.; Bonewald, L.F.; Tomsia, A.P. Bioactive glass in tissue engineering. Acta Biomater. 2011, 7, 2355–2373. [Google Scholar] [CrossRef] [Green Version]
  7. Kargozar, S.; Montazerian, M.; Fiume, E.; Baino, F. Multiple and Promising Applications of Strontium (Sr)-Containing Bioactive Glasses in Bone Tissue Engineering. Front. Bioeng. Biotechnol. 2019, 7, 161. [Google Scholar] [CrossRef] [Green Version]
  8. Shih, C.; Chen, H.; Huang, L.; Lu, P.; Chang, H.; Chang, I. Synthesis and in vitro bioactivity of mesoporous bioactive glass scaffolds. Mater. Sci. Eng. C 2010, 30, 657–663. [Google Scholar] [CrossRef]
  9. Baino, F.; Fiume, E. 3D Printing of Hierarchical Scaffolds Based on Mesoporous Bioactive Glasses (MBGs)—Fundamentals and Applications. Materials 2020, 13, 1688. [Google Scholar] [CrossRef] [Green Version]
  10. Kaya, S.; Cresswell, M.; Boccaccini, A.R. Mesoporous silica-based bioactive glasses for antibiotic-free antibacterial applications. Mater. Sci. Eng. C 2018, 83, 99–107. [Google Scholar] [CrossRef] [PubMed]
  11. Deliormanlı, A.M.; Türk, M. Flow Behavior and Drug Release Study of Injectable Pluronic F-127 Hydrogels containing Bioactive Glass and Carbon-Based Nanopowders. J. Inorg. Organomet. Polym. Mater. 2019, 30, 1184–1196. [Google Scholar] [CrossRef]
  12. Tseng, C.-F.; Fei, Y.-C.; Chou, Y.-J. Investigation of in vitro bioactivity and antibacterial activity of manganese-doped spray pyrolyzed bioactive glasses. J. Non-Cryst. Solids 2020, 549, 120336. [Google Scholar] [CrossRef]
  13. Chou, Y.-J.; Hsiao, C.-W.; Tsou, N.-T.; Wu, M.-H.; Shih, S.-J. Preparation and in Vitro Bioactivity of Micron-sized Bioactive Glass Particles Using Spray Drying Method. Appl. Sci. 2018, 9, 19. [Google Scholar] [CrossRef] [Green Version]
  14. Dang, H.; Bui, H.; Guseva, E.; Ta, A.; Nguyen, A.; Trong, T.; Hoang, H.; Bui, X. Characterization of bioactive glass synthesized by sol-gel process in hot water. Crystals 2020, 10, 529. [Google Scholar] [CrossRef]
  15. Li, R.; Clark, A.E.; Hench, L.L. An investigation of bioactive glass powders by sol-gel processing. J. Appl. Biomater. 1991, 2, 231–239. [Google Scholar] [CrossRef]
  16. Sepulveda, P.; Jones, J.R.; Hench, L.L. Characterization of melt-derived 45S5 and sol-gel-derived 58S bioactive glasses. J. Biomed. Mater. Res. 2001, 58, 734–740. [Google Scholar] [CrossRef] [PubMed]
  17. Sharifianjazi, F.; Moradi, M.; Abouchenari, A.; Pakseresht, A.H.; Esmaeilkhanian, A.; Shokouhimehr, M.; Asl, M.S. Effects of Sr and Mg dopants on biological and mechanical properties of SiO2–CaO–P2O5 bioactive glass. Ceram. Int. 2020, 46, 22674–22682. [Google Scholar] [CrossRef]
  18. Hong, B.-J.; Hsiao, C.-W.; Bakare, F.F.; Sun, J.-T.; Shih, S.-J. Effect of Acetic Acid Concentration on Pore Structure for Mesoporous Bioactive Glass during Spray Pyrolysis. Materials 2018, 11, 963. [Google Scholar] [CrossRef] [Green Version]
  19. Wu, C.; Chang, J.; Xiao, Y. Mesoporous bioactive glasses as drug delivery and bone tissue regeneration platforms. Ther. Deliv. 2011, 2, 1189–1198. [Google Scholar] [CrossRef] [Green Version]
  20. Chou, Y.-J.; Hong, B.-J.; Lin, Y.-C.; Wang, C.-Y.; Shih, S.-J. The correlation of pore size and bioactivity of spray-pyrolyzed mes-oporous bioactive glasses. Materials 2017, 10, 488. [Google Scholar] [CrossRef]
  21. Lei, B.; Chen, X.; Wang, Y.; Zhao, N.; Miao, G.; Li, Z.; Lin, C. Fabrication of porous bioactive glass particles by one step sintering. Mater. Lett. 2010, 64, 2293–2295. [Google Scholar] [CrossRef]
  22. Nommeots-Nomm, A.; Lee, P.D.; Jones, J.R. Direct ink writing of highly bioactive glasses. J. Eur. Ceram. Soc. 2018, 38, 837–844. [Google Scholar] [CrossRef] [Green Version]
  23. Rainer, A.; Giannitelli, S.M.; Abbruzzese, F.; Traversa, E.; Licoccia, S.; Trombetta, M. Fabrication of bioactive glass–ceramic foams mimicking human bone portions for regenerative medicine. Acta Biomater. 2008, 4, 362–369. [Google Scholar] [CrossRef] [PubMed]
  24. Lei, B.; Chen, X.; Wang, Y.; Zhao, N. Synthesis and in vitro bioactivity of novel mesoporous hollow bioactive glass micro-spheres. Mater. Lett. 2009, 63, 1719–1721. [Google Scholar] [CrossRef]
  25. Mosqueira, V.C.F.; Legrand, P.; Gulik, A.; Bourdon, O.; Gref, R.; Labarre, D.; Barratt, G. Relationship between complement activation, cellular uptake and surface physicochemical aspects of novel PEG-modified nanocapsules. Biomaterials 2001, 22, 2967–2979. [Google Scholar] [CrossRef]
  26. Mahaleh, Y.B.M.; Sadrnezhaad, S.K.; Hosseini, D. NiO Nanoparticles Synthesis by Chemical Precipitation and Effect of Applied Surfactant on Distribution of Particle Size. J. Nanomater. 2008, 2008, 1–4. [Google Scholar] [CrossRef] [Green Version]
  27. Carlisle, E.M. Silicon: A Possible Factor in Bone Calcification. Science 1970, 167, 279–280. [Google Scholar] [CrossRef]
  28. Maeno, S.; Niki, Y.; Matsumoto, H.; Morioka, H.; Yatabe, T.; Funayama, A.; Toyama, Y.; Taguchi, T.; Tanaka, J. The effect of calcium ion concentration on osteoblast viability, proliferation and differentiation in monolayer and 3D culture. Biomaterials 2005, 26, 4847–4855. [Google Scholar] [CrossRef]
  29. Julien, M.; Magne, D.; Masson, M.; Rolli-Derkinderen, M.; Chassande, O.; Cario-Toumaniantz, C.; Cherel, Y.; Weiss, P.; Guicheux, J. Phosphate Stimulates Matrix Gla Protein Expression in Chondrocytes through the Extracellular Signal Regulated Kinase Signaling Pathway. Endocrinology 2007, 148, 530–537. [Google Scholar] [CrossRef] [Green Version]
  30. Shih, S.-J.; Chou, Y.-J.; Chien, I.-C. One-step synthesis of bioactive glass by spray pyrolysis. J. Nanopart. Res. 2012, 14, 1299. [Google Scholar] [CrossRef]
  31. Lei, B.; Chen, X.; Wang, Y.; Zhao, N.; Du, C.; Zhang, L. Acetic acid derived mesoporous bioactive glasses with an enhanced in vitro bioactivity. J. Non-Cryst. Solids 2009, 355, 2583–2587. [Google Scholar] [CrossRef]
  32. Su, J.; Zhang, T.; Li, Y.; Chen, Y.; Liu, M. Photocatalytic Activities of Copper Doped Cadmium Sulfide Microspheres Prepared by a Facile Ultrasonic Spray-Pyrolysis Method. Molecules 2016, 21, 735. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Ganguly, A.; Ahmad, T.; Ganguli, A.K. Silica mesostructures: Control of pore size and surface area using a surfac-tant-templated hydrothermal process. Langmuir 2010, 26, 14901–14908. [Google Scholar] [CrossRef]
  34. Zhang, S.-C.; Messing, G.L.; Borden, M. Synthesis of Solid, Spherical Zirconia Particles by Spray Pyrolysis. J. Am. Ceram. Soc. 1990, 73, 61–67. [Google Scholar] [CrossRef]
  35. Guo, W.; Sun, Y.; Luo, G.; Wang, Y. Interaction of PEG with ionic surfactant SDS to form template for mesoporous material. Colloids Surf. A Physicochem. Eng. Asp. 2005, 252, 71–77. [Google Scholar] [CrossRef]
  36. Gillespie, T. The effect of aggregation and particle size distribution on the viscosity of newtonian suspensions. J. Colloid Interface Sci. 1983, 94, 166–173. [Google Scholar] [CrossRef]
  37. Nasr-El-Din, H.; Al-Othman, A.; Taylor, K.; Al-Ghamdi, A. Surface tension of HCl-based stimulation fluids at high temperatures. J. Pet. Sci. Eng. 2004, 43, 57–73. [Google Scholar] [CrossRef]
  38. Qun, G.; Ajun, W. Effects of molecular weight, degree of acetylation and ionic strength on surface tension of chitosan in dilute solution. Carbohydr. Polym. 2006, 64, 29–36. [Google Scholar] [CrossRef]
  39. Bleazard, J.G.; Sun, T.F.; Teja, A.S. The thermal conductivity and viscosity of acetic acid-water mixtures. Int. J. Thermophys. 1996, 17, 111–125. [Google Scholar] [CrossRef]
  40. Guo, J.; Legum, B.; Anasori, B.; Wang, K.; Lelyukh, P.; Gogotsi, Y.; Randall, C.A. Cold Sintered Ceramic Nanocomposites of 2D MXene and Zinc Oxide. Adv. Mater. 2018, 30, e1801846. [Google Scholar] [CrossRef]
  41. Vlădescu, A.; Pârâu, A.; Pană, I.; Cotruț, C.M.; Constantin, L.R.; Braic, V.; Vrânceanu, D.M. In Vitro Activity Assays of Sputtered HAp Coatings with SiC Addition in Various Simulated Biological Fluids. Coatings 2019, 9, 389. [Google Scholar] [CrossRef] [Green Version]
  42. Ninni, L.; Burd, H.; Fung, W.H.; Meirelles, A.J.A. Kinematic Viscosities of Poly(ethylene glycol) Aqueous Solutions. J. Chem. Eng. Data 2003, 48, 324–329. [Google Scholar] [CrossRef]
Polymers 13 00618 g001 550

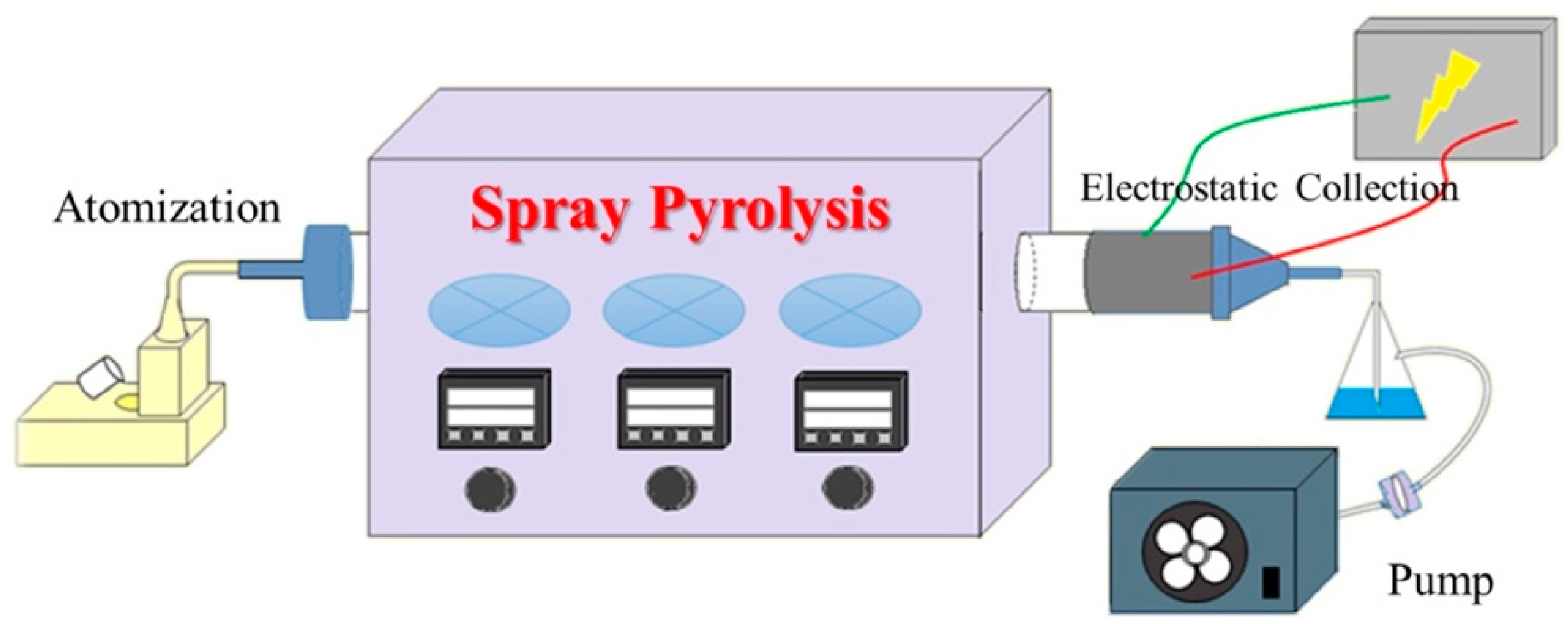

Figure 1. Spray pyrolysis (SP) process device diagram.
Figure 1. Spray pyrolysis (SP) process device diagram.
Polymers 13 00618 g001
Polymers 13 00618 g002 550

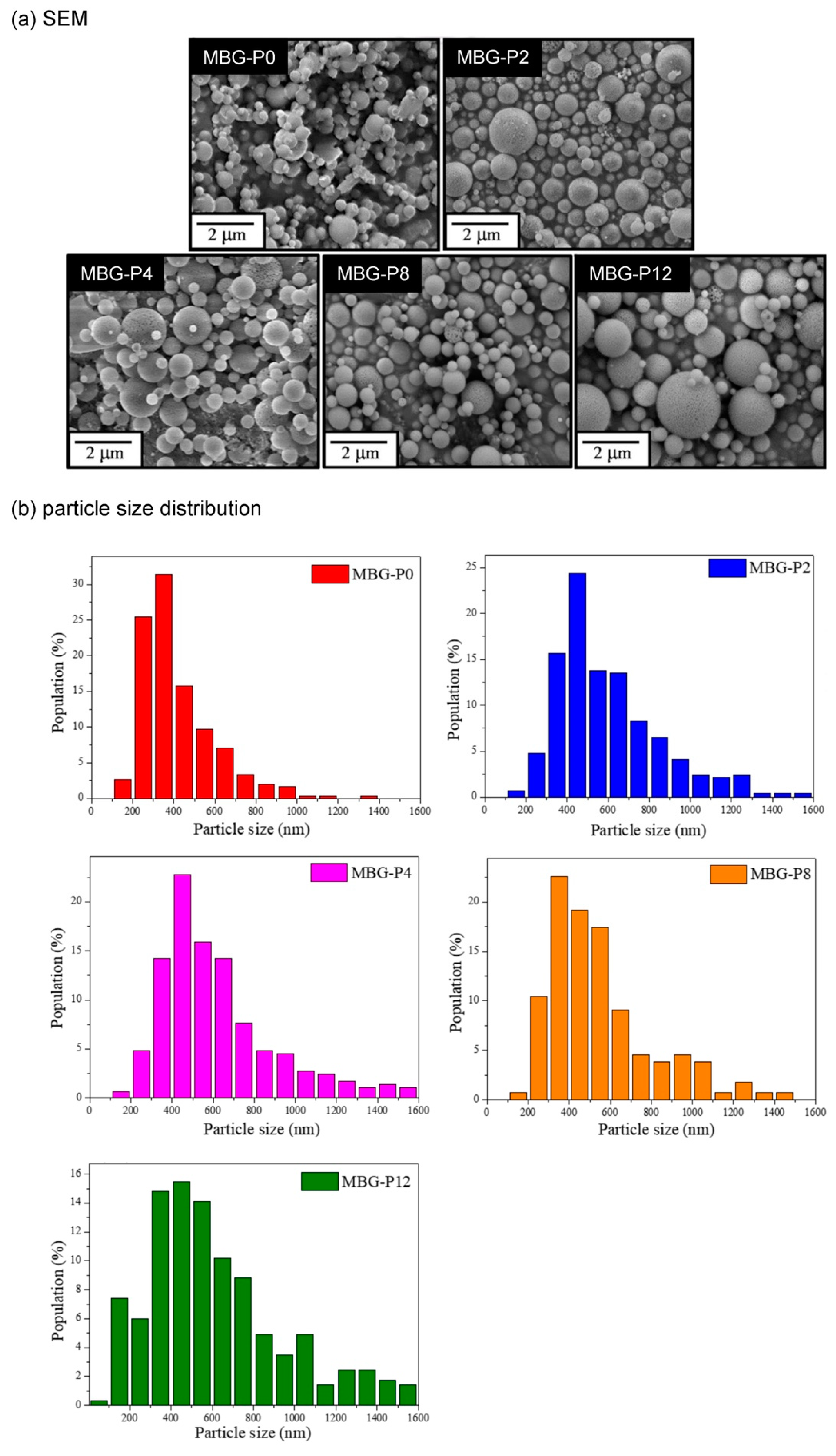

Figure 2. The FE- SEM images (a) and particle size distribution (b) of MBG adding different molecular weights of PEG.
Figure 2. The FE- SEM images (a) and particle size distribution (b) of MBG adding different molecular weights of PEG.
Polymers 13 00618 g002
Polymers 13 00618 g003 550
Figure 3. The FE-TEM images of MBG adding different molecular weights of PEG.
Figure 3. The FE-TEM images of MBG adding different molecular weights of PEG.
Polymers 13 00618 g003
Polymers 13 00618 g004 550

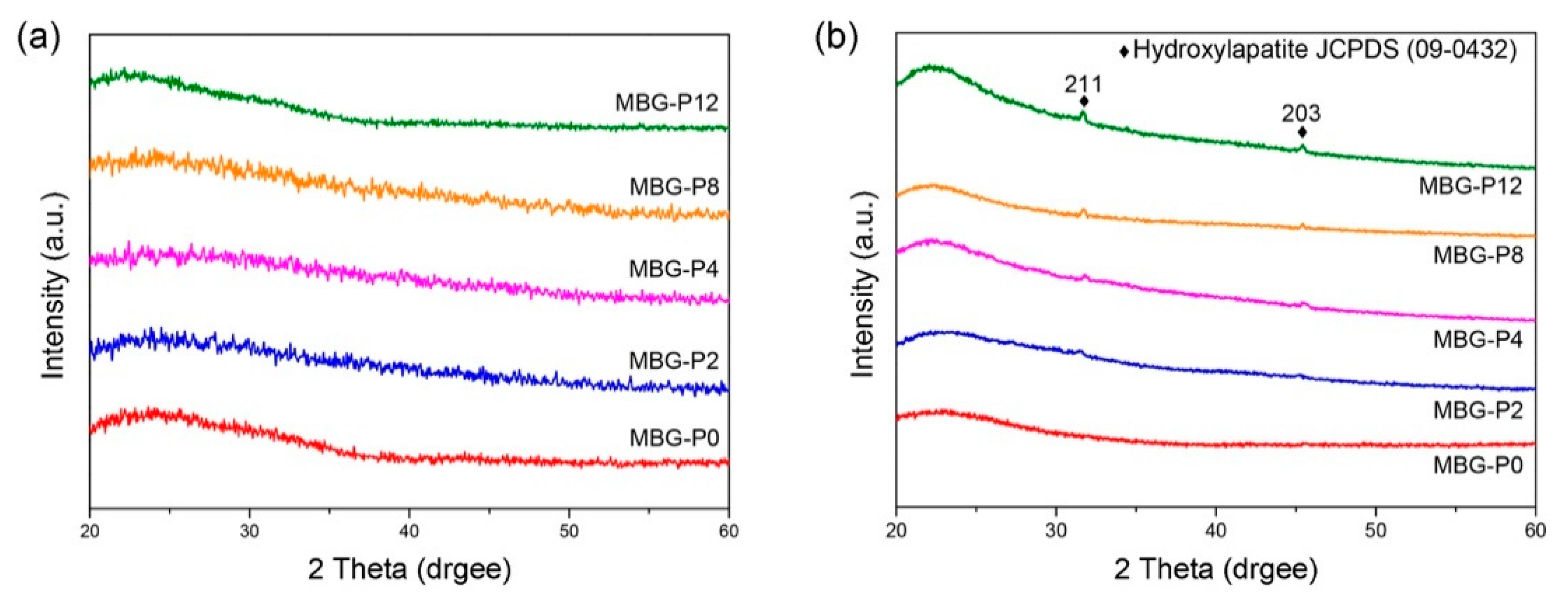

Figure 4. XRD patterns of MBG adding different molecular weights of PEG (a), and the bioactivity analysis results (XRD patterns) of MBG immersed in SBF for 24 h (b).
Figure 4. XRD patterns of MBG adding different molecular weights of PEG (a), and the bioactivity analysis results (XRD patterns) of MBG immersed in SBF for 24 h (b).
Polymers 13 00618 g004
Polymers 13 00618 g005 550

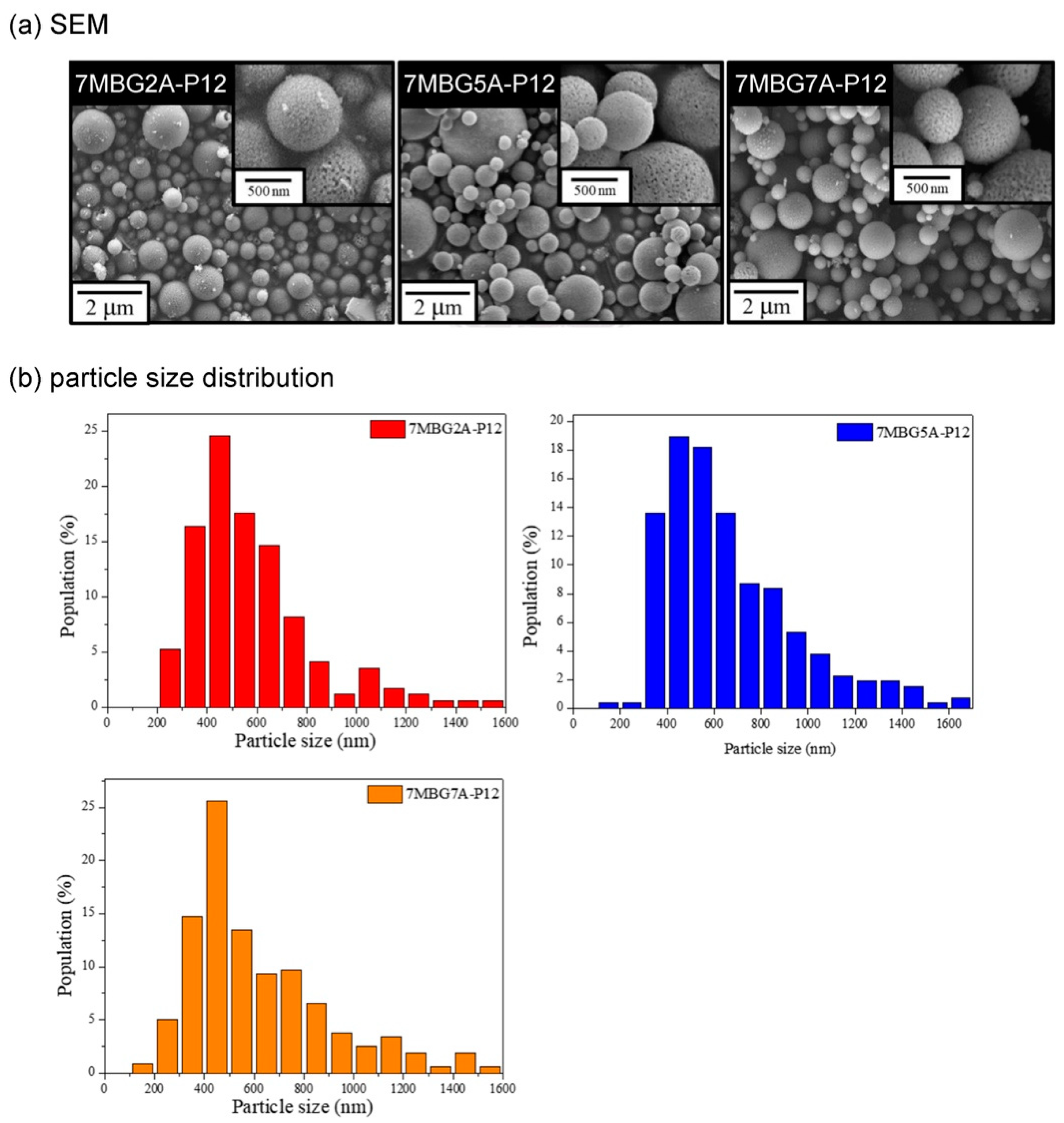

Figure 5. The FE- SEM images (a) and particle size distribution (b) of MBG adding different concentrations of CH3COOH.
Figure 5. The FE- SEM images (a) and particle size distribution (b) of MBG adding different concentrations of CH3COOH.
Polymers 13 00618 g005
Polymers 13 00618 g006 550
Figure 6. The FE-TEM images of MBG adding different concentrations of CH3COOH.
Figure 6. The FE-TEM images of MBG adding different concentrations of CH3COOH.
Polymers 13 00618 g006
Polymers 13 00618 g007 550

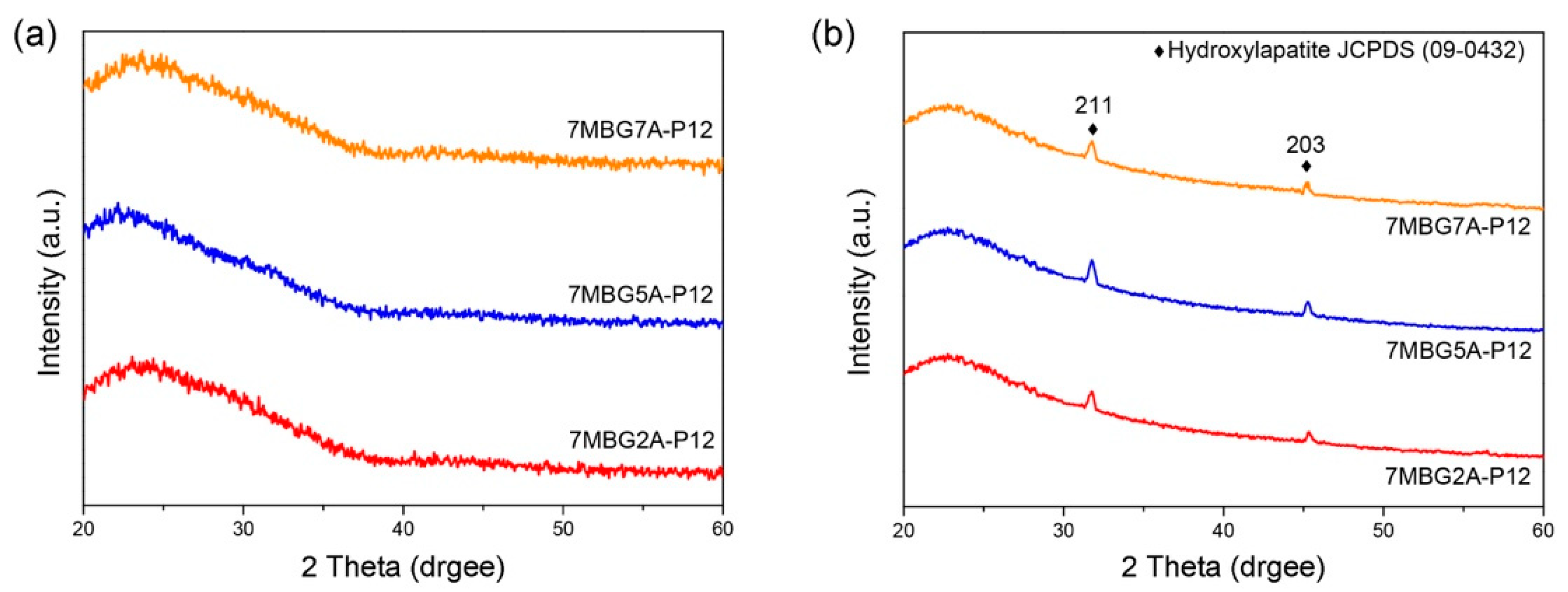

Figure 7. XRD patterns of MBG adding different concentrations of CH3COOH (a), and the bioactivity analysis results (XRD patterns) of MBG immersed in SBF for 24 h (b).
Figure 7. XRD patterns of MBG adding different concentrations of CH3COOH (a), and the bioactivity analysis results (XRD patterns) of MBG immersed in SBF for 24 h (b).
Polymers 13 00618 g007
Polymers 13 00618 g008 550

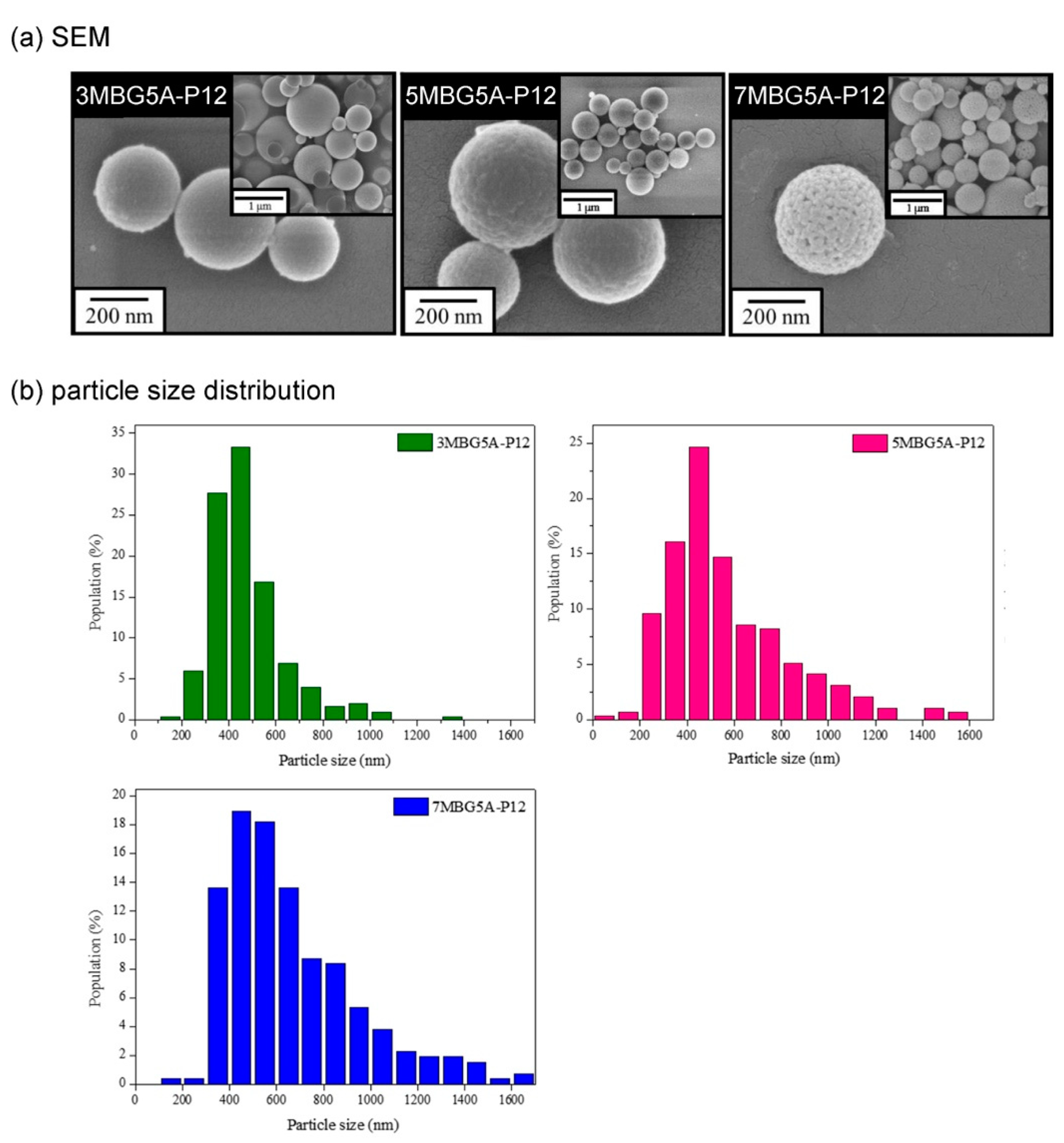

Figure 8. The FE- SEM images (a) and particle size distribution (b) of MBG adding different concentrations of PEG.
Figure 8. The FE- SEM images (a) and particle size distribution (b) of MBG adding different concentrations of PEG.
Polymers 13 00618 g008
Polymers 13 00618 g009 550
Figure 9. The FE-TEM images of MBG adding different concentrations of PEG.
Figure 9. The FE-TEM images of MBG adding different concentrations of PEG.
Polymers 13 00618 g009
Polymers 13 00618 g010 550

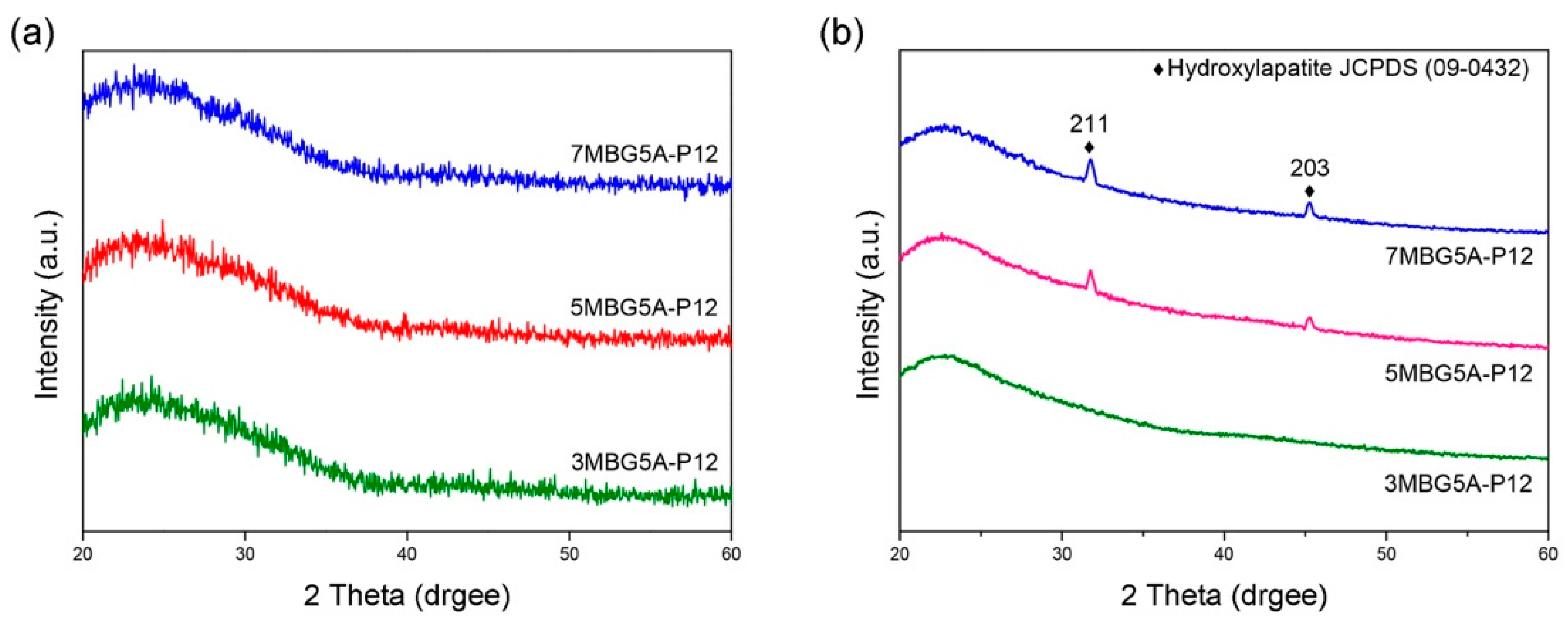

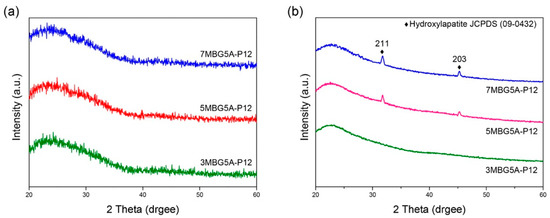

Figure 10. XRD patterns of MBG adding different concentrations of PEG (a), and the bioactivity analysis results (XRD patterns) of MBG immersed in SBF for 24 h (b).
Figure 10. XRD patterns of MBG adding different concentrations of PEG (a), and the bioactivity analysis results (XRD patterns) of MBG immersed in SBF for 24 h (b).
Polymers 13 00618 g010
Polymers 13 00618 g011 550
Figure 11. The FE-SEM images of MBG-P0, MBG-P12, and 7MBG5A-P12 immersed in SBF for 72 h.
Figure 11. The FE-SEM images of MBG-P0, MBG-P12, and 7MBG5A-P12 immersed in SBF for 72 h.
Polymers 13 00618 g011
Table
Table 1. Medicament used in the present study.
Table 1. Medicament used in the present study.
Medicaments (Abbr.)ManufacturerChemical FormulaConcentrations
Tetraethyl orthosilicate (TEOS)Alfa Aesar Co., Massachusetts, MA, USASi(OC2H5)498.0 wt%
Calcium nitrate tetrahydrate (CN)Showa Corporation, Tokyo, JapanCa(NO3)2·4H2O98.5 wt%
Triethyl phosphate (TEP)Alfa Aesar Co., Massachusetts, MA, USA(C2H5)3PO4>98.0 wt%
Hydrochloric acidAcros Organics, New Jersey, NJ, USAHCl37.0 wt%
Polyethylene glycol (PEG)Alfa Aesar Co., Massachusetts MA, USAHO(CH2CH2O)nH-
Acetic acidShowa Corporation, Tokyo JapanCH3COOH99.7 wt%
Table
Table 2. The synthesis conditions of mesoporous bioactive glass (MBG) and the sample code used in this study.
Table 2. The synthesis conditions of mesoporous bioactive glass (MBG) and the sample code used in this study.
AcidPEGSample Code
MedicamentsConcentrationsMolecular WeightsConcentrations
I. Different Molecular Weights of PEG
HCl0.5 M-7 g/1000 mLMBG-P0
HCl0.5 M20007 g/1000 mLMBG-P2
HCl0.5 M40007 g/1000 mLMBG-P4
HCl0.5 M80007 g/1000 mLMBG-P8
HCl0.5 M12,0007 g/1000 mLMBG-P12
CH3COOH25 mL/1000 mL12,0007 g/1000 mL7MBG2A-P12
CH3COOH50 mL/1000 mL12,0007 g/1000 mL7MBG5A-P12
CH3COOH75 mL/1000 mL12,0007 g/1000 mL7MBG7A-P12
CH3COOH50 mL/1000 mL12,0003 g/1000 mL3MBG5A-P12
CH3COOH50 mL/1000 mL12,0005 g/1000 mL5MBG5A-P12
CH3COOH50 mL/1000 mL12,0007 g/1000 mL7MBG5A-P12
Table
Table 3. The results of specific surface area and pore size of various MBG powders.
Table 3. The results of specific surface area and pore size of various MBG powders.
Sample CodeSpecific Surface Area (m2/g)Pore Size (nm)
MBG-P056.48-
MBG-P2102.083.136
MBG-P4104.873.144
MBG-P8108.243.146
MBG-P12121.533.149
7MBG2A-P12104.393.141
7MBG5A-P12111.513.152
7MBG7A-P12110.353.149
3MBG5A-P12176.211.924
5MBG5A-P12173.933.481
7MBG5A-P12111.513.152
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Peng, T.-Y.; Tsai, P.-Y.; Chen, M.-S.; Mine, Y.; Wu, S.-H.; Chen, C.-Y.; Lin, D.-J.; Lin, C.-K. Mesoporous Properties of Bioactive Glass Synthesized by Spray Pyrolysis with Various Polyethylene Glycol and Acid Additions. Polymers 2021, 13, 618. https://doi.org/10.3390/polym13040618

AMA Style

Peng T-Y, Tsai P-Y, Chen M-S, Mine Y, Wu S-H, Chen C-Y, Lin D-J, Lin C-K. Mesoporous Properties of Bioactive Glass Synthesized by Spray Pyrolysis with Various Polyethylene Glycol and Acid Additions. Polymers. 2021; 13(4):618. https://doi.org/10.3390/polym13040618

Chicago/Turabian Style

Peng, Tzu-Yu, Pei-Yun Tsai, May-Show Chen, Yuichi Mine, Shan-Hua Wu, Chin-Yi Chen, Dan-Jae Lin, and Chung-Kwei Lin. 2021. "Mesoporous Properties of Bioactive Glass Synthesized by Spray Pyrolysis with Various Polyethylene Glycol and Acid Additions" Polymers 13, no. 4: 618. https://doi.org/10.3390/polym13040618

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
