Methoxy-Group Control of Helical Pitch in Stereoregular Poly(2-ethynylmethoxynaphthalene) Prepared by Rhodium Complex Catalyst

by
Yasuteru Mawatari
1,2,*,
Yoshiaki Yoshida
1,†,
Kai Huang
3 and
Masayoshi Tabata
4,5,*
1
Graduate School of Engineering, Muroran Institute of Technology, 27-1 Mizumoto-cho, Muroran 050-8585, Hokkaido, Japan
2
Research Center for Environmentally Friendly Materials Muroran Institute of Technology, 27-1 Mizumoto-cho, Muroran 050-8585, Hokkaido, Japan
3
Graphene New Materials Technology, JunFeng Business BuildingA-4F, Chongqing Road, Baoan District, Shenzhen 518101, China
4
Center of Environmental Science and Disaster Mitigation for Advanced Research, Muroran Institute of Technology, 27-1 Mizumoto-cho, Muroran 050-8585, Hokkaido, Japan
5
Faculty of Science and Technology, Department of Applied Chemistry and Bioscience, Chitose Institute of Science and Technology, Bibi 65-758, Chitose 066-8655, Hokkaido, Japan
*
Authors to whom correspondence should be addressed.
†
Current address: Molecular Engineering Institute, Kindai University, 11-6, Kayanomori, Iizuka, Fukuoka 820-8555, Japan.
Polymers 2019, 11(1), 94; https://doi.org/10.3390/polym11010094
Submission received: 2 December 2018 / Revised: 31 December 2018 / Accepted: 4 January 2019 / Published: 8 January 2019
(This article belongs to the Special Issue Synthesis and Application of Conjugated Polymers)
Browse Figures
Versions Notes

Abstract

:
The position of the methoxy group in a poly(n-methoxy-2-ethynylnaphthalene) (PnMeO2EN) was found to control the helical pitch of the π-conjugated polymer in the solid state. These PnMeO2ENs were stereoregularly synthesized using an Rh-complex catalyst in ethanol or toluene as the solvent. The helical structure in the solid phase was confirmed by conventional analytical methods, namely diffuse reflective ultraviolet–visible light (UV–Vis) and Raman spectroscopies, X-ray diffraction, and 13C cross-polarization magic angle spinning NMR spectroscopy, together with molecular mechanics calculations, because the as obtained polymers were insoluble in common solvents. The color of poly(6-methoxy-2-ethynylnaphthalene) (P6MeO2EN) (yellow or red) depended on the polymerization solvent, whereas no such dependency was observed for the yellow-colored P7MeO2EN and P8MeO2EN. The helical structures energetically optimized by molecular mechanics indicate that the red- and yellow-colored P6MeO2ENs form contracted and stretched helices, respectively. Due to the relatively unconstrained rotations of the 6-methoxynaphthyl moieties, the methoxy groups in P6MeO2EN are less sterically hindered along the helical axis. On the contrary, P7MeO2EN and P8MeO2EN have stretched helices due to the considerable steric hindrance imparted by their methoxy groups. The thermal cis-to-trans isomerization of P6MeO2EN in the contracted-helix form required a somewhat higher temperature than that of the stretched helix.

Graphical Abstract

1. Introduction

The unique shape and functionality of helical-structured polymers and supramolecules make them the object of keen research interest. Thus, numerous reports and reviews recently focused on the helix sense of such helical structures, describing methods for inducing/confirming the formation of one-handed helices, dynamic helix inversion caused by external stimuli, and sergeant/soldier roles for sensing chirality, ions, and molecular-size recognition [1,2,3]. In contrast, despite its importance, control of the helical pitch received relatively little attention. In view of the fact that the change of helical pitch, i.e., the mutual interconversion of stretched and contracted helices, is the basis of molecular spring operation, a better understanding of the corresponding factors of influence (e.g., dynamic changes of interactions between helical hosts and guest molecules) is expected to facilitate the preparation of novel functional materials [4,5].
Poly(phenylacetylene) derivatives (PPAs) are popular π-conjugated helical polymers that attracted considerable attention in the last two decades [6,7,8,9,10,11,12,13,14,15]. PPAs with highly stereoregular head-to-tail sequences and high cis-isomer contents are commonly synthesized using the [Rh(norbornadiene)Cl]2–NEt3 catalyst system under mild conditions [16,17]. Recently, helical PPAs were applied as chirality sensors [18,19], chiral stationary phases with changeable elution order [20], and nanowires for charge transport [21]. We reported the selective preparation of PPA and its derivatives with different helical pitches, i.e., with stretched and contracted helices, and described the drastic color changes accompanying the stretched-to-contracted transition [22,23,24,25]. The above transition was shown to smoothly occur upon heat treatment [22] and contact with appropriate solvents [24,25]. Moreover, poly(alkyl propiolate)s, which are aliphatic-substituted helical polyacetylenes, were demonstrated to undergo reversible stretched-to-contracted helix interconversion as a result of chemical exchange in solution [26,27].
PPAs form helical structures only when their main chain has a cis-configuration. However, the cis-to-trans isomerization is easily induced by external stimuli such as heat treatment [28], compression [29,30,31], and irradiation [32,33], which is accompanied by the collapse of the helical structure. Therefore, practical applications of helical molecules necessitate the development of robust helical structures. Previously, the helical pitch of poly(2-ethynylnaphthalene) (P2EN) was shown to be affected by the immersion of polymer into solvent, e.g., the yellow-colored stretched-helix P2EN that was synthesized in ethanol (EtOH) solvent was converted to red-colored contracted-helix P2EN upon immersion into toluene at room temperature [25]. Notably, the contracted-helix P2EN showed higher thermal stability than PPAs because of the strong π-stacking interactions between neighboring naphthyl rings in its side chain. Therefore, P2ENs are thought to be better heat-resistant helical π-conjugated polymers than other candidates.
The unique functions and properties of helical polymers can be enhanced by the introduction of various functional groups onto their side chain.s Reports on various applications of helical substituted polyacetylenes recently increased. However, these reports still do not have enough discussion on, e.g., how helical pitch affects the polymer properties, except for a few reports [13]. The introduction of functional groups onto the naphthyl rings in P2EN side chains is of great interest because these polymers need to be modified by the introduction of functional groups into the side chain in order to enhance and change the original chemical properties. Additionally, only a few studies of stereoregular P2EN and its derivatives prepared using the above Rh-complex-based catalyst system were reported [34], and the relationship between the position of the introduced functional group and the helical pitch of P2ENs is unfortunately still unclear, although there were many reports on their relationship in the case of PPA derivatives [35]. We believe that these detailed studies regarding the effect of substituent position on the helical pitch of aromatic polyacetylenes will contribute to the molecular design of helical structures of not only poly(arylacetylene)s, but also other helical polymers. Therefore, to bridge this gap and to enhance P2EN functionality, we herein report the synthesis of P2ENs bearing methoxy groups at positions 6, 7, and 8 of the naphthyl ring, together with characterization of the helical structure of the obtained polymers (Scheme 1). This work may be expected to facilitate the development of novel materials based on controlled helical structures, for instance, super-small electronics, highly sensitive sensors, drug delivery agents, and nanomachines.

2. Materials and Methods

2.1. Measurements

The 1H (500 MHz) and 13C NMR (125 MHz) spectra in solution were measured on a JEOL ECA-500 in CDCl3 at room temperature. The solid-state 13C cross-polarization/magic angle spinning (CPMAS) NMR (125 MHz) spectra were also measured on the same spectrometer using adamantine as the standard and 5 ms of contact time at room temperature. The diffuse reflective ultraviolet–visible light (DRUV–Vis) spectra of the polymers were recorded on a JASCO V570 spectrophotometer equipped with an ISV-470 integrating sphere accessory. The resonance Raman spectra of the polymers were recorded on a RENISHAW inVia Raman Microscope using laser light at 532 nm. Wide-angle X-ray scattering (WAXS) patterns of the polymers were recorded on a RIGAKU RINT Rapid II with CoKα (λ = 1.789 Å) as a radiation source. Differential scanning calorimetry (DSC) was performed on a SHIMADZU DSC-60, and traces were run in an atmosphere of N2 at a heating rate of 10 °C/min.

2.2. Materials

2.2.1. General

Chemicals used for synthesis of all monomers were purchased from Tokyo Chemical Industry Co., Ltd., Japan and Junsei Chemical Co, Ltd., Japan. The polymerization catalyst [Rh(nbd)Cl]2 (2,5-norbornadiene rhodium(I) chloride dimer, Wako Chemical, Ltd., Japan) was used as received.

2.2.2. Synthesis of Monomers

A monomer, 6-methoxy-2-ethynylnaphthalene (6MeO2EN), was prepared as described in the literature [36]. The monomers, 7-methoxy-2-ethynylnaphthalene (7MeO2EN) and 8-methoxy-2-ethynylnaphthalene (8MeO2EN), were prepared as described in Scheme S1 (Supplementary Materials) and purified by column chromatography on silica gel with n-hexane prior to use. 13C NMR spectra of three monomers are described in Figure S1 (Supplementary Materials) to compare with the 13C CPMAS spectra of polymers obtained.
  • 6MeO2EN: pale yellow solid. 1H NMR (500 MHz, CDCl3): δ 7.94 (s, 1H, Ar), 7.69 (d, J = 9.0 Hz, 1H, Ar), 7.66 (d, J = 8.5 Hz, 1H, Ar), 7.49 (dd, J = 8.3 Hz, 1.8 Hz, 1H, Ar), 7.15 (dd, J = 9.0 Hz, 2.5 Hz, 1H, Ar), 7.10 (d, J = 2.5 Hz, 1H, Ar), 3.92 (s, 3H, O–CH3), 3.10 (s, 1H, –C≡C–H); 13C NMR (125 MHz, CDCl3): δ 158.44, 134.37, 132.07, 129.31, 129.14, 128.28, 126.80, 119.48, 116.91, 105.75, 84.18, 76.68, 55.32.
  • 7MeO2EN: pale yellow solid. 1H NMR (500 MHz, CDCl3): δ 7.91 (s, 1H, Ar), 7.71 (d, J = 2.0 Hz, 1H, Ar), 7.69 (d, J = 1.5 Hz, 1H, Ar), 7.39 (dd, J = 8.3 Hz, 1.8 Hz, 1H, Ar), 7.16 (dd, J = 8.8 Hz, 2.8 Hz, 1H, Ar), 7.07 (d, J = 2.5 Hz, 1H, Ar), 3.91 (s, 3H, O–CH3), 3.14 (s, 1H, –C≡C–H); 13C NMR (125 MHz, CDCl3): δ 158.10, 134.02, 131.05, 129.22, 128.56, 127.73, 126.40, 119.82, 119.75, 105.52, 84.14, 77.29, 55.32.
  • 8MeO2EN: pale yellow solid. 1H NMR (500 MHz, CDCl3): δ 8.45 (s, 1H, Ar), 7.72 (dd, J = 8.5 Hz, 0.5 Hz, 1H, Ar), 7.52 (dd, J = 8.5 Hz, 1.5 Hz, 1H, Ar), 7.42–7.35 (m, 2H, Ar), 6.81 (dd, J = 6.5 Hz, 2.0 Hz, 1H, Ar), 3.98 (s, 3H, O–CH3), 3.12 (s, 1H, –C≡C–H); 13C NMR (125 MHz, CDCl3): δ 155.13, 140.00, 129.05, 127.54, 127.10, 126.78, 125.05, 119.94, 118.55, 104.46, 84.37, 76.95, 55.53.

2.3. Polymerization Procedure

The three monomers (6MeO2EN, 7MeO2EN, and 8MeO2EN) were stereoregularly polymerized using the [Rh(nbd)Cl]2 catalyst with NEt3 as the cocatalyst in the polymerization solvent to afford corresponding polymers (Scheme 1). In a typical procedure, 2.3 mmol of monomer, 2.3 × 10−2 mmol of [Rh(nbd)Cl]2, and 2.3 mmol of NEt3 were dissolved in 11.4 mL of EtOH in a specially designed U-shaped flask [37]. The polymerization was carried out at 20 °C for 0.5 h and quenched by adding 200 mL of methanol. The as obtained polymer was filtered and washed with methanol, followed by vacuum drying at 4 × 10−2 torr at 40 °C for 24 h. All polymers were insoluble to any organic solvents at room temperature.

2.4. Computation

The energetically optimal conformations of the 20-mer of the 2EN unit having a methoxy group were determined using molecular mechanics (MM) calculations with the MMFF94 force field program [38] (Spartan’16 Windows version 1.1.0, Wavefunction, Inc., Irvine, CA, USA).

3. Results and Discussion

3.1. Synthesis of MeO-Substituted P2ENs (PnMeO2ENs)

The utilized monomers were selected based on the considerations below. The ethynyl group was introduced at the 2-position of the naphthyl ring, since Rh-catalyzed polymerization of 2-ethynylnaphthalene (2EN) was previously shown to afford highly cis helical P2EN. Moreover, Rh-catalyzed polymerization of ortho-substituted phenylacetylenes to afford PPAs is known to induce partial cis-to-trans isomerization and, thus, result in helical structure destruction [39], since 1-ethynylnaphthalene (1EN) monomers can be regarded as equivalents of ortho-substituted phenylacetylene monomers [40,41].
Considering the substituent, the MeO group was chosen owing to its small size and ease of introduction, and positions 6, 7, and 8 were chosen based on the considerations of raw material availability and ease of synthesis. Table 1 shows the results of Rh-catalyzed polymerization of nMeO2ENs, demonstrating that all reactions proceeded in high yields. All polymerization reactions were initiated by mixing monomer and catalyst solutions, and the obtained polymers precipitated as powders. In all cases, polymer yields in toluene exceeded those in EtOH. The use of gel permeation chromatography to determine the molecular weights of as-prepared polymers proved to be impossible because of their insolubility in common solvents such as toluene, chloroform, tetrahydrofuran, dimethylformamide, acetone, and alcohols.
The occurrence of polymerization was confirmed by 13C CPMAS NMR spectroscopy. Figure 1 shows the spectra of poly(2), poly(4), and poly(6), which were almost identical to those of poly(1), poly(3), and poly(5) (Figure S2, Supplementary Materials). No peaks assignable to monomer C≡C carbons (Figure S1, Supplementary Materials) were observed at 85–75 ppm in all spectra, which confirmed that polymerization afforded substituted polyacetylenes not containing any residual C≡C groups. Unfortunately, main-chain C=C peaks were not separated from aromatic C=C ones, although peaks observed at ~55 ppm could be assigned to the carbon in the MeO group.

3.2. Difference in Color of Polymer Powders

Interestingly, the color of as prepared polymer powders depended on the position of the MeO group in the corresponding 2EN monomers, i.e., whereas all polymers prepared in EtOH (poly(1), poly(3), and poly(5)) were yellow, those prepared in toluene were red (poly(2)), orange (poly(4)), and yellow (poly(6)) (Figure 2a). Figure 2b–d show the diffuse reflective UV–Vis spectra of all polymers, revealing that the absorption maxima (λmax) of yellow polymers (poly(1), poly(3), poly(5), and poly(6)) were observed at ~450 nm. Conversely, the λmax values of poly(2) and poly(4) were observed at longer wavelengths (500 and 480 nm, respectively).
Previously, we revealed that the color of substituted polyacetylenes is affected by the primary (cis/trans) and secondary (helical) structures of their main chain. The former factor influences the length of π-conjugation in the main chain, e.g., substituted polyacetylenes prepared using the Rh-complex-based catalyst are normally yellow, having a cis-transoidal (ct) main chain with relatively short-range π-conjugation (over two or three monomer units) [42]. In the case when the main chain contains the trans-transoidal (tt) isomer (e.g., as a result of cis-to-trans isomerization induced by external stimuli such as pressure [29,30,31], UV irradiation [32,33], and heat treatment [28]), the corresponding polymers tend to be brown, red, or black, since the π-conjugation of the tt isomer is more extended than that of the ct isomer. Therefore, the main chain of the yellow polymers described herein (poly(1), poly(3), poly(4), poly(5), and poly(6)) was concluded to exhibit ct geometry. In view of the above, finding out whether the polymer main chain exclusively contains the cis-isomer is important for discussing the color differences of substituted polyacetylenes.

3.3. Main-Chain Structure

The content of the cis-isomer in the main chain of substituted polyacetylenes is most efficiently estimated by solution-phase 1H NMR spectroscopy [31]. However, the insolubility of as prepared polymers in common solvents at moderate temperature forced us to use resonance Raman spectroscopy for this purpose. Figure 3 shows the spectra of poly(1) and poly(2), which had different colors despite originating from the same monomer (6MeO2EN). Both spectra exclusively featured resonance peaks attributable to the cis-isomer and were almost identical to that of yellow and red P2EN, which indicated that the main chains of both polymers exhibited high cis-isomer contents [25]. In the case of P7MeO2EN and P8MeO2EN, no peak of trans C–C bonds in the main chain (~1210 cm–1) was observed (Figure S3, Supplementary Materials). Thus, resonance Raman spectroscopy clearly distinguished cis- and trans-isomers in polyene chains, demonstrating that all as prepared polymers exclusively contained the cis-isomer. In our previous report, we showed that the absorption maximum shifted to longer wavelengths upon cis-to-trans isomerization because of the concomitant extension of π-conjugation length [31,43,44]. Therefore, the different color of P6MeO2EN implied that its helical pitch was also different from those of other polymers. The resonance peak at 1540 and 1340 cm−1 of poly(2) was somewhat sharper than that of poly(1), which may reflect the different bond angle distributions in the main chain of these polymers.

3.4. Secondary Structure

A number of helical PPAs, P2ENs, and PPAs bearing alkoxy or alkyl groups at the para-position were reported to form pseudohexagonal columnar structures featuring helical polymer chains closely arranged along the same helical axis [17,45]. Consequently, the X-ray diffraction (XRD) patterns of these polymer powders exhibited (100) reflection peaks at the position corresponding to the diameter of these helices [22,23,24,25]. However, no such peaks were observed in the XRD patterns of the polymers prepared herein (Figure 4), which suggested that the persistence length of the corresponding helical chains was too short for columnar packing. Hence, we interpreted these XRD patterns assuming that all polymer chains formed helical structures without any ordered arrangement.
In the case of P6MeO2EN (Figure 4a), the pattern of poly(1) showed a broad peak at 0.45 nm due to an amorphous halo, whereas a distinct peak at 0.34 nm was observed only in the pattern of poly(2). Based on previous reports [25], this peak was concluded to reflect the distance between π-stacked neighboring naphthyl rings. Moreover, this peak allowed us to determine whether the polymer chain formed contracted helices, because the above distance was quite similar to the layer distance of graphite (0.335 nm). For this reason, we concluded that poly(1) and poly(2) comprised stretched and contracted helices, respectively.
In the case of P7MeO2EN (Figure 4b), the pattern of poly(3) was almost identical to that of poly(1), showing only a broad peak at 0.46 nm and no π-stacking-related peak. The peak at 0.47 nm observed in the case of poly(4) was thought to reflect the average distance between naphthyl rings. Additionally, poly(4) also showed a broad shoulder peak at around 30°. This peak could indicate that poly(4) also contained a contracted helix, although the helical pitch had a large distribution. It would also be related to the difference in 40 nm between poly(3) and poly(4) of the UV spectrum mentioned above.
In the case of P8MeO2EN (Figure 4c), the patterns of poly(5) and poly(6) were almost identical to each other and exclusively featured a broad peak at 0.40 nm, with no π-stacking-related peak observed. Thus, these patterns indicated that both polymers formed stretched helices.

3.5. Helical Pitch Analysis

The dihedral angles of the above helices at energetically stable conformations were analyzed by performing molecular mechanics calculations on 20-mers of each monomer as models of the corresponding polymers. The strain energy of each conformer was calculated with the initial structure in which the dihedral angle between all the monomer units in the 20-mer, that is, angles of 19 bonds for each model were changed from 180° to 40° in steps of 10° (Figure 5). P6MeO2EN and P7MeO2EN models featured global strain energy minima at 60° and 70°, respectively, which indicated that the helix of P6MeO2EN was able to contract more tightly than that of P7MeO2EN, in agreement with the results of XRD measurements. Moreover, highly ordered π-stacking with a distance of 0.34 nm between neighbor naphthyl rings was observed in the contracted helix of P6MeO2EN (θ = 60°) (Figure 6b). This stacking distance was also observed in the XRD pattern of red-colored poly(2) (Figure 4a). In the case of P8MeO2EN, the strain energies at all angles were much larger than those of P6MeO2EN and P7MeO2EN, which, in combination with the results of XRD analysis (Figure 4c), implied that both P8MeO2ENs probably formed stretched helices with short persistence length. Thus, we concluded that the red-colored polymer, i.e., poly(2), had a contracted helix, while other polymers had stretched helices.
The contractile limit of the helical pitch depended on the position of the MeO group on the naphthyl ring. Only P6MeO2EN could form a contracted helix (poly(2)) when toluene was used as the polymerization solvent, whereas the use of EtOH resulted in the formation of a stretched helix (poly(1)), and no contracted helices could be obtained for P7MeO2EN and P8MeO2EN in both polymerization solvents. Helix contraction is expected to result in steric hindrance between the neighboring methoxynaphthyl rings because of their rotatable nature, as indicated by variable-radius cones in Figure 7. Considering the position of MeO groups, the size of the cone representing methoxynaphthyl ring rotation should be smaller for P6MeO2EN than that for P7MeO2EN and P8MeO2EN. Thus, differences in polymer color reflected those of the helical pitch. The fact that even the introduction of small MeO groups resulted in helical pitch changes implies that the introduction of other functional groups on substituted poly(arylacetylene)s should have an even larger influence.

3.6. DSC Study

To determine whether the contracted helix was more thermally stable than the stretched one, we measured DSC traces of poly(1) and poly(2) (Figure 8), revealing that the trace of the former showed three exothermic peaks, while that of the latter showed only one exothermic peak. The onset temperature of the first exothermic peak was higher for poly(2) (220 °C) than for poly(1) (200 °C), which indicated that the contracted helix was more thermally stable than the stretched helix. Additionally, these temperatures were also higher than those of poly(p-alkoxyphenylacetylene)s (~140 °C), which indicated that large aromatic substituents increased thermal stability.
For poly(1), one of the two DSC peaks at 224 and 239 °C was ascribed to the cis-to-trans isomerization of the stretched ct helix, since these peaks were not observed in the trace of poly(2), with the origin of the second peak remaining unclear. The peak at ~265 °C observed in both traces was assigned to the cis-to-trans isomerization of the contracted cc helix. Interestingly, the presence of a small peak at 263 °C in the trace of poly(1) suggested that this polymer contained a small amount of the contracted helix, although it could not be detected by other measurements. The stretched-to-contracted helix conversion was thought to occur between 200 and 240 °C, similarly to the case of poly(p-n-hexoxyphenylacetylene) [22].

4. Conclusions

Herein, we synthesized n-methoxy-2-ethynylnaphthalene (n = 6, 7, 8) monomers and polymerized them in EtOH and toluene using an Rh-complex-based catalyst system to clarify the effect of substituent position on the helical pitch of the resulting P2ENs. Solid-state NMR, resonance Raman, and XRD measurements showed that the main chain of all prepared polymers formed a helical structure without irregular sequences. Notably, the color of the produced polymer was influenced by the polymerization solvent only in the case of P6MeO2EN. Based on the results of XRD analysis and molecular mechanics calculations, the red-colored P6MeO2EN was concluded to feature a contracted helix, whereas other polymers had stretched helices. This result indicates that, in the case of helical P6MeO2EN, the naphthyl ring MeO-substituted as position 6 exerts a relatively small rotation-induced steric hindrance compared to rings substituted at positions 7 and 8.
Thus, we concluded that the helical pitch of substituted poly(arylacetylene)s is strongly influenced by substituent position, even in the case of groups as small as MeO. Hence, the introduction of other functional groups should also influence the helical pitch, necessitating one to deeply consider the choice of substitution position. The obtained results significantly contribute to the molecular design of helical substituted polyacetylenes, since changes of the helical pitch are commonly accompanied by those of other properties. In the particular case of P2EN, introduction of functional groups at position 6 resulted in contracted helix formation, whereas the formation of a stretched helix was achieved by introducing substituents at positions 7 and 8, with the latter being more suitable for this purpose. Recently, the effect of substitution position (o-, m-, and p-) on the solution-phase helical pitch of PPA derivatives bearing specific amide groups was reported [35], which is important because of the potentially significant role of helical poly(arylacetylene)s in highly sensitive sensors, super-small electronic and magnetic devices, and other fields. Currently, we are working on the application of these findings to the design and synthesis of other helical poly(arylacetylene)s, and the corresponding results will be reported in due course.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/11/1/94/s1: Scheme S1: Synthesis of 7-methoxy-2-ethynylnaphthalene (7MeO2EN) and 8-methoxy-2-ethynylnaphthalene (8MeO2EN); Figure S1: 13C NMR spectra of nMeO2EN monomers (n = 6, 7, and 8); Figure S2: Room temperature 13C CPMAS NMR spectra of poly(1), poly(3), and poly(5); Figure S3: Resonance Raman spectrum of poly(3)~poly(6) in the solid state.

Author Contributions

Conceptualization, Y.M. and M.T.; Investigation, Y.M.; Data Curation, Y.M.; Writing–Original Draft Preparation, Y.M.; Writing–Review & Editing, Y.Y., K.H. and M.T; Funding Acquisition, Y.M. and M.T.

Acknowledgments

This work was supported in part by JSPS KAKENHI (Grants-in-Aid for Young Scientist (B), No. 16K20885 (Y.M.) and the Nanotechnology Platform Program (Synthesis of Molecules and Materials, Chitose Institute of Science and Technology) of the Ministry of Education, Culture, Sports, Science, and Technology (MEXT), Japan.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yashima, E.; Ousaka, N.; Taura, D.; Shimomura, K.; Ikai, T.; Maeda, K. Supramolecular Helical Systems: Helical Assemblies of Small Molecules, Foldamers, and Polymers with Chiral Amplification and Their Functions. Chem. Rev. 2016, 116, 13752–13990. [Google Scholar] [CrossRef]
  2. Yashima, E.; Maeda, K.; Iida, H.; Furusho, Y.; Nagai, K. Helical Polymers: Synthesis, Structures, and Functions. Chem. Rev. 2009, 109, 6102–6211. [Google Scholar] [CrossRef]
  3. Yashima, E.; Maeda, K. Chirality-Responsive Helical Polymers. Macromolecules 2008, 41, 3–12. [Google Scholar] [CrossRef]
  4. Yamada, T.; Nomura, K.; Fujiki, M. Noticeable Chiral Center Dependence of Signs and Magnitudes in Circular Dichroism (CD) and Circularly Polarized Luminescence (CPL) Spectra of all-trans -Poly(9,9-dialkylfluorene-2,7-vinylene)s Bearing Chiral Alkyl Side Chains in Solution, Aggregates, and Thin Films. Macromolecules 2018, 51, 2377–2387. [Google Scholar] [CrossRef]
  5. Nagata, Y.; Nishikawa, T.; Suginome, M.; Sato, S.; Sugiyama, M.; Porcar, L.; Martel, A.; Inoue, R.; Sato, N. Elucidating the Solvent Effect on the Switch of the Helicity of Poly(quinoxaline-2,3-diyl)s: A Conformational Analysis by Small-Angle Neutron Scattering. J. Am. Chem. Soc. 2018, 140, 2722–2726. [Google Scholar] [CrossRef]
  6. Jin, Y.-J.; Park, H.; Lee, C.-L.; Teraguchi, M.; Kaneko, T.; Aoki, T.; Kwak, G. Fluorescence emission and image patterning from selective photocyclic aromatization of cis–cisoid helical poly(phenylacetylene)s in situ in a film via top-down photodegradation. Dyes Pigment. 2018, 149, 444–448. [Google Scholar] [CrossRef]
  7. Xu, C.; Aoki, T.; Ma, L.; Jia, H.; Teraguchi, M.; Kaneko, T. Synthesis and Ultrahigh Oxygen Permeability of Silicon-containing cis-cisoidal Poly(substituted phenylacetylene)s. Chem. Lett. 2018, 47, 1314–1317. [Google Scholar] [CrossRef]
  8. Freire, F.; Quiñoá, E.; Riguera, R. Supramolecular Assemblies from Poly(phenylacetylene)s. Chem. Rev. 2016, 116, 1242–1271. [Google Scholar] [CrossRef]
  9. Mawatari, Y.; Tabata, M. Synthetic Molecular Springs: Stretched and Contracted Helices with Their Interconversions of Monosubstituted Polyacetylenes Prepared with a Rhodium Complex Catalyst. In Carbon-Related Materials in Recognition of Nobel Lectures by Prof. Akira Suzuki in ICCE; Springer International Publishing: Cham, Switzerland, 2017; pp. 305–326. [Google Scholar]
  10. Zhao, B.; Deng, J. Emulsion Polymerization of Acetylenics for Constructing Optically Active Helical Polymer Nanoparticles. Polym. Rev. 2017, 57, 119–137. [Google Scholar] [CrossRef]
  11. Xu, A.; Masuda, T.; Zhang, A. Stimuli-Responsive Polyacetylenes and Dendronized Poly(phenylacetylene)s. Polym. Rev. 2017, 57, 138–158. [Google Scholar] [CrossRef]
  12. Sedláček, J.; Balcar, H. Substituted Polyacetylenes Prepared with Rh Catalysts: From Linear to Network-Type Conjugated Polymers. Polym. Rev. 2017, 57, 31–51. [Google Scholar] [CrossRef]
  13. Liu, L.; Zang, Y.; Jia, H.; Aoki, T.; Kaneko, T.; Hadano, S.; Teraguchi, M.; Miyata, M.; Zhang, G.; Namikoshi, T. Helix-Sense-Selective Polymerization of Achiral Phenylacetylenes and Unique Properties of the Resulting Cis-cisoidal Polymers. Polym. Rev. 2017, 57, 89–118. [Google Scholar] [CrossRef]
  14. Sakai, R.; Satoh, T.; Kakuchi, T. Polyacetylenes as Colorimetric and Fluorescent Chemosensor for Anions. Polym. Rev. 2017, 57, 159–174. [Google Scholar] [CrossRef]
  15. Wang, S.; Shi, G.; Guan, X.; Zhang, J.; Wan, X. Cis-Cisoid Helical Structures of Poly(3,5-disubstituted phenylacetylene)s Stabilized by Intramolecular n → π* Interactions. Macromolecules 2018, 51, 1251–1259. [Google Scholar] [CrossRef]
  16. Tabata, M.; Yang, W.; Yokota, K. 1H-NMR and UV studies of Rh complexes as a stereoregular polymerization catalysts for phenylacetylenes: Effects of ligands and solvents on its catalyst activity. J. Polym. Sci. Part A Polym. Chem. 1994, 32, 1113–1120. [Google Scholar] [CrossRef]
  17. Tabata, M.; Sone, T.; Sadahiro, Y. Precise synthesis of monosubstituted polyacetylenes using Rh complex catalysts. Control of solid structure and π-conjugation length. Macromol. Chem. Phys. 1999, 200, 265–282. [Google Scholar] [CrossRef]
  18. Maeda, K.; Mochizuki, H.; Watanabe, M.; Yashima, E. Switching of Macromolecular Helicity of Optically Active Poly(phenylacetylene)s Bearing Cyclodextrin Pendants Induced by Various External Stimuli. J. Am. Chem. Soc. 2006, 128, 7639–7650. [Google Scholar] [CrossRef]
  19. Maeda, K.; Mochizuki, H.; Osato, K.; Yashima, E. Stimuli-Responsive Helical Poly(phenylacetylene)s Bearing Cyclodextrin Pendants that Exhibit Enantioselective Gelation in Response to Chirality of a Chiral Amine and Hierarchical Super-Structured Helix Formation. Macromolecules 2011, 44, 3217–3226. [Google Scholar] [CrossRef]
  20. Shimomura, K.; Ikai, T.; Kanoh, S.; Yashima, E.; Maeda, K. Switchable enantioseparation based on macromolecular memory of a helical polyacetylene in the solid state. Nat. Chem. 2014, 6, 429–434. [Google Scholar] [CrossRef]
  21. Wang, N.; Yano, K.; Durkan, C.; Plank, N.; Welland, M.E.; Zhang, Y.; Unalan, H.E.; Mann, M.; Amaratunga, G.A.J.; Milne, W.I. Direct measurement of charge transport through helical poly(ethyl propiolate) nanorods wired into gaps in single walled carbon nanotubes. Nanotechnology 2009, 20, 105201. [Google Scholar] [CrossRef]
  22. Motoshige, A.; Mawatari, Y.; Yoshida, Y.; Seki, C.; Matsuyama, H.; Tabata, M. Irreversible helix rearrangement from Cis-transoid to Cis-cisoid in poly(p-n-hexyloxyphenylacetylene) induced by heat-treatment in solid phase. J. Polym. Sci. Part A Polym. Chem. 2012, 50, 3008–3015. [Google Scholar] [CrossRef]
  23. Motoshige, A.; Mawatari, Y.; Yoshida, Y.; Motoshige, R.; Tabata, M. Synthesis and solid state helix to helix rearrangement of poly(phenylacetylene) bearing n-octyl alkyl side chains. Polym. Chem. 2014, 5, 971–978. [Google Scholar] [CrossRef]
  24. Motoshige, R.; Mawatari, Y.; Motoshige, A.; Yoshida, Y.; Sasaki, T.; Yoshimizu, H.; Suzuki, T.; Tsujita, Y.; Tabata, M. Mutual conversion between stretched and contracted helices accompanied by a drastic change in color and spatial structure of poly(phenylacetylene) prepared with a [Rh(nbd)Cl]2-amine catalyst. J. Polym. Sci. Part A Polym. Chem. 2014, 52, 752–759. [Google Scholar] [CrossRef]
  25. Mawatari, Y.; Motoshige, A.; Yoshida, Y.; Motoshige, R.; Sasaki, T.; Tabata, M. Structural determination of stretched helix and contracted helix having yellow and red colors of poly(2-ethynylnaphthalene) prepared with a [Rh(norbornadiene)Cl]2-triethylamine catalyst. Polymer 2014, 55, 2356–2361. [Google Scholar] [CrossRef]
  26. Yoshida, Y.; Mawatari, Y.; Motoshige, A.; Motoshige, R.; Hiraoki, T.; Wagner, M.; Müllen, K.; Tabata, M. Accordion-like oscillation of contracted and stretched helices of polyacetylenes synchronized with the restricted rotation of side chains. J. Am. Chem. Soc. 2013, 135, 4110–4116. [Google Scholar] [CrossRef]
  27. Yoshida, Y.; Mawatari, Y.; Motoshige, A.; Motodshige, R.; Hiraoki, T.; Tabata, M. Helix oscillation of polyacetylene esters detected by dynamic 1H NMR, IR, and UV-vis methods in solution. Polym. Chem. 2013, 4. [Google Scholar] [CrossRef]
  28. Tabata, M.; Sadahiro, Y.; Sone, T.; Yokota, K.; Ishikawa, Y. Unusually facilcis totrans isomerization of a polypropiolate bearing a long alkyl chain polymerized using a [Rh(norbornadiene)Cl]2 catalyst: An ESR study. J. Polym. Sci. Part A Polym. Chem. 1998, 36, 2457–2461. [Google Scholar] [CrossRef]
  29. Huang, K.; Mawatari, Y.; Miyasaka, A.; Sadahiro, Y.; Tabata, M.; Kashiwaya, Y. Generation of polyacetylene sulfoxide radicals through spin migration from the main-chain to the sulfoxide moiety in the side chain of poly[p-(n-butylsulfoxide)phenylacetylene] prepared with a [Rh(norbornadiene)Cl]2 catalyst. Polymer 2007, 48, 6366–6373. [Google Scholar] [CrossRef]
  30. Miyasaka, A.; Sone, T.; Mawatari, Y.; Setayesh, S.; Müllen, K.; Tabata, M. Poly[(para-halogenated)phenylacetylene]s prepared with a [Rh(norbornadiene)Cl]2 catalyst: Syntheses and structure elucidation. Macromol. Chem. Phys. 2006, 207, 1938–1944. [Google Scholar] [CrossRef]
  31. Mawatari, Y.; Tabata, M.; Sone, T.; Ito, K.; Sadahiro, Y. Origin of color of π-conjugated columnar polymers. 1. Poly(p-3-methylbutoxy)phenylacetylene prepared using a [Rh(norbornadiene)Cl]2 catalyst. Macromolecules 2001, 34. [Google Scholar] [CrossRef]
  32. Kozuka, M.; Sone, T.; Tabata, M.; Sadahiro, Y.; Enoto, T. Radiation-induced Cis to Trans isomerization of poly(n-butylpropiolate) prepared with a [Rh(norbornadiene)Cl]2 complex as a stereospecific catalyst. Radiat. Phys. Chem. 2002, 63, 59–61. [Google Scholar] [CrossRef]
  33. Nakamura, M.; Tabata, M.; Sone, T.; Mawatari, Y.; Miyasaka, A. Photoinduced cis-to-trans isomerization of poly(2-ethynylthiophene) prepared with a [Rh(norbornadiene)Cl]2 catalyst. 1H NMR, UV, and ESR studies. Macromolecules 2002, 35, 2000–2004. [Google Scholar] [CrossRef]
  34. Percec, V.; Rudick, J.G.; Peterca, M.; Aqad, E.; Imam, M.R.; Heiney, P.A. Synthesis, structural, and retrostructural analysis of helical dendronized poly(1-naphthylacetylene)s. J. Polym. Sci. Part A Polym. Chem. 2007, 45, 4974–4987. [Google Scholar] [CrossRef]
  35. Rodríguez, R.; Quiñoá, E.; Riguera, R.; Freire, F. Architecture of Chiral Poly(phenylacetylene)s: From Compressed/Highly Dynamic to Stretched/Quasi-Static Helices. J. Am. Chem. Soc. 2016, 138, 9620–9628. [Google Scholar] [CrossRef]
  36. Peebles, C.; Alvey, P.M.; Lynch, V.; Iverson, B.L. Time-Dependent Solid-State Polymorphism of a Series of Donor–Acceptor Dyads. Cryst. Growth Des. 2014, 14, 290–299. [Google Scholar] [CrossRef]
  37. Tabata, M.; Inaba, Y.; Yokota, K.; Nozaki, Y. Stereoregular Polymerization of Alkyl Propiolate Catalyzed by Rh Complex. J. Macromol. Sci. Part A 1994, 31, 465–475. [Google Scholar] [CrossRef]
  38. Halgren, T.A. Merck molecular force field. I. Basis, form, scope, parameterization, and performance of MMFF94. J. Comput. Chem. 1996, 17, 490–519. [Google Scholar] [CrossRef]
  39. Sone, T.; Asako, R.; Masuda, T.; Tabata, M.; Wada, T.; Sasabe, H. Polymerization of o-Trifluoromethyl(phenylacetylene) Initiated by [Rh(norbornadiene)Cl]2 and MoOCl4−n-Bu4Sn−EtOH Catalysts. Formation of Order and Disorder Trans Sequences. Macromolecules 2001, 34, 1586–1592. [Google Scholar] [CrossRef]
  40. Tabata, M.; Yokota, K.; Namioka, M. An electron spin resonance study of poly(α-ethynylnaphthalene) polymerized with [Rh(norbornadiene)Cl]2 and WCl6 as catalysts. Macromol. Chem. Phys. 1995, 196, 2969–2977. [Google Scholar] [CrossRef]
  41. Tabata, M.; Namioka, M.; Yokota, K.; Minakawa, H. Structural differences of poly(α-ethynylnaphthalene)s obtained with [Rh(norbornadiene)Cl]2 and WCl6 catalysts: An electron spin resonance and Raman study. Polymer 1996, 37, 1959–1963. [Google Scholar] [CrossRef]
  42. Minakawa, H.; Tabata, M.; Yokota, K. Structural Differences between Polypentynoates Bearing Mesogenic Moieties Polymerized with Rh Complex and WCl6 Catalysts. A 13C-NMR and Raman Study. J. Macromol. Sci. Part A 1996, 33, 291–303. [Google Scholar] [CrossRef]
  43. Sone, T.; D’Amato, R.; Mawatari, Y.; Tabata, M.; Furlani, A.; Russo, M.V. Copolymers of phenylacetylene and para-nitrophenylacetylene with nonlinear optical properties: Further insight on the conformational structure. J. Polym. Sci. Part A Polym. Chem. 2004, 42, 2365–2376. [Google Scholar] [CrossRef]
  44. Tabata, M.; Sone, T.; Sadahiro, Y.; Yokota, K. Pressure-induced cis to trans isomerization of poly(ortho- and para-methoxyphenylacetylene)s prepared by [Rh(norbornadiene)Cl]2 catalyst. A Raman, UV, and ESR study. Macromol. Chem. Phys. 1998, 199, 1161–1166. [Google Scholar] [CrossRef]
  45. Tabata, M.; Mawatari, Y. Emerging π-Conjugated Stretched and Contracted Helices and their Mutual Conversions of Substituted Polyacetylenes Prepared using an Organo-rhodium Catalyst. Polym. Rev. 2017, 57, 65–88. [Google Scholar] [CrossRef]
Polymers 11 00094 sch001 550

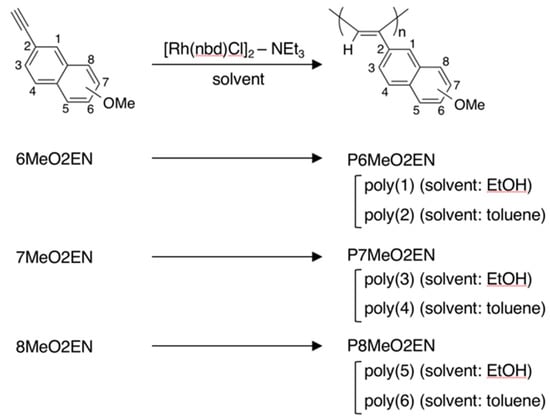

Scheme 1. [Rh(norbornadiene)Cl]2–NEt3-catalyzed polymerization of n-methoxy-2-ethynylnaphthalenes (nMeO2ENs; n = 6, 7, 8).
Scheme 1. [Rh(norbornadiene)Cl]2–NEt3-catalyzed polymerization of n-methoxy-2-ethynylnaphthalenes (nMeO2ENs; n = 6, 7, 8).
Polymers 11 00094 sch001
Polymers 11 00094 g001 550

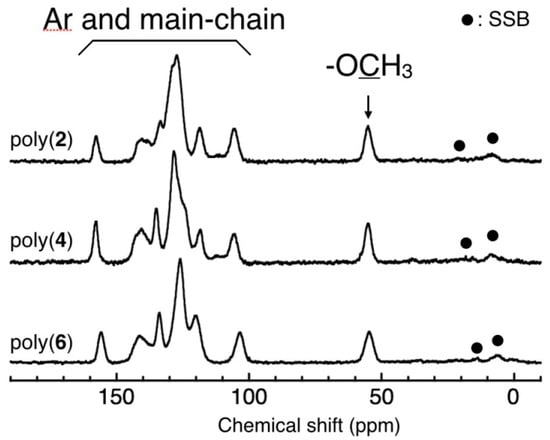

Figure 1. Room temperature 13C cross-polarization/magic angle spinning (CPMAS) NMR spectra of poly(2), poly(4), and poly(6). SSB represents a spinning side band.
Figure 1. Room temperature 13C cross-polarization/magic angle spinning (CPMAS) NMR spectra of poly(2), poly(4), and poly(6). SSB represents a spinning side band.
Polymers 11 00094 g001
Polymers 11 00094 g002 550

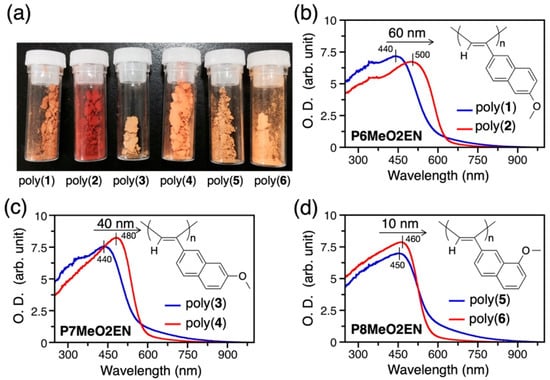

Figure 2. Photographs of poly(1–6) (a), diffuse reflectance ultraviolet–visible light (UV–Vis) spectra of poly(6-methoxy-2-ethynylnaphthalene)s (P6MeO2ENs) (b), P7MeO2ENs (c), and P8MeO2ENs (d).
Figure 2. Photographs of poly(1–6) (a), diffuse reflectance ultraviolet–visible light (UV–Vis) spectra of poly(6-methoxy-2-ethynylnaphthalene)s (P6MeO2ENs) (b), P7MeO2ENs (c), and P8MeO2ENs (d).
Polymers 11 00094 g002
Polymers 11 00094 g003 550

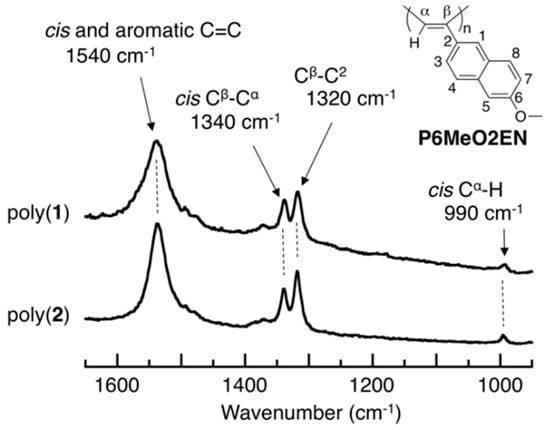

Figure 3. Resonance Raman spectra of P6MeO2ENs in the solid state.
Figure 3. Resonance Raman spectra of P6MeO2ENs in the solid state.
Polymers 11 00094 g003
Polymers 11 00094 g004 550

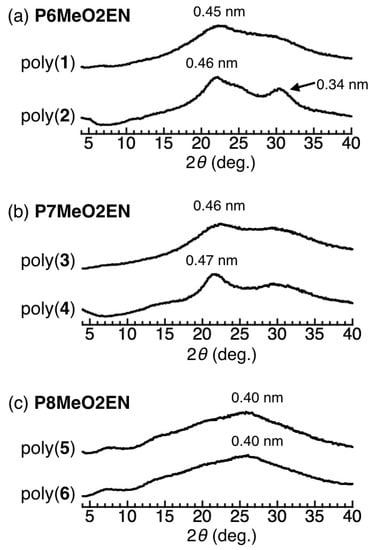

Figure 4. X-ray diffraction (XRD) patterns of P6MeO2ENs (a), P7MeO2ENs (b), and P8MeO2ENs (c).
Figure 4. X-ray diffraction (XRD) patterns of P6MeO2ENs (a), P7MeO2ENs (b), and P8MeO2ENs (c).
Polymers 11 00094 g004
Polymers 11 00094 g005 550

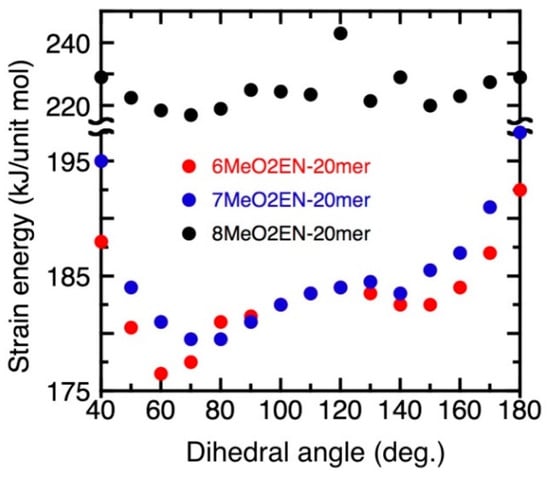

Figure 5. Dependencies of strain energies on the dihedral angle between two C=C bonds of C=C–C=C units for 20-mer models of 6MeO2EN, 7MeO2EN, and 8MeO2EN.
Figure 5. Dependencies of strain energies on the dihedral angle between two C=C bonds of C=C–C=C units for 20-mer models of 6MeO2EN, 7MeO2EN, and 8MeO2EN.
Polymers 11 00094 g005
Polymers 11 00094 g006 550

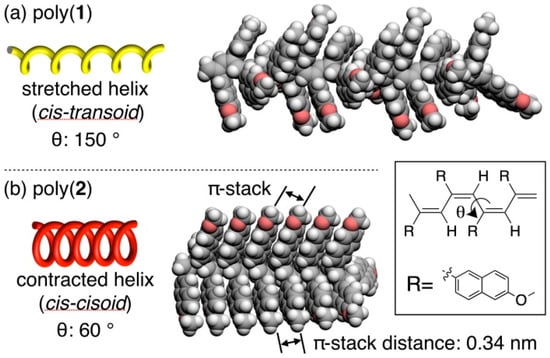

Figure 6. Side views of 6MeO2EN 20-mer models, showing the stretched helix of poly(1) (a) and the contracted helix of poly(2) (b).
Figure 6. Side views of 6MeO2EN 20-mer models, showing the stretched helix of poly(1) (a) and the contracted helix of poly(2) (b).
Polymers 11 00094 g006
Polymers 11 00094 g007 550

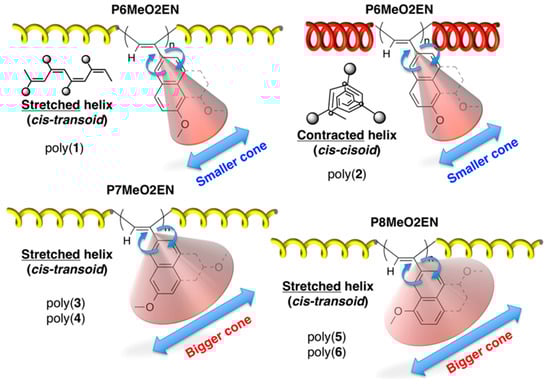

Figure 7. Schematic model of steric hindrances along the helical axis caused by the presence of rotatable methoxynaphthyl rings.
Figure 7. Schematic model of steric hindrances along the helical axis caused by the presence of rotatable methoxynaphthyl rings.
Polymers 11 00094 g007
Polymers 11 00094 g008 550

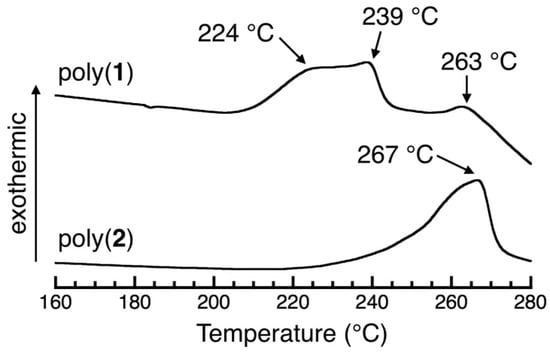

Figure 8. Differential scanning calorimetry (DSC) traces of P6MeO2ENs.
Figure 8. Differential scanning calorimetry (DSC) traces of P6MeO2ENs.
Polymers 11 00094 g008
Table
Table 1. Rh-catalyzed polymerization of n-methoxy-2-ethynylnaphthalene (nMeO2ENs). a
Table 1. Rh-catalyzed polymerization of n-methoxy-2-ethynylnaphthalene (nMeO2ENs). a
MonomerPolymerPolymerization SolventYield (%) bλmax(nm) c
6MeO2ENPoly(1)Ethanol (EtOH)60440
6MeO2ENPoly(2)Toluene74500
7MeO2ENPoly(3)EtOH54440
7MeO2ENPoly(4)Toluene91480
8MeO2ENPoly(5)EtOH70450
8MeO2ENPoly(6)Toluene98460
a Conditions: 25 °C, 0.5 h, [M]0 = 0.20 M, [M]0/[Rh cat.] = 200, [NEt3]/[Rh cat.] = 100. b EtOH-insoluble part. c Measured by diffuse reflectance ultraviolet–visible light (UV–Vis) spectroscopy.
