Novel Hydrophobic Associating Polymer with Good Salt Tolerance

by
Jincheng Mao
*,
Hongzhong Tan
,
Bo Yang
*,
Wenlong Zhang
*,
Xiaojiang Yang
,
Yang Zhang
and
Heng Zhang
State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation, Southwest Petroleum University, Chengdu 610500, China
*
Authors to whom correspondence should be addressed.
Polymers 2018, 10(8), 849; https://doi.org/10.3390/polym10080849
Submission received: 24 July 2018 / Accepted: 30 July 2018 / Published: 1 August 2018
Browse Figures
Versions Notes

Abstract

:
A hydrophobic associating polymer named DiPHAM (acrylamide/sodium acrylamide-2-methylpropanesulfonic/sodium acrylate/N,N-di-n-dodecylacrylamide) with good salt tolerance was synthesized via photo-initiation polymerization. The critical association concentration (CAC) of DiPHAM was determined by viscosity changes to be 490 mg/L with different DiPHAM concentrations and particle sizes varied under such dynamic conditions. The influences of aqueous metal ions with different charges on its aqueous solution were investigated by measuring apparent viscosity, viscoelasticity, thixotropy, rheology, and particle size, and by SEM observation. The apparent viscosity of the DiPHAM solution was affected by metal ions to some extent, but the viscosity of the polymer can be still maintained at 55 mPa·s under 20 × 104 mg/L NaCl. Divalent metal ions show greater impact on DiPHAM aqueous solutions, but the polymer solutions showed resistance to the changes caused in viscosity, structure, and viscoelasticity by Ca2+ and Mg2+ ions. The salt tolerance of DiPHAM is due to the combination of hydrophobic association, the electrostatic shield, and double layer compression of the hydration shell. Increasing the ion concentration enhances the dehydration and further compresses the hydration shell, making the non-structural viscosity decrease, even “salting out”. Measurements of rheological properties showed that DiPHAM solutions could maintain a relatively high viscosity (0.6%-71 mPa·s/0.3%-50 mPa·s) after 120 min of continuous shearing (170 s−1) at 140 °C. Under high-salinity (5000 mg/L Ca2+/3000 mg/L Mg2+) conditions, the solution with 0.6 wt% DiPHAM still maintained a high viscosity (50 mPa·s/70 mPa·s) after continuously shearing for 120 min at 120 °C and 170 s−1. The good salt tolerance of DiPHAM can lead to a variety of applications, including in fracturing fluids for enhanced oil recovery (EOR) and in sewage treatment.

Graphical Abstract

1. Introduction

Water-soluble polymers with a small number of hydrophobic groups in their main chains are called hydrophobic associating polymers. Due to their properties in aqueous solution, which are caused by the interaction of intramolecular and intermolecular chains between the hydrophobic groups, they are widely used in oil and gas development, engineering materials, industrial coatings, sewage sludge, and drug controlled release [1,2], but their properties and structures can be greatly affected by salinity and temperature. Most studies have only revealed the effect of salinity on the viscosity of polymer solutions, but the effects on the microstructure and other rheological properties have rarely been reported [3,4].
McCormick found that the introduction of hydrophobic monomers in polymers could increase the hydrodynamic volume of the polymers in aqueous solution and give the polymers a better salt resistance [5]. Klucker used static and dynamic light scattering (DLS) to show that hydrophobic association polymers will form a network structure in aqueous solution, leading to salt resistance [6]. Yamamoto and co-workers studied sodium acrylamide-2-methylpropanesulfonic (AMPS-Na)/methyl acrylamide alkyl substituted random copolymer and showed that an increase in the number of carbon atoms in the long hydrophobic chains leads to enhanced polymer association [7]. By studying the transfection efficiency of amphiphilic polymer to genes, Ying found that a longer hydrophobic chain length leads to better self-assembly efficiency [8,9]. Shalaby et al. found that polymers containing –COO−, –SO3−, –RCOO− and other anionic groups have very obvious polyelectrolyte adhesion [10]. Dusseault synthesized a salt-resistant polymer (KY700) for oil and gas field development, whose viscosity stays at 97% with 4500 mg/L mineralization [11]. Jiang has prepared a nonionic modified polyacrylamide of P(AM/OP-10-AC), whose aqueous solution can maintain good rheological properties in 6 wt% of KCl [12]. Zhu developed a hydrophobic associating polymer for which a 0.15 wt% solution can maintain 50% of its viscosity with 10,000 mg/L NaCl [13]. Sarsenbekuly prepared a hydrophobic associating polymer (RH-4) that can maintain high shear viscosity in 80,000 mg/L NaCl aqueous solutions and has an excellent tolerance to Ca2+ and Mg2+ ions due to its great hydrophobic association performance [14].
In this work described in this paper, an anionic hydrophobic association polymer named DiPHAM was designed and synthesized for use in high-salinity water. The design called for using acrylamide as the main polymerization monomer, and the commonly used and widely available salt-resistant anionic monomer AMPS-Na was introduced into the polymer chain. At the same time, in order to further enhance the salt resistance, a twin-tailed hydrophobic monomer N,N-di-n-dodecylacrylamide (DiC12AM), which has stronger thickening properties due to a stronger hydrophobic effect, was also introduced into the polymer. In addition, a hydrophilic anionic monomer sodium acrylate (AA-Na) was introduced with a purpose to improve solubility.
The particle sizes of the polymer were measured by dynamic light scattering (DLS) to ascertain the critical association concentration (CAC) of DiPHAM. The changes in the polymer before and after association and the changes in other characteristics in salt solutions with different concentrations were observed to analyze the salt-tolerance mechanism of the polymer [15]. This paper not only describes the changes in the viscosity of the polymer in various salt solutions, but also describes other properties of polymer solutions with high salinity, including shearing resistance, thixotropy, viscoelasticity, and other rheological properties. The results show that DiPHAM could be used extensively, maintaining stable structural properties in the high-salinity solutions.

2. Materials and Experiment

2.1. Raw Materials

Raw materials of acrylamide (AM, Kelong, Chengdu, China), 2-acrylamido-2-methylpropane sulfonate (AMPS, Best-reagent, Chengdu, China), acrylic acid (AA, Kelong, Chengdu, China), methacryloylchloride (Kelong, Chengdu, China), 2,2′-azobis (2-methylpropionamidine) (Best-reagent, Chengdu, China), dihydrochloride (V50, Kelong, Chengdu, China), dodecyl amine, bromo dodecane (Kelong, Chengdu, China), sodium dodecyl sulfate (SDS, Kelong, Chengdu, China), sodium chloride (Kelong, Chengdu, China) and sodium hydroxide (Kelong, Chengdu, China) were analytical reagent grade and were purchased from chemical markets without further purification. Twin-tailed hydrophobic monomer DiC12AM was prepared as described in the literature [16].

2.2. Synthesis of DiPHAM

The reaction was conducted in a three-necked flask and equipped with a magnetic stirrer. A certain amount of AM (28.26 g), AA (10.31 g), AMPS (5.84 g), DiC12AM (0.47 g) and SDS (6.58 g) were weighed precisely (Scheme 1), the molar ratio of SDS to hydrophobic monomer was 20, and dissolved in deionized water to form a clarified mixed solution, and then NaOH solution (30 wt%) was added until the solution had reached a pH of 6 to 7 [17].
Nitrogen was bubbled through a three-necked flask for 30 min to ensure the reaction was conducted in an inert atmosphere. A certain amount of V50 (0.1 wt%) was added into solution as the initiator after the hydrophobic monomer had dissolved completely, and then the flask was placed in a UV light fixture. Polymer colloid was obtained via illumination reaction after 6 h at 25 °C. The colloid was then cut into small pieces and precipitated with anhydrous ethanol for several times. Finally, hydrophobic polymer product was acquired after vacuum drying and granulation.

3. Methods

3.1. Characterization

The Fourier transform infrared (FT-IR) spectrum of granulated DiPHAM was acquired by an Infrared spectrometer (Beijing Rayleigh Analytical Instrument Corporation, Beijing, China, WQF-520), using the potassium bromide disk method. The spectrum was obtained at a resolution of 0.5 cm−1. The nuclear magnetic resonance hydrogen spectrum (1H NMR) of DiPHAM was obtained with a Bruker 400 MHz NMR spectrometer (Bruker AVANCE III HD 400, Karlsruhe, Germany), operating at 400 MHz. The DiPHAM was prepared in D2O with a concentration of 10 g/L after being soaked with acetone for 24 h to remove impurities.

3.2. DLS Measurements

The hydrodynamic radius (Rg) of a polymer can indicate its particle size and the size of polymer aggregates in aqueous solutions. The particle size of DiPHAM was determined by dynamic light scattering with a wide angle laser light scatterometer (Brookhaven, BI-200SM, Suffolk, NY, USA). DiPHAM was dissolved in deionized water to prepare the polymer solutions. The polymer salt solutions were prepared by adding NaCl to 500 mg/L DiPHAM solutions. The temperature for the tests was 25 °C, the laser module was a 532-Na light source, the detection angle was 90°, and CONTIN software was used for the final analysis of data.

3.3. Rheological Properties Evaluation

Rheological properties, including shear-induced behavior, shear resistance, viscoelasticity and thixotropy, are the most critical indicators for evaluating fluids. The temperature resistance and shear resistance are important reference indicators for polymer applications. The rheological properties of DiPHAM solutions were investigated using a HAAKE MAR III RS 600 rheometer (Haake, Karlsruhe, Germany) equipped with a high-pressure sealed cell.

3.4. Microstructure Analysis

Observation of fluid microstructure variation contributes to the macroscopic properties variation analysis. The Cryo-environmental scanning electron microscope (Cryo-SEM, FEI, Hillsboro, OR, USA), which is widely used for microstructure observation, was employed in this work. A fluid sample was frozen at −185 °C and then sublimated before observation, keeping the structure of the fluid intact.

4. Results and Discussion

4.1. Characterization of DiPHAM

Figure 1 shows the FT-IR spectrum of DiPHAM. A very strong absorption band at 3420 cm−1 is due to the stretching vibration of –NH2 in the acrylamide groups (–CONH2). The band at 1660 cm−1 is due to the C=O stretching band, and the mixed surface bending vibration band of C-N is at 1396 cm−1. The band at 3233 cm−1 comes from the N-H stretching vibration. Bands at 1146 cm−1, 1105 cm−1, and 1038 cm−1 are assigned to characteristic symmetric and asymmetrical vibration absorption bands of –SO3−. The bands observed at 2913 cm−1 and 2852 cm−1 are assigned to characteristic symmetric and asymmetrical vibration absorption bands of –CH2−.The band at 619 cm−1 corresponds to the superimposed absorption band of the stretching vibration of –SO3− and the out-of-plane bending vibration of –NH2 in –CONH2. The FT-IR spectra confirmed that DiC12AM and other monomers had been successfully introduced into the polymer.
Figure 2 showsthe 1H NMR (400 MHz, D2O) spectrum of DiPHAM. The resonances of protons are as follows: δ4.70 (D2O) for the solvent peak, δ1.47–1.56 ppm (a) for overlap-peaks, δ1.71 ppm (b) for the two protons resonances (–CH2-CH-) on the main chain, δ1.38 ppm (c) for the methyl proton peaks of the AMPS-Na group segment, δ3.29 ppm (d) for the methylene peak attached to the sulfonic acid foundation group of AMPS-Na, δ3.55 ppm (e) for the methylene peak attached to the tertiaryamine (C-N), δ1.20–1.90 ppm (f) for the methylene overlap-peaks of DiC12AM, δ0.80 ppm (g) for the methyl proton peak of DiC12AM, δ1.30 ppm (h) for the methyl proton overlap-peaks on the main chain, δ1.12 ppm (i) and δ3.56–3.61 ppm (k) for ethanol solvent peaks, δ3.98–4.01 ppm (j) for a solvent peak, and δ2.16 ppm for the acetone solvent peak. The results verified that the synthesized polymer was consistent with the designed DiPHAM.

4.2. Critical Association Concentration

The apparent viscosity of DiPHAM (7.34 s−1 shear rate) increases linearly with increasing concentration. However, the viscosity increases at different rates before and after the association of the polymer. Therefore, the intersection of the two lines in Figure 3 at 490 mg/L is assumed to be CAC. The CAC of DiPHAM, which is lower than common hydrophobic polymers (800–1500 mg/L), showed a strong hydrophobic effect, perhaps due to the symmetrical twin tailed hydrophobic chains introduced [18,19].
Various particle sizes (100–700 mg/L) in DiPHAM solutions were measured by DLS [20,21]. Figure 4 shows that the sizes of the polymer particles are 56.2 nm for 100 mg/L and 87.6 nm for 300 mg/L. Due to a large dispersion of the polymer in low concentration solutions, hydrophobic chains of the polymer were mainly in intramolecular association, and the particle sizes of the polymer are very small. The particle size of 562 nm in a 500 mg/L DiPHAM solution was much larger due to supramolecules forming via association and entanglement. It is clear that polymers were associated at this concentration. The particle size in a 700 mg/L DiPHAM solution is 732 nm, which shows that the scale of supramolecules increased. Increasing polymer concentration leads to a decrease in the distance between polymer molecules. Therefore, the hydrophobic chains begin to have a greater intermolecular association and form a dynamic physical cross-linked network, as shown in Figure 5. This leads to a sharp increases in fluid mechanical volume and viscosity [22].
The SEM images shown in Figure 6 revealthe association process of DiPHAM in aqueous solution. The polymer was unable to form network structures at low concentrations, while association occurred at high concentrations (>CAC). Higher concentrations were related to closer association.

4.3. Effects of Metal Ions

There are various mechanisms for the influence of metal ions, such as Na+, K+, Ca2+, and Mg2+, on the viscosity of conventional polymer solutions. The widely recognized mechanisms are electrostatic shielding and electric double layer compression of the polymer hydration shell [23]. In the modified polyacrylamide aqueous solution, acrylic acid groups can ionize to form negatively charged carboxylate ions (–COO−). Thus, the polymer chains extend farther into the aqueous solution because of the electrostatic repulsion among the carboxylate ions (Figure 7), resulting in a better thickening effect [24].
The situation changes when metal ions are added. On the one hand, metal ions can weaken the electrostatic repulsion because of electrostatic shielding, allowing the polymer molecular chains to curl up. See the right image in Figure 7. This decreases the hydrodynamic volume and viscosity of polymer solutions [25]. The situation is different for divalent metal ions. At low metal ion concentrations, there is an increase in structural viscosity because two –COO− share one Ca2+/Mg2+. Increased ion concentration in the polymer solution will cause the some of the original counter ions in the polymer chains’ diffusion layer to be squeezed into the adsorbed layer, as shown in Figure 8. This results in a decrease in thickness of the diffusion layer, correspondingly reducing the electric double layer potential and the mutual repulsion between molecular chains [26,27]. The decrease in distance between polymer chains due to the thickness decrease of the diffusion layer leads to an increase in attraction between them, which plays a dominant role in various molecular interactions [28,29]. These micro effects also reduce the extension of polymer molecular chains, decreasing the viscosity and the hydrodynamic volume of polymers.
In addition to the carboxylate ions in the modified polymer DiPHAM, to effectively weaken the effect of metal ions (such as Na+, K+, Ca2+ and Mg2+),AMPS, which is a salt-tolerant functional group, and DiC12AM, a strongly hydrophobic group, were introduced. AMPS is widely used as a salt-tolerant functional group in polymer design due to its strong anionic and water-soluble sulfonate moiety, which is insensitive to the attack of external ions [30,31]. A spatial network structure forms in DiPHAM aqueous solutions due to the intermolecular hydrophobic association. However, an increase in inorganic salt ion concentration increases the polarity of the solution, and the hydrophobic association action is enhanced. In addition, the electric double layer of the hydration shell around the hydrophobic groups is compressed by charged ions, which enhances the mutual attraction of hydrophobic chains. Therefore, the viscosity of DiPHAM aqueous solutions is increased in a way that enhances the hydrophobic association effect.
It has been reported that metal ions with different charge numbers have different effects on polymers in aqueous solutions [32,33]. In aqueous solution, Na+ and K+ are the most common monovalent ions, and their concentration is often relatively high. The most common divalent metal ions, Ca2+ and Mg2+, usually have lower concentrations in various water qualities. However, decades of research have revealed that small amounts of Ca2+ and Mg2+ tend to have a significant effect on polymer solutions [34]. In order to analyze the effects of different metal ions on the polymer aqueous solutions, we studied the effects of Na+, Ca2+, and Mg2+ on viscosity, hydrophobic association, and internal structure of polymer. Figure 9 shows the apparent viscosity curve of 0.3 wt% DiPHAM aqueous solution versus NaCl concentration. As the NaCl concentration increased, the viscosity of the DiPHAM aqueous solution initially decreased, followed by an increase, and finally decreased to a stable value of about 55 mPa·s.
The varied aggregations of DiPHAM (500 mg/L) molecules in different NaCl concentrations (4 × 104 to 16 × 104 mg/L) were investigated by particle size measurement and SEM observations, and the results are shown in Figure 10 and Figure 11. For NaCl concentrations of 4 × 104 mg/L, 8 × 104 mg/L, 12 × 104 mg/L and 16 × 104 mg/L, the particle sizes were 85.82 nm, 758.23 nm, 562.63–5623.42 nm and 473.77–6468.38 nm, respectively, indicating an increase of particle size with increases in NaCl concentration. The particle size of 85.82 nm for 4 × 104 mg/L NaCl is smaller than the particle size measured for a solution without NaCl (see Figure 4). The SEM images revealed the same result, and they showed that the spatial network structure is tighter. This indicated that the DiPHAM molecules were more crimped and less extended, resulting in a decreased viscosity. The particle size increased to 758.23 nm when NaCl concentration was 8 × 104 mg/L, and the growth of the micelles and the formation of sheet-like structures can be observed from the SEM images. This indicates the strong hydrophobicity of the DiPHAM, increasing the contacts among polymer molecules and increasing the viscosity. Further increases in NaCl concentration led to greater increases in the particle sizes, which indicated enhanced hydrophobic associations of the DiPHAM, but the SEM images showed mass or sheet structures rather than network structures, which tends to diminish shear resistance. The increasing trend in particle size shows an important phenomenon of micro aggregation becoming smaller and macro aggregation gradually dominating, resulting in a continuously decreasing viscosity.
In conclusion, monovalent metal ions affect the viscosity of polymer solutions by electrostatic shielding and compressing the electric double layer of the polymer hydration shell. The decrease in viscosity caused by this can be represented by ηdecrease. However, hydrophobicity will be enhanced due to the increased polarity and the compression of the electric double layer of the polymer hydration shell caused by the added inorganic salts. This tends to increase viscosity, and this contribution to the viscosity can be represented by ηincrease [35]. In the case of low metal ion concentrations, ηdecrease is greater than ηincrease, and the viscosity of the solution goes down. With an increase in metal ion concentration, the hydrophobic association of the polymer molecules becomes stronger, ηincrease becomes greater than ηdecrease, and the apparent viscosity increases. With further increased metal ion concentration, the polymer molecular chains will become more tightly packed due to the enhanced hydrophobic association. This results in a spatial structure change from a three-dimensional mesh space to a mass or sheet structure, and the viscosity of the polymer solutions decreases.
Figure 12 shows the influence of divalent ions on the viscosity of a DiPHAM aqueous solution. The viscosity fluctuated with increasing of Ca2+ concentration, while for increasing Mg2+ concentration, the viscosity just increased slightly at first and then decreased steadily. It is clear that the higher-charged metal ions have a greater effect on polymer solutions than the lower-charged Na+ and K+ ions, and there is an obvious difference between Ca2+ and Mg2+ ions [36]. Divalent ions have the same influence mechanism as monovalent ions, but the compression of the electric double layer of the polymer hydration shell is enhanced.
Figure 13 shows that there is a solubility product balance among –COO− groups and Ca2+/Mg2+ ions that can lead to precipitation when the ion product is higher than the solubility product, and then the precipitate acts as a core and grows continuously [37,38]. Thus, –COO− groups ionized from acrylic acid interact with Ca2+/Mg2+, producing a chemical bond force on the molecular chains. This enhances the structure strength, increasing the viscosity of the polymer solutions. Therefore, in a DiPHAM solution, increasing concentration of Ca2+/Mg2+ ions causes variations in viscosity due to the combination of the electrostatic shielding, compression of the electric double layer of polymer hydration shell, hydrophobic association enhancement, and the chemical bond action of the crystal core among molecular chains.
The viscosity of a DiPHAM aqueous solution fluctuates because of changes in the relative extent of the influencing factors with changes in the Ca2+/Mg2+ ion concentrations. Although the charge of Mg2+ ions is the same as for Ca2+ ions, the ionic radius of a Mg2+ ion is smaller. This enhances the effect of Mg2+ on compression of the electric double layer of the polymer hydration shell [39]. There is a space around each dissolved ion where the ion has a significant influence on the water molecules. When strengths of the attractions between water molecules and ions are larger than the strengths of the hydrogen bonds between water molecules, water molecules tend to gather close to the ions and form a hydration shell, as shown in Figure 14 [40,41]. Due to the greater attraction between Mg2+ ions and water molecules than between Ca2+ ions and water molecules, the Mg2+ ions tend to gather more water molecules from the hydration shell near the polymer molecular chains. This thins the hydration shell, resulting in decreased extension of the polymer molecular chains [42].

4.4. Effect on Structure of DiPHAM

4.4.1. Viscoelasticity Properties

The influence of metal ions on polymer structures can be observed by viscoelasticity measurements, because the viscoelasticity of polymers is closely related to the internal structure of the fluid. The investigations above have proved that Ca2+ and Mg2+ ions have a greater effect on polymer solutions than Na+ ions, so the disruptive effect of the Ca2+ and Mg2+ ions on the internal structure of a DiPHAM aqueous solution was studied by viscoelasticity measurement.
The effects of Ca2+ and Mg2+ ions on the viscoelasticity of DiPHAM (0.3 wt% and 0.6 wt%) aqueous solutions were measured, and Figure 15 shows the results. It is clear that the modulus increased with increasing DiPHAM concentration, and the storage modulus (G’) was always greater than the loss modulus (G”) in the frequency range of 0.1–10 Hz. G’ was always greater than G” for 5000 mg/L Ca2+ solutions, indicating that under this high-salinity condition, DiPHAM still has good viscoelasticity, and the structures of the polymer micelles have not been completely destroyed. For 3000 mg/L Mg2+, the storage modulus (G’) of the DiPHAM (0.3 wt%) solution was smaller than the loss modulus (G”). This indicates that Mg2+ ions cause more damage to the structure of DiPHAM aqueous solutions than Ca2+. However, increased DiPHAM concentrations improved this situation, even though the modulus still decreased, indicating that increased DiPHAM concentration can enhance the resistance to metal ions.

4.4.2. Thixotropy

Thixotropy, which is reflected in the curve of shear stress with shear rate, is widely used to describe the internal structure changes of fluids under the influence of external forces [43,44]. Thixotropy measurements can help us understand the structure recovery of a fluid after the first structure disruption. The graphs in Figure 16 show that initially the shear rate gradually increased to a certain value (rising curve) and then decreased to the initial value (declining curve), forming a closed loop. For thixotropic fluids, the declining curve does not return to the initial value completely along the track of the rising curve, forming a hysteresis loop [45,46]. The larger the area is within the closed loop, the harder it is for the fluid structure to recover. In addition, the larger the area of the closed loop is, the more energy is needed to disrupt the structure [47,48]. The thixotropy variations of the aqueous polymer solutions correspond to the internal structure changes, and they reflect the effect of metal ions on DiPHAM solutions.
The shear stress of the DiPHAM aqueous solutions was recorded at a shear rate from 1 to 100 s−1, and then from 100 to 1 s−1. The recovery period was 5 min, and Figure 16 shows the results. It is clear that the increased DiPHAM concentration resulted in increased shear stress, which indicated increased structure strength or intramolecular friction. However, addition of the metal ions obviously weakened the shear stress, especially the Mg2+ ions. Moreover, the hysteresis loop areas decreased in the presence of Mg2+, which revealed the disruption of the structure of the DiPHAM in aqueous solution. Unlike the effect of the Mg2+ ions, when Ca2+ ions were added, the hysteresis loop areas increased (A3000 > A5000 > A1000), even as the shear stress decreased. This indicates that the structure strength increases under the high-salinity conditions of Ca2+. Furthermore, it is clear that the strength of the chemical bond between Ca2+ and –COO− ions is stronger than that between Mg2+ and –COO− ions.

4.4.3. Microstructure Observation

SEM observation can help to describe the internal structure and strengths of attractions of DiPHAM with different concentrations of Ca2+/Mg2+ ions. The SEM images in Figure 17 show the influence of Ca2+ ions on spatial structures in 0.3 wt% DiPHAM aqueous solutions. The structure of the DiPHAM micelles gradually transforms from network to sheet-like with the increase of Ca2+ ions concentration, which shows the effect of the Ca2+ on DiPHAM micelles. Figure 18 shows the influence of Mg2+ ions on polymer micelle structures. DiPHAM aqueous solution with 1000 mg/L and 3000 mg/L of Mg2+ still maintained an integrated network structure. These SME images indicate that the DiPHAM has a good tolerance for Ca2+ and Mg2+.

4.5. Effect of Metal Ions on Rheological Properties

The rheological properties of DiPHAM aqueous solutions were tested using a HAAKE MAR III RS 600 rheometer to investigate the possible application of these solutions in high-temperature and high-shear-rate conditions. In the measurement process, the temperature was increased from 30 to 140 °C within 30 min, and then the solutions were continuously sheared for 120 min at 170 s−1. Figure 19 shows the rheological properties for 0.6 wt% and 0.3 wt% DiPHAM aqueous solutions. The DiPHAM aqueous solutions showed good viscosities under the test conditions.

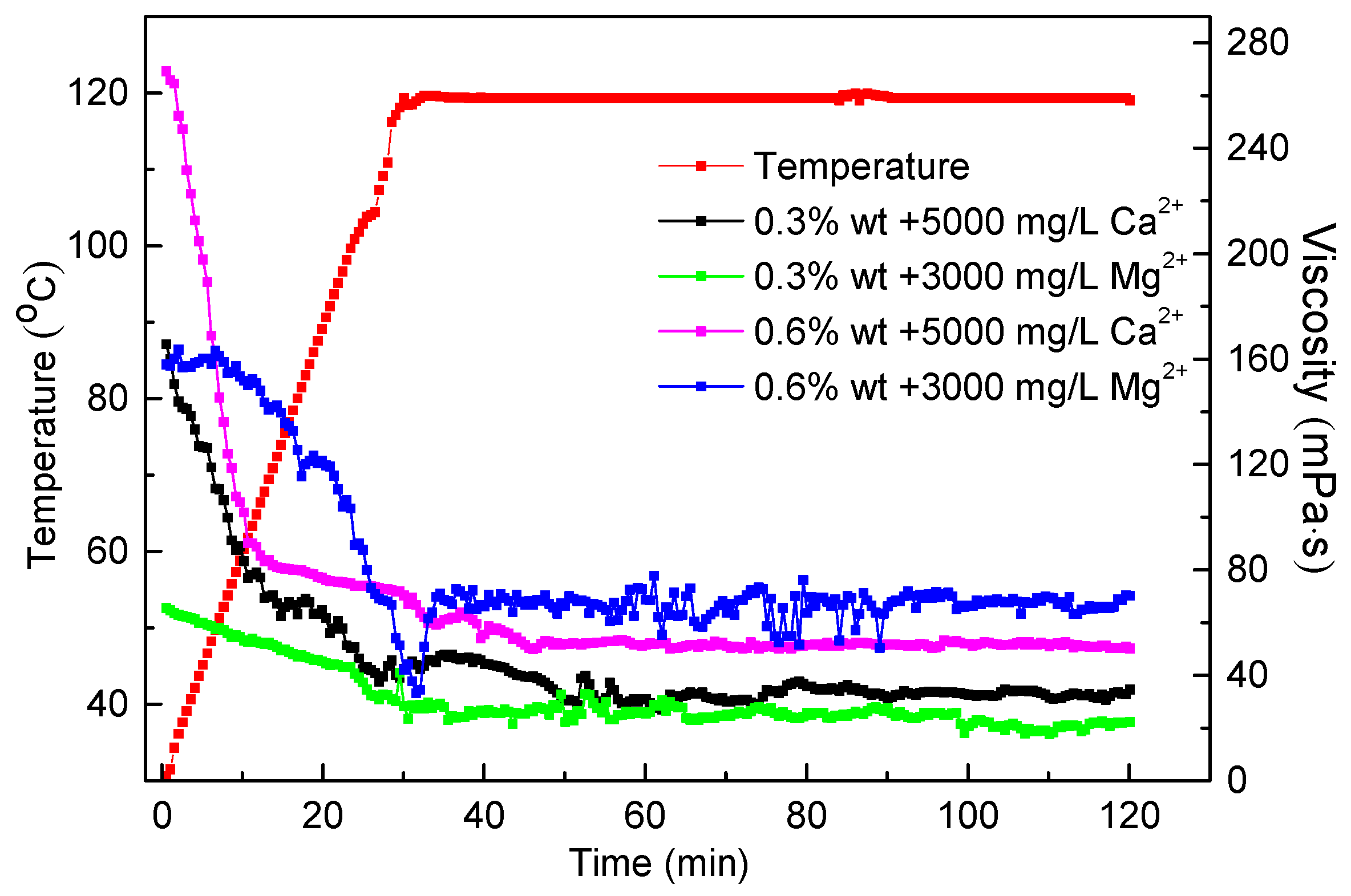

Figure 20 shows the rheological properties of 0.3 wt% and 0.6 wt% DiPHAM aqueous solutions with salinity of 5000 mg/L Ca2+ and 3000 mg/L Mg2+ at 120 °C. The viscosity of 0.3 wt% and 0.6 wt% polymers with 5000 mg/L Ca2+ stayed at 35 mPa·s and 50 mPa·s, respectively, after 120 min of shearing. The viscosity of 0.3 wt% and 0.6 wt% DiPHAM with 3000 mg/L Mg2+ stayed at 22 mPa·s and 70 mPa·s, respectively. These results indicate that increasing the DiPHAM concentration can enhance the solution’s rheological properties under high-salinity and high-temperature conditions. Moreover, DiPHAM can be applied as a fracturing fluid thickener to improve oil and gas recovery under the high-salinity conditions of at least 5000 mg/L Ca2+ or 3000 mg/L Mg2+ [49,50].

5. Conclusions

The hydrophobic association polymer (DiPHAM) was synthesized by combining the twin tails hydrophobic monomer (DiC12AM) with AM, AA and AMPS. It was found to have good salt tolerance characteristics. The mechanism for the influence of NaCl on micelles structures in DiPHAM aqueous solutions includes an electrostatic shield and electric double layer compression of hydration shell, while the strong hydrophobic performance caused the DiPHAM solution to maintain a high viscosity in solutions of 2 × 105 mg/L NaCl. In addition, Ca2+ and Mg2+ ions can attach to anionic groups on the DiPHAM chains, which helped DiPHAM solutions to maintain their internal structural integrity and keep a good viscoelasticity and thixotropy in 5000 mg/L Ca2+ or 3000 mg/L Mg2+ aqueous solutions. The influence of Mg2+ ions was stronger because of the relatively smaller ionic radius, which increased the compression of the electric double layer of the polymer hydration shell. DiPHAM aqueous solutions were found to have a good rheology at 140 °C and 170 s−1 shearing conditions. Under high-salinity (5000 mg/L Ca2+ or 3000 mg/L Mg2+) conditions, the solution with 0.6 wt% DiPHAM still maintained a high viscosity after continuous shearing for 120 min under the conditions of 120 °C and 170 s−1 shearing. The good salt tolerance of DiPHAM makes it useful for a variety of applications, including in fracturing fluids for enhanced oil recovery (EOR) and in sewage treatment.

Author Contributions

J.M. designed all experiments, performed data analysis, and prepared the manuscript. H.T.prepared all solutions and performed the experiments. W.Z., X.Y., B.Y., Y.Z. and H.Z. contributed to the interpretation of results and preparation of the manuscript.

Acknowledgments

The research is supported by Sichuan Youth Science & Technology Foundation (2017JQ0010), National High Technology Research & Development Program (2016ZX05053), Key Fund Project of Educational Commission of Sichuan Province (16CZ0008) and Explorative Project Fund (G201601) of State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation (Southwest Petroleum University).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, H.; Wang, Z.M.; Ye, Z.B.; Han, L.J. The solution behavior of hydrophobically associating zwitterionic polymer in salt water. J. Appl. Polym. Sci. 2014, 131, 1–15. [Google Scholar] [CrossRef]
  2. Lin, C.A.; Sperling, R.A.; Li, J.K.; Yang, T.Y.; Li, P.Y.; Zanella, M.; Chang, W.H.; Parak, W.J. Design of an amphiphilic polymer for nanoparticle coating and functionalization. Small 2008, 4, 301. [Google Scholar] [CrossRef]
  3. Kuang, W.; Gao, C. Synthesis and characterization of novel twin-tailed hydrophobically associated copolymers and their applications to Cr(III) removal from aqueous solutions. J. Appl. Polym. Sci. 2015, 131, 8558–8572. [Google Scholar] [CrossRef]
  4. Kakizawa, Y.; Nishio, R.; Hirano, T.; Koshi, Y.; Nukiwa, M.; Koiwa, M.; Michizoe, J.; Ida, N. Controlled release of protein drugs from newly developed amphiphilic polymer-based microparticles composed of nanoparticles. J. Control. Release 2010, 142, 8–13. [Google Scholar] [CrossRef] [PubMed]
  5. McCormick, C.L.; Johnson, C.B. Structurally Tailored Macromolecules for Mobility Control in Enhanced Oil Recovery. In Water-Soluble Polymers for Petroleum Recovery; Springer: Boston, MA, USA, 1988; pp. 161–180. [Google Scholar]
  6. Klucker, R.; Munch, J.P.; Schosseler, F. Combined Static and Dynamic Light Scattering Study of Associating Random Block Copolymers in Solution. Macromolecules 1997, 30, 3839–3848. [Google Scholar] [CrossRef]
  7. Yamamoto, H.; Tomatsu, I.; Hashidzume, A.; Morishima, Y. Associative Properties in Water of Copolymers of Sodium 2-(Acrylamido)-2-methylpropanesulfonate and Methacrylamides Substituted with Alkyl Groups of Varying Lengths. Macromolecules 2000, 33, 7852–7861. [Google Scholar] [CrossRef]
  8. Zhang, Y.; Zhou, Z.; Chen, M. The Length of Hydrophobic Chain in Amphiphilic Polypeptides Regulates the Efficiency of Gene Delivery. Polymers 2018, 10, 379. [Google Scholar] [CrossRef]
  9. Chen, M.; Zhu, X.; Yan, D. A controlled release system for simultaneous promotion of gene transfection and antitumor effects. RSC Adv. 2014, 4, 64596–64600. [Google Scholar] [CrossRef]
  10. Shalaby, S.W.; McCormick, C.L.; Butler, G.B. Water-soluble polymers: Synthesis, solution properties, and applications. Carbohydr. Polym. 1991, 467, 197–212. [Google Scholar]
  11. Dusseault, M.; Li, S.; Han, H.; Li, J.; Wu, H. Flooding Thin Low-Permeability Layers with a New Salt-Resistant, Medium-Molecular-Weight Polymer; SPE 109627; Society of Petroleum Engineers: Richardson, TX, USA, 2007. [Google Scholar]
  12. Jiang, G.; Liu, F. Effect of Mineral Salts on Steady Rheological Properties of Nonionic Hydrophobically Modified Polyacrylamide and Its Stress-Relaxation Behavior. J. Macromol. Sci. A 2013, 50, 1209–1217. [Google Scholar] [CrossRef]
  13. Zhu, Z.; Kang, W.; Sarsenbekuly, B.; Yang, H.; Dai, C.; Yang, R.; Fan, H. Preparation and solution performance for the amphiphilic polymers with different hydrophobic groups. J. Appl. Polym. Sci. 2017, 134. [Google Scholar] [CrossRef]
  14. Sarsenbekuly, B.; Kang, W.; Fan, H.; Yang, H.; Dai, C.; Zhao, B.; Aidarova, S.B. Study of salt tolerance and temperature resistance of a hydrophobically modified polyacrylamide based novel functional polymer for EOR. Colloids Surf. A 2017, 514, 91–97. [Google Scholar] [CrossRef]
  15. Lu, H.; Liu, Y.; Wang, B.; Zheng, C.; Huang, Z. Self-assembling transition behavior of a hydrophobic associative polymer based on counterion and pH effects. Colloids Surf. A 2016, 490, 1–8. [Google Scholar] [CrossRef]
  16. Hill, A.; Candau, F.; Selb, J. Properties of hydrophobically associating polyacrylamides: Influence of the method of synthesis. Macromolecules 1993, 26, 4521–4532. [Google Scholar] [CrossRef]
  17. Hiorns, R.C.; Boucher, R.J.; Duhlev, R.; Hellwich, K.-H.; Hodge, P.; Jenkins, A.D.; Jones, R.G.; Kahovec, J.; Moad, G.; Ober, C.K.; et al. A brief guide to polymer nomenclature (IUPAC Technical Report). Pure Appl. Chem. 2012, 84, 2167–2169. [Google Scholar] [CrossRef] [Green Version]
  18. Zhong, C.; Huang, R.; Xu, J. Characterization, Solution Behavior, and Microstructure of a Hydrophobically Associating Nonionic Copolymer. J. Solut. Chem. 2008, 37, 1227–1243. [Google Scholar] [CrossRef]
  19. Qi, G.; Li, H.; Zhu, R.; Zhang, Z.; Zhou, L.; Kuang, J. Synthesis, Characterization, and Solution Behavior of a Long-Chain Hydrophobic Association Anionic Acrylamide/2-Acrylamido-2-Methylpropanesulfonic Acid/n-Octyl Acrylate Terpolymers. Arab. J. Sci. Eng. 2017, 42, 2425–2432. [Google Scholar] [CrossRef]
  20. Peng, S.; Wu, C. Light Scattering Study of the Formation and Structure of Partially Hydrolyzed Poly(acrylamide)/Calcium(II) Complexes. Macromolecules 1999, 32, 585–589. [Google Scholar] [CrossRef] [Green Version]
  21. Fang, L.; Brown, W.; Konak, C. Dynamic light scattering study of the sol-gel transition. Macromolecules 1991, 24, 6839–6842. [Google Scholar] [CrossRef]
  22. Ritacco, H.; Kurlat, D.H. Critical aggregation concentration in the PAMPS (10%)/DTAB system. Colloids Surf. A 2003, 218, 27–45. [Google Scholar] [CrossRef]
  23. Härtel, A.; Janssen, M.; Samin, S.; van Roij, R. Fundamental measure theory for the electric double layer: Implications for blue-energy harvesting and water desalination. J. Phys. Condens. Matter 2015, 27, 194129. [Google Scholar] [CrossRef] [PubMed]
  24. Stevens, M.J.; Kremer, K. The nature of flexible linear polyelectrolytes in salt free solution: A molecular dynamics study. J. Chem. Phys. 1995, 103, 1669–1690. [Google Scholar] [CrossRef]
  25. Feng, J.G.; Lu, F.S.; Chen, T.T.; Zhang, S.Q.; Li, H. Effect of Copolymer Dispersant on the Dispersion Stability of Flufenoxuron Suspension Concentrate. Chem. J. Chin. Univ. 2010, 31, 1386–1390. [Google Scholar]
  26. Iv, C.F.Z.; Saville, D.A. The interpretation of electrokinetic measurements using a dynamic model of the stern layer: II. Comparisons between theory and experiment. J. Colloid Interface Sci. 1986, 114, 45–53. [Google Scholar]
  27. Kizilay, E.; Kayitmazer, A.B.; Dubin, P.L. Complexation and coacervation of polyelectrolytes with oppositely charged colloids. Adv. Colloid Interface Sci. 2011, 167, 24–37. [Google Scholar] [CrossRef] [PubMed]
  28. Zhong, C.; Wang, W.; Yang, M. Synthesis and solution properties of an associative polymer with excellent salt-thickening. J. Appl. Polym. Sci. 2012, 125, 4049–4059. [Google Scholar] [CrossRef]
  29. Chollakup, R.; Beck, J.B.; Dirnberger, K.; Tirrell, M.; Eisenbach, C.D. Polyelectrolyte Molecular Weight and Salt Effects on the Phase Behavior and Coacervation of Aqueous Solutions of Poly (acrylic acid) Sodium Salt and Poly (allylamine) Hydrochloride. Macromolecules 2013, 46, 2376–2390. [Google Scholar] [CrossRef]
  30. Bao, Y.; Ma, J.; Li, N. Synthesis and swelling behaviors of sodium carboxymethyl cellulose-g-poly(AA-co-AM-co-AMPS)/MMT superabsorbent hydrogel. Carbohydr. Polym. 2011, 84, 76–82. [Google Scholar] [CrossRef]
  31. Kamal, H.; Hegazy, E.S.A.; Sharada, H.M.; Elhalim, S.A.A.; Lotfy, S.; Mohamed, R.D. Immobilization of glucose isomerase onto radiation synthesized P(AA-co-AMPS) hydrogel and its application. J. Radiat. Res. Appl. Sci. 2014, 7, 154–162. [Google Scholar] [CrossRef]
  32. Xia, L.H. Effect of metal cation and degree of mineralization on the viscosity of ultra-high-molecular-weight polymer solution. Chem. Eng. Des. Commun. 2017, 43, 205–206. [Google Scholar]
  33. Wang, J.J.; Lv, J.F.; Cao, P.X.; Zhang, M.L.; Gao, L.J.; Lei, L.; Ren, Y.X.; Hou, X.Y. Effect of Metal Ions on the Structures of Coordination Polymers Based on Biphenyl-2,2′,4,4′-Tetracarboxylate. Z. Anorg. Allg. Chem. 2011, 637, 1585–1589. [Google Scholar] [CrossRef]
  34. Rivas, B.L.; Moreno-Villoslada, I. Effect of the Polymer Concentration on the Interactions of Water-Soluble Polymers with Metal Ions. Chem. Lett. 2001, 78, 166–167. [Google Scholar] [CrossRef]
  35. Murugaboopathy, S.; Matsuoka, H. Surface Active to Non-Surface Active Transition and Micellization Behaviour of Zwitterionic Amphiphilic Diblock Copolymers: Hydrophobicity and Salt Dependency. Polymers 2017, 9, 412. [Google Scholar] [CrossRef]
  36. Jing, X.; Gong, W.; Feng, Z.; Meng, X.; Zheng, B. Influence of comb-like copolymer dispersants with different molecular structures on the performance of CaCO3 suspension in organic system. J. Dispers. Sci. Technol. 2016, 38, 1311–1318. [Google Scholar] [CrossRef]
  37. Castelnovo, M.; Joanny, J.F. Complexation between oppositely charged polyelectrolytes: Beyond the Random Phase Approximation. Eur. Phys. J. E 2001, 6, 377–386. [Google Scholar] [CrossRef]
  38. Kudlay, A.; Ermoshkin, A.V.; de la Cruz, M.O. Complexation of Oppositely Charged Polyelectrolytes:  Effect of Ion Pair Formation. Macromolecules 2004, 37, 9231–9241. [Google Scholar] [CrossRef]
  39. Netz, R.R.; Andelman, D. Neutral and charged polymers at interfaces. Phys. Rep. 2002, 380, 1–95. [Google Scholar] [CrossRef]
  40. And, A.C.; Chowdhuri, S. Pressure Effects on the Dynamics and Hydrogen Bond Properties of Aqueous Electrolyte Solutions:  The Role of Ion Screening. J. Phys. Chem. B 2002, 106, 6779–6783. [Google Scholar]
  41. Crozier, P.S.; Rowley, R.L.; Henderson, D. Molecular-dynamics simulations of ion size effects on the fluid structure of aqueous electrolyte systems between charged model electrodes. J. Chem. Phys. 2001, 114, 7513–7517. [Google Scholar] [CrossRef]
  42. Kaewsaiha, P.; Matsumoto, K.; Matsuoka, H. Non-surface activity and micellization of ionic amphiphilic diblock copolymers in water. Hydrophobic chain length dependence and salt effect on surface activity and the critical micelle concentration. Langmuir 2005, 21, 9938–9945. [Google Scholar] [CrossRef] [PubMed]
  43. Barnes, H.A. Thixotropy—A review. J. Non-Newton. Fluid Mech. 1997, 70, 1–33. [Google Scholar] [CrossRef]
  44. Dullaert, K.; Mewis, J. A model system for thixotropy studies. Rheol. Acta 2005, 45, 23–32. [Google Scholar] [CrossRef]
  45. Mujumdar, A.; Beris, A.N.; Metzner, A.B. Transient phenomena in thixotropic systems. J. Non-Newton. Fluid Mech. 2002, 102, 157–178. [Google Scholar] [CrossRef]
  46. Rubio-Hernández, F.J.; Velázquez-Navarro, J.F.; Galindo-Rosales, F.J. Rheological characterization of a time dependent fresh cement paste. Mech. Time-Depend. Mater. 2009, 13, 199–206. [Google Scholar] [CrossRef]
  47. Chhabra, R.P. Non-Newtonian Fluids: An Introduction. In Rheology of Complex Fluids; Springer: New York, NY, USA, 2010; pp. 3–34. [Google Scholar]
  48. Wallevik, J.E. Microstructure-Rheology: Thixotropy and workability loss. Nord. Concr. Res. 2004, 31, 16–29. [Google Scholar]
  49. Spinelli, L.S.; Pires, R.V.; Barboza, E.M.; Louvisse, A.M.T.; Aquino, A.S.; Lucas, E.F. Influence of polymer bases on the synergistic effects obtained from mixtures of additives in the petroleum industry: Performance and residue formation. J. Petrol. Sci. Eng. 2007, 58, 111–118. [Google Scholar] [CrossRef]
  50. Lucas, E.F.; Spinelli, L.S.; Khalil, C.N. Polymers Applications in Petroleum Production; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2015; Volume 129, pp. 1344–1348. [Google Scholar]
Polymers 10 00849 sch001 550

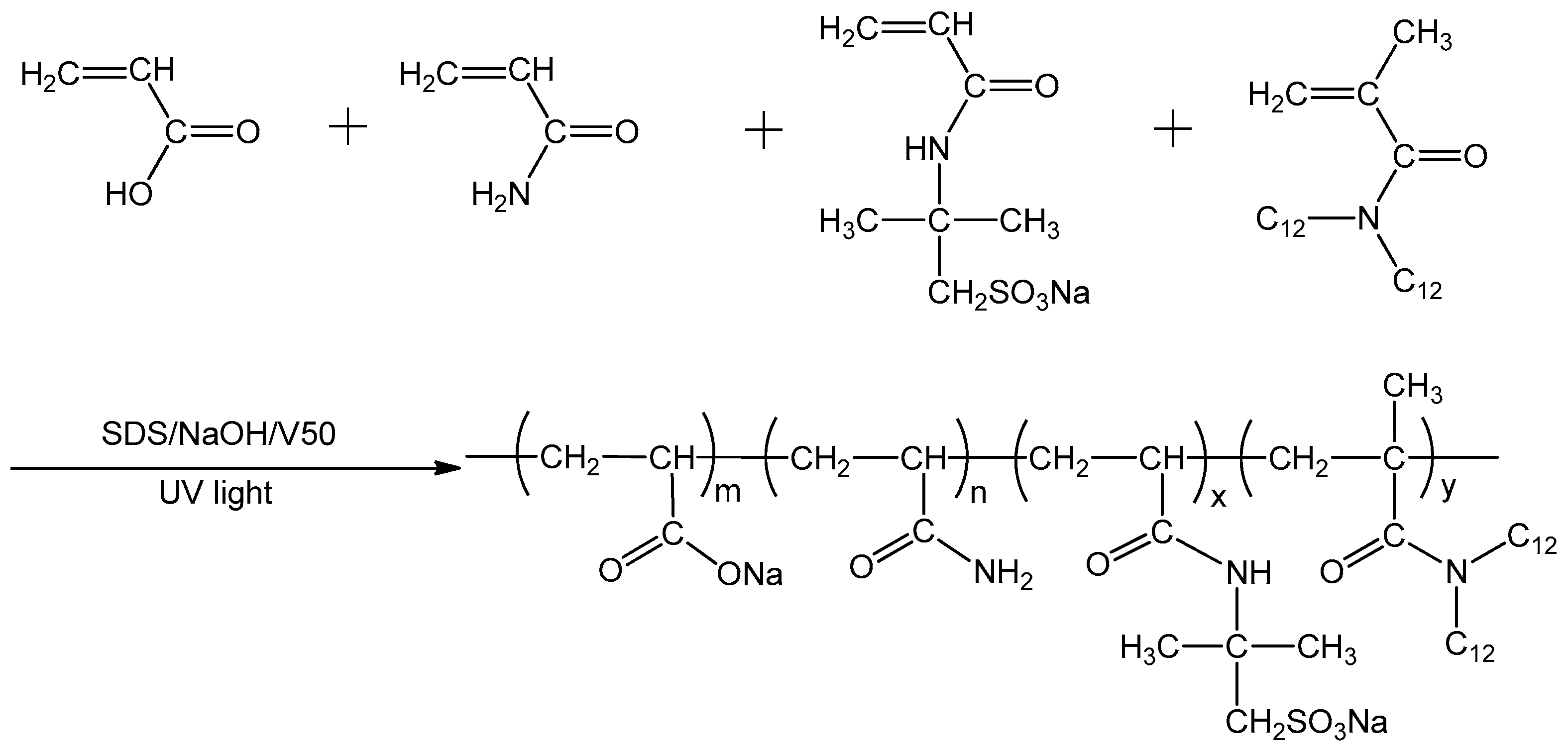

Scheme 1. The synthesis of DiPHAM.
Scheme 1. The synthesis of DiPHAM.
Polymers 10 00849 sch001
Polymers 10 00849 g001 550

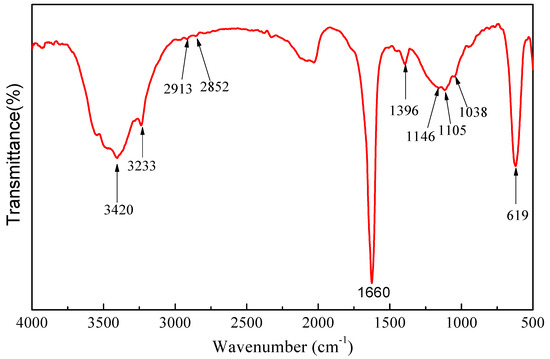

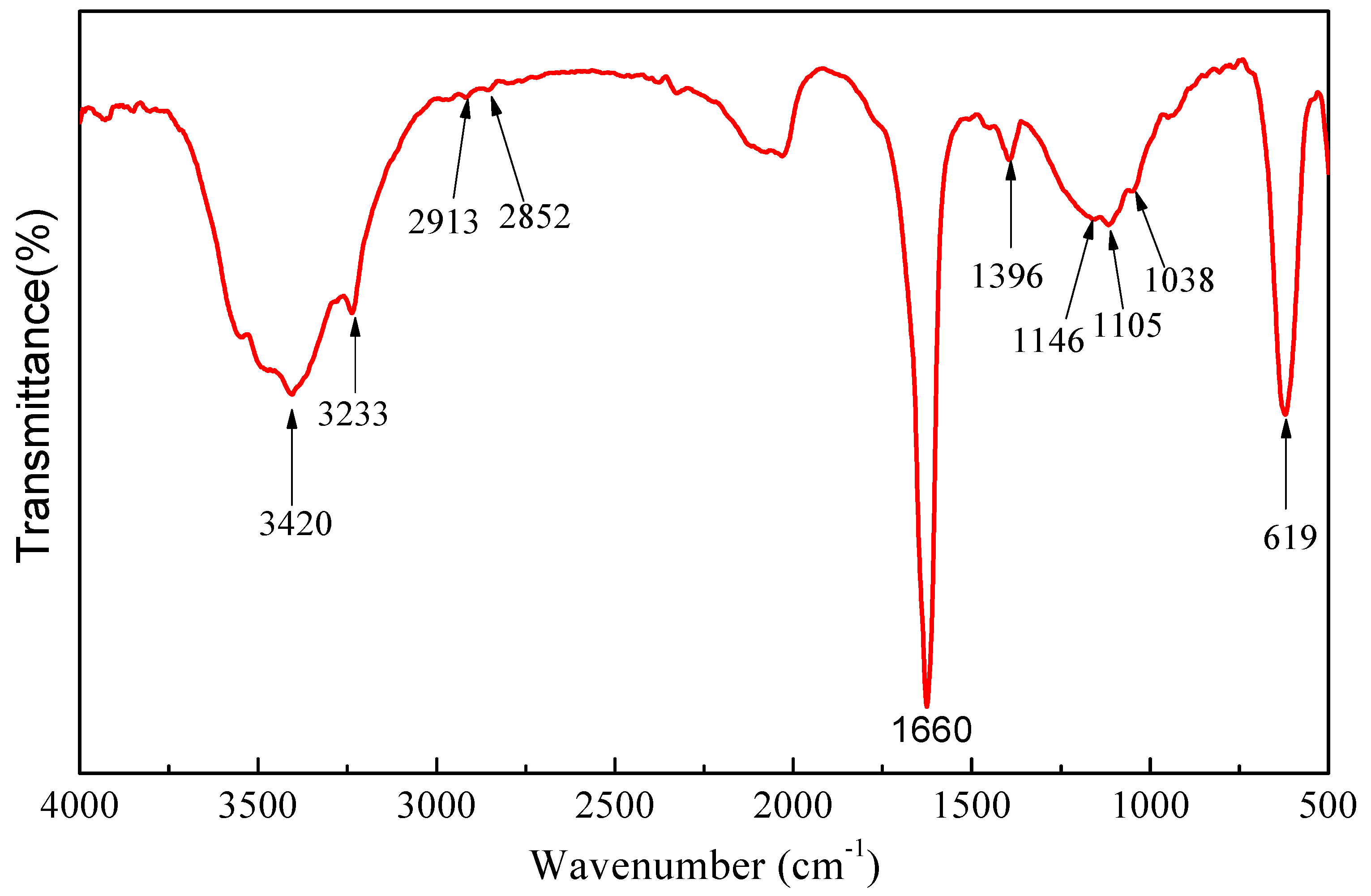

Figure 1. The FTIR spectrum of DiPHAM.
Figure 1. The FTIR spectrum of DiPHAM.
Polymers 10 00849 g001
Polymers 10 00849 g002 550

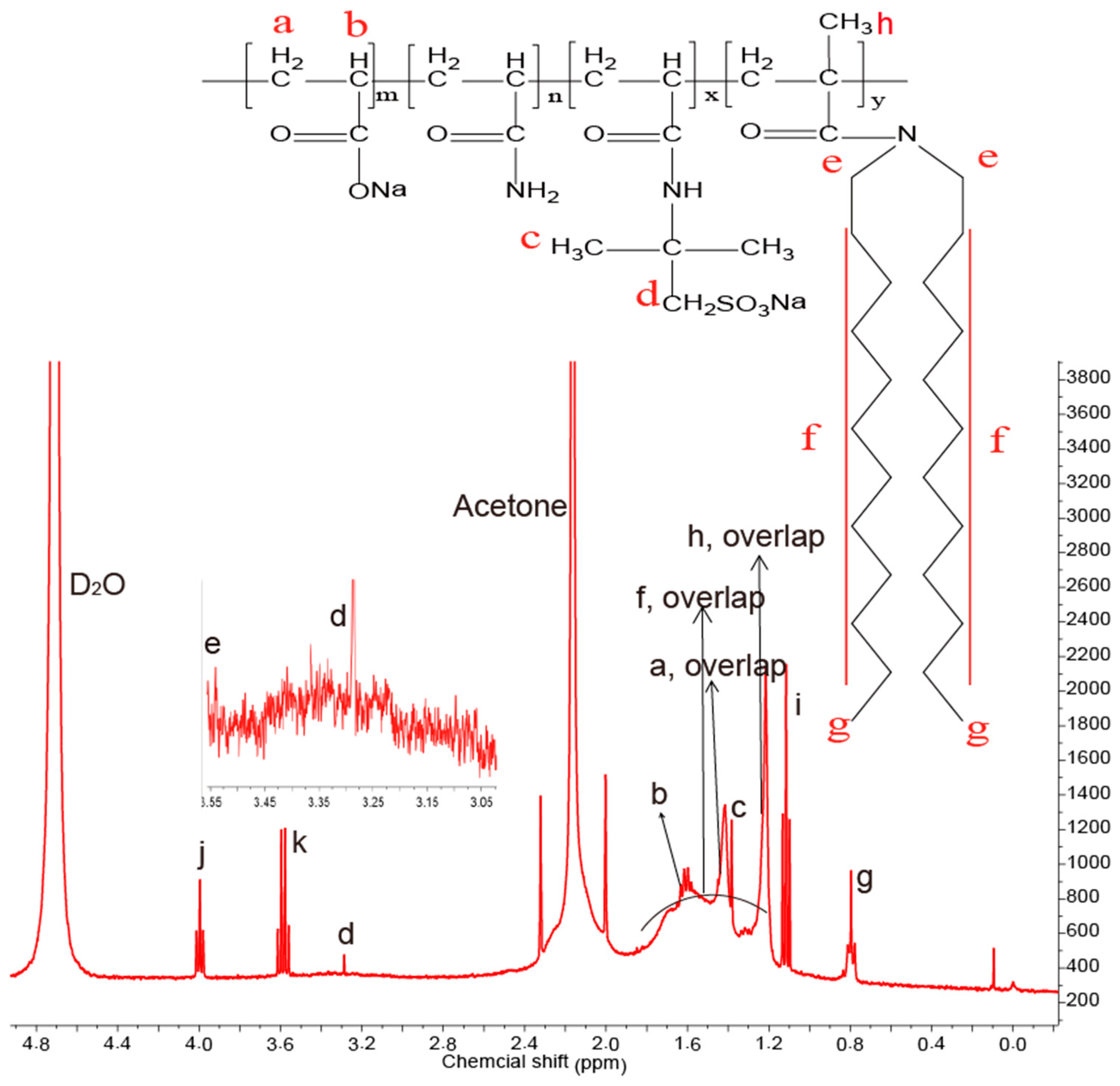

Figure 2. The 1H NMR (400 MHz, D2O) spectrum of DiPHAM.
Figure 2. The 1H NMR (400 MHz, D2O) spectrum of DiPHAM.
Polymers 10 00849 g002
Polymers 10 00849 g003 550

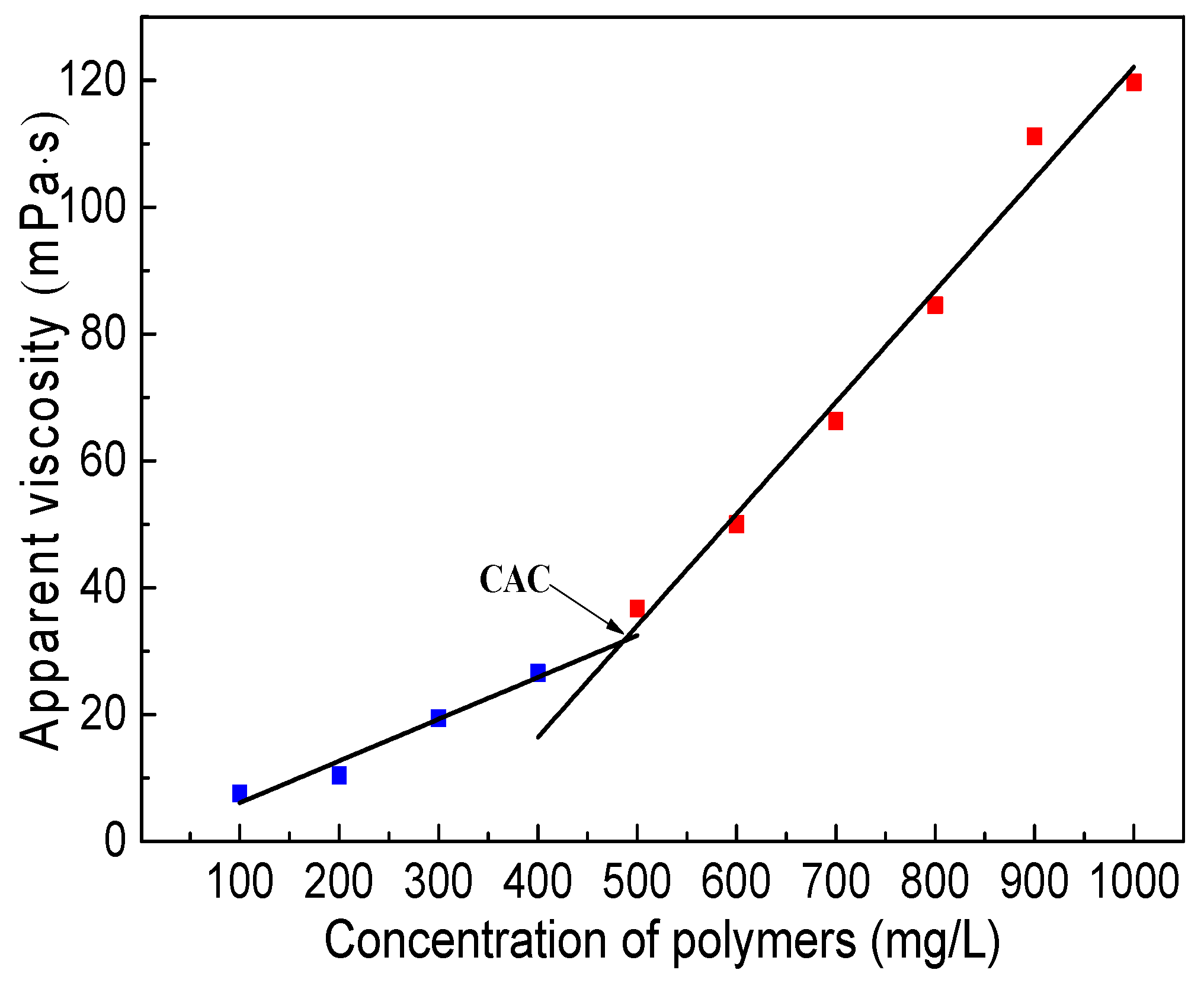

Figure 3. The critical association concentration (CAC) of DiPHAM.
Figure 3. The critical association concentration (CAC) of DiPHAM.
Polymers 10 00849 g003
Polymers 10 00849 g004 550

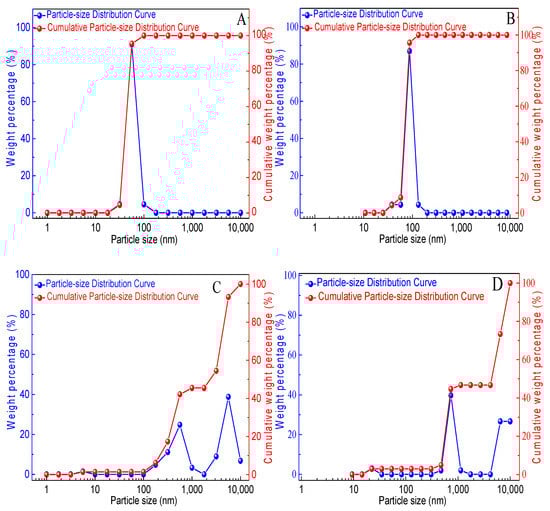

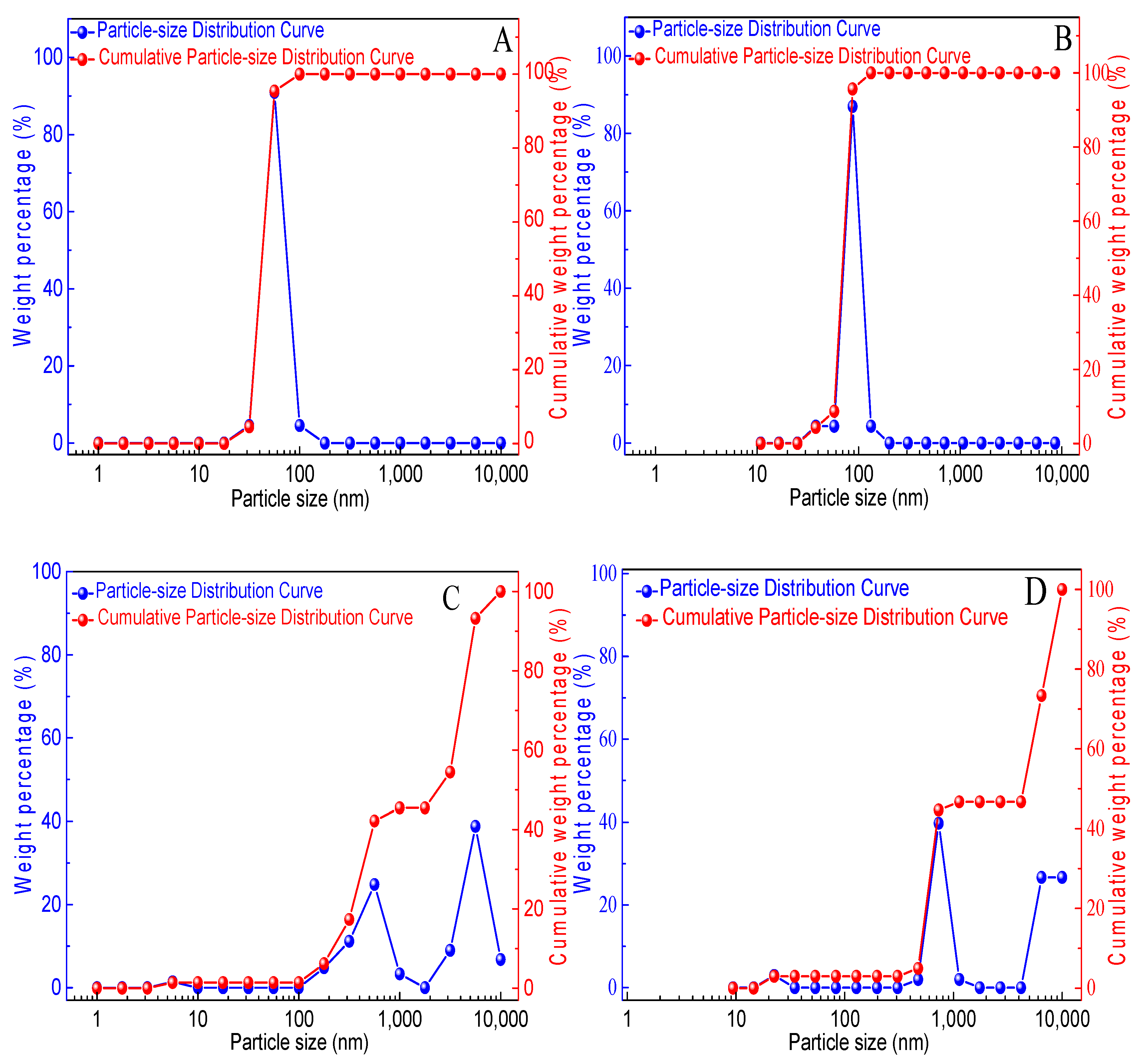

Figure 4. Size distribution of DiPHAM with different concentrations: (A) 100 mg/L (56.2 nm), (B) 300 mg/L (87.6 nm), (C) 500 mg/L (562 nm), and (D) 700 mg/L (732 nm).
Figure 4. Size distribution of DiPHAM with different concentrations: (A) 100 mg/L (56.2 nm), (B) 300 mg/L (87.6 nm), (C) 500 mg/L (562 nm), and (D) 700 mg/L (732 nm).
Polymers 10 00849 g004
Polymers 10 00849 g005 550

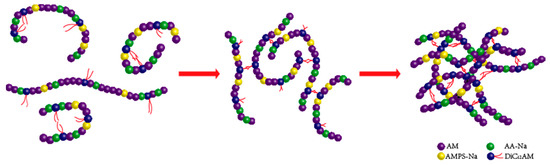

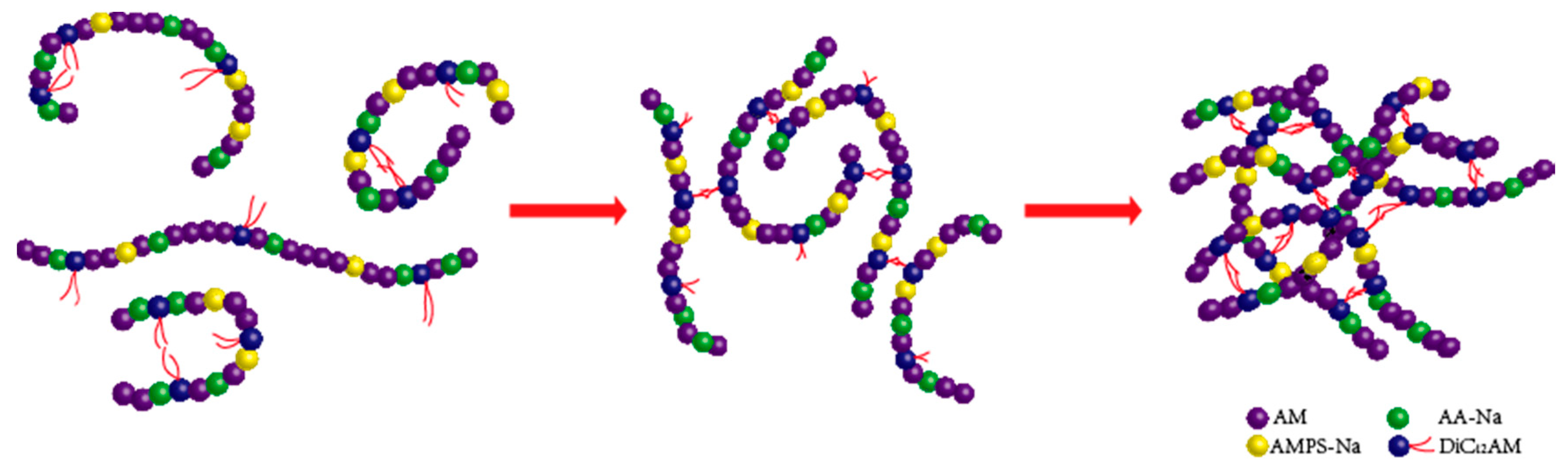

Figure 5. The association process of DiPHAM.
Figure 5. The association process of DiPHAM.
Polymers 10 00849 g005
Polymers 10 00849 g006 550

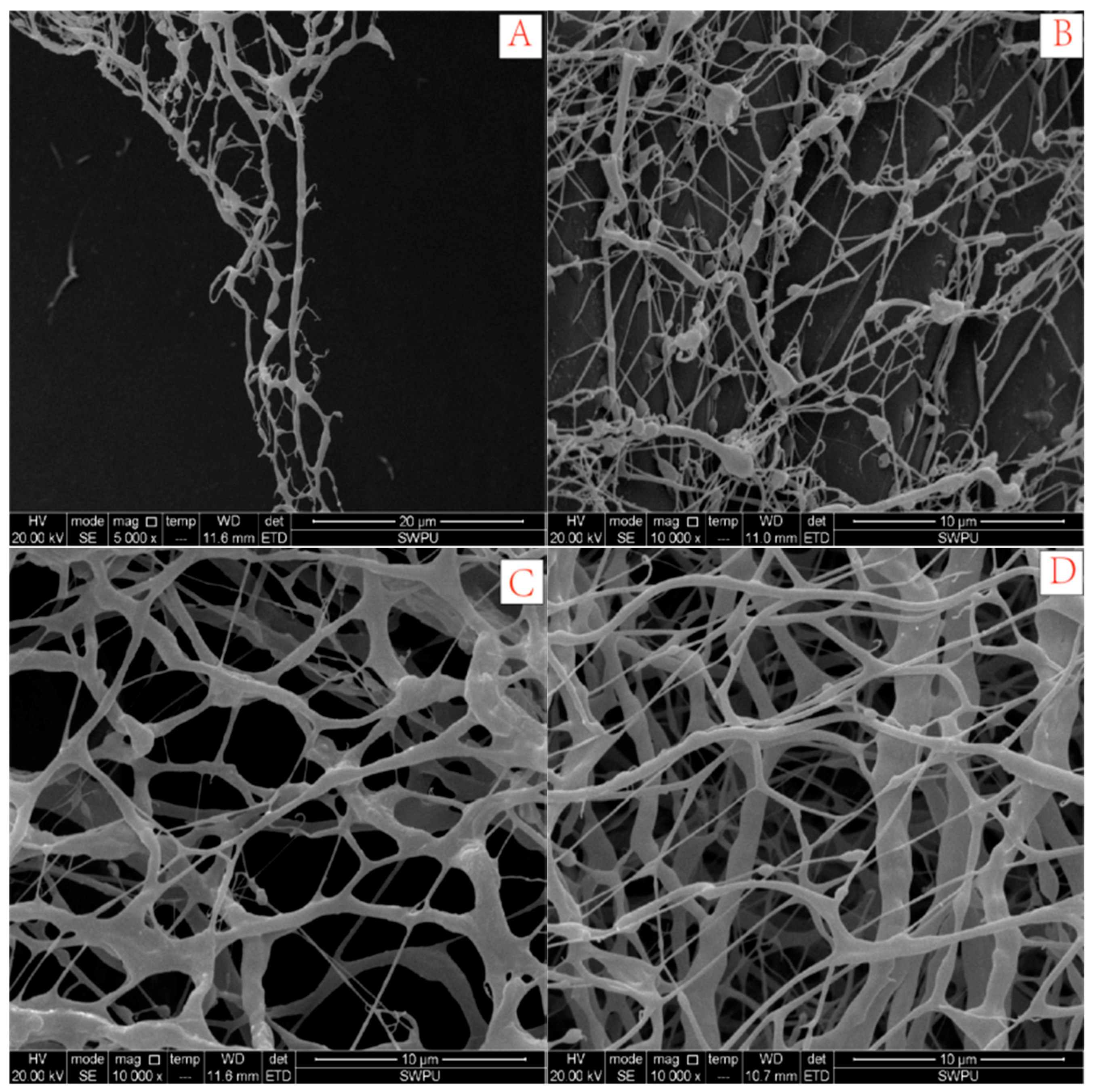

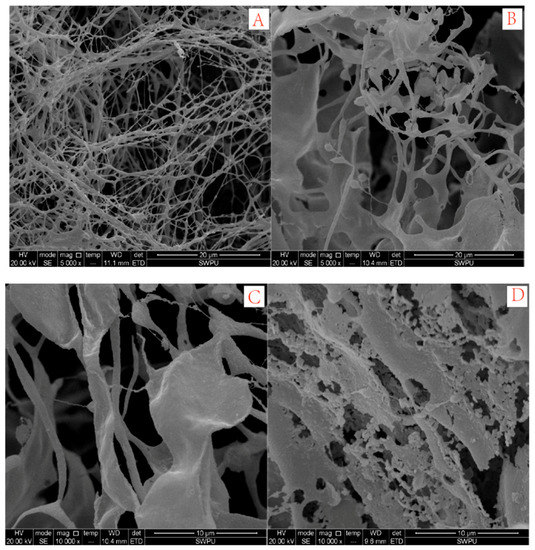

Figure 6. The representative SEM images of the DiPHAM aqueous solution association process. (A) 100 mg/L (×5000); (B) 300 mg/L (×10,000); (C) 500 mg/L (×10,000); (D) 700 mg/L (×10,000).
Figure 6. The representative SEM images of the DiPHAM aqueous solution association process. (A) 100 mg/L (×5000); (B) 300 mg/L (×10,000); (C) 500 mg/L (×10,000); (D) 700 mg/L (×10,000).
Polymers 10 00849 g006
Polymers 10 00849 g007 550

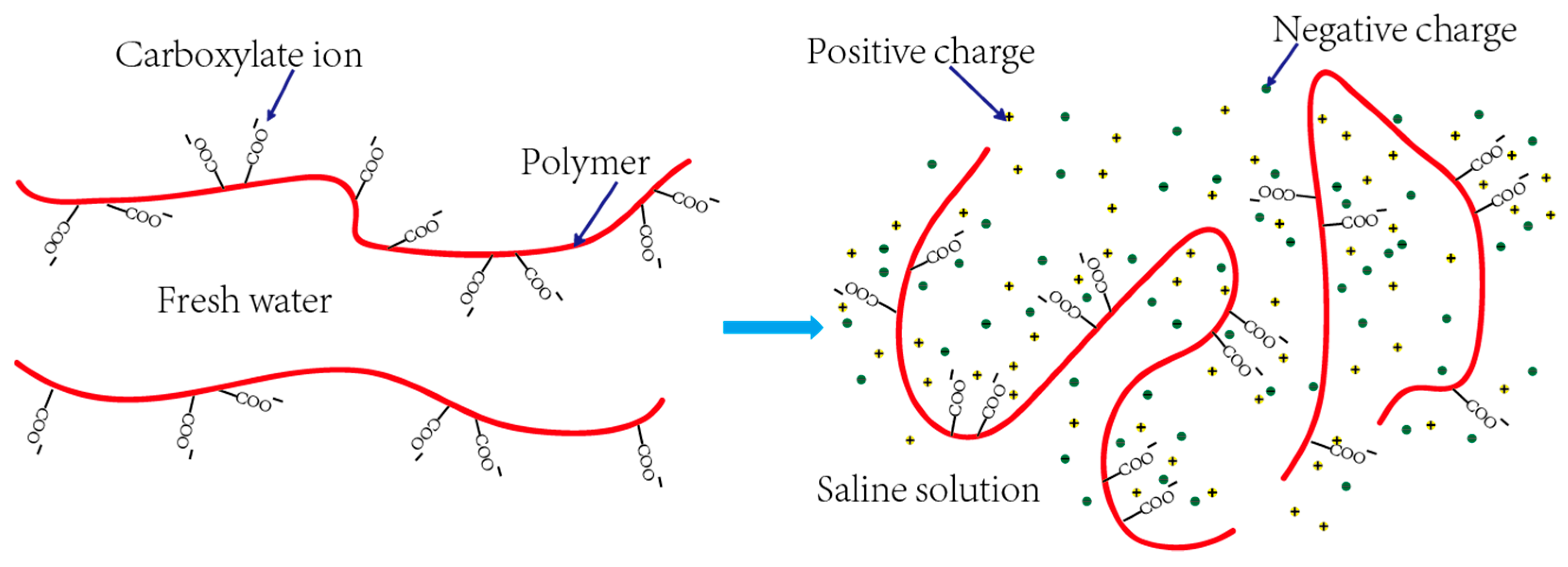

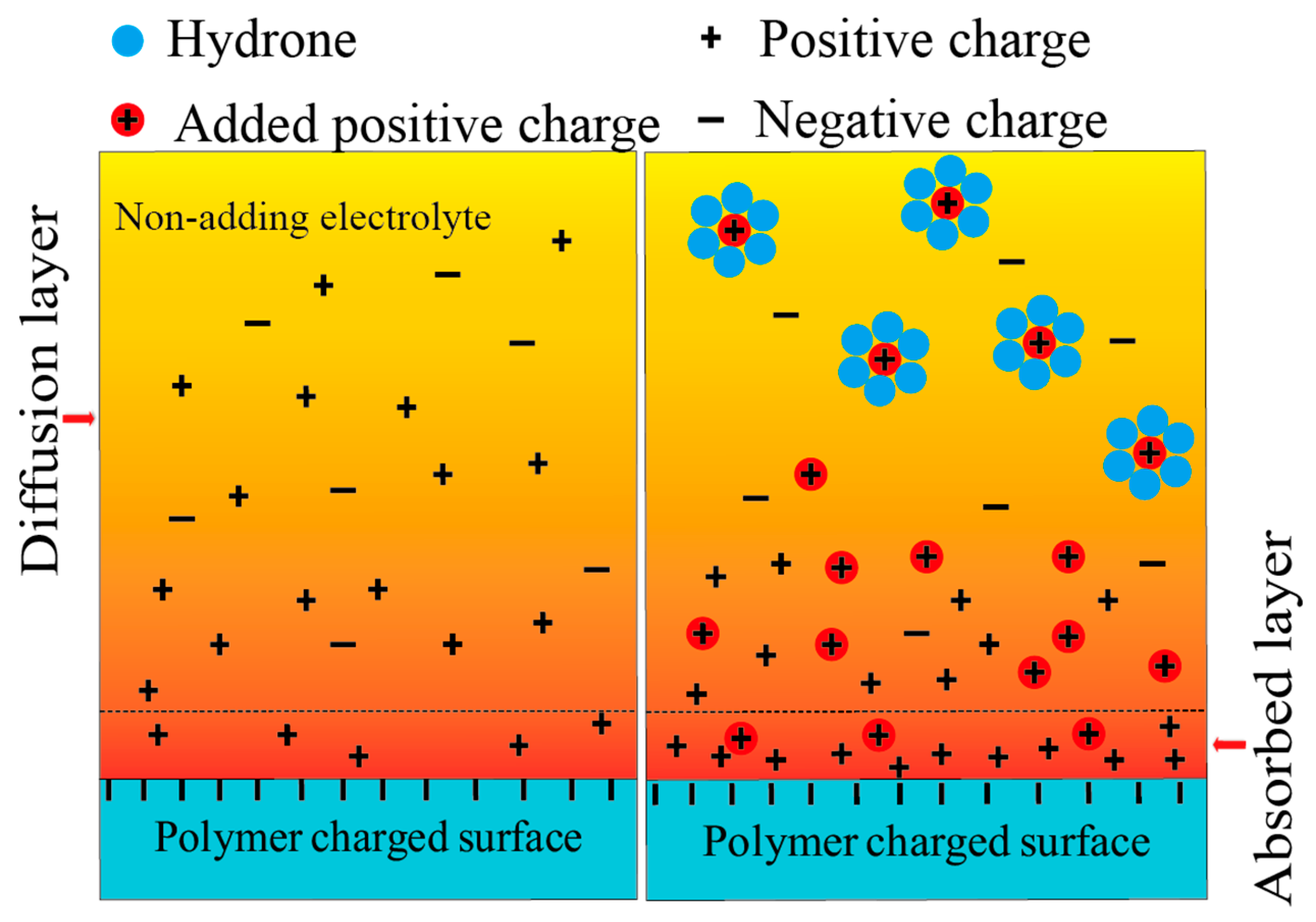

Figure 7. Electrostatic shielding of polymer in NaCl/KCl solution.
Figure 7. Electrostatic shielding of polymer in NaCl/KCl solution.
Polymers 10 00849 g007
Polymers 10 00849 g008 550

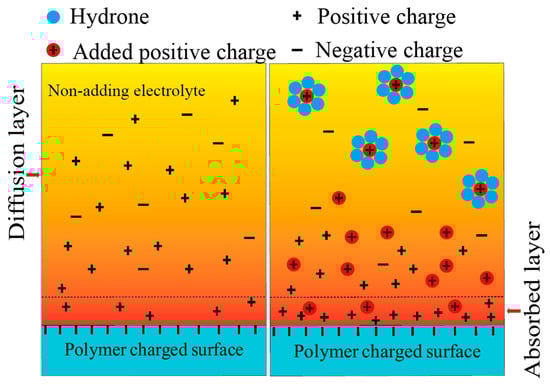

Figure 8. Compressing the thickness of the electric double layer of the polymer hydration shell.
Figure 8. Compressing the thickness of the electric double layer of the polymer hydration shell.
Polymers 10 00849 g008
Polymers 10 00849 g009 550

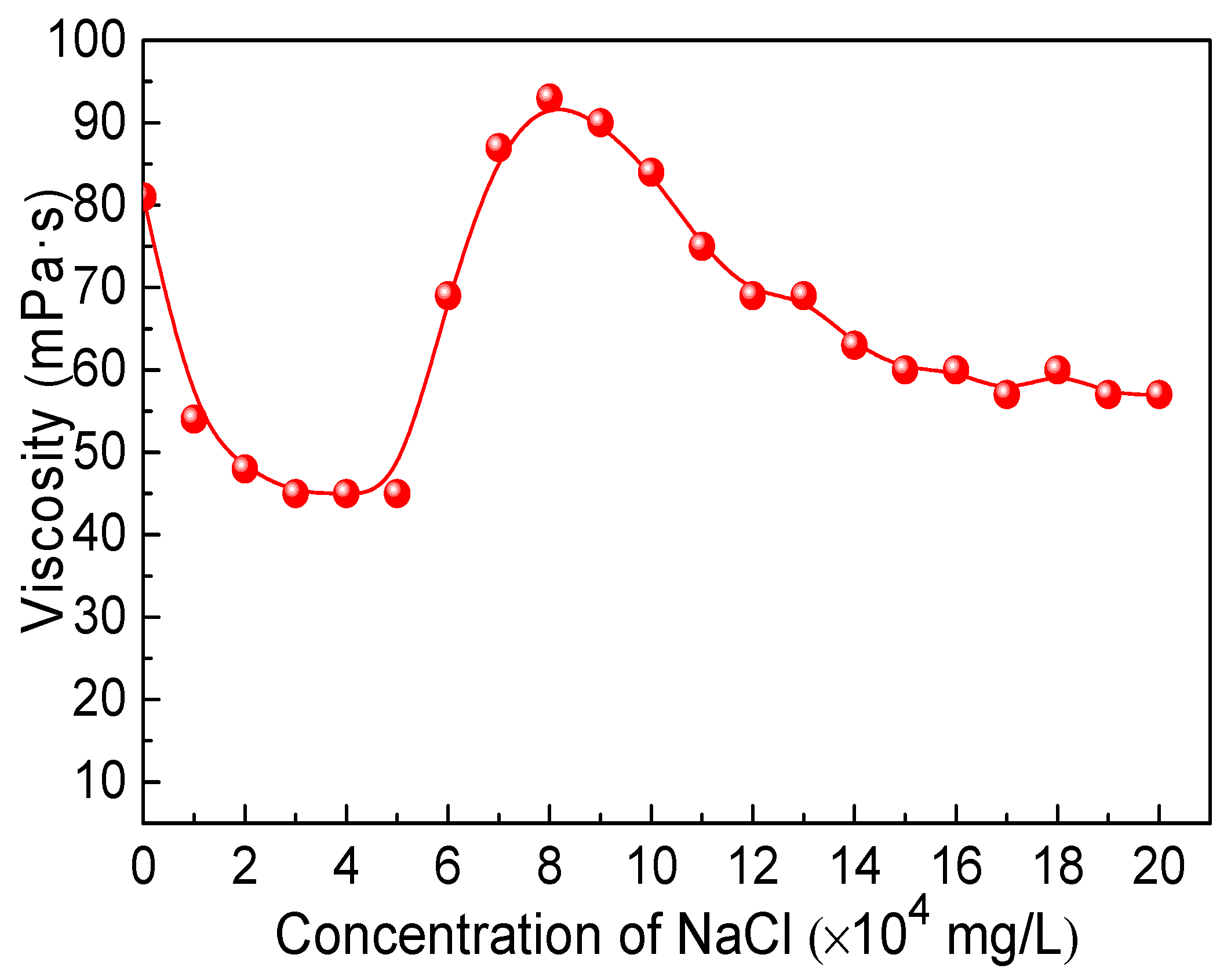

Figure 9. Effect of NaCl concentration on viscosity of a 0.3 wt% DiPHAM aqueous solution.
Figure 9. Effect of NaCl concentration on viscosity of a 0.3 wt% DiPHAM aqueous solution.
Polymers 10 00849 g009
Polymers 10 00849 g010 550

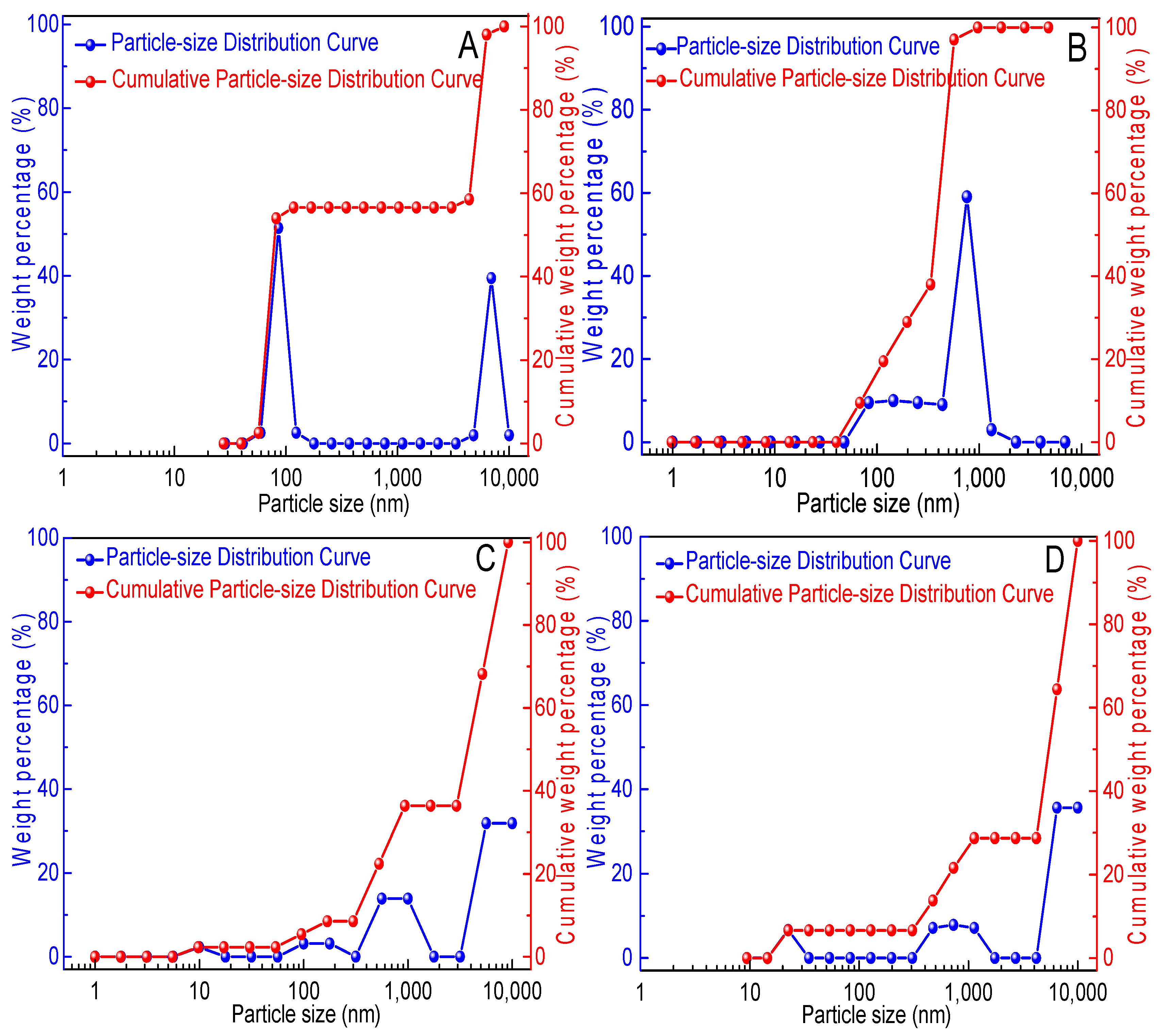

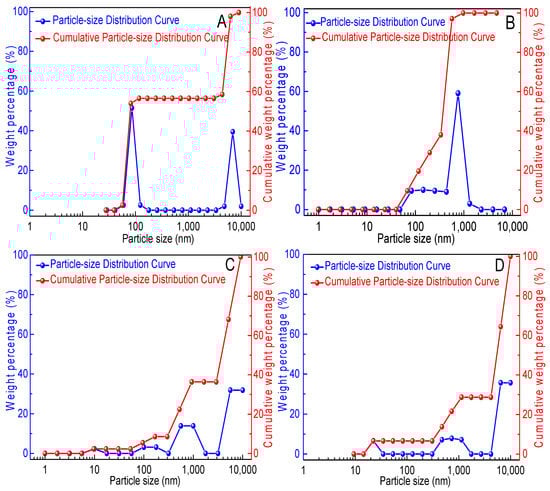

Figure 10. Particle size distribution of a 500 mg/L DiPHAM aqueous solution with different NaCl concentrations. (A) 4 × 104 mg/L; (B) 8 × 104 mg/L; (C) 12 × 104 mg/L; (D) 16 × 104 mg/L.
Figure 10. Particle size distribution of a 500 mg/L DiPHAM aqueous solution with different NaCl concentrations. (A) 4 × 104 mg/L; (B) 8 × 104 mg/L; (C) 12 × 104 mg/L; (D) 16 × 104 mg/L.
Polymers 10 00849 g010
Polymers 10 00849 g011 550

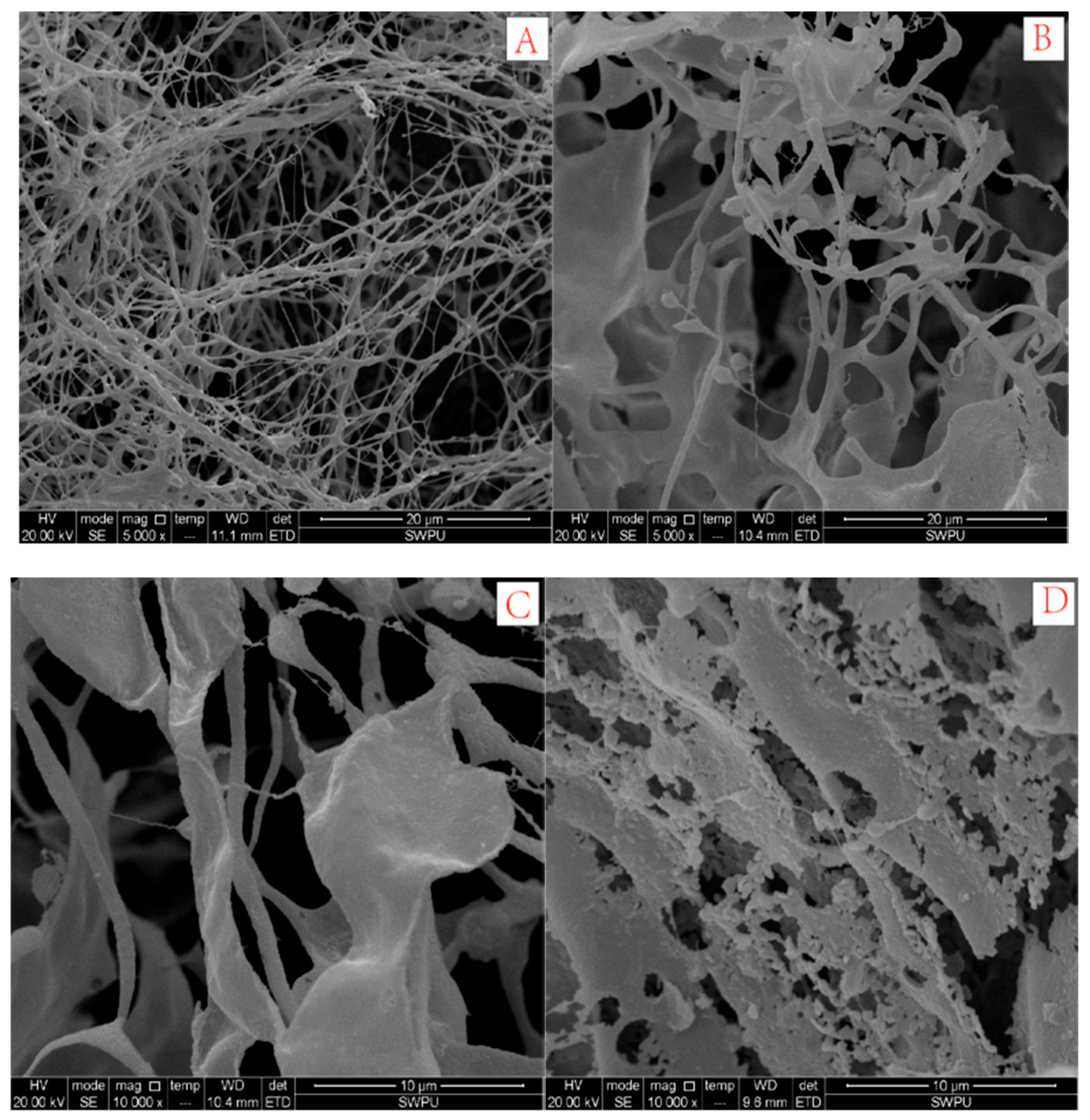

Figure 11. The representative SEM images of a 500 mg/L DiPHAM aqueous solution with different NaCl concentrations. (A) 4 × 104 mg/L (×5000); (B) 8 × 104 mg/L (×5000); (C) 12 × 104 mg/L (×10,000); (D) 16 × 104 mg/L (×10,000).
Figure 11. The representative SEM images of a 500 mg/L DiPHAM aqueous solution with different NaCl concentrations. (A) 4 × 104 mg/L (×5000); (B) 8 × 104 mg/L (×5000); (C) 12 × 104 mg/L (×10,000); (D) 16 × 104 mg/L (×10,000).
Polymers 10 00849 g011
Polymers 10 00849 g012 550

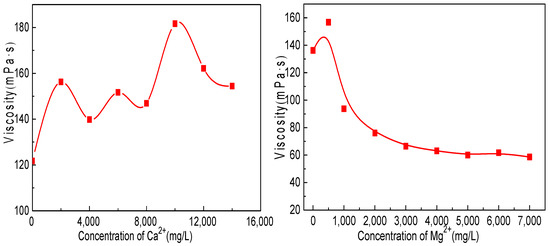

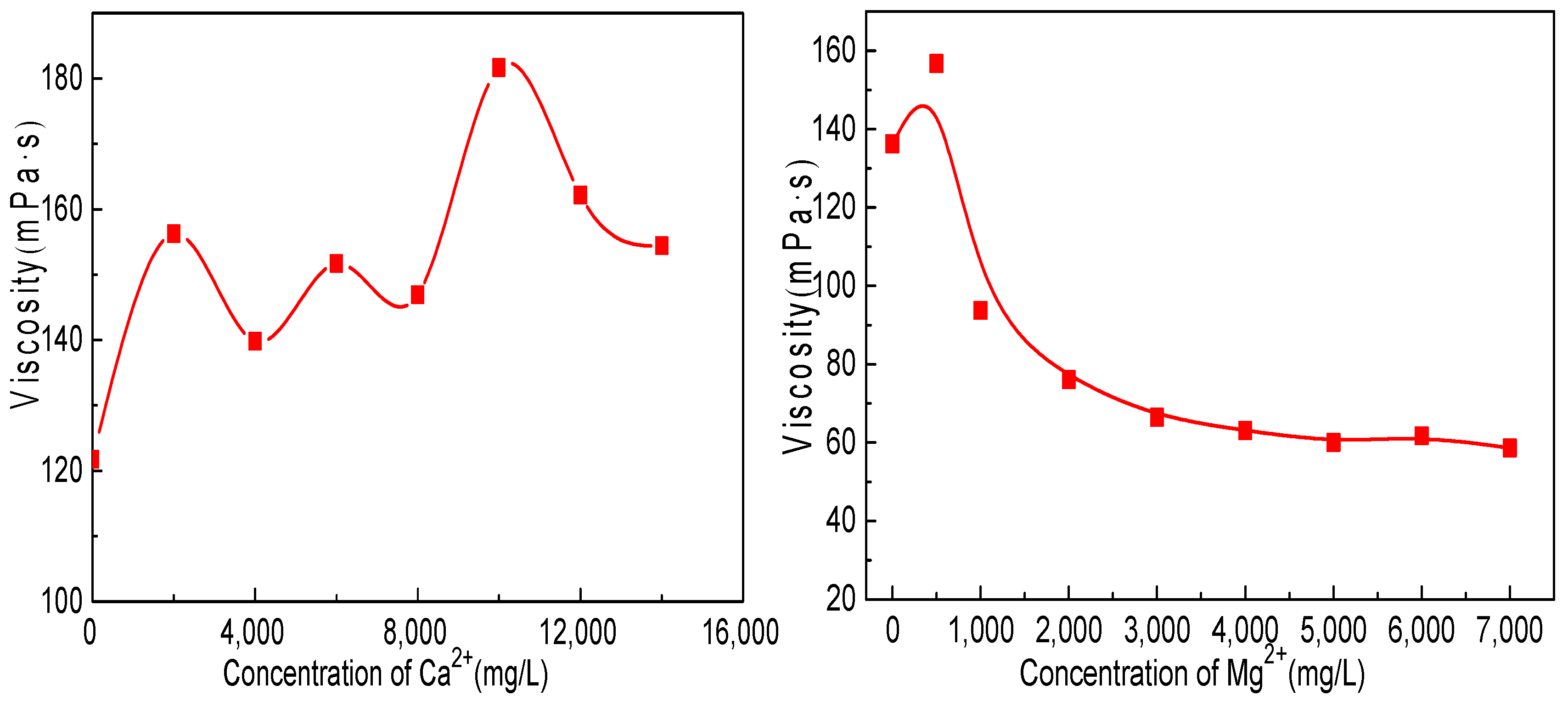

Figure 12. Effect of Ca2+/Mg2+ concentration on apparent viscosity of a DiPHAM aqueous solution.
Figure 12. Effect of Ca2+/Mg2+ concentration on apparent viscosity of a DiPHAM aqueous solution.
Polymers 10 00849 g012
Polymers 10 00849 g013 550

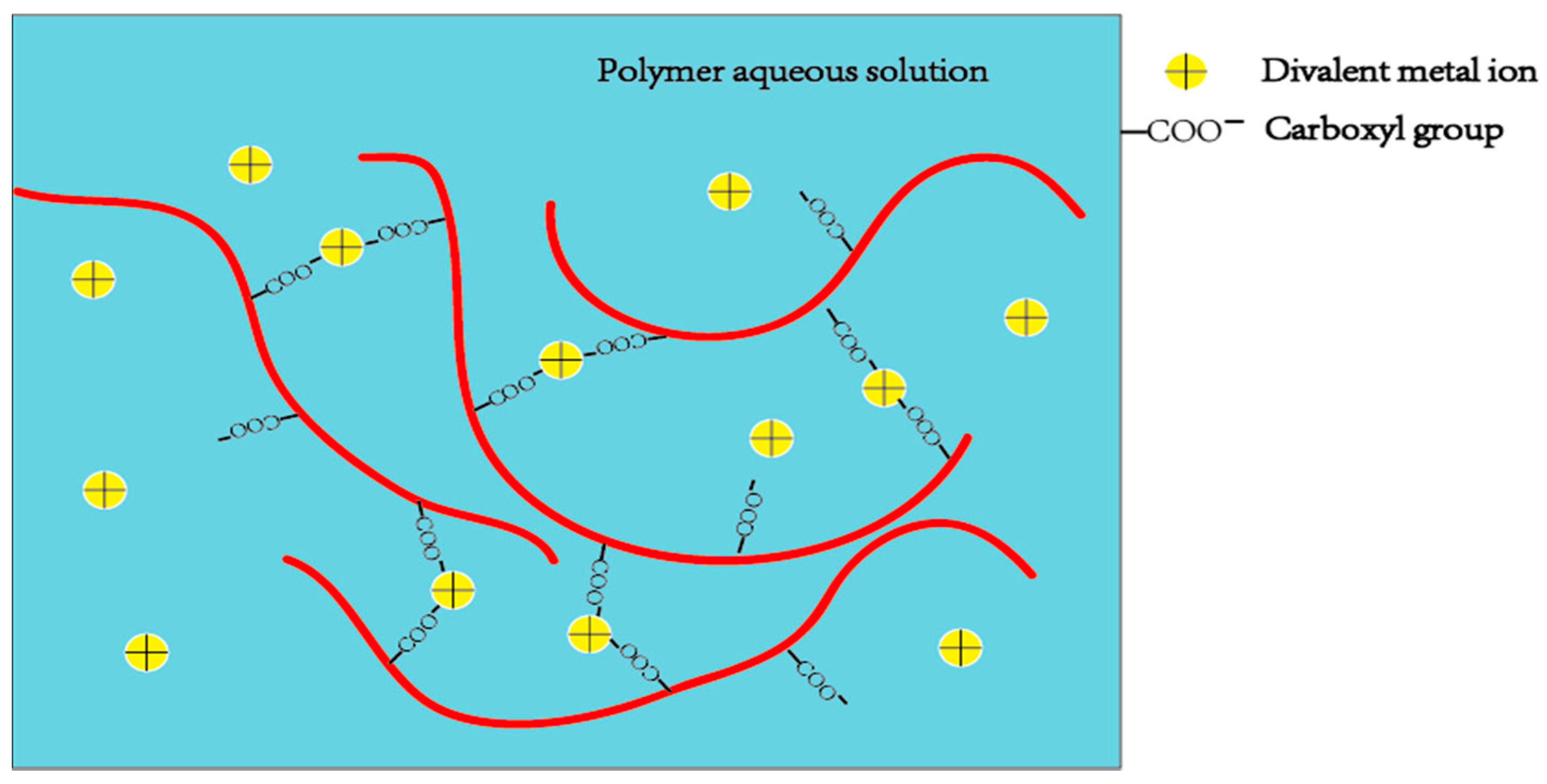

Figure 13. Solubility product balance among –COO− groups and divalent metal ions in a polymer solution.
Figure 13. Solubility product balance among –COO− groups and divalent metal ions in a polymer solution.
Polymers 10 00849 g013
Polymers 10 00849 g014 550

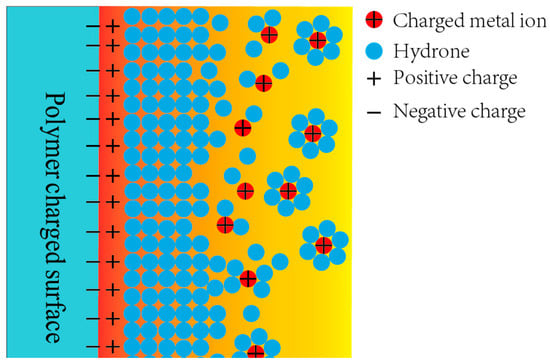

Figure 14. Reduction of the polymer hydration shell by metal ions.
Figure 14. Reduction of the polymer hydration shell by metal ions.
Polymers 10 00849 g014
Polymers 10 00849 g015 550

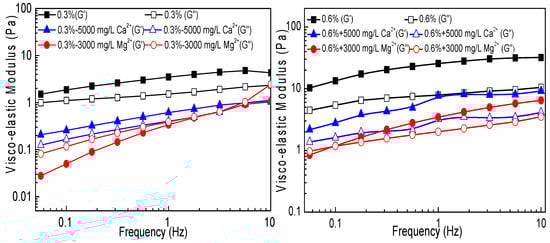

Figure 15. Viscoelasticity of a DiPHAM under the condition of high salinity.
Figure 15. Viscoelasticity of a DiPHAM under the condition of high salinity.
Polymers 10 00849 g015
Polymers 10 00849 g016 550

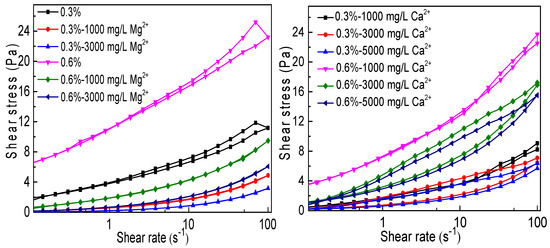

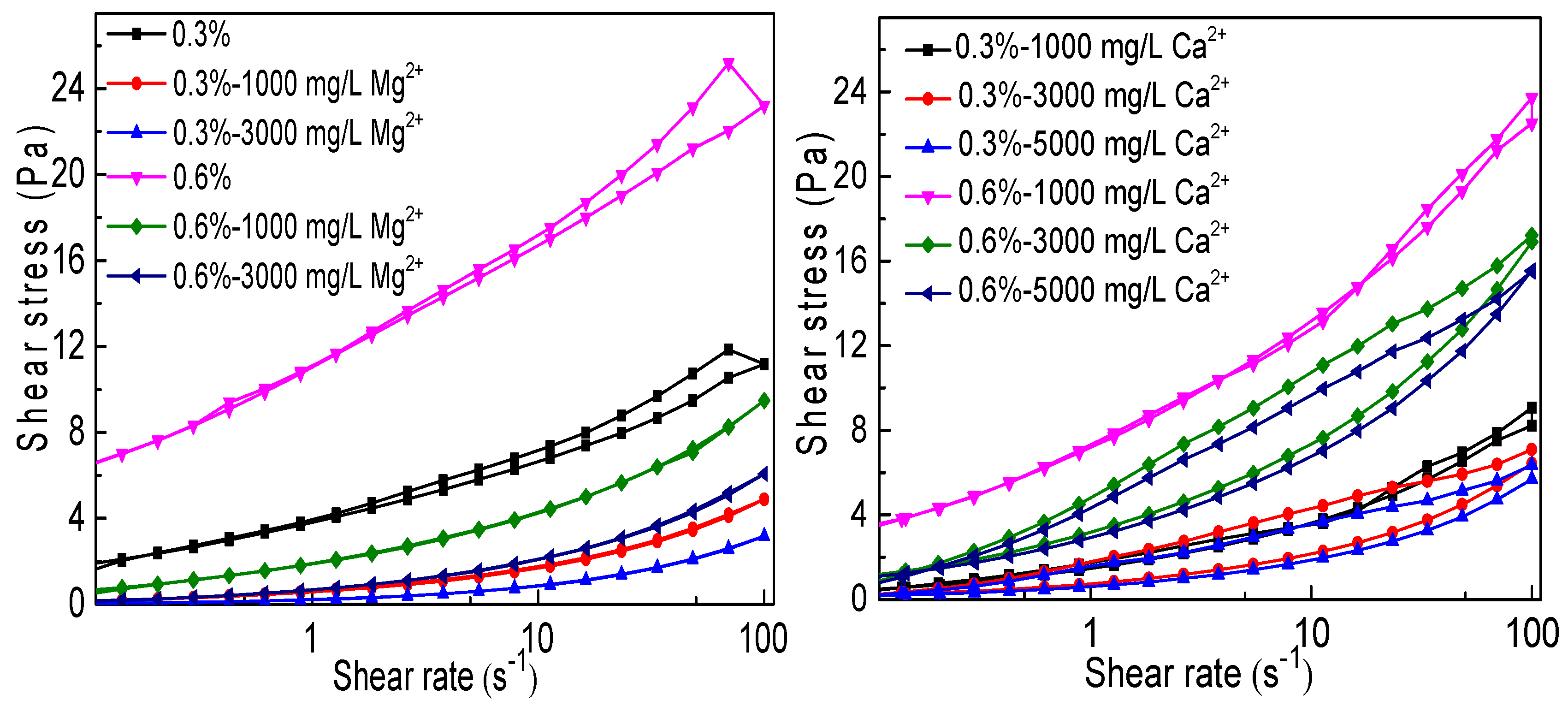

Figure 16. Thixotropy of different DiPHAM concentrations and with different concentrations of ions.
Figure 16. Thixotropy of different DiPHAM concentrations and with different concentrations of ions.
Polymers 10 00849 g016
Polymers 10 00849 g017a 550Polymers 10 00849 g017b 550

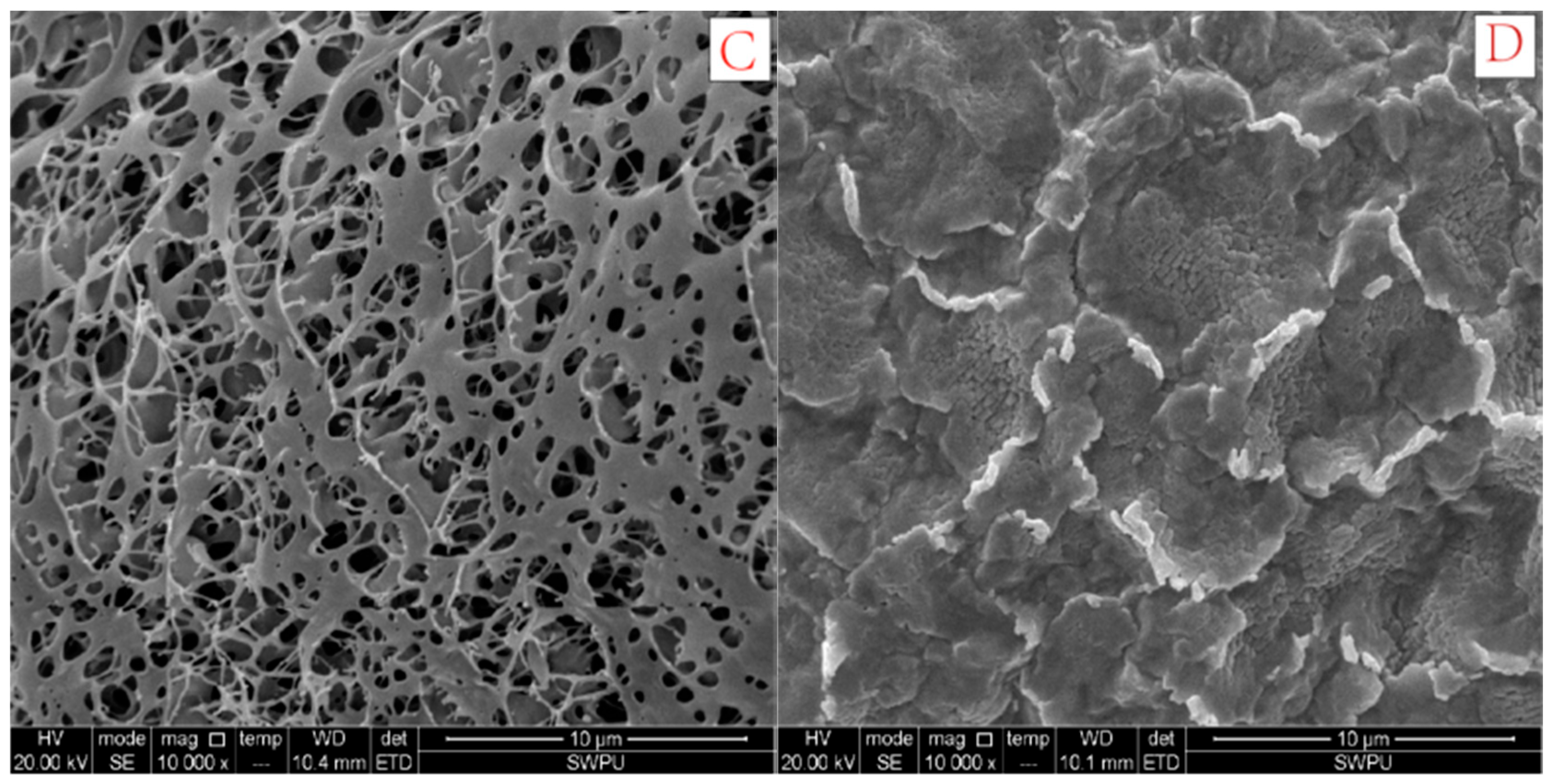

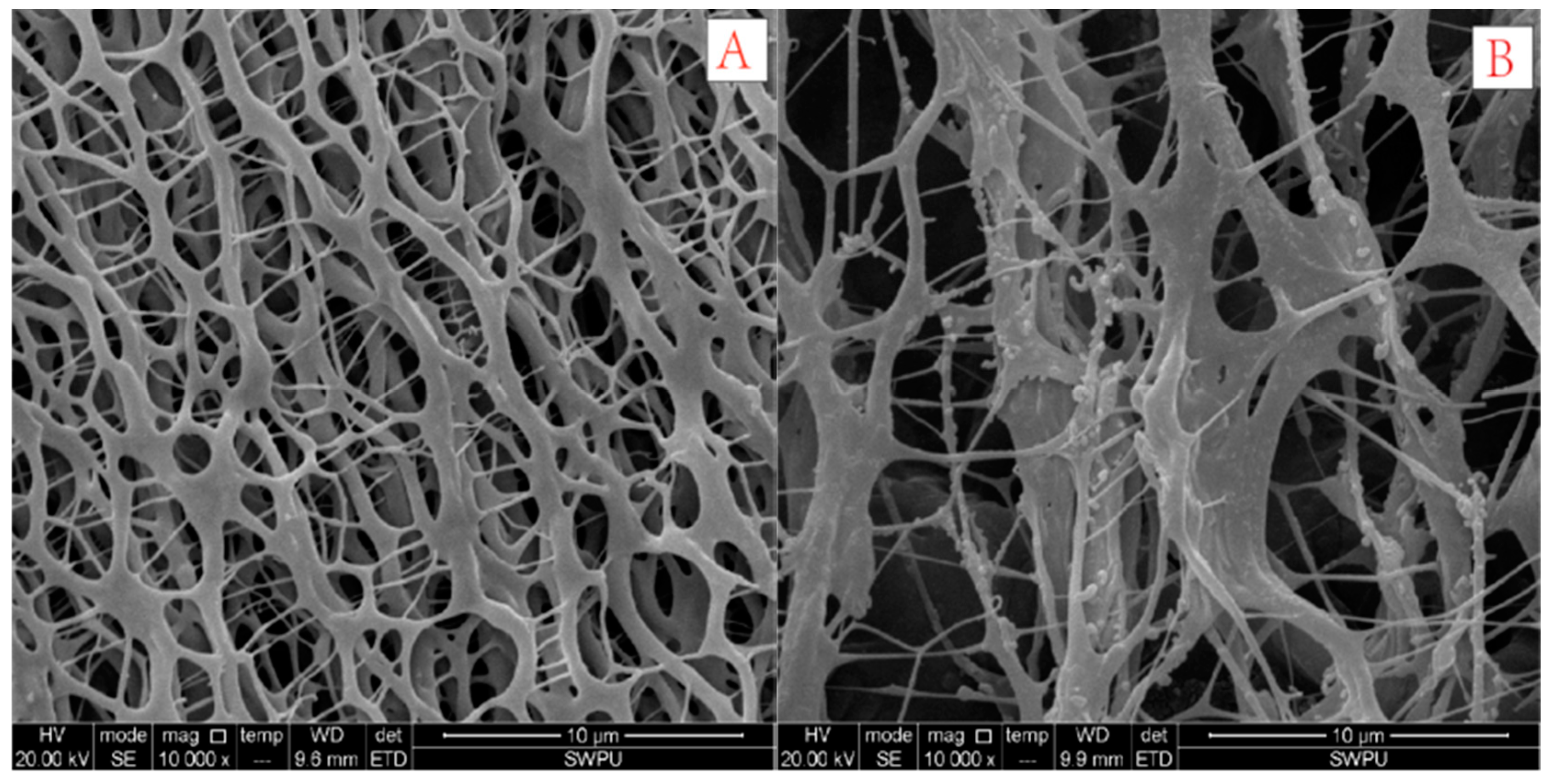

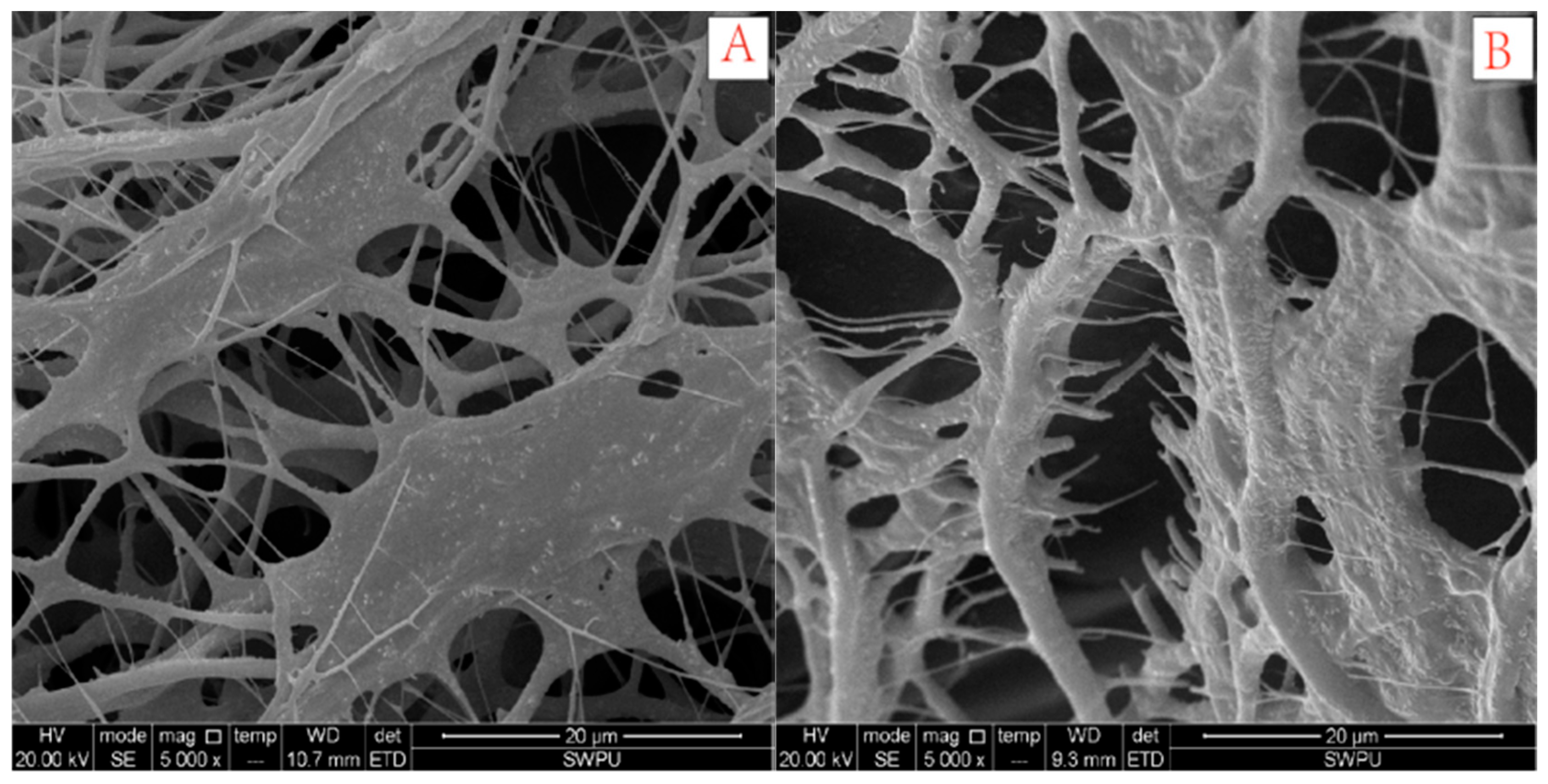

Figure 17. SEM images (×10,000) of a 0.3 wt% DiPHAM aqueous solution with different concentrations of Ca2+ ions (A) 1000 mg/L; (B) 3000 mg/L; (C) 5000 mg/L; (D) 10,000 mg/L.
Figure 17. SEM images (×10,000) of a 0.3 wt% DiPHAM aqueous solution with different concentrations of Ca2+ ions (A) 1000 mg/L; (B) 3000 mg/L; (C) 5000 mg/L; (D) 10,000 mg/L.
Polymers 10 00849 g017aPolymers 10 00849 g017b
Polymers 10 00849 g018 550
Figure 18. SEM images (×5000) of a 0.3 wt% DiPHAM aqueous solution with different concentrations of Mg2+ ions (A) 1000 mg/L; (B) 3000 mg/L.
Figure 18. SEM images (×5000) of a 0.3 wt% DiPHAM aqueous solution with different concentrations of Mg2+ ions (A) 1000 mg/L; (B) 3000 mg/L.
Polymers 10 00849 g018
Polymers 10 00849 g019 550

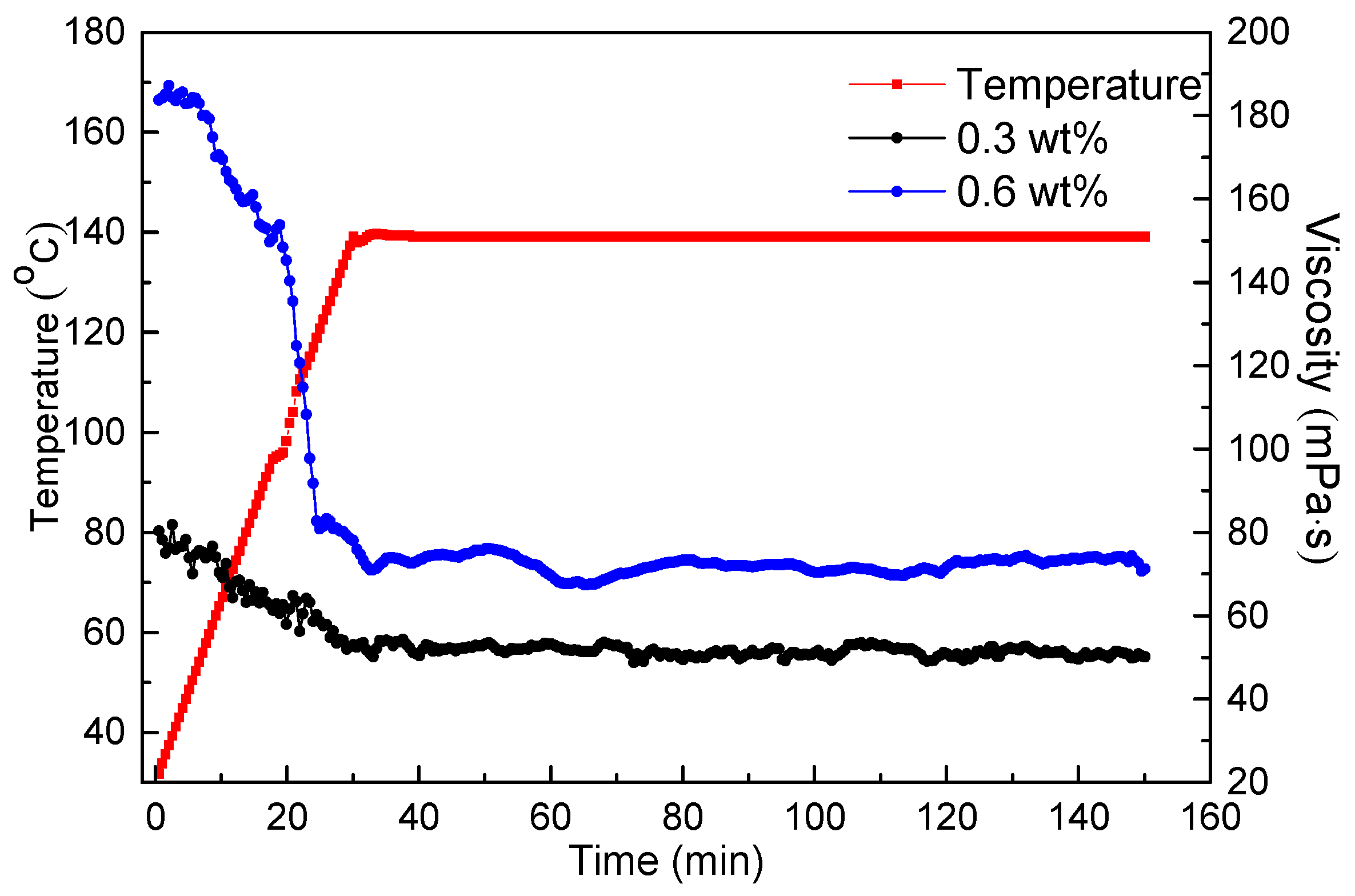

Figure 19. Rheological properties of 0.3 wt% and 0.6 wt% DiPHAM aqueous solutions at 140 °C.
Figure 19. Rheological properties of 0.3 wt% and 0.6 wt% DiPHAM aqueous solutions at 140 °C.
Polymers 10 00849 g019
Polymers 10 00849 g020 550
Figure 20. Rheological properties of 0.3 wt% and 0.6 wt% DiPHAM aqueous solutions with different concentrations of Ca2+ and Mg2+ ions.
Figure 20. Rheological properties of 0.3 wt% and 0.6 wt% DiPHAM aqueous solutions with different concentrations of Ca2+ and Mg2+ ions.
Polymers 10 00849 g020

Share and Cite

MDPI and ACS Style

Mao, J.; Tan, H.; Yang, B.; Zhang, W.; Yang, X.; Zhang, Y.; Zhang, H. Novel Hydrophobic Associating Polymer with Good Salt Tolerance. Polymers 2018, 10, 849. https://doi.org/10.3390/polym10080849

AMA Style

Mao J, Tan H, Yang B, Zhang W, Yang X, Zhang Y, Zhang H. Novel Hydrophobic Associating Polymer with Good Salt Tolerance. Polymers. 2018; 10(8):849. https://doi.org/10.3390/polym10080849

Chicago/Turabian Style

Mao, Jincheng, Hongzhong Tan, Bo Yang, Wenlong Zhang, Xiaojiang Yang, Yang Zhang, and Heng Zhang. 2018. "Novel Hydrophobic Associating Polymer with Good Salt Tolerance" Polymers 10, no. 8: 849. https://doi.org/10.3390/polym10080849

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
