Influence of Doping Tb on the Mechanical Properties and Martensitic Transformation of Ni-Mn-Sn Magnetic Shape Memory Alloys

1
School of Science, Harbin University of Science and Technology, Harbin 150080, China
2
School of Materials Science and Engineering, Harbin University of Science and Technology, Harbin 150080, China
*
Author to whom correspondence should be addressed.
Received: 17 May 2018 / Revised: 4 June 2018 / Accepted: 5 June 2018 / Published: 11 June 2018
View Full-Text   |   Download PDF [2808 KB, uploaded 11 June 2018]   |

Abstract

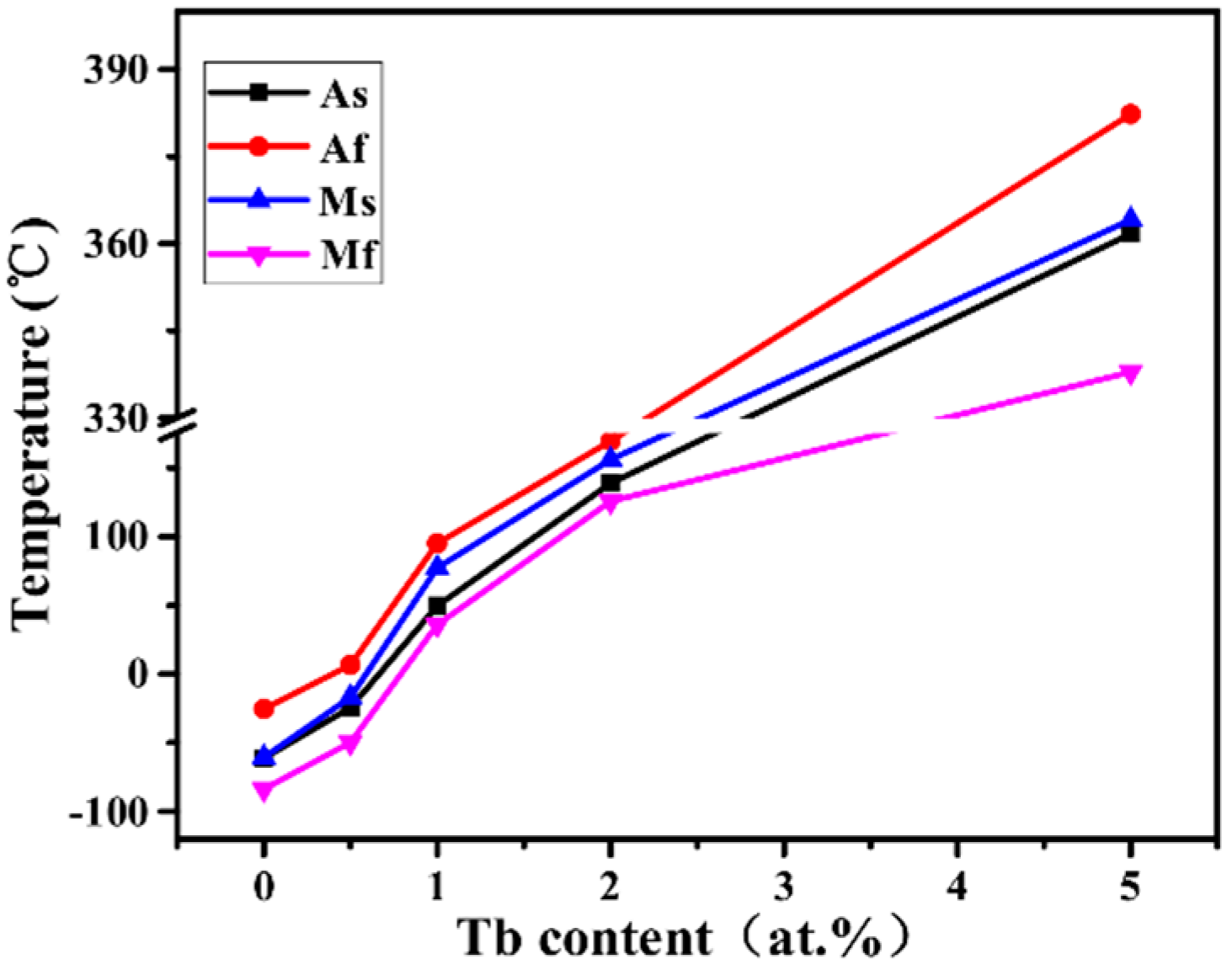

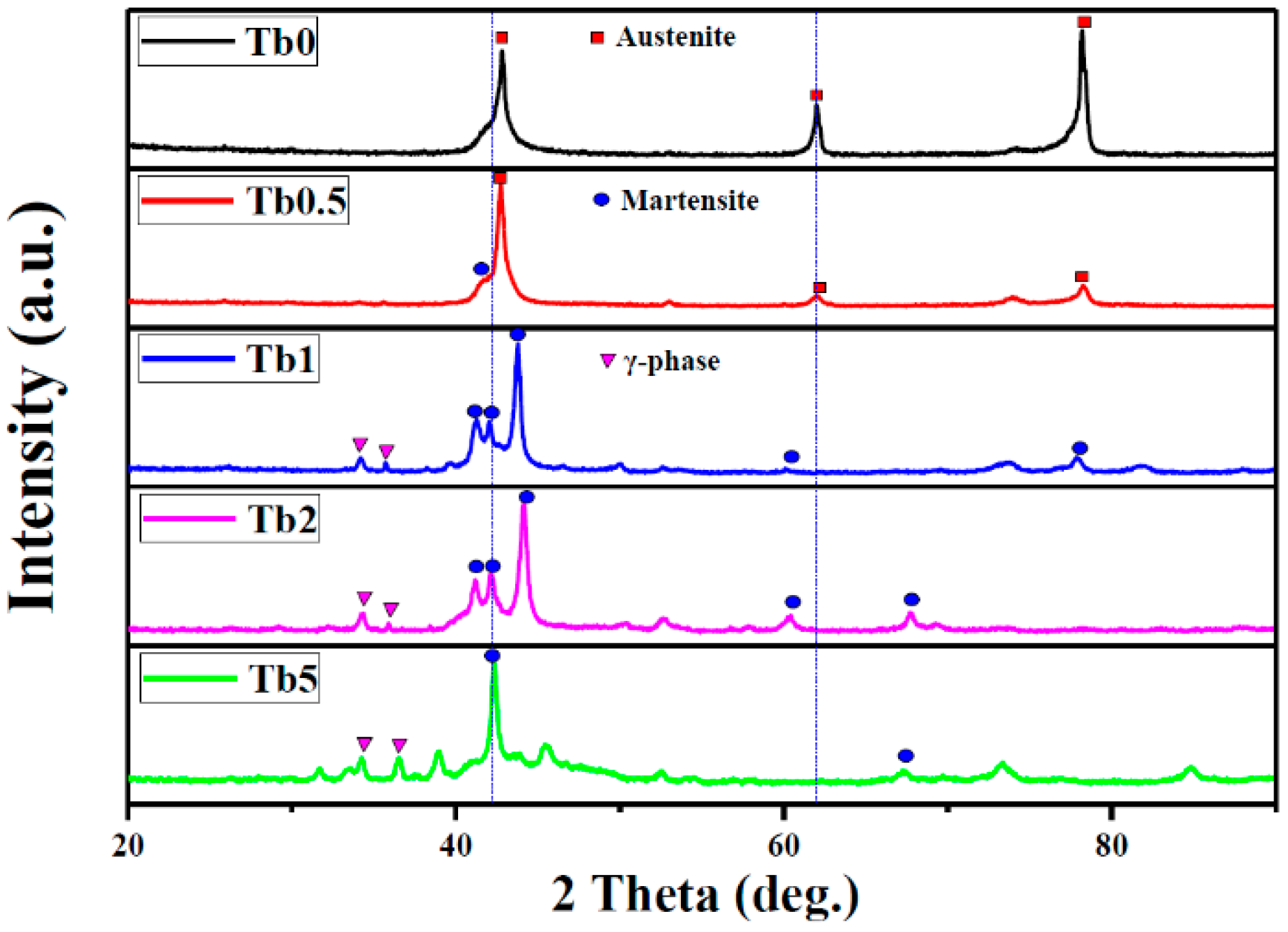

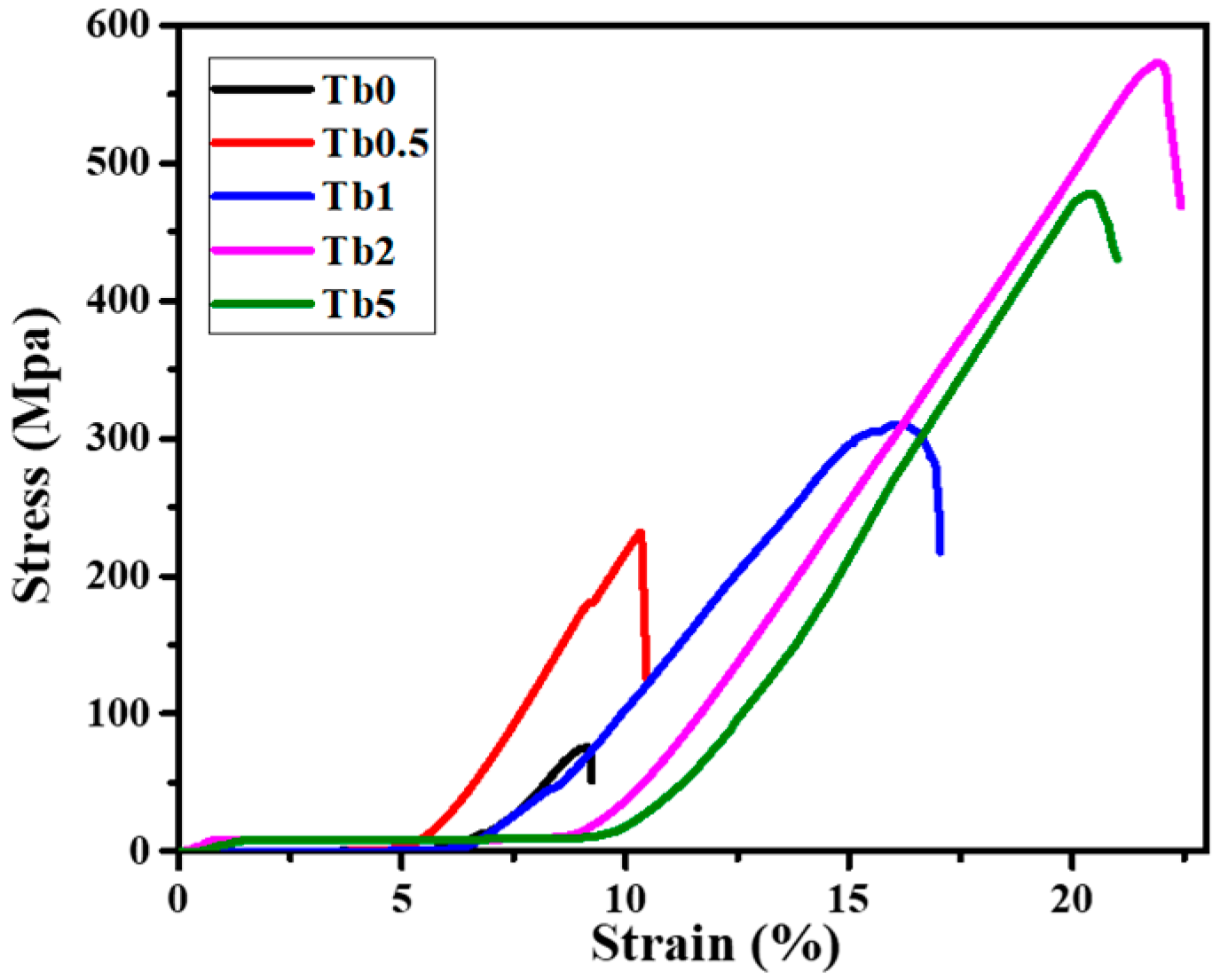

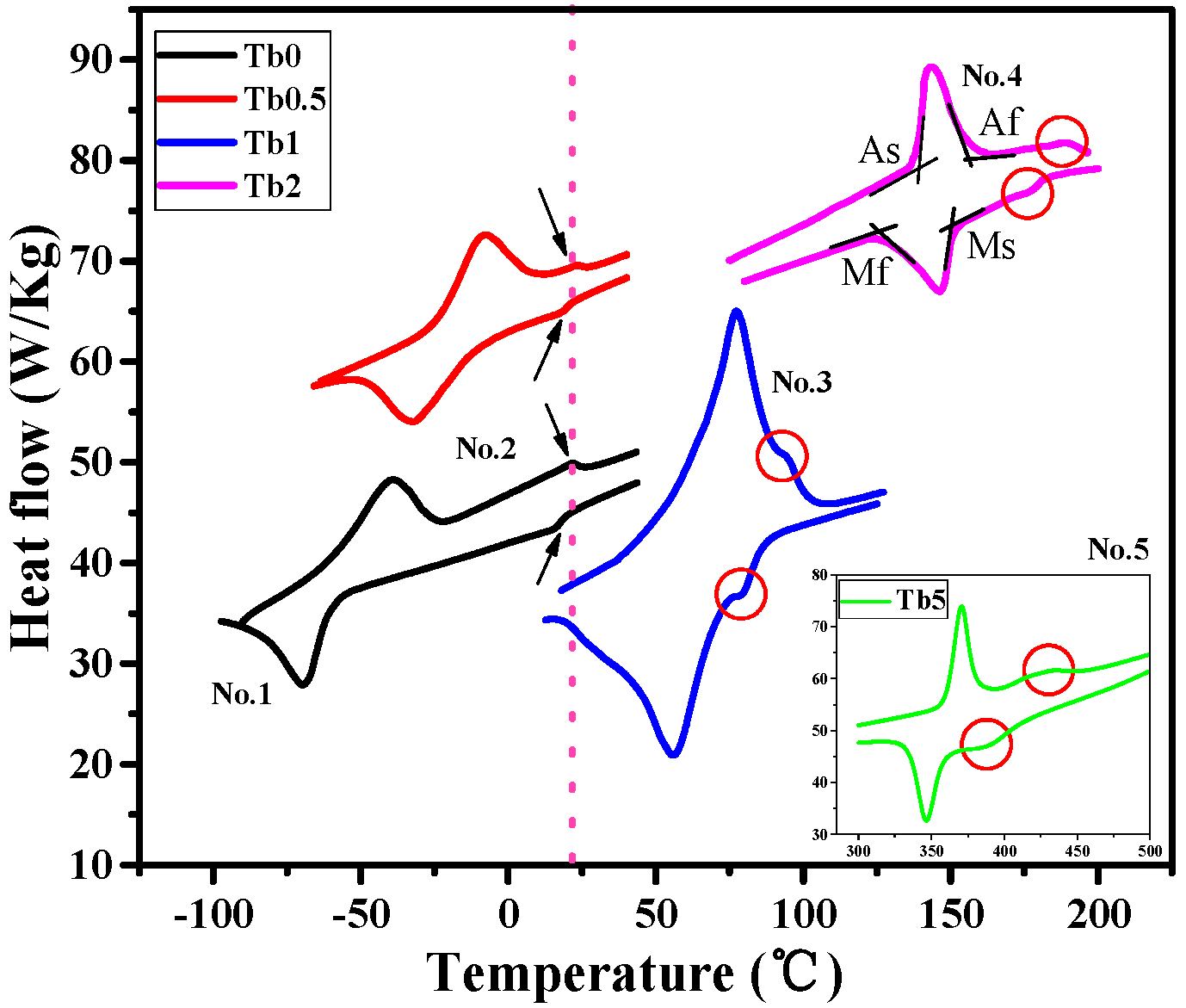

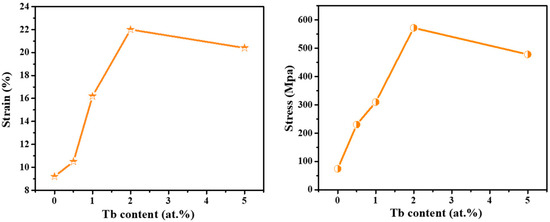

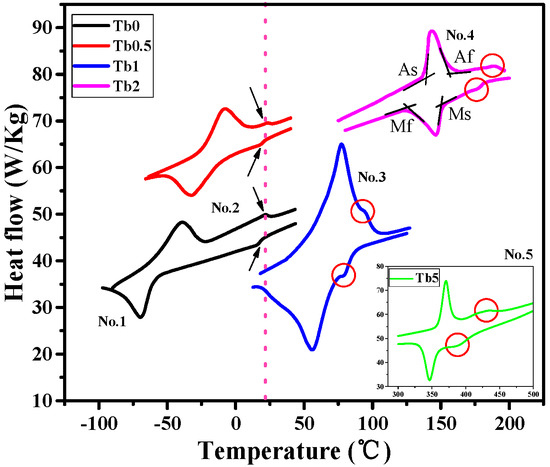

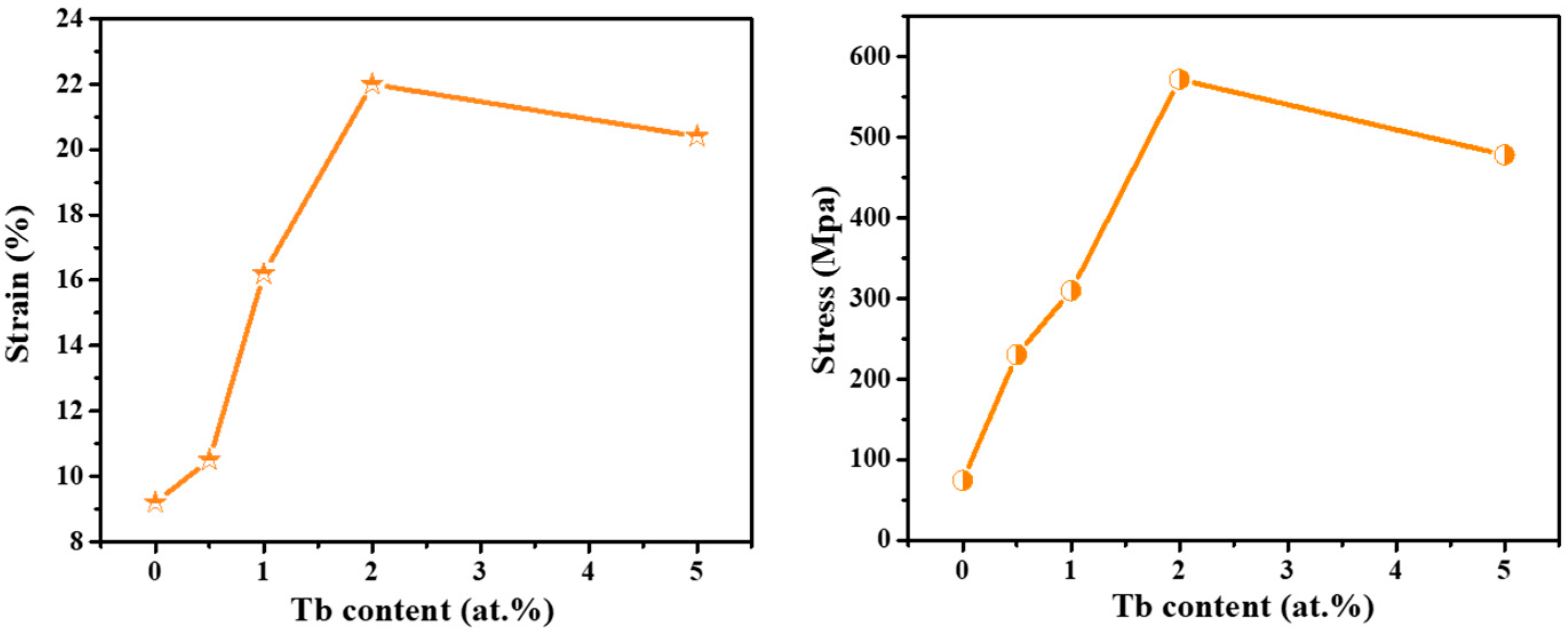

Brittleness and low working temperature are two key factors that restrict the application of Ni-Mn-Sn alloys. Element doping is an effective means to improve performance of materials. In present paper, martensitic transformation (MT) and mechanical properties of Ni48Mn39Sn13−xTbx (x = 0, 0.5, 1, 2, and 5 at.%) alloys are investigated. It is found that the Tb addition refines significantly the grains and causes the formation of a Tb-rich phase. All the samples undergo the martensitic transformation from parent phase to martensite. And the martensitic transformation characteristic temperatures increase remarkably from −60.7 °C for x = 0 to 364.1 °C for x = 5. The appropriate amount of Tb addition in Ni48Mn39Sn13−xTbx (x = 0, 0.5, 1, 2, and 5 at.%) alloys significantly enhances the compressive strength and improves the ductility, which can be ascribed to the grain refinement. The compressive stress of 571.8 MPa and strain 22.0% are obtained in the Ni48Mn39Sn11Tb2 alloy. Then the mechanical properties decrease with the further increased Tb content. Simultaneous improving of martensitic transformation temperature and mechanical properties in Ni-Mn-Sn magnetic alloy are achieved by Tb doping. View Full-Text
Keywords: Ni-Mn-Sn; ferromagnetic shape memory alloys; martensitic transformation; mechanical properties; Tb doping; rare earth element Ni-Mn-Sn; ferromagnetic shape memory alloys; martensitic transformation; mechanical properties; Tb doping; rare earth element
