Open AccessArticle
Crystals 2018, 8(2), 92; https://doi.org/10.3390/cryst8020092

Specific Structural Disorder in an Anion Layer and Its Influence on Conducting Properties of New Crystals of the (BEDT-TTF)4A+[M3+(ox)3]G Family, Where G Is 2-Halopyridine; M Is Cr, Ga; A+ Is [K0.8(H3O)0.2]+

1
Institute of Problems of Chemical Physics of Russian Academy of Sciences, Chernogolovka 142432, Russia
2
Institute of Solid State Physics of Russian Academy of Sciences, Chernogolovka 142432, Russia
3
Moscow Institute of Physics and Technology, Dolgoprudny 141701, Russia
*
Authors to whom correspondence should be addressed.
Received: 24 January 2018 / Revised: 8 February 2018 / Accepted: 8 February 2018 / Published: 10 February 2018
(This article belongs to the Special Issue Advances in Organic Conductors and Superconductors)
Full-Text   |   PDF [8192 KB, uploaded 11 February 2018]   |

Abstract

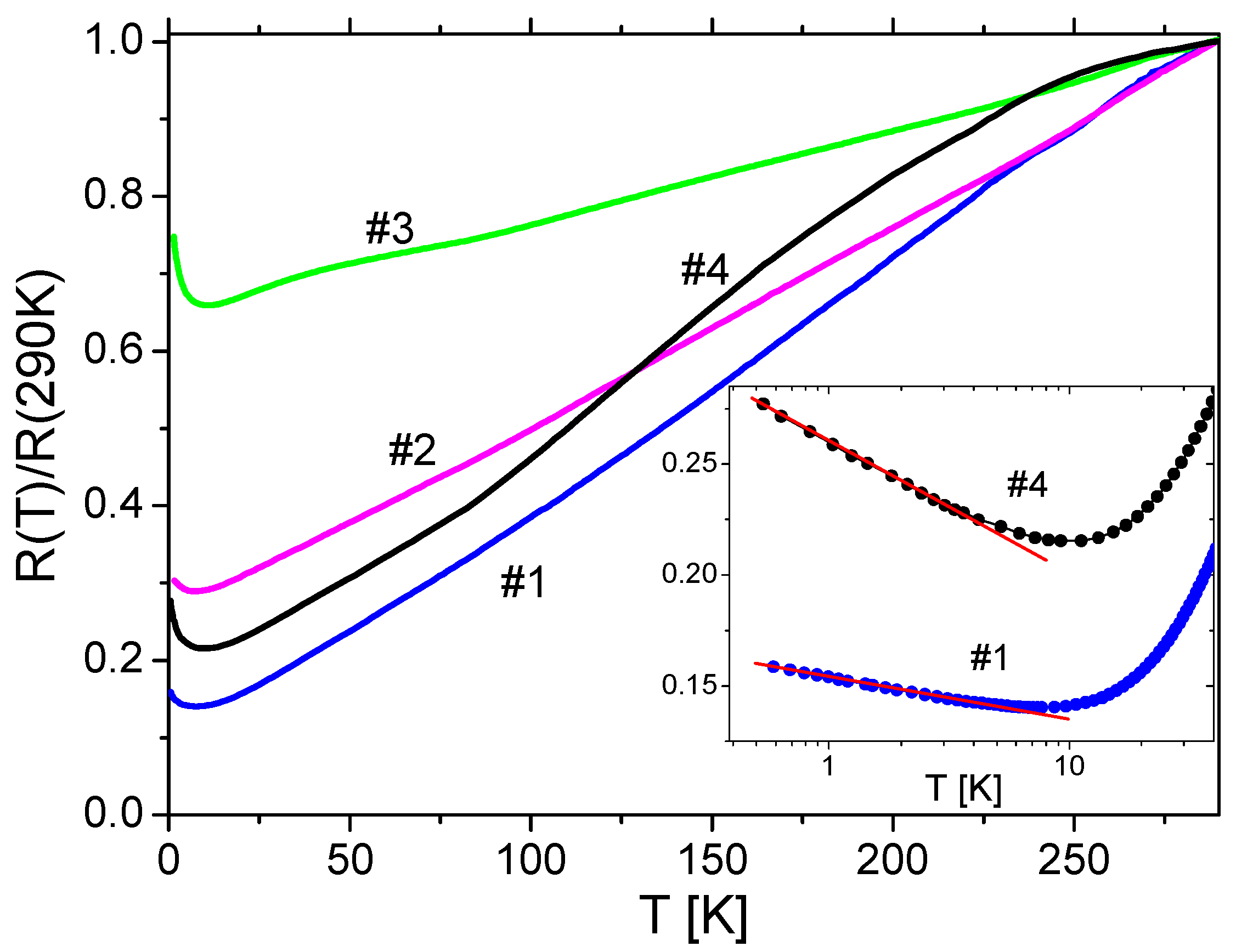

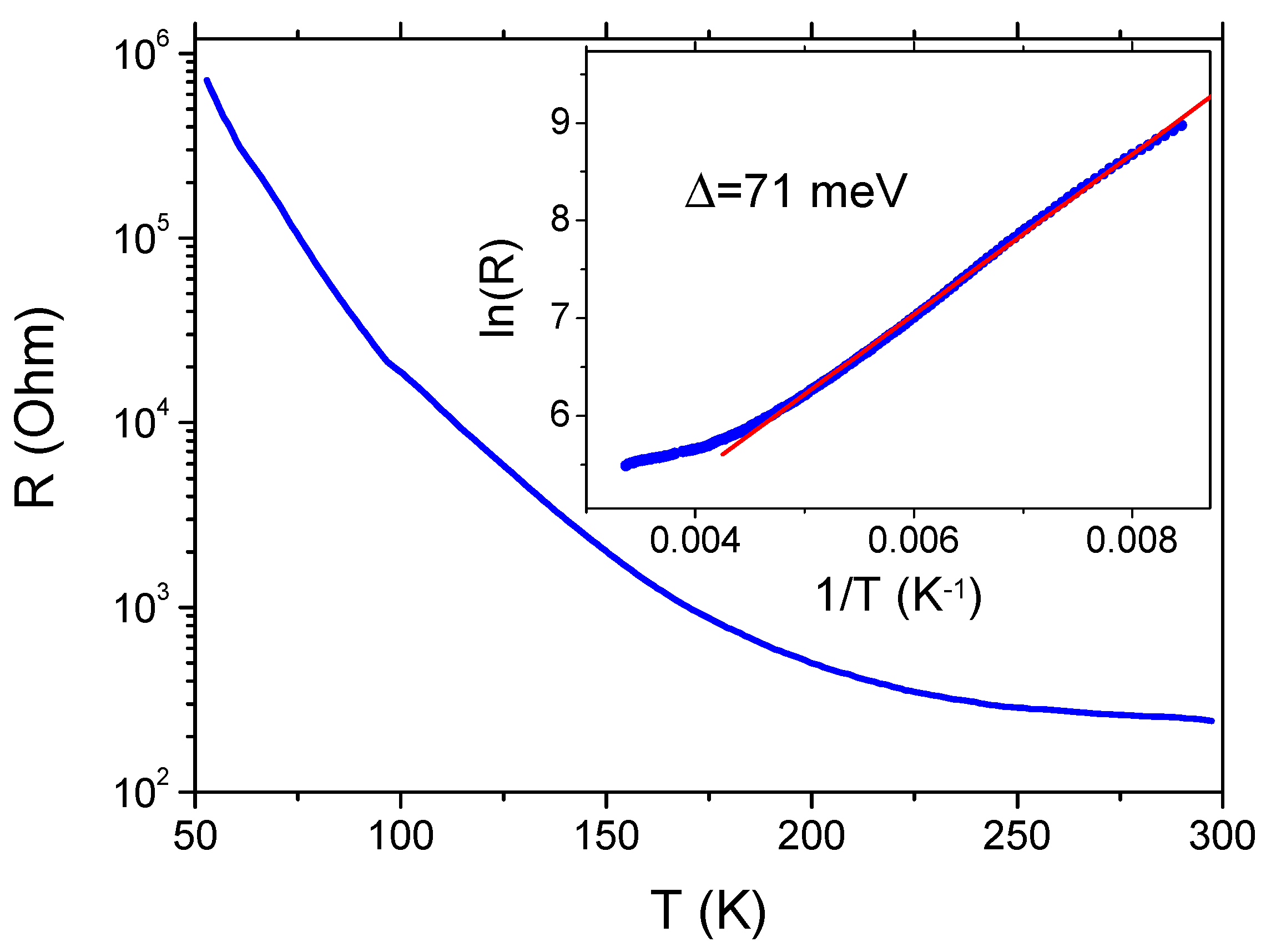

New crystals (14) of organic conductors based on the radical cation salts of the bis(ethylenedithio)tetrathiafulvalene (BEDT-TTF) with paramagnetic and diamagnetic tris(oxalato)metallate anions {A+[M3+(ox)3]3−G}2−, where M is Cr, Ga; G is 2-chloropyridine, 2-bromopyridine; and A+ is [K0.8(H3O)0.2]+ have been prepared and their crystal structure and transport properties were studied. All crystals belong to the monoclinic group of the (BEDT-TTF)4A+[M3+(ox)3]G family with β″-packing type of conducting BEDT-TTF layers. In contrast to the known superconducting crystals with M3+ = Fe3+ and G = 2-chloro- or 2-bromopyridine (Tc = 4.0–4.3 K), crystals with Cr3+ and Ga3+ ions exhibit metallic properties down to 0.5 K without superconducting transition. Upon cooling these crystals, the incommensurate superstructure appears, which has never been observed before in the numerous β″-salts of the family. In addition, orthorhombic (sp. group Pbca) semiconducting crystals α″-(BEDT-TTF)5[Ga(ox)3]·3.4·H2O·0.6 EtOH (5) were obtained. It is a new compound in the family of BEDT-TTF crystals with tris(oxalato)metallate anions. View Full-Text
Keywords: molecular (super)conductors; superstructure; bifunctional compounds; radical cation salts; BEDT-TTF; tris(oxalato)metallate anions molecular (super)conductors; superstructure; bifunctional compounds; radical cation salts; BEDT-TTF; tris(oxalato)metallate anions
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
