Open AccessCommunication
Crystals 2017, 7(10), 305; doi:10.3390/cryst7100305

Synthesis, Crystal Structure and Catalytic Activity of a Novel Ba(II) Complex with Pyridine-2-Carboxaldehyde-2-Phenylacetic Acid Hydrazone Ligand

1
College of Information and Engineering, Weifang University, Weifang 261061, China
2
College of Chemistry and Chemical Engineering, Weifang University, Weifang 261061, China
3
College of Chemical Engineering, Qingdao University of Science and Technology, Qingdao 266061, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Shujun Zhang
Received: 13 September 2017 / Revised: 30 September 2017 / Accepted: 5 October 2017 / Published: 9 October 2017
(This article belongs to the Section Crystal Engineering)
View Full-Text   |   Download PDF [3338 KB, uploaded 10 October 2017]   |

Abstract

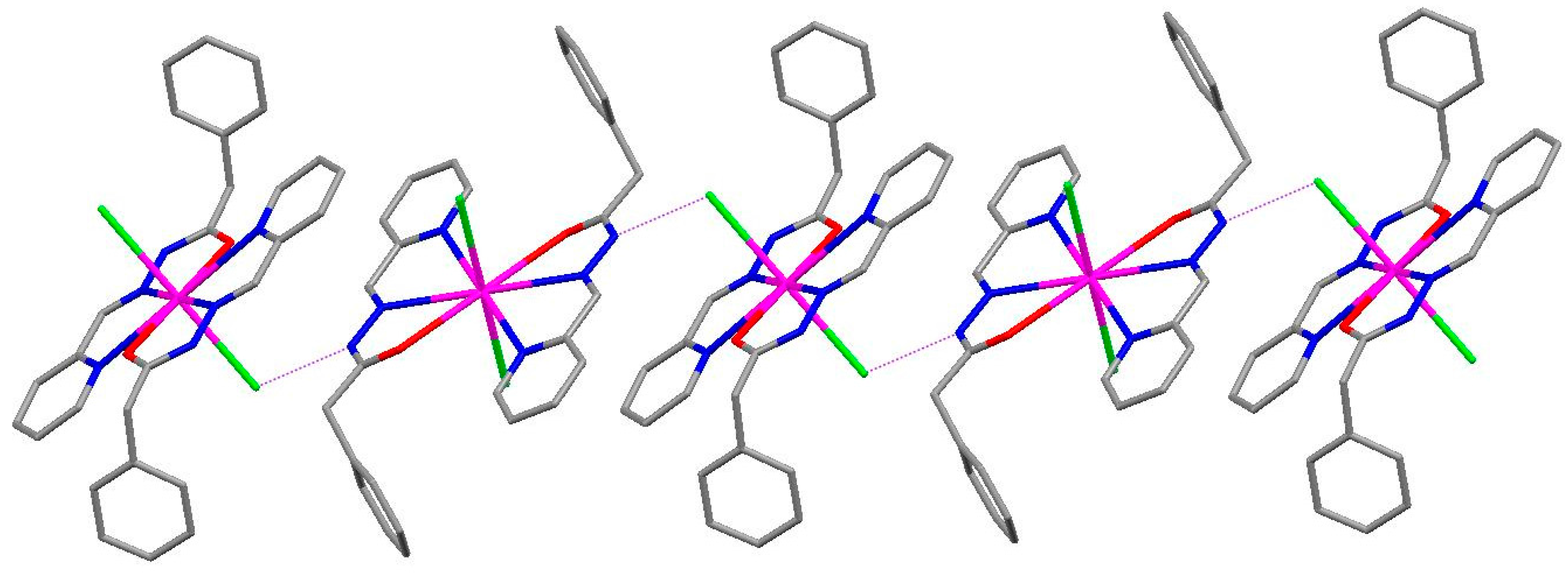

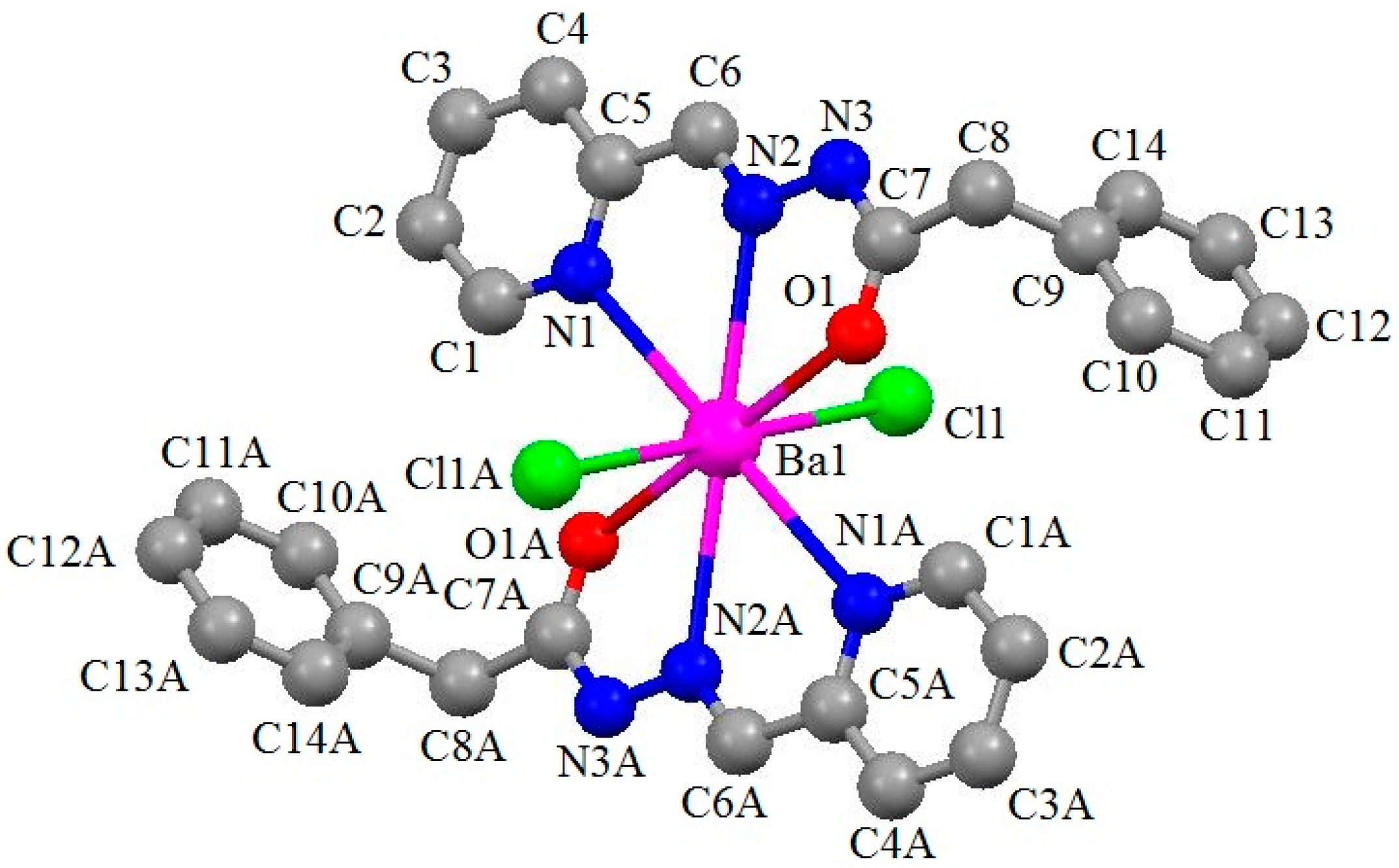

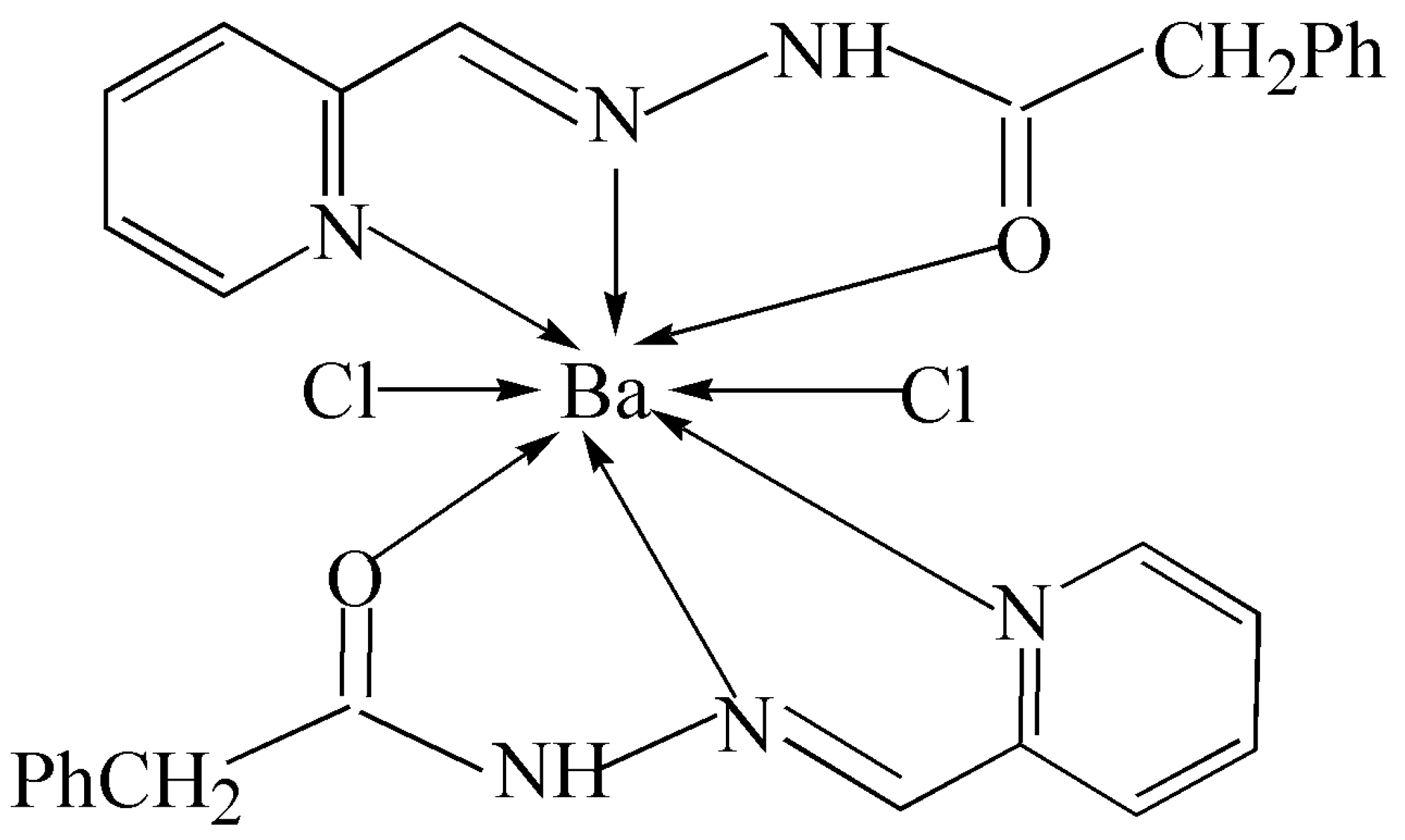

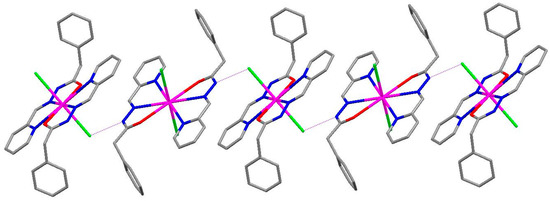

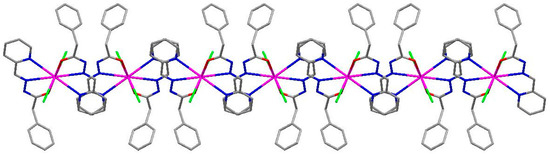

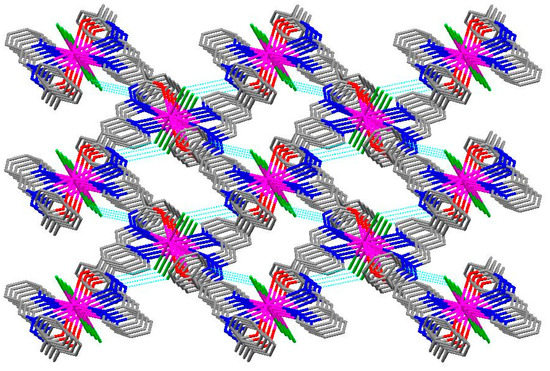

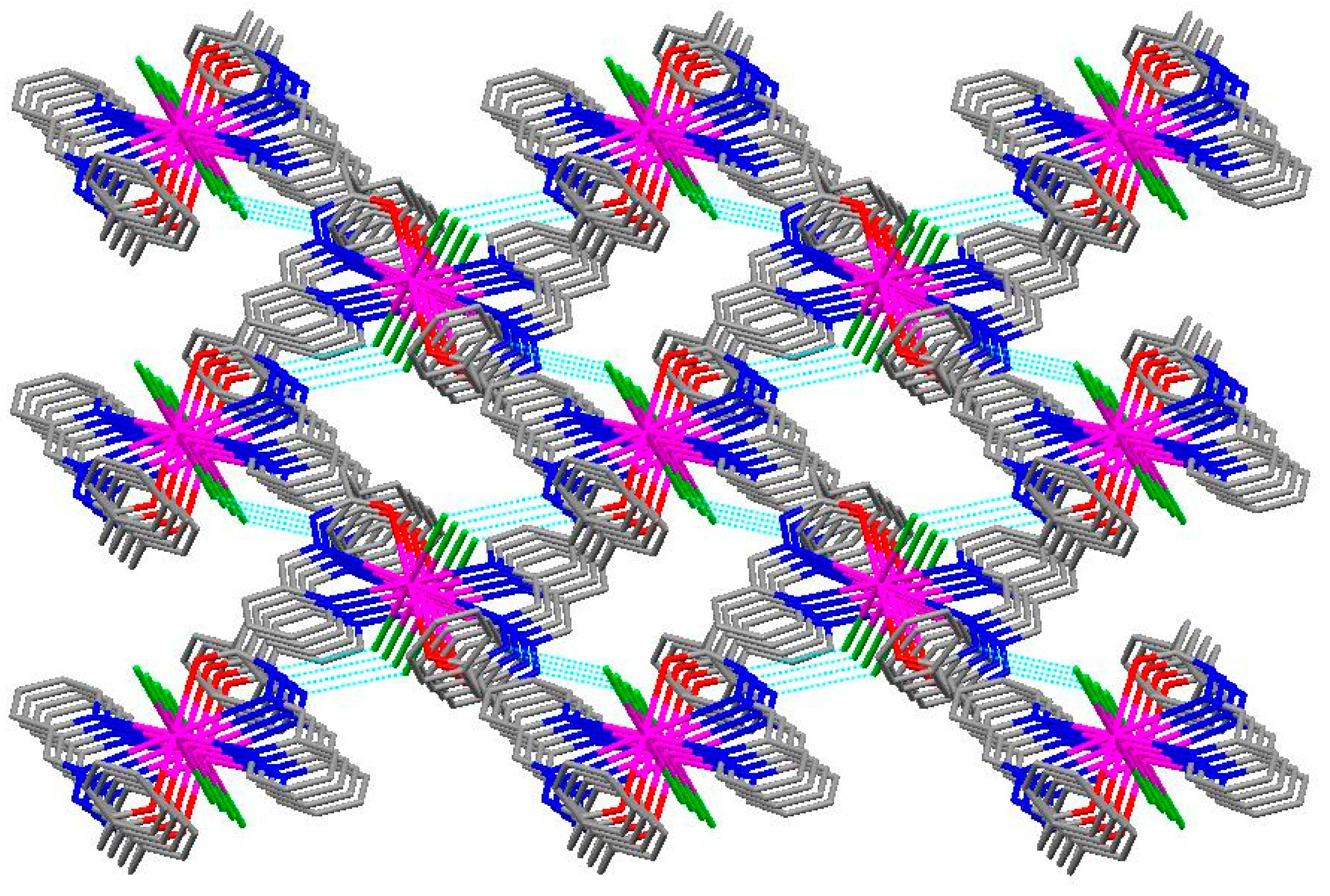

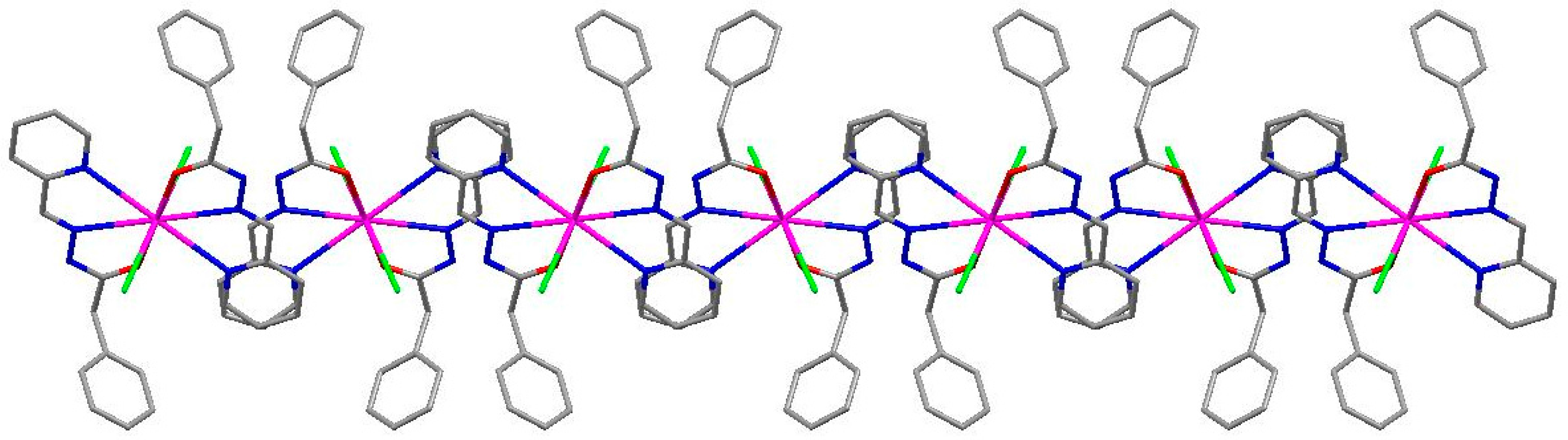

A novel Ba(II) complex, [BaL2Cl2] (1) (L = pyridine-2-carboxaldehyde-2-phenylacetic acid hydrazone), has been synthesized using BaCl2, pyridine-2-carboxaldehyde and 2-phenylacetohydrazide as raw materials. The structure of 1 has been determined by elemental analysis and X-ray single-crystal diffraction technique. X-ray structural analysis showed that the Ba(II) complex (1) crystallizes in monoclinic, space group P21/c with cell parameters: a = 12.464(3) Å, b = 13.531(3) Å, c = 8.8035(18) Å, β = 95.06(3)°. In 1, the Ba(II) atom is eight-coordinated in a distorted doubly-capped octahedral geometry through four N atoms and two O atoms from two different pyridine-2-carboxaldehyde-2-phenylacetic acid hydrazone ligands and two Cl. The complex (1) forms a 3D network structure by the interaction of intermolecular N-H···Cl hydrogen bonds and π···π stacking of neighboring pyridine rings and benzene rings. The optimum conditions for the benzyl alcohol oxidation reaction using the Ba(II) complex as catalyst was investigated. View Full-Text
Keywords: Ba(II) complex; pyridine-2-carboxaldehyde-2-phenylacetic acid hydrazone; synthesis; crystal structure; catalytic activity Ba(II) complex; pyridine-2-carboxaldehyde-2-phenylacetic acid hydrazone; synthesis; crystal structure; catalytic activity
