Crystal Structures of 1-Hydroxyimidazole and Its Salts
Gerhard Laus 1,* and Volker Kahlenberg 2
1
Faculty of Chemistry and Pharmacy, University of Innsbruck, 6020 Innsbruck, Austria
2
Institute of Mineralogy and Petrography, University of Innsbruck, 6020 Innsbruck, Austria; Email: volker.kahlenberg@uibk.ac.at
*
Author to whom correspondence should be addressed; Email: gerhard.laus@uibk.ac.at; Tel.: +43-512-507-57080; Fax: +43-512-507-57099.
Received: 19 September 2012; in revised form: 28 September 2012 / Accepted: 9 October 2012 /
Published: 31 October 2012

Abstract

: The crystal structures of 1-hydroxyimidazole and four protic salts (chloride, bromide, sulfate, nitrate) thereof were determined. The molecular geometries (bond lengths and angles) of the free base and the salts were compared. Hydrogen bonding patterns were studied, and OH…N, OH…Cl, OH…Br, OH…O, NH…Cl, NH…Br, and NH…O interactions were identified. Hirshfeld surface analysis gave quantitative insight into these interactions.
Keywords:
hydrogen bond; hydroxyimidazole; imidazole; Hirshfeld surface analysis

1. Introduction

Synthetic routes to 1-hydroxyimidazoles include cyclization of linear precursor molecules, condensation of small fragments, oxidation of imidazole, and partial reduction of 1,3-dihydroxy-imidazolium salts. Early reports on the preparation of 2,4,5-trisubstituted 1-hydroxyimidazoles [1,2,3] showed considerable uncertainty about the constitution of the product (an epoxide structure was assumed). Then, an unambiguous synthesis of 4,5-disubstituted 1-hydroxyimidazoles has been described [4]. Several attempts have been made to prepare the interesting and simple title compound, 1-hydroxyimidazole. The first attempts ended up with benzyloxy or imidazolinone derivatives, stopping just short of the desired target [5,6]. Considerable time has now passed by since the first practical synthesis of 1-hydroxyimidazole has been reported, involving selective hydrogenation of 1,3-dihydroxyimidazolium chloride [7]. Other syntheses of this compound have been published in the meantime. Oxidation of imidazole gave only very low yields (using peroxyphthalic acid [8] or 3-chloroperoxybenzoic acid [9,10]). A better strategy involved mono-benzylation of 1-hydroxyimidazole-3-oxide, followed by deoxygenation using phosphorus trichloride and hydrogenolytic debenzylation [10]. Thus, several synthetic methods are now available, and the subsequent preparation of derivatives has been disclosed [10,11,12,13,14,15,16]. The effects of hetero-atom substituents from the second and third row of the periodic table at the nitrogen atom of imidazole have been studied by theoretical methods [17]. However, no experimental details of the molecular geometry of 1-hydroxyimidazole or its salts have yet been reported.

2. Results and Discussion

Here we present the crystal structures of the title compound and four of its salts. The hydrochloride [8,10,14] and hydrobromide [9] of 1-hydroxyimidazole are known, but no crystal structure has been reported. We determined the structures of these known compounds and the new salts, sulfate and nitrate. The salts were obtained either by metathesis or by proton transfer. Crystal data and refinement details are summarized in Table 1. Hydrogen bond parameters are collected in Table 2.

Table 1. Crystal data and structure refinement details.

Click here to display table

Table 1. Crystal data and structure refinement details.
Compound12345
CCDC no.899,476899,477899,478899,479899,480
Chemical formulaC3H4N2OC3H5N2O·ClC3H5N2O·Br2(C3H5N2O)·O4SC3H5N2O·NO3
Mr84.08120.54164.99266.24147.10
Crystal size/mm30.40 × 0.20 × 0.160.32 × 0.30 × 0.160.26 × 0.20 × 0.200.48 × 0.28 × 0.280.23 × 0.11 × 0.11
Crystal systemOrthorhombicMonoclinicMonoclinicTriclinicMonoclinic
Space groupP212121P21/nP21/n Crystals 02 01492 i001Cc
a5.1024(3)4.2693(2)4.4182(2)6.5611(10)3.6216(6)
b8.2922(5)10.7541(4)11.0416(6)7.7322(11)17.385(3)
c9.3064(6)10.9756(4)11.2015(6)12.1134(14)9.0259(13)
α90909097.820(11)90
β9093.535(3)94.081(4)91.912(11)90.499(13)
γ909090113.295(14)90
V3393.75(4)502.96(4)545.07(5)556.62(13)568.26(16)
Z44424
Dx/g·cm−31.421.592.011.591.72
μ/mm−10.940.637.420.321.41
F(000)/e176248320276304
RadiationCu Mo Mo Mo Cu
θmax67.425.425.325.467.6
h, k, l range−6 ≤ h ≤ 6−5 ≤ h ≤ 3−5 ≤ h ≤ 5−6 ≤ h ≤ 7−4 ≤ h ≤ 4
−9 ≤ k ≤ 8−12 ≤ k ≤ 12−13 ≤ k ≤ 10−8 ≤ k ≤ 9−17 ≤ k ≤ 20
−11 ≤ l ≤ 11−11 ≤ l ≤ 13−13 ≤ k ≤ 12−12 ≤ l ≤ 14−10 ≤ k ≤ 10
Measured reflections25712909315233771946
Independent reflections ( Rint)690(0.024)915(0.022)1001(0.030)2015(0.025)808(0.031)
Observed reflections [ I ≥ 2σ(I)]6638529171618781
Restraints/parameters1/592/720/7325/1942/99
R1/wR2[I ≥ 2σ(I)]0.030/0.0820.023/0.0610.019/0.0450.039/0.0860.031/0.074
R1/wR2 (all data)0.032/0.0830.025/0.0630.023/0.0470.054/0.0970.032/0.075
Goodness of fit1.061.120.911.041.10
Δρmax/min/e Å−30.14/−0.140.17/−0.340.31/−0.260.21/−0.360.16/−0.27
Table 2. Hydrogen bond parameters (Å,°).

Click here to display table

Table 2. Hydrogen bond parameters (Å,°).
InteractionH…AD…AD–H…ASymmetry A
1O1–H…N21.66(1)2.537(2)173(2)3/2 − x, −y, −1/2 + z
C1–H…O12.215(1)3.141(2)164.5(1)−1/2 + x, 1/2 − y, 1 − z
2O1–H…Cl2.06(2)2.930(1)174(2)1/2 − x, 1/2 + y, 1/2 − z
N1–H…Cl2.43(2)3.136(1)143(2)−1 + x, y, z
N2–H…Cl2.86(2)3.357(1)120(1)x, −y, −z
3O1–H…Br2.29(4)3.090(2)169(4)1/2 − x, 1/2 + y, 1/2 − z
N2–H…Br2.66(3)3.301(2)143(3)−1 + x, y, z
N2–H…Br2.98(3)3.470(2)124(3)x, −y, −z
4O1–H…O3A1.67(2)2.51(1)162(2)x, 1 − y, 1 − z
O1–H…O3B1.61(2)2.46(1)168(3)x, 1 − y, 1 − z
O1A–H…O5A1.62(3)2.46(2)166(3)x, −1 + y, z
O1A–H…O5B1.68(3)2.54(1)169(3)x, −1 + y, z
N2–H…O21.85(2)2.704(3)169(2)x, −1 + y, −1 + z
N2A–H…O21.89(2)2.739(2)175(2)x, 1 − y, 1 − z
5O1–H…O21.65(4)2.596(2)178(4)1/2 + x, 3/2 − y, −1/2 + z
N2–H…O41.98(4)2.803(3)176(3)1/2 + x, 3/2 − y, 1/2 + z

When the molecular geometries of the imidazole rings in the free base and the protic salts are compared, two points immediately become apparent. The bond lengths in the heterocyclic system do not change significantly upon protonation, but the angles do (Figure 1). Thus, the angles at the nitrogen atoms (C1–N1–C3 and C1–N2–C2; for numbering see Figure 2a) are increased in the protonated imidazolium molecules by 1.7° and 3.4° (average values), respectively. In contrast, the mean angles N1–C1–N2 and N2–C2–C3 are decreased by 3.2° and 2.2°, respectively. This situation was predicted by theoretical calculations [18]. The angle N1–C3–C2, however, does not change significantly.

Crystals 02 01492 g001 200

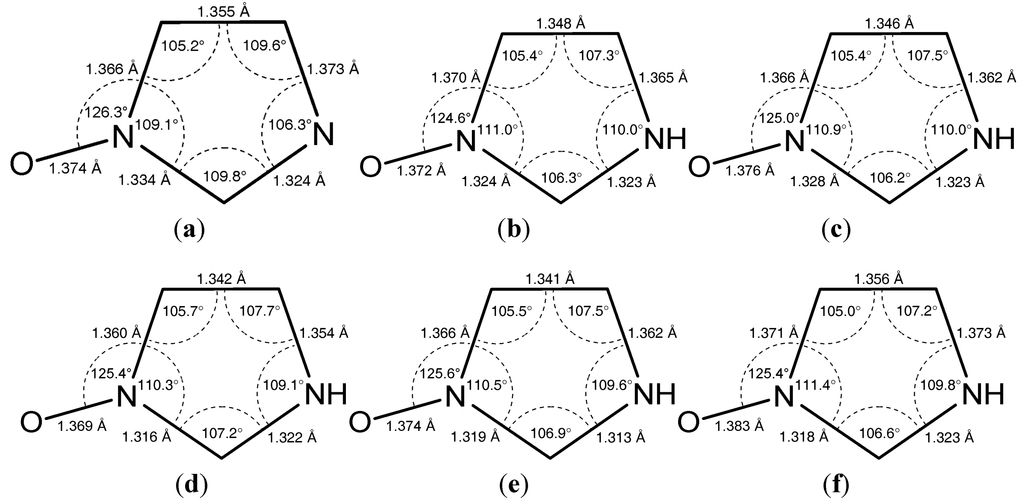

Figure 1. Bond lengths and angles in the heterocyclic system of (a) 1-hydroxyimidazole; (b) 1-hydroxyimidazole hydrochloride; (c) 1-hydroxyimidazole hydrobromide; (d) and (e) the two independent cations of bis(1-hydroxyimidazolium) sulfate, and (f) 1-hydroxyimidazolium nitrate.

Click here to enlarge figure

Figure 1. Bond lengths and angles in the heterocyclic system of (a) 1-hydroxyimidazole; (b) 1-hydroxyimidazole hydrochloride; (c) 1-hydroxyimidazole hydrobromide; (d) and (e) the two independent cations of bis(1-hydroxyimidazolium) sulfate, and (f) 1-hydroxyimidazolium nitrate.
Crystals 02 01492 g001 1024
Crystals 02 01492 g002 200

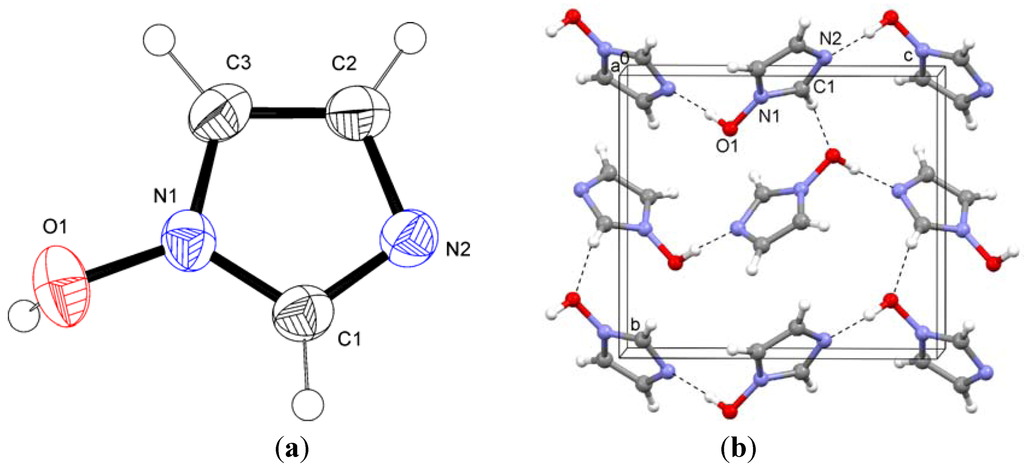

Figure 2. (a) ORTEP plot with numbering scheme and (b) hydrogen bonding in the crystal structure of 1-hydroxyimidazole (1).

Click here to enlarge figure

Figure 2. (a) ORTEP plot with numbering scheme and (b) hydrogen bonding in the crystal structure of 1-hydroxyimidazole (1).
Crystals 02 01492 g002 1024

2.1. 1-Hydroxyimidazole (1)

The molecular structure is shown in Figure 2a. The heterocyclic molecules are arranged in chains by O–H…N hydrogen bonds in the [0 0 1] direction (Figure 2b). Additional C1–H…O1 contacts create a three-dimensional network. Due to the lack of heavy atoms a meaningless Flack parameter of 0.43(40) was obtained, and the absolute structure of the chiral crystal was not determined.

2.2. 1-Hydroxyimidazole Hydrochloride (2)

The ions in this structure exhibit O–H…Cl and N–H…Cl hydrogen bonds. The zig-zag chains thus formed propagate in the direction of the crystallographic b axis. These chains are connected by additional weak N–H…Cl contacts (Figure 3). In contrast to the structure of the title compound 1, there are no significant contacts involving C1–H.

Crystals 02 01492 g003 200

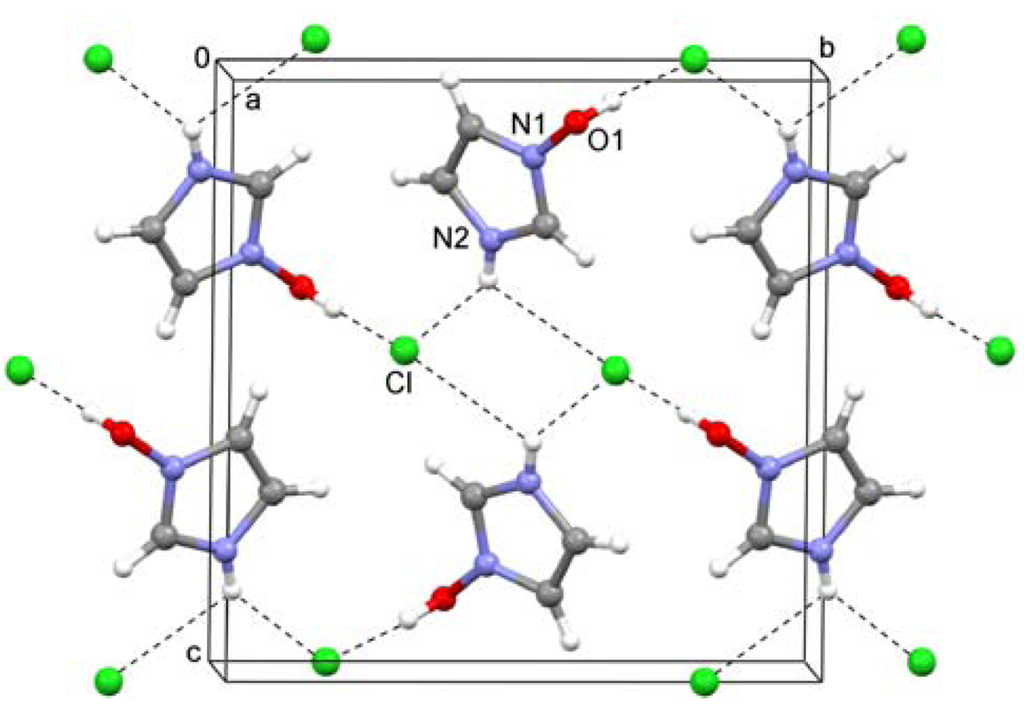

Figure 3. Hydrogen bonding in the crystal structures of (a) 1-hydroxyimidazole hydrochloride (2).

Click here to enlarge figure

Figure 3. Hydrogen bonding in the crystal structures of (a) 1-hydroxyimidazole hydrochloride (2).
Crystals 02 01492 g003 1024

2.3. 1-Hydroxyimidazole Hydrobromide (3)

As expected, the structures of the hydrobromide and the hydrochloride are isomorphic, and the ions form O–H…Br and N–H…Br hydrogen bonds again in the direction of the crystallographic b axis.

2.4. Bis(1-hydroxyimidazolium) Sulfate (4)

Two independent cations are observed in this structure. The sulfate ion is disordered showing split positions for two of its four oxygen atoms. Interionic O–H…O and N–H…O hydrogen bonds are displayed in Figure 4a. In another view, the cyclic arrangement of two cations plus two anions can be seen (Figure 4b).

Crystals 02 01492 g004 200

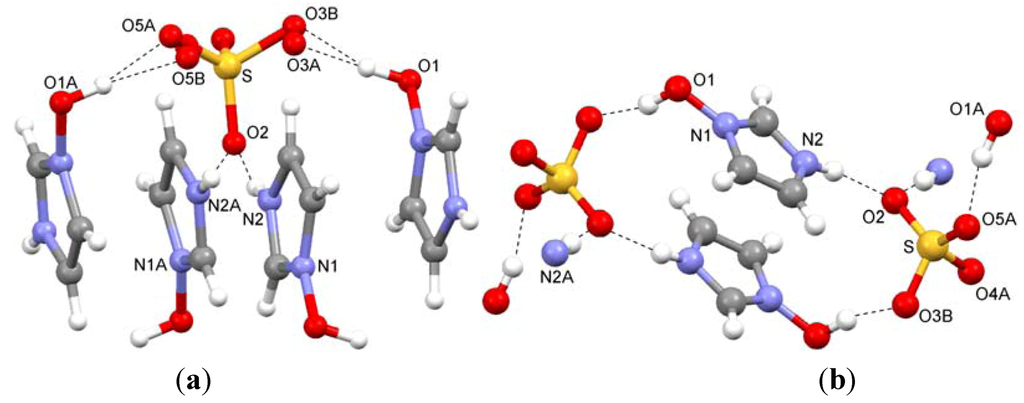

Figure 4. (a) Hydrogen bonding and (b) cyclic arrangement of the ions in bis(1-hydroxyimidazolium) sulfate (4).

Click here to enlarge figure

Figure 4. (a) Hydrogen bonding and (b) cyclic arrangement of the ions in bis(1-hydroxyimidazolium) sulfate (4).
Crystals 02 01492 g004 1024

2.5. 1-Hydroxyimidazolium Nitrate (5)

Interionic O–H…O and N–H…O hydrogen bonds are observed in this crystal structure (Figure 5). These interactions form infinite chains which propagate in the direction of the crystallographic c axis.

Crystals 02 01492 g005 200

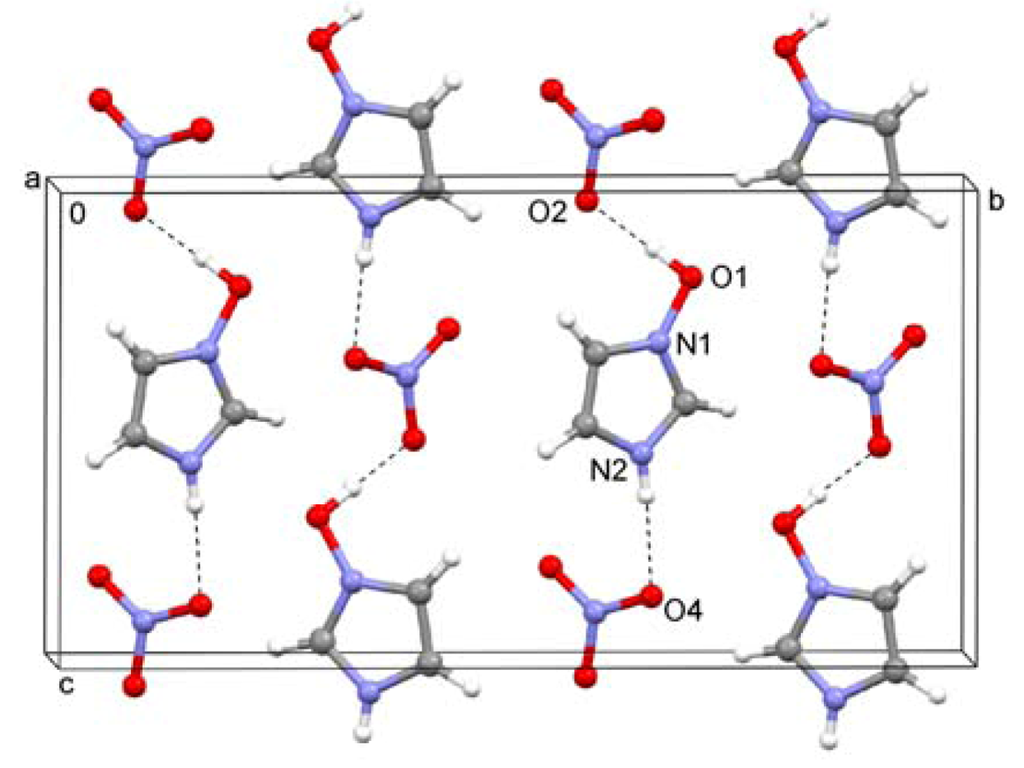

Figure 5. Hydrogen bonding in the crystal structure of 1-hydroxyimidazolium nitrate (5).

Click here to enlarge figure

Figure 5. Hydrogen bonding in the crystal structure of 1-hydroxyimidazolium nitrate (5).
Crystals 02 01492 g005 1024

2.6. Hirshfeld Surface Analysis

Electrostatic potential mapped on the Hirshfeld surface [19] clearly shows the positions of close intermolecular contacts in 1-hydroxyimidazole (1) (Figure 6a). The de/di plots are dominated by the hydrogen-bonding fingerprints. Two distinct O…H and N…H interactions are observed as sharp spikes in Figure 6b,c (reciprocal interactions included). The upper spike corresponds to the hydrogen-bond donor. The fingerprint plots for the cations of the salts are quite different from those observed for the molecular crystal of 1. The unidirectional hydrogen-bond donation to the anion is highlighted in these plots, the full fingerprint appears as a gray shadow (Figure 7). In the sulfate the hydrogen-bond spike is broadened because of the presence of several H…O interactions. The quantitative results of the Hirshfeld surface analysis are presented in Table 3.

Crystals 02 01492 g006 200

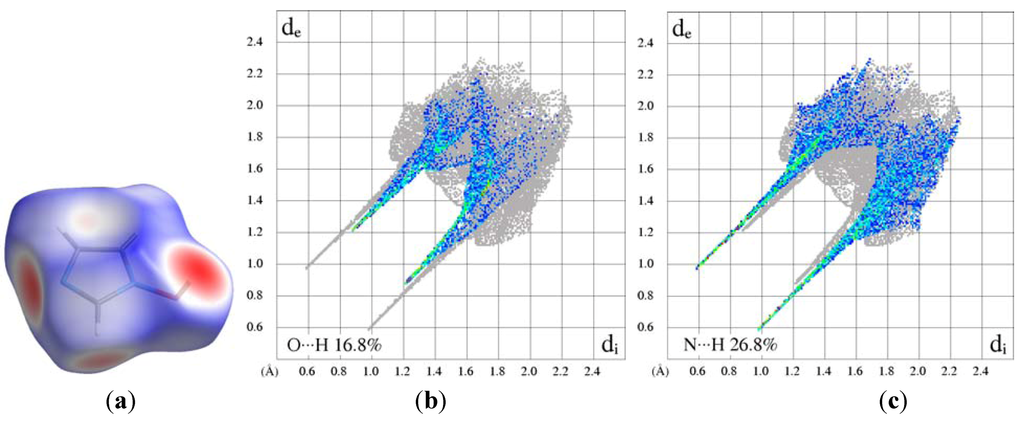

Figure 6. (a) Normalized Hirshfeld surface of 1-hydroxyimidazole and associated fingerprint plots highlighting specific interactions; (b) O…H and (c) N…H.

Click here to enlarge figure

Figure 6. (a) Normalized Hirshfeld surface of 1-hydroxyimidazole and associated fingerprint plots highlighting specific interactions; (b) O…H and (c) N…H.
Crystals 02 01492 g006 1024
Crystals 02 01492 g007 200

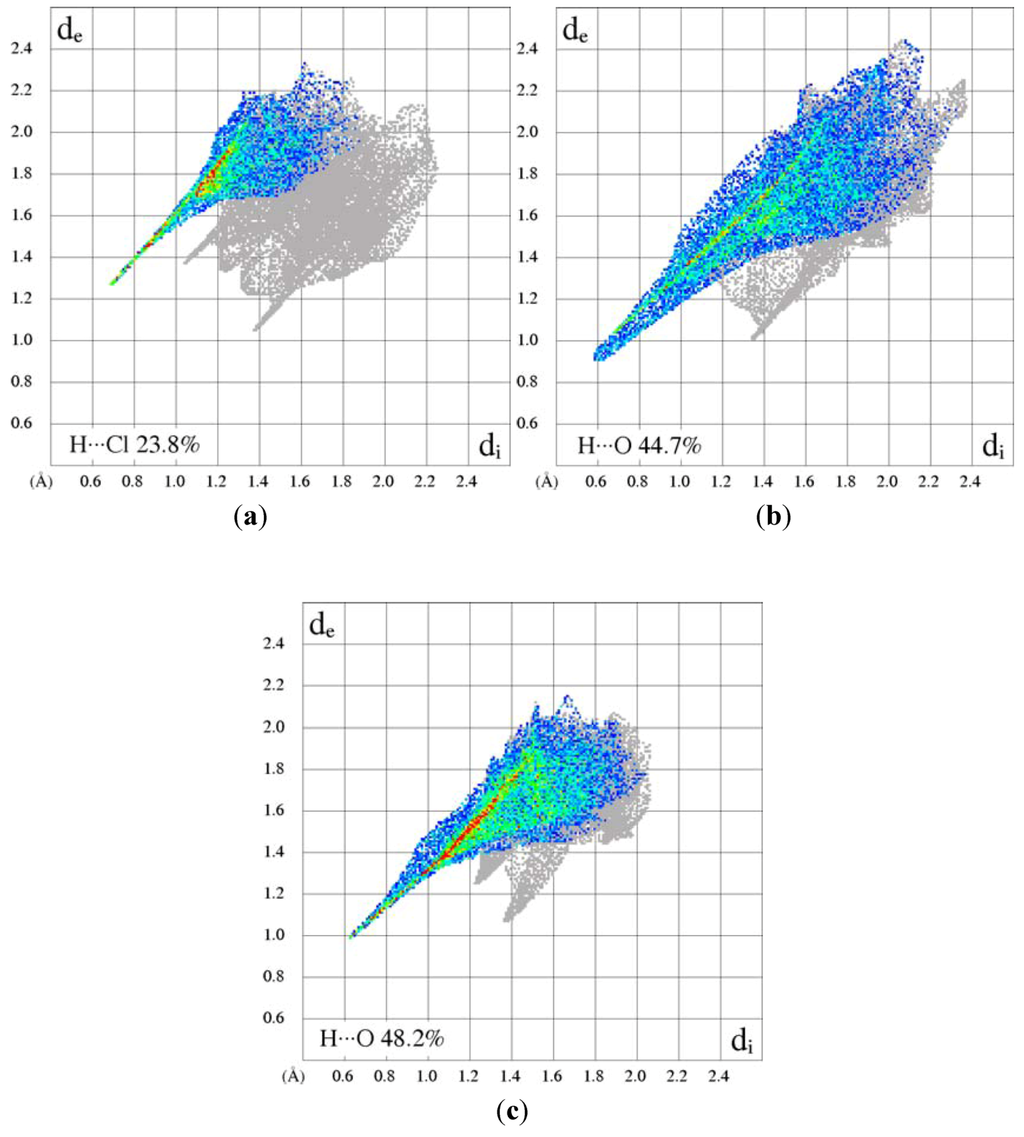

Figure 7. Two-Dimensional fingerprint plots of (a) 1-hydroxyimidazole hydrochloride; (b) bis(1-hydroxyimidazolium) sulfate; and (c) 1-hydroxyimidazolium nitrate.

Click here to enlarge figure

Figure 7. Two-Dimensional fingerprint plots of (a) 1-hydroxyimidazole hydrochloride; (b) bis(1-hydroxyimidazolium) sulfate; and (c) 1-hydroxyimidazolium nitrate.
Crystals 02 01492 g007 1024
Table 3. Percent contributions of selected interactions relative to the whole Hirshfeld surface. Independent cations are termed A and B. Only major interactions are included.

Click here to display table

Table 3. Percent contributions of selected interactions relative to the whole Hirshfeld surface. Independent cations are termed A and B. Only major interactions are included.
InteractionCompound
1234A4B5
O…H/H…O16.812.711.852.651.957.3
N…H/H…N26.82.83.56.03.27.1
C…H/H…C17.112.811.68.89.16.7
H…H35.236.136.921.322.514.1
H…Cl-23.8----
H…Br--24.1---

3. Experimental Section

3.1. 1-Hydroxyimidazole (1)

1-Hydroxyimidazole (1) [45376-79-2] was synthesized as described [7]. Single crystals were obtained from anhydrous acetone under an argon atmosphere. For m.p., H and C NMR data, see [7,10]. IR (neat): 3119, 1509, 1258, 1013, 832, 734, 651, 600 cm−1.

3.2. 1-Hydroxyimidazole Hydrochloride (2)

The hydrochloride (2) [134561-81-2] was synthesized as described [7] and crystallized from hot anhydrous 2-propanol under an argon atmosphere, m.p. 118 °C. For H and C NMR data, see [8,10]. IR (neat): 3141, 2502, 1541, 1455, 1425, 1358, 995, 763, 733, 679, 599 cm−1.

3.3. 1-Hydroxyimidazole Hydrobromide (3)

The hydrobromide (3) [164260-93-9] was prepared from 1-hydroxyimidazole (1, 25 mg) and 48% hydrobromic acid (42 μL). The mixture was dried over phosphorus pentoxide and crystallized from hot anhydrous 2-propanol under an argon atmosphere, m.p. 121 °C (119–122 °C [9]). IR (neat): 3136, 2771, 2657, 1561, 1539, 1426, 1356, 1243, 1130, 1080, 1059, 995, 897, 759, 696, 674, 595 cm−1.

3.4. Bis(1-Hydroxyimidazolium) Sulfate (4)

1-Hydroxyimidazole (1, 20 mg) was dissolved in 0.5 M sulfuric acid (0.24 mL). The mixture was concentrated over phosphorus pentoxide and crystallized from hot anhydrous 2-propanol under argon, m.p. 86 °C. IR (neat): 3116, 3034, 2802, 2708, 2617, 1567, 1086, 1050, 597 cm−1.

3.5. 1-Hydroxyimidazolium Nitrate (5)

A solution of hydrochloride 2 (25 mg) in H2O (1 mL) was added to a solution of AgNO3 (35 mg) in H2O (1 mL), the precipitate removed by centrifugation, and the supernatant dried over phosphorus pentoxide. The residue was crystallized from hot 2-propanol under argon. M.p. 92–93 °C. IR (neat): 3142, 2845, 2463, 1553, 1517, 1417, 1280, 1041, 1011, 891, 807, 737, 708, 680, 621, 602 cm−1.

3.6. Crystal Structure Determination

Intensity data were recorded by ω scans with an Oxford Diffraction Gemini-R Ultra diffractometer using Cu-Kα radiation (for 1 and 5) or Mo-Kα radiation (for 2, 3, and 4) at T = 173(2) K. Absorption corrections were applied in all cases (multi-scan). Experimental details are summarized in Table 1. Structure solution and refinement was performed with the programs SIR2002 (direct methods) [20] and SHELXL-97 [21]. Visualization of the structures and measurements of distances and angles was performed with the program Mercury [22]. CCDC reference numbers: 899476–899480.

4. Conclusions

The crystal structures of 1-hydroxyimidazole and some of its salts presented herein fill a hole which has been open for a long time. The disregard of these fundamental compounds is astounding given the existence of facile, straightforward synthetic routes for their preparation. This situation may be attributed to their hygroscopic nature which severely impedes crystallization of such polar compounds but can be overcome by appropriate techniques.
