In Vitro and Electrochemical Characterization of Laser-Cladded Ti-Nb-Ta Alloy for Biomedical Applications

Abstract

Titanium (Ti) and its alloys are predominant choices for use as biomaterials in human implants. Research has shown the adverse effects of using commercial Ti alloy Ti-6Al-4V in the human body, and this presents a need for viable alternatives. In this study, Ti alloy Ti-17Nb-6Ta was manufactured by laser cladding—a prominent additive manufacturing (AM) technology. Laser cladded specimens were evaluated for their in vitro and electrochemical behavior. A human osteosarcoma cell line (MG-63 cells) was used for in vitro investigations. Cell proliferation was good in the physiological medium, and cells were alive when in contact with the laser cladded alloy, even after two to three weeks, indicating good cell viability and compatibility with this alloy. Electrochemical characterization was carried out in Ringer’s solution, and noticeably lower corrosion current density and corrosion rate values were observed. The lower amounts of these parameters indicated the passivation behavior due to multi-layer Ti, Nb, and Ta alloy oxide films. These oxide films also enhanced osseointegration. Thus, the Ti-17Nb-6Ta alloy can be an ideal biocompatible alternative to Ti-6Al-4V.

1. Introduction

Titanium (Ti) and its alloys (Ti alloys) have shown enormous potential to be used to make human body implants and other metallic biomaterials. A rise in patient-specific implants has been observed in recent years due to novel inventions in technology and increased human life expectancy [1]. However, the materials currently being used have compatibility issues, and there has been a concurrent rise in searching for viable alternatives. Ti-6Al-4V is a leading metallic biomaterial used in orthopedic implants and has been standardized by the ASTM F136-13 committee [2]. It has substantial mechanical properties, exceptional resistance to corrosion, and a good amount of biocompatibility [3,4]. However, it also has a high Young’s modulus compared to human bone, which causes increased stress-shielding with the surrounding bone [5]. Apart from it, the Al- and V- in Ti-6Al-4V allegedly cause adverse tissue reactions and other neurological disorders [6,7,8].

Three-dimensional printing or additive manufacturing (AM) has proven its importance in the healthcare sector in recent years. With the use of AM, researchers are trying to increase the research into implantable devices. Selective laser melting (SLM), electron beam melting (EBM), and laser cladding are the leading technologies in AM and are the most commonly used to develop healthcare devices.

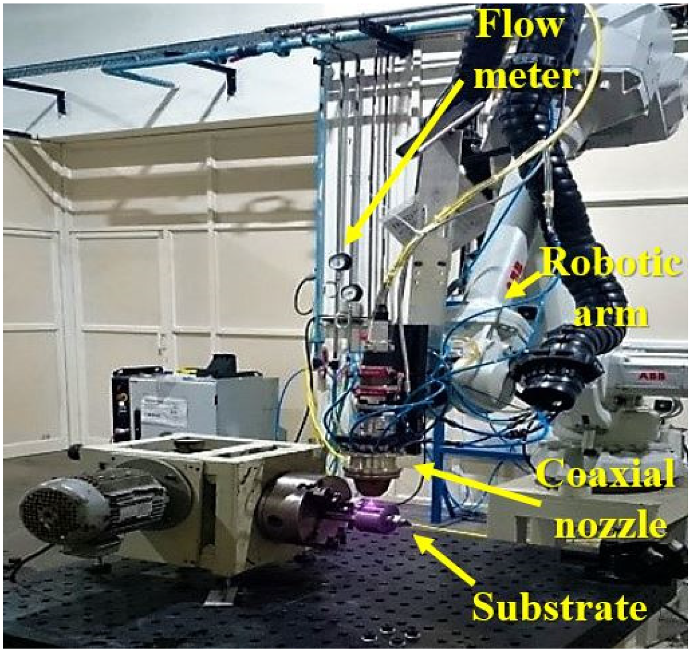

Past research has explored the compatibility of Ti alloys determined by conventional methods such as arc melting and powder metallurgy for biomedical applications [9,10]. The present study describes the manufacturing of a Ti alloy with laser cladding to analyse its biomedical applications in the human body. Laser cladding produces net-shape parts from a computer-generated 3D model using a layer-by-layer method with the help of laser power [11,12]. The setup of the laser cladding unit is illustrated in Figure 1. Metallic/alloy material in the powder form is directly supplied from the coaxial nozzle, which is then melted, solidified, and used to create a layer with the help of laser power on the substrate. The substrate is scanned several times with the powder feed, and multiple layers are created to form the entire object [13,14].

Dilution is an unavoidable phenomenon in laser cladding. Dilution is calculated from the percentage of fused material from the substrate. Dilution is directly proportional to laser power. Apart from laser power, the feed rate and scan speed also play a significant role in dilution. The optimization of all of these parameters is indispensable to achieving low dilution [15,16]. Low dilution is desired to achieve perfect metallurgical bonding between the clad material and the substrate. However, an excess amount of it leads to poor bonding.

Titanium is an allotropic element with many crystallographic forms such as α, α + β, and β phases. The metallic elements used in enhancing the α-phase are known as α-stabilizers, and those used for enhancing the β-phase are known as β-stabilizers. In this study, a Ti alloy comprising tantalum and niobium, Ti-17Nb-6Ta, was manufactured by AM, which had not been previously attempted to the best of the authors’ knowledge. Similar to titanium, metals such as tantalum (Ta) and niobium (Nb) are also highly corrosion-resistant and inert in body fluids, which are responsible for enhancing the β phase [17,18]. The alloys in the β phase are more stable and have a low Young’s modulus value. In vitro and corrosion characterization was also performed to explore possible uses of the manufactured alloy in biomedical applications.

2. Materials and Methods

2.1. Laser Cladding

Laser cladding produces a material directly from raw powder and thus possesses the possibility to change the composition of the alloying constituents at any given point in time. This flexibility in material selection is not possible in any other AM technique. By maintaining the flow rate, control is gained over the percentage of alloying elements and can even be used for gradient manufacturing. Additionally, medium entropy (MEA) and high entropy alloys (HEA) with refractory metals as constituents can easily be fabricated using this technique, something that is difficult for other AM techniques [19]. Xiang et al. [20,21] studied CoCrNiTi and CrFeNiTi MEA coatings and CoCrFeNiNbx HEA coatings on a Ti sheet by pulsed laser cladding. They obtained a higher amount of hardness and wear resistance than the substrate.

Powder bed techniques such as SLM require more raw material to fill the build platform to begin the manufacturing process. Unlike SLM, laser cladding only requires a tiny amount of the raw powder material, which is directly supplied and melted. Hence, this technology is economically viable in comparison to others.

Titanium powder was procured from Parshvamani Metals, Mumbai, India, for this study. Tantalum and niobium powder was procured from Aritech Chemazone Pvt. Ltd., Kurukshetra, India. Laser cladding was performed with a 4 KW diode laser on ABB robotic arm at Magod Fusion Technologies Pvt. Ltd., Pune, India. The alloy powders were mixed in preset proportions. It was poured into a laser cladding unit after sieving and thorough mechanical shaking. To reduce cracking susceptibility, preheating is generally used. By preheating, the temperature difference between the substrate and the clad material is reduced, and the residual stress generation becomes negligible. A pure titanium (CP-Ti) plate was used as the substrate and was pre-heated to 200 °C to obtain uniform cladding. The cladding was performed in a closed chamber with an inert argon atmosphere to eliminate oxidation.

For proper melting, a minimum amount of energy needs to be applied to the powder, which is known as the laser energy density (E_d). This energy is dependent on the laser power (P), laser spot diameter (d), and scan speed (V) [12]. The relationship is best represented by Equation (1), as shown below.

$${\mathrm{E}}_{\mathrm{d}}=\frac{\mathrm{P}}{\mathrm{Vd}}$$

(1)

The parameters used for cladding are highlighted in

Table 1. Cladding parameters.

Parameters	Values
Power	1200 watt
Cladding powder flow	12 g/min
Cladding travel speed	30 mm/s
Bed temp (preheat)	200 °C
Powder carrier gas	15 lpm
Nozzle shielding gas	15 lpm
Focusing lens	300 mm
Spot size (diameter)	3 mm
Pass layer distance	around 1.5 mm

. Laser cladding specimens were ground using an ELB Optimal 4250 surface grinding machine and cut using a Charmiless Robofil 190 CNC wire cut spark erosion machine at the Indo German Tool Room (IGTR), Ahmedabad, India. The sample sizes of 20 × 20 × 5 mm³ and 10 × 10 × 5 mm³ were used for further experimentation.

2.2. In Vitro Characterization

In vitro characterization was performed at the Biotechnology Lab at Gujarat Technological University, Ahmedabad, India. A total of 6 specimens were used for in vitro tests. Specimens were first autoclaved at 121 °C for 30 min. Plain human osteosarcoma cell lines (MG-63) were used as controls. The MG-63 cells were poured onto the specimens and placed in 6-well plates. The initial cell density was measured to be 200,000 cells per well. A 3 mL aliquot of Dulbecco’s modified eagle medium (enhanced with 2.5 µg/mL amphotericin B, 50 µg/mL gentamicin, and 10% fetal bovine serum) was poured into each well. Cultures were incubated at 37 °C under a 5% CO₂ environment [22]. The incubation medium was replaced every 48 h for the duration of the experiment. The specimens were examined at 3, 10, and 21 days of incubation.

MTT Assay

The MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-2H-tetrazolium bromide) test was performed to evaluate the toxicity of the samples. Under beneficial conditions, MTT is transformed into formazan by the mitochondrial dehydrogenases and is a good indicator of mitochondrial activity and cell viability. A 100 µL aliquot of MTT was poured into the wells containing each specimen for this study. The supernatant was removed in a CO₂ atmosphere after 4 h of incubation, and 100 µL of dimethyl sulfoxide was added to dissolve the formazan crystals. An absorption reading was taken at 570 nm with a microplate reader after shaking the mixture for 10 min. The results were obtained as corrected optical densities (OD).

2.3. Electrochemical Characterization

The electrochemical characterization of the laser cladding samples was carried out at the MEMS Lab, Indian Institute of Technology-Bombay, Mumbai, India. The working setup was a 3-electrode setup with the specimen as a working electrode, platinum as the counter electrode, and saturated calomel as the reference electrode [23]. Potentiodynamic polarization readings were obtained from −745 mV_SCE to 75 mV_SCE with a 1 mV/s scan rate in the Potentiostat (PARSTAT 3000A). Current (I) and voltage (V_SCE) values were measured, and Tafel curves were plotted using Origin Pro software. Triplicate analysis was performed to minimize errors in the readings. The specimens were immersed in Ringer’s solution to simulate a human body-like environment. Ringer’s solution was made by adding 9 g NaCl, 0.43 g KCl, 0.2 g NaHCO₃, and 0.24 g CaCl₂ to 1 L of distilled water followed by autoclaving at 121 °C for 15 min [24].

3. Results

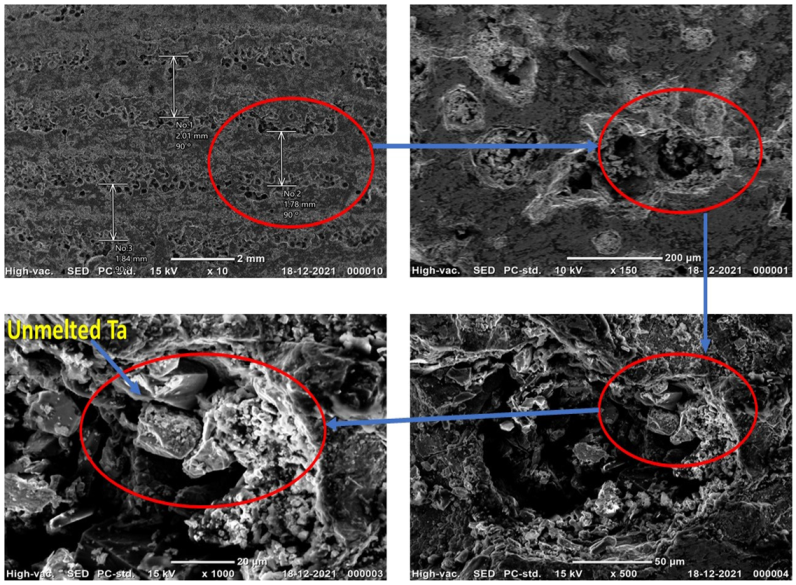

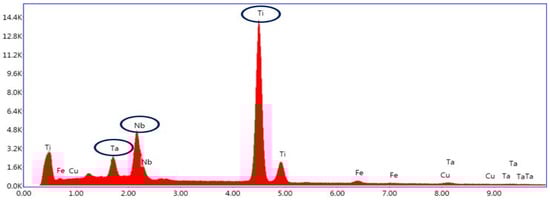

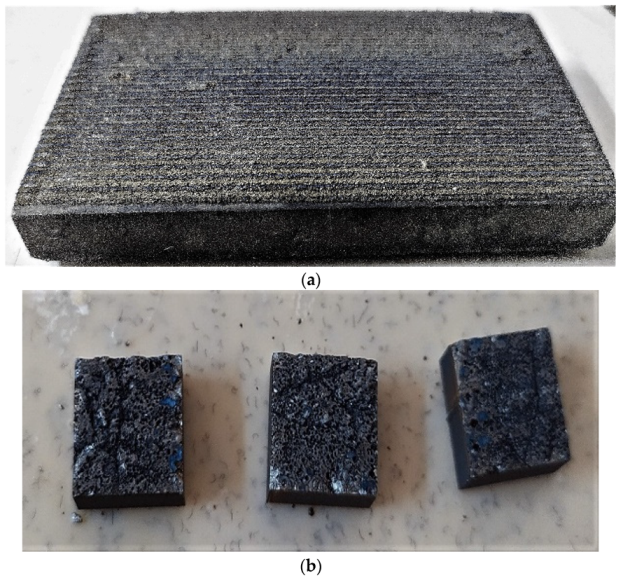

Laser cladding specimens as-cladded and cut to the required sizes, are shown in Figure 2. An SEM-EDX analysis was conducted to analyze the metal proportion and microstructures of the manufactured alloy. Figure 3 illustrates the SEM images, wherein the cladding layer and unmelted Ta are visible. Additionally, the pass-layer distance could be verified from the measurements. Some porosity was also observed in the SEM images, which could indicate residual gases entrapped at cladding. The partial boiling of Ti particles may also be another reason for the porosity, as there was no significant difference between the boiling point of titanium (3287 °C) and the melting point of tantalum (3017 °C) [25]. The EDX result of the manufactured alloy is provided in Figure 4.

3.1. In Vitro Characterization

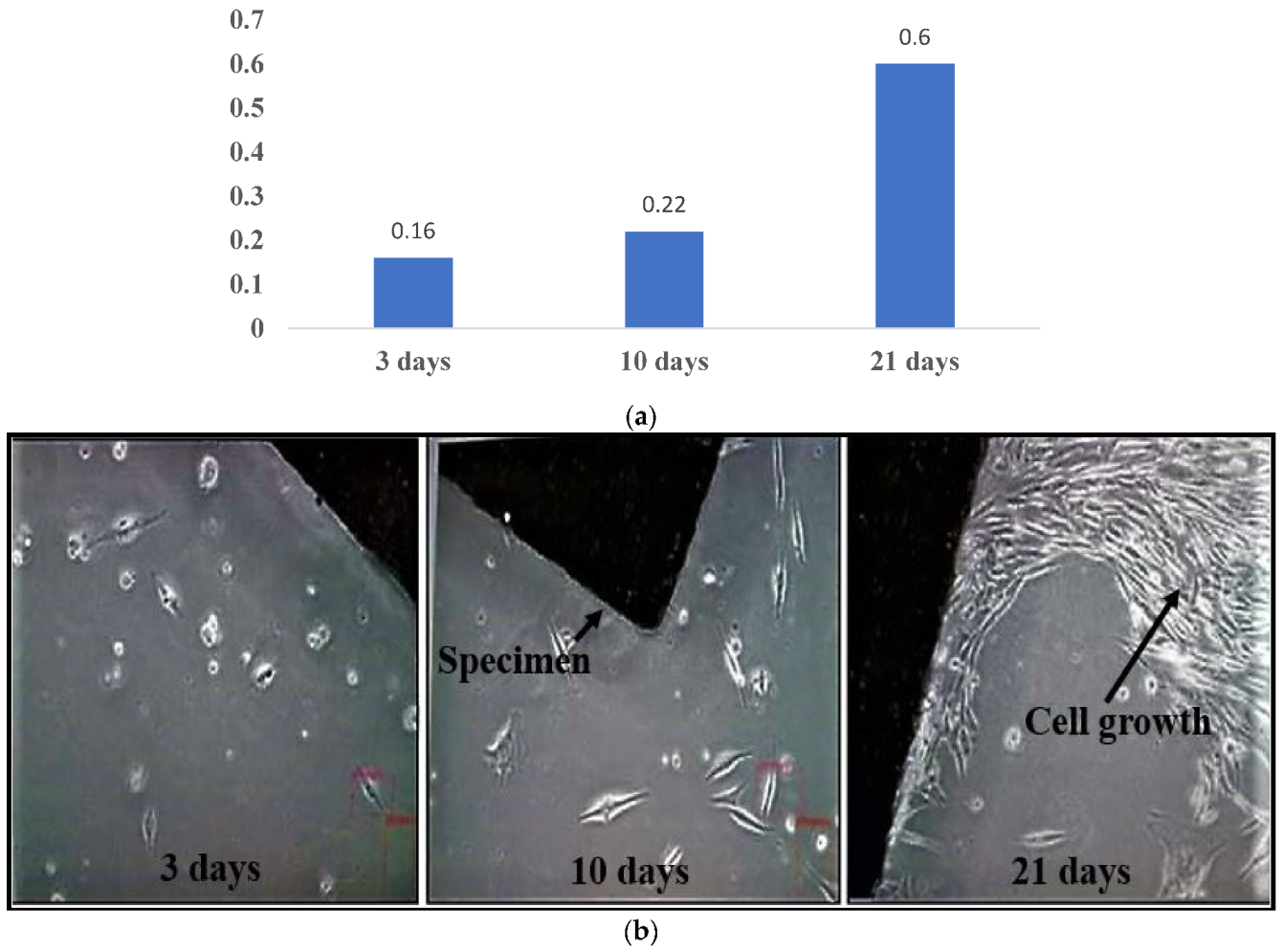

The MTT assay results exhibited an increased proliferation of MG-63 cells on the specimen samples. The cell densities on the specimens evaluated after 3, 10, and 21 days are illustrated in Figure 5a. Initially, there was less proliferation, possibly due to there being lower attachment with the alloy chemistry. Over time, the cells were possibly habituated to the new alloy material and gradually differentiated. After 21 days, noticeable cell growth and proliferation were seen, as shown in Figure 5b.

3.2. Electrochemical Characterization

The corrosion resistance of the cladded alloy was examined from the I_corr (corrosion current density) and E_corr (corrosion potential) values [26]. The obtained I_corr and E_corr values are highlighted in

Table 2. Values of I_corr, E_corr, and CR obtained from the Tafel curve.

	1	2	3	Avg
Icorr (µA/cm2)	3.75 × 10−1	2.99 × 10−1	5.18 × 10−3	2.26 × 10−1
Ecorr (VSCE)	−2.867 × 10−1	−2.771 × 10−1	−3.348 × 10−1	−3.00 × 10−1
CR (mmpy)	3.30 × 10−3	2.64 × 10−3	4.57 × 10−5	2.00 × 10−3

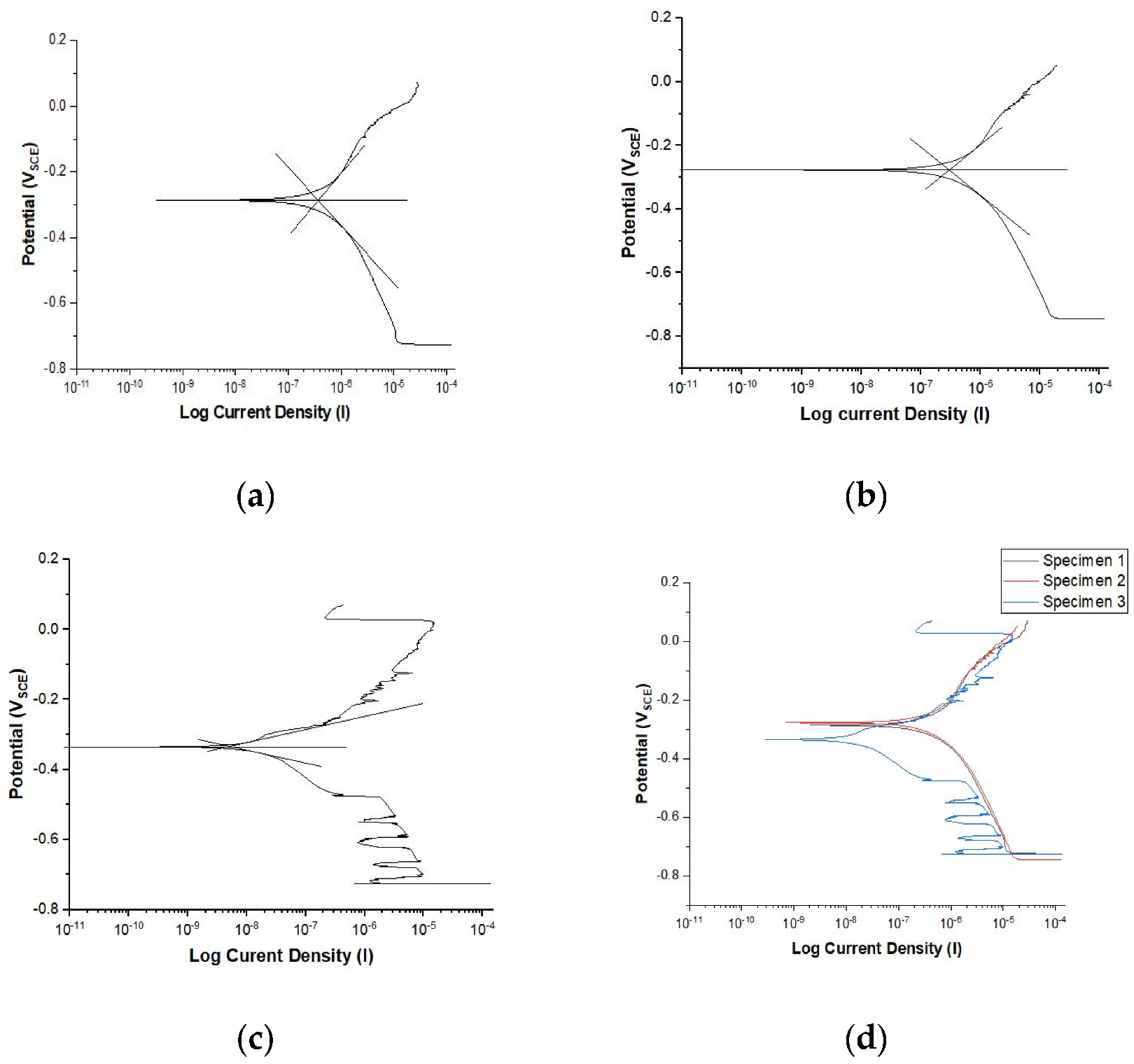

. The Tafel plots for the values are illustrated in Figure 6. The rate of corrosion (CR) can be obtained using Equation (2) (ASTM standards G01) [27,28].

$$\mathrm{CR}=\frac{\mathrm{K}1\left(\mathrm{Icorr}\ast \mathrm{EW}\right)}{\mathsf{\rho }}$$

(2)

where I_corr = the corrosion current density (µA/cm²), K₁ = 3.27 × 10⁻³ (mm g/μA cm yr), ρ = the material density (g/cm³), EW = the equivalent weight, and CR = the corrosion rate in mmpy.

From the calculations, the corrosion rates for this Ti-17Nb-6Ta alloy were found to be 0.002 mm/year, which is well under the outstanding corrosion category (0.02 mm/year) [29].

4. Discussion

In this work, a Ti-17Nb-6Ta alloy was fabricated using the laser cladding technique. In vitro and electrochemical characterization were performed to evaluate the behavior of the fabricated alloy when exposed to an artificial human body environment. In the vitro tests, the cell attachment to the fabricated alloy was increased with increased culture time. Significant cell growth was observed after two weeks. No adverse effects from the specimens were observed on the culture growth, as indicated by the third week’s cell density. This indicates the biocompatible nature of the newly fabricated alloy.

In electrochemical characterization, current density, and potential values were determined after testing. Tafel plots were plotted, and the I_corr and E_corr values were found. The I_corr values evaluated from the Tafel curves were low (in the magnitude of 10⁻⁵ to 10⁻⁷), which depicts the passive behavior of the Ti-17Nb-6Ta alloy. This passivity is mainly due to the formation of an oxide film on the alloy surface. The surface oxide films inhibit the release of the alloying component into the human body, thus inhibiting the ions from immersing in the bloodstream. Passivation is a natural phenomenon that occurs on the titanium alloy surface. It prevents the further oxidation of the alloy by making a protective layer on the surface. Titanium has a high affinity to oxygen according to which the oxide layer is built on the titanium and its alloy surface, and it enhances the corrosion resistance and osseointegration [30]. The inclusion of alloying elements such as Nb and Ta improves the passivation by forming Nb₂O₅ and Ta₂O₅, respectively, which are super stable in the human body and provide superior corrosion resistance [31]. The Ti-17Nb-6Ta alloy forms multi-layer oxide films such as TiO₂, Nb₂O₅, and Ta₂O₅ on the material surface, which additionally help in increasing corrosion inhibition [32,33,34]. Additionally, the oxide layers also enhance osseointegration [35]. A low CR in the biomaterial is desirable, as it lowers the discharge of metallic ions into the human body, thus reducing the chance of allergic reactions and adverse events due to ionic contamination [27].

5. Conclusions

There has been an increased requirement for human body implants in recent years. The number of revision surgeries has also increased due to the incompatibility of the material that is into the body. Additive manufacturing offers the fastest route for making customized implants compared to any other manufacturing process. Titanium alloys have long been promising candidates for making customized biocompatible implants. Therefore, a titanium alloy Ti-17Nb-6Ta was manufactured in this study using laser cladding, one of the prominent AM techniques for metal fabrication. During post-manufacturing, the alloy was ground and cut into the required sizes for in vitro and electrochemical characterization. No adverse effect was found in the presence of the Ti-17Nb-6Ta alloy, with good cell growth being observed even after two to three weeks. A meager corrosion rate (0.002 mm per year) was observed, along with a low I_corr (0.226 µA/cm²) value. The lower values can mainly be attributed to the multi-layer oxide films (TiO₂, Nb₂O₅, and Ta₂O₅) generated on the alloy surface, which inhibit metallic ions release into the human body. Hence, the alloy does not cause any cytotoxic symptoms. It can be concluded that the new Ti alloy fabricated using laser cladding possesses good biocompatibility, which is the prime requirement for human body implants.
