Synthesis and Characterization of Antibacterial Carbopol/ZnO Hybrid Nanoparticles Gel

by
Sameh H. Ismail
1,
Ahmed Hamdy
1,2,
Tamer Ahmed Ismail
3,
Heba H. Mahboub
4,
Walaa H. Mahmoud
5 and
Walid M. Daoush
6,7,*
1
Faculty of Nanotechnology for Postgraduate Studies, Sheikh Zayed Campus, Cairo University, 6th October City, Giza 12588, Egypt
2
Environmental Engineering Program, Zewail City of Science, Technology and Innovation, 6th October City, Giza 12578, Egypt
3
Department of Clinical Laboratory Sciences, Turabah University College, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
4
Department of Fish Diseases and Management, Faculty of Veterinary Medicine, Zagazig University, P.O. Box 44511, Sharkia 44519, Egypt
5
Faculty of Science, Cairo University, Giza 12613, Egypt
6
Department of Chemistry, College of Science, Imam Mohammad ibn Saud Islamic University (IMSIU), Othman ibn Affan St., P.O. Box 5701, Riyadh 11432, Saudi Arabia
7
Department of Production Technology, Faculty of Technology and Education, Helwan University, Saray–El Qoupa, El Sawah Street, Cairo 11281, Egypt
*
Author to whom correspondence should be addressed.
Crystals 2021, 11(9), 1092; https://doi.org/10.3390/cryst11091092
Submission received: 1 August 2021 / Revised: 2 September 2021 / Accepted: 2 September 2021 / Published: 7 September 2021
(This article belongs to the Special Issue Fabrication of Carbon and Related Materials/Metal Hybrids and Composites)
Browse Figures
Versions Notes

Abstract

:
This study recommends Carbopol/zinc oxide (ZnO) hybrid nanoparticles gel as an efficient antibacterial agent against different bacterial species. To this end, ZnO nanoparticles were synthesized using chemical precipitation derived from a zinc acetate solution with ammonium hydroxide as its precipitating agent under the effect of ultrasonic radiation. The synthesized ZnO nanoparticles were stabilized simultaneously in a freshly prepared Carbopol gel at a pH of 7. The chemical composition, phase identification, particle size and shape, surface charge, pore size distribution, and the BET surface area of the ZnO nanoparticles, as well as the Carbopol/ZnO hybrid Nanoparticles gel, were by XRD, SEM, TEM, AFM, DLS, Zeta potential and BET instruments. The results revealed that the synthesized ZnO nanoparticles were well-dispersed in the Carbopol gel network, and have a wurtzite-crystalline phase of spherical shape. Moreover, the Carbopol/ZnO hybrid nanoparticles gel exhibited a particle size distribution between ~9 and ~93 nm, and a surface area of 54.26 m2/g. The synthesized Carbopol/ZnO hybrid nanoparticles gel underwent an antibacterial sensitivity test against gram-negative K. pneumonia (ATCC 13883), Bacillus subtilis (ATCC 6633), and gram-positive Staphylococcus aureus (ATCC 6538) bacterial strains, and were compared with ampicillin as a reference antibiotic agent. The obtained results demonstrated that the synthesized Carbopol/ZnO hybrid nanoparticles gel exhibited a compatible bioactivity against the different strains of bacteria.

1. Introduction

In recent decades, discussions focused on the application of biomedical nanomaterials have increased in the medical field due to their eminent biological properties. With their broad applications in various fields, metal oxide nanoparticles have shown far-reaching and promising prospects in the field of biomedicine, especially for drug delivery/antibacterial genes, biosensing, cytometry, cancer, and others [1,2,3].
Many synthetic techniques are used for the synthesis of zinc oxide nanoparticles (ZnO NPs). These methods could be classified into three main types: physical, chemical, and biological methods. Furthermore, chemical synthesis includes liquid-phase synthesis and gas-phase synthesis. Liquid phase synthesis involves some sub-methods, such as polyol [4], sonochemical [5], solvothermal [6], hydrothermal [7], water-oil microemulsions [8], sol-gel processing [9], co-precipitation [10], and precipitation methods [11], while methods such as inert gas condensation and pyrolysis fall within fabrication methods in the vapor phase [12]. ZnO NPs are classified as II–VI semiconductors and are characterized by a high excitation energy of 60 eV and wide band gap energy of 3.3 eV. Thus, they can tolerate large electric fields, high temperatures, and high power operations [13]. These properties make ZnO NPs highly applicable in chemical sensors, photocatalysis, and solar cells [14]. Additionally, the crystal structure of ZnO NPs significantly contributes to the emergence of their piezoelectric properties. Accordingly, this makes ZnO NPs suitable for acoustic wave resonators and acoustic-optic modulators. In addition, the Centro-symmetric structure of ZnO NPs made them the highest tensors among all semiconductors, providing a large electromechanical coupling [15]. Moreover, the GRAS substances (SCOGS) database allows access to opinions and conclusions from 115 SCOGS reports published between 1972–1980 on the safety of over 370 Generally Recognized as Safe (GRAS) food substances by the U.S. Food and Drug Administration (FDA). Accordingly, the Select Committee on GRAS Substances (SCOGS) opinion concluded that there is no evidence in the available information on zinc oxide that demonstrates, or suggests reasonable grounds to suspect, a hazard to the public [16].
Additionally, ZnO NPs are commonly used in various fields due to their distinct physical and chemical properties as one of the most important semiconductor metal oxide nanoparticles [17,18]. Because of the ability of ZnO to absorb UV radiation, it is increasingly used in personal care products, such as sunscreens and cosmetics [19]. ZnO NPs have also been applied in the rubber industry as they can provide the abrasion resistance for the rubber composite, as well as improve the high polymer performance in anti-aging, toughness and strength, and other functions [20]. In addition, ZnO NPs have excellent antibacterial and antimicrobial properties. Furthermore, when used in the textile industry, fabrics treated with the addition of ZnO NPs gain attractive properties, such as UV blocking, visible light resistance, deodorant, and antibacterial agents [21,22]. Zinc oxide can also be used in other branches of industry, including electronics, photocatalysis, concrete production, and other technologies [23,24].
These hydrogels are three-dimensional systems of hydrophilic polymers, which can swell when absorbing water; however, they do not dissolve. Moreover, these hydrogels can interact with the surrounding environments and simultaneously exhibit changes in both their chemical and physical properties [25,26]. Great efforts have been exerted on hydrogels containing pH and/or temperature-sensitive properties due to their extraordinary potential in bioengineering and biomedical uses, especially in cell culture, molecular separation, and drug release [27,28]. The term “nanogel” was introduced to define the cross-linked dual-functional networks of a polyion and a nonionic polymer for polynucleotide delivery [29,30]. Nanogels are composed of nanoparticles that are formed by physically or chemically cross-linked polymer networks that stabilize and swell in a fine solvent [31,32]. Breakthroughs in nanotechnology have generated the need to develop nanogel systems which demonstrate the ability to deliver drugs in controlled, stable, and targetable settings. With the promising field of polymer science, it is now possible to develop smart nanoscale systems which could provide effective treatments and diagnoses, as well as advance clinical trials [33,34]. Carbopol 940, or Carbomer 940, is a synthetic high-molecular-weight polymer of the acrylic acid monomer. They may be homopolymers of acrylic acid or cross-linked with an allyl ether of propylene, allyl ether of sucrose, or an allyl ether of pentaerythritol. Carbopol 940 contains not less than 56% and not more than 68% of carboxylic (–COOH) groups. The viscosity of a neutralized 0.5% aqueous dispersion of Carbopol 940 is between 40,000 and 60,000 centipoises [35]. In an aqueous solution of a neutral pH, Carbopol 940 is an anionic polymer, i.e., many of the side chains of Carbopol 940 will lose their protons and acquire a negative charge. This gives Carbopol 940 polyelectrolytes the ability to absorb and retain water and swell to many times their original volume [36]. Dry Carbopol 940 is produced as white, fluffy powders that are frequently used as gels in personal care and cosmetic products. Their role in cosmetics is to suspend solids in liquids, prevent emulsions from separating, and to control the consistency in the flow of cosmetics. Carbopol codes (910, 934, 940, 941, and 934P) are an indication of molecular weight and the specific components of the polymer [37]. For many applications, Carbopol 940 is used in form of alkali metal or ammonium salts, e.g., sodium polyacrylate. In the dry powder form, the positively charged sodium ions are bonded to the polyacrylate; however, in aqueous solutions, the sodium ions can be dissociated. Instead of the formation of an organized polymer chain, this leads to a swollen gel that can absorb a high amount of water [38].
The targets of synthesis and fabrication of any antimicrobial compound are to inhibit the causal microbe without any side effects on the patients. Besides, it is worthy to stress here the basic idea of applying any chemotherapeutic agent, which depends essentially on the specific control of at least one biological function while avoiding multiple ones. ZnO nanogel exhibits good and effective antimicrobial and antibacterial activity. It is highly selective in bactericidal activity and reveals biocompatibility as well as low effects in human cells [39,40,41]. ZnO nanogel delays the microbial growth of foodborne pathogens, such as B. subtilis, E. coli, Pseudomonas fluorescent, etc. In vitro culture, media studies showed that ZnO nanogel is very effective at killing microbes such as S. enteritidis, E. coli, Listeria monocytogenes, and others [42,43]. ZnO nanoparticles of about 10–25 nm particle size can penetrate deeply into the ventral cell and enhance its membrane permeability. They disintegrate and produce complete sets of bacterial and microbial cell membranes [18]. There are several types of mechanisms that explain the antimicrobial and antibacterial activities of ZnO nanogel. Complete cell lysis and an elevation in membrane permeability due to the production of hydrogen peroxide (H2O2) from the ZnO nanoscale surface, are some of the most recognized mechanisms within the scientific community [44,45]. The size of the ZnO nanogel is very important for its activity; it is shown that the smaller sizes of ZnO nanoparticles per unit volume in the aqueous medium increase the surface area and enhance the production of hydrogen particles [46,47]. Another study reported that the production of zinc particles causes severe damage to the bacterial cell membrane. This results in the formation of small pores on the cell surface and leads to leakage of cellular contents, causing bacterial cell death [48,49,50].
Furthermore, many researchers have used Carbopol-based inorganic metal/metal oxides nanoparticles and organic additive hybrid systems in different fields. For example, Jana et al. have used Carbopol gel containing chitosan-egg albumin nanoparticles for transdermal aceclofenac delivery [51], while Sareen et al. have formulated and evaluated the meloxicam Carbopol-based gels for drug release uses [52]. In addition, Bonacucina et al. have analyzed the thickening properties of Carbopol 974 and 971 in a 50:50 mixture of water/Silsense™ A-21 as a new cationic silicon miscible in any proportion with water. In addition, they have also evaluated the rheological properties of Silicon/Carbopol hydrophilic gel systems as a vehicle for the delivery of water-insoluble drugs [53].
In this study, ZnO nanoparticles were synthesized using chemical precipitation derived from a zinc acetate solution with ammonium hydroxide as its precipitating agent under the effect of ultrasonic radiation. The prepared ZnO NPs were stabilized using Carbopol gel to obtain a hybrid system of well-dispersed nanoparticles in the gel network. Similarly, the synthesized Carbopol/ZnO hybrid nanoparticles gel was also successfully prepared using a chemical precipitation reaction in a Carbopol stabilizing agent under the effect of ultrasonic irradiation. The chemical composition, phase identification, adsorption/desorption behavior, and pore size distribution properties of ZnO NPs and Carbopol/ZnO hybrid nanoparticles gel were evaluated by XRD and BET analyzers. In addition, topographical and morphological textures of the synthesized ZnO NPs, as well as the Carbopol/ZnO hybrid nanoparticles gel, have been investigated using AFM, SEM, and TEM microscopies. DLS and zeta-potential studies were also conducted to investigate the size distribution and charge measurements of the prepared ZnO NPs and Carbopol/ZnO hybrid nanoparticles gel, respectively. Finally, the synthesized Carbopol/ZnO hybrid nanoparticles gel was examined as antibacterial nanoparticles/gel hybrid system against gram-negative K. pneumonia (ATCC 13883) and gram-positive (Bacillus subtilis (ATCC 6633) and Staphylococcus aureus (ATCC 6538) bacterial strains.

2. Experimental Section

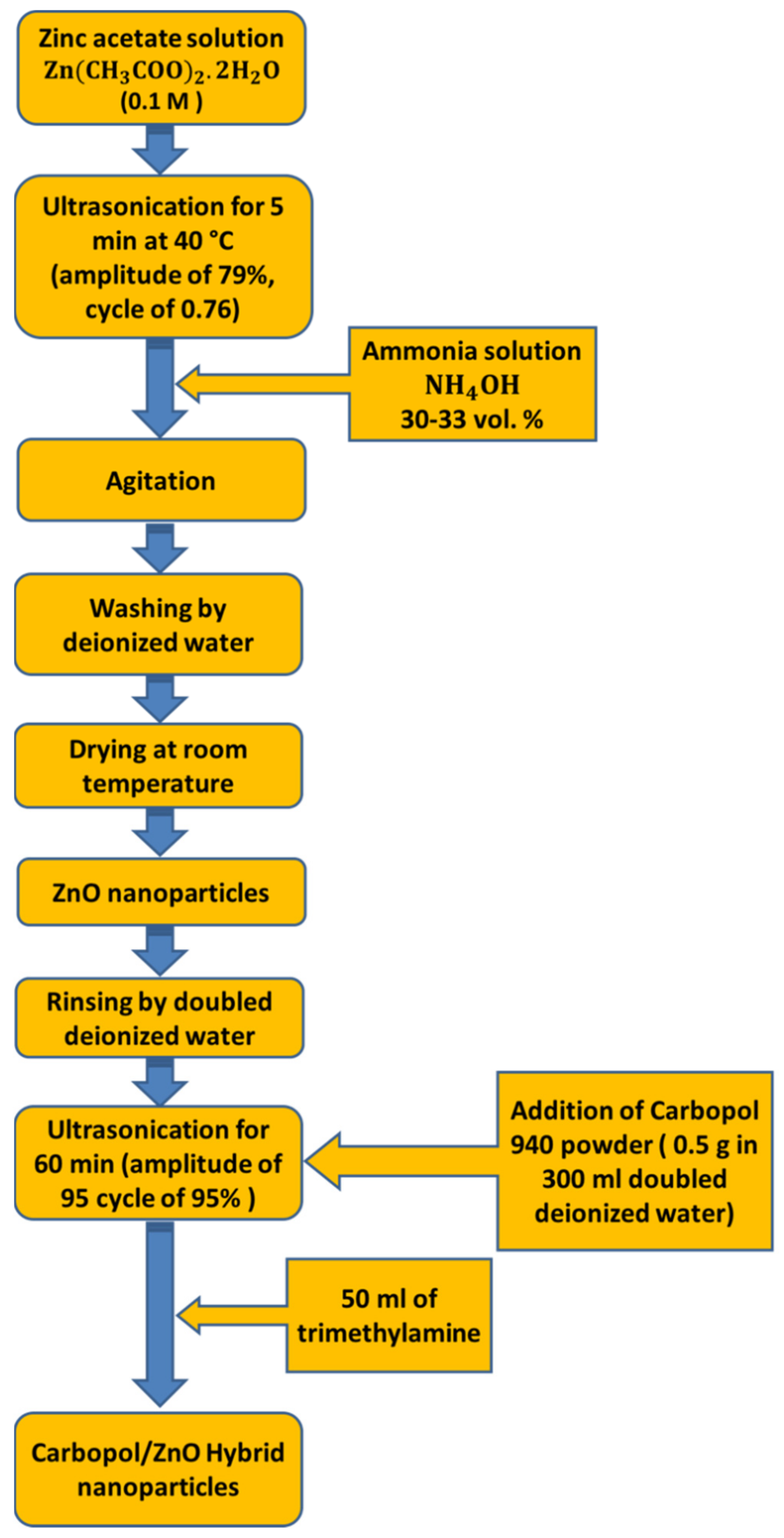

2.1. Preparation of ZnO NPs and Carbopol/ZnO Hybrid Nanoparticles Gel

ZnO NPs were synthesized using the chemical precipitation method under the effect of ultrasound irradiation. In a typical procedure, zinc acetate dihydrate (Zn(CH3COO)2·2H2O, Loba Chemie, Mumbai, India) as a precursor, and an ammonia solution of 30–33% (NH3) in an aqueous solution (NH4OH, Advent chembio, Mumbai, India) as a reducing agent, were used [54]. The ZnO nanoparticles were produced by dissolving the appropriate amount of zinc acetate in 100 mL of deionized water to produce 0.1 M of a zinc ions solution. Subsequently, the zinc ions solution was subjected to ultrasonic wave irradiation using a Hielscher UP400S (400 W, 24 kHz, Berlin, Germany) at an amplitude of 79% and a cycle of 0.76 for 5 min at a temperature of 40 °C. Then, the ammonia solution was added dropwise to the zinc ions solution under the effect of the ultrasonic waves. After few moments, the ZnO NPs began to precipitate and grow, and the ammonia solution was continuously added until the complete precipitation of ZnO NPs occurred.
The obtained ZnO NPs were washed using deionized water several times and were left out to settle down. Posteriorly, the obtained precipitate was dried at room temperature. To prepare the ZnO nanogel, the produced ZnO NPs were rinsed with double deionized water and were outfitted for the next step. On the other hand, 0.5 g of Carbopol 940 (Loba Chemie, Mumbai, India) was dissolved in 300 mL of doubled deionized water, followed by addition of the freshly washed ZnO NPs. Because Carbopol is naturally acidic [55], the solution needed to be neutral, otherwise it would not thicken. Thus, the mixture had undergone continuous sonication using an ultrasound prop (Hielscher, UP400S Berlin, Germany) with an amplitude of 95 and a cycle of 95% for 1 h. Then, 50 mL of trimethylamine (TEA) as a neutralizing agent (raise the pH to 7) was added dropwise under continuous sonication until the formation of the ZnO white gel occurred, and where the Carbopol would thicken when the pH was near to the neutral conditions [56]. Figure 1 shows a summarized schematic flowchart of the synthesis procedures for the ZnO NPs as well as the Carbopol/ZnO hybrid nanoparticles gel.

2.2. Characterization of Synthesized ZnO NPs and Carbopol/ZnO Hybrid Nanoparticles Gel

The synthesized ZnO NPs and Carbopol/ZnO hybrid nanoparticles gel were investigated for determining the chemical composition and the crystalline phase using an X-ray diffractometer (XRD, D8-Discover, Bruker, CuKα radiation, Madison, WI, USA) working at a current of 30 mA and voltage of 20 kV. The Raman shift spectrum of the synthesized ZnO NPs and Carbopol/ZnO hybrid nanoparticles gel were investigated using the Raman spectrometer of a model (Horiba labRAM HR evolution visible single spectrometer, Edison, NJ, USA). The measurement processes were performed at room temperature and the acquisition time was 20 seconds. The Raman spectroscopy was supplied with a He-Cd green LASER which provided a wavelength of 532 nm/edge, and a grating of 1800 (450–850 nm), supported with a 100% ND filter and an objective of X50/Vis. The scanning electron microscope (SEM, JSM-6701F Plus, JEOL, Peabody, MA, USA), and transmission electron microscope (JEOL, TEM-2100, Peabody, MA, USA) operated at a potential of 20 kV, and were used to investigate the morphology, shape, and size of the Carbopol/ZnO hybrid nanoparticles gel. In the investigations of the samples using TEM, a copper grid was prepared to support the NPs by sputtering them with gold. The ZnO NPs stabilized Carbopol gel sample was diluted with distilled water and sonicated with an ultrasonic cleaner (Elma, Singen, Germany) for 30 min. Then, a few drops of the Carbopol/ZnO hybrid nanoparticles gel sample were deposited onto the coated copper grid and allowed to dry at room temperature before the investigations were performed by the TEM microscopy. The specific surface area of the Carbopol/ZnO hybrid nanoparticles gel sample was determined by the N2 adsorption/desorption isotherm using Brunauer–Emmett Teller (BET) analyzer (NOVA touch LX2, model; NT2LX-2, Quantachrome, FL, USA). An Atomic Force Microscope (AFM, 5600LS, Agilent, California, CA, USA) was used to provide 2D and 3D topographic images of the synthesized Carbopol/ZnO hybrid nanoparticles gel. Finally, the particle size and zeta potential of the prepared ZnO NPs and Carbopol/ZnO hybrid nanoparticles gel samples were measured using a DLS and zeta potential analyzer (Nano Sight NS500, Malvern Instruments Ltd., Kassel, Germany).

2.3. Antibacterial Sensitivity Test

The antibacterial activity of the investigated Carbopol/ZnO hybrid nanoparticles gel was employed on Mueller–Hinton agar plates using an Agar well diffusion technique against gram-negative K. pneumonia (ATCC 13883) and gram-positive Bacillus subtilis (ATCC 6633), and Staphylococcus aureus (ATCC 6538) bacterial strains, and by applying ampicillin as a reference antibacterial agent. A stock solution was prepared by dissolving 10 mg of Carbopol/ZnO hybrid nanoparticles gel in 1 mL DMSO. The nutrient agar medium of the composition (0.5% Peptone, 0.1% Beef extract, 0.2% Yeast extract, 0.5% NaCl, and 1.5% Agar-Agar) was prepared by heating the contents in a water bath, cooling them down to 47 °C, and seeding them with the investigated microorganisms. After the solidification of the Agar media, 5 mm diameter holes were punched aseptically and carefully using a sterile cork borer. The investigated Carbopol/ZnO hybrid nanoparticles gel was introduced in Petri-dishes (10 cm diameter) after their dissolving in DMSO to reach a 1.0 × 10−3 M concentration. The prepared culture plates were then incubated at 37 °C for 20 h to enhance the growth of the bacteria. The activity was determined by measuring the diameter of the inhibition zone in mm. The plates were kept for incubation at 37 °C for 24 h and then the plates were investigated for a recording of the zone of inhibition in millimeters. Antimicrobial activities were performed in triplicate and the average was taken as the final reading.

3. Results and Discussion

3.1. Synthesis and Stabilization Mechanism of ZnO NPs by Carbopol Gel

The consequence chemical precipitation reactions of the synthesis method of ZnO NPs, as well as the Carbopol/ZnO hybrid nanoparticles gel, can be explained by the following chemical equations;
Zn(CH3COO)2·2H2O + 2NH4OH → Zn(OH)2 + 2CH3COONH4 + 2H2O
Zn(OH)2 + 2H2O → Zn2+ + 2HO− = [Zn(OH)4]2−
[ Zn ( OH ) 4 ] 2 −   ↔   ZnO 2 2 − + 2 H 2 O
ZnO 2 2 −   → 24   kHz ,   400   W ,   Δ   ZnO   ↓ +   O 2   ↑

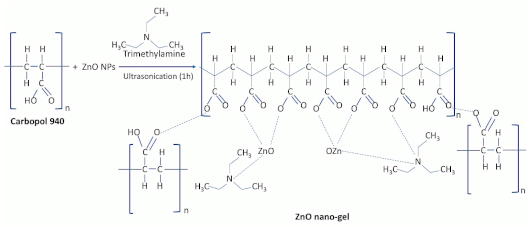

Crystals 11 01092 i001
According to the chemical equations mentioned above, (Equation (1) to Equation (4), the zinc acetate reacted with an equivalent amount of ammonium hydroxide solution forming zinc hydroxide precipitate, which dissolved to form ammonium zincate in the presence of an excess amount of ammonium hydroxide solution. The formed ammonium zincate was converted into ZnO nanoparticles by heating under the effect of ultrasonic wave irradiation. The produced ZnO NPs were stabilized by the interaction with Carbopol according to the chemical Equation (5). The Carbopol gel is usually formed by adding the Carbopol powder to distilled water, which was previously neutralized to pH = 7 using few drops of inorganic bases, such as sodium hydroxide or potassium hydroxide, or low molecular weight amines and alkanolamines, which can provide satisfactory neutralization. Some of the amine bases that are effective as neutralizing agents for aqueous formulations include TEA (triethanolamine), AMP-95 (aminomethyl propanol), Tris Amino (tromethamine), and Neutrol TE (tetrakis-2-hydroxypropyl ethylenediamine) [57,58,59]. Then, the obtained mixture was subjected to continuous rigorous mixing for a few minutes to avoid agglomeration, and then continued stirring until viscosity built up before it turned to gel. In the current work, and according to Equation (5), trimethylamine was used as a neutralizing agent to produce a matrix gel between ZnO NPs and the Carbopol network. The Carbopol/ZnO hybrid nanoparticles gel is formed by the agitation of the ZnO NPs within Carbopol solution to achieve the homogeneity of mixture and to facilitate the polymer-solvent and polymer-polymer interactions giving rise to a better-network structure, typically of a gel-like system. Besides, adding the neutralizing agent induces the entanglement between the different polymer chains. The neutralization reaction ionizes the polymer and generates negative charges along the chain of the polymer. The repulsions between similar charges cause the uncoiling of the molecule into an extended strained structure. This reaction occurs rapidly and provides an instantaneous thickening and an emulsion formation/stabilization. Consequently, the mixture starts to convert to the Carbopol gel network and chelates with the ZnO NPs inside its chain structure. The thick structure and higher elastic character of the hydrated Carbopol/ZnO hybrid nanoparticles gel may be attributed to the electrostatic, Vander Walls, dipole-dipole, hydrophobic type interactions, and the formation of H-bonding, which can be established between ZnO NPs and the hydroxyl groups of Carbopol base-polymer due to the high electronegativity of the oxygen atom. Moreover, there is a possibility for H-bonding creation between ZnO NPs and the nitrogen atoms of trimethylamine agents, even though it has a lower electronegativity than that of the oxygen atom. Furthermore, ultrasonic wave irradiation causes particle-particle interaction by enhancing the molecular vibration of the constituent in the reaction mixture, which generally enhances the thickening process promoted by the polymer-solvent interactions, and aids in the solvation of Carbopol. In addition, ultrasound wave irradiation enhances the polymer–ZnO NPs interaction and improves the viscoelastic properties of the prepared Carbopol/ZnO hybrid nanoparticles gel. Accordingly, many studies have introduced similar interpretations [60,61,62,63,64].

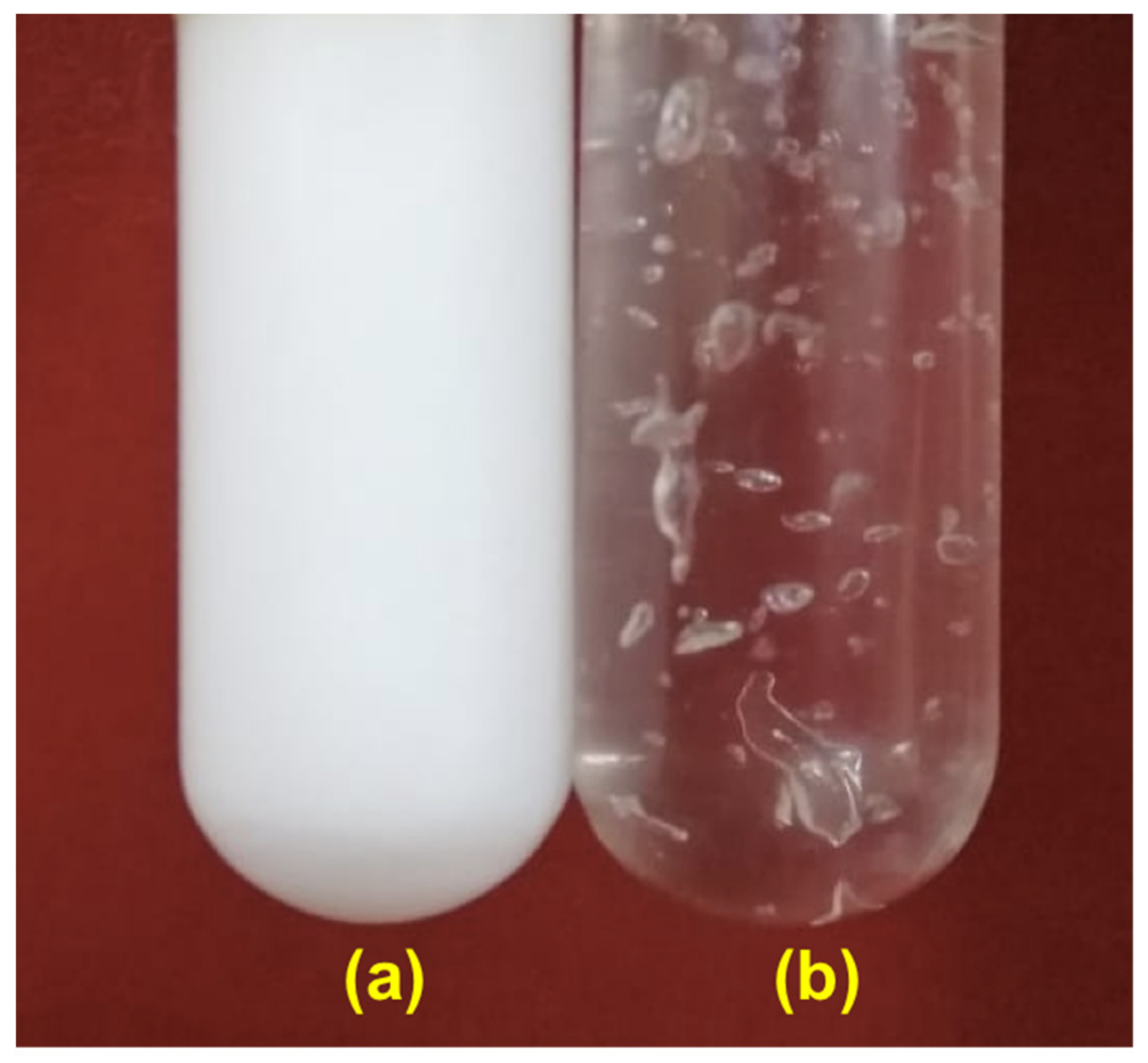

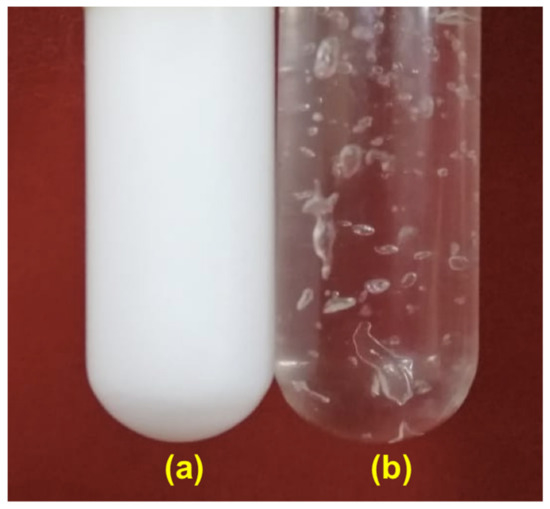

Figure 2 shows the prepared ZnO NPs as well as the Carbopol/ZnO hybrid nanoparticles gel. The results indicate that the prepared ZnO NPs, in the absence of any stabilizing agent, were partially suspended and settled down in the solution within a short period. However, the Carbopol/ZnO hybrid nanoparticles gel was completely suspended and did not settle down for a long time, eventually forming a homogeneous gel. Therefore, one can see that Carbopol is a suitable stabilizing agent for the ZnO NPs in the solution.

3.2. Chemical Composition and Phase Identification of Synthesized ZnO NPs and Carbopol/ZnO Hybrid Nanoparticles Gel

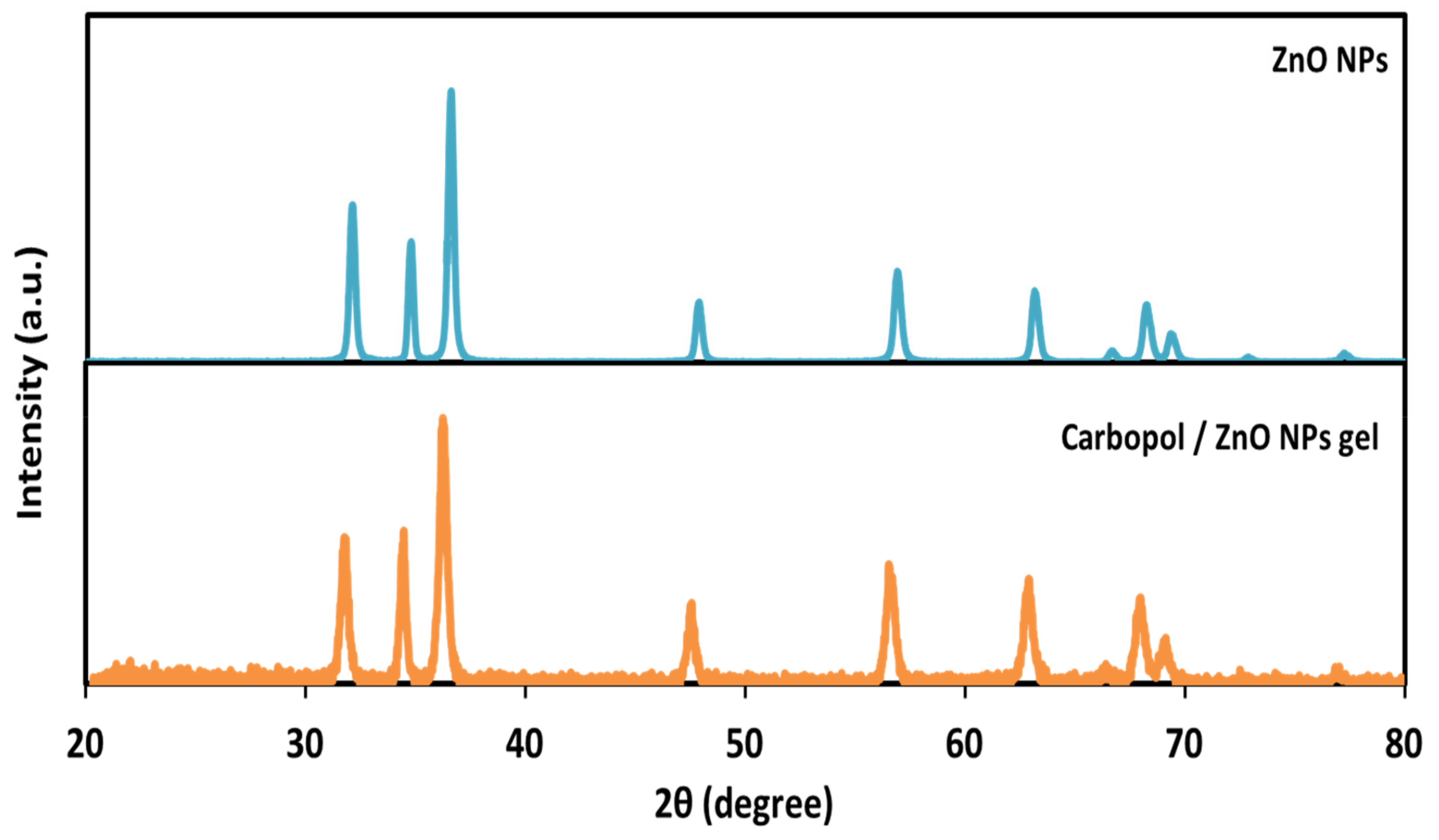

Figure 3 shows the XRD pattern of the synthesized ZnO NPs and Carbopol/ZnO hybrid nanoparticles gel. It can be observed from the results that the diffraction peaks have a high intensity, which implies an ideal crystalline structure within the synthesized ZnO NPs. The Carbopol gel is in an amorphous state as no peaks were recorded. Besides, the characteristic peaks of zinc oxide are prominently featured in the XRD pattern of the Carbopol/ZnO hybrid nanoparticles gel. In addition, the crystalline structure of the synthesized ZnO NPs demonstrates a hexagonal structure of the high-purity ZnO wurtzite phase according to the reference COD no. 2300113. Thus, the observed peaks corresponding to the (100), (002), (101), (102), (110), (103), (200), (112), (201), (004) and (202) planes. Furthermore, the Zn element represents 80.3%, while the oxygen element represents 19.7% of the sample. The average crystallite size (D) of ZnO NPs was estimated from the highly intense and sharp diffraction peak corresponding to the (101) plane using the Debye-Scherer formula [65] according to the following equation:
D = 0.9 λ β c o s θ
where D is the average crystalline size (nm), λ the CuKα radiation wavelength, i.e., 1.54060 Å, β the full-width at half maximum in radians, and θ the scattering angle in degree. The average crystallite size of the synthesized ZnO nanoparticle was found to be 48.70 nm. Similar results were reported in the previous work [66]. The assessment of different diffraction peaks and the detailed XRD analysis of ZnO NPs and Carbopol/ZnO hybrid nanoparticles gel are listed in Table 1.
Based on the aforementioned results, and in comparison with previous studies, the existence of ZnO NPs in the hexagonal wurtzite structure demonstrated a high purity and an excellent crystallinity in the synthesized particles. Table 2 shows the crystallinity and phase structures of ZnO NPs prepared using different methods.
As shown in Table 2, most of the studies in the literature reported a similar crystallite size for ZnO NPs, although prepared by different methods, and confirmed the same lattice structure.

3.3. Raman Spectrum of the Synthesized ZnO NPs and Carbopol/ZnO Hybrid Nanoparticles Gel

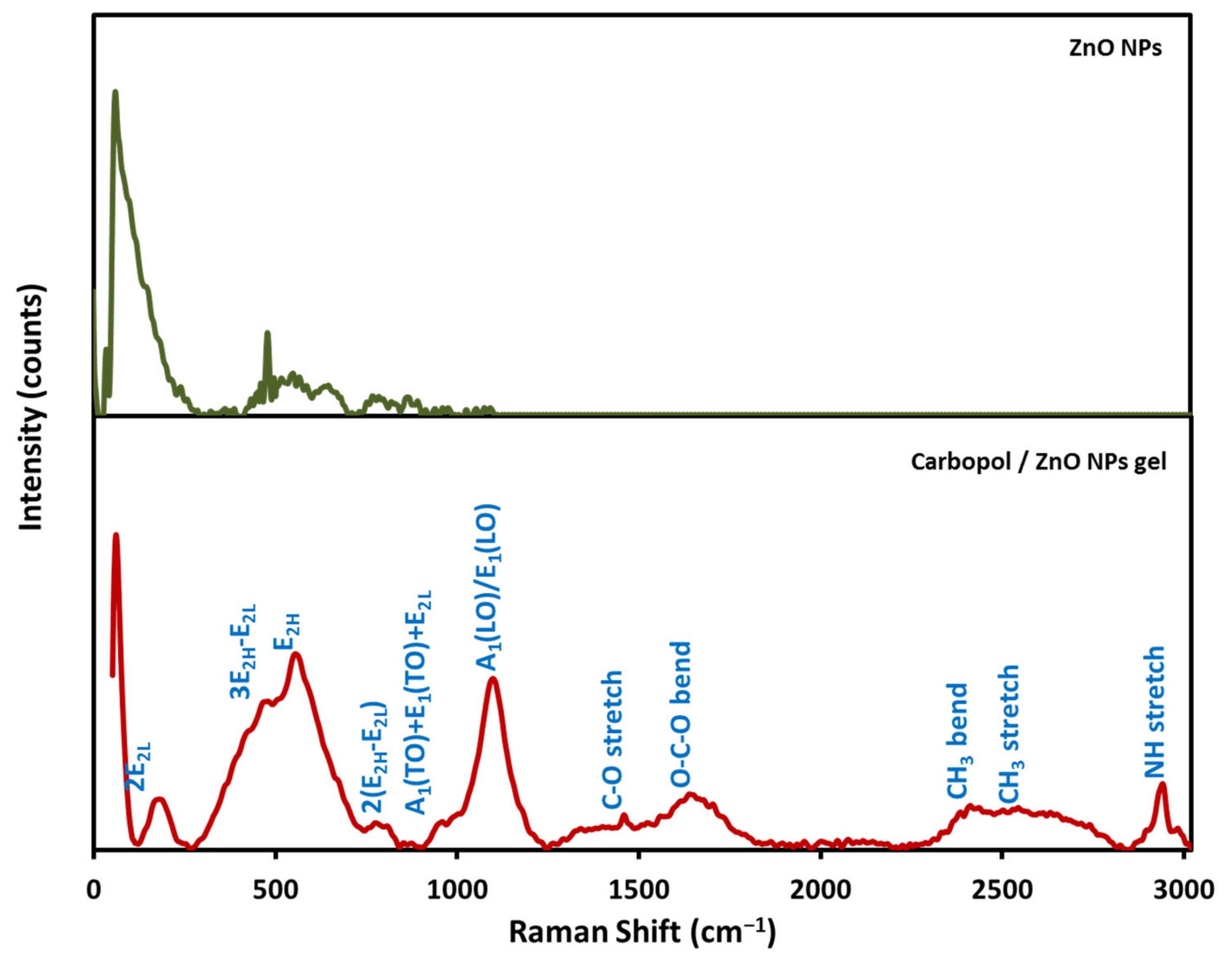

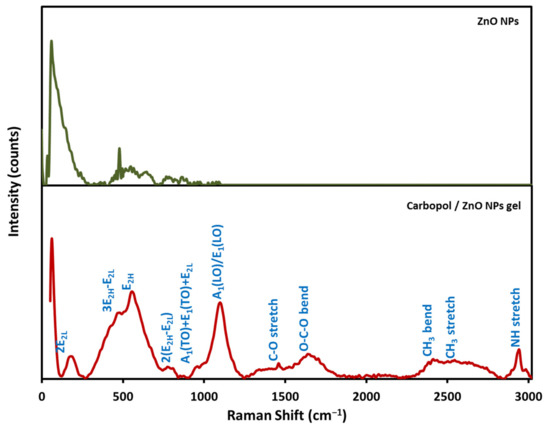

The Raman spectrum is a fundamental and multilateral diagnostic technique that can be used to investigate the structural disorder, crystallization, and defects in the micro and nanostructures materials. The vibrational modes of the synthesized ZnO NPs and Carbopol/ZnO hybrid nanoparticles gel are studied. The ZnO NPs of hexagonal wurtzite crystal-type structures belong to the space group of P63mc with two formula units per primitive cell. Also, for pure ZnO NPs crystals, the optical phonons at Γopt point of the Brillouin zone are included in a first-order Raman scattering. According to the classical group theory, the zone center optical phonons can be assorted according to the following irreducible equation:
Γ opt = A 1 + 2 B 2 + E 1 + 2 E 2
where both the A1 and E1 modes are two polar branches and both are Raman and infrared active. Due to the macroscopic electric fields associated with the LO phonons, the two modes are divided into transversal optical (TO) and longitudinal optical (LO) branches with various frequencies. Otherwise, the A1, E1, and E2 modes (E2 low and E2 high) are non-polar and first-order Raman-active modes, where the E2 modes are only active for Raman-shift. As shown in Figure 4, the main phonon scattering modes of the ZnO NPs have recorded two bands at 58.05 and 473.87 cm−1 that attributed to the 2nd order Raman scattering arising from the E2L and E2H vibrational modes. The broad mode centered at 515.64 cm−1 is assigned to the E1(LO) mode, which is defects induced: oxygen vacancies and zinc interstitials. Whereas, the main phonon scattering modes of the Carbopol/ZnO hybrid nanoparticles gel were recorded in eight bands at 59.80, 553.93, 1097.21, 1455.96, 1638.38, 2411.25, 2543.44, and 2940.24 cm−1, which corresponds to the E2L, E2H, A1(LO)/E1(LO), C-O stretch, O-C-O bend, CH3 bend, CH3 stretch, and NH stretch modes, respectively, while, the second-order phonon mode recorded at about 178.58 cm−1 is represented as 2E2L, and the E2H Raman mode observed at 553.93 cm−1 is dominantly attributed to the oxygen vibrations. On the other hand, according to the Raman selection rule, the B1 modes are usually inactive in Raman spectra and are identified as silent modes. The multi phonon scattering modes are recorded at 464.59, 769.87, and 953.89 cm−1, which may be assigned to 3E2H − E2L, 2(E2H − E2L), and A1(TO) + E1(TO) + E2L, respectively. In addition, an acoustic combination of A1 and E2 is recorded at around 953.89 cm−1. Moreover, the Raman spectra can help in identifying the chemical forms of the Carbopol ligands, as the vibration frequencies of the functional groups are sensitive to the chemical environment. The other vibrational bands were observed in the Raman spectrum at 1455.96, 1638.38, 2411.25, and 2543.44 cm−1, and could be originated from Carbopol ligand groups attached to the ZnO NPs’ surfaces. However, the C-O stretch, O-C-O bend, CH3 bend, CH3 stretch, and NH stretch modes are much more sensitive to the surrounding environment. It could be stated the Raman shift spectrum for Carbopol gel exhibited the same vibrational modes of ZnO NPs besides the vibrational, rotational, and other low-frequency modes of the hybrid system, causing the multi-phonon to shift to higher wavenumbers. In addition, the structural fingerprint for both ZnO NPs and Carbopol gel were identified. Diallo et al. have mentioned similar vibrational properties of ZnO NPs synthesized by Aspalathus linearis [73]. Moreover, Muchuweni et al. have mentioned similar results for the Raman shift of ZnO nanowires prepared using a hydrothermal method [74]. In addition, Taziwa et al. have presented the Raman spectra for both unmodified ZnO and C:ZnO NPs synthesized using the PSP technique. They found that the C:ZnO NPs recorded a red-shift by 4 cm−1 compared to that found in bulk ZnO samples. They attributed this shift either to the phonon confinement and tensile stress within the nanocrystal (quantum dots) boundaries, or the localization of phonons inside the C:ZnO NPs hybrid system, which has a more inherent defect when compared to pristine ZnO NPs [75]. On the contrary, in a study by Jayachandraiah and Krishnaiah, both reported that the main phonon scattering modes of Er-doped ZnO NPs systems dropped with different Er ratios without a significant shift [76].

3.4. BET Surface Area and Pore Size Distribution Analysis of the Synthesized Carbopol/ZnO Hybrid Nanoparticles Gel

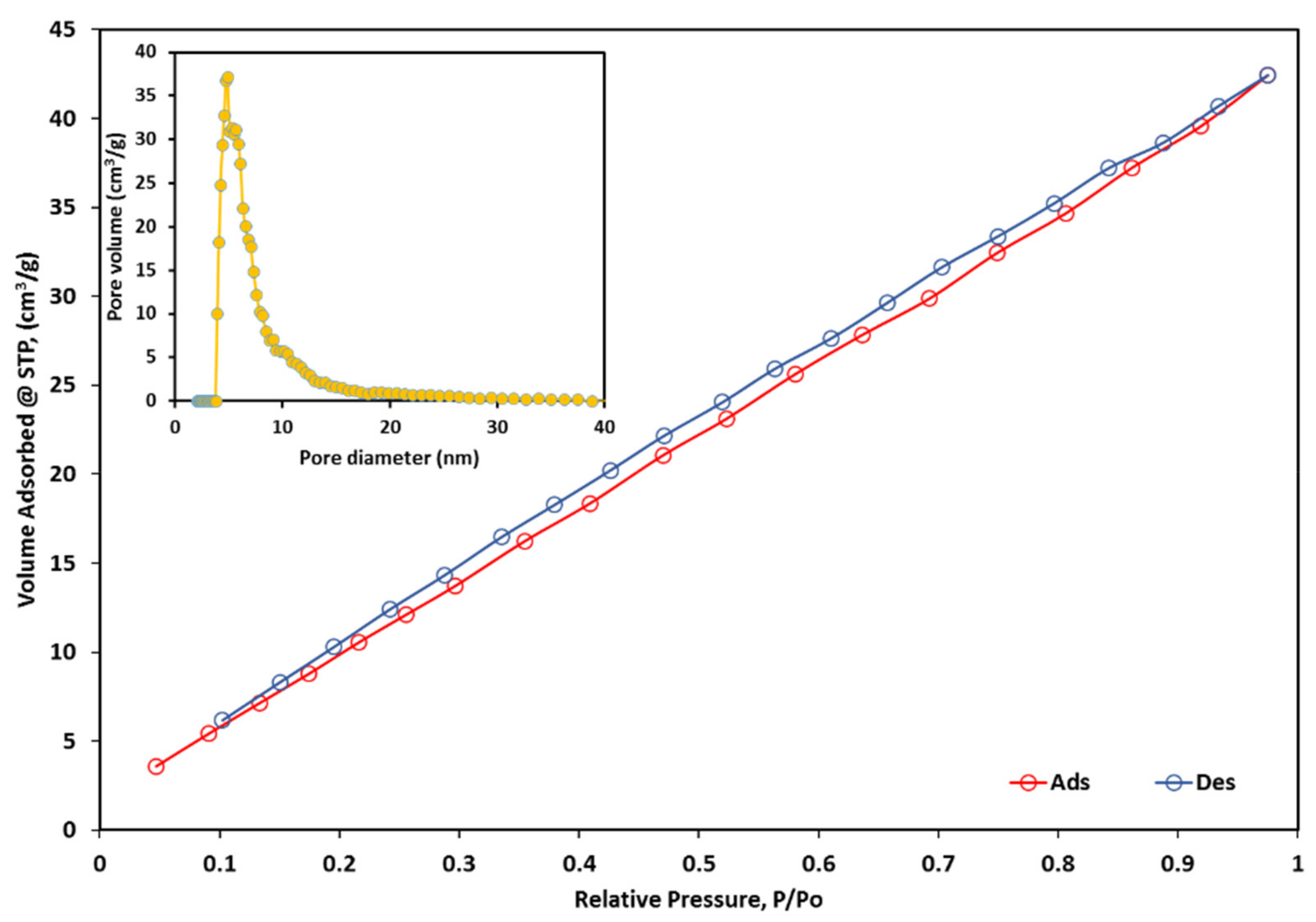

The specific surface area of the synthesized Carbopol/ZnO hybrid nanoparticles gel was determined using the N2 adsorption/desorption isotherm at a temperature of 77 K. Figure 5 shows the typical IV-type adsorption of the Carbopol/ZnO hybrid nanoparticles. Usually, the mesoporous adsorbents are exhibiting type IV isotherms (e.g., mesoporous molecular sieves, industrial adsorbents, and many oxide gels). In this case, the interactions between the molecules in the condensed state, and the adsorbent/adsorptive interactions, were designated to determine adsorption behavior in the mesoporous materials. Based on this reason, the initial monolayer-multilayer adsorption occurring on the mesoporous walls was followed by pore condensation. The phenomenon of pore condensation means that, at a pressure p less than the saturation pressure po of the bulk liquid, the gas condenses to a liquid-like phase in the pores [77]. According to the characteristics of the IV type, the capillary condensation taking place in mesoporous may be accompanied by hysteresis, which commonly occurs when the pore size exceeds a certain critical width. It could be said that the capillary condensation depends mainly on the adsorption system and temperature (for nitrogen adsorption in cylindrical pores at 77 K). Furthermore, as shown in the isotherm curve in Figure 4, the isotherm did not contain a hysteresis loop that starts to occur when the pores of the adsorbent are wider than ∼4 nm. Consequently, the specific surface area of Carbopol/ZnO hybrid nanoparticles gel was determined at 54.26 m2/g, while the pore volume and the mean pore diameter were found to be 0.063 cm3/g and 2.33 nm, respectively. The BET results of the Carbopol/ZnO hybrid nanoparticles gel are listed in Table 3. Kołodziejczak-Radzimska et al. reported similar results in their analysis [78].
As shown in Table 4, the Carbopol/ZnO hybrid nanoparticles gel exhibited a relatively high surface area when compared with the bare ZnO NPs and some other hybrid systems. Accordingly, this demonstrates that the Carbopol gel provided an extra area for ZnO NPs to disperse, and subsequently contributed to increasing the overall surface area of the obtained sample. As presented in Table 3, and as stated by the different reports, all hybrid systems showed higher surface areas than those of bare metal oxides.

3.5. AFM Topographical Analysis of the Synthesized Carbopol/ZnO Hybrid Nanoparticles Gel

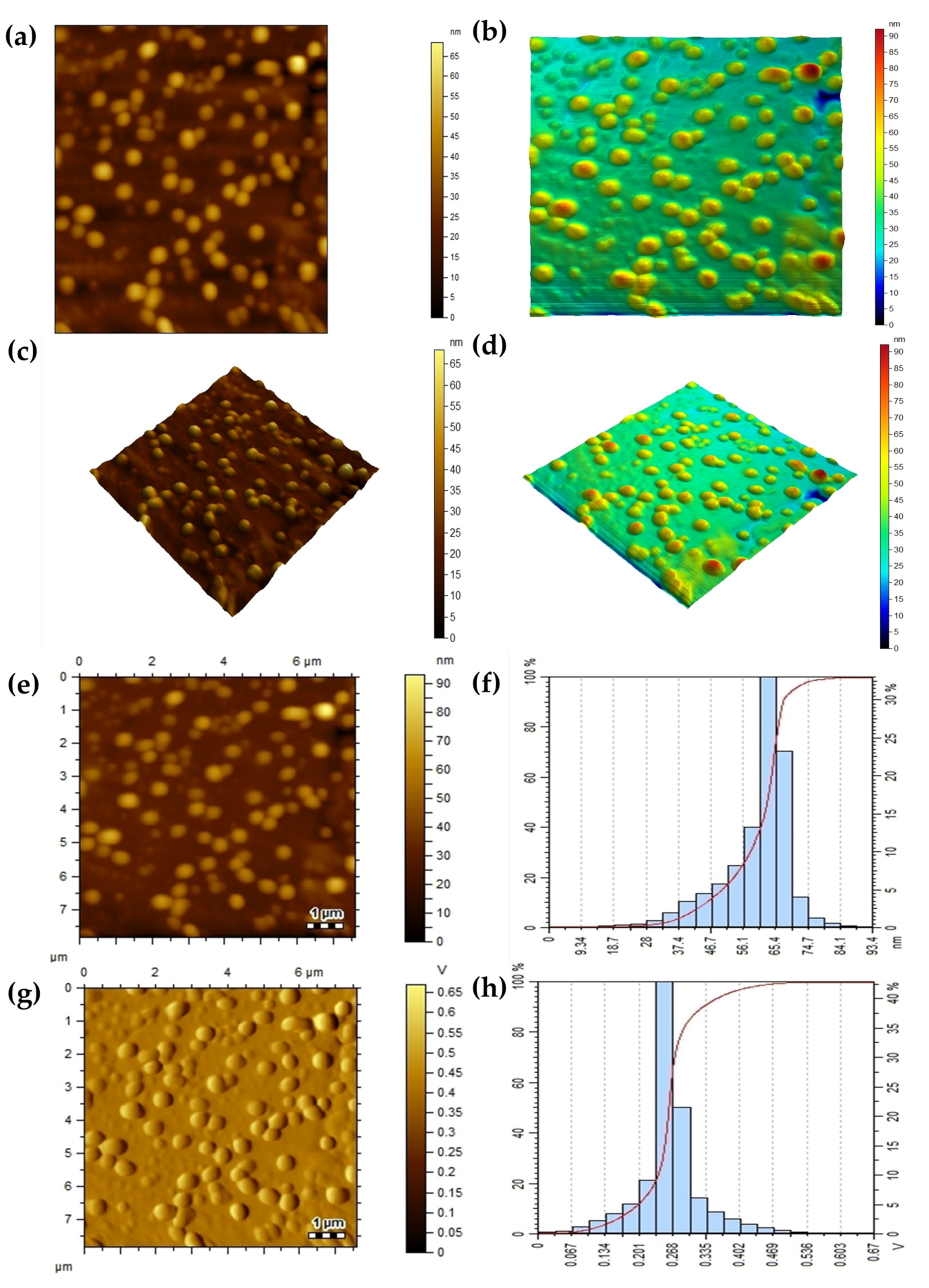

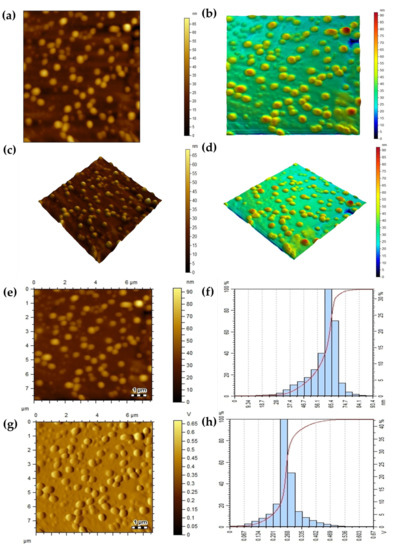

Figure 6a–d shows the non-contact mode topographical AFM 2D images and the corresponding 3D images for the synthesized Carbopol/ZnO hybrid nanoparticles gel. The images demonstrated that the Carbopol/ZnO hybrid nanoparticles have a spherical particle shape. In addition, a good distribution and monodisperse of a large number of random nano pits are observed. Furthermore, the automated batch-mode particle-height functional analysis provided a corresponding particle size distribution histogram of the synthesized Carbopol/ZnO hybrid nanoparticles gel through the scanned area, whereas the synthesized Carbopol/ZnO hybrid nanoparticles gel exhibited a homogeneous particle size of normal distribution. Moreover, the maximum peak height was found to be 59.9 nm, which represents the average particle size of synthesized Carbopol/ZnO hybrid nanoparticles gel, as shown in Figure 6e,f. Furthermore, the corresponding particle volume distribution histogram showed that the volume of the Carbopol/ZnO hybrid nanoparticles gel was found to be 0.0113 (V.µm2/µm2), and the volume of the void per cross-sectional area was 0.206 (V.µm2/µm2) as presented in Figure 6g,h. Similar results were reported in previous studies [92]. Moreover, the results of the AFM are correlative with the results of the XRD.

3.6. Particle Shape and Size Analysis of Synthesized ZnO NPs and Carbopol/ZnO Hybrid Nanoparticles Gel

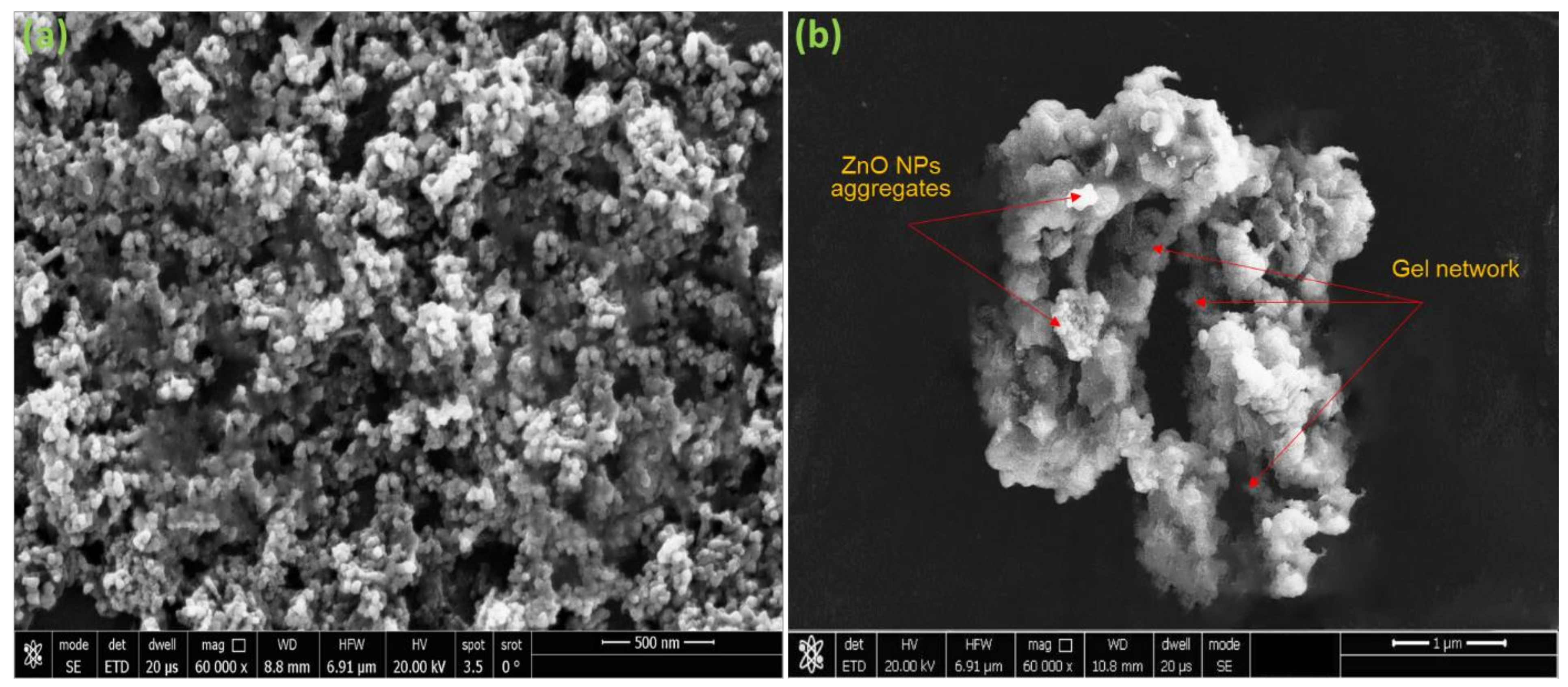

The synthesized ZnO NPs and Carbopol/ZnO hybrid nanoparticles gel were investigated using a high-emission SEM microscope. Moreover, the obtained Carbopol/ZnO hybrid nanoparticles gel was further examined using a TEM microscope. The SEM and TEM results supported the results obtained by the AFM images. From Figure 7a, it could observed that the ZnO NPs were formed in nanospheres with uniform spherical shapes and sizes, as the majority of the particles lie in the nanodomain range. Moreover, the microstructure of nanocrystalline ZnO NPs has a skeletal form resulting from the aggregation process. These agglomerates have taken the shape of faceted crystals, which is characterized by a high porosity. Hutera et al. and Chai et al. reported similar results [93,94]. Figure 7b illustrates an SEM photograph of synthesized Carbopol/ZnO hybrid nanoparticles gel. It is clear that the Carbopol/ZnO hybrid nanoparticles gel have formed from Carbopol gel well-comprised by ZnO nanoclusters, and have created a network of ZnO NPs series connected to each other by the Carbopol gel. These observations were confirmed by the HR-TEM micrograph, as shown in Figure 8.

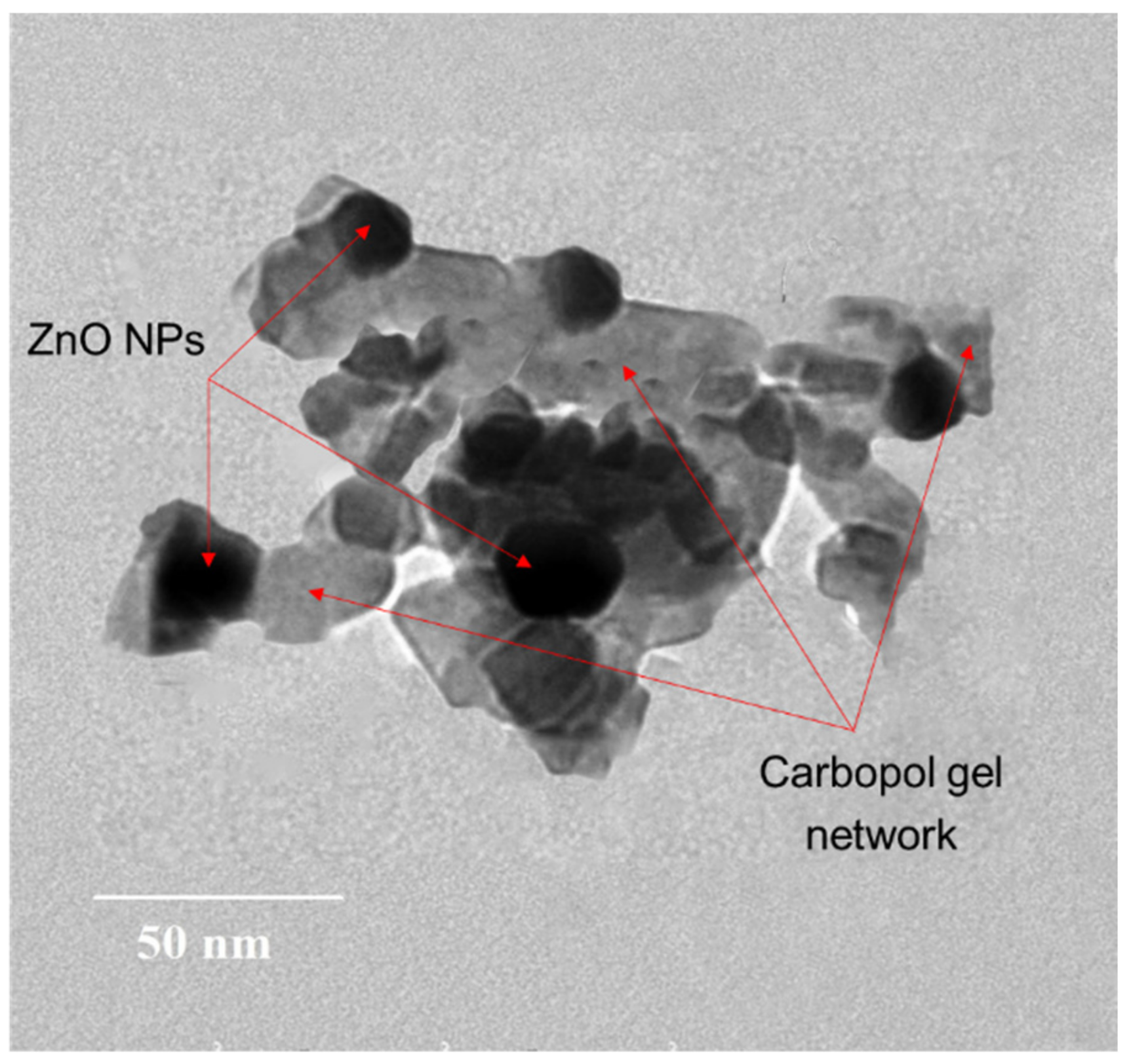

As shown in the TEM image, quazi-spherical ZnO NPs with sharp edges dispersed in the gel network. Moreover, the TEM image confirmed that the size of the Carbopol/ZnO hybrid nanoparticles was ~38 nm. Previous studies mention similar TEM morphologies. Mohammed et al. reported that the particle size investigations of the unloaded Carbopol AquaSF-1 nanogel and vancomycin-loaded Carbopol nanogel (VAC-AquaSF1) revealed that the prepared drug-loaded nanogel particles were almost spherical with a smooth morphology, appeared as black dots with bright surroundings, and were well dispersed and separated on the surface. The average particle size was found to be less than 115 nm and larger than unloaded nanogel, which was about lower than 100 nm [95]. In addition, Al-Awady et al. concluded that the TEM image of the dried-up suspension of collapsed Carbopol Aqua SF1 nanogel particles contained spherical particles of about 100 ± 20 nm, which matches with the average particle diameter measured by the Zetasizer analyzer [96].

3.7. DLS and Zeta-Potential of the Synthesized ZnO NPs and Carbopol/ZnO Hybrid Nanoparticles Gel

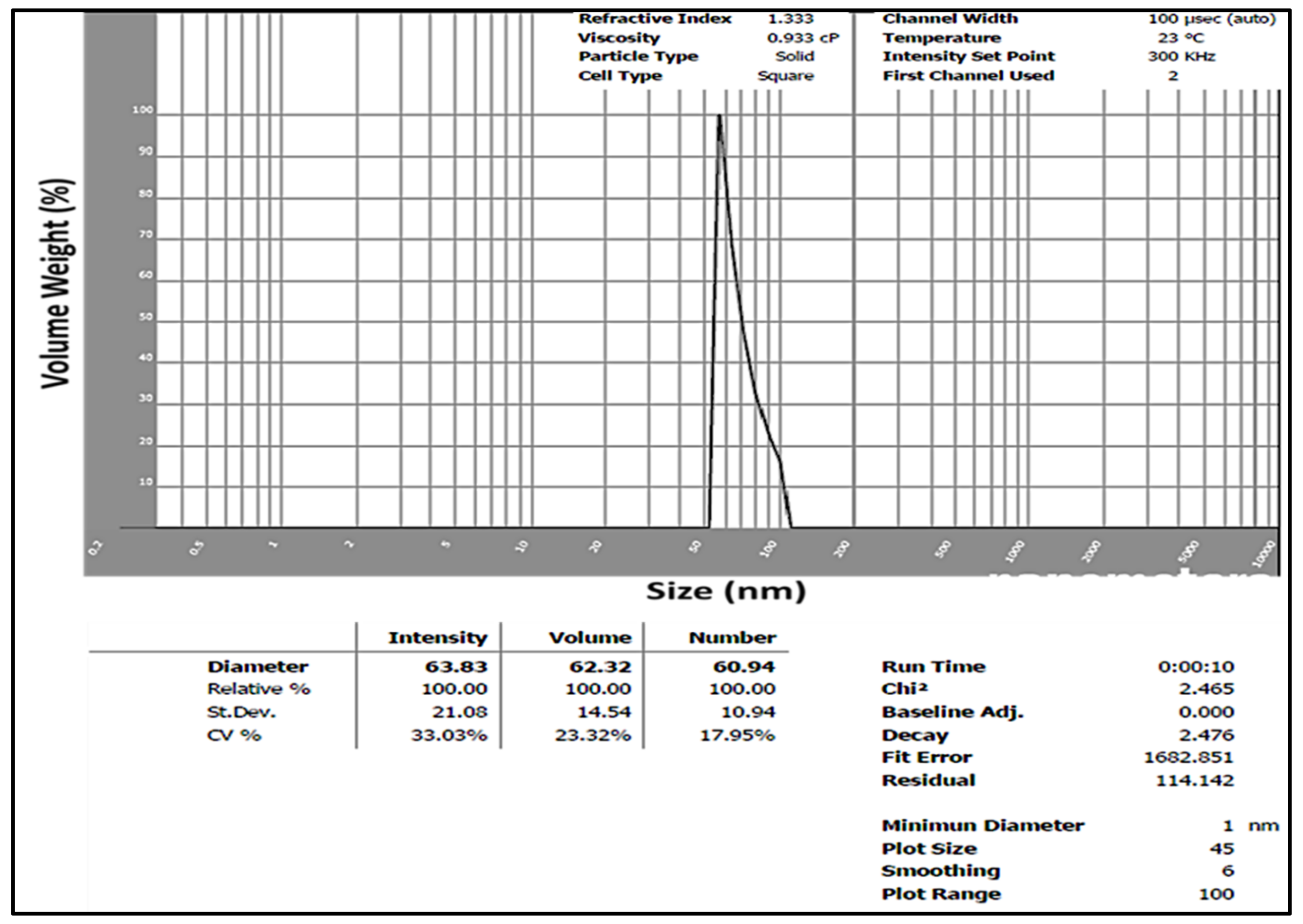

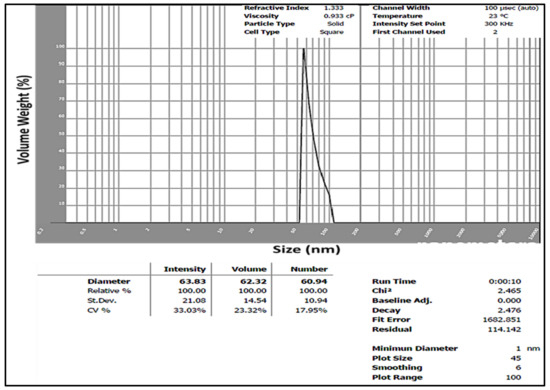

The synthesized ZnO NPs and Carbopol/ZnO hybrid nanoparticles gel were investigated using the dynamic laser scattering (DLS) technique and were subjected to zeta potential measurements. Figure 9 shows that the median particle size value of ZnO NPs was ~60 nm, and ~40nm for Carbopol/ZnO hybrid nanoparticles gel, which matched with the particle size estimated by the TEM image analysis. This difference may be attributed to the fact that the Carbopol gel improved the dispersity of the ZnO NPs and reduced the cluster aggregations.
Nanocrystals usually undergo agglomeration when dispersed in solutions, and this behavior has a major impact on the reactivity and responsiveness of nanomaterials when exposed to various cells or organisms. Therefore, the hydrodynamic sizes of the ZnO NPs samples suspended in Carbopol gel were measured at a neutral pH. According to the Derjaguin−Landau−Verwey−Overbeek (DLVO) model, the agglomeration of non-stabilized ZnO NPs nanocrystals depends on the repulsive interaction arising from an electrostatic force and the van der Waals force of attraction. Because the surface charges of nanocrystals influence the electrostatic repulsive force, nanoparticles with a larger zeta potential will generally reduce in hydrodynamic size. Punnoose et al. mentioned similar results [97].

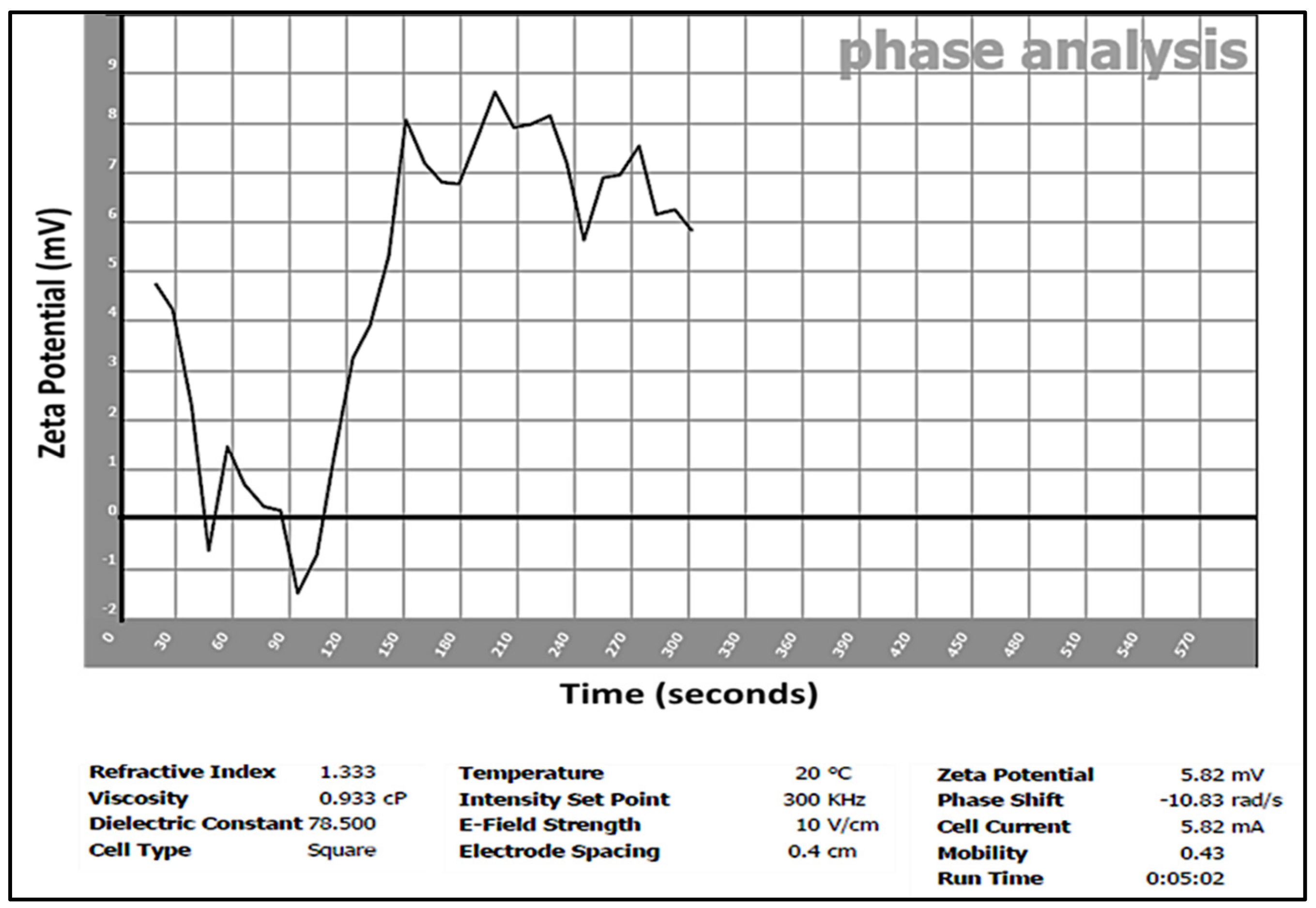

The zeta-potential values of the ZnO NPs and Carbopol/ZnO hybrid nanoparticles gel were found at 5.82 mV (Figure 10), and −21.7 mV, respectively. Consequently, one can conclude from the results that the high value of zeta-potential might be interpreting the acquired high bioactivity of the Carbopol/ZnO hybrid nanoparticles gel against different types of bacterial species. It is clear from the results that the surface of the Carbopol/ZnO hybrid nanoparticles gel is negatively charged at a neutral pH. The high negative zeta potential observed for the Carbopol/ZnO hybrid nanoparticles gel signifies an efficient dispersion of the ZnO NPs powder in the neutral pH gel, where the well-dispersed powder provides a high effective surface for killing the bacteria [98]. The ZnO NPs stabilization by Carbopol gel is expected to modify the net surface charge density and inter-particle interactions. When the ZnO NPs are dispersed in a Carbopol gel, the nanocrystals undergo surface ionization and the adsorption of ions resulting in the generation of an enhanced surface charge. This surface charge leads to an electric potential between the ZnO NPs nanocrystals and the bulk of the dispersion medium (Carbopol gel), and this is measured as zeta potential in experiments that use electrophoretic/electrokinetic techniques. Besides, Weldrick et al. stated that the alcalase-coated clindamycin-loaded Carbopol Nanogels were narrow, although not monodisperse. The effect of pH on the nanogels not only causes swelling and de-swelling, but also changes the values of the zeta potential. There is an overall increase in the zeta potential according to the pH value of the solutions. The surface carboxylic groups of Carbopol gel that partially dissociate cause the appearance of a negative surface charge. Moreover, the nanogel particles are always negatively charged across the whole range of the pH, which allows for the cationic entities of materials [99].
A previous study by Mohammed, et al. reported that the particle size distribution and the zeta potential of bare Carbopol nanogel at pH 6.5 equaled 94.66 nm and −31.8 mV, respectively, while, the particle size distribution and the zeta potential of vancomycin-loaded Carbopol nanogel at pH 6.5 reached 391 nm and −38.5 mV, respectively [95]. Moreover, Al-Awadyet al. reported that the average particle diameter of 0.05 wt% Carbopol Aqua SF1 was found to be approximately 100 nm, while the zeta potential was −44 mV, which indicates that the Carbopol Aqua SF1 nanogel particles have high stability when suspended in MilliQ water at pH 5.5. Furthermore, they measured the value of the average particle diameter of berberine-loaded Carbopol Aqua SF1 nanogel and found it to be about 135 nm at pH 5.5, while the berberine-loaded Carbopol Aqua SF1 nanogel suspension has a zeta potential value of −40 mV [96].

3.8. Bioactivity of Carbopol/ZnO Hybrid Nanoparticles Gel

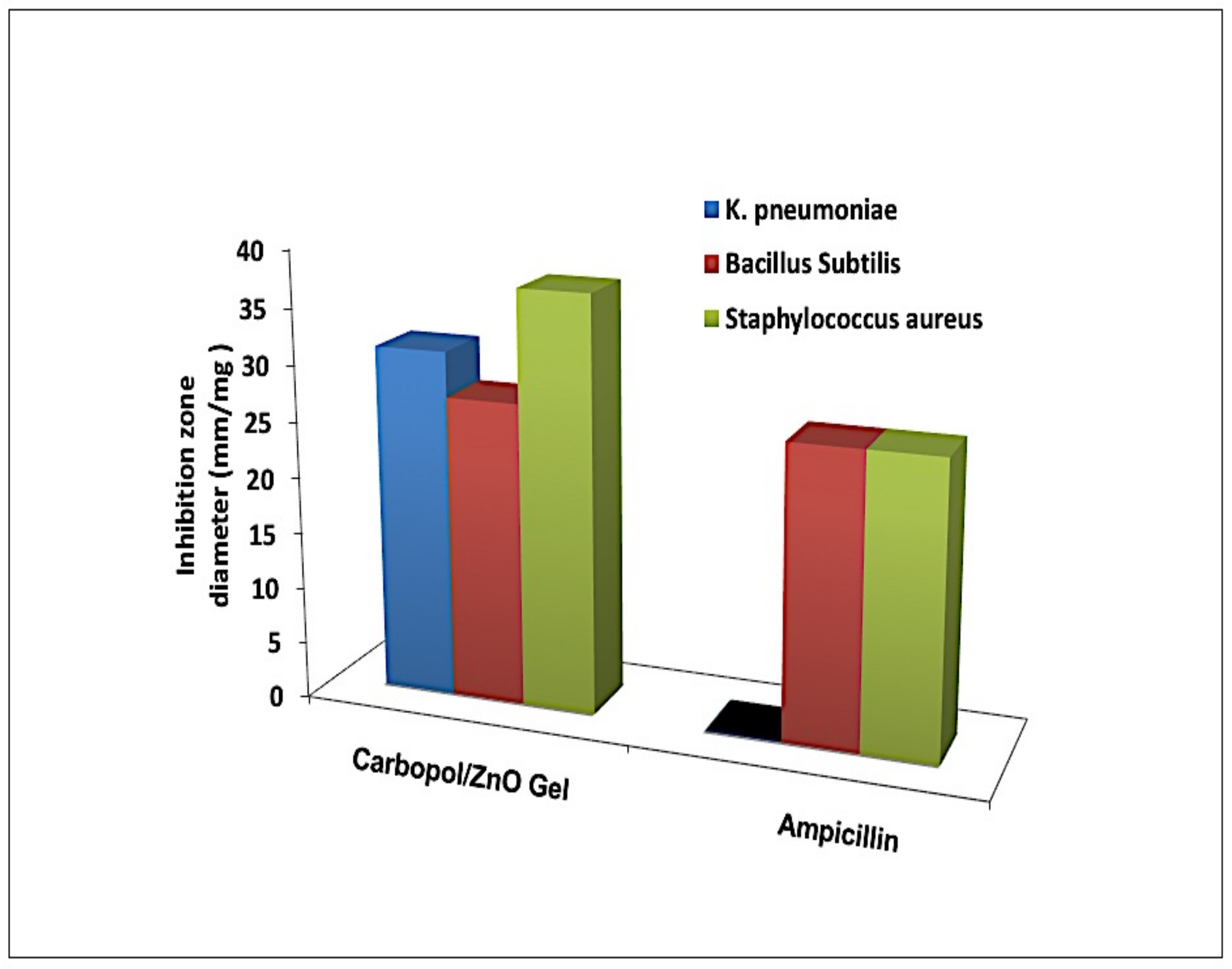

Gram-positive bacteria (Bacillus subtilis and Staphylococcus aureus) and gram-negative bacteria (K. pneumoniae) are pathogenic bacteria, which is one of the ESKAPE pathogens with a multi-drug resistance. The emergence of resistance in Bacillus subtilis, Staphylococcus aureus, and K. pneumoniae causes high mortality and morbidity. Gram-positive and gram-negative bacteria have developed an ability to accumulate diverse resistance mechanisms. The rise in antibiotic resistance and emergence of antibiotic-resistant superbugs is stressing the need for innovative strategies to develop new antimicrobials [100]. In this study, two types of bacterial organisms, gram-positive bacteria (Bacillus subtilis and Staphylococcus aureus) and gram-negative bacteria (K. pneumoniae), were used to investigate the antibacterial activity of the prepared Carbopol/ZnO hybrid nanoparticles gel. The observed results revealed that the inhibition activity of the Carbopol/ZnO hybrid nanoparticles gel was more active than the reference sample of ampicillin (see Figure 11), where the inhibition zone diameters were found at 27 ± 0.71 and 33 ± 0.62 for Bacillus subtilis and K. pneumoniae (ATCC 13883), respectively. Thus, the obtained values of the inhibition zone can illustrate the great inhibition effect of Carbopol/ZnO hybrid nanoparticles gel against the different types of bacterial strains. However, the value of the inhibition zone of Carbopol/ZnO hybrid nanoparticles gel against Staphylococcus aureus reached 37 ± 0.78 mm with a high sensitivity without any contamination effect [101,102]. In the same context, the ampicillin showed an asymmetrical and moderate effect on the inhibition of bacterial growth for both Bacillus subtilis and Staphylococcus aureus, while also facing a drastic resistance from the K. pneumonia, and thus it did not record any activity.
Sadek et al. mentioned that the value of the inhibition zone of bare metal nanoparticles (e.g., nZVI) against Staphylococcus aureus reached 9 mm [103]. Moreover, many previous studies reported the efficient antibacterial activity of inorganic nanogels-based metals/metals oxides. Whaid et al. have investigated the antibacterial activity of β-chitin/ZnO nanocomposite hydrogels against S. aureus and E. coli, which exhibited good bactericidal properties, and mentioned that collagen-dextran-ZnO NPs nanocomposites could serve as a kind of promising wound dressing with sustained drug delivery properties [104].
Gokmen et al. have studied the synergetic effect of hydrogel, nanoTiO2 doped hydrogel, and ZnO nanoflowers deposited nano TiO2 doped in biodegradable hydrogel against Staphylococcus aureus and Escherichia coli. They reported that these composites have achieved antibacterial activity towards these two bacteria as follows: 79.45%, 90.37%, and 99.98% against Staphylococcus aureus; and 57.03%, 80.79%, and 97.46% against Escherichia coli [105]. In addition, Yang et al. have mentioned that due to the high hydrophilicity, unique three-dimensional network, fine biocompatibility, and cell adhesion, the hydrogels are one of the suitable biomaterials for drug delivery in antimicrobial areas. Furthermore, they also stated that the antimicrobial hydrogels loaded with metal nanoparticles are a potential method to solve antibiotic resistance [106]. Additionally, Scalzo et al. studied the interaction effects of polyacrylic acid polymers (Carbopol 940) on the antimicrobial activity of methyl parahydroxybenzoate against some gram-negative and gram-positive bacteria and yeast, and the results revealed that the hydrophilic polymer, widely employed in many formulations, exerts, on the contrary, an interesting synergism on the microbicidal activity of the preserving agent against E. coli and P. Aeruginosa [107].
It is known that gram-negative bacteria are surrounded by a thin peptidoglycan cell wall, which itself is surrounded by an outer membrane containing lipopolysaccharide, while gram-positive bacteria lack an outer membrane but are surrounded by layers of peptidoglycan many times thicker than in gram-negative bacteria. According to the previous studies, several mechanisms have been suggested to specify the antibacterial property of metals/metals oxides and hydrogels, including the penetration of the cell envelope by these metal oxides/hydrogels, and damaging the cell membrane due to the production of reactive oxygen species (ROS). The elevated ROS leads to producing effects on the bacteria, of which lipid peroxidation is one of them, which affects the bacterial membrane’s integrity [51]. Furthermore, the elevated amounts of ROS cause oxidative stress within cells, eventually leading to cell death. ROS generation is known to be a prominent mechanism of cell death when cells are treated with nanoparticles [108,109]. It could assign the high antimicrobial activity of Carbopol/ZnO hybrid nanoparticles gel to the high stability of Carbopol/ZnO hybrid nanoparticles gel for a long time, which allows the included ZnO NPs within Carbopol gel to effectively produce more ROS. The Carbopol/ZnO hybrid nanoparticles gel has a distinctive antibacterial activity towards both the gram-positive and gram-negative bacteria. However, the significant activity of Carbopol/ZnO hybrid nanoparticles gel against Staphylococcus aureus may be attributed to the amont of ROS species that can easily penetrate the cell wall of gram-positive bacteria, due to its lack of an outer membrane resulting in high bacterial inhibition. On the contrary, the ROS species forfeits the ability to penetrate the thick cell wall of gram-negative bacteria, which makes it less effective [110].

4. Conclusions

High purity ZnO NPs, as well as Carbopol/ZnO hybrid nanoparticles gel, were synthesized using a wet chemical precipitation reaction with a high yield under the effect of the ultrasonic wave irradiation. The properties of the produced nanoparticles and the hybrid system were characterized using different characterization techniques. The obtained results revealed that the synthesized nanoparticles were composed mainly of ZnO wurtzite crystalline phases with a quazi-spherical shape and median particle sizes of 59.9 nm, a particle size distribution between ~9 and ~93 nm, and a surface area of 54.26 m2/g. It could be stated that the high values of zeta-potential in the Carbopol/ZnO hybrid nanoparticles (−21.7 mV) might be interpreted as the reason for the high bioactivity of Carbopol stabilized ZnO NPs against different bacterial species. The antibacterial activity of Carbopol/ZnO hybrid nanoparticles gel was screened against different gram-positive and gram-negative bacterial strains. It was found that the inhibition activity of Carbopol/ZnO hybrid nanoparticles gel was higher than the reference sample of the ampicillin drug itself. This study has highlighted the properties of Carbopol/ZnO hybrid nanoparticles gel as a potent antibacterial hybrid system with regards to the growth inhibition of microorganisms. This makes Carbopol/ZnO hybrid nanoparticles gel an interest of note as an efficient bacterial inhibitor for many applications.
