Single Crystals of the Isotypic Series BaLu2Ch4 (Ch = S, Se and Te) with CaFe2O4-Type Structure

Schurz, Christian M.; Schleid, Thomas

doi:10.3390/cryst1030078

Open AccessArticle

Single Crystals of the Isotypic Series BaLu₂Ch₄ (Ch = S, Se and Te) with CaFe₂O₄-Type Structure

by

Christian M. Schurz

and

Thomas Schleid

^*

Institut für Anorganische Chemie, Universität Stuttgart, Pfaffenwaldring 55, 70569 Stuttgart, Germany

^*

Author to whom correspondence should be addressed.

Crystals 2011, 1(3), 78-86; https://doi.org/10.3390/cryst1030078

Submission received: 1 June 2011 / Revised: 14 June 2011 / Accepted: 21 June 2011 / Published: 27 June 2011

Download

Browse Figures

Versions Notes

Abstract

: Single crystals of ternary chalcogenides with the composition BaLu₂Ch₄ (Ch = S, Se and Te; orthorhombic, Pnma; a = 1211.4−1353.6, b = 395.6−438.5, c = 1427.8−1593.6 pm) could be obtained after attempts to synthesize ternary lutetium(III) nitride chalcogenides using the elements (Lu and Ch) along with BaN₃Cl as a nitrogen source. Their crystal structures are isotypic with CaFe₂O₄ containing two sorts of

{}_{\infty}^{1}{{[Lu {Ch}_{4 / 4}^{e} {Ch}_{2 / 2}^{t}]}^{8 -}}

chains built up of edge-linked [(Lu1)(Ch2)(Ch3)₃(Ch4)₂]⁹⁻ and [(Lu2)(Ch1)₃(Ch2)₂(Ch4)]⁹⁻ octahedra, respectively. A further interconnection via the chalcogenide anions (Ch3)²⁻ and (Ch1)²⁻ leads to double chains, where either (Lu1)³⁺ or (Lu2)³⁺ coordinates these chalcogenide anions as well. The three-dimensional framework

{}_{\infty}^{3}{{[{Lu}_{2} {Ch}_{4}]}^{2 -}}

emerges from the corner-linkage of the two kinds of double chains forming large channels apt to take up the Ba²⁺ cations. These divalent cations exhibit eight contacts to chalcogenide anions resulting in the formation of bicapped trigonal prisms [BaCh₈]¹⁴⁻.

Keywords:

Lutetium; Chalcogenides; Barium; Crystal Structures

1. Introduction

Up until now many nitride chalcogenides of the lanthanides with the formulae Ln₃NCh₃ (Ch = S, Se) [1-5] and Ln₄N₂Ch₃ (Ch = S, Se, Te) [4,6-10] are known in the literature, mainly as compounds with the lighter representatives (Ln = La−Ho). Thus, the quest for a possible formation of nitride chalcogenides of the heaviest lanthanoid leads to formulation of the question, which nitrogen source would be most suitable for their synthesis? In order to test new educts for such experiments, the recently described barium azide chloride BaN₃Cl [11] offers a promising option. Unfortunately, these experiments failed in the case of lutetium and ternary chalcogenides with the general composition BaLu₂Ch₄ were obtained instead of the primary target products Lu₃NCh₃ or Lu₄N₂Ch₃ (Ch = S, Se, Te). This type of compound (M²⁺)(M³⁺)₂(Ch²⁻)₄ has been known for quite a long time with a huge range of combinations for chalcogenide anions (Ch²⁻), divalent (M²⁺) and trivalent cations (M³⁺), even for the lanthanides as rather large trivalent species (Ln³⁺). First studies within the systems alkaline-earth metals, rare-earth metals and chalcogens were carried out by Flahaut et al. [12] in the early 1960s. Since this time further groups have published many reports dealing with this class of compounds. Although several examples for lutetium-bearing chalcogenides were characterized, the combination of barium as divalent (Ba²⁺) and lutetium as trivalent cation (Lu³⁺) was barely investigated. The so far identified compounds M^IILu₂Ch₄ crystallize in three different structure types: MgAl₂O₄ (for M^II = Mg, Mn, Fe and Ch = S) [13-17], CaFe₂O₄ (for M^II = Ca, Eu, Pb and Ch = O, S, Se) [18-23] and Th₃P₄ (for M^II = Eu and Ch = S) [24]. Furthermore, besides BaY₂S₄ [25] and the defective crystal structure of Ba_0.9Sm₂S_3.9 [26] no other examples for sulfide-containing compounds with barium and rare-earth metal cations are known with the CaFe₂O₄-type arrangement hitherto, while many representatives for the compositions BaLn₂Se₄ [27] and BaLn₂Te₄ [28] could be synthesized. In this short paper the crystal structures of the three isotypic barium lutetium chalcogenides BaLu₂Ch₄ (Ch = S, Se and Te) will be presented and discussed.

2. Results and Discussion

Initially, nitride chalcogenides of the heavy lanthanoids should be synthesized by using barium azide chloride BaN₃Cl as a nitrogen source and fluxing agent. Instead of the target compounds several ternary chalcogenides with the formula type BaLn₂Ch₄ (Ln = Gd, Tb, Er, Tm, Lu; Ch = S, Se and Te) could be isolated and identified by X-ray single crystal and powder diffraction after washing the products with water. Although the first attempts to synthesize almost all of the compounds BaLn₂Ch₄ were successful and described by Bugaris and Ibers [27] and Narducci et al. [28], the lutetium representatives were not described in their papers.

The ternary chalcogenides BaLu₂Ch₄ crystallize in the orthorhombic system with the space group Pnma (Ch = S: a = 1211.43(6), b = 395.56(2), c = 1427.81(4) pm; Ch = Se: a = 1261.32(4), b = 410.89(1), c = 1487.74(4) pm; Ch = Te: a = 1353.58(8), b = 438.47(3), c = 1593.62(8) pm) and four formula units per unit cell representing the CaFe₂O₄-structure type (see Table 1 for atomic coordinates). All seven crystallographically independent atoms reside at Wyckoff positions 4c with the site symmetry m. The two trivalent lutetium cations are surrounded by six chalcogenide anions forming slightly distorted [(Lu1)(Ch2)(Ch3)₃(Ch4)₂]⁹⁻ and [(Lu2)(Ch1)₃(Ch2)₂(Ch4)]⁹⁻ octahedra (Figure 1, mid and right), while the divalent barium cations are coordinated by eight chalcogenide anions in the shape of bicapped trigonal prisms (Figure 1, left). Each of the four crystallographically different chalcogenide anions shows three contacts to lutetium and just two bonds to barium. The polyhedra can be described as more or less distorted square pyramids for (Ch1)²⁻, (Ch2)²⁻ and (Ch3)²⁻ as well as distorted trigonal bipyramids for (Ch4)²⁻.

All bond lengths between Ba²⁺ and its eight Ch²⁻ ligands (315−333 pm for Ch = S, 327−349 pm for Ch = Se, and 350−367 pm for Ch = Te, for details see Table 2) are similar to those obtained for the other representatives of the ternary barium sulfides BaLn₂S₄ (318−343 pm for Ln = Sm, Y) [25,26], selenides BaLn₂Se₄ (327–346 pm for Ln = Er−Yb) [28] and tellurides BaLn₂Te₄ (350−375 pm for Ln = Sm−Tm, Y) [27]. Comparable short distances between Lu³⁺ and Ch²⁻ as in the BaLu₂Ch₄ series (264−272 pm for Ch = S, 277−285 pm for Ch = Se, 298−306 pm for Ch = Te) can also be observed in Lu₂S₃ (E-type: 264−274 pm) [30], CaLu₂S4 (265−277 pm) [19], Lu₂Se₃ (Z-type: 279−286 pm) [31], EuLu₂Se₄ (275−282 pm) [21], CsCdLuTe₃ (307−311 pm) [32] and CsCuLu₂Te₄ (297–314 pm) [33]. A periodic effect regarding ionic radii and volume increments can be stated by a comparison of their influence on the molar volumes V_m of the title compounds in the order of increasing radii of the chalcogenide anions: sulfide (r = 184 pm), selenide (r = 198 pm) and telluride (r = 221 pm) [34]. The difference of the volume increments of these chalcogenide anions (16 cm³/mol between 4 × S²⁻ and 4 × Se²⁻ as well as 30 cm³/mol between 4 × Se²⁻ and 4 × Te²⁻) [35] are very similar to the obtained V_m differences of the ternary compounds (13 cm³/mol between BaLu₂S₄ and BaLu₂Se₄, 26 cm³/mol between BaLu₂Se₄ and BaLu₂Te₄).

The different surrounding of the two crystallographically distinct lutetium cations is manifested in the crystal structure as the [(Lu1)(Ch2)(Ch3)₃(Ch4)₂]⁹⁻ and [(Lu2)(Ch1)₃(Ch2)₂(Ch4)]⁹⁻ octahedra form two different kinds of ${}_{\infty}^{1}{{[(Lu) {Ch}_{4 / 4}^{e} {Ch}_{2 / 2}^{t}]}^{8 -}}$ chains by edge linkage. Interestingly, the chalcogenide anions (Ch3)²⁻ connect two ${}_{\infty}^{1}{{[(Lu 1) {Ch}_{4 / 4}^{e} {Ch}_{2 / 2}^{t}]}^{8 -}}$ strands to double chains running parallel to the [010] direction (Figure 2, left). The same holds for the (Ch1)²⁻ anions in the case of the (Lu2)²⁺-bearing congeners (Figure 2, right) and so, besides two extra Ba²⁺ contacts for all chalcogenide anions, (Ch1)²⁻ and (Ch3)²⁻ exhibit three contacts to only one sort of trivalent lutetium cation, while the (Ch2)²⁻ and (Ch4)²⁻ anions are bonded to both types of Lu³⁺. Both kinds of double chains are finally corner-connected according to the pattern in Figure 3, forming a three-dimensional framework ${}_{\infty}^{3}{{[{Lu}_{2} {Ch}_{4}]}^{2 -}}$ with channels that are occupied by the octacoordinated barium cations.

3. Experimental Section

Single crystals of BaLu₂S₄, BaLu₂Se₄ and BaLu₂Te₄ were accidentally (but reproducible) obtained after heating mixtures of lutetium metal, its trichloride, chalcogen and barium azide chloride in molar ratios of 26:2:27:6 designed to produce Lu₃NCh₃ [1-5] or Lu₄N₂Ch₃ [4,6-10] along with an excess of barium chloride as flux at 920 °C for ten days.

All three water- and air-stable products exhibit the shape of needles with different colors (BaLu₂S₄: colorless, BaLu₂Se₄: dark red, BaLu₂Te₄: black) and were characterized by single crystal X-ray diffraction (κ-CCD, Bruker-Nonius, Mo-Kα radiation with graphite monochromator: λ = 71.01 pm) at room temperature. Essential information about the structure solutions and refinements for the BaLu₂Ch₄ series (Ch = S, Se, Te) by using the program package SHELXS-97 and SHELX-97 [36] as well as X-SHAPE for correction for absorption [37] and scattering factors from the International Tables, Vol. C [38], is available in Table 3. Further details may be obtained from the Fachinformationszentrum (FIZ) Karlsruhe, D-76344 Eggenstein-Leopoldshafen, Germany (Fax: (+49)7247-808-666, E-mail: [email protected]), on quoting the depository numbers CSD-422891 (BaLu₂S₄), CSD-422892 (BaLu₂Se₄) and CSD-422893 (BaLu₂Te₄).

4. Conclusions

The crystal structures of all three barium lutetium chalcogenides BaLu₂Ch₄ (Ch = S, Se and Te) exhibit a CaFe₂O₄-type arrangement. As a particularity, the two crystallographically distinct trivalent lutetium cations can be found in two different types of ${}_{\infty}^{1}{{[Lu {Ch}_{4 / 4}^{e} {Ch}_{2 / 2}^{t}]}^{8 -}}$ chains. These first build double chains by edge-linkage, which are corner-connected further to form a three-dimensional ${}_{\infty}^{3}{{[{Lu}_{2} {Ch}_{4}]}^{2 -}}$ framework apt to embed divalent barium cations. It should be noted that these compounds were obtained in order to produce lutetium nitride chalcogenides (Lu₃NCh₃ or Lu₄N₂Ch₃) by using barium azide chloride as flux and a nitrogen source, which leads to the assumption that this starting material is not suitable as a source of nitrogen for these kinds of synthetic experiments.

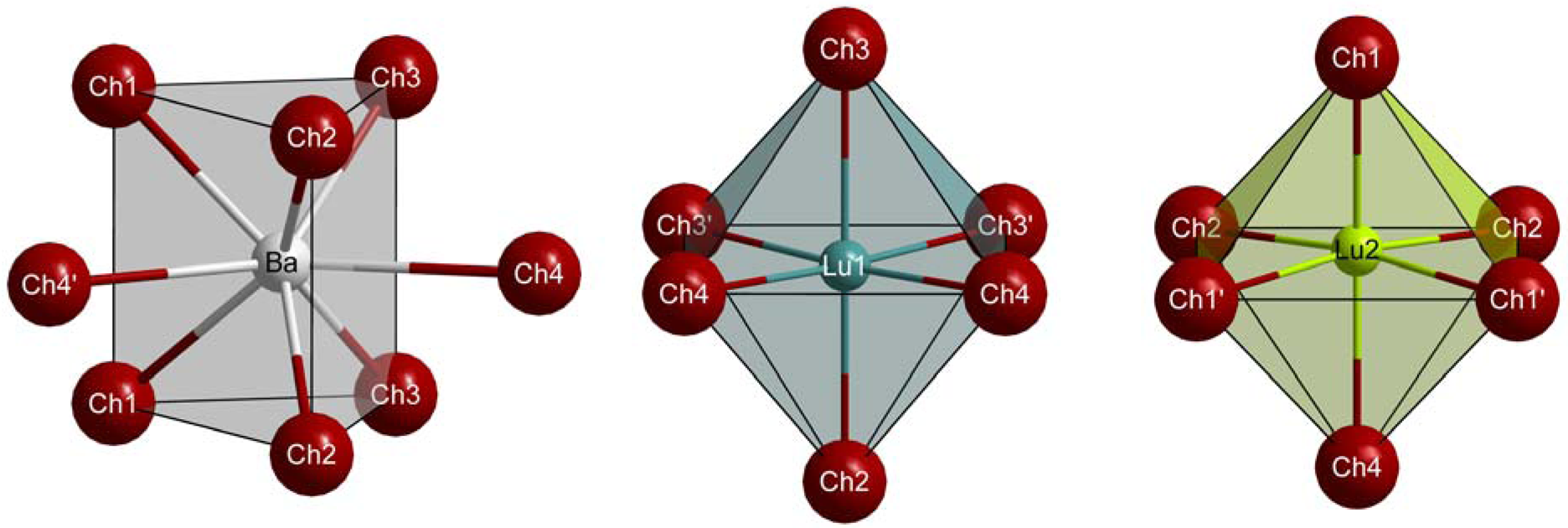

Figure 1. View at the coordination sphere of the Ba²⁺ (left), (Lu1)³⁺ (mid) and (Lu2)³⁺ cations (right) in the crystal structure of the BaLu₂Ch₄ series (Ch = S, Se and Te).

Figure 2. View of the

{}_{\infty}^{1}{{[(Lu 1) {Ch}_{4 / 4}^{e} {Ch}_{2 / 2}^{t}]}^{8 -}}

(left) and

{}_{\infty}^{1}{{[(Lu 2) {Ch}_{4 / 4}^{e} {Ch}_{2 / 2}^{t}]}^{8 -}}

chains (right), which both form double chains (below) of edge-connected [LuCh₆]⁹⁻ octahedra in the crystal structure of the BaLu₂Ch₄ series (Ch = S, Se and Te).

Figure 2. View of the

{}_{\infty}^{1}{{[(Lu 1) {Ch}_{4 / 4}^{e} {Ch}_{2 / 2}^{t}]}^{8 -}}

(left) and

{}_{\infty}^{1}{{[(Lu 2) {Ch}_{4 / 4}^{e} {Ch}_{2 / 2}^{t}]}^{8 -}}

chains (right), which both form double chains (below) of edge-connected [LuCh₆]⁹⁻ octahedra in the crystal structure of the BaLu₂Ch₄ series (Ch = S, Se and Te).

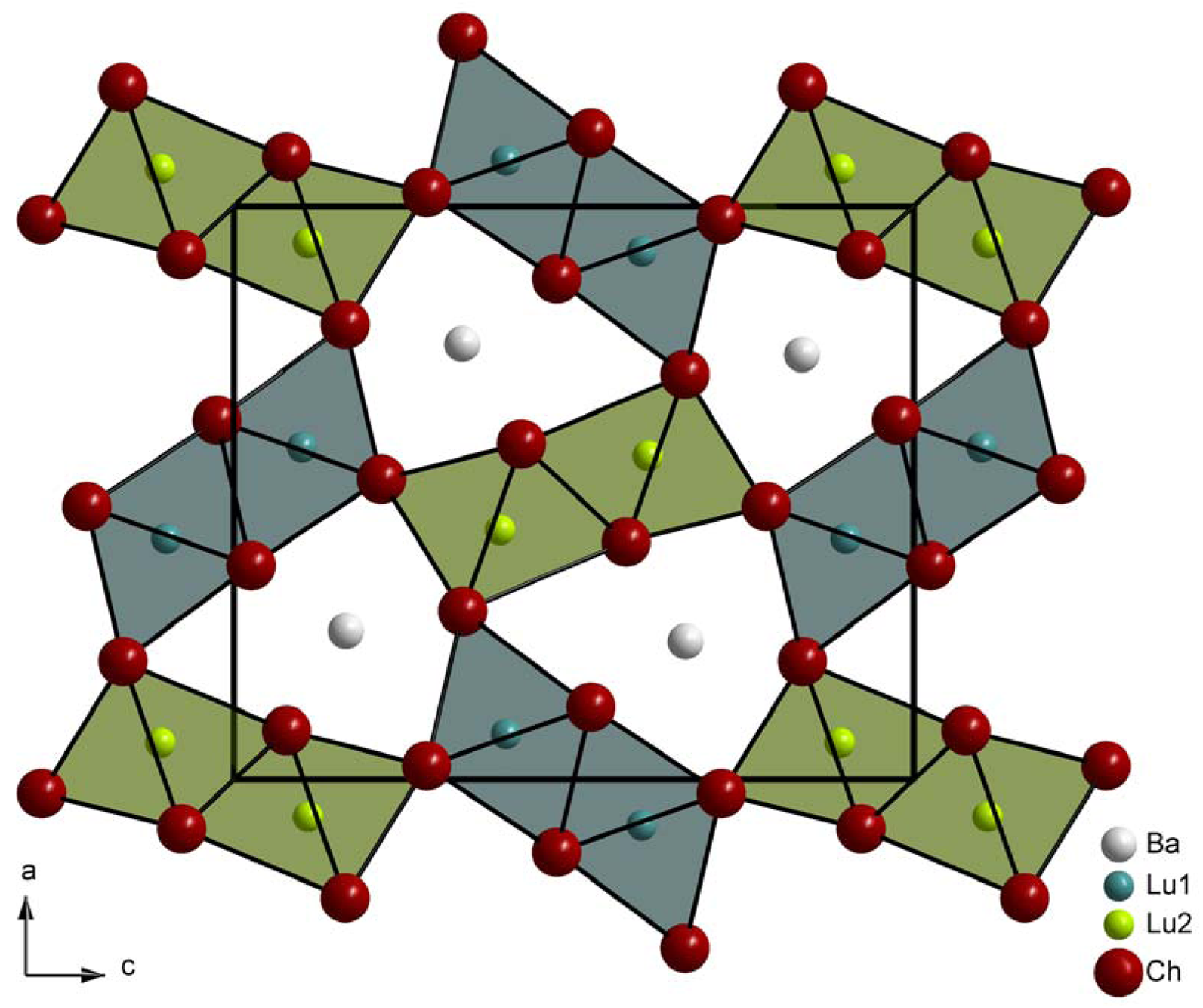

Figure 3. View of the crystal structure of the BaLu₂Ch₄ series (Ch = S, Se and Te), where the

{}_{\infty}^{3}{{[{Lu}_{2} {Ch}_{4}]}^{2 -}}

framework with channels is filled up by barium cations.

Figure 3. View of the crystal structure of the BaLu₂Ch₄ series (Ch = S, Se and Te), where the

{}_{\infty}^{3}{{[{Lu}_{2} {Ch}_{4}]}^{2 -}}

framework with channels is filled up by barium cations.

Table 1. Atomic coordinates and equivalent isotropic displacement coefficients (U_eq/pm²) for the three BaLu₂Ch₄ representatives (Ch = S, Se and Te).

**Table 1.** Atomic coordinates and equivalent isotropic displacement coefficients (U_eq/pm²) for the three BaLu₂Ch₄ representatives (Ch = S, Se and Te).
Atom	Wyckoff site	x/a	y/b	z/c	U_eqa)	Ch
Ba	4c	0.24128(12)	¼	0.66285(11)	154(4)	S
		0.23994(5)	¼	0.66557(4)	64(2)	Se
		0.23844(13)	¼	0.66986(11)	143(4)	Te

Lu1	4c	0.07937(8)	¼	0.39920(7)	140(3)	S
		0.07980(4)	¼	0.40077(3)	47(1)	Se
		0.08131(9)	¼	0.40350(7)	137(3)	Te

Lu2	4c	0.56482(8)	¼	0.60849(8)	146(3)	S
		0.56246(4)	¼	0.60870(3)	49(1)	Se
		0.55812(9)	¼	0.60972(7)	130(3)	Te

Ch1	4c	0.0822(5)	¼	0.0759(4)	142(12)	S
		0.08590(7)	¼	0.07604(6)	45(2)	Se
		0.09048(14)	¼	0.07529(12)	125(4)	Te

Ch2	4c	0.2929(5)	¼	0.3412(5)	149(12)	S
		0.29430(7)	¼	0.34133(6)	61(2)	Se
		0.29558(14)	¼	0.34259(12)	140(4)	Te

Ch3	4c	0.3766(5)	¼	0.0236(4)	132(12)	S
		0.37538(7)	¼	0.02521(6)	46(2)	Se
		0.37455(14)	¼	0.02823(12)	125(4)	Te

Ch4	4c	0.4772(5)	¼	0.7830(4)	137(12)	S
		0.47488(7)	¼	0.78338(6)	58(2)	Se
		0.47228(14)	¼	0.78407(12)	138(4)	Te

^a)U_eq = ⅓(U₁₁ + U₂₂ + U₃₃) [29].

Table 2. Selected internuclear distances (d/pm) for the three BaLu₂Ch₄ representatives (Ch = S, Se and Te).

**Table 2.** Selected internuclear distances (d/pm) for the three BaLu₂Ch₄ representatives (Ch = S, Se and Te).
			Ch = S	Ch = Se	Ch = Te
Ba	− Ch3	(2×)	314.7(5)	327.1(1)	349.8(2)
	− Ch1	(2×)	316.7(5)	329.0(1)	352.7(2)
	− Ch2	(2×)	325.1(5)	335.3(1)	354.9(2)
	− Ch4	(1×)	329.1(6)	342.8(1)	365.1(3)
	− Ch4′	(1×)	333.3(6)	344.3(1)	367.7(3)

Lu1	− Ch4	(2×)	267.2(4)	278.3(1)	299.3(1)
	− Ch3	(1×)	269.2(6)	280.4(1)	300.3(2)
	− Ch3′	(2×)	271.1(4)	282.3(1)	301.9(1)
	− Ch2	(1×)	271.7(6)	284.6(1)	305.8(2)

Lu2	− Ch1	(1×)	264.0(6)	276.4(1)	298.1(2)
	− Ch4	(1×)	270.8(6)	282.1(1)	301.2(2)
	− Ch 1′	(2×)	270.2(4)	282.4(1)	302.5(2)
	− Ch2	(2×)	272.0(4)	283.5(1)	305.1(2)

Table 3. Crystallographic data for the three BaLu₂Ch₄ representatives (Ch = S, Se and Te).

**Table 3.** Crystallographic data for the three BaLu₂Ch₄ representatives (Ch = S, Se and Te).
BaLu₂Ch₄	Ch = S	Ch = Se	Ch = Te
Crystal system	orthorhombic	orthorhombic	Orthorhombic
Space group	Pnma	Pnma	Pnma
a (pm)	1211.43(8)	1261.32(8)	1353.58(8)
b (pm)	395.56(3)	410.89(3)	438.47(3)
c (pm)	1427.81(9)	1487.74(9)	1593.62(9)
V_m (cm³/mol)/D_x (g/cm³)	103.007/5.975	116.081/6.918	142.394/7.006
Formula units (Z)	4	4	4
F(000)/θ_max	1048/28.2	1336/28.2	1624/28.2
±h/±k/±l	1 6/5/1 8	16/5 /19	17/5/21
Reflections (independent)	12319 (955)	10976 (1087)	17321 (1312)
(μ/mm⁻¹)	35.42	49.23	36.83
R_int/R_σ	0.078/0.047	0.062/0.036	0.094/0.061
R₁/wR₂	0.074/0.136	0.030/0.058	0.090/0.103
GooF	1.186	1.053	1.181

Acknowledgments

The authors want to thank Raphael Marx, Alexander Schwenger and Pia Talmon-Gros for their practical work as well as Falk Lissner for the X-ray diffraction data collection. This research was supported by the federal state of Baden-Württemberg (Stuttgart) and the Deutsche Forschungsgemeinschaft (DFG, Bonn).

References and Notes

Lissner, F.; Schleid, Th. M₃NS₃, die ersten Nitridsulfide der Lanthanide (M = La–Nd, Sm). Z. Anorg. Allg. Chem. 1993, 619, 1771–1776. [Google Scholar]
Lissner, F.; Schleid, Th. Ce₃NSe₃: Ein Cer(III)-Nitridselenid mit eckenverknüpften [NCe₄]⁹⁺-Tetraedern. Z. Anorg. Allg. Chem. 2004, 630, 1741. [Google Scholar]
Lissner, F.; Meyer, M.; Kremer, R.K.; Schleid, Th. M₃NS₃ (M = La−Nd, Sm, Gd−Dy): Struktur und Magnetismus von 3:1:3-Typ-Nitridsulfiden dreiwertiger Lanthanide. Z. Anorg. Allg. Chem. 2006, 632, 1995–2002. [Google Scholar]
Lissner, F.; Schleid, Th. Lanthanido ammonium cations [NM₄]⁹⁺ as main structural features in lanthanide (III) nitride chalcogenides and their derivatives. J. Alloys Compounds 2008, 451, 610–616. [Google Scholar]
Lissner, F.; Schleid, Th. Die nicht-isotypen Nitridselenide Dy₃NSe₃ und Ho₃NSe₃: Ketten und Dimere. Z. Anorg. Allg. Chem. 2009, 635, 815–821. [Google Scholar]
Lissner, F.; Schleid, Th. Ein neues Samariumnitridsulfid: Sm₄N₂S₃. Z. Anorg. Allg. Chem. 1994, 620, 2003–2007. [Google Scholar]
Lissner, F.; Schleid, Th. Nd₄N₂Se₃ und Tb₄N₂Se₃: Zwei nicht-isotype Lanthanoid(III)- Nitridselenide. Z. Anorg. Allg. Chem. 2003, 629, 1027–1032. [Google Scholar]
Lissner, F.; Schleid, Th. Pr₄N₂S₃ und Pr₄N₂Se₃: Zwei nicht-isotype Praseodymium(III)- Nitridchalkogenide. Z. Anorg. Allg. Chem. 2005, 631, 427–432. [Google Scholar]
Lissner, F.; Schleid, Th. M₄N₂Te₃ (M = La−Nd): Die ersten Nitridtelluride der dreiwertigen Lanthanide. Z. Anorg. Allg. Chem. 2005, 631, 1119–1124. [Google Scholar]
Lissner, F.; Schleid, Th. La₄N₂S₃: Ein neues Nitridsulfid des Lanthans mit beispielloser Kristallstruktur. Z. Anorg. Allg. Chem. 2006, 632, 1167–1172. [Google Scholar]
Blaschkowski, B.; Balzer, G.; Keller, H.L.; Schleid, Th. BaN₃Cl: Synthesis, Crystal Structure, Vibrational Spectra and Thermal Decomposition of Barium Azide Chloride. Z. Anorg. Allg. Chem. 2008, 634, 2276–2280. [Google Scholar]
Flahaut, J.; Domange, L.; Patrie, M. Combinaisons formées par les sulfures des elements du groupe des terres rares. Etude cristallographique des phases ayant le type structural du phosphure de thorium Th₃P₄. Bull. Soc. Chim. Fr. 1962, 1962, 2048–2054. [Google Scholar]
Patrie, M.; Flahaut, J.; Domange, L. Sur une nouvelle serie de spinelles soufres, contenant des terres rares ou du scandium. C. R. Hebd. Seances Acad. Sci. 1964, 258, 2585–2586. [Google Scholar]
Guittard, M.; Flahaut, J.; Souleau, C.; Farsam, H. Sur une nouvelle serie de spinelles selenies du terres rares, de l'yttrium et du scandium. C. R. Hebd. Seances Acad. Sci. 1964, 258, 2847–2849. [Google Scholar]
Fujii, H. Crystallographic, magnetic and electric properties of rare earth chalcogenide spinels. J. Sci. Hiroshima Univ. Ser. A-I 1972, 36, 67–75. [Google Scholar]
Tomas, A.; Brossard, L.; Guittard, M. Structural Studies by X-Ray Diffraction and Moessbauer Spectroscopy of Cubic FeYb₂S₄ and FeLu₂S₄. J. Solid State Chem. 1980, 34, 11–16. [Google Scholar]
Pawlak, L.; Duczmal, M. Magnetic and structural properties of iron and manganese lanthanide spinels. J. Alloys Compounds 1992, 184, 203–209. [Google Scholar]
Müller-Buschbaum, H.K.; von Schenk, R. Untersuchungen an SrYb₂O₄, CaYb₂O₄ und CaLu₂O₄: Ein Beitrag zur Kristallstruktur des Calciumferrat(III)-Typs. Z. Anorg. Allg. Chem. 1970, 377, 70–78. [Google Scholar]
Rodier, N.; Tien, V. Structure du sulfure mixte de calcium et de lutetium CaLu₂S₄. C. R. Hebd. Seances Acad. Sci. 1977, 284, 909–911. [Google Scholar]
Gulay, L.D.; Wolcyrz, M.; Pietraszko, A.; Olekseyuk, I.D. Investigations of the Tm₂Se₃-Cu₂Se- PbSe and Lu₂Se₃-Cu₂Se-PbSe systems at 870 K. Pol. J. Chem. 2006, 80, 1703–1704. [Google Scholar]
Gengbang, J.; Sang, C.E.; Guertin, R.P.; Albrecht-Schmitt, T.E. An investigation of structural parameters and magnetic and optical properties of EuLn₂Q₄ (Ln = Tb-Lu, Q = S, Se). J. Solid State Chem. 2008, 181, 14–19. [Google Scholar]
Gulay, L.D.; Daszkiewicz, M.; Shemet, V.Ya.; Pietraszko, A. Crystal structure of the R₂PbS₄ (R = Yb and Lu) compounds. J. Alloys Compounds 2008, 453, 143–146. [Google Scholar]
Hirose, K.; Doi, Y.; Hinatsu, Y. Magnetic properties of EuLn₂O₄ (Ln = rare earth). J. Solid State Chem. 2009, 182, 1624–1630. [Google Scholar]
Ishida, Y.; Kinomura, N.; Miyamoto, Y.; Kume, S.; Koizumi, M. Syntheses of EuLn₂S₄ and SrLn₂S₄ (Ln = Lu, Yb, Er, Y) with Th₃P₄ type structure. High Pressure Sci. Technol. 1979, 1, 1026–1032. [Google Scholar]
Lowe-Ma, C.K.; Vanderah, T.A.; Albrecht-Schmitt, T.E. The ternary yttrium sulfides, CaY₂S₄, SrY₂S₄, and BaY₂S₄: structures and properties. J. Solid State Chem. 1995, 117, 363–372. [Google Scholar]
Carpenter, J.D.; Hwu, S.-J. Single-crystal structure of BaSm₂S₄. Acta Crystallogr. 1992, C48, 1164–1167. [Google Scholar]
Bugaris, D.E.; Ibers, J.A. BaLn₂Se₄ (Ln = Er, Tm and Yb). Acta Crystallogr. 2009, C65, i60–i62. [Google Scholar]
Narducci, A.A.; Yang, Y.; Digman, M.A.; Sipes, A.B.; Ibers, J.A. An investigation of rare-earth telluride system BaLn₂Te₄ (Ln = Sm-Tm, Y): syntheses, crystal structures, and magnetic properties. J. Alloys Compounds 2000, 303-304, 432–439. [Google Scholar]
Fischer, R.X.; Tillmanns, E. The equivalent isotropic displacement factor. Acta Crystallogr. 1988, C44, 775–776. [Google Scholar]
Schleid, Th.; Lissner, F. Einkristalle von A-Nd₂S₃, U-Ho₂S₃, D-Er₂S₃ und E-Lu₂S₃ durch Oxidation reduzierter Chloride der Lanthanide mit Schwefel. Z. Anorg. Allg. Chem. 1999, 625, 1700–1706. [Google Scholar]
Folchnandt, M.; Schneck, C.; Schleid, Th. Über Sesquiselenide der Lanthanoide: Einkristalle von Ce₂Se₃ im C-, Gd₂Se₃ im U- und Lu₂Se₃ im Z-Typ. Z. Anorg. Allg. Chem. 2004, 630, 149–155. [Google Scholar]
Liu, Y.; Chen, L.; Wu, L.; Chan, G.H.; van Duyne, R.P. Synthesis, crystal and band structures, and magnetic and optical properties of new CsLnCdTe₃ (Ln = La, Pr, Nd, Sm, Gd−Tm, and Lu). Inorg. Chem. 2008, 47, 855–862. [Google Scholar]
Babo, J.-M. Syntheses and Crystal Structures of Quaternary Chalcogenides Containing Rare-Earth and Coinage Metals. PhD Thesis, University of Stuttgart, Germany, 2010; pp. 48–80. [Google Scholar]
Shannon, R.D. Revised effective ionic radii and systematic studies of interatomic distances in halides and chalcogenides. Acta Crystallogr. 1976, A32, 751–767. [Google Scholar]
Biltz, W. Raumchemie der festen Stoffe; Verlag von Leopold Voss: Leipzig, Germany, 1934; pp. 181–195. [Google Scholar]
Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122. [Google Scholar]
Herrendorf, W.; Bärnighausen, H. HABITUS: A Program for the Optimization of the Crystal Shape for Numerical Absorption Correction in X-SHAPE, version 1.06; Fa. Stoe, Darmstadt: Karlsruhe, Germany, 1996. [Google Scholar]
Hahn, Th.; Wilson, A.J.C. International Tables for Crystallography, 2nd ed.; Kluwer Academic Publishers: Boston, MA, USA, 1992; volume C. [Google Scholar]

© 2011 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
