Chromium Oxide Supported on Silicalite-1 Zeolite as a Novel Efficient Catalyst for Dehydrogenation of Isobutane Assisted by CO2

by
Yajun Luo
1,
Changxi Miao
2,*,
Yinghong Yue
1,
Weimin Yang
2,
Weiming Hua
1,* and
Zi Gao
1
1
Shanghai Key Laboratory of Molecular Catalysis and Innovative Materials, Department of Chemistry, Fudan University, Shanghai 200438, China
2
Shanghai Research Institute of Petrochemical Technology SINOPEC, Shanghai 201208, China
*
Authors to whom correspondence should be addressed.
Catalysts 2019, 9(12), 1040; https://doi.org/10.3390/catal9121040
Submission received: 3 November 2019 / Revised: 5 December 2019 / Accepted: 6 December 2019 / Published: 7 December 2019
(This article belongs to the Special Issue Microporous Zeolites and Related Nanoporous Materials: Synthesis, Characterization and Applications in Catalysis)
Browse Figures
Versions Notes

Abstract

:
The chromium oxide catalysts supported on silicalite-1 zeolite (Cr/S-1) with a Cr content between 0.5% and 7% were synthesized via an incipient wetness method. The catalysts were characterized by XRD, N2 adsorption, TEM-EDX, UV-vis, DRIFTS, 29Si MAS NMR, XPS, H2-TPR, and NH3-TPD. The optimum 3%Cr/S-1 catalyst with 3%Cr is more active and stable than SBA-15-supported one with the same Cr content, which is a consequence of a higher content of Cr6+ in the fresh 3%Cr/S-1 catalyst and a higher content of Cr6+ retained on the former catalyst during the reaction. The 3%Cr/S-1 catalyst affords an isobutane conversion of 36.5% with 71.2% isobutene selectivity. The catalytic activity is well correlated with the content of Cr6+ in the fresh catalysts. Carbon dioxide displays a promoting effect on the dehydrogenation reaction.

Graphical Abstract

1. Introduction

Isobutene is an important industrial chemical employed to produce butyl rubber, gasoline oxygenates (e.g., ethyl tert-butyl ether), and antioxidants (e.g., butylated hydroxyanisole) [1,2]. Its two main manufacture ways which rely on the source of petroleum, i.e., steam cracking of naphtha as well as fluidized catalytic cracking, cannot meet the increasing requirements. Due to the shortage of petroleum and environmental consideration, the dehydrogenation of small alkanes to alkenes assisted by CO2 has attracted more attention recently [3,4,5,6,7,8,9,10,11,12,13]. Compared to the oxidative dehydrogenation of light alkanes with O2, the beneficial employment of CO2 as a soft oxidant comprises improving the product selectivity as well as decreasing CO2 emissions [14,15]. Moreover, this route opens up a new way to utilize greenhouse CO2.
The catalysts which were attempted for isobutane dehydrogenation assisted by CO2 includes Cr2O3 [11,16], V2O5 [10,17,18], iron oxide [19], NiO [3], and V–Mg–O [20,21]. Ding et al. found that the isobutane conversion was enhanced from 29.8% to 50.3% for the dehydrogenation over active carbon-supported chromium oxide when replacing Ar with CO2 [16]. Cr-based catalysts were found to exhibit higher activities for dehydrogenation of small alkanes and ethylbenzene with CO2, and mesoporous silica molecular sieves (e.g., MCM-41 and SBA-15) were usually chosen as catalyst supports owing to their high mesopore volume and surface area [6,11,22,23,24]. Silicalite-1 is a siliceous zeolite with MFI structure. It is generally applied in the removal of volatile organic compounds [25], separation [26], acid catalyst [27,28], and catalyst support [29,30,31]. Silicalite-1 exhibits higher thermal and hydrothermal stability than SBA-15. Thus, higher catalytic stability would be expected when employing silicalite-1 as catalyst support. Herein, a novel efficient catalyst system, i.e., silicalite-1 zeolite supported chromium oxide (Cr/S-1), for CO2 assisted dehydrogenation of isobutane was developed, and compared with the chromia catalyst supported on SBA-15 (Cr/SBA). The catalytic result of Cr/S-1 was correlated with their physico-chemical properties, and the superior performance of Cr/S-1 to Cr/SBA was revealed.

2. Results and Discussion

2.1. Catalyst Characterization

The MFI structure of the Cr/S-1 catalysts is evidenced by their XRD patterns (Figure 1), i.e., diffraction peaks at 2θ = 8.0°, 8.9°, 23.1°, 23.3°, and 24.0° [12,32]. Crystalline Cr2O3 cannot be observed until the Cr content reaches 7%, indicating that chromium oxide is highly dispersed on silicate-1 zeolite at a Cr content ≤3%. The 3%Cr/SBA catalyst does not show Cr2O3 crystallites either (Figure 1a). The good preservation of the ordered hexagonal mesoporous structure of SBA-15 upon supporting chromia is demonstrated by the SAXS patterns (Figure S1). The more homogeneous distribution of chromium on 3%Cr/S-1 than 3%Cr/SBA is verified by the HAADF STEM mapping (Figure S2).
A surface area of 379 m2/g observed for silicalite-1 zeolite (Table 1) is similar to the value reported in the literature [30]. As the Cr content increases from 0.5% to 3%, the surface area, microporosity and mesoporosity (contribution from silicalite-1 intercrystalline voids) of the Cr/S-1 catalysts slightly decrease (Table 1). At a high content of Cr (7%), the microporosity obviously decreases, which can be attributed to the blockage of some micropores by large chromium oxide particles (evidenced by XRD observation).
The band at 541 cm−1 on the Raman spectra of the Cr/S-1 and 3%Cr/SBA catalysts is characteristic of Cr2O3 crystallites (Figure 2) [33,34,35]. This band does not appear until the Cr content achieves 3% for the Cr/S-1 catalysts. The stronger intensity of this band found for the 3%Cr/SBA catalyst than 3%Cr/S-1 suggests that chromium oxide is worse dispersed on the former catalyst, which is consistent with the result of STEM mapping. The band at 983 cm−1 and the shoulder at 1006 cm−1 are related to the Cr-O stretching of monochromate and polychromate species, respectively [6,36]. The band at 603 cm−1 occurred in the 3%Cr/SBA catalyst is associated with a tri-siloxane ring in SBA-15 [37].
The bands at 275 and 359 nm on the diffuse reflectance UV-vis spectra of the Cr/S-1 and 3%Cr/SBA catalysts are attributed to tetrahedral Cr6+ species, while the ones at 458 and 599 nm are assigned to octahedral Cr3+ species existing in Cr2O3 or CrOx clusters (Figure 3) [36,38]. The band at 599 nm cannot be found for the Cr/S-1 catalysts until the Cr content of 7%. 3%Cr/SBA shows the strongest intensity of this band, suggesting the worse dispersion of chromium oxide on 3%Cr/SBA than 3%Cr/S-1. The above result is consistent with those of XRD and STEM mapping.
The XPS spectra of the 3%Cr/S-1 and 3%Cr/SBA catalysts are depicted in Figure S3, and the XPS data are listed in Table 2. A remarkable decrease in the Cr6+ to Cr3+ ratio after isobutane dehydrogenation is indicative of the reduction of most Cr6+ to Cr3+. More Cr6+ was reduced to Cr3+ in the absence of CO2 than in the presence of CO2. The Cr6+ to Cr3+ ratio is greater for 3%Cr/S-1 than 3%Cr/SBA, both before and after the dehydrogenation reaction assisted by CO2. After isobutane dehydrogenation over 3%Cr/S-1 in the absence of CO2, followed by the treatment with CO2 at the same temperature, the Cr6+ to Cr3+ ratio increases from 0.91 to 1.97, but it is still lower than the value of the fresh catalyst (2.82). This finding implies that CO2 assisted isobutane dehydrogenation proceeds via a redox mechanism (Scheme 1).
The peak on the H2-TPR profiles of the Cr/S-1 and 3%Cr/SBA catalysts with peak temperatures between 364 and 424 °C is assigned to the reduction of Cr6+ to Cr3+ (Figure 4) [39,40,41]. An additional small peak at 213 °C is observed for the 7%Cr/S-1 catalyst, indicating that large chromia crystals exist on this catalyst in addition to the dispersed chromium oxide [42]. The H2-TPR data are presented in Table 1. The 3%Cr/S-1 catalyst exhibits a lower reduction in temperature than 3%Cr/SBA (364 °C vs. 373 °C), showing that the former catalyst displays higher reducibility than the latter one. The higher content of Cr6+ observed in 3%Cr/S-1 than 3%Cr/SBA (1.19% vs. 1.05%) could be related to the better dispersion of chromium species on silicalite-1 [11], as demonstrated by the STEM mapping result.
As revealed in Figure 5, silicalite-1 zeolite has three kinds of hydroxyl groups: Isolated silanol groups (3739 cm−1), vicinal silanol groups (3686 cm−1), and nest silanol groups (3493 cm−1) [27,43,44]. After supporting chromium oxide, the intensities of these -OH groups, particularly the nest silanol groups, diminish. The peak area ratio of nest silanol groups to isolated silanol ones declines from 16 to 5.0 after supporting chromia (3%Cr). This observation suggests that the number of silanol groups decreases via the interaction of Cr species with the -OH groups [29,44,45]. SBA-15 has only isolated silanol groups. Supporting chromium oxide on SBA-15 also leads to a decrease in the number of hydroxyl groups. The nest silanols have a higher local density of hydroxyls than isolated silanols [46], thus resulting in a stronger interaction between chromium species and nest silanols. Therefore, the better dispersion of chromium species on silicalite-1 than SBA-15 can be attributed to the abundant nest silanol groups present on the former support.
Figure S4 presents the 29Si MAS NMR spectra of some selected samples. For silicalite-1 and 3%Cr/S-1 samples, two resonances at −113 and −102 ppm correspond to Q4 and Q3 species representing (Si-[(OSi)4]) and (HO-Si-[(OSi)3]), respectively [28]. The ratio of Q3 to Q4 decreases from 0.108 for silicalite-1 to 0.096 for 3%Cr/S-1, indicating a loss of silanol groups. In the case of SBA-15 and 3%Cr/SBA, the broad signal can be deconvoluted into a few peaks. The peaks at ca. −90 and −100 ppm are attributed to Q2 ([HO]2-Si-[(OSi)2]) and Q3 species, respectively, while the ones below −102 ppm are assigned to Q4 species [23,47]. The lower (Q2 + Q3) to Q4 ratio observed for 3%Cr/SBA than SBA-15 (0.272 vs. 0.341) implies a decrease in the number of hydroxyl groups.

2.2. Catalytic Performance

The catalytic results of CO2 assisted isobutane dehydrogenation over the Cr/S-1 catalysts are shown in Figure 6 and Table 3. The effect of content of Cr in the Cr/S-1 catalysts on the initial conversion of isobutane and initial product selectivity is depicted in Figure S5. The initial isobutene selectivity declines from 79.7% to 71.2%, with increasing the Cr content from 0.5% to 3%, followed by a slight diminishment with further increasing the Cr content to 7%. The initial selectivities to C1-C3 (alkanes and alkenes) and butenes (except isobutene) follow the opposite variation trend. The activity is strongly dependent on the Cr content. The initial isobutane conversion improves markedly from 20.8% to 36.5% with increasing the Cr content from 0.5% to 3%, followed by a very slight decline in the conversion with further increasing the Cr content to 7%. The 3%Cr/S-1 catalyst displays the optimum activity, giving 36.5% isobutane conversion and 71.2% selectivity toward isobutene. As shown in Table 3, the catalyst which is more active for CO2 assisted dehydrogenation of isobutane displays higher activity for the conversion of CO2 to CO. The very small conversion of isobutane (ca. 3%) observed on silicalite-1 zeolite suggests that the dispersed chromium oxide on silicalite-1 is primarily responsible for the catalytic activity.
It is well accepted that CO2 assisted dehydrogenation of small alkanes over metal oxides with redox property (e.g., chromia and vanadia) proceeds through a redox mechanism [18,22,48,49]:
CnH2n+2 + MOx = CnH2n + MOx−1 + H2O
CO2 + MOx−1 = CO + MOx
The XPS results (Table 2) confirm that CO2 assisted isobutane dehydrogenation follows the redox mechanism (Scheme 1). According to this redox mechanism, one might envisage that the Cr/S-1 catalyst having a higher amount of Cr6+ species would favor the dehydrogenation reaction. This hypothesis is further demonstrated by a good correlation between the initial activity and the content of Cr6+ in the fresh Cr/S-1 catalysts as measured by H2-TPR (Figure 7). On the other hand, H2 was detectable in the products. The H2 to CO molar ratio for the Cr/S-1 catalysts is presented in Table 3. This finding suggests that besides the redox mechanism (i.e., a one-step pathway, i-C4H10 + CO2 = i-C4H8 + CO + H2O), a two-step pathway also occurs during the reaction, i.e., a simple dehydrogenation of isobutane coupled with the reverse water-gas shift (RWGS) reaction (Scheme 1). The results of a separate RWGS reaction carried out at 570 °C verify that the Cr/S-1 catalysts are indeed active for this reaction (Figure S6).
We chose the best 3%Cr/S-1 to investigate its catalytic performance under a CO2 or N2 atmosphere (Figure 8). In the case of CO2 atmosphere, this catalyst gives a 36.5% isobutane conversion with 71.2% isobutene selectivity after 10 min of reaction. In the case of N2 atmosphere, the initial isobutane conversion and isobutene selectivity are 30.8% and 67.5%, respectively. This finding suggests that CO2 displays a promoting effect on isobutane dehydrogenation. CO2 enhances the dehydrogenation reaction via a redox mechanism in which the catalyst undergoes reduction (by isobutane) and reoxidation (by carbon dioxide) cycles as well as the reaction coupling between a simple dehydrogenation of isobutane and the RWGS reaction, as illustrated in Scheme 1.
A comparison of 3%Cr/S-1 and 3%Cr/SBA catalysts indicates that the initial isobutane conversion is higher on 3%Cr/S-1 than 3%Cr/SBA (Figure 9, 36.5% vs. 33.5%), which is caused by the fact that the former catalyst possesses a higher content of Cr6+ than the latter one (1.19% vs. 1.05%). The higher isobutene selectivity observed for 3%Cr/SBA than 3%Cr/S-1 is due to the fact that the former catalyst has lower acidity and weaker acid sites. Two desorption peaks on the NH3-TPD profiles of both 3%Cr/S-1 and 3%Cr/SBA catalysts correspond to the weak and strong acid sites of the catalysts (Figure S7). The higher peak temperature observed for 3%Cr/S-1 than 3%Cr/SBA (393 °C vs. 320 °C) suggests that the former catalyst has stronger acid sites than the latter one. Moreover, the 3%Cr/S-1 catalyst has more acid sites than 3%Cr/SBA (0.445 vs. 0.266 mmol/g). Moreover, the 3%Cr/S-1 catalyst exhibits higher stability than 3%Cr/SBA. After 6 h of the reaction, the isobutane conversion for 3%Cr/S-1 and 3%Cr/SBA is 28.4% and 20.2%, respectively. Coking and the reduction of Cr6+ to Cr3+ are two causes responsible for the catalyst deactivation [11,50]. An in situ pretreatment of the 3%Cr/S-1 catalyst with 10% H2/Ar (30 mL/min) at 450 °C for 1 h leads to a decline in the initial activity from 36.5% to 32.3% (Figure 10), further confirming that the reduction of Cr6+ to Cr3+ is one of the causes for the deactivation of catalyst. The amount of coke on 3%Cr/S-1 and 3%Cr/SBA catalysts after 6 h of the reaction is 3.2% and 1.5%, respectively. The TPO profiles of both spent 3%Cr/S-1 and 3%Cr/SBA catalysts are shown in Figure S8. The peak temperature is lower for the former catalyst than the latter one (359 °C vs. 375 °C), suggesting that coke deposited on 3%Cr/S-1 is more easily burnt off. The NH3-TPD result accounts for the higher amount of coke on 3%Cr/S-1 than 3%Cr/SBA. The XPS result shows that after the reaction, the Cr6+ to Cr3+ ratio is higher for 3%Cr/S-1 than 3%Cr/SBA (Table 2, 1.19 vs. 0.72). This result implies that the reduced chromium species which interact with the nest silanols could be more easily reoxidized to Cr6+ species by CO2 during the dehydrogenation reaction. Hence, the higher catalytic stability of 3%Cr/S-1 than 3%Cr/SBA is ascribed to a higher amount of Cr6+ species retained during the reaction, which could be related to the abundant nest silanol groups present on the silicalite-1 support. There are no differences in the XRD patterns for the spent and fresh 3%Cr/S-1 catalysts (Figure S9), indicating the good maintenance of the catalyst structure. However, an evident diminishment in the intensity of XRD patterns for the spent 3%Cr/SBA catalyst in comparison with the fresh one was observed, suggesting a degradation of the ordered hexagonal arrangement of the SBA-15 mesopores. This is another cause for the lower catalytic stability of the 3%Cr/SBA catalyst.

3. Materials and Methods

3.1. Catalyst Preparation

Silicalite-1 zeolite was synthesized as follows [51]. Tetrapropylammonium hydroxide (TPAOH, 25% aqueous solution), tetraethyl orthosilicate (TEOS), and distilled water were mixed to obtain a clear suspension (9TPAOH:25SiO2:480H2O, molar composition). The above mixture was stirred at room temperature to hydrolyze TEOS for 4 h, followed by being transferred into an autoclave and crystallized at 170 °C for 72 h. The obtained product was filtered, washed, and dried at 100 °C overnight, followed by calcination at 550 °C for 4 h in air.
The silicalite-1-supported chromium oxide catalysts were prepared through an incipient wetness method employing Cr(NO3)3·9H2O as the precursor. The impregnated samples were dried at 100 °C overnight, followed by calcination in air at 600 °C for 6 h. The obtained catalysts were designated as x%Cr/S-1, where x% represents the weight percentage of Cr in the catalysts. For the purpose of comparison, the 3%Cr/SBA catalyst (3%Cr) was prepared in the same way using SBA-15 as the support. SBA-15 was prepared according to the literature [52].

3.2. Catalyst Characterization

X-ray diffraction (XRD) measurements were performed with a D2 PHASER X-ray diffractometer (Brucker, Madison, WI, USA) at 40 mA and 40 kV. Small-angle X-ray scattering (SAXS) measurements were performed with a Nanostar U SAXS system (Brucker, Madison, WI, USA) using Cu Kα radiation at 35 mA and 40 kV. The surface areas and pore volumes of the catalysts were measured by N2 adsorption on a Tristar 3000 instrument (Micromeritics, Atlanta, GA, USA). The HAADF-STEM images and elemental mapping were acquired with a Tecnai G2 F20 S-TWIN instrument (FEI, Hillsboro, TX, USA). Diffuse reflectance ultraviolet-visible (UV-vis) spectra were collected with a Lambda 650S spectrometer (Perkin-Elmer, Waltham, MA, USA). Raman spectra were collected with an XploRA spectrometer (HORIBA Jobin Yvon, Paris, France). The exciting light wavelength was 532 nm. X-ray photoelectron spectroscopy (XPS) measurements were performed on a PHI 5000C spectrometer with Mg Kα radiation (Perkin-Elmer, Waltham, MA, USA). 29Si MAS NMR characterization was carried out with an AVANCE III 400WB instrument (Brucker, Rheinstetten, Germany). To analyze the amount of deposited coke on the catalyst after reaction, thermogravimetric (TG) analysis was carried out in flowing air with a TGA8000 apparatus (Perkin-Elmer, Waltham, MA, USA).
Temperature-programmed desorption of NH3 (NH3-TPD), temperature-programmed reduction of H2 (H2-TPR), and temperature-programmed oxidation (TPO) characterizations were performed on an AutoChem II instrument (Micromeritics, Atlanta, GA, USA). We pretreated 0.1 g of sample (40–60 mesh) in situ at 550 °C in N2 flow for 1 h before the measurement. In the case of NH3-TPD experiment, the temperature was cooled to 80 °C, and the flow was changed to 10 vol.% NH3/He (30 mL/min) and maintained at 80 °C for 2 h, followed by being swept with He (30 mL/min) for 2 h. Then, the sample was heated in He (30 mL/min) to 600 °C at a ramp rate of 10 °C/min. In the case of H2-TPR experiment, the temperature was cooled to 100 °C, and the flow was switched to 10% H2/Ar (30 mL/min), followed by heating to 650 °C at a ramp rate of 10 °C/min. In the case of TPO experiment, the temperature was cooled to 150 °C, and the flow was changed to 3% O2/He (30 mL/min), followed by heating to 650 °C at a ramp rate of 10 °C/min. Diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS) spectra were recorded at 300 °C on a Nicolet 6700 spectrometer (ThermoFisher, Waltham, MA, USA) equipped with an MCT detector and a heating accessory. The sample was pretreated in situ in flowing He (30 mL/min) at 450 °C for 1 h before the measurement.

3.3. Catalytic Evaluation

Catalytic performance in CO2 assisted dehydrogenation of isobutane was carried at 570 °C in a fixed-bed quartz tube reactor (6 mm internal diameter) under ambient pressure. The catalyst loading was 0.1 g. The catalyst (40–60 mesh) was activated in situ in N2 flow at 570 °C for 1 h before the reaction. The feed gas contained 50 vol.% CO2 and 50 vol.% isobutane (2.9 mL/min of isobutane), i.e., the weight hourly space velocity of 4.1 h−1 for isobutane. In the case of isobutane dehydrogenation in the absence of CO2, CO2 was replaced by N2, while keeping the other reaction conditions the same. In the case of reverse water–gas shift reaction, the feed gas contained 50 vol.% H2 and 50 vol.% CO2 (2.9 mL/min of CO2), while keeping the other reaction conditions the same. The hydrocarbon products were in-situ analyzed with a GC (FID and HP-AL/S capillary column). The column temperature was 100 °C. CO and CO2 were in-situ analyzed with another GC (TCD and carbon molecular sieve 601 packed column). The column temperature was 70 °C. The conversion and selectivity were calculated using the standard normalization method.

4. Conclusions

In this work, we have explored the silicalite-1-supported chromium oxide catalysts for isobutane dehydrogenation assisted by CO2. This family of catalysts is shown to be effective for the reaction. A good correlation between the initial activity of the Cr/S-1 catalysts and content of Cr6+ in the fresh catalysts is established. CO2 promotes the isobutane dehydrogenation via a redox mechanism and two-step pathway. The best 3%Cr/silicalite-1 catalyst gives an isobutane conversion of 36.5% with 71.2% isobutene selectivity. The greater initial activity observed for 3%Cr/S-1 than 3%Cr/SBA is attributed to a higher content of Cr6+ in the fresh 3%Cr/S-1 catalyst, and the better catalytic stability for the former catalyst than the latter one is associated with a higher content of Cr6+ retained on the former catalyst during the reaction. This finding could be related to the abundant nest silanol groups present on the silicalite-1 support.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/12/1040/s1, Figure S1: SAXS patterns of SBA-15 and 3%Cr/SBA, Figure S2: HAADF STEM images (left) and corresponding EDX elemental mapping of Cr (right). (a) 3%Cr/S-1; (b) 3%Cr/SBA, Figure S3: XPS spectra of Cr 2p on the fresh and spent 3%Cr/S-1 and 3%Cr/SBA catalysts. (a) fresh 3%Cr/S-1; (b) 3%Cr/S-1 after isobutane dehydrogenation in the presence of CO2 at 570 °C for 6 h; (c) 3%Cr/S-1 after isobutane dehydrogenation in the absence of CO2 (i.e., using N2 instead of CO2) at 570 °C for 6 h; (d) 3%Cr/S-1 after isobutane dehydrogenation in the absence of CO2 at 570 °C for 6 h, followed by treatment with CO2 at 570 °C for 0.5 h; (e) fresh 3%Cr/SBA; (f) 3%Cr/SBA after isobutane dehydrogenation in the presence of CO2 at 570 °C for 6 h, Reaction conditions: 570 °C, 0.1 g catalyst, CO2 (N2)/i-C4H10 = 1 (mol/mol), WHSV = 4.1 h−1, Figure S4: 29Si MAS NMR spectra of (a) Silicalite-1, (b) 3%Cr/S-1, (c) SBA-15 and (d) 3%Cr/SBA, Figure S5: The effect of content of Cr in the Cr/S-1 catalysts on the initial conversion of isobutane and initial product selectivity. Reaction conditions: 570 °C, 0.1 g catalyst, CO2/i-C4H10 = 1 (mol/mol), WHSV = 4.1 h−1. Figure S6: The results of the reverse water gas shift reaction over the Cr/S-1 catalysts at 570 °C. (■) 0.5%Cr/S-1; (●) 1%Cr/S-1; (▲) 2%Cr/S-1; (▼) 3%Cr/S-1; (◆) 7%Cr/S-1. Reaction conditions: 0.1 g catalyst, CO2/H2 = 1 (mol/mol), 2.9 mL/min of CO2. Figure S7: NH3-TPD profiles of (a) 3%Cr/SBA and (b) 3%Cr/S-1, Figure S8: TPO profiles of both spent 3%Cr/S-1 and 3%Cr/SBA catalysts. Reaction conditions are the same as given in caption to Figure S5. Figure S9: (a) SAXS patterns of 3%Cr/SBA and (b) XRD patterns of 3%Cr/S-1 before and after isobutane dehydrogenation assisted by CO2. Reaction conditions are the same as given in caption to Figure S5.

Author Contributions

C.M., W.H. conceived and designed the experiments; Y.L. performed the experiments; Y.Y., W.H. and Z.G. analyzed the data; Y.L. wrote the paper; C.M., W.Y. and W.H. revised the paper.

Acknowledgments

This work was financially supported by the National Key R&D Program of China (2017YFB0602200), the National Natural Science Foundation of China (91645201), the Science and Technology Commission of Shanghai Municipality (13DZ2275200) and the Shanghai Research Institute of Petrochemical Technology SINOPEC (17ZC06070001).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sun, J.; Zhu, K.; Gao, F.; Wang, C.; Liu, J.; Peden, C.H.F.; Wang, Y. Direct conversion of bio-ethanol to isobutene on nanosized ZnxZryOz mixed oxides with balanced acid–base sites. J. Am. Chem. Soc. 2011, 133, 11096–11099. [Google Scholar] [CrossRef] [PubMed]
  2. Luttrell, W.E. Isobutylene. J. Chem. Health Saf. 2013, 20, 35–37. [Google Scholar] [CrossRef]
  3. Ding, J.F.; Qin, Z.F.; Li, X.K.; Wang, G.F.; Wang, J.G. Catalytic dehydrogenation of isobutane in the presence of carbon dioxide over nickel supported on active carbon. J. Mol. Catal. A 2010, 315, 221–225. [Google Scholar] [CrossRef]
  4. Chen, M.; Wu, J.L.; Liu, Y.M.; Cao, Y.; Guo, L.; He, H.Y.; Fan, K.N. Study in support effect of In2O3/MOx (M = Al, Si, Zr) catalysts for dehydrogenation of propane in the presence of CO2. Appl. Catal. A 2011, 407, 20–28. [Google Scholar] [CrossRef]
  5. Michorczyk, P.; Ogonowski, J.; Zenczak, K. Activity of chromium oxide deposited on different silica supports in the dehydrogenation of propane with CO2—A comparative study. J. Mol. Catal. A 2011, 349, 1–12. [Google Scholar] [CrossRef]
  6. Baek, J.; Yun, H.J.; Yun, D.; Choi, Y.; Yi, J. Preparation of highly dispersed chromium oxide catalysts supported on mesoporous silica for the oxidative dehydrogenation of propane using CO2: Insight into the nature of catalytically active chromium sites. ACS Catal. 2012, 2, 1893–1903. [Google Scholar] [CrossRef]
  7. Wu, J.L.; Chen, M.; Liu, Y.M.; Cao, Y.; He, H.Y.; Fan, K.N. Sucrose-templated mesoporous β-Ga2O3 as a novel efficient catalyst for dehydrogenation of propane in the presence of CO2. Catal. Commun. 2013, 30, 61–65. [Google Scholar] [CrossRef]
  8. Koirala, R.; Buechel, R.; Krumeich, F.; Pratsinis, S.E. Oxidative dehydrogenation of ethane with CO2 over flame-made Ga-loaded TiO2. ACS Catal. 2015, 5, 690–702. [Google Scholar] [CrossRef]
  9. Rahmani, F.; Haghighi, M.; Amini, M. The beneficial utilization of natural zeolite in preparation of Cr/clinoptilolite nanocatalyst used in CO2-oxidative dehydrogenation of ethane to ethylene. J. Ind. Eng. Chem. 2015, 31, 142–155. [Google Scholar] [CrossRef]
  10. Wei, C.L.; Xue, F.Q.; Miao, C.X.; Yue, Y.H.; Yang, W.M.; Hua, W.M.; Gao, Z. Dehydrogenation of isobutane with carbon dioxide over SBA-15-supported vanadium oxide catalysts. Catalysts 2016, 6, 171. [Google Scholar] [CrossRef] [Green Version]
  11. Wei, C.L.; Xue, F.Q.; Miao, C.X.; Yue, Y.H.; Yang, W.M.; Hua, W.M.; Gao, Z. Dehydrogenation of isobutane to isobutene with carbon dioxide over SBA-15-supported chromia-ceria catalysts. Chin. J. Chem. 2017, 35, 1619–1626. [Google Scholar] [CrossRef]
  12. Cheng, Y.H.; Lei, T.Q.; Miao, C.X.; Hua, W.M.; Yue, Y.H.; Gao, Z. Ga2O3/NaZSM-5 for C2H6 dehydrogenation in the presence of CO2: Conjugated effect of silanol. Micropor. Mesopor. Mater. 2018, 268, 235–242. [Google Scholar] [CrossRef]
  13. Lei, T.Q.; Guo, H.Y.; Miao, C.X.; Hua, W.M.; Yue, Y.H.; Gao, Z. Mn-doped CeO2 nanorod supported Au catalysts for dehydrogenation of ethane with CO2. Catalysts 2019, 9, 119. [Google Scholar] [CrossRef] [Green Version]
  14. Wang, S.B.; Zhu, Z.H. Catalytic conversion of alkanes to olefins by carbon dioxide oxidative dehydrogenations—A review. Energy Fuels 2004, 18, 1126–1139. [Google Scholar] [CrossRef]
  15. Mukherjee, D.; Parkb, S.E.; Reddy, B.M. CO2 as a soft oxidant for oxidative dehydrogenation reaction: An ecobenign process for industry. J. CO2 Util. 2016, 16, 301–312. [Google Scholar] [CrossRef]
  16. Ding, J.F.; Qin, Z.F.; Li, X.K.; Wang, G.F.; Wang, J.G. Coupling dehydrogenation of isobutane in the presence of carbon dioxide over chromium oxide supported on active carbon. Chin. Chem. Lett. 2008, 19, 1059–1062. [Google Scholar] [CrossRef]
  17. Ogonowski, J.; Skrzyńska, E. Dehydrogenation of isobutane in the presence of carbon dioxide over supported vanadium oxide catalysts. React. Kinet. Catal. Lett. 2006, 88, 293–300. [Google Scholar] [CrossRef]
  18. Yuan, R.X.; Li, Y.; Yan, H.B.; Wang, H.; Song, J.; Zhang, Z.S.; Fan, W.B.; Chen, J.G.; Liu, Z.W.; Liu, Z.T.; et al. Insights into the vanadia catalyzed oxidative dehydrogenation of isobutane with CO2. Chin. J. Catal. 2014, 35, 1329–1336. [Google Scholar] [CrossRef]
  19. Shimada, H.; Akazawa, T.; Ikenaga, N.; Suzuki, T. Dehydrogenation of isobutane to isobutene with iron-loaded activated carbon catalyst. Appl. Catal. A 1998, 168, 243–250. [Google Scholar] [CrossRef]
  20. Ogonowski, J.; Skrzyńska, E. Catalytic dehydrogenation of isobutane in the presence of carbon dioxide. React. Kinet. Catal. Lett. 2005, 86, 195–201. [Google Scholar] [CrossRef]
  21. Ogonowski, J.; Skrzyńska, E. Activity of vanadium magnesium oxide supported catalysts in the dehydrogenation of isobutane. Catal. Lett. 2006, 111, 79–85. [Google Scholar] [CrossRef]
  22. Shi, X.J.; Ji, S.F.; Wang, K. Oxidative Dehydrogenation of ethane to ethylene with carbon dioxide over Cr–Ce/SBA-15 catalysts. Catal. Lett. 2008, 125, 331–339. [Google Scholar] [CrossRef]
  23. Cheng, Y.H.; Zhou, L.B.; Xu, J.X.; Miao, C.X.; Hua, W.M.; Yue, Y.H.; Gao, Z. Chromium-based catalysts for ethane dehydrogenation: Effect of SBA-15 support. Micropor. Mesopor. Mater. 2016, 234, 370–376. [Google Scholar] [CrossRef]
  24. Ohishi, Y.; Kawabata, T.; Shishido, T.; Takaki, K.; Zhang, Q.H.; Wang, Y.; Takehira, K. Dehydrogenation of ethylbenzene with CO2 over Cr-MCM-41 catalyst. J. Mol. Catal. A 2005, 230, 49–58. [Google Scholar] [CrossRef]
  25. Li, J.X.; Shi, C.H.; Zhang, H.F.; Zhang, X.F.; Wei, Y.Y.; Jiang, K.; Zhang, B.G. Silicalite-1 zeolite membrane: Synthesis by seed method and application in organics removal. Chemosphere 2019, 218, 984–991. [Google Scholar] [CrossRef] [PubMed]
  26. Wu, A.; Tang, C.Y.; Zhong, S.L.; Wang, B.; Zhou, J.J.; Zhou, R.F. Synthesis optimization of (h0h)-oriented silicalite-1 membranes for butane isomer separation. Sep. Purif. Technol. 2019, 214, 51–60. [Google Scholar] [CrossRef]
  27. Heitmann, G.P.; Dahlhoff, G.; Hölderich, W.F. Catalytically active sites for the Beckmann rearrangement of cyclohexanone oxime to ε-Caprolactam. J. Catal. 1999, 186, 12–19. [Google Scholar] [CrossRef]
  28. Lanzafame, P.; Barbera, K.; Perathoner, S.; Centi, G.; Aloise, A.; Migliori, M.; Macario, A.; Nagy, J.B.; Giordano, G. The role of acid sites induced by defects in the etherification of HMF on Silicalite-1 catalysts. J. Catal. 2015, 330, 558–568. [Google Scholar] [CrossRef]
  29. Shi, L.H.; Liu, G.D.; Guo, H.C. Efficient Pt/Silicalite-1 catalyst for isomerization of n-heptane. Catal. Commun. 2017, 101, 111–115. [Google Scholar] [CrossRef]
  30. Wang, D.; Wang, J.F.; Lu, C.Y.; Zou, X.L.; Cheng, H.W.; Ning, J.Y.; Lu, X.G.; Zhou, Z.F. Hydrogen production from coke oven gas by CO2 reforming over a novel Ni-doped Silicalite-1. Catal. Lett. 2018, 148, 1424–1434. [Google Scholar] [CrossRef] [Green Version]
  31. Niu, R.Y.; Liu, P.C.; Li, W.; Wang, S.; Li, J.P. High performance for oxidation of low-concentration methane using ultra-low Pd in silicalite-1 zeolite. Micropor. Mesopor. Mater. 2019, 284, 235–240. [Google Scholar] [CrossRef]
  32. Sang, S.; Chang, F.; Liu, Z.; He, C.; He, Y.; Xu, L. Difference of ZSM-5 zeolites synthesized with various templates. Catal. Today 2004, 93–95, 729–734. [Google Scholar] [CrossRef]
  33. Zaki, M.I.; Fouad, N.E.; Leyrev, J.; Knözinger, H. Physicochemical investigation of calcined chromia-coated silica and alumina catalysts—Characterization of chromium-oxygen species. Appl. Catal. 1986, 21, 359–377. [Google Scholar] [CrossRef]
  34. Grzybowska, B.; Sloczynski, J.; Grabowski, R.; Wcislo, K.; Kozlowska, A.; Stoch, J.; Zielinski, J. Chromium oxide alumina catalysts in oxidative dehydrogenation of isobutane. J. Catal. 1998, 178, 687–700. [Google Scholar] [CrossRef]
  35. Gao, B.; Luo, Y.J.; Miao, C.X.; Yue, Y.H.; Yang, W.M.; Hua, W.M.; Gao, Z. Oxidative dehydrogenation of 1-butene to 1,3-butadiene using CO2 over Cr-SiO2 catalysts prepared by sol-gel method. Chem. Res. Chin. Univ. 2018, 34, 609–615. [Google Scholar] [CrossRef]
  36. Weckhuysen, B.M.; Wachs, I.E.; Schoonheydt, R.A. Surface chemistry and spectroscopy of chromium in inorganic oxides. Chem. Rev. 1996, 96, 3327–3349. [Google Scholar] [CrossRef] [Green Version]
  37. Gao, X.; Bare, S.R.; Weckhuysen, B.; Wachs, I.E. In situ spectroscopic investigation of molecular structures of highly dispersed vanadium oxide on silica under various conditions. J. Phys. Chem. B 1998, 102, 10842–10852. [Google Scholar] [CrossRef] [Green Version]
  38. Takehira, K.; Ohishi, Y.; Shishido, T.; Kawabata, T.; Takaki, K.; Zhang, Q.H.; Wang, Y. Behavior of active sites on Cr-MCM-41 catalysts during the dehydrogenation of propane with CO2. J. Catal. 2004, 224, 404–416. [Google Scholar] [CrossRef]
  39. Cherian, M.; Rao, M.S.; Yang, W.T.; Jehng, J.M.; Hirt, A.M.; Deo, G. Oxidative dehydrogenation of propane over Cr2O3/Al2O3 and Cr2O3 catalysts: Effects of loading, precursor and surface area. Appl. Catal. A 2002, 233, 21–33. [Google Scholar] [CrossRef]
  40. Yim, S.D.; Nam, I.S. Characteristics of chromium oxides supported on TiO2 and Al2O3 for the decomposition of perchloroethylene. J. Catal. 2004, 221, 601–611. [Google Scholar] [CrossRef]
  41. Zhu, Q.J.; Takiguchi, M.; Setoyama, T.; Yokoi, T.; Kondo, J.N.; Tatsumi, T. Oxidative dehydrogenation of propane with CO2 over Cr/H[B]MFI catalysts. Catal. Lett. 2011, 141, 670–677. [Google Scholar] [CrossRef]
  42. Ye, X.N.; Hua, W.M.; Yue, Y.H.; Dai, W.L.; Miao, C.X.; Xie, Z.K.; Gao, Z. Ethylbenzene dehydrogenation to styrene in the presence of carbon dioxide over chromia-based catalysts. New J. Chem. 2014, 28, 373–378. [Google Scholar] [CrossRef]
  43. Barbera, K.; Bonino, F.; Bordiga, S.; Janssens, T.V.W.; Beato, P. Structure-deactivation relationship for ZSM-5 catalysts governed by framework defects. J. Catal. 2011, 280, 196–205. [Google Scholar] [CrossRef]
  44. Liu, G.D.; Liu, J.X.; He, N.; Miao, C.L.; Wang, J.L.; Xin, Q.; Guo, H.C. Silicalite-1 zeolite acidification by zinc modification and its catalytic properties for isobutane conversion. RSC Adv. 2018, 8, 18663–18671. [Google Scholar] [CrossRef] [Green Version]
  45. Zhao, H.H.; Song, H.L.; Chou, L.J.; Zhao, J.; Yang, J.; Yan, L. Insight into the structure and molybdenum species in mesoporous molybdena–alumina catalysts for isobutane dehydrogenation. Catal. Sci. Technol. 2017, 7, 3258–3267. [Google Scholar] [CrossRef]
  46. Zecchina, A.; Bordiga, S.; Spoto, G.; Marchese, L.; Petrini, G.; Leofanti, G.; Padovan, M. Silicalite characterization. 1. Structure, adsorptive Capacity, and IR spectroscopy of the framework and hydroxyl modes. J. Phys. Chem. 1992, 96, 4985–4990. [Google Scholar] [CrossRef]
  47. Benamor, T.; Michelin, L.; Lebeau, B.; Marichal, C. Flash induction calcination: A powerful tool for total template removal and fine tuning of the hydrophobic/hydrophilic balance in SBA-15 type silica mesoporous materials. Micropor. Mesopor. Mater. 2012, 147, 370–376. [Google Scholar] [CrossRef]
  48. Nakagawa, K.; Kajita, C.; Ikenaga, N.; Nishitani-Gamo, M.; Ando, T.; Suzuki, T. Dehydrogenation of light alkanes over oxidized diamond-supported catalysts in the presence of carbon dioxide. Catal. Today 2003, 84, 149–157. [Google Scholar] [CrossRef]
  49. Mimura, N.; Okamoto, M.; Yamashita, H.; Oyama, S.T.; Murata, K. Oxidative dehydrogenation of ethane over Cr/ZSM-5 catalysts using CO2 as an oxidant. J. Phys. Chem. B 2006, 110, 21764–21770. [Google Scholar] [CrossRef]
  50. Zhang, F.; Wu, R.X.; Yue, Y.H.; Yang, W.M.; Gu, S.Y.; Miao, C.X.; Hua, W.M.; Gao, Z. Chromium oxide supported on ZSM-5 as a novel efficient catalyst for dehydrogenation of propane with CO2. Micropor. Mesopor. Mater. 2011, 145, 194–199. [Google Scholar] [CrossRef]
  51. Butt, T.; Tosheva, L. Synthesis of colloidal silicalite-1 at high temperatures. Micropor. Mesopor. Mater. 2014, 187, 71–76. [Google Scholar] [CrossRef]
  52. Smith, M.A.; Zoelle, A.; Yang, Y.; Rioux, R.M.; Hamilton, N.G.; Amakawa, K.; Nielsen, P.K.; Trunschke, A. Surface roughness effects in the catalytic behavior of vanadia supported on SBA-15. J. Catal. 2014, 312, 170–178. [Google Scholar] [CrossRef]
Catalysts 09 01040 g001 550

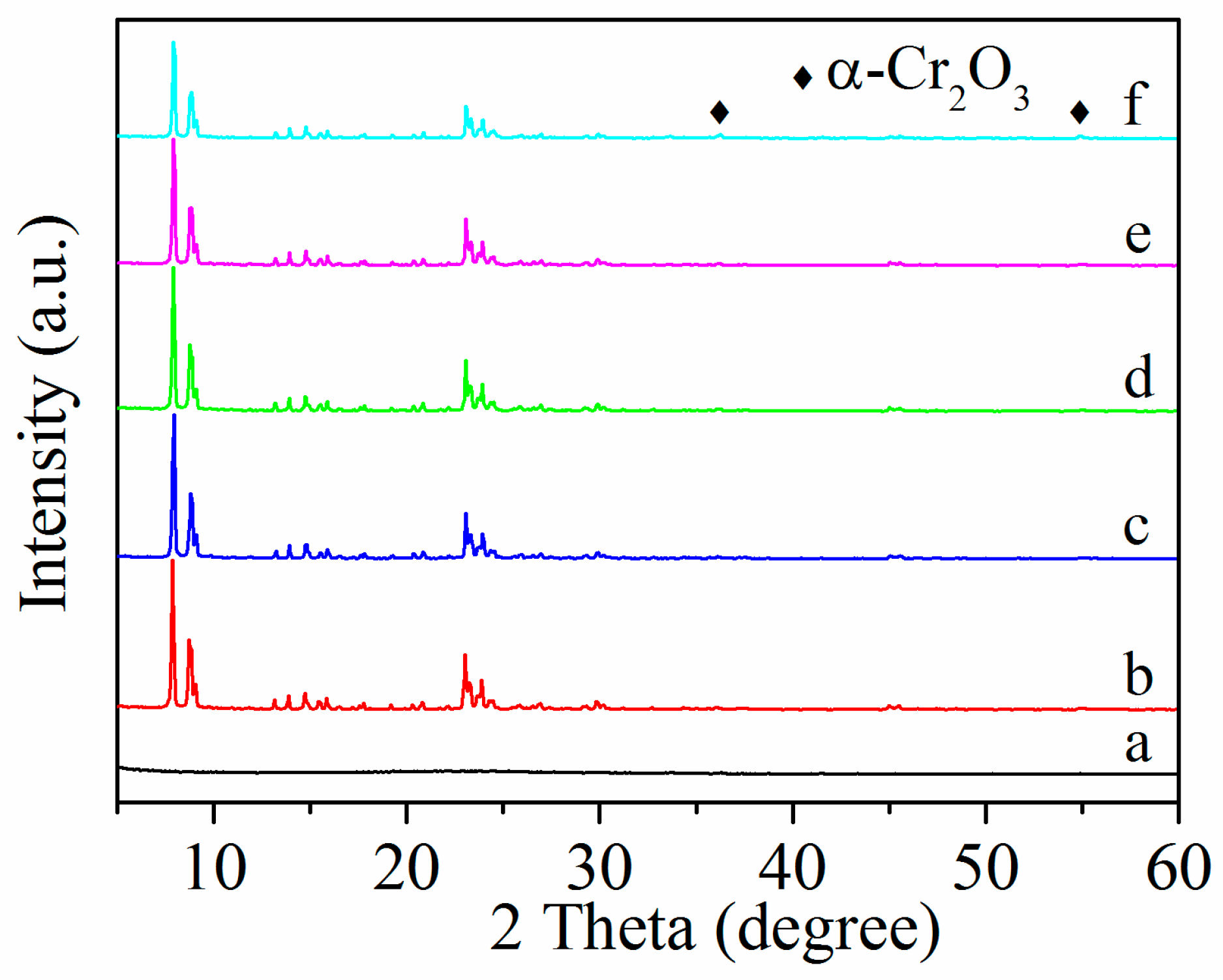

Figure 1. XRD patterns of the catalysts. (a) 3%Cr/SBA, (b) 0.5%Cr/S-1, (c) 1%Cr/S-1, (d) 2%Cr/S-1, (e) 3%Cr/S-1, (f) 7%Cr/S-1.
Figure 1. XRD patterns of the catalysts. (a) 3%Cr/SBA, (b) 0.5%Cr/S-1, (c) 1%Cr/S-1, (d) 2%Cr/S-1, (e) 3%Cr/S-1, (f) 7%Cr/S-1.
Catalysts 09 01040 g001
Catalysts 09 01040 g002 550

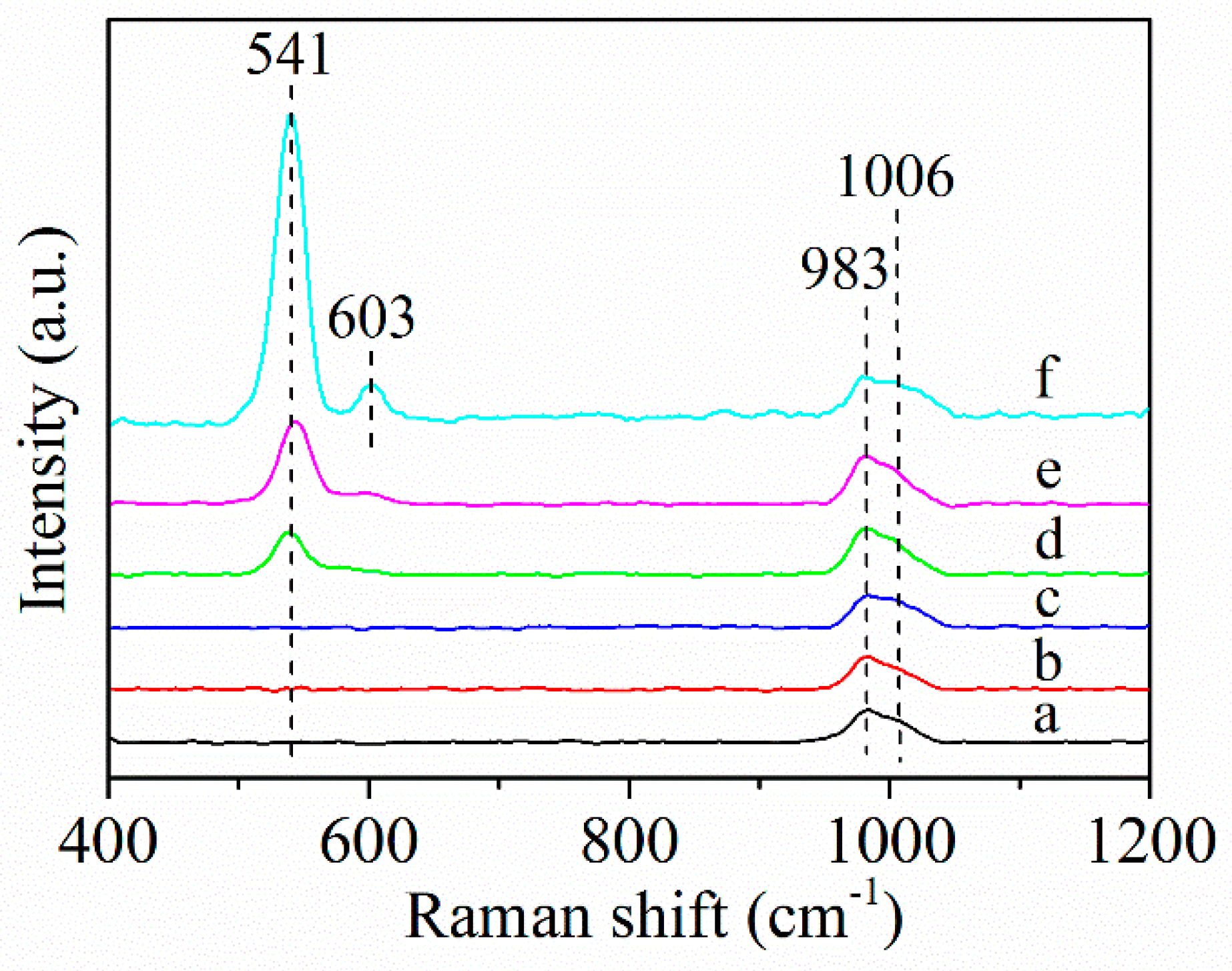

Figure 2. Raman spectra of the catalysts. (a) 0.5%Cr/S-1, (b) 1%Cr/S-1, (c) 2%Cr/S-1, (d) 3%Cr/S-1, (e) 7%Cr/S-1, (f) 3%Cr/SBA.
Figure 2. Raman spectra of the catalysts. (a) 0.5%Cr/S-1, (b) 1%Cr/S-1, (c) 2%Cr/S-1, (d) 3%Cr/S-1, (e) 7%Cr/S-1, (f) 3%Cr/SBA.
Catalysts 09 01040 g002
Catalysts 09 01040 g003 550

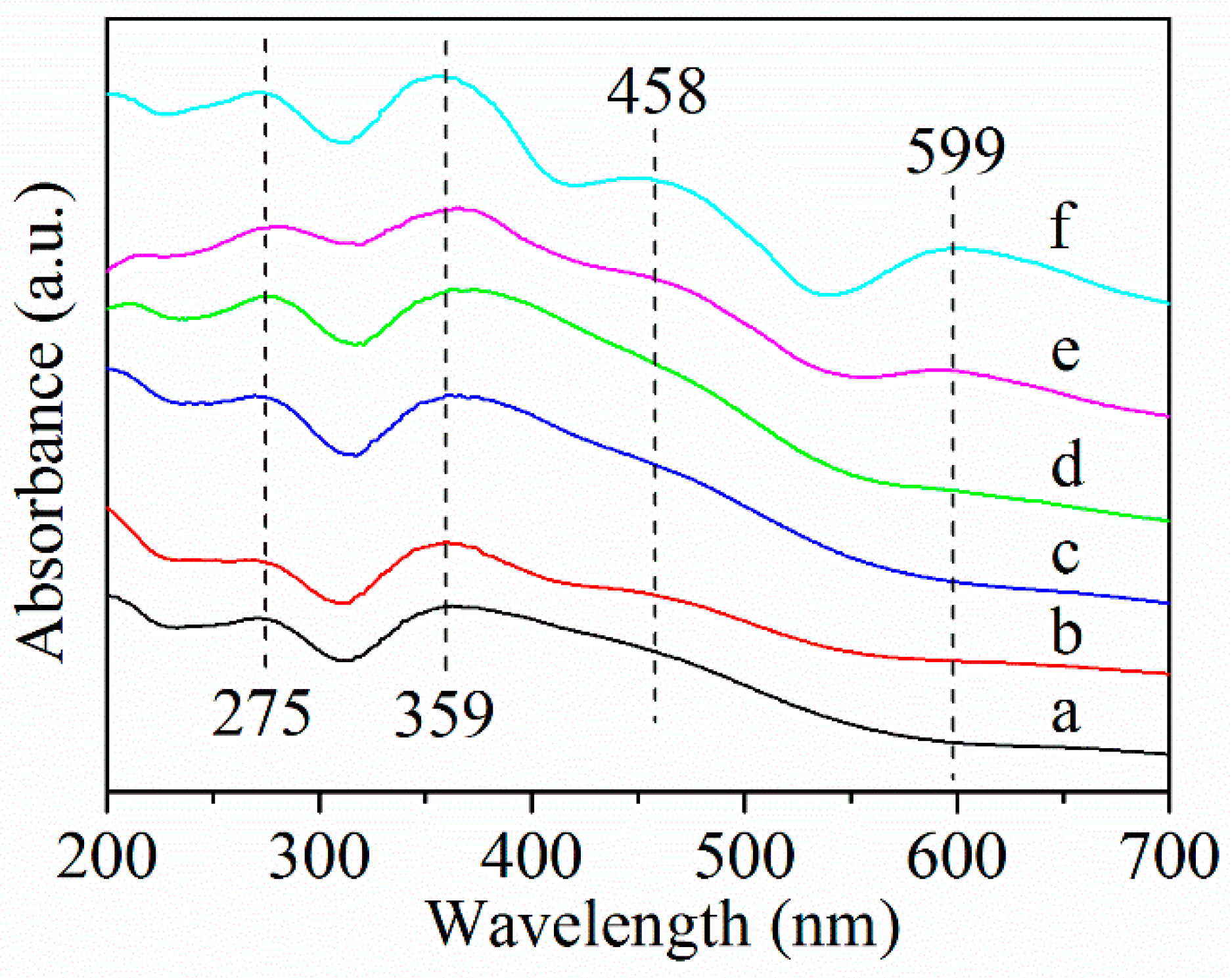

Figure 3. Diffuse reflectance UV-vis spectra of the catalysts. (a) 0.5%Cr/S-1, (b) 1%Cr/S-1, (c) 2%Cr/S-1, (d) 3%Cr/S-1, (e) 7%Cr/S-1, (f) 3%Cr/SBA.
Figure 3. Diffuse reflectance UV-vis spectra of the catalysts. (a) 0.5%Cr/S-1, (b) 1%Cr/S-1, (c) 2%Cr/S-1, (d) 3%Cr/S-1, (e) 7%Cr/S-1, (f) 3%Cr/SBA.
Catalysts 09 01040 g003
Catalysts 09 01040 sch001 550

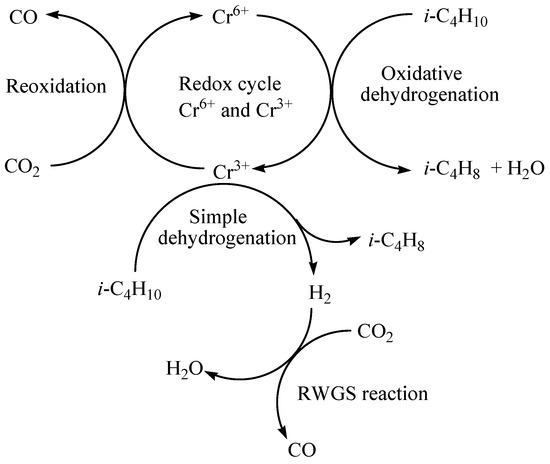

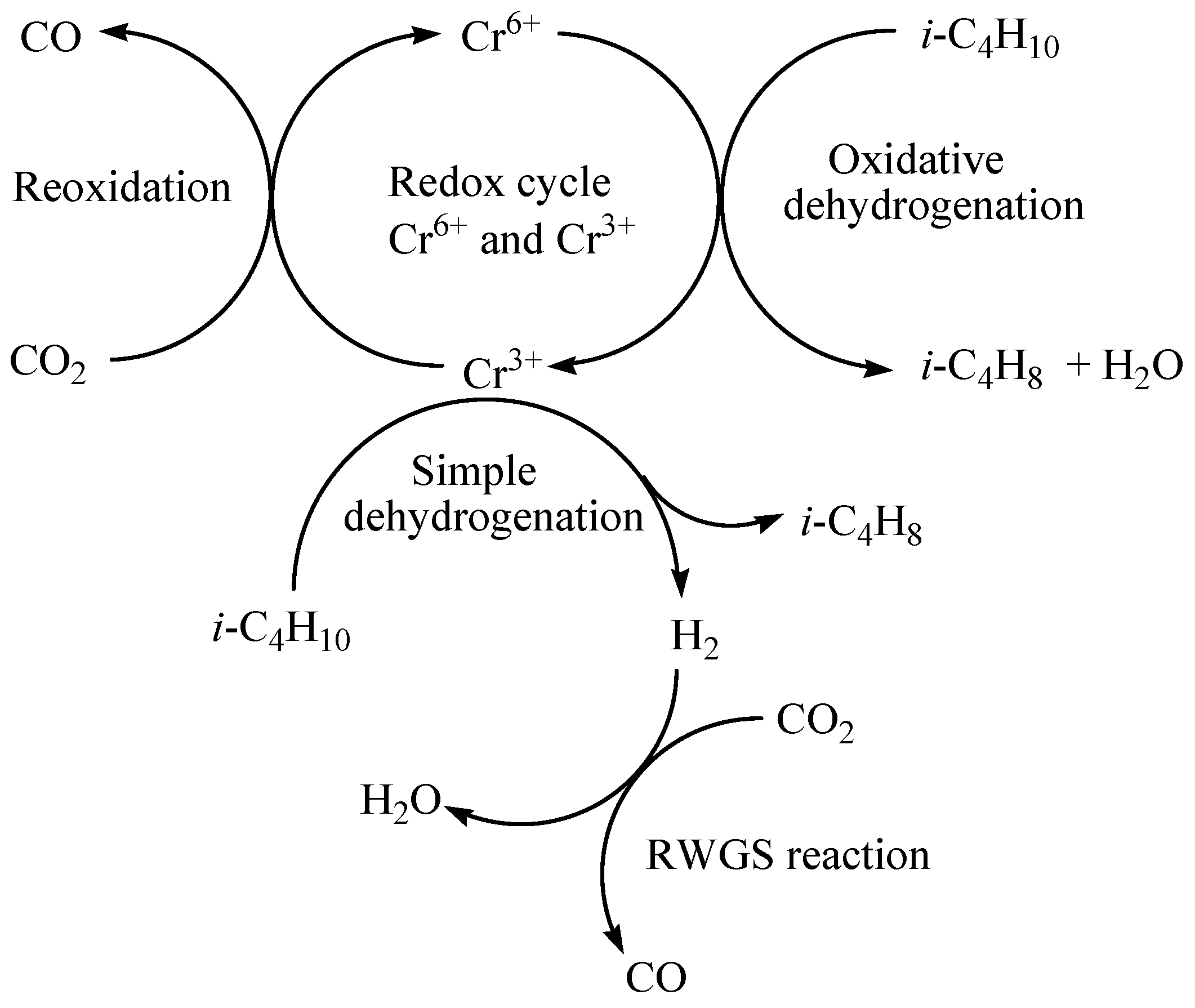

Scheme 1. Proposed reaction mechanism of isobutane dehydrogenation assisted by CO2 over silicalite-1-supported chromium oxide catalysts.
Scheme 1. Proposed reaction mechanism of isobutane dehydrogenation assisted by CO2 over silicalite-1-supported chromium oxide catalysts.
Catalysts 09 01040 sch001
Catalysts 09 01040 g004 550

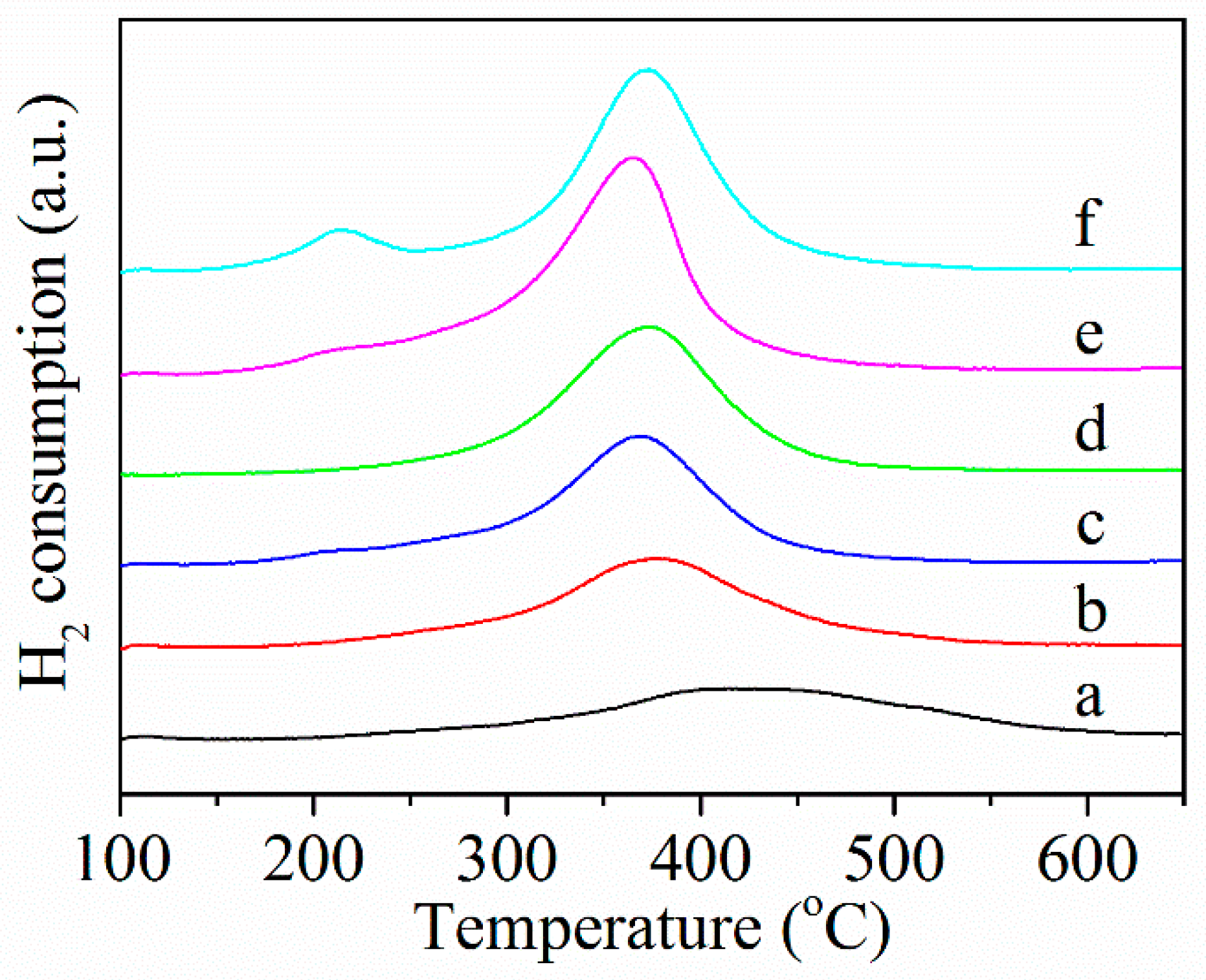

Figure 4. H2-TPR profiles of the catalysts. (a) 0.5%Cr/S-1; (b) 1%Cr/S-1; (c) 2%Cr/S-1; (d) 3%Cr/SBA; (e) 3%Cr/S-1; (f) 7%Cr/S-1.
Figure 4. H2-TPR profiles of the catalysts. (a) 0.5%Cr/S-1; (b) 1%Cr/S-1; (c) 2%Cr/S-1; (d) 3%Cr/SBA; (e) 3%Cr/S-1; (f) 7%Cr/S-1.
Catalysts 09 01040 g004
Catalysts 09 01040 g005 550

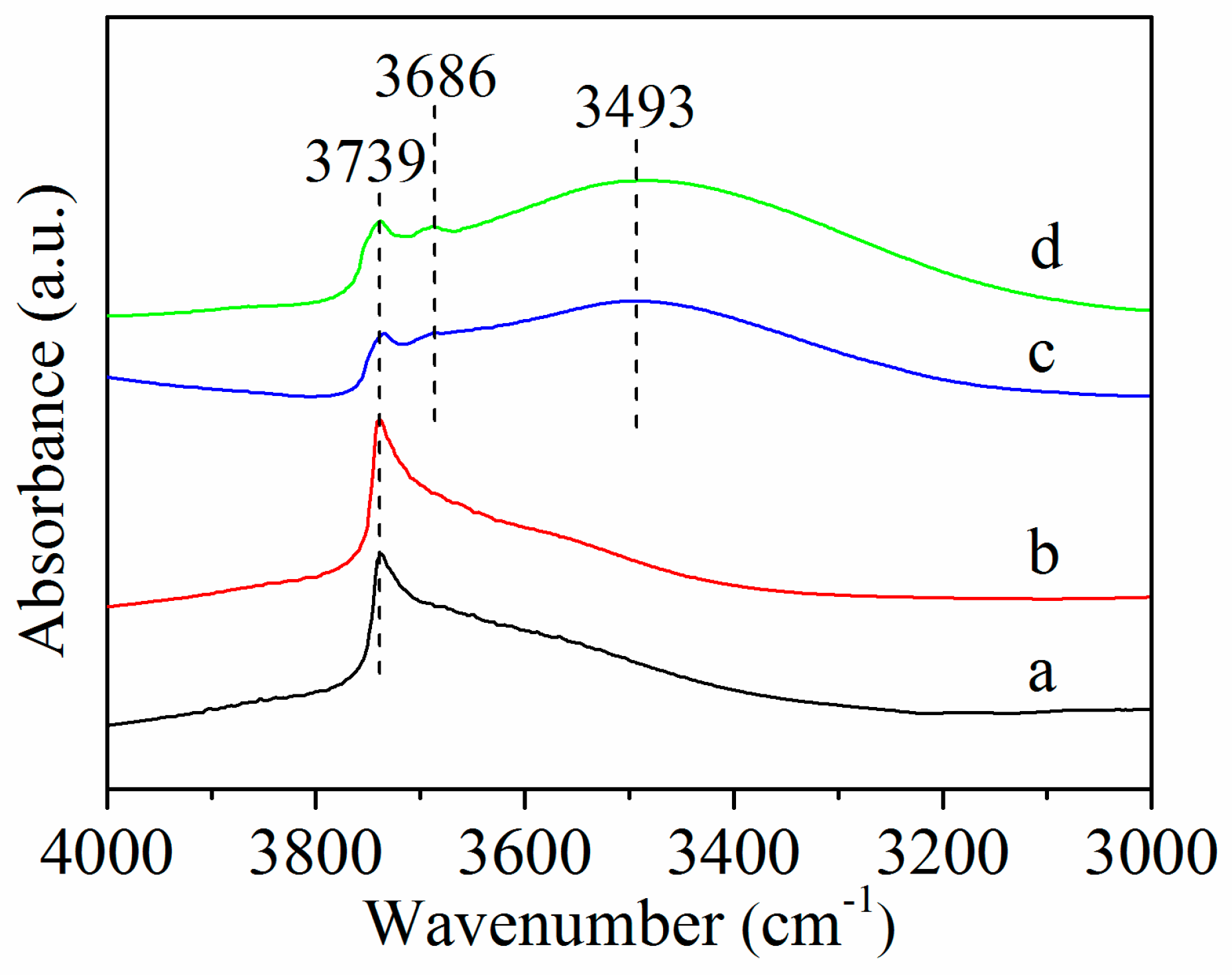

Figure 5. DRIFT spectra of some selected samples. (a) 3%Cr/SBA, (b) SBA-15, (c) 3%Cr/S-1, (d) silicalite-1.
Figure 5. DRIFT spectra of some selected samples. (a) 3%Cr/SBA, (b) SBA-15, (c) 3%Cr/S-1, (d) silicalite-1.
Catalysts 09 01040 g005
Catalysts 09 01040 g006 550

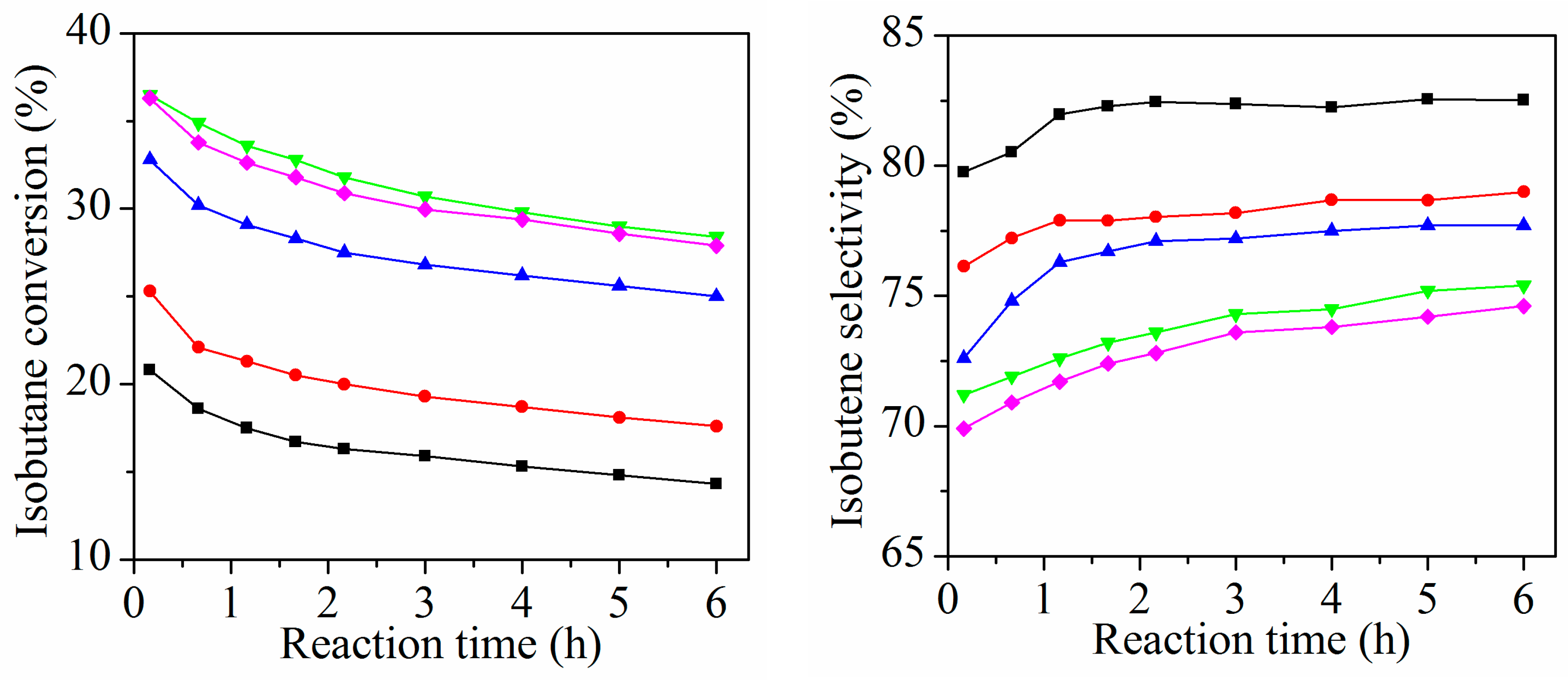

Figure 6. Catalytic performance of the Cr/S-1 catalysts for isobutane dehydrogenation assisted by CO2 at 570 °C, (■) 0.5%Cr/S-1, (●) 1%Cr/S-1, (▲) 2%Cr/S-1, (▼) 3%Cr/S-1, (◆) 7%Cr/S-1. Reaction conditions: 570 °C, 0.1 g catalyst, CO2/i-C4H10 = 1 (mol/mol), WHSV = 4.1 h−1.
Figure 6. Catalytic performance of the Cr/S-1 catalysts for isobutane dehydrogenation assisted by CO2 at 570 °C, (■) 0.5%Cr/S-1, (●) 1%Cr/S-1, (▲) 2%Cr/S-1, (▼) 3%Cr/S-1, (◆) 7%Cr/S-1. Reaction conditions: 570 °C, 0.1 g catalyst, CO2/i-C4H10 = 1 (mol/mol), WHSV = 4.1 h−1.
Catalysts 09 01040 g006
Catalysts 09 01040 g007 550

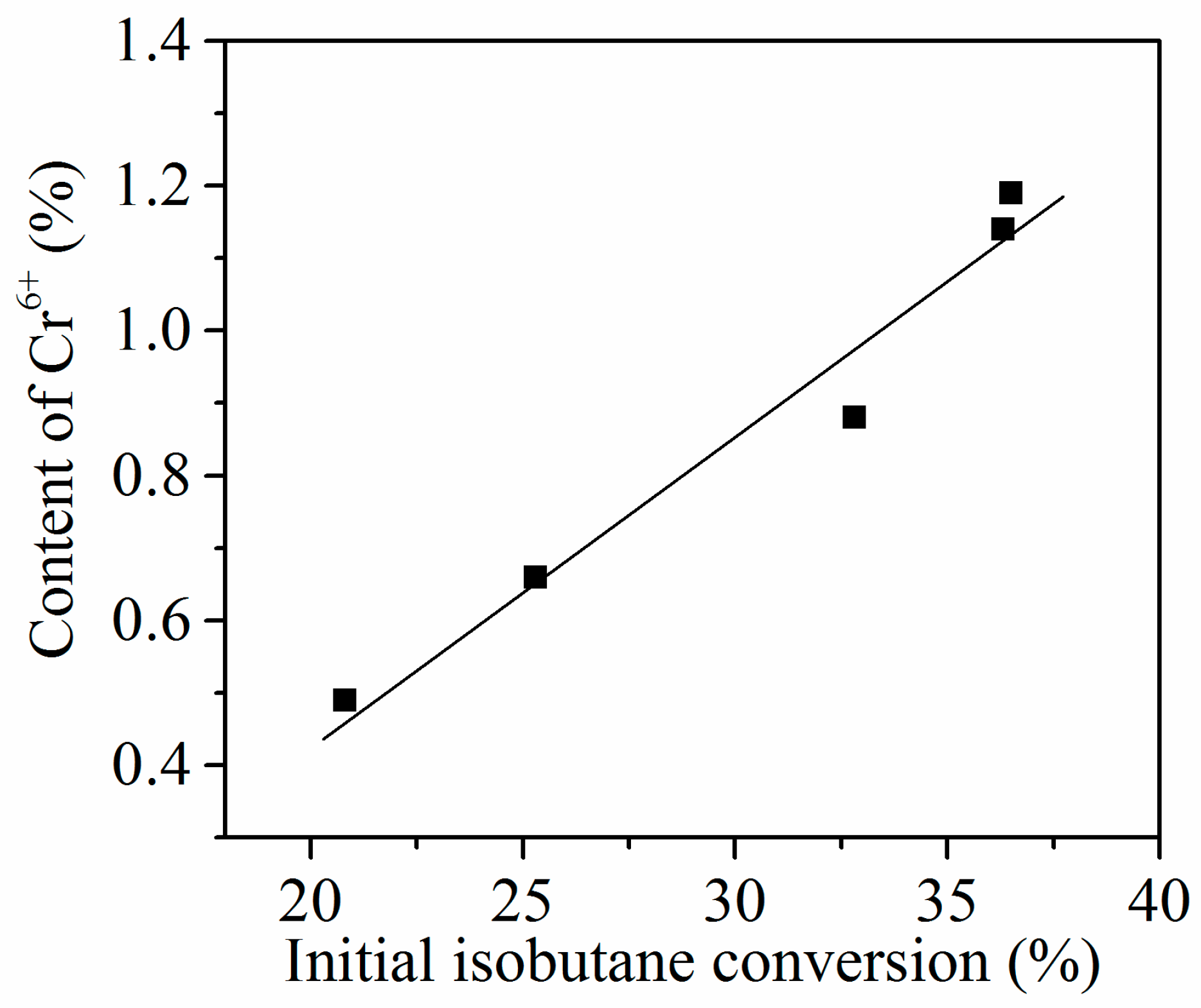

Figure 7. Correlation between the initial conversion of isobutane in the presence of CO2 and the content of Cr6+ in the fresh Cr/S-1 catalysts. Reaction conditions are the same as given in caption to Figure 6.
Figure 7. Correlation between the initial conversion of isobutane in the presence of CO2 and the content of Cr6+ in the fresh Cr/S-1 catalysts. Reaction conditions are the same as given in caption to Figure 6.
Catalysts 09 01040 g007
Catalysts 09 01040 g008 550

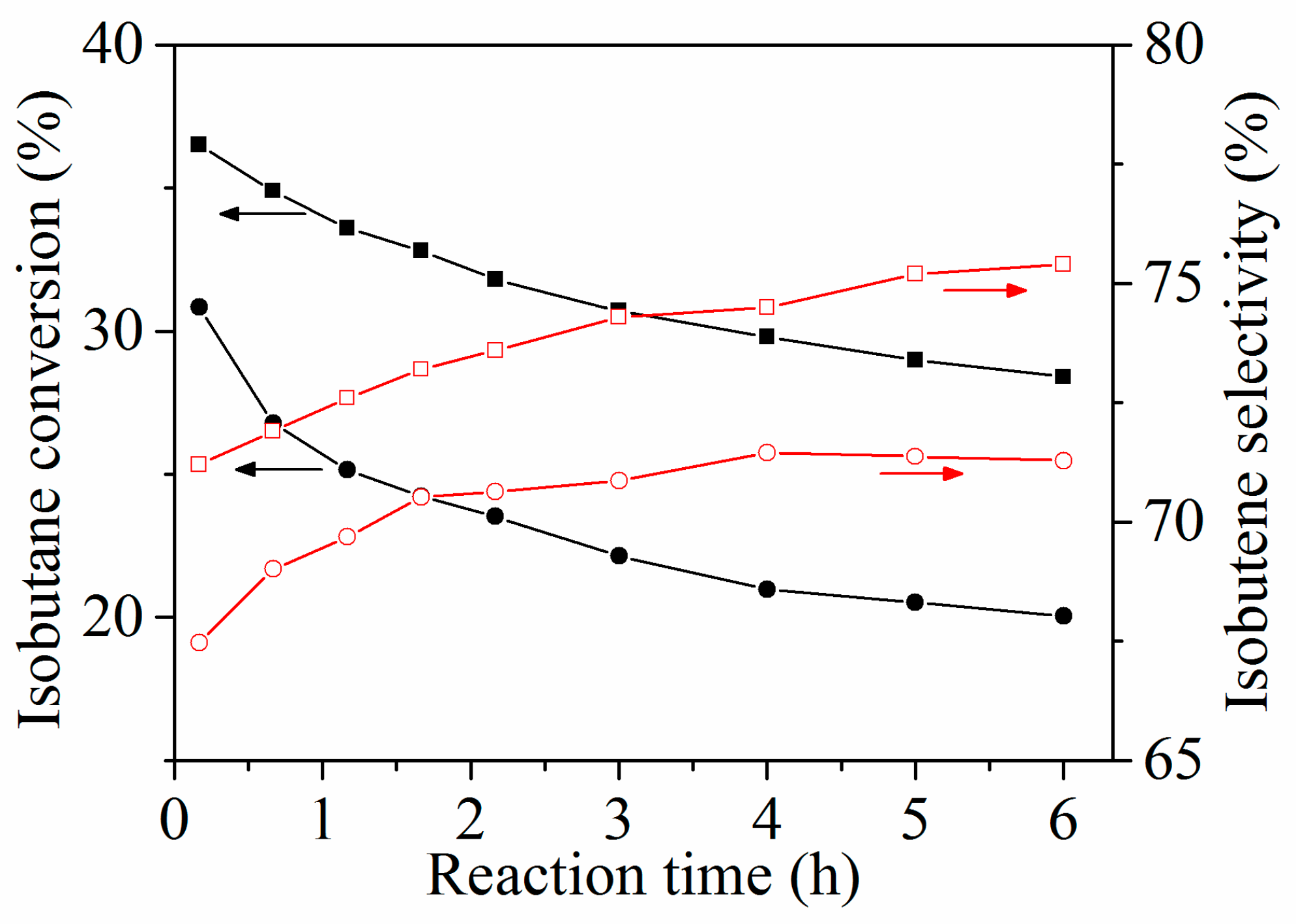

Figure 8. Conversion of isobutane and selectivity to isobutene as a function of reaction time for the 3%Cr/S-1 catalyst at 570 °C in the presence (■, □) and absence (●, ○) of CO2. Reaction conditions: 0.1 g catalyst, CO2 (N2)/i-C4H10 = 1 (mol/mol), WHSV = 4.1 h−1.
Figure 8. Conversion of isobutane and selectivity to isobutene as a function of reaction time for the 3%Cr/S-1 catalyst at 570 °C in the presence (■, □) and absence (●, ○) of CO2. Reaction conditions: 0.1 g catalyst, CO2 (N2)/i-C4H10 = 1 (mol/mol), WHSV = 4.1 h−1.
Catalysts 09 01040 g008
Catalysts 09 01040 g009 550

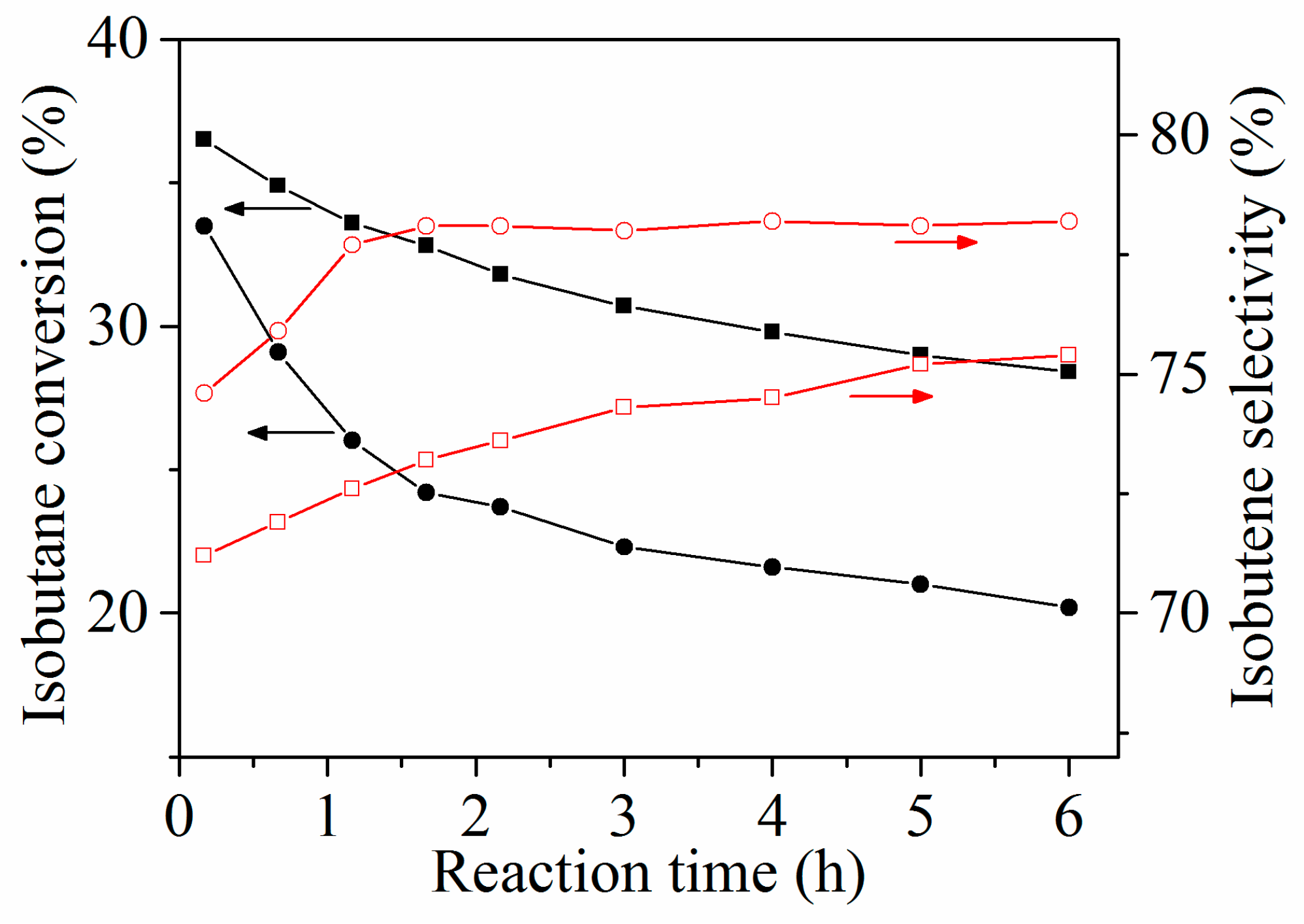

Figure 9. Conversion of isobutane and selectivity to isobutene as a function of reaction time at 570 °C in the presence of CO2. (■, □) 3%Cr/S-1, (●, ○) 3%Cr/SBA. Reaction conditions are the same as given in caption to Figure 6.
Figure 9. Conversion of isobutane and selectivity to isobutene as a function of reaction time at 570 °C in the presence of CO2. (■, □) 3%Cr/S-1, (●, ○) 3%Cr/SBA. Reaction conditions are the same as given in caption to Figure 6.
Catalysts 09 01040 g009
Catalysts 09 01040 g010 550

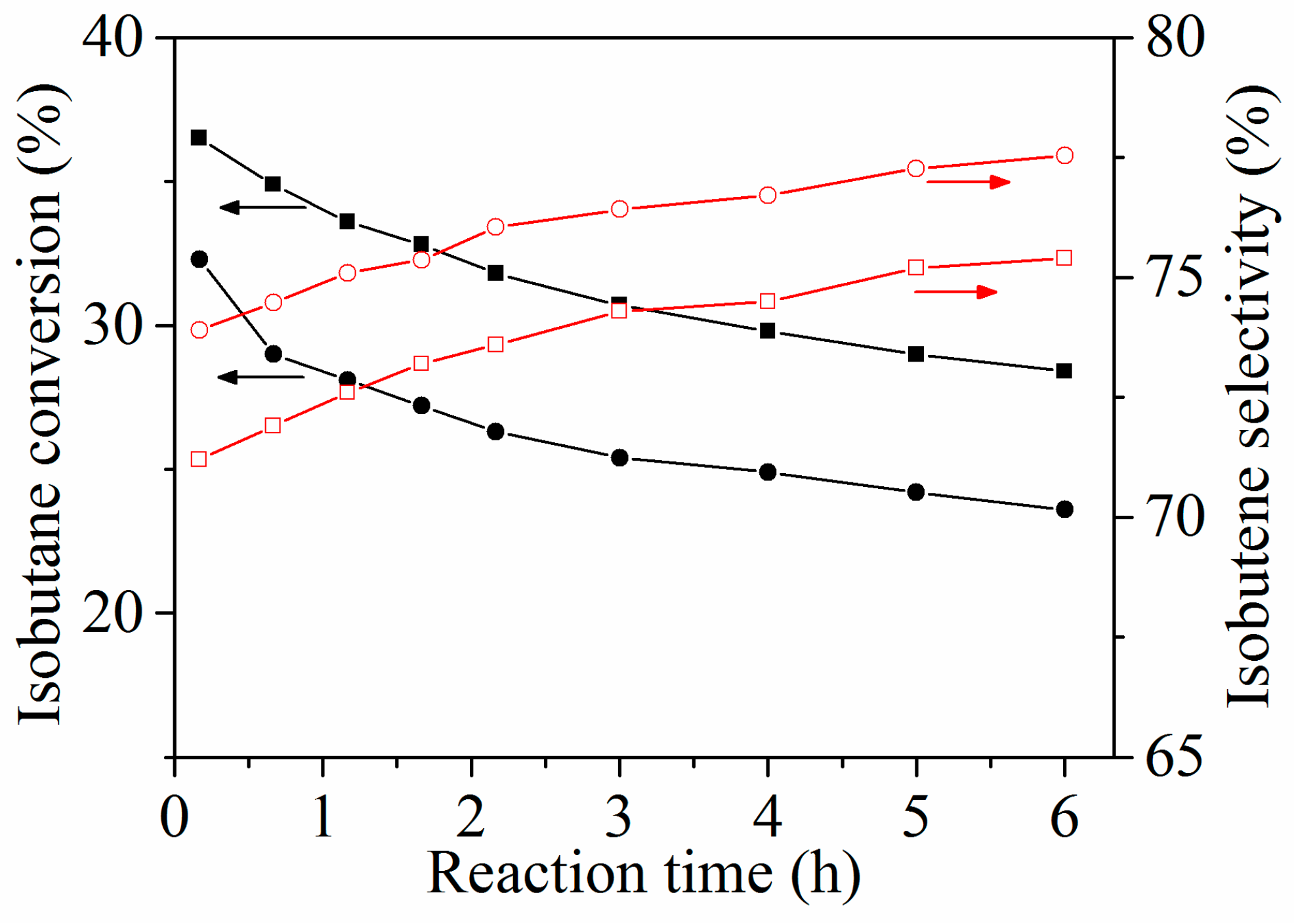

Figure 10. Conversion of isobutane and selectivity to isobutene as a function of reaction time for the 3%Cr/S-1 catalyst. (■, □) fresh catalyst, (●, ○) catalyst that was in situ pretreated by 10 vol.% H2/Ar at 450 °C for 1 h. Reaction conditions are the same as given in caption to Figure 6.
Figure 10. Conversion of isobutane and selectivity to isobutene as a function of reaction time for the 3%Cr/S-1 catalyst. (■, □) fresh catalyst, (●, ○) catalyst that was in situ pretreated by 10 vol.% H2/Ar at 450 °C for 1 h. Reaction conditions are the same as given in caption to Figure 6.
Catalysts 09 01040 g010
Table
Table 1. Textural properties and H2-TPR results of the samples.
Table 1. Textural properties and H2-TPR results of the samples.
SampleSBETVmicroaVmesoVtotalbTMH2 UptakeCr6+
(m2/g)(cm3/g)(cm3/g)(cm3/g)(°C)(mmol/g)(%) c
Silicalite-13790.180.120.30---
0.5%Cr/S-13780.170.050.224240.1410.49
1%Cr/S-13680.160.060.223770.1890.66
2%Cr/S-13580.160.050.213690.2530.88
3%Cr/S-13500.160.040.203640.3421.19
7%Cr/S-13450.130.050.18372 (213) d0.3301.14
SBA-156550.061.021.08---
3%Cr/SBA4690.020.690.713730.3041.05
a Calculated by the t-plot method; b Total pore volume adsorbed at P/P0 = 0.99; c The weight percentage of Cr6+ in the sample calculated based on the H2 consumption, assuming that Cr6+ was reduced to Cr3+ by H2; d The high-temperature reduction peak and low-temperature one are 372 °C and 213 °C, respectively.
Table
Table 2. Summary of XPS data.
Table 2. Summary of XPS data.
SampleSample DescriptionEb (eV) aCr6+/Cr3+ b
Cr3+Cr6+
AFresh 3%Cr/S-1576.9579.22.82
BSample A reacted for 6 h in the presence of CO2577.1579.51.19
CSample A reacted for 6 h in the absence of CO2576.7579.60.91
DSample C subsequently treated with CO2 at 570 °C for 0.5 h577.0579.41.97
EFresh 3%Cr/SBA576.7579.22.42
FSample E reacted for 6 h in the presence of CO2576.8579.30.72
a Binding energy of Cr 2p3/2; b Atomic ratio of Cr6+ to Cr3+. Reaction conditions: 570 °C, 0.1 g catalyst, CO2 (N2)/i-C4H10 = 1 (mol/mol), WHSV = 4.1 h−1.
Table
Table 3. Reaction data of silicalite-1-supported chromium oxide catalysts a.
Table 3. Reaction data of silicalite-1-supported chromium oxide catalysts a.
CatalystConversion (%)Selectivity (%)H2/CO c
i-C4H10CO2i-C4H8CH4C2H4C2H6C3H6C3H8C4H8 b
0.5%Cr/S-120.8 (14.3)3.5 (1.7)79.7 (82.5)3.9 (3.2)0 (0)0 (0)10.7 (9.4)0.9 (0.7)4.8 (4.2)4.2 (5.6)
1%Cr/S-125.3 (17.6)4.8 (4.4)76.1 (79.0)4.8 (4.4)0.6 (0.3)0.4 (0.1)10.9 (11.4)1.3 (0.7)5.9 (4.1)2.6 (3.1)
2%Cr/S-132.8 (25.0)10.6 (5.6)72.6 (77.7)5.3 (4.4)0.7 (0.3)0.6 (0.3)11.0 (10.1)1.8 (1.2)8.0 (6.0)1.9 (2.1)
3%Cr/S-136.5 (28.4)13.3 (6.9)71.2 (75.4)5.6 (4.9)0.8 (0.5)0.9 (0.6)11.4 (10.6)2.0 (1.5)8.1 (6.5)1.8 (2.0)
7%Cr/S-136.3 (27.9)11.7 (6.2)69.9 (74.6)5.8 (5.2)1.0 (0.7)1.0 (0.7)11.6 (10.5)2.2 (1.7)8.5 (6.6)2.0 (2.4)
a The values outside and inside the bracket are the data obtained at 10 min and 6 h, respectively; b Butenes excluding isobutene; c Molar ratio of H2 to CO. Reaction conditions are the same as given in caption to Figure 6.

Share and Cite

MDPI and ACS Style

Luo, Y.; Miao, C.; Yue, Y.; Yang, W.; Hua, W.; Gao, Z. Chromium Oxide Supported on Silicalite-1 Zeolite as a Novel Efficient Catalyst for Dehydrogenation of Isobutane Assisted by CO2. Catalysts 2019, 9, 1040. https://doi.org/10.3390/catal9121040

AMA Style

Luo Y, Miao C, Yue Y, Yang W, Hua W, Gao Z. Chromium Oxide Supported on Silicalite-1 Zeolite as a Novel Efficient Catalyst for Dehydrogenation of Isobutane Assisted by CO2. Catalysts. 2019; 9(12):1040. https://doi.org/10.3390/catal9121040

Chicago/Turabian Style

Luo, Yajun, Changxi Miao, Yinghong Yue, Weimin Yang, Weiming Hua, and Zi Gao. 2019. "Chromium Oxide Supported on Silicalite-1 Zeolite as a Novel Efficient Catalyst for Dehydrogenation of Isobutane Assisted by CO2" Catalysts 9, no. 12: 1040. https://doi.org/10.3390/catal9121040

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
