Catalysts 2018, 8(8), 315; doi:10.3390/catal8080315

Article
Interface-Active Metal Organic Frameworks for Knoevenagel Condensations in Water
1
Life Science College, Dalian Nationalities (Minzu) University, Economical and Technological Development Zone, Dalian 116600, China
2
State Key Laboratory of Catalysis, Dalian Institute of Chemical Physics, Chinese Academy of Science, P.O. Box 110, Dalian 116023, China
*
Authors to whom correspondence should be addressed.
Received: 5 July 2018 / Accepted: 27 July 2018 / Published: 31 July 2018

Abstract

:
It is desirable but challenging to locate solid catalysts at the oil-water interface to stabilize “Pickering emulsions”, which is one of the promising ways to developefficient green chemical processes. Herein, water-stable metal organic framework ZIF-8 without any chemical modification was demonstrated to be an interface-active catalyst for Knoevenagel condensation in a biphasic system. Pickering emulsion formed under the reaction conditions due to its amphiphilic property, which was beneficial to the mass transfer and led to high catalytic performance. Moreover, it can be repeatedly applied for Knoevenagel condensation for at least six successive cycles without losing its catalytic activity and framework integrity.
Keywords:
metal organic framework; ZIF-8; Knoevenagel condensations; Pickering emulsion; recycle

1. Introduction

Using water as a solvent is one of the main ways toward the development of environmentally-friendly chemical processes. However, the low mass transfer efficiencies, ascribed to a modest interfacial contact due to the inhomogeneous mixing even under vigorous stirring, leads to poor catalytic activities in biphasic reaction systems. Although adding surfactants is a frequently-used way toincrease the liquid-liquid interfacial area, itresults in a negativeenvironmental impact. Alternatively, using an interfacial solid catalyst to stabilize a “Pickering emulsion” is an emerging strategy to develop greener chemical processes. “Pickering emulsion” is an emulsion that is stabilized by interfacial particles. The catalytic efficienciesin biphasic catalytic systems could be improved greatly by the location ofinterfacial catalysts at the interfaces. Likewise, it could not only decrease the phase transfer limitations, but alsocouldcatalyze reactions at the interface of two immiscible solvents. Furthermore, the interfacial solid catalystscan be easily recoveredfrom thePickering emulsions after the reaction [1]. In line with the aforementioned properties of Pickering emulsions, a couple of interface-active particles, such as silicas [2,3,4,5,6,7,8], zeolites [9], carbon [10] and metal organic frameworks [11,12], were attempted to be used to stabilizePickering emulsions.
Metal organic frameworks (MOFs) are a new class of highly-ordered porous coordination polymers that can be assembled from plenty of metal ions/clusters andmulti-topic organic struts. MOFs are more attractive materials than conventional porous materials in heterogeneous catalysis, due to their exceptional modular properties, imparting ultrahigh porosity, structural diversity, tunable surface properties and diverse functionalities [13,14]. Despite progressiveadvances made so far in the synthesis and catalytic applications of MOFs, the instability in waterhas considerably limited these MOFs’ applications in Pickering emulsions [15,16]. ZIF-8 is one of the representative examples of water-stable MOFs, which could be constructed by Zn2+ and 2-methylimidazole in organic or aqueous solvents. Theefficiency of ZIF-8 has been demonstrated for heterogeneous Knoevenagel condensations [17,18], cycloadditions [19] and Friedel–Crafts acylation [20] in organic solvents. However, its catalytic efficiency in aqueous mediumhas not yet been investigated. Herein, as shown in Figure 1, ZIF-8 was prepared with a narrow size distribution and investigated as an interfacial catalyst to promote the Knoevenagel condensation. It is demonstrated that ZIF-8 shows a good self-assembly ability at the oil-water interface and allows oneto formulate an oil-in-water (O/W) Pickering emulsion. Moreover, the interface-active catalyst can be recovered by centrifugation and reused for at least sixtimes without obvious loss of its catalytic performance and framework integrity.

2. Results and Discussion

ZIF-8 nanoparticles with narrow size distributions were prepared accordingly. Scanning electron microscopy (SEM) was used to characterize theirmorphology. Figure 2A shows representative SEM micrographs of ZIF-8. Regular nanoparticles with a narrow size distribution (about 100 nm) were observed. X-ray powder diffraction (XRD) was further used to determine thecrystal structure of ZIF-8. As shown in Figure 3a, the diffraction pattern for the prepared solid has several sharp and intense peaks that can be well indexed to ZIF-8 [21]. Its structural stability in water was tested, and the diffraction pattern for recovered ZIF-8 is shown in Figure 3b. No obvious change was observed before and after treatment, indicating that it waswater stable, which is a prerequisite for potential applications in an aqueous medium. Meanwhile, images of its transmission electron microscopies (TEM) further confirmedits water stability.
To the best of our knowledge, MOFs including ZIF-8 have been confirmed to be good catalysts for the Knoevenagel condensations in organic solvents [17,18]. The stability in aqueous medium of ZIF-8 has been proven by the XRD patterns and TEM images as shown in Figure 2 and Figure 3 in our experiments. Therefore, the activities of ZIF-8 nanoparticles for the Knoevenagel condensation between benzaldehyde and ethyl cyanoacetatein various solvents were firstly investigated, and the results are summarized in Table 1. Similar to the results observed in previous reports, ZIF-8 gave high or medium yields in polar solvents and poor results in nonpolar solvents. As we know, catalytic reaction in water or biphasic systems is a greener route than in organic solvent. To our delight, ZIF-8 could also promote the reaction in water in an efficient way. Over an 80% yield was obtained in water after 30 min, a little bit lower than that in DMF, but higher than that in THF. Then, a water/ZIF-8/ethyl acetate system was used to examine the interfacial property of ZIF-8. After adding 2 mLof pure or 2-nitrobenzaldehydedissolved ethyl acetate to 3 mL of water containing 0.8 wt % of ZIF-8 (with respect to water), as shown in Figure 4A,B, ZIF-8 is predominantlydistributed at the interface between the oil and aqueous phase. After subsequentvigorous stirring or shaking, the appearances of its mixture (Figure 4C) and its optical micrograph demonstrated the formation of Pickering emulsion. Optical micrographs revealed that it was an oil-in-water Pickeringemulsion, and the droplets sizes were about 2–10 μm.
Having established that ZIF-8 is an efficient catalyst for the Knoevenagel condensation between benzaldehyde and ethylcyanoacetate in an aqueous or biphasic system, we extended the study to various aromatic aldehydes with ethyl cyanoacetate or malononitrile. The results are listed in Table 2. To our delight, most of the aldehyde derivatives could be converted efficiently. Substitution and size effects were also observed. In our previous works, the effect of substitution on the reactivityof benzaldehyde catalyzed by UiO-66-NH2was also observed for the Knoevenagel condensation [22,23]. The electron-donating substitutions lowered the catalytic efficiency, but the electron-withdrawing groups enhanced its catalytic efficiency. ZIF-8 was also active for the Knoevenagel reactions of larger aromatic aldehydes (1-naphthaldehyde and 9-anthraldehyde) with cyanoacetate or malononitrile, though the yields were somewhat decreased when the aldehyde substrates become bulkier (comparing Entries 1, 7 and 8 in Table 2). The decrease of yields may be an indicator of size effects. As shown by Entries 1, 7 and 8, the yield of 9-anthraldehyde reacting with ethyl cyanoacetate (2 h, 23%) is much lower than that of 1-naphthaldehyde (1 h, 45%), which is much lower than that of benzaldehyde (1 h, >99%). The activities vary in the size order of benzaldehyde> 1-naphthaldehyde > 9-anthraldehyde. This trend holds true forthat of malononitrile. All results above reflect that the probability of the bulkier substrates forming transition-state complexes was significantly reduced due to the limited space in the porous catalyst.
The recyclability and reusability of solid catalysts arethe most positiveaspectscompared to homogeneous catalysts for practical applications. Recovery and reuse of ZIF-8 was firstly studied using Knoevenagel condensation between benzaldehyde and ethyl cyanoacetatein a biphasic system at 80 °C. After the completion of the reaction, the liquidlayer was decanted, and the catalyst was reused for the next run under the same conditions. Furthermore, phase structures of recovered ZIF-8 were determined by powder X-ray diffraction. It was observed thatthe phase structure of ZIF-8 was completely destroyed after the reaction (Figure 5b). The following experiments were carried out to find out the possible destroyers. Previous resultshaveproven that ZIF-8 is a water-stable MOF. Therefore, the stability of ZIF-8 in the aqueous solution of cyanoacetate and benzaldehyde wasfurther tested, respectively. As shown in Figure 5c,d, the phase structure of ZIF-8 was maintained in the aqueous solution of cyanoacetate, but changed in that of benzaldehyde. The same results were observed even under mild reaction conditions by replacingethyl cyanoacetate with malononitrile at 40 °C. The tested pH value of the aqueous solution of benzaldehyde wasbelow five, indicating that the acid impurity was the possible destroyer of ZIF-8. Many reports indicated that the stability of ZIF-8 in aqueous medium is pH dependent. It is stable in a basic system, but instable in acidic medium [24,25]. Therefore, 2-nitro-benzaldehyde with high purity was selected as a new substrate. To our delight, as shown in Figure 6c, the XRD pattern of the recovered ZIF-8 is same asthat of the fresh solid.
The recycle experiment was carried out using the Knoevenagel condensation between 2-nitrobenzaldehyde and malononitrileat 40 °C in a biphasic system as a test reaction. Although some solid was lost during the centrifugation, as shown in Figure 7, the yields in the consecutive cycleswerealmost the same asthoseof the first cycle. XRD patterns of ZIF-8 before and afterreaction (Figure 8) revealedbetter integrity in the framework structure, but the TEM image (Figure 9c) demonstrated the presence of newly-formed mesoporous cages in the recovered solid. The retainedor improved specific activity canprobably be attributedto the more exposed active site and better mass transfer in the hierarchical ZIF-8. A hot filtration experiment was further performed to confirm theheterogeneous nature of the catalytic reaction (Figure 10). The solid catalyst was removed from hot solution by filtration 10 min after initiating the catalytic test run. The reaction of the filtrate was then monitored for another 50 min. No significant further conversions were observed, indicating that most of the conversions were theresult ofthe heterogeneous catalysis.

3. Experimental Section

3.1. Preparation of ZIF-8 Nanoparticles

Synthesis of ZIF-8 nanoparticles: ZIF-8 nanoparticles were prepared according to the method reported with minor revision [21]. Firstly, 2-methylimidazole (6.6 g, 80 mmol) and Zn(NO3)2·6H2O (3 g, 10 mmol) were dissolved in 100 mL of methanol, respectively. Then, the solution of Zn(NO3)2·6H2O was quickly poured into the solution of 2-methylimidazole under stirring (1000 rpm) atroom temperature. After stirringfor 1 h, the precipitate wasisolated by centrifugationat 10,000 rpm for 10 min.The solid was washed three times with methanol and dried under a vacuum.

3.2. Characterization

The crystal structures of materials were analyzed by a Bruker D4 Endeavour Powder X-ray diffractometer (Cu Kα, λ = 0.15405 nm, 40 kV and 40 mA). The morphology and size of the ZIF-8 were determined by scanning electronic microscopy (SEM, HitachiS4800, Tokyo, Japan, 5.0 kV) and transmission electron microscopy (TEM, JEM-2100, Tokyo, Japan, 200 kV). The Pickering emulsions were measured on an Olympus BX51 microscope.

3.3. Catalytic Activity Measurements

Typically, 25 mg of ZIF-8, 4 mmolof ethyl cyanoacetate or malononitrile and 5 mL of solvents were added into a 10-mL glass reactor. After stirring for 10 min at the desired temperature under an inert atmosphere, 3.5 mmol of benzaldehyde or derivatives were added to start the reaction. After the reaction, the catalyst was separated by centrifugation, successively rinsed withfresh ethyl acetate, ready for the next cycle. Yields of the reactions were estimated by gas chromatography (GC7900, Techcom, Shanghai, China) equipped with a flame ionization detector (FID) and an SE-30 capillary column (30 m × 0.25 mm × 0.25 μm).

4. Conclusions

In summary, ZIF-8 wasdemonstrated to be a water stable and an interface-active catalyst for Knoevenagel condensation in a biphasic system. It efficiently promoted the Knoevenagel condensations of various aromatic aldehydes in biphasic systems as an interfacial catalyst. Pickering emulsions formed during the reaction due to its amphiphilic property, which wasbeneficial to mass transfer and enhanced its catalytic performance in a biphasicsystem. It exhibited good structural stability during the Knoevenagel condensation reactions and could be recovered and recycled as a heterogeneous catalyst for more than sixtimes without obvious loss of activity in the condensation between 2-nitrobenzaldehyde and malononitrile at mild reaction conditions. The enhanced specific activity in the consecutive runs wasascribed toits newly-formed hierarchical structure observed by TEM images. Furtherdevelopment of catalytic reactions by using hierarchical ZIF-8is currently under investigation. The findings mentioned above will open an avenue for using metal-organic frameworks as an interfacial solid catalyst.

Author Contributions

Y.Z., X.Z., and X.H. conceived and performed the experiments. Y.Z., R.B. and J.L. analyzed the data and wrote the paper.

Funding

This work was supported by the National Natural Science Foundation of China (21203017), the Open Fund of the State Key Laboratory of Catalysis, Dalian Institute of Chemical Physics, Chinese Academy of Sciences (N-11-3), the Program for Liaoning Excellent Talents in University (LNET-LJQ2014140) and the Fundamental Research Funds for the Central Universities (wd01201).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Pera-Titus, M.; Leclercq, L.; Clacens, J.M.; Campo, F.; Nardello-Rataj, V. Pickering Interfacial Catalysis for Biphasic Systems: From Emulsion Design to Green Reactions. Angew. Chem. Int. Ed. 2015, 54, 2006–2021. [Google Scholar] [CrossRef] [PubMed]
  2. Zhou, W.J.; Fang, L.; Fan, Z.Y.; Albela, B.; Bonneviot, L.; De Campo, F.; Pera-Titus, M.; Clacens, J.M. Tunable Catalysts for Solvent-Free Biphasic Systems: Pickering Interfacial Catalysts over Amphiphilic Silica Nanoparticles. J. Am. Chem. Soc. 2014, 136, 4869–4872. [Google Scholar] [CrossRef] [PubMed]
  3. Yang, H.Q.; Zhou, T.; Zhang, W.J. A Strategy for Separating and Recycling Solid Catalysts Based on the pH-Triggered Pickering-Emulsion Inversion. Angew. Chem. Int. Ed. 2013, 52, 7455–7459. [Google Scholar] [CrossRef] [PubMed]
  4. Yang, T.Y.; Wei, L.J.; Jing, L.Y.; Liang, J.F.; Zhang, X.M.; Tang, M.; Monteiro, M.J.; Chen, Y.; Wang, Y.; Gu, S.; et al. Dumbbell-Shaped Bi-component Mesoporous Janus Solid Nanoparticles for Biphasic Interface Catalysis. Angew. Chem. Int. Ed. 2017, 56, 8459–8463. [Google Scholar] [CrossRef] [PubMed]
  5. Rong, X.; Yang, H.Q.; Zhao, N. Rationally Turning the Interface Activity of Mesoporous Silicas for Preparing Pickering Foam and “Dry Water”. Langmuir 2017, 33, 9025–9033. [Google Scholar] [CrossRef] [PubMed]
  6. Chen, Z.W.; Zhou, L.; Bing, W.; Zhang, Z.J.; Li, Z.H.; Ren, J.S.; Qu, X.G. Light Controlled Reversible Inversion of Nanophosphor-Stabilized Pickering Emulsions for Biphasic Enantioselective Biocatalysis. J. Am. Chem. Soc. 2014, 136, 7498–7504. [Google Scholar] [CrossRef] [PubMed]
  7. Xue, W.; Yang, H.Q.; Du, Z.P. Synthesis of pH-Responsive Inorganic Janus Nanoparticles and Experimental Investigation of the Stability of Their Pickering Emulsions. Langmuir 2017, 33, 10283–10290. [Google Scholar] [CrossRef] [PubMed]
  8. Kim, J.W.; Cho, J.; Cho, J.; Park, B.J.; Kim, Y.J.; Choi, K.H.; Kim, J.W. Synthesis of Monodisperse Bi-Compartmentalized Amphiphilic Janus Microparticles for Tailored Assembly at the Oil-Water Interface. Angew. Chem. Int. Ed. 2016, 55, 4509–4513. [Google Scholar] [CrossRef] [PubMed]
  9. Zapata, P.A.; Faria, J.; Ruiz, M.P.; Jentoft, R.E.; Resasco, D.E. Hydrophobic Zeolites for Biofuel Upgrading Reactions at the Liquid-Liquid Interface in Water/Oil Emulsions. J. Am. Chem. Soc. 2012, 134, 8570–8578. [Google Scholar] [CrossRef] [PubMed]
  10. Crossley, S.; Faria, J.; Shen, M.; Resasco, D.E. Solid Nanoparticles that Catalyze Biofuel Upgrade Reactions at the Water/Oil Interface. Science 2010, 327, 68–73. [Google Scholar] [CrossRef] [PubMed]
  11. Hu, Y.H.; Wang, J.C.; Yang, S.; Li, Y.A.; Dong, Y.B. CuI@UiO-67-IM: A MOF-Based Bifunctional Composite TriphaseTransfer Catalyst for Sequential One-Pot Azide-Alkyne Cycloaddition in Water. Inorg. Chem. 2017, 56, 8341–8347. [Google Scholar] [CrossRef] [PubMed]
  12. Huo, J.; Marcello, M.; Garai, A.; Bradshaw, D. MOF-Polymer Composite Microcapsules Derived from Pickering Emulsions. Adv. Mater. 2013, 25, 2717–2732. [Google Scholar] [CrossRef] [PubMed]
  13. Farha, O.K.; Hupp, J.T. Rational Design, Synthesis, Purification, and Activation of Metal Organic Framework Materials. Acc. Chem. Res. 2010, 43, 1166–1175. [Google Scholar] [CrossRef] [PubMed]
  14. Huo, J.; Aguilera-Sigalat, J.; El-Hankari, S.; Bradshaw, D. Magnetic MOF Microreactors for Recyclable Size-selective Biocatalysis. Chem. Sci. 2015, 6, 1938–1943. [Google Scholar] [CrossRef] [PubMed]
  15. Wang, C.H.; Liu, X.L.; Demir, N.K.; Chen, J.P.; Li, K. Applications of water stable metal-organic frameworks. Chem. Soc. Rev. 2016, 45, 5107–5134. [Google Scholar] [CrossRef] [PubMed]
  16. Burtch, N.C.; Jasuja, H.; Walton, K.S. Water stability and adsorption in metal-organic frameworks. Chem. Rev. 2014, 114, 10575–10612. [Google Scholar] [CrossRef] [PubMed]
  17. Schejn, A.; Mazet, T.; Falk, V.; Balan, L.; Aranda, L.; Medjahdi, G.; Schneider, R. Fe3O4@ZIF-8: Magnetically recoverable catalysts by loading Fe3O4 nanoparticles inside a zinc imidazolate framework. Dalton Trans. 2015, 44, 10136–10140. [Google Scholar] [CrossRef] [PubMed]
  18. Chebbat, N.; Commenge, J.M.; Medjandi, G.; Schneider, R. ZIF-8 nanoparticles as an efficient and reusable catalyst for the Knoevenagel synthesis of cyanoacrylates and 3-cyanocoumarins. Tetrahedron Lett. 2016, 57, 5885–5888. [Google Scholar]
  19. Guan, Y.B.; Shi, J.J.; Xia, M.; Zhang, J.; Pang, Z.F.; Marchetti, A.; Wang, X.H.; Cai, J.S.; Kong, X.Q. Monodispersed ZIF-8 particles with enhanced performance for CO2 adsorption and heterogeneous catalysis. Appl Surf. Sci. 2017, 423, 349–535. [Google Scholar] [CrossRef]
  20. Nguyen, L.L.; Ky, L.E.; Phan, N.T.S. A Zeolite Imidazolate Framework ZIF-8 Catalyst for Friedel-Crafts Acylation. Chin. J. Catal. 2012, 33, 688–696. [Google Scholar] [CrossRef]
  21. Tsai, C.W.; Langner, E.H.G. The effect of synthesis temperature on the particle size of nano-ZIF-8. Microporous Mesoporous Mater. 2016, 221, 8–13. [Google Scholar] [CrossRef]
  22. Zhang, Y.M.; Zhang, J.; Tian, M.M.; Quan, C.S.; Fan, S.D. Fabrication of Amino-functionalized Fe3O4@Cu3(BTC)2 for Heterogeneous Knoevenagel Condensation. Chin. J. Catal. 2016, 37, 420–427. [Google Scholar] [CrossRef]
  23. Zhang, Y.M.; Dai, T.L.; Zhang, J.; Chu, G.; Quan, C.S. Fe3O4@UiO-66-NH2 Core-Shell Nanohybrid as Stable Heterogeneous Catalyst for Knoevenagel Condensation. Chin. J. Catal. 2016, 37, 2106–2113. [Google Scholar] [CrossRef]
  24. Li, P.Z.; Aranishi, K.; Xu, Q. ZIF-8 immobilized nickel nanoparticles: Highly effective catalysts for hydrogen generation from hydrolysis of ammonia borane. Chem. Commun. 2012, 48, 3173–3175. [Google Scholar] [CrossRef] [PubMed]
  25. Sun, C.Y.; Sun, C.Y.; Qin, C.; Wang, X.L.; Yang, G.S.; Shao, K.Z.; Lan, Y.Q.; Su, Z.M.; Huang, P.; Wang, C.G.; et al. Zeolitic imidazolate framework-8 as efficient pH-sensitive drug delivery vehicle. Dalton Trans. 2012, 41, 6906–6909. [Google Scholar] [CrossRef] [PubMed]

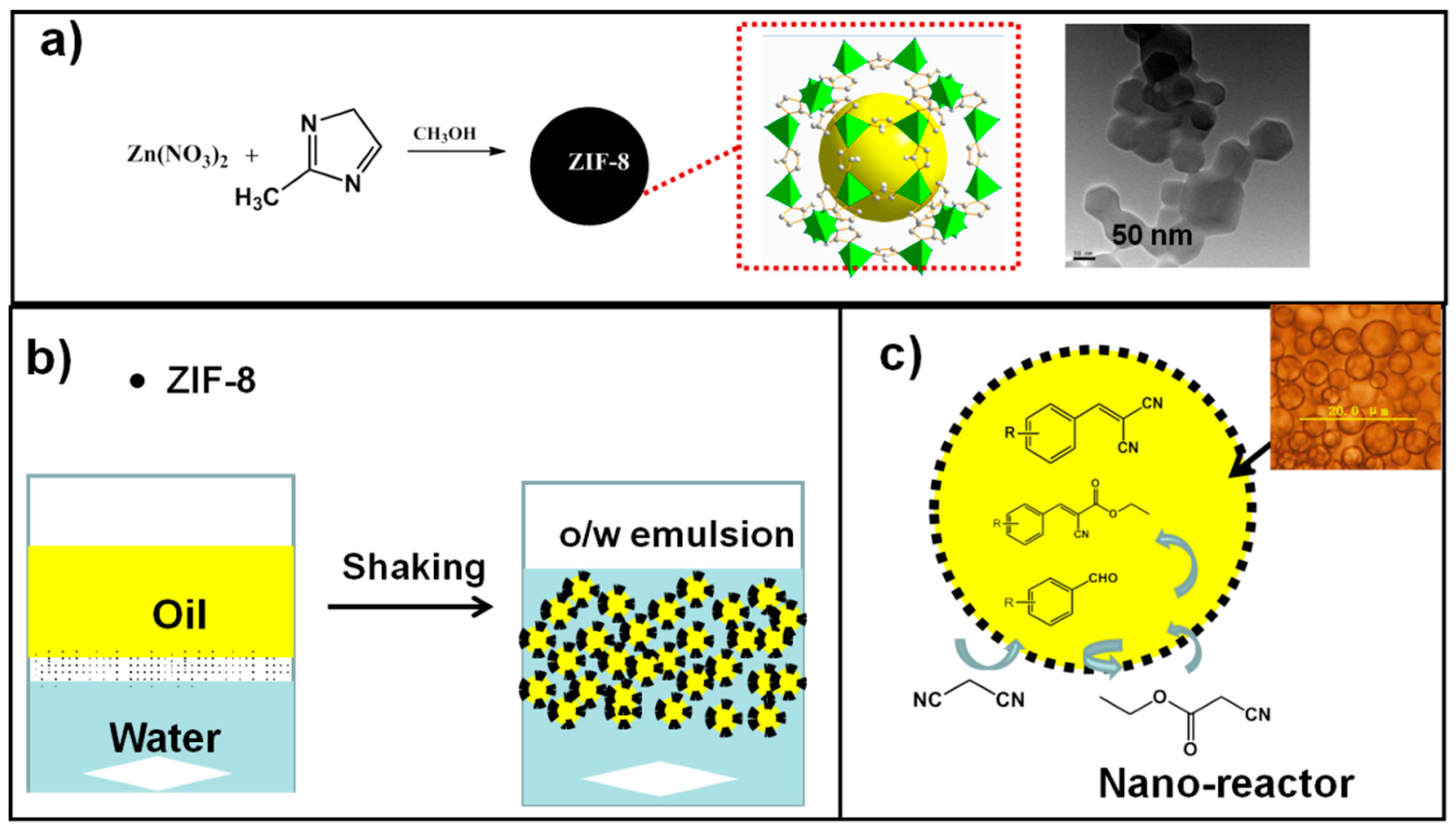

Figure 1. Schematic presentation of the synthesis of ZIF-8 nanoparticles and catalytic reactions in the Pickering emulsion. (a) Synthesis and TEM image of ZIF-8 nanoparticles; (b) Formation of Pickering emulsion stabilized by ZIF-8; (c) Schematic presentation of the Knoevenagel condensation in Pickering emulsion.
Figure 1. Schematic presentation of the synthesis of ZIF-8 nanoparticles and catalytic reactions in the Pickering emulsion. (a) Synthesis and TEM image of ZIF-8 nanoparticles; (b) Formation of Pickering emulsion stabilized by ZIF-8; (c) Schematic presentation of the Knoevenagel condensation in Pickering emulsion.
Catalysts 08 00315 g001
Figure 2. SEM images of fresh ZIF-8 (A) and TEM images of fresh ZIF-8 (B,C) and recovered ZIF-8 (D).
Figure 2. SEM images of fresh ZIF-8 (A) and TEM images of fresh ZIF-8 (B,C) and recovered ZIF-8 (D).
Catalysts 08 00315 g002

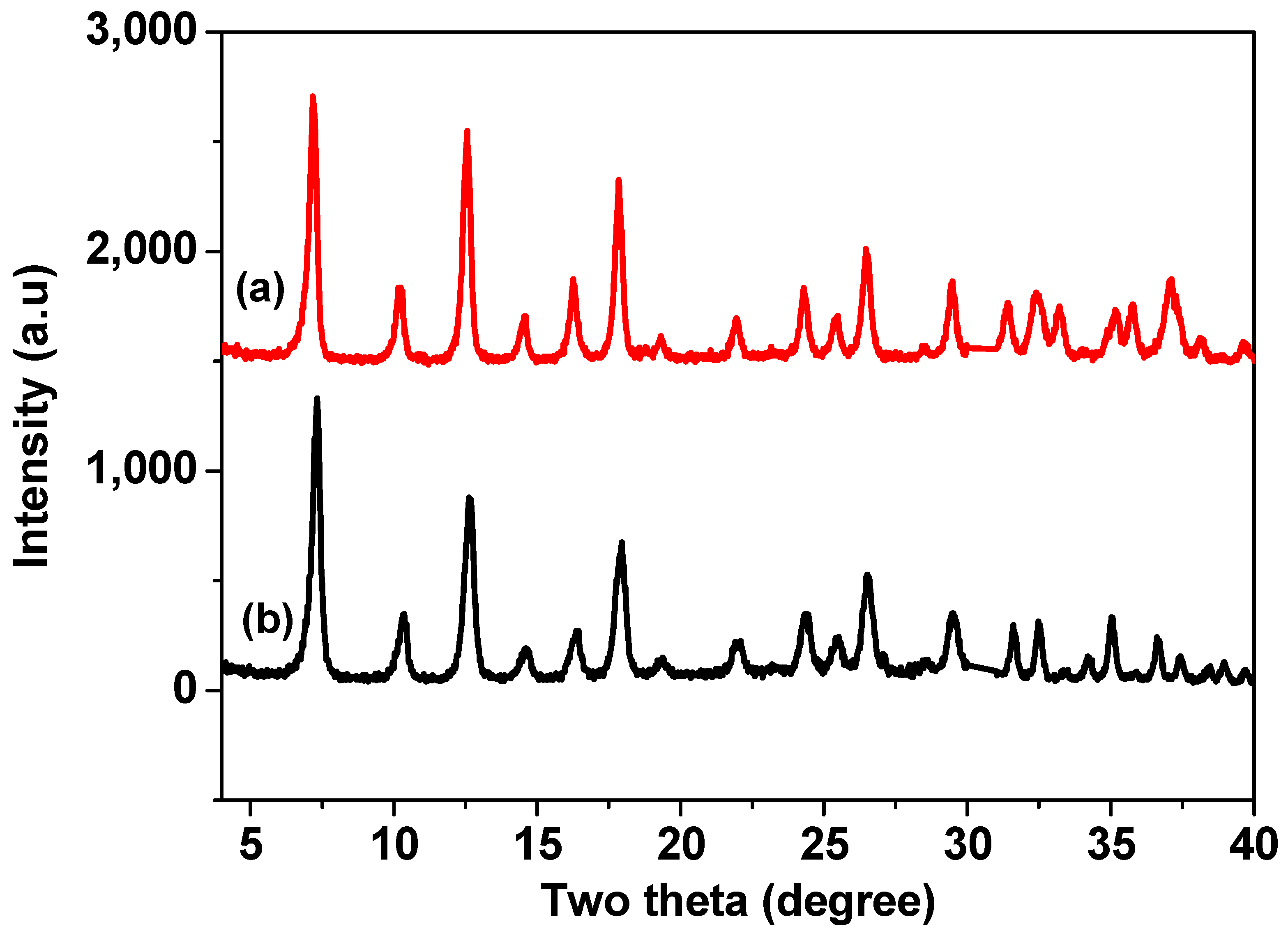

Figure 3. XRD patterns of fresh ZIF-8 (a) and recovered ZIF-8 after treatment in water (b).
Figure 3. XRD patterns of fresh ZIF-8 (a) and recovered ZIF-8 after treatment in water (b).
Catalysts 08 00315 g003
Figure 4. Photographs of the water/ZIF-8/ethyl acetate system (A) and water/ZIF-8/2-nitrobenzaldehyde and ethyl acetate system (B) without stirring. Appearance (C) and corresponding optical microscopy image (D) of Pickering emulsions stabilized by ZIF-8.
Figure 4. Photographs of the water/ZIF-8/ethyl acetate system (A) and water/ZIF-8/2-nitrobenzaldehyde and ethyl acetate system (B) without stirring. Appearance (C) and corresponding optical microscopy image (D) of Pickering emulsions stabilized by ZIF-8.
Catalysts 08 00315 g004

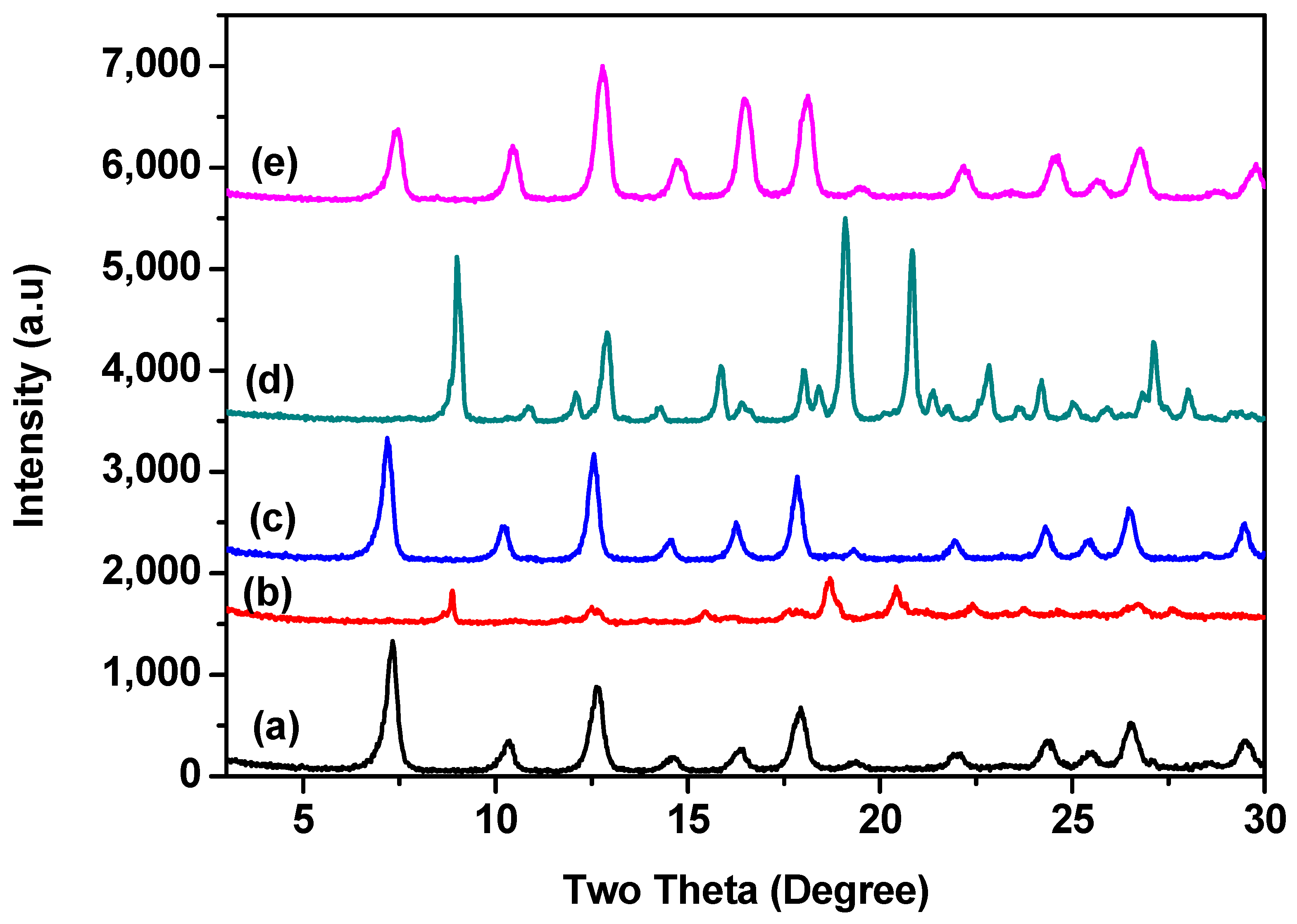

Figure 5. XRD patterns of fresh ZIF-8 (a), recovered ZIF-8 from the reaction between benzaldehyde and ethyl acetate in water at 80 °C (b), ZIF-8 treated with water at 80 °C (c), ZIF-8 treated with benzaldehyde in water at 80 °C (d), ZIF-8 treated with ethyl acetate in water at 80 °C (e).
Figure 5. XRD patterns of fresh ZIF-8 (a), recovered ZIF-8 from the reaction between benzaldehyde and ethyl acetate in water at 80 °C (b), ZIF-8 treated with water at 80 °C (c), ZIF-8 treated with benzaldehyde in water at 80 °C (d), ZIF-8 treated with ethyl acetate in water at 80 °C (e).
Catalysts 08 00315 g005

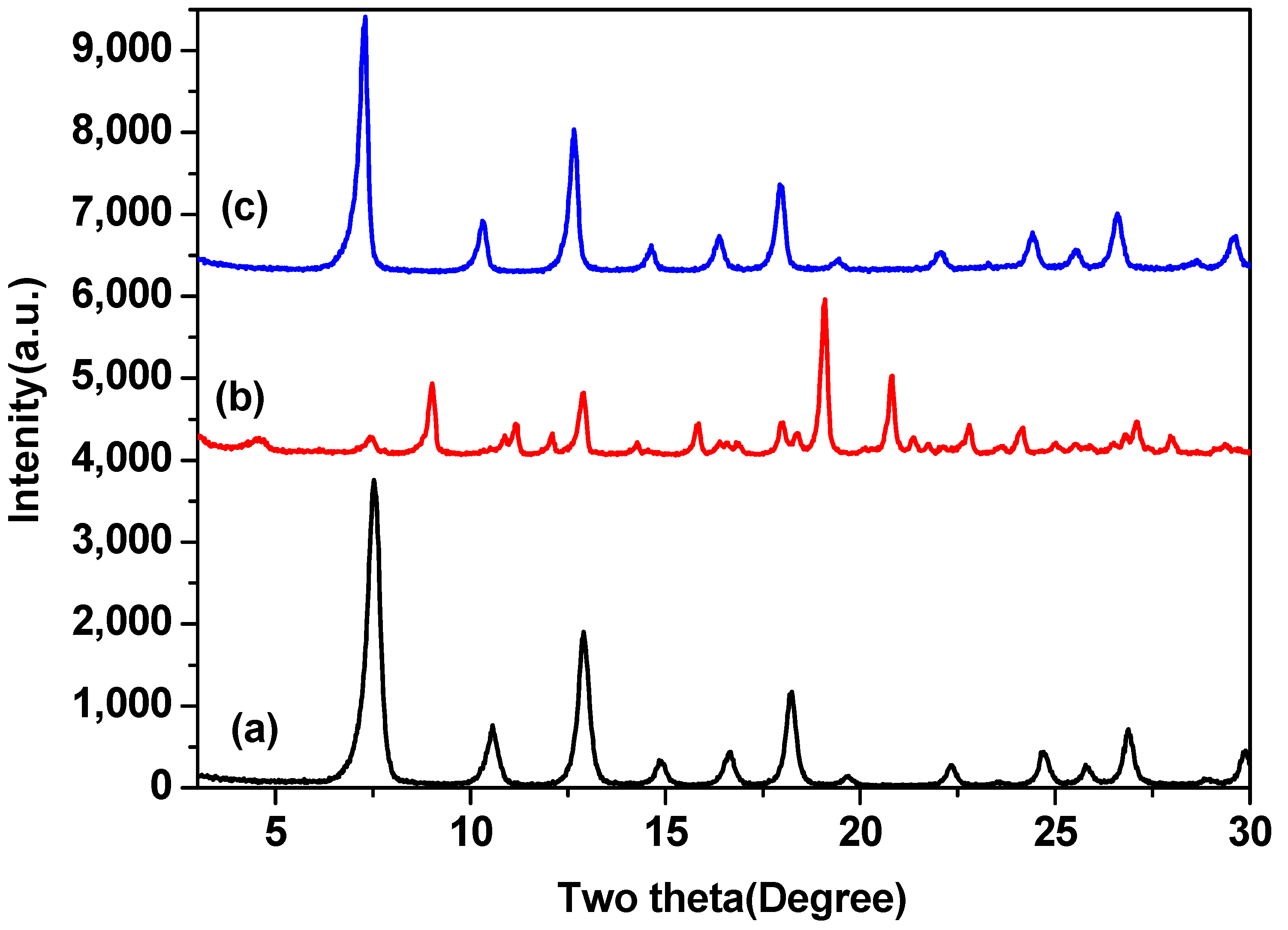

Figure 6. XRD patterns of fresh ZIF-8 (a), recovered ZIF-8from the reaction betweenbenzaldehyde and malononitrile in water at 40 °C (b) and recovered ZIF-8 from the reaction between 2-nitrobenzladehyde and malononitrile in water at 40 °C (c).
Figure 6. XRD patterns of fresh ZIF-8 (a), recovered ZIF-8from the reaction betweenbenzaldehyde and malononitrile in water at 40 °C (b) and recovered ZIF-8 from the reaction between 2-nitrobenzladehyde and malononitrile in water at 40 °C (c).
Catalysts 08 00315 g006

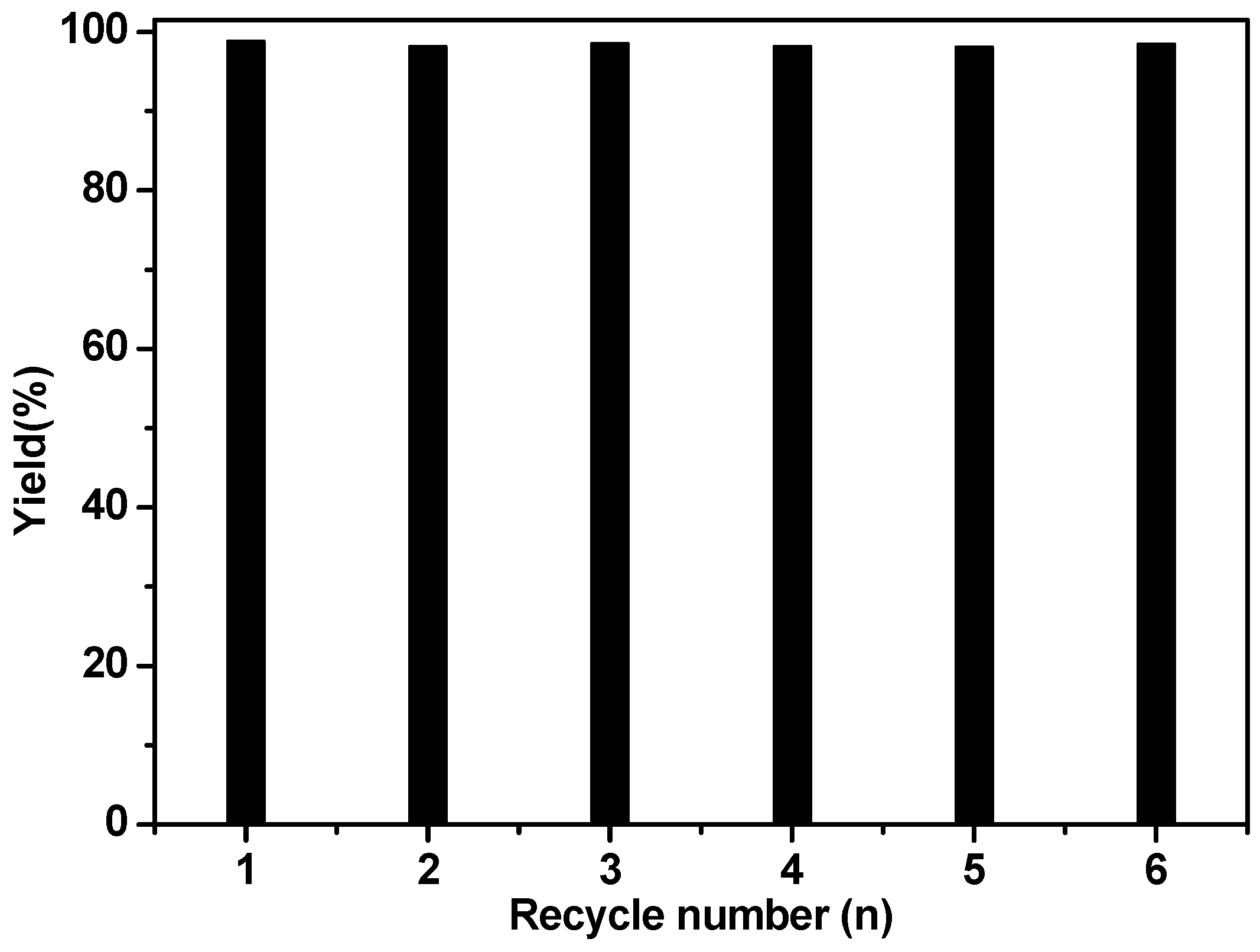

Figure 7. Recycle results of ZIF-8 in the Knoevenagel condensation between 2-nitrobenzaldehyde and malononitrilein water at 40 °C.
Figure 7. Recycle results of ZIF-8 in the Knoevenagel condensation between 2-nitrobenzaldehyde and malononitrilein water at 40 °C.
Catalysts 08 00315 g007

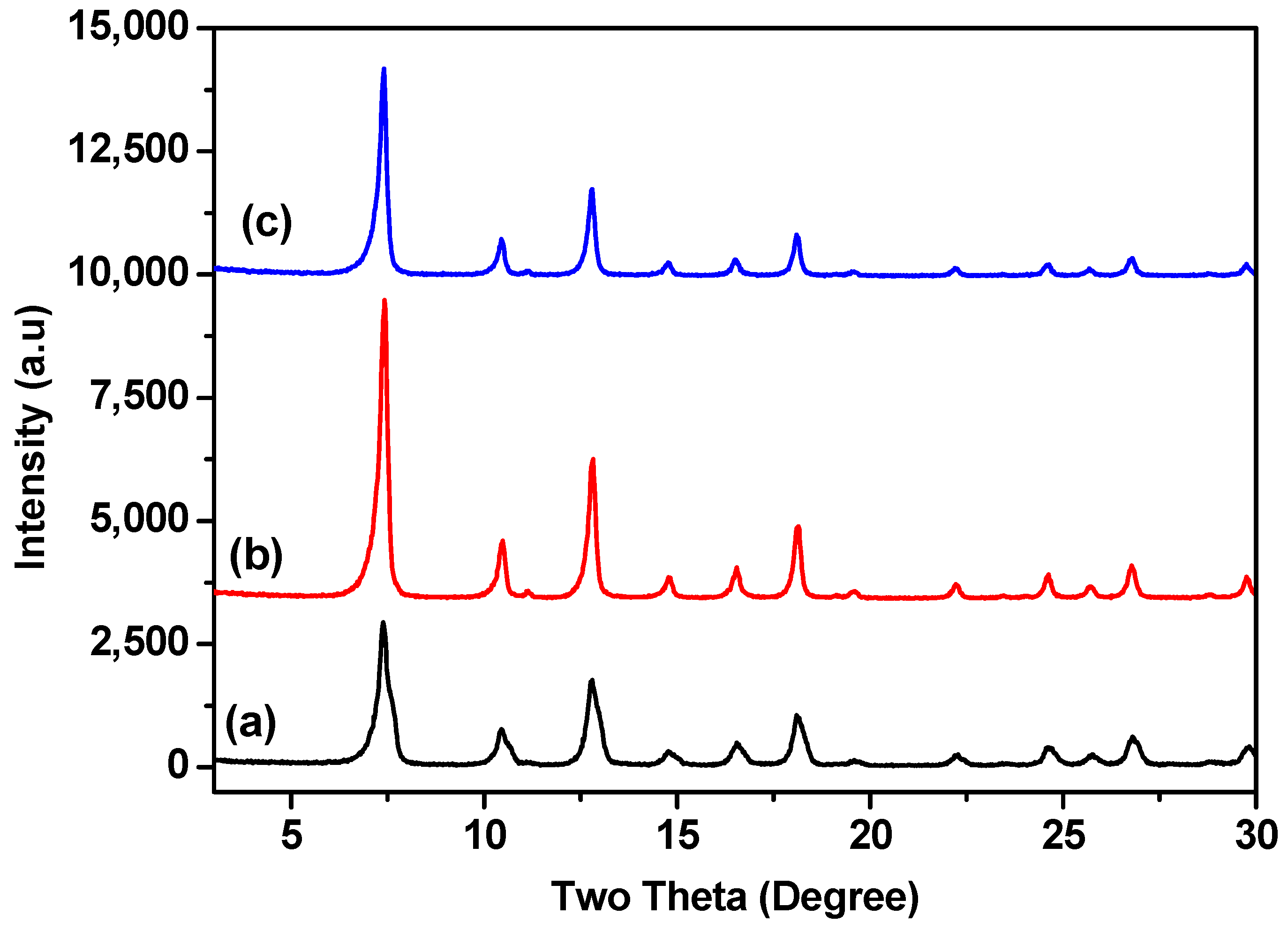

Figure 8. XRD patterns of fresh ZIF-8 (a), recovered ZIF-8 after three cycles (b) and after six cycles (c) from the reaction between 2-nitrobenzladehyde and malononitrile in water at 40 °C.
Figure 8. XRD patterns of fresh ZIF-8 (a), recovered ZIF-8 after three cycles (b) and after six cycles (c) from the reaction between 2-nitrobenzladehyde and malononitrile in water at 40 °C.
Catalysts 08 00315 g008
Figure 9. TEM images of fresh ZIF-8 (A), recovered after three cycles (B) and after six cycles (C) from the Knoevenagel condensation between 2-nitrobenzaldehyde and malononitrilein water at 40 °C.
Figure 9. TEM images of fresh ZIF-8 (A), recovered after three cycles (B) and after six cycles (C) from the Knoevenagel condensation between 2-nitrobenzaldehyde and malononitrilein water at 40 °C.
Catalysts 08 00315 g009

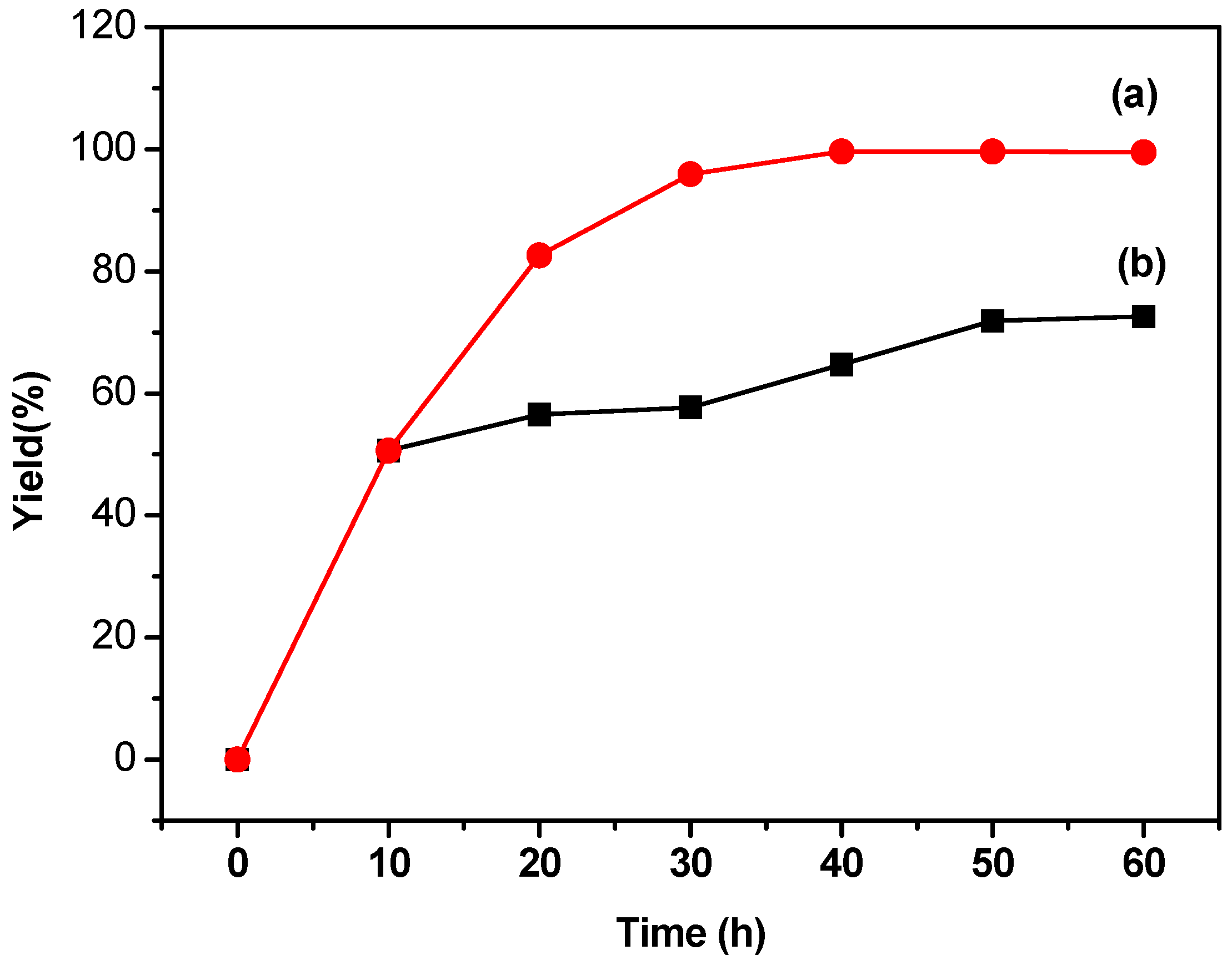

Figure 10. Hot filtration experiments of ZIF-8-catalyzed condensations between (a) 2-nitrobenzaldehyde and (b) ethyl acetate in a biphasic system.
Figure 10. Hot filtration experiments of ZIF-8-catalyzed condensations between (a) 2-nitrobenzaldehyde and (b) ethyl acetate in a biphasic system.
Catalysts 08 00315 g010
Table 1. Knoevenagel condensation between benzaldehyde and ethyl cyanoacetatein various solvents in the presence of ZIF-8.
Table 1. Knoevenagel condensation between benzaldehyde and ethyl cyanoacetatein various solvents in the presence of ZIF-8.
CatalystSolventTime (min)Yield (%)CatalystSolventTime (min)Yield (%)
Catalysts 08 00315 i001
ZIF-8Water3082ZIF-8DMF3097
THF3065Ethyl acetate3049
Hexane307Toluene3032
Ethanol3082DMSO3092
Reaction conditions: 25 mg of ZIF-8, 5 mL of solvents, 4 mmol of ethyl cyanoacetate, 3.5 mmol of benzaldehyde, 80 °C, 30 min.
Table 2. ZIF-8-catalyzed Knoevenagel condensations of various substrates in the biphasic system.
Table 2. ZIF-8-catalyzed Knoevenagel condensations of various substrates in the biphasic system.
EntryCatalystSubstrateSubstrateTime (min)T (°C)Yield (%)
1Blank Catalysts 08 00315 i002 Catalysts 08 00315 i00330(60)80<2(3)
2ZIF-8 Catalysts 08 00315 i002 Catalysts 08 00315 i00330(60)8082(>99)
3 Catalysts 08 00315 i004 Catalysts 08 00315 i00310(30)8091(>99)
4 Catalysts 08 00315 i005 Catalysts 08 00315 i00310(30)4051(95)
5 Catalysts 08 00315 i006 Catalysts 08 00315 i00310(30)4010(36)
6 Catalysts 08 00315 i006 Catalysts 08 00315 i00330(60)8027(79)
7 Catalysts 08 00315 i007 Catalysts 08 00315 i003608045
8 Catalysts 08 00315 i008 Catalysts 08 00315 i0031208023
9 Catalysts 08 00315 i002 Catalysts 08 00315 i009104085
10 Catalysts 08 00315 i005 Catalysts 08 00315 i009104098
11 Catalysts 08 00315 i004 Catalysts 08 00315 i009104098
12 Catalysts 08 00315 i007 Catalysts 08 00315 i009154047
13 Catalysts 08 00315 i008 Catalysts 08 00315 i009304012
14Blank Catalysts 08 00315 i005 Catalysts 08 00315 i009304018
Reaction conditions: 3.5 mmol aldehyde, 4 mmol ethyl cyanoacetate or malononitrile, 25 mg ZIF-8 in 3 mL of H2O and 2 mL of ethyl acetate at 80 or 40 °C.
