Photocatalytic Oxidation Processes for Toluene Oxidation over TiO2 Catalysts

Department of Energy and Material Sciences, Faculty of Engineering Sciences, Kyushu University, Kasuga, Fukuoka 816-8580, Japan
*
Author to whom correspondence should be addressed.
Catalysts 2013, 3(1), 219-231; https://doi.org/10.3390/catal3010219
Submission received: 23 November 2012 / Revised: 5 January 2013 / Accepted: 5 February 2013 / Published: 4 March 2013
(This article belongs to the Special Issue Photocatalysts)

Abstract

:
Gas-solid heterogeneous photooxidation of toluene over TiO2 catalyst was studied to investigate the factors controlling the catalytic activities. The toluene photooxidation behavior on TiO2 was strongly affected by the formation and oxidation behavior of intermediate compounds on TiO2, and their accumulation decreased the reaction rate for toluene photooxidation. The formation and oxidation behavior of the byproduct compounds depended on the initial concentration of toluene and water vapor. In situ Fourier transform infrared (FTIR) studies revealed that water vapor promoted the cleavage of the aromatic ring and facilitated CO2 formation. At the reaction temperature of 300 K, the deposition of Pt on TiO2 suppressed CO formation, whereas catalytic activity was decreased due to the increase in the amount of intermediate compounds. On the other hand, Pt/TiO2 showed higher activity than TiO2 at 353 K, in spite of the increase of the intermediate compounds.

1. Introduction

Control of air quality is still one of the important topics in the research area of environmental science and technology. Photocatalytic oxidation (PCO) processes have been extensively studied for air quality control when the target compounds are CO, NO, volatile organic compounds (VOCs) and bioaerosols in closed environment [1,2,3,4,5]. PCO is effective for the control of these compounds, especially under their diluted conditions. In the case of VOC removal from polluted air, TiO2 catalysts have been generally used because of their high activities, high safety and low cost. The photooxidation behavior of various kinds of organic compounds, including aromatic compounds on near UV irradiated TiO2 catalysts, has been clarified [6,7,8,9,10,11,12,13,14,15,16,17,18,19].
It has been generally accepted that the factors controlling photocatalytic activities involve the efficiency for electron-hole pair generation and their separation, formation of active oxygen species on the TiO2 surface and their reaction with organic compounds adsorbed on the surface [1,19]. Therefore, many efforts have been made to improve the photocatalytic properties of TiO2 catalysts by controlling their crystallinity, band gaps and surface area. The other catalyst-modification methods are metal doping/deposition in/on the TiO2 catalyst surface [20,21]. Deposition of Pt metals on TiO2 was effective in improving the rate for VOC photooxidation when the photoreaction was conducted with heating processes [22,23].
We have carried out the photocatalytic oxidation of hydrocarbons with TiO2 to investigate their photooxidation behavior by using a gas-solid heterogeneous flow system [24,25,26,27,28]. Benzene and toluene were oxidized to CO2 on TiO2 under near-UV irradiation; the TiO2 catalysts suffered from severe deactivation when aromatic compounds were used as the substrate under their high concentrations or dry conditions [7,9]. Under these conditions, intermediate compounds, including oxygen-containing species and carbonaceous materials, were generally formed on the TiO2 catalyst surface, which covered catalytic active sites, inhibiting the adsorption and oxidation of toluene on the sites. On the basis of these findings, we have suggested that the formation and oxidation behavior of such intermediate compounds is also one of the important factors that controls the photocatalytic activities [26].
We herein report the photocatalytic oxidation of toluene over TiO2 catalysts by focusing on the formation and oxidation behavior of intermediate compounds on the catalyst surface. The amount of intermediate compounds on TiO2 was compared under various conditions to investigate the relationship between the photooxidation behavior of toluene and that of intermediate compounds in detail. We also conducted in situ Fourier transform infrared (FTIR) spectroscopic studies for toluene photooxidation on TiO2 to reveal the effect of water vapor on the behavior of toluene and the intermediate compounds.

2. Results and Discussion

2.1. Photooxidation Behavior of Toluene on TiO2

Figure 1a shows the time course for toluene photooxidation with TiO2 under humid condition ([toluene]0 = 8.4 μmol/L (210 ppmv), [H2O] = 1.0%) with a circulation system at 300 K. After the adsorption-desorption equilibrium was achieved in dark, photoirradiation was started for the TiO2 catalyst. Toluene was oxidized on TiO2 to form CO2 and CO without an induction period on irradiation. Toluene concentration rapidly decreased in the initial period (~4 min), and then, the reaction rate decreased to a constant value until gaseous toluene was almost completely consumed. The formation of these intermediate compounds on TiO2 in toluene photooxidation has been reported and the oxygen-containing byproducts, such as benzoic acid and benzaldehyde, have been identified [15]. The formation of carbonaceous species was also confirmed by browning of TiO2 catalyst during the toluene photooxidation. Figure 1b shows the time course for the changes in the amount of byproduct compounds on TiO2, which can be estimated from the balance between the amount of toluene consumption and that of COx formation, as expressed by Equation (1), where V and W are the volume of the circulation system and catalyst mass. This estimation was valid, because no other C-containing byproducts were observed in gas phase with our system, indicating that the byproducts were presented on the catalyst surface.
Catalysts 03 00219 i001

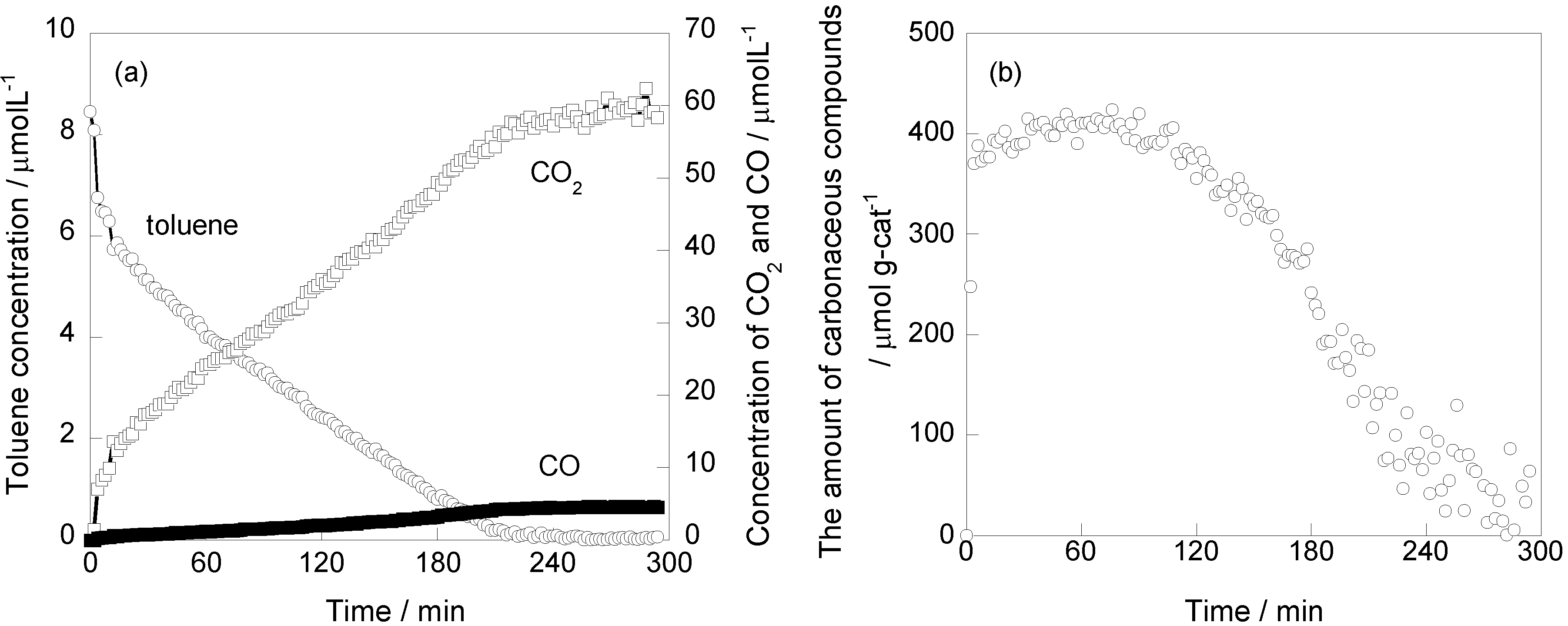

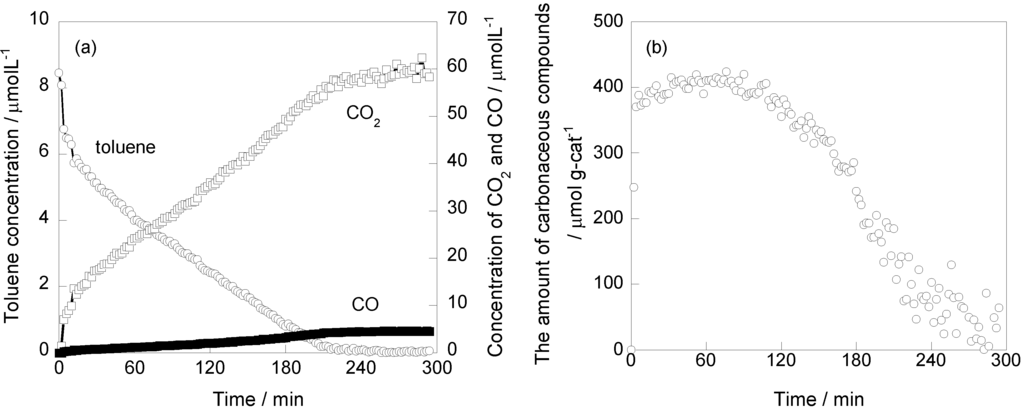

Figure 1. Time course for toluene photooxidation with TiO2. (a) Changes in concentration of toluene, CO2 and CO; (b) Changes in the amount of intermediate compounds on TiO2. [toluene]0 = 8.4 μmol/L, [H2O] = 1.0%, [O2] = 20%.
Figure 1. Time course for toluene photooxidation with TiO2. (a) Changes in concentration of toluene, CO2 and CO; (b) Changes in the amount of intermediate compounds on TiO2. [toluene]0 = 8.4 μmol/L, [H2O] = 1.0%, [O2] = 20%.
Catalysts 03 00219 g001
The amount of byproduct compounds greatly increased in the initial period. The amount reached the maximum at 76 min, where the amount of byproducts and the C-density on TiO2 were estimated to be 423 μmol/g-catalyst and 4.7 C-atom/nm2, respectively, indicating that the catalysts were significantly covered by the intermediate compounds. Comparison of the behavior of intermediate compounds with that of toluene indicates that the build-up of the byproducts caused the decrease in the reaction rate by blocking the catalyst active sites in the initial period. The intermediate compounds then gradually decreased with time, and their amount reached almost zero after 300 min, indicating that these compounds were further oxidized to CO2 and CO during the reaction.
The formation behavior for these intermediate compounds greatly depended on the initial concentration of toluene in gas phase. When the toluene concentration was decreased to 4.2 μmol/L (Figure 2a), the toluene concentration monotonically decreased with time on photoirradiation. In this case, a similar trend was observed in the initial period of the reaction: the rate for toluene photooxidation significantly decreased due to the formation of intermediate compounds on TiO2 (Figure 2b). However, the amount of intermediate compounds was lower and decreased monotonically with time.

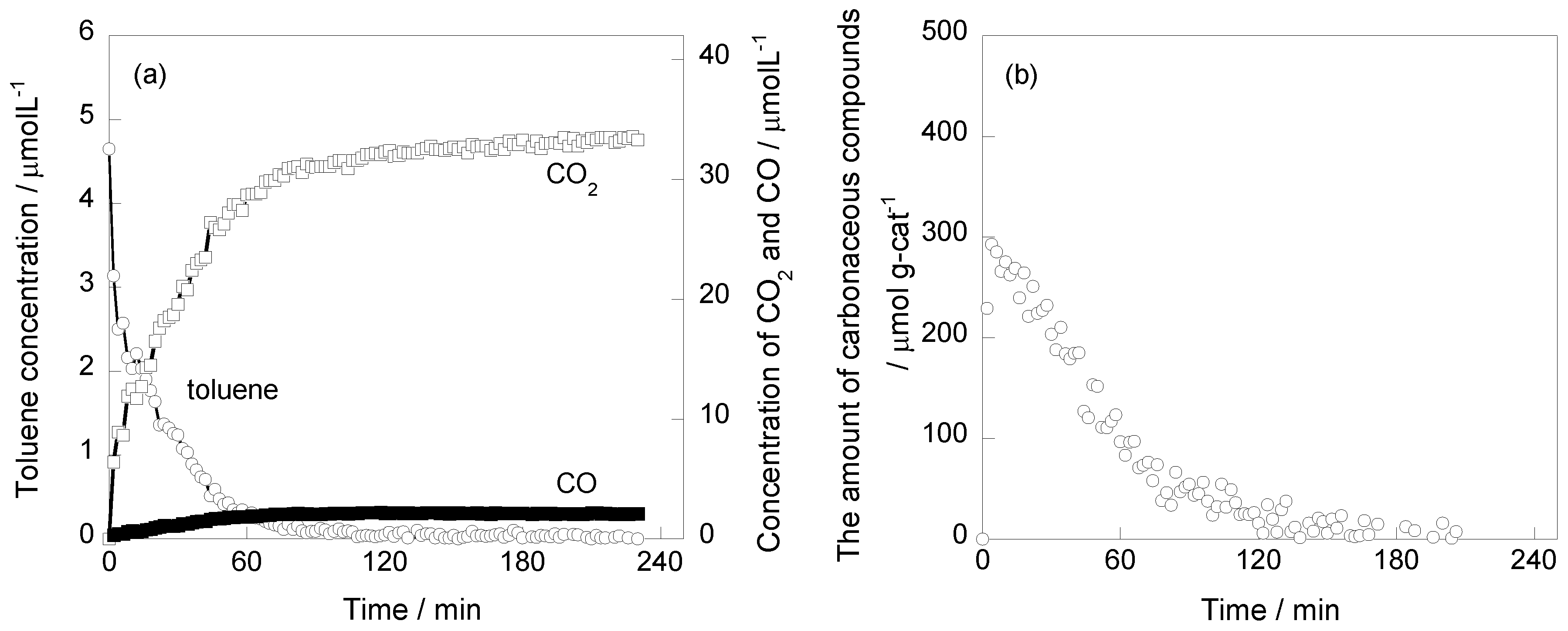

Figure 2. Time course for toluene photooxidation with TiO2. (a) Changes in concentration of toluene, CO2 and CO; (b) Changes in the amount of intermediate compounds on TiO2. [toluene]0 = 4.6 μmol/L, [H2O] = 1.0%, [O2] = 20%.
Figure 2. Time course for toluene photooxidation with TiO2. (a) Changes in concentration of toluene, CO2 and CO; (b) Changes in the amount of intermediate compounds on TiO2. [toluene]0 = 4.6 μmol/L, [H2O] = 1.0%, [O2] = 20%.
Catalysts 03 00219 g002
It has been reported that the rate of toluene photooxidation on TiO2 catalyst can be fitted to Langmuir-Hinshelwood (L-H) kinetics, Equation (2), where k and K are a constant and the equilibrium constant for toluene adsorption on TiO2, respectively [16]:
Catalysts 03 00219 i002
In the present study, however, the decay in toluene concentration was not fitted to the kinetic equation. This discrepancy was ascribed to the reaction condition. When the intermediate compounds were formed on TiO2 surface, the catalytic active sites were poisoned by these compounds, and the fraction of surface coverage of toluene (θ in Equation (3)) decreased. Hence, the reaction rate did not obey the L-H kinetics under the condition where the catalyst surface was significantly covered with the intermediate compounds.
Catalysts 03 00219 i003
The formation mechanism of the intermediate compounds on TiO2 in toluene photooxidation has been already studied by many groups [10,11,13,15]. It is well accepted that electron-hole pairs photoformed on TiO2 diffused to surface sites and generated active oxygen species [1,2]. So, the highly-reactive species attacked the aromatic ring of toluene to form organic radicals, which were then oxidized by molecular O2 to peroxy radicals, leading to the formation of ring-opening compounds. The methyl groups were also oxidized by the active oxygen species to form benzoic acid. When toluene concentration increased, the intermediate radicals also reacted with toluene to form dimerized species, which were then transformed to oligomeric and polymeric species in the presence of toluene. They were the first step for the formation of carbonaceous materials on TiO2. As mentioned above, however, these compounds were further oxidized to CO2 and CO under photoirradiation.
The formation behavior of the intermediate compounds was also greatly affected by the concentration of water vapor in gas phase, as reported earlier [9]. Figure 3 compares the time course plots for toluene conversion, COx formation and the amount of byproduct compounds on TiO2 under different humidity conditions. Water vapor in reaction gas have both positive and negative effects on toluene photooxidation. As a positive effect, water vapor inhibited the build-up of intermediate compounds on TiO2, giving rise to the increase in toluene photooxidation activity [24,26]. On the other hand, it inhibited the adsorption of toluene on the TiO2 surface, leading to the decrease in toluene photooxidation activity. At the concentration of 0.5%, the two effects competed, and the former effect was prominent at 1.0%. The positive effect of water vapor was explained in terms of radical species: OH radicals were formed on the TiO2 surface by photoirradiation in the presence of water vapor. However, this mechanism has been questioned because of the low reactivity of OH radicals on TiO2 [29]. In addition, no evidence was obtained for the formation of OH radicals on the gas-solid heterogeneous TiO2 photooxidation system. Further investigation should be conducted to reveal the reaction mechanism.

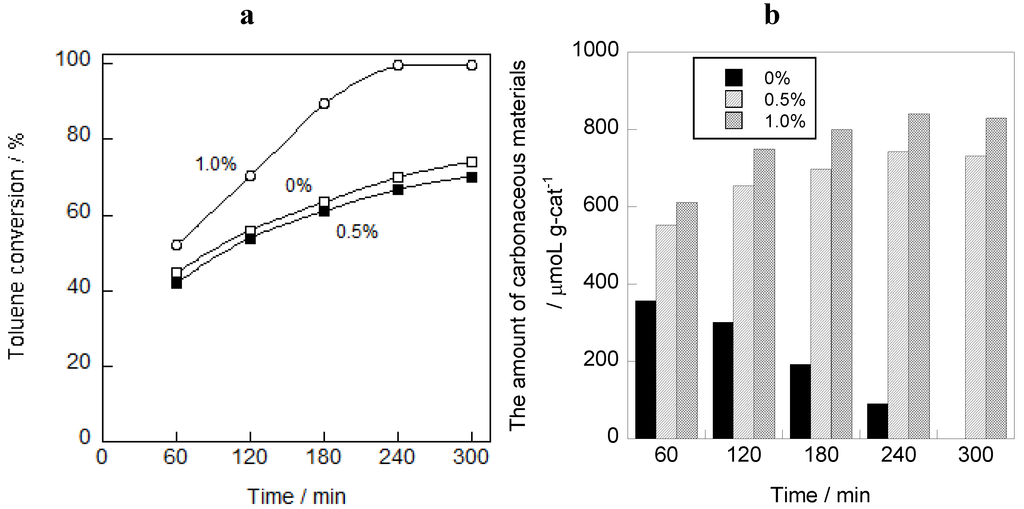

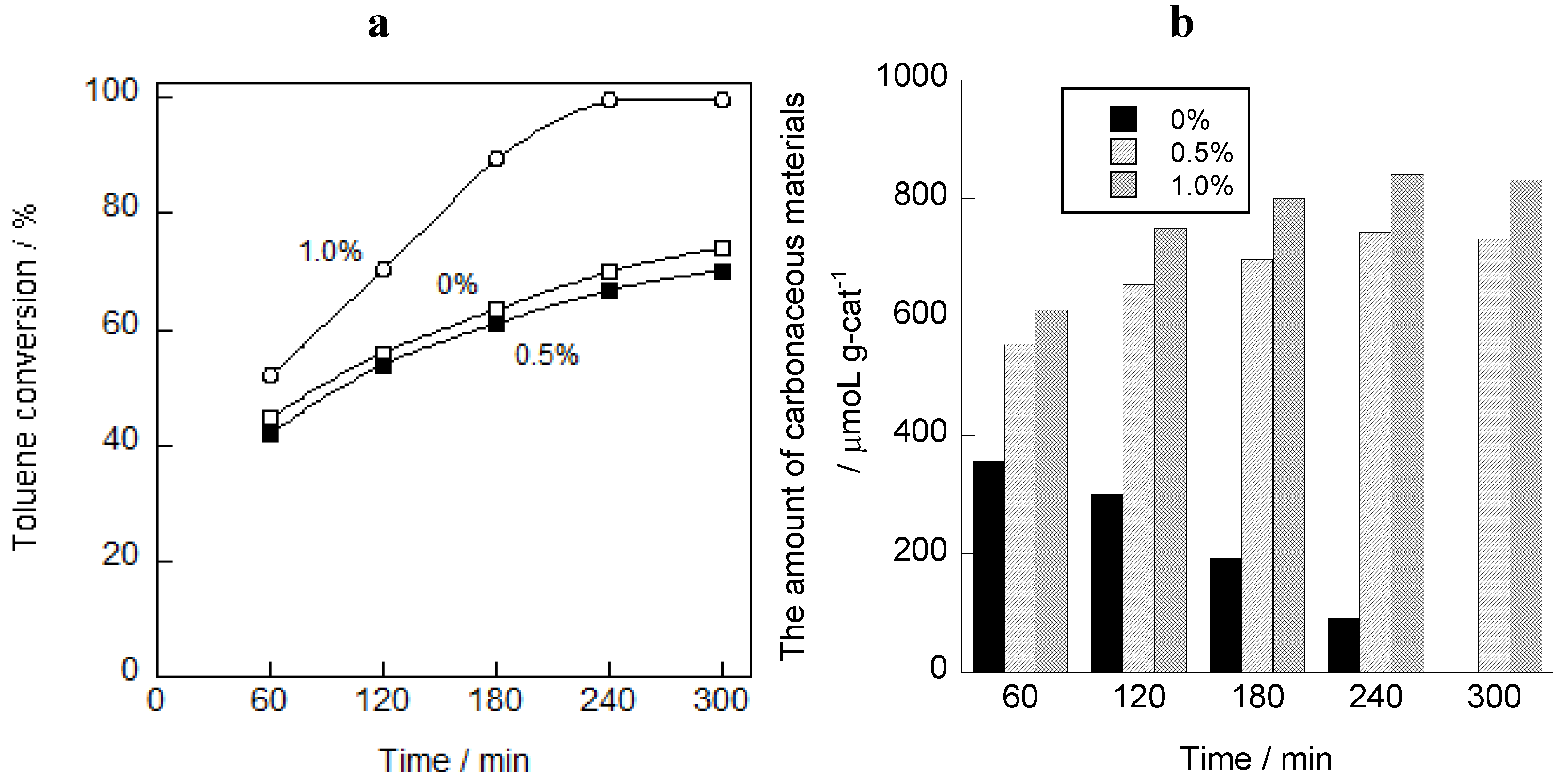

Figure 3. Effect of humidity on toluene photooxidation with TiO2. (a) Time course for toluene conversion; (b) Changes in the amount of intermediate compounds on TiO2. [toluene]0 = 8.4 μmol/L, [O2] = 20%.
Figure 3. Effect of humidity on toluene photooxidation with TiO2. (a) Time course for toluene conversion; (b) Changes in the amount of intermediate compounds on TiO2. [toluene]0 = 8.4 μmol/L, [O2] = 20%.
Catalysts 03 00219 g003

2.2. In Situ FTIR Studies for Toluene Photooxidation

In situ FTIR studies were conducted to pursue the photooxidation behavior of toluene on TiO2 and, especially, to investigate the effect of water vapor on toluene photooxidation. Figure 4 shows the changes in FTIR spectra of intermediate compounds on TiO2 during toluene photooxidation in air in the absence of water vapor. Here, it should be noted that the reaction rate was much lower than that in Figure 1, because the catalyst weight was much lower (see Experimental Section). In the toluene photooxidation ([toluene]0 = 30 ppm), the bands appeared in the wavenumber range 1000–2000 cm−1 (Figure 4a). In the initial period of reaction (0~5 h), the bands due to various kinds of intermediate compounds were observed. The bands at 1222, 1582, 1646 and 1682 cm−1 were assignable to benzaldehyde [30,31,32,33,34]. The strong band at 1414 cm−1 and the bands at 1448 and 1516 cm−1 were assignable to adsorbed benzoic acid on TiO2 [30,31,32,33,34]. The formation of these oxygen-containing compounds indicated that the active oxygen species attacked toluene and the intermediate compounds on the catalyst surface. In a prolonged reaction, the intensities of these bands increased with time, implying that the intermediate compounds were continuously accumulated on the TiO2 catalyst surface (Figure 4b). These behaviors were consistent with those observed for catalytic reactions described in Section 2.1. Then, the bands in the range of 1680–1720 cm−1, which were assignable to C=O stretchings, increased in their intensities. The appearance of the band at 1716 cm−1 due to aliphatic C=O groups indicated that aromatic ring cleavage occurred for the byproduct compounds. The bands at 2740, 2956 and 3072 cm−1 appeared, and their intensities increased with time, indicating that aromatic and aliphatic C−H groups were present in the intermediate compounds.

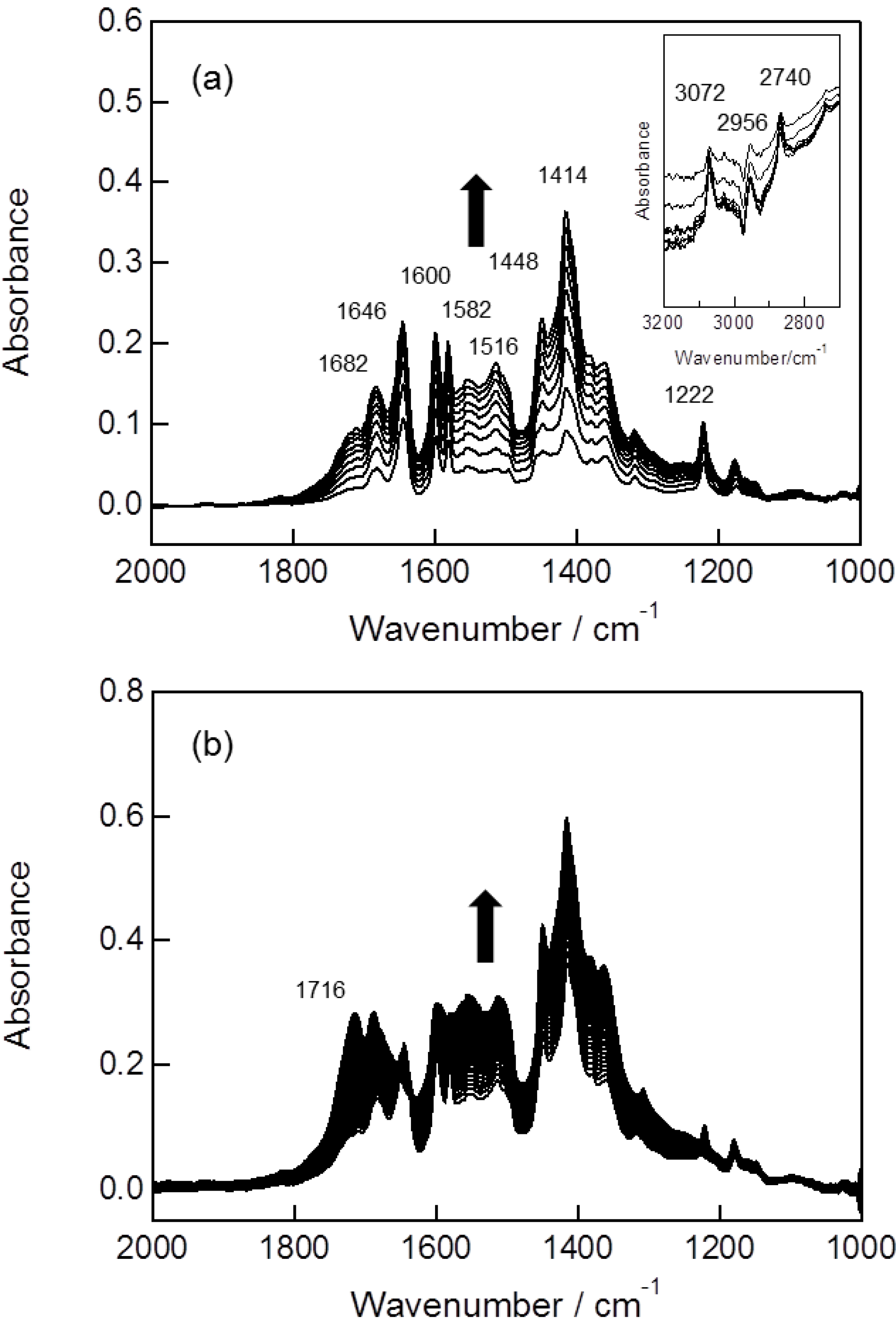

Figure 4. Fourier transform infrared (FTIR) spectral changes in TiO2 catalyst surface during toluene photooxidation under dry condition. Spectra were taken at 0.5 h intervals. (a) 1–5 h, (b) 5.5–40 h [toluene]0 = 0.12 μmol/L, [O2] = 20%.
Figure 4. Fourier transform infrared (FTIR) spectral changes in TiO2 catalyst surface during toluene photooxidation under dry condition. Spectra were taken at 0.5 h intervals. (a) 1–5 h, (b) 5.5–40 h [toluene]0 = 0.12 μmol/L, [O2] = 20%.
Catalysts 03 00219 g004
On the other hand, the intermediate compounds formed on TiO2 in the presence of H2O ([toluene] = 0.12 μmol/L (30 ppmv), [H2O] = 1.0%) were much different, as shown in Figure 5. After photoirradiation, the bands due to intermediate compounds were also observed. Although the bands due to the adsorbed benzoic acid (1416, 1450, 1514 and 1602 cm−1) were observed, the bands due to benzaldehyde were not detected, indicating that the oxidation of benzaldehyde to benzoic acid was promoted by the presence of water vapor. The difference was more prominent for the band of aliphatic C=O groups (1716 cm−1). The band appeared in the initial period in the presence of water vapor, in marked contrast with the reaction in the absence of water vapor, where there was an induction period for the appearance of the band. Therefore, benzene ring-cleavage immediately proceeded when water vapor was present in the reaction gas. The intensities of these bands increased with time until 5 h, and then, the intensities decreased with time, indicating that these intermediate compounds were oxidized CO2 and CO under photoirradiation in the presence of water vapor.
In the toluene photooxidation, active oxygen species photoformed on the TiO2 oxidize methyl group to form benzaldehyde and benzoic acid. The oxidation of aromatic rings gives rise to the formation of phenols or cleavage of the aromatic rings, which is the first step for complete oxidation to CO2. The findings described above show that the presence of water vapor promoted the sequential oxidizing of benzaldehyde to benzoic acid and the cleavage of aromatic rings. Therefore, the accumulation of the intermediate compounds was greatly suppressed by the presence of water vapor.

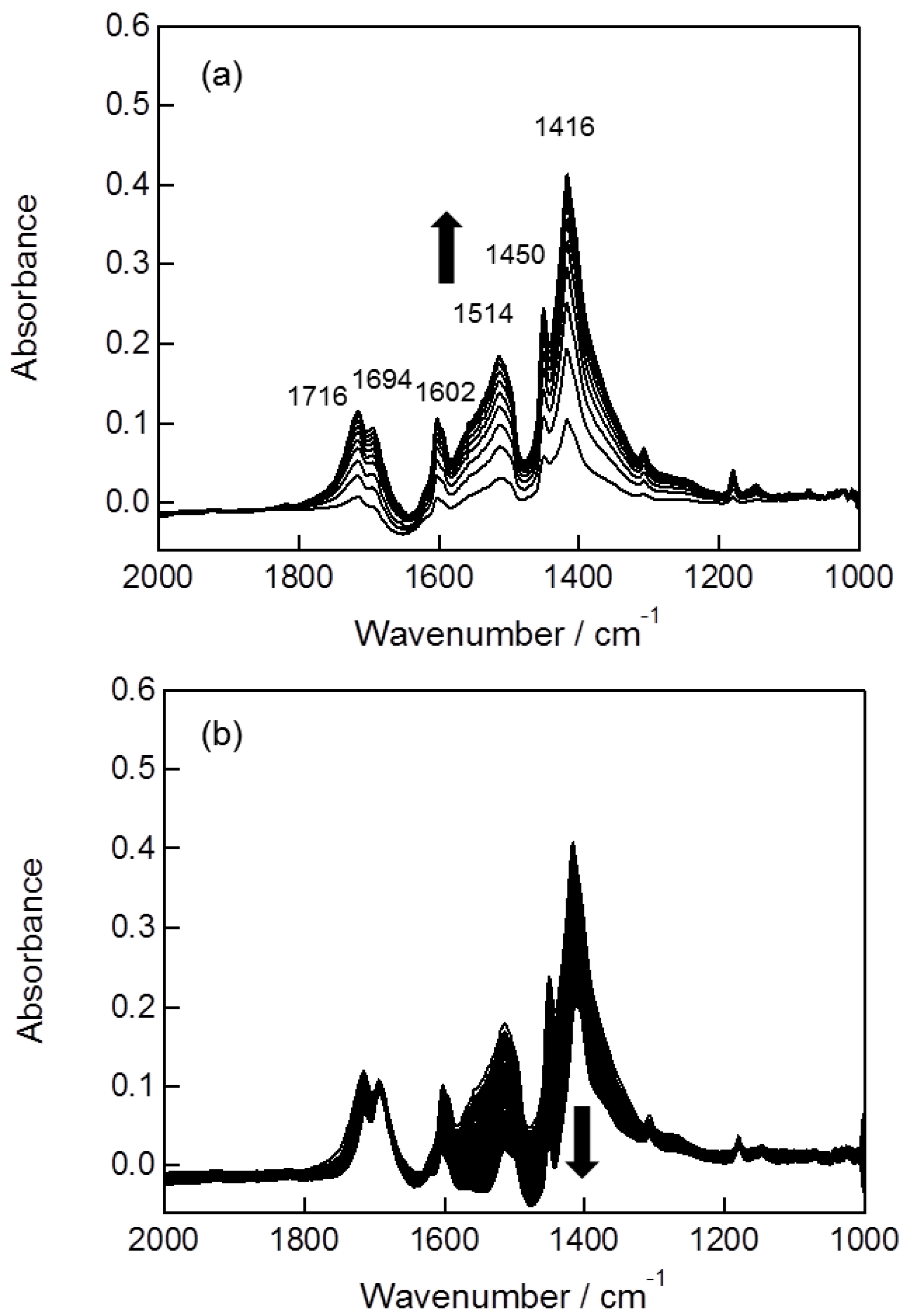

Figure 5. FTIR spectral changes in TiO2 catalyst surface during toluene photooxidation under humid condition. Spectra were taken at 0.5 h intervals. (a) 1–5 h; (b) 5.5–40 h. [toluene]0 = 0.12 μmol/L, [O2] = 20%. [H2O] = 1.0%.
Figure 5. FTIR spectral changes in TiO2 catalyst surface during toluene photooxidation under humid condition. Spectra were taken at 0.5 h intervals. (a) 1–5 h; (b) 5.5–40 h. [toluene]0 = 0.12 μmol/L, [O2] = 20%. [H2O] = 1.0%.
Catalysts 03 00219 g005

2.3. Effect of Pt Deposition and Catalyst Heating

Platinization of TiO2 is one of the effective methods to improve the photocatalytic oxidation activities, because it is reported to suppress the recombination of the electron-hole pair formed by photoirradiation in TiO2. In the case of benzene oxidation, the deposition of Pt did not change the rate for benzene photooxidation on TiO2 [25]. Figure 6 shows time course plots for toluene conversion, COx formation and the amount of intermediate compounds on Pt/TiO2 catalyst. Toluene concentration monotonically decreased with time, and the profile was similar to that with TiO2 (Figure 1). However, the amount of intermediate compounds formed on Pt/TiO2 was much larger than that on TiO2. Pt/TiO2 catalyst showed lower activity than TiO2 due to the increase in the amount of intermediate compounds on the catalyst. The intermediate compounds existed on the catalyst even after toluene was completely consumed (300~360 min). Thus, deposition of Pt on TiO2 promoted the formation of intermediate compounds at room temperature.

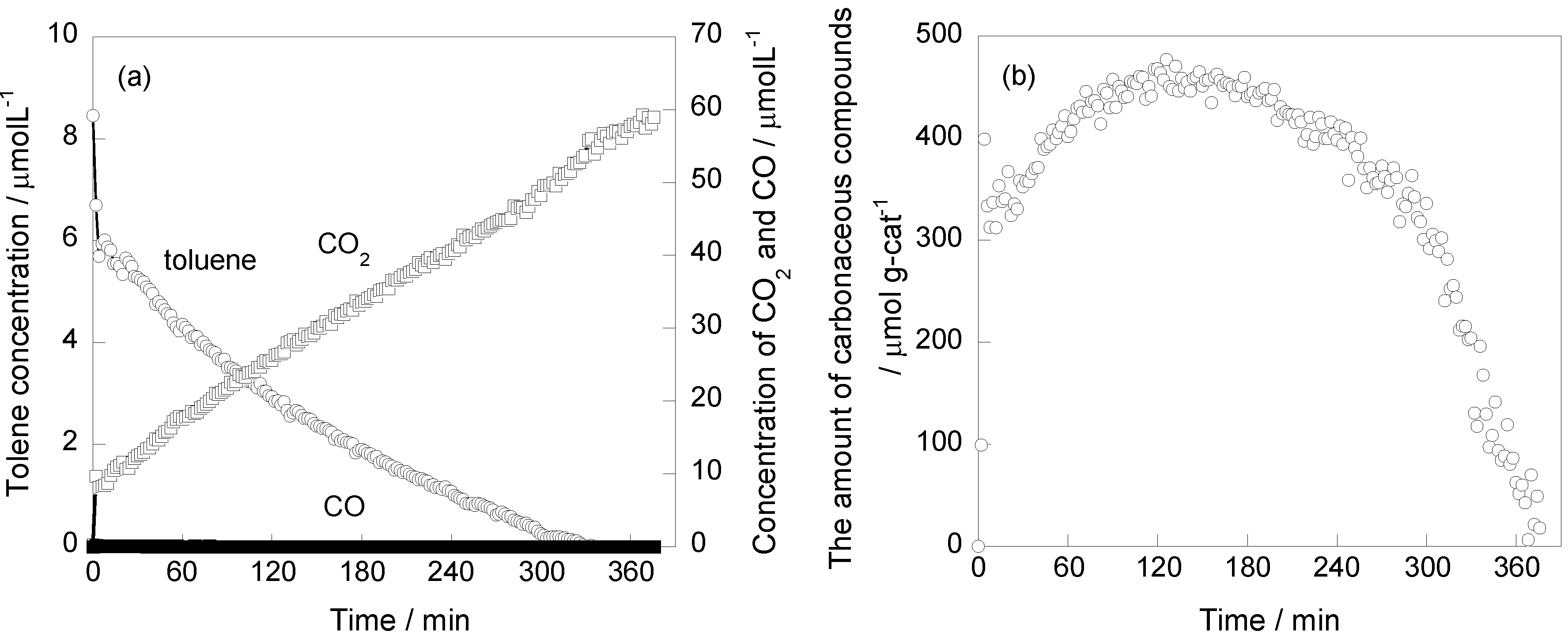

Figure 6. Time course for toluene photooxidation with Pt/TiO2. (a) Changes in concentration of toluene, CO2 and CO; (b) Changes in the amount of intermediate compounds on Pt/TiO2. [toluene]0 = 8.4 μmol/L, [H2O] = 1.0%, [O2] = 20%.
Figure 6. Time course for toluene photooxidation with Pt/TiO2. (a) Changes in concentration of toluene, CO2 and CO; (b) Changes in the amount of intermediate compounds on Pt/TiO2. [toluene]0 = 8.4 μmol/L, [H2O] = 1.0%, [O2] = 20%.
Catalysts 03 00219 g006
On the other hand, CO formation was greatly suppressed when the Pt/TiO2 catalyst was used for the reaction. CO was in all cases detected in toluene photooxidation on TiO2 catalyst, even when the reaction conditions were variously changed. However, CO concentration greatly decreased with Pt/TiO2 catalyst. This behavior was ascribed to the facile oxidation of CO oxidation on Pt/TiO2. The byproduct CO was oxidized on Pt sites under photoirradiation at room temperature [35]. This finding also indicates that the Pt sites were not significantly poisoned by the intermediate compounds, and thus, they can contribute to the CO photooxidation.
In our circulation recycling system, Pt/TiO2 catalysts were effective under briefly heated condition. Figure 7 shows time course plots for toluene photooxidation over TiO2 and platinized catalyst (1 wt%-Pt/TiO2) at 353 K. Here, the reaction rate was much lower than that in Figure 1, because a different kind of photochemical reactor was used for toluene photooxidation (see Experimental Section). Photocatalytic activity of TiO2 decreased and the amount of intermediate compounds increased by heating the catalyst up to 353 K. This behavior was ascribed to the decrease in H2O adsorption capacity of TiO2 at elevated temperature, which resulted in the promotion of the accumulation of intermediate compounds on TiO2. On the other hand, Pt deposition on TiO2 increased the toluene photooxidation at the same reaction temperature, although the amount of intermediate compounds formed on Pt/TiO2 was larger than that on TiO2. Pt/TiO2 catalyst was also effective for suppression of CO formation at 353 K, because CO concentration was lower than the detection limit (<3 ppm).

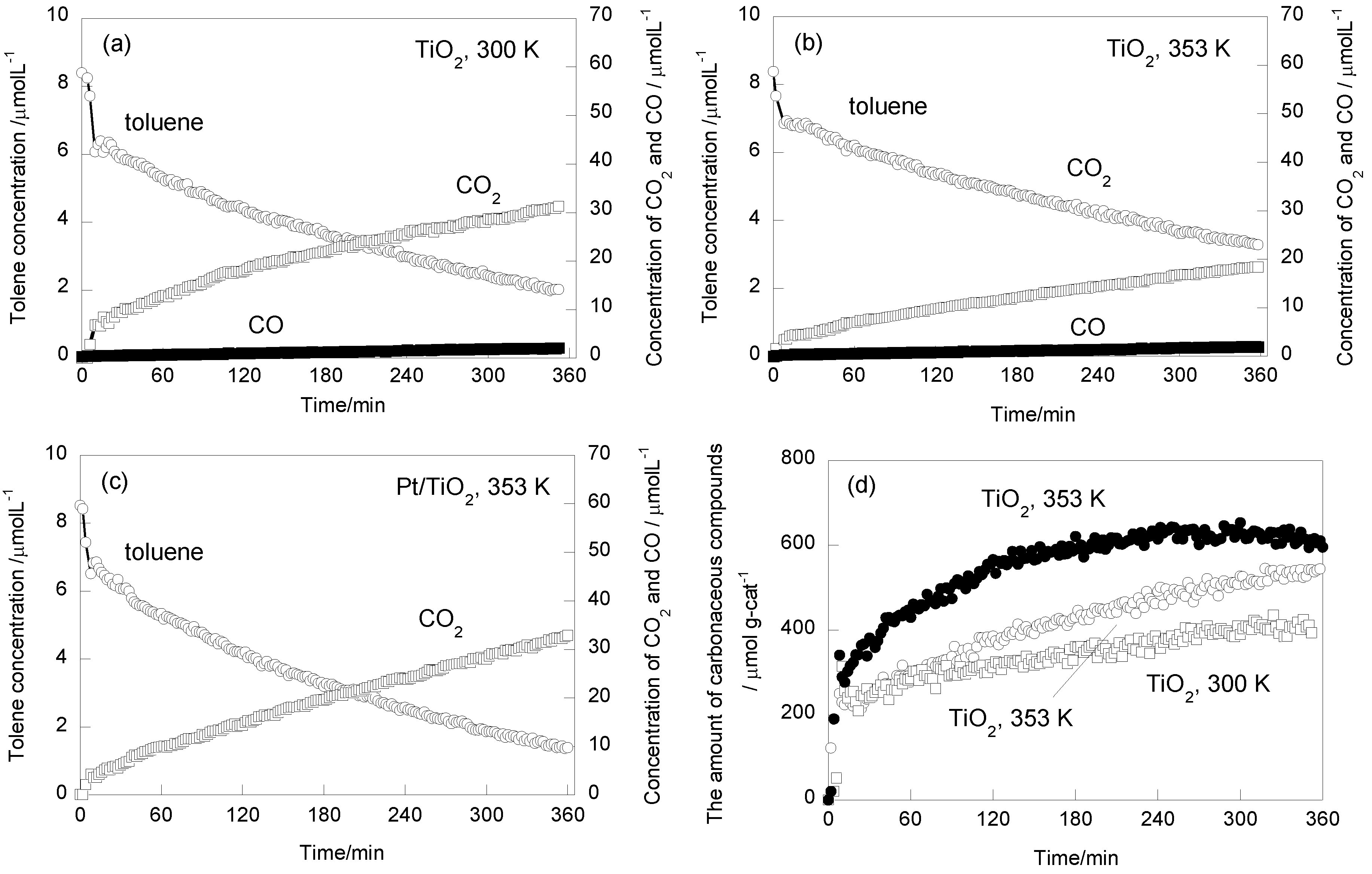

Figure 7. Time course for toluene photooxidation with TiO2 and Pt/TiO2. (a) Changes in concentration of toluene, CO2 and CO on TiO2 at 300 K; (b) on TiO2 at 353 K and (c) on Pt/TiO2 at 353 K; (d) Changes in the amount of intermediate compounds on TiO2 and Pt/TiO2. [toluene]0 = 8.4 μmol/L, [H2O] = 1.0%, [O2] = 20%.
Figure 7. Time course for toluene photooxidation with TiO2 and Pt/TiO2. (a) Changes in concentration of toluene, CO2 and CO on TiO2 at 300 K; (b) on TiO2 at 353 K and (c) on Pt/TiO2 at 353 K; (d) Changes in the amount of intermediate compounds on TiO2 and Pt/TiO2. [toluene]0 = 8.4 μmol/L, [H2O] = 1.0%, [O2] = 20%.
Catalysts 03 00219 g007

3. Experimental Section

3.1. Catalyst Materials

Commercially available TiO2 (P25; Nippon Aerosil Co. Ltd.; Tokyo, Japan) supplied from Catalysis Society of Japan as JRC-TIO-4) was used as catalyst and precursor of Pt/TiO2 catalyst. The BET surface area was 54 m2/g. Pt deposition on TiO2 was carried out by the photodeposition method, according to the procedure reported earlier [25,35]. The Pt loading was 1.0 wt%. CO chemisorption measurements revealed that Pt dispersion of Pt/TiO2 was 16%.

3.2. Photocatalytic Test Reaction

Photoreactions were carried out with a circulation system (Figure 8a). The total volume of the system was 3.5 L. The photochemical reactor was fabricated from a Pyrex glass tube with a quartz glass window and contained a square-shaped glass plate (50 mm × 45 mm) (Figure 8b). The catalyst was coated on one side of the glass plate from an aqueous slurry of catalyst powder and dried at 383 K. Catalyst weight on the plate was 0.10 g. Photoirradiation was carried out for the catalyst through the quartz glass window by a 300 W Xe lamp equipped with a UV-30 cut filter (λ > 300 nm). Reaction gases were prepared by mixing toluene vapor with pure air. When reactions were carried out under humidified conditions, toluene and water vapor were introduced to the reaction gases with a syringe from the injection port. The reaction temperature was around 295 K. As a pretreatment, the catalyst was photoirradiated in air to decompose the organic impurities adsorbed on the TiO2 surface. After the gas-solid adsorption equilibrium of the substrate was achieved in the reactor, photoirradiation was started. The circulating flow rate was 2.0 L/min. Concentrations of toluene, CO2 and CO were simultaneously determined by an FTIR spectrometer (PerkinElmer Spectrum One) equipped with a gas cell (2.4 m path length, 0.20 L volume).

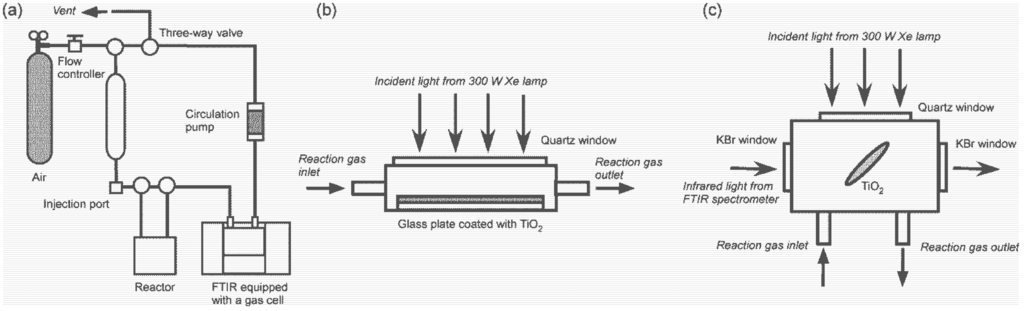

Figure 8. Schematic of photocatalytic reaction system and equipment for catalytic reaction and FTIR measurement. (a) Photocatalytic system; (b) reactor for toluene photooxidation and (c) in-situ FTIR cell.
Figure 8. Schematic of photocatalytic reaction system and equipment for catalytic reaction and FTIR measurement. (a) Photocatalytic system; (b) reactor for toluene photooxidation and (c) in-situ FTIR cell.
Catalysts 03 00219 g008
In the case of catalytic toluene photooxidation under heated condition, a photochemical reactor with a cylindrical shape was used. The catalysts were loaded on a glass plate with the area of 9 cm2 (3 cm × 3 cm) and then mounted in the photochemical reactor. A ceramic heater was contacted with the bottom side of the reactor to control the reaction temperature. This system can identify organic byproduct at the ppm level. Carbon balance was defined as 7-times the amount of the CO2 (and CO) formed and divided by the amount of toluene reacted.

3.3. FTIR Studies

FTIR spectra of catalysts were measured on an FTIR spectrometer (PerkinElmer Spectrum One) equipped with a TGS detector and an in situ FTIR cell, which was connected to the circulation recycling system described above. The cell had a quartz glass window on the top and a set of connectors to allow reaction gases to flow through the cell (Figure 8c). On both sides of the cell, KBr windows were placed. TiO2 samples were pressed into thin disk (20 mm Ф in diameter) and placed in the cell. Photoirradiation was carried out with a 300 W Xe lamp equipped with a UV-30 cut filter from the quartz window. The catalyst sample was photoirradiated through the quartz window. FTIR spectra were taken from the KBr windows. Prior to the FTIR measurements, the catalyst sample was photoirradiated in humidified air.

4. Conclusions

In this study, we investigated the toluene oxidation behavior on photoirradiated TiO2 by using a circulation recycling system with a near-UV light source (λ > 300 nm). The amount of intermediate compounds on TiO2 was estimated, and their formation/oxidation behavior was compared with toluene photooxidation behavior. Water vapor in the reaction gas promoted the oxidation of these intermediate compounds to CO2 and CO. FTIR studies showed that various kinds of oxygen-containing byproducts were formed in toluene photooxidation. The aliphatic C=O groups were formed without an induction period in the presence of water vapor, whereas there was a much longer induction period for their formation, revealing that the cleavage of the aromatic ring was promoted in the presence of water vapor. In the present system, deposition of Pt particles on TiO2 has a detrimental effect on toluene photooxidation activity at room temperature (300 K). The amount of intermediate compounds on Pt/TiO2 was higher than that with TiO2 catalyst, and the rate for their oxidation to CO2 was much lower. However, Pt deposition was effective for suppression of CO formation. When the catalyst was heated at 353 K, Pt/TiO2 showed higher activity for toluene photooxidation than TiO2, although the intermediate compounds also increased by Pt deposition.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Linsebigler, A.L.; Lu, G.; Yates, J.T., Jr. Photocatalysis on TiO2 surfaces: Principles, mechanisms, and selected results. Chem. Rev. 1995, 95, 735–758. [Google Scholar] [CrossRef]
  2. Hoffman, M.R.; Martin, S.T.; Choi, W.Y.; Bahnemann, D.W. Environmental applications of semiconductor photocatalysis. Chem. Rev. 1995, 95, 69–96. [Google Scholar]
  3. Agrios, A.G.; Pichat, P. State of the art and perspectives on materials and applications of photocatalysis over TiO2. J. Appl. Electrochem. 2005, 35, 655–663. [Google Scholar] [CrossRef]
  4. Chen, X.; Mao, S.S. Titanium dioxide nanomaterials: Synthesis, properties, modifications, and applications. Chem. Rev. 2007, 107, 2891–2959. [Google Scholar] [CrossRef]
  5. Ollis, D.F. Photocatalytic purification and remediation of contaminated air and water. C. R. Acad. Sci. Ser. 2000, 3, 405–411. [Google Scholar]
  6. Wang, S.; Ang, H.M.; Tade, M.O. Volatile organic compounds in indoor environment and photocatalytic oxidation: State of the art. Environ. Int. 2007, 33, 694–705. [Google Scholar] [CrossRef]
  7. Ibusuki, T.; Takeuchi, K. Toluene oxidation on U.V.-irradiated titanium dioxide with and without O2, NO2 or H2O at ambient temperature. Atmos. Environ. 1986, 20, 1711–1715. [Google Scholar] [CrossRef]
  8. Obee, T.N.; Brown, R.T. TiO2 photocatalysis for indoor air applications: effects of humidity and trace contaminant levels on the oxidation rates of formaldehyde, toluene, and 1,3-butadiene. Environ. Sci. Technol. 1995, 29, 1223–1231. [Google Scholar] [CrossRef]
  9. Ameen, M.M.; Raupp, G.B. Reversible catalyst deactivation in the photocatalytic oxidation of dilute O-xylene in air. J. Catal. 1999, 184, 112–122. [Google Scholar] [CrossRef]
  10. Cao, L.X.; Gao, Z.; Suib, S.L.; Obee, T.N.; Hay, S.O.; Freihaut, J.D. Photocatalytic oxidation of toluene on nanoscale TiO2 catalysts: Studies of deactivation and regeneration. J. Catal. 1999, 184, 112–122. [Google Scholar] [CrossRef]
  11. D'Hennezel, O.; Pichat, P.; Ollis, D.F. Benzene and toluene gas-phase photocatalytic degradation over H2O and HCL pretreated TiO2 by-products and mechanisms. J. Photochem. Photobiol. A 1998, 118, 197–204. [Google Scholar] [CrossRef]
  12. Mendez-Roman, R.; Cardona-Martinez, N. Relationship between the formation of surface species and catalyst deactivation during the gas-phase photocatalytic oxidation of toluene. Catal. Today 1998, 40, 353–365. [Google Scholar] [CrossRef]
  13. Maira, A.J.; Coronado, J.M.; Augugliaro, V.; Yeung, K.L.; Conesa, J.C.; Soria, J. Fourier transform infrared study of the performance of nanostructured TiO2 particles for the photocatalytic oxidation of gaseous toluene. J. Catal. 2001, 202, 413–420. [Google Scholar]
  14. Marci, G.; Addamo, M.; Augugliaro, V.; Coluccia, S.; García-López, E.; Loddo, V.; Martra, G.; Palmisano, L.; Schiavello, M. Photocatalytic oxidation of toluene on irradiated TiO2: Comparison of degradation performance in humidified air, in water and in water containing a zwitterionic surfactant. J. Photochem. Photobiol. A 2003, 160, 105–114. [Google Scholar] [CrossRef]
  15. Blount, M.C.; Falconer, J.L. Steady-state surface species during toluene photocatalysis. Appl. Catal. B 2002, 139, 39–50. [Google Scholar]
  16. Debono, O.; Thevenet, F.; Gravejat, P.; Hequet, V.; Raillard, C.; Lecoq, L.; Locoge, N. Toluene photocatalytic oxidation at ppbv levels: Kinetic investigation and carbon balance determination. Appl. Catal. B 2011, 106, 600–608. [Google Scholar] [CrossRef]
  17. Vildozo, D.; Portel, R.; Ferronato, C.; Chovelon, J.M. Photocatalytic oxidation of 2-propanol/toluene binary mixtures at indoor air concentration levels. Appl. Catal. B 2011, 107, 347–354. [Google Scholar] [CrossRef]
  18. Sleiman, M.; Conchon, P.; Ferronato, C.; Chovelon, J.M. Photocatalytic oxidation of toluene at indoor air levels (ppbv): Towards a better assessment of conversion, reaction intermediates and mineralization. Appl. Catal. B 2009, 86, 159–165. [Google Scholar] [CrossRef]
  19. Thompson, T.L.; Yates, J.T., Jr. TiO2-based photocatalysis: Surface defects, oxygen and charge transfer. Top. Catal. 2005, 35, 197–210. [Google Scholar] [CrossRef]
  20. Thompson, T.L.; Yates, J.T., Jr. Surface science studies of the photoactivation of TiO2-new photochemical processes. Chem. Rev. 2006, 106, 4428–4453. [Google Scholar] [CrossRef]
  21. Henderson, M.A. A surface science perspective on TiO2 photocatalysis. Surf. Sci. Rep. 2011, 66, 185–297. [Google Scholar] [CrossRef]
  22. Fu, X.Z.; Zeltner, W.A.; Anderson, M.A. The gas-phase photocatalytic mineralization of benzene on porous titania-based catalysts. Appl. Catal. B 1995, 6, 209–224. [Google Scholar] [CrossRef]
  23. Li, Y.; Huang, J.C.; Peng, T.; Xu, J.; Zhao, X.J. Photothermocatalytic synergetic effect leads to high efficient detoxification of benzene on TiO2 and Pt/TiO2 nanocomposite. ChemCatChem 2010, 2, 1082–1087. [Google Scholar] [CrossRef]
  24. Einaga, H.; Futamura, S.; Ibusuki, T. Photocatalytic decomposition of benzene over TiO2 in a humidified airstream. Phys. Chem. Chem. Phys. 1999, 1, 4903–4908. [Google Scholar] [CrossRef]
  25. Einaga, H.; Futamura, S.; Ibusuki, T. Complete oxidation of benzene in gas phase by platinized titania photocatalysts. Environ. Sci. Technol. 2001, 35, 1880–1884. [Google Scholar]
  26. Einaga, H.; Futamura, S.; Ibusuki, T. Heterogeneous photocatalytic oxidation of benzene, toluene, cyclohexene and cyclohexane in humidified air, comparison of decomposition behavior on photoirradiated TiO2 catalyst. Appl. Catal. B 2002, 38, 215–225. [Google Scholar] [CrossRef]
  27. Einaga, H.; Ibusuki, T.; Futamura, S. Improvement of catalyst durability by deposition of Rh on TiO2 in photooxidation of aromatic compounds. Environ. Sci. Technol. 2004, 38, 285–289. [Google Scholar] [CrossRef]
  28. Einaga, H.; Ibusuki, T.; Futamura, S. Photocatalytic oxidation of benzene in air. J. Solar Energy Eng. 2004, 126, 789–793. [Google Scholar] [CrossRef]
  29. Suh, M.; Bagus, P.S.; Pak, S.; Rosynek, M.P.; Lunsford, J.H. Reactions of hydroxyl radicals on titania, silica, alumina, and gold surfaces. J. Phys. Chem. B 2000, 104, 2736–2742. [Google Scholar] [CrossRef]
  30. Hernández-Alonso, M.D.; Tejedor-Tejedor, I.; Coronado, J.M.; Anderson, M.A. Operando FTIR study of the photocatalytic oxidation of methylcyclohexane and toluene in air over TiO2-ZrO2 thin films: Influence of the aromaticity of the target molecule on deactivation. Appl. Catal. B 2011, 101, 283–293. [Google Scholar] [CrossRef]
  31. Li, X.; Zhu, Z.; Zhao, Q.; Liu, S. FT-IR study of the photocatalytic degradation of gaseous toluene over UV-irradiated TiO2 microballs: Enhanced performance by hydrothermal treatment in alkaline solution. Appl. Surf. Sci. 2011, 257, 4709–4714. [Google Scholar]
  32. Augugliaro, V.; Coluccia, S.; Loddo, V.; Marchese, L.; Martra, G.; Palmisano, L.; Schiavello, M. Photocatalytic Oxidation of Gaseous Toluene on Anatase TiO2 Catalyst: Mechanistic Aspects and FT-IR Investigation. Appl. Catal. B 1999, 20, 15–27. [Google Scholar] [CrossRef]
  33. Martra, G.; Coluccia, S.; Marchese, L.; Augugliaro, V.; Loddo, V.; Palmisano, L.; Schiavello, M. The role of H2O in the photocatalytic oxidation of toluene in vapour phase on anatase TiO2 catalyst a FTIR study. Catal. Today 1999, 53, 695–702. [Google Scholar] [CrossRef]
  34. Deveau, P.A.; Arsac, F.; Thivel, P.X.; Ferronato, C.; Delpech, F.; Chovelon, J.M.; Kaluzny, P.; Monnetd, C. Different methods in TiO2 photodegradation mechanism studies: Gaseous and TiO2-adsorbed phases. J. Hazard. Mater. 2007, 144, 692–697. [Google Scholar] [CrossRef]
  35. Einaga, H.; Harada, M.; Futamura, S.; Ibusuki, T. Generation of active sites for CO photooxidation on TiO2 by platinum deposition. J. Phys. Chem. B 2003, 107, 9290–9297. [Google Scholar]
