Review

Recent Progress in Electrocatalytic Reduction of CO2

by
Chaojun Ren
1,
Wei Ni
1 and
Hongda Li
2,*
1
Beijing Aerospace Propulsion Institute, No.1 South Dahongmen Road, Beijing 100076, China
2
Liuzhou Key Laboratory for New Energy Vehicle Power Lithium Battery, School of Electronic Engineering, Guangxi University of Science and Technology, Liuzhou 545006, China
*
Author to whom correspondence should be addressed.
Catalysts 2023, 13(4), 644; https://doi.org/10.3390/catal13040644
Submission received: 25 February 2023 / Revised: 16 March 2023 / Accepted: 20 March 2023 / Published: 23 March 2023
(This article belongs to the Special Issue Electrocatalysis/Photocatalysis for CO2 Conversion, H2 Production, and Pollutant Removal)
Browse Figures
Review Reports Versions Notes

Abstract

:
A stable life support system in the spacecraft can greatly promote long-duration, far-distance, and multicrew manned space flight. Therefore, controlling the concentration of CO2 in the spacecraft is the main task in the regeneration system. The electrocatalytic CO2 reduction can effectively treat the CO2 generated by human metabolism. This technology has potential application value and good development prospect in the utilization of CO2 in the space station. In this paper, recent research progress for the electrocatalytic reduction of CO2 was reviewed. Although numerous promising accomplishments have been achieved in this field, substantial advances in electrocatalyst, electrolyte, and reactor design are yet needed for CO2 utilization via an electrochemical conversion route. Here, we summarize the related works in the fields to address the challenge technology that can help to promote the electrocatalytic CO2 reduction. Finally, we present the prospective opinions in the areas of the electrocatalytic CO2 reduction, especially for the space station and spacecraft life support system.

1. Introduction

With the continuous development of human science and technology, space exploration will face unprecedented opportunities and challenges [1,2,3,4,5]. Currently, realizing the recycle of materials in closed space stations is the best solution to solve the problem of water (H2O) and oxygen (O2) resupply faced by human activities, which not only can extend the duration of manned missions and reduce transportation costs, but also is a prerequisite for interstellar migration [6,7,8,9,10]. As the end product of human respiration and metabolic processes, carbon dioxide (CO2) carries a large amount of oxygen [11,12,13]. Therefore, recovering O2 from waste CO2 is an important way to achieve resource recycling and reduce transportation costs for medium- and long-term manned extraterrestrial missions [14,15,16,17,18].
The concentration of CO2 in the space station directly affects the life and health system of the astronauts [19]. To reduce the concentration of CO2 (<0.5%) and maintain the balance of air components, it is necessary to treat the CO2 emissions at 0.7–1.0 kg per person per day. How to better transform and recycle CO2 in the space station has become the focus of researchers [20,21,22,23]. The methods of CO2 transformation can be classified into two categories: physical absorption and chemical conversion [24,25]. The chemical conversion mainly includes thermochemistry, photocatalytic reduction, electrocatalytic reduction, and photoelectrocatalytic reduction [26,27,28,29]. Chemical conversion can capture and immobilize CO2 or convert it into useful low-carbon fuels, such as CO, CH4, HCOOH, CH3OH, etc. [30,31,32,33,34].
In order to satisfy the requirements of future manned space missions, the development of a new generation of CO2 conversion and oxygen production technologies has become the focus of current space technology research and development [35,36,37,38,39]. Currently, the CO2 reduction techniques used in space stations include Sabatier, Bosch, CO2 electrolysis, CO2 pyrolysis, and other reduction methods [40,41,42,43,44]. However, the direct conversion of CO2 to small organic molecules is more attractive, and this method can yield more valuable products [45,46,47]. Among the numerous CO2 conversion methods, electrochemical reduction of CO2 has the advantages of atmospheric temperature, normal pressure, low energy consumption, and minimal environmental pollution [48,49,50,51]. Besides, the electrochemical reduction of CO2 can effectively overcome the higher redox potential of reaction intermediates, which has better application prospects and significance [52,53,54]. However, the electrochemical conversion of CO2 still faces many challenges, and it needs to satisfy two basic criteria, i.e., high energy efficiency and high reaction rate [55,56,57,58,59].
Here, we summarize the related works in the fields to address the challenge technology that could help to promote the electrocatalytic CO2 reduction. Finally, we present the prospective opinions in the areas of the electrocatalytic CO2 reduction, especially for the space station and spacecraft life support system.

2. The Mechanism of Electrocatalytic Reduction of CO2

The electrocatalytic reduction of CO2 often occurs at the interface between the electrode and the electrolyte, and the electrolyte is usually an aqueous solution of potassium bicarbonate [19]. As shown in Figure 1, the multiphase catalytic process generally consists of four main steps: (i) The CO2 in the solution diffuses to the surface of the working electrode. (ii) The electrocatalyst adsorbs CO2 from the solution. (iii) Electron transfer or proton migration is used to cleave C-O bonds or form C-H bonds. (iv) The generated products are detached from the electrocatalyst surface and diffused into the electrolyte [60,61]. The adsorption of CO2 on the electrocatalyst surface is an important step in the whole reaction. During the adsorption process, the C=O bonding is strongly perturbed by the substrate, and the electrons are shared between the CO2 and the catalyst. A number of reaction mechanisms have been proposed for the conversion of CO2. It is widely accepted that the reactive species are the neutral hydrated CO2 molecules, and they will convert into CO2•− in the adsorption process on most of the main-group metal electrodes in aqueous media. Then the absorbed CO2•− reacts with the H2O molecules to form HCO2•. The intermediate would convert into to HCO2− because of its unstable unpaired electron, followed by the desorption of HCO2− species [60].
Because of the complexity of electrocatalysis, this leads to the fact that the chosen electrocatalyst and the applied electrode potential have a strong influence on the final reduction product [62]. In general, the reaction products are carbon compounds with different oxidation states [63,64]. The electrocatalytic reduction mechanism of CO2 is a complicated process that involves multiple electron transfer reactions, typically including 2-, 4-, 6-, or 8-electron reaction pathways [65,66]. Table 1 summarizes the corresponding standard reduction potentials for the C1 products (C, CO, HCOOH, CH2O, CH3OH, and CH4) and C2 products (C, CO, HCOOH, CH2O, CH3OH, and CH4) obtained by electrocatalytic reduction of CO2. Overall, the required potential to generate C=O products (except H2C2O4) is greater than that of generating compounds containing C–H and C–OH.
Thermodynamically, the equilibrium potential of CO2 reduction is comparable to the equilibrium potential of hydrogen evolution reaction (HER) [67,68]. This means that the electrocatalytic reduction of CO2 is accompanied by severe HER, which leads to a decrease in the efficiency of the CO2 reduction. In addition, the CO2 reduction products possess small thermodynamic potential difference, indicating that it is difficult to reduce CO2 to specific products with good selectivity and conversion efficiency in the current CO2 reaction [69,70]. Driving the CO2 reduction reaction often requires a larger overpotential, which further contributes to the technical difficulty of electrocatalytic CO2 reduction [45]. Therefore, the development of efficient electrochemical CO2 reduction capable of promoting multielectron (and proton) transfer is a major task in this field.

3. Electrocatalysts

Over the past few decades, researchers have attempted to develop high-performance CO2 electrocatalysts and have carried out extensive work [71,72,73]. The catalysts could reduce the activation energy required for the electroreduction of CO2, thereby minishing the reduction overpotential and current density. Most of the studies have focused on transition-metal-based catalysts, which are mainly Cu, Au, Fe, Ag, Re, Mn, Co, Ni, Pd, Ir, Ru, etc. [17,74,75,76]. The main forms of the complexes include transition metal polypyridines, metal porphyrins/phthalocyanines, and various metal phosphine complexes [77,78]. It was found that transition metal complexes were used for the electrocatalytic reduction of CO2 and presented outstanding performance. Some reported electrocatalysts for electrocatalytic CO2 reduction are summarized in Table 2 and are illustrated in detail in the following sections.
Among the transition metal complexes, Cu complexes had better activity. Recently, Raja et al. [78] designed a dinuclear Cu (I) complex as catalysts for the electroreduction of CO2, and its catalytic cycle is shown in Figure 2 below. They found that the Cu (I) system could be oxidized by CO2, which suggested that the selective bonding of CO2 and Cu (I) ions could provide a low-energy pathway for the formation of CO2•− radical anions. Thus, the Cu (II) tetranuclear oxalate-bridged complex [2]4+ was thermodynamically favorable. Moreover, the bonding of CO2 to the Cu(I) center in the dinuclear copper (I) complex [1]2+ was faster and has a higher selectivity. This was due to the low solubility of lithium oxalate in acetonitrile, and the release of the oxalate double anion from [2]4+ in the presence of LiClO4 could be accomplished instantaneously, and the dinuclear copper (II) complex [4]4+ was produced. Consequently, the electrocatalytic reduction of Cu (II) ions to Cu (I) might be the rate-controlling step in this system. The electrode surface was coated by the lithium oxalate generated during the reaction and then prevented the effective electron transfer.
Cu electrodes have good catalytic performance for the conversion of CO2 to alkanes and alcohols [64]. The moderate hydrogen evolution overpotential of Cu electrodes can properly suppress the hydrogen production. Therefore, Cu electrodes can generate relatively high current efficiency [108]. Recently, Matthew et al. [109] prepared Cu-modified electrodes by calcining Cu sheets in air and then further electrochemically reducing and calcining the generated Cu2O (Figure 3). The activity exhibited by such electrodes in reducing CO2 was highly dependent on the initial thickness of the Cu2O layer. The experimental results showed that the activity of the electrodes prepared from a Cu2O thin layer at 130 °C was not different from that of polycrystalline Cu. However, the Cu2O electrode formed by calcination at 500 °C with a thickness of not less than 3 μm had a large roughness coefficient, and its overpotential was 0.5 V smaller than that of polycrystalline Cu in the reduction of CO2. More significantly, the current density of this electrode would be higher than 1 mA/cm2 at an overpotential lower than 0.4 V, which was larger than the reported activity of other metal electrodes. Meanwhile, the Cu-modified electrode obtained by calcination at 500 °C remained stable after reacting for 7 h, while the polycrystalline Cu electrode started to passivate within 1 h under the same circumstances.
To confirm that different components of binary nanocrystals have different effects on the performance of the electrocatalytic reduction of CO2, Guo et al. [110] investigated the performance of Cu-Pt binary alloy nanocrystals for the electrochemical reduction of CO2 in 0.5 M KHCO3 at room temperature. As shown in Figure 4, it was found that among Cu-Pt nanocrystals with different molar ratios, the catalyst with a molar ratio of 3:1 had the best activity for the catalytic reduction of CO2, the lowest onset potential (−0.972 V), and the highest current density (0.598 mA/cm−2, −1.3 V vs. SCE). The optimization of catalyst components was compared, and a reasonable mechanism hypothesis was proposed. As illustrated in Figure 5, Pt had a unique adsorption capacity for protons, and it was an efficient catalyst for HER, leading that H2O molecules in solution would be adsorbed on Pt atoms in Cu-Pt nanocrystals. CO*, the reaction intermediate generated by CO2 gaining electrons, was adsorbed on Cu atoms, and then combined with H+ provided by H2O to generate HCO* and finally CH4. The above mechanism well explains why Cu-Pt nanocrystals with a molar ratio of 3:1 had the highest activity in the catalytic reduction of CO2. In the process of CH4 generation, CO* and H+ were indispensable, and Cu promoted CO2 to gain electrons to generate CO*. Pt facilitated the adsorption of H2O to generate H+, so the molar ratio of Cu-Pt had an optimal value; too much Pt or Cu was not conducive to CH4 production.
However, Cu-based catalysts still faced some problems because the instability of Cu materials was easily deactivated and decomposed during the catalytic reduction of CO2. Some prepared Cu-based catalysts were easily oxidized when exposed to air [21,75,109]. The valence and morphology changes of Cu-based catalysts during the catalytic process should be deeply elucidated, which conduced to provide a crucial role. Ni et al. [111] proposed a modulation strategy: hydrogen reduction valence, which could simply regulate the ratio of different valence states of Cu by optimizing the reduction time, and helped to investigate the mechanism of multivalent Cu in depth. The experimental results showed that the excellent performance of G-CuxO-2h not only stabilized the intermediate product CO2•−, but also accelerated the rate-limiting step in the HCOO− desorption process, which was related to the optimal Cu (I) content in the catalyst. The paper also proposed a “buffering effect” to explain the stability of G-CuxO-2h, as shown in Figure 6. Cu (II) from the thicker subsurface layer acted as a sacrificial source to supplement Cu (I), thus balancing the Cu (I) content in the surface layer and maintaining the activity of the catalyst in the reaction.
Furthermore, the electrocatalytic reduction of CO2 at the Au electrode has also been investigated by Matthew et al. [112]. They used the periodically symmetric square wave potential method to prepare an amorphous Au2O3 layer on a Au electrode. This electrode was used directly for the electrocatalytic reduction of CO2, in which Au2O3 was reduced to Au within 15 min. The electrode exhibited high selectivity for the product CO in the reduction of CO2 with an overpotential of only 0.14 V, and the activity was maintained for at least 8 h. The authors attributed the high activity of such catalysts to the increased stability of the CO2•− intermediate; the electrolyte HCO3− acted as H+ donors during the catalytic process (Figure 7).
Gao et al. synthesized a Pd nanoparticle electrode and efficiently catalyzed the reduction of CO2 to CO. They found that Pd nanoparticle size exhibited significant size dependence in the range of 2.4–10.3 nm [113]. With the Pb nanoparticle size changes from 10.3 to 3.7 nm, the Faraday conversion efficiency of CO generation at −0.89 V increased from 5.8% to 91.2%, while the current density of CO generation was enhanced 18.4 times (Figure 8). The relationship between catalyst performance and particle size was obtained using the density functional theory (DFT) to further analyze the free energy of CO2 reduction and HER at three different reaction sites: plane, step, and corner. The results indicated that the relationship between the conversion frequency (TOF) of CO generation and catalyst particle size presented a volcano-like curve (Figure 9). This illustrated that CO2 adsorption, COOH* formation, and CO* removal could be modulated by changing the size of Pb nanoparticles, thus enabling the transition of Pd nanoparticles from HER catalysts to efficient CO2 reduction catalysts.
As well known, the metal electrode possessed high activity for the catalytic reduction of CO2 [114,115]. The outstanding catalytic activity was obtained by reducing metal oxides to metal electrode [116,117,118]. This electrode could decrease the reduction potential of CO2 to a thermodynamic minimum. In comparison, other preparation methods caused many microstructural changes in the catalysts, such as interfaces and defects [119,120,121]. The influence of metal oxides on the catalytic performance of metals was related to these microstructures. However, the mechanism of the above system was not clear [122,123]. Recently, a 4-atomic-layer-thick Co oxidized heterostructure (see Figure 10) was prepared by Gao et al. by means of ligand-confined growth and used to explain the effect of metal surface oxides on their own electroreduction CO2 properties [124]. This work demonstrated that metal atoms located in specific oxidation states enabled the production of higher catalytic activity through specific arrangements, thus providing a new idea for the development of efficient and stable catalysts for CO2 reduction. It was important for promoting research on the mechanism of metal oxides’ electrocatalytic reduction of CO2.
Transition metal porphyrins have also shown superior reactivity in catalysts for the electrocatalytic reduction of CO2, such as iron porphyrins and cobalt porphyrins [125]. Cyrille et al. found that the modified iron porphyrins accelerated the reduction reaction of CO2 after the introduction of phenolic groups in all the neighbors of the iron porphyrin phenyl group. It was concluded that the increased activity of iron porphyrins was related to the high local concentration of protons associated with the phenolic hydroxyl substituents; the relationship between the high turnover frequency (TOF) and the small overpotential (η) of the catalyst was systematically investigated (Figure 11) [77].
Cobalt porphyrins as catalysts for the electrocatalytic reduction of CO2 have a relatively high overpotential (−1.3~−1.6 V vs. SHE) and a low TOF. The possible catalytic mechanism of cobalt porphyrins was analyzed by Kevin et al. using DFT calculations [126]. From the calculations, it was clear that CO2 was bonded to the particle [Co(I)P]−, and the mechanism is shown in Figure 12. Besides, the presence of water played a crucial role because the key intermediates [Co(I)P-CO2]2− and [Co(II)P-CO2H]− were stabilized by hydrogen bonding interaction, which caused the exothermic breakage of the C-O bond. Theoretical calculations also revealed that the electron transfer between the gas diffusion electrode and the polymerized porphyrin catalyst was the rate-controlling step of the whole reaction. These findings were important implications for the capture and the electrochemical reduction of CO2, respectively.
The effect of organometallic Ag catalysts supported by carbon–nitrogen in the electrochemical conversion of CO2 was investigated by Claire et al. [127]. It was shown that such catalysts decreased the reaction overpotential and improved the selectivity, which also led to an enhanced reaction rate for CO2 reduction. Moreover, these nitrogen-containing compounds might act as cocatalysts in the electrochemical reduction of CO2, create a coordinated effect with the Ag surface, and thus facilitate electron transfer. Remarkably, they found that not all nitrogen-containing atoms introduced to the carbon surface exhibited the properties of such catalysts. Therefore, to further enhance the activity and selectivity, a more in-depth study of the CO2 reduction mechanism was needed to elucidate the interactions between these complexes and the carbon substrate.
Agarwal’s group carried out an in-depth study of the CO2 reduction mechanism. Although the results were based on the photocatalytic reduction of CO2, their systematic analysis of the CO2 reduction mechanism was equally applicable in the direction of electrocatalytic reduction of CO2 [128]. First, they found that tricarbonyl Re complexes, such as Re(bpy)(CO)3Cl (bpy=2,2′-dipyridine), exhibited high activity in catalytic CO2 reduction in the presence of electron sacrificial agents. Subsequently, they investigated the potential pathway of formate generation by the Re-hydride insertion theory in the presence of triethylamine (TEA) using DFT. It was suggested that TEA was the main donor of hydrogen atoms and electrons, and its catalytic cycle pathway is shown in Figure 13.

4. Electrolyte

The influence of the composition of the electrolyte on the CO2 reduction cannot be ignored [129,130]. Therefore, the study of electrolyte is of great importance to optimize the conditions for the electrochemical reduction of CO2. Researchers have conducted numerous studies on the electrolyte used for the electrocatalytic reduction of CO2 [131,132,133]. Agoritsa et al. found that the rate of electrochemical reduction CO2 increased in the order of electrolyte cations: Na+ < Mg2+ < Ca2+ < Ba2+ < Al3+ < Zr4+ < Nd3+ < La3+, where the rate of La3+ was twice as high as that of Na+ at the same potential [134]. The increasing order of halogen anions was Cl− < Br− < I−. In addition, the conclusions reached by different researchers about the effect of electrolyte ions often differed or even conflicted with each other, which may be due to the fact that researchers only discussed the effect of certain factors on the reaction process and neglected other factors, such as the operation time, the conductivity of the solution, the solubility of CO2, the concentration of the product at the cathode, and some hydrodynamic factors and their interactions [135].
Moreover, the electrolyte synergistically promoted electrode catalytic reactions to accelerate the electrochemical reduction of CO2 [136,137,138,139,140]. Kotaro et al. investigated the effect of Cu wire electrodes in 3 mol L−1 of KCl, KBr, and KI electrolytes with X− (Cl−, Br−, I−) on the electrocatalytic reduction process of CO2 [141]. It was shown that Cu-X acted as a catalytic layer, facilitating the transfer of electrons from the electrode to CO2. The electron transfer to CO2 might be accomplished by X–C bonding, and the X–C bonding was formed by electron flow between the specific adsorbed halogen anion and the empty orbital of CO2 (Figure 14). The stronger the adsorption of the halogen anion on the electrode, the more CO2 was bound, which in turn generated a higher CO2 reduction current. The specific adsorbed halogen anion could also inhibit the adsorption of protons, which in turn generated a higher hydrogen overpotential. This interaction and influence minished the CO2 reduction overpotential while allowing the rate of electrochemical CO2 reduction to be enhanced.
Nonaqueous organic solvents can also be used as electrolytes for the electrochemical reduction of CO2 (such as CH3CN) [142,143,144]. Electrocatalytic reduction of CO2 in organic solvents has the following advantages over water: (1) the solubility of CO2 is greater than in water; (2) competitive reactions for CO2 reduction (H2 generation) can be suppressed; (3) it is used as a potent and better CO2 absorber for industrial applications, and the process is more energy efficient; and (4) the possibility of reduction below 0 °C is realized. Electrolytes are currently studied in several directions: methanol, ionic liquids, acetonitrile–ionic liquid mixtures, iodomethane–ionic liquid mixtures, and methanol–potassium–ionic liquid mixtures [145].

5. Reactor Design

The structural design of the reactor and the transport of the material have a greater influence on the CO2 reduction [146,147]. In recent years, several articles have reported several reactor designs, most of which were based on fuel cell designs and used polymer electrolyte membranes to separate the anode from the cathode. Subramania used a composite perfluoropolymer cation exchange membrane (Nafion) to separate the anode from the cathode and to perform the CO2 reduction reaction at room temperature [148]. This continuous reactor was a great improvement over the intermittent reactor. The maximum current efficiency of formate formation reached 93%; the concentration of formate was up to 0.015 mol L−1.
The alkaline polymer electrolyte membrane cell for the electrochemical conversion of CO2 was further investigated by Narayanan et al. [149]. The specific structure of this cell is shown in Figure 15. The advantages of this type of reactor were that (1) the reduction products of CO2 could be saved from reoxidation by the O2 electrode, (2) a nonprecious metal and its oxide could be used as catalysts, (3) the integrated compact porous electrode structure achieved a low internal resistance of the cell, and (4) it was scaled up to large sizes with no efficiency loss.
Besides, Claudio et al. designed a novel photoelectrocatalytic (PEC) reactor for the synthesis of solar fuels [150]. The internal configuration of this device is depicted in detail in Figure 16. The cathode was made by depositing a suspension of Fe or Pt carbon nanotubes (CNT) on carbon cloth with ethanol, and the cathode was applied to reduced CO2 to liquid fuel (isopropanol as the main product) in the gas phase. The simplified process of this reactor was: (1) light passed through the quartz window to reach the photoanode, which in turn generated photogenerated electrons and holes to produce O2; (2) protons passed through the Nafion membrane, and electrons were collected through the external wire to reach the cathode; and (3) under the action of the CNT electrocatalyst, electrons and protons reacted with CO2 to produce liquid fuel, or alternatively, protons and electrons reacted on carbon cloth-supported Pt nanoparticles to produce H2.
Devin et al. reported a microfluidic reactor [151]. It has a structure similar to that of the microfluidic H2/O2 fuel cell reported by the group. The cathode and anode of this reactor were separated by a flowing liquid electrolyte [152], and its structure is schematically shown in Figure 17. The study demonstrated that the microfluidic electrochemical cell could be applied as an effective reactor and a versatile analytical tool for the electrochemical reduction of CO2. The novelty of the design lay in the flowing liquid electrolyte stream, the advantages of which were mainly in the following aspects: (1) the wide flexibility of the working environment, especially in terms of electrolyte composition and pH; (2) the flow of the electrolyte to the anode provided one of the reactants, H2O, for the reaction to proceed, while reducing the problem of water management on the electrode surface; (3) the continuous flowing environment facilitated the online collection of samples and allowed for fast and simple analysis of the products; and (4) a reference electrode was placed at the exit stream to promote the analysis of the performance of each electrode. In addition, this cell had a high efficiency (89% response current efficiency and 45% energy efficiency), and its current density reached 100 mA cm−2. Jaramillo et al. designed a CO2 electroreduction microreactor [153], as shown in Figure 18. The cathode and anode of the reactor were separated by an anion exchange membrane to prevent the interaction of the liquid-phase products of the two poles, and the exit gas was directly passed to the chromatograph for analysis.

6. Conclusions and Outlook

The study of electrocatalytic CO2 reduction is of great importance for spacecraft life support systems and energy storage conversion. However, research on CO2 electrocatalytic reduction is still at the laboratory stage due to the high overpotential of CO2 electrocatalytic reduction, the low reduction yield, and the lack of in-depth research on the catalytic mechanism. In order to solve these problems, researchers need to make continuous improvements in catalyst, electrolyte, and reactor design, and explore efficient methods for the electrocatalytic reduction of CO2.
(1) The core of electrocatalytic CO2 reduction is how to prepare efficient electrocatalysts that can use their catalytic activity to reduce external electron energy input and energy consumption, while improving the selectivity and controllability of the reduction products. Meanwhile, the catalyst must be able to achieve multielectron and multiproton transfer to enable efficient electrocatalytic reduction of CO2 on the same surface.
(2) It is necessary to find new electrolyte systems that can synergize with the catalyst in organic systems and to analyze the specific functions of the electrolyte in the electrocatalytic reduction of CO2 and the mechanism of action in situ in order to better understand the electrocatalytic reduction of CO2.
(3) Although the design of the reactor is still at a preliminary stage, the size, shape, and structure of the reactor are of great importance to improve the efficiency and selectivity of electrocatalytic CO2. Therefore, to further promote the practical application of CO2 electrocatalytic reduction, this research needs to be further strengthened.
In conclusion, as an effective means of CO2 recycling in space stations, the electrocatalytic reduction of CO2 has bright research prospects, and this field can further enrich catalytic science and catalytic technology, thus advancing the progress of scientific research in related fields.

Author Contributions

Conceptualization, C.R. and W.N.; supervision and resources, H.L.; data curation and visualization, W.N.; writing—original draft preparation, C.R.; writing—review and editing, C.R.; funding acquisition, H.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Natural Science Foundation of Guangxi (Nos. 2021GXNSFAA220108 and 2020GXNSFBA297122) and National Key Research and Development Program (No. 2022YFEO134600).

Data Availability Statement

Data are available in the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, C.; Hu, H.; Yang, M.F.; Pei, Z.Y.; Zhou, Q.; Ren, X.; Liu, B.; Liu, D.; Zeng, X.; Zhang, G.; et al. Characteristics of the lunar samples returned by the Chang’E-5 mission. Natl. Sci. Rev. 2022, 9, nwab188. [Google Scholar] [CrossRef]
  2. McClean, J.B.; Hoffman, J.A.; Hecht, M.H.; Aboobaker, A.M.; Araghi, K.R.; Elangovan, S.; Graves, C.R.; Hartvigsen, J.J.; Hinterman, E.D.; Liu, A.M. Pre-landing plans for mars oxygen in-situ resource utilization experiment (MOXIE) science operations. Acta Astronaut. 2022, 192, 301–313. [Google Scholar] [CrossRef]
  3. Schlüter, L.; Cowley, A. Review of techniques for In-Situ oxygen extraction on the moon. Planet. Space Sci. 2020, 181, 104753. [Google Scholar] [CrossRef]
  4. Kaschubek, D.; Killian, M.; Grill, L. System analysis of a Moon base at the south pole: Considering landing sites, ECLSS and ISRU. Acta Astronaut. 2021, 186, 33–49. [Google Scholar] [CrossRef]
  5. Starr, S.O.; Muscatello, A.C. Mars in situ resource utilization: A review. Planet. Space Sci. 2020, 182, 104824. [Google Scholar] [CrossRef]
  6. Chen, H.; du Jonchay, T.S.; Hou, L.; Ho, K. Integrated in-situ resource utilization system design and logistics for Mars exploration. Acta Astronaut. 2020, 170, 80–92. [Google Scholar] [CrossRef]
  7. Liu, S.; Hu, B.; Zhao, J.; Jiang, W.; Feng, D.; Zhang, C.; Yao, W. Enhanced electrocatalytic CO2 reduction of bismuth nanosheets with introducing surface bismuth subcarbonate. Coatings 2022, 12, 233. [Google Scholar] [CrossRef]
  8. Zhang, W.; Hu, Y.; Ma, L.; Zhu, G.; Zhao, P.; Xue, X.; Chen, R.; Yang, S.; Ma, J.; Liu, J. Liquid-phase exfoliated ultrathin Bi nanosheets: Uncovering the origins of enhanced electrocatalytic CO2 reduction on two-dimensional metal nanostructure. Nano Energy 2018, 53, 808–816. [Google Scholar] [CrossRef]
  9. Feng, D.; Jiang, W.; Zhang, C.; Li, L.; Hu, B.; Song, J.; Yao, W. A Membrane Reactor with Microchannels for Carbon Dioxide Reduction in Extraterrestrial Space. Catalysts 2022, 12, 3. [Google Scholar] [CrossRef]
  10. Cestellos-Blanco, S.; Friedline, S.; Sander, K.B.; Abel, A.J.; Kim, J.M.; Clark, D.S.; Arkin, A.P.; Yang, P. Production of PHB from CO2-derived acetate with minimal processing assessed for space biomanufacturing. Front. Microbiol. 2021, 12, 700010. [Google Scholar] [CrossRef]
  11. Su, Y.; Cestellos-Blanco, S.; Kim, J.M.; Shen, Y.-X.; Kong, Q.; Lu, D.; Liu, C.; Zhang, H.; Cao, Y.; Yang, P. Close-packed nanowire-bacteria hybrids for efficient solar-driven CO2 fixation. Joule 2020, 4, 800–811. [Google Scholar] [CrossRef]
  12. Hecht, M.; Hoffman, J.; Rapp, D.; McClean, J.; SooHoo, J.; Schaefer, R.; Aboobaker, A.; Mellstrom, J.; Hartvigsen, J.; Meyen, F. Mars oxygen ISRU experiment (MOXIE). Space Sci. Rev. 2021, 217, 1–76. [Google Scholar] [CrossRef]
  13. Calvinho, K.U.; Laursen, A.B.; Yap, K.M.; Goetjen, T.A.; Hwang, S.; Murali, N.; Mejia-Sosa, B.; Lubarski, A.; Teeluck, K.M.; Hall, E.S. Selective CO2 reduction to C3 and C4 oxyhydrocarbons on nickel phosphides at overpotentials as low as 10 mV. Energy Environ. Sci. 2018, 11, 2550–2559. [Google Scholar] [CrossRef]
  14. da Silva Freitas, W.; D’Epifanio, A.; Mecheri, B. Electrocatalytic CO2 reduction on nanostructured metal-based materials: Challenges and constraints for a sustainable pathway to decarbonization. J. CO2 Util. 2021, 50, 101579. [Google Scholar] [CrossRef]
  15. Casebolt, R.; Levine, K.; Suntivich, J.; Hanrath, T. Pulse check: Potential opportunities in pulsed electrochemical CO2 reduction. Joule 2021, 5, 1987–2026. [Google Scholar] [CrossRef]
  16. Chen, J.; Wang, T.; Li, Z.; Yang, B.; Zhang, Q.; Lei, L.; Feng, P.; Hou, Y. Recent progress and perspective of electrochemical CO2 reduction towards C2-C5 products over non-precious metal heterogeneous electrocatalysts. Nano Res. 2021, 14, 3188–3207. [Google Scholar] [CrossRef]
  17. Chen, Q.; Tsiakaras, P.; Shen, P. Electrochemical Reduction of Carbon Dioxide: Recent Advances on Au-Based Nanocatalysts. Catalysts 2022, 12, 1348. [Google Scholar] [CrossRef]
  18. Chen, C.; Zhang, Z.; Li, G.; Li, L.; Lin, Z. Recent advances on nanomaterials for electrocatalytic CO2 conversion. Energy Fuels 2021, 35, 7485–7510. [Google Scholar] [CrossRef]
  19. Tran, K.; Ulissi, Z.W. Active learning across intermetallics to guide discovery of electrocatalysts for CO2 reduction and H2 evolution. Nat. Catal. 2018, 1, 696–703. [Google Scholar] [CrossRef]
  20. Xie, L.; Liang, J.; Priest, C.; Wang, T.; Ding, D.; Wu, G.; Li, Q. Engineering the atomic arrangement of bimetallic catalysts for electrochemical CO2 reduction. Chem. Commun. 2021, 57, 1839–1854. [Google Scholar] [CrossRef]
  21. Giusi, D.; Miceli, M.; Genovese, C.; Centi, G.; Perathoner, S.; Ampelli, C. In situ electrochemical characterization of CuxO-based gas-diffusion electrodes (GDEs) for CO2 electrocatalytic reduction in presence and absence of liquid electrolyte and relationship with C2+ products formation. Appl. Catal. B Environ. 2022, 318, 121845. [Google Scholar] [CrossRef]
  22. Yang, K.; Yang, Z.; Zhang, C.; Gu, Y.; Wei, J.; Li, Z.; Ma, C.; Yang, X.; Song, K.; Li, Y. Recent advances in CdS-based photocatalysts for CO2 photocatalytic conversion. Chem. Eng. J. 2021, 418, 129344. [Google Scholar] [CrossRef]
  23. Yang, K.D.; Lee, C.W.; Jin, K.; Im, S.W.; Nam, K.T. Current status and bioinspired perspective of electrochemical conversion of CO2 to a long-chain hydrocarbon. J. Phys. Chem. Lett. 2017, 8, 538–545. [Google Scholar] [CrossRef] [PubMed]
  24. Khan, I. Strategies for Improved Electrochemical CO2 Reduction to Value-Added Products by Highly Anticipated Copper-Based Nanoarchitectures. Chem. Rec. 2022, 22, e202100219. [Google Scholar] [CrossRef]
  25. Fan, Q.; Zhang, M.; Jia, M.; Liu, S.; Qiu, J.; Sun, Z. Electrochemical CO2 reduction to C2+ species: Heterogeneous electrocatalysts, reaction pathways, and optimization strategies. Mater. Today Energy 2018, 10, 280–301. [Google Scholar] [CrossRef]
  26. Zhang, B.; Wang, L.; Li, D.; Li, Z.; Bu, R.; Lu, Y. Tandem strategy for electrochemical CO2 reduction reaction. Chem Catal. 2022, 2, 3395–3429. [Google Scholar] [CrossRef]
  27. Zhang, J.; Sewell, C.D.; Huang, H.; Lin, Z. Closing the anthropogenic chemical carbon cycle toward a sustainable future via CO2 valorization. Adv. Energy Mater. 2021, 11, 2102767. [Google Scholar] [CrossRef]
  28. Sun, M.; Wong, H.H.; Wu, T.; Dougherty, A.W.; Huang, B. Entanglement of spatial and energy segmentation for C1 pathways in CO2 reduction on carbon skeleton supported atomic catalysts. Adv. Energy Mater. 2022, 12, 2103781. [Google Scholar] [CrossRef]
  29. Rehman, A.; Nazir, G.; Rhee, K.Y.; Park, S.-J. Electrocatalytic and photocatalytic sustainable conversion of carbon dioxide to value-added chemicals: State-of-the-art progress, challenges, and future directions. J. Environ. Chem. Eng. 2022, 10, 108219. [Google Scholar] [CrossRef]
  30. Li, R.; Xiang, K.; Liu, Z.; Peng, Z.; Zou, Y.; Wang, S. Recent Advances in Upgrading of Low-Cost Oxidants to Value-Added Products by Electrocatalytic Reduction Reaction. Adv. Funct. Mater. 2022, 32, 2208212. [Google Scholar] [CrossRef]
  31. He, C.; Duan, D.; Low, J.; Bai, Y.; Jiang, Y.; Wang, X.; Chen, S.; Long, R.; Song, L.; Xiong, Y. Cu2−xS derived copper nanoparticles: A platform for unraveling the role of surface reconstruction in efficient electrocatalytic CO2-to-C2H4 conversion. Nano Res. 2021, 1–5. [Google Scholar] [CrossRef]
  32. Wijaya, D.T.; Lee, C.W. Metal-Organic framework catalysts: A versatile platform for bioinspired electrochemical conversion of carbon dioxide. Chem. Eng. J. 2022, 446, 137311. [Google Scholar] [CrossRef]
  33. Franco, F.; Rettenmaier, C.; Jeon, H.S.; Cuenya, B.R. Transition metal-based catalysts for the electrochemical CO2 reduction: From atoms and molecules to nanostructured materials. Chem. Soc. Rev. 2020, 49, 6884–6946. [Google Scholar] [CrossRef]
  34. Zhang, J.; Zeng, G.; Chen, L.; Lai, W.; Yuan, Y.; Lu, Y.; Ma, C.; Zhang, W.; Huang, H. Tuning the reaction path of CO2 electroreduction reaction on indium single-atom catalyst: Insights into the active sites. Nano Res. 2022, 15, 4014–4022. [Google Scholar] [CrossRef]
  35. Sargeant, E.; Rodríguez, P. Electrochemical conversion of CO2 in non-conventional electrolytes: Recent achievements and future challenges. Electrochem. Sci. Adv. 2022, e2100178. [Google Scholar]
  36. Cheng, Y.; Wang, H.; Qian, T.; Yan, C. Interfacial engineering of carbon-based materials for efficient electrocatalysis: Recent advances and future. EnergyChem 2022, 4, 100074. [Google Scholar] [CrossRef]
  37. Shan, J.; Shi, Y.; Li, H.; Chen, Z.; Shuai, Y.; Wang, Z. Effective CO2 electroreduction toward C2H4 boosted by Ce-doped Cu nanoparticles. Chem. Eng. J. 2022, 433, 133769. [Google Scholar] [CrossRef]
  38. Liu, L.; Li, M.; Chen, F.; Huang, H. Recent Advances on Single-Atom Catalysts for CO2 Reduction. Small Struct. 2022, 4, 2200188. [Google Scholar] [CrossRef]
  39. Vinoth, S.; Ong, W.-J.; Pandikumar, A. Defect engineering of BiOX (X= Cl, Br, I) based photocatalysts for energy and environmental applications: Current progress and future perspectives. Coord. Chem. Rev. 2022, 464, 214541. [Google Scholar] [CrossRef]
  40. Yan, Z.; Wu, T. Highly Selective Electrochemical CO2 Reduction to C2 Products on a g-C3N4-Supported Copper-Based Catalyst. Int. J. Mol. Sci. 2022, 23, 14381. [Google Scholar] [CrossRef]
  41. Garba, M.D.; Usman, M.; Khan, S.; Shehzad, F.; Galadima, A.; Ehsan, M.F.; Ghanem, A.S.; Humayun, M. CO2 towards fuels: A review of catalytic conversion of carbon dioxide to hydrocarbons. J. Environ. Chem. Eng. 2021, 9, 104756. [Google Scholar] [CrossRef]
  42. Sa, Y.J.; Lee, C.W.; Lee, S.Y.; Na, J.; Lee, U.; Hwang, Y.J. Catalyst–electrolyte interface chemistry for electrochemical CO2 reduction. Chem. Soc. Rev. 2020, 49, 6632–6665. [Google Scholar] [CrossRef]
  43. Li, X.; Yu, J.; Jaroniec, M.; Chen, X. Cocatalysts for selective photoreduction of CO2 into solar fuels. Chem. Rev. 2019, 119, 3962–4179. [Google Scholar] [CrossRef] [PubMed]
  44. Deng, B.; Huang, M.; Zhao, X.; Mou, S.; Dong, F. Interfacial electrolyte effects on electrocatalytic CO2 reduction. ACS Catal. 2021, 12, 331–362. [Google Scholar] [CrossRef]
  45. Qiao, J.; Liu, Y.; Hong, F.; Zhang, J. A review of catalysts for the electroreduction of carbon dioxide to produce low-carbon fuels. Chem. Soc. Rev. 2014, 43, 631–675. [Google Scholar] [CrossRef]
  46. Neyrizi, S.; Kiewiet, J.; Hempenius, M.A.; Mul, G. What It Takes for Imidazolium Cations to Promote Electrochemical Reduction of CO2. ACS Energy Lett. 2022, 7, 3439–3446. [Google Scholar] [CrossRef]
  47. Salimijazi, F.; Kim, J.; Schmitz, A.M.; Grenville, R.; Bocarsly, A.; Barstow, B. Constraints on the efficiency of engineered electromicrobial production. Joule 2020, 4, 2101–2130. [Google Scholar] [CrossRef]
  48. Tahir, M.; Ali Khan, A.; Tasleem, S.; Mansoor, R.; Fan, W.K. Titanium carbide (Ti3C2) MXene as a promising co-catalyst for photocatalytic CO2 conversion to energy-efficient fuels: A review. Energy Fuels 2021, 35, 10374–10404. [Google Scholar] [CrossRef]
  49. Gunasekar, G.H.; Park, K.; Jung, K.-D.; Yoon, S. Recent developments in the catalytic hydrogenation of CO2 to formic acid/formate using heterogeneous catalysts. Inorg. Chem. Front. 2016, 3, 882–895. [Google Scholar] [CrossRef]
  50. Papasizza, M.; Yang, X.; Cheng, J.; Cuesta, A. Electrocatalytic reduction of CO2 in neat and water-containing imidazolium-based ionic liquids. Curr. Opin. Electrochem. 2020, 23, 80–88. [Google Scholar] [CrossRef]
  51. Ma, Z.; Wan, T.; Zhang, D.; Yuwono, J.A.; Tsounis, C.; Jiang, J.; Chou, Y.-H.; Lu, X.; Kumar, P.V.; Ng, Y.H. Atomically Dispersed Cu Catalysts on Sulfide-Derived Defective Ag Nanowires for Electrochemical CO2 Reduction. ACS Nano 2023, 17, 2387–2398. [Google Scholar] [CrossRef]
  52. Al Sadat, W.I.; Archer, L.A. The O2-assisted Al/CO2 electrochemical cell: A system for CO2 capture/conversion and electric power generation. Sci. Adv. 2016, 2, e1600968. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Huang, Y.G.; Wu, S.Q.; Deng, W.H.; Xu, G.; Hu, F.L.; Hill, J.P.; Wei, W.; Su, S.Q.; Shrestha, L.K.; Sato, O. Selective CO2 capture and high proton conductivity of a functional star-of-david catenane metal–organic framework. Adv. Mater. 2017, 29, 1703301. [Google Scholar] [CrossRef] [PubMed]
  54. Chung, D.Y.; Jun, S.W.; Yoon, G.; Kwon, S.G.; Shin, D.Y.; Seo, P.; Yoo, J.M.; Shin, H.; Chung, Y.-H.; Kim, H. Highly durable and active PtFe nanocatalyst for electrochemical oxygen reduction reaction. J. Am. Chem. Soc. 2015, 137, 15478–15485. [Google Scholar] [CrossRef]
  55. Fu, J.; Liu, K.; Li, H.; Hu, J.; Liu, M. Bimetallic atomic site catalysts for CO2 reduction reactions: A review. Environ. Chem. Lett. 2022, 20, 243–262. [Google Scholar] [CrossRef]
  56. Giannakoudakis, D.A.; Colmenares, J.C.; Tsiplakides, D.; Triantafyllidis, K.S. Nanoengineered electrodes for biomass-derived 5-hydroxymethylfurfural electrocatalytic oxidation to 2,5-furandicarboxylic acid. ACS Sustain. Chem. Eng. 2021, 9, 1970–1993. [Google Scholar] [CrossRef]
  57. Liang, B.; Zhao, Y.; Yang, J. Recent advances in developing artificial autotrophic microorganism for reinforcing CO2 fixation. Front. Microbiol. 2020, 11, 592631. [Google Scholar] [CrossRef]
  58. Feng, J.; Zeng, S.; Feng, J.; Dong, H.; Zhang, X. CO2 electroreduction in ionic liquids: A review. Chin. J. Chem. 2018, 36, 961–970. [Google Scholar] [CrossRef]
  59. Guan, Y.; Liu, M.; Rao, X.; Liu, Y.; Zhang, J. Electrochemical reduction of carbon dioxide (CO2): Bismuth-based electrocatalysts. J. Mater. Chem. A 2021, 9, 13770–13803. [Google Scholar] [CrossRef]
  60. Zhang, L.; Zhao, Z.J.; Gong, J. Nanostructured materials for heterogeneous electrocatalytic CO2 reduction and their related reaction mechanisms. Angew. Chem. Int. Ed. 2017, 56, 11326–11353. [Google Scholar] [CrossRef]
  61. Zhu, D.D.; Liu, J.L.; Qiao, S.Z. Recent advances in inorganic heterogeneous electrocatalysts for reduction of carbon dioxide. Adv. Mater. 2016, 28, 3423–3452. [Google Scholar] [CrossRef] [PubMed]
  62. Li, X.; Yang, X.; Xue, H.; Pang, H.; Xu, Q. Metal–organic frameworks as a platform for clean energy applications. EnergyChem 2020, 2, 100027. [Google Scholar] [CrossRef]
  63. Qin, S.; Ge, C.; Kong, X.; Fu, M.; Zhuang, Z.; Li, X. Photothermal Catalytic Reduction of CO2 by Cobalt Silicate Heterojunction Constructed from Clay Minerals. Catalysts 2022, 13, 32. [Google Scholar] [CrossRef]
  64. Zhang, Y.; Dong, L.-Z.; Li, S.; Huang, X.; Chang, J.-N.; Wang, J.-H.; Zhou, J.; Li, S.-L.; Lan, Y.-Q. Coordination environment dependent selectivity of single-site-Cu enriched crystalline porous catalysts in CO2 reduction to CH4. Nat. Commun. 2021, 12, 6390. [Google Scholar] [CrossRef] [PubMed]
  65. Zhou, H.; Yan, R.; Zhang, D.; Fan, T. Challenges and perspectives in designing artificial photosynthetic systems. Chem. Eur. J. 2016, 22, 9870–9885. [Google Scholar] [CrossRef] [PubMed]
  66. Wang, Y.; Zheng, M.; Wang, X.; Zhou, X. Electrocatalytic Reduction of CO2 to C1 Compounds by Zn-Based Monatomic Alloys: A DFT Calculation. Catalysts 2022, 12, 1617. [Google Scholar] [CrossRef]
  67. Taheri, A.; Berben, L.A. Making C–H bonds with CO2: Production of formate by molecular electrocatalysts. Chem. Commun. 2016, 52, 1768–1777. [Google Scholar] [CrossRef]
  68. Jouny, M.; Lv, J.-J.; Cheng, T.; Ko, B.H.; Zhu, J.-J.; Goddard III, W.A.; Jiao, F. Formation of carbon–nitrogen bonds in carbon monoxide electrolysis. Nat. Chem. 2019, 11, 846–851. [Google Scholar] [CrossRef] [Green Version]
  69. Yang, N.; Waldvogel, S.R.; Jiang, X. Electrochemistry of carbon dioxide on carbon electrodes. ACS Appl. Mater. Interfaces 2016, 8, 28357–28371. [Google Scholar] [CrossRef]
  70. Di, Z.; Qi, Y.; Yu, X.; Hu, F. The Progress of Metal-Organic Framework for Boosting CO2 Conversion. Catalysts 2022, 12, 1582. [Google Scholar] [CrossRef]
  71. Yoo, C.J.; Dong, W.J.; Park, J.Y.; Lim, J.W.; Kim, S.; Choi, K.S.; Odongo Ngome, F.O.; Choi, S.-Y.; Lee, J.-L. Compositional and geometrical effects of bimetallic Cu–Sn catalysts on selective electrochemical CO2 reduction to CO. ACS Appl. Energy Mater. 2020, 3, 4466–4473. [Google Scholar] [CrossRef]
  72. Matavos-Aramyan, S.; Soukhakian, S.; Jazebizadeh, M.H.; Moussavi, M.; Hojjati, M.R. On engineering strategies for photoselective CO2 reduction–A thorough review. Appl. Mater. Today 2020, 18, 100499. [Google Scholar] [CrossRef]
  73. Wang, F. Artificial photosynthetic systems for CO2 reduction: Progress on higher efficiency with cobalt complexes as catalysts. ChemSusChem 2017, 10, 4393–4402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Govindan, B.; Madhu, R.; Abu Haija, M.; Kusmartsev, F.V.; Banat, F. Pd-Decorated 2D MXene (2D Ti3C2Tix) as a High-Performance Electrocatalyst for Reduction of Carbon Dioxide into Fuels toward Climate Change Mitigation. Catalysts 2022, 12, 1180. [Google Scholar] [CrossRef]
  75. Mostafa, M.M.M.; Bajafar, W.; Gu, L.; Narasimharao, K.; Abdel Salam, M.; Alshehri, A.; Khdary, N.H.; Al-Faifi, S.; Chowdhury, A.D. Electrochemical Characteristics of Nanosized Cu, Ni, and Zn Cobaltite Spinel Materials. Catalysts 2022, 12, 893. [Google Scholar] [CrossRef]
  76. Li, X.; Chang, S.; Wang, Y.; Zhang, L. Silver-Carbonaceous Microsphere Precursor-Derived Nano-Coral Ag Catalyst for Electrochemical Carbon Dioxide Reduction. Catalysts 2022, 12, 479. [Google Scholar] [CrossRef]
  77. Costentin, C.; Drouet, S.; Robert, M.; Savéant, J.-M. A local proton source enhances CO2 electroreduction to CO by a molecular Fe catalyst. Science 2012, 338, 90–94. [Google Scholar] [CrossRef]
  78. Angamuthu, R.; Byers, P.; Lutz, M.; Spek, A.L.; Bouwman, E. Electrocatalytic CO2 conversion to oxalate by a copper complex. Science 2010, 327, 313–315. [Google Scholar] [CrossRef] [Green Version]
  79. Hoffman, Z.B.; Gray, T.S.; Moraveck, K.B.; Gunnoe, T.B.; Zangari, G. Electrochemical reduction of carbon dioxide to syngas and formate at dendritic copper–indium electrocatalysts. ACS Catal. 2017, 7, 5381–5390. [Google Scholar] [CrossRef]
  80. Zhao, Z.; Peng, X.; Liu, X.; Sun, X.; Shi, J.; Han, L.; Li, G.; Luo, J. Efficient and stable electroreduction of CO2 to CH4 on CuS nanosheet arrays. J. Mater. Chem. A 2017, 5, 20239–20243. [Google Scholar] [CrossRef]
  81. Huang, J.; Hu, Q.; Guo, X.; Zeng, Q.; Wang, L. Rethinking Co(CO3)0.5(OH)·0.11H2O: A new property for highly selective electrochemical reduction of carbon dioxide to methanol in aqueous solution. Green Chem. 2018, 20, 2967–2972. [Google Scholar] [CrossRef]
  82. Wang, X.; Chen, Z.; Zhao, X.; Yao, T.; Chen, W.; You, R.; Zhao, C.; Wu, G.; Wang, J.; Huang, W. Regulation of coordination number over single Co sites: Triggering the efficient electroreduction of CO2. Angew. Chem. 2018, 130, 1962–1966. [Google Scholar] [CrossRef]
  83. Zhu, W.; Zhang, L.; Yang, P.; Hu, C.; Luo, Z.; Chang, X.; Zhao, Z.J.; Gong, J. Low-coordinated edge sites on ultrathin palladium nanosheets boost carbon dioxide electroreduction performance. Angew. Chem. Int. Ed. 2018, 57, 11544–11548. [Google Scholar] [CrossRef] [PubMed]
  84. Zhang, A.; Liang, Y.; Li, H.; Zhao, X.; Chen, Y.; Zhang, B.; Zhu, W.; Zeng, J. Harmonizing the electronic structures of the adsorbate and catalysts for efficient CO2 reduction. Nano Lett. 2019, 19, 6547–6553. [Google Scholar] [CrossRef]
  85. Jiang, H.; Gong, Y.; Jiao, L.; Qian, Y.; Pan, C.; Zheng, L.; Cai, X.; Liu, B.; Yu, S. Regulating coordination environment of single-atom Ni electrocatalysts templated by MOF for boosting CO2 reduction. Angew. Chem. Int. Ed 2019, 59, 2705–2709. [Google Scholar]
  86. Ren, W.; Tan, X.; Yang, W.; Jia, C.; Xu, S.; Wang, K.; Smith, S.C.; Zhao, C. Isolated diatomic Ni-Fe metal–nitrogen sites for synergistic electroreduction of CO2. Angew. Chem. Int. Ed. 2019, 58, 6972–6976. [Google Scholar] [CrossRef]
  87. Wang, Y.; Cao, L.; Libretto, N.J.; Li, X.; Li, C.; Wan, Y.; He, C.; Lee, J.; Gregg, J.; Zong, H. Ensemble effect in bimetallic electrocatalysts for CO2 reduction. J. Am. Chem. Soc. 2019, 141, 16635–16642. [Google Scholar] [CrossRef]
  88. Pan, J.; Sun, Y.; Deng, P.; Yang, F.; Chen, S.; Zhou, Q.; Park, H.S.; Liu, H.; Xia, B.Y. Hierarchical and ultrathin copper nanosheets synthesized via galvanic replacement for selective electrocatalytic carbon dioxide conversion to carbon monoxide. Appl. Catal. B Environ. 2019, 255, 117736. [Google Scholar] [CrossRef]
  89. Wang, Y.; Shen, H.; Livi, K.J.; Raciti, D.; Zong, H.; Gregg, J.; Onadeko, M.; Wan, Y.; Watson, A.; Wang, C. Copper nanocubes for CO2 reduction in gas diffusion electrodes. Nano Lett. 2019, 19, 8461–8468. [Google Scholar] [CrossRef]
  90. Zhang, H.; Li, J.; Xi, S.; Du, Y.; Hai, X.; Wang, J.; Xu, H.; Wu, G.; Zhang, J.; Lu, J. A graphene-supported single-atom FeN5 catalytic site for efficient electrochemical CO2 reduction. Angew. Chem. 2019, 131, 15013–15018. [Google Scholar] [CrossRef]
  91. Zhang, Z.; Ma, C.; Tu, Y.; Si, R.; Wei, J.; Zhang, S.; Wang, Z.; Li, J.-F.; Wang, Y.; Deng, D. Multiscale carbon foam confining single iron atoms for efficient electrocatalytic CO2 reduction to CO. Nano Res. 2019, 12, 2313–2317. [Google Scholar] [CrossRef]
  92. Gu, J.; Hsu, C.-S.; Bai, L.; Chen, H.M.; Hu, X. Atomically dispersed Fe3+ sites catalyze efficient CO2 electroreduction to CO. Science 2019, 364, 1091–1094. [Google Scholar] [CrossRef] [PubMed]
  93. Zhao, S.; Chen, G.; Zhou, G.; Yin, L.C.; Veder, J.P.; Johannessen, B.; Saunders, M.; Yang, S.Z.; De Marco, R.; Liu, C. A universal seeding strategy to synthesize single atom catalysts on 2D materials for electrocatalytic applications. Adv. Funct. Mater. 2020, 30, 1906157. [Google Scholar] [CrossRef]
  94. Liu, S.; Yang, H.B.; Hung, S.F.; Ding, J.; Cai, W.; Liu, L.; Gao, J.; Li, X.; Ren, X.; Kuang, Z. Elucidating the electrocatalytic CO2 reduction reaction over a model single-atom nickel catalyst. Angew. Chem. Int. Ed. 2020, 59, 798–803. [Google Scholar] [CrossRef]
  95. Gong, Y.N.; Jiao, L.; Qian, Y.; Pan, C.Y.; Zheng, L.; Cai, X.; Liu, B.; Yu, S.H.; Jiang, H.L. Regulating the coordination environment of MOF-templated single-atom nickel electrocatalysts for boosting CO2 reduction. Angew. Chem. 2020, 132, 2727–2731. [Google Scholar] [CrossRef]
  96. Zhang, A.; Liang, Y.; Li, H.; Zhang, B.; Liu, Z.; Chang, Q.; Zhang, H.; Zhu, C.-F.; Geng, Z.; Zhu, W. In-situ surface reconstruction of InN nanosheets for efficient CO2 electroreduction into formate. Nano Lett. 2020, 20, 8229–8235. [Google Scholar] [CrossRef]
  97. Xie, W.; Li, H.; Cui, G.; Li, J.; Song, Y.; Li, S.; Zhang, X.; Lee, J.Y.; Shao, M.; Wei, M. NiSn atomic pair on an integrated electrode for synergistic electrocatalytic CO2 reduction. Angew. Chem. 2021, 133, 7458–7464. [Google Scholar] [CrossRef]
  98. Guo, J.-H.; Zhang, X.-Y.; Dao, X.-Y.; Sun, W.-Y. Nanoporous metal–organic framework-based ellipsoidal nanoparticles for the catalytic electroreduction of CO2. ACS Appl. Nano Mater. 2020, 3, 2625–2635. [Google Scholar] [CrossRef]
  99. Zhong, M.; Tran, K.; Min, Y.; Wang, C.; Wang, Z.; Dinh, C.-T.; De Luna, P.; Yu, Z.; Rasouli, A.S.; Brodersen, P. Accelerated discovery of CO2 electrocatalysts using active machine learning. Nature 2020, 581, 178–183. [Google Scholar] [CrossRef] [PubMed]
  100. Huang, Y.; Mao, X.; Yuan, G.; Zhang, D.; Pan, B.; Deng, J.; Shi, Y.; Han, N.; Li, C.; Zhang, L. Size-dependent selectivity of electrochemical CO2 reduction on converted In2O3 nanocrystals. Angew. Chem. 2021, 133, 15978–15982. [Google Scholar] [CrossRef]
  101. Li, J.; Zhang, Z.; Hu, W. Exclusive CO2-to-formate conversion over single-atom alloyed Cu-based catalysts. Green Energy Environ. 2022, 7, 855–857. [Google Scholar] [CrossRef]
  102. Zhang, S.; Mo, Z.; Wang, J.; Liu, H.; Liu, P.; Hu, D.; Tan, T.; Wang, C. Ultra-stable oxygen species in Ag nanoparticles anchored on g-C3N4 for enhanced electrochemical reduction of CO2. Electrochim. Acta 2021, 390, 138831. [Google Scholar] [CrossRef]
  103. Zhao, Y.; Miao, Z.; Wang, F.; Liang, M.; Liu, Y.; Wu, M.; Diao, L.; Mu, J.; Cheng, Y.; Zhou, J. N-doped carbon-encapsulated nickel on reduced graphene oxide materials for efficient CO2 electroreduction to syngas with potential-independent H2/CO ratios. J. Environ. Chem. Eng. 2021, 9, 105515. [Google Scholar] [CrossRef]
  104. Wang, X.; Liu, S.; Zhang, H.; Zhang, S.; Meng, G.; Liu, Q.; Sun, Z.; Luo, J.; Liu, X. Polycrystalline SnSx nanofilm enables CO2 electroreduction to formate with high current density. Chem. Commun. 2022, 58, 7654–7657. [Google Scholar] [CrossRef]
  105. Zhai, J.; Kang, Q.; Liu, Q.; Lai, D.; Lu, Q.; Gao, F. In-situ generation of In2O3 nanoparticles inside In [Co(CN)6] quasi-metal-organic-framework nanocubes for efficient electroreduction of CO2 to formate. J. Colloid Interface Sci. 2022, 608, 1942–1950. [Google Scholar] [CrossRef] [PubMed]
  106. Jiang, Z.; Wang, T.; Pei, J.; Shang, H.; Zhou, D.; Li, H.; Dong, J.; Wang, Y.; Cao, R.; Zhuang, Z. Discovery of main group single Sb–N4 active sites for CO2 electroreduction to formate with high efficiency. Energy Environ. Sci. 2020, 13, 2856–2863. [Google Scholar] [CrossRef]
  107. Gao, S.; Wang, T.; Jin, M.; Zhang, S.; Liu, Q.; Hu, G.; Yang, H.; Luo, J.; Liu, X. Bifunctional Nb-NC atomic catalyst for aqueous Zn-air battery driving CO2 electrolysis. Sci. China Mater. 2022, 66, 1013–1023. [Google Scholar]
  108. Peterson, A.A.; Abild-Pedersen, F.; Studt, F.; Rossmeisl, J.; Nørskov, J.K. How copper catalyzes the electroreduction of carbon dioxide into hydrocarbon fuels. Energy Environ. Sci. 2010, 3, 1311–1315. [Google Scholar] [CrossRef]
  109. Li, C.W.; Kanan, M.W. CO2 reduction at low overpotential on Cu electrodes resulting from the reduction of thick Cu2O films. J. Am. Chem. Soc. 2012, 134, 7231–7234. [Google Scholar] [CrossRef]
  110. Guo, X.; Zhang, Y.; Deng, C.; Li, X.; Xue, Y.; Yan, Y.-M.; Sun, K. Composition dependent activity of Cu–Pt nanocrystals for electrochemical reduction of CO2. Chem. Commun. 2015, 51, 1345–1348. [Google Scholar] [CrossRef]
  111. Ni, W.; Li, C.; Zang, X.; Xu, M.; Huo, S.; Liu, M.; Yang, Z.; Yan, Y.-M. Efficient electrocatalytic reduction of CO2 on CuxO decorated graphene oxides: An insight into the role of multivalent Cu in selectivity and durability. Appl. Catal. B Environ. 2019, 259, 118044. [Google Scholar] [CrossRef]
  112. Chen, Y.; Li, C.W.; Kanan, M.W. Aqueous CO2 reduction at very low overpotential on oxide-derived Au nanoparticles. J. Am. Chem. Soc. 2012, 134, 19969–19972. [Google Scholar] [CrossRef] [PubMed]
  113. Gao, D.; Zhou, H.; Wang, J.; Miao, S.; Yang, F.; Wang, G.; Wang, J.; Bao, X. Size-dependent electrocatalytic reduction of CO2 over Pd nanoparticles. J. Am. Chem. Soc. 2015, 137, 4288–4291. [Google Scholar] [CrossRef] [PubMed]
  114. Li, S.; Dong, X.; Chen, W.; Song, Y.; Li, G.; Wei, W.; Sun, Y. Efficient CO2 Electroreduction over Silver Hollow Fiber Electrode. Catalysts 2022, 12, 453. [Google Scholar] [CrossRef]
  115. Chen, X.; Wang, H.; Wang, Y.; Bai, Q.; Gao, Y.; Zhang, Z. Synthesis and electrocatalytic performance of multi-component nanoporous PtRuCuW alloy for direct methanol fuel cells. Catalysts 2015, 5, 1003–1015. [Google Scholar] [CrossRef] [Green Version]
  116. Zhang, Y.-H.; Liu, M.-M.; Chen, J.-L.; Fang, S.-M.; Zhou, P.-P. Recent advances in Cu2O-based composites for photocatalysis: A review. Dalton Trans. 2021, 50, 4091–4111. [Google Scholar] [CrossRef]
  117. Niu, Z.-Z.; Gao, F.-Y.; Zhang, X.-L.; Yang, P.-P.; Liu, R.; Chi, L.-P.; Wu, Z.-Z.; Qin, S.; Yu, X.; Gao, M.-R. Hierarchical copper with inherent hydrophobicity mitigates electrode flooding for high-rate CO2 electroreduction to multicarbon products. J. Am. Chem. Soc. 2021, 143, 8011–8021. [Google Scholar] [CrossRef]
  118. Halder, A.; Curtiss, L.A.; Fortunelli, A.; Vajda, S. Perspective: Size selected clusters for catalysis and electrochemistry. J. Chem. Phys. 2018, 148, 110901. [Google Scholar] [CrossRef] [Green Version]
  119. Cao, T.; Lin, R.; Liu, S.; Cheong, W.-C.M.; Li, Z.; Wu, K.; Zhu, Y.; Wang, X.; Zhang, J.; Li, Q. Atomically dispersed Ni anchored on polymer-derived mesh-like N-doped carbon nanofibers as an efficient CO2 electrocatalytic reduction catalyst. Nano Res. 2022, 15, 3959–3963. [Google Scholar] [CrossRef]
  120. Azhari, N.J.; Nurdini, N.; Mardiana, S.; Ilmi, T.; Fajar, A.T.; Makertihartha, I.; Kadja, G.T. Zeolite-based catalyst for direct conversion of CO2 to C2+ hydrocarbon: A review. J. CO2 Util. 2022, 59, 101969. [Google Scholar] [CrossRef]
  121. Choukroun, D.; Daems, N.; Kenis, T.; Van Everbroeck, T.; Hereijgers, J.; Altantzis, T.; Bals, S.; Cool, P.; Breugelmans, T. Bifunctional nickel–nitrogen-doped-carbon-supported copper electrocatalyst for CO2 reduction. J. Phys. Chem. C 2020, 124, 1369–1381. [Google Scholar] [CrossRef]
  122. Cho, J.H.; Lee, C.; Hong, S.H.; Jang, H.Y.; Back, S.; Seo, M.g.; Lee, M.; Min, H.K.; Choi, Y.; Jang, Y.J. Transition Metal Ion Doping on ZIF-8 for Enhanced the Electrochemical CO2 Reduction Reaction. Adv. Mater. 2022, 2208224. [Google Scholar] [CrossRef] [PubMed]
  123. Zha, B.; Li, C.; Li, J. Efficient electrochemical reduction of CO2 into formate and acetate in polyoxometalate catholyte with indium catalyst. J. Catal. 2020, 382, 69–76. [Google Scholar] [CrossRef]
  124. Gao, S.; Lin, Y.; Jiao, X.; Sun, Y.; Luo, Q.; Zhang, W.; Li, D.; Yang, J.; Xie, Y. Partially oxidized atomic cobalt layers for carbon dioxide electroreduction to liquid fuel. Nature 2016, 529, 68–71. [Google Scholar] [CrossRef] [PubMed]
  125. Bhugun, I.; Lexa, D.; Saveant, J.-M. Ultraefficient selective homogeneous catalysis of the electrochemical reduction of carbon dioxide by an iron (0) porphyrin associated with a weak Broensted acid cocatalyst. J. Am. Chem. Soc. 1994, 116, 5015–5016. [Google Scholar] [CrossRef]
  126. Leung, K.; Nielsen, I.M.; Sai, N.; Medforth, C.; Shelnutt, J.A. Cobalt− porphyrin catalyzed electrochemical reduction of carbon dioxide in water. 2. mechanism from first principles. J. Phys. Chem. A 2010, 114, 10174–10184. [Google Scholar] [CrossRef] [Green Version]
  127. Tornow, C.E.; Thorson, M.R.; Ma, S.; Gewirth, A.A.; Kenis, P.J. Nitrogen-based catalysts for the electrochemical reduction of CO2 to CO. J. Am. Chem. Soc. 2012, 134, 19520–19523. [Google Scholar] [CrossRef]
  128. Agarwal, J.; Johnson, R.P.; Li, G. Reduction of CO2 on a tricarbonyl rhenium (I) complex: Modeling a catalytic cycle. J. Phys. Chem. A 2011, 115, 2877–2881. [Google Scholar] [CrossRef]
  129. Centi, G.; Quadrelli, E.A.; Perathoner, S. Catalysis for CO2 conversion: A key technology for rapid introduction of renewable energy in the value chain of chemical industries. Energy Environ. Sci. 2013, 6, 1711–1731. [Google Scholar] [CrossRef]
  130. Dominguez-Ramos, A.; Irabien, A. The carbon footprint of Power-to-Synthetic Natural Gas by Photovoltaic solar powered Electrochemical Reduction of CO2. Sustain. Prod. Consum. 2019, 17, 229–240. [Google Scholar] [CrossRef]
  131. Lo, A.-Y.; Taghipour, F. Review and prospects of microporous zeolite catalysts for CO2 photoreduction. Appl. Mater. Today 2021, 23, 101042. [Google Scholar] [CrossRef]
  132. Mota-Lima, A. The electrified plasma/liquid interface as a platform for highly efficient CO2 electroreduction to oxalate. J. Phys. Chem. C 2020, 124, 10907–10915. [Google Scholar] [CrossRef]
  133. Golru, S.S.; Biddinger, E.J. Effect of additives in aqueous electrolytes on CO2 electroreduction. Chem. Eng. J. 2022, 428, 131303. [Google Scholar] [CrossRef]
  134. Schizodimou, A.; Kyriacou, G. Acceleration of the reduction of carbon dioxide in the presence of multivalent cations. Electrochim. Acta 2012, 78, 171–176. [Google Scholar] [CrossRef]
  135. Jung, H.; Lee, S.Y.; Lee, C.W.; Cho, M.K.; Won, D.H.; Kim, C.; Oh, H.-S.; Min, B.K.; Hwang, Y.J. Electrochemical fragmentation of Cu2O nanoparticles enhancing selective C–C coupling from CO2 reduction reaction. J. Am. Chem. Soc. 2019, 141, 4624–4633. [Google Scholar] [CrossRef]
  136. Leung, C.-F.; Ho, P.-Y. Molecular catalysis for utilizing CO2 in fuel electro-generation and in chemical feedstock. Catalysts 2019, 9, 760. [Google Scholar] [CrossRef] [Green Version]
  137. Shao, X.; Zhang, X.; Liu, Y.; Qiao, J.; Zhou, X.-D.; Xu, N.; Malcombe, J.L.; Yi, J.; Zhang, J. Metal chalcogenide-associated catalysts enabling CO2 electroreduction to produce low-carbon fuels for energy storage and emission reduction: Catalyst structure, morphology, performance, and mechanism. J. Mater. Chem. A 2021, 9, 2526–2559. [Google Scholar] [CrossRef]
  138. Zeng, F.; Mebrahtu, C.; Xi, X.; Liao, L.; Ren, J.; Xie, J.; Heeres, H.J.; Palkovits, R. Catalysts design for higher alcohols synthesis by CO2 hydrogenation: Trends and future perspectives. Appl. Catal. B Environ. 2021, 291, 120073. [Google Scholar] [CrossRef]
  139. Dokania, A.; Ramirez, A.; Bavykina, A.; Gascon, J. Heterogeneous catalysis for the valorization of CO2: Role of bifunctional processes in the production of chemicals. ACS Energy Lett. 2018, 4, 167–176. [Google Scholar] [CrossRef]
  140. Zignani, S.C.; Lo Faro, M.; Palella, A.; Spadaro, L.; Trocino, S.; Lo Vecchio, C.; Aricò, A.S. Bifunctional CuO-Ag/KB Catalyst for the Electrochemical Reduction of CO2 in an Alkaline Solid-State Electrolysis Cell. Catalysts 2022, 12, 293. [Google Scholar] [CrossRef]
  141. Ogura, K.; Ferrell III, J.R.; Cugini, A.V.; Smotkin, E.S.; Salazar-Villalpando, M.D. CO2 attraction by specifically adsorbed anions and subsequent accelerated electrochemical reduction. Electrochim. Acta 2010, 56, 381–386. [Google Scholar] [CrossRef]
  142. Smieja, J.M.; Sampson, M.D.; Grice, K.A.; Benson, E.E.; Froehlich, J.D.; Kubiak, C.P. Manganese as a substitute for rhenium in CO2 reduction catalysts: The importance of acids. Inorg. Chem. 2013, 52, 2484–2491. [Google Scholar] [CrossRef]
  143. Yoshida, T.; Kamato, K.; Tsukamoto, M.; Iida, T.; Schlettwein, D.; Wöhrle, D.; Kaneko, M. Selective electroacatalysis for CO2 reduction in the aqueous phase using cobalt phthalocyanine/poly-4-vinylpyridine modified electrodes. J. Electroanal. Chem. 1995, 385, 209–225. [Google Scholar] [CrossRef]
  144. Woo, S.-J.; Choi, S.; Kim, S.-Y.; Kim, P.S.; Jo, J.H.; Kim, C.H.; Son, H.-J.; Pac, C.; Kang, S.O. Highly selective and durable photochemical CO2 reduction by molecular Mn (I) catalyst fixed on a particular dye-sensitized TiO2 platform. ACS Catal. 2019, 9, 2580–2593. [Google Scholar] [CrossRef]
  145. Martindale, B.C.; Compton, R.G. Formic acid electro-synthesis from carbon dioxide in a room temperature ionic liquid. Chem. Commun. 2012, 48, 6487–6489. [Google Scholar] [CrossRef] [PubMed]
  146. Panzone, C.; Philippe, R.; Chappaz, A.; Fongarland, P.; Bengaouer, A. Power-to-Liquid catalytic CO2 valorization into fuels and chemicals: Focus on the Fischer-Tropsch route. J. CO2 Util. 2020, 38, 314–347. [Google Scholar] [CrossRef]
  147. Jiang, Y.; Chen, F.; Xia, C. A review on cathode processes and materials for electro-reduction of carbon dioxide in solid oxide electrolysis cells. J. Power Sources 2021, 493, 229713. [Google Scholar] [CrossRef]
  148. Subramanian, K.; Asokan, K.; Jeevarathinam, D.; Chandrasekaran, M. Electrochemical membrane reactor for the reduction of carbondioxide to formate. J. Appl. Electrochem. 2007, 37, 255–260. [Google Scholar] [CrossRef]
  149. Narayanan, S.; Haines, B.; Soler, J.; Valdez, T. Electrochemical conversion of carbon dioxide to formate in alkaline polymer electrolyte membrane cells. J. Electrochem. Soc. 2010, 158, A167. [Google Scholar] [CrossRef]
  150. Ampelli, C.; Centi, G.; Passalacqua, R.; Perathoner, S. Synthesis of solar fuels by a novel photoelectrocatalytic approach. Energy Environ. Sci. 2010, 3, 292–301. [Google Scholar] [CrossRef]
  151. Whipple, D.T.; Finke, E.C.; Kenis, P.J. Microfluidic reactor for the electrochemical reduction of carbon dioxide: The effect of pH. Electrochem. Solid-State Lett. 2010, 13, B109. [Google Scholar] [CrossRef]
  152. Jayashree, R.S.; Mitchell, M.; Natarajan, D.; Markoski, L.J.; Kenis, P.J. Microfluidic hydrogen fuel cell with a liquid electrolyte. Langmuir 2007, 23, 6871–6874. [Google Scholar] [CrossRef] [PubMed]
  153. Hatsukade, T.; Kuhl, K.P.; Cave, E.R.; Abram, D.N.; Jaramillo, T.F. Insights into the electrocatalytic reduction of CO2 on metallic silver surfaces. Phys. Chem. Chem. Phys. 2014, 16, 13814–13819. [Google Scholar] [CrossRef] [PubMed]
Catalysts 13 00644 g001 550

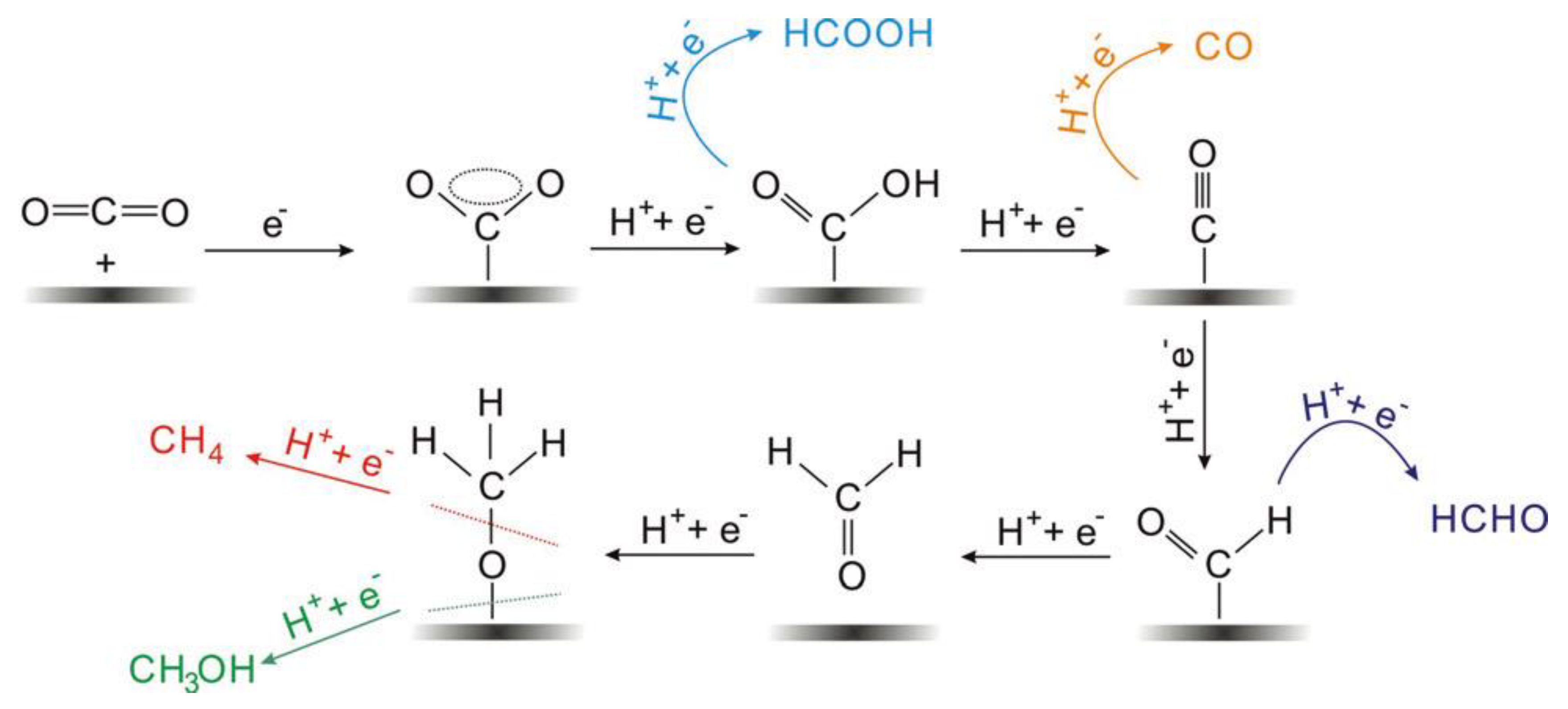

Figure 1. Reaction mechanism of electrochemical CO2 reduction on electrodes in aqueous solutions and the formation paths for the five main C1 products during the reduction process. Reprinted from Ref. [60], copyright (2017), with permission from Wiley.
Figure 1. Reaction mechanism of electrochemical CO2 reduction on electrodes in aqueous solutions and the formation paths for the five main C1 products during the reduction process. Reprinted from Ref. [60], copyright (2017), with permission from Wiley.
Catalysts 13 00644 g001
Catalysts 13 00644 g002 550

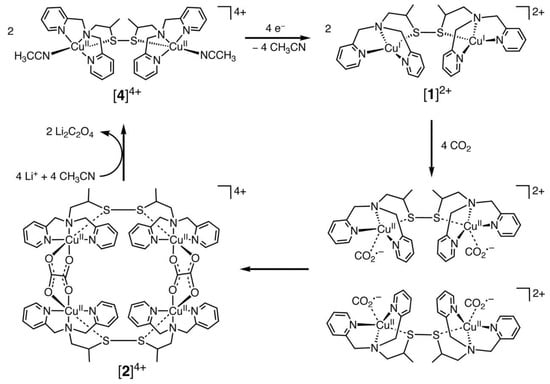

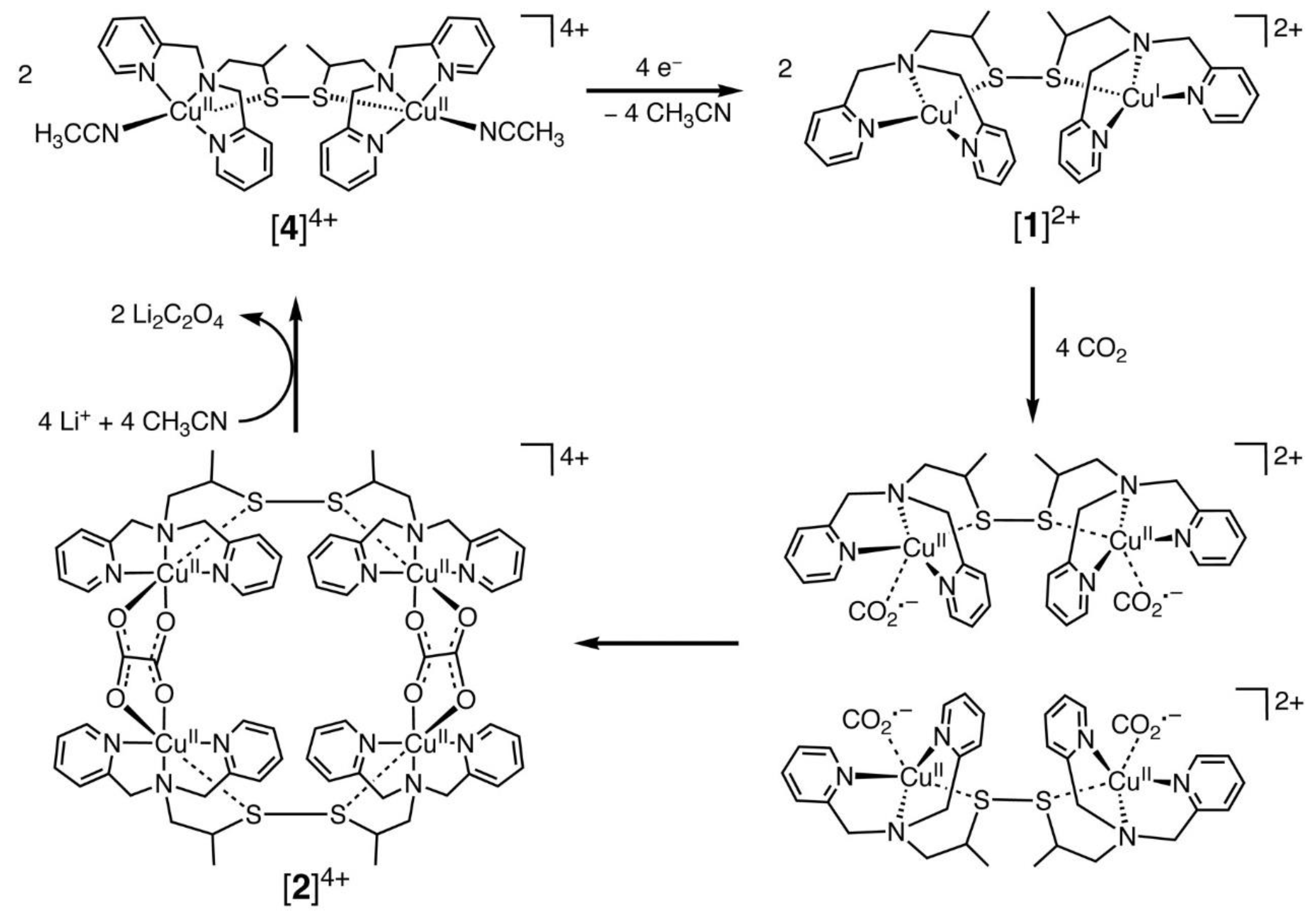

Figure 2. Proposed electrocatalytic cycle for oxalate formation. Reprinted from Ref. [78], copyright (2010), with permission from the American Association for the Advancement of Science.
Figure 2. Proposed electrocatalytic cycle for oxalate formation. Reprinted from Ref. [78], copyright (2010), with permission from the American Association for the Advancement of Science.
Catalysts 13 00644 g002
Catalysts 13 00644 g003 550

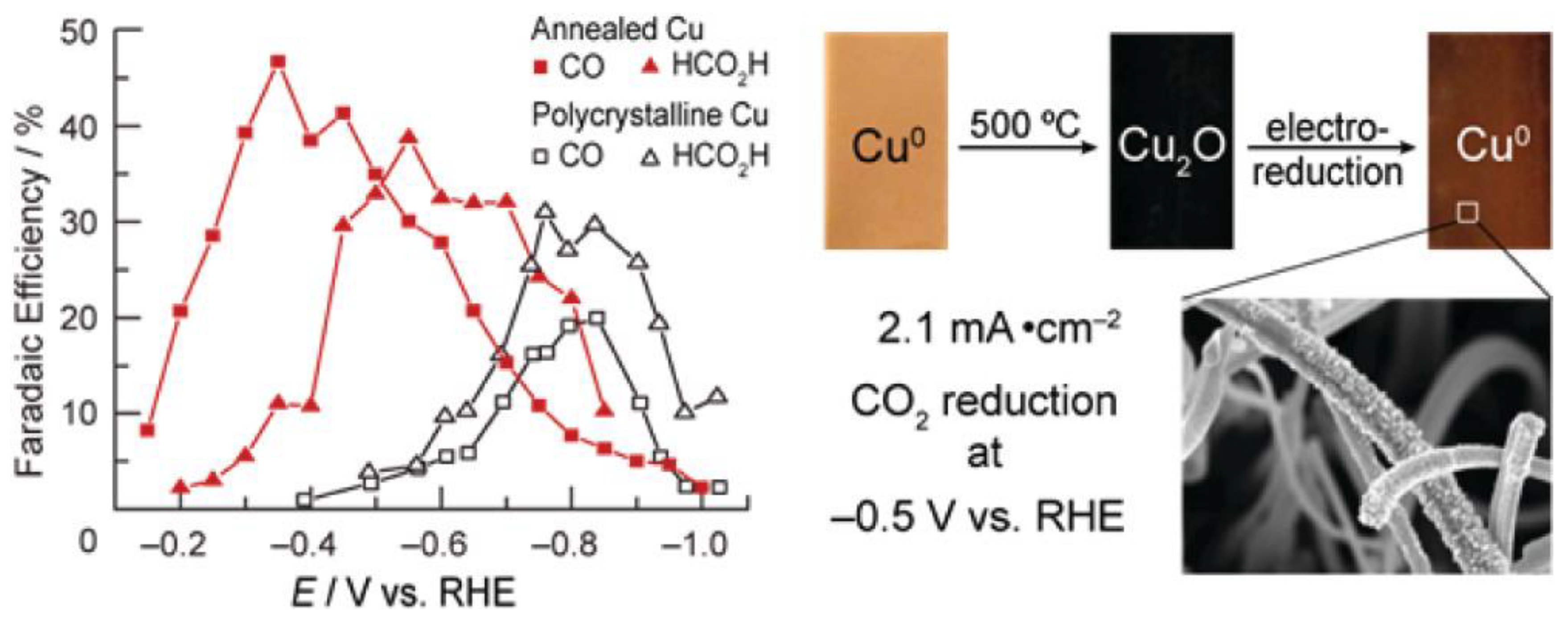

Figure 3. Electrocatalytic performance and the preparation process of Cu electrodes. Reprinted from Ref. [109], copyright (2012), with permission from the American Chemical Society.
Figure 3. Electrocatalytic performance and the preparation process of Cu electrodes. Reprinted from Ref. [109], copyright (2012), with permission from the American Chemical Society.
Catalysts 13 00644 g003
Catalysts 13 00644 g004 550

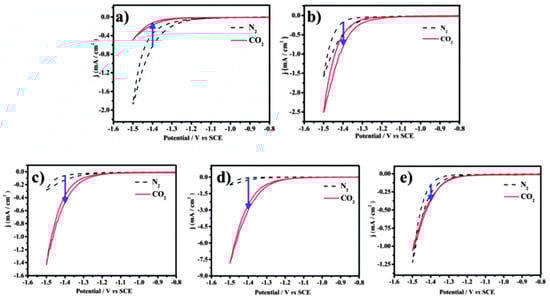

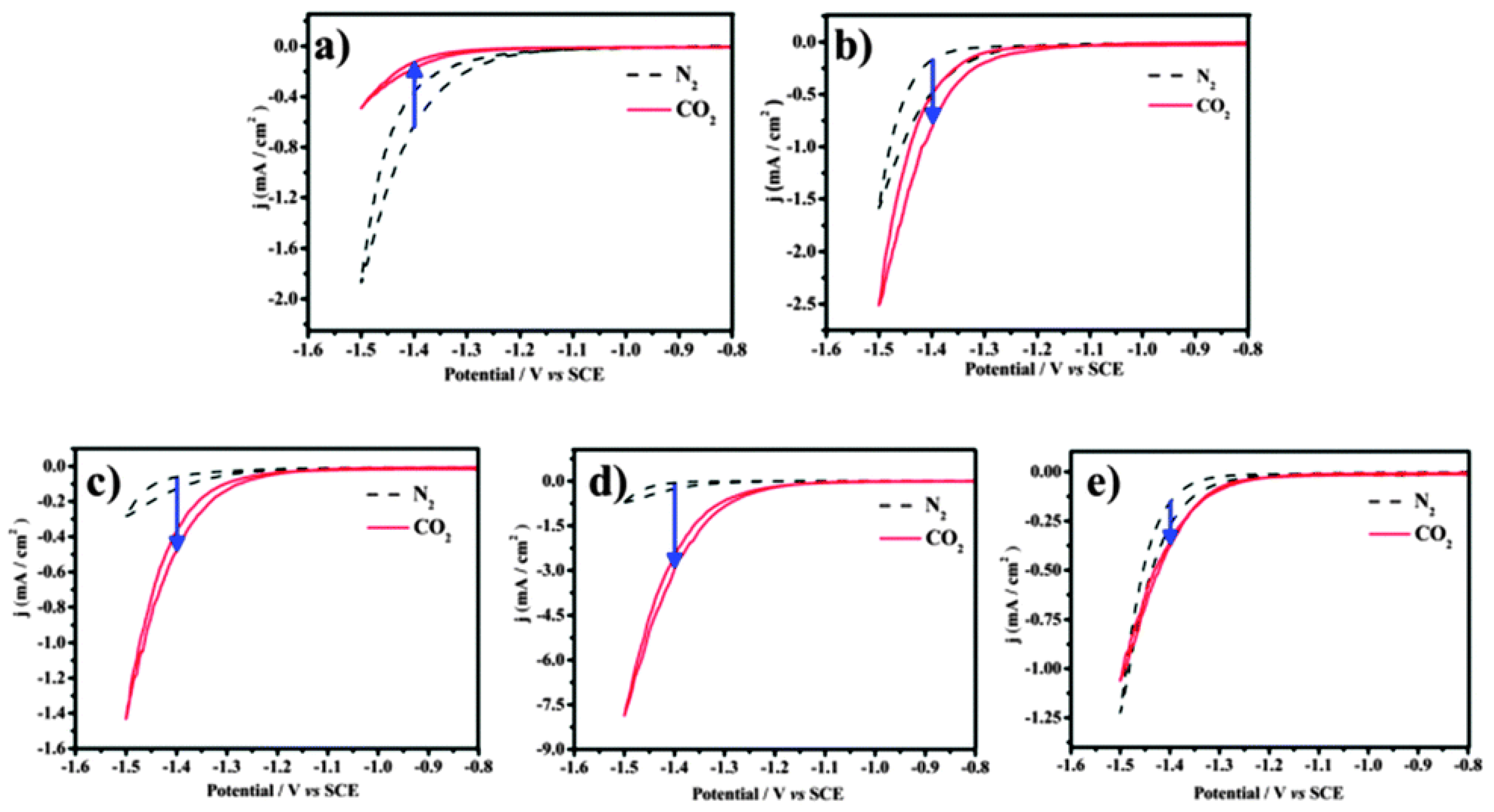

Figure 4. The cyclic voltammograms of catalysts were recorded in N2- and CO2-saturated 0.5 M KHCO3 with a scan rate of 10 mV/s−1 between −0.8 and −1.5 V (vs. SCE). (a) Cu-Pt-1#, (b) Cu-Pt-2#, (c) Cu-Pt-3#, (d) Cu-Pt-4#, and (e) Cu-Pt-5#. Reprinted from Ref. [110], copyright (2015), with permission from the Royal Society of Chemistry.
Figure 4. The cyclic voltammograms of catalysts were recorded in N2- and CO2-saturated 0.5 M KHCO3 with a scan rate of 10 mV/s−1 between −0.8 and −1.5 V (vs. SCE). (a) Cu-Pt-1#, (b) Cu-Pt-2#, (c) Cu-Pt-3#, (d) Cu-Pt-4#, and (e) Cu-Pt-5#. Reprinted from Ref. [110], copyright (2015), with permission from the Royal Society of Chemistry.
Catalysts 13 00644 g004
Catalysts 13 00644 g005 550

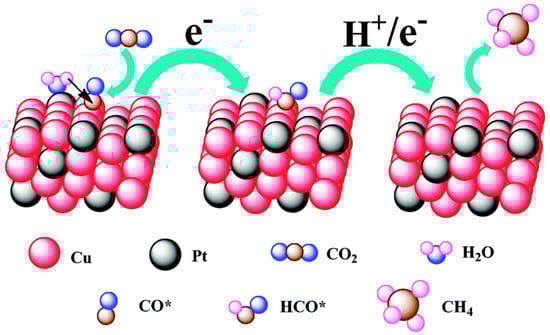

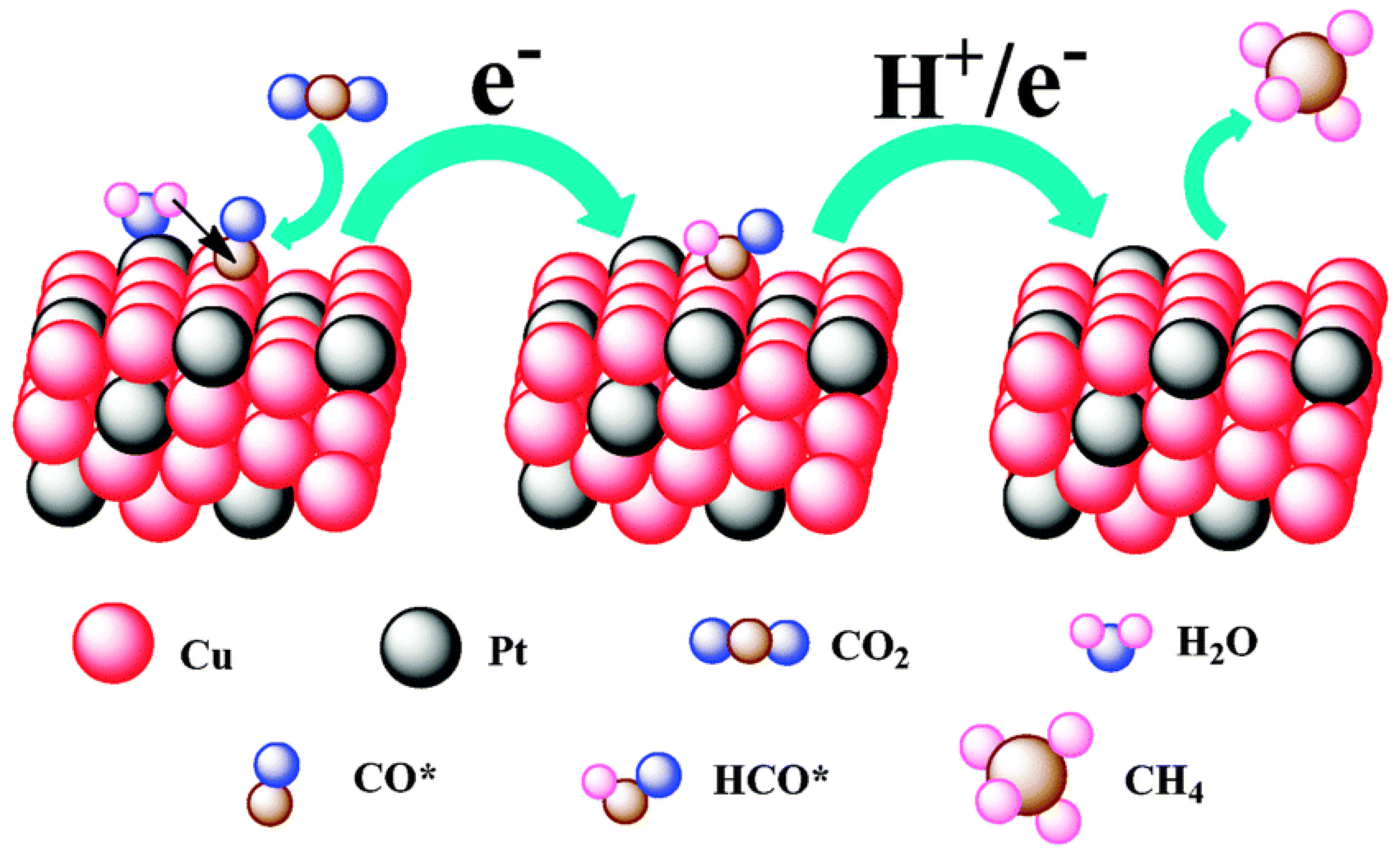

Figure 5. A proposed mechanism illustrating the steps of CO2 electroreduction and CH4 formation occurring at the Cu-Pt 3:1 NC catalyst. Reprinted from Ref. [110], copyright (2015), with permission from the Royal Society of Chemistry.
Figure 5. A proposed mechanism illustrating the steps of CO2 electroreduction and CH4 formation occurring at the Cu-Pt 3:1 NC catalyst. Reprinted from Ref. [110], copyright (2015), with permission from the Royal Society of Chemistry.
Catalysts 13 00644 g005
Catalysts 13 00644 g006 550

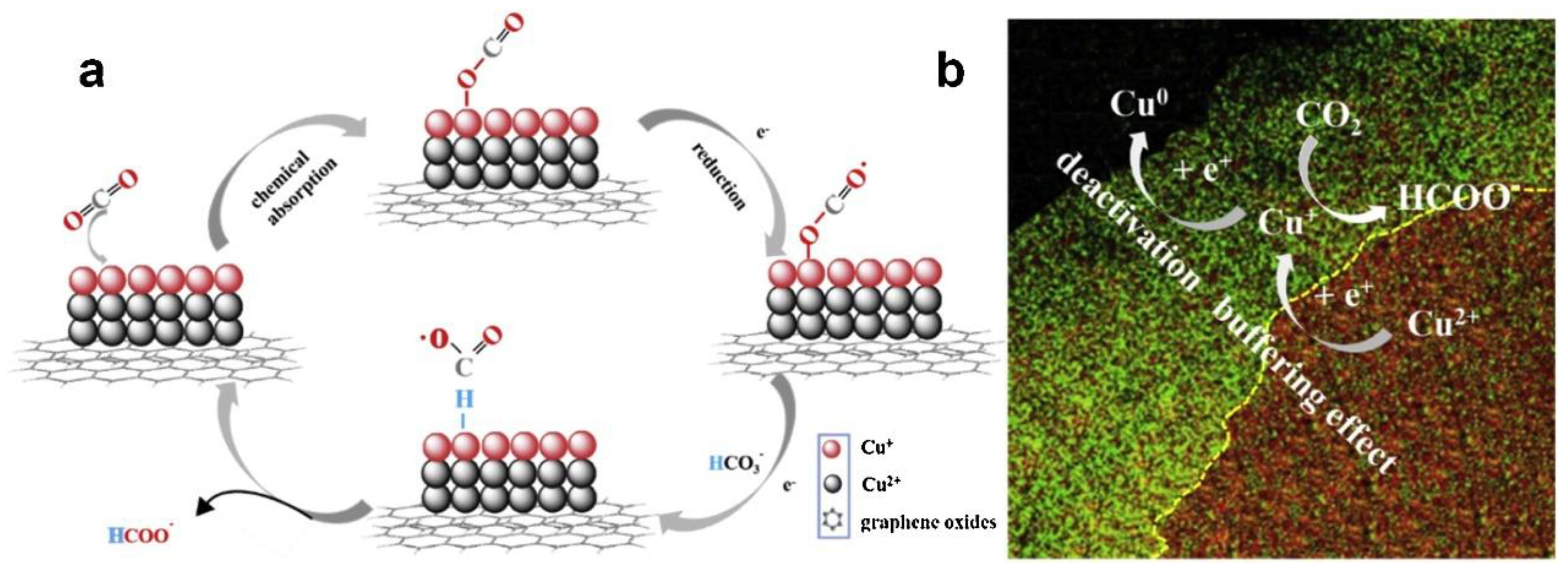

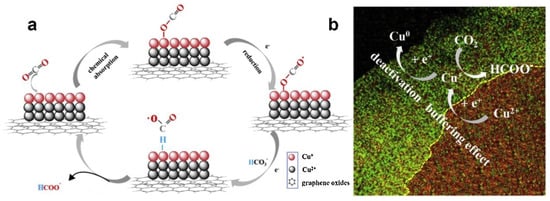

Figure 6. (a) A proposed mechanism illustrating the steps of electrochemical CO2 reduction and the formation of HCOOH occurring at the G-CuxO-2 h electrocatalyst. (b) A proposed “buffering effect” illustrating the origin of the durability of G-CuxO-T electrocatalysts. Reprinted from Ref. [111], copyright (2019), with permission from Elsevier.
Figure 6. (a) A proposed mechanism illustrating the steps of electrochemical CO2 reduction and the formation of HCOOH occurring at the G-CuxO-2 h electrocatalyst. (b) A proposed “buffering effect” illustrating the origin of the durability of G-CuxO-T electrocatalysts. Reprinted from Ref. [111], copyright (2019), with permission from Elsevier.
Catalysts 13 00644 g006
Catalysts 13 00644 g007 550

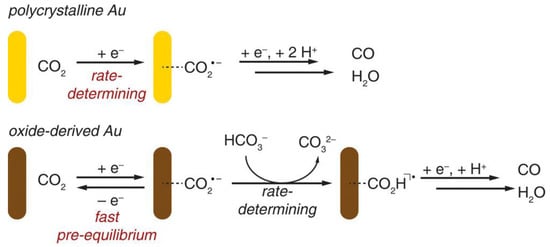

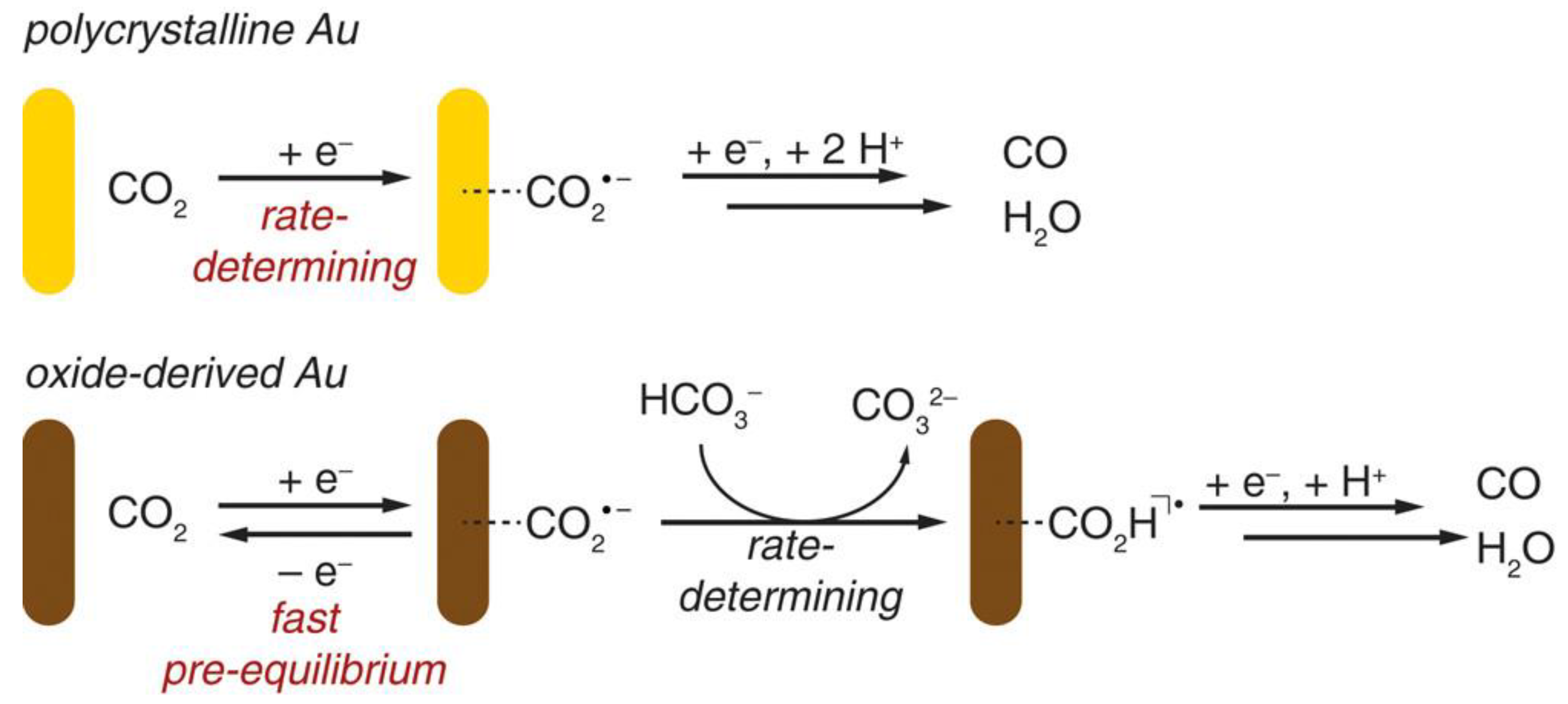

Figure 7. Proposed mechanisms for CO2 reduction to CO on polycrystalline Au and oxide-derived Au. Reprinted from Ref. [112], copyright (2012), with permission from the American Chemical Society.
Figure 7. Proposed mechanisms for CO2 reduction to CO on polycrystalline Au and oxide-derived Au. Reprinted from Ref. [112], copyright (2012), with permission from the American Chemical Society.
Catalysts 13 00644 g007
Catalysts 13 00644 g008 550

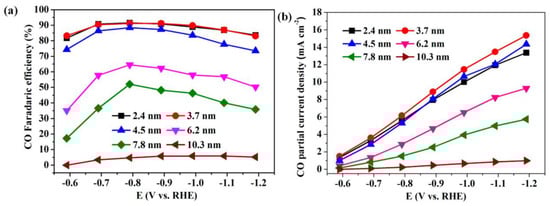

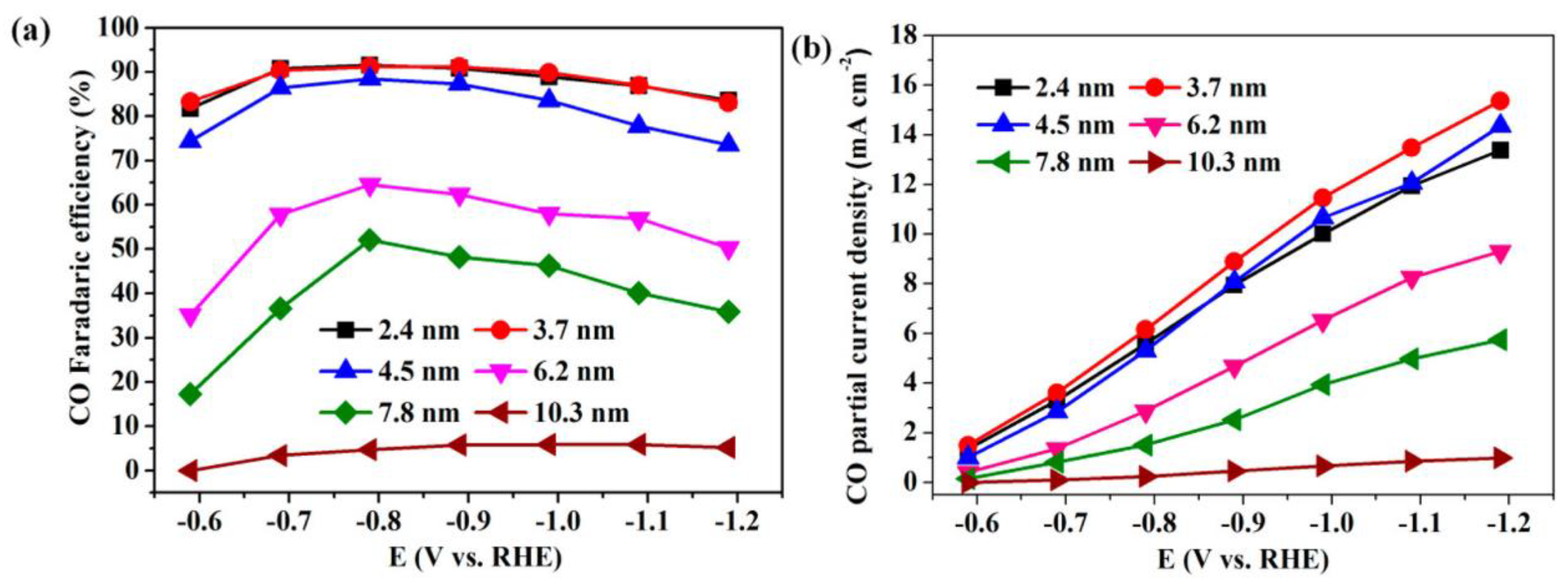

Figure 8. Applied potential dependence of (a) Faradaic efficiencies and (b) current densities for CO production over Pd NPs with different sizes. Reprinted from Ref. [113], copyright (2015), with permission from the American Chemical Society.
Figure 8. Applied potential dependence of (a) Faradaic efficiencies and (b) current densities for CO production over Pd NPs with different sizes. Reprinted from Ref. [113], copyright (2015), with permission from the American Chemical Society.
Catalysts 13 00644 g008
Catalysts 13 00644 g009 550

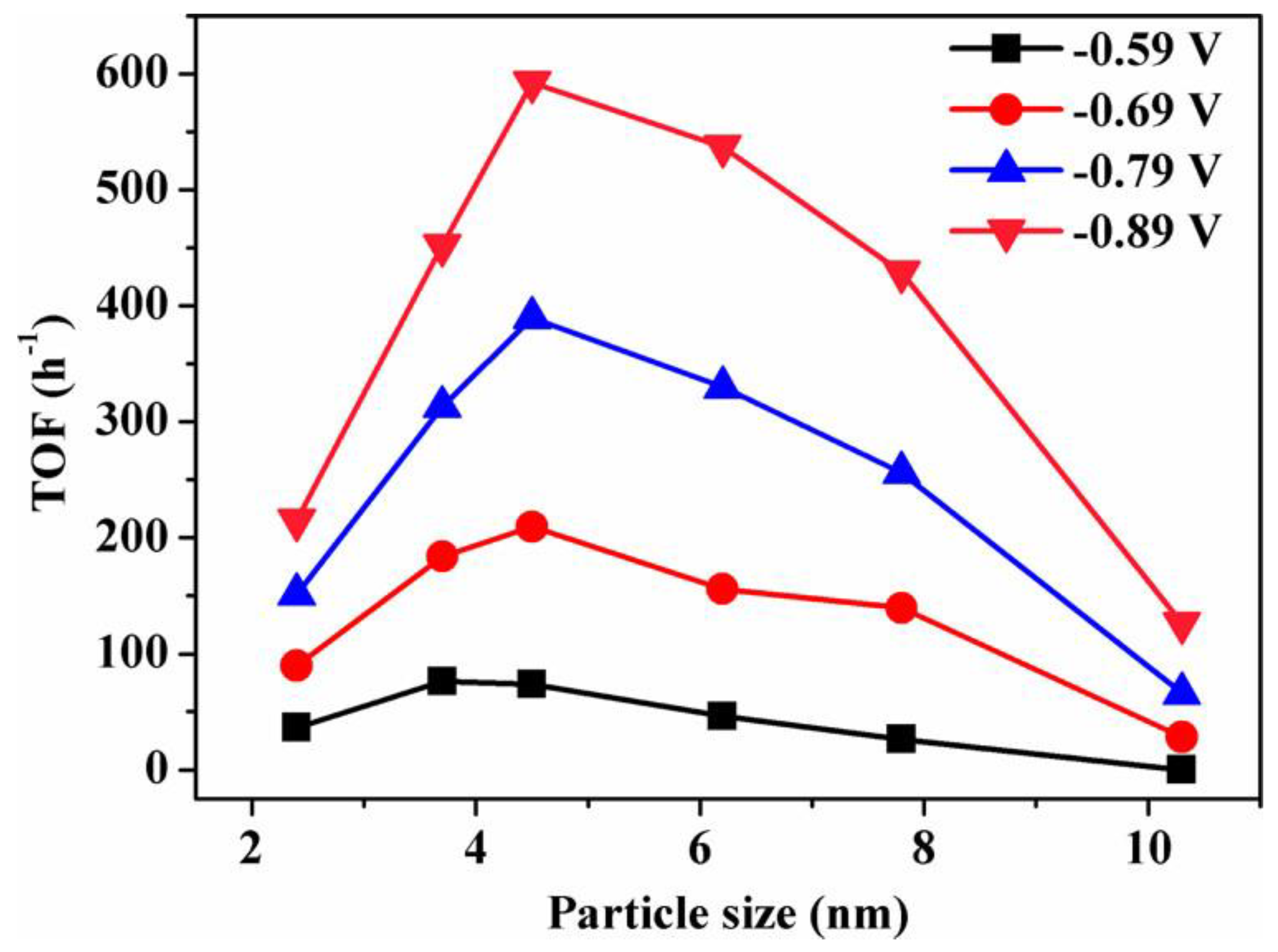

Figure 9. Size dependence of TOF for CO production on Pd NPs at various potentials. Reprinted from Ref. [113], copyright (2015), with permission from the American Chemical Society.
Figure 9. Size dependence of TOF for CO production on Pd NPs at various potentials. Reprinted from Ref. [113], copyright (2015), with permission from the American Chemical Society.
Catalysts 13 00644 g009
Catalysts 13 00644 g010 550

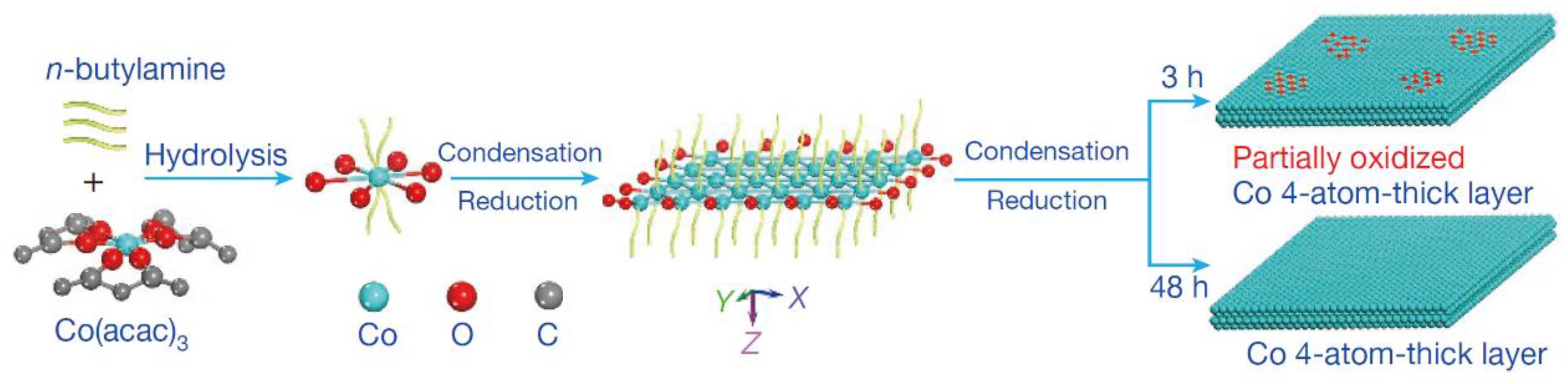

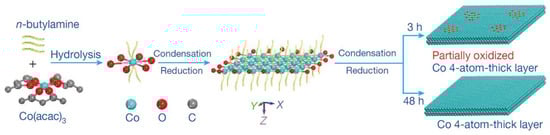

Figure 10. Schematic formation process of the partially oxidized and pure-Co 4-atomic-layer, respectively. Reprinted from Ref. [124], copyright (2016), with permission from Springer Nature.
Figure 10. Schematic formation process of the partially oxidized and pure-Co 4-atomic-layer, respectively. Reprinted from Ref. [124], copyright (2016), with permission from Springer Nature.
Catalysts 13 00644 g010
Catalysts 13 00644 g011 550

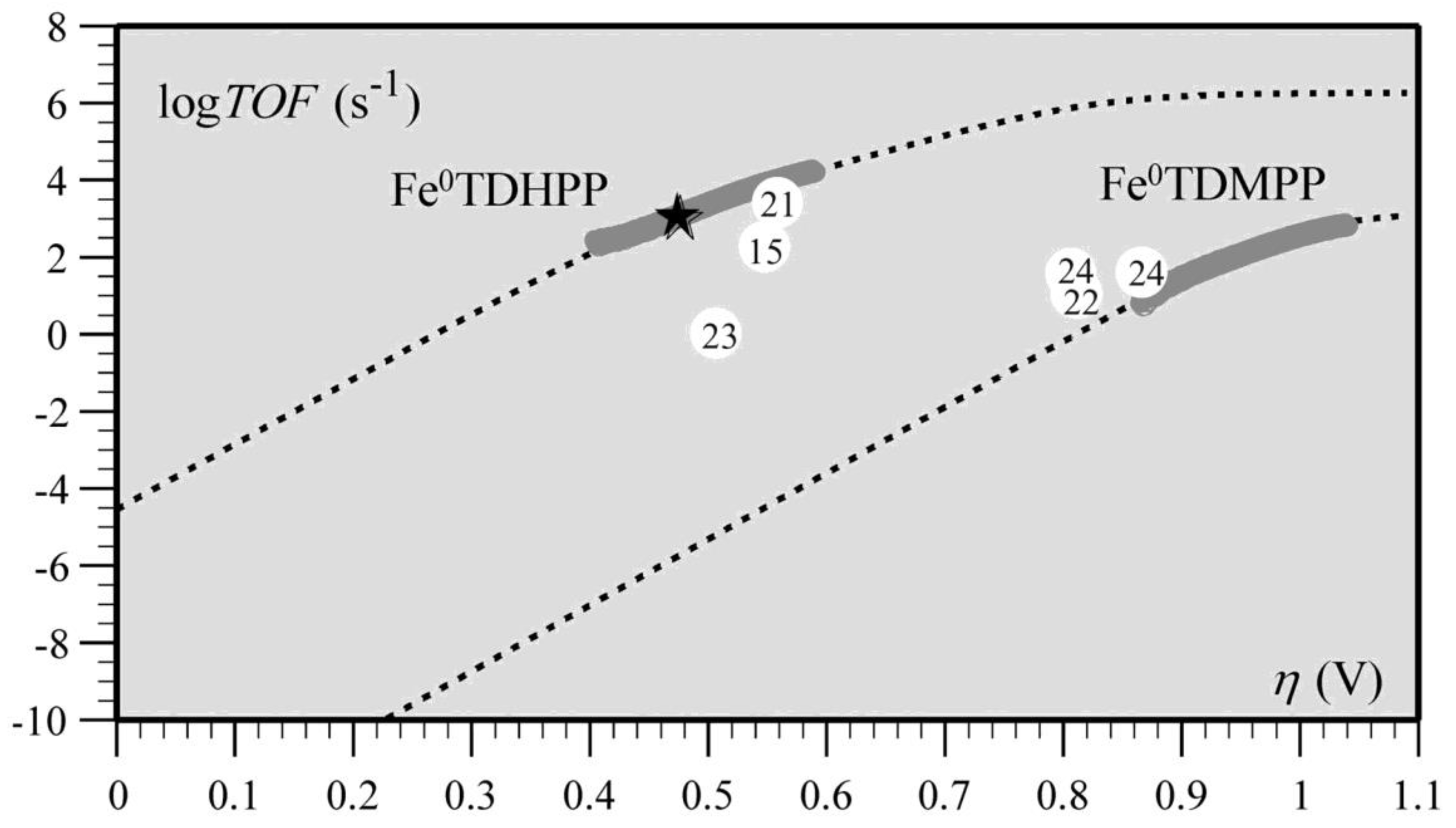

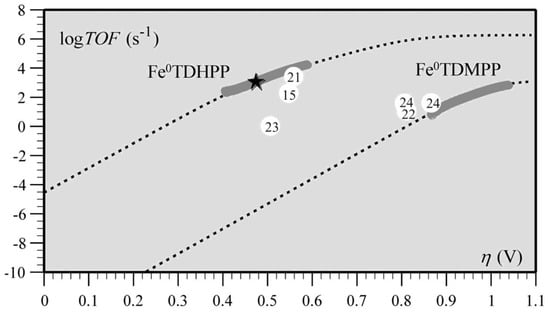

Figure 11. Correlation between turnover frequency and overpotential for the series of CO2-to-CO electroreduction catalysts. The star indicates TOF and η values from preparative-scale experiments of Fe0TDHPP. Reprinted from Ref. [77], copyright (2012), with permission from the American Association for the Advancement of Science.
Figure 11. Correlation between turnover frequency and overpotential for the series of CO2-to-CO electroreduction catalysts. The star indicates TOF and η values from preparative-scale experiments of Fe0TDHPP. Reprinted from Ref. [77], copyright (2012), with permission from the American Association for the Advancement of Science.
Catalysts 13 00644 g011
Catalysts 13 00644 g012 550

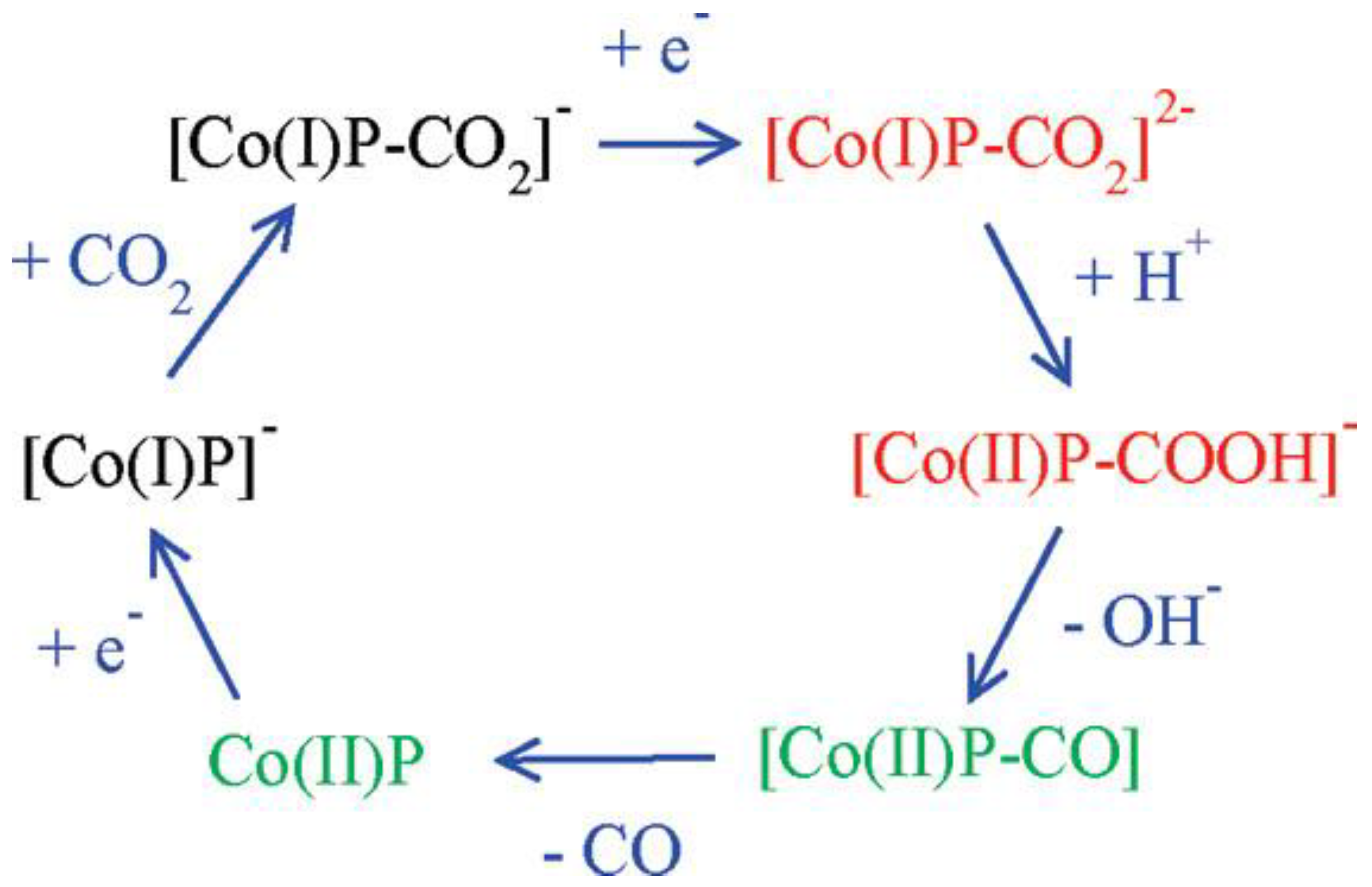

Figure 12. Mechanism of CO2 reduction with electron addition deduced from hybrid DFT plus dielectric continuum redox potential calculations. Red denotes key intermediates; green species should undergo fast reactions. Reprinted from Ref. [126], copyright (2010), with permission from the American Chemical Society.
Figure 12. Mechanism of CO2 reduction with electron addition deduced from hybrid DFT plus dielectric continuum redox potential calculations. Red denotes key intermediates; green species should undergo fast reactions. Reprinted from Ref. [126], copyright (2010), with permission from the American Chemical Society.
Catalysts 13 00644 g012
Catalysts 13 00644 g013 550

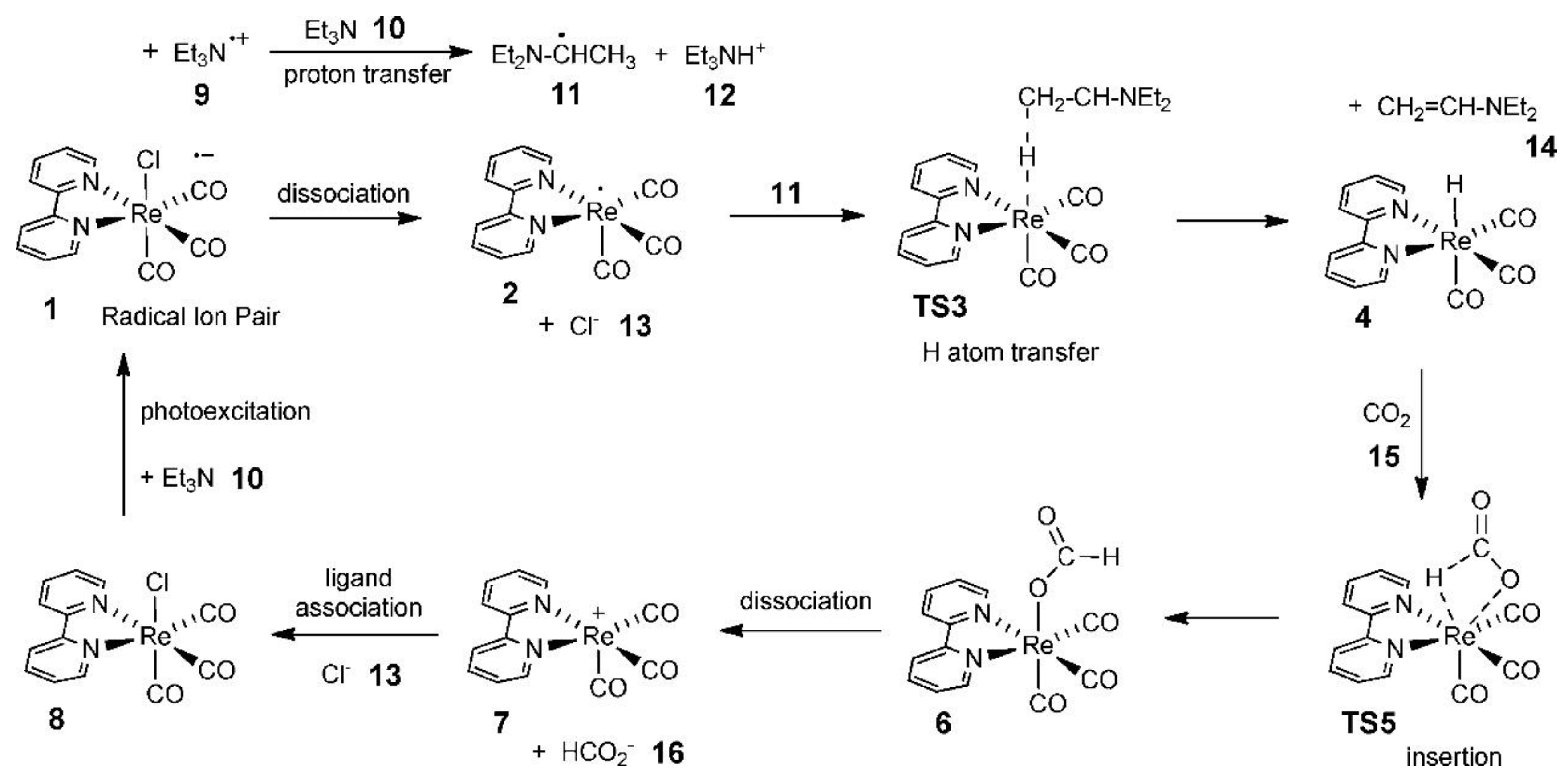

Figure 13. Computed photocatalytic cycle for CO2 reduction on a Re catalyst. Reprinted from Ref. [128], copyright (2011), with permission from the American Chemical Society.
Figure 13. Computed photocatalytic cycle for CO2 reduction on a Re catalyst. Reprinted from Ref. [128], copyright (2011), with permission from the American Chemical Society.
Catalysts 13 00644 g013
Catalysts 13 00644 g014 550

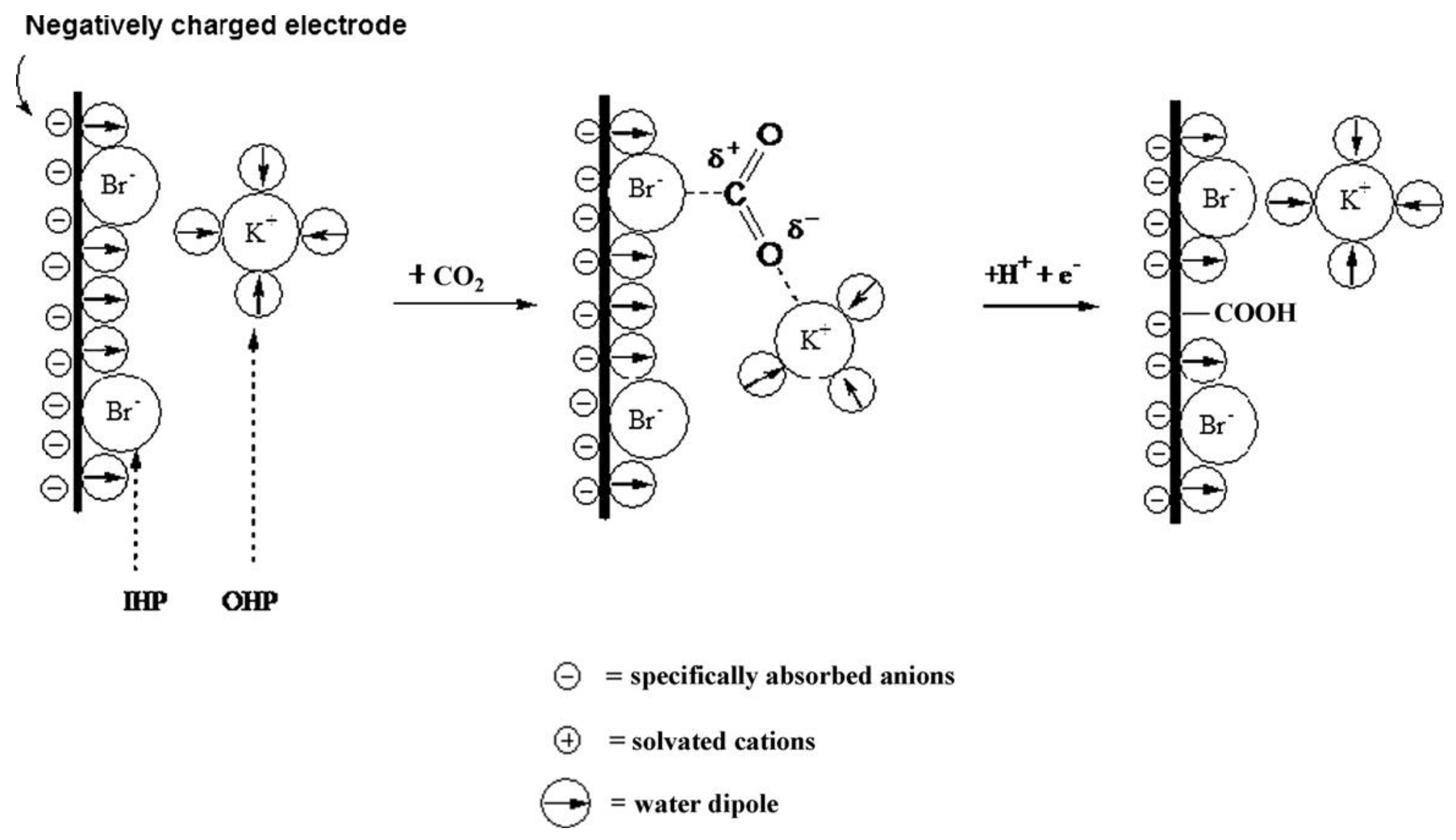

Figure 14. Schematic of specifically adsorbed anions (Br−), approach of CO2, and subsequent electrochemical reduction. Reprinted from Ref. [141], copyright (2010), with permission from Elsevier.
Figure 14. Schematic of specifically adsorbed anions (Br−), approach of CO2, and subsequent electrochemical reduction. Reprinted from Ref. [141], copyright (2010), with permission from Elsevier.
Catalysts 13 00644 g014
Catalysts 13 00644 g015 550

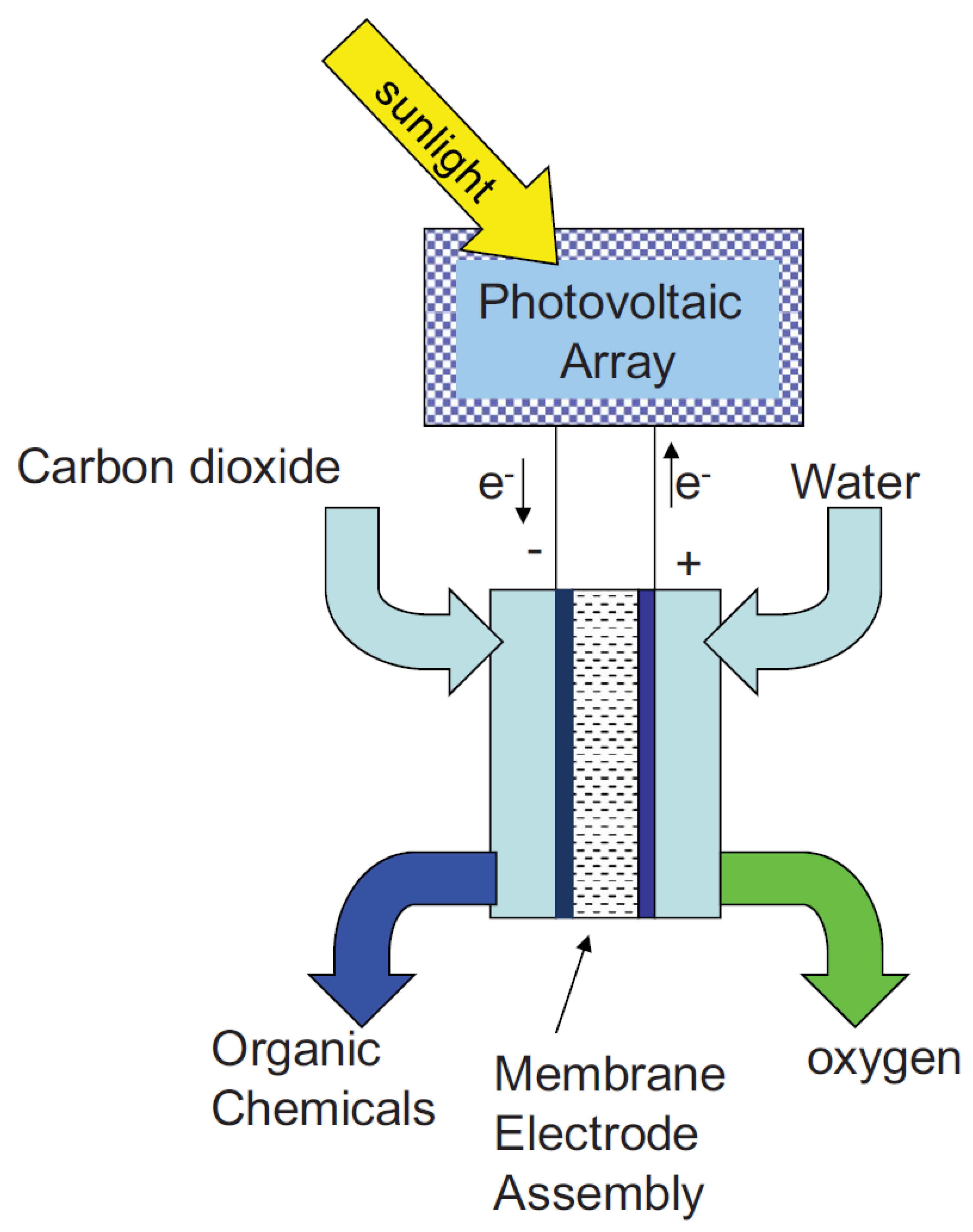

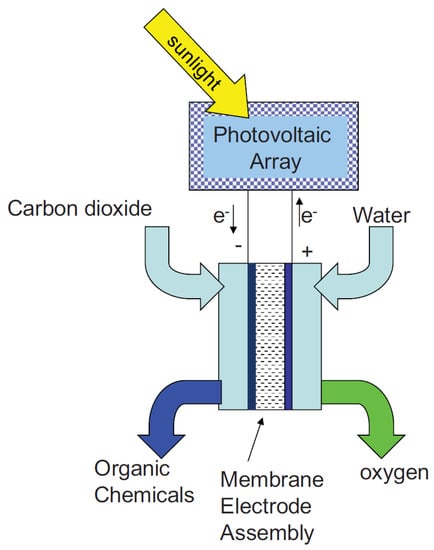

Figure 15. Polymer membrane cell configuration for the electrochemical reduction of carbon dioxide. Reprinted from Ref. [149], copyright (2010), with permission from the Electrochemical Society.
Figure 15. Polymer membrane cell configuration for the electrochemical reduction of carbon dioxide. Reprinted from Ref. [149], copyright (2010), with permission from the Electrochemical Society.
Catalysts 13 00644 g015
Catalysts 13 00644 g016 550

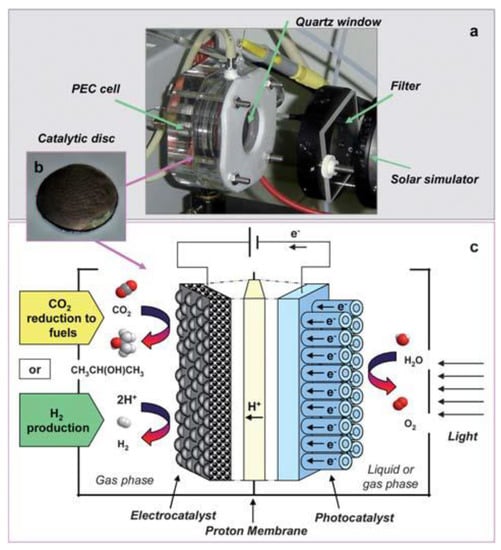

Figure 16. (a) View of the lab-scale PEC device. (b) Image of the photo/electrocatalytic disc. (c) Scheme of the PEC device for CO2 reduction to fuels and H2 production. Reprinted from Ref. [150], copyright (2010), with permission from the Royal Society of Chemistry.
Figure 16. (a) View of the lab-scale PEC device. (b) Image of the photo/electrocatalytic disc. (c) Scheme of the PEC device for CO2 reduction to fuels and H2 production. Reprinted from Ref. [150], copyright (2010), with permission from the Royal Society of Chemistry.
Catalysts 13 00644 g016
Catalysts 13 00644 g017 550

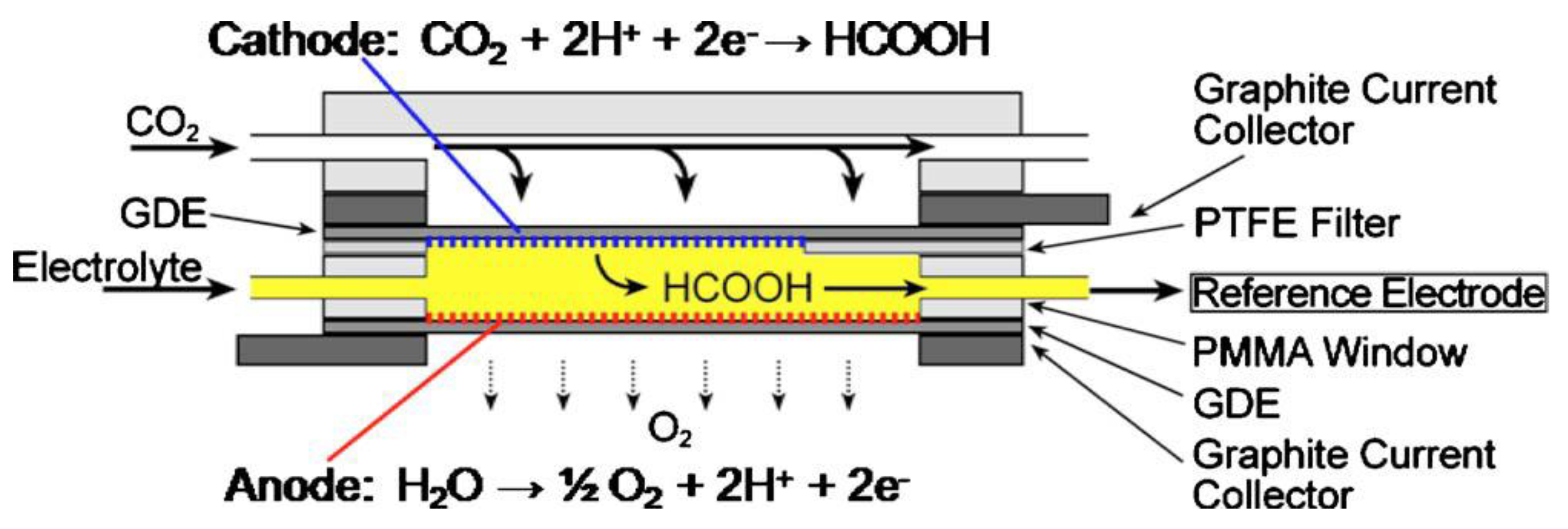

Figure 17. Schematic diagram of the microfluidic reactor for CO2 conversion. Reprinted from Ref. [151], copyright (2010), with permission from the Electrochemical Society.
Figure 17. Schematic diagram of the microfluidic reactor for CO2 conversion. Reprinted from Ref. [151], copyright (2010), with permission from the Electrochemical Society.
Catalysts 13 00644 g017
Catalysts 13 00644 g018 550

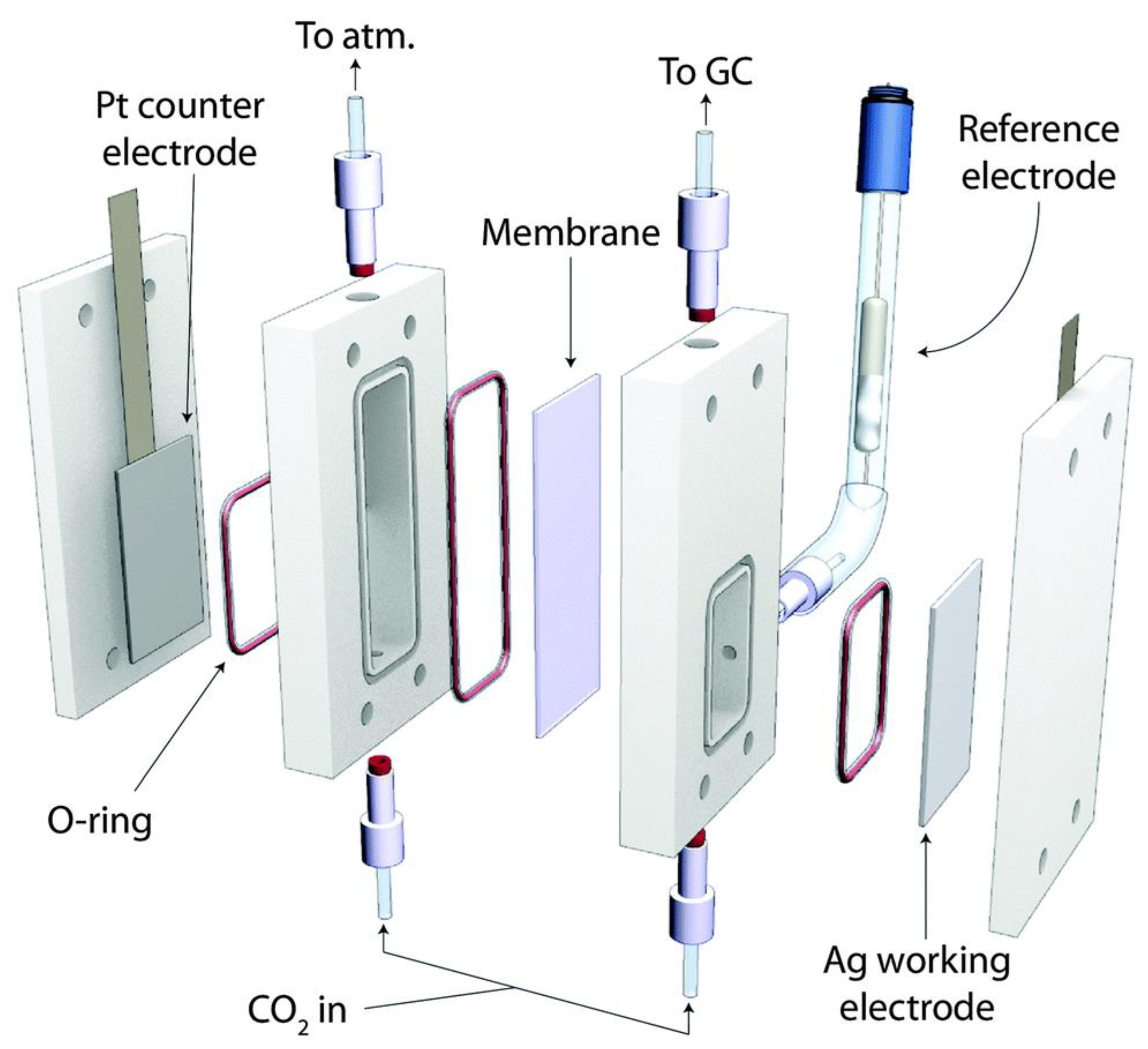

Figure 18. Schematic of the electrochemical cell utilized in this work. Reprinted from Ref. [153], copyright (2014), with permission from the Royal Society of Chemistry.
Figure 18. Schematic of the electrochemical cell utilized in this work. Reprinted from Ref. [153], copyright (2014), with permission from the Royal Society of Chemistry.
Catalysts 13 00644 g018
Table
Table 1. The standard potential for the conversion of CO2 to various C1 and C2 products in aqueous solution under standard conditions (1.0 atm and 25 °C). Reprinted from Ref. [45], copyright (2014), with permission from the Royal Society of Chemistry.
Table 1. The standard potential for the conversion of CO2 to various C1 and C2 products in aqueous solution under standard conditions (1.0 atm and 25 °C). Reprinted from Ref. [45], copyright (2014), with permission from the Royal Society of Chemistry.
Half Electrochemical Thermodynamic ReactionsStandard Potentials (V vs. SHE)
CO2 (g) + 2H+ + 2e− = HCOOH (l)−0.250
CO2 (g) + 2H2O (l) + 2e− = HCOO− (aq) + OH−−1.078
CO2 (g) + 2H+ + 2e− = CO (g) + H2O (l)−0.106
CO2 (g) + 2H2O (l) + 2e− = CO (g) + 2OH−−0.934
2CO2 (g) + 2H+ + 2e− = H2C2O4 (aq)−0.500
2CO2 (g) + 2e− = C2O42− (aq)−0.590
CO2 (g) + 4H+ + 4e− = C (s) + 2H2O (l)0.210
CO2 (g) + 2H2O (l) + 4e− = C (s) + 4OH−−0.627
CO2 (g) + 4H+ + 4e− = CH2O (l) + H2O (l)−0.070
CO2 (g) + 3H2O (l) + 4e− = CH2O (l) + 4OH−−0.898
CO2 (g) + 6H+ + 6e− = CH3OH (l) + H2O (l)0.016
CO2 (g) + 5H2O (l) + 6e− = CH3OH (l) + 6OH−−0.812
CO2 (g) + 8H+ + 8e− = CH4 (g) + 2H2O (l)0.169
CO2 (g) + 6H2O (l) + 8e− = CH4 (g) + 8OH−−0.659
2CO2 (g) + 12H+ + 12e− = CH2CH2 (g) + 4H2O (l)0.064
2CO2 (g) + 8H2O (l) + 12e− = CH2CH2 (g) + 12OH−−0.764
2CO2 (g) + 12H+ + 12e− = CH3CH2OH (l) + 3H2O (l)0.084
2CO2 (g) + 9H2O (l) + 12e− = CH3CH2OH (l) + 12OH−−0.744
Table
Table 2. Summary of the performance of typical electrocatalysts for electrocatalytic CO2 reduction.
Table 2. Summary of the performance of typical electrocatalysts for electrocatalytic CO2 reduction.
ElectrocatalystPotential (V vs. RHE)Major ProductsFE (%)Reference
Cu–In alloys (In: 80 at%)−1.0formate62.02017 [79]
CuS@Ni Foam−1.1methane73.02017 [80]
Co(CO3)0.5(OH)⋅0.11H2O−0.98methane97.02018 [81]
Co/Zn@ZIFs−0.52CO94.02018 [82]
ultrathin Pd nanosheets−0.5CO94.02018 [83]
Mn−doped In2S3−0.9formate86.02019 [84]
Ni1–N2–C−0.8CO96.82019 [85]
Ni/Fe–N–C–DAC−0.7CO99.02019 [86]
Pd–Au−0.5CO80.02019 [87]
ultrathin porous Cu nanosheets−1.0CO74.12019 [88]
Cu nanocubes−0.5C2H460.02019 [89]
Fe–N5–C−0.46CO97.02019 [90]
Fe–N4–C−0.5CO94.92019 [91]
Fe3+–N–C−0.45CO90.02019 [92]
Ni−graphene oxide−0.63CO96.52019 [93]
Ni−N4−C−0.65CO90.02019 [94]
Ni−N2−C−0.8CO98.02019 [95]
InN NSs−0.9formate91.02020 [96]
NiSn−APC−0.82formate86.12020 [97]
Ni20−N−C−0.53CO972020 [98]
Cu−Al−1.50C2H4802020 [99]
5 nm In2O3 NPs−0.7formate80.02021 [100]
Pb1Cu−0.8formate96.02021 [101]
SAC−Ag/g−C3N4−0.7CO93.72021 [102]
40Ni@N−C/rGO−0.97CO92.02021 [103]
polycrystalline SnSx NFs−1.0formate97.02022 [104]
In2O3@In−Co PBA−0.96formate85.02022 [105]
Sb−SAs/NC−0.8formate94.02022 [106]
Nb−N−C−0.8CO90.02022 [107]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ren, C.; Ni, W.; Li, H. Recent Progress in Electrocatalytic Reduction of CO2. Catalysts 2023, 13, 644. https://doi.org/10.3390/catal13040644

AMA Style

Ren C, Ni W, Li H. Recent Progress in Electrocatalytic Reduction of CO2. Catalysts. 2023; 13(4):644. https://doi.org/10.3390/catal13040644

Chicago/Turabian Style

Ren, Chaojun, Wei Ni, and Hongda Li. 2023. "Recent Progress in Electrocatalytic Reduction of CO2" Catalysts 13, no. 4: 644. https://doi.org/10.3390/catal13040644

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
