Synthesizing the High Surface Area g-C₃N₄ for Greatly Enhanced Hydrogen Production

Abstract

Adjusting the structure of g-C₃N₄ to significantly enhance its photocatalytic activity has attracted considerable attention. Herein, a novel, sponge-like g-C₃N₄ with a porous structure is prepared from the annealing of protonated melamine under N₂/H₂ atmosphere (PH-CN). Compared to bulk g-C₃N₄ via calcination of melamine under ambient atmosphere (B-CN), PH-CN displays thinner nanosheets and a higher surface area (150.1 m²/g), which is a benefit for shortening the diffusion distance of photoinduced carriers, providing more active sites, and finally favoring the enhancement of the photocatalytic activity. Moreover, it can be clearly observed from the UV-vis spectrum that PH-CN displays better performance for harvesting light compared to B-CN. Additionally, the PH-CN is prepared with a larger band gap of 2.88 eV with the Fermi level and conduction band potential increased and valence band potential decreased, which could promote the water redox reaction. The application experiment results show that the hydrogen evolution rate on PH-CN was nearly 10 times higher than that of B-CN, which was roughly 4104 μmol h⁻¹ g⁻¹. The method shown in this work provides an effective approach to adjust the structure of g-C₃N₄ with considerable photocatalytic hydrogen evolution activity.

1. Introduction

Driven by the increasing need for clean and environmental-friendly energy, hydrogen, regarded as a storable and clean fuel, is potentially considered one of the most reliable energy carriers due to its high-energy capacity. Hydrogen can be produced from a wide range of resources by using different feedstock, pathways, and technologies, including fossil fuels and renewable energy resources [1]. The hydrogen production pathway depends on three elements: the material containing hydrogen, an energy source, and catalyst material [2]. It would be of great use for a carbon-neutral and sustainable society if hydrogen could be produced from renewable energy resources, such as solar energy [3]. Photocatalytic hydrogen production via water splitting represents one of the most promising but challenging techniques for sustainable solar energy storage. Since the pioneering report by Fujishima and Honda in 1972, TiO₂ has been used as a photoelectrode for sustainable hydrogen production via water splitting [4]. Semiconductor photocatalytic techniques are considered to be ideal methods to convert solar energy into hydrogen [5,6,7]. In recent decades, many efforts have been devoted to synthesis and regulation of a variety semiconductor materials, such as g-C₃N₄ [8], Ta₃N₅ [9], TiO₂ [10], ZnO [11], etc. Attaining highly active solar-driven photocatalytic reactions for these traditional nitrides and oxides photocatalysts without noble metal cocatalysts is still a challenge. Recently, Yusuke et al. [10] reported a cocatalyst-free rutile TiO₂ via band shape engineering with exceptional solar hydrogen production. In situ, photogenerated Ti³⁺ can act as a cocatalyst, which could promote the hydrogen evolution reaction dynamics and provide a new insight into in situ photogenerated metal cations as cocatalysts. Another challenge is how to effectively improve the surface area with more active sites exposed and more water molecules adsorbed.

Graphite carbon nitride (g-C₃N₄), which is the most stable allotrope of carbon nitride, has triggered broad interest due to its many fascinating properties, namely superior thermal and chemical stability, an appropriate direct band gap of 2.7 eV, and its low cost due to its abundant existence. These advantages lead to several applications such as CO₂ reduction [12,13,14,15], water splitting [16,17,18,19], organic pollution degradation [20,21,22], etc. However, obtained bulk g-C₃N₄ prepared via the common thermal polymerization method has suffered from multiple drawbacks from achieving high activity, such as its small specific surface area and high charge recombination rate [23]. Until now, considerable strategies have been used to optimize the photocatalytic performance of the bulk g-C₃N₄ by adjusting its structure and its optical and electronic properties [24,25,26,27]. Gong et al. [28] reported a template-free synthesis of nanocage-like g-C₃N₄ with a high surface area and nitrogen defects by firstly hydrothermal treatment of the dicyandiamide and then direct calcination. Liu et al. [29] synthesized a defective ultra-thin two-dimensional g-C₃N₄, first by calcination of the initial material ammonium chloride and melamine and then by annealing under Ar atmosphere. Nevertheless, improving the photocatalysis properties of g-C₃N₄ is still desirable.

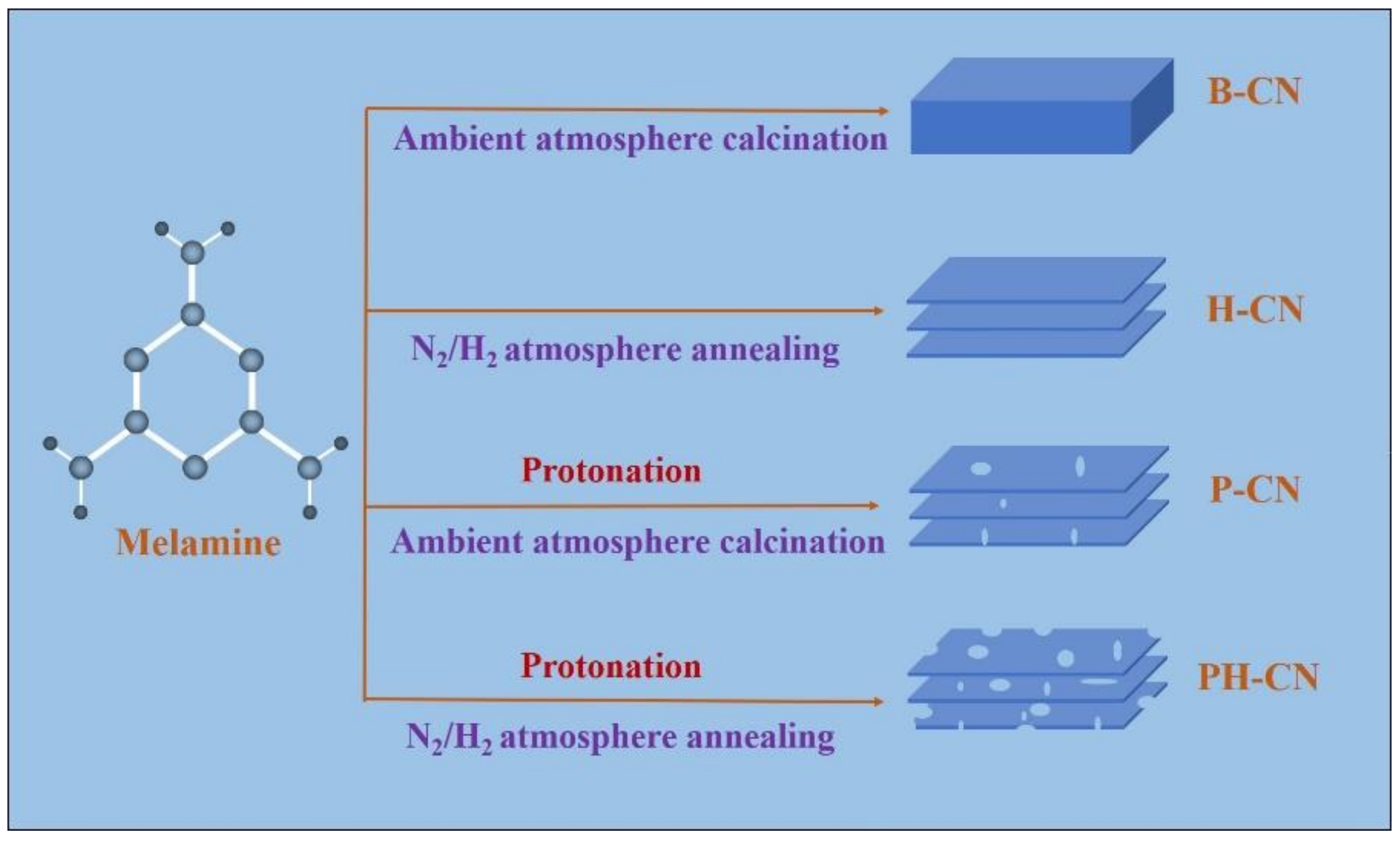

Herein, we have successfully synthesized sponge-like g-C₃N₄ nanosheets by annealing the protonated melamine under N₂/H₂ atmosphere (PH-CN); the porous structure g-C₃N₄ nanosheets via calcination of the protonated melamine under ambient atmosphere (P-CN); the g-C₃N₄ nanosheets via annealing of the melamine under N₂/H₂ atmosphere (H-CN); and bulk g-C₃N₄ via calcination of the melamine under ambient atmosphere (B-CN). The optimized product PH-CN displayed greatly enhanced photocatalytic activity of hydrogen evolution and outstanding stability compared to B-CN. Moreover, the specific surface area, porosity, charge pairs separation property, and conduction band potential for hydrogen production have been carefully investigated.

2. Results and Discussion

2.1. XRD Pattern of the Prepared Samples

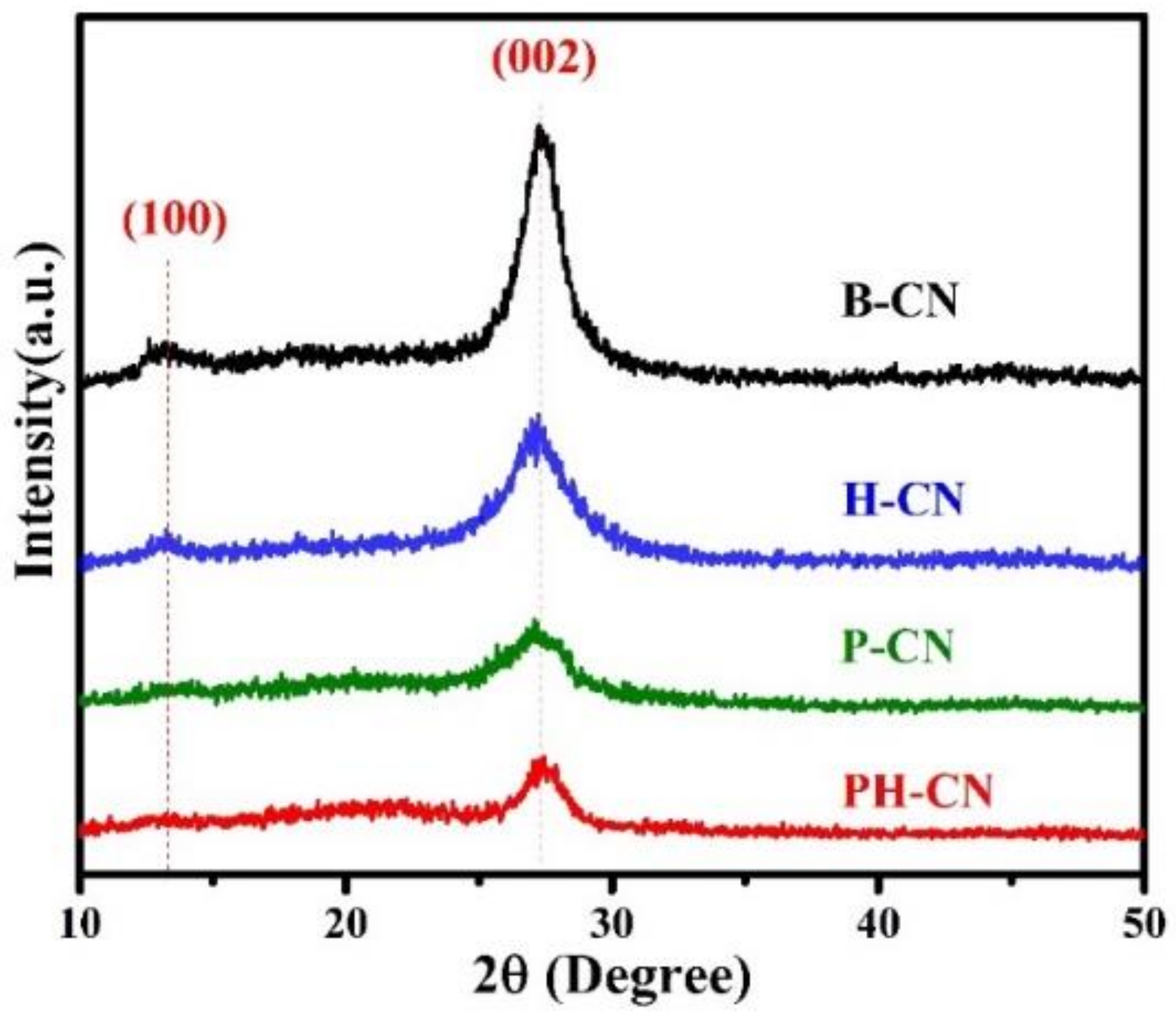

Figure 1 shows the X-ray diffraction patterns of the prepared samples. In all XRD profiles, there are two distinct peaks at 13.3° and 27.1°, which resulted from the interplanar peaks of the in-plane structural packing motif and the stacked layer of the aromatic systems, which correspond to the (100) and (002) crystal planes, respectively. For (100) crystal plane, it can be clearly observed that the peaks of P-CN and PH-CN are weaker than those of B-CN and H-CN, indicating that the protonation of melamine destroyed the in-plane structural repeating motifs of the aromatic systems, thus making the peak almost disappear [25]. Moreover, the weaker peak at 27.1° for (002) crystal plane in PH-CN, compared to B-CN, indicates that the PH-CN possesses fewer stacked g-C₃N₄ layers.

2.2. SEM Pattern of the Prepared Samples

In order to confirm the microstructures and morphologies of the obtained samples, scanning electron microscopy (SEM) was introduced in Figure 2. As shown in Figure 2a, the B-CN exhibited an irregularly aggregated architecture with multiple stacking layers. In Figure 2b, the H-CN shows a loosened structure compared to the B-CN, which was denser and more aggregated. In Figure 2c, the resultant P-CN shows a partially porous structure, while some part of the sample still remains in the nanosheet framework. In Figure 2d, the obtained PH-CN sample shows a highly porous and loosened microstructure. The above observation indicates that the B-CN started to be exfoliated into nanosheets (H-CN) when the annealing of melamine took place under N₂/H₂ atmosphere. The N₂/H₂ atmosphere could restrain the stacked g-C₃N₄ layers; this is in accordance with the weaker diffraction peak (002) compared to the B-CN. Moreover, there were numerous nanopores in the produced g-C₃N₄ once the melamine was protonated by H₂SO₄ for two hours before it was used as the reactant of the thermal polymerization reaction. When the melamine is both protonated by H₂SO₄ and annealed under the N₂/H₂ atmosphere, the prepared sample shows the most porous structure compared to all other samples. The porous structure of P-CN and PH-CN is consistent with their weaker (100) diffraction peak, which indicates the destruction of the in-plane structural packing motif. Commonly, for a nanoparticle sample, the smaller the average particle is, the higher the surface area is. Notably, the quantity and size of the nanopores are crucial for practical applications such as the H₂ production application.

2.3. TEM Pattern of the Prepared Samples

From transmission electron microscopy (TEM) images, further insight about the morphology of the samples was obtained. As shown in Figure 3, multi-layered g-C₃N₄ was observed in B-CN, and a sponge-like structure, which showed the framework to be fabricated by many small pieces of g-C₃N_4, was found in PH-CN. It could clearly be observed that the PH-CN was exfoliated into thinner nanosheets compared to B-CN and its partial flat sheet-like structure, which could provide plenty of pores and thus enlarge the surface area of the sample.

2.4. BET Images of the Obtained Products/Nitrogen Adsorption

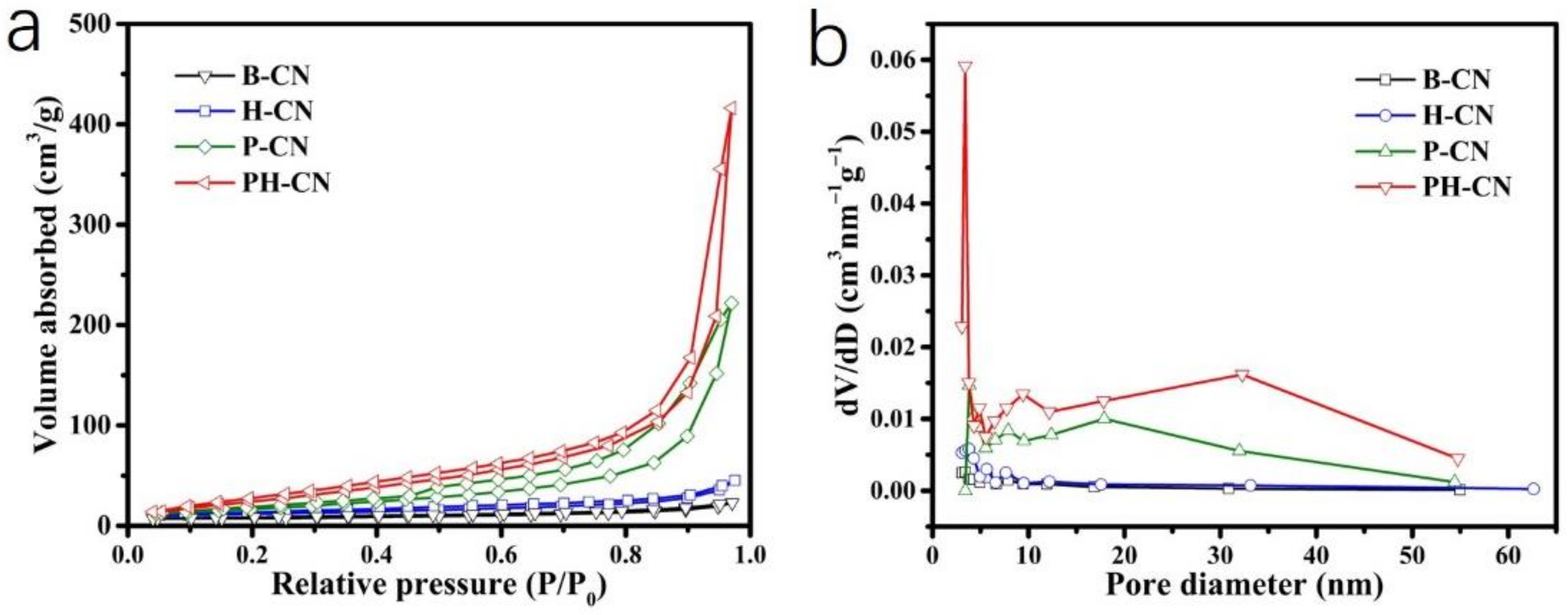

Commonly, a photocatalyst with a larger surface area can provide more active sites for absorption and photoreaction, resulting in an enhanced water splitting reaction. To measure the detailed information of the nanoporous structure, surface area, average pore volume, and pore size distribution was analyzed. Figure 4a shows the N₂ adsorption–desorption isotherms of the obtained samples. It could be observed that the hysteresis loop of all samples was type H3, suggesting the presence of slit-like pores which had formed between the nanosheets of g-C₃N₄. By contrast, the nitrogen adsorption–desorption amounts of the H-CN, P-CN, and PH-CN increased compared to those of the B-CN (PH-CN > P-CN > H-CN). The Brunauer–Emmett–Teller (BET) measurement of the PH-CN sample shows the largest specific surface area of 150.1 m² g⁻¹ and a pore volume of 0.65 cm³ g⁻¹ (

Table 1. Textural properties for B-CN, H-CN, P-CN, PH-CN.

Sample	Specific Surface Area (m2/g)	Pore Volume (cm3/g)
B-CN	10.9	0.026
H-CN	25.1	0.055
P-CN	70.9	0.359
PH-CN	150.1	0.651

), suggesting that the effectively enhanced porous structure remarkably improved the surface area of the sample. In addition, it can be observed that the surface area of the sample shows a regular enhancement between each product. By contrast, the surface area of H-CN is about twice of that of B-CN, while the surface area of PH-CN is about twice of that of P-CN. This could be attributed to fewer stacked layers due to the annealing of melamine under N₂/H₂ atmosphere. Moreover, this regular enhancement also took place between P-CN and B-CN (70.9 m²/g and 10.9 m²/g), PH-CN and H-CN (150.1 m²/g and 25.1 m²/g), which is about seven times larger. This could be attributed to the porous structure which lead to the stable improvement of the surface area derived from protonating the melamine. From Figure 4b, the pore size distribution of the P-CN and PH-CN, which was calculated using the BJH method, indicates the presence of mesopores. To be specific, a sharp peak at 3.4 nm and a broad peak range from 12 nm to 54 nm were found. The numerous mesopores lead to plenty of active sites, allowing for increased absorption of water molecules and being of benefit for mass transfer and charge carrier migration during the hydrogen generation process.

2.5. FT-IR Pattern of the Prepared Samples

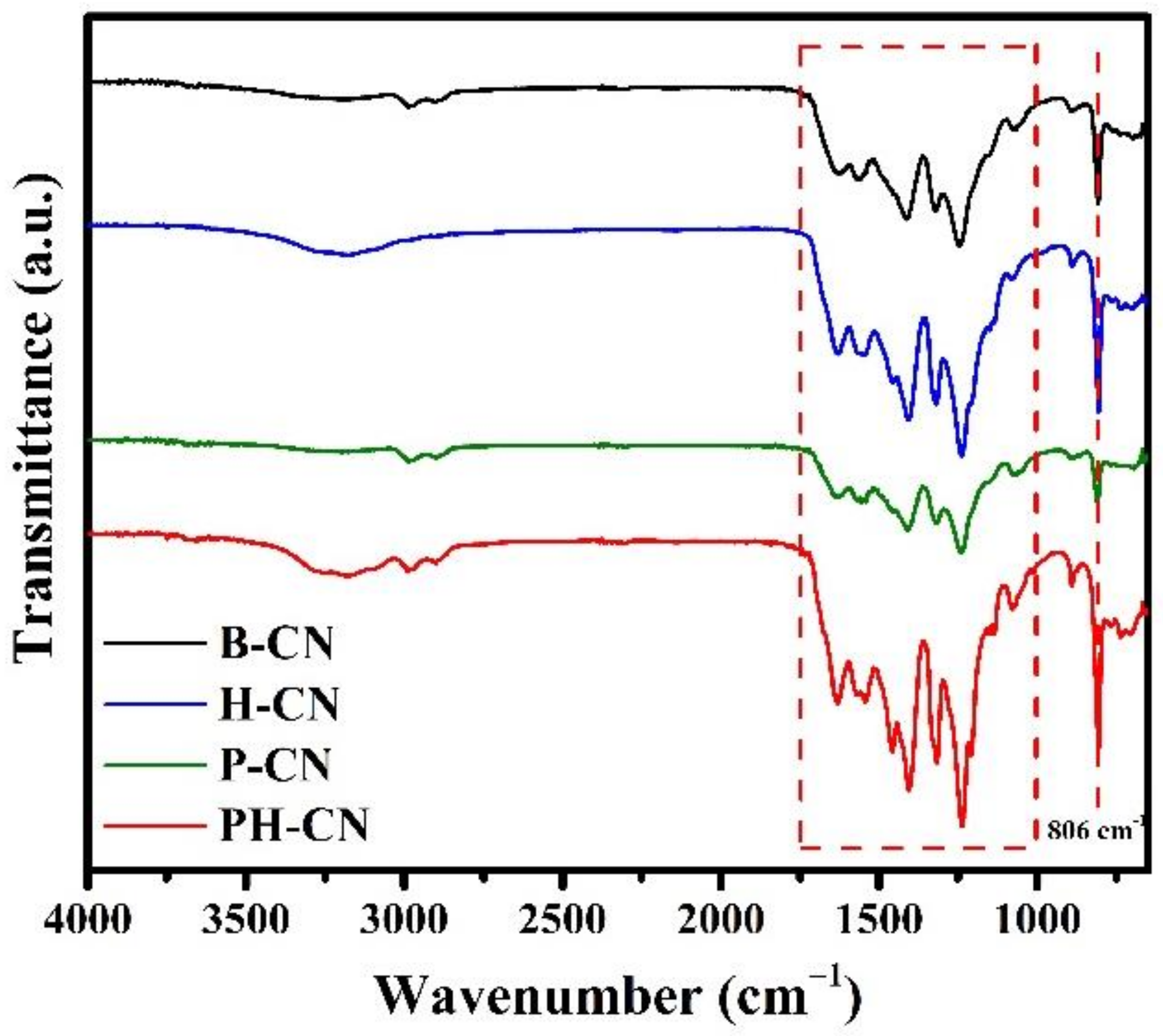

FT-IR measurement was introduced to further investigate the structure of the synthesized samples. The results are shown in Figure 5. The FT-IR spectrum of B-CN contains some major peaks ranging from 600 cm⁻¹ to 1800 cm⁻¹. This result is consistent with the g-C₃N₄ features in the previous report [26]. The peak located at 806 cm⁻¹ is the characteristic breathing mode of tri-s-triazine rings units, and the peaks between 1000 cm⁻¹ and 1700 cm⁻¹ are assigned to the typical stretching modes of C-N heterocycles [27]. In addition, the broad peak at around 2900–3600 cm⁻¹ is assigned to the typical stretching mode of N-H. Besides, there are two small peaks around 2800–3000 cm⁻¹ for B-CN, P-CN, and PH-CN except H-CN, which may be ascribed to the stretching mode of C-H. Hence, it can be inferred that directly annealing the melamine under N₂/H₂ atmosphere could restrain the formation of the stretching mode of C-H. Compared to the PH-CN, the protonated process for melamine could promote the formation of the stretching mode of C-H. It can be seen that all four samples possess almost the same peaks, indicating that the chemical structures are similar.

2.6. UV-Vis Spectra of the Prepared Samples

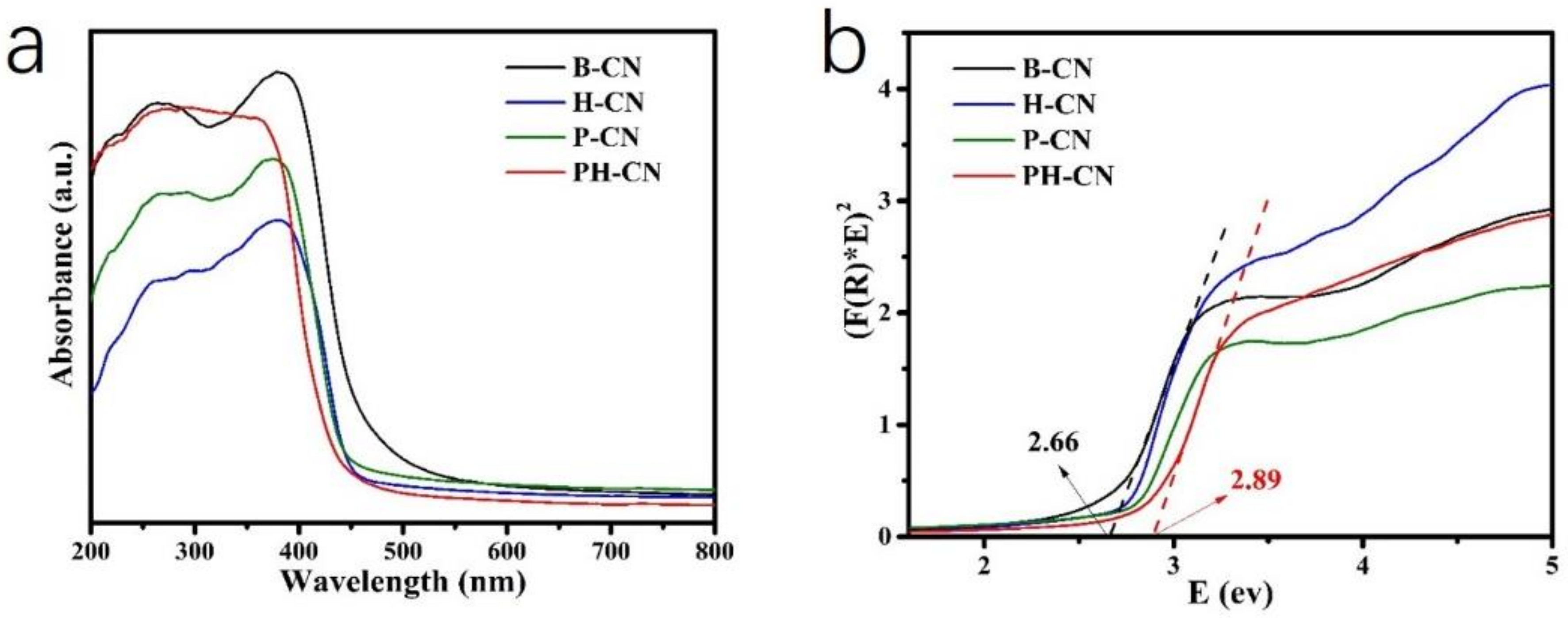

To study the optical properties of the prepared products, the UV-vis diffuse reflectance spectra (DRS) was introduced. It is noted that all the four samples show good light harvesting ability. Furthermore, the corresponding band gaps of the samples were estimated. As presented in Figure 6a, the four samples exhibit the intrinsic semiconductor-like absorption spectra. The UV-vis spectra of H-CN, P-CN, and PH-CN display a gradual blue shift compared to the spectrum of B-CN. This phenomenon is derived from the quantum size effect since the layers of obtained product become thinner and they are able to reach the nanoscale. It is clear from

Table 2. The estimated values of band gap energy, valence band potential (vs. NHE), and conduction band potential (vs. NHE) for B-CN, H-CN, P-CN, PH-CN.

Samples	Band Gap Energy (eV)	Valence Band Potential (eV)	Conduction Band Potential (eV)
B-CN	2.66	1.50	−1.16
H-CN	2.75	1.55	−1.20
P-CN	2.78	1.56	−1.22
PH-CN	2.89	1.62	−1.27

that the band gaps calculated from the (F(R)*E)² vs. photo energy (E) plots are ca. 2.66 eV (B-CN), 2.75 eV (H-CN), 2.78 eV (P-CN), and 2.89 eV (PH-CN). The conduction band and valence band potentials, denoted as E_CB and E_VB, can be calculated by the following empirical equations:

E_CB = E_VB − E_g

(1)

E_VB = X − E_e + 0.5E_g

(2)

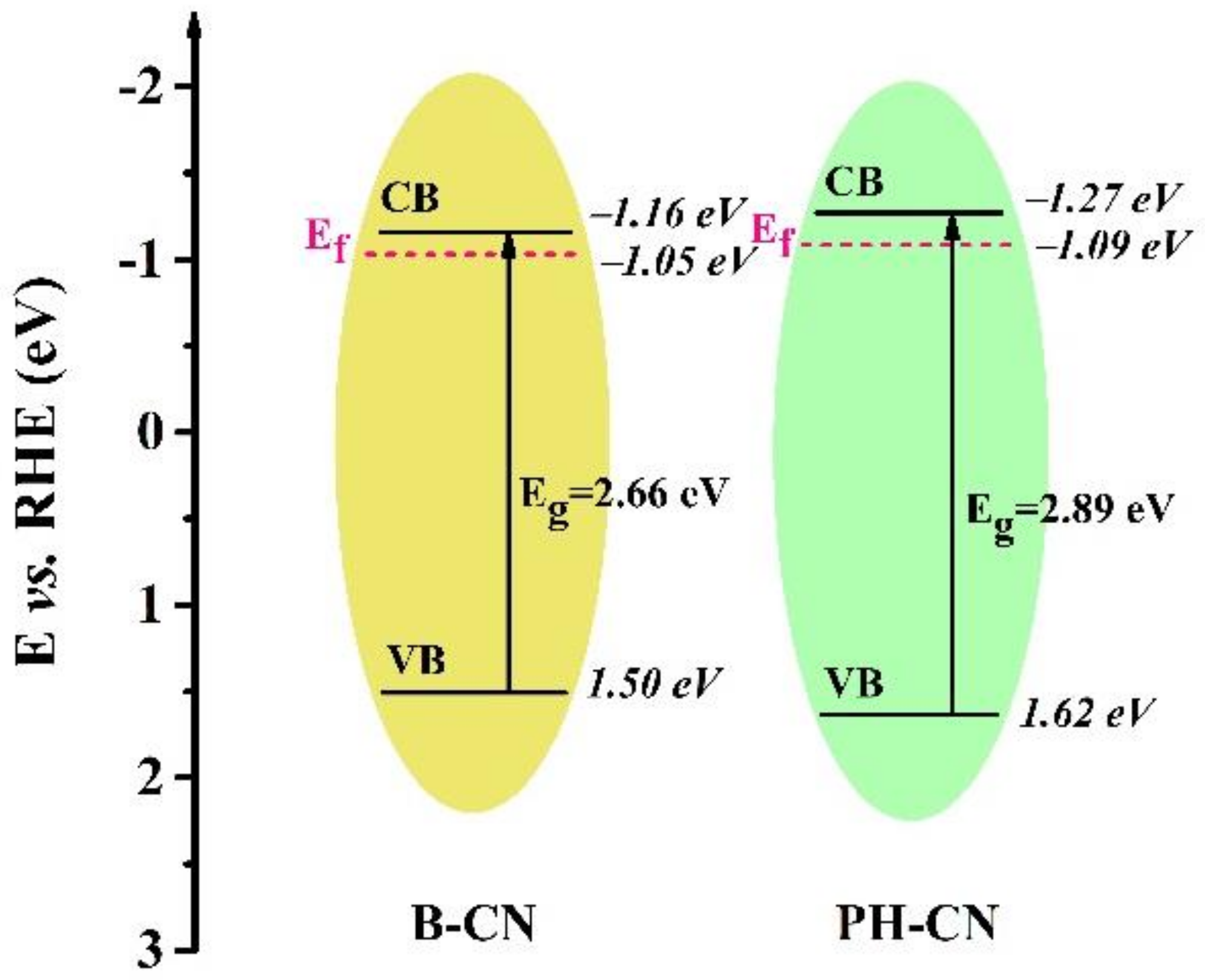

In the above equations, X is the absolute electronegativity of the semiconductor and X for the g-C₃N₄ is 4.67 eV. E_e is the energy of free electrons on the hydrogen scale (about 4.5 eV). The estimated VB and CB potentials are presented in Table 2. From Table 2, it can be found that the CB potential of PH-CN is higher than that of B-CN, while the VB potential is lower. This finding illustrates that the redox ability of the charge carriers generated in PH-CN are improved, which favors the enhancement of the photocatalytic ability.

2.7. XPS Spectra of the Prepared Samples

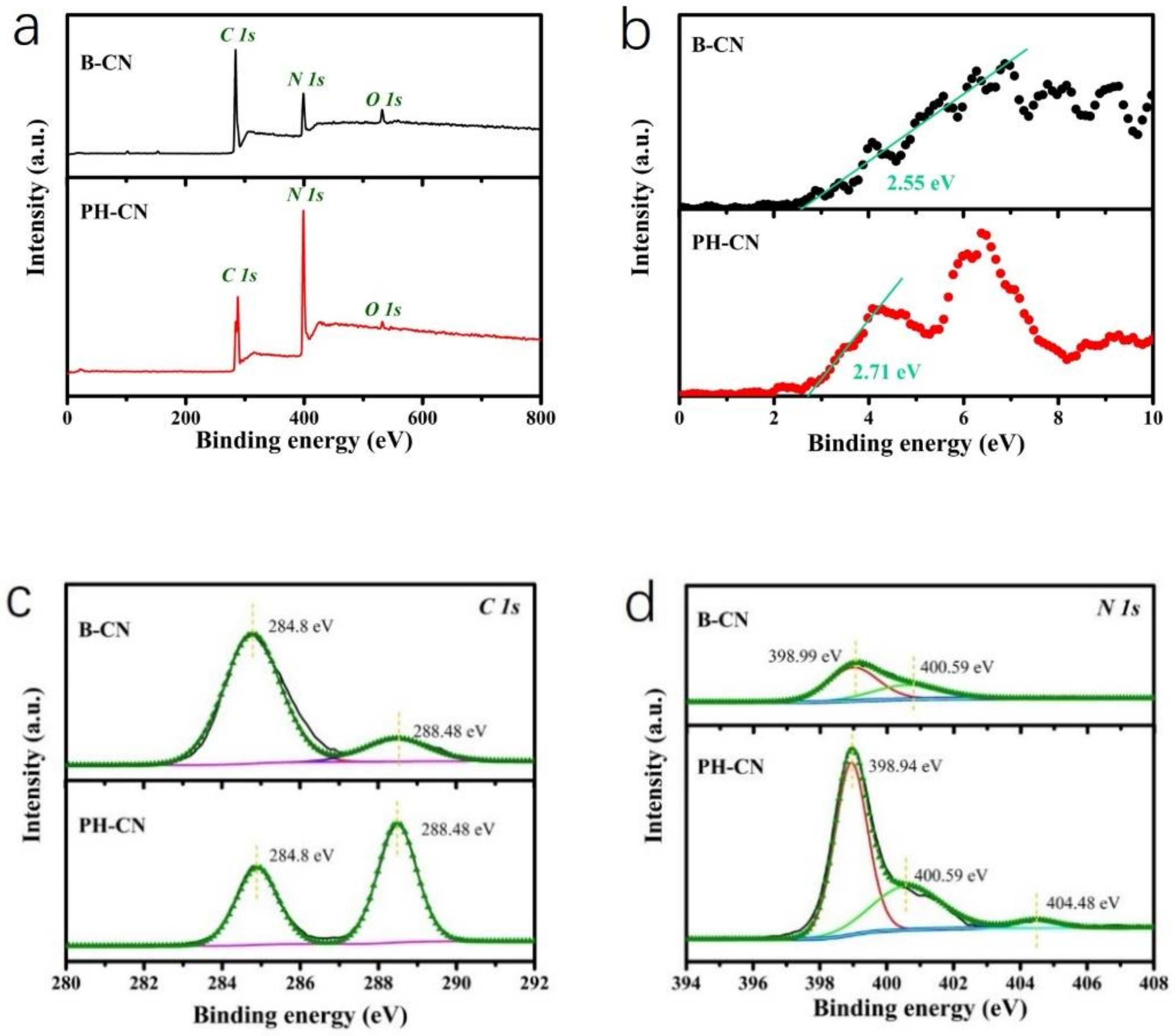

The chemical valence states and chemical composition of the samples were further analyzed by X-ray photoelectron spectroscopy (XPS). The positions of all measured peaks were calibrated by the binding energy of C 1s (284.8 eV). The XPS spectra (Figure 7a) show that C 1s, N 1s, and O 1s peaks are present in the sample. Additional peak O 1s may be attributed to the surface-absorbed water molecules. The XPS valence band spectra are mainly used to characterize the distance between the Fermi energy level and the valence band of a semiconductor. Figure 7b shows XPS valence band spectra of B-CN and PH-CN, respectively. The valence band spectrum value (E_VB-XPS) of B-CN and PH-CN are 2.55 and 2.71 eV, respectively. Combined with the band gap energy, valence band potential, and conduction band potential shown in Table 2, the energy level diagram of B-CN and PH-CN can be presented in Figure 8. The increased Fermi level and conduction band potential are a benefit for water reduction, while the decreased valence band potential could promote water oxidation. Figure 7c displays the high-resolution XPS spectra of C 1s for the prepared B-CN and PH-CN, in which both the peaks at 284.8 eV for B-CN and PH-CN should be due to the graphitic C=C or/and the cyano group or/and adventitious carbon in the sample [30,31,32], and the 288.48 eV peak should be ascribed to the CN network [33,34]. The peak intensity ratio between 284.8 eV and 288.48 eV of C 1s of B-CN and PH-CN decreased sharply from more than one to less than one, which indicates that the melamine protonated and subsequently annealed under N₂/H₂ atmosphere could promote the CN network constructed and reduce the graphitic C=C or/and adventitious carbon in the sample. This moderate removal of carbon impurities is helpful for the optimization of the aromatic p-conjugated system for charge separation, since too many graphitic carbon centers doped in the CN conjugated system will act as defect centers for charge recombination [35]. The high-resolution XPS spectra of N 1s for the prepared B-CN and PH-CN is displayed in Figure 7d. Both deconvolution peaks at 398.99 and 400.59 eV for B-CN and 398.94 and 400.59 eV for PH-CN should be ascribed to the sp² N atoms in the triazine units, bridging N in N-(C)3 or N-H [30,34]. Moreover, the additional peak for PH-CN, located at 404.48 eV, is attributed to N in the heterocycles and cyano groups [34]. Conversely, the peak intensity ratio between 398.99 eV and 400.59 eV for B-CN, and 398.94 eV and 400.59 eV for PH-CN of N 1s, increased greatly, which could be attributed to the promoted CN network construction, as discussed above.

2.8. Photocatalytic Hydrogen Production Performance

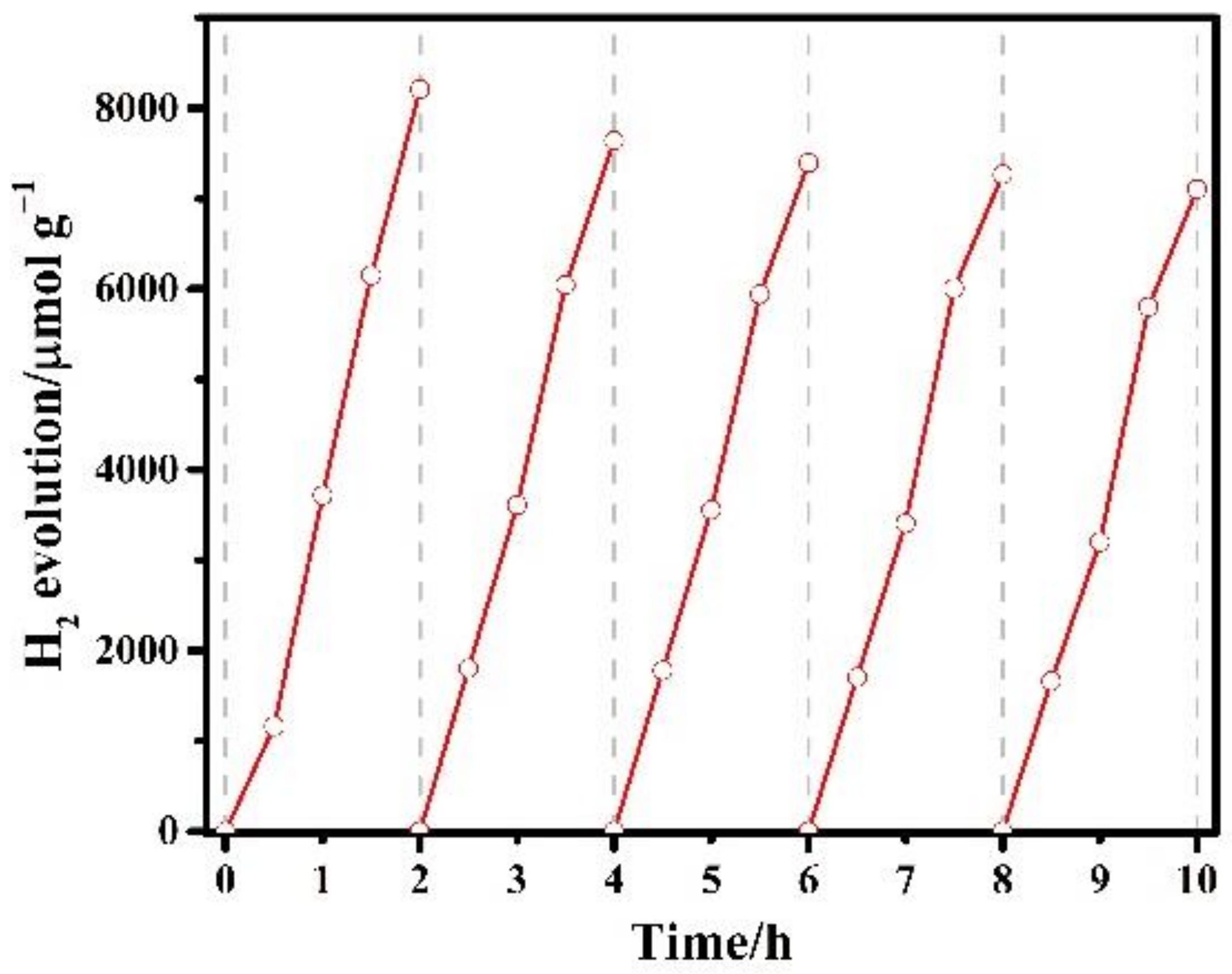

The photocatalytic hydrogen production performance was explored in aqueous solution containing triethanolamine as a hole sacrificial reagent which could lower the recombination rate of photogenerated electron pairs by consuming the photoinduced holes under solar light irradiation. Moreover, 3 wt% of Pt was employed in the aqueous solution as a co-catalyst after having been in situ and photodeposited onto the surface of the sample. As demonstrated in Figure 9a,b, H-CN exhibits a superior hydrogen evolution rate (HER) of 720.3 μmol h⁻¹ g⁻¹ compared to poor HER (414.8 μmol h⁻¹ g⁻¹) of B-CN, which could be attributed to its smaller nanosheets, as can be clearly observed in the SEM images. Smaller nanosheets can provide more active sites due to their larger surface area. Additionally, it is noted that the P-CN exhibits remarkably superior HER of 2179.1 μmol h⁻¹ g⁻¹ in comparison with B-CN, since the melamine is protonated by H₂SO₄ for 2 h before calcination for P-CN, which performed loose structure. Remarkably, PH-CN showed optimal photocatalytic activity with the HER of 4104.2 μmol h⁻¹ g⁻¹, which was about 10 times higher than that of B-CN. This phenomenon further suggests the smaller and thinner nanosheets of the g-C₃N₄ with a sponge-like structure favor the significant enhancement of photocatalytic hydrogen production performance. The cyclic stability performance for the photocatalytic H₂ evolution over 3 wt% of Pt-deposited PH-CN is shown in Figure 10. The PH-CN maintains a high H₂ production rate (which is about 87% of initial HER) after five photocatalytic reactions.

2.9. PL Spectra and Photoelectrochemical Properties

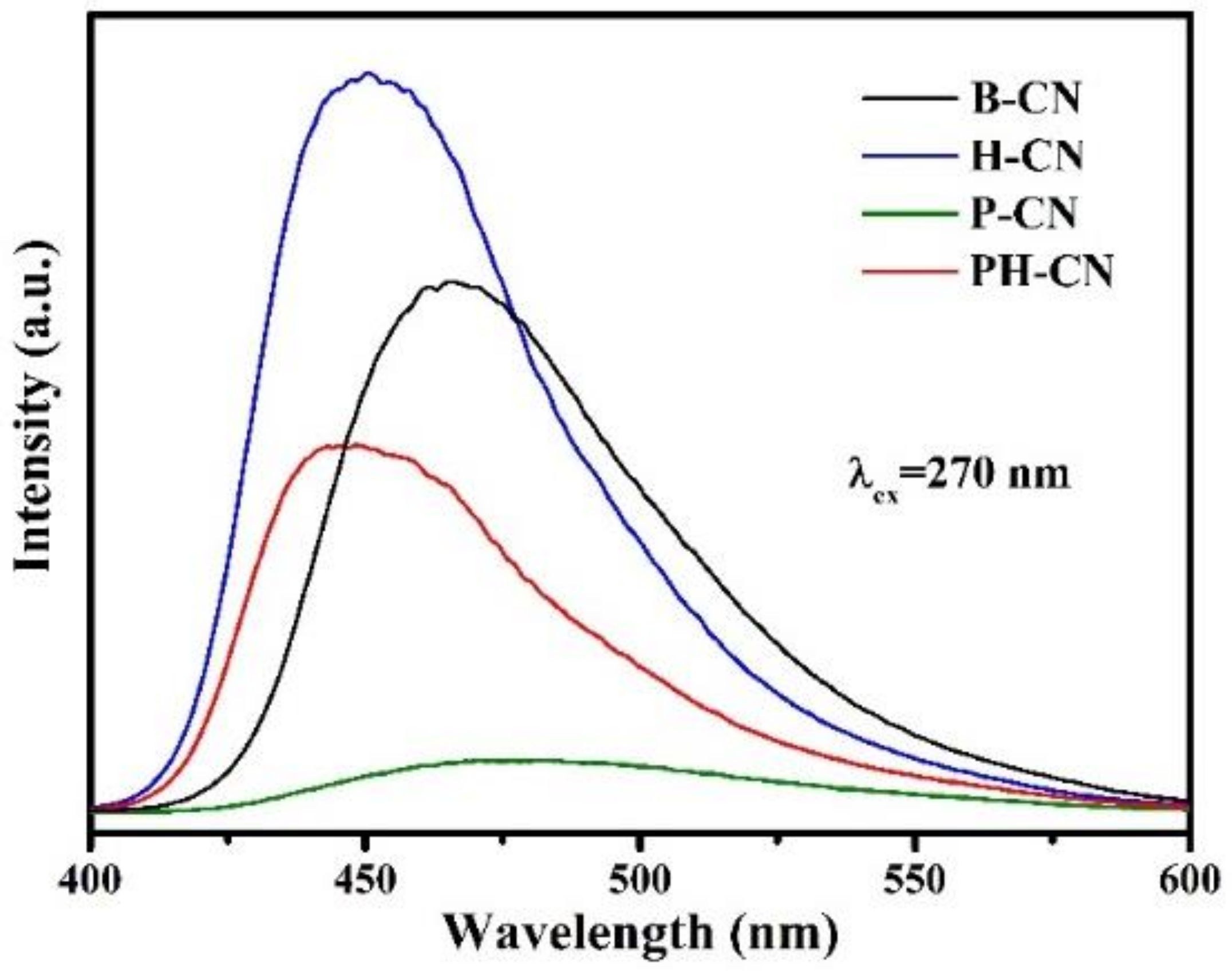

The photoluminescence (PL) spectra of the obtained products were tested at an excitation wavelength of 270 nm to investigate the photogenerated charge carrier performance of trapping, migration, and recombination. As can be seen in Figure 11, the B-CN presents a broad emission peak at ca. 466 nm, which is consistent with the band gap of 2.66 eV, as shown by UV-vis diffraction spectra in Figure 6a,b. It can be observed that the peak of PH-CN shows a significant blue shift compared to that of B-CN, which matches well with the UV-vis result above. Additionally, it is noted that annealing the precursor under N₂/H₂ atmosphere contributes to the blue shift of the photoluminescence emission peaks and increases the peak intensity. It is believed that the higher peak intensity of H-CN compared with B-CN and PH-CN compared with P-CN is derived from a larger number of emission centers, which is due to the lower degree of polycondensation [36]. The emission center may be attributed to some defect state, which could promote photocatalytic activity. The tendency for varying intensity of PL in the obtained samples is inconsistent with their photocatalytic hydrogen production activity. Thus, the photogenerated electron-hole pairs’ separation efficiency should not be estimated only by PL intensity for the prepared samples in this work.

Electrochemical performance is also an important factor for enhanced photocatalytic activity. As shown in Figure 12a, the photocurrent density of PH-CN, P-CN, H-CN, and B-CN is 1.72, 1.18, 1.05, and 0.71 μA/cm². The photocurrent density of PH-CN is approximately 1.46, 1.63, and 2.42 times higher than that of P-CN, H-CN, and B-CN, implying a better separation and effective migration of charge carriers. Owing to the increased transfer rate of photogenerated carriers, the PH-CN performs a minor radius within EIS results compared to P-CN, H-CN, and B-CN (Figure 12b). On the one hand, the photogenerated carriers could effectively separate on the surface and easily migrate to the surface as a result of the thin g-C₃N₄ nanosheets. On the other hand, the g-C₃N₄ nanosheets edge is more active compared to other areas, and the high surface area and porous structure of PH-CN could provide more active sites for water reduction.

3. Materials and Methods

3.1. Materials

All chemicals and reagents for synthesis and analysis were analytically graded without further purification for use. Melamine (C₃H₆N₆) was purchased from Tianjin Damao Chemical Reagent Factory (Tianjin, China). Sulfuric acid (H₂SO₄) was purchased from Chengdu Chron Chemicals Co., Ltd (Chengdu, China). Triethanolamine (C₆H₁₅NO₃) was purchased from Tianjin Hongyan Chemical Reagent Factory (Tianjin, China). Hexachloroplatinic acid hexahydrate (H₂PtCl₆·6H₂O) was purchased from Sinopharm Chemical Reagent Co., Ltd (Shanghai, China). Anhydrous sodium sulfate (Na₂SO₄) was purchased from Tianjin GuangFu Technology Development Co., Ltd (Tianjin, China). Ethanol (C₂H₆O) was purchased from Tianjin Fuyu Fine Chemical Co., Ltd. The distilled water was prepared by ULUPURE UPR-Ⅱ-20L water purification system. In this work, pristine melamine and protonated melamine were calcined under ambient atmosphere or annealed under N₂/H₂ (95% N₂, 5% H₂) atmosphere, respectively, as shown in Scheme 1. Detailed information is as follows.

3.2. Preparation of Bulk g-C₃N₄

The bulk g-C₃N₄ was prepared via calcination of the melamine in the tube furnace under ambient atmosphere (B-CN). Specifically, 5 g of melamine in a ceramic crucible was heated at 550 °C for 3 h under ambient atmosphere and the heating rate of this thermal polymerization reaction was 10 °C/min. After naturally cooling down to room temperature, the yellow product was collected and ground into powder.

3.3. Preparation of g-C₃N₄ Nanosheets

The g-C₃N₄ nanosheets were prepared via annealing of the melamine in the tube furnace under N₂/H₂ (95% N₂, 5% H₂) atmosphere (H-CN). In detail, 5 g of melamine in a ceramic crucible was heated at 550 °C for 3 h under N₂/H₂ atmosphere and the heating rate of this thermal polymerization reaction was 10 °C/min. After naturally cooling down to room temperature, the sample was collected and ground into powder.

3.4. Preparation of Porous Structure g-C₃N₄ Nanosheets

The porous structure g-C₃N₄ nanosheets were synthesized via calcination of the protonated melamine under ambient atmosphere (P-CN). To be specific, 5 g of melamine was slowly put in the sulfuric acid aqueous solution (the volume ratio of H₂SO₄ and H₂O is 1:9), followed by vigorously stirring for two hours, centrifuging the mixture at 3000 r/min for 5 min, washing the product with ethanol and distilled water several times, and drying the product at 60 °C overnight. Finally, 5 g of the product was heated at 550 °C for 3 h under ambient atmosphere and the heating rate of this thermal polymerization reaction was 10 °C/min. After naturally cooling down to room temperature, the sample was collected and ground into powder.

3.5. Preparation of Sponge-Like g-C₃N₄ Nanosheets

The sponge-like g-C₃N₄ nanosheets were synthesized via annealing of the protonated melamine under N₂/H₂ (95% N₂, 5% H₂) atmosphere (PH-CN). In detail, 5 g of the protonated melamine was heated at 550 °C for 3 h under N₂/H₂ atmosphere and the heating rate of this thermal polymerization reaction was 10 °C/min. After naturally cooling down to room temperature, the sample was collected and ground into powder.

3.6. Characterization

The crystal structure of the samples was identified by X-ray diffraction (XRD) on a Shimadzu XRD-6000 powder diffractometer (Shimadzu, Tokyo, Japan) with Cu Kɑ radiation (λ = 0.15406 nm), operating at 40 kV (0.02°/s) in the 2θ range of 10–50°. Fourier transform infrared (FT-IR) spectroscopy was recorded on a PerkinElmer FT-IR spectrophotometer (PerkinElmer Frontier, PerkinElmer, Waltham, MA, USA) to infer the molecular structural information of the samples. A transmission electron microscope (TEM, Tecnai G2 F20 S-twin field emission transmission, FEI, Hillsboro, OR, USA) and a JSM-6390A scanning electron microscope (SEM, JEOL, Tokyo, Japan) were used to investigate the microstructure and micromorphology of the samples. The diffuse reflectance UV-vis absorption spectra of the photoelectrodes were characterized using a PerkinElmer Lambda 950 UV-vis-NIR spectrophotometer (PerkinElmer, Waltham, MA, USA). The chemical composition and chemical valence state of products were analyzed using X-ray photoelectron spectroscopy (XPS, ULVAC-PHI, PHI5000 VersaProbeIII spectrometer, ULVAC-PHI, Chigasaki, Japan). The BET surface areas were collected using a Quantachrome NOVA 2000e sorption analyzer (Quantachrome, Boynton Beach, FL, USA) based on N₂ adsorption–desorption isotherm at 77 K after the samples were degassed at 300 °C for 5 h. The photoluminescence (PL) emission spectra were tested by using a Hitachi-F7000 florescence spectrophotometer (Hitachi, Tokyo, Japan).

3.7. Photocatalytic Measurement

The photocatalytic hydrogen evaluation was carried out under a new on-line analysis system (Beijing Perfect Light Technology Co. Ltd., Beijing, China, LabSolar-IIIAG) and irradiated under solar light AM 1.5G illumination. For each reaction, a total of 0.1 g of photocatalyst powder was added into 50 mL of aqueous solution containing 10 vol% triethanolamine sacrificial agent and 3 wt% Pt (H₂PtCl₆·6H₂O at the precursor of the cocatalyst). Additionally, the hydrogen evaluation system was evacuated for 30 min prior to the irradiation using the 300 W Xe lamp, followed by periodically recording the amount of produced H₂ by gas chromatography (GC-7900, Techcomp, Shanghai, China).

3.8. Photoelectrochemical Measurement

The photoelectrochemical (PEC) performance of the samples was measured in a three-electrode cell using an electrochemical working station (Princeton Versa STAT 4, AMETEK, Berwyn, PA, USA) under AM 1.5G illumination. All measurements were performed in a neutral electrolyte solution (0.5 M Na₂SO₄, PH = 7.0). A Pt mesh, Ag/AgCl electrode and samples were as the counter electrode (CE), reference electrode (RE) and working electrode (WE) in the three-electrode cell. The electrochemical impedance spectra (EIS) were measured at open circuit condition with the frequency range of 0.01 Hz to 100 kHz under AM 1.5G light illumination. The photoelectrode was synthesized through dropping the dispersion containing 5 mg of sample, ethanol, and water onto the fluorine-tin-oxide (FTO) conductive glass.

4. Conclusions

In summary, we have succeeded in synthesizing sponge-like g-C₃N₄ nanosheets (PH-CN) with a porous structure by annealing the protonated melamine under N₂/H₂ atmosphere. The architecture endows g-C₃N₄ nanosheets with a larger surface area (150.1 m²/g) and fewer stacked layers, which not only means will there be more active sites but also demonstrates that the ability to harvest light will be improved; this will, in turn, benefit photocatalytic hydrogen evolution performance. The obtained PH-CN sample exhibits remarkably enhanced photocatalytic hydrogen evolution activity (a HER of 4104 μmol h⁻¹ g⁻¹), which is nearly 10 times higher than B-CN.
