Influence of Ni on Fe and Co-Fe Based Catalysts for High-Calorific Synthetic Natural Gas

Abstract

Fe-Ni and Co-Fe-Ni catalysts were prepared by the wet impregnation method for the production of high-calorific synthetic natural gas. The influence of Ni addition to Fe and Co-Fe catalyst structure and catalytic performance was investigated. The results show that the increasing of Ni amount in Fe-Ni and Co-Fe-Ni catalysts increased the formation of Ni-Fe alloy. In addition, the addition of nickel to the Fe and Co-Fe catalysts could promote the dispersion of metal and decrease the reduction temperature. Consequently, the Fe-Ni and Co-Fe-Ni catalysts exhibited higher CO conversion compared to Fe and Co-Fe catalysts. A higher Ni amount in the catalysts could increase C₁–C₄ hydrocarbon production and reduce the byproducts (C₅₊ and CO₂). Among the catalysts, the 5Co-15Fe-5Ni/γ-Al₂O₃ catalyst affords a high light hydrocarbon yield (51.7% CH₄ and 21.8% C₂–C₄) with a low byproduct yield (14.1% C₅₊ and 12.1% CO₂).

1. Introduction

In the past decades, energy consumption has grown rapidly because of population growth. Fossil fuels such as coal, petroleum, and natural gas are the main energy sources. However, the increasing consumption of fossil fuels leads to the emission of greenhouse gases, particularly carbon dioxide (CO₂), which contribute to global warming. Synthetic natural gas (SNG; CO + 3H₂ = CH₄ + H₂O) production from biomass has been considered a substitute for fossil fuels, due to its high energy density and low greenhouse gas emission. In addition, it can be transported efficiently using existing and widely distributed gas pipelines [1,2,3,4,5]. The conventional SNG process mainly produces CH₄, which has a heating value of 9520 kcal/Nm³. This has a problem that the heating value is lower than the standard heating value (10,400 kcal/Nm³) for power generation in South Korea and Japan. Therefore, new pathways for high-calorific synthetic natural gas (HC-SNG) production have been intensively studied, and C₂–C₄ as well as CH₄ have been produced using the Fischer–Tropsch (FT) reaction [6,7,8,9,10,11,12,13,14,15]. Generally, for CO methanation reactions, Ni-based catalysts are attractive due to their low cost and high activity [3,4,5]. However, Ni-based catalysts are not suitable for producing C₂–C₄ due to high selectivity to CH₄. Inui et al. published the paper on the conversion of coke oven gas into HC-SNG using Co-based catalysts. The Co-Mn-Ru/Al₂O₃ catalysts showed high CO conversion (98.8%) and C₂–C₄ selectivity (19.1%) [6]. Lee et al. studied the effect of each component in the Co-Mn-Ru/Al₂O₃ catalyst, the optimum composition of catalysts was proposed [7]. Despite its C₂–C₄ selectivity, Co-based catalysts have limitations when it comes to the standard heating value.

Currently, among VIII metals, Fe-based catalysts in the production of HC-SNG produced higher selectivity of light hydrocarbon (C₂–C₄), compared with Co-based catalysts [8,9,10,11,12,13]. However, the monometallic Fe catalysts have low activity of CO hydrogenation and production of hydrocarbons with low paraffin-to-olefin ratio due to low hydrogenation ability. The carburized Fe-Zn catalysts have been reported to exhibit high CO conversion with higher C₂–C₄ hydrocarbon selectivities [8]. Zn has been reported to possess hydrogen spillover ability, which increases CO hydrogenation. Iron carbides showed a stronger interaction with CO than iron oxide, which enhanced the CO conversion. In our previous report, we studied bimetallic Co-Fe catalysts with different Co/Fe ratios to compare the activity of CO hydrogenation and hydrocarbon selectivity [11]. We found that the monometallic Fe catalyst displayed lower CO conversion and higher C₂–C₄ selectivity, compared with the Co catalyst, whereas the 5Co-15Fe catalyst showed a relatively higher CO conversion and similar selectivity compared to the Fe catalyst. This is because the presence of cobalt enhanced the reducibility of the iron phase, leading to improved catalytic activity. In addition, the effect of reaction conditions such as H₂/CO ratio, temperature, pressure, and space velocity on catalytic behavior was investigated [13]. At H₂/CO of 3.0, the space velocity of 4000 mL/g/h, 20 bar, and 300 °C, the bimetallic Co-Fe catalyst affords a high light hydrocarbon yield (31.2% CH₄, and 36.1% C₂–C₄) with a high paraffin ratio (0.90). Despite the high C₂–C₄ yield, C₁–C₄ hydrocarbon production decreased due to a considerable amount of byproducts (C₅₊ hydrocarbons and CO₂). In our previous publication, hybrid catalysts (FT + cracking) in a double-layered bed reactor system were examined to reduce C₅₊ and CO₂ [12]. The cracking catalysts (SAPO-34 zeolite and Ni catalysts) were loaded below the FT catalyst layer. It could be seen that SAPO-34 and Ni affect the cracking of C₅₊ hydrocarbons into light hydrocarbons (C₁–C₄). In addition, the Ni catalyst improved CO conversion and reduced CO₂ selectivity via methanation. However, further research is needed to apply a double-layered bed system at a pilot scale.

In this study, Fe-Ni and Co-Fe-Ni catalysts were applied to the production of HC-SNG with low byproduct formation (C₅₊ and CO₂). The catalysts were prepared by the impregnation of alumina with iron, cobalt, and nickel nitrate. The objective of this work is to investigate the influence of nickel on the Fe and Co-Fe catalysts. Particular attention is focused on the influence of nickel on the textural properties, reduction, and metal phase of the catalysts at different Ni amounts. The catalysts were characterized by inductively coupled plasma optical emission spectrometry (ICP-OES), X-ray diffraction (XRD), and H₂-temperature-programmed reduction (H₂-TPR), and catalytic performance was discussed based on characterization results.

2. Results and Discussion

2.1. Influence of Ni on Fe Catalyst

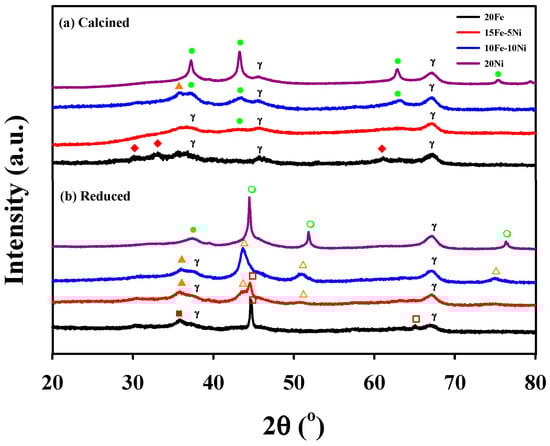

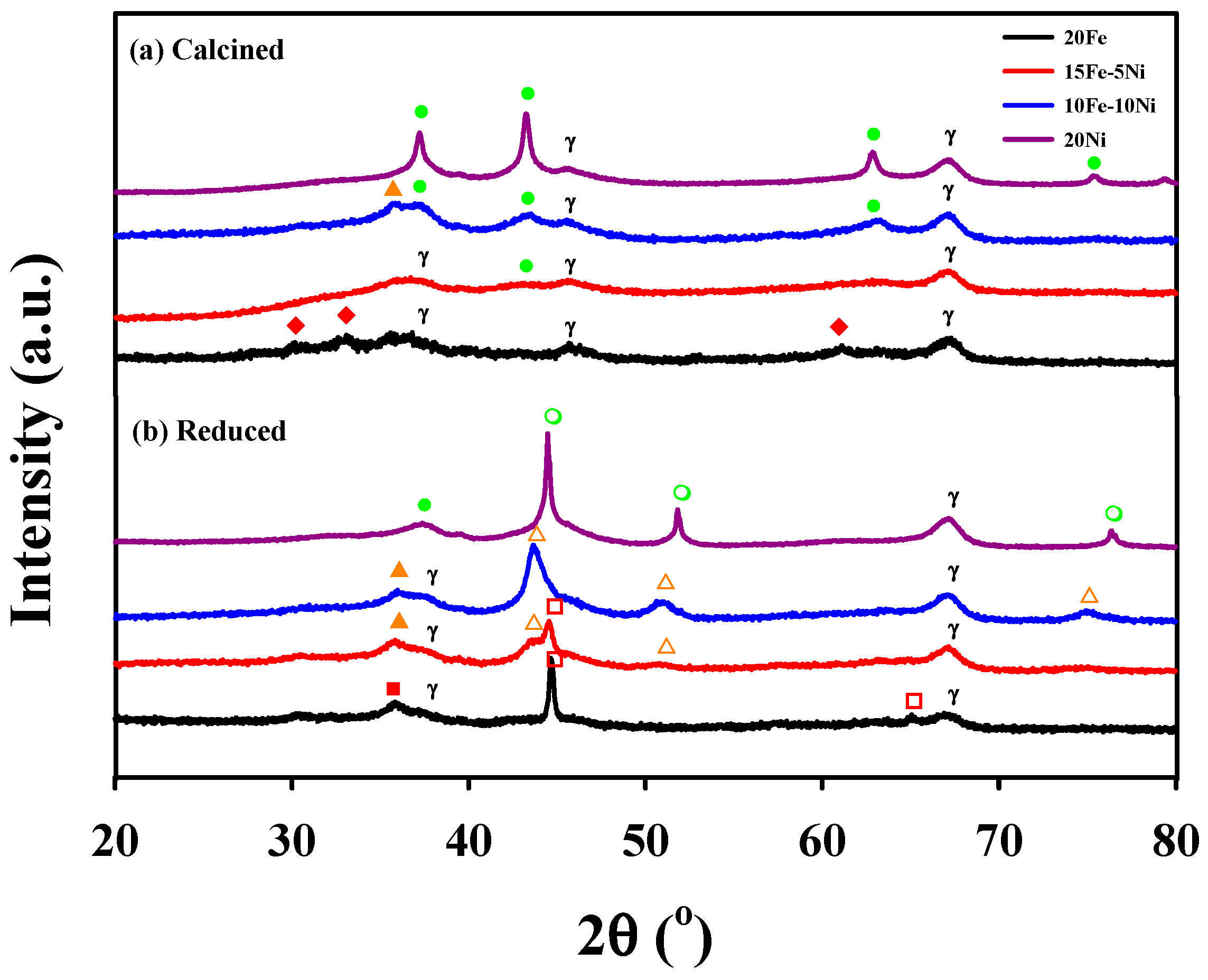

The XRD patterns of the (a) calcined and (b) reduced monometallic and bimetallic catalysts are presented in Figure 1. The XRD patterns of calcined 20Fe/γ-Al₂O₃ and 20Ni/γ-Al₂O₃ catalysts confirm that Fe is present as Fe₂O₃ phase (JCPDS 52–1449) and Ni as NiO phase (JCPDS 65–6920), respectively. For the 20Fe/γ-Al₂O₃ catalyst, the XRD peaks of Fe₂O₃ were too broad due to the high dispersion of iron over the support [16,17]. With an increase in Ni in Fe catalysts, peaks of NiO gradually increased and an additional peak was observed at 43.7° corresponding to the formation of NiFe₂O₄ (JCPDS 89–4927). However, no peaks of Fe₂O₃ were observed in Fe-Ni/γ-Al₂O₃ catalysts. For the 15Fe-5Ni/γ-Al₂O₃ catalyst, low intensity of both Fe and Ni oxide was observed compared to the 20Fe/γ-Al₂O₃ catalyst, indicating better dispersion of Ni over the Fe catalyst [18,19,20,21,22,23,24]. Alternatively, for the 10Fe-10Ni/γ-Al₂O₃ catalyst, peaks of NiFe₂O₄ were observed, suggesting that a higher Ni ratio increases the interaction between Fe and Ni [18,20]. For reduced catalysts, the 20Fe/γ-Al₂O₃ showed the Fe₃O₄ and Fe metal phases, whereas the 20Ni/γ-Al₂O₃ showed the NiO and Ni metal phases, indicating that both catalysts cannot be completely reduced under reduction conditions. With an increase in Ni in Fe catalysts, peaks of Fe metal gradually decreased and the peaks of NiFe₂O₄ and Ni₃Fe₂ alloy were observed. The 15Fe-5Ni/γ-Al₂O₃ catalyst showed the coexistence of the Fe and Ni₃Fe₂ phase. Then, the 10Fe-10Ni/γ-Al₂O₃ catalyst showed no peaks of Fe metal. It can be concluded that the increase of Ni/Fe ratio in the Fe-Ni/γ-Al₂O₃ catalyst leads to the formation of the alloyed metallic phase. The crystallite sizes of Fe, Ni, or Ni-Fe alloy of reduced catalysts were calculated using the Scherrer equation and the results are listed in

Table 1. Characterization of the catalysts.

Catalyst	Metal Content (wt.%) 1			Crystallite Size (nm) 2
	Co	Fe	Ni	Co	Fe	Ni3Fe2	Ni
20Fe	-	20.2	-	-	34.5	-	-
15Fe-5Ni	-	14.7	4.8	-	22.6	7.8	-
10Fe-10Ni	-	10.2	9.9	-	-	9.6	-
20Ni	-	-	19.8	-	-	-	60.6
5Co-15Fe	5.2	14.1	-	N/A	20.2	-	-
5Co-15Fe-2Ni	5.1	14.8	2.2	N/A	20.3	-	-
5Co-15Fe-5Ni	4.9	14.6	5.1	N/A	8	6.3	-

¹ Metal content was determined by ICP-OES. ² Determined from Scherrer’s equation from the reduced catalyst in XRD patterns.

. The crystallite sizes for Ni, Fe, or Ni-Fe alloy in catalysts changed with the composition of the Ni/Fe. Interestingly, the crystallite sizes of the metal in bimetallic catalysts exhibit a smaller size than monometallic catalysts. In particular, the 20Ni/γ-Al₂O₃ catalyst showed a larger particle size after reduction due to weak interaction with Ni-Al, whereas Ni-Fe catalysts showed a small particle size [25]. It is known that metal dispersion was higher and the synergy effects between Ni and Fe by forming NiFe₂O₄ were stronger on γ-Al₂O₃ [20]. Thus, the addition of Ni to the Fe/γ-Al₂O₃ catalyst seems to increase the metal dispersion.

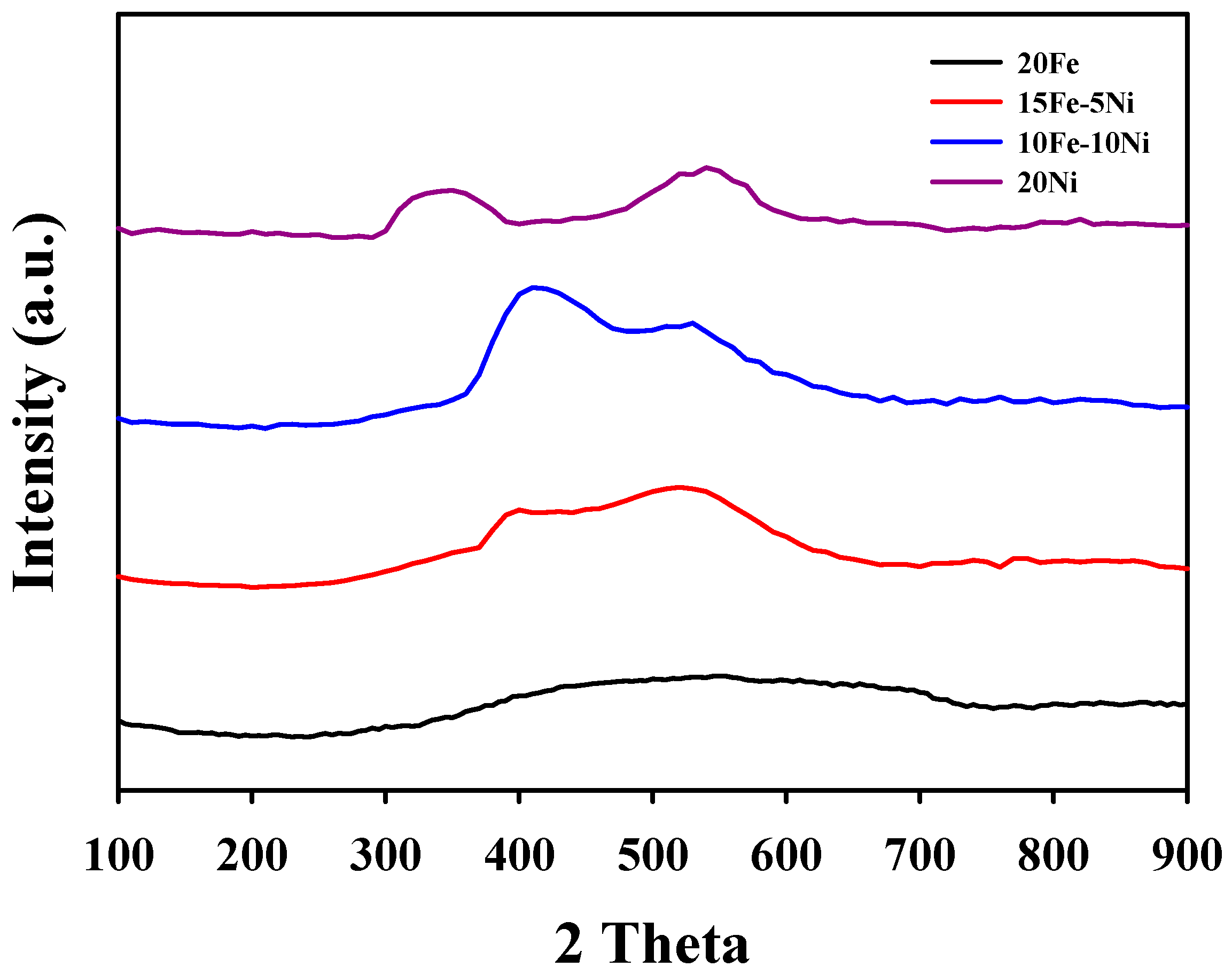

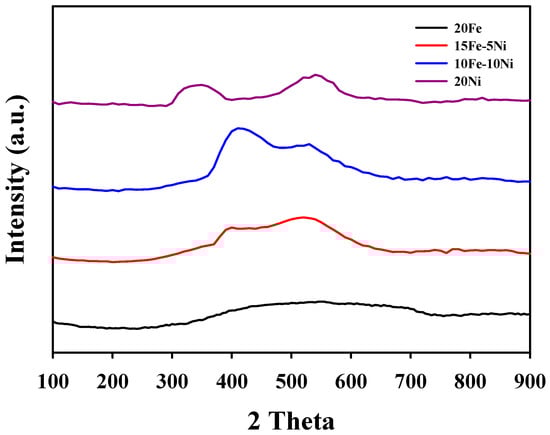

H₂-temperature-programmed reduction (H₂-TPR) was conducted to investigate the reducibility of monometallic and bimetallic catalysts. Figure 2 showed the TPR profiles of 20 wt.% monometallic catalysts and the 20 wt.% bimetallic catalysts. The 20Fe/γ-Al₂O₃ exhibited a broad peak of two contributions (~400 °C and~650 °C), representing the presence of different iron species. The peak at 400 °C can be assigned to the reduction of Fe₂O₃ to Fe₃O₄, and the reduction peak at 650 °C corresponds to the reduction of Fe₃O₄ to Fe metal. The 20Ni/γ-Al₂O₃ showed two peaks; the low-temperature peaks at 300 °C–380 °C were attributed to the reduction of NiO, high-temperature peaks at 480 °C–600 °C were attributed to the reduction of NiO species, corresponding to the interaction between NiO and Al₂O₃. The bimetallic Fe-Ni catalysts showed three reduction peaks. The first temperature at 340 °C may be attributed to the reduction of Fe₂O₃ to Fe₃O₄ or NiO to Ni, corresponding to the weak interaction with support. Then, the reduction peaks from 400 °C to 600 °C, corresponding to the reduction of Fe₃O₄ to Fe and NiFe₂O₄ to Fe and Ni [20,21]. In addition, the reduction peaks of the bimetallic catalysts shift to lower temperature with increasing nickel-to-iron ratio, compared with Fe catalyst. This suggests that the addition of Ni improves the reducibility.

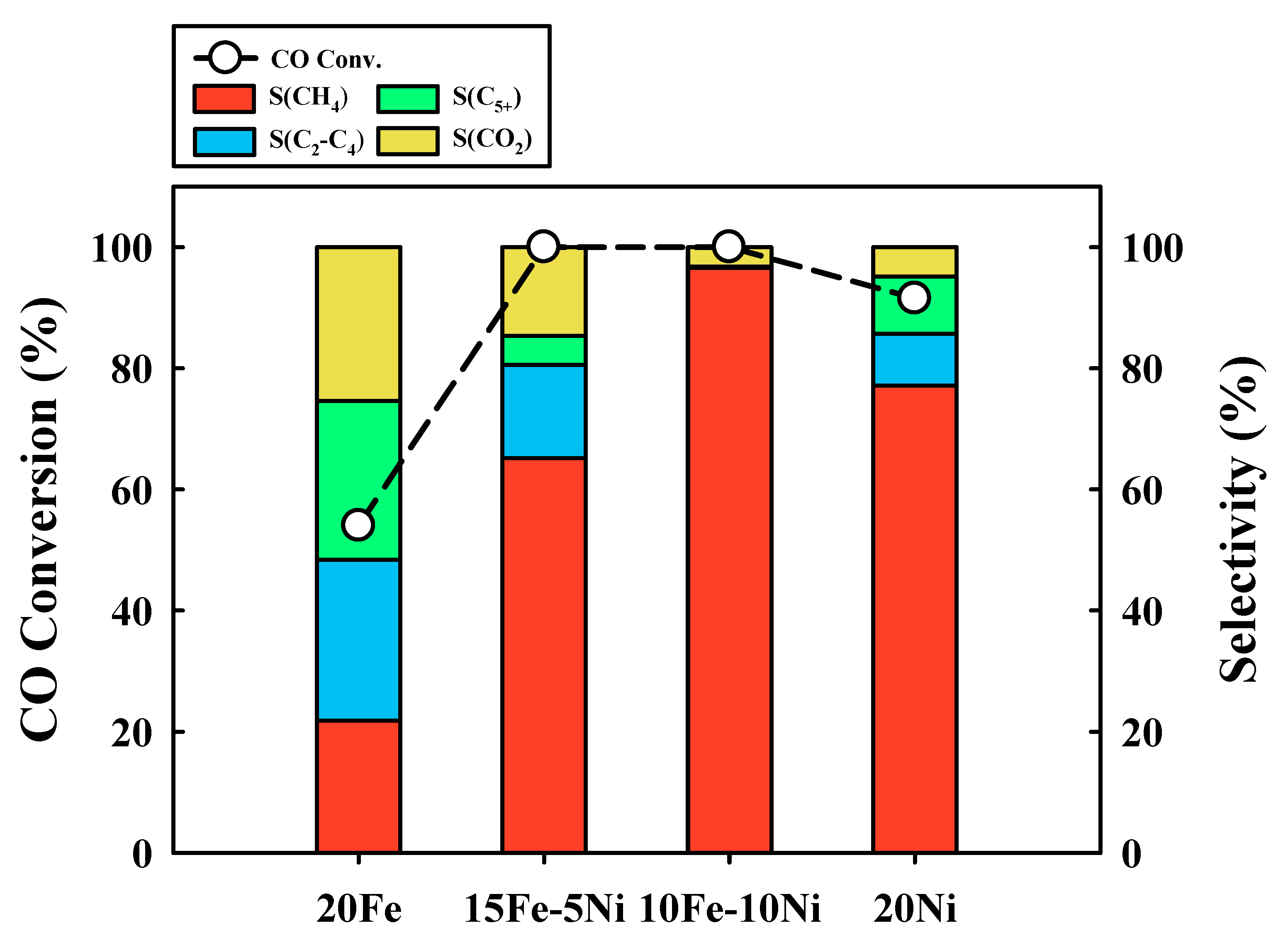

The catalytic behavior of Fe-Ni/γ-Al₂O₃ catalysts with different Ni/Fe ratios was observed under the conditions of 300 °C, 10 bar, H₂/CO = 3.0, and 6000 mL/g/h (Figure 3 and Table S1). The CO conversion was much lower with 20Fe/γ-Al₂O₃ compared with the value obtained for 20Ni/γ-Al₂O₃. Ni shows high catalytic activity for CO hydrogenation among transition metals. With increasing Ni in Fe catalysts, the bimetallic catalysts present a higher CO conversion (99.9%) compared to Fe catalysts. It was reported that Fe-Ni bimetallic catalysts not only showed a high metal dispersion but also improved reducibility [18,19,20,21,22,23,24]. This confirms that the addition of Ni to Fe catalysts could facilitate higher dispersion and enhance the reducibility (Table 1 and Figure 2). In addition, the 20Ni/γ-Al₂O₃ catalyst showed lower CO conversion (91.5%) compared to Fe-Ni catalysts. This drawback of the CO conversion may be in agreement with the low Ni dispersion. The selectivity to hydrocarbon and CO₂ is affected by the Ni-Fe ratio. Generally, Ni catalysts exhibited high CH₄ selectivity (>90%) with low selectivity of C₂₊ and CO₂ under methanation conditions (H₂/CO ratio = 3.0 °C and 300 °C). However, the 20Ni/γ-Al₂O₃ catalyst showed selectivity of CH₄ (77.1%), C₂–C₄ (8.6%), C₅₊ (9.4%), and CO₂ (4.9%) due to the lower Ni dispersion. It has been reported that high dispersion of Ni exhibited the highest CH₄ selectivity, whereas low dispersion of Ni showed selectivity of C₂–C₄ [26,27]. The 20Fe/γ-Al₂O₃ catalyst, by contrast, showed high selectivity of C₂–C₄, C₅₊, and CO₂. Fe metal has more of a long-chain growth ability than Ni metal due to the stronger adsorption of CO in Fe. Moreover, Fe-based catalysts have significant activity in the water gas shift reaction. With increasing Ni in Fe catalysts, there was a remarkable change in selectivity. For the 15Fe-5Ni/γ-Al₂O₃, the selectivity to CH₄ significantly increased from 21.8% to 65.1%, whereas the selectivity to C₂–C₄, C_5+, and CO₂ significantly reduced from 26.6% to 15.4%, from 26.2% to 4.8%, and 25.4% to 14.7%, respectively, compared to the 20Fe/γ-Al₂O₃ catalyst. Interestingly, the 10Fe-10Ni/γ-Al₂O₃ catalyst almost showed selectivity to CH₄ (96.6%). It might be due to the defect in the Fe metal phase with increasing Ni, resulting in XRD of 10Fe-10Ni/γ-Al₂O₃ showed Ni-Fe alloy phase, which has a much higher methanation reaction than Fe metal [22]. Thus, it could be concluded that the addition of Ni to Fe catalysts changes the metal phase, which not only enhances the CO hydrogenation but also significantly affects selectivity to hydrocarbon and CO₂. Among the catalysts, the 15Fe-5Ni/γ-Al₂O₃ catalyst displayed a high CO conversion and low byproduct formation (C₅₊ and CO₂), but the addition of Ni also decreased the selectivity of C₂–C₄, indicating that is not enough for HC-SNG. In our previous work, 5Co-15Fe/γ-Al₂O₃ catalysts showed high C₂–C₄ selectivity at high CO conversions, but this led to substantial byproducts (C₅₊ and CO₂). Therefore, the effect of Ni on the suppression of byproducts for the 5Co-15Fe/γ-Al₂O₃ catalyst needs to be investigated further.

2.2. Influence of Ni on Co-Fe Catalyst

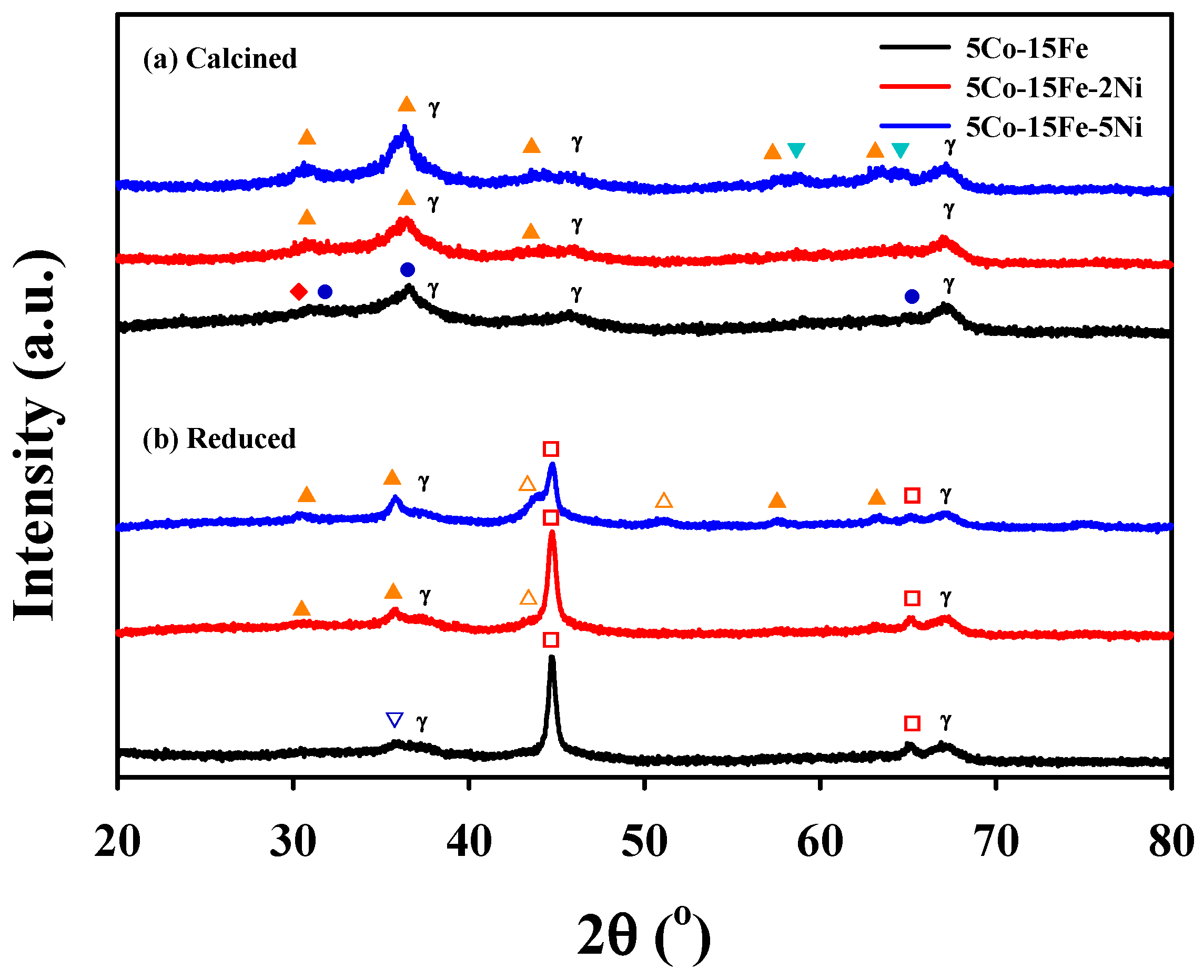

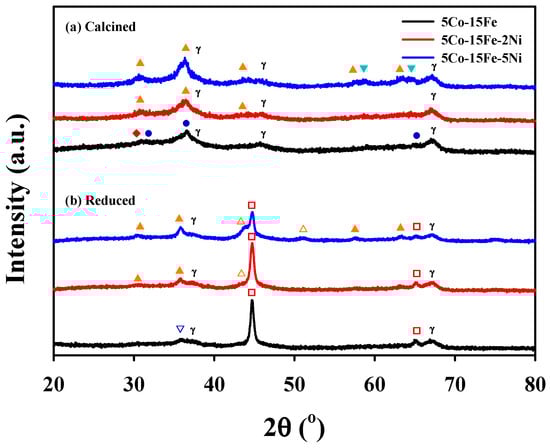

The XRD patterns of Co-Fe and Co-Fe-Ni catalysts in the calcined and reduced states are shown in Figure 4. The calcined Co-Fe catalyst showed very broad peaks of the Fe₂O₃ phase compared to those of the Co₃O₄ phase because of the high dispersion of the iron phase over alumina [11]. With increasing Ni in Co-Fe catalysts, the additional diffraction peaks of NiFe₂O₄ and NiCo₂O₄ were confirmed. However, for the Co-Fe-Ni catalysts, peaks of Fe₂O₃ and Co₃O₄ were difficult to distinguish. In the case of the reduced state, the Co-Fe catalyst showed XRD peaks of CoO and Fe metal, indicating the incorporation of Co into Fe [11,16,17]. With an increase in Ni in Co-Fe catalysts, additional peaks of NiFe₃O₄ and Ni-Fe alloy were observed. However, for trimetallic catalysts, distinguishing CoO from NiFe₃O₄ is difficult due to the very close resemblance in diffraction patterns. With the increasing Ni content, the diffraction peaks corresponding to Ni-Fe alloys gradually increased, while peaks of the Fe phase decreased due to the different compositions of the metal alloys. The 5Co-15Fe-2Ni catalyst showed a very broad Ni-Fe alloy peak at 43.7°. For the 5Co-15Fe-5Ni catalyst, the diffraction peaks of the Ni-Fe alloy were more clearly observed compared to the 5Co-15Fe-2Ni catalyst. In addition, for the 5Co-15Fe-5Ni/γ-Al₂O₃ catalyst, smaller crystallite sites of Fe metal were observed compared with 5Co-15Fe-2Ni/γ-Al₂O₃, implying that the increasing Ni amount improves the dispersion (Table 1). The H₂-TPR profiles of the addition of Ni to the Co-Fe catalyst (5Co-15Fe, 5Co-15Fe-2Ni, and 5Co-15Fe-5Ni) are shown in Figure S1. In our previous work, we showed that for 5Co-15Fe catalysts, the first temperature peak (at 300 °C–400 °C) was assigned to the reduction of Co₃O₄ to CoO and Fe₂O₃ to Fe₃O₄ and the second peak (at 400 °C–700 °C) may be ascribed to the sequential reduction of CoO to Co and Fe₃O₄ to Fe [11]. A comparison of the results for the Co-Fe catalyst and Co-Fe-Ni catalysts shows that, in the case of Co-Fe-Ni, the second peak was shifted to lower temperatures. This might be attributed to chemically interacting species such as NiFe₂O₄ and NiCo₂O₄ due to the strong mutual effect of metal [28].

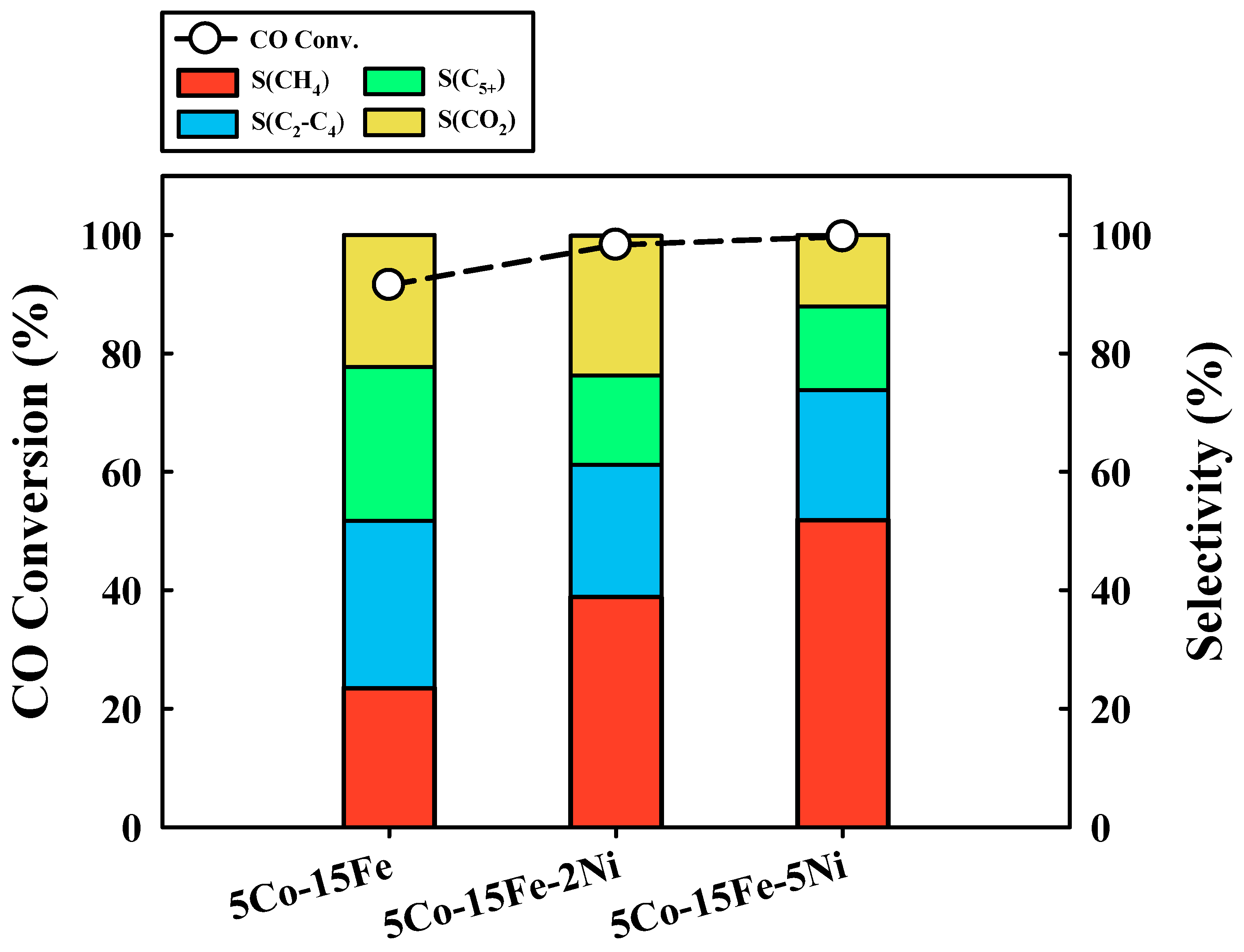

To further study the effect of Ni on the Co-Fe catalysts, we tested the catalytic performance of Co-Fe and Co-Fe-Ni, and the results are shown in Figure 5. There is no drastic change during the experiment as shown in Figure S2. It was found that the addition of Ni to Co-Fe catalysts increased CO conversion from 91.5% to 99.9%. This is because the presence of Ni in catalysts not only leads to high activity for CO hydrogenation but also enhances the reducibility. With increasing nickel content, for the 5Co-15Fe-2Ni/γ-Al₂O₃ catalyst, the selectivity to CH₄ increased from 23.5% to 38.9%, and the selectivity to C₂–C₄ and C₅₊ decreased from 28.2% to 22.3% and from 26.0% to 15.1%, respectively, compared to the 5Co-15Fe/γ-Al₂O₃ catalyst. However, the selectivity to CO₂ presents a similar value between 22.3–23.6%, indicating that a small Ni amount in Co-Fe catalysts only affects hydrocarbon selectivity. Alternatively, for the 5Co-15Fe-5Ni/γ-Al₂O₃ catalyst, the selectivity to CH₄ significantly increased to 51.9% with a decrease of CO₂ selectivity without changing the selectivity to C₂-C₄ and C₅₊. As mentioned above, increasing the Ni amount in Fe catalysts affects the interaction between Fe and Ni resulting in the Ni-Fe alloy phase, which indicates a high methanation reaction. As shown in Figure 5, it could be confirmed that the 5Co-15Fe-2Ni/γ-Al₂O₃ catalyst showed no significant change in metal phase compared to 5Co-15Fe/γ-Al₂O₃. However, 5Co-15Fe-5Ni/γ-Al₂O₃ showed coexistence of Fe and Ni-Fe alloy, resulting in the high selectivity of light hydrocarbon (C₁–C₄), and low byproduct formation (C₅₊ and CO₂).

Table 2. Summary of catalytic performance of the Co-Fe and Co-Fe-Ni catalysts at a reaction time of 10 h.

Catalyst	Reaction Condition	CO Conv (%)	Yield (%)				C1–C4 Hydrocarbon Production Rate (mL/h)	Heating Value (kcal/Nm3) 1	Ref
			CH4	C2–C4	C5+	CO2
5Co-15Fe	SV: 6000 mL/g/h, 300 °C, 10 bar	91.5 ± 1.0	21.5 ± 0.7	25.8 ± 0.6	23.8 ± 1.6	20.4 ± 0.4	341	13,230	[13]
	SV: 4000 mL/g/h, 350 °C, 20 bar	99.7 ± 0.1	31.2 ± 0.4	36.1 ± 0.6	17.6 ± 0.4	14.9 ± 0.2	323	13,170	[13]
5Co-15Fe-2Ni	SV: 6000 mL/g/h, 300 °C, 10 bar	98.3 ± 0.2	38.2 ± 0.2	21.9 ± 0.6	14.8 ± 0.7	23.2 ± 0.2	433	11,580	This study
5Co-15Fe-5Ni	SV: 6000 mL/g/h, 300 °C, 10 bar	99.9 ± 0.1	51.7 ± 0.1	21.8 ± 0.2	14.1 ± 0.3	12.1 ± 0.2	530	11,100	This study

¹ The heating value of each product gas was determined from the volumetric hydrocarbon fraction by calculating the heating values of the pure gases in the C₁–C₄ hydrocarbon range in the outlet gas.

shows the comparison of the catalytic performance of Co-Fe-Ni catalysts with that of the 5Co-15Fe/γ-Al₂O₃ catalyst. In a previous report, the 5Co-15Fe/γ-Al₂O₃ catalyst was studied for the effects of operating conditions such as space velocity, reaction pressure, and temperature. The 5Co-15Fe/γ-Al₂O₃ catalyst showed high CO conversion (99.7%), high light hydrocarbon yield (31.2% CH₄ and 36.1% C₂–C₄), and low byproduct yield (17.6% C₅₊ and 14.9% CO₂) under certain conditions (SV: 4000 mL/g/h, T: 350 °C and P: 20 bar, compared to reaction conditions of SV: 6000 mL/g/h, T: 300 °C and P: 10 bar). In terms of C₁–C₄ yield, it increased with the increase in CO conversion under certain conditions (SV: 4000 mL/g/h, T: 350 °C and P: 20 bar), whereas C₁–C₄ hydrocarbon production rate in these conditions decreased compared to that under reaction conditions (SV: 6000 mL/g/h, T: 300 °C and P: 10 bar) due to low space velocity. On the other hand, the Co-Fe-Ni catalysts were superior to the Co-Fe catalyst under reaction conditions (SV: 6000 mL/g/h, T: 300 °C and P: 10 bar), in regard to the C₁–C₄ hydrocarbon production rate due to the fact that the increase in C₁–C₄ production with increasing CO conversion can mainly be attributed to decrease of byproducts. In particular, the 5Co-15Fe-5Ni catalyst produced the highest C₁–C₄ hydrocarbon production rate (530 mL/h) compared to other catalysts. In addition, the heating value of the product gas of 5Co-15Fe-5Ni catalyst is higher than the standard heating value (10,400 kcal/Nm³). Consequently, the addition of Ni to Co-Fe catalysts at the optimum amount enhanced the catalytic performance for HC-SNG.

3. Materials and Methods

3.1. Catalysts Preparation

The catalysts were prepared using the wet impregnation method. The Ni-Fe/γ-Al₂O₃ and Ni-Co-Fe/γ-Al₂O₃ catalysts were prepared by impregnating γ-Al₂O₃ with an anhydrous ethanol solution of Ni(NO₃)₂·6H₂O, cobalt nitrate Co(NO₃)₂·6H₂O, and Fe(NO₃)₃·9H₂O (Sigma-Aldrich, St. Louis, MO, USA) for 24 h at room temperature. Then, the solvent was removed using a rotary evaporator at 40 °C. The samples were dried at 120 °C for 12 h and calcined at 400 °C for 8 h in air. The Ni-Fe and Ni-Co-Fe catalysts supported by γ-alumina were denoted by xFe-yNi/γ-Al₂O₃ and xCo-yFe-zNi/γ-Al₂O₃, where x, y, and z represent the weight percentage of each metal based on the catalyst.

3.2. Characterization

The metal content of the catalysts was measured with ICP-OES (PerkinElmer, Waltham, MA, USA). The crystal structures of the bimetallic and trimetallic catalysts were analyzed using a Cu Kα radiation source (λ = 1.5406 Å) in a Phillips X’PERTXRD (PANalytical, Amsterdam, Netherlands) located at the Korea Basic Science Institute in Daegu. The crystallite size of the metal phase was calculated using the Scherrer equation, which is shown in Equation (1) [8].

$$\begin{array}{c}\mathrm{t}=\frac{\mathrm{K}\mathsf{\gamma }}{\mathrm{B}\cos \mathsf{\theta }}\\ \mathrm{t}=\mathrm{the}\mathrm{mean}\mathrm{size}\mathrm{of}\mathrm{the}\mathrm{crystalline}\mathrm{domains}\left(\mathrm{nm}\right)\\ \mathrm{K}=\mathrm{dimensionless}\mathrm{shape}\mathrm{factor}\left(=0.9\right)\\ \mathrm{k}=\mathrm{wavelength}\mathrm{of}\mathrm{X-ray}\left(\mathrm{Cu}\mathrm{K}\mathsf{\alpha }1,0.15406\mathrm{nm}\right)\\ \mathrm{B}=\mathrm{full}\mathrm{width}\mathrm{at}\mathrm{half}\mathrm{maximum}\mathrm{in}\mathrm{radians}\\ \mathrm{h}=\mathrm{Bragg}\mathrm{angle}\end{array}$$

(1)

H₂-Temperature-programmed reduction (H₂-TPR) was performed by heating the reactor from 120 to 900 °C at a rate of 5 °C/min under 10% H₂/N₂ (100mL/min) after pretreating the sample (0.2 g) at 150 °C under N₂ flow for 1 h.

3.3. Activity Tests

The activity test was conducted in a fixed-bed reactor (O.D. 1/2 in). In a typical experiment, 0.5 g of catalyst (150–250 μm) was initially pre-reduced for 1 h at 500 °C under 10% H₂/N₂ (100 mL/min) flow before each test. Then, cooling down to 200 °C under N₂ gas, the gas was switched to 72% H₂, 24% CO, and 4% N₂ mixture gas with a total volumetric flow of 50 mL/min at standard temperature and pressure. The reactor was pressurized to 10 bar, using a back-pressure regulator. Subsequently, the temperature of the reactor was increased to 300 °C at a heating rate of 10 °C/min. To avoid possible condensation of the reaction products, the gas transfer lines were maintained at temperatures above 180 °C, and the heavy hydrocarbons were collected in a cold trap (4 °C) before analyzing the outlet gases online using a gas chromatograph (Agilent 6890, Santa Clara, CA, USA). The CO, H₂, N₂, and CO₂ gases were analyzed using a Carboxen 1000 column (Supelco, Bellefonte, PA, USA) with a thermal conductivity detector and a GS-GASPRO capillary column (Agilent, Santa Clara, CA, USA) connected with a flame ionization detector for analysis of the hydrocarbons. The CO conversion and selectivity for each product were calculated using Equations (2)–(4).

$$\begin{gathered} \mathrm{CO}\mathrm{conversion}\left(\mathrm{carbon}\mathrm{mole}\%\right) \\ =\left(1-\frac{\mathrm{CO}\mathrm{in}\mathrm{the}\mathrm{product}\mathrm{gas}\left(\mathrm{mol}/\min \right)}{\mathrm{CO}\mathrm{in}\mathrm{the}\mathrm{feed}\mathrm{gas}\left(\mathrm{mol}/\min \right)}\right)\times 100, \end{gathered}$$

(2)

$$\begin{gathered} \mathrm{Selectivity}\mathrm{for}\mathrm{hydrocarbons}\mathrm{with}\mathrm{carbon}\mathrm{number}\mathrm{n}\left(\mathrm{carbon}\mathrm{mole}\%\right) \\ =\frac{n\times {\mathrm{C}}_n\mathrm{hydrocarbon}\mathrm{in}\mathrm{the}\mathrm{product}\mathrm{gas}\left(\mathrm{mol}/\min \right)}{\left(\mathrm{total}\mathrm{carbon-unreacted}\mathrm{CO}\right)\mathrm{in}\mathrm{the}\mathrm{product}\mathrm{gas}\left(\mathrm{mol}/\min \right)}\times 100, \end{gathered}$$

(3)

$$\begin{gathered} \mathrm{Selectivity}\mathrm{for}\mathrm{carbon}\mathrm{dioxide}\left(\mathrm{carbon}\mathrm{mole}\%\right) \\ =\frac{{\mathrm{CO}}_2\mathrm{in}\mathrm{the}\mathrm{product}\mathrm{gas}\left(\mathrm{mol}/\min \right)}{\left(\mathrm{total}\mathrm{carbon-unreacted}\mathrm{CO}\right)\mathrm{in}\mathrm{the}\mathrm{product}\mathrm{gas}\left(\mathrm{mol}/\min \right)}. \end{gathered}$$

(4)

4. Conclusions

In this study, bimetallic Fe-Ni and trimetallic Co-Fe-Ni catalysts supported by γ-alumina were developed for the production of HC-SNG with low byproduct formation (C₅₊ and CO₂). It was found that the metal dispersion and reducibility were enhanced in the presence of nickel, leading to improved catalytic activity. CH₄ selectivity increases and C₂₊ and CO₂ selectivity decrease with increasing Ni amount in catalysts. In addition, high CH₄ selectivity and low CO₂ selectivity with a higher Ni amount imply that the Ni-Fe alloy is favorable for methanation reaction. The presence of Ni in catalysts diminished the byproduct yield (C₅₊ and CO₂), whereas the heating value of the product gas decreased due to higher CH₄ yield. Based on these results, the 5Co-15Fe-5Ni catalyst affords a high light hydrocarbon yield (51.7% CH₄, and 21.8% C₂–C₄) with low byproduct yield (14.1% C₅₊ and 12.1% CO₂), compared to bimetallic Fe-Ni catalysts. In addition, it exhibited the highest C₁–C₄ hydrocarbon production rate (530 mL/h) with a higher heating value than the standard heating value (10,400 kcal/Nm³). Thus, trimetallic Co-Fe-Ni catalysts can be used for the production of HC-SNG.
