A DFT Study on the Redox Active Behavior of Carbene and Pyridine Ligands in the Oxidative and Reductive Quenching Cycles of Ruthenium Photoredox Catalysts

Abstract

In this study, a detailed look at the electronic structure changes induced by photon absorption and of the succeeding redox events of the oxidative and reductive quenching cycles of ruthenium–carbene and ruthenium–pyridine photoredox catalysts is provided through an arsenal of density functional theory-based techniques including electron density difference Δρ(r) maps, spin-density distributions, and the non-covalent interaction analysis. We introduced an efficient computational protocol to obtain accurate equilibrium structures and ground-state reduction potentials for these types of complexes, substantiated via a direct comparison to empirical X-ray structures and cyclic voltammetry measurements, respectively. Moreover, we demonstrated the utility of a hitherto unexplored approach to compute excited-state redox potentials based on the Gibbs free energy of the triplet metal-to-ligand charge transfer state (³MLCT). The analyzed Δρ(r) maps revealed the characteristic features of, for example, metal- and ligand-centered reductions and oxidations in both ground and excited states and MLCT processes, disclosing the active participation of carbene ligands in the redox events of homoleptic systems. Beyond analyzing ligand–ligand non-covalent interactions and redox-active behaviors of carbene and pyridine ligands side by side, the effect of such groups on the kinetics of ³MLCT to ³MC transition was scrutinized.

1. Introduction

The development of advanced solutions and materials that enable the sustainable and eco-friendly use of resources in technologically key chemical and/or energy transformations has a high priority in the field of modern chemical science. Owing to the recent intensive efforts to design such solutions, visible-light photoredox catalysts based on transition metal complexes have emerged as promising materials. These species could facilitate valuable energy-demanding organic processes by transforming the energy of sunlight into chemical energy [1]. Amongst the most studied and best performing transition metal photoredox catalysts (TMPRCs) are the ruthenium–polypyridine and iridium–phenylpyridine (ppy) derivatives, for example, [Ru(bpy)₃]²⁺ (Figure 1a) and Ir(ppy)₃, respectively [2,3,4]. In attempts to leverage the abundant and freely available solar energy, new developments in the design and application of these classical TMPRCs have come to light, for example, the so-called cooperative catalysis, where a photoredox catalytic system is used in synergy with another TM catalyst to facilitate chemical transformations [5,6,7]. Other widespread applications of the parent TMPRC platforms and other closely related iridium and ruthenium derivatives include photovoltaic-like dye-sensitized solar cells (DSSCs) [8,9], chemical sensing [10,11], photodynamic therapy [12,13], etc. All these applications arise from the capability of these transition metal complexes to undertake light-driven charge separation through metal-to-ligand charge transfer (MLCT) processes [14,15].

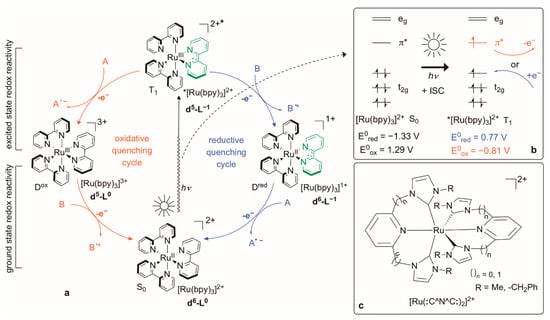

The basic photophysics of classical TMPRCs is well established and summarized in Figure 1a for the archetypal [Ru(bpy)₃]²⁺ (bpy = bipyridine) system [3,15,17,18]. These ruthenium(II) and iridium(III) complexes are d⁶ species in their resting oxidation state forming thermodynamically stable, inert singlet ground state (S₀) octahedral complexes, where the six d electrons fill up the non-bonding t_2g set [19,20]. Absorption of a photon in the visible or near UV region promotes one of these metal-centered valence d (t_2g) electrons to a low-lying ligand-centered vacant π* orbital through a spin-allowed singlet–singlet transition [18]. This charge transfer excitation from the ground S₀ to the S₁ or S₂ excited state eventuates in a low-energy hole located at the metal and a high-energy electron mostly centered at the ligand(s). This singlet state is short lived, as it undergoes a rapid intersystem crossing (ISC) giving rise to the stable triplet ³MLCT state with an electronic structure very similar to that of the charge separated singlet state [18]. This triplet ³MLCT is typically long-lived with a lifetime of hundreds of ns or even microseconds [21], although it depends strongly on the nature of its ligands and whether the system is hetero- or homoleptic, solvent, etc. [18]. This prolonged lifetime is the key feature of photoredox catalysts that facilitates the interaction of the excited state species with external substrates through intermolecular outer-sphere single–electron transfer processes [22]. Due to the bivalent nature of the triplet ³MLCT state, the photoexcited complex is a strong reducing agent as well as a strong oxidizing agent at the same time which can manifest in either type of reactivity depending on the nature of the external substrate. The difference between the ground- and excited-state redox properties of these systems is actually striking; for example, [Ru(bpy)₃]²⁺ has a ground state reduction potential of −1.33 V (versus SCE) for the [Ru(bpy)₃]²⁺ to [Ru(bpy)₃]¹⁺ transition; however, upon absorbing light at a λ_max of 452 nm, the reduction potential of the corresponding excited state * [Ru(bpy)₃]²⁺ to [Ru(bpy)₃]¹⁺ process becomes 0.77 V (Figure 1b) [21]. According to the outlined overall mechanism, photoredox catalysts harvest solar energy which is transformed into a metal-centered low-energy hole and a ligand-centered high-energy electron that can be transferred to external substrates through outer-sphere electron transfer, i.e., to drive energy-demanding reactions [23,24,25].

As summarized in Figure 1a, the onset intermolecular interaction of the ³MLCT state determines whether the reductive quenching process or the oxidative quenching is initiated. If an electron donor transfers an electron (B ⁺ + e⁻) to the excited *[Ru(bpy)₃]²⁺ species, the reduced [Ru(bpy)₃]⁺, the D^red state in general, is formed which is best characterized as a ruthenium(II) species with a formally mono-reduced ligand (L⁻¹). In the latter oxidation state, [Ru(bpy)₃]⁺, the system is a strong reducing agent that transfers its ligand-centered electron to any acceptor (A + e^{− −}) at a potential of −1.33 V in route to the resting ground state of the system, [Ru(bpy)₃]²⁺ [18]. The oxidative quenching cycle, on the other hand, is initiated when an electron is transferred from the ³MLCT state to an acceptor (A + e^{− −}) forming [Ru(bpy)₃]³⁺, the D^ox state in general, which is a powerful oxidant (E⁰ = 1.29 V) while converting to the resting [Ru(bpy)₃]²⁺ state [18]. To close the quenching cycles as well as to utilize any of these redox steps in a catalytic fashion, sacrificial reducing or oxidizing agents need to be used as electron sources (B) or sinks (A), respectively. Tertiary amines are the most common class of reductive quenchers, whereas typical oxidizing agents include viologens, polyhalomethanes, dinitro- and dicyanobenzenes and aryldiazonium salts [26,27,28].

Grasping the essence of the mechanism of these systems one can intuitively conclude that the unique feature of photoredox catalysis is not the ability to facilitate any specific reaction but rather its capability to turn inactive substrates into reactive radical intermediates through high-energy intermolecular outer-sphere electron transfer. Consequently, the most typical application of TMPRCs includes the generation of, among many others, electrophilic α-carbonyl radicals [29], trifluoromethyl radicals [30], arene radical cations, iminium ions, and enone radical anions [31], of which these intermediates have been used to drive other types of transformations including atom transfer radical additions [32], arene C−H functionalizations [25,33,34], and amine α-functionalizations to [2 + 2] cycloadditions [35,36]. Cooperative catalysis, in which another transition metal co-catalyst is sensitized through electron transfer and its catalytic cycle is supported by the photoredox catalyst has been recently added to the arsenal of applications [37,38,39,40]. The latter tandem approach holds great promise in opening new horizons for the application of photoredox catalysts using sunlight as an energy source in already established catalytic transformations.

Tailoring the redox energetics of the quenching cycles is crucial for the targeted and efficient use of photoredox catalysis. Pioneering experimental studies have revealed the direct dependence of reduction potentials in the various ground and excited state steps on metal, the ligand framework, and substitution patterns [41,42,43]. For example, functionalization of a given ligand frame with electron-withdrawing and/or electron-donating groups results in a significant variation of approximately 1.5 V in the reduction potential of ligand-centered redox events, independently of the nature of the central metal [44]. Concomitant to experimental investigations, computational studies are also playing an important role in the understanding, design, and fine-tuning of photoredox catalysts [45,46]. In a recent landmark study, Demissie, Ruud, and Hansen [47] established a computational approach based on ground-state and time-dependent density functional theory (DFT and TD-DFT, respectively) and implicit solvation for computing ground- and excited-state redox potentials of ruthenium and iridium complexes with the goal to advance the development of systems with improved redox properties to be used in electron transfer reactions of organic or organometallic chemistry.

Carbenes are considered amongst the most potential candidates for new ligand platforms or building blocks in photoredox catalysis, especially to effectively modulate the redox energetics and to increase the lifetime of the ³MLCT state [48,49,50]. The unique reactivity and advantageous electronic features of heterocyclic carbenes, which can be controlled to a large extent through wingtip groups, constituting heteroatoms and backbone functionalization as outlined in Figure 2a, have already been utilized in many fields of chemistry as evidenced by the increased number of publications on the applications of carbenes in the last two decades [50,51]. Beyond the valuable intrinsic properties, another key feature of heterocyclic carbenes is their superior capacity to bind practically to any metal including W [52], Pd [53], Ir [54], Ru [55,56,57], Au [58], Co, Ni, and Cu [59], Fe [60,61], etc., in low-, medium-, and high-oxidation states to generate stable transition metal–carbene complexes. In spite of the handful articles on the synthesis and photo- and electrochemical characterization of carbene-containing ruthenium(II) complexes, which are indeed potential candidates for photoredox catalysis, nevertheless, to the best of our knowledge, only the very recent study by Torres et al. [16] demonstrated applied photoredox chemistry with Ru–carbene systems. Namely, complex [Ru(:C^N^C:)₂]²⁺ (Figure 1c) and its derivatives with two tridentate ligands, each containing two substituted Arduengo carbene groups (NHC (N-heterocyclic carbene) in Figure 2b), worked effectively as photosensitizers via the corresponding oxidative quenching cycle for the [Co(bpy)₃] Cl₂ co-catalyst for the generation of H₂ from water. These ruthenium–carbene complexes were found to have long lifetimes of approximately 1.5–1.7 µs and to have an exceptional reducing power in the excited state through the ligand-centered oxidation. Actually, the ³MLCT state of the photoredox catalyst is not quenched by the triethanolamine sacrificial reductant but by the cobalt catalyst in these tandem systems. This behavior was devoted to the high reducing power of the triplet-excited state of these Ru–carbene complexes.

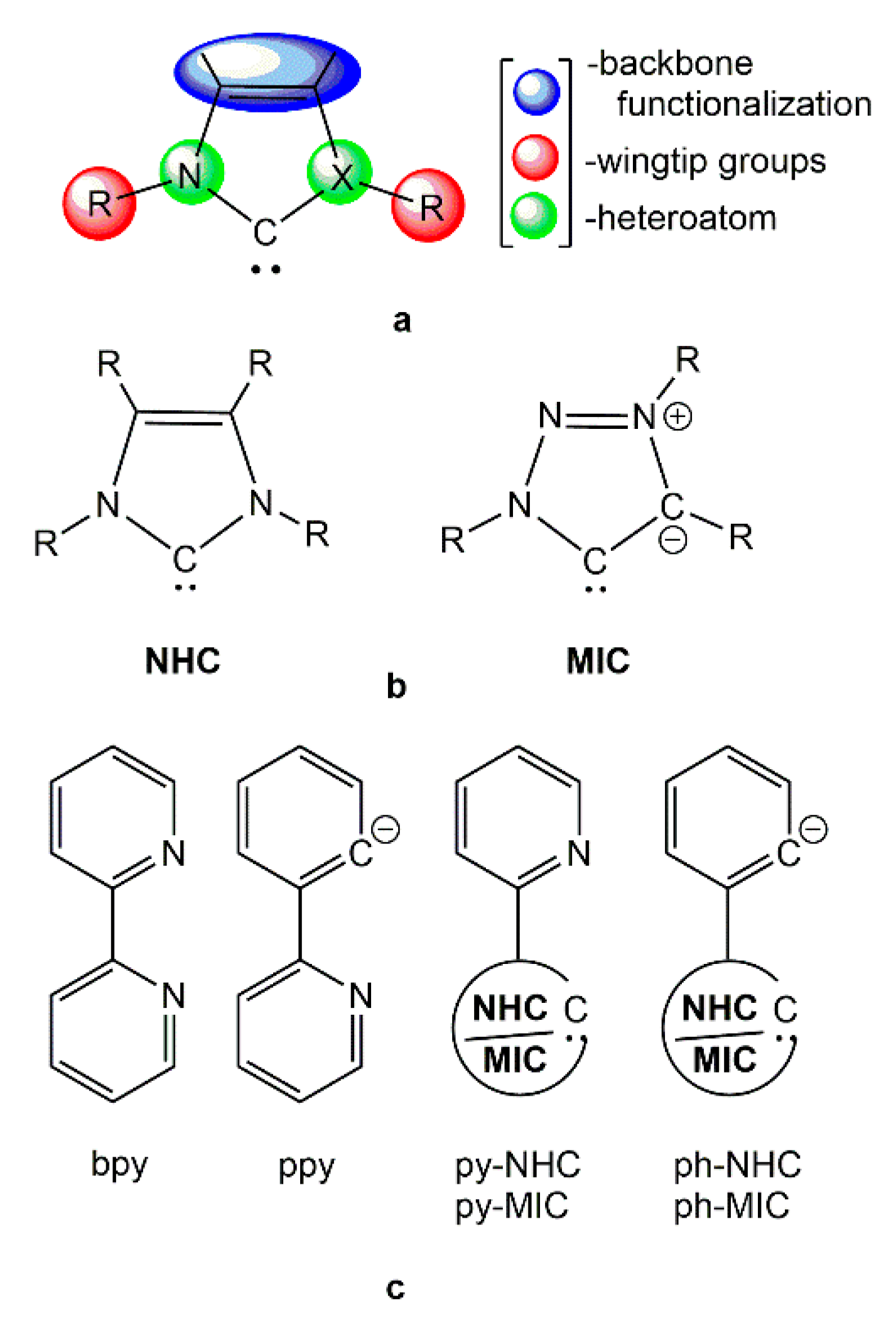

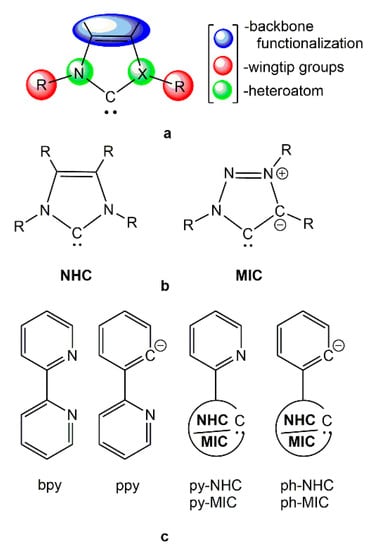

Mostly, two types of N-heterocyclic carbenes, Arduengo’s imidazole-based carbene (NHC, Figure 2b) and the mesoionic triazolylidene ring (MIC (mesoionic carbene), Figure 2b), have so far been integrated into bi- or tridentate ligand scaffolds in the quest for a new generation of ruthenium photoredox catalysts. For the definitions of these sub-groups and for the multidimensional classifications of carbenes in general, we direct the reader’s attention to the recent reviews cited herein [48,50]. In analogy to the bipyridine (bpy, neutral)/2-phenylpyridine (ppy, mono-anion) pair of ligands (Figure 2c) which dominate the field of classical ruthenium and iridium photoredox catalysis, the majority of the studied bidentate carbene ligands can be grouped into the pyridine–carbene (py-NHC and py-MIC, neutral) and phenyl–carbene (ph-NHC and ph-MIC, mono-anion) platforms displayed in Figure 2c. The MIC group is tethered to the phenyl or pyridine ring in these ligands either through its carbon or nitrogen adjacent to the carbene center. Benzo-fused NHC derivatives and substitutions at the carbene/pyridine/phenyl fragment at various positions represent the main dimensions of the chemical space for these ligands which were explored experimentally primarily within the heteroleptic [Ru(bpy)₂L]^+z (L is bidentate carbene-containing ligand) complex framework (e.g., Figure 3b). Nevertheless, a few examples of the homoleptic derivatives have also been reported together with their photophysical and electrochemical characterization [16,62]. The main driving concepts of using carbene-based fragments are (i) to strengthen the metal–ligand interactions in order to destabilize the ³MC state with respect to the ³MLCT and ground states with which the excited state lifetime potentially increases and (ii) to manipulate the metal- and ligand-centered redox energetics (e.g., through strong σ-donation) which increases the electron density at the metal center. These concepts were put into practice, for example, by Schubert and coworkers [55] in promising ruthenium(II) photosensitizers containing two tridentate cyclometalated mesoionic carbene ligands derived from a 1,2,3-triazole scaffold and by Soellner et al. [57] and Schleicher and coworkers [56] who demonstrated, amongst others, the superior electron-donating nature of cyclometalated-carbene ligands (ph-NHC and ph-MIC) over the pyridine-MIC combinations in heteroleptic bipyridine ruthenium(II) complexes.

2. Results and Discussion

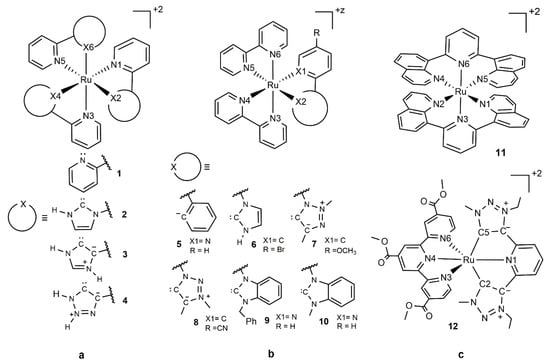

Twelve structurally related octahedral ruthenium photoredox catalysts, shown in Figure 3, have been systematically investigated in this computational study. The three distinct groups investigated included four homoleptic pyridine/carbene complexes with bpy, py-NHC, py-aNHC (prefix a denotes “abnormal” [63]), and py-MIC ligands (Figure 3a); six heteroleptic systems with two bpy and one carbene-containing ligand (Figure 3b); and two of the investigated systems, 11 and 12, displayed tridentate polypyridine/carbene ligands bound in facial and meridional fashions, respectively. To analyze the electronic structure changes and redox energetics along the photoredox quenching cycles of these systems, presented above universally for [Ru(bpy)₃]²⁺ through Figure 1, we computed the four stationary points determining the cycles, including the ground state species, S₀, the triplet ³MLCT state, T₁, the reduced (doublet) state, D^red, and the oxidized (doublet) state, D^ox, of all the complexes displayed in Figure 3. To ensure consistency along and easy navigation within the various species with different overall charge, spin state, etc., we systematically used the formal oxidation state assignments of the different states throughout the manuscript. Namely, the S₀ ground state can be best described with a formal d⁶-L⁰ electron configuration (the metal has six d electrons, Ru^II, whereas the ligands are in their most stable oxidation state), the ³MLCT state is formally d⁵-L⁻¹, whereas the oxidized and reduced states, both being doublet owing to the unpaired electron, are formally d⁵-L⁰ the d⁶-L⁻¹, respectively. In addition to scrutinizing the wavefunction of these states and their changes upon reduction/oxidation via DFT calculations, we computed the solution-state Gibbs free energies, G^sol, of these states allowing the evaluation of the excited- and ground-state reduction potentials, which were compared to the available experimental values and discussed in the context of the chemical nature of the ligands.

In the presence of solid-state structures and experimental redox potentials for several of the studied photoredox catalysts, the computational protocol established for equilibrium structures and for solution-state Gibbs free energies can be directly substantiated. In accordance with the findings of recent DFT reports [47], our optimization procedure was based on the PBE functional coupled to a triple-ζ basis set with relativistic core potential for Ru allowing the simulation of the equilibrium structures of ruthenium photoredox catalysts with high accuracy at a relatively low computational cost. Other factors, especially grid quality and dispersion correction, also contribute, to a non-negligible extent, to the accuracy of the computed geometries, whereas, according to our experience with the investigated systems, the resolution-of-identity approximation significantly reduces the computational cost without inducing a notable error in the structural metrics. All these details of our computational method are detailed in the methodology section. In

Table 1. Calculated and X-ray (in brackets) structural information of the first coordination sphere of selected photoredox catalysts in their corresponding singlet ground state. Bonds are listed in Å and angles are in °.

Bond (Å)		1	2	3	4	5	6	7	8	10
Ru–N/C	X1	2.058 (2.055)	2.162	2.181	2.186	2.078 (2.075)	2.060 (2.060)	2.061 (2.062)	2.057 (2.054)	2.075 (2.070)
	X2	2.058 (2.051)	1.972	1.983	1.980	2.029 (2.00)	2.014 (2.021)	2.038 (2.038)	2.032 (2.032)	1.990 (1.974)
	N3	2.059 (2.058)	2.161	2.182	2.187	2.056 (2.040)	2.053 (2.064)	2.048 (2.053)	2.049 (2.053)	2.058 (2.068)
	X4	2.058 (2.056)	1.972	1.983	1.980	2.034 (2.056)	2.121 (2.116)	2.112 (2.106)	2.110 (2.105)	2.059 (2.066)
	N5	2.058 (2.051)	2.162	2.181	2.186	2.137 (2.139)	2.095 (2.095)	2.087 (2.095)	2.091 (2.096)	2.124 (2.119)
	X6	2.059 (2.048)	1.972	1.983	1.980	2.031 (2.086)	2.040 (2.055)	2.035 (2.053)	2.0416 (2.055)	2.065 (2.061)
X1–Ru–X2	α	78.7 (78.6)	77.1	77.5	77.6	79.6 (79.6)	78.5 (79.1)	79.3 (79.6)	79.2 (79.8)	78.1 (77.9)
N3–Ru–X4	β	78.7 (78.4)	94.7	93.6	93.7	77.4 (77.8)	95.2 (98.8)	94.7 (93.3)	95.5 (95.9)	96.9 (93.6)
N3–Ru–X6	γ	173.5 (172.3)	169.2	170.2	170.0	174.1 (171.8)	173.3 (172.3)	174.2 (174.8)	173.4 (172.4)	172.1 (172.6)

X1 = N (compounds 1–5 and 10), X1 = C (compounds 6–8), X2 = N (compound 1), X2 = C (compounds 2–8 and 10), X4 = X6 = N (compounds 1, 5–8, and 10), X4 = X6 = C (compounds 2–4). Experimental values were taken from the following references 1 [64], 5 [65], 6 [56], 7–8 [57], and 10 [66].

, structural metrics that characterize the first coordination sphere and overall geometry are collected for a representative set of systems in their corresponding singlet ground state, S₀. Besides the computed bond distances and angles defined in Figure 3, the benchmark values for these structural parameters extracted from available empirical XRD structures are also reported in brackets in Table 1. The numbering of contact atoms is shown in Figure 3.

An excellent overall agreement existed between the experimental and computed metal–ligand bond lengths for all three types of complexes investigated independently from the nature of the ligand or its binding mode to the metal. Calculated ruthenium–nitrogen distances varied between 2.03 Å (in 5) and 2.14 Å (in 5) and were typically within 0.01 Å to measured values, when direct comparison was possible. The latter deviation was also characteristic for both types of ruthenium–carbon interactions, namely, Ru–carbene and Ru–phenyl, with the exception of the Ru–C_carbene bond of [Ru(bpy)₂(ppy)]¹⁺ (5), for which the largest divergence from the X-ray metric (approximately 0.03 Å) was documented. Also, the overall arrangement around the metal characterized by the selected intra-ligand (X1–Ru–X2) and inter-ligand (N3–Ru–X4 and N3–Ru–X6) were modeled realistically given the excellent agreement (typically within 1°) between the experimental and computed angles, independently from the nature of the contact atom, charge of the ligand, the overall charge of the complex, and whether the system was heteroleptic or homoleptic. Only in three cases, [Ru(bpy)₂(ppy)]¹⁺ (5), and [Ru(bpy)₂(ph^Br-NHC)]¹⁺ (6), and [Ru(bpy)₂(py-fNHC^Me)]¹⁺ (10), did one of the investigated angles deviate approximately 3° from the XRD which can be still considered realistic given that the packing effects and counter ions present in the crystal can interfere with the structure of the complex to such an extent to induce such a distortion. This overall and general agreement between the experimental and computed structural parameters implies that the equilibrium structures of the investigated photoredox catalysts were simulated truthfully, substantiating the method of calculation for molecular geometries and the subsequent analysis of structural metrics.

Due to the superior σ-donor nature of carbon over nitrogen and its concomitant strong trans influence, the metal–nitrogen distances trans to metal–carbon interactions elongated by as much as 0.1 Å with respect to trans-N–Ru–N arrangements. For example, the average Ru–N distance changed from 2.059 Å in the homoleptic [Ru(bpy)₃]²⁺ to 2.124 Å trans to the Ru–carbene(fNHC^Me) interaction in 10 (prefix f denotes benzo-fused carbenes). The latter Ru–C bond of 1.990 Å was also amongst the shortest metal–ligand bonds recorded in this study. In general, Ru–C_carbene distances (Ru–X2 in Table 1, compounds 2–4, 6–10, and 12) were somewhat smaller than Ru–C_phenyl ones (Ru–X1 in Table 1, compounds 6–8), and these Ru–C bonds were notably shorter than typical R–N_pyridine bonds. The most extreme distortions appeared in the homoleptic pyridine–NHC and pyridine–MIC complexes, 2, 3 and 4, where the Ru–C_carbene distances shortened to 1.97–1.98 Å, while the Ru-N_pyridine bonds elongated up to 2.187 Å, clearly reflecting the superior electron donor property of carbene ligands. In addition, the confined tethering of the NHC/MIC and pyridine groups in these chelating ligands led to a non-negligible divergence from the ideal octahedral binding, which can be witnessed in the deviation of the inter-ligand and intra-ligand angles (α, β, and γ) from their model values of 90°, 90°, and 180°, respectively. Another general observation that can be concluded from Table 1 is that NHC carbenes form slightly shorter bonds than MIC carbenes under similar circumstances. For example, going from 2 (NHC) to 3 and 4 (MICs) the Ru–C_carbene distances elongated by about 0.01 Å, whereas the difference was approximately 0.02 Å in the heteroleptic (bis)bipyridine derivatives, e.g., going from 6 (NHC) to 7 (MIC^Me) and 8 (MIC^Me) (Ru–X2 distances in Table 1). These results imply that the NHC carbenes were stronger σ-donors than the MIC groups in these ruthenium(II) complexes. This notion can also be witnessed in the Ru–N_pyridine distances trans to the carbene ligands, being longer if it was trans to NHC than to MIC. Benzo-fused NHC carbenes (fNHCs), such as in complex 9 and 10, appeared as even superior σ-donors, resulting in Ru–C_carbene bonds in the order of 1.99 Å and further elongated Ru–N_pyridine bonds trans to it.

Experimental ground- and excited-state reduction potentials have been reported for nine out of the twelve considered photoredox catalysts, which are listed in

Table 2. Computed ground- and excited-state reduction potentials for all investigated species in volts, referenced to the saturated calomel electrode (SCE), given together with the corresponding experimental values when available. Transitions that take place formally at the metal and at the ligand are denoted as d⁵/d⁶ and L⁰/L⁻¹, respectively, whereas excited-state redox events are indicated by *.

	E0 V versus SCE
	Ground State		Excited State
	d5/d6	L0/L−1	L0/L−1,*	d5/d6 *
1	1.29 (1.29)	−1.27 (−1.33)	−0.73 (−0.81)	0.74 (0.77)
2	1.12	−1.96	−1.35	0.52
3	0.14	−2.23	−1.73	−0.36
4	0.68	−1.68	−1.17	0.18
5	0.34 (0.37)	−1.61 (−1.70)	−1.23 (−1.36)	−0.04 (0.03)
6	0.34 (0.42)	−1.61 (−1.66)	−1.13 (−1.17)	−0.15 (−0.06)
7	0.21 (0.34)	−1.72 (−1.67)	−1.23 (−1.21)	−0.28 (−0.12)
8	0.37 (0.44)	−1.66 (−1.65)	−1.15 (−1.16)	−0.14 (−0.05)
9	1.29 (1.30)	−1.24 (−1.37)	−0.66 (−0.70)	0.71 (0.63)
10	1.26 (1.28)	−1.26 (−1.36)	−0.72 (−0.75)	0.71 (0.66)
11	0.94 (1.09)	−1.22 (−1.34)	−0.70 (−0.68)	0.42 (0.43)
12	1.21 (1.11)	−0.90 (−1.08)	−0.29 (−0.60)	0.60 (0.64)

in brackets, given together with the computed values for all species. It is apparent from the definition of absolute half-cell potential, Equation (1) (methodology section), that the solution-state Gibbs free energy change during reduction or oxidation has to be computed accurately in order to reproduce half-cell potentials and, subsequently, reduction potentials to a given reference system (SCE in this study). The general experience with the PBE functional is that it is not suitable for the computation of accurate relative energies when the electron number is not constant and, accordingly, one needs to use a different, preferably higher-rung DFT functional for the realistic simulation of redox events. In line with the conclusions of other studies [67], we repeatedly showed that the meta-GGA hybrid TPPSh functional with adequate dispersion correction captures the main features of the reduction and oxidation of transition metal complexes in terms of electronic structure and energy changes allowing the computation of accurate redox potentials [68,69].

The success of the combination of TPSSh and SMD solvation method in modeling solution-state redox energetics can also be witnessed in the close match between the computed and measured ground-state reduction potentials in Table 2. For all three kinds of complexes and for both types of reductions (i.e., metal-centered (d⁵/d⁶) and ligand-centered (L⁰/L⁻¹)) investigated, the reduction potentials were computed within 0.15 V to the experimental values. As a matter of fact, the deviation from the measured reduction potentials was frequently less than 0.1 V. This is an encouraging performance from DFT and implicit solvation, especially if one takes into account the chemical space covered. Both heteroleptic or homoleptic complexes were investigated with the overall charge varying from +3 (e.g., [Ru(bpy)₃]³⁺ in the D^ox state) to 0 (e.g., [Ru(bpy)₂(ph-NHC/MIC)]⁰ systems (6–8) in the D^red state); the chemical nature of ligands change significantly along the pyridine/phenyl/carbene series which can be bidentate or tridentate, substituted or non-substituted, etc. These findings suggest that accurate, efficient, and robust computational protocols can be established for the ground-state redox energetics of photoredox catalysts using DFT and implicit solvation.

It is worth noting that we have not followed the in silico protocol that was established recently by Demissie, Ruud, and Hansen [47] for computing the excited state redox potentials of photoredox catalysts. The latter study takes advantage of the fact that the reduction and oxidation quenching pathways are thermodynamic cycles with the energy of the absorbed photon being equal to the energy that is liberated in the two subsequent redox steps of each quenching cycle. Consequently, by computing the excitation energy, for example, by TD-DFT and using ground-state reduction potentials, the excited state redox potentials can be determined using the following formulas, where E₀₀ represents vertical S₀ → S₁ excitation energy.

$$E^{0*}{}_{\mathrm{red}}=E^0{}_{\mathrm{red}}+{\mathrm{E}}_{00}$$

$$E^{0*}{}_{\mathrm{ox}}=E^0{}_{\mathrm{ox}}-{\mathrm{E}}_{00}$$

The low rung B3LYP-D3 functional was found to be appropriate to reproduce the excited-state reduction potentials of classical ruthenium and iridium photoredox catalysts. In contrast to this approach, our computational protocol avoids the use of TD-DFT for excited-state reduction potentials and, instead, utilizes the definition equation of half-cell potentials, Equation (1), where the ΔG^sol values of excited state redox events are determined with respect to the triplet MLCT state. In other words, by directly computing the solution-state Gibbs free energy of the ³MLCT state using the same method as was established for ground-state energetics, the ΔG^sol value of the excited-state oxidation and reduction processes can be easily determined using the G^sol values of D^ox and D^red, respectively. The corresponding excited-state reduction potentials are also given in Table 2 for the L⁰/L^−1,* and d⁶/d^5,* transitions revealing that this approach offers simulated values that agree reasonably well (within 0.2 V) to experimental reduction potentials. Then again, this observation is generic, remaining true for both excited-state metal- and ligand-centered oxidations/reductions independently from the nature of the ligands, their binding mode, overall charge of the complex, etc. Only in one instance was there an unacceptable mismatch (−0.31 V) between theory and experiment; in complex 12 with a multi-functionalized terpyridine and a tridentate carbene containing C^N^C ligand, the excited-state ligand-centered oxidation was predicted to be at a notably more positive potential (−0.29 V) than experimentally determined (−0.60 V).

It is worth looking into some of the telltale chemical trends revealed by the reduction potentials collected in Table 1. Most importantly, seven of the studied systems (i.e., 1, 5, 6, 7, 8, 9, and 10) can be clearly grouped into two sub-classes with very similar redox properties. Namely, 1, 9, and 10 had reduction potentials of about 1.3 V for the Ru(III)/Ru(II) transition, −1.25 V for the ground-state ligand-centered reduction, and approximately −0.7 V and 0.7 V for the excited-state L/L⁻¹* and Ru(III)/Ru(II)* events, respectively. On the other hand, 5, 6, 7, and 8 underwent metal-based d⁶/d⁵ oxidation at about 0.2–0.35 V and ligand-centered reduction at −1.6 to −1.7 V in the ground state, and the excited-state reduction potentials of these complexes were also rather similar in spite of the difference of the constituting ligand frames. From a side-by-side comparison of the structures of these two groups, however, one can easily deduce that there was only one main structural feature that remained unchanged within a group but changed along the two groups which was the pyridine versus phenyl group in the carbene-containing ligands. Namely, all these complexes shared the same (bpy)₂RuL platform; however, L was py-py (i.e., bpy), py-fNHC^CH2Ph, and py-fNHC^Me in 1, 9, and 10, respectively, and it was ph-py (i.e., ppy), ph^Br-NHC, ph^OMe-MIC^Me, and ph^CN-MIC^Me in 5, 6, 7, and 8, respectively. These data imply that the most critical factor that determines the redox energetics in these photoredox catalysts is whether the ligand is phenyl or pyridine based. The observed trend that phenyl-containing complexes undergo easier metal-centered oxidation and their ligand-centered reduction is energetically more challenging than pyridine-based complexes agrees with the intuitive chemical notion that the carbanion contact atom of phenyl is a superior electron donor to pyridine’s nitrogen leading to, for example, the stabilization of the metal center at higher oxidation states [55,70,71]. The independence of the reduction potentials of metal-centered processes on the nature of the carbene fragment implies that even if these carbenes are excellent σ-donors, their stabilization effect in the different metal oxidation states is apparently counteracted by the weakened Ru–N bonds trans to these Ru–C_carbene interactions. On the other hand, the finding that the energetics of ligand-centered redox events does not depend on the nature of L, the carbene-containing ligand, suggests that the latter does not participate in the formally ligand-based reductions/oxidations of these (bpy)₂RuL-type complexes. This notion is unambiguously confirmed by subsequent analyses.

In contrast to the former heteroleptic systems, the nature of the carbene ligands directly and unmistakably manifests in the redox properties of homoleptic systems, 1, 2, 3, and 4 (Table 2). For instance, the sharp decrease of the Ru(III)/Ru(II) reduction potential from 1.29 V [Ru(bpy)₃]²⁺ (1) to 1.12 V, 0.68 V and 0.14 V in the parent [Ru(py-NHC)₃]²⁺ (2), [Ru(py-MIC)₃]²⁺ (4), and [Ru(py-aNHC)₃]²⁺ (3) systems, respectively, can be attributed to the increasing σ-donor properties of the carbene fragments leading to the extra stabilization of the Ru(III) over Ru(II). The same trend was observed for the excited-state metal-centered redox event of these complexes. The shift of 0.5 V when going from 3 to 4 is especially telltale for how the change of one atom in the ligand frame (N to CH in this case) can affect the electronic properties of carbene groups and ligands. The very negative reduction potential of ligand-centered events (e.g., −1.96 V in 2 with NHC groups and −2.23 V in 3 with aNHC groups) indicates that these types of carbene ligands cannot efficiently stabilize additional electrons in their π-system, i.e., these groups have poor redox activity. This property also manifests in the excited-state reactivity, offering a significantly large thermodynamic driving force to extrude the ligand-centered electron in the ³MLCT state. This insight might help rationalizing the recent observation by Jalón and co-workers [16] that the homoleptic ruthenium–carbene complex A directly reacts with the co-catalysts through the oxidative quenching cycle instead of reacting with an electron donor (the sacrificial agent) first through the reductive quenching cycle. Finally, the results obtained for complexes 11 and 12 reveal that there was an additional significant prospective in controlling the redox energetics through other factors, like using more extended tridentate ligands and their different binding modes (e.g., meridional versus facial) to the metal. In 12, for example, it was interesting to see that the two NHC wingtip groups had the same effect on the Ru(III)/Ru(II) transition that was discussed for the [Ru(py-NHC)₃]²⁺ system (2), while the tpy ligand of 12 offered stable states with ligand-centered radicals (i.e., ligand-centered reductions shifted towards more positive potentials with respect to bpy). As discussed below, the latter behavior can be attributed solely to the tpy ligand as the C^N^C carbene ligand does not participate in the ligand-centered redox events.

To gain detailed insight into the electronic structure changes during the reduction and oxidation steps of the quenching cycles and to further conceptualize some of the observed trends in the redox energetics, we analyzed the electron density difference maps, Δρ(r), corresponding to the five fundamental steps of the quenching cycles, such as S₀ → ³MLCT, ³MLCT → D^red, D^red → S₀, ³MLCT → D^ox and D^ox → S₀. While electron density difference distributions have been utilized extensively to analyze electronic transitions upon photoexcitation and to distinguish MLCT, MC, and LLCT transitions, etc., its use to characterize the nature and detailed features of transitions that include outer-sphere electron transfer events was pioneered by us [68,69]. For a single electron reduction, for example, the density difference distribution Δρ(r) is evaluated as the electron density of the reduced state minus the electron density of the oxidized state which, if plotted in 3D together with the molecular frame, reveals the sites, functional groups, and atoms where charge accumulates or depletes upon the reduction process. The analysis has to be carried out at a constant geometry in practice, which is an acceptable approximation in the case of the studied systems as the molecular geometry only distorts marginally upon the reduction and oxidation of these species. Namely, as the metal-centered reduction or oxidation event involves a formally non-bonding t_2g d-orbital; the geometry barely changes during the redox event, and such a notion can be clearly observed in

Table 3. Average Ru–N_pyridine, Ru–C_phenyl, and Ru–C_carbene distances (in Å) in the four stationary points (S₀, T₁, D^ox, D^red) of the oxidative and reductive photoredox cycles for [Ru(bpy)₃]²⁺ (1), [Ru(bpy)₂(py-fNHC^Me)]²⁺ (10), and [Ru(tpy)(C^N^C)]²⁺ (12).

Bond (Å)	[Ru(bpy)3]2+				[Ru(bpy)2(py-fNHCMe)]2+				[Ru(tpy)(C^N^C)]2+
	S0	T1	Dox	Dred	S0	T1	Dox	Dred	S0	T1	Dox	Dred
Ru–X1	2.058	2.058	2.070	2.050	2.075	2.083	2.078	2.066	2.090	2.114	2.110	2.055
Ru–X2	2.058	2.058	2.070	2.050	1.990	1.999	1.987	1.965	2.059	2.057	2.065	2.050
Ru–N3	2.058	2.059	2.070	2.050	2.058	2.049	2.066	2.051	2.063	2.075	2.075	2.061
Ru–N4	2.058	2.059	2.070	2.050	2.059	2.052	2.073	2.055	1.952	1.966	1.968	1.978
Ru–X5	2.058	2.059	2.070	2.050	2.124	2.126	2.145	2.121	2.059	2.064	2.066	2.049
Ru–N6	2.058	2.059	2.070	2.050	2.065	2.061	2.082	2.059	2.061	2.074	2.081	2.060

X1 is N. X2 is carbene carbon. X5 is N in [Ru(bpy)₃]²⁺ and [Ru(bpy)₂(py-fNHC^Me)]²⁺ but an MIC-type carbon in [Ru(tpy)(C^N^C)]²⁺.

which lists the metal–ligand distances in the four states involved in the quenching cycles for three structurally different representative systems: 1, 10, and 12. In complex 6, for example, Ru–N_pyridine bond distances have a maximum variation of 0.03 Å through the four states, and this change is also characteristic for the metal–carbanion distances, whereas Ru–C_carbene distances vary even less upon photoexcitation and redox events. An additional interesting finding revealed in Table 3 was the shorter Ru–C_carbene bonds (Ru–X2) in the D^red state with Ru(II) than in D^ox where the carbene binds to a Ru(III) center. Furthermore, as the redox active orbital of the ligand is delocalized, the ligand-centered L⁰/L⁻¹ transitions induced only slight deformations in the ligand frame upon reduction, which we clearly demonstrated in our earlier studies on redox non-innocent and redox active ligands with similar features than the ligands investigated in this study [68,69]. These results support the notion that density difference distributions determined at the equilibrium structure of either the oxidized or reduced state characterize realistically the electronic structure changes of the corresponding redox event in the investigated photoredox platforms.

Figure 4 shows the electron density difference distribution, Δρ(r), for the photoexcitation process and subsequent redox events of the reductive quenching cycle for three representative photoredox catalysts, such as the homoleptic [Ru(bpy)₃]²⁺ (1), heteroleptic [Ru(bpy)₂(py-fNHC^Me)]²⁺ (10), and [Ru(tpy)(C^N^C)]²⁺ (12), with the tridentate terpyridine and C^N^C MIC-containing ligands. The analogous Δρ(r) maps of the oxidative quenching cycle are given in the Supplementary Materials (Figure S1). The Δρ(r) maps of the S₀ ³MLCT (T₁) processes (left, Figure 4) offer intuitive insights into the electronic changes induced by photon absorption and subsequent intersystem crossing (ISC) in these systems, revealing characteristic metal-to-ligand charge transfers in accordance with the MLCT nature of the triplet excited state. The depletion of electron density (red sites) at the metal and the accumulation of density (yellow regions) mostly at the ligand is a general feature in all the three systems when going from the S₀ state to the ³MLCT state.

Nevertheless, other relevant details can be deduced from the close inspection of the plots. For example, when accumulated on the bipyridine ligand(s) (e.g., in [Ru(bpy)₃]²⁺) the electron density is not delocalized to the backbone of the ligand(s) to the extent as perhaps expected on the delocalized nature of its LUMO. Instead, it remains “localized” at the N–C–C–N contact functionality of the ligand. This pattern of density accumulation was also observed for redox non-innocent benzoquinonediimine ligands upon reduction and was rationalized based on a superior electrostatic stabilization when the accumulated negative charge at the ligand remains in the proximity of the formally +3 metal, in contrast to being delocalized to the backbone of the ligand [68,69]. This density accumulation pattern at the ligand can be also observed for 10 and 12.

Probably the most spectacular insight revealed by this analysis is the disclosure of the localization of the transferred charge to bipyridine and terpyridine ligand(s) in heteroleptic carbene complexes. Namely, going from [Ru(bpy)₃]²⁺ to [Ru(bpy)₂(py-fNHC^Me)]²⁺ (10) and [Ru(tpy)(C^N^C)]²⁺ (12), the charge transferred from the metal to the ligand which was delocalized uniformly amongst the three bpy ligands in [Ru(bpy)₃]²⁺, becoming localized to the two bpy ligands in [Ru(bpy)₂(py-fNHC^Me)]²⁺ and to the tpy ligand in [Ru(tpy)(C^N^C)]²⁺ (12). Accordingly, the involvement of the carbene-containing ligand into the photoexcitation was negligible. Of course, pyridine and carbenes differ in their electron affinities giving rise to this behavior of non-equivalent charge distribution in heteroleptic systems. Nevertheless, the sharp contrast between the contribution of carbenes and bpy to hosting the transferred charge was remarkable as revealed by Figure 4. In homoleptic carbene complexes with three identical ligands (e.g., in 2, 3, and 4) similarly to [Ru(bpy)₃]²⁺, the transferred charge was delocalized throughout all ligands.

Admittedly, besides the yellow (accumulation) lobes at the ligands, which clearly exhibit the features of π-symmetry redox active orbitals, some loss of electron density can also be witnessed at the ligand as implied by the red regions in certain cases. These red sites correspond to σ-symmetry with respect to the ligand frame (e.g., in [Ru(bpy)₃]²⁺), and they imply an enhanced σ-donation from the ligand to the metal when it formally changed from Ru(II) to Ru(III). This increased donation was also reflected by the directional accumulation (yellow) at the metal.

The Δρ(r) maps corresponding to the two redox steps of the reductive quenching cycle, ³MLCT to D^red and D^red to S₀, are also given in Figure 4 for the three selected photoredox catalysts. These analyses were carried out at the equilibrium structure of the S₀ state of the complexes, and the approximation did not alter the conceptual insight offered by the analysis of the Δρ(r) maps.

The established photophysics and subsequent chemical processes imply a formal d⁵/d⁶ metal-based reduction for the first (excited state) step of the reductive quenching cycle whereas a conventional ligand-centered oxidation was expected for the D^red → S₀ transition corresponding to the second step of this pathway. Indeed, Figure 4 clearly reveals a massive accumulation of electron density around the metal in each complex, aligning well with the consensus assignment of an excited-state d⁵/d⁶ transition. The electron density change maps corresponding to the second step also unambiguously demonstrated ligand-centered redox events in all systems with a minor or negligible contribution from the metal. Then again, the marginal contribution of carbene ligands, with respect to that of bipyridine and terpyridine to these ligand-centered redox events, can be clearly witnessed and which can be rationalized based on the superior redox activity and electron affinity of pyridine to carbenes. These insights also clarify the observation that the redox energetics of formal ligand-centered processes does not depend on the nature of the carbene ligands in heteroleptic systems.

Another intuitive way to monitor the electronic structure changes of open-shell species is using spin-density distributions (ρ^s(r) = ρ^α(r)−ρ^β(r)) [72,73,74] and their changes upon a chemical process.

Table 4. Fragment/atom condensed spin density populations at the metal and at the ligand, separated into the constituting fragments, in the ³MLCT, D^ox, and D^red states of homoleptic complexes 1–4 and heteroleptic systems 8 and 10, determined using the Löwdin method.

Complex	Frag	3MLCT	Dox	Dred	3MC
1 [Ru(bpy)3]2+	Ru	0.827	0.853	−0.028	1.668
	∑py	1.172	0.145	1.009	0.331
2 [Ru(py-NHC)3]2+	Ru	0.657	0.652	−0.029	1.204
	∑py	0.814	0.277	0.270	0.321
	∑NHC	0.527	0.070	0.072	0.474
3 [Ru(py-aNHC)3]2+	Ru	0.679	0.715	−0.019	1.236
	∑py	0.648	0.094	0.523	0.347
	∑MIC	0.672	0.189	0.496	0.416
4 [Ru(py-MIC)3]2+	Ru	0.727	0.762	−0.012	1.281
	∑py	0.512	0.080	0.447	0.299
	∑MIC	0.759	0.156	0.565	0.419
8 [Ru(bpy)2(phCN-MICMe]1+	Ru	0.824	0.758	−0.007
	∑py	1.038	0.033	0.962
	R-Ph	0.032	0.171	0.018
	R-MIC	0.104	0.036	0.026
10 [Ru(bpy)2(py-fNHCMe)]2+	Ru	0.753	0.633	−0.011
	∑py	1.116	0.055	0.992
	R-py	0.025	0.006	0.010
	R-NHC	0.105	0.014	0.008

gives the atom(Ru)- and fragment(ligand)-condensed spin density values in the ³MLCT, D^ox, and D^red states for six representative systems and in the ³MC state of homoleptic complexes 1–4. The corresponding spin density values in the S₀ state are zero by definition. This quantitative analysis has been carried out at the corresponding equilibrium geometry of each investigated state and, thus, it is not affected by the fixed geometry constraint applied in the EDD analysis. Spin density values of 0.7–1.0 at the ruthenium center, observed in ³MLCT and D^ox states, reveal a formal unpaired α electron at the metal, which indicates a d⁵ configuration, i.e., a Ru(III) oxidation state. The deviation from the nominal value of 1.0 was due to the π-donation from the ligand to the metal in the β subspace (one of the π-symmetry t_2g orbitals is half-vacant) and to a minor extent to the π-back-donation from the metal to the ligand in the α subspace. The latter effect was plausibly negligible in the complexes investigated, as Ru(III) is a weak back-donor. Accordingly, the Ru-condensed values imply formal Ru(III) centers in the triplet ³MLCT and doublet D^ox states, whereas the d⁶ Ru(II) oxidation state was prevalent in the reduced D^red state, in accordance with the consensus formal assignments of these states. Similarly, ligand/fragment-condensed values close to 1 imply a formally one-electron reduced ligand or fragment, whereas fractional values describe the delocalization of the unpaired electron to other groups/metal.

The variation of the condensed spin-density values amongst the different states support explicitly the notions deduced above through the analysis of the density difference maps. For instance, going from ³MLCT to D^red the spin-density at Ru decreases from ~0.7 in ³MLCT to ~0.0 in D^red, implying a fairly localized metal-centered d⁵/d⁶ transition. In contrast, the spin density distribution around the metal remains rather intact upon ³MLCT to D^ox transition, while the mono-radical character of the ligand (spin-density value of 1–1.2) disappears, revealing a pure ligand-based oxidation. As also demonstrated above, the low spin density values (<0.1) at the carbene fragments in all three oxidation states unambiguously demonstrate that these ligands do not participate actively in the photoexcitation and subsequent redox events in heteroleptic systems (e.g., in 8 and 10, Table 4). In these cases, all ligand-based changes are confined to the bipyridine ligands. In contrast, carbene ligands (py-NHC, py-aNHC and py-MIC) act as redox-active ligands in the MLCT and ligand-centered redox events of homoleptic catalysts 2, 3, and 4. As one can see in Table 4, there is more spin density confined to the carbene groups (0.67 in 3 and 0.76 in 4) of these chelating ligands than to the pyridine fragment showing that the unpaired “extra” electron is significantly delocalized to the carbene fragment. Some of the contribution to this spin density at the carbene, however, originates from the π-donation from the carbene to the d⁵-metal in the β subspace, which lowers the condensed spin-density value at the metal (0.68 in 3 and 0.73 in 4) and increases the spin density at the ligand. The spin densities of 0.19 and 0.16 at the carbene in the D^ox state (formally d⁵-L⁰) of 3 and 4, respectively, give a first-hand measure to the extent of this π-donation from the carbene to the d⁵ metal. Finally, we provided the condensed spin density values in the ³MC state for some of these species, as we used this property to monitor electronic structure changes along the ³MLCT to ³MC transition which is discussed in the followings.

Beyond the above described photophysics and redox properties, another critical property of efficient photoredox catalysts is the long lifetime (~μs) of the ³MLCT state of these complexes, which allows these species to engage in intermolecular collisions and reactions in the excited state [75]. Both radiative and non-radiative processes contribute to the decay of the ³MLCT state, and these processes, together with the lifetime, depend significantly on other external factors, for example, on the solvent [18,76,77]. It has been demonstrated, for instance, that 80% of triplet MLCT excited-state *[Ru(bpy)₃]²⁺ returns to the ground state through the ³MC state following a very efficient non-radiative pathway [78]. Accordingly, if the transition from the ³MLCT to the ³MC state is fast (i.e., a small activation barrier separates these states), the overall deactivation proceeds at high rates [79,80,81,82]. In regard to the ³MLCT to ³MC transition, one has to realize that the t_2g d orbital set cannot host another α electron in the ³MC state and one of the e_g* d orbital, typically the d_z², is necessarily populated by an electron in this state. The formally metal-based d_z² is anti-bonding along the axial M–L interactions in an octahedral field, and its population results in a repulsion along the M–L bond and, concomitantly, to a characteristic elongation of the axial bonds [14]. Accordingly, the geometry around the metal is quite different in the ³MC and ³MLCT states which means, from a computational viewpoint, that these two triplet states appear as well-defined local minima on the triplet PES and the corresponding connecting transition state also has acute features that characterize the elongation of the axial bonds [83,84]. These notions can be clearly recognized in Figure 5 showing the structure of ³MLCT, ³TS, and ³MC states of homoleptic systems 1, 2, and 3, calculated at the PBE/Def2-TZVP(−f) level of theory, given together with their gas phase and solution-state (in acetonitrile) relative energies to ³MLCT.

As hypothesized based on the formal electronic structure of the ³MC state, the structure of this state was indeed significantly distorted along the axial axis for all three systems shown in Figure 5. For example, both axial Ru–N_pyridine bonds elongated by about 0.4 Å in the case of [Ru(bpy)₃]²⁺ during the ³MLCT to ³MC transition (Figure 5). In this analysis, we scrutinized only homoleptic systems with three identical N–Ru–N or N–Ru–C_carbene axes to limit the conformational possibilities of the ³MC and ³TS states to only one and be able to reveal the conceptual differences triggered by Ru–N_pyridine versus Ru–C_carbene bonds in the ³MLCT to ³MC transition. Side-by-side comparison of the ³MC states of 1, 2, and 3, for instance, revealed profound differences between the systems with trans N–Ru–N and N–Ru–C_carbene interactions in contrast to the symmetric elongation of the N–Ru bonds along the N–Ru–N axis in 1; the Ru–C_carbene interactions in 2 and 3 remained practically intact upon the ³MLCT to ³MC transition, and all the chemical changes (reduction of the metal center in an intermediate-spin fashion) accumulated along the Ru–N bond trans to the carbene. The latter bond elongated by about 0.9 Å and 1.1 Å in the ³MC state of 2 and 3, respectively. The corresponding electronic structure deformation can be rationalized by a strong hybridization of the d_z² orbital with the 5p_z(Ru) atomic orbital and it also gains a “−x²” character in 2 and 3 which is also reflected by the spatial distribution of the quasi-restricted orbital (QRO) representing the half-filled d-orbital (HOMO in all three cases) along the z-axis (Figure 5).

The transition states corresponding to the ³MLCT to ³MC transition of the systems also exhibited these structural feature differences. Namely, a symmetric stretching of N–Ru–N was revealed in ³TS of 1, whereas an asymmetric, Ru–N-centered bond breaking along the N–Ru–C_carbene axis was taking place in the ³TS transition state of 2 and 3. In addition, while the transition state of complex 1 can be termed as late due to the axial Ru–N distances being close to the values in the “product” ³MC state, the breaking Ru–N bond had distances of 2.6 Å and 2.7 Å in 2 and 3, respectively, indicating a mid-TS in these carbene ligand-containing systems. These conceptual differences between the ³MC states and corresponding transition states may be well explained by the strong σ-donor nature of the carbene groups. As discussed above for the geometries of the S₀ states, superior σ-donor carbenes form strong (and short) Ru–C_carbene bonds which are energetically disadvantageous to break or weaken and which lead to stable 3MC states in which these Ru–C_carbene bonds remain short, strong, and stabilizing. At the same time, the “extra” electron that the metal accepts from the ligand through the ³MLCT to ³MC transition gets accumulated along the Ru⋯N internuclear axis trans to the carbene (facilitated by p_zd_z² hybridization and extension to a perpendicular axis (x)), without any delocalization towards the Ru–C_carbene site. The notion that carbene ligands stabilize the ³MC state over ³MLCT in comparison to polypyridine ligands through the same electronic effect can be indeed seen in the calculated relative stabilities (Figure 5). Accordingly, the solution-state (gas phase) relative energy of ³MC state to ³MLCT decreased from 7.8 (12.2) kcal mol⁻¹ in 1 to −0.2 (1.6) kcal mol⁻¹ in 2 and to 6.9 and 9.0 kcal mol⁻¹ in system 3. The relative transition state energies exhibited an analogous trend, i.e., the activation barrier was lowered going from the pyridine–ruthenium system 1 to the carbene complexes 2 and 3. This finding might sound somewhat counterintuitive at first, as the general concept is that strong Ru–C_carbene bonds resist bond breaking/stretching, which leads to higher activation barriers and longer triplet state lifetimes. Apparently, Ru–C_carbene bonds indeed resist bond stretching, nevertheless, it is easier to break the Ru–N_pyridine bond trans to carbenes as in N–Ru–N type axes, which might manifest in a facile non-radiate decay through the ³MLCT to ³MC path. The particularly low activation barrier of 2.57 kcal mol⁻¹ in the case of complex 2 might account for the observation of Chung and co-workers [62] that complex “is nonemissive in acetonitrile at room temperature”.

In 2010, an innovative technique, the non-covalent interaction (NCI) index, based on the correlation of the electron density and the reduced density gradient at any given point of space was introduced by Yang and co-workers [85] to identify and characterize weak chemical interactions [85,86]. This method has been already successfully used for distinguishing hydrogen bonds, halogen bonds, π–π stacking, van der Waals interactions, steric repulsions, and other types of weak interactions in various systems [87,88]. Despite its great success in describing weak interactions in complex environments, to our best knowledge, no study on putative non-covalent interactions in photoredox catalysts has been carried out with this technique so far.

As the presence of inter-ligand weak interactions has been postulated in these systems, we were especially interested in the new insights that the NCI method may provide in the studied complexes. Plotting the low-gradient/low-density region points for the S₀ state in real space with respect to the molecular frame of the complexes indeed reveals certain weak ligand-ligand interactions, from which representative examples are shown in Figure 6. Complex 6 and 10 demonstrate that alpha C_α–H bonds of bpy are oriented ideally to develop weak C–H⋯C_carbene, C–H⋯C_phenyl and C–H⋯N_pyridine interactions with the donor atoms of the other ligands, which can be witnessed in the localized green “plates” between the interacting regions. In both of these complexes, the wingtip group of the carbene fragments also engages in dispersion-like alkyl⋯pyridine (in 6) and aryl⋯pyridine π–π stacking (in 10) interactions implied by the extended green surfaces between these sites. Complex 11 exemplifies that massive π–π stacking can also emerge among the extended aromatic fragments of ligands, in which instances these weak interactions gain a non-negligible secondary role in determining the molecular structure. This notion was clearly supported by DFT calculations carried out with and without dispersion correction for 11, giving equilibrium structures with notable differences, dispersion corrected DFT structures being truthful to the X-ray geometry [77]. The extent of such inter-ligand weak interactions also depend profoundly on their binding mode to the metal as revealed by the significant differences between 11 and [Ru(tpy)(pmi)]²⁺; the meridional arrangement in the latter detrimentally limited the ligands in developing π–π interactions through their backbone chains or groups, and only the wingtip groups were oriented preferably to interact with the other ligand(s) in the system. In contrast to [Ru(tpy)(pmi)]²⁺, the facial binding in 11 directly facilitated the through-space interaction of the extended aromatic backbone groups of the two ligands as can be clearly seen in Figure 6.

According to these findings offered by the NCI method, indeed many types of weak intra-ligand interactions emerge in classical and carbene-based photoredox catalysts which might even play a secondary role in determining the ultimate geometry of the complex. Our general experience with these kinds of weak interactions, however, is that they do not change notably along the photoredox quenching cycles as the overall geometry of the involved four states, S₀, ³MLCT, D^ox and D^red, is very similar as discussed above for Table 3. Hence, their contribution to the redox energetics is negligible, i.e., the contribution of weak interactions to the stability cancels out when calculating ∆G^sol values for the different redox events. Their effect on the quenching dynamics, vibrations, radiative, and non-radiative decay processes of the ³MLCT state and concomitantly on the lifetime of the ³MLCT state is plausibly not negligible; however, it is admittedly hard to judge from this simple NCI analysis and needs further investigation.

3. Materials and Methods

Density functional theory was implemented in ORCA (version 4.0.1.2, Max-Planck-Institute for Chemical Energy Conversion, Mülheim a. d. Ruhr, Germany, 2017) was utilized for all calculations in this study [89]. Geometry optimizations were carried out using the non-truncated models of the investigated transition metal complexes and the gradient-corrected PBE [90,91] functional together with the Def2-TZVP(-f) [92] basis set at a grid set denoted as Grid4. The Def2-ECP [93] effective core potential for Ru was built in the basis set by default which also aimed to account for the relativistic effects at the ruthenium center. In addition, the resolution of identity (RI) approximation was applied to accelerate geometry optimizations [94]. Dispersion was considered through Grimme’s D3 [95] method in combination with the Becke–Johnson damping scheme [95] at short distances (D3BJ) in all calculations including the geometry optimizations. Analytical vibrational frequency calculations were carried out at the same level of theory as for the optimizations (PBE/Def2-TZVP(-f), Grid4) to validate that the optimized structures corresponding to minima or transition states of the potential energy surface (PES). Also, thermodynamic corrections to the electronic energy were obtained within the ideal gas-rigid rotor–harmonic oscillator approximation at T = 273.15 K. The energy of the examined structures was re-evaluated and their wavefunctions were refined through single points calculations at the TPSSh/Def2-TZVP level of theory without approximating the integrals with RI or RIJCOSX and maintaining D3BJ and Grid4 grid.

Solvation energy was computed using the SMD [96] implicit solvation model as implemented in ORCA at the gas-phase equilibrium structures at the TPSSh-D3/Def2-TZVP level of theory, using the same parameters of the single point calculations. We utilized the solvent accessible surface (SAS) method to create the cavity surface around the molecules, whereas the atomic radii of the default method were adjusted to the following values: H (1.150 Å), C (1.900 Å), N (1.600 Å), Ru (1.481 Å). Acetonitrile was used as solvent with a radius of 2.19 Å.

We followed the established procedure for computing redox potentials as detailed by Roy et al. [97] and Baik and Friesner [98]. By definition, the standard absolute half-cell potential (E⁰) was evaluated as:

$$E^0\left(A/A^{-}\right)=\frac{-\mathsf{\Delta }{\mathrm{G}}^{sol 0}\left(A/A^{-}\right)}{nF}$$

(1)

For the general reduction process:

$$A+e^{-}\to A^{-}$$

(2)

where ∆G^sol is the solution-state Gibbs free energy of species A^– minus that of A; n is the number of moles of electrons transferred (n = 1), and F is the Faraday constant. ∆G^{sol 0} was evaluated through the Born–Haber thermodynamic cycle [99] using gas phase equilibrium structures and thermodynamic corrections computed at the gas phase equilibrium structures. Gas-phase Gibbs free energy values were corrected by solvation energies to obtain solution-state Gibbs free energies of the individual species. We used the standard calomel electrode (SCE) as reference to calculate reduction potentials from the computed half-cell potentials as:

$$E^0=E^0\left(A/A^{-}\right)-E^0\left(SCE\right)$$

(3)

We used the value of 4.429 V for SCE established and verified recently by Demissie, Ruud, and Hansen [47]. For the electron density difference analysis, we used the wavefunctions obtained at the TPSSh/Def2-TZVP level of theory and Grid4 grid and computed at the equilibrium structure of the ground S₀ state. Standard cube files of electron densities with grid dimensions of 80 × 80 × 80 for each electronic state were generated with the orca_plot script, whereas the Multiwfn 3.7 [100] package was used to create the density differences for the d⁶L⁻¹–d⁵L⁻¹, d⁶L⁻¹–d⁶L⁰, and d⁵L⁻¹–d⁶L⁰ processes as shown in Figure 4. The ∆ρ(r) maps were visualized using VMD 1.9.1 [101].

Non-covalent interaction (NCI) surfaces, introduced by Yang and Contreras-García [85,86], were calculated using PBE/Def2-TZVP (-f) densities and the Multiwfn (version 3.7) program (with all other computational details identical to that used for generating EDD maps). The NCI method was centered at the relationship of the reduced density gradient, s, and the electron density, ρ; in the case of any type of weak interaction present in the system, a characteristic signal emerges at the low-density/low-gradient values. The sign of the second component of the Laplacian along the three principal axes of maximal variation was used to decide whether a weak interaction is attractive or repulsive in line with common practice.

4. Conclusions

In conclusion, in this computational study, we systematically investigated the photoredox properties of twelve ruthenium–carbene and –polypyridine transition metal complexes using density functional theory. Through a direct comparison to experimental data, we demonstrated an efficient method based on the combination of the PBE functional with Grimme’s D3 method and a balanced triple-ζ basis set that provided realistic molecular structures of these photoredox catalysts. We also validated a computational protocol based on the TPPSh functional and a re-parameterized SMD solvation model for solution-state Gibbs energies allowing the simulations of the ground-state redox energetics of metal- and ligand-centered electron transfer events within 0.15 V. The results also revealed that the relative Gibbs free energy of the ³MLCT state can be realistically computed using standard ground-state DFT without the necessity for time-dependent techniques, allowing the accurate calculation of the excited state redox potentials of these systems. Analysis of the obtained reduction potential values revealed that NHC and MIC carbenes have similar effects on the reduction potentials of Ru(III)/Ru(II) transitions as pyridine, while the pyridine/phenyl exchange has a significant effect on the redox energetics of ligand-centered events. In heteroleptic (bpy)₂Ru(II)L-type systems, the carbene-containing L ligand did not participate in the ligand-centered redox events and, accordingly, did not influence the corresponding reduction potentials. In contrast, the modest redox-active nature of carbenes manifested in negative reduction potentials in the ligand-centered redox events of homoleptic complexes.

We also thoroughly analyzed the electron density difference distributions and atom/fragment condensed spin density values corresponding to the S₀ to ³MLCT electronic transition and the redox events of the reductive quenching cycle of representative systems. Amongst other details, the characteristic nature of MLCT transition, metal-centered reduction, and ligand-centered oxidation can be clearly witnessed in these ∆ρ(r) maps. The localization of the ligand-centered redox events to bipyridine and terpyridine was revealed for the heteroleptic (bpy)₂Ru(II)L-type systems. The analysis of the ³MLCT to ³MC transitions also exposed characteristic differences between carbene and pyridine groups; in contrast to Ru–N, the strong Ru–C_carbene bonds did not elongate from ³MLCT to ³MC transitions. The latter interactions, however, induced an easier Ru–N stretching in trans positions which eventually led to a more stable 3MC state and lowered activation barriers in homoleptic carbene complexes. Finally, NCI analysis showed specific weak intra-ligand interactions, including π–π stacking and C–H⋯arbene ones.
