Remote Sens. 2017, 9(7), 702; doi:10.3390/rs9070702

Estimating Mangrove Canopy Height and Above-Ground Biomass in the Everglades National Park with Airborne LiDAR and TanDEM-X Data

Department of Marine Geosciences, University of Miami—Rosenstiel School of Marine and Atmospheric Science, 4600 Rickenbacker Causeway, Miami, FL 33149, USA
NASA Goddard Space Flight Center, Biospheric Sciences Laboratory, 8800 Greenbelt Road, Greenbelt, MD 20771, USA
Universities Space Research Association, 7178 Columbia Gateway Dr., Columbia, MD 21046, USA
Department of Earth and Environment, Florida International University, 11200 SW 8th Street, AHC5-388, Miami, FL 33199, USA
Department of Environmental Science, Policy and Management, University of California, 130 Mulford Hall #3114 Berkeley, Berkeley, CA 94720, USA
Department of Geographical Sciences, University of Maryland, 2181 Samuel J. LeFrak Hall, 7251 Preinkert Dr., College Park, MD 20742, USA
Author to whom correspondence should be addressed.
Received: 1 June 2017 / Revised: 29 June 2017 / Accepted: 4 July 2017 / Published: 7 July 2017
(This article belongs to the Section Forest Remote Sensing)
View Full-Text   |   Download PDF [10278 KB, uploaded 10 July 2017]   |

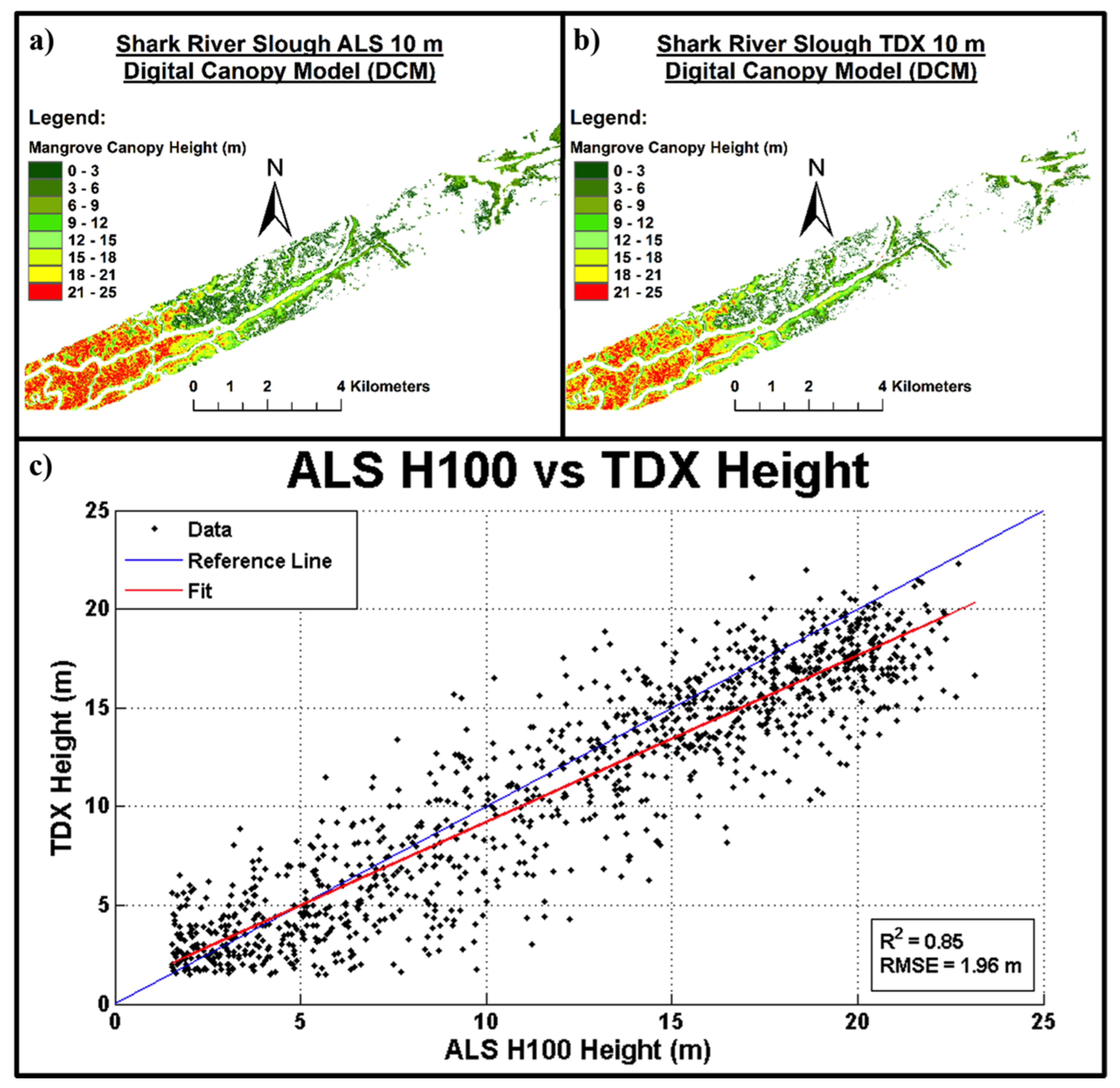

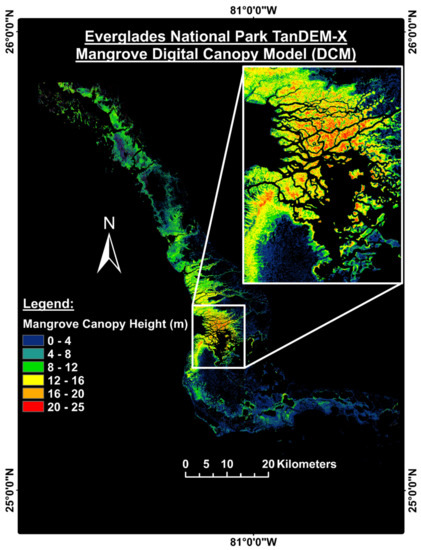

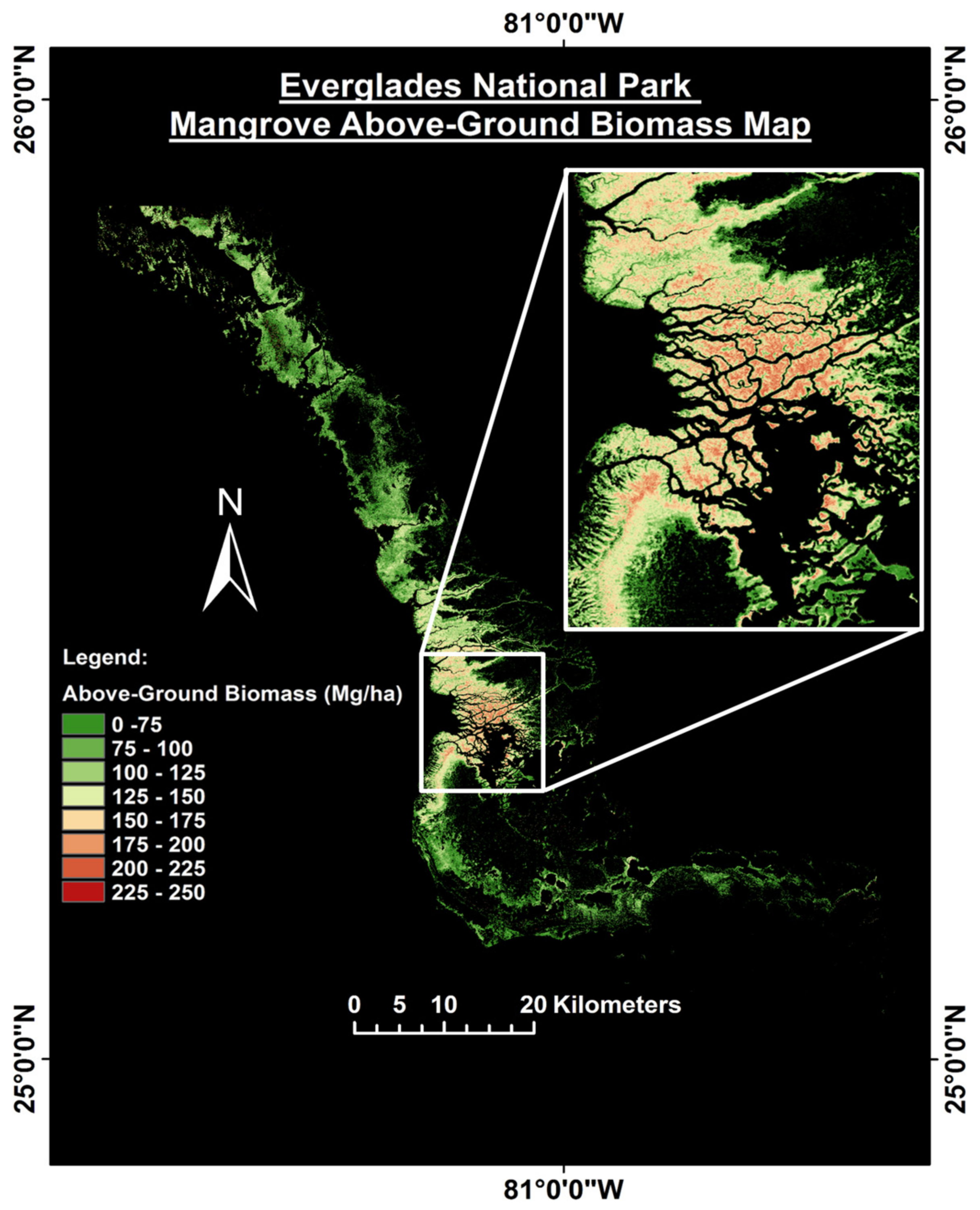

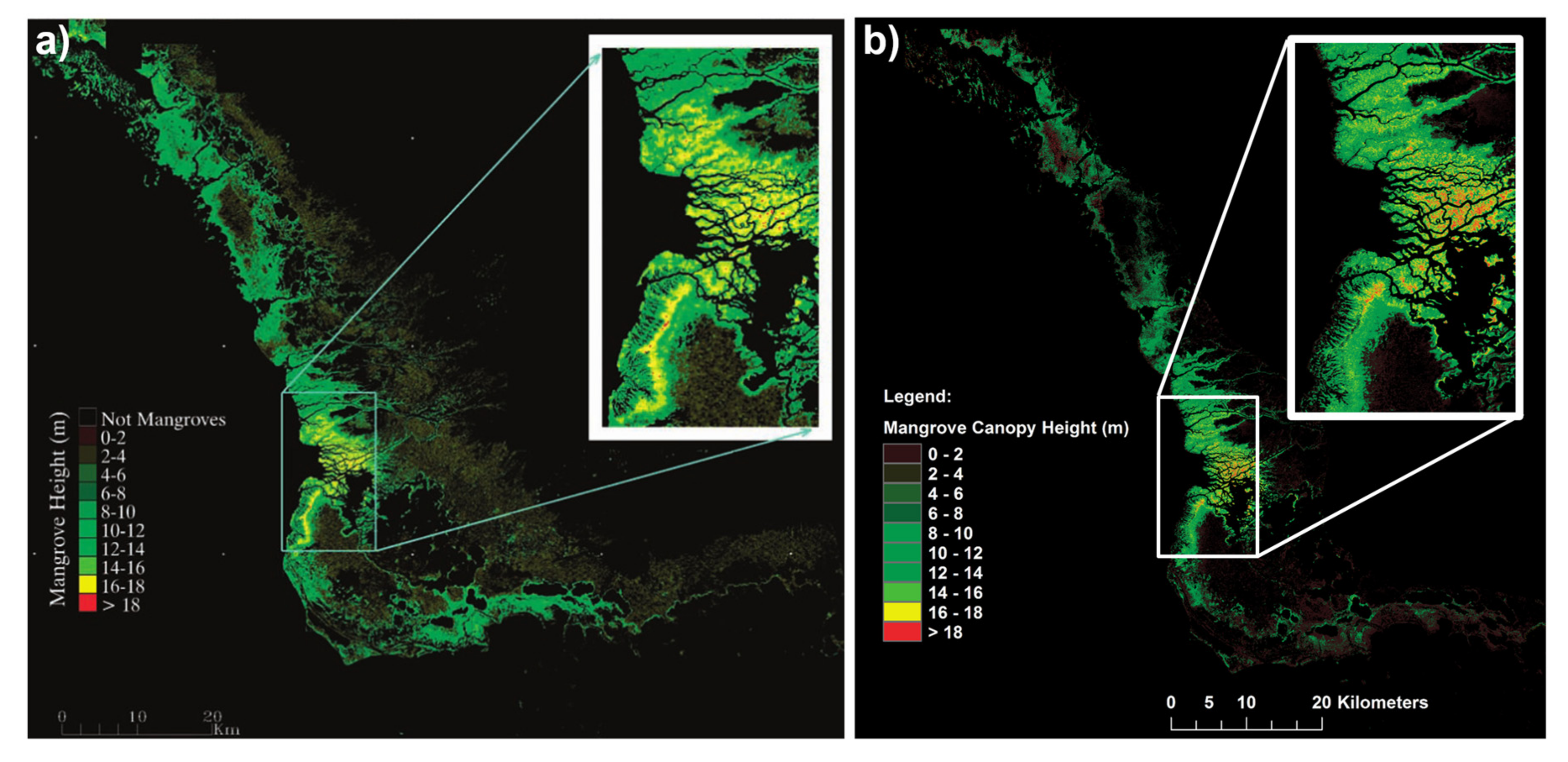

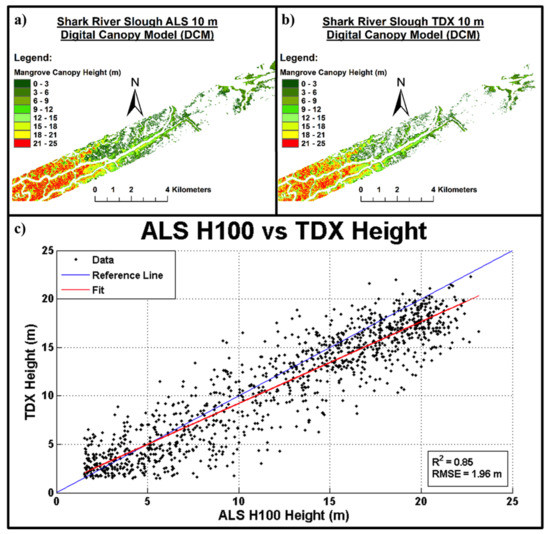

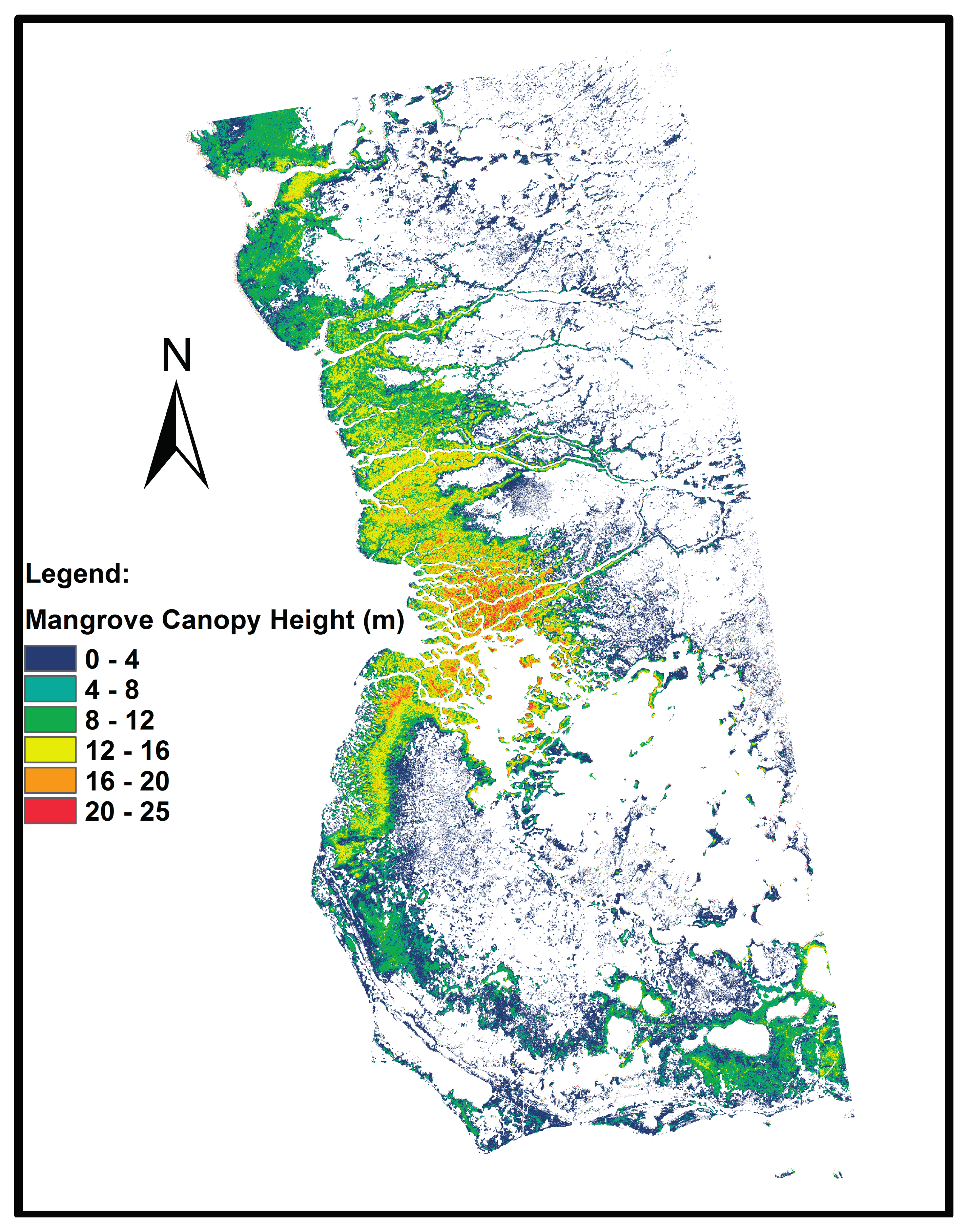

Mangrove forests are important natural ecosystems due to their ability to capture and store large amounts of carbon. Forest structural parameters, such as canopy height and above-ground biomass (AGB), provide a good measure for monitoring temporal changes in carbon content. The protected coastal mangrove forest of the Everglades National Park (ENP) provides an ideal location for studying these processes, as harmful human activities are minimal. We estimated mangrove canopy height and AGB in the ENP using Airborne LiDAR/Laser (ALS) and TanDEM-X (TDX) datasets acquired between 2011 and 2013. Analysis of both datasets revealed that mangrove canopy height can reach up to ~25 m and AGB can reach up to ~250 Mg•ha−1. In general, mangroves ranging from 9 m to 12 m in stature dominate the forest canopy. The comparison of ALS and TDX canopy height observations yielded an R2 = 0.85 and Root Mean Square Error (RMSE) = 1.96 m. Compared to a previous study based on data acquired during 2000–2004, our analysis shows an increase in mangrove stature and AGB, suggesting that ENP mangrove forests are continuing to accumulate biomass. Our results suggest that ENP mangrove forests have managed to recover from natural disturbances, such as Hurricane Wilma. View Full-Text
Keywords: mangroves; LiDAR; TanDEM-X; canopy height; above-ground biomass; forest structure mangroves; LiDAR; TanDEM-X; canopy height; above-ground biomass; forest structure

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
