Remote Sens. 2017, 9(4), 347; doi:10.3390/rs9040347

An Analysis of the Discrepancies between MODIS and INSAT-3D LSTs in High Temperatures

1
Faculty of Geography, Department of Remote Sensing and GIS, University of Tehran, Tehran, Iran
2
Center for Urban and Environmental Change, Department of Earth and Environmental Systems, Indiana State University, Terre Haute, IN 47809, USA
*
Author to whom correspondence should be addressed.
Academic Editors: Yuhong He, Zhaoliang Li and Prasad S. Thenkabail
Received: 17 December 2016 / Revised: 30 March 2017 / Accepted: 1 April 2017 / Published: 5 April 2017
View Full-Text   |   Download PDF [6257 KB, uploaded 5 April 2017]   |

Abstract

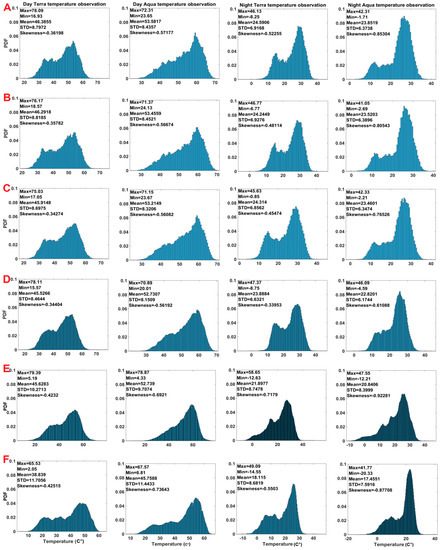

In many disciplines, knowledge on the accuracy of Land Surface Temperature (LST) as an input is of great importance. One of the most efficient methods in LST evaluation is cross validation. Well-documented and validated polar satellites with a high spatial resolution can be used as references for validating geostationary LST products. This study attempted to investigate the discrepancies between a Moderate Resolution Imaging Spectro-radiometer (MODIS) and Indian National Satellite (INSAT-3D) LSTs for high temperatures, focusing on six deserts with sand dune land cover in the Middle East from 3 March 2015 to 24 August 2016. Firstly, the variability of LSTs in the deserts of the study area was analyzed by comparing the mean, Standard Deviation (STD), skewness, minimum, and maximum criteria for each observation time. The mean value of the LST observations indicated that the MYD-D observation times are closer to those of diurnal maximum and minimum LSTs. At all times, the LST observations exhibited a negative skewness and the STD indicated higher variability during times of MOD-D. The observed maximum LSTs from MODIS collection 6 showed higher values in comparison with the last versions of LSTs for hot spot regions around the world. After the temporal, spatial, and geometrical matching of LST products, the mean of the MODIS—INSAT LST differences was calculated for the study area. The results demonstrated that discrepancies increased with temperature up to +15.5 K. The slopes of the mean differences were relatively similar for all deserts except for An Nafud, suggesting an effect of View Zenith Angle (VZA). For modeling the discrepancies between two sensors in continuous space, the Diurnal Temperature Cycles (DTC) of both sensors were constructed and compared. The sample DTC models approved the results from discrete LST subtractions and proposed the uncertainties within MODIS DTCs. The authors proposed that the observed LST discrepancies in high temperatures could be the result of inherent differences in LST retrieval algorithms. View Full-Text
Keywords: land surface temperature; geostationary satellite; polar satellite; Diurnal Temperature Cycle; desert land surface temperature; geostationary satellite; polar satellite; Diurnal Temperature Cycle; desert
Figures

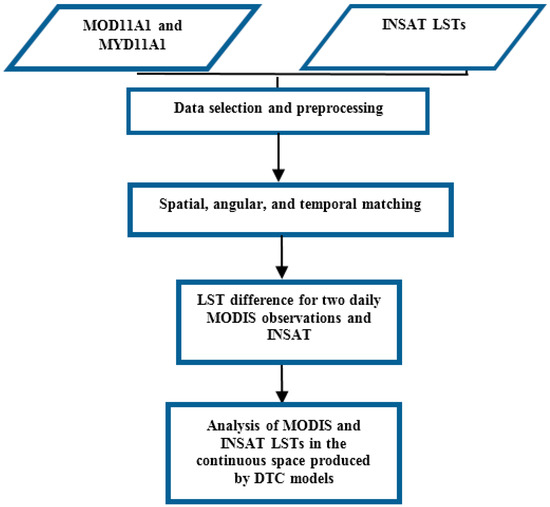

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
