Open AccessArticle
Remote Sens. 2017, 9(2), 186; doi:10.3390/rs9020186

Accuracy Assessment of Digital Surface Models from Unmanned Aerial Vehicles’ Imagery on Glaciers

1
Swiss Federal Institute for Forest, Snow and Landscape Research WSL, CH-8903 Birmensdorf, Switzerland
2
Laboratory of Hydraulics, Hydrology and Glaciology (VAW), ETH Zurich, CH-8093 Zurich, Switzerland
*
Author to whom correspondence should be addressed.
Academic Editors: Farid Melgani, Francesco Nex, Norman Kerle and Prasad Thenkabail
Received: 30 November 2016 / Revised: 14 February 2017 / Accepted: 16 February 2017 / Published: 22 February 2017
(This article belongs to the Special Issue Recent Trends in UAV Remote Sensing)
View Full-Text   |   Download PDF [5369 KB, uploaded 23 February 2017]   |

Abstract

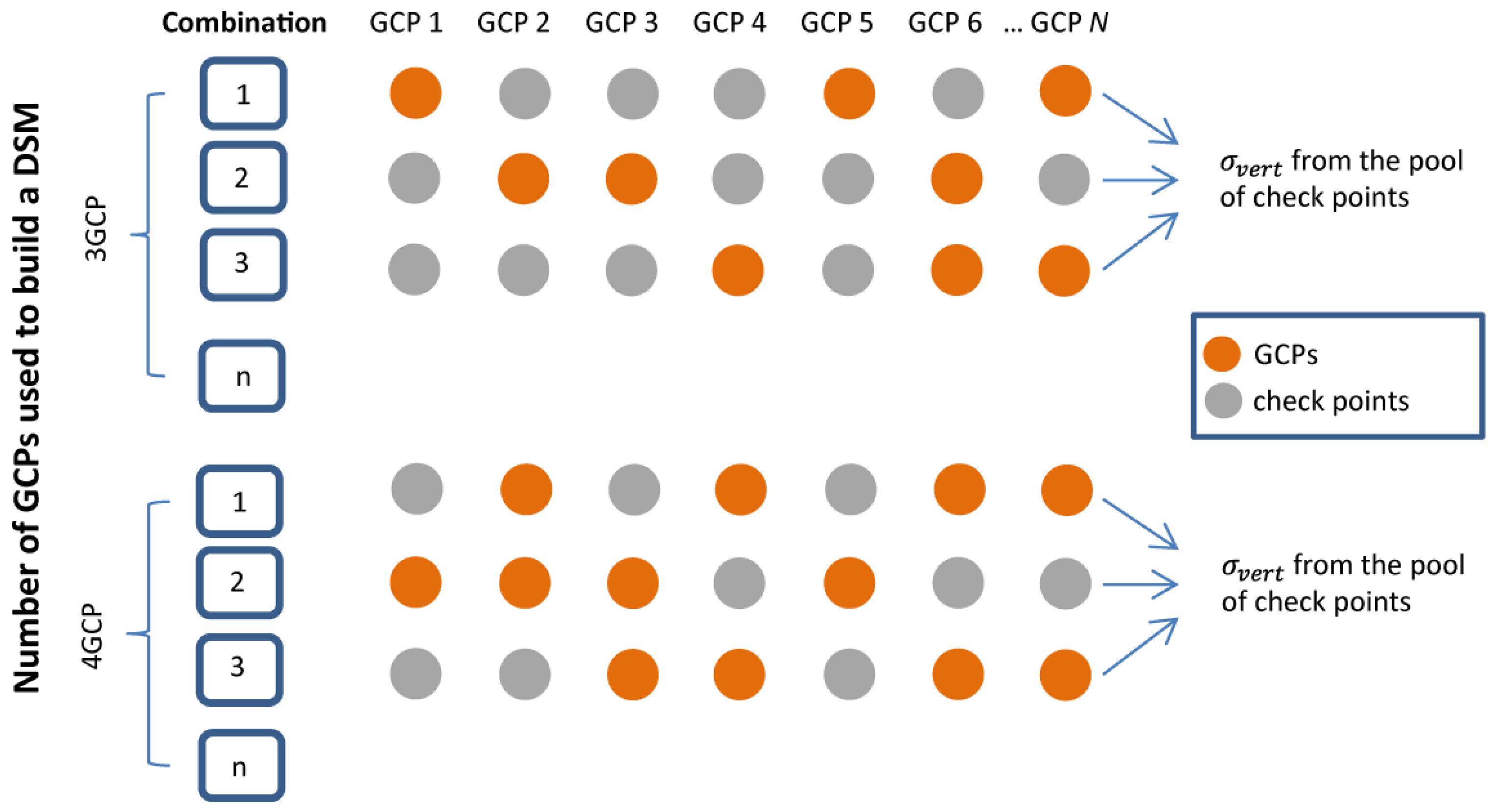

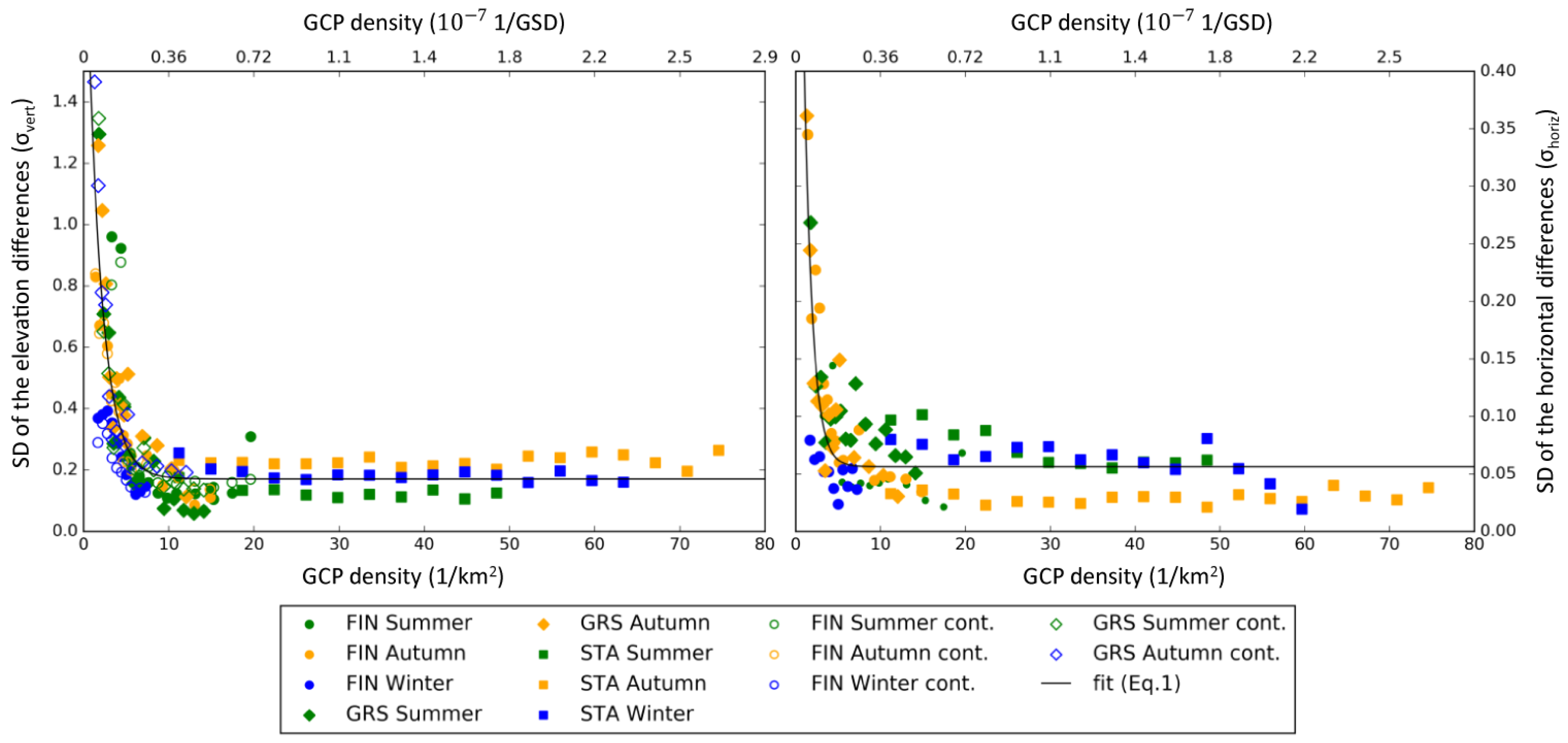

The use of Unmanned Aerial Vehicles (UAV) for photogrammetric surveying has recently gained enormous popularity. Images taken from UAVs are used for generating Digital Surface Models (DSMs) and orthorectified images. In the glaciological context, these can serve for quantifying ice volume change or glacier motion. This study focuses on the accuracy of UAV-derived DSMs. In particular, we analyze the influence of the number and disposition of Ground Control Points (GCPs) needed for georeferencing the derived products. A total of 1321 different DSMs were generated from eight surveys distributed on three glaciers in the Swiss Alps during winter, summer and autumn. The vertical and horizontal accuracy was assessed by cross-validation with thousands of validation points measured with a Global Positioning System. Our results show that the accuracy increases asymptotically with increasing number of GCPs until a certain density of GCPs is reached. We call this the optimal GCP density. The results indicate that DSMs built with this optimal GCP density have a vertical (horizontal) accuracy ranging between 0.10 and 0.25 m (0.03 and 0.09 m) across all datasets. In addition, the impact of the GCP distribution on the DSM accuracy was investigated. The local accuracy of a DSM decreases when increasing the distance to the closest GCP, typically at a rate of 0.09 m per 100-m distance. The impact of the glacier’s surface texture (ice or snow) was also addressed. The results show that besides cases with a surface covered by fresh snow, the surface texture does not significantly influence the DSM accuracy. View Full-Text
Keywords: UAV photogrammetry; glacier; unmanned aerial vehicle; accuracy assessment; digital surface models UAV photogrammetry; glacier; unmanned aerial vehicle; accuracy assessment; digital surface models
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Gindraux, S.; Boesch, R.; Farinotti, D. Accuracy Assessment of Digital Surface Models from Unmanned Aerial Vehicles’ Imagery on Glaciers. Remote Sens. 2017, 9, 186.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
